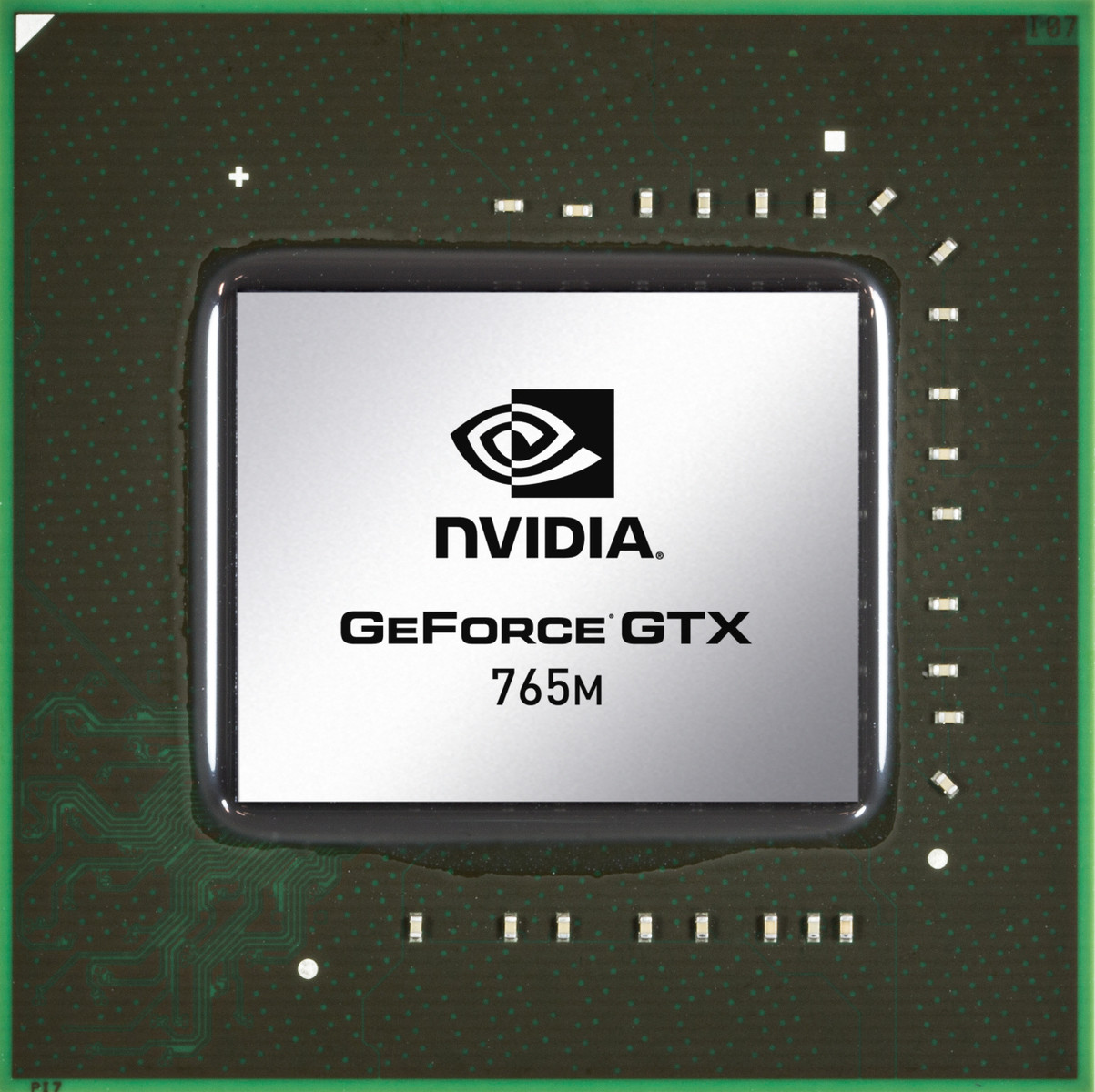

NVIDIA GeForce GTX 765M

The NVIDIA GeForce GTX 765M is an upper mid-range DirectX 11-compatible graphics card for laptops. Compared to the GTX 760M, the 765M offers a higher core clock rate from the same GK106 architecture.

As a novelty, the GeForce 700M series implements GPU Boost 2.0 to automatically overclock the core clock rate. Depending on the cooling headroom provided by the laptop and the application or game, up to 15 % performance gains are possible.

Architecture
The Kepler architecture is the successor to the Fermi architecture that first appeared in laptops with the GeForce 400M series. The GK106 Kepler core offers five shader blocks, called SMX, that are clocked at the same speed as the central core. In the GTX 765M, four blocks are active for a total of 768 CUDA cores. Although the Kepler architecture can utilize more shader cores than a Fermi chip, its shaders can be up to twice as power efficient. However, due to the missing hot clock of the shader domain, two shaders of a Kepler chip are of similar speed to one shader of a Fermi chip (as the latter is clocked twice as fast).

PCIe 3.0 is now supported by the mobile Kepler series and an optional Turbo mode can automatically overclock the Nvidia card by a theoretical 15 percent if the laptop cooling system allows it. The implementation of this boost mode is done in the BIOS, but it is ultimately dependent upon the manufacturer of the laptop.

Performance
The graphics performance of the GeForce GTX 765M is clearly above the GTX 660M thanks to the higher amount of shaders. The maximum performance may differ a bit depending on the cooling solution of the laptop due to better utilization of GPU Boost 2.0 on laptops with more effective cooling solutions. In our tests the average performance of the GTX 765M was above the older GTX 670MX. Demanding games like Metro: Last Light, Crysis 3, Far Cry 3 or even SimCity were playable in 1366x768 pixels and high detail settings at fluent frame rates. Older and less demanding games like Star Craft 2 however were playable in Full HD with all settings set to max.

Features
The feature set of the GTX 765M is identical to the GTX 670MX as both are based on the same GK106 core. Therefore the GPU supports up to 4 active displays. Furthermore, high resolution monitors of up to 3840x2160 pixels can now be connected using DisplayPort 1.2 or HDMI 1.4a if available. HD-Audio codecs, such as Dolby TrueHD and DTS-HD, can be transmitted via bitstream mode through the HDMI port. However, as most laptops will feature Optimus, the integrated GPU will likely have direct control over the display ports and may limit the feature set available by the Nvidia Kepler cards.

The 5th generation PureVideo HD video processor (VP5) is also integrated in the GK104 core and offers hardware decoding of HD videos. Common codecs such as MPEG-1/2, MPEG-4 ASP, H.264 and VC1/WMV9 are fully supported up to 4K resolutions while VC1 and MPEG-4 are supported up to 1080p. Two streams can be decoded in parallel for features such as Picture-in-Picture. Finally, the dedicated video encoding engine called NVENC API similar to Intel QuickSync is integrated in the chip.

The power consumption of the GeForce GTX 765M should be between 50 and 75 Watt (similar to the 660M and 670MX, respectively, according to rumors) and is therefore best suited for large notebooks (15-inches or greater) and desktop replacements.

Manufacturer

NVIDIA

GeForce GTX 700M Series

GeForce GTX 780M SLI	3072 @ 823 MHz	2x 256 Bit @ 5000 MHz
GeForce GTX 770M SLI	1920 @ 811 MHz	2x 192 Bit @ 4000 MHz
GeForce GTX 780M	1536 @ 823 MHz	256 Bit @ 5000 MHz
GeForce GTX 765M SLI	1536 @ 850 MHz	2x 128 Bit @ 4000 MHz
GeForce GTX 775M	1344 @ 719 MHz	256 Bit @ 3600 MHz
GeForce GTX 770M	960 @ 811 MHz	192 Bit @ 4000 MHz
GeForce GTX 765M	768 @ 850 MHz	128 Bit @ 4000 MHz
GeForce GTX 760M	768 @ 657 MHz	128 Bit @ 4000 MHz

Codename

N14-GE

Architecture

Kepler

Pipelines

768 - unified

Core Speed *

850 MHz

Memory Speed *

4000 MHz

Memory Bus Width

128 Bit

Memory Type

GDDR5

Max. Amount of Memory

2048 MB

Shared Memory

DirectX

DirectX 11, Shader 5.0

Power Consumption

60-65 Watt

Transistors

3540 Million

technology

28 nm

Features

Optimus, SLI, PhysX, Verde Drivers, CUDA, 3D Vision, 3DTV Play

Notebook Size

large

Date of Announcement

30.05.2013

* The specified clock rates are only guidelines for the manufacturer and can be altered by them.

Benchmarks

Cinebench R15
Ref. Match 64Bit +

OpenGL 64Bit +

GFXBench (DX / GLBenchmark) 2.7
T-Rex HD Offscreen C24Z16 1920x1080 +

T-Rex HD Onscreen C24Z16 +

3DMark - Fire Strike Graphics 1920x1080

100%

min: 2301 avg: 2481.3 (6%) median: 2479 (6%) max: 2768 Points

+ 11 benchmarks and specifications + Show comparison chart

3DMark - Fire Strike Score 1920x1080

100%

min: 2191 avg: 2479.1 (11%) median: 2362 (10%) max: 4206 Points

+ 13 benchmarks and specifications + Show comparison chart

3DMark - Cloud Gate Standard Graphics 1280x720

100%

min: 16372 avg: 17467.6 (11%) median: 17616 (11%) max: 18494 Points

+ 11 benchmarks and specifications + Show comparison chart

3DMark - Cloud Gate Standard Score 1280x720

100%

min: 9207 avg: 12195 (25%) median: 12408 (25%) max: 13312 Points

+ 12 benchmarks and specifications + Show comparison chart

3DMark - Ice Storm Extreme Graphics 1920x1080

100%

min: 90142 avg: 93188.5 (13%) median: 93188.5 (13%) max: 96235 Points

+ 2 benchmarks and specifications + Show comparison chart

3DMark - Ice Storm Standard Graphics 1280x720

100%

min: 73111 avg: 110193 (15%) median: 115632 (15%) max: 155159 Points

+ 11 benchmarks and specifications + Show comparison chart

Unigine Heaven 3.0 - OpenGL, Normal Tessellation, High Shaders 1920x1080

100%

min: 27.3 avg: 27.3 (25%) median: 27.3 (25%) max: 27.3 fps

+ 1 benchmarks and specifications + Show comparison chart

Unigine Heaven 3.0 - DX 11, Normal Tessellation, High Shaders 1920x1080

100%

min: 34.3 avg: 35.5 (13%) median: 35.8 (13%) max: 36.3 fps

+ 6 benchmarks and specifications + Show comparison chart

ComputeMark v2.1 - Normal, Score 1024x600

100%

min: 2400 avg: 2400 (11%) median: 2400 (11%) max: 2400 Points

+ 1 benchmarks and specifications + Show comparison chart

LuxMark v2.0 64Bit - Room GPUs-only

100%

min: 266 avg: 282.7 (5%) median: 289 (5%) max: 293 Samples/s

+ 3 benchmarks and specifications + Show comparison chart

LuxMark v2.0 64Bit - Sala GPUs-only

100%

min: 476 avg: 506.7 (5%) median: 517 (5%) max: 527 Samples/s

+ 3 benchmarks and specifications + Show comparison chart

3DMark 11 - Performance GPU 1280x720

100%

min: 3565 avg: 3949.5 (8%) median: 4019 (8%) max: 4136 points

+ 13 benchmarks and specifications - Hide comparison chart

Intel Graphics Media Accelerator (GMA) 3600

...

NVIDIA Quadro K4000M -12%

AMD Radeon R7 M275DX -10%

NVIDIA GeForce GT 650M SLI -9%

NVIDIA GeForce GTX 670MX -9%

NVIDIA Quadro K3100M -9%

NVIDIA GeForce GTX 560M SLI -8%

AMD Radeon R9 M370X -8%

AMD Radeon R8 M445DX -5%

NVIDIA Quadro M620 -4%

NVIDIA GeForce GTX 765M

NVIDIA GeForce GTX 675MX 1%

NVIDIA GeForce GTX 560 Ti 2%

NVIDIA GeForce GTX 470M SLI 3%

AMD FirePro W5170M 6%

AMD Radeon HD 6870 7%

NVIDIA GeForce GTX 480M SLI 7%

NVIDIA Quadro M1000M 7%

NVIDIA GeForce GTX 470 9%

NVIDIA GeForce GTX 850M 10%

...

NVIDIA GeForce GTX 1070 SLI (Laptop) 1016%

100%

3DMark 11 - Performance 1280x720

100%

min: 3953 avg: 4146.1 (14%) median: 4083 (14%) max: 4320 points

+ 13 benchmarks and specifications + Show comparison chart

3DMark Vantage
P GPU no PhysX 1280x1024 +

P Result 1280x1024 +

3DMark 06 Standard 1280x1024 +

3DMark 05 - Standard 1024x768

100%

min: 22174 avg: 24437 (52%) median: 24437 (52%) max: 26700 Points

+ 2 benchmarks and specifications + Show comparison chart

3DMark 03 - Standard 1024x768

100%

min: 43937 avg: 43937 (24%) median: 43937 (24%) max: 43937 Points

+ 1 benchmarks and specifications + Show comparison chart

Unigine Heaven 2.1 - high, Tesselation (normal), DirectX11 1280x1024

100%

min: 44.1 avg: 48.2 (21%) median: 49.6 (22%) max: 50.7 fps

+ 6 benchmarks and specifications + Show comparison chart

PCMark Vantage - Gaming Score 1024x768

100%

min: 6115 avg: 17477.4 (57%) median: 18289 (60%) max: 20685 Points

+ 12 benchmarks and specifications + Show comparison chart

SPECviewperf 11
Siemens NX 1920x1080 +

Tcvis 1920x1080 +

SolidWorks 1920x1080 +

Pro/ENGINEER 1920x1080 +

Maya 1920x1080 +

Lightwave 1920x1080 +

Ensight 1920x1080 +

Catia 1920x1080 +

Cinebench R11.5 OpenGL 64Bit +

Cinebench R10 Shading 32Bit +

- Range of benchmark values for this graphics card

- Average benchmark values for this graphics card

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailled information on the benchmark results, click on the fps number.

Battlefield Hardline

2015

100.6 fps + Compare

72.4 fps + Compare

34.2 fps + Compare

20.7 fps + Compare

» With all tested laptops playable in detail settings med..

Evolve

2015

62.1 fps + Compare

46.1 fps + Compare

24.9 fps + Compare

21.8 fps + Compare

» With all tested laptops playable in detail settings med..

The Crew

2014

60 fps + Compare

59.4 fps + Compare

30.4 fps + Compare

18.2 fps + Compare

» With all tested laptops playable in detail settings med..

Dragon Age: Inquisition

2014

77.8 fps + Compare

54.5 fps + Compare

Model	CPU	Memory	Core / Memory	GPU Memory	Value
XMG C703	4700HQ	8192 MB	850 / 1000 MHz	2048MB DirectX 11, GDDR5 311.83	99.6
Erazer X7611-MD98543	4700HQ	16384 MB	850 / 1000 MHz	2048MB DirectX 11, GDDR5 nvlddmkm 9.18.13.3182 (ForceWare 331.82)	99.6

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Erazer X7611-MD98543	4700HQ	16384 MB	850 / 1000 MHz	2048MB DirectX 11, GDDR5 nvlddmkm 9.18.13.3182 (ForceWare 331.82)	87.2
XMG C703	4700HQ	8192 MB	850 / 1000 MHz	2048MB DirectX 11, GDDR5 311.83	88.32
P35K	4700HQ				95.99

Model	CPU	Memory	Core / Memory	GPU Memory	Value
C-Klasse 5 i7 17FHD	4900MQ	24576 MB	850-902 / 1000 MHz	2048MB ForceWare 311.27	83
G750JW	4700HQ	12288 MB	797 / 1002 MHz	2048MB 320.21	266
K33-3E	4702MQ	8192 MB	NVIDIA: 850 MHz, Intel: 400-1150 / NVIDIA: 1.002 MHz, Intel: 800 MHz	NVIDIA: 2.048 MB, Intel: sharedMB NVIDIA: Kepler, 28 nm, GDDR5, 768 Pipelines, DirectX 11, Shader 5.0, GPU Boost 2.0; Intel HD Graphics 4600: 22 nm, 20 Pipelines, DirectX 11.1, Shader 5.0 NVIDIA: 9.18.13.1154 (ForceWare 311.54), Intel: 9.18.10.3131	273

Model	CPU	Memory	Core / Memory	GPU Memory	Value
C-Klasse 5 i7 17FHD	4900MQ	24576 MB	850-902 / 1000 MHz	2048MB ForceWare 311.27	38
K33-3E	4702MQ	8192 MB	NVIDIA: 850 MHz, Intel: 400-1150 / NVIDIA: 1.002 MHz, Intel: 800 MHz	NVIDIA: 2.048 MB, Intel: sharedMB NVIDIA: Kepler, 28 nm, GDDR5, 768 Pipelines, DirectX 11, Shader 5.0, GPU Boost 2.0; Intel HD Graphics 4600: 22 nm, 20 Pipelines, DirectX 11.1, Shader 5.0 NVIDIA: 9.18.13.1154 (ForceWare 311.54), Intel: 9.18.10.3131	60

Model	CPU	Memory	Core / Memory	GPU Memory	Value
GS70-65M21621	4700HQ	16384 MB	850 / 1000 MHz	2048MB DirectX 11, GDDR5 311.70	2301
XMG C703	4700HQ	8192 MB	850 / 1000 MHz	2048MB DirectX 11, GDDR5 311.83	2349
GE60H-i765M2811B	4700MQ	8192 MB	850 / 1000 MHz	2048MB GDDR5 ForceWare 312.29	2360
Blade 14 inch	4702HQ	8192 MB	850 / 1000 MHz	2048MB GDDR5 Forceware 311.54	2397
14	4700MQ	8192 MB	850 / 2000 MHz	2048MB GDDR5 ForceWare 311.48	2399
W503	4800MQ	16384 MB	850 / 2004 MHz	2048MB GDDR5 ForceWare 311.27	2479
GE70-i765M287	4700MQ	8192 MB	850 / 1000 MHz	2048MB DirectX 11, GDDR5 311.48	2520
XMG A523	4700MQ	8192 MB	850 / 2000 MHz	2048MB GDDR5 ForceWare 311.27	2523
K33-3E	4702MQ	8192 MB	NVIDIA: 850 MHz, Intel: 400-1150 / NVIDIA: 1.002 MHz, Intel: 800 MHz	NVIDIA: 2.048 MB, Intel: sharedMB NVIDIA: Kepler, 28 nm, GDDR5, 768 Pipelines, DirectX 11, Shader 5.0, GPU Boost 2.0; Intel HD Graphics 4600: 22 nm, 20 Pipelines, DirectX 11.1, Shader 5.0 NVIDIA: 9.18.13.1154 (ForceWare 311.54), Intel: 9.18.10.3131	2560
G750JW	4700HQ	12288 MB	797 / 1002 MHz	2048MB 320.21	2638
XMG A503	4300M	8192 MB	850 / 2000 MHz	2048MB GDDR5 ForceWare 327.23	2768
