Intel Arc A370M
The Intel Arc A370M is a dedicated mobile entry level graphics card for laptops based on Xe HPG microarchitecture. It uses the ACM-G11 chip and offers all 8 Xe-cores (128 ALUs), 8 ray tracing units and a 64-bit memory bus for 4 GB GDDR6 graphics memory. The chip integrates 7.2 billion transistors and the die measures 157 mm2.

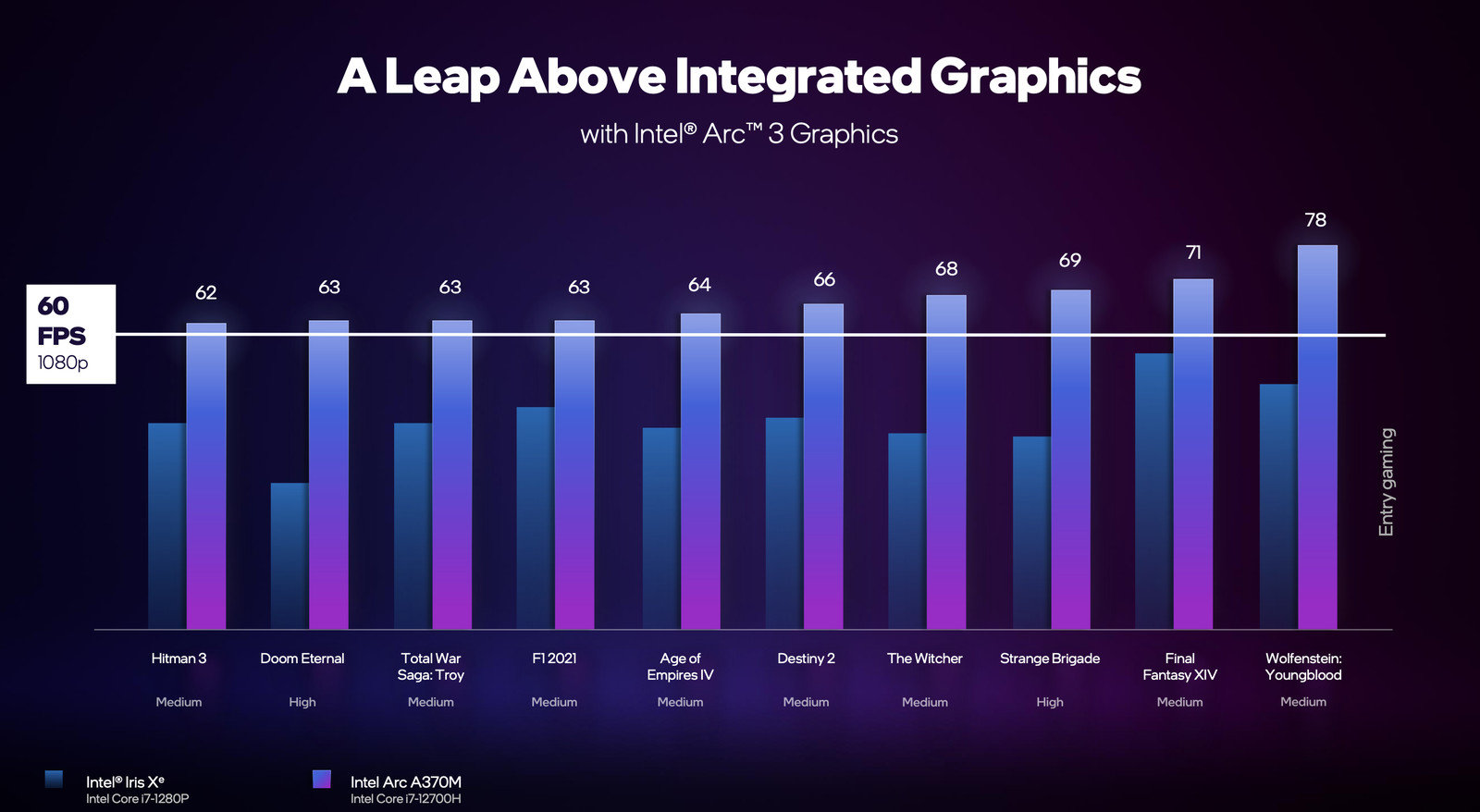

The performance is in the entry level of dedicated graphics cards for laptops in 2022. AMD did publish some gaming benchmarks with medium settings in 5 games that showed that the Radeon RX 6500M is clearly faster. Intel only compared the A370M (with a faster CPU) to the slower Iris iGPU in the i7-1280P (see below). Thanks to the additional 2 cores and higher clock speeds, the entry level Arc A350M should be clearly left behind.
The chip also integrates two media engines for VP9, AVC, HEVC, and AV1 8k en- and decoding. The 4 display pipes support up to 4x 4k120 HDR via DMI 2.0B or DisplayPort 2.0 10G.
The A370M is produced in 6nm at TSMC (N6 process) and supports dynamic power share (using Deep Link) with 12th gen Intel CPUs (Alder Lake).
Arc Series A770M 32 @ 1.65 GHz 256 Bit @ 16000 MHz A730M 24 @ 1.1 GHz 192 Bit @ 14000 MHz A550M 16 @ 0.9 GHz 128 Bit @ 14000 MHz A370M 8 @ 1.55 GHz 64 Bit @ 14000 MHz A350M 6 @ 1.15 GHz 64 Bit @ 14000 MHz
Codename Alchemist Architecture Xe HPG Pipelines 8 - unified Raytracing Cores 8 Core Speed 1550 MHz Cache L1: 1.5 MB, L2: 4 MB Memory Speed 14000 MHz Memory Bus Width 64 Bit Memory Type GDDR6 Max. Amount of Memory 4 GB Shared Memory no Memory Bandwidth 112 GB/s API DirectX 12_2, OpenGL 4.6, Vulkan 1.3 Power Consumption 50 Watt (35 - 50 Watt TGP) Transistor Count 7.2 Billion Die Size 157 mm² technology 6 nm PCIe 4 8x Displays 4 Displays (max.), HDMI 2.0b, DisplayPort 2.0 10G Ready Date of Announcement 30.03.2022 Link to Manufacturer Page https://www.intel.com/content/www/us/en/...
Benchmarks 3DMark - 3DMark Time Spy Score
min: 3505 avg: 4023 median: 4255 (13%) max: 4308 Points
GPU TDP ? TDP 35 W TDP 45 W 100% 99% 81%
...
...
3DMark - 3DMark Time Spy Graphics
min: 3167 avg: 3650 median: 3885 (10%) max: 3899 Points
GPU TDP ? TDP 35 W TDP 45 W 100% 100% 81%
...
...
3DMark - 3DMark Cloud Gate Score
min: 27250 avg: 28035 median: 28128 (30%) max: 28727 Points
GPU TDP ? TDP 35 W TDP 45 W 98% 100% 95%
...
...
3DMark - 3DMark Cloud Gate Graphics
min: 33721 avg: 36141 median: 35604 (9%) max: 39098 Points
GPU TDP ? TDP 35 W TDP 45 W 86% 100% 91%
...
...
3DMark - 3DMark Fire Strike Standard Score
min: 7699 avg: 7735 median: 7717 (2%) max: 7789 Points
GPU TDP ? TDP 35 W TDP 45 W 99% 100% 99%
...
...
3DMark - 3DMark Fire Strike Standard Graphics
min: 8015 avg: 8157 median: 8149 (9%) max: 8307 Points
GPU TDP ? TDP 35 W TDP 45 W 96% 100% 98%
...
...
3DMark 11 - 3DM11 Performance Score
min: 12308 avg: 12610 median: 12621 (18%) max: 12902 Points
GPU TDP ? TDP 35 W TDP 45 W 100% 98% 95%
...
...
3DMark 11 - 3DM11 Performance GPU
min: 11748 avg: 12136 median: 12322 (11%) max: 12338 Points
GPU TDP ? TDP 35 W TDP 45 W 100% 100% 95%
...
...
SPECviewperf 13 specvp13 sw-04 + SPECviewperf 13 - specvp13 sw-04
60.4 fps (19%)
...
...
specvp13 snx-03 + SPECviewperf 13 - specvp13 snx-03
2 fps (0%)
...
specvp13 showcase-02 + SPECviewperf 13 - specvp13 showcase-02
30.2 fps (7%)
...
...
specvp13 medical-02 + SPECviewperf 13 - specvp13 medical-02
28 fps (11%)
...
...
specvp13 maya-05 + SPECviewperf 13 - specvp13 maya-05
75.1 fps (9%)
...
...
specvp13 energy-02 + SPECviewperf 13 - specvp13 energy-02
3.9 fps (2%)
...
...
specvp13 creo-02 + SPECviewperf 13 - specvp13 creo-02
61.1 fps (10%)
...
...
specvp13 catia-05 + SPECviewperf 13 - specvp13 catia-05
85.8 fps (10%)
...
...
specvp13 3dsmax-06 + SPECviewperf 13 - specvp13 3dsmax-06
62.7 fps (11%)
...
...
SPECviewperf 2020 v1 specvp2020 solidworks-05 1080p + SPECviewperf 2020 v1 - specvp2020 solidworks-05 1080p
20.9 fps (4%)
...
specvp2020 snx-04 1080p + SPECviewperf 2020 v1 - specvp2020 snx-04 1080p
1.9 fps (0%)
...
specvp2020 medical-03 1080p + SPECviewperf 2020 v1 - specvp2020 medical-03 1080p
13.1 fps (19%)
...
specvp2020 energy-03 1080p + SPECviewperf 2020 v1 - specvp2020 energy-03 1080p
3.9 fps (5%)
...
specvp2020 catia-06 1080p + SPECviewperf 2020 v1 - specvp2020 catia-06 1080p
15.7 fps (13%)
...
specvp2020 3dsmax-07 1080p + SPECviewperf 2020 v1 - specvp2020 3dsmax-07 1080p
20.3 fps (10%)
...
...
Cinebench R15 Cinebench R15 OpenGL 64 Bit + Cinebench R15 - Cinebench R15 OpenGL 64 Bit
min: 125.4 avg: 148.3 median: 129.1 (33%) max: 190.4 fps
GPU TDP ? TDP 35 W TDP 45 W 100% 66% 68%
...
...
Cinebench R15 OpenGL Ref. Match 64 Bit + Cinebench R15 - Cinebench R15 OpenGL Ref. Match 64 Bit
97.8 % (98%)
GPU TDP ? TDP 35 W TDP 45 W 100% 100% 100%
...
...
Power Consumption - Furmark Stress Test Power Consumption - external Monitor *
min: 57.7 avg: 68.1 median: 58.8 (8%) max: 87.7 Watt
GPU TDP ? TDP 35 W TDP 45 W 100% 105% 105%
...
...
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 Tooltip Acer Swift X SFX16-52G-77RX: Ø57.7 (51.4-83.7)
Acer Swift X SFX16-52G-52VE: Ø58.8 (53.5-76)
Asus ZenBook Flip 15 Q539ZD: Ø87.7 (85.4-92.8)
Power Consumption - The Witcher 3 Power Consumption - external Monitor *
min: 61.3 avg: 70.4 median: 65 (9%) max: 85 Watt
GPU TDP ? TDP 35 W TDP 45 W 100% 103% 104%
...
...
0 10 20 30 40 50 60 70 80 90 100 Tooltip Acer Swift X SFX16-52G-52VE: Ø61.3 (56.7-75.4)
Acer Swift X SFX16-52G-77RX: Ø65 (60.7-101.5)
Asus ZenBook Flip 15 Q539ZD: Ø85 (81.4-100.8)
Power Consumption - Witcher 3 Power Consumption *
min: 65 avg: 73.1 median: 68.8 (15%) max: 85.6 Watt
GPU TDP ? TDP 35 W TDP 45 W 100% 105% 106%
...
...
0 10 20 30 40 50 60 70 80 90 100 Tooltip Acer Swift X SFX16-52G-52VE: Ø65 (60-77.7)
Acer Swift X SFX16-52G-77RX: Ø68.8 (63.6-91)
Asus ZenBook Flip 15 Q539ZD: Ø85.6 (82.7-107.3)
Power Consumption - Witcher 3 ultra Power Efficiency
min: 0.3014 avg: 0.4 median: 0.4 (40%) max: 0.3846 Points per Watt
GPU TDP ? TDP 35 W TDP 45 W 78% 99% 100%
...
...
Power Consumption - Witcher 3 ultra Power Efficiency - external Monitor
min: 0.3035 avg: 0.4 median: 0.4 (39%) max: 0.4078 Points per Watt
GPU TDP ? TDP 35 W TDP 45 W 74% 99% 100%
...
...
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
Game Benchmarks The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.
...
...
...
» With all tested laptops playable in detail settings ultra.
...
...
...
...
...
...
...
...
...
» With all tested laptops playable in detail settings high.
...
...
...
...
...
...
...
...
» With all tested laptops playable in detail settings ultra.
...
...
...
...
...
...
...
» With all tested laptops playable in detail settings med..
Additional Benchmarks
Low Preset 1280x720
...
...
...
...
...
...
...
...
...
» With all tested laptops playable in detail settings ultra.
0 100 200 Tooltip Swift X SFX16-52G-77RX: Ø45.5 (30.596-228)
...
...
0 Tooltip Swift X SFX16-52G-77RX: Ø35.7 (29.108-55.3)
...
...
0 100 Tooltip Swift X SFX16-52G-77RX: Ø32.3 (23.227-164.9)
...
...
0 Tooltip Swift X SFX16-52G-77RX: Ø23.9 (15.231-53.8)
...
