Intel Arc B390 12 Xe3 Panther Lake iGPU

Intel Arc B390 Panther Lake iGPU

The Intel Arc B390 (or Arc Pro B390) Panther Lake iGPU with 12 Xe3 cores is the most powerful integrated graphics card in the Intel Panther Lake SoC series with 12 Xe3 cores. The 12 cores result in 96 CUs and 1,536 ALUs. So far, most of the information is only based on rumors and leaks. However, initial benchmarks show a significant increase in performance compared to the Intel Arc 140T in Arrow Lake.

Intel itself states that the Panther Lake iGPU offers >50% performance compared to Lunar Lake (Intel Arc 140V) and >40% performance / watt compared to Arrow Lake H (Intel Arc 140T). This means that the current RDNA 3.5 iGPU from AMD (AMD Radeon 890M in Strix Point APUs) should be clearly outperformed. However, it will probably remain behind Strix Halo (AMD Radeon 8050S).

Furthermore, the performance will depend heavily on the cooling and the guaranteed TDP. However, the performance should also be sufficient for playable frame rates in low settings for demanding games such as Anno 117 or The Outer Worlds 2.

The new media engine now supports AV1 encode and decode, VVC decode, AVC 10-bit and eDP 1.5.

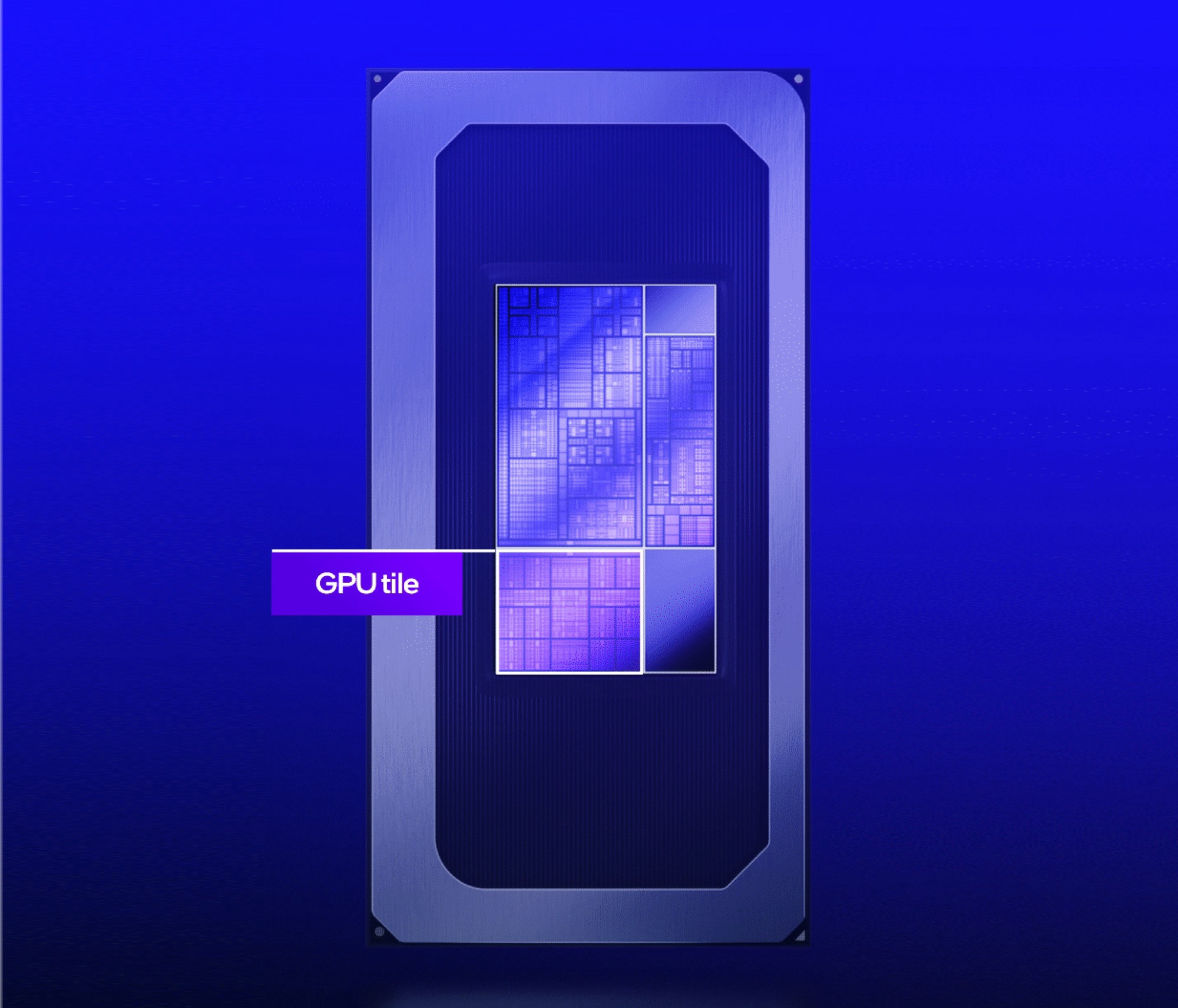

The GPU chiplet is produced at TSMC in the modern N3E 3nm process.

CodenamePanther Lake iGPU
Pipelines96 - unified
Raytracing Cores12
Core Speed2500 (Boost) MHz
AI GPU122 TOPS INT8
CacheL2: 16 MB
Shared Memoryyes
APIDirectX 12_2, OpenGL 4.6, OpenCL 3.0
technology3 nm
Displays4 Displays (max.), HDMI 2.1 FRL, DisplayPort 2.1 UHBR20
Date of Announcement05.01.2026
CPU in Arc B390 Panther Lake iGPUGPU Base SpeedGPU Boost / Turbo
Intel Core Ultra X9 388H16 x 1600 MHz, 25 W? MHz2500 MHz
Intel Core Ultra X7 368H16 x 1600 MHz, 25 W? MHz2500 MHz
Intel Core Ultra X7 358H16 x 1500 MHz, 25 W? MHz2500 MHz
min. - max.? MHz2500 MHz

Benchmarks

3DMark - 3DMark Steel Nomad Light
6000 Points (14%)
Restrict / Search: Model: Max. age: years
3DMark - 3DMark Time Spy Graphics
min: 6233     avg: 6511     median: 6300 (13%)     max: 7000 Points
Restrict / Search: Model: Max. age: years
- Range of benchmark values
red legend - Average benchmark values
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

F1 25

F1 25

2025
high 1920x1080
92  fps    + Compare
» With all tested laptops playable in detail settings high.
Additional Benchmarks
Ultra High Preset 16xAF TAA 1920x1080
28
med. 1920x1080
63.2  fps    + Compare
ultra 1920x1080
44.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
50.1  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
66  fps    + Compare
» With all tested laptops playable in detail settings ultra.
lowmed.highultraQHD4K
F1 2592
Cyberpunk 207763.1844.8
Baldur's Gate 350.1
Shadow of the Tomb Raider66
lowmed.highultraQHD4K
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps





1


1

2
1






For more games that might be playable and a list of all games and graphics cards visit our Gaming List
