Assassin's Creed Unity Benchmarked

Fun or an imposition? Assassin's Creed Unity is yet another entry in the never-ending list of unfinished games. High demands on the hardware combined with technical bugs are a constant source of aggravation. We'll try to determine just how powerful a notebook has to be to handle this game.

Florian Glaser, ✓ Stefanie Voigt (translated by Bernie Pechlaner), Published 11/23/2014 🇩🇪

For the original German article, see here.

Graphics

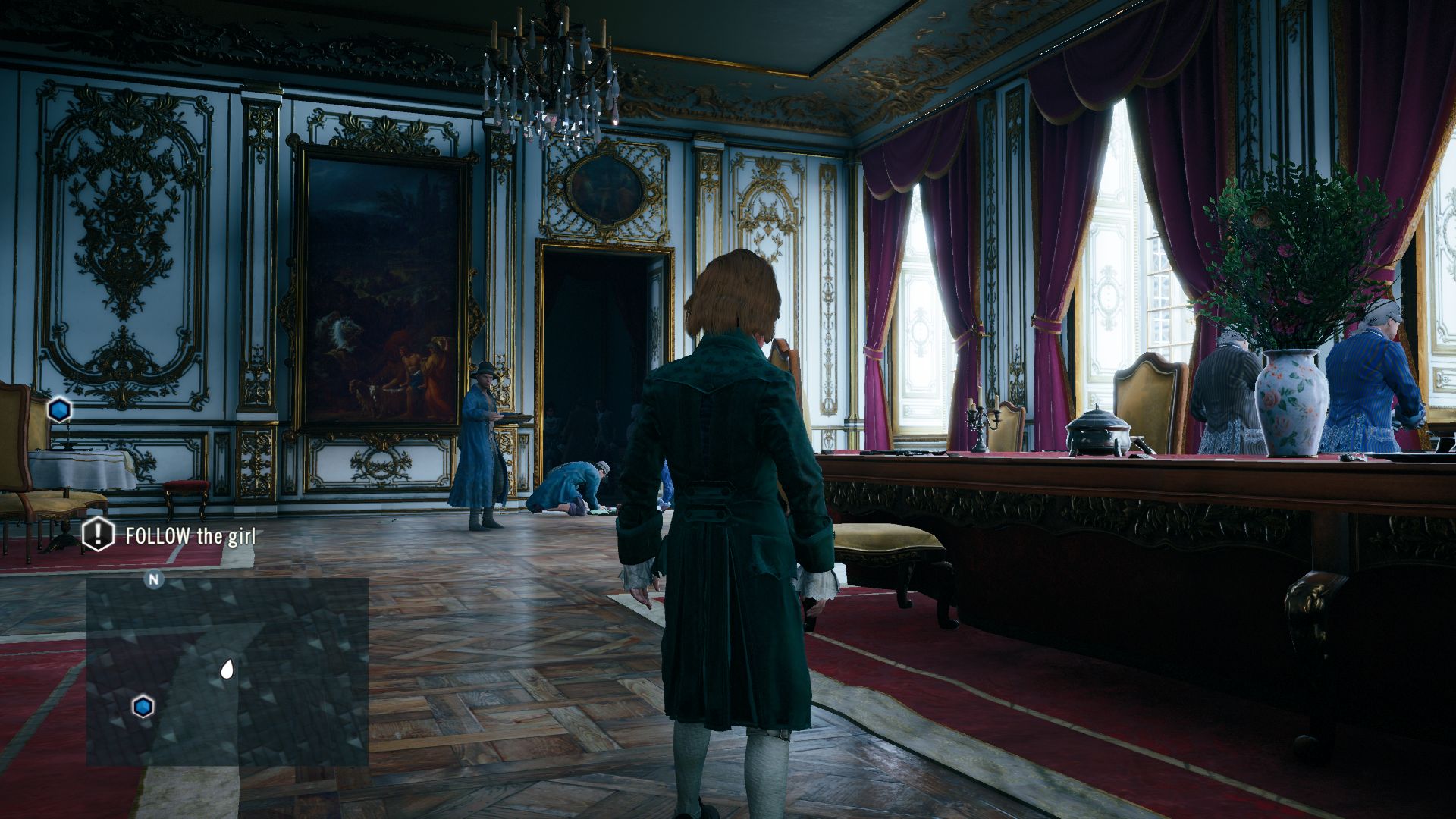

Visually, Assassin's Creed Unity is definitely one of the best-looking titles for PCs we have come across in recent years. While some FPS games like Crysis 3, Battlefield 4 or Metro: Last Light have textures that are sharper still, Unity does look impressive for a third-person shooter game. One of the positive aspects is the richness of the details, as hardly any other current game is based on such an affectionately constructed and believable world. In almost any corner, there are nice decorative items (plants, furniture, etc.). Really impressive, for example, is the population density of virtual Paris. Because of all the fellow citizens, it never feels like you are stuck in a sterile "quarantine zone", which is an issue with some games. The visibility range of the new offshoot, combined with the freedom of movement inherent to the series, makes for a very satisfying ambiance.

Unfortunately, the game is still plagued by technical issues which mar the overall experience. One of the main problems, in our opinion, are the demands on the hardware. Even the official requirements allude to the fact that Assassin's Creed Unity needs plenty of CPU and GPU power: according to Ubisoft, it should be a potent quad-core CPU and a high-end GPU alongside 6-8 GB of RAM, 40 GB of hard drive space and 64-bit Windows with DirectX 11 support.

From a technical standpoint, it's an "all clear" for Intel CPUs: as long as the notebook in question contains at least a dual-core or quad-core processor with Turbo Boost and Hyper-Threading, the GPU and not the CPU is the limiting factor. A main point of criticism: Unity just doesn't seem like it's been optimized well. Even with a top-of-the-line GPU, the frame rates sometimes unexpectedly (and inexplicably) drop and game play stutters as a result. The performance, of course, depends on many factors: depending on the time of day (light and shadows), the toll on the GPU varies greatly. We were unable to achieve more than 100 fps, no matter which graphics card we tried.

At this time, AMD-equipped notebooks - see Assassin's Creed III – are heavily disadvantaged. Even in version 1.2.0 of the game, equivalent Nvidia GPUs are simply faster, especially at moderate settings (example: R9 M290X vs. GTX 870M). Not really surprising, given the fact that Unity was co-developed by Nvidia. The game does have a few interesting features like HBAO+ (ambient occlusion), PCSS+ (soft shadows) and TXAA (anti-aliasing), which also partially work with "foreign" hardware.

Let's revisit the performance one more time: Ubisoft is supposedly working on patches which will address the hardware requirements. This of course would mean that future benchmark results are not going to be comparable to our results here. We hope that Ubisoft will also fix the stability issues at the same time, since Unity crashed every once in a while on a few of our test systems.

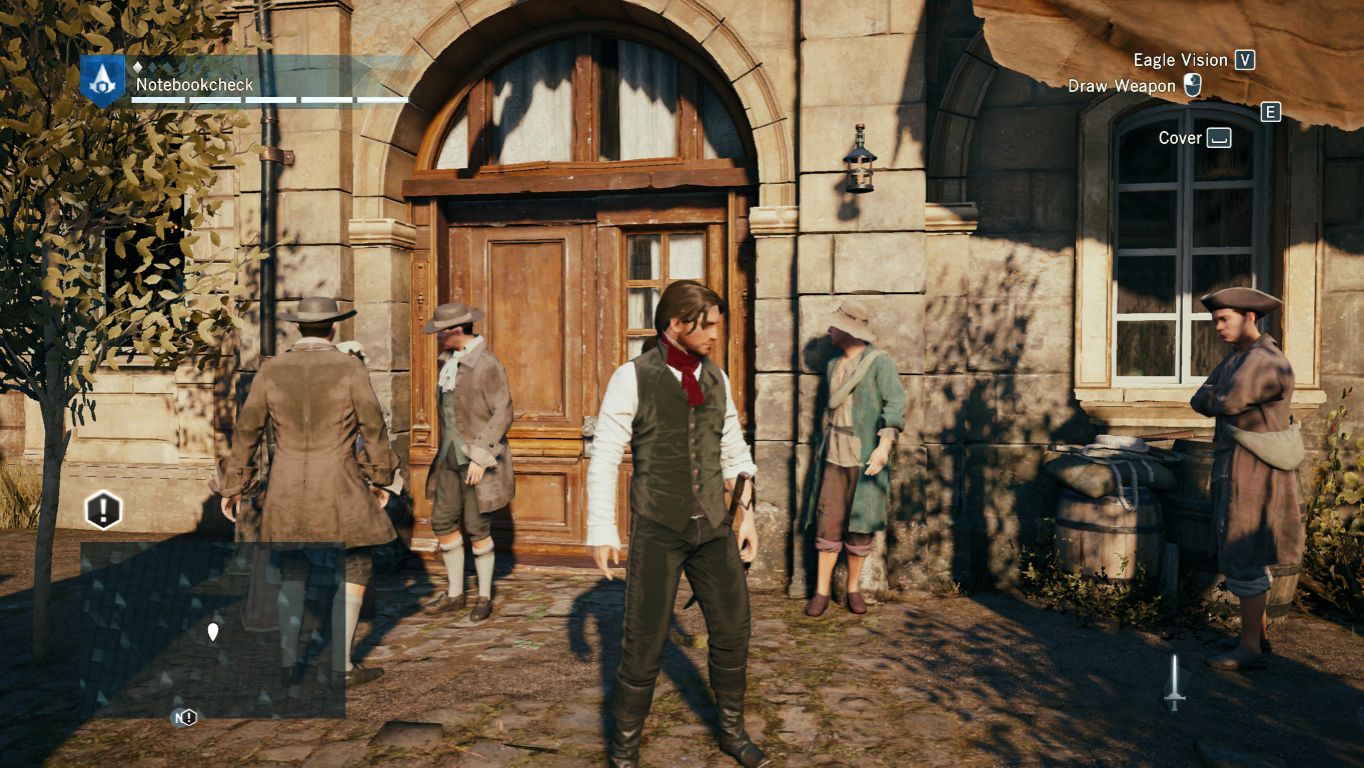

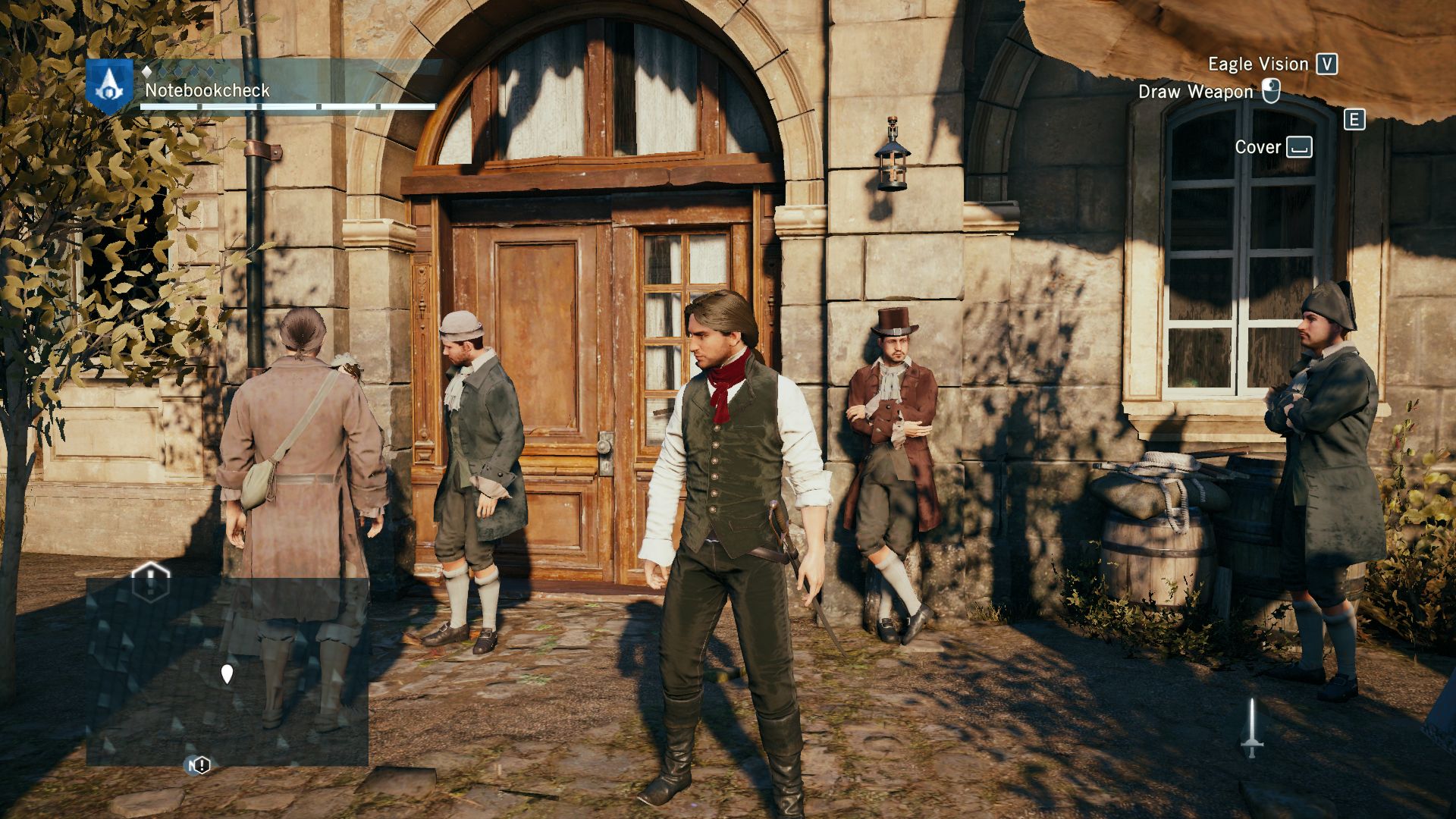

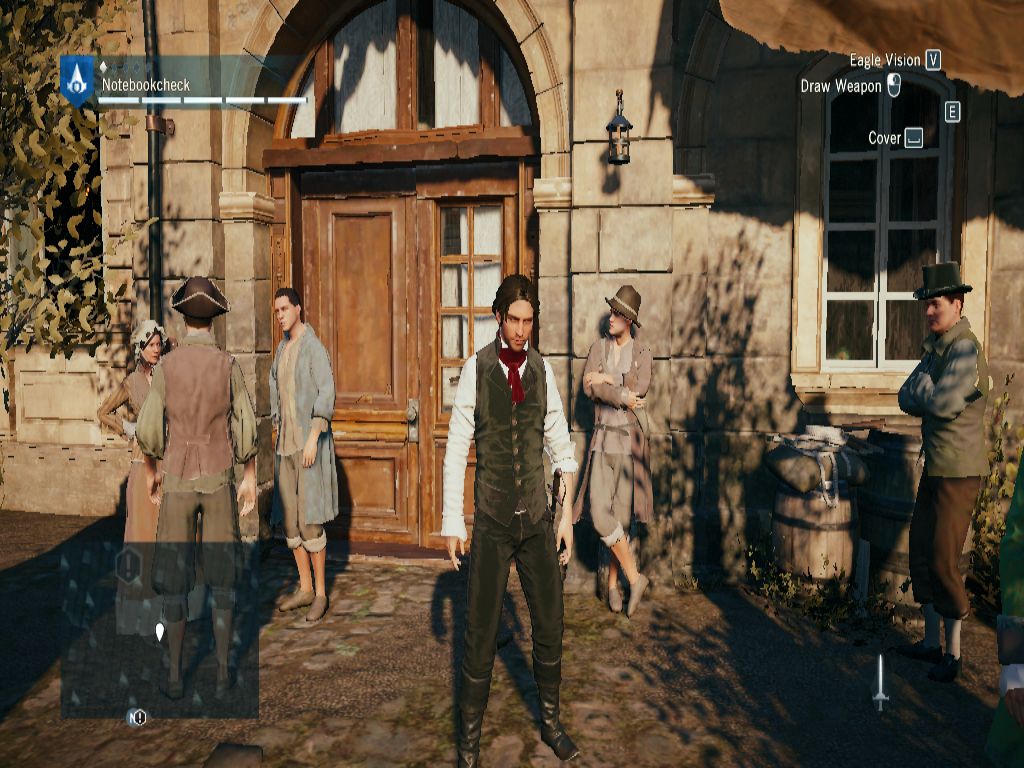

The graphics menu, on the other hand, is without faults. Even though there are only a handful of options in the »Advanced« section, these options do have a profound effect on the quality. For our benchmarks we use the presets »Low«, »Medium«, »High« and »Ultra High«, which all require a restart of the game. A tip for those who don't like to play at the native resolution, but find that the game won't use the entire desktop: in this case, switching to windowed mode and then back to full screen rectifies the situation. Game load times are a mixed bag: the main menu takes a while to appear, but during the game play itself we didn't experience any significant delays.

Benchmark

To determine the frame rate, we use our own benchmark sequence. After the main character gets his watch back following a chase conducted at breakneck speeds, we are able to freely wander around Paris for the first time. Not just because of the sheer number of characters, the 50-second run through the city (see the video) is pretty demanding, although some scenes require even more processing power.

Results

To get the most out of Assassin's Creed Unity, an absolute high-end system is required. None of the notebook systems we tested with allowed for a stutter-free game play when we used a resolution of 1920 x 1080 pixels, ultra-high details and 4x MSAA. It will probably take a GeForce GTX 970M or GTX 980M to achieve frame rates above 25 fps. A resolution of 1920 x 1080 pixels with the settings on »High« (2x MSAA) is still quite demanding - we would recommend at least a GeForce GTX 870M or the GTX 780M.NVIDIA GeForce GTX 980M

A true gaming notebook is required even for medium details and a resolution of 1366 x 768 pixels, as it takes at least a GeForce GTX 850M or GTX 765M to approach 30 fps. Owners of less powerful multimeda notebooks have to choose the preset »Low«. Graphics cards under the level of a GT 750M are simply not usable at all at any of the settings. Once Ubisoft has done some work optimizing the game, we expect Unity to run even on more entry-level notebooks.

Assassin's Creed Unity
1920x1080 Ultra High Graphics Quality AA:4x MS 1920x1080 High Graphics Quality AA:2x MS 1366x768 Medium Graphics Quality AA:FX 1024x768 Low Graphics Quality
GeForce GTX 980, 3770K Desktop-PC	43.6 (39^min) fps ∼79% 52.8 (46^min) fps ∼63% 70 (60^min) fps ∼60% 78.4 (67^min) fps ∼55%
Radeon R9 290X, 4790K, Intel SSD 530 Series SSDSC2BW240A Sapphire Radeon R9 290X Tri-X OC	31.9 (28^min) fps ∼58% 46 (40^min) fps ∼55% 67 (53^min) fps ∼58% 68 (55^min) fps ∼48%
GeForce GTX 880M, 4700MQ Schenker W504	23.9 (21^min) fps ∼43% 32.2 (28^min) fps ∼39% 58.3 (51^min) fps ∼50% 70.3 (60^min) fps ∼50%
Radeon R9 280X, 3770K Desktop-PC	23.8 (18^min) fps ∼43% 31.3 (23^min) fps ∼37% 43.6 (32^min) fps ∼38% 49.3 (36^min) fps ∼35%
GeForce GTX 780M, 4700MQ Schenker W503	21.1 (18^min) fps ∼38% 28.4 (24^min) fps ∼34% 52.5 (44^min) fps ∼45% 65.7 (54^min) fps ∼46%
GeForce GTX 870M, 4700MQ Schenker W504	18.8 (16^min) fps ∼34% 26.2 (23^min) fps ∼31% 51.3 (46^min) fps ∼44% 64.4 (56^min) fps ∼45%
Radeon R9 M290X, 4700MQ Schenker W504	18.1 (15^min) fps ∼33% 24.4 (20^min) fps ∼29% 39 (32^min) fps ∼34% 44.7 (35^min) fps ∼31%
GeForce GTX 770M, 4700MQ Schenker W503	14.3 (9^min) fps ∼26% 19.1 (16^min) fps ∼23% 36.1 (31^min) fps ∼31% 48.8 (42^min) fps ∼34%
GeForce GTX 860M, 4700MQ Schenker W504	13.1 (11^min) fps ∼24% 18.3 (15^min) fps ∼22% 36.2 (32^min) fps ∼31% 50.1 (42^min) fps ∼35%
GeForce GTX 850M, 4340M Schenker M504	9.6 (7^min) fps ∼17% 15 (11^min) fps ∼18% 31.1 (28^min) fps ∼27% 44.7 (39^min) fps ∼31%
GeForce GTX 765M, 4700MQ Schenker W503	8.8 (4^min) fps ∼16% 14.4 (12^min) fps ∼17% 28.8 (24^min) fps ∼25% 41.8 (36^min) fps ∼29%
GeForce GT 750M, 4702MQ Schenker M503	5.7 (4^min) fps ∼10% 8.7 (7^min) fps ∼10% 19.4 (17^min) fps ∼17% 27.4 (23^min) fps ∼19%
Radeon R7 512 Cores (Kaveri Desktop), A10-7850K, Samsung SSD 470 Series MZ-5PA256/EU A10-7850K Asus A88-XM-PLUS	16.9 (14^min) fps ∼15% 24.3 (19^min) fps ∼17%
GeForce GT 740M, 4200M HP Envy 15-j011sg	3.9 (2^min) fps ∼7% 5.8 (4^min) fps ∼7% 13.4 (12^min) fps ∼12% 20.1 (17^min) fps ∼14%
GeForce GT 640M, 2637M, Lite-On LMT-256M3M Acer Aspire M3-581TG	9.1 (4^min) fps ∼6%
GeForce GT 720M, 4200M, WDC Scorpio Blue WD10JPVX-22JC3T0 MSI CX61-i572M	10.1 (0^min) fps ∼9% 14.3 (0^min) fps ∼10%
HD Graphics 4600, 4700MQ Schenker W503	5.4 (2^min) fps ∼5% 8.5 (6^min) fps ∼6%
Iris Pro Graphics 5200, 4750HQ, Intel SSD 525 Series SSDMCEAC180B3 Schenker S413	8 (4^min) fps ∼6%
Radeon HD 8650G, A10-5750M, Samsung SSD 470 Series MZ-5PA256/EU Pumori Test Platform (A10-5750M)	14.2 (10^min) fps ∼10%
GeForce GT 630M, 3720QM, Seagate Momentus 7200.5 ST9750420AS Asus N56VM	11.6 (3^min) fps ∼8%

Test Systems

Four of our review notebooks are courtesy of Schenker Technologies:

W504 (Core i7-4700MQ, 8 GB DDR3, GeForce GTX 860M, GTX 870M, GTX 880M, Radeon R9 M290X)
W503 (Core i7-4700MQ, 8 GB DDR3, GeForce GTX 765M, GTX 770M, GTX 780M)
M504 (Core i5-4340M, 8 GB DDR3, GeForce GTX 850M)
M503 (Core i7-4702MQ, 8 GB DDR3, GeForce GT 750M)

All these notebooks feature Windows 7 64-bit.

Nvidia supplied the following systems:

HP Envy 15-j011sg (Core i5-4200M, 12 GB DDR3, GeForce GT 740M)
MSI CX61-i572M281BW7 (Core i5-4200M, 8 GB DDR3, GeForce GT 720M)
Acer Aspire Timeline Ultra M3-581TG (Core i7-2637M, 4GB DDR3, Geforce GT 640M)

One notebook is courtesy of Intel:

Schenker S413 (Core i7-4750HQ, 8 GB DDR3, Iris Pro Graphics 5200)

The desktop systems come with CPUs/APUs from Intel and AMD, Micron, Intel, and Samsung SSDs, motherboards from Intel and Asus, as well as GPUs from Nvidia and AMD.

GPU drivers: Nvidia 344.65, AMD 14.11.1 Beta, Intel 10.18.10.3960

Overview

Loading Comments

Comment on this article

Editor of the original article: Florian Glaser - Managing Editor Gaming Laptops - 568 articles published on Notebookcheck since 2009

I discovered my interest in computers in my childhood, growing up with MS-DOS and Windows 3.1 in the early 1990s. I was especially fascinated with computer games, even from an early age. From Monkey Island through Lands of Lore to Doom, I tried every game I could get my hands on. I have been working for Notebookcheck since 2009 with my focus mostly being on high-performance gaming laptops.

Translator: Bernie Pechlaner - Senior Tech Writer - 276 articles published on Notebookcheck since 2012

Ended up in the IT sector in the 90s more or less accidentally and have remained in the industry (as a sysadmin) ever since. Always been interested in laptops - first purchase was - if memory serves correctly - a Toshiba Satellite T2115CS with DX4-75 processor, 4 MB of RAM and 350 MB hard disk drive (and Windows 3.1). To this day, laptops appeal to me - much to the chagrin of my wife, who doesn’t seem understand why we need 5-10 of them at any given time ;-).

Please share our article, every link counts!

.170

> Notebook / Laptop Reviews and News > Reviews > Archive of our own reviews > Assassin's Creed Unity Benchmarked

Florian Glaser, 2014-11-23 (Update: 2021-05-18)

Pos	Model	< Prev Next > Assassin's Creed Unity (2014)
Pos	Model	low 1024x768 Low Graphics Quality	med. 1366x768 Medium Graphics Quality FXAA	high 1920x1080 High Graphics Quality 2x MSAA	ultra 1920x1080 Ultra High Graphics Quality 4x MSAA
140	NVIDIA GeForce GTX 980	78.4	70	0ⁿ⁴	0ⁿ⁴
150	NVIDIA GeForce GTX 980 (Laptop)	0ⁿ²	0ⁿ²	0ⁿ²	0ⁿ²
198	AMD Radeon R9 290X	68	67	46	31.9
205	NVIDIA GeForce GTX 980M	0ⁿ²	0ⁿ²	0ⁿ²	0ⁿ⁴
209	AMD Radeon R9 280X	49.3	43.6	31.3	23.8
211	NVIDIA GeForce GTX 960	97.1	75.8	47.4	21.3
220	NVIDIA GeForce GTX 970M	0ⁿ²	0ⁿ²	0ⁿ⁴	0ⁿ⁴
233	AMD Radeon R9 M295X	35.1	32.7	26.6	15.6
240	AMD Radeon R7 370	73.4	55.6	28.28	19.47
242	NVIDIA GeForce GTX 880M	70.3	58.3	32.2	23.9
244	NVIDIA GeForce GTX 950	99.8	68.3	41.2	18
251	NVIDIA GeForce GTX 780M	65.7	52.5	28.4	21.1
257	NVIDIA GeForce GTX 965M	54.9	42.4	29.5	0ⁿ³
261	NVIDIA GeForce GTX 870M	64.4	51.3	26.2	18.8
262	AMD Radeon R9 M290X	44.7	39	24.4	18.1
282	NVIDIA GeForce GTX 960M	0ⁿ³	0ⁿ³	0ⁿ³	0ⁿ³
306	NVIDIA GeForce GTX 770M	48.8	36.1	19.1	14.3
311	NVIDIA GeForce GTX 860M	0ⁿ²	0ⁿ²	0ⁿ²	0ⁿ²
319	NVIDIA GeForce GTX 950M	0ⁿ²	0ⁿ²	0ⁿ²	8.4
Pos	Model	< Prev Next >Assassin's Creed Unity
Pos	Model	low	med.	high	ultra
326	NVIDIA GeForce GTX 850M	0ⁿ³	0ⁿ³	0ⁿ³	0ⁿ³
330	AMD Radeon R9 M280X	22.7	20.6	14.7
335	NVIDIA GeForce 945M	44.8	30.1	18.1	12.4
337	NVIDIA GeForce GTX 765M	41.8	28.8	14.4	8.8
404	AMD Radeon R9 M265X	30.1	21	11.4
414	NVIDIA GeForce GT 750M	27.4	19.4	8.7	5.7
417	NVIDIA GeForce 940MX	29.4	17.9	12.1	8.3
421	NVIDIA GeForce 940M	0ⁿ²	0ⁿ²	11	7.8
431	AMD Radeon R9 M375	28.5
446	NVIDIA GeForce 840M	0ⁿ²	0ⁿ²	0ⁿ²	5.7
451	AMD Radeon R7 512 Cores (Kaveri Desktop)	24.3	16.9
452	Intel Iris Pro Graphics 5200	8
461	NVIDIA GeForce GT 740M	20.1	13.4	5.8	3.9
463	NVIDIA GeForce 930M	0ⁿ²
470	NVIDIA GeForce 830M	24.7	15.9	9.6	3.1
496	AMD Radeon R7 M260X	11.7	8.7
506	AMD Radeon R7 M265	17.3	12.9	8
511	NVIDIA GeForce GT 640M	9.1
518	AMD Radeon R7 M360	20	13.3	8.1	5.4
520	NVIDIA GeForce 920M	19.5	12.6	6.1	3.9
Pos	Model	< Prev Next >Assassin's Creed Unity
Pos	Model	low	med.	high	ultra
531	AMD Radeon R7 M260	19.2	12	7.8
613	AMD Radeon HD 8650G	14.2
618	NVIDIA GeForce GT 630M	11.6
622	AMD Radeon R5 M330	16.5	10.8
624	AMD Radeon R5 M255	8.3	6.1
628	NVIDIA GeForce 820M	15.1	9.7
632	NVIDIA GeForce GT 720M	14.3	10.1
634	AMD Radeon R5 M240	18.2	12
653	Intel HD Graphics 4600	0ⁿ²	0ⁿ²
655	Intel HD Graphics 5500	0ⁿ²	0ⁿ²	0ⁿ²	1.1
689	Intel HD Graphics 5000	5.4
726	Intel HD Graphics 4400	0ⁿ²	3.9
770	Intel HD Graphics 4000	3
777	AMD Radeon R4 (Beema)	7.1	4.6
779	AMD Radeon R3 (Mullins/Beema)	8	5.3
782	Intel HD Graphics 4200	3.3
962	Intel HD Graphics (Bay Trail)	4.3	2.4

Legend
5	Stutters – This game is very likely to stutter and have poor frame rates. Based on all known benchmarks using the specified graphical settings, average frame rates are expected to fall below 25fps
	May Stutter – This graphics card has not been explicitly tested on this game. Based on interpolated information from surrounding graphics cards of similar performance levels, stutters and poor frame rates are expected.
30	Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 25fps
40	Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 35fps
60	Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 58fps
	May Run Fluently – This graphics card has not been explicitly tested on this game. Based on interpolated information from surrounding graphics cards of similar performance levels, fluent frame rates are expected.
?	Uncertain – This graphics card experienced unexpected performance issues during testing for this game. A slower card may be able to achieve better and more consistent frame rates than this particular GPU running the same benchmark scene.
	Uncertain – This graphics card has not been explicitly tested on this game and no reliable interpolation can be made based on the performances of surrounding cards of the same class or family.
The value in the fields displays the average frame rate of all values in the database. Move your cursor over the value to see individual results.
