Intel Iris Pro Graphics 5200

The Intel Iris Pro Graphics 5200 (GT3 + eDRAM), also called the HD Graphics 5200, is a processor graphics card that is included in some of the Haswell processors of 2013 (e.g. Core i7-4750HQ). It represents the highest configuration of the integrated graphics unit (40 execution units) and also has an additional eDRAM cache (128 MB on-package, 77 mm², 102 GB/s). The base clock can be automatically overclocked using Turbo Boost technology. Depending on the processor model, the base and turbo clock rates may differ (usually up to 1200 - 1300 MHz), resulting in varying graphics performance between CPU models.

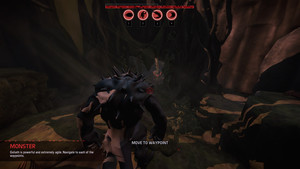

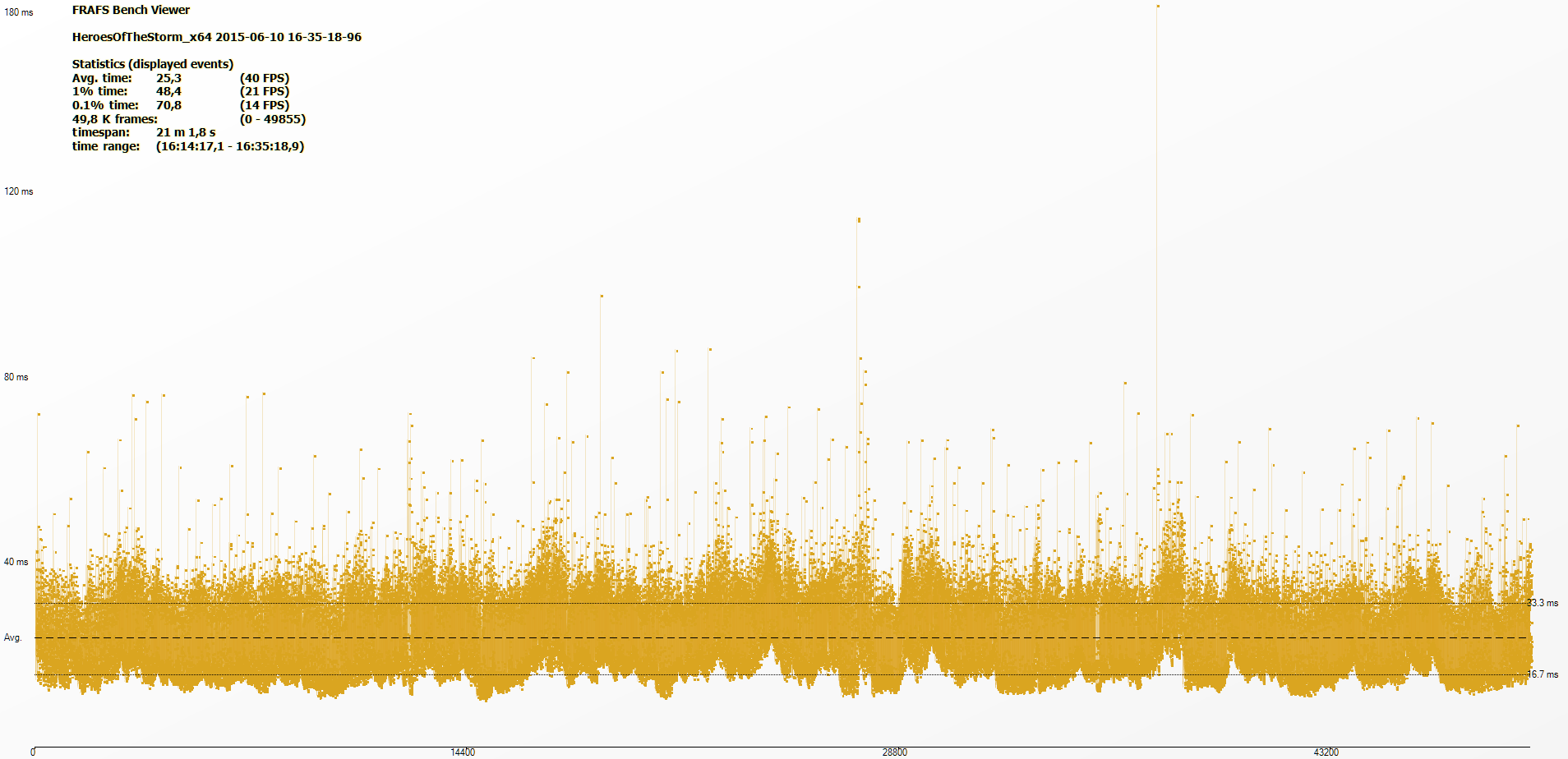

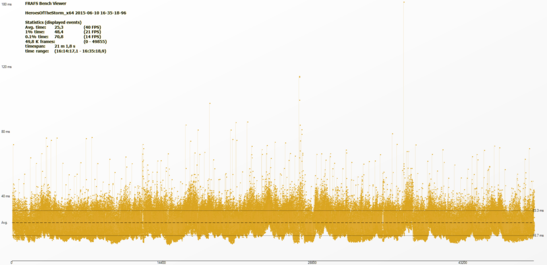

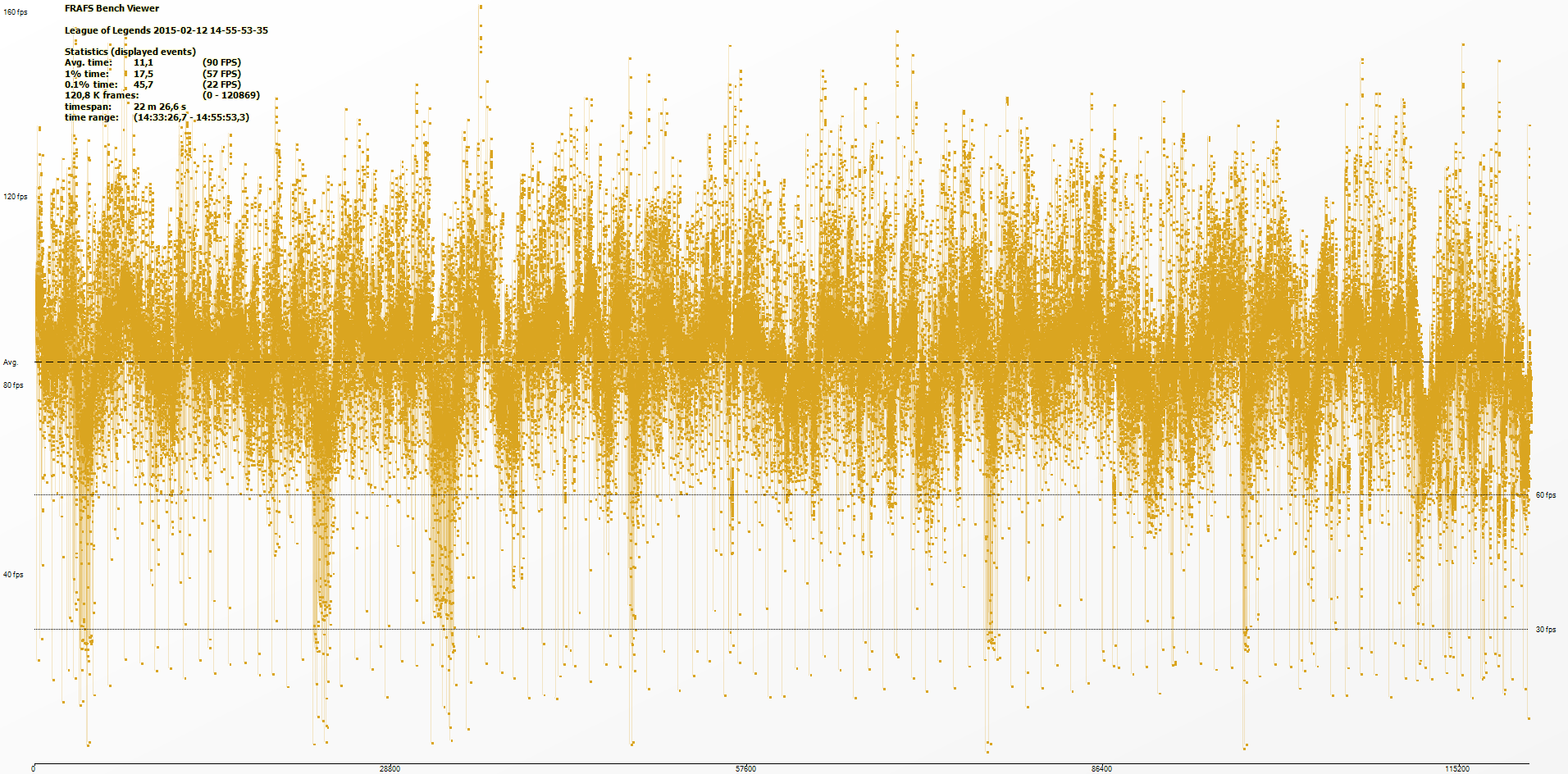

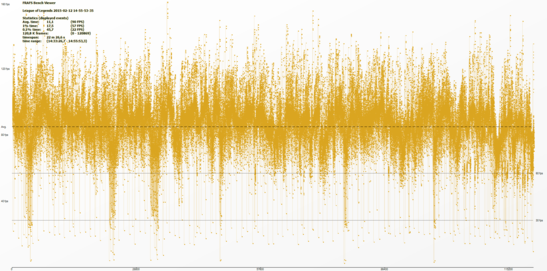

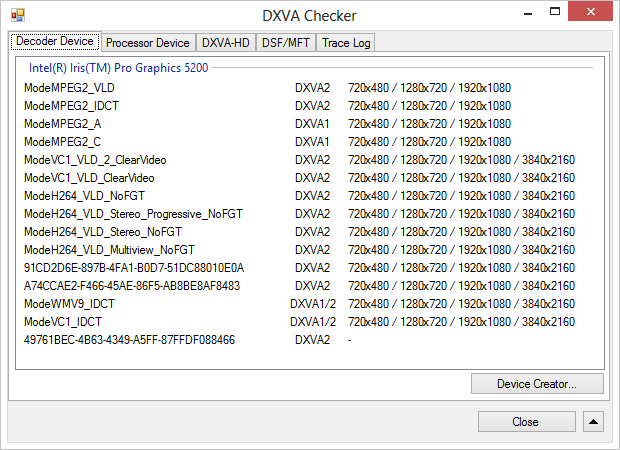

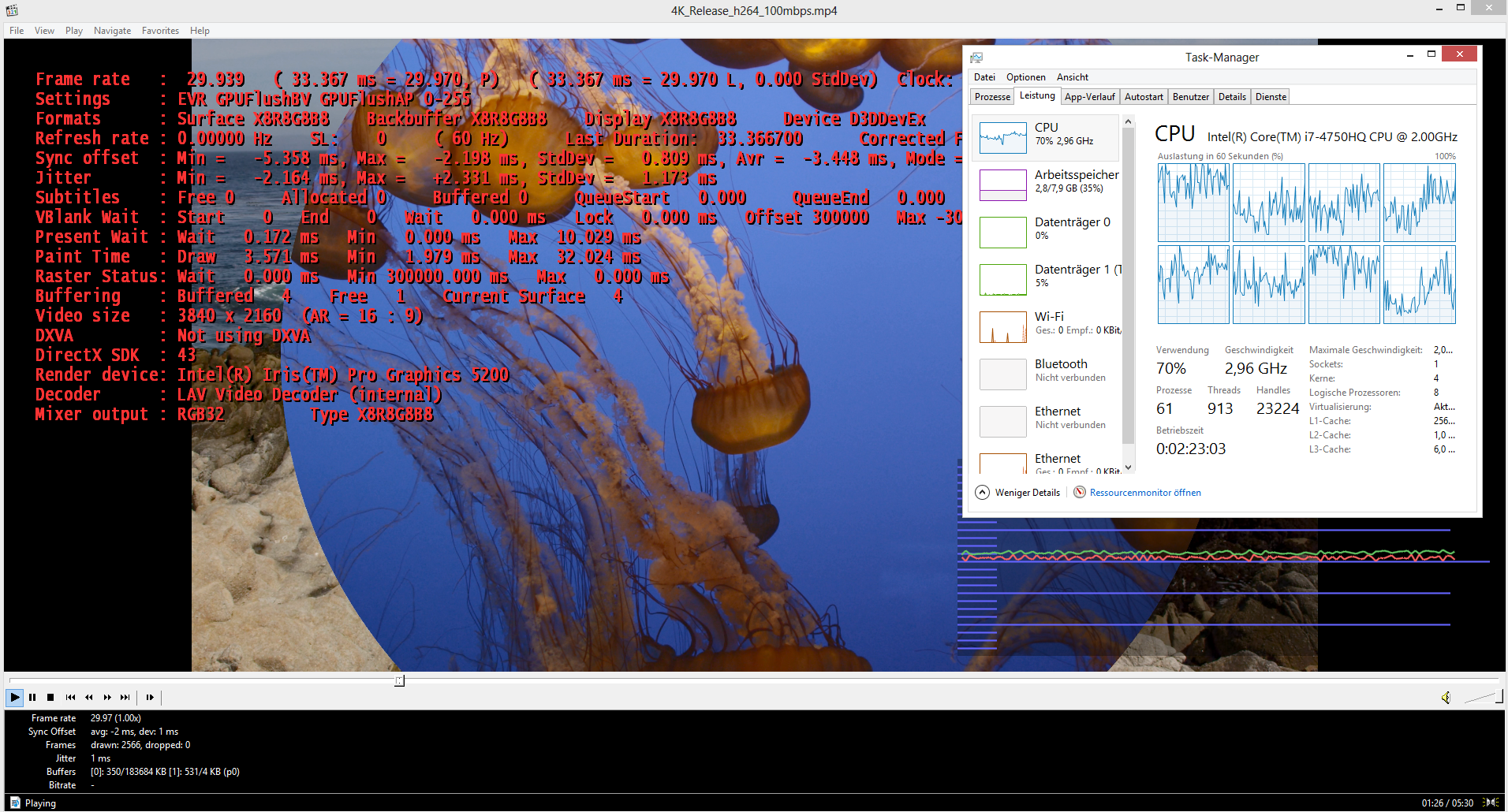

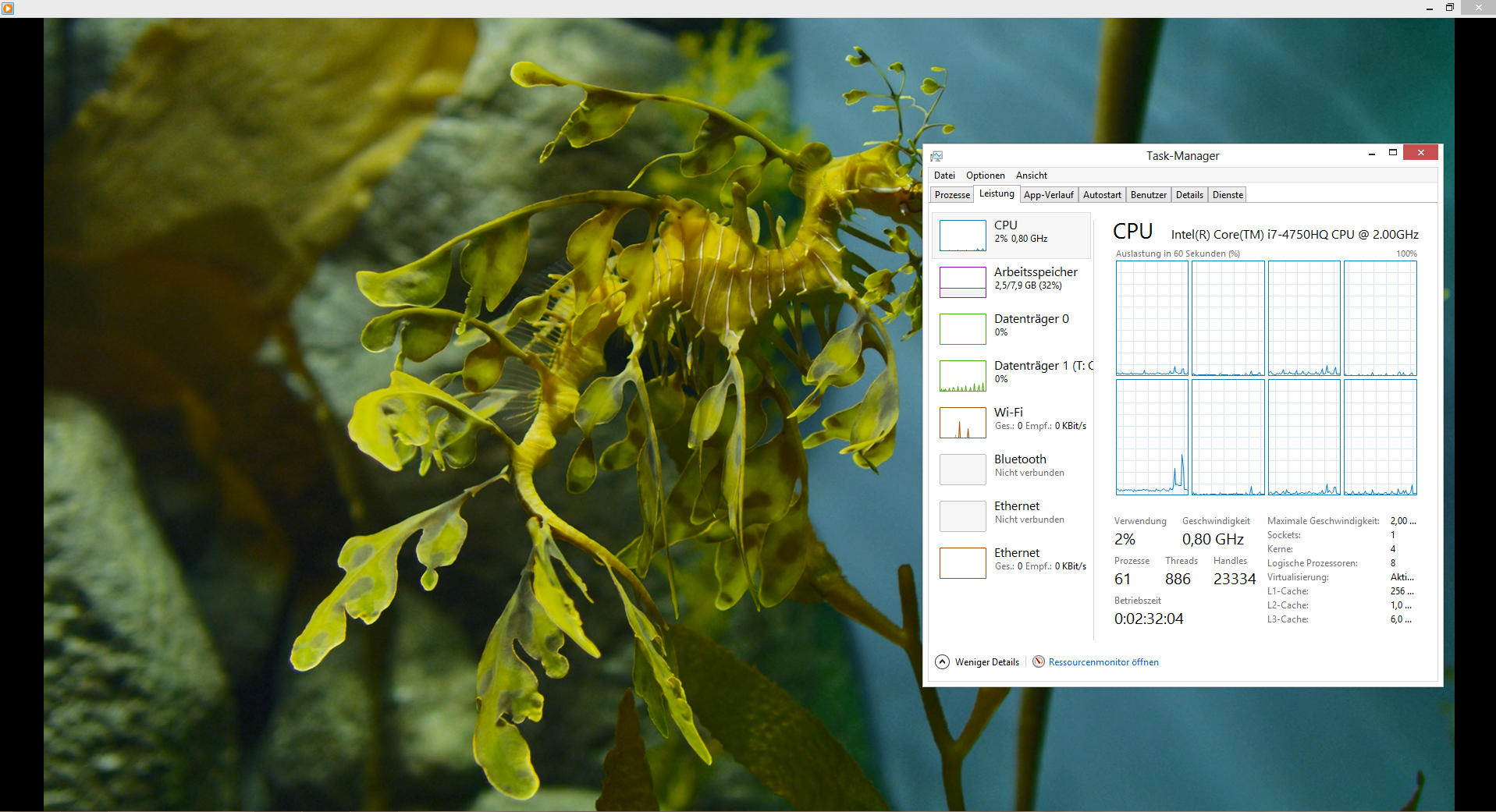

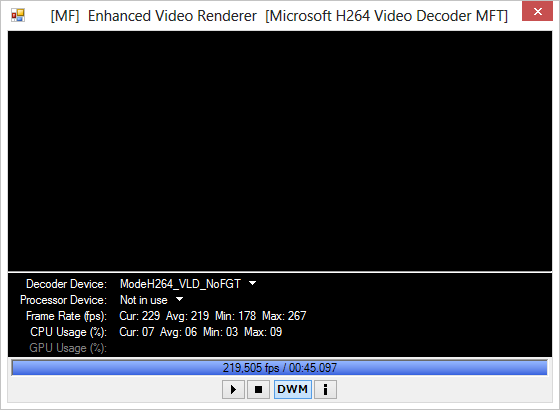

In comparison to the HD 4000, the graphics core has been modified extensively. The Iris Pro supports DirectX 11.1, OpenCL 1.2 and OpenGL 4.0. It also features an improved decoder for 4K videos and the fast Quick Sync encoder.

Thanks to the fast eDRAM memory, the average performance of the Iris Pro is only about 15 percent behind the dedicated mid-range cards GeForce GT 650M and GT 750M (DDR3 versions). This makes the Iris Pro even faster than AMDs Radeon HD 8650G and the fastest integrated GPU of 2013. Therefore, many current games can be played fluently in medium or high detail settings and a resolution of 1366 x 768 pixels. In some older or less demanding titels like Diablo III or Fifa 2013, even higher resolutions or quality settings may be possible.

Due to the 22nm 3D Tri-Gate production process, power consumption should be relatively low. The Iris Pro can be found on certain quad-core Haswell CPUs in the 47 Watt TDP range.

Manufacturer

Intel

Iris Series

Iris Pro Graphics 6200 (compare)	48 @ 300 - 1150 (Boost) MHz	eDRAM + 64/128 Bit
Iris Pro Graphics 5200	40 @ 200 - 1300 (Boost) MHz	eDRAM + 64/128 Bit
Iris Graphics 6100 (compare)	48 @ 300 - 1100 (Boost) MHz	64/128 Bit
Iris Graphics 5100 (compare)	40 @ 200 - 1200 (Boost) MHz	64/128 Bit

Codename

Haswell GT3e

Architecture

Haswell

Pipelines

40 - unified

Core Speed

200 - 1300 (Boost) MHz

Memory Bus Width

eDRAM + 64/128 Bit

Memory Type

eDRAM

Max. Amount of Memory

128 MB

Shared Memory

yes

DirectX

DirectX 11.1, Shader 5.0

technology

22 nm

Features

QuickSync

Notebook Size

medium sized

Date of Announcement

05.06.2013

CPU		GPU Base Speed	GPU Boost / Turbo
Intel Core i7-4870HQ	4 x 2500 MHz, 47 W	200 MHz	1200 MHz
Intel Core i7-4950HQ	4 x 2400 MHz, 47 W	200 MHz	1300 MHz
Intel Core i7-4860HQ	4 x 2400 MHz, 47 W	200 MHz	1200 MHz
» show 4 more
Intel Core i7-4850HQ	4 x 2300 MHz, 47 W	200 MHz	1200 MHz
Intel Core i7-4770HQ	4 x 2200 MHz, 47 W	200 MHz	1200 MHz
Intel Core i7-4760HQ	4 x 2100 MHz, 47 W	200 MHz	1200 MHz
Intel Core i7-4750HQ	4 x 2000 MHz, 47 W	200 MHz	1200 MHz
min. - max.		200 - 200 MHz	1200 - 1300 MHz

Benchmarks

3DMark - Ice Storm Unlimited Graphics Score 1280x720 offscreen

110085 Points (21%)

+ 1 benchmarks and specifications + Show comparison chart

3DMark - Cloud Gate Standard Score 1280x720

min: 9027 avg: 9915 median: 9877 (17%) max: 10879 Points

+ 4 benchmarks and specifications + Show comparison chart

3DMark - Cloud Gate Standard Graphics 1280x720

min: 11338 avg: 11950.7 median: 11930 (6%) max: 12584 Points

+ 3 benchmarks and specifications + Show comparison chart

3DMark - Fire Strike Score 1920x1080

min: 1281 avg: 1375.8 median: 1340 (5%) max: 1543 Points

+ 5 benchmarks and specifications + Show comparison chart

3DMark - Fire Strike Graphics 1920x1080

min: 1357 avg: 1413.5 median: 1380.5 (3%) max: 1536 Points

+ 4 benchmarks and specifications + Show comparison chart

3DMark - Ice Storm Standard Graphics 1280x720

min: 86896 avg: 99804.5 median: 99804.5 (13%) max: 112713 Points

+ 2 benchmarks and specifications + Show comparison chart

3DMark 11 - Performance 1280x720

min: 2112 avg: 2216.4 median: 2217 (7%) max: 2364 points

+ 5 benchmarks and specifications + Show comparison chart

3DMark 11 - Performance GPU 1280x720

min: 1867 avg: 1915.7 median: 1923 (4%) max: 1957 points

+ 3 benchmarks and specifications - Hide comparison chart

Intel Graphics Media Accelerator (GMA) 3600

...

NVIDIA GeForce GTX 560M -4%

NVIDIA GeForce GT 645M -4%

AMD Radeon R7 M270 -3%

Intel UHD Graphics 630 -3%

AMD Radeon 520 -2%

NVIDIA GeForce GTS 450 -1%

AMD Radeon R7 M260 -1%

AMD Radeon R7 M260X -1%

AMD Radeon R7 (Bristol Ridge) 0%

Intel Iris Pro Graphics 5200

AMD Radeon R7 M265 1%

AMD Radeon HD 8770M 1%

AMD Radeon HD 8550G + HD 8670M Dual Graphics 1%

NVIDIA GeForce 830M 3%

AMD FirePro M4000 3%

NVIDIA GeForce GT 740M 4%

AMD Radeon R7 384 Cores (Kaveri Desktop) 4%

NVIDIA GeForce GTX 470M 5%

AMD Radeon HD 8650G + HD 8570M Dual Graphics 5%

...

NVIDIA GeForce GTX 1070 SLI (Desktop) 2129%

100%

3DMark Vantage
P Result 1280x1024 +

P GPU no PhysX 1280x1024 +

3DMark 2001SE - Standard 1024x768

41727 Points (43%)

+ 1 benchmarks and specifications + Show comparison chart

3DMark 03 - Standard 1024x768

32334 Points (17%)

+ 1 benchmarks and specifications + Show comparison chart

3DMark 05 - Standard 1024x768

16590 Points (36%)

+ 1 benchmarks and specifications + Show comparison chart

3DMark 06 Standard 1280x1024 +

Unigine Heaven 3.0 - DX 11, Normal Tessellation, High Shaders 1920x1080

20.8 fps (8%)

+ 1 benchmarks and specifications + Show comparison chart

Unigine Heaven 3.0 - OpenGL, Normal Tessellation, High Shaders 1920x1080

21.9 fps (13%)

+ 1 benchmarks and specifications + Show comparison chart

Unigine Heaven 2.1 - high, Tesselation (normal), DirectX11 1280x1024

26.1 fps (12%)

+ 1 benchmarks and specifications + Show comparison chart

SPECviewperf 11
Siemens NX 1920x1080 +

Tcvis 1920x1080 +

SolidWorks 1920x1080 +

Pro/ENGINEER 1920x1080 +

Maya 1920x1080 +

Lightwave 1920x1080 +

Ensight 1920x1080 +

SPECviewperf 12
Solidworks (sw-03) 1900x1060 +

Siemens NX (snx-02) 1900x1060 +

Showcase (showcase-01) 1900x1060 +

Medical (medical-01) 1900x1060 +

Energy (energy-01) 1900x1060 +

Creo (creo-01) 1900x1060 +

Catia (catia-04) 1900x1060 +

Cinebench R10 Shading 32Bit +

Cinebench R11.5 OpenGL 64Bit +

Cinebench R15
OpenGL 64Bit +

Ref. Match 64Bit +

GFXBench (DX / GLBenchmark) 2.7
T-Rex HD Offscreen C24Z16 1920x1080 +

T-Rex HD Onscreen C24Z16 +

LuxMark v2.0 64Bit - Room GPUs-only

min: 307 avg: 324.7 median: 329 (6%) max: 338 Samples/s

+ 3 benchmarks and specifications + Show comparison chart

LuxMark v2.0 64Bit - Sala GPUs-only

min: 447 avg: 461 median: 461 (4%) max: 475 Samples/s

+ 2 benchmarks and specifications + Show comparison chart

ComputeMark v2.1 - Normal, Score 1024x600

1198 Points (5%)

+ 1 benchmarks and specifications + Show comparison chart

- Range of benchmark values for this graphics card

- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailled information on the benchmark results, click on the fps number.

Rise of the Tomb Raider

2016

26.6 fps + Compare

14.8 fps + Compare

7.8 fps + Compare

» The benchmarks indicate that the game is not playable in the tested settings.

Rainbow Six Siege

2015

35.3 fps + Compare

21.9 fps + Compare

0 (!) fps + Compare

» With all tested laptops playable in detail settings low.

Just Cause 3

2015

26.6 fps + Compare

21.6 fps + Compare

12.8 fps + Compare

11.9 fps + Compare

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Schenker S413	4750HQ	8192 MB	200 - 1200 / 800 MHz	128 MB eDRAM 10.18.10.3345	110085

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Schenker S413	4750HQ	16384 MB	200 - 1200 / 800 MHz	128 MB eDRAM 9.18.10.3165	9027
MSI GS30 Shadow	4870HQ	16384 MB	200-1200 / MHz	+ GamingDock mit Nvidia GeForce GTX 970 (Desktop), Kerntakt: 1064-1266 MHz, Speichertakt: 3500 MHz, 4 GB GDDR5, ForceWare 344.11 Intel 10.18.10.3977	9626
Sony Vaio Z Canvas	4770HQ				10128
Intel Customer Reference Board (CRB)	4950HQ				10879

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Schenker S413	4750HQ	16384 MB	200 - 1200 / 800 MHz	128 MB eDRAM 9.18.10.3165	11338
MSI GS30 Shadow	4870HQ	16384 MB	200-1200 / MHz	+ GamingDock mit Nvidia GeForce GTX 970 (Desktop), Kerntakt: 1064-1266 MHz, Speichertakt: 3500 MHz, 4 GB GDDR5, ForceWare 344.11 Intel 10.18.10.3977	11930
Sony Vaio Z Canvas	4770HQ				12584

Model	CPU	Memory	Core / Memory	GPU Memory	Value
MSI GS30 Shadow	4870HQ	16384 MB	200-1200 / MHz	+ GamingDock mit Nvidia GeForce GTX 970 (Desktop), Kerntakt: 1064-1266 MHz, Speichertakt: 3500 MHz, 4 GB GDDR5, ForceWare 344.11 Intel 10.18.10.3977	1281
Terrans Force X411-47J1	4760HQ	8192 MB			1288
Sony Vaio Z Canvas	4770HQ				1340
Schenker S413	4750HQ	16384 MB	200 - 1200 / 800 MHz	128 MB eDRAM 9.18.10.3165	1427
Intel Customer Reference Board (CRB)	4950HQ				1543

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Terrans Force X411-47J1	4760HQ	8192 MB			1357
MSI GS30 Shadow	4870HQ	16384 MB	200-1200 / MHz	+ GamingDock mit Nvidia GeForce GTX 970 (Desktop), Kerntakt: 1064-1266 MHz, Speichertakt: 3500 MHz, 4 GB GDDR5, ForceWare 344.11 Intel 10.18.10.3977	1361
Sony Vaio Z Canvas	4770HQ				1400
Schenker S413	4750HQ	16384 MB	200 - 1200 / 800 MHz	128 MB eDRAM 9.18.10.3165	1536
