AMD Radeon R7 M275DX
The AMD Radeon R7 M275DX is a Hybrid Crossfire combination of the integrated Kaveri Radeon R7 and a dedicated Radeon R7 M260, M260X, M265, or M265X (called Dual Graphics - DX). Both graphics cards use the AFR mode (alternate frame rendering) to each render a frame. Around 30 fps this Dual Graphics combination may suffer from micro stuttering due to different frame latencies.

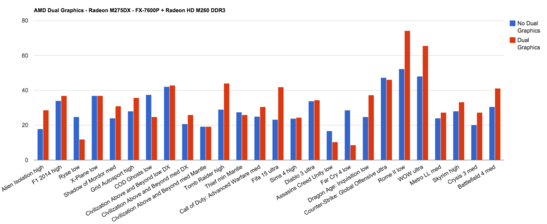

The performance depends on the driver support for the used game. In some cases the game engine will only use the dedicated graphics card and therefore the M275DX may not be faster than e.g. a M260 alone. The other end of the spectrum are performance gains of up to 61% in our tests (Alien Isolation Benchmark with high detail settings). This was measured with an ideal combination of a FX-7600P and a M260 with dual channel main memory configuration. On average we measured a 13% increase compared to disabled Dual Graphics when testing 25 games. Looking only at the games that gain from Dual Graphics, the M275DX was able to gain 34% (see diagram below). However, there are some games where Dual Graphics is even slower than with disabled settings, so the user might need to test the settings out. With some games and enabled dual graphics we also experienced problems (e.g., stuttering and flickering main menus in F1 2014 and Shadow of Mordor, wrong texture settings in Ryse, hanging game in Thief, graphical problems with Fifa 15 and Dragon Age: Inquisition).
The shaders of both GPUs can be used for OpenCL calculations and therefore make use of both GPUs.
Furthermore, the M275DX supports Mantle (only light gains in some scenarios in our tests), Eyefinity and Enduro to in battery mode (use of the integrated GPU alone).

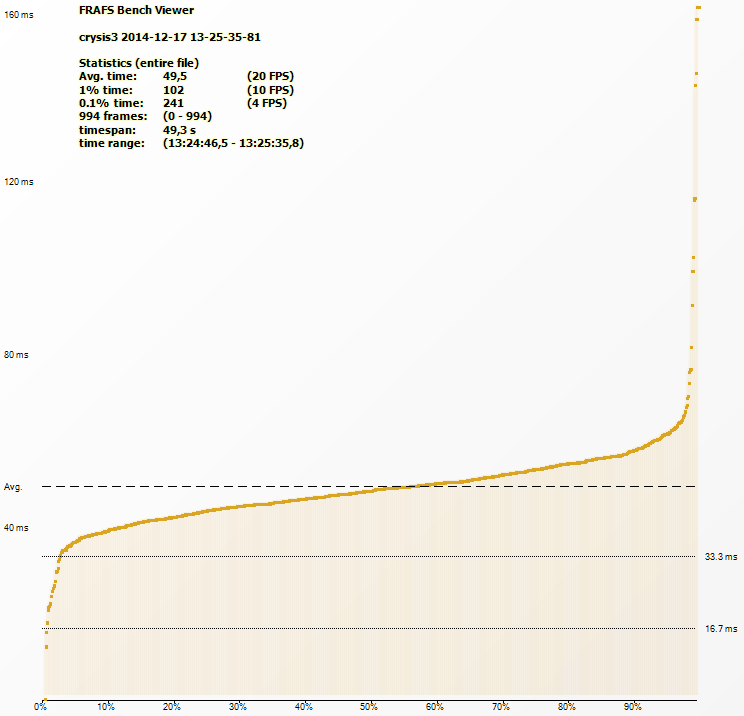

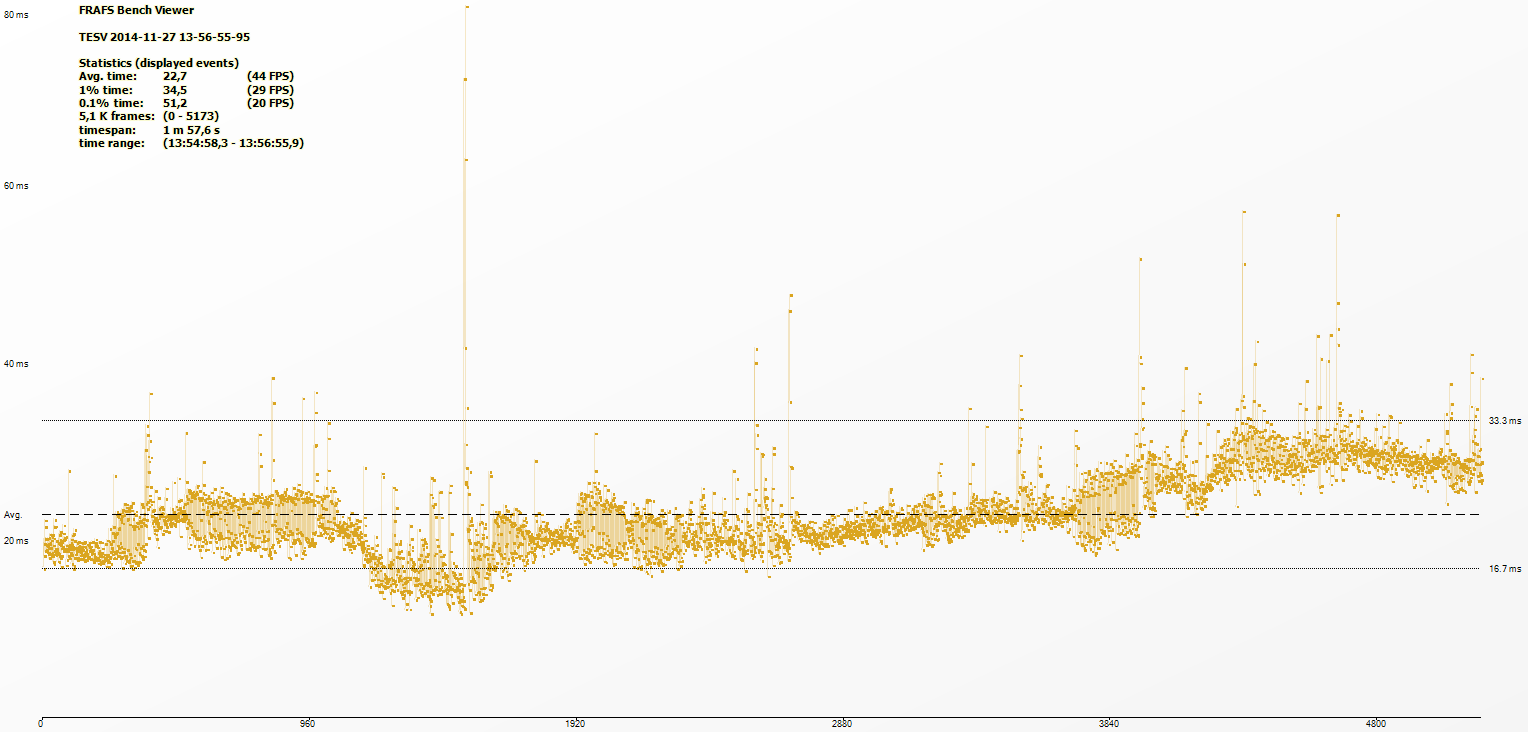

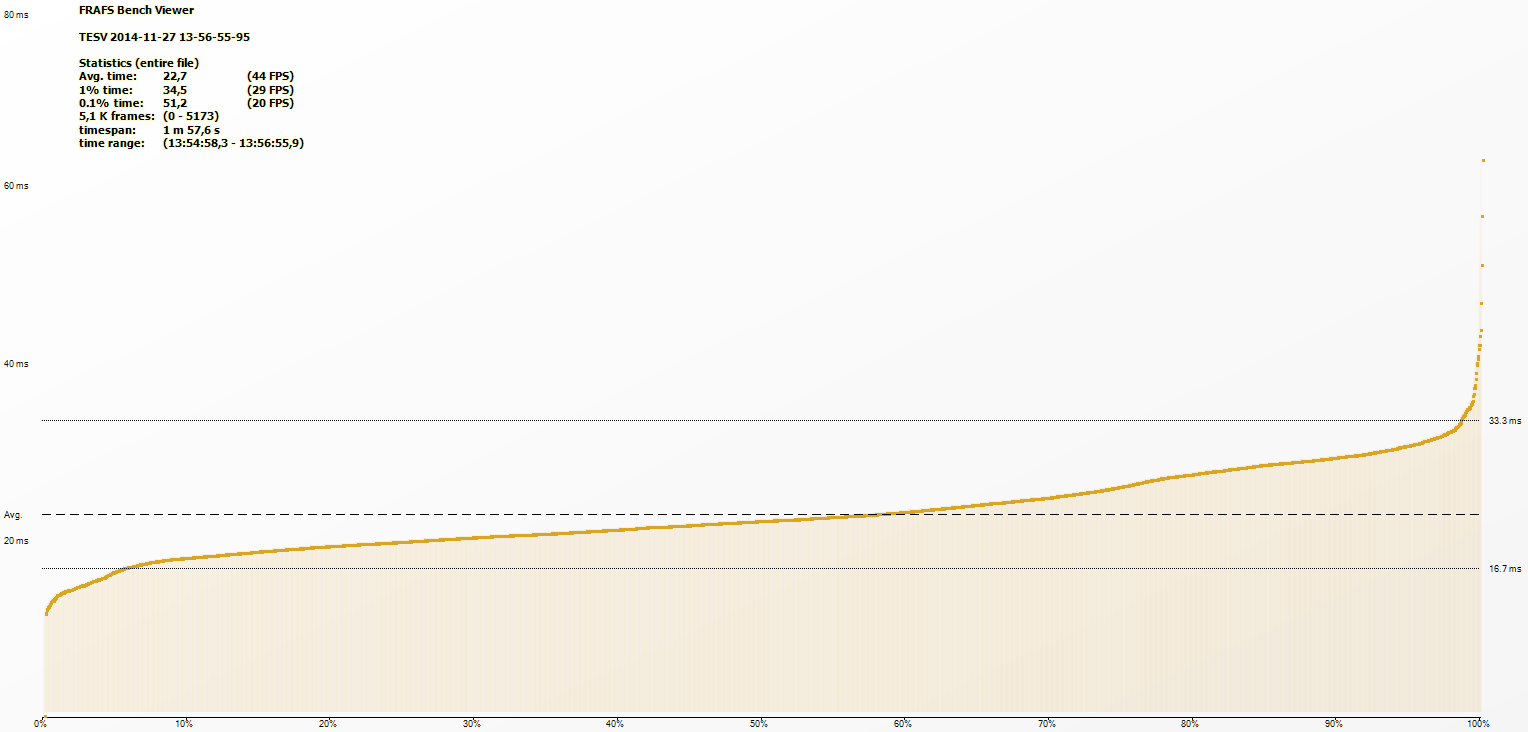

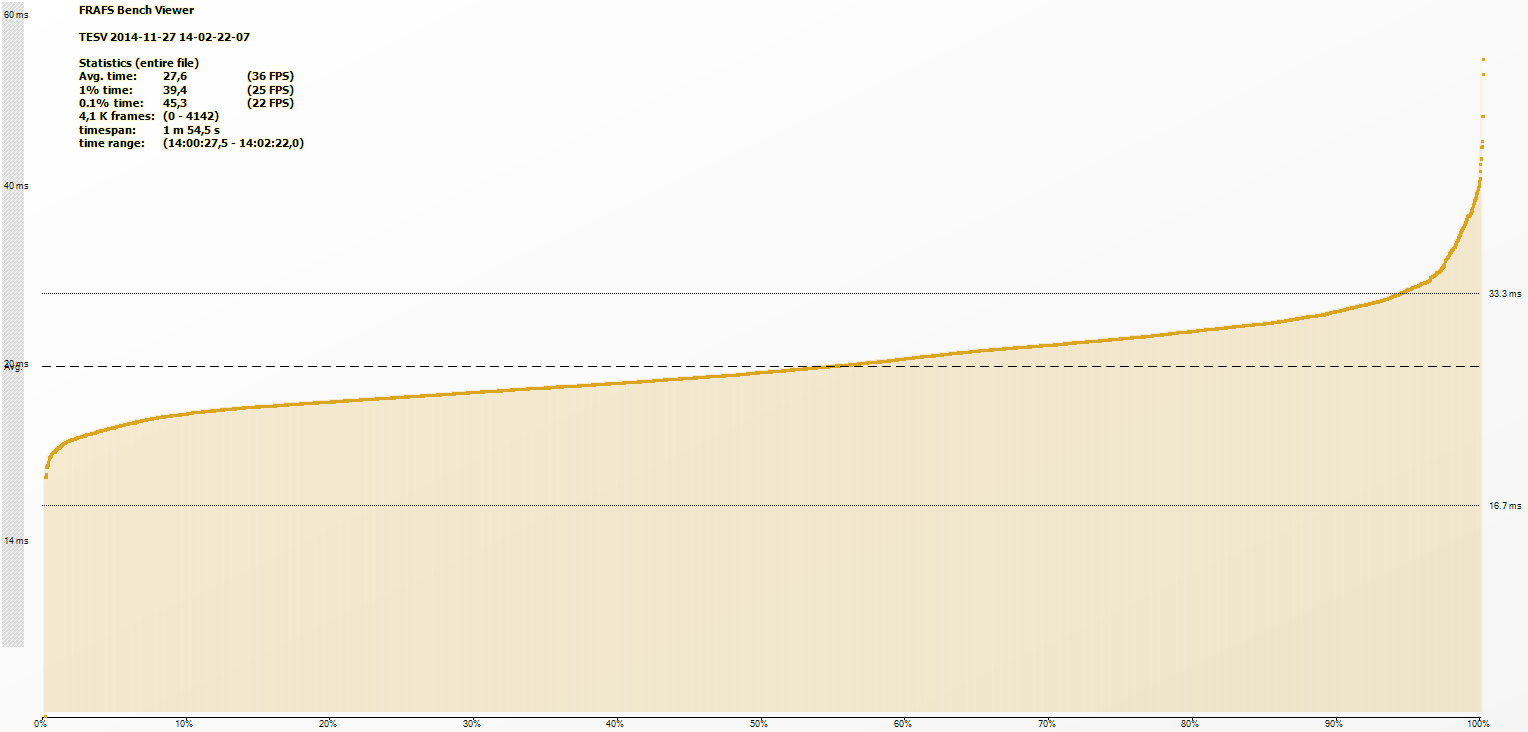

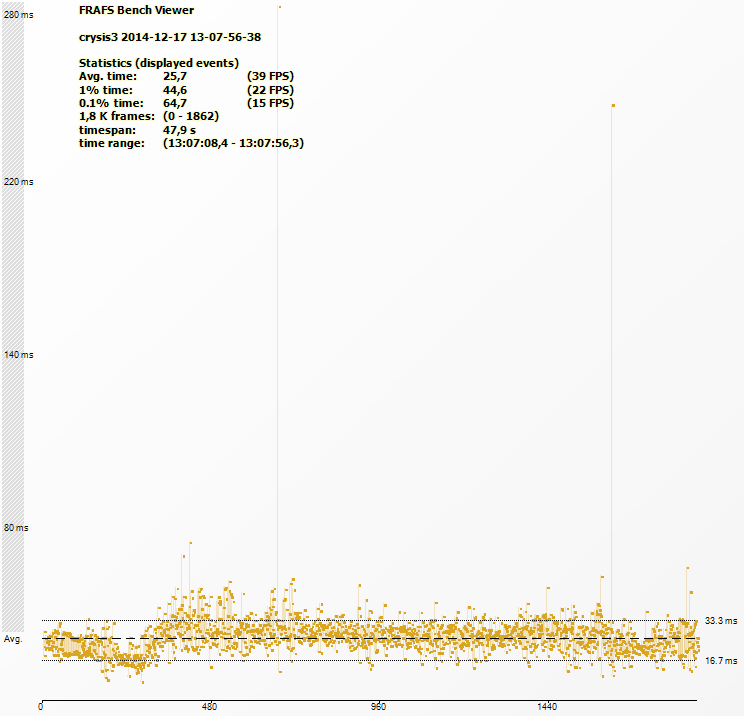

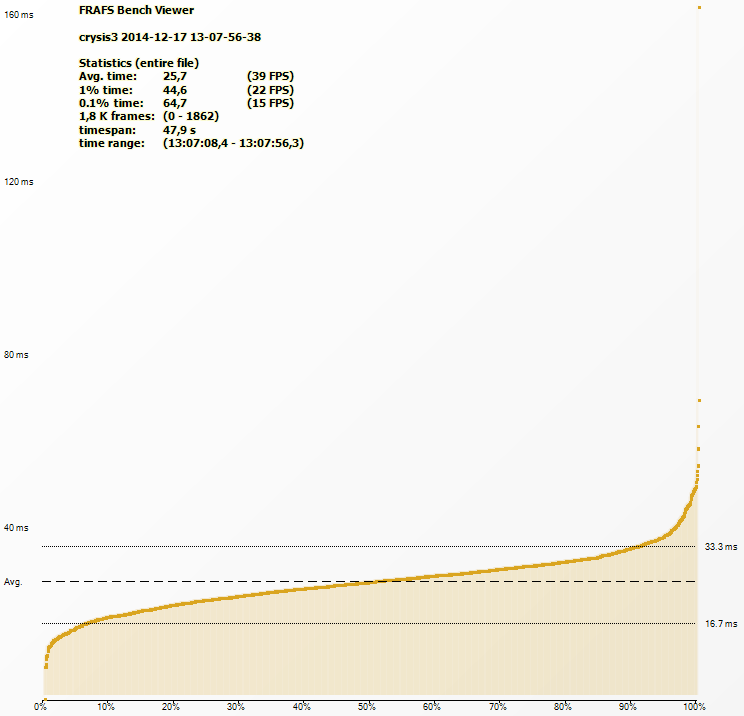

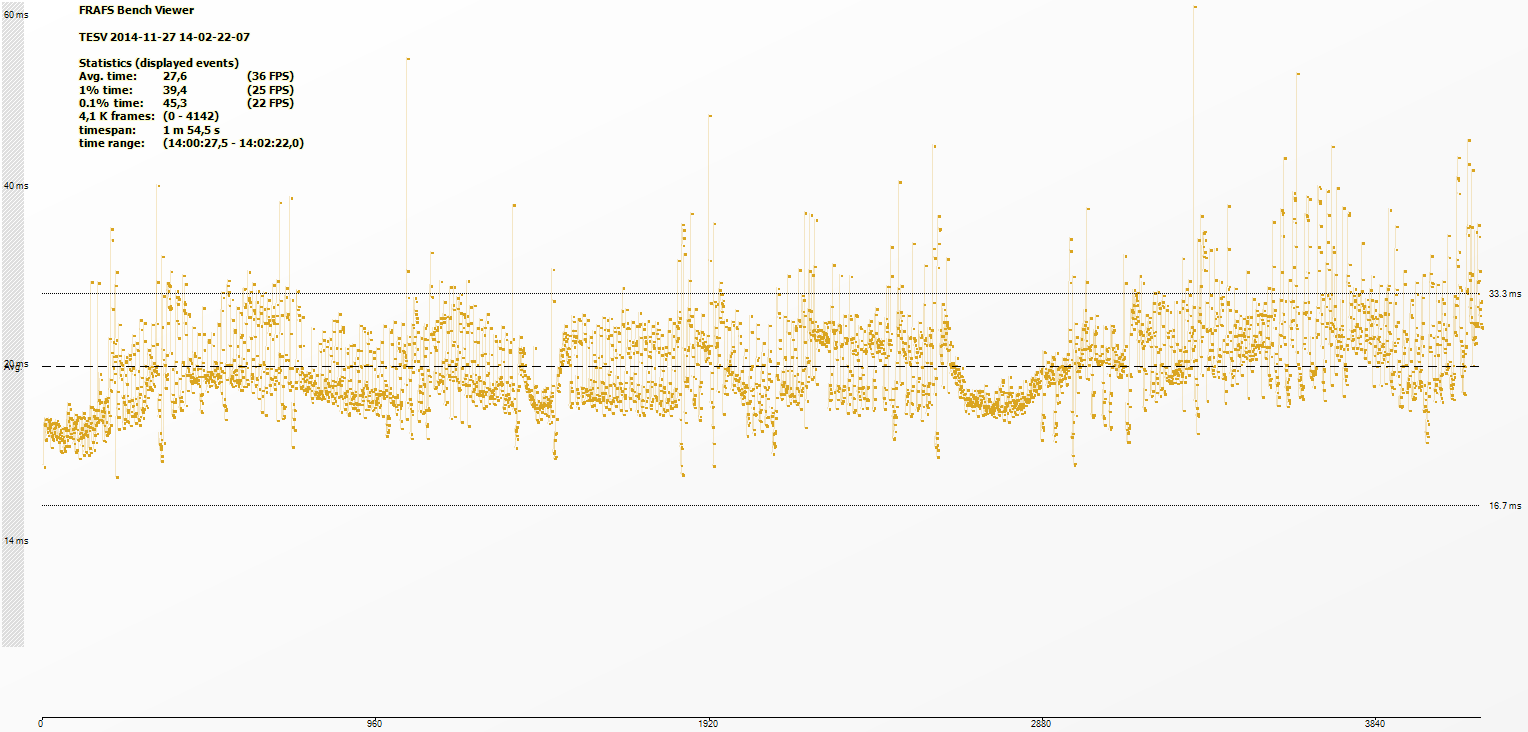

The maximum power consumption can be quite high using Dual-Graphics as both GPUs of the APU and the dedicated graphics card are running.
|
| Manufacturer | AMD |
| Radeon R7 M200 Series | |
| Architecture | GCN |
| Pipelines | 896 - unified |
| Memory Type | DDR3 |
| Shared Memory | yes
|
| DirectX | DirectX 12, Shader 5.0 |
| technology | 28 nm |
| Features | App Acceleration, PowerPlay, PowerTune, ZeroCore, Enduro, Eyefinity, Mantle |
| Notebook Size | medium sized |
| Date of Announcement | 04.06.2014 |
| Link to Manufacturer Page | http://www.amd.com/US/PRODUCTS/NOTEBOOK/... |
* The specified clock rates are only guidelines for the manufacturer and can be altered by them.
Benchmarks
GFXBench 3.0 - Manhattan Offscreen OGL off screen
0%
100%
min: 27 avg: 27 (5%) median: 27 (5%) max: 27 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 27 |
...
AMD Radeon R7 M275DX
...
GFXBench 3.0 - Manhattan Onscreen OGL on screen
0% 100%min: 26 avg: 26 (11%) median: 26 (11%) max: 26 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 26 |
...
AMD Radeon R7 M275DX
...
Cinebench R15
Ref. Match 64Bit +Cinebench R15 - Ref. Match 64Bit
100%min: 98 avg: 98 (98%) median: 98 (98%) max: 98 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 98 |
...
...
OpenGL 64Bit +Cinebench R15 - OpenGL 64Bit
0% 100%min: 33.7 avg: 33.7 (20%) median: 33.7 (20%) max: 33.7 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 33.7 |
...
AMD Radeon R7 M275DX
...
GFXBench (DX / GLBenchmark) 2.7
T-Rex HD Offscreen C24Z16 1920x1080 +GFXBench (DX / GLBenchmark) 2.7 - T-Rex HD Offscreen C24Z16 1920x1080
0% 100%min: 112 avg: 112 (8%) median: 112 (8%) max: 112 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 112 |
...
AMD Radeon R7 M275DX
...
T-Rex HD Onscreen C24Z16 +GFXBench (DX / GLBenchmark) 2.7 - T-Rex HD Onscreen C24Z16
0% 100%min: 58.6 avg: 58.6 (13%) median: 58.6 (13%) max: 58.6 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 58.6 |
...
AMD Radeon R7 M275DX
...
3DMark - Fire Strike Graphics 1920x1080
0% 100%min: 1914 avg: 1931.5 (5%) median: 1931.5 (5%) max: 1949 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 1914 |
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 1949 |
...
AMD Radeon R7 M275DX
NVIDIA GeForce GTX 460 768MB 8%
NVIDIA GeForce GTX 460 768MB 8%
...
3DMark - Fire Strike Score 1920x1080
0% 100%min: 1482 avg: 1507 (6%) median: 1507 (6%) max: 1532 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 1482 |
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 1532 |
...
NVIDIA GeForce GTS 450 -3%
NVIDIA GeForce GTS 450 -3%
AMD Radeon R7 M275DX
...
3DMark - Cloud Gate Standard Graphics 1280x720
0% 100%min: 11160 avg: 11160 (7%) median: 11160 (7%) max: 11160 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 11160 |
...
AMD Radeon R7 M275DX
ATI Radeon HD 4850 1%
ATI Radeon HD 4850 1%
...
3DMark - Cloud Gate Standard Score 1280x720
0% 100%min: 5985 avg: 5985 (12%) median: 5985 (12%) max: 5985 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 5985 |
...
AMD Radeon R7 M275DX
...
3DMark - Ice Storm Unlimited Graphics Score 1280x720 offscreen
0% 100%min: 86346 avg: 86346 (19%) median: 86346 (19%) max: 86346 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 86346 |
...
ATI Radeon HD 4850 -16%
AMD Radeon R7 M275DX
...
3DMark - Ice Storm Extreme Graphics 1920x1080
0% 100%min: 61507 avg: 61507 (16%) median: 61507 (16%) max: 61507 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 61507 |
...
AMD Radeon R7 M275DX
...
3DMark - Ice Storm Standard Graphics 1280x720
0% 100%min: 74294 avg: 74294 (10%) median: 74294 (10%) max: 74294 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 74294 |
...
AMD Radeon R7 M275DX
...
ComputeMark v2.1 - Normal, Score 1024x600
0% 100%min: 1371 avg: 1371 (6%) median: 1371 (6%) max: 1371 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 1371 |
...
AMD Radeon R7 M275DX
...
LuxMark v2.0 64Bit - Room GPUs-only
0% 100%min: 404 avg: 404 (8%) median: 404 (8%) max: 404 Samples/s
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 404 |
...
AMD Radeon R7 M275DX
...
LuxMark v2.0 64Bit - Sala GPUs-only
0% 100%min: 734 avg: 734 (7%) median: 734 (7%) max: 734 Samples/s
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 734 |
...
AMD Radeon R7 M275DX
...
3DMark 11 - Performance GPU 1280x720
0% 100%min: 3553 avg: 3553 (7%) median: 3553 (7%) max: 3553 points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 3553 |
...
ATI Radeon HD 5850 -4%
ATI Radeon HD 5850 -4%
AMD Radeon R7 M275DX
...
3DMark 11 - Performance 1280x720
0% 100%min: 3221 avg: 3221 (11%) median: 3221 (11%) max: 3221 points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 3221 |
...
AMD Radeon R7 M275DX
AMD Radeon HD 7770 4%
AMD Radeon HD 7770 4%
AMD Radeon HD 7770 4%
AMD Radeon HD 7770 4%
ATI Radeon HD 5850 5%
...
3DMark Vantage
P GPU no PhysX 1280x1024 +3DMark Vantage - P GPU no PhysX 1280x1024
0% 100%min: 8607 avg: 8607 (11%) median: 8607 (11%) max: 8607 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 8607 |
...
NVIDIA GeForce GTS 450 -1%
NVIDIA GeForce GTS 450 -1%
AMD Radeon R7 M275DX
...
P Result 1280x1024 +3DMark Vantage - P Result 1280x1024
0% 100%min: 8309 avg: 8309 (15%) median: 8309 (15%) max: 8309 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 8309 |
...
AMD Radeon R7 M275DX
...
3DMark 06 Standard 1280x1024 +3DMark 060% 100%min: 12122 avg: 12122 (29%) median: 12122 (29%) max: 12122 Points
| Standard 1280x1024 |
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 12122 |
...
AMD Radeon R7 M275DX
...
SPECviewperf 12
Solidworks (sw-03) 1900x1060 +SPECviewperf 12 - Solidworks (sw-03) 1900x1060
100%min: 25.3 avg: 25.3 (17%) median: 25.3 (17%) max: 25.3 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 25.3 |
...
...
Siemens NX (snx-02) 1900x1060 +SPECviewperf 12 - Siemens NX (snx-02) 1900x1060
100%min: 5.4 avg: 5.4 (3%) median: 5.4 (3%) max: 5.4 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 5.4 |
...
...
Showcase (showcase-01) 1900x1060 +SPECviewperf 12 - Showcase (showcase-01) 1900x1060
100%min: 7.5 avg: 7.5 (5%) median: 7.5 (5%) max: 7.5 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 7.5 |
...
...
Medical (medical-01) 1900x1060 +SPECviewperf 12 - Medical (medical-01) 1900x1060
100%min: 4.9 avg: 4.9 (8%) median: 4.9 (8%) max: 4.9 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 4.9 |
...
...
Maya (maya-04) 1900x1060 +SPECviewperf 12 - Maya (maya-04) 1900x1060
100%min: 12.3 avg: 12.3 (6%) median: 12.3 (6%) max: 12.3 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 12.3 |
...
...
Energy (energy-01) 1900x1060 +SPECviewperf 12 - Energy (energy-01) 1900x1060
0% 100%min: 0.28 avg: 0.3 (1%) median: 0.3 (1%) max: 0.28 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 0.28 |
...
AMD Radeon R7 M275DX
...
Creo (creo-01) 1900x1060 +SPECviewperf 12 - Creo (creo-01) 1900x1060
100%min: 12.7 avg: 12.7 (10%) median: 12.7 (10%) max: 12.7 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 12.7 |
...
...
Catia (catia-04) 1900x1060 +SPECviewperf 12 - Catia (catia-04) 1900x1060
100%min: 15 avg: 15 (10%) median: 15 (10%) max: 15 fps
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 15 |
...
...
Cinebench R11.5 OpenGL 64Bit +Cinebench R11.5 - OpenGL 64Bit
0% 100%min: 29.8 avg: 29.8 (24%) median: 29.8 (24%) max: 29.8 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 29.8 |
...
AMD Radeon R7 M275DX
ATI Radeon HD 5570 1%
ATI Radeon HD 5570 1%
...
Cinebench R10 Shading 32Bit +Cinebench R10 - Shading 32Bit
0% 100%min: 6006 avg: 6006 (38%) median: 6006 (38%) max: 6006 Points
| AMD Reference Design | FX-7600P | 16384 MB | | 2048MB DDR3 R7 M260 2GB DDR3 + R7 | 6006 |
...
AMD Radeon R7 M275DX
...
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
Game Benchmarks
The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailled information on the benchmark results, click on the fps number.
2014
43 [X] AMD Reference DesignAMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM
55 [X] AMD Reference DesignMantle
AMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM
~ 49 fps
+ Compare
- Hide Comparison
...
...
19.3 [X] AMD Reference DesignMantle
AMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM
26 [X] AMD Reference DesignAMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM
~ 23 fps
+ Compare
- Hide Comparison
...
...
12.2 [X] AMD Reference DesignMantle
AMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM
18.2 [X] AMD Reference DesignAMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM
~ 15 fps
+ Compare
- Hide Comparison
...
...
12 [X] AMD Reference DesignMantle
AMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM
19.7 [X] AMD Reference DesignAMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM
~ 16 fps
+ Compare
- Hide Comparison
...
...
» With all tested laptops playable in detail settings low.
AMD Radeon R7 M275DX
...
...
AMD Radeon R7 M275DX
...
...
AMD Radeon R7 M275DX
...
...
AMD Radeon R7 M275DX
...
» With all tested laptops playable in detail settings high.
2014
19.5 [X] AMD Reference DesignAMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM
min:
15 fps, max:
26 fps
fps
+ Compare
- Hide Comparison
...
...
» The benchmarks indicate that the game is not playable in the tested settings.
...
...
...
...
...
21 (!) [X] AMD Reference DesignAMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM
Problem during benchmarking occured: only 1xSM fps
+ Compare
- Hide Comparison
...
...
» With all tested laptops playable in detail settings med..
...
...
...
...
...
...
AMD Radeon R7 M275DX
...
» With all tested laptops playable in detail settings low.
2014
...
AMD Radeon R7 M275DX
...
52.5 (!) [X] AMD Reference DesignAMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM

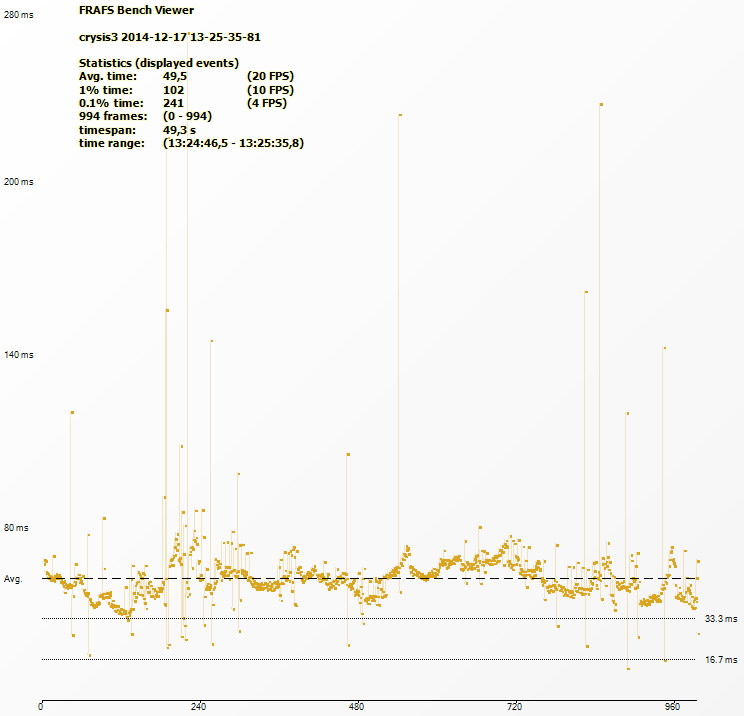

Problem during benchmarking occured: micro stuttering fps
+ Compare
- Hide Comparison
...
...
34.9 (!) [X] AMD Reference DesignAMD FX-7600P 2.7GHz
Radeon R7 M275DX, 2048 MB DDR3 R7 M260 2GB DDR3 + R7
16 GB RAM
Problem during benchmarking occured: micro stuttering fps
+ Compare
- Hide Comparison
...
...
» With all tested laptops playable in detail settings high.
<
