AMD Radeon HD 8690M

AMD Radeon HD 8690M

The AMD Radeon HD 8690M (sometimes known as the ATI Mobility Radeon HD 8690) is a DirectX 11.1 graphics card for laptops. Just like the 8500M and 8700M series, it is based on the Mars chip (28nm GCN architecture) with 384 shader cores, 24 TMUs, and 8 ROPs. The core is clocked at 775 MHz (or up to 825 MHz with Boost) and can access GDDR5 VRAM (64 Bit, 1125 MHz).

The performance of the Radeon HD 8690M is similar to the GeForce GT 730M and GT 640M. Current and demanding games (as of 2013) like Far Cry 3 should run fluently in medium-low resolutions and detail settings.

The 384 shaders can be used with OpenCL 1.2 for general-purpose calculations (as 6 compute units). Compared to old TeraScale 2 chips, the GCN-based Mars architecture offers improved performance in this framework.

Features of the 8690M include video decoding via UVD3 for decoding MPEG-4 AVC/H.264, VC-1, MPEG-2, and Flash directly from the AMD GPU. Multi-View Codec (MVC) and MPEG-4 part 2 (DivX, xVid) HD videos are now compatible as well.

The 8600M series also supports automatic graphics switching between the integrated GPU and discrete GPU. Called Enduro, the technology supersedes AMD's Dynamic Switchable Graphics and is similar to Nvidia's Optimus. Furthermore, the 8690M can directly support up to 2 connected monitors using Eyefinity Technology if Enduro is disabled.

Other features of the 8600M series include ZeroCore for reducing power consumption when the display is turned off and Power Gating to power down areas of the chip that are not used. PowerTune allows automatic overclocking and underclocking of the graphics card as long as the GPU is within its TDP limit. For example, the chip may be underclocked when running FurMark and OCCT, but will overclock in certain games like Lost Planet, Crysis or Resident Evil 5.

The integrated HD audio processor is able to transmit HD Audio (TrueHD or DTS Master Audio) over HDMI and DisplayPort (e.g., for Blu-Ray videos). Additionally, it now allows audio to output simultaneously and in parallel to multiple devices with the new Discrete Digital Multipoint Audio (DDMA) feature.

The power consumption should be in range of the old HD 7670M. As a result, the 8690M is suited for 13-inch notebooks or larger.

ManufacturerAMD
Radeon HD 8600M Series
Radeon HD 8690M 384 @ 775MHz64 Bit @ 4500MHz

Radeon HD 8650M

384 @ 650MHz64 Bit @ 4500MHz

Radeon HD 8650G + HD 8670M Dual Graphics

768 @ 720 / 775MHz64 Bit @ 1800 - 2000MHz

Radeon HD 8550G + HD 8670M Dual Graphics

640 @ 720 / 975MHz64 Bit @ 2000MHz

Radeon HD 8670M

384 @ 775MHz64 Bit @ 2000MHz
ArchitectureGCN
Pipelines384 - unified
Core Speed *775 MHz
Memory Speed *4500 MHz
Memory Bus Width64 Bit
Memory TypeGDDR5
Max. Amount of Memory1024 MB
Shared Memoryno
DirectXDirectX 11.1, Shader 5.0
technology28 nm
Notebook Sizemedium sized
Date of Announcement16.11.2012
* The specified clock rates are only guidelines for the manufacturer and can be altered by them.

Benchmarks

Cinebench R15 - Ref. Match 64Bit
0% 100%
min: 95      avg: 95 (95%)     median: 95 (95%)     max: 95 Points
Cinebench R15 - OpenGL 64Bit
0% 100%
min: 40.98      avg: 41 (34%)     median: 41 (34%)     max: 40.98 Points
3DMark (2013) - Fire Strike Standard Graphics 1920x1080
0% 100%
min: 1210      avg: 1210 (10%)     median: 1210 (10%)     max: 1210 Points
3DMark (2013) - Cloud Gate Standard Graphics 1280x720
0% 100%
min: 7930      avg: 7930 (10%)     median: 7930 (10%)     max: 7930 Points
3DMark (2013) - Ice Storm Standard Graphics 1280x720
0% 100%
min: 69892      avg: 69892 (9%)     median: 69892 (9%)     max: 69892 Points
3DMark 11 - Performance 1280x720
0% 100%
min: 1790      avg: 1790 (14%)     median: 1790 (14%)     max: 1790 points
3DMark 06
0% 100%
min: 9413      avg: 9413 (31%)     median: 9413 (31%)     max: 9413 Points
PCMark Vantage - Gaming Score 1024x768
0% 100%
min: 8632      avg: 8632 (33%)     median: 8632 (33%)     max: 8632 Points
Cinebench R11.5 - OpenGL 64Bit
0% 100%
min: 37.36      avg: 37.4 (34%)     median: 37.4 (34%)     max: 37.36 Points
Cinebench R10 - Shading 32Bit
0% 100%
min: 7043      avg: 7043 (58%)     median: 7043 (58%)     max: 7043 Points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailled information on the benchmark results, click on the fps number.

GRID 2

GRID 2

2013
low 1024x768
101  fps      Compare
med. 1366x768
52.3  fps      Compare
high 1366x768
35.6  fps      Compare
ultra 1920x1080
18.9  fps      Compare
» With all tested laptops playable in detail settings high.
Metro: Last Light
low 1024x768
52.3  fps      Compare
med. 1366x768
36  fps      Compare
high 1366x768
28.6  fps      Compare
ultra 1920x1080
19.3  fps      Compare
» With all tested laptops playable in detail settings med..
Tomb Raider
low 1024x768
59.9  fps      Compare
med. 1366x768
33.6  fps      Compare
high 1366x768
22.1  fps      Compare
ultra 1920x1080
12.5  fps      Compare
» With all tested laptops playable in detail settings low.
Crysis 3

Crysis 3

2013
low 1024x768
28.5  fps      Compare
med. 1366x768
15.4  fps      Compare
high 1366x768
10.3  fps      Compare
ultra 1920x1080
6.5  fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Diablo III
low 1024x768
70.3  fps      Compare
med. 1366x768
50.6  fps      Compare
high 1366x768
40.1  fps      Compare
ultra 1920x1080
29.1  fps      Compare
» With all tested laptops playable in detail settings high.
Anno 2070

Anno 2070

2011
low 1024x768
90.8  fps      Compare
med. 1366x768
40.5  fps      Compare
high 1366x768
25.4  fps      Compare
ultra 1920x1080
13.4  fps      Compare
» With all tested laptops playable in detail settings med..

For more games that might be playable and a list of all games and graphics cards visit our Gaming List

Notebook reviews with AMD Radeon HD 8690M graphics card

Dell Latitude E6440: Intel Core i5 4300M, 14", 2.1 kg
  Review » Review Dell Latitude E6440 Notebook

  External Review » Dell Latitude E6440

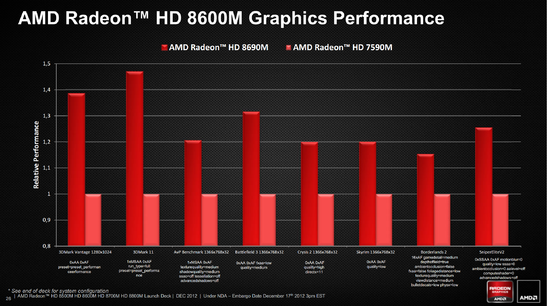

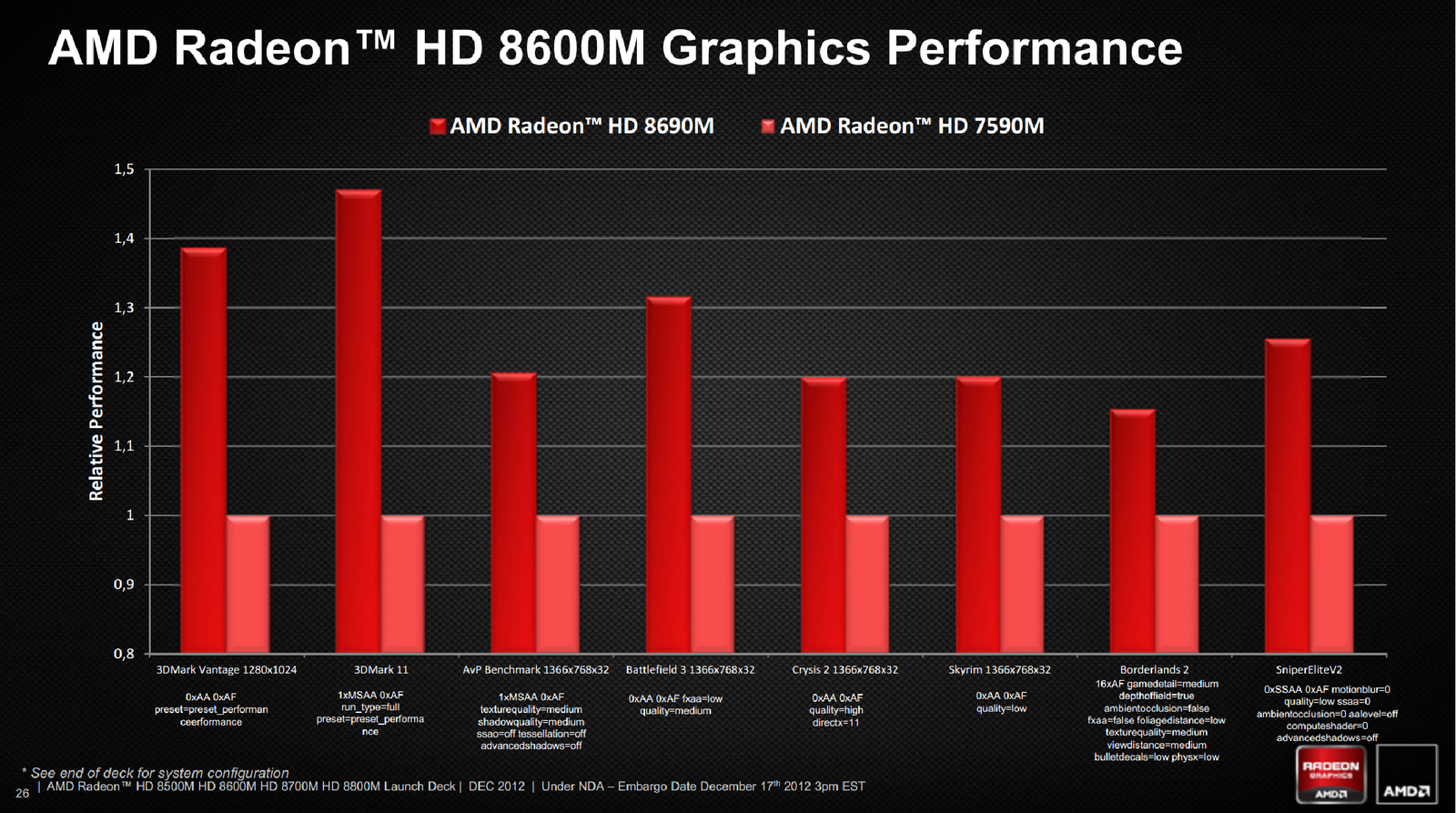

Benchmarks provided by AMD - 7590M vs 8690M
Benchmarks provided by AMD - 7590M vs 8690M
