NVIDIA GeForce GT 320M

NVIDIA GeForce GT 320M

The Nvidia GeForce GT 320M or GT320M was presented in the HP dv6t and dv7t series and should be based on a stripped down GT216 core with 24 instead of 48 shader cores.

Beware: The GT 320M should not be confused with the newer GeForce 320M in the Apple MacBook 13" 04/2010 laptops, which is a chipset graphics card.

In conjunction with the Nvidia 9100M G integrated graphics, the GT 320M supports Hybrid-SLI (only HybridPower). HybridPower is a technique to choose between the integrated and dedicated graphics core, if performance or battery runtime is needed. This works only in Windows Vista. Up to now the user has to use a tool to switch between the GPUs. Later Nvidia wants to switch automatically in the drivers. GeForceBoost is not supported with this card, as there would be no performance gain.

The GT 320M features 24 stream processors that do the graphic work of the vertex- and pixel-shaders. Nvidia Shaders are 1-dimensional and can therefore not be directly compared to the 5-dimensional shaders of AMD (HD 4650 e.g.).

The performance of the GT 320M is nearly on a level of the old GeForce 9600M GT (altough the 9600M GT features 32 shaders). Demanding Direct X 10 games like Crysis or Dirt 2 can only be played in low details fluently. Older games like Left 4 Dead can be played with high details fluently. More game benchmarks can be found below.

The GeForce GT 320M supports PureVideo HD (VP4) to decode HD videos with the GPU. H.264, VC-1, MPEG-2, and MPEG-4 ASP (DivX or xVID) can be fully decoded by the GPU. Futhermore, CUDA and DirectCompute are supported to use the processing power of the graphics card for other applications (with modern drivers). PhysX is currently not supported because of the low shader count.

ManufacturerNVIDIA
GeForce GT 300M Series

GeForce GT 335M

72 @ 450 MHz128 Bit @ 1066 MHz

GeForce GT 330M

48 @ 575 MHz128 Bit @ 1066 MHz

GeForce GT 325M

48 @ 450 MHz128 Bit @ 1066 MHz
GeForce GT 320M 24 @ 500 MHz128 Bit @ 790 MHz
ArchitectureGT2xx
Pipelines24 - unified
Core Speed *500 MHz
Shader Speed *1100 MHz
Memory Speed *790 MHz
Memory Bus Width128 Bit
Memory TypeDDR3
Max. Amount of Memory1024 MB
Shared Memoryno
DirectXDirectX 10.1, Shader 4.1
technology40 nm
FeaturesPCI-E 2.0, PureVideo HD (VP4), HybridPower
Notebook Sizemedium sized
Date of Announcement21.01.2010
* The specified clock rates are only guidelines for the manufacturer and can be altered by them.

Benchmarks

3DMark Vantage - P GPU no PhysX 1280x1024
0% 100%
min: 983      avg: 997 (2%)     median: 997 (2%)     max: 1011 Points
3DMark Vantage - P Result no PhysX 1280x1024
0% 100%
min: 1205      avg: 1205 (3%)     median: 1205 (3%)     max: 1205 Points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailled information on the benchmark results, click on the fps number.

Battlefield: Bad Company 2
low 1024x768
29.9  fps      Compare
med. 1366x768
15.6  fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.

For more games that might be playable and a list of all games and graphics cards visit our Gaming List

#0 Did not recreate cache, as it is less than 5 days old +0.001s ... 0.001s

#1 min, max, avg, median took 4.2438507080078E-5s +0.12s ... 0.121s

#2 Before gaming benchmark output +0s ... 0.121s

#3 return log +0.03s ... 0.152s

The following gaming benchmarks were conducted by our reader Artem on a Asus K50ID (Pentium Dual-Core T440, 3 GB RAM, 197.16 driver) in 1366x768 pixel and no AA or AF.

Battlefield Bad Company 2
Minimum details: 22-42 fps, avg 29.6 fps -> in a lower resolution playable

C&C 3
High details: 26-31 fps, avg 29.8 fps -> playable

Call of Duty 6 - Modern Warfare 2
High details: 22-47 fps, avg 31.8 fps -> playable

Crysis Warhead
Low details: 14-34 fps, avg 19.9 fps -> in a lower resolution playable

Counterstrike Source
Max details: 35-148 fps, avg 91 fps -> fully playable

Dirt 2
Low details: 15-27 fps / 23 fps -> in a lower resolution playable

Mirrors Edge
Medium details: 23-29 fps, avg 28.8 fps
Minimum details: 27-46 fps, avg 34.9 fps -> fluently playable

NFS Shift
Minimum details: 24-32 fps, avg 28.5 fps -> playable

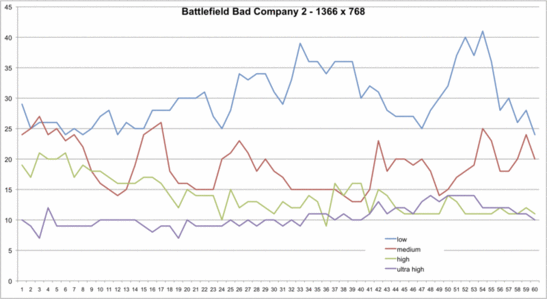

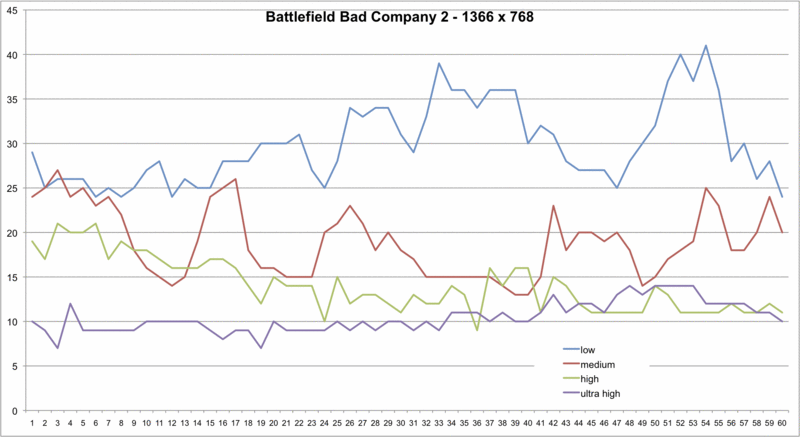

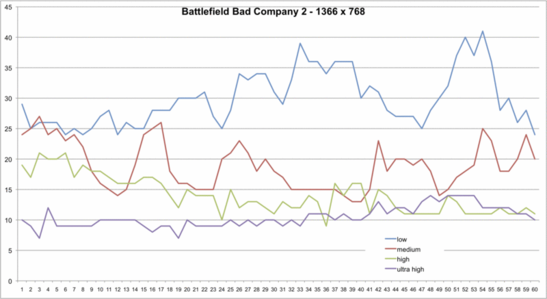

Battlefield Bad Company 2 - 1366x768: In min. Details keine starken Einbrüche
Battlefield Bad Company 2 - 1366x768: In min. Details keine starken Einbrüche

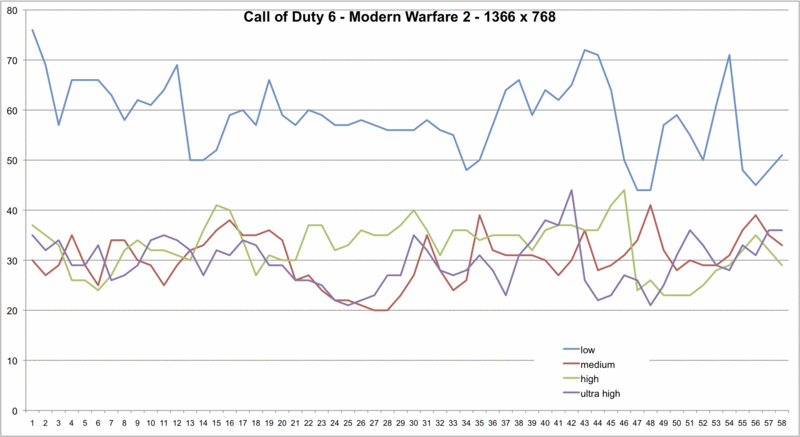

Call of Duty Modern Warfare 2 - 1366x768: Online nur in min. Details flüssig spielbar
Call of Duty Modern Warfare 2 - 1366x768: Online nur in min. Details flüssig spielbar

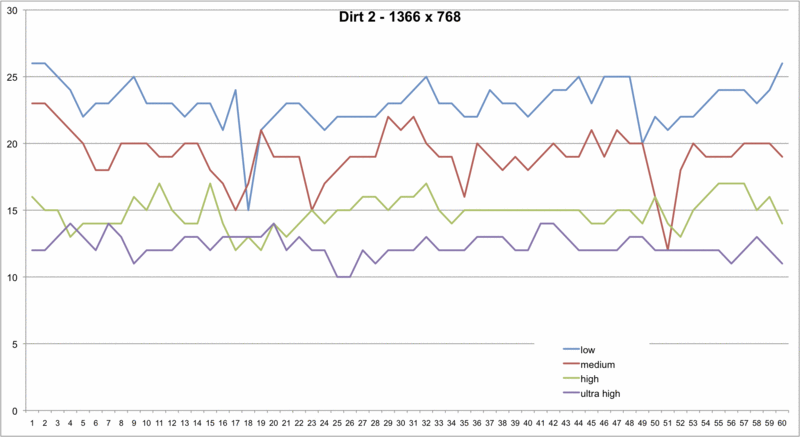

Dirt 2 - 1366x768: Nur in min Details knapp spielbar.
Dirt 2 - 1366x768: Nur in min Details knapp spielbar.

Notebook reviews with NVIDIA GeForce GT 320M graphics card

Acer Aspire 5741G-434G50MN: Intel Core i5 430M, 15.6", 2.6 kg
  External Review » Acer Aspire 5741G-434G50MN

Acer Aspire 5741G-434G64BN: Intel Core i5 430M, 15.6", 2.6 kg
  External Review » Acer Aspire 5741G-434G64BN

Asus K50ID-X1: Intel Pentium Dual Core T4400, 15.6", 2.6 kg
  External Review » Asus K50ID-X1

HP Pavilion dv7-3145ef: Intel Core i5 430M, 17.3", 3.5 kg
  External Review » HP Pavilion dv7-3145ef

Packard Bell EasyNote TM87-JN-218: Intel Core i3 330M, 15.6", 2.6 kg
  External Review » Packard Bell EasyNote TM87-JN-218
