ATI Mobility Radeon HD 4570

The ATI Mobilty Radeon HD 4570 from AMD is a DirectX 10.1 lower to mid range notebook graphics adapter. Technically it is a faster clocked Mobility Radeon 4530/4330. The successor Mobility Radeon HD 5450 features the same performance at a lower power consumption and DirectX11 capabilities.

AMD specifies a slow 64 Bit memory bus, but some GPU-Z variants state a 128 Bit bus (this is an error in the GPU-Z database).

The gaming performance of the ATI Mobility Radeon HD4570 should be very similar to the desktop HD 4550 which features similar specifications. Modern and demanding games of 2009 like COD MW 2 or Risen only run in low details and resolutions fluently. Some may not even run fluently at all (e.g. Crysis and NFS Shift depending on the CPU). Older or less demanding games like Left 4 Dead should even run in high detail settings. More information can be found in the gaming benchmark section below.

The Mobility HD 4570 is based on the RV710 chip and features 80 stream processors (16 5-dimensional shader cores). These cores do the graphic work of the shader- and pixel pipelines of older GPUs. The stream processors are also called ALUs and are grouped in five-way VLIW units. Each of the five instructions of a VLIW bundle has to be independent from the others and therefore the performance depends on the optimization of the driver.

A speciality of the Radeon HD 4570 is the possibility to use ordinary DDR2 and DDR3 graphic memory (as a cheaper alternative to GDDR3). However, cards that use that kind of memory will be slower than others equipped with GDDR RAM.

The Mobility Radeon HD 4570 includes the Avivo HD called video technology including an onboard soundchip for 7.1 sound output over HDMI or DisplayPort and the 2nd generation UVD (Unified Video Decoder). This UVD 2 supports full bitstream decoding of H.264/MPEG-4 AVC and VC-1 streams. In addition to this, it also supports dual video stream decoding and Picture-in Picture mode which makes the UVD full BD-Live compliant. Simplified, the Avivo HD technology handles all video tasks and enables the GPU to decode HD videos.

AMD published a power consumtion of about 12-15 Watt for the HD 4570. Still it is unclear if this value represents the chip alone or the whole mxm board including the memory (which would include about 5 Watt).

Compared to the desktop ATI Radeon HD 4550, the mobile 4570 features a higher core clock (680 versus 600) and therefore performs a bit better than the desktop 4550 (if the notebook manufacturer uses GDDR3 memory).

ManufacturerATI
Mobility Radeon HD 4300/4500 Series

Mobility Radeon HD 4550

80 @ 550MHz64 Bit @ 700MHz
Mobility Radeon HD 4570 80 @ 680MHz64 Bit @ 800MHz

Mobility Radeon HD 4530

80 @ 500MHz64 Bit @ 700MHz

Mobility Radeon HD 4350

80 @ 450MHz64 Bit @ 600MHz
CodenameM92-XT
ArchitectureTerascale 1
Pipelines80 - unified
Core Speed *680 MHz
Shader Speed *680 MHz
Memory Speed *800 MHz
Memory Bus Width64 Bit
Memory TypeGDDR3, DDR2, DDR3
Shared Memoryno
DirectXDirectX 10.1, Shader 4.1
Transistors242 Million
technology55 nm
FeaturesOpenGL 2.0, PCI-E 2.0 x16, Powerplay, DisplayPort support up to 2560x1600, HDMI support up to 1920x1080 (both with 7.1 AC3 Audio), 1x Dual-Link/Single-Link DVI, 1x Single-Link DVI Support (all display ports have to be supported by the laptop manufacturer)
Date of Announcement09.01.2009
Link to Manufacturer Pagehttp://ati.amd.com/products/MobilityRade...
* The specified clock rates are only guidelines for the manufacturer and can be altered by them.

Benchmarks

3DMark Vantage - P GPU no PhysX 1280x1024
0% 100%
min: 637      avg: 852.7 (2%)     median: 916 (2%)     max: 935 Points
3DMark Vantage - P Result no PhysX 1280x1024
0% 100%
min: 805      avg: 1081.8 (3%)     median: 1151 (3%)     max: 1175 Points
3DMark 06
0% 100%
min: 2654      avg: 3475.4 (12%)     median: 3556.5 (12%)     max: 4593 Points
3DMark 05 - Standard 1024x768
0% 100%
min: 5638      avg: 6754.6 (18%)     median: 6843 (19%)     max: 8017 Points
3DMark 03 - Standard 1024x768
0% 100%
min: 7546      avg: 9407.5 (6%)     median: 8626 (6%)     max: 11627 Points
3DMark 2001SE - Standard 1024x768
0% 100%
min: 11199      avg: 16655.6 (27%)     median: 17062 (28%)     max: 22883 Points
PCMark Vantage - Gaming Score 1024x768
0% 100%
min: 2322      avg: 3644.4 (14%)     median: 3313 (13%)     max: 5145 Points
SPEC Viewperf 10.0 - 3ds Max 1280x1024
0% 100%
min: 7.64      avg: 7.8 (16%)     median: 7.8 (16%)     max: 7.93 fps
SPEC Viewperf 10.0 - Catia 1280x1024
0% 100%
min: 7.05      avg: 7.8 (16%)     median: 7.8 (16%)     max: 8.54 fps
SPEC Viewperf 10.0 - EnSight 1280x1024
0% 100%
min: 7.7      avg: 8.4 (18%)     median: 8.4 (18%)     max: 9.02 fps
SPEC Viewperf 10.0 - Maya 1280x1024
0% 100%
min: 11.5      avg: 12.6 (7%)     median: 12.6 (7%)     max: 13.73 fps
SPEC Viewperf 10.0 - Pro/Engeneer 1280x1024
0% 100%
min: 5.2      avg: 6 (12%)     median: 6 (12%)     max: 6.79 fps
SPEC Viewperf 10.0 - SolidWorks 1280x1024
0% 100%
min: 10.87      avg: 12.3 (18%)     median: 12.3 (18%)     max: 13.67 fps
SPEC Viewperf 10.0 - UGS Teamcenter 1280x1024
0% 100%
min: 2.59      avg: 2.8 (7%)     median: 2.8 (7%)     max: 2.97 fps
SPEC Viewperf 10.0 - UGS NX 1280x1024
0% 100%
min: 5.25      avg: 6.4 (13%)     median: 6.4 (13%)     max: 7.64 fps
Cinebench R10 - Shading 32Bit
0% 100%
min: 2486      avg: 3623.2 (30%)     median: 3689 (30%)     max: 4618 Points
Windows 7 Experience Index - Gaming graphics
0% 100%
min: 5.9      avg: 6.1 (77%)     median: 6.1 (77%)     max: 6.3 points
Windows 7 Experience Index - Graphics
0% 100%
min: 4.1      avg: 4.5 (57%)     median: 4.6 (58%)     max: 4.9 points
Windows Vista Experience Index - GPU
0% 100%
min: 4.1      avg: 4.7 (69%)     median: 4.9 (72%)     max: 5 Points
Windows Vista Experience Index - GPU Games
0% 100%
min: 4.8      avg: 5.1 (75%)     median: 5.2 (76%)     max: 5.3 Points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailled information on the benchmark results, click on the fps number.

CoD Modern Warfare 2
low 800x600
78.7 82.8 ~ 81 fps      Compare
med. 1024x768
18.8 20.6 ~ 20 fps      Compare
» With all tested laptops playable in detail settings low.
Risen

Risen

2009
low 800x600
37.2 42.8 ~ 40 fps      Compare
med. 1024x768
16.8 19.8 ~ 18 fps      Compare
high 1366x768
10.7  fps      Compare
» With all tested laptops playable in detail settings low.
Need for Speed Shift

Need for Speed Shift

2009
low 800x600
27.9 32.7 ~ 30 fps      Compare
med. 1024x768
15 21.3 ~ 18 fps      Compare
high 1366x768
11.7  fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Colin McRae: DIRT 2

Colin McRae: DIRT 2

2009
low 800x600
41.4  fps      Compare
med. 1024x768
25.6  fps      Compare
» With all tested laptops playable in detail settings low.
Anno 1404

Anno 1404

2009
low 1024x768
50.9 77.1 96.5 ~ 75 fps      Compare
ultra 1280x1024
8 11 ~ 10 fps      Compare
» With all tested laptops playable in detail settings low.
Sims 3

Sims 3

2009
low 800x600
133.5 232.8 ~ 183 fps      Compare
med. 1024x768
33.8 59.1 ~ 46 fps      Compare
high 1280x1024
32.1  fps      Compare
» With most tested laptops playable in detail settings med..
F.E.A.R. 2

F.E.A.R. 2

2009
low 800x600
58.2 69.3 75.6 89.3 117.4 124.8 ~ 89 fps      Compare
med. 1024x768
28.9 30.8 31.7 35.2 35.8 36.5 43.6 ~ 35 fps      Compare
high 1280x1024
15.2 22.4 ~ 19 fps      Compare
» With all tested laptops playable in detail settings low.
Left 4 Dead

Left 4 Dead

2008
low 640x480
94.3  fps      Compare
high 1024x768
48.3  fps      Compare
» With all tested laptops playable in detail settings high.
Racedriver: GRID

Racedriver: GRID

2008
low 800x600
63.4 64.8 67.1 71.9 77.7 ~ 69 fps      Compare
med. 1024x768
28.4 34.4 34.5 34.7 35 ~ 33 fps      Compare
high 1280x1024
18.5  fps      Compare
» With all tested laptops playable in detail settings low.
Call of Duty 4 - Modern Warfare

Call of Duty 4 - Modern Warfare

2007
low 800x600
63.4 64.1 103.8 170.5 ~ 100 fps      Compare
med. 1024x768
28.4 30.5 36.7 37.1 43.6 ~ 35 fps      Compare
high 1280x1024
24.1 30.2 ~ 27 fps      Compare
» With all tested laptops playable in detail settings low.
Supreme Commander - FA Bench

Supreme Commander - FA Bench

2007
med. 1024x768
18.5  fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
low 1024x768
29.4 42.3 ~ 36 fps      Compare
med. 1024x768
21.1 22.7 ~ 22 fps      Compare
high 1024x768
11.9  fps      Compare
» With most tested laptops playable in detail settings low.
Crysis - CPU Benchmark

Crysis - CPU Benchmark

2007
low 1024x768
33.2 41.4 ~ 37 fps      Compare
med. 1024x768
17.2 19.4 ~ 18 fps      Compare
high 1024x768
9.4  fps      Compare
» With most tested laptops playable in detail settings low.
World in Conflict - Benchmark

World in Conflict - Benchmark

2007
med. 1024x768
22  fps      Compare
high 1024x768
10  fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.
Call of Juarez Benchmark

Call of Juarez Benchmark

2006
high 1024x768
12.9  fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.
The Elder Scrolls IV - Oblivion

The Elder Scrolls IV - Oblivion

2006
high 1280x800
40.5  fps      Compare
» With all tested laptops playable in detail settings high.
F.E.A.R.

F.E.A.R.

2005
low 640x480
144 171 ~ 158 fps      Compare
med. 800x600
66 68 ~ 67 fps      Compare
high 1024x768
23 35 ~ 29 fps      Compare
» With all tested laptops playable in detail settings med..
World of Warcraft

World of Warcraft

2005
low 800x600
121.5 185 209.7 ~ 172 fps      Compare
med. 1024x768
47.2 52 56.9 57.5 ~ 53 fps      Compare
high 1280x1024
10.9 13.3 14 ~ 13 fps      Compare
» With all tested laptops playable in detail settings med..
Counter-Strike Source

Counter-Strike Source

2004
high 1024x768
140  fps      Compare
» With all tested laptops playable in detail settings high.
Doom 3

Doom 3

2004
low 640x480
62  fps      Compare
med. 640x480
55  fps      Compare
ultra 1024x768
45  fps      Compare
» With all tested laptops playable in detail settings ultra.
Quake 3 Arena - Timedemo

Quake 3 Arena - Timedemo

1999
high 1024x768
250 325.9 ~ 288 fps      Compare
» With all tested laptops playable in detail settings high.

For more games that might be playable and a list of all games and graphics cards visit our Gaming List

Gaming Performance

The following benchmarks stem from a desktop HD 4550 (has a slower core clock than the mobile HD 4570) in conjunction with a C2D E8500 (a bit faster than the Core 2 Extreme X9100) and should therefore be similar.

Crysis: 1024x768, Medium: 23 fps -> not really playable (playable with low details)
World in Conflict: 1024x768, Medium DX9: 40 fps -> fluently playable
Stalker Clear Sky: 1024x768, Medium: 30 fps -> playable
Far Cry 2: 1024x768, high DX9: 25 -> more or less playable (better swith to medium details)
Race Driver Grid: 1024x768, Medium: 40 fps -> fluently playable

Benchmarks by AMD

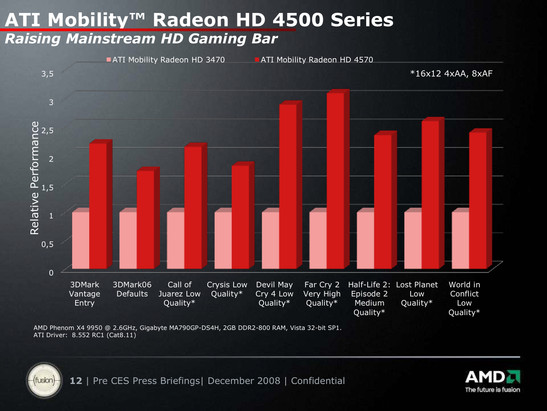

AMD published some benchmarks at the launch of the Mobilty Radeon HD 4000 Series with relative benchmarks of the HD 4570 versus the HD 3470. Sadly the settings of 1600x1200, 4x AA, 8x AF are too high to result in playable framerates. Therefore the following chart is only of limited use.

Still AMD also included the increase in 3DMark06 points (1.65x) and therefore one can conclude that the Mobility Radeon HD 4570 should score about 3200 points which would put her in place of the old HD 2600.

Relative performance of the HD 4570 to the HD 3470 in unplayable settings.
Relative performance of the HD 4570 to the HD 3470 in unplayable settings.

Notebook reviews with ATI Mobility Radeon HD 4570 graphics card

Acer Aspire 5536G: AMD Athlon X2 QL-64, 15.6", 2.8 kg
  Review » Review Acer Aspire 5536G Notebook

Acer Aspire 5738DG-744G50MN: Intel Core 2 Duo P7450, 15.6", 2.8 kg
  Review » Review Acer Aspire 5738DG 3D Notebook

Dell Studio 1555: Intel Core 2 Duo P8600, 15.6", 2.7 kg
  Review » Review Dell Studio 1555 Notebook

Dell Studio 1557: Intel Core i7 720QM, 15.6", 2.6 kg
  Review » Review Dell Studio 1557 Notebook

Dell Studio 1558 HD4570: Intel Core i5 520M, 15.6", 2.8 kg
  Review » Review Dell Studio 1558 (HD4570) Notebook

Schenker MB6.a: Intel Core i5 520M, 15.6", 2.7 kg
  Review » Review mySN MB6.a Notebook

Sony Vaio VGN-NW11S/S: Intel Core 2 Duo T6500, 15.5", 2.6 kg
  Review » Review Sony Vaio VGN-NW11 Notebook

Sony Vaio VGN-SR41M/S: Intel Core 2 Duo T6400, 13.3", 1.8 kg
  Review » Review Sony Vaio SR41M/S Notebook

Toshiba Satellite U500-115 : Intel Core 2 Duo P8700, 13.3", 2.3 kg
  Review » Review Toshiba Satellite U500-115 Notebook

Acer Aspire 5536G: AMD Athlon X2 QL-64, 15.6", 2.8 kg
  External Review » Acer Aspire 5536G

Acer Aspire 5542G-304G50MN: AMD Athlon II M300, 15.6", 3 kg
  External Review » Acer Aspire 5542G-304G50MN

Acer Aspire 5738DG-6165: Intel Core 2 Duo T6600, 15.6", 2.8 kg
  External Review » Acer Aspire 5738DG-6165

Acer Aspire 5738DG-744G50MN: Intel Core 2 Duo P7450, 15.6", 2.8 kg
  External Review » Acer Aspire 5738DG-744G50MN

Acer Aspire 5738DZG: Intel Pentium Dual Core T4300, 15.6", 2.9 kg
  External Review » Acer Aspire 5738DZG

Acer Aspire 5738PG: Intel Core 2 Duo T6500, 15.6", 2.8 kg
  External Review » Acer Aspire 5738PG

Acer Aspire 7535G-824G50Mn: AMD Turion X2 Ultra ZM-82, 17.3", 3.3 kg
  External Review » Acer Aspire 7535G-824G50Mn

Acer Aspire 7540G-304G32MN: AMD Athlon II M300, 17.3", 3.3 kg
  External Review » Acer Aspire 7540G-304G32MN

Acer Aspire 7552G : AMD Phenom II X4 P920, 17.3", 3.3 kg
  External Review » Acer Aspire 7552G

Asus K50AB: AMD Turion X2 Ultra ZM-84, 15.6", 2.4 kg
  External Review » Asus K50AB

Asus K50AB-SX101V: AMD Turion X2 RM-75, 15.6", 2.6 kg
  External Review » Asus K50AB-SX101V

Asus K70AB: AMD Turion X2 RM-74, 17.3", 4.3 kg
  External Review » Asus K70AB

Asus U80V: Intel Core 2 Duo T9550, 14.0", 2.2 kg
  External Review » Asus U80V

Asus X5DAB-SX028V: AMD Turion X2 Ultra ZM-84, 15.6", 2.6 kg
  External Review » Asus X5DAB-SX028V

Asus X70AB-TY029C: AMD Turion X2 RM-74, 17.3", 3 kg
  External Review » Asus X70AB-TY029C

AVADirect Clevo W765CUH: Intel Core i5 520M, 15.6", 2.8 kg
  External Review » AVADirect Clevo W765CUH

Dell Studio 1555: Intel Core 2 Duo P8600, 15.6", 2.7 kg
  External Review » Dell Studio 1555

Dell Studio 1557: Intel Core i7 720QM, 15.6", 2.6 kg
  External Review » Dell Studio 1557

Dell Studio 1558 HD4570: Intel Core i5 520M, 15.6", 2.8 kg
  External Review » Dell Studio 1558 HD4570

HP Pavilion dv7-4083cl : Intel Core i5 450M, 17.3", 3.5 kg
  External Review » HP Pavilion dv7-4083cl

Packard Bell EasyNote LJ65: Intel Pentium Dual Core T4200, 17.3", 3.3 kg
  External Review » Packard Bell EasyNote LJ65

Packard Bell EasyNote TJ71-SB-139FR: AMD Athlon II M300, 15.6", 2.6 kg
  External Review » Packard Bell EasyNote TJ71-SB-139FR

Polywell PolyNote 714AH: Intel Core i5 520M, 17.0", 3.1 kg
  External Review » Polywell PolyNote 714AH

Samsung R580-JT02: Intel Core i3 370M, 15.6", 2.4 kg
  External Review » Samsung R580-JT02

Schenker MB6.a: Intel Core i5 520M, 15.6", 2.7 kg
  External Review » mySN MB6.a

Sony Vaio VGN-NW11S/S: Intel Core 2 Duo T6500, 15.5", 2.6 kg
  External Review » Sony Vaio VGN-NW11S/S

Sony Vaio VGN-NW11Z/S: Intel Core 2 Duo T6500, 15.5", 2.7 kg
  External Review » Sony Vaio VGN-NW11Z/S

Sony Vaio VGN-NW160J: Intel Core 2 Duo T6500, 15.5", 2.7 kg
  External Review » Sony Vaio VGN-NW160J

Sony Vaio VGN-NW180J/S: Intel Core 2 Duo P7350, 15.5", 2.7 kg
  External Review » Sony Vaio VGN-NW180J/S

Sony Vaio VGN-NW21MF/W: Intel Core 2 Duo T6600, 15.6", 2.7 kg
  External Review » Sony Vaio VGN-NW21MF/W

Sony Vaio VGN-NW21ZF/S: Intel Core 2 Duo P7450, 15.6", 2.7 kg
  External Review » Sony Vaio VGN-NW21ZF/S

Sony Vaio VGN-SR41M/S: Intel Core 2 Duo T6400, 13.3", 1.8 kg
  External Review » Sony Vaio VGN-SR41M/S

Sony Vaio VGN-SR420J/B: Intel Core 2 Duo T6500, 13.3", 2 kg
  External Review » Sony Vaio VGN-SR420J/B

Sony Vaio VGNNW250: Intel Core 2 Duo T6600, 15.5", 2.7 kg
  External Review » Sony Vaio VGNNW250

Sony VAIO VGNNW25GF/S: Intel Core 2 Duo T6600, 15.5", 2.7 kg
  External Review » Sony VAIO VGNNW25GF/S

Toshiba Satellite L500-128: Intel Core 2 Duo T6500, 15.6", 2.8 kg
  External Review » Toshiba Satellite L500-128

Toshiba Satellite L500-13Z: Intel Pentium Dual Core T4200, 15.6", 2.8 kg
  External Review » Toshiba Satellite L500-13Z

Toshiba Satellite L500D-17e: AMD Athlon II M300, 15.6", 2.7 kg
  External Review » Toshiba Satellite L500D-17e

Toshiba Satellite L550-113: Intel Core 2 Duo T6500, 17.3", 3.2 kg
  External Review » Toshiba Satellite L550-113

Toshiba Satellite L550D-10G: AMD Athlon X2 QL-65, 17.3", 3 kg
  External Review » Toshiba Satellite L550D-10G

Toshiba Satellite L555D-10E: AMD Athlon II M300, 17.3", 3 kg
  External Review » Toshiba Satellite L555D-10E

Toshiba Satellite P300-24Z : Intel Core 2 Duo T6400, 17.0", 3.4 kg
  External Review » Toshiba Satellite P300-24Z

Toshiba Satellite U500-10Z: Intel Core 2 Duo P7350, 13.3", 2.2 kg
  External Review » Toshiba Satellite U500-10Z

Toshiba Satellite U500-115 : Intel Core 2 Duo P8700, 13.3", 2.3 kg
  External Review » Toshiba Satellite U500-115

Toshiba Satellite U500-11C: Intel Core 2 Duo P7350, 13.3", 2.2 kg
  External Review » Toshiba Satellite U500-11C

Wortmann Terra Mobile 1546 iP-6000 W7HP: Intel Pentium P6000, 15.6", 2.7 kg
  External Review » Wortmann Terra Mobile 1546 iP-6000 W7HP

» Comparison of GPUs
Detailled list of all laptop GPUs with a short description. Classified and sorted by performance.

» Benchmark List
Sortable and restrainable list of all GPUs with benchmarks (e.g. 3DMarks).

» Notebook Gaming List
Which game can be played with my graphics card.

Class 1
GeForce GTX 590
GeForce GTX 760
GeForce GTX 580
Radeon HD 6970
GeForce GTX 750 Ti
GeForce GTX 570
GeForce GTX 560 Ti
Radeon HD 6870
Radeon HD 5850
Radeon HD 7770
Radeon HD 7770
GeForce GTX 460 768MB
Radeon HD 6790
Radeon HD 5770
GeForce GTX 550 Ti
Class 2
GeForce GTS 450
Radeon HD 4850
Class 3
Radeon HD 5670
GeForce GT 240
GeForce GT 430
Radeon HD 5570
GeForce GT 220
Radeon HD 6450 GDDR5
Class 4
Radeon R3 (Mullins/Beema) *
Class 5
Radeon HD 4350
GeForce G 107M *
Chrome9HD *
Class 6
unknown *

* Approximate position of the graphics adapter

> Notebook / Laptop Reviews and News > FAQ / Tips / Technics >
