AMD Radeon R9 Fury

AMD Radeon R9 Fury

The AMD Radeon R9 Fury is a high-end desktop graphics card. In 2015 it was the second-fastest model in the AMD lineup (after the Radeon R9 Fury X). As the flagship, the R9 Fury is based on the Fiji chip, but only 3,584 of the 4,096 shaders are activated. The chip is manufactured in 28 nm at TSMC and features the third generation of the GCN architecture (also known as GCN 1.2). Another similarity is the 4 GB of HBM graphics memory that is also clocked at 500 MHz (4,096 bit = 512 GB/s).

The gaming performance of the R9 Fury is slightly above a GeForce GTX 980 (desktop and notebook) at maximum details and in high resolution settings. By reducing details and settings, the GTX980 is able to pull ahead thanks to the more efficient drivers. However, this may change in future DirectX 12 games. Compared to laptop graphics solutions, the R9 Fury is slightly slower than two GeForce GTX 980M cards in SLI configuration (but without the micro-stuttering problems).

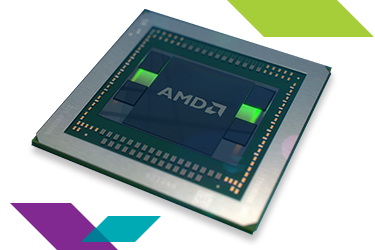

The Fiji chip fully supports DirectX 12 (feature level 12_0) in hardware and also integrates a new Unified Video Decoder (UVD). Like the Carrizo APUs, the R9 Fury is able to decode H.265 UHD videos on the chip. However, the HDMI outputs still only support HDMI 1.4 and therefore 4K at 30 Hz. HDMI 2.0 and HDCP 2.2, like the GeForce GTX 960, are not supported.

The power consumption is on a level with the faster AMD Radeon Fury X and rated at 275 Watt (typical). Therefore, a 750 W power supply is recommended. Compared to the GeForce GTX 980, the power consumption under load is noticeably higher and also the efficiency is not as good.

CodenameFiji
ArchitectureGCN 1.2
Pipelines3584 - unified
Core Speed1000 MHz
Memory Speed500 MHz
Memory Bus Width4096 Bit
Memory TypeHBM
Max. Amount of Memory4 GB
Shared Memoryno
APIDirectX 12 (FL 12_0), OpenGL 4.3
Power Consumption275 Watt
Transistor Count8.9 Billion
technology28 nm
FeaturesMantle, Eyefinity, App Acceleration, CrossFire, PowerTune, ZeroCore, HD3D, TrueAudio
Date of Announcement16.06.2015
InformationPCI-E 3.0

Benchmarks

Performance Rating - 3DMark 11 + Fire Strike + Time Spy
6.6 pt (20%)
3DMark Vantage
3DM Vant. Perf. total +
3DM Vant. Perf. GPU no PhysX +
3DMark 06 3DMark 06 - Standard 1280x1024 +
GFXBench (DX / GLBenchmark) 2.7
GFXBench T-Rex HD Offscreen C24Z16 +
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

F1 2019

F1 2019

2019
ultra 1920x1080
79  fps    + Compare
QHD 2560x1440
62  fps    + Compare
4K 3840x2160
38.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
38.9  fps    + Compare + 📈 Graph
QHD 2560x1440
51.6  fps    + Compare + 📈 Graph
4K 3840x2160
22.5  fps    + Compare + 📈 Graph
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
56.8  fps    + Compare
QHD 2560x1440
45.6  fps    + Compare
4K 3840x2160
28.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
101  fps    + Compare
4K 3840x2160
37.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
29  fps    + Compare
4K 3840x2160
11  fps    + Compare
» The benchmarks indicate that the game is not playable in the tested settings.
World of Tanks enCore

World of Tanks enCore

2018
ultra 1920x1080
101  fps    + Compare
4K 3840x2160
38.4  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Fortnite

Fortnite

2018
high 1920x1080
95  fps    + Compare
ultra 1920x1080
72  fps    + Compare
4K 3840x2160
25.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
high 1920x1080
105  fps    + Compare
ultra 1920x1080
75  fps    + Compare
4K 3840x2160
13  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
85  fps    + Compare
4K 3840x2160
34.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
50.2  fps    + Compare
4K 3840x2160
20.1  fps    + Compare
» With all tested laptops playable in detail settings ultra.
high 1920x1080
59.9  fps    + Compare
ultra 1920x1080
51  fps    + Compare
4K 3840x2160
27.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
high 1920x1080
132  fps    + Compare
ultra 1920x1080
53.6  fps    + Compare
4K 3840x2160
38.9  fps    + Compare
» With all tested laptops playable in detail settings ultra.
high 1920x1080
68.5  fps    + Compare
ultra 1920x1080
43.4  fps    + Compare
4K 3840x2160
27.9  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
57.3  fps    + Compare
4K 3840x2160
30.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
high 1920x1080
100  fps    + Compare
ultra 1920x1080
92  fps    + Compare
4K 3840x2160
54.8  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
117  fps    + Compare
4K 3840x2160
61.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
102  fps    + Compare
4K 3840x2160
46.6  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
71  fps    + Compare
4K 3840x2160
61  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Mafia 3

Mafia 3

2016
high 1920x1080
42  fps    + Compare
4K 3840x2160
20  fps    + Compare
» With all tested laptops playable in detail settings high.
high 1920x1080
72.6  fps    + Compare
ultra 1920x1080
35.6  fps    + Compare
4K 3840x2160
25.1  fps    + Compare
» With all tested laptops playable in detail settings ultra.
high 1920x1080
69  fps    + Compare
ultra 1920x1080
39  fps    + Compare
4K 3840x2160
35.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
high 1920x1080
92  fps    + Compare
ultra 1920x1080
81.3  fps    + Compare
4K 3840x2160
31.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Overwatch

Overwatch

2016
high 1920x1080
233  fps    + Compare
ultra 1920x1080
121  fps    + Compare
4K 3840x2160
77  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Doom

Doom

2016
low 1280x720
158  fps    + Compare
med. 1366x768
136  fps    + Compare
high 1920x1080
90  fps    + Compare
ultra 1920x1080
83  fps    + Compare
4K 3840x2160
38.2  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Medium Preset 1920x1080
105
med. 1920x1080
76.8  fps    + Compare
high 1920x1080
71  fps    + Compare
4K 3840x2160
32.6  fps    + Compare
» With all tested laptops playable in detail settings high.
Additional Benchmarks
extreme 3840x2160
37.9
high 1920x1080
95  fps    + Compare
ultra 1920x1080
68.3  fps    + Compare
4K 3840x2160
40.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
59.2 61 ~ 60 fps    + Compare
4K 3840x2160
37.7 38.9 ~ 38 fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
150  fps    + Compare
med. 1366x768
123  fps    + Compare
high 1920x1080
76.2  fps    + Compare
ultra 1920x1080
61  fps    + Compare
4K 3840x2160
34.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
116  fps    + Compare
med. 1920x1080
102  fps    + Compare
high 1920x1080
91  fps    + Compare
ultra 1920x1080
68  fps    + Compare
4K 3840x2160
37  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Additional Benchmarks
Low Preset 1920x1080
115
XCOM 2

XCOM 2

2016
low 1280x720
94  fps    + Compare
med. 1920x1080
85  fps    + Compare
high 1920x1080
68  fps    + Compare
ultra 1920x1080
34.3  fps    + Compare
4K 3840x2160
22  fps    + Compare
» With all tested laptops playable in detail settings high.
Additional Benchmarks
Low Preset TrilinearAF 1920x1080
93
low 1024x768
159  fps    + Compare
med. 1366x768
110  fps    + Compare
high 1920x1080
72  fps    + Compare
ultra 1920x1080
57  fps    + Compare
4K 3840x2160
32.4  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
319  fps    + Compare
med. 1366x768
303  fps    + Compare
high 1920x1080
160  fps    + Compare
ultra 1920x1080
117  fps    + Compare
4K 3840x2160
62  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
88.6  fps    + Compare
med. 1366x768
77  fps    + Compare
high 1920x1080
63  fps    + Compare
ultra 1920x1080
59  fps    + Compare
4K 3840x2160
36.3  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
166  fps    + Compare
med. 1366x768
150  fps    + Compare
high 1920x1080
129  fps    + Compare
ultra 1920x1080
119  fps    + Compare
4K 3840x2160
50  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
82  fps    + Compare
med. 1366x768
81  fps    + Compare
high 1920x1080
71  fps    + Compare
ultra 1920x1080
28.3  fps    + Compare
4K 3840x2160
31.5  fps    + Compare
» With all tested laptops playable in detail settings high.
Fallout 4

Fallout 4

2015
ultra 1920x1080
80  fps    + Compare
4K 3840x2160
38.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
76  fps    + Compare
4K 3840x2160
36.4  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Anno 2205

Anno 2205

2015
low 1024x768
171  fps    + Compare
med. 1366x768
140  fps    + Compare
high 1920x1080
76  fps    + Compare
ultra 1920x1080
33  fps    + Compare
4K 3840x2160
34.3  fps    + Compare
» With all tested laptops playable in detail settings high.
FIFA 16

FIFA 16

2015
ultra 1920x1080
250  fps    + Compare
4K 3840x2160
157  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1366x768
223  fps    + Compare
med. 1366x768
174  fps    + Compare
high 1920x1080
151  fps    + Compare
ultra 1920x1080
130  fps    + Compare
4K 3840 x 2160
64  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
60  fps    + Compare
med. 1366x768
60  fps    + Compare
high 1920x1080
60  fps    + Compare
ultra 1920x1080
60  fps    + Compare
4K 3840x2160
57  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Mad Max

Mad Max

2015
med. 1366x768
247  fps    + Compare
high 1920x1080
153  fps    + Compare
ultra 1920x1080
144  fps    + Compare
4K 3840x2160
55  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
130  fps    + Compare
4K 3840x2160
102  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
138  fps    + Compare
med. 1366x768
131  fps    + Compare
high 1920x1080
109  fps    + Compare
4K 3840x2160
39  fps    + Compare
» With all tested laptops playable in detail settings high.
low 1024x768
207  fps    + Compare
med. 1366x768
146  fps    + Compare
high 1920x1080
91  fps    + Compare
ultra 1920x1080
45.5  fps    + Compare
4K 3840x2160
35.9  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
94  fps    + Compare
4K 3840x2160
81  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
158  fps    + Compare
med. 1366x768
144  fps    + Compare
high 1920x1080
91  fps    + Compare
ultra 1920x1080
60  fps    + Compare
» With all tested laptops playable in detail settings ultra.
F1 2014

F1 2014

2014
ultra 1920x1080
113  fps    + Compare
» With all tested laptops playable in detail settings ultra.
high 1920x1080
171  fps    + Compare
ultra 1920x1080
137  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1280x720
255  fps    + Compare
med. 1344x756
205  fps    + Compare
high 1920x1080
134  fps    + Compare
ultra 1920x1080
103  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
101  fps    + Compare
4K 3840x2160
56  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
39 (!)  fps    + Compare
med. 1366x768
121  fps    + Compare
high 1366x768
121  fps    + Compare
ultra 1920x1080
89  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
464  fps    + Compare
med. 1366x768
421  fps    + Compare
high 1366x768
324  fps    + Compare
ultra 1920x1080
169.7  fps    + Compare
» With all tested laptops playable in detail settings ultra.
Crysis 3

Crysis 3

2013
high 1366x768
114  fps    + Compare
ultra 1920x1080
64.5  fps    + Compare
» With all tested laptops playable in detail settings ultra.
low 1024x768
95  fps    + Compare
med. 1366x768
89  fps    + Compare
high 1366x768
80  fps    + Compare
ultra 1920x1080
77  fps    + Compare
» With all tested laptops playable in detail settings ultra.
ultra 1920x1080
268  fps    + Compare
QHD 2560x1440
158  fps    + Compare
4K 3820x2160
109  fps    + Compare
» With all tested laptops playable in detail settings ultra.
lowmed.highultraQHD4K
F1 2019796238.5
The Division 238.951.622.5
Dirt Rally 2.056.845.628.3
Call of Duty Black Ops 410137.8
Assassin´s Creed Odyssey2911
World of Tanks enCore10138.4
Fortnite957225.3
Star Wars Battlefront 21057513
Need for Speed Payback8534.5
Playerunknown's Battlegrounds (PUBG)50.220.1
Mass Effect Andromeda59.95127.2
Resident Evil 713253.638.9
Watch Dogs 268.543.427.9
Dishonored 257.330.7
Call of Duty Infinite Warfare1009254.8
Titanfall 211761.5
Farming Simulator 17103
Battlefield 110246.6
Civilization VI7161
Mafia 34220
FIFA 17172
Deus Ex Mankind Divided72.635.625.1
No Man's Sky693935.7
Mirror's Edge Catalyst9281.331.5
Overwatch23312177
Doom158136908338.2
Ashes of the Singularity76.87132.6
Need for Speed 20169568.340.3
Hitman 20166038
The Division15012376.26134.5
Far Cry Primal116102916837
XCOM 294856834.322
Rise of the Tomb Raider159110725732.4
Rainbow Six Siege31930316011762
Just Cause 388.677635936.3
Star Wars Battlefront16615012911950
Assassin's Creed Syndicate82817128.331.5
Fallout 48038.7
Call of Duty: Black Ops 37636.4
Anno 2205171140763334.3
FIFA 16250157
World of Warships22317415113064
Metal Gear Solid V6060606057
Mad Max24715314455
Dota 2 Reborn130102
Batman: Arkham Knight13813110939
The Witcher 32071469145.535.9
Dirt Rally9481
GTA V46.6
Dragon Age: Inquisition1581449160
F1 2014113
Alien: Isolation171137
Middle-earth: Shadow of Mordor255205134103
Battlefield 410156
Metro: Last Light3912112189
Tomb Raider464421324169.7
Crysis 311464.5
Hitman: Absolution95898077
Counter-Strike: GO268158109
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps

1
6
12


8
13

2
23
10
2
14
29
8

2
1
1
11
29
9
2

For more games that might be playable and a list of all games and graphics cards visit our Gaming List

Add one or more devices and compare

In the following list you can select (and also search for) devices that should be added to the comparison. You can select more than one device.

restrict list:

show all (including archived), 2024, 2023
v1.26
log 05. 16:43:08

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Mon, 04 Mar 2024 05:34:43 +0100 +0.001s ... 0.001s

#3 composed specs +0.068s ... 0.07s

#4 did output specs +0s ... 0.07s

#5 start showIntegratedCPUs +0s ... 0.07s

#6 getting avg benchmarks for device 6941 +0.032s ... 0.102s

#7 got single benchmarks 6941 +0.009s ... 0.111s

#8 got avg benchmarks for devices +0s ... 0.111s

#9 min, max, avg, median took s +0.492s ... 0.604s

#10 before gaming benchmark output +0s ... 0.604s

#11 Got 185 rows for game benchmarks. +0.009s ... 0.613s

#12 composed SQL query for gamebenchmarks +0s ... 0.613s

#13 got data and put it in $dataArray +0.048s ... 0.661s

#14 benchmarks composed for output. +1.593s ... 2.254s

#15 return log +0.042s ... 2.296s

No reviews found for this graphics card.

Please share our article, every link counts!

» Comparison of GPUs
Detailed list of all laptop GPUs sorted by class and performance.

» Benchmark List
Sort and restrict laptop GPUs based on performance in synthetic benchmarks.

» Notebook Gaming List
Playable games for each graphics card and their average FPS results.

Class 1

Class 2

Class 3

UHD Graphics 32EUs
UHD Graphics 750

Class 4

* Approximate position of the graphics adapter

> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Benchmarks / Tech > Comparison of Laptop Graphics Cards > AMD Radeon R9 Fury benchmarks and specs
Klaus Hinum (Update: 2016-01-26)
