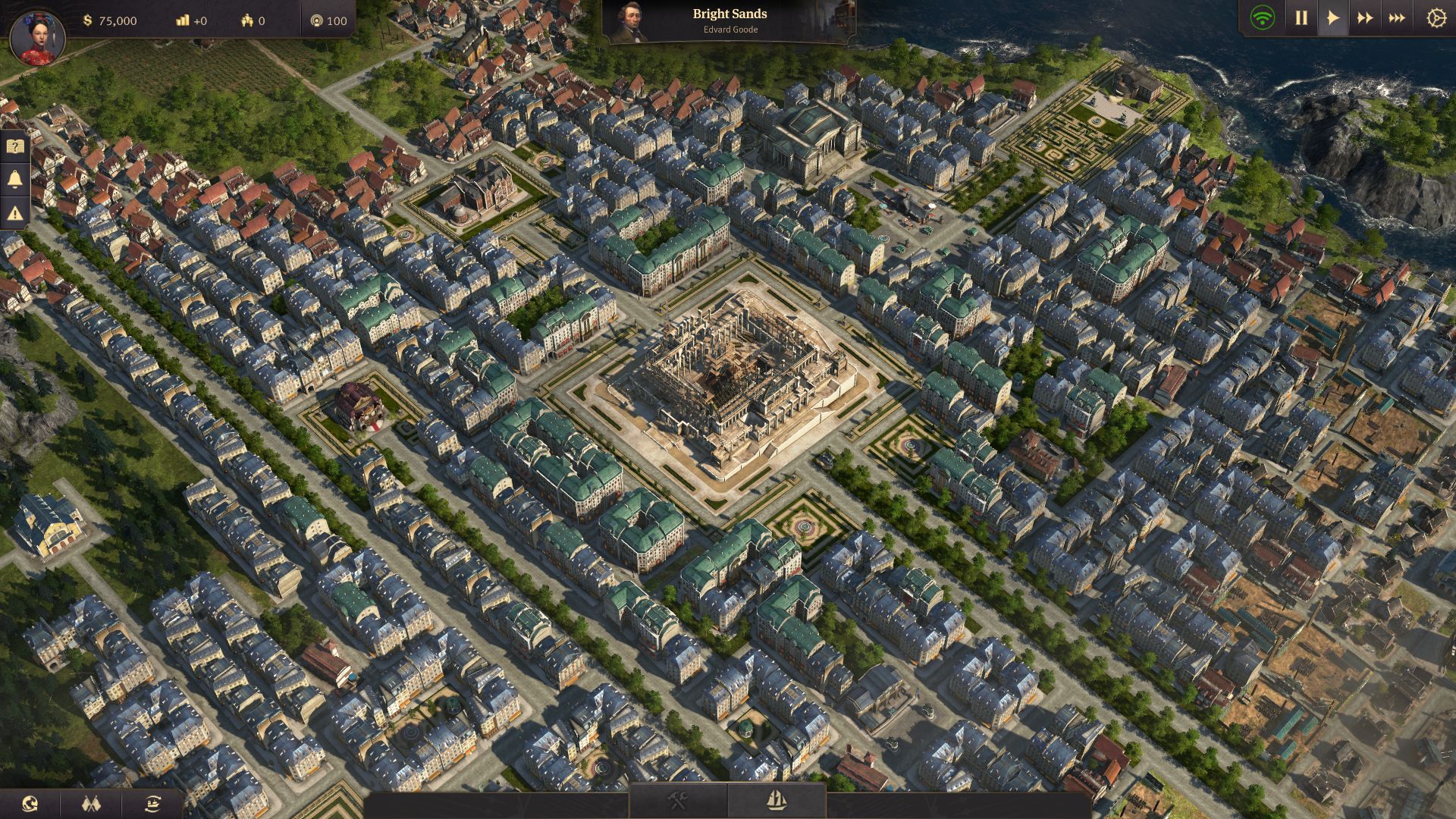

Once you have launched the game it quickly becomes apparent that the latest title in the beloved Anno series looks absolutely gorgeous. When you zoom out you will see high-quality shadows, sharp textures, superb effects (such as water reflections) and very dense vegetation. When you zoom in, you will see plenty of fine detail. All of this attests to the fact that the game had a big production budget.

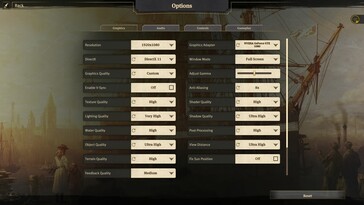

We find both the game engine and the graphics settings menu to be quite praiseworthy. There are almost 20 options in the settings menu, which is more than usual for a PC title. Users can change the resolution, adjust the anti-aliasing, switch between different display modes, lower or raise the gamma, and select the preferred DirectX mode (DX11 or DX12). Moreover, there are also many graphics settings, which can be adjusted in a quick fashion through 5 built-in presets.
The fact that certain changes in the graphics settings require a restart to take effect does not prove to be very bothersome, because the loading times are not very long and introductory videos can be skipped. The game crashed on some of the systems that we used for this performance analysis. Crashes primarily occurred when starting the game, during loading or when going from one menu screen to another in the settings menu.

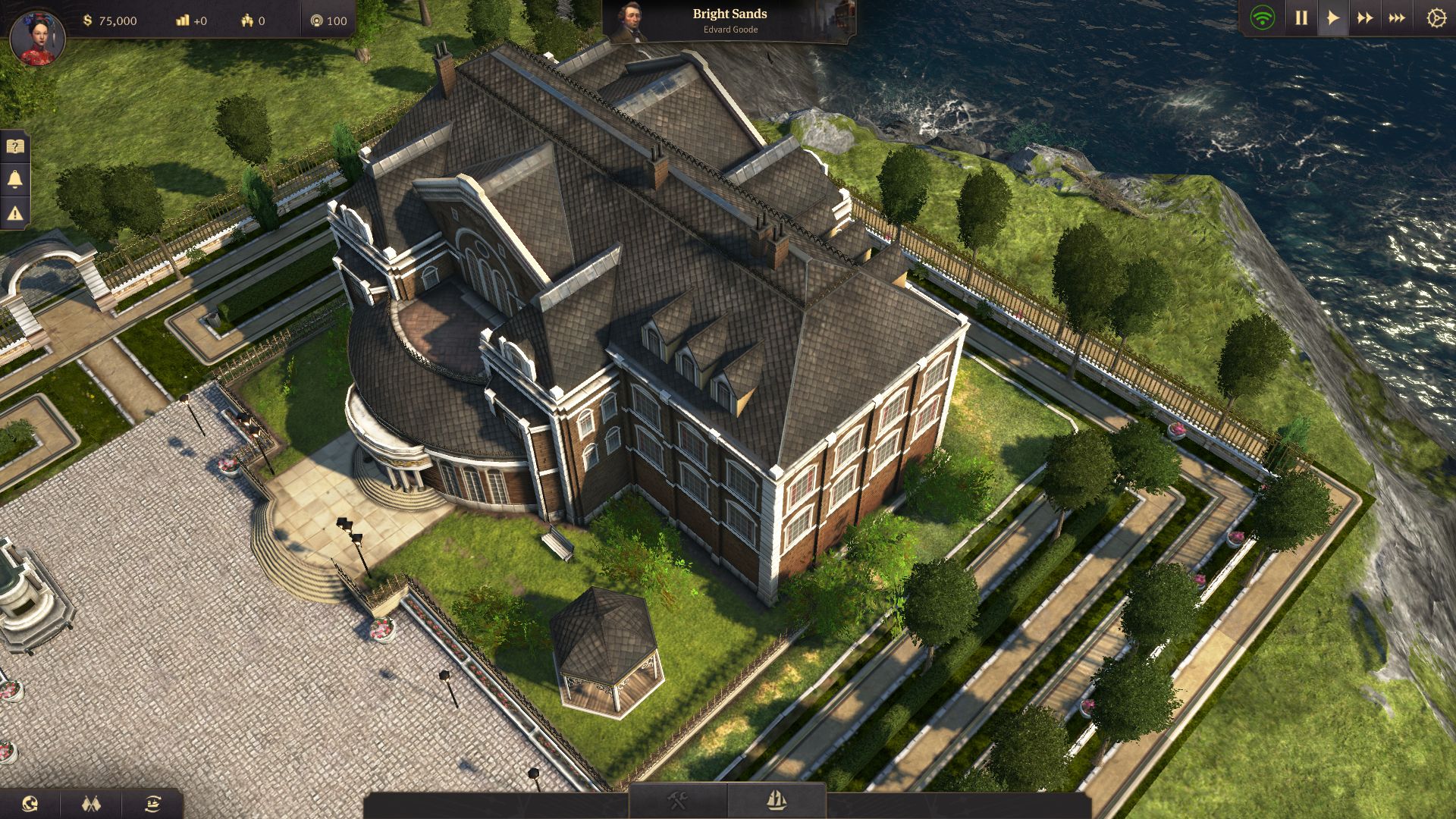

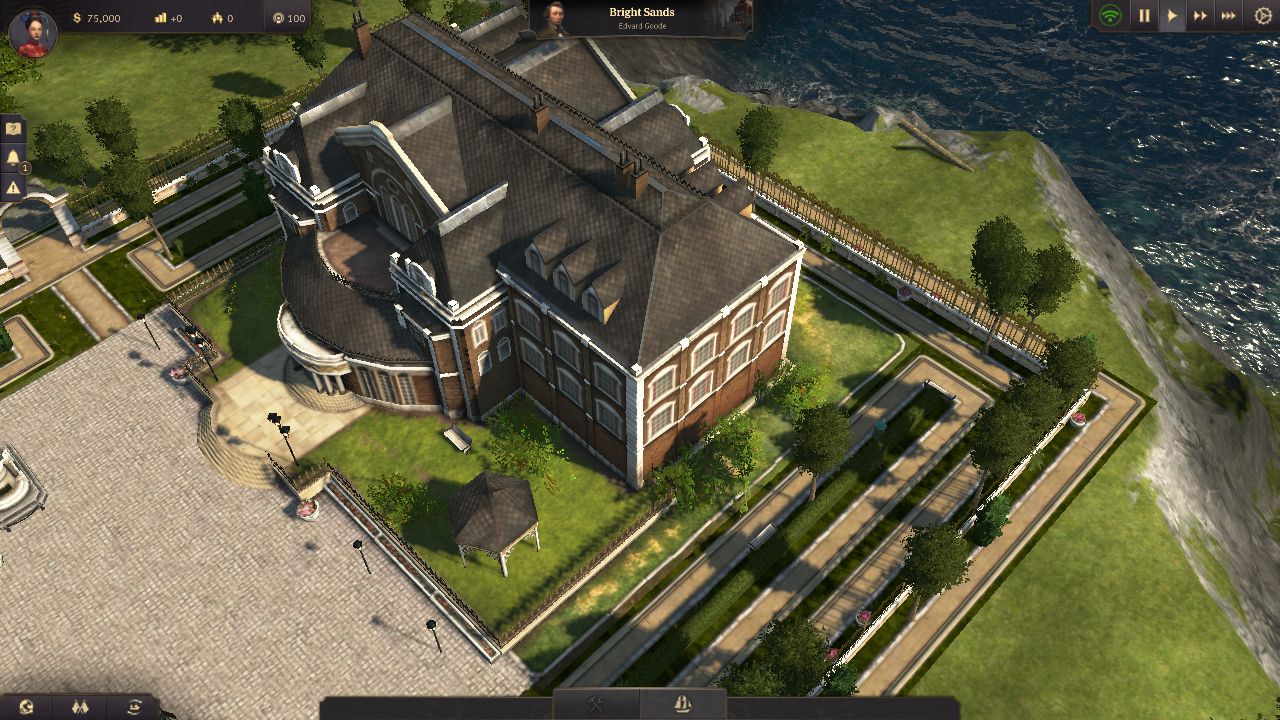

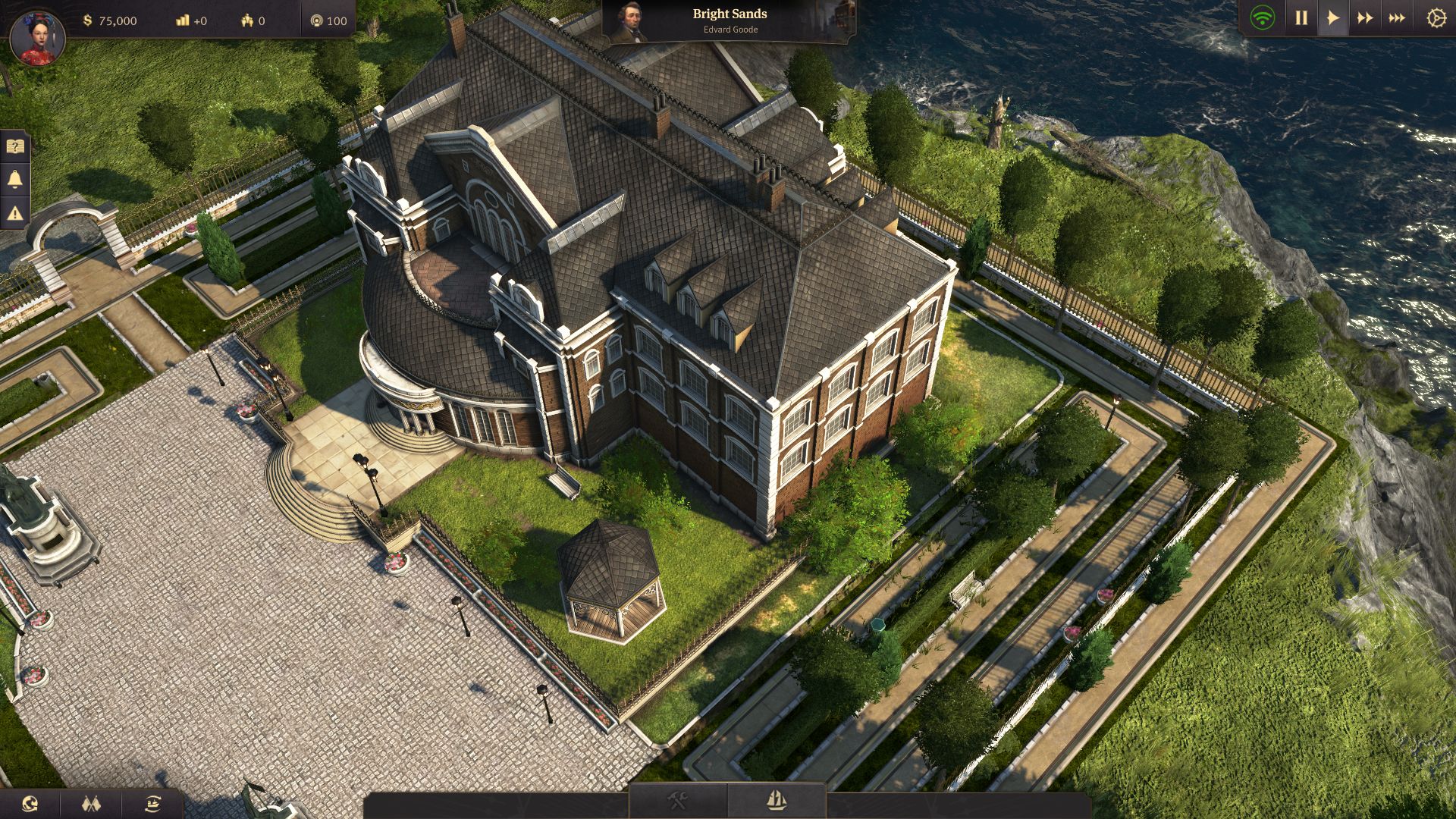

But back to the graphics: Anno 1800 looks great even on medium settings and it does not turn into an ugly mess on low settings either. Attention: The performance varies a lot from preset to preset, which can be attributed in large part to the anti-aliasing. The ultra preset sets the anti-aliasing to 8x, which is significantly more demanding than the 4x that you get on the high preset. According to our measurements, the game runs 50% smoother on the high preset than on the ultra preset. The very high preset is a good compromise, if you run into performance problems on the ultra preset.
In general, it is very hard to measure the performance of Anno 1800, because the frame rate fluctuates greatly depending on the zoom level and population density (small settlements vs. big cities). Here’s an example: At 1080p on the highest settings, the frame rates that we got with the GTX 1080 on our first, large campaign map fluctuated between 30 and 120 FPS. Just like with many other 3D titles, the GPU is the main limiting factor for Anno 1800 on high settings and at high resolutions. However, when gaming on medium settings and at modest resolutions, the performance can become limited by the CPU.
Benchmarks
Our benchmark run consists of very demanding scenes. As you can see in the video below, in the benchmark we press F10 to auto-rotate the camera over the enemy’s city in the first campaign mission. The camera rotates once over the city center, which takes about 40 seconds.
Results
HD (1280x720)
At 720p, the low preset does not require a whole lot of horsepower. While integrated GPUs such as the Intel HD Graphics 630 fail to keep their heads above water most of the time, the dedicated graphics solutions such as the GeForce MX150 manage to run the game fairly smoothly (because of the aerial view, 30 FPS is sufficient).
Anno 1800 | |
1280x720 Low Graphics Quality (DX11) | |
NVIDIA GeForce GTX 1060 (Desktop), i9-9900K | |
NVIDIA GeForce GTX 1070 (Desktop), i9-9900K | |
NVIDIA GeForce GTX 1080 (Desktop), i9-9900K | |
NVIDIA GeForce GTX 1080 Mobile, i7-7820HK | |
NVIDIA GeForce GTX 1080 Max-Q, i7-7700HQ | |
NVIDIA GeForce GTX 1070 Mobile, 6820HK | |
NVIDIA GeForce GTX 1050 Ti Mobile, i7-7700HQ | |
NVIDIA GeForce GTX 1060 Mobile, 6820HK | |
NVIDIA GeForce GTX 980M, 6700HQ | |
NVIDIA GeForce GTX 970M, 6700HQ | |
NVIDIA GeForce GTX 960M, i7-7700HQ | |
NVIDIA GeForce GTX 965M, 6700HQ | |
NVIDIA GeForce GTX 1050 Mobile, i7-7700HQ | |
NVIDIA GeForce 940M, 5700HQ | |
Intel HD Graphics 630, i7-7700HQ |
FHD (1920x1080)
At 1080p, you will need a gaming or powerful multimedia notebook. The GeForce GTX 1050 is good enough for the medium preset and the GTX 1050 Ti can reach playable frame rates on the high preset. The ultra preset requires a GTX 1070 or better.
Anno 1800 | |
1920x1080 Medium Graphics Quality (DX11) 1920x1080 High Graphics Quality (DX11) 1920x1080 Ultra Graphics Quality (DX11) | |
NVIDIA GeForce GTX 1070 (Desktop), i9-9900K | |
NVIDIA GeForce GTX 1080 (Desktop), i9-9900K | |
NVIDIA GeForce GTX 1060 (Desktop), i9-9900K | |
NVIDIA GeForce GTX 1080 Mobile, i7-7820HK | |
NVIDIA GeForce GTX 1070 Mobile, 6820HK | |
NVIDIA GeForce GTX 1080 Max-Q, i7-7700HQ | |
NVIDIA GeForce GTX 1060 Mobile, 6820HK | |
NVIDIA GeForce GTX 980M, 6700HQ | |
NVIDIA GeForce GTX 1050 Ti Mobile, i7-7700HQ | |
NVIDIA GeForce GTX 970M, 6700HQ | |
NVIDIA GeForce GTX 965M, 6700HQ | |
NVIDIA GeForce GTX 1050 Mobile, i7-7700HQ | |
NVIDIA GeForce GTX 960M, i7-7700HQ | |
NVIDIA GeForce 940M, 5700HQ | |
Intel HD Graphics 630, i7-7700HQ | |
NVIDIA GeForce GTX 1080 Ti (Desktop), i7-7740X |
QHD (2560x1440) & UHD (3840x2160)
Things get real when you try to game at resolutions higher than Full HD. Here, you will need something like a GeForce GTX 1080 to achieve playable frame rates on the highest settings at 1440p. Almost all GPUs fail to stay above 30 FPS at 2160p. In the world of notebooks, only the RTX 2080 is powerful enough for gaming on ultra settings.
Anno 1800 | |
2560x1440 Ultra Graphics Quality (DX11) 3840x2160 Ultra Graphics Quality (DX11) | |
NVIDIA GeForce GTX 1080 Ti (Desktop), i7-7740X | |
NVIDIA GeForce GTX 1080 (Desktop), i9-9900K | |
NVIDIA GeForce GTX 1080 Mobile, i7-7820HK | |
NVIDIA GeForce GTX 1070 (Desktop), i9-9900K | |
NVIDIA GeForce GTX 1080 Max-Q, i7-7700HQ | |
NVIDIA GeForce GTX 1070 Mobile, 6820HK | |
NVIDIA GeForce GTX 1060 (Desktop), i9-9900K | |
NVIDIA GeForce GTX 1060 Mobile, 6820HK | |
NVIDIA GeForce GTX 980M, 6700HQ | |
NVIDIA GeForce GTX 1050 Ti Mobile, i7-7700HQ | |
NVIDIA GeForce GTX 970M, 6700HQ | |
NVIDIA GeForce GTX 1050 Mobile, i7-7700HQ | |
NVIDIA GeForce GTX 960M, i7-7700HQ |
Note
Because gaming benchmarks require a lot of time and are further constrained by installation limits, we can only provide you with a part of the benchmarks when we first put this article online. More graphics cards will be added in the coming days and weeks.
Overview
Test Bench
Device | GPU | CPU | RAM | OS |
---|---|---|---|---|
Desktop PC I | MSI GeForce GTX 1080 (8 GB GDDR5X) MSI GeForce GTX 1070 (8 GB GDDR5) Nvidia GeForce GTX 1060 (6 GB GDDR5) |
Intel Core i9-9900K | 4 x 8 GB DDR4 | Windows 10 64 Bit |
Desktop PC II | Nvidia GeForce GTX 1080 Ti (11 GB GDDR5X) Asus GeForce GTX 980 Ti (6 GB GDDR5) XFX Radeon R9 Fury (4 GB HBM) Sapphire Radeon R9 290X (4 GB GDDR5) Sapphire Radeon R9 280X (3 GB GDDR5) MSI Radeon R7 370 (2 GB GDDR5) |
Intel Core i7-7740X | 2 x 8 GB DDR4 | Windows 10 64 Bit |
Desktop-PC III | AMD Radeon RX Vega 64 (8 GB HBM2) XFX AMD Radeon RX 590 (8 GB GDDR5) Sapphire AMD Radeon RX 580 (8 GB GDDR5) Nvidia Titan X (Pascal) (12 GB GDDR5X) Zotac Nvidia GeForce GT 1030 (2 GB GDDR5) |
AMD Ryzen 7 2700X | 2 x 8 GB DDR4 | Windows 10 64 Bit |
Desktop PC IV | Nvidia Titan RTX (24 GB GDDR6) | AMD Ryzen Threadripper 2920X | 4 x 16 GB DDR4 | Windows 10 64 Bit |
Alienware 17 R4 | Nvidia GeForce GTX 1080 (8 GB GDDR5X) | Intel Core i7-7820HK | 2 x 16 GB DDR4 | Windows 10 64 Bit |
Acer Triton 700 | Nvidia GeForce GTX 1080 Max-Q (8 GB GDDR5X) | Intel Core i7-7700HQ | 2 x 16 GB DDR4 | Windows 10 64 Bit |
Asus G752VS | Nvidia GeForce GTX 1070 (8 GB GDDR5) | Intel Core i7-6820HK | 2 x 16 GB DDR4 | Windows 10 64 Bit |
MSI GT62VR | Nvidia GeForce GTX 1060 (6 GB GDDR5) | Intel Core i7-6820HK | 2 x 8 GB DDR4 | Windows 10 64 Bit |
MSI GE72 | Nvidia GeForce GTX 1050 Ti (2 GB GDDR5) | Intel Core i7-7700HQ | 2 x 4 GB DDR4 | Windows 10 64 Bit |
Asus GL753VD | Nvidia GeForce GTX 1050 (4 GB GDDR5) | Intel Core i7-7700HQ | 1 x 16 GB DDR4 | Windows 10 64 Bit |
MSI GL62 | Nvidia GeForce GTX 1050 (2 GB GDDR5) | Intel Core i7-7700HQ | 2 x 4 GB DDR4 | Windows 10 64 Bit |
Asus G752VY | Nvidia GeForce GTX 980M (4 GB GDDR5) | Intel Core i7-6700HQ | 2 x 16 GB DDR4 | Windows 10 64 Bit |
MSI GS60 | Nvidia GeForce GTX 970M (3 GB GDDR5) | Intel Core i7-6700HQ | 2 x 4 GB DDR4 | Windows 10 64 Bit |
MSI GE72 | Nvidia GeForce GTX 965M (2 GB GDDR5) | Intel Core i7-6700HQ | 1 x 8 GB DDR4 | Windows 10 64 Bit |
MSI GL72 | Nvidia GeForce GTX 960M (2 GB GDDR5) | Intel Core i7-7700HQ | 1 x 8 GB DDR4 | Windows 10 64 Bit |
MSI PE60 | Nvidia GeForce GTX 950M (2 GB GDDR5) | Intel Core i7-6700HQ | 2 x 4 GB DDR4 | Windows 10 64 Bit |
MSI CX72 | Nvidia GeForce 940MX (2 GB DDR3) | Intel Core i7-6700HQ | 2 x 8 GB DDR4 | Windows 10 64 Bit |
MSI GP62 | Nvidia GeForce 940M (2 GB DDR3) | Intel Core i7-5700HQ | 1 x 8 GB DDR3 | Windows 10 64 Bit |
MSI CX61 | Nvidia GeForce 920M (2 GB DDR3) | Intel Celeron 2970M | 1 x 8 GB DDR3 | Windows 10 64 Bit |
Asus N551ZU | AMD Radeon R9 M280X (4 GB GDDR5) | AMD FX-7600P | 2 x 4 GB DDR3 | Windows 10 64 Bit |
4K Monitore | Nvidia Treiber | AMD Treiber |
---|---|---|
2 x Asus PB287Q, Philips Momentum 436M6VBPAB | ForceWare 430.39 | Adrenalin 19.4.3 |
