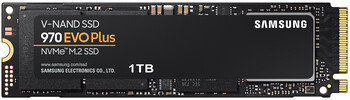

Samsung SSD 970 EVO Plus 1TB

Samsung SSD 970 EVO Plus 1TB 970 EVO Plus 1TB

The Samsung 970 EVO Plus NVMe M.2 SSD 1TB (MZ-V7S1T0BW) is a fast PCIe Gen 3.0 x4 drive that uses the Samsung Phoenix controller. It uses Samsung V-NAND 3-bit MLC memory and includes 1GB low power DDR4 SDRAM. The drive is rated with up to 3.500 MB/s sequential read and 3.300 MB/s sequential write performance.

TypeSSD
SizeM.2 2280
Capacity1024 GB
InterfaceNVMe
Announced22.01.2019

Benchmarks

Performance Rating - DiskSpd
35 pt (43%)
Seagate ST1000LM014 Solid State Hybrid Drive
0.771 -98%
...
2x SK hynix PC801 HFS512GEJ9X101N RAID 0
34 -3%
SK hynix PC801 HFS512GEJ9X101N BF
34.1 -3%
Phison 512GB SM280512GKBB4S-E162
34.5 -1%
AirDisk APF 10-512G
34.5 -1%
WD PC SN740 SDDPNQD-1T00
34.5 -1%
Samsung PM9A1a MZVL21T0HDLU
34.6 -1%
Kioxia XG8 KXG80ZNV1T02
34.7 -1%
BiWin NQ200 1TB CNF82GS1D00-1TB
34.7 -1%
Kingston OM3PGP4512Q
34.9 0%
Samsung SSD 970 EVO Plus 1TB
35
SK hynix PC801 HFS002TEJ9X101N
35.3 1%
Phison 1TB SM2801T24GKBB4S-E162
35.8 2%
SK hynix HFS001TEJ9X110NA
35.9 3%
WDC PC SN810 1TB
35.9 3%
Samsung PM9B1 1024GB MZVL41T0HBLB
35.9 3%
WDC PC SN810 512GB
36.2 3%
Samsung SSD 970 EVO Plus 2TB
36.5 4%
WD PC SN735 SDBPNHH-1T00
36.9 5%
SK hynix PC801 HFS001TEJ9X101N
37 6%
...
Corsair MP700 Pro 2TB
80.6 130%
0%
100%
AS SSD - Copy Game
min: 791.06     avg: 1521     median: 1064.5 (18%)     max: 5984 MB/s
+ 12 benchmarks and specifications   + Show comparison chart
AS SSD - Copy Program
min: 254.85     avg: 698     median: 522.6 (19%)     max: 2694 MB/s
+ 12 benchmarks and specifications   + Show comparison chart
AS SSD - Copy ISO
min: 1710     avg: 2133     median: 2151 (19%)     max: 2383 MB/s
+ 12 benchmarks and specifications   + Show comparison chart
AS SSD - Score Total
min: 4450     avg: 5812     median: 5919 (43%)     max: 6452 Points
+ 18 benchmarks and specifications   + Show comparison chart
AS SSD - Score Write
min: 1134     avg: 2539     median: 2701 (37%)     max: 2923 Points
+ 18 benchmarks and specifications   + Show comparison chart
AS SSD - Score Read
min: 1846     avg: 2171     median: 2147.5 (8%)     max: 2708 Points
+ 18 benchmarks and specifications   + Show comparison chart
AS SSD - Access Time Write *
min: 0.02     avg: 0     median: 0 (0%)     max: 0.054 ms
+ 18 benchmarks and specifications   + Show comparison chart
AS SSD - Access Time Read *
min: 0.031     avg: 0     median: 0 (0%)     max: 0.068 ms
+ 18 benchmarks and specifications   + Show comparison chart
AS SSD - 4K-64 Write
min: 708     avg: 2144     median: 2300 (39%)     max: 2512 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
AS SSD - 4K-64 Read
min: 1579     avg: 1839     median: 1796 (52%)     max: 2340 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
AS SSD - 4K Write
min: 86.3     avg: 131.2     median: 130.2 (25%)     max: 188.1 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
AS SSD - 4K Read
min: 27.86     avg: 51.2     median: 52.6 (17%)     max: 71.1 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
AS SSD - Sequential Write
min: 2469     avg: 2633     median: 2616.5 (23%)     max: 2858 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
AS SSD - Sequential Read
min: 2173     avg: 2800     median: 2880.5 (23%)     max: 3002 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 3.0 - 4K QD32 Write
min: 475.4     avg: 501     median: 505 (49%)     max: 522 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 3.0 - 4K QD32 Read
min: 565     avg: 584     median: 568 (44%)     max: 620 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 3.0 - 4K Write
min: 115.7     avg: 136.9     median: 135.1 (15%)     max: 160 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 3.0 - 4K Read
min: 58.3     avg: 63.2     median: 63.3 (1%)     max: 68.1 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 3.0 - 512K Write
min: 728     avg: 1078     median: 1186 (27%)     max: 1320 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 3.0 - 512K Read
min: 609     avg: 953     median: 1095 (32%)     max: 1155 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 3.0 - Sequential Write
min: 1411     avg: 1643     median: 1744 (31%)     max: 1773 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 3.0 - Sequential Read
min: 1180     avg: 1775     median: 1895 (37%)     max: 2251 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Write 4K
min: 86.5     avg: 155.5     median: 159.8 (14%)     max: 238.3 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Read 4K
min: 40.45     avg: 51.6     median: 52.2 (1%)     max: 76.7 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5 Write Seq
min: 1197     avg: 2660     median: 2988 (16%)     max: 3241 MB/s
+ 17 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5 Read Seq
min: 1018     avg: 2390     median: 2586 (31%)     max: 3037 MB/s
+ 17 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Write 4K Q32T1
min: 288.6     avg: 446.9     median: 504.1 (17%)     max: 569 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Read 4K Q32T1
min: 332     avg: 544     median: 587.5 (9%)     max: 715 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Write Seq Q32T1
min: 3227     avg: 3296     median: 3295.5 (22%)     max: 3339 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Read Seq Q32T1
min: 3477     avg: 3551     median: 3561 (19%)     max: 3571 MB/s
+ 18 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 6 Write 4K Q8T8
1656 MB/s (33%)
+ 1 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 6 Read 4K Q8T8
2076 MB/s (31%)
+ 1 benchmarks and specifications   + Show comparison chart
PCMark 8 - PCMark 8 Storage v2
5079 Points (99%)
+ 1 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd 4k_q1t1_write
min: 39.77     avg: 160.1     median: 183 (43%)     max: 232 MB/s
+ 15 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd 4k_q1t1_read
min: 13.65     avg: 50.9     median: 53 (15%)     max: 78.2 MB/s
+ 15 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd 4k_q32t16_write
min: 140.4     avg: 2317     median: 2668 (55%)     max: 2685 MB/s
+ 15 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd 4k_q32t16_read
min: 97.3     avg: 1929     median: 1865 (30%)     max: 3256 MB/s
+ 15 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd seq_write
min: 208.9     avg: 2645     median: 2820 (30%)     max: 3244 MB/s
+ 15 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd seq_read
min: 338.3     avg: 2475     median: 2648 (38%)     max: 2999 MB/s
+ 15 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd seq_q8t1_write
min: 202     avg: 3081     median: 3278 (22%)     max: 3327 MB/s
+ 15 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd seq_q8t1_read
min: 456.1     avg: 3291     median: 3517 (22%)     max: 3562 MB/s
+ 15 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd Loop seq_q8t1_read
min: 455.8     avg: 3212     median: 3505 (21%)     max: 3560 MB/s
+ 14 benchmarks and specifications   + Show comparison chart
010020030040050060070080090010001100120013001400150016001700180019002000210022002300240025002600270028002900300031003200330034003500Tooltip
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
