F1 23 technical review: Laptop and desktop benchmarks

Demanding ray tracing. Formula 1 fans are once again getting a new game to relish this year. In this review, we'll be taking a closer look at the tech behind F1 23, especially its highly demanding graphics.

Florian Glaser, 👁 Florian Glaser (translated by Zhiwei Zhuang), Published 06/27/2023 🇩🇪 🇸🇪 ...

Notebooks used in this review

Right now, our gaming benchmarks are performed using these laptops. Click on the images to visit the respective product page. All other test systems (tower PCs, mini-PCs, etc.) are listed at the end of this article.

Technical aspects

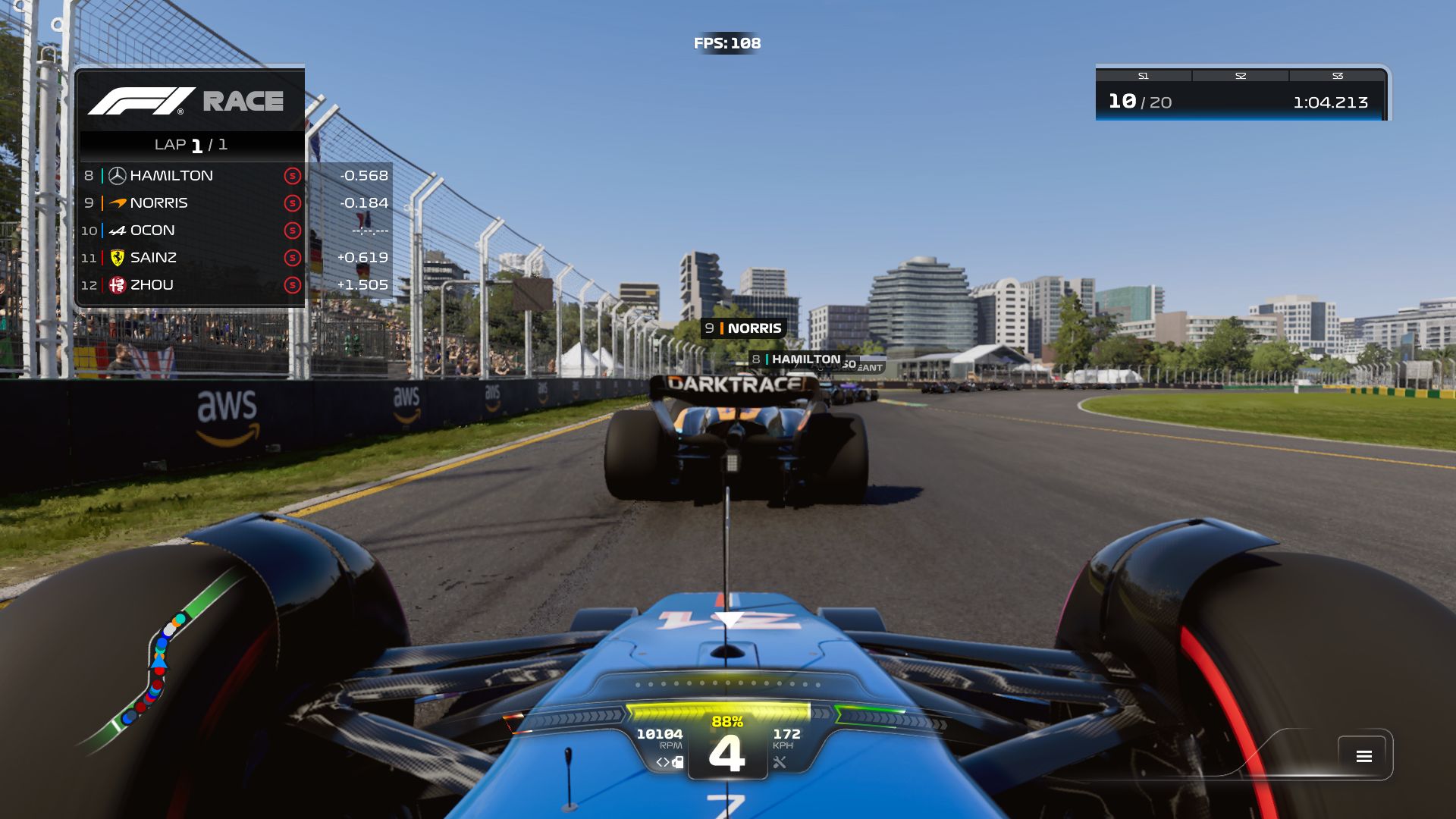

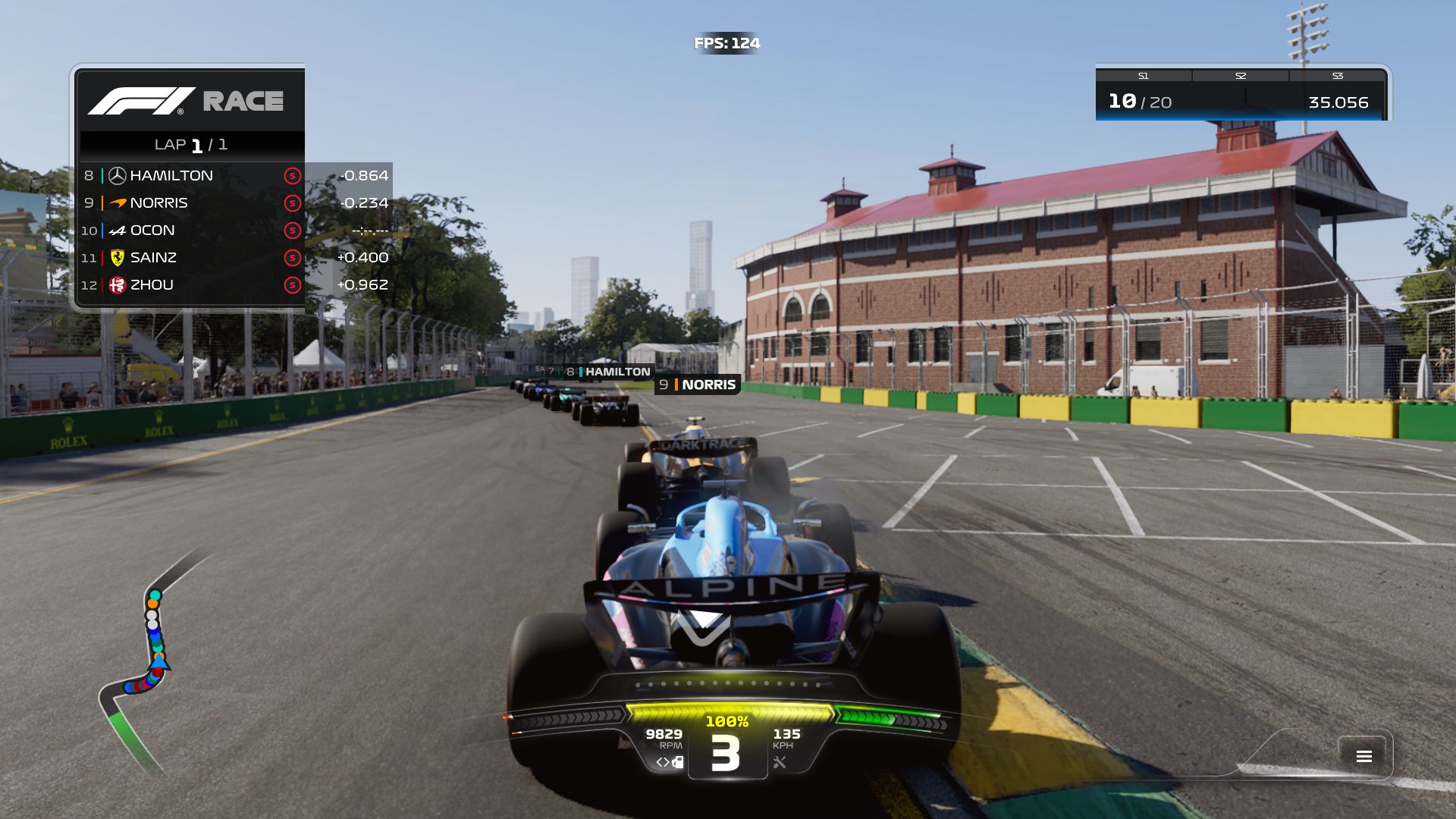

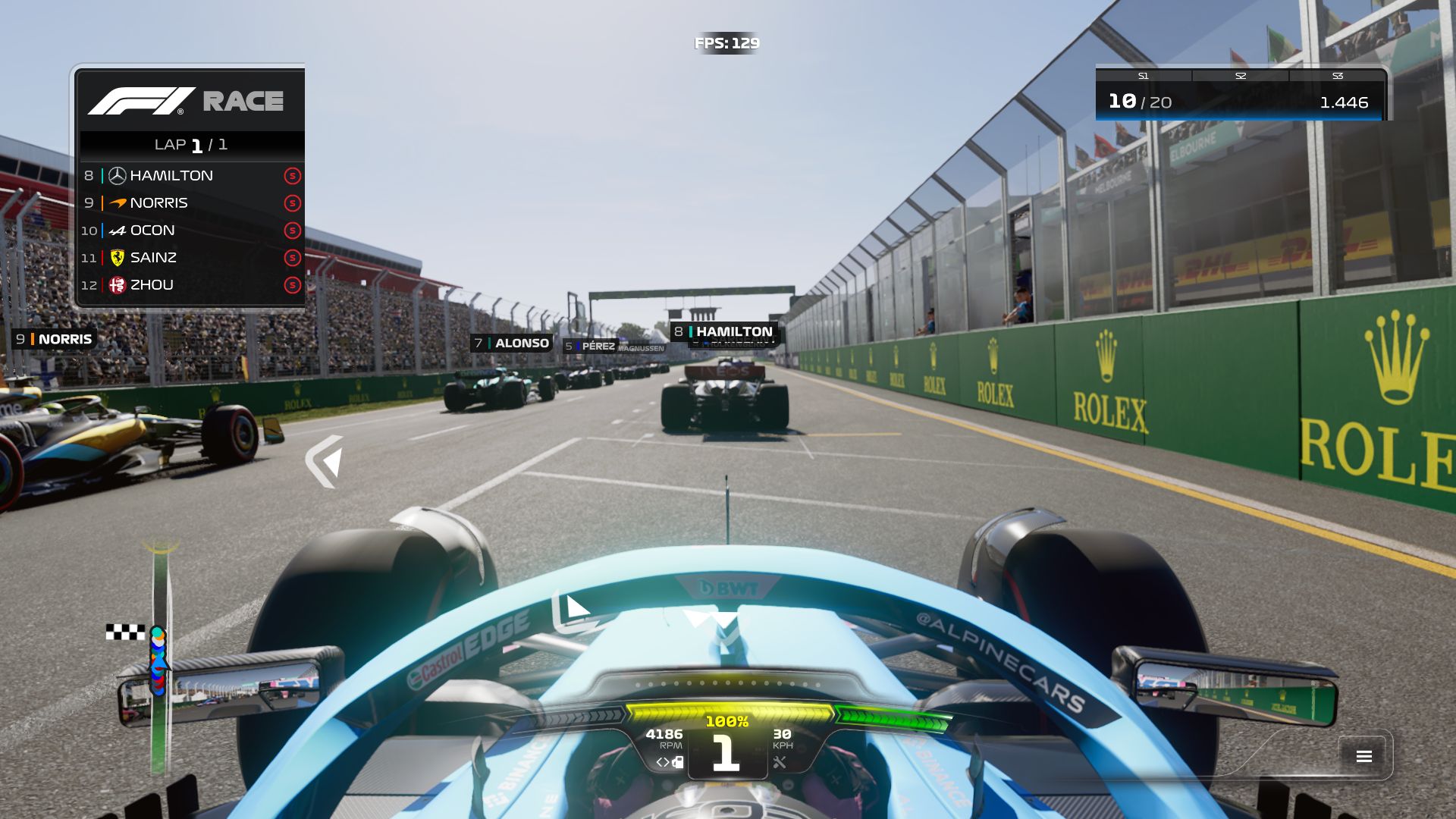

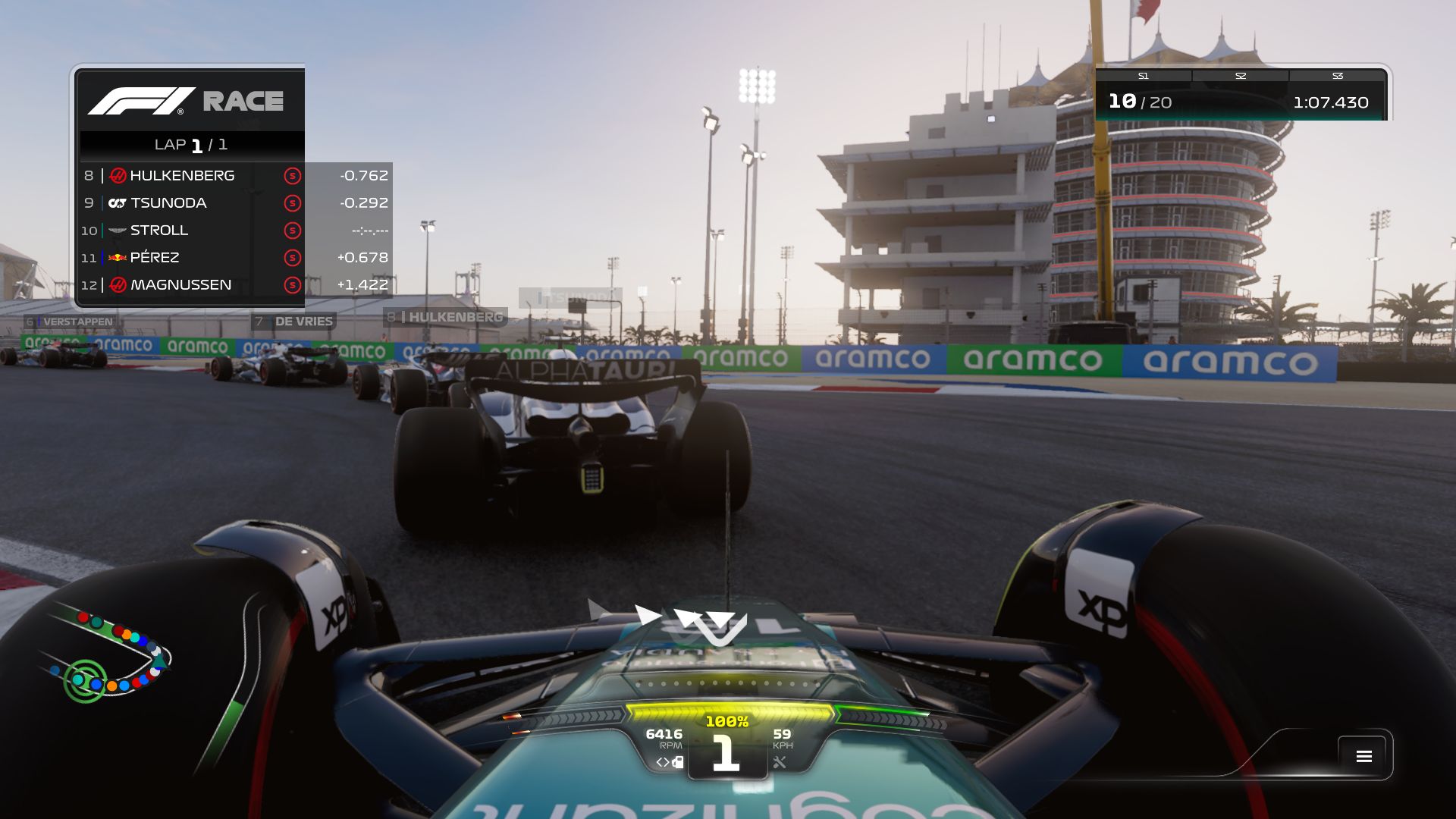

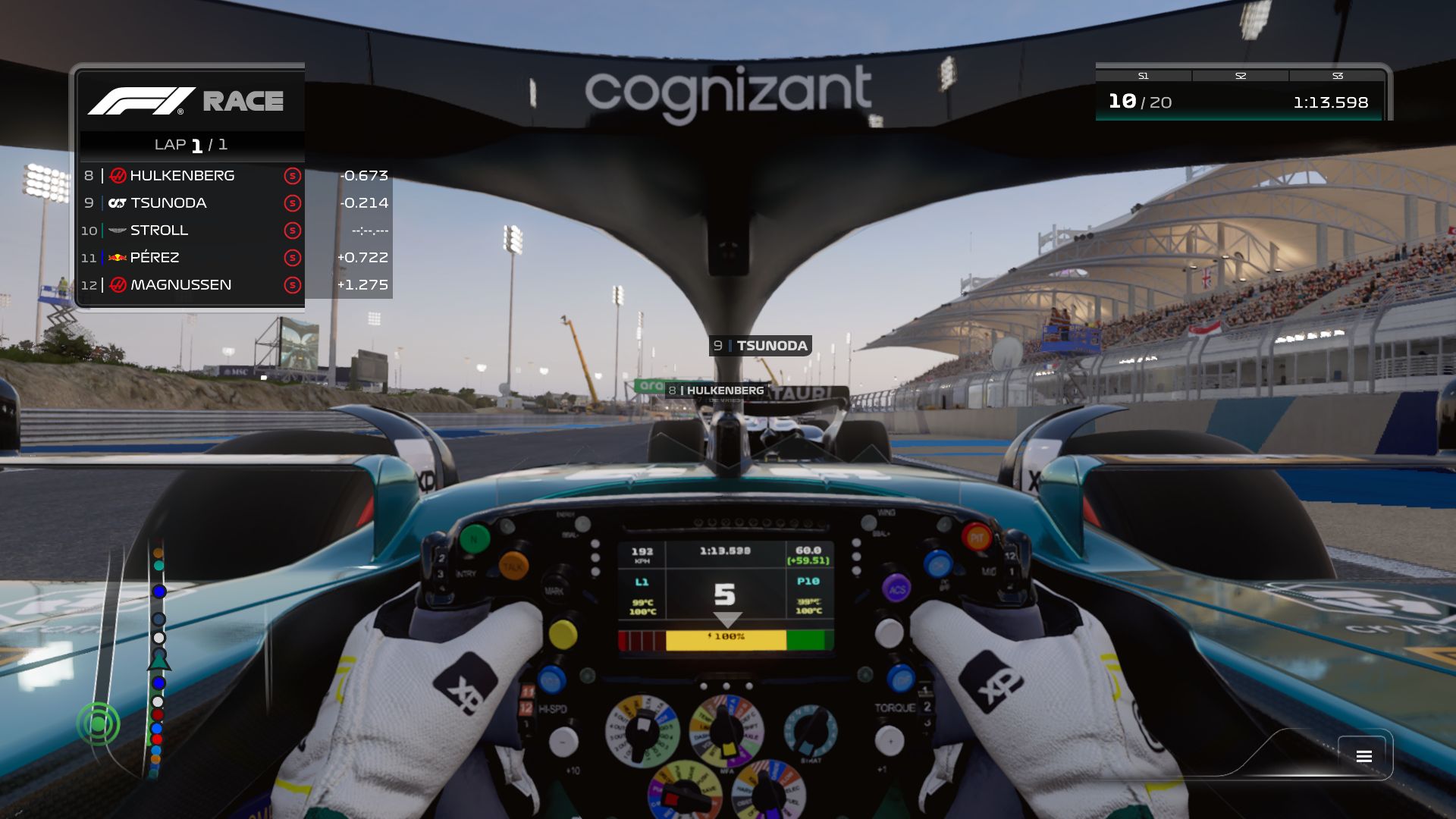

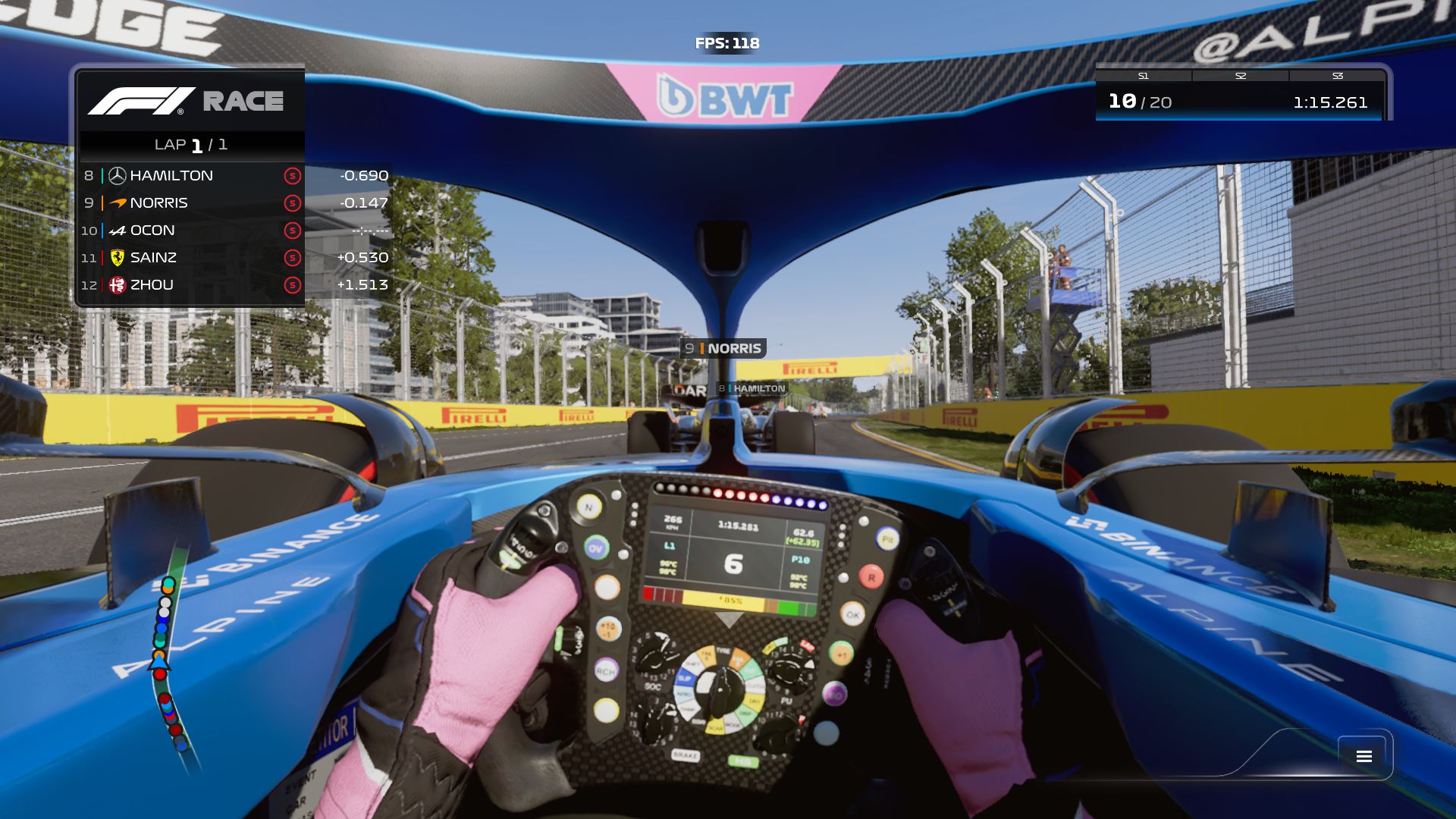

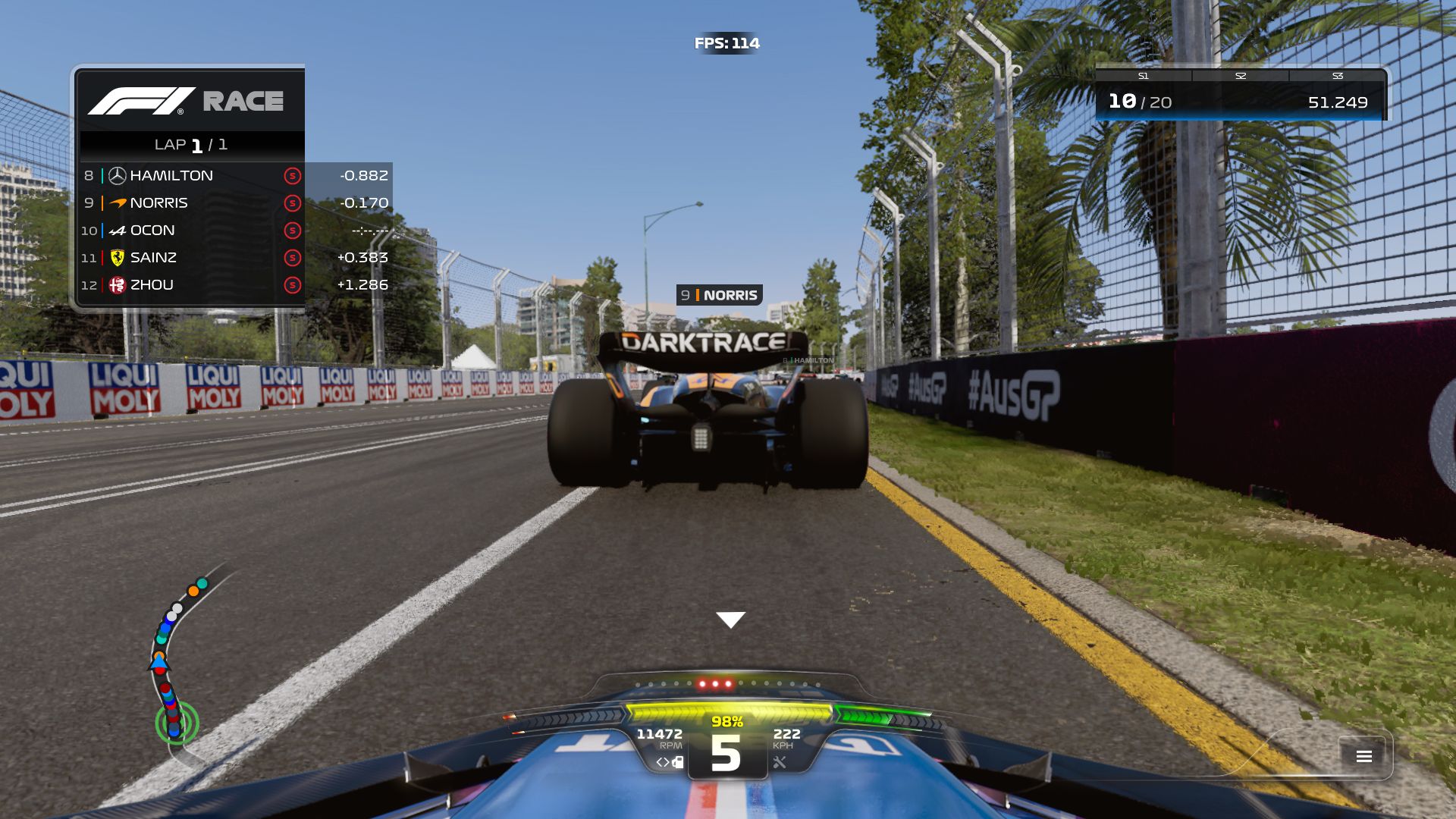

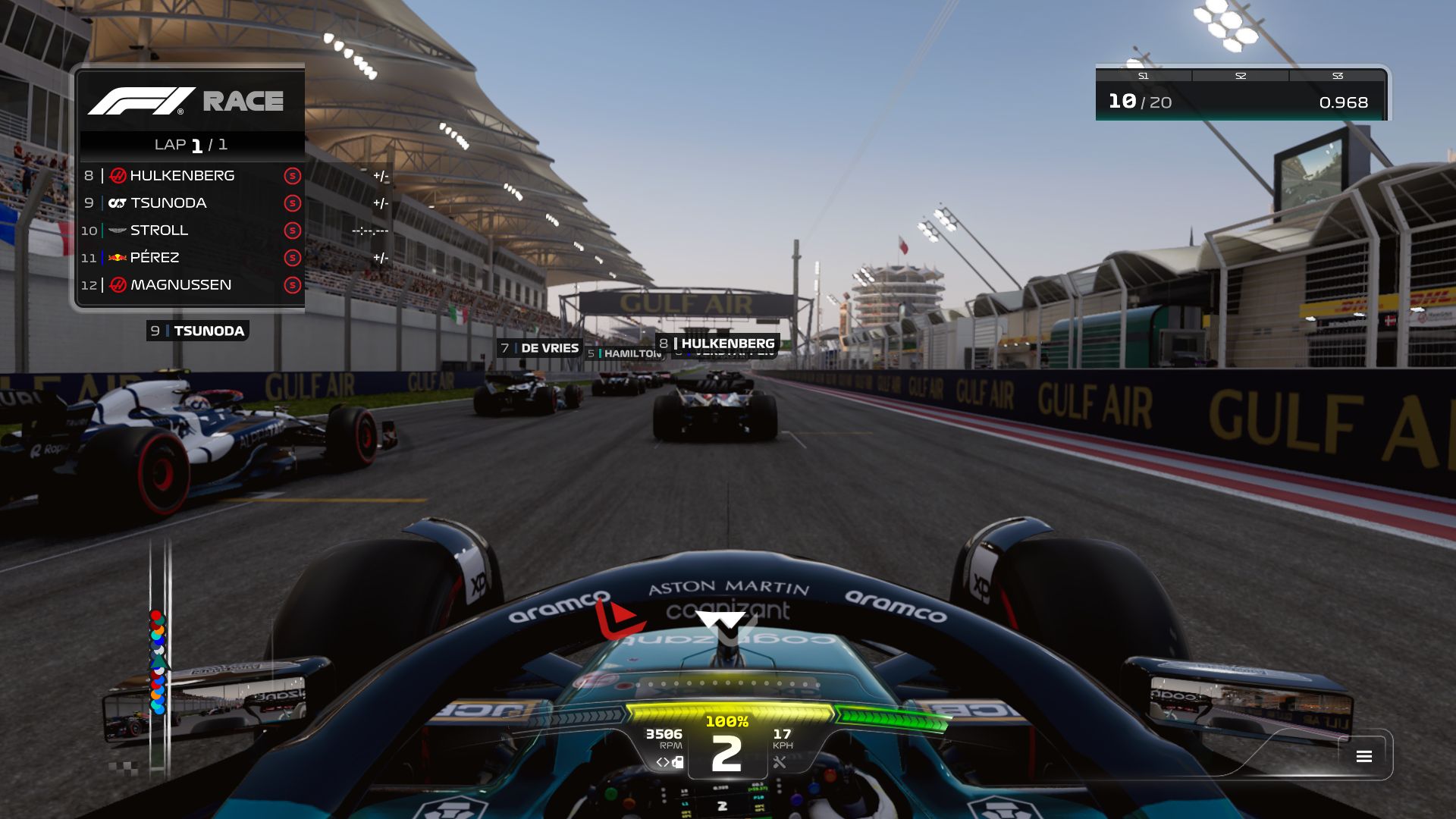

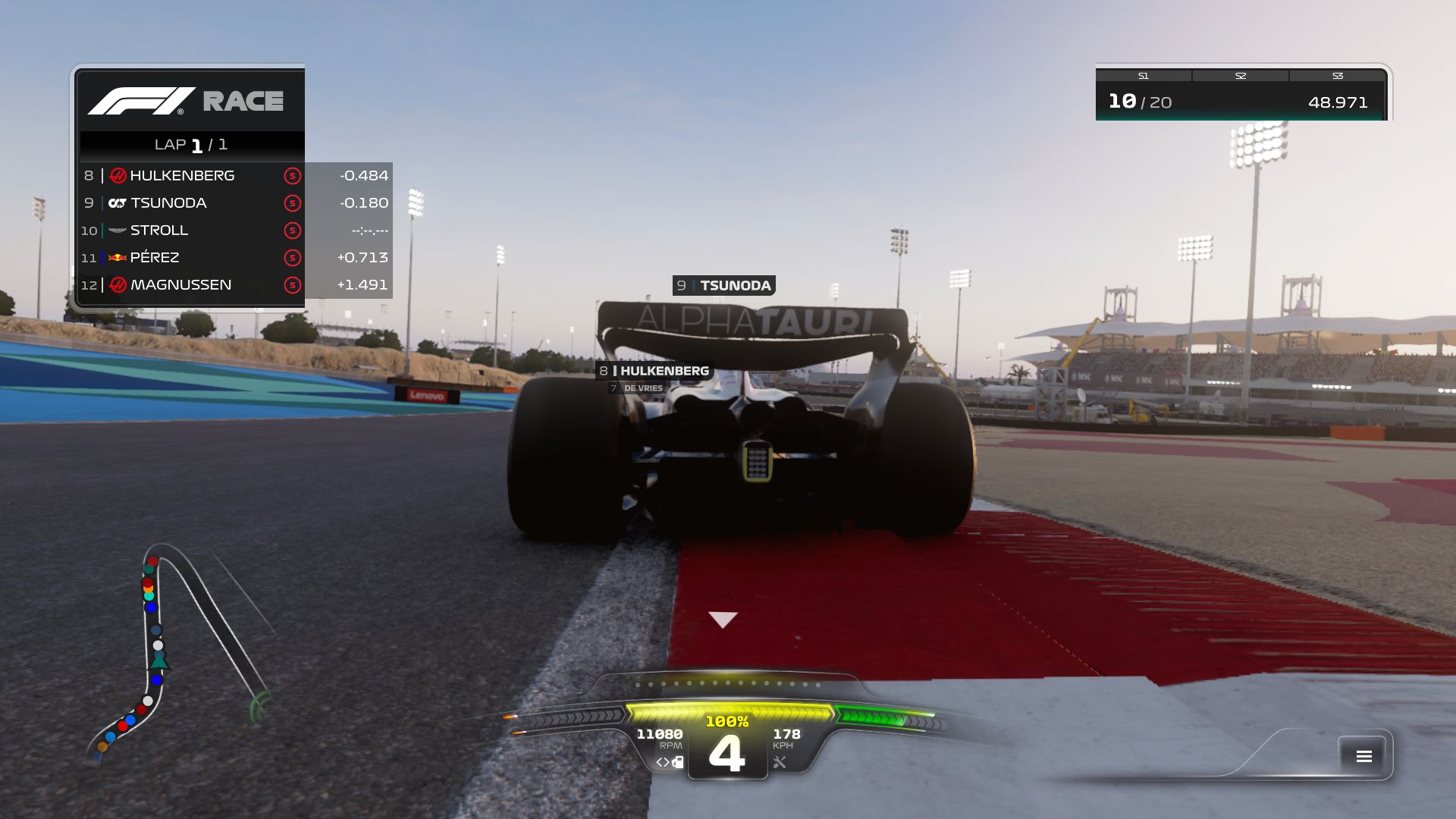

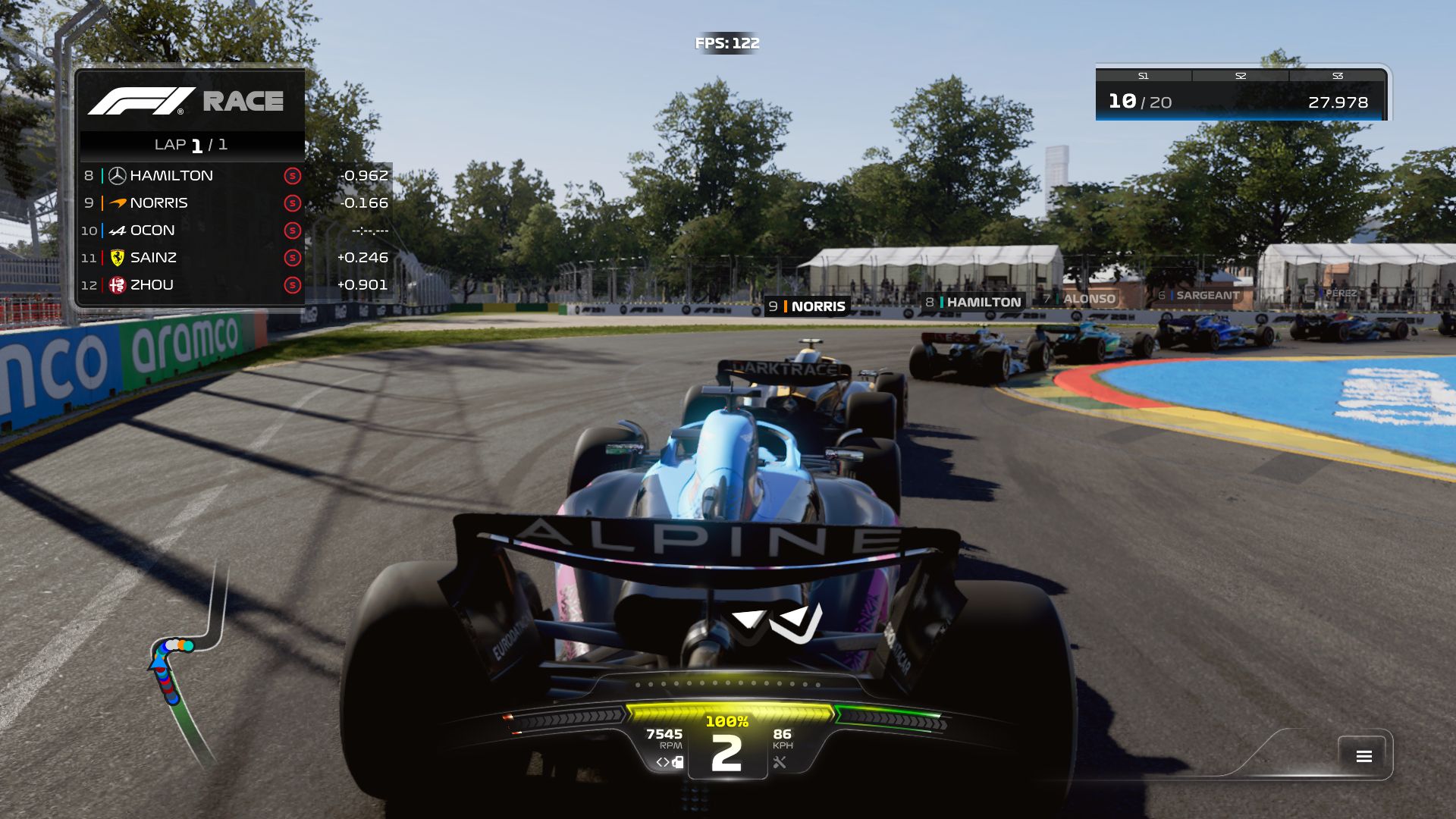

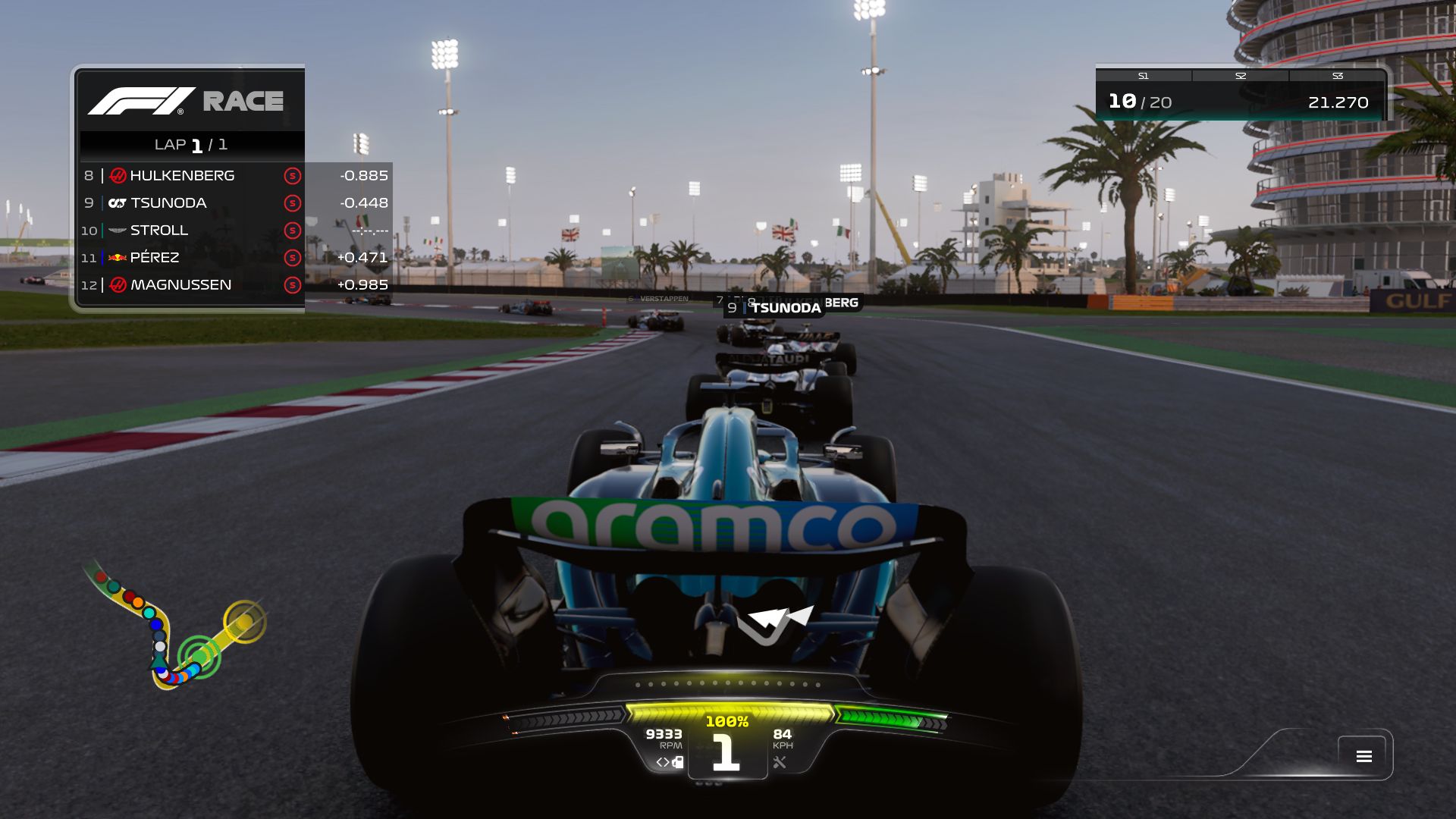

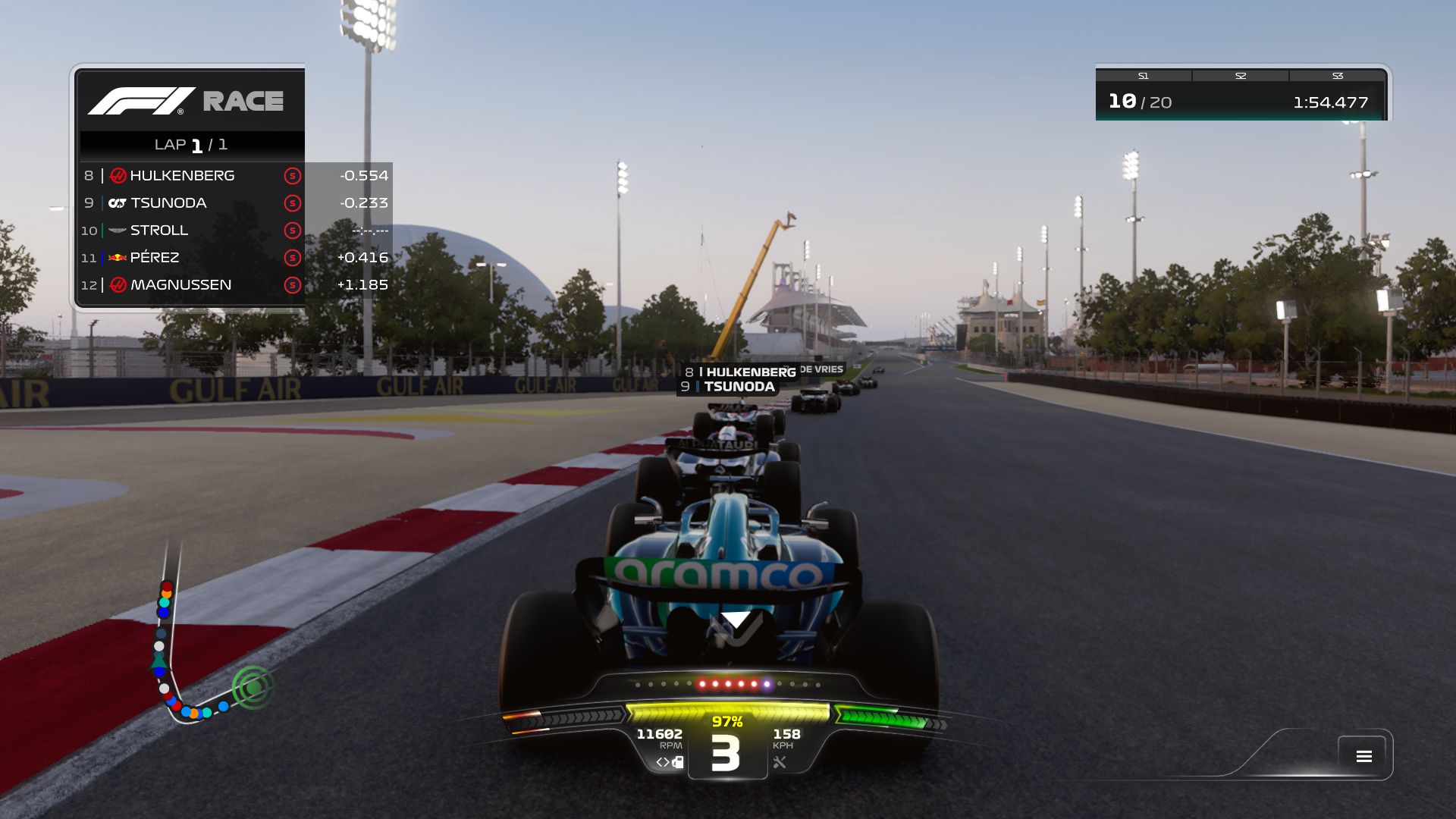

F1 23 bears a lot of resemblance to its predecessor visually. The new entry in the F1 racing sim continues to boast highly detailed vehicles, snazzy environments and excellent effects (e.g. reflections) without pushing graphics to the next level.

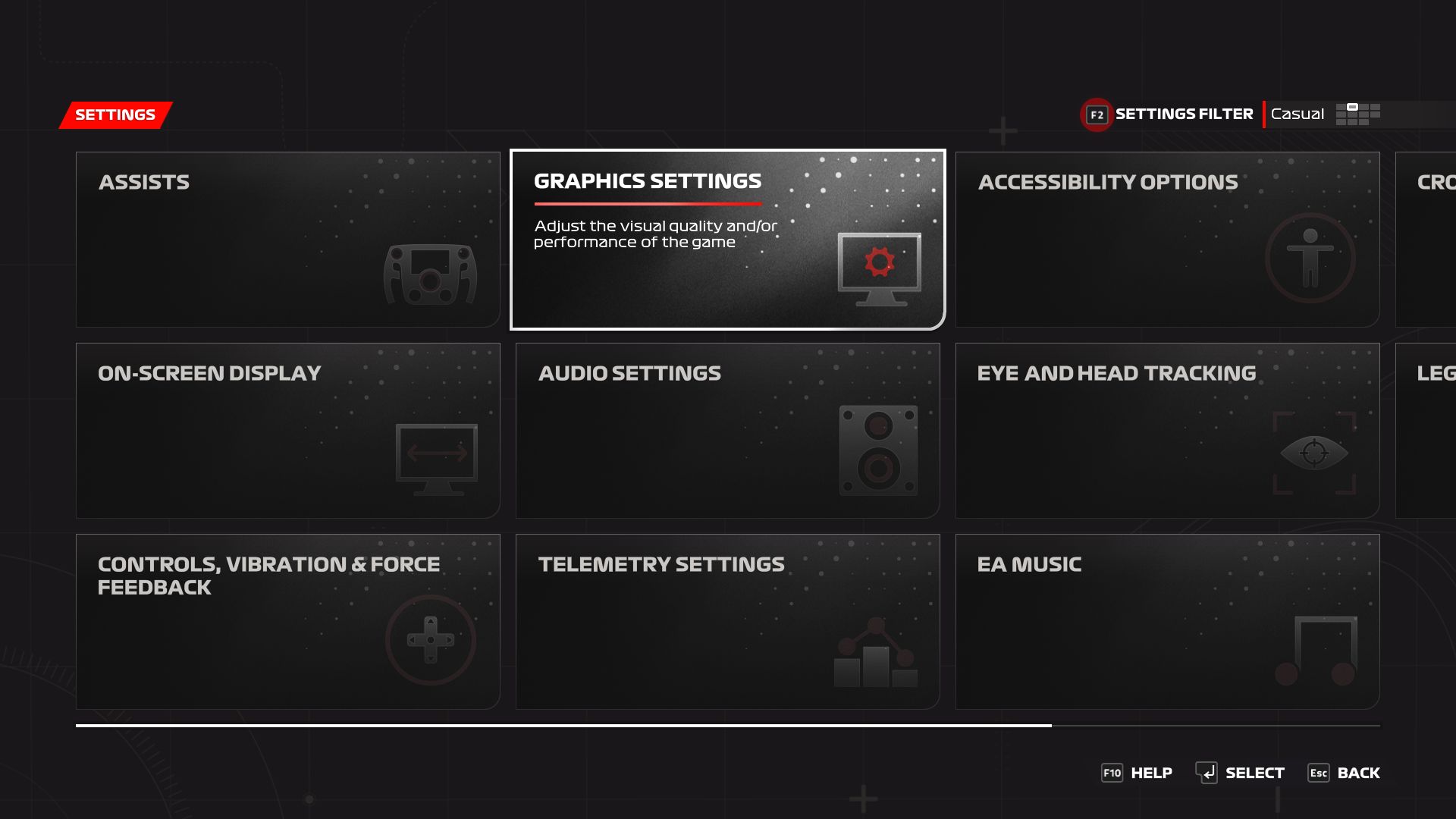

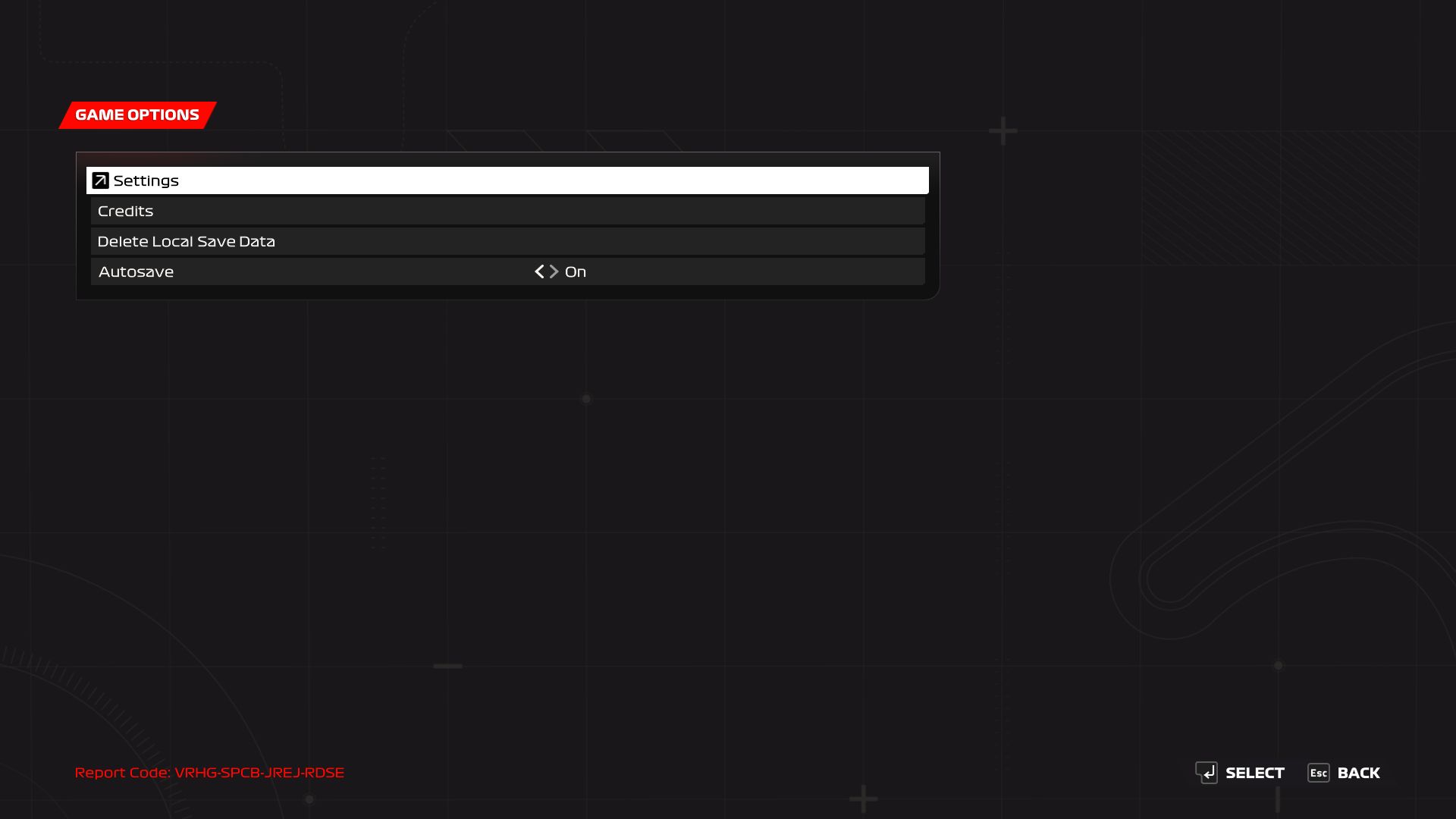

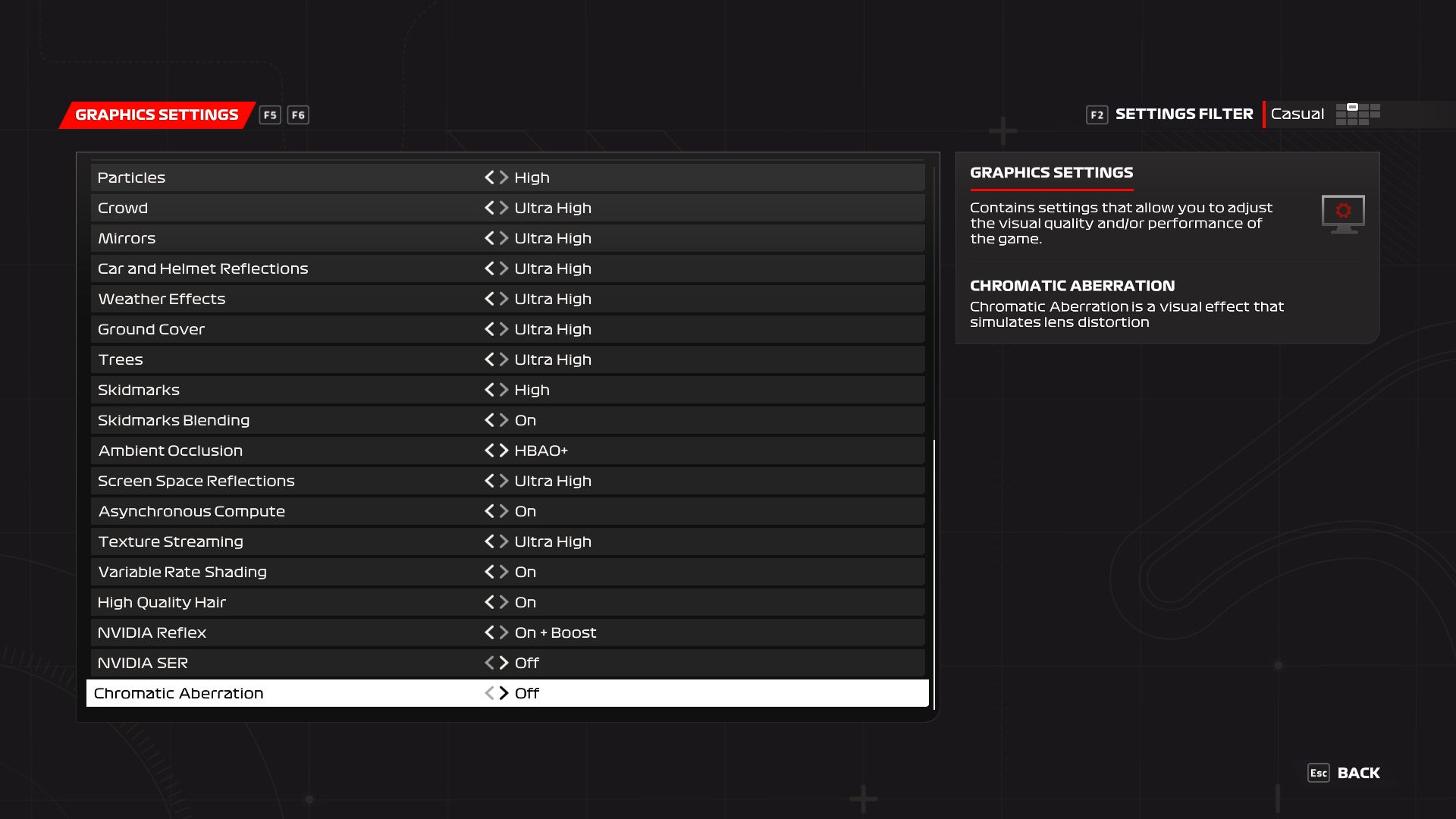

The developers especially deserve kudos for the (almost too) extensive graphics menu. You'll find all sorts of modern features, with ray tracing alone taking up six individual options. TAA, DLSS (Nvidia), FSR (AMD) and XeSS (Intel) are available for upscaling and antialiasing. On paper, F1 23 offers Frame Generation on GPUs that support the feature. However, this option was always greyed out during our testing despite us having met the requirements (RTX 40 Series card, HDR off).

One particularly convenient thing is that the game offers several presets for general graphics quality. You can also make changes to any of the settings without having to restart the game. Speaking of start: F1 23 can be launched in VR mode as well – those who own compatible headsets will certainly be happy to hear this.

Benchmark

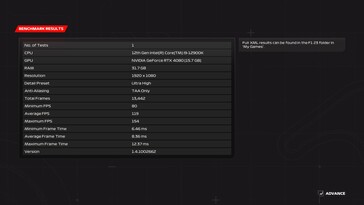

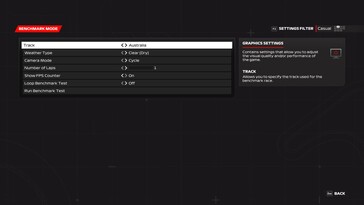

The game is very well suited for performance testing because the developers have once again included a benchmark tool in the graphics menu. Besides selecting the track, you can specify the weather conditions and camera position. For our testing, we opted to use the Australia circuit with clear skies and variable camera angles. There is also an optional fps counter and a loop feature. However, you won't find any detailed stats similar to those in Returnal.

We consider F1 23 to be fairly playable if the average frame rate is above 40 fps. But the game really only feels smooth at 60 fps and above.

FHD (1,920 x 1,080)

The game isn't very taxing on a graphics card as long as ray tracing is disabled. A Radeon 680M is powerful enough to run the game at 1080p and high settings. But for the Ultra preset (which automatically enables ray tracing), you'll need at least a mid-range GPU such as a GeForce RTX 4050 or similar.

F1 23
1920x1080 Low Preset AA:T AF:16x 1920x1080 Medium Preset AA:T AF:16x 1920x1080 High Preset AA:T AF:16x 1920x1080 Ultra High Preset AA:T AF:16x
AMD Radeon RX 7900 XTX, i9-12900K Desktop-PC	447 (327^min) fps ∼100% 402 (307^min) fps ∼100% 118 (83^min) fps ∼100%
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX XMG Neo 17 E23	283 (94^min) fps ∼63% 274 (187^min) fps ∼68% 116 (97^min) fps ∼98%
NVIDIA GeForce RTX 4080, i9-12900K Desktop-PC	350 (263^min) fps ∼78% 343 (252^min) fps ∼85% 115 (76^min) fps ∼97%
NVIDIA GeForce RTX 4080 Laptop GPU, i9-13900HX Schenker Key 17 Pro E23	281 (111^min) fps ∼63% 265 (157^min) fps ∼66% 101 (81^min) fps ∼86%
NVIDIA GeForce RTX 3080 Ti Laptop GPU, i9-12900H Asus ROG Strix Scar 17 G733ZX	251 (186^min) fps ∼56% 193 (166^min) fps ∼48% 75 (61^min) fps ∼64%
NVIDIA GeForce RTX 4070 Laptop GPU, i9-13900HX XMG Pro 15 E23	251 (76^min) fps ∼56% 198 (174^min) fps ∼49% 68 (55^min) fps ∼58%
NVIDIA GeForce RTX 3070 Ti Laptop GPU, i7-12700H Acer Predator Helios 300 PH315-55	229 (173^min) fps ∼51% 178 (145^min) fps ∼44% 63 (51^min) fps ∼53%
NVIDIA GeForce RTX 4060 Laptop GPU, i9-13900HX XMG Pro 15 E23	234 (202^min) fps ∼52% 169 (145^min) fps ∼42% 54 (45^min) fps ∼46%
NVIDIA GeForce RTX 4050 Laptop GPU, i9-13900HX XMG Focus 15 E23	190 (100^min) fps ∼43% 143 (127^min) fps ∼36% 42 (36^min) fps ∼36%
AMD Radeon RX 6800S, R9 6900HS Asus ROG Zephyrus G14	219 (175^min) fps ∼100% 199 (163^min) fps ∼45% 149 (132^min) fps ∼37% 32 (21^min) fps ∼27%
NVIDIA GeForce RTX 3050 4GB Laptop GPU, i5-1240P MSI Prestige 15 A12UC	108 (83^min) fps ∼49% 88 (72^min) fps ∼20% 64 (52^min) fps ∼16% 19 (14^min) fps ∼16%
AMD Radeon 680M, R9 6900HS Asus ROG Zephyrus G14	71 (55^min) fps ∼32% 63 (51^min) fps ∼14% 45 (38^min) fps ∼11% 9 (6^min) fps ∼8%

QHD (2,560 x 1,440)

The game definitely calls for a true high-end GPU (e.g. GeForce RTX 3070 Ti) when you pair 1440p with the Ultra preset.

F1 23
2560x1440 Ultra High Preset AA:T AF:16x
NVIDIA GeForce RTX 4080, i9-12900K Desktop-PC	98 (80^min) fps ∼100%
AMD Radeon RX 7900 XTX, i9-12900K Desktop-PC	80 (52^min) fps ∼82%
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX XMG Neo 17 E23	80 (63^min) fps ∼82%
NVIDIA GeForce RTX 4080 Laptop GPU, i9-13900HX Schenker Key 17 Pro E23	71 (56^min) fps ∼72%
NVIDIA GeForce RTX 3080 Ti Laptop GPU, i9-12900H Asus ROG Strix Scar 17 G733ZX	48 (39^min) fps ∼49%
NVIDIA GeForce RTX 4070 Laptop GPU, i9-13900HX XMG Pro 15 E23	46 (37^min) fps ∼47%
NVIDIA GeForce RTX 3070 Ti Laptop GPU, i7-12700H Acer Predator Helios 300 PH315-55	41 (32^min) fps ∼42%
NVIDIA GeForce RTX 4060 Laptop GPU, i9-13900HX XMG Pro 15 E23	38 (29^min) fps ∼39%
NVIDIA GeForce RTX 4050 Laptop GPU, i9-13900HX XMG Focus 15 E23	30 (24^min) fps ∼31%

UHD (3,840 x 2,160)

Once we get to 4K, almost all mobile GPUs seem to have difficulty handling F1 23 at max settings. Only the RTX 4090, the most powerful Nvidia GPU right now, managed to deliver acceptable frame rates here. We recommend using DLSS or the likes if you have a less powerful GPU. In Quality mode, an RTX 4070 is enough to get the game running close the 40 fps mark.

F1 23
3840x2160 Ultra High Preset AA:T AF:16x 3840x2160 Ultra High Preset + DLSS Quality (+ FG) AF:16x
NVIDIA GeForce RTX 4080, i9-12900K Desktop-PC	55 (42^min) fps ∼100% 93 (75^min) fps ∼100%
AMD Radeon RX 7900 XTX, i9-12900K Desktop-PC	40 (26^min) fps ∼73%
NVIDIA GeForce RTX 4090 Laptop GPU, i9-13900HX XMG Neo 17 E23	40 (31^min) fps ∼73% 66 (53^min) fps ∼71%
NVIDIA GeForce RTX 4080 Laptop GPU, i9-13900HX Schenker Key 17 Pro E23	35 (27^min) fps ∼64% 60 (48^min) fps ∼65%
NVIDIA GeForce RTX 3080 Ti Laptop GPU, i9-12900H Asus ROG Strix Scar 17 G733ZX	24 (18^min) fps ∼44%
NVIDIA GeForce RTX 4070 Laptop GPU, i9-13900HX XMG Pro 15 E23	22 (17^min) fps ∼40% 38 (28^min) fps ∼41%
NVIDIA GeForce RTX 3070 Ti Laptop GPU, i7-12700H Acer Predator Helios 300 PH315-55	19 (13^min) fps ∼35%
NVIDIA GeForce RTX 4060 Laptop GPU, i9-13900HX XMG Pro 15 E23	18 (14^min) fps ∼33% 32 (26^min) fps ∼34%
NVIDIA GeForce RTX 4050 Laptop GPU, i9-13900HX XMG Focus 15 E23	14 (11^min) fps ∼25% 21 (17^min) fps ∼23%

Note

Because gaming tests are very time-consuming and are often constrained by installation or activation limits, we are only able to provide you with part of the benchmark results at the time of publishing this article. We will be adding more graphics cards over the coming days and weeks.

Overview

All test systems

Device	Graphics card	Processor	Memory
Notebooks
XMG Neo 17 E23	Nvidia GeForce RTX 4090 @175 W TGP (16 GB GDDR6X)	Intel Core i9-13900HX	2 x 16 GB DDR5
Schenker Key 17 Pro E23	Nvidia GeForce RTX 4080 @175 W TGP (12 GB GDDR6X)	Intel Core i9-13900HX	2 x 16 GB DDR5
XMG Pro 15 E23	Nvidia GeForce RTX 4070 @140 W TGP (8 GB GDDR6)	Intel Core i9-13900HX	2 x 16 GB DDR5
XMG Pro 15 E23	Nvidia GeForce RTX 4060 @140 W TGP (8 GB GDDR6)	Intel Core i9-13900HX	2 x 16 GB DDR5
XMG Focus 15 E23	Nvidia GeForce RTX 4050 @140 W TGP (6 GB GDDR6)	Intel Core i9-13900HX	2 x 16 GB DDR5
Asus ROG Strix Scar 17	Nvidia GeForce RTX 3080 Ti @150 W TGP (16 GB GDDR6)	Intel Core i9-12900H	2 x 16 GB DDR5
Acer Predator Helios 300	Nvidia GeForce RTX 3070 Ti @150 W TGP (8 GB GDDR6)	Intel Core i7-12700H	2 x 8 GB DDR5
MSI Prestige 15	Nvidia GeForce RTX 3050 @40 W TGP (4 GB GDDR6)	Intel Core i5-1240P	16 GB DDR4
Asus ROG Zephyrus G14	AMD Radeon RX 6800S (8 GB GDDR6) & AMD Radeon 680M	AMD Ryzen 9 6900HS	2 x 16 GB DDR5
Tower PCs
Custom I	Nvidia GeForce RTX 4080 (16 GB GDDR6X) AMD Radeon RX 7900 XTX (24 GB GDDR6)	Intel Core i9-12900K	2 x 16 GB DDR4
Custom II	Palit GeForce RTX 4090 GameRock OC (24 GB GDDR6X) Nvidia GeForce RTX 3090 FE (24 GB GDDR6X) Nvidia GeForce RTX 3060 Ti (8 GB GDDR6X) Nvidia Titan RTX (24 GB GDDR6) lNvidia GeForce RTX 2070 Super (8 GB GDDR6) Nvidia GeForce RTX 2060 Super (8 GB GDDR6) KFA2 GeForce GTX 1660 Super (6 GB GDDR6) PNY GeForce GTX 1660 (6 GB GDDR5) KFA2 GeForce GTX 1650 Super (4 GB GDDR6) AMD Radeon RX 6950 XT (16 GB DDR6) AMD Radeon RX 6800 (16 GB DDR6) AMD Radeon RX 6700 XT (12 GB DDR6) AMD Radeon RX 6650 XT (8 GB GDDR6) AMD Radeon RX 6600 (8 GB GDDR6) AMD Radeon RX 5700 XT (8 GB GDDR6) AMD Radeon RX 5700 (8 GB GDDR6) AMD Radeon RX 5600 XT (6 GB GDDR6) AMD Radeon RX 5500 XT (8 GB GDDR6)	AMD Ryzen 9 7950X	2 x 16 GB DDR5
Mini-PCs
Minisforum NUCXi7	Nvidia GeForce RTX 3070 @125 W TGP (8 GB GDDR6)	Intel Core i7-11800H	2 x 8 GB DDR4
Minisforum HX99G	AMD Radeon RX 6600M @100 W TGP (8 GB GDDR6)	AMD Ryzen 9 6900HX	2 x 16 GB DDR5
Morefine S500+	AMD Radeon RX Vega 8	AMD Ryzen 9 5900HX	2 x 16 GB DDR4

4K monitors	Operating system	Nvidia driver	AMD driver
Philips Brilliance 329P9H, Gigabyte M32U	Windows 11	ForceWare 535.98	Adrenalin 23.5.2
