Full HD gaming with the AMD Radeon RX 5600 XT

Sebastian Bade, 👁 Klaus Hinum, Felicitas Krohn (translated by Christian Hintze), 02/27/2020

Less VRAM in the middle class! AMD now fully relies on the Navi architecture and sends out the AMD Radeon RX 5600 XT, a mid-range GPU that is designed for Full HD gaming. Find out how well the Sapphire model performs in this review.

The RDNA architecture of the new graphics cards is now also available for the somewhat smaller budget. If the RX-5700 series was still too expensive, you can now enjoy the new Navi-10-based graphics card with the somewhat cheaper AMD RX 5600 XT.

Well-known features like PCI Express 4.0, Fidelity FX and Freesync are still on board. The well-known Navi 10 graphics chip is also used for the Radeon RX 5700 XT. Basically, the RX 5600 XT only differs in clock rates, maximum power consumption and VRAM. The latter has shrunk to 6 GB GDDR6. The Polaris predecessors still had up to 8 GB.

AMD has already scored points in terms of energy requirements with the RX 5700 and the RX 5700 XT. The same applies to the smaller Navi-offshoot, which is now specified at 150 Watts. However, board partners still have some scope to reduce or increase the power consumption.

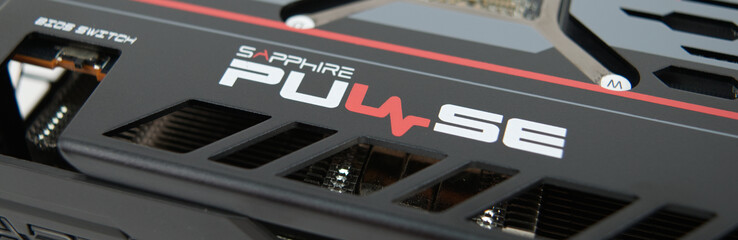

Our test model, the Sapphire Pulse Radeon RX 5600 XT, is listed for just under 300 Euros (~$326) at the time of testing. Most users should be able to cope with three display ports and one HDMI output. The graphics card also requires an 8-pin power connector.

Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT
Sapphire Pulse Radeon RX 5600 XT (source: Sapphire)
Sapphire Pulse Radeon RX 5600 XT (source: Sapphire)
Sapphire Pulse Radeon RX 5600 XT (source: Sapphire)
Sapphire Pulse Radeon RX 5600 XT (source: Sapphire)
Sapphire Pulse Radeon RX 5600 XT (source: Sapphire)
Sapphire Pulse Radeon RX 5600 XT (source: Sapphire)
Sapphire Pulse Radeon RX 5600 XT (source: Sapphire)
Sapphire Pulse Radeon RX 5600 XT (source: Sapphire)
Sapphire Pulse Radeon RX 5600 XT (source: Sapphire)

Overview of GPU-specifications

Specifications AMD Radeon RX 5600 XT AMD Radeon RX 5700 AMD Radeon RX 5700 XT AMD Radeon VII RX Vega 64 RTX 2060 RTX 2060S RTX 2070 RTX 2070S
Chip Navi 10 Navi 10 Navi 10 Vega 20 Vega 10 TU106 TU106 TU106 TU104
Manufactured 7 nm 7 nm 7 nm 7 nm 14 nm 12 nm 12 nm 12 nm 12 nm
Shader 2304 2304 2560 3840 4096 1920 2176 2304 2560
Texture Units 144 144 160 240 256 120 136 144 160
Tensor Cores - - - - - 240 272 288 320
RT Cores - - - - - 30 34 36 40
GPU Base Clock 1130 MHz 1465 MHz 1605 MHz 1400 MHz 1200 MHz 1365 MHz 1470 MHz 1410 MHz 1605 MHz
GPU Boost Clock 1560 MHz 1625 MHz 1755 MHz 1750 MHz 1536 MHz 1680 MHz 1650 MHz 1620 MHz 1770 MHz
Memory Bus 192 Bit 256 Bit 256 Bit 4096 Bit 2048 Bit 192 Bit 256 Bit 256 Bit 256 Bit
Memory Bandwidth 288 GB/s 448 GB/s 448 GB/s 1024 GB/s 483.8 GB/s 336 GB/s 448 GB/s 448 GB/s 448 GB/s
Memory Size 6 GB GDDR6 8 GB GDDR6 8 GB GDDR6 16 GB HBM2 8 GB HBM2 6 GB GDDR6 8 GB GDDR6 8 GB GDDR6 8 GB GDDR6
Power (Watt) 150 W 180 W 225 W 295 W 295 W 160 W 175 W 175 W 215 W

Our test system based on AMD Ryzen 9 3900X

A current AMD platform based on the MSI MEG X570 Godlike serves as the test system. The CPU (AMD Ryzen 9 3900X) offers good CPU performance and we use an AIO (Alphacool Eisbaer Aurora 360) for cooling. The 16 GB RAM comes from G-Skill and clocks at 3,600 MHz. We use the Acer Predator XB321HK as a monitor. This does not restrict us due to its UHD suitability. Our thanks go to AMD for providing the test platform.

AMD Ryzen 9 3900X
MSI MEG X570 Godlike
G-Skill Trident Z Royal gold DDR4-3600

We use the following system for the following benchmarks and tests:

  • Corsair Carbide Air 540 ATX Cube
  • AMD Ryzen 9 3900X
  • Sapphire Pulse Radeon RX 5600 XT (driver AMD 20.1.4)
  • MSI MEG X570 Godlike (BIOS 1.20, Default Settings, XMP 1 for DDR4-3600 CL16)
  • Corsair RM1000X 1000 Watt power adapter
  • G-Skill Trident Z Royal gold DDR4-3600 memory kit 2 x 8 GB, runs as DDR4-3600 CL16-16-16-36
  • Corsair MP600 2TB M.2 PCIe-4.0-SSD
  • Crucial MX500 2TB (for games)

The clock rates of the Sapphire Pulse Radeon RX 5600 XT

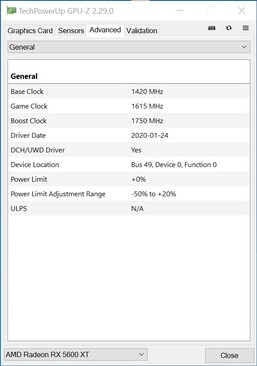

The clock rates of the Sapphire Pulse Radeon RX 5600 XT are slightly above the factory specifications from AMD. The graphics card has a dual BIOS, which can be selected directly on the card using a slider. For the tests, we only used the performance BIOS to get the best performance out of the graphics card. Shortly before the release of the Radeon RX 5600 XT, new BIOS versions were released, which increase the clock rates and the maximum TDP. Our test sample reaches up to 1,750 MHz in boost and 14 GHz in VRAM. The TDP was also increased slightly by 10 watts to 160 watts. If the Sapphire Pulse Radeon RX 5600 XT is used with the Silent BIOS, the power consumption drops to 135 watts. Also, the boost clock is only at 1,620 MHz and the VRAM is slowed down somewhat at only 12 GHz.

GPU-Z
GPU-Z
GPU-Z
GPU-Z
GPU-Z
GPU-Z

Synthetic benchmarks

In the synthetic benchmarks, the Sapphire Pulse Radeon RX 5600 XT ranks almost always in front of a GeForce RTX 2060 Super. Nevertheless, the distance to the AMD Radeon RX 5700 is negligible, which will probably question its relevance in the medium term. The much older AMD Radeon RX Vega 64 can keep up well with the new RX 5600 XT, but the energy balance is much worse due to the almost double TDP (295 watts).

3DMark
2560x1440 Time Spy Graphics
Nvidia Titan RTX
14216 Points ∼100% +87%
MSI RTX 2080 Gaming X Trio
11294 Points ∼79% +49%
Nvidia GeForce RTX 2070 Super
10094 Points ∼71% +33%
MSI RTX 2070 Gaming Z 8G
9236 Points ∼65% +21%
AMD Radeon RX 5700 XT
9059 Points ∼64% +19%
AMD Radeon VII
8803 Points ∼62% +16%
Nvidia GeForce RTX 2060 Super
8795 Points ∼62% +16%
AMD Radeon RX 5700
8051 Points ∼57% +6%
MSI RTX 2060 Gaming Z 6G
7732 Points ∼54% +2%
Sapphire AMD Radeon RX 5600 XT
7602 Points ∼53%
AMD Radeon RX Vega 64
7183 Points ∼51% -6%
3840x2160 Fire Strike Ultra Graphics
Nvidia Titan RTX
8625 Points ∼100% +55%
AMD Radeon VII
6837 Points ∼79% +23%
MSI RTX 2080 Gaming X Trio
6513 Points ∼76% +17%
AMD Radeon RX 5700 XT
6472 Points ∼75% +16%
Nvidia GeForce RTX 2070 Super
5786 Points ∼67% +4%
AMD Radeon RX 5700
5742 Points ∼67% +3%
Sapphire AMD Radeon RX 5600 XT
5556 Points ∼64%
MSI RTX 2070 Gaming Z 8G
5450 Points ∼63% -2%
AMD Radeon RX Vega 64
5441 Points ∼63% -2%
Nvidia GeForce RTX 2060 Super
5175 Points ∼60% -7%
MSI RTX 2060 Gaming Z 6G
4244 Points ∼49% -24%
Fire Strike Extreme Graphics
Nvidia Titan RTX
17179 Points ∼100% +61%
AMD Radeon VII
13388 Points ∼78% +26%
MSI RTX 2080 Gaming X Trio
13355 Points ∼78% +25%
AMD Radeon RX 5700 XT
12740 Points ∼74% +19%
Nvidia GeForce RTX 2070 Super
11634 Points ∼68% +9%
AMD Radeon RX 5700
11311 Points ∼66% +6%
MSI RTX 2070 Gaming Z 8G
11021 Points ∼64% +3%
AMD Radeon RX Vega 64
10758 Points ∼63% +1%
Sapphire AMD Radeon RX 5600 XT
10663 Points ∼62%
Nvidia GeForce RTX 2060 Super
10481 Points ∼61% -2%
MSI RTX 2060 Gaming Z 6G
9097 Points ∼53% -15%
1920x1080 Fire Strike Graphics
Nvidia Titan RTX
34780 Points ∼100% +60%
MSI RTX 2080 Gaming X Trio
27620 Points ∼79% +27%
AMD Radeon VII
27476 Points ∼79% +26%
AMD Radeon RX 5700 XT
26189 Points ∼75% +20%
Nvidia GeForce RTX 2070 Super
24151 Points ∼69% +11%
AMD Radeon RX 5700
23382 Points ∼67% +8%
MSI RTX 2070 Gaming Z 8G
22999 Points ∼66% +6%
AMD Radeon RX Vega 64
22338 Points ∼64% +3%
Nvidia GeForce RTX 2060 Super
21970 Points ∼63% +1%
Sapphire AMD Radeon RX 5600 XT
21734 Points ∼62%
MSI RTX 2060 Gaming Z 6G
19338 Points ∼56% -11%
3DMark 11 - 1280x720 Performance GPU
Nvidia Titan RTX
43461 Points ∼100% +42%
MSI RTX 2080 Gaming X Trio
37989 Points ∼87% +24%
AMD Radeon VII
37881 Points ∼87% +24%
AMD Radeon RX 5700 XT
35441 Points ∼82% +16%
Nvidia GeForce RTX 2070 Super
33293 Points ∼77% +9%
AMD Radeon RX 5700
31370 Points ∼72% +3%
MSI RTX 2070 Gaming Z 8G
31260 Points ∼72% +2%
Sapphire AMD Radeon RX 5600 XT
30515 Points ∼70%
Nvidia GeForce RTX 2060 Super
29605 Points ∼68% -3%
AMD Radeon RX Vega 64
29285 Points ∼67% -4%
MSI RTX 2060 Gaming Z 6G
26413 Points ∼61% -13%
Unigine Heaven 4.0
Extreme Preset OpenGL
Nvidia Titan RTX
203.4 fps ∼100% +120%
MSI RTX 2080 Gaming X Trio
161.4 fps ∼79% +74%
Nvidia GeForce RTX 2070 Super
153.5 fps ∼75% +66%
MSI RTX 2070 Gaming Z 8G
139 fps ∼68% +50%
Nvidia GeForce RTX 2060 Super
132.3 fps ∼65% +43%
MSI RTX 2060 Gaming Z 6G
115.8 fps ∼57% +25%
AMD Radeon RX 5700 XT
113.5 fps ∼56% +23%
AMD Radeon VII
109 fps ∼54% +18%
AMD Radeon RX 5700
103.4 fps ∼51% +12%
Sapphire AMD Radeon RX 5600 XT
92.6 fps ∼46%
Extreme Preset DX11
Nvidia Titan RTX
207.2 fps ∼100% +89%
MSI RTX 2080 Gaming X Trio
176.5 fps ∼85% +61%
Nvidia GeForce RTX 2070 Super
160.1 fps ∼77% +46%
MSI RTX 2070 Gaming Z 8G
149.3 fps ∼72% +36%
Nvidia GeForce RTX 2060 Super
141.7 fps ∼68% +29%
AMD Radeon VII
140.3 fps ∼68% +28%
AMD Radeon RX 5700 XT
134.1 fps ∼65% +22%
MSI RTX 2060 Gaming Z 6G
124.1 fps ∼60% +13%
AMD Radeon RX 5700
121.5 fps ∼59% +11%
Sapphire AMD Radeon RX 5600 XT
109.6 fps ∼53%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Nvidia Titan RTX
135 fps ∼100% +48%
MSI RTX 2080 Gaming X Trio
119.6 fps ∼89% +31%
Nvidia GeForce RTX 2070 Super
113.7 fps ∼84% +25%
AMD Radeon RX 5700 XT
111.9 fps ∼83% +23%
MSI RTX 2070 Gaming Z 8G
111.5 fps ∼83% +23%
AMD Radeon VII
108.5 fps ∼80% +19%
Nvidia GeForce RTX 2060 Super
106.9 fps ∼79% +17%
AMD Radeon RX 5700
102.2 fps ∼76% +12%
MSI RTX 2060 Gaming Z 6G
91.2 fps ∼68% 0%
Sapphire AMD Radeon RX 5600 XT
91 fps ∼67%
1920x1080 Extreme HD Preset OpenGL AA:x8
Nvidia Titan RTX
139.2 fps ∼100% +90%
MSI RTX 2080 Gaming X Trio
110.5 fps ∼79% +51%
Nvidia GeForce RTX 2070 Super
105.6 fps ∼76% +44%
MSI RTX 2070 Gaming Z 8G
101 fps ∼73% +38%
Nvidia GeForce RTX 2060 Super
98.3 fps ∼71% +34%
AMD Radeon RX 5700 XT
89.1 fps ∼64% +22%
MSI RTX 2060 Gaming Z 6G
83.6 fps ∼60% +14%
AMD Radeon RX 5700
83.6 fps ∼60% +14%
AMD Radeon VII
81.3 fps ∼58% +11%
Sapphire AMD Radeon RX 5600 XT
73.3 fps ∼53%
ComputeMark v2.1
1024x600 Normal, QJuliaRayTrace
Nvidia Titan RTX
9418 Points ∼100% +96%
MSI RTX 2080 Gaming X Trio
7283 Points ∼77% +52%
Nvidia GeForce RTX 2070 Super
6155 Points ∼65% +28%
AMD Radeon VII
5878 Points ∼62% +22%
MSI RTX 2070 Gaming Z 8G
5747 Points ∼61% +20%
Nvidia GeForce RTX 2060 Super
5271 Points ∼56% +10%
MSI RTX 2060 Gaming Z 6G
4903 Points ∼52% +2%
Sapphire AMD Radeon RX 5600 XT
4799 Points ∼51%
1024x600 Normal, Mandel Scalar
AMD Radeon VII
6312 Points ∼100% +54%
Nvidia Titan RTX
5977 Points ∼95% +46%
MSI RTX 2080 Gaming X Trio
4526 Points ∼72% +11%
Sapphire AMD Radeon RX 5600 XT
4095 Points ∼65%
Nvidia GeForce RTX 2070 Super
3782 Points ∼60% -8%
MSI RTX 2070 Gaming Z 8G
3514 Points ∼56% -14%
Nvidia GeForce RTX 2060 Super
3185 Points ∼50% -22%
MSI RTX 2060 Gaming Z 6G
2982 Points ∼47% -27%
1024x600 Normal, Mandel Vector
Nvidia Titan RTX
4944 Points ∼100% +38%
AMD Radeon VII
4714 Points ∼95% +31%
MSI RTX 2080 Gaming X Trio
3892 Points ∼79% +8%
Sapphire AMD Radeon RX 5600 XT
3593 Points ∼73%
Nvidia GeForce RTX 2070 Super
3358 Points ∼68% -7%
MSI RTX 2070 Gaming Z 8G
3169 Points ∼64% -12%
Nvidia GeForce RTX 2060 Super
2939 Points ∼59% -18%
MSI RTX 2060 Gaming Z 6G
2800 Points ∼57% -22%
1024x600 Normal, Fluid 2DTexArr
Nvidia Titan RTX
3691 Points ∼100% +132%
MSI RTX 2080 Gaming X Trio
2482 Points ∼67% +56%
Nvidia GeForce RTX 2070 Super
2331 Points ∼63% +46%
AMD Radeon VII
2248 Points ∼61% +41%
MSI RTX 2070 Gaming Z 8G
2221 Points ∼60% +39%
Nvidia GeForce RTX 2060 Super
2064 Points ∼56% +29%
MSI RTX 2060 Gaming Z 6G
1801 Points ∼49% +13%
Sapphire AMD Radeon RX 5600 XT
1594 Points ∼43%
1024x600 Normal, Fluid 3DTex
Nvidia Titan RTX
3877 Points ∼100% +128%
AMD Radeon VII
3646 Points ∼94% +114%
MSI RTX 2080 Gaming X Trio
2588 Points ∼67% +52%
Nvidia GeForce RTX 2070 Super
2456 Points ∼63% +44%
MSI RTX 2070 Gaming Z 8G
2380 Points ∼61% +40%
Nvidia GeForce RTX 2060 Super
2289 Points ∼59% +35%
MSI RTX 2060 Gaming Z 6G
1889 Points ∼49% +11%
Sapphire AMD Radeon RX 5600 XT
1701 Points ∼44%
1024x600 Normal, Score
Nvidia Titan RTX
27907 Points ∼100% +77%
AMD Radeon VII
22798 Points ∼82% +44%
MSI RTX 2080 Gaming X Trio
20771 Points ∼74% +32%
Nvidia GeForce RTX 2070 Super
18083 Points ∼65% +15%
MSI RTX 2070 Gaming Z 8G
17031 Points ∼61% +8%
Sapphire AMD Radeon RX 5600 XT
15783 Points ∼57%
Nvidia GeForce RTX 2060 Super
15749 Points ∼56% 0%
MSI RTX 2060 Gaming Z 6G
14375 Points ∼52% -9%
LuxMark v2.0 64Bit
Room GPUs-only
Nvidia Titan RTX
4643 Samples/s ∼100% +174%
AMD Radeon VII
3477 Samples/s ∼75% +105%
MSI RTX 2080 Gaming X Trio
3453 Samples/s ∼74% +104%
Nvidia GeForce RTX 2070 Super
3404 Samples/s ∼73% +101%
MSI RTX 2070 Gaming Z 8G
3300 Samples/s ∼71% +95%
Nvidia GeForce RTX 2060 Super
3274 Samples/s ∼71% +93%
MSI RTX 2060 Gaming Z 6G
2586 Samples/s ∼56% +53%
Sapphire AMD Radeon RX 5600 XT
1692 Samples/s ∼36%
Sala GPUs-only
Nvidia Titan RTX
10799 Samples/s ∼100% +120%
MSI RTX 2080 Gaming X Trio
7928 Samples/s ∼73% +62%
Nvidia GeForce RTX 2070 Super
7594 Samples/s ∼70% +55%
MSI RTX 2070 Gaming Z 8G
7179 Samples/s ∼66% +47%
Nvidia GeForce RTX 2060 Super
6980 Samples/s ∼65% +43%
AMD Radeon VII
6869 Samples/s ∼64% +40%
MSI RTX 2060 Gaming Z 6G
5655 Samples/s ∼52% +15%
Sapphire AMD Radeon RX 5600 XT
4898 Samples/s ∼45%
SPECviewperf 13
Solidworks (sw-04)
Nvidia Titan RTX
132.89 fps ∼100% +13%
Sapphire AMD Radeon RX 5600 XT
117.85 fps ∼89%
MSI RTX 2080 Gaming X Trio
100.32 fps ∼75% -15%
AMD Radeon VII
95.07 fps ∼72% -19%
Nvidia GeForce RTX 2070 Super
93.26 fps ∼70% -21%
MSI RTX 2070 Gaming Z 8G
86.72 fps ∼65% -26%
MSI RTX 2060 Gaming Z 6G
83.42 fps ∼63% -29%
Nvidia GeForce RTX 2060 Super
75.73 fps ∼57% -36%
Siemens NX (snx-03)
Nvidia Titan RTX
462.35 fps ∼100% +563%
Sapphire AMD Radeon RX 5600 XT
69.71 fps ∼15%
AMD Radeon VII
37.03 fps ∼8% -47%
MSI RTX 2080 Gaming X Trio
21.7 fps ∼5% -69%
Nvidia GeForce RTX 2070 Super
20.71 fps ∼4% -70%
MSI RTX 2070 Gaming Z 8G
15.6 fps ∼3% -78%
Nvidia GeForce RTX 2060 Super
15.46 fps ∼3% -78%
MSI RTX 2060 Gaming Z 6G
14.99 fps ∼3% -78%
Showcase (showcase-02)
Nvidia Titan RTX
192.01 fps ∼100% +74%
Nvidia GeForce RTX 2070 Super
127.25 fps ∼66% +15%
Nvidia GeForce RTX 2060 Super
116.78 fps ∼61% +6%
Sapphire AMD Radeon RX 5600 XT
110.21 fps ∼57%
MSI RTX 2060 Gaming Z 6G
101.59 fps ∼53% -8%
Medical (medical-02)
Nvidia Titan RTX
89.3 fps ∼100% +37%
AMD Radeon VII
77.93 fps ∼87% +19%
MSI RTX 2080 Gaming X Trio
71.01 fps ∼80% +9%
Sapphire AMD Radeon RX 5600 XT
65.23 fps ∼73%
Nvidia GeForce RTX 2070 Super
63.78 fps ∼71% -2%
MSI RTX 2070 Gaming Z 8G
57.66 fps ∼65% -12%
Nvidia GeForce RTX 2060 Super
54.52 fps ∼61% -16%
MSI RTX 2060 Gaming Z 6G
49.1 fps ∼55% -25%
Maya (maya-05)
Nvidia Titan RTX
367.78 fps ∼100% +74%
Nvidia GeForce RTX 2070 Super
290.37 fps ∼79% +38%
MSI RTX 2070 Gaming Z 8G
275.28 fps ∼75% +30%
Nvidia GeForce RTX 2060 Super
262.37 fps ∼71% +24%
MSI RTX 2060 Gaming Z 6G
246.96 fps ∼67% +17%
AMD Radeon VII
212.65 fps ∼58% +1%
Sapphire AMD Radeon RX 5600 XT
210.96 fps ∼57%
Energy (energy-02)
Nvidia Titan RTX
51.91 fps ∼100% +167%
AMD Radeon VII
35.05 fps ∼68% +80%
Nvidia GeForce RTX 2070 Super
23.76 fps ∼46% +22%
MSI RTX 2070 Gaming Z 8G
22.33 fps ∼43% +15%
Nvidia GeForce RTX 2060 Super
21.81 fps ∼42% +12%
Sapphire AMD Radeon RX 5600 XT
19.43 fps ∼37%
MSI RTX 2060 Gaming Z 6G
7.62 fps ∼15% -61%
Creo (creo-02)
Nvidia Titan RTX
307.59 fps ∼100% +109%
MSI RTX 2080 Gaming X Trio
220.34 fps ∼72% +49%
MSI RTX 2070 Gaming Z 8G
184.2 fps ∼60% +25%
Nvidia GeForce RTX 2060 Super
172.51 fps ∼56% +17%
Nvidia GeForce RTX 2070 Super
170.99 fps ∼56% +16%
MSI RTX 2060 Gaming Z 6G
169.83 fps ∼55% +15%
Sapphire AMD Radeon RX 5600 XT
147.5 fps ∼48%
AMD Radeon VII
115.67 fps ∼38% -22%
Catia (catia-05)
Nvidia Titan RTX
260.44 fps ∼100% +13%
AMD Radeon VII
239.18 fps ∼92% +4%
Sapphire AMD Radeon RX 5600 XT
230.22 fps ∼88%
Nvidia GeForce RTX 2070 Super
146.32 fps ∼56% -36%
MSI RTX 2070 Gaming Z 8G
118.59 fps ∼46% -48%
Nvidia GeForce RTX 2060 Super
114.59 fps ∼44% -50%
MSI RTX 2060 Gaming Z 6G
108.16 fps ∼42% -53%
3ds Max (3dsmax-06)
Nvidia Titan RTX
268.74 fps ∼100% +56%
Nvidia GeForce RTX 2070 Super
212.43 fps ∼79% +23%
MSI RTX 2070 Gaming Z 8G
207.32 fps ∼77% +20%
Nvidia GeForce RTX 2060 Super
199.4 fps ∼74% +15%
MSI RTX 2060 Gaming Z 6G
184.36 fps ∼69% +7%
Sapphire AMD Radeon RX 5600 XT
172.75 fps ∼64%
AMD Radeon VII
168.51 fps ∼63% -2%
3DMark 05 Standard
50634 points
3DMark 06 Standard
45998 points
3DMark Vantage P Result
65563 points
3DMark 11 Performance
25782 points
3DMark Ice Storm Standard Score
208976 points
3DMark Cloud Gate Standard Score
53465 points
3DMark Fire Strike Score
19464 points
3DMark Fire Strike Extreme Score
10083 points
3DMark Time Spy Score
8039 points
Help

Game benchmarks

The Witcher 3 frame times (ultra preset)
The Witcher 3 frame times (ultra preset)
The Witcher 3 frame course (ultra preset)
The Witcher 3 frame course (ultra preset)

In our gaming tests, the Sapphire Pulse Radeon RX 5600 XT is just behind the AMD Radeon RX 5700. Our test sample can always prevail against the GeForce GTX 1660 Super. The RX 5600 XT copes very well with playing modern titles in Full HD. Older titles or less-demanding games can also be played in higher resolutions. Examples include FIFA 20 and the two racing games F1 2019 and Forza Horizon 4.

The measured frame times and the frame course show no abnormalities that would negatively influence the gameplay. We use The Witcher 3 (ultra preset) for this test and with an average of 77 FPS the game can be enjoyed with all details.

The Witcher 3 frame course ultra preset

0510152025303540455055606570758085Tooltip
Sapphire AMD Radeon RX 5600 XT Radeon RX 5600 XT (Desktop), R9 3900X: Ø77.4 (71-80)
Red Dead Redemption 2 - 1920x1080 Maximum Settings
Nvidia Titan RTX
NVIDIA Titan RTX, R9 3900X
76 (min: 43, max: 94) fps ∼100% +85%
Nvidia GeForce RTX 2080 Super
GeForce RTX 2080 Super, R9 3900X
61 (min: 36.7, max: 75.8, 99th percentile: 41.7) fps ∼80% +49%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R9 3900X
54.6 (min: 31.7, max: 66.8, 99th percentile: 37) fps ∼72% +33%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
51.5 (min: 24.8, max: 75.7, 99th percentile: 35.7) fps ∼68% +26%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R9 3900X
46.5 (min: 27.7, max: 56, 99th percentile: 32.3) fps ∼61% +13%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
46.2 (min: 29.6, max: 60.4, 99th percentile: 35.7) fps ∼61% +13%
Nvidia Titan X (Pascal)
Titan X Pascal, R9 3900X
45.4 (min: 29, max: 55.5, 99th percentile: 32.3) fps ∼60% +11%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
45.1 (min: 29.2, max: 55.6, 99th percentile: 33.3) fps ∼59% +10%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
41 (min: 3, max: 113) fps ∼54%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
33.2 (min: 19.2, max: 40.6, 99th percentile: 22.7) fps ∼44% -19%
Forza Horizon 4 - 1920x1080 Ultra Preset AA:2xMS
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
149 fps ∼100% +8%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
139 fps ∼93% +1%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
138 fps ∼93% 0%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
138 fps ∼93%
Nvidia Titan RTX
NVIDIA Titan RTX, R7 2700X
132 fps ∼89% -4%
AMD Radeon VII
Radeon VII, R7 2700X
130 fps ∼87% -6%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
129 fps ∼87% -7%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
125 fps ∼84% -9%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
121 fps ∼81% -12%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X
113 fps ∼76% -18%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
110 fps ∼74% -20%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
107 fps ∼72% -22%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
105 fps ∼70% -24%
Far Cry 5 - 1920x1080 Ultra Preset AA:T
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
110 (min: 85, max: 145) fps ∼100% +4%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
107 (min: 82, max: 145) fps ∼97% +1%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
106 (min: 85, max: 128) fps ∼96%
Nvidia Titan RTX
NVIDIA Titan RTX, R7 2700X
103 (min: 77, max: 137) fps ∼94% -3%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X
103 (min: 78, max: 136) fps ∼94% -3%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
103 (min: 85, max: 118) fps ∼94% -3%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
99 (min: 78, max: 124) fps ∼90% -7%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
99 (min: 75, max: 131) fps ∼90% -7%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
99 (min: 76, max: 132) fps ∼90% -7%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
96 (min: 75, max: 127) fps ∼87% -9%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
94 (min: 72, max: 124) fps ∼85% -11%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
92 (min: 83, max: 104) fps ∼84% -13%
AMD Radeon VII
Radeon VII, R7 2700X
91 (min: 70, max: 120) fps ∼83% -14%
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Nvidia Titan RTX
NVIDIA Titan RTX, R7 2700X
128 (min: 111, max: 142) fps ∼100% +70%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
109 (min: 94, max: 120) fps ∼85% +44%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
97 (min: 83, max: 109) fps ∼76% +28%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
94 (min: 86, max: 103) fps ∼73% +25%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
92 (min: 79, max: 99) fps ∼72% +22%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X
89.9 (min: 81, max: 101) fps ∼70% +19%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
79 (min: 67, max: 89) fps ∼62% +5%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
77 (min: 67, max: 84) fps ∼60% +2%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
76 (min: 67, max: 84) fps ∼59% +1%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
75.5 (min: 66, max: 81) fps ∼59%
AMD Radeon VII
Radeon VII, R7 2700X
75 (min: 65, max: 83) fps ∼59% -1%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
72.7 (min: 61, max: 82) fps ∼57% -4%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
59.5 (min: 53, max: 68) fps ∼46% -21%
Farming Simulator 19 - 1920x1080 Very High Preset
Nvidia Titan RTX
NVIDIA Titan RTX, R7 2700X
125 (min: 106, max: 167) fps ∼100%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
124 (min: 109, max: 167) fps ∼99%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
123 (min: 99, max: 182) fps ∼98%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
122.4 (min: 108, max: 163) fps ∼98%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
121 (min: 107, max: 161) fps ∼97%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X
120.7 (min: 108, max: 159) fps ∼97%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
118 (min: 106, max: 156) fps ∼94%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
116 (min: 101, max: 151) fps ∼93%
AMD Radeon VII
Radeon VII, R7 2700X
111 (min: 99, max: 144) fps ∼89%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
100 (min: 72, max: 144) fps ∼80%
Apex Legends - 1920x1080 Maximum Settings AA:TS AF:16x
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X
144 (min: 143, max: 145) fps ∼100% +7%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
144 (min: 142, max: 145) fps ∼100% +7%
Nvidia Titan RTX 24 GB
NVIDIA Titan RTX, TR 2920X
144 fps ∼100% +7%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
144 (min: 143, max: 145) fps ∼100% +7%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
144 (min: 143, max: 145) fps ∼100% +7%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
144 (min: 143, max: 145) fps ∼100% +7%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
139 (min: 126, max: 145) fps ∼97% +3%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
135 fps ∼94%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
131 (min: 122, max: 144) fps ∼91% -3%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
120 (min: 109, max: 140) fps ∼83% -11%
Far Cry New Dawn - 1920x1080 Ultra Preset
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
97 (min: 69, max: 147) fps ∼100% +13%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
94 (min: 69, max: 143) fps ∼97% +9%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
92 (min: 65, max: 147) fps ∼95% +7%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X
90 (min: 65, max: 138) fps ∼93% +5%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
88 (min: 66, max: 125) fps ∼91% +2%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
87 (min: 63, max: 135) fps ∼90% +1%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
87 (min: 69, max: 108) fps ∼90% +1%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
86 (min: 62, max: 132) fps ∼89%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
85 (min: 62, max: 130) fps ∼88% -1%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
85 (min: 63, max: 134) fps ∼88% -1%
AMD Radeon VII
Radeon VII, R7 2700X
83 (min: 59, max: 128) fps ∼86% -3%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
79 (min: 58, max: 120) fps ∼81% -8%
Nvidia Titan RTX 24 GB
NVIDIA Titan RTX, TR 2920X
72 (min: 51, max: 112) fps ∼74% -16%
Metro Exodus - 1920x1080 Ultra Quality AF:16x
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
74.2 (min: 38, max: 122) fps ∼100% +28%
Nvidia Titan RTX 24 GB
NVIDIA Titan RTX, TR 2920X
73 (min: 40, max: 107) fps ∼98% +26%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
67.8 (min: 36, max: 110) fps ∼91% +17%
AMD Radeon VII
Radeon VII, R7 2700X
67.2 (min: 36, max: 104) fps ∼91% +16%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
61 (min: 36.09, max: 86.1) fps ∼82% +5%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X
60.4 (min: 32, max: 94) fps ∼81% +4%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
58.9 (min: 32, max: 92) fps ∼79% +2%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
58 (min: 31, max: 90) fps ∼78%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
56.4 (min: 30, max: 87) fps ∼76% -3%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
52.7 (min: 29, max: 82) fps ∼71% -9%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
41 (min: 23, max: 61) fps ∼55% -29%
The Division 2 - 1920x1080 Ultra Preset
Nvidia Titan RTX 24 GB
NVIDIA Titan RTX, TR 2920X
113 fps ∼100% +41%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
106 fps ∼94% +33%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X
95 fps ∼84% +19%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
90 fps ∼80% +13%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
88 (min: 30.2, 99th percentile: 50) fps ∼78% +10%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
85 fps ∼75% +6%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
85 fps ∼75% +6%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
80 fps ∼71%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
78 fps ∼69% -2%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
63 fps ∼56% -21%
Anno 1800 - 1920x1080 Ultra Graphics Quality (DX11)
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
45 (min: 37, max: 58) fps ∼100% +22%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
43.3 (min: 38, max: 59) fps ∼96% +18%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
42.5 (min: 38, max: 47) fps ∼94% +15%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
42.1 (min: 36, max: 45) fps ∼94% +14%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
40.9 (min: 35, max: 53) fps ∼91% +11%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X
40.6 (min: 35, max: 49) fps ∼90% +10%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
40.6 (min: 36, max: 45) fps ∼90% +10%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
40.3 (min: 36, max: 46) fps ∼90% +10%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
40.3 (min: 30, max: 55) fps ∼90% +10%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
36.8 (min: 33, max: 42) fps ∼82%
Nvidia Titan RTX 24 GB
NVIDIA Titan RTX, TR 2920X
33.9 (min: 29, max: 43) fps ∼75% -8%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
33.1 (min: 31, max: 35) fps ∼74% -10%
Rage 2 - 1920x1080 Ultra Preset (Resolution Scale Off)
Nvidia Titan RTX 24 GB
NVIDIA Titan RTX, TR 2920X
157 (99th percentile: 119.4) fps ∼100% +66%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
131 (99th percentile: 64.4) fps ∼83% +38%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
118 (99th percentile: 71) fps ∼75% +25%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X
109 (99th percentile: 59.4) fps ∼69% +15%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
106 (99th percentile: 92.4) fps ∼68% +12%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
104 (99th percentile: 65.1) fps ∼66% +10%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
103 (99th percentile: 94.3) fps ∼66% +9%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
94.7 (99th percentile: 80.6) fps ∼60%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
94 (99th percentile: 47.1) fps ∼60% -1%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
83 (99th percentile: 70.4) fps ∼53% -12%
F1 2019 - 1920x1080 Ultra High Preset AA:T AF:16x
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
152 (min: 129, max: 171) fps ∼100% +27%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
140 (min: 120, max: 156) fps ∼92% +17%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
137 (min: 120, max: 153) fps ∼90% +14%
Nvidia Titan RTX 24 GB
NVIDIA Titan RTX, TR 2920X
134 (min: 112, max: 152) fps ∼88% +12%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
131 (min: 116, max: 147) fps ∼86% +9%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
124 (min: 113, max: 135) fps ∼82% +3%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
121 (min: 108, max: 136) fps ∼80% +1%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
120 (min: 105, max: 137) fps ∼79%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
87 (min: 77, max: 87) fps ∼57% -27%
X-Plane 11.11 - 1920x1080 high (fps_test=3)
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
94 fps ∼100% +72%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
77 fps ∼82% +41%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
76 fps ∼81% +39%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
61 fps ∼65% +11%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
57.1 fps ∼61% +4%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
54.8 fps ∼58%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
48.1 fps ∼51% -12%
Shadow of the Tomb Raider - 1920x1080 Highest Preset AA:T
Nvidia Titan RTX
NVIDIA Titan RTX, R7 2700X
116 fps ∼100% +22%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
114 fps ∼98% +20%
MSI RTX 2080 Gaming X Trio
GeForce RTX 2080 (Desktop), R7 2700X
110 fps ∼95% +16%
AMD Radeon VII
Radeon VII, R7 2700X
110 fps ∼95% +16%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X
110 fps ∼95% +16%
MSI RTX 2070 Gaming Z 8G
GeForce RTX 2070 (Desktop), R7 2700X
104 fps ∼90% +9%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R7 2700X
104 fps ∼90% +9%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X
96 fps ∼83% +1%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
95 fps ∼82%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
91 fps ∼78% -4%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X
90 fps ∼78% -5%
AMD Radeon RX Vega 64
RX Vega 64, R7 2700X
85 fps ∼73% -11%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
80 fps ∼69% -16%
FIFA 20 - 1920x1080 Ultra Preset AA:4xMS
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
284 (99th percentile: 204.1) fps ∼100% +12%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
282 (99th percentile: 208.3) fps ∼99% +11%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
281 (99th percentile: 204.1) fps ∼99% +11%
Nvidia GeForce RTX 2080 Super
GeForce RTX 2080 Super, R9 3900X
253 (99th percentile: 185.2) fps ∼89% 0%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
253 (min: 225, max: 278) fps ∼89%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R9 3900X
251 (99th percentile: 181.8) fps ∼88% -1%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R9 3900X
248 (99th percentile: 178.6) fps ∼87% -2%
Nvidia Titan RTX
NVIDIA Titan RTX, R9 3900X
245 (99th percentile: 178.6) fps ∼86% -3%
Nvidia Titan X (Pascal)
Titan X Pascal, R9 3900X
239 (99th percentile: 178.6) fps ∼84% -6%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
236 (99th percentile: 172.4) fps ∼83% -7%
Control - 1920x1080 High Quality Preset (DX11)
Nvidia Titan RTX 24 GB
NVIDIA Titan RTX, TR 2920X
135 (min: 118, max: 152) fps ∼100% +97%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R9 3900X
95 (min: 83, max: 109) fps ∼70% +38%
Nvidia GeForce RTX 2080 Super
GeForce RTX 2080 Super, R9 3900X
95 (min: 83, max: 109) fps ∼70% +38%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
83 (min: 72, max: 95) fps ∼61% +21%
Nvidia Titan X (Pascal)
Titan X Pascal, R9 3900X
83 (min: 73, max: 94) fps ∼61% +21%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R9 3900X
80 (min: 70, max: 91) fps ∼59% +17%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
73 (min: 63, max: 83) fps ∼54% +6%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
68.6 (min: 58, max: 80) fps ∼51%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
67 (min: 57, max: 77) fps ∼50% -2%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
56.3 (min: 49, max: 64) fps ∼42% -18%
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Nvidia GeForce RTX 2080 Super
GeForce RTX 2080 Super, R9 3900X
91 fps ∼100% +47%
Nvidia Titan X (Pascal)
Titan X Pascal, R9 3900X
81.5 fps ∼90% +31%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R9 3900X
79.4 fps ∼87% +28%
Nvidia Titan RTX 24 GB
NVIDIA Titan RTX, TR 2920X
77.2 fps ∼85% +25%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
71.7 fps ∼79% +16%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R9 3900X
68.7 fps ∼75% +11%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
66.7 fps ∼73% +8%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
62 fps ∼68%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
58.1 fps ∼64% -6%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
50 fps ∼55% -19%
Ghost Recon Breakpoint - 1920x1080 Ultra Preset AA:T
Nvidia Titan RTX
NVIDIA Titan RTX, R9 3900X
99 (min: 31, max: 148) fps ∼100% +25%
Nvidia GeForce RTX 2080 Super
GeForce RTX 2080 Super, R9 3900X
90 (min: 31, max: 124) fps ∼91% +14%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R9 3900X
88 (min: 13, max: 142) fps ∼89% +11%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
80 (min: 35, max: 125) fps ∼81% +1%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
79 (min: 58, max: 121) fps ∼80%
Nvidia Titan X (Pascal)
Titan X Pascal, R9 3900X
75 (min: 31, max: 117) fps ∼76% -5%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R9 3900X
71 (min: 24, max: 106) fps ∼72% -10%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
68 (min: 36, max: 104) fps ∼69% -14%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
55 (min: 44, max: 80) fps ∼56% -30%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
54 (min: 7, max: 96) fps ∼55% -32%
GRID 2019 - 1920x1080 Ultra High Preset
Nvidia Titan RTX
NVIDIA Titan RTX, R9 3900X
147 (99th percentile: 104.2) fps ∼100% +67%
Nvidia GeForce RTX 2080 Super
GeForce RTX 2080 Super, R9 3900X
118 (99th percentile: 80) fps ∼80% +34%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R9 3900X
105 (99th percentile: 64.1) fps ∼71% +19%
Nvidia Titan X (Pascal)
Titan X Pascal, R9 3900X
104 (99th percentile: 71.4) fps ∼71% +18%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
96 (99th percentile: 61.3) fps ∼65% +9%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
91 (99th percentile: 55.9) fps ∼62% +3%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R9 3900X
90 (99th percentile: 59.5) fps ∼61% +2%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
88.2 (99th percentile: 56.5) fps ∼60%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
82 (99th percentile: 60.2) fps ∼56% -7%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
69 (99th percentile: 48.1) fps ∼47% -22%
Call of Duty Modern Warfare 2019 - 1920x1080 Maximum Settings AA:T2X Filmic SM
Nvidia Titan RTX
NVIDIA Titan RTX, R9 3900X
169 (99th percentile: 119) fps ∼100% +82%
Nvidia GeForce RTX 2080 Super
GeForce RTX 2080 Super, R9 3900X
144 (99th percentile: 112.4) fps ∼85% +55%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R9 3900X
128 (99th percentile: 97.1) fps ∼76% +38%
Nvidia Titan X (Pascal)
Titan X Pascal, R9 3900X
114 (99th percentile: 87) fps ∼67% +23%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
112 (99th percentile: 83.3) fps ∼66% +20%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R9 3900X
109 (99th percentile: 82) fps ∼64% +17%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
106 (99th percentile: 78.1) fps ∼63% +14%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
95 (99th percentile: 69.9) fps ∼56% +2%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
93 fps ∼55%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
84 (99th percentile: 65.8) fps ∼50% -10%
Need for Speed Heat - 1920x1080 Ultra Preset
Nvidia Titan X (Pascal)
Titan X Pascal, R9 3900X
93 (min: 78, max: 108) fps ∼100% +11%
Nvidia Titan RTX
NVIDIA Titan RTX, R9 3900X
93 (min: 79, max: 106) fps ∼100% +11%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R9 3900X
92 (min: 76, max: 107) fps ∼99% +10%
Nvidia GeForce RTX 2080 Super
GeForce RTX 2080 Super, R9 3900X
92 (min: 78, max: 105) fps ∼99% +10%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R9 3900X
90 (min: 77, max: 103) fps ∼97% +8%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
88 (min: 74, max: 99) fps ∼95% +5%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
88 (min: 74, max: 103) fps ∼95% +5%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
84 (min: 75, max: 95) fps ∼90% +1%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
83.5 (min: 76, max: 92) fps ∼90%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
77 (min: 70, max: 85) fps ∼83% -8%
Star Wars Jedi Fallen Order - 1920x1080 Epic Preset
Nvidia Titan RTX
NVIDIA Titan RTX, R9 3900X
122 (min: 75, max: 145) fps ∼100% +39%
Nvidia GeForce RTX 2080 Super
GeForce RTX 2080 Super, R9 3900X
118 (min: 72, max: 145) fps ∼97% +34%
Nvidia Titan X (Pascal)
Titan X Pascal, R9 3900X
118 (min: 71, max: 145) fps ∼97% +34%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R9 3900X
114 (min: 72, max: 140) fps ∼93% +30%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X
108 (min: 65, max: 138) fps ∼89% +23%
Nvidia GeForce RTX 2070 Super
GeForce RTX 2070 Super, R9 3900X
107 (min: 66, max: 140) fps ∼88% +22%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X
102 (min: 64, max: 125) fps ∼84% +16%
AMD Radeon RX Vega 64
RX Vega 64, R9 3900X, Corsair MP600
89 (min: 64, max: 105) fps ∼73% +1%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X
88 fps ∼72%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X
56.9 (min: 50, max: 70) fps ∼47% -35%
low med. high ultraQHD4K
The Witcher 3 (2015) 335 127 75.5 45.8 fps
Dota 2 Reborn (2015) 169.8 152.9 153.9 138.4 95.2 fps
X-Plane 11.11 (2018) 73.9 62.9 54.8 38.4 fps
Far Cry 5 (2018) 139 118 112 106 83 43 fps
Shadow of the Tomb Raider (2018) 131 113 108 95 63 32 fps
Forza Horizon 4 (2018) 226 185 173 138 109 70 fps
Apex Legends (2019) 144 144 144 135 84 51 fps
Far Cry New Dawn (2019) 110 97 94 86 78 45 fps
Metro Exodus (2019) 171 103 72 58 47 29 fps
Dirt Rally 2.0 (2019) 235 198 130 99 74 42 fps
The Division 2 (2019) 172 113 97 80 55 30 fps
Anno 1800 (2019) 99.4 88.4 72.9 36.8 32.6 19.6 fps
Rage 2 (2019) 217 113 96.3 94.7 62.4 25.8 fps
F1 2019 (2019) 260 209 178 120 95 58 fps
Control (2019) 221 97 68.6 43.5 21.2 fps
Borderlands 3 (2019) 130 112 82 62 44 24 fps
FIFA 20 (2019) 274 273 261 253 216 170 fps
Ghost Recon Breakpoint (2019) 129 104 98 79 62 37 fps
GRID 2019 (2019) 171 88.2 121 88.2 70.9 37.4 fps
Call of Duty Modern Warfare 2019 (2019) 192 136 111 93 65 30 fps
Need for Speed Heat (2019) 111 106 93.8 83.5 65.7 36.3 fps
Star Wars Jedi Fallen Order (2019) 112 101 88 69 39 fps
Red Dead Redemption 2 (2019) 148 80 65 41 35 23 fps

Emissions of the Sapphire Pulse Radeon RX 5600 XT

The maximum power consumption of the graphics card is 160 watts in theory. When idling, the system is content with 112 watts without a monitor, although an average of 321 watts of energy is drawn from the socket during the stress test. If we increase the power target by 20%, the Sapphire Pulse Radeon RX 5600 XT can use up to 192 watts, which ensures a higher and more stable boost clock.

In comparison, the Sapphire Pulse Radeon RX 5600 XT is on par with the older AMD Radeon RX 570, which however offers significantly less performance. This clearly shows that the performance per watt could be increased considerably. The Sapphire Pulse Radeon RX 5600 XT also does quite well against the graphics cards from Nvidia. However, the competition's GTX models are much more economical.

The temperatures of the Sapphire Pulse Radeon RX 5600 XT are in the green in normal use. Nevertheless, there is also a GPU hotspot of 95 °C during the stress test, which even rises to 99 °C due to the increased power target. The two axial fans have their hands full in regard to cooling the graphics card. Nevertheless, the Sapphire Pulse Radeon RX 5600 XT remains pleasantly quiet under load. In the stress test, the two fans turned at almost 2,200 rotations per minute.

Stress test of the Sapphire Pulse Radeon RX 5600 XT (PT 100)
Stress test of the Sapphire Pulse Radeon RX 5600 XT (PT 100)
Stress test of the Sapphire Pulse Radeon RX 5600 XT (PT 100)
Stress test of the Sapphire Pulse Radeon RX 5600 XT (PT 100)
Stress test of the Sapphire Pulse Radeon RX 5600 XT (PT 100)
Stress test of the Sapphire Pulse Radeon RX 5600 XT (PT 100)

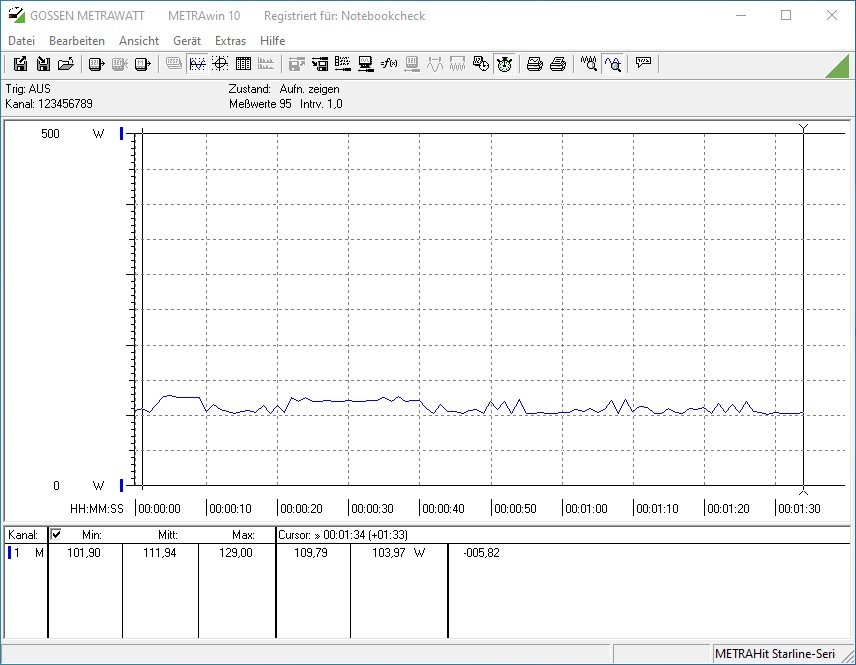

Power consumption test system (Idle)
Power consumption test system (Idle)
Power consumption test system (FurMark PT 100%)
Power consumption test system (FurMark PT 100%)
Power consumption test system (FurMark PT 120%)
Power consumption test system (FurMark PT 120%)
Power consumption test system (Gaming - The Witcher 3 ultra preset)
Power consumption test system (Gaming - The Witcher 3 ultra preset)
Stress test FurMark (PT 100%)
Stress test FurMark (PT 100%)
Stress test FurMark (PT 120%)
Stress test FurMark (PT 120%)


Power Consumption
1280x720 FurMark 1.19 GPU Stress Test - Power Consumption (external Monitor)
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X (Idle: 85.9 W)
371.7 (min: 360, max: 388) Watt * ∼100% -16%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R7 2700X
357.5 (min: 347, max: 383) Watt * ∼96% -11%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X (Idle: 83.2 W)
352.1 (min: 346, max: 377) Watt * ∼95% -10%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X (239 fps, Idle: 69.8 W)
326.56 (min: 313, max: 351) Watt * ∼88% -2%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R9 3900X (Idle: 85.5 W)
322.8 (min: 309, max: 347) Watt * ∼87% -1%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X (Idle: 112 W)
321.1 (min: 300, max: 348) Watt * ∼86%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R9 3900X (Idle: 86.7 W)
312 (min: 306, max: 328) Watt * ∼84% +3%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R7 2700X (Idle: 72.61 W)
308.92 (min: 301, max: 338) Watt * ∼83% +4%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X (Idle: 77.9 W)
297.3 (min: 292, max: 316) Watt * ∼80% +7%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X (Idle: 74.66 W)
295.2 (min: 148, max: 331) Watt * ∼79% +8%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X (237 fps, Idle: 77.12 W)
281.4 (min: 275, max: 321) Watt * ∼76% +12%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X (207 fps, Idle: 64.5 W)
280.49 (min: 271, max: 312) Watt * ∼75% +13%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X (Idle: 79.88 W)
247.84 (min: 242, max: 282) Watt * ∼67% +23%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X (Idle: 84.76 W)
247.6 (min: 241, max: 322) Watt * ∼67% +23%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), R7 2700X (Idle: 68.3 W)
233.2 (min: 226, max: 250) Watt * ∼63% +27%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X (Idle: 82.4 W)
202.5 (min: 200, max: 213) Watt * ∼54% +37%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R7 2700X (Idle: 64.63 W, Idle: 64.63 W)
183 (min: 178, max: 187) Watt * ∼49% +43%
1920x1080 The Witcher 3 Power Consumption (external Monitor) ultra
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R9 3900X (Idle: 83.2 W)
376.4 (min: 373, max: 382) Watt * ∼100% -31%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R9 3900X (Idle: 85.9 W)
358.9 (min: 351, max: 370) Watt * ∼95% -25%
AMD Radeon RX 5700 XT
Radeon RX 5700 XT (Desktop), R7 2700X (Idle: 69.8 W)
348.71 (min: 341, max: 359) Watt * ∼93% -21%
XFX AMD Radeon RX 590 OC+ 8 GB
Radeon RX 590, R7 2700X
346.9 (min: 326, max: 364) Watt * ∼92% -21%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R9 3900X (Idle: 86.7 W)
331 (min: 322, max: 344) Watt * ∼88% -15%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R9 3900X (Idle: 77.9 W)
317.5 (min: 313, max: 326, 99th percentile: 216) Watt * ∼84% -10%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R9 3900X (Idle: 85.5 W)
300.2 (min: 284, max: 311) Watt * ∼80% -4%
Nvidia GeForce RTX 2060 Super
GeForce RTX 2060 Super, R7 2700X (82.7 fps, Idle: 77.12 W)
298.2 (min: 293, max: 322) Watt * ∼79% -4%
AMD Radeon RX 5700
Radeon RX 5700 (Desktop), R7 2700X (84.2 fps, Idle: 64.5 W)
295.9 (min: 284, max: 304) Watt * ∼79% -3%
MSI RTX 2060 Gaming Z 6G
GeForce RTX 2060 (Desktop), R7 2700X (Idle: 74.66 W)
288.8 (min: 284, max: 299) Watt * ∼77% -0%
Sapphire AMD Radeon RX 5600 XT
Radeon RX 5600 XT (Desktop), R9 3900X (Idle: 112 W)
287.8 (min: 282, max: 294) Watt * ∼76%
Sapphire NITRO+ RX 570 8 GB
Radeon RX 570, R7 2700X (Idle: 72.61 W)
273.96 (min: 268, max: 300) Watt * ∼73% +5%
KFA 2 GeForce GTX 1660 Super
GeForce GTX 1660 Super (Desktop), R9 3900X (Idle: 84.76 W)
260.4 (min: 255, max: 277) Watt * ∼69% +10%
PNY GeForce GTX 1660
GeForce GTX 1660 (Desktop), R9 3900X (Idle: 79.88 W)
248.63 (min: 240, max: 259) Watt * ∼66% +14%
Zotac GeForce GTX 1660 Ti 6 GB
GeForce GTX 1660 Ti (Desktop), R7 2700X (Idle: 68.3 W)
235.5 (min: 232, max: 269) Watt * ∼63% +18%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R9 3900X (Idle: 82.4 W)
203.9 (min: 199, max: 215) Watt * ∼54% +29%
Gainward GeForce GTX 1650 4 GB
GeForce GTX 1650 (Desktop), R7 2700X (Idle: 64.63 W)
178.87 (min: 176, max: 192) Watt * ∼48% +38%

* ... smaller is better

Overclocking - Little performance reserves

If you buy a Sapphire Pulse Radeon RX 5600 XT and hope to unlock hidden power reserves by manual overclocking, we have to disappoint you at this point. Our model could only be overclocked to a very small extent, which was also only rewarded with minimally better results in the subsequent test.

3DMark 11 (GPU + 70 MHz, VRAM + 110 MHz)
3DMark 11 (GPU + 70 MHz, VRAM + 110 MHz)
3DMark Fire Strike (GPU + 70 MHz, VRAM + 110 MHz)
3DMark Fire Strike (GPU + 70 MHz, VRAM + 110 MHz)

Pros

+ fast enough for Full HD
+ 6 GB GDDR6
+ fan-stop mode in 2D mode
+ moderate energy consumption
+ relatively quiet under load
+ 3x DisplayPort
+ dual BIOS (Performance and Silent)

Cons

- relatively expensive (small price distance to the RX 5700)
- little overclocking potential

Verdict - Very suitable for Full HD gaming

In review: Sapphire Pulse Radeon RX 5600 XT, provided by AMD Germany
In review: Sapphire Pulse Radeon RX 5600 XT, provided by AMD Germany

After the launch of the Navi graphics cards, AMD now had to raise the ante in the middle class and has presented the AMD Radeon RX 5600 XT, a solid graphics card for Full HD gaming. This is exactly where AMD sees its purpose, because the 5700 series is already available for QHD gaming.

In the test, we were able to consistently confirm the performance of our Sapphire Pulse Radeon RX 5600 XT test sample. All modern titles can be played smoothly and in some cases the performance of the smaller Navi card is sufficient even for higher resolutions. It doesn't matter that the RX 5600 XT only uses 6 GB VRAM. After all, Nvidia's current GeForce GTX 1660 Super only offers 6 GB VRAM, as well.

Thanks to RDNA and the 7 nm manufacturing process, the mid-range graphics cards now also get a decent performance upgrade without consuming more energy.

The cooling used also works solidly and keeps the temperatures of the graphics card in check. However, the cooling system no longer offers a lot of scope when it comes to getting even more performance out of the graphics card. In our opinion, this is not necessary either. The Sapphire Pulse Radeon RX 5600 XT is one of the cheapest RX 5600 XT cards on the market at a price close to 300 Euros (~$326). Nevertheless, the price difference to the faster AMD Radeon RX 5700 is negligible. Thus, the AMD Radeon RX 5600 XT has to be significantly cheaper to really attract buyers.

static version load dynamic
Loading comments
Comment on this article
Please share our article, every link counts!
> Notebook / Laptop Reviews and News > Reviews > Full HD gaming with the AMD Radeon RX 5600 XT
Sebastian Bade, 2020-02-27 (Update: 2020-02-27)
Christian Hintze
Christian Hintze - Editor
Because of my interest in computer games I started studying computer science, became a psychologist, but stayed true to the games and the hardware. For example during my year abroad in London as a games tester at Sega. In my spare time I find a balance between PC games and sports (meanwhile mainly indoor soccer and running after my toddler), playing guitar and building bamboo bikes (well, so far only one under guidance).
