MagyarMSI Radeon RX 6950 XT Gaming X Trio 16G desktop GPU review: Last-gen high-end GPU in battle against RDNA3 and Ada Lovelace
Detailed look at the MSI Radeon RX 6950 XT Gaming X Trio 16G
After comparing RDNA3 and Ada Lovelace, we now know more about how well the new high-end graphics cards perform. The warehouses of retailers are often still filled with "older" GPUs. Occasionally, you might be able to get a really great deal on these products. That is why we are taking a look at the AMD Radeon RX 6950 XT and letting it go head-to-head against the new high-end models once more.

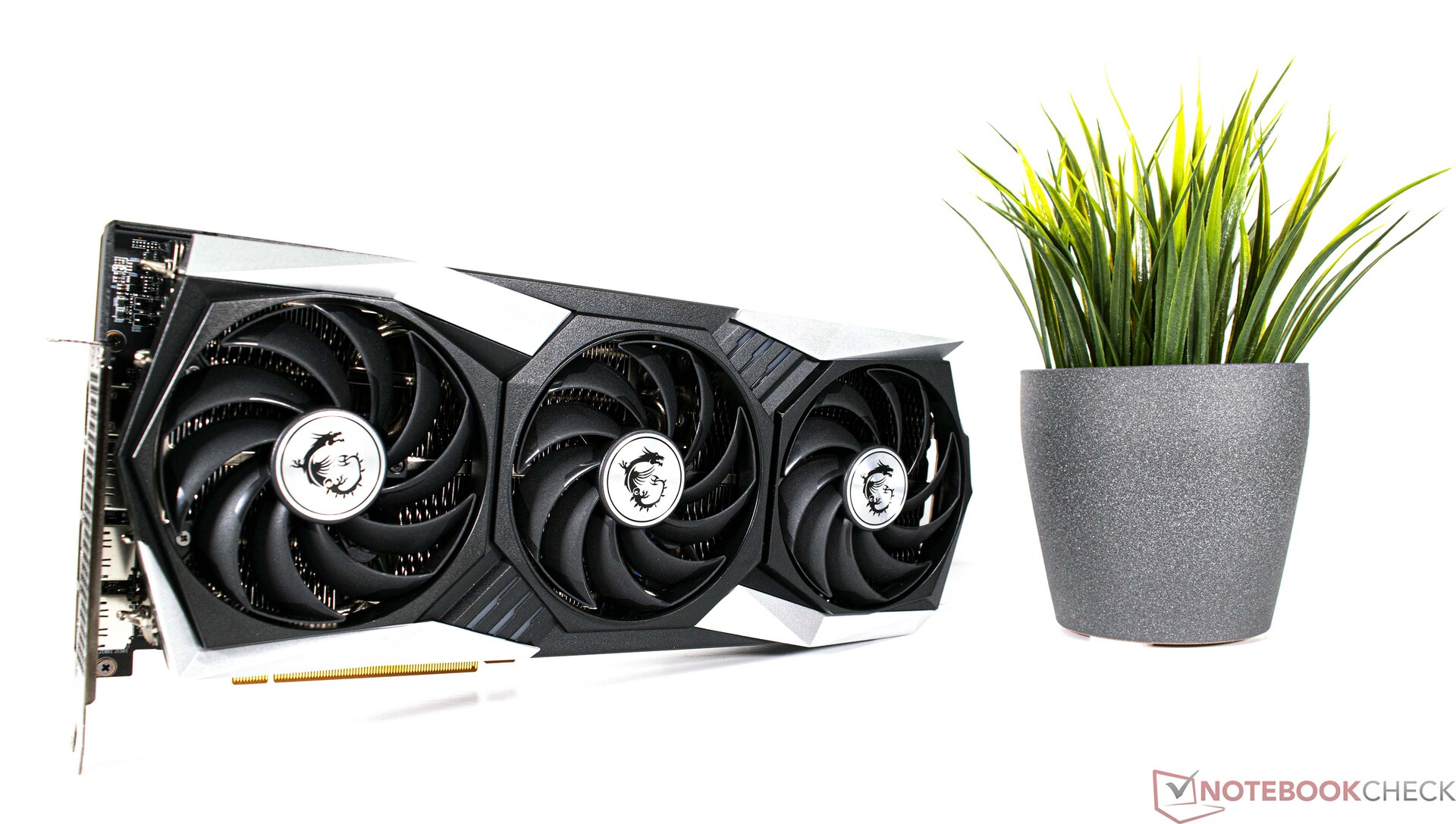

For this review, we are using a Radeon RX 6950 XT made by MSI. The MSI Radeon RX 6950 XT Gaming X Trio 16G looks very different from AMD's reference design. Performance-wise, the MSI card has slightly more headroom thanks to its 340-watt TDP, which in turn also raises the GPU's maximum boost clock. The card is fairly long at 32.5 cm (12.8"). This is something you need to factor into your purchase decision. It also takes up three slots when installed; a triple-slot design has already become the standard amongst modern high-end GPUs. Power is supplied to the card via three trusty 6+2 pin connectors.
Comparing the Radeon RX 6950 XT with other AMD GPUs
| Specifications | Radeon RX 7900 XTX | Radeon RX 7900 XT | Radeon RX 6950 XT | Radeon RX 6900 XT | Radeon RX 6800 XT | Radeon RX 6800 | Radeon RX 6750 XT | Radeon RX 6700 XT |
| GPU | Navi 31 XTX | Navi 31 XT | Navi 21 XTX | Navi 21 XTX | Navi 21 XT | Navi 21 XL | Navi 22 | Navi 22 |
| Die Size | 520 mm² | 520 mm² | 520 mm² | 520 mm² | 520 mm² | 520 mm² | 335 mm² | 335 mm² |
| Compute Units | 96 | 84 | 80 | 80 | 72 | 60 | 40 | 40 |
| Shading Units | 6,144 | 5,376 | 5,120 | 5,120 | 4,608 | 3,840 | 2,560 | 2,560 |
| Manufacturing Process | 5/6 nm | 5/6 nm | 7 nm | 7 nm | 7 nm | 7 nm | 7 nm | 7 nm |
| Texture Mapping Units | 384 | 336 | 320 | 320 | 288 | 240 | 160 | 160 |
| Ray Accelerators | 96 | 80 | 80 | 80 | 72 | 60 | 40 | 40 |
| Base Clock | 2,270 MHz | 2,000 MHz | 2,103 MHz | 1,825 MHz | 1,825 MHz | 1,700 MHz | 2,150 MHz | 2,321 MHz |
| Game Clock | 2,300 MHz | 2,000 MHz | 2,244 MHz | 2,015 MHz | 2,015 MHz | 1,815 MHz | 2,495 MHz | 2,424 MHz |
| Boost Clock | 2,500 MHz | 2,400 MHz | 2,454 MHz | 2,250 MHz | 2,250 MHz | 2,105 MHz | 2,600 MHz | 2,581 MHz |
| Infinity Cache | 96 MB | 80 MB | 128 MB | 128 MB | 128 MB | 128 MB | 96 MB | 96 MB |
| Memory Bus Width | 384-bit | 320-bit | 256-bit | 256-bit | 256-bit | 256-bit | 192-bit | 192-bit |
| Memory Bandwidth | 960 GB/s | 800 GB/s | 576 GB/s | 512 GB/s | 512 GB/s | 512 GB/s | 432 GB/s | 384 GB/s |
| Memory Size | 24 GB GDDR6 | 20 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 | 12 GB GDDR6 | 12 GB GDDR6 |
| TBP | 355 W | 315 W | 340 W | 300 W | 300 W | 250 W | 250 W | 230 W |
Details of our GPU test system
We used the following system for the benchmarks and tests in this review:
- Lian-Li O11 Dynamic
- AMD Ryzen 9 7950X
- Gigabyte X670E Aorus Master, BIOS: F8a
- Alphacool Eisbaer 360 AIO
- Corsair RM 1000x PSU
- G.Skill Trident Z5 Neo DDR5-6000 2x 16 GB, EXPO (DDR5-6000 CL30-38-38-96)
- Corsair MP600 2 TB
- Crucial MX500 2 TB
- Microsoft Windows 11 Professional 64-Bit (Version 22H2)
Synthetic benchmarks and compute performance
The MSI Radeon RX 6950 XT Gaming X Trio 16G holds up remarkably well even almost one year after its launch and isn't completely left in the dust by the new high-end GPUs. In a direct comparison, our review unit is neck and neck with an Nvidia GeForce RTX 4070 Ti. The Radeon RX 7900 XT is around 11 per cent faster and the XTX model, which is based on the new RDNA3 architecture, runs roughly 25 per cent faster. Overall, the RX 6950 XT is powerful enough to hold its own against last-gen graphics cards.
A similar picture emerges when it comes to render tests and professional applications. Despite this, the MSI Radeon RX 6950 XT Gaming X Trio 16G delivered excellent performance in some cases. Depending on the application, it is even able to keep up with the RTX 4080. Unfortunately, GPU acceleration in Affinity Photo 2 is not a strong suit of the AMD graphics cards at all.
Performance Rating | 3DMark 11 | 3DMark | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition
| Performance Rating - Percent | |
| NVIDIA GeForce RTX 4090 | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| 3DMark 11 - 1280x720 Performance GPU | |
| NVIDIA GeForce RTX 4090 | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| Unigine Heaven 4.0 | |
| Extreme Preset DX11 | |
| NVIDIA GeForce RTX 4090 | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6800 | |
| Extreme Preset OpenGL | |
| NVIDIA GeForce RTX 4090 | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| NVIDIA GeForce RTX 4090 | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| NVIDIA GeForce RTX 4090 | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6800 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
LuxMark v2.0 64Bit | ComputeMark v2.1 | Photoshop PugetBench | Premiere Pro PugetBench | Affinity Photo 2 | Blender
| LuxMark v2.0 64Bit | |
| Room GPUs-only | |
| NVIDIA GeForce RTX 4080 | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 6800 | |
| Sala GPUs-only | |
| NVIDIA GeForce RTX 4080 | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6800 | |
| Photoshop PugetBench | |
| GPU Score | |
| AMD Radeon RX 6800 | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 4080 | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA GeForce RTX 3080 Ti | |
| Overall Score | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| Premiere Pro PugetBench | |
| GPU 0.9 | |
| NVIDIA GeForce RTX 4080 | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 6800 | |
| Overall Score 0.9 | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6800 | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| NVIDIA GeForce RTX 4080 | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6800 | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| Blender | |
| v3.3 Classroom HIP/AMD | |
| AMD Radeon RX 6800 | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 XTX | |
| v3.3 Classroom CUDA | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA GeForce RTX 3080 Ti | |
* ... smaller is better
Professional applications
| AMD Radeon RX 6950 XT R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | NVIDIA GeForce RTX 4080 R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 6800 R9 7950X | NVIDIA GeForce RTX 3090 R9 7950X | NVIDIA GeForce RTX 3080 Ti R9 7950X | NVIDIA GeForce RTX 3070 Ti R9 7950X | Average of class | |
|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 12 | 143% | 8% | 119% | 73% | -23% | -16% | -32% | -51% | |
| 1900x1060 Solidworks (sw-03) | 218 | 360 65% | 113 -48% | 342 57% | 315 44% | 105 -52% | 106 -51% | 101 -54% | 83.3 ? -62% |
| 1900x1060 Siemens NX (snx-02) | 56.4 | 400 609% | 21.6 -62% | 373 561% | 296 425% | 16.4 -71% | 16.6 -71% | 14.7 -74% | 56.1 ? -1% |
| 1900x1060 Showcase (showcase-01) | 264 | 322 22% | 333 26% | 278 5% | 229 -13% | 262 -1% | 252 -5% | 199 -25% | 93.9 ? -64% |
| 1900x1060 Medical (medical-01) | 95.2 | 347 264% | 171 80% | 288 203% | 188 97% | 85.8 -10% | 142 49% | 106 11% | 51 ? -46% |
| 1900x1060 Maya (maya-04) | 195 | 367 88% | 309 58% | 347 78% | 304 56% | 302 55% | 302 55% | 279 43% | 105.3 ? -46% |
| 1900x1060 Energy (energy-01) | 34.3 | 85.2 148% | 58.8 71% | 72.4 111% | 48.4 41% | 25.6 -25% | 27.6 -20% | 18 -48% | 14.6 ? -57% |
| 1900x1060 Creo (creo-01) | 163 | 187 15% | 110 -33% | 176 8% | 160 -2% | 93.7 -43% | 94.7 -42% | 72.6 -55% | 62.8 ? -61% |
| 1900x1060 Catia (catia-04) | 368 | 536 46% | 221 -40% | 481 31% | 396 8% | 167 -55% | 171 -54% | 136 -63% | 102.2 ? -72% |
| 1900x1060 3ds Max (3dsmax-05) | 418 | 553 32% | 502 20% | 502 20% | 424 1% | 389 -7% | 385 -8% | 330 -21% | 192.6 ? -54% |
| SPECviewperf 13 | 134% | 7% | 110% | 67% | -22% | -22% | -39% | -43% | |
| Solidworks (sw-04) | 254 | 323 27% | 179 -30% | 307 21% | 304 20% | 151 -41% | 153 -40% | 146 -43% | 118.4 ? -53% |
| Siemens NX (snx-03) | 101 | 725 618% | 39 -61% | 675 568% | 537 432% | 29.7 -71% | 29.9 -70% | 26.4 -74% | 125.7 ? 24% |
| Showcase (showcase-02) | 264 | 323 22% | 334 27% | 279 6% | 230 -13% | 262 -1% | 252 -5% | 198 -25% | 117.9 ? -55% |
| Medical (medical-02) | 263 | 150 | 237 | 166 | 106 | 107 | 83.6 | 74.3 ? | |
| Maya (maya-05) | 460 | 735 60% | 678 47% | 670 46% | 544 18% | 556 21% | 569 24% | 437 -5% | 260 ? -43% |
| Energy (energy-02) | 60.8 | 187 208% | 92.6 52% | 147 142% | 93.6 54% | 43.8 -28% | 44.1 -27% | 30 -51% | 34.9 ? -43% |
| Creo (creo-02) | 374 | 613 64% | 529 41% | 567 52% | 431 15% | 392 5% | 402 7% | 286 -24% | 199.9 ? -47% |
| Catia (catia-05) | 588 | 825 40% | 340 -42% | 728 24% | 616 5% | 252 -57% | 258 -56% | 201 -66% | 196.7 ? -67% |
| 3ds Max (3dsmax-06) | 416 | 564 36% | 497 19% | 506 22% | 424 2% | 387 -7% | 382 -8% | 330 -21% | 184.2 ? -56% |
| SPECviewperf 2020 | 125% | 13% | 98% | 54% | -6% | -13% | -32% | -28% | |
| 3840x2160 3ds Max (3dsmax-07) | 140 | 167 19% | 179 28% | 143 2% | 102 -27% | 141 1% | 139 -1% | 99 -29% | 79.9 ? -43% |
| 3840x2160 CATIA (catia-06) | 59.7 | 127 113% | 75.5 26% | 113 89% | 92.2 54% | 58.5 -2% | 59.9 0% | 48 -20% | 46.6 ? -22% |
| 3840x2160 Creo (creo-03) | 92.4 | 187 102% | 128 39% | 173 87% | 136 47% | 115 24% | 114 23% | 99.3 7% | 77.5 ? -16% |
| 3840x2160 Energy (energy-03) | 69.3 | 129 86% | 90.4 30% | 99.6 44% | 113 63% | 96.6 39% | 57.5 -17% | 39.1 -44% | 47.9 ? -31% |
| 3840x2160 Maya (maya-06) | 315 | 481 53% | 447 42% | 401 27% | 331 5% | 356 13% | 366 16% | 290 -8% | 206 ? -35% |
| 3840x2160 Medical (medical-03) | 35 | 62.3 78% | 32.2 -8% | 53.9 54% | 36.4 4% | 20 -43% | 22.9 -35% | 16.3 -53% | 19.8 ? -43% |
| 3840x2160 Siemens NX (snx-04) | 98.4 | 514 422% | 31.9 -68% | 476 384% | 330 235% | 24.7 -75% | 24.9 -75% | 22.2 -77% | 93.7 ? -5% |
| Total Average (Program / Settings) | 134% /
135% | 9% /
9% | 109% /
110% | 65% /
65% | -17% /
-18% | -17% /
-17% | -34% /
-34% | -41% /
-42% |
Gaming benchmarks
The results from our gaming test are consistent with those from the synthetic benchmarks. We once again see the MSI Radeon RX 6950 XT Gaming X Trio 16G locked in a close race with the GeForce RTX 4070 Ti. In our real-world test featuring numerous games, the MSI Radeon RX 6950 XT Gaming X Trio 16G showed that it is also able to run the latest games smoothly at 2160p and max settings. At the moment, users are still well prepared for future games if they have 16 GB of VRAM at their disposal.
For another overview of the performance of these graphics cards, please refer to our GPU comparison table.
The Witcher 3 | Metro Exodus | Far Cry 5 | Far Cry 6 | F1 2021 | F1 22 | Forza Horizon 5 | Cyberpunk 2077 1.6 | A Plague Tale Requiem | Need for Speed Unbound | Spider-Man Miles Morales | Borderlands 3 | God of War | GTA V | Call of Duty Modern Warfare 2 2022 | The Quarry
| The Witcher 3 | |
| 3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA Titan RTX | |
| NVIDIA GeForce RTX 3070 Ti | |
| Metro Exodus | |
| 3840x2160 Ultra Quality AF:16x | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| 2560x1440 Ultra Quality AF:16x | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6800 | |
| NVIDIA Titan RTX | |
| NVIDIA GeForce RTX 3070 Ti | |
| 1920x1080 Ultra Quality AF:16x | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| Far Cry 5 | |
| 3840x2160 Ultra Preset AA:T | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6800 | |
| NVIDIA Titan RTX | |
| NVIDIA GeForce RTX 3070 Ti | |
| 2560x1440 Ultra Preset AA:T | |
| NVIDIA GeForce RTX 4080 | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| 1920x1080 Ultra Preset AA:T | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 4080 | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA Titan RTX | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6800 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 7900 XT | |
| Far Cry 6 | |
| 3840x2160 Ultra Graphics Quality + HD Textures AA:T | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6800 | |
| NVIDIA Titan RTX | |
| NVIDIA GeForce RTX 3070 Ti | |
| 2560x1440 Ultra Graphics Quality + HD Textures AA:T | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| 1920x1080 Ultra Graphics Quality + HD Textures AA:T | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| F1 2021 | |
| 3840x2160 Ultra High Preset + Raytracing AA:T AF:16x | |
| NVIDIA GeForce RTX 4080 (874931) | |
| AMD Radeon RX 7900 XTX (874931) | |
| NVIDIA GeForce RTX 4070 Ti (874931) | |
| AMD Radeon RX 7900 XT (874931) | |
| NVIDIA GeForce RTX 3080 Ti (874931) | |
| NVIDIA GeForce RTX 3090 (874931) | |
| AMD Radeon RX 6950 XT (874931) | |
| NVIDIA GeForce RTX 3070 Ti (874931) | |
| AMD Radeon RX 6800 (874931) | |
| NVIDIA Titan RTX (874931) | |
| 2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
| NVIDIA GeForce RTX 4080 (874931) | |
| AMD Radeon RX 7900 XTX (874931) | |
| NVIDIA GeForce RTX 4070 Ti (874931) | |
| AMD Radeon RX 7900 XT (874931) | |
| NVIDIA GeForce RTX 3080 Ti (874931) | |
| AMD Radeon RX 6950 XT (874931) | |
| NVIDIA GeForce RTX 3090 (874931) | |
| NVIDIA GeForce RTX 3070 Ti (874931) | |
| AMD Radeon RX 6800 (874931) | |
| NVIDIA Titan RTX (874931) | |
| 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
| NVIDIA GeForce RTX 4070 Ti (874931) | |
| AMD Radeon RX 7900 XTX (874931) | |
| NVIDIA GeForce RTX 4080 (874931) | |
| AMD Radeon RX 7900 XT (874931) | |
| AMD Radeon RX 6950 XT (874931) | |
| NVIDIA GeForce RTX 3080 Ti (874931) | |
| NVIDIA GeForce RTX 3090 (874931) | |
| NVIDIA GeForce RTX 3070 Ti (874931) | |
| AMD Radeon RX 6800 (874931) | |
| NVIDIA Titan RTX (874931) | |
| F1 22 | |
| 3840x2160 Ultra High Preset AA:T AF:16x | |
| NVIDIA GeForce RTX 4080 (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| NVIDIA GeForce RTX 4070 Ti (939134) | |
| AMD Radeon RX 7900 XT (939134) | |
| NVIDIA GeForce RTX 3080 Ti (939134) | |
| NVIDIA GeForce RTX 3090 (923650) | |
| AMD Radeon RX 6950 XT (939134) | |
| NVIDIA GeForce RTX 3070 Ti (939134) | |
| NVIDIA Titan RTX (923650) | |
| AMD Radeon RX 6800 (928484) | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| NVIDIA GeForce RTX 4080 (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| NVIDIA GeForce RTX 4070 Ti (939134) | |
| AMD Radeon RX 7900 XT (939134) | |
| NVIDIA GeForce RTX 3080 Ti (939134) | |
| NVIDIA GeForce RTX 3090 (923650) | |
| AMD Radeon RX 6950 XT (939134) | |
| NVIDIA GeForce RTX 3070 Ti (939134) | |
| NVIDIA Titan RTX (923650) | |
| AMD Radeon RX 6800 (928484) | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| NVIDIA GeForce RTX 4080 (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| NVIDIA GeForce RTX 4070 Ti (939134) | |
| NVIDIA GeForce RTX 3080 Ti (939134) | |
| NVIDIA GeForce RTX 3090 (923650) | |
| AMD Radeon RX 7900 XT (939134) | |
| AMD Radeon RX 6950 XT (939134) | |
| NVIDIA GeForce RTX 3070 Ti (939134) | |
| NVIDIA Titan RTX (923650) | |
| AMD Radeon RX 6800 | |
| Forza Horizon 5 | |
| 3840x2160 Extreme Preset | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| 2560x1440 Extreme Preset | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| 1920x1080 Extreme Preset | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| Cyberpunk 2077 1.6 | |
| 3840x2160 Ultra Preset | |
| AMD Radeon RX 7900 XTX (1.61) | |
| NVIDIA GeForce RTX 4080 (1.61) | |
| AMD Radeon RX 7900 XT (1.61) | |
| NVIDIA GeForce RTX 4070 Ti (1.61) | |
| NVIDIA GeForce RTX 3080 Ti (1.61) | |
| AMD Radeon RX 6950 XT (1.61) | |
| AMD Radeon RX 6800 (1.61) | |
| NVIDIA GeForce RTX 3070 Ti (1.61) | |
| 2560x1440 Ultra Preset | |
| AMD Radeon RX 7900 XTX (1.61) | |
| NVIDIA GeForce RTX 4080 (1.61) | |
| NVIDIA GeForce RTX 4070 Ti (1.61) | |
| AMD Radeon RX 7900 XT (1.61) | |
| AMD Radeon RX 6950 XT (1.61) | |
| NVIDIA GeForce RTX 3080 Ti (1.61) | |
| AMD Radeon RX 6800 (1.61) | |
| NVIDIA GeForce RTX 3070 Ti (1.61) | |
| 1920x1080 Ultra Preset | |
| AMD Radeon RX 7900 XTX (1.61) | |
| NVIDIA GeForce RTX 4080 (1.61) | |
| AMD Radeon RX 7900 XT (1.61) | |
| NVIDIA GeForce RTX 4070 Ti (1.61) | |
| AMD Radeon RX 6950 XT (1.61) | |
| NVIDIA GeForce RTX 3080 Ti (1.61) | |
| AMD Radeon RX 6800 (1.61) | |
| NVIDIA GeForce RTX 3070 Ti (1.61) | |
| A Plague Tale Requiem | |
| 3840x2160 Ultra Preset | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA Titan RTX | |
| 2560x1440 Ultra Preset | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| 1920x1080 Ultra Preset | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| Need for Speed Unbound | |
| 3840x2160 Ultra Preset | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA Titan RTX | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6800 | |
| 2560x1440 Ultra Preset | |
| NVIDIA GeForce RTX 4080 | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| 1920x1080 Ultra Preset | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 6800 | |
| Spider-Man Miles Morales | |
| 3840x2160 Very High Preset AA:T | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6950 XT | |
| NVIDIA Titan RTX | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6800 | |
| 2560x1440 Very High Preset AA:T | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| 1920x1080 Very High Preset AA:T | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6950 XT | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| Borderlands 3 | |
| 3840x2160 Badass Overall Quality (DX11) | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| 2560x1440 Badass Overall Quality (DX11) | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA Titan RTX | |
| 1920x1080 Badass Overall Quality (DX11) | |
| NVIDIA GeForce RTX 4080 | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA Titan RTX | |
| God of War | |
| 3840x2160 Ultra Preset | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA Titan RTX | |
| NVIDIA GeForce RTX 3070 Ti | |
| AMD Radeon RX 6800 | |
| 2560x1440 Ultra Preset | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| 1920x1080 Ultra Preset | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| GTA V | |
| 3840x2160 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| 3840x2160 High/On (Advanced Graphics Off) AA:FX AF:8x | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 4080 | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| Call of Duty Modern Warfare 2 2022 | |
| 3840x2160 Extreme Quality Preset AA:T2X Filmic SM | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| 2560x1440 Extreme Quality Preset AA:T2X Filmic SM | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| 1920x1080 Extreme Quality Preset AA:T2X Filmic SM | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| The Quarry | |
| 3840x2160 Ultra Preset | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6950 XT | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| 2560x1440 Ultra Preset | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| 1920x1080 Ultra Preset | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| AMD Radeon RX 6800 | |
| Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 6800 | |
| NVIDIA Titan RTX | |
| NVIDIA GeForce RTX 3070 Ti | |
| Cyberpunk 2077 1.6 | |
| 3840x2160 Ray Tracing Ultra Preset (DLSS off) | |
| NVIDIA GeForce RTX 4080 (1.61) | |
| AMD Radeon RX 7900 XTX (1.61) | |
| NVIDIA GeForce RTX 3080 Ti (1.61) | |
| AMD Radeon RX 7900 XT (1.61) | |
| AMD Radeon RX 6950 XT (1.61) | |
| AMD Radeon RX 6800 (1.61) | |
| NVIDIA GeForce RTX 3070 Ti (1.61) | |
| 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
| NVIDIA GeForce RTX 4080 (1.61) | |
| NVIDIA GeForce RTX 3080 Ti (1.61) | |
| AMD Radeon RX 7900 XTX (1.61) | |
| AMD Radeon RX 7900 XT (1.61) | |
| AMD Radeon RX 6950 XT (1.61) | |
| NVIDIA GeForce RTX 3070 Ti (1.61) | |
| AMD Radeon RX 6800 (1.61) | |
| The Callisto Protocol - 1920x1080 Ultra Preset (without FSR Upscaling) + Full Ray-Tracing | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 4080 | |
| AMD Radeon RX 6950 XT | |
| NVIDIA GeForce RTX 3080 Ti | |
| AMD Radeon RX 6800 | |
| NVIDIA GeForce RTX 3070 Ti | |
| NVIDIA Titan RTX | |
| low | med. | high | ultra | QHD | 4K | |
| GTA V (2015) | 188.7 | 188.3 | 186.9 | 177.2 | 164.9 | 175.5 |
| The Witcher 3 (2015) | 819 | 565 | 395 | 226 | 148.3 | |
| Dota 2 Reborn (2015) | 251.8 | 200.1 | 214.5 | 176.4 | 149.7 | |
| Final Fantasy XV Benchmark (2018) | 235 | 233 | 196.8 | 152.4 | 85.6 | |
| X-Plane 11.11 (2018) | 198.5 | 160.1 | 124.9 | 99.5 | ||
| Far Cry 5 (2018) | 217 | 192 | 184 | 174 | 172 | 126 |
| Strange Brigade (2018) | 753 | 552 | 462 | 404 | 297 | 175 |
| Shadow of the Tomb Raider (2018) | 370 | 308 | 294 | 269 | 189.6 | 100.7 |
| Far Cry New Dawn (2019) | 186 | 163 | 158 | 142 | 142 | 125 |
| Metro Exodus (2019) | 333 | 256 | 194 | 151.3 | 124.6 | 79.3 |
| Control (2019) | 240 | 240 | 213 | 137.6 | 67.2 | |
| Borderlands 3 (2019) | 251 | 227 | 199.4 | 169.1 | 132.3 | 70.9 |
| F1 2020 (2020) | 613 | 517 | 479 | 331 | 261 | 158.1 |
| F1 2021 (2021) | 669 | 618 | 506 | 237 | 179.7 | 102.1 |
| Far Cry 6 (2021) | 213 | 184 | 168.2 | 161.2 | 148.8 | 94.7 |
| Guardians of the Galaxy (2021) | 208 | 210 | 214 | 211 | 191 | 113 |
| Forza Horizon 5 (2021) | 386 | 277 | 262 | 166 | 143 | 104 |
| God of War (2022) | 277 | 236 | 193.2 | 135.7 | 112.9 | 74.3 |
| GRID Legends (2022) | 443 | 397 | 331 | 277 | 236 | 157.8 |
| Cyberpunk 2077 1.6 (2022) | 238 | 202 | 173.6 | 161.5 | 105.1 | 48.5 |
| Ghostwire Tokyo (2022) | 299 | 291 | 288 | 285 | 209 | 109.2 |
| Tiny Tina's Wonderlands (2022) | 463 | 364 | 254 | 202 | 146.2 | 77.4 |
| F1 22 (2022) | 490 | 452 | 436 | 115.7 | 75.4 | 36.5 |
| The Quarry (2022) | 310 | 238 | 193.2 | 150.4 | 102.7 | 55.3 |
| FIFA 23 (2022) | 347 | 295 | 271 | 268 | 239 | 150.2 |
| A Plague Tale Requiem (2022) | 203 | 165.1 | 121.8 | 91.5 | 72.8 | 41.7 |
| Uncharted Legacy of Thieves Collection (2022) | 135.8 | 134.4 | 123.7 | 118.6 | 100.9 | 69.9 |
| Call of Duty Modern Warfare 2 2022 (2022) | 307 | 273 | 204 | 196 | 145 | 89 |
| Spider-Man Miles Morales (2022) | 159.8 | 156.7 | 146.2 | 143 | 121.2 | 74 |
| The Callisto Protocol (2022) | 257 | 215 | 138 | 137 | 105 | 66 |
| Need for Speed Unbound (2022) | 173.7 | 180.9 | 149.5 | 124.5 | 108.7 | 73.9 |
| High On Life (2023) | 385 | 326 | 255 | 205 | 132.7 | 57.3 |
| The Witcher 3 v4.00 (2023) | 450 | 356 | 176.2 | 148 | 122.2 | 81.3 |
| Dead Space Remake (2023) | 208 | 193.6 | 167.6 | 167 | 116.9 | 57.7 |
| Hogwarts Legacy (2023) | 207 | 185.8 | 161 | 122.3 | 100 | 54.8 |
| Returnal (2023) | 217 | 210 | 187 | 158 | 122 | 72 |
| Atomic Heart (2023) | 347 | 257 | 158.9 | 130.7 | 104.2 | 65.3 |
| Company of Heroes 3 (2023) | 343.1 | 305.1 | 236.9 | 235.6 | 183.4 | 109.2 |
| Sons of the Forest (2023) | 128.5 | 123.5 | 119.8 | 117.6 | 116 | 77.6 |
| Resident Evil 4 Remake (2023) | 349 | 246 | 222 | 142.3 | 114.5 | 70.6 |
| The Last of Us (2023) | 156 | 143 | 132.3 | 111.2 | 76.8 | 39.6 |
| Dead Island 2 (2023) | 375 | 368 | 319 | 236 | 176.8 | 96.5 |
| Star Wars Jedi Survivor (2023) | 156 | 147.5 | 139.4 | 132.3 | 86.2 | 41.8 |
| Diablo 4 (2023) | 392 | 374 | 355 | 311 | 226 | 125.8 |
| F1 23 (2023) | 510 | 516 | 406 | 97.1 | 62 | 29.7 |
| Ratchet & Clank Rift Apart (2023) | 167.4 | 146.3 | 123.3 | 109.3 | 93.2 | 64.2 |
| Baldur's Gate 3 (2023) | 255 | 226 | 188.9 | 184 | 132.9 | 72.4 |
| Atlas Fallen (2023) | 191.9 | 189.5 | 181.3 | 178.6 | 162.8 | 85.3 |
| Immortals of Aveum (2023) | 169.8 | 151.9 | 128.7 | 100.9 | 62.8 | |
| Armored Core 6 (2023) | 119.7 | 119.7 | 119.9 | 119.6 | 115 | 78.6 |
| Starfield (2023) | 137.4 | 123.6 | 104.9 | 96.2 | 78.4 | 49.2 |
| Lies of P (2023) | 335 | 296 | 258 | 236 | 170.6 | 93.2 |
| Cyberpunk 2077 2.0 Phantom Liberty (2023) | 204 | 197.7 | 168.4 | 152.7 | 96.5 | 39.5 |
| Counter-Strike 2 (2023) | 351 | 339 | 337 | 299 | 236 | 116.1 |
| EA Sports FC 24 (2023) | 412 | 299 | 360 | 254 | 220 | 143.9 |
| Assassin's Creed Mirage (2023) | 230 | 211 | 196 | 156 | 124 | 75 |
| Total War Pharaoh (2023) | 564.3 | 339.7 | 229 | 184.7 | 166 | 87 |
| Lords of the Fallen (2023) | 172.2 | 143.6 | 100.8 | 71.6 | 50 | 25.4 |
| Alan Wake 2 (2023) | 120.2 | 116.2 | 107.5 | 71.8 | 36.7 | |
| EA Sports WRC (2023) | 272 | 178.9 | 162.9 | 158.9 | 128.2 | 76.7 |
| Call of Duty Modern Warfare 3 2023 (2023) | 285 | 258 | 213 | 200 | 145 | 87 |
| Avatar Frontiers of Pandora (2023) | 152 | 138 | 117 | 91 | 62 | 31 |
| The Finals (2023) | 357 | 332 | 306 | 236 | 148.5 | 70.8 |
| Ready or Not (2023) | 335 | 325 | 322 | 254 | 159.3 | 70.5 |
Emissions
The MSI Radeon RX 6950 XT Gaming X Trio 16G undoubtedly still has superb performance right now. But the GPU can no longer keep up with the newer cards in terms of efficiency. During our tests, our system required almost as much power when fitted with the MSI Radeon RX 6950 XT Gaming X Trio 16G as when it had the much faster Nvidia GeForce RTX 4090. For comparison, the GeForce RTX 4070 Ti, which delivers the same level of performance as the Radeon RX 6950 XT, used about 45 per cent less energy. The RX 6950 XT alone accounted for 340 watts of the total energy usage. But thanks to the massive three-slot cooler, the card can effortlessly dissipate the amount of heat generated without becoming very loud. The noise produced by the three fans is fairly reasonable, and we could only hear a quiet whirring noise coming from the computer case when it is closed. In the stress test, the GPU's temperature peaked at 80°C (176°F), although hotpots on the chip did reach a much higher temperature of 95°C (203°F). We didn't encounter thermal issues at any point during testing.

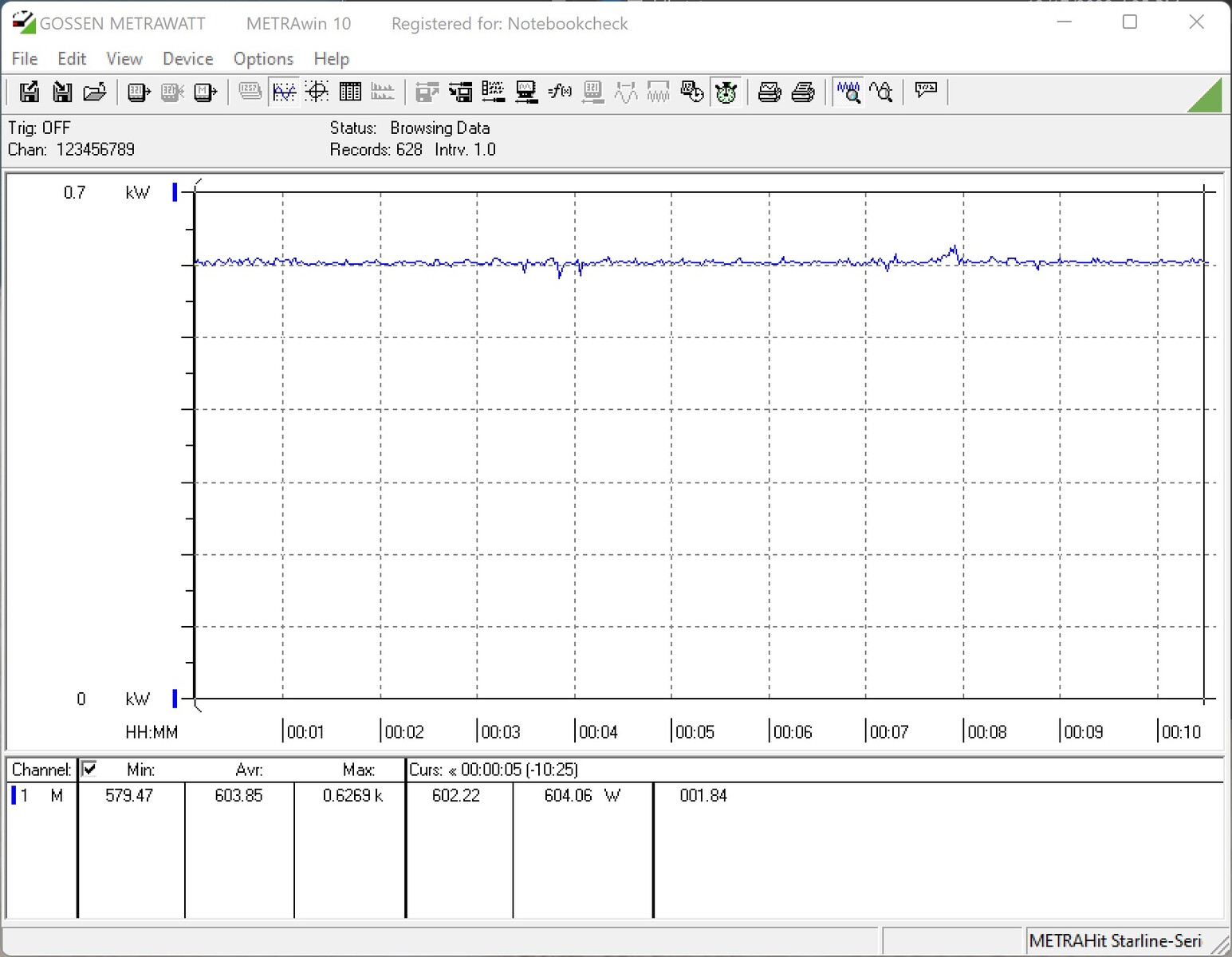

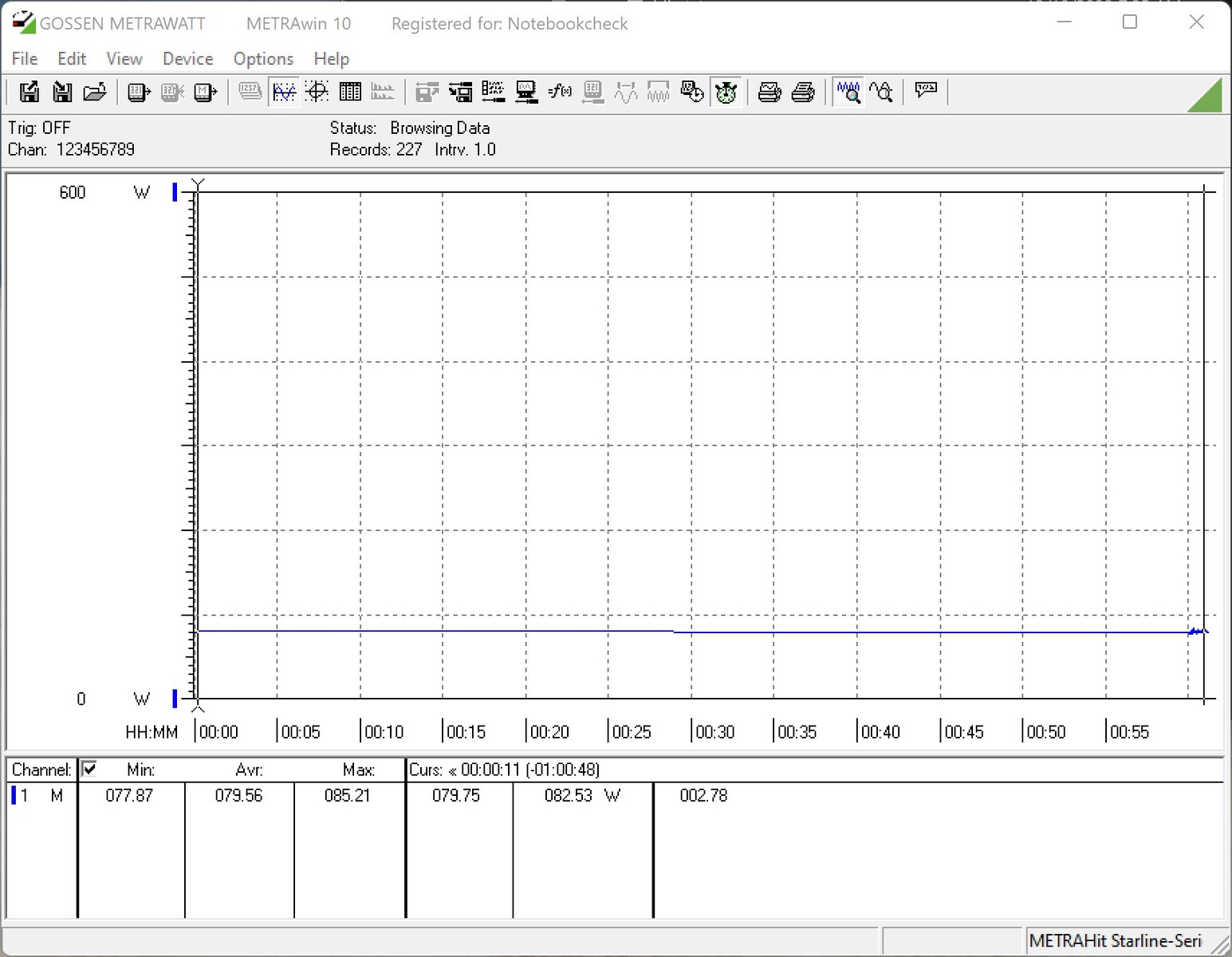

Power Consumption: 1280x720 FurMark 1.19 GPU Stress Test (external Monitor) | 1920x1080 The Witcher 3 ultra (external Monitor)
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| NVIDIA GeForce RTX 4090 | |
| AMD Radeon RX 6950 XT (Idle: 79.6 W) | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3080 Ti (Idle: 78.2 W) | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| NVIDIA GeForce RTX 3070 Ti (Idle: 88.9 W) | |
| NVIDIA GeForce RTX 4080 (Idle: 86.4 W) | |
| NVIDIA GeForce RTX 4070 Ti (Perf BIOS / 110% PT, Idle: 75.4 W) | |
| NVIDIA GeForce RTX 4070 Ti (Quiet BIOS / 100% PT, Idle: 75.4 W) | |
| NVIDIA GeForce RTX 4070 Ti (Perf BIOS / 100% PT, Idle: 75.4 W) | |

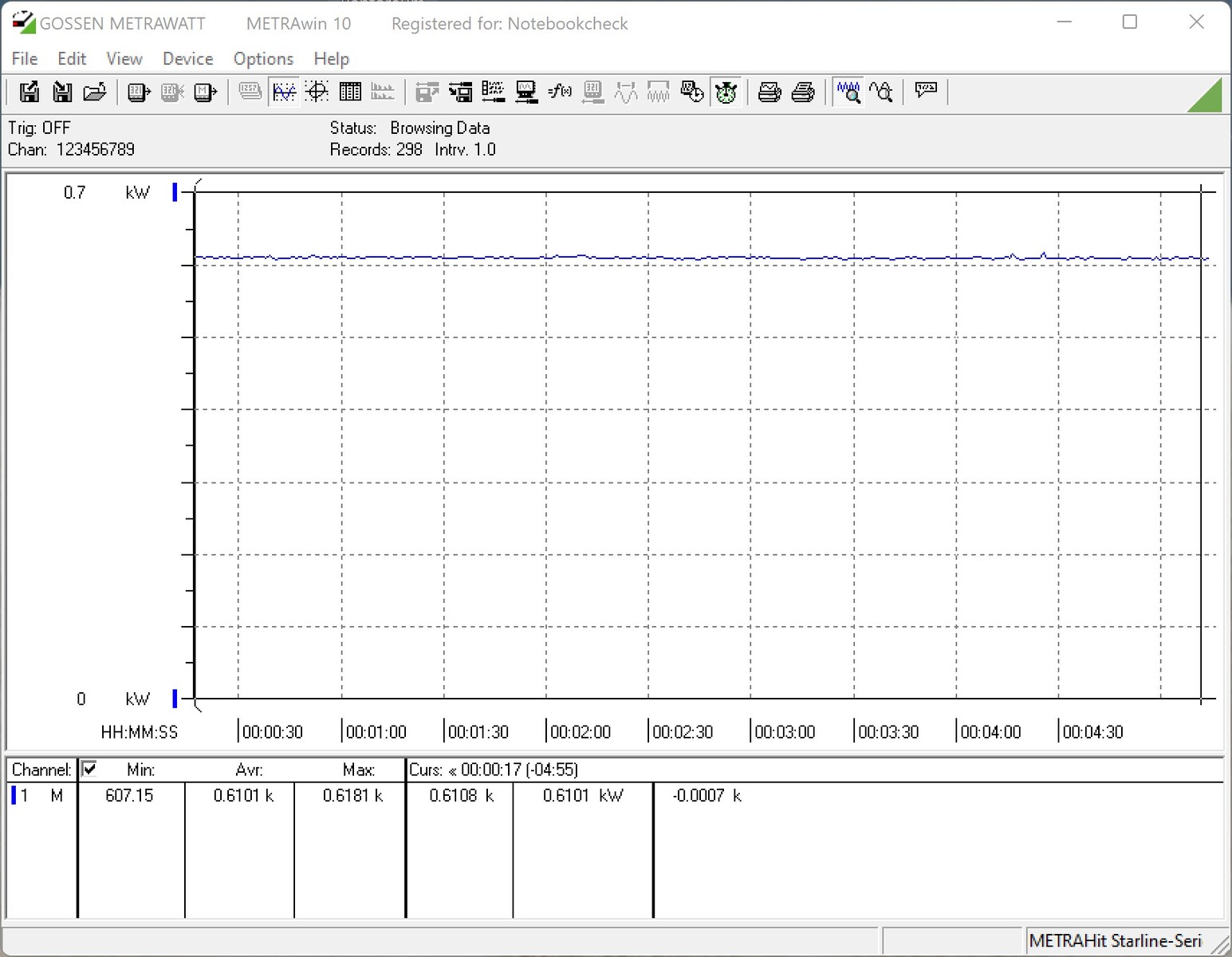

| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| AMD Radeon RX 6950 XT (Idle: 79.6 W) | |
| NVIDIA GeForce RTX 4090 | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 | |
| NVIDIA GeForce RTX 3080 Ti (Idle: 78.2 W) | |
| NVIDIA GeForce RTX 4080 (Idle: 86.4 W) | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| NVIDIA GeForce RTX 3070 Ti (Idle: 88.9 W) | |
| NVIDIA GeForce RTX 4070 Ti (Perf BIOS / 110% PT, Idle: 75.4 W) | |
| NVIDIA GeForce RTX 4070 Ti (Perf BIOS / 100% PT, Idle: 75.4 W) | |
| NVIDIA GeForce RTX 4070 Ti (Quiet BIOS / 100% PT, Idle: 75.4 W) | |
* ... smaller is better
Pros
+ still fast enough for 4K gaming
+ high-performance cooling unit
+ fan stop mode
+ great performance in professional 3D applications
+ stylish RGB lighting
+ GPU bracket
Cons
- much worse ray tracing performance than RTX 3080 and RTX 3090
- very high power consumption
- too pricey
Verdict - Fast but inefficient
The Radeon RX 6950 XT was until recently AMD’s top-end desktop graphics card. The MSI Radeon RX 6950 XT Gaming X Trio 16G is a pretty popular board partner model that catches attention with its extremely large cooler and a lot of RGB lighting. The almost one-year-old model has roughly as much performance as an Nvidia GeForce RTX 4070 Ti. The AMD card even has more VRAM than the Nvidia GPU and thus remains a great option. At the moment, the MSI Radeon RX 6950 XT Gaming X Trio 16G is still able to run all modern games at 2160p with ease. But ray tracing shouldn’t be a top priority if you intend to buy the card. This is because enabling ray tracing will cause its performance to drop significantly. As a result, smooth frame rates are often only achievable when a game's resolution is reduced to 1080p. That said, according to various hardware surveys, most people play games at 1080p or 1440p anyway, so the Radeon RX 6950 XT could remain attractive even in the future.
The MSI Radeon RX 6950 XT Gaming X Trio 16G still offers enough performance right now for 4K gaming.
Our biggest gripe with the GPU is its power consumption at max load. This is an area that really demonstrates the technological leap in the new generation of graphics cards. Nonetheless, casual gamers can purchase a previous-gen card with confidence. In our opinion, gaming enthusiasts or streamers should go for a Radeon RX 7900 XT or an Nvidia GeForce RTX 4070 Ti instead. Their lower power usage is going to pay off in the long run.
The AMD Radeon RX 6950 XT is currently available starting at €879 (US$946). You can expect to pay the same amount for a GeForce RTX 4070 Ti and €999 (US$1,075) for a Radeon RX 7900 XT.
Price and availability
Loading comments
I was already interested in technology from an early age, and I was able to study for my dream job as an IT Systems Electronics Engineer. Subsequently, I started 12 years of military service, during which I learned a lot about technology and constantly kept my knowledge up to date with the latest developments. As I like to share my knowledge, I found Notebookcheck was a very good opportunity for this. In addition, I also work a lot with water cooling and network security.
After graduating with a bachelor’s degree in environmental engineering, I moved from Singapore to
Cologne in 2014 and began pursuing a career as a freelance translator. Much of my translation work
focuses on science, engineering and technology. My fascination with computers and mobile
electronics began when I was young. And I have fond memories reading countless tech and gaming
magazines. Working with Notebookcheck gives me the opportunity to incorporate my personal
interests into my professional work.
