KFA2 GeForce RTX 4080 Super SG review: massive Nvidia desktop graphics card can use four fans for cooling
Nvidia rang in 2024 by launching the new Super graphics cards based on the current Ada Lovelace architecture. We had the opportunity to have a look at the new second-fastest consumer desktop GPU from Nvidia when we got our hands on the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition. The results were great, though many users had expected much more performance. In this review, we are going to focus our attention on the KFA2 GeForce RTX 4080 Super SG (Serious Gaming), which is much bulkier than its Zotac counterpart in terms of cooling design. Later in the review, we’ll discuss whether KFA2 manages to get more performance out of the graphics chip.

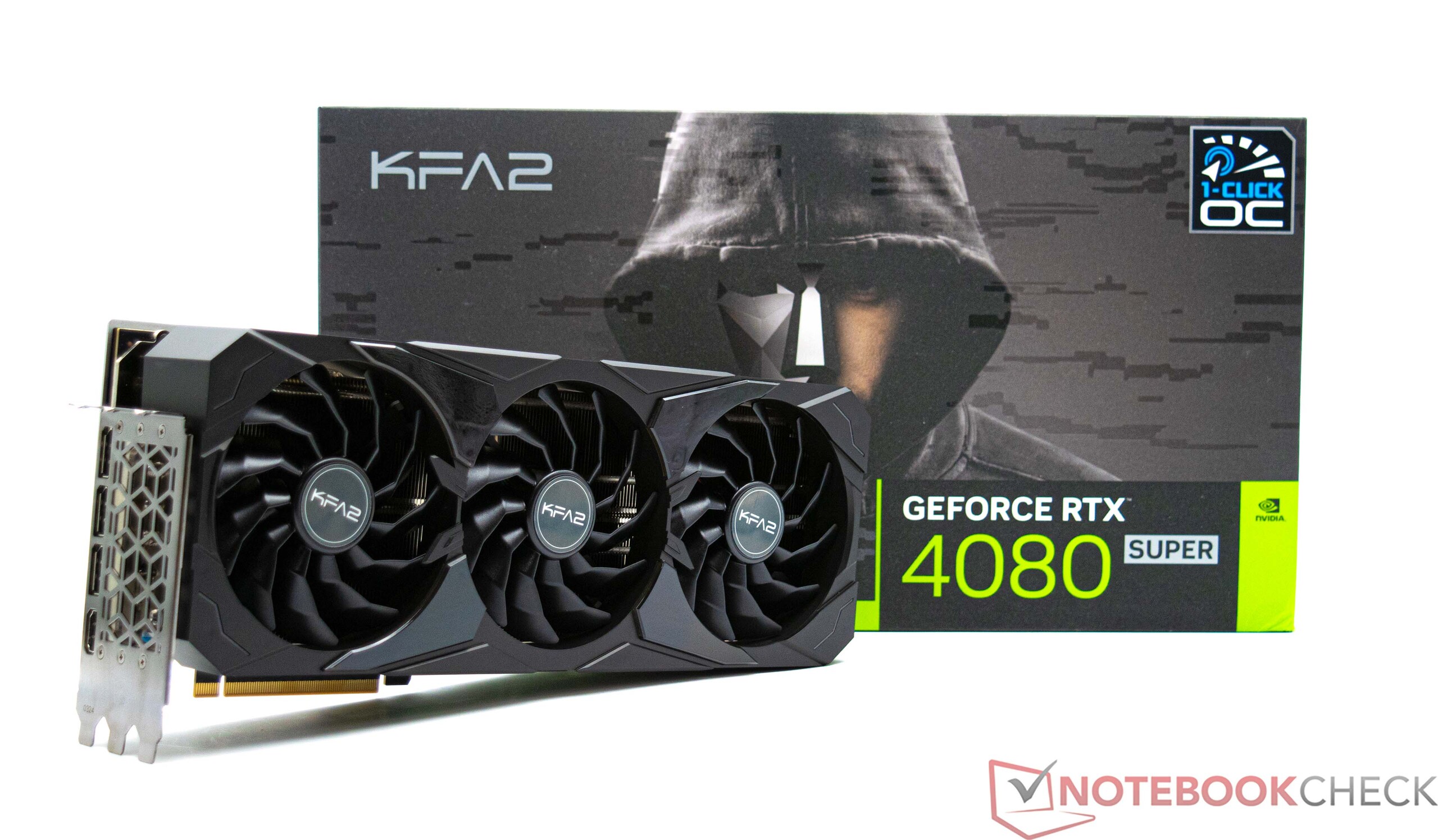

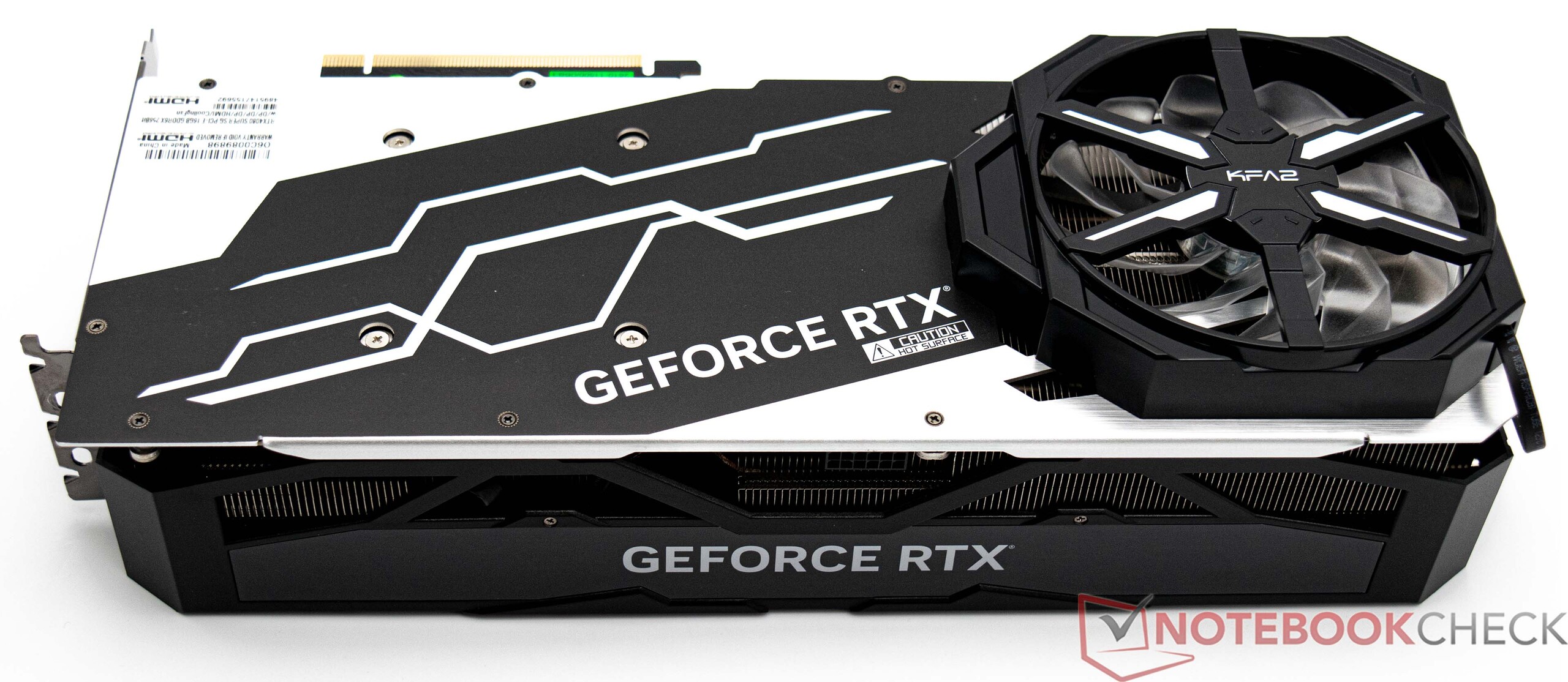

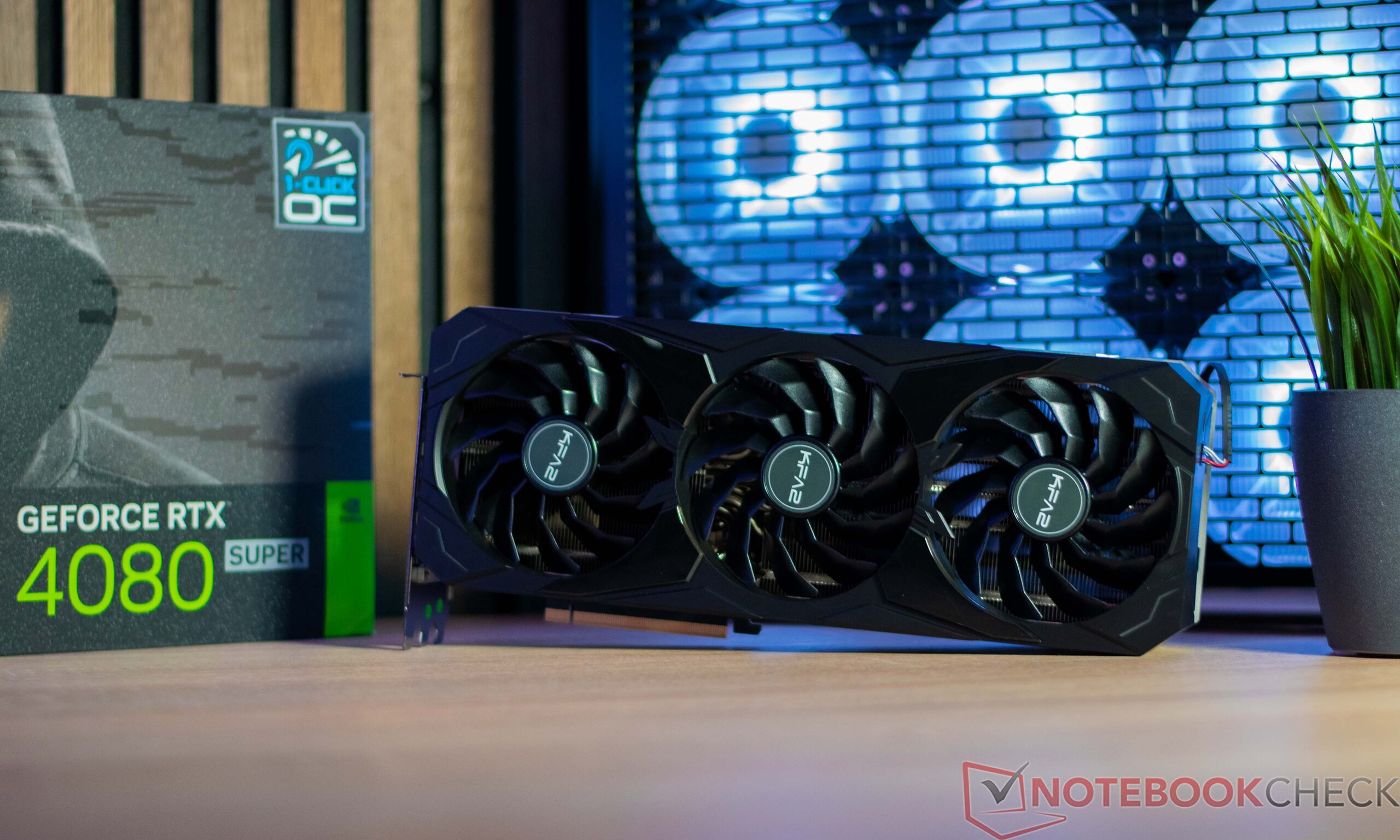

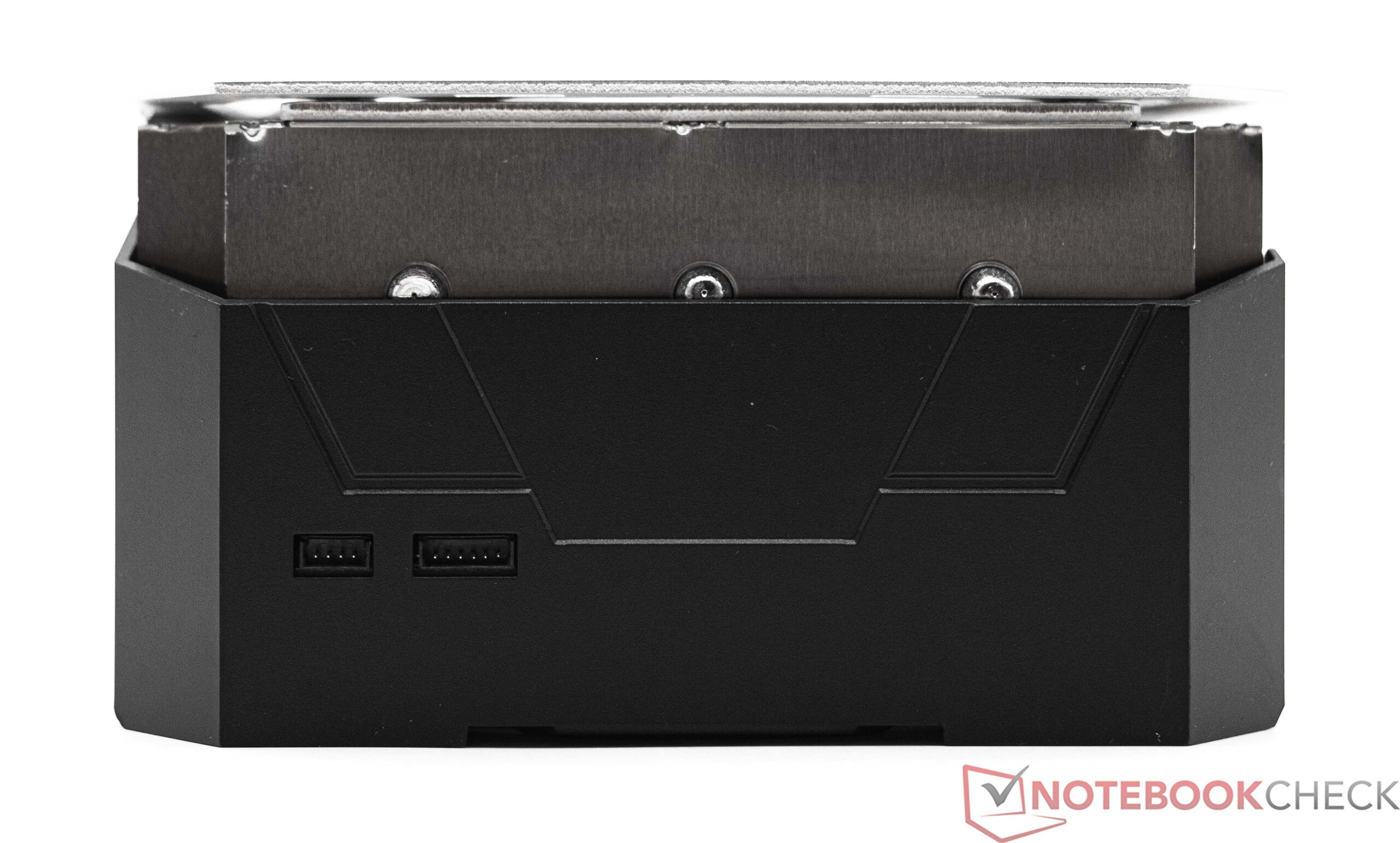

The new card is visually identical to the KFA2 GeForce RTX 4080 SG. The company has also given the KFA2 GeForce RTX 4080 Super SG a gigantic heat sink that takes up a little more than three slots in a computer case. Three 102 mm axial fans are permanently attached; an optional fourth fan can also be installed on the back of the graphics card. When mounted horizontally, the GPU isn’t always compatible with every motherboard. In our test rig, we vertically mounted the card and didn’t encounter any problems. All the tests below were carried out with the extra fan mounted on the rear of the GPU. The card is very long at 325 mm (12.8 in). You should definitely take this into account before purchasing the product because not every PC case offers so much space.

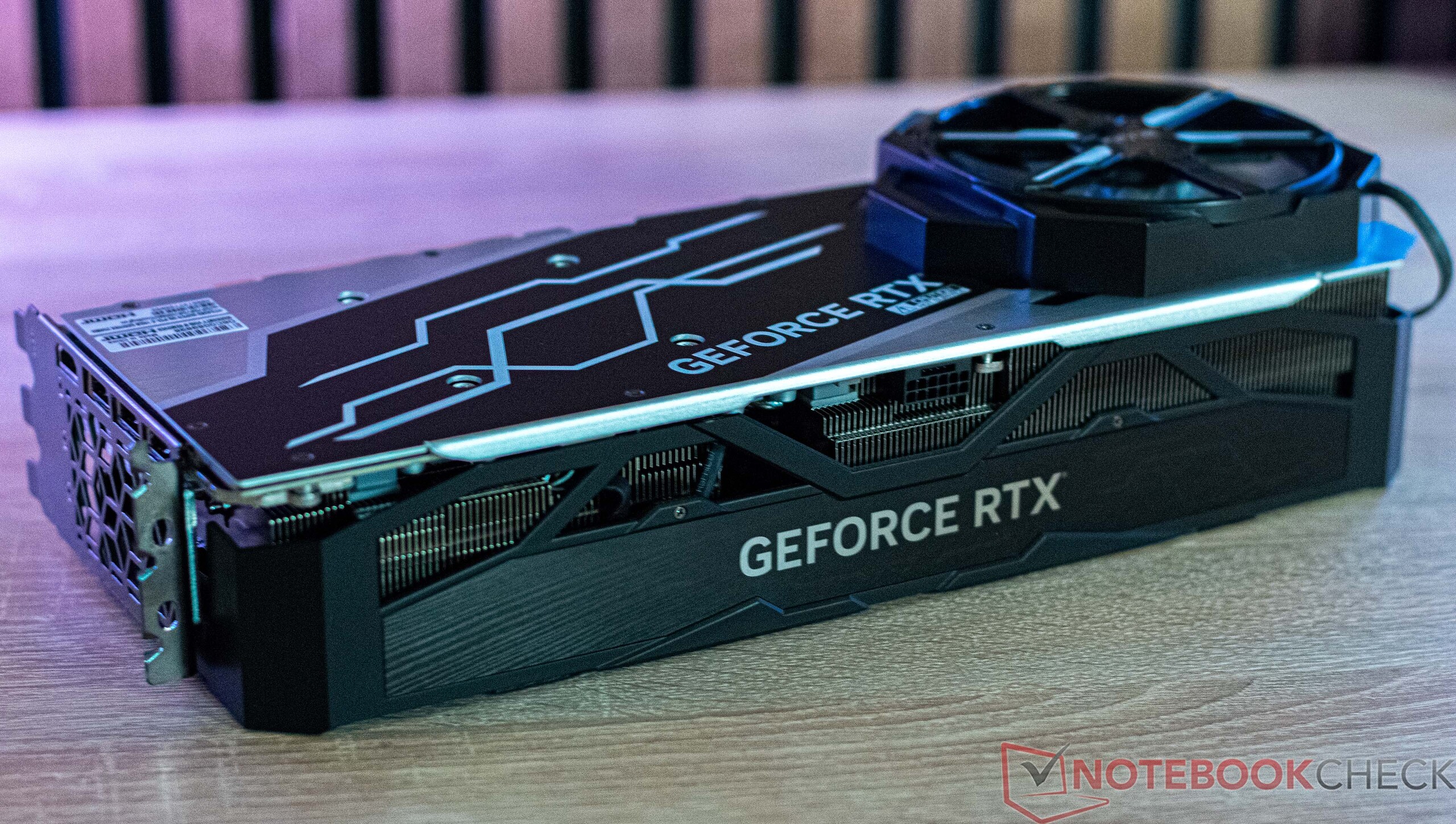

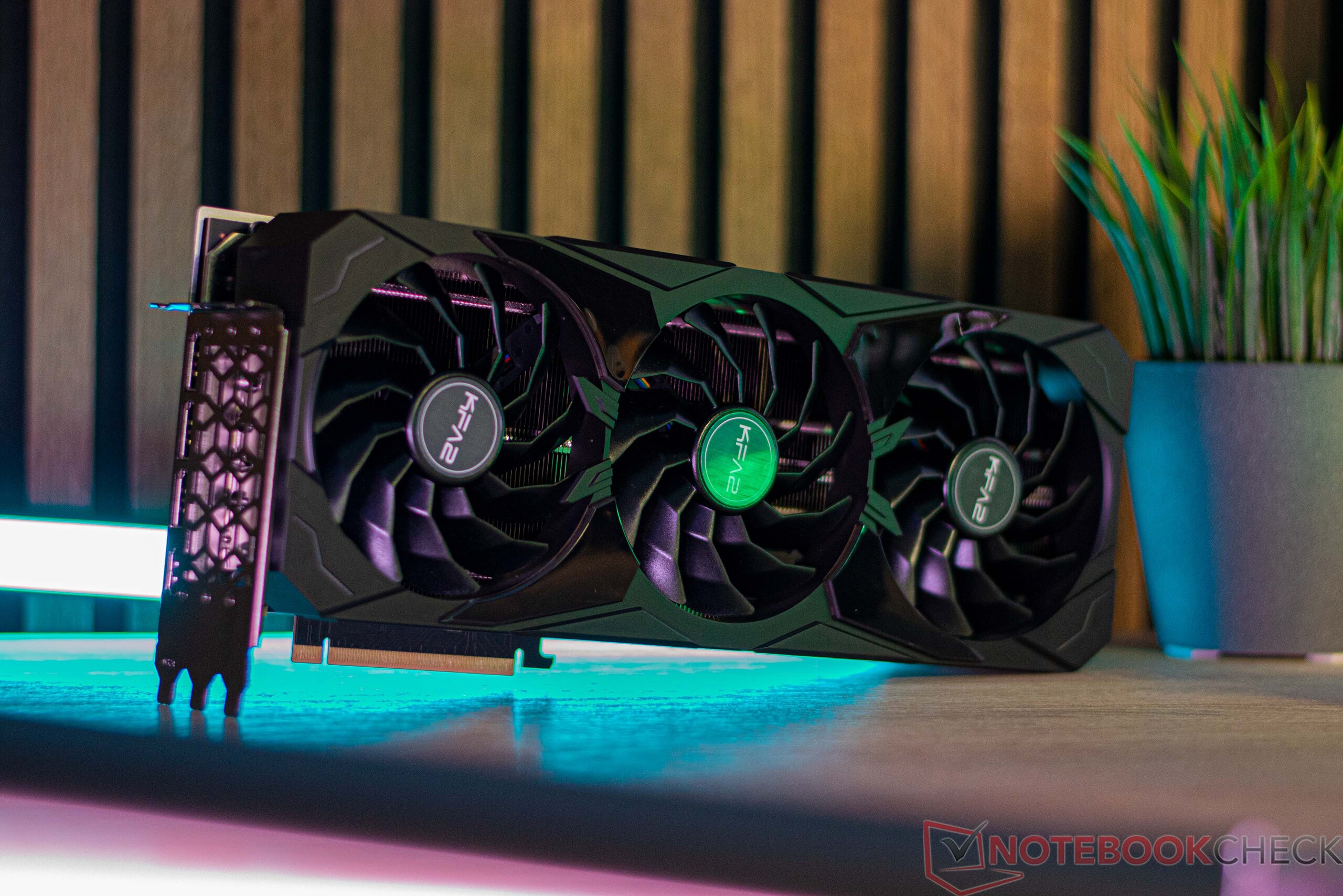

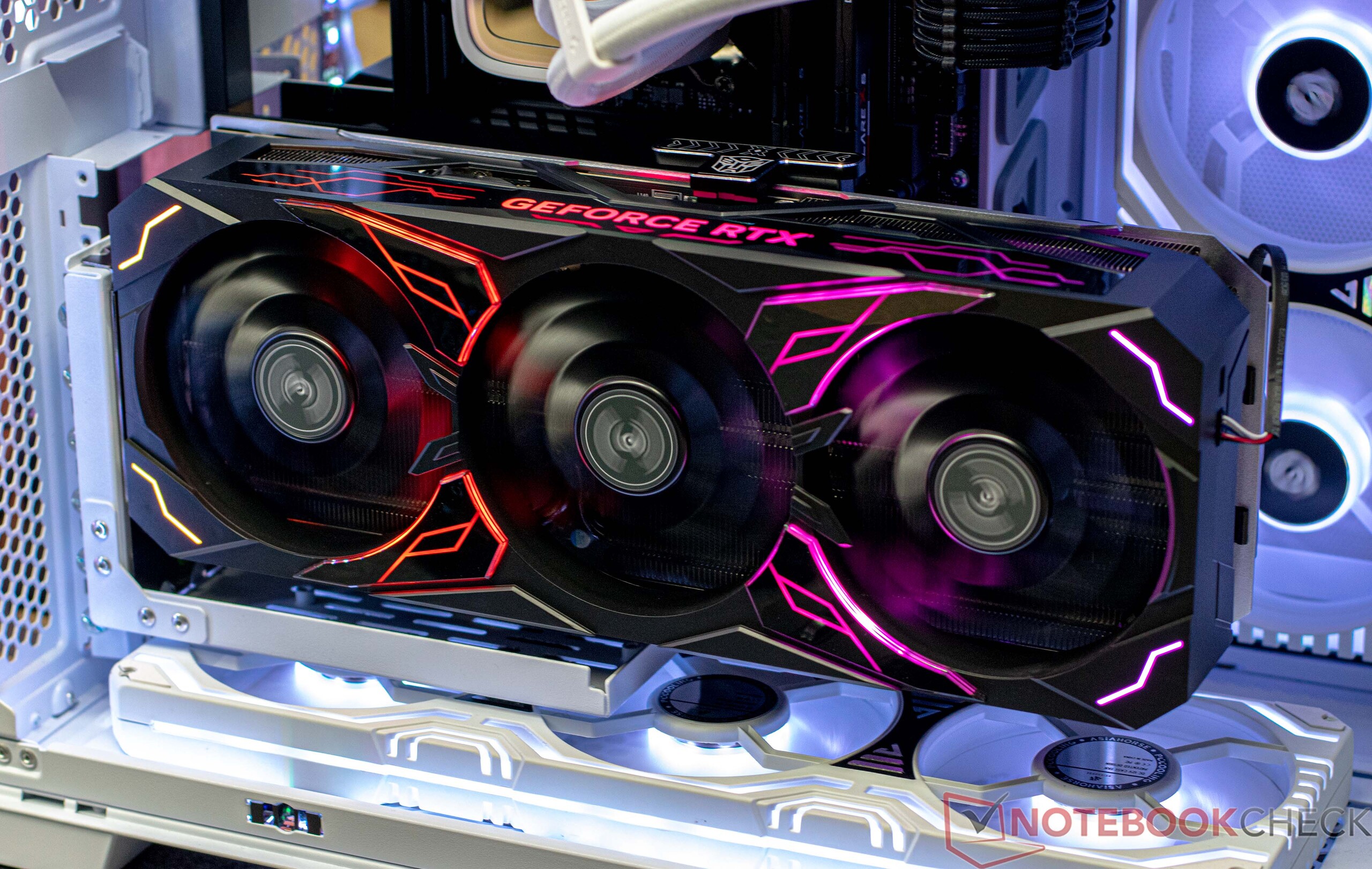

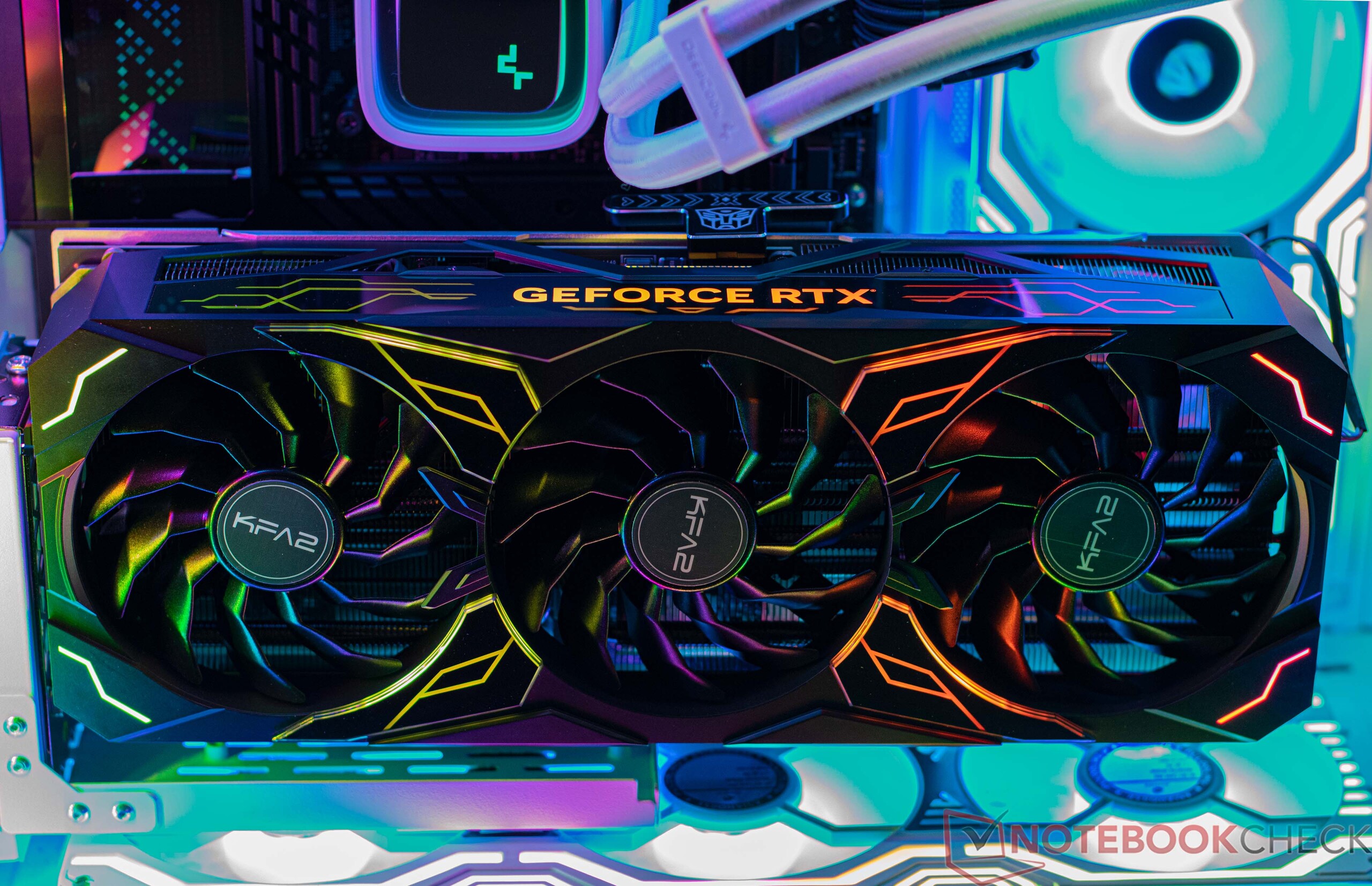

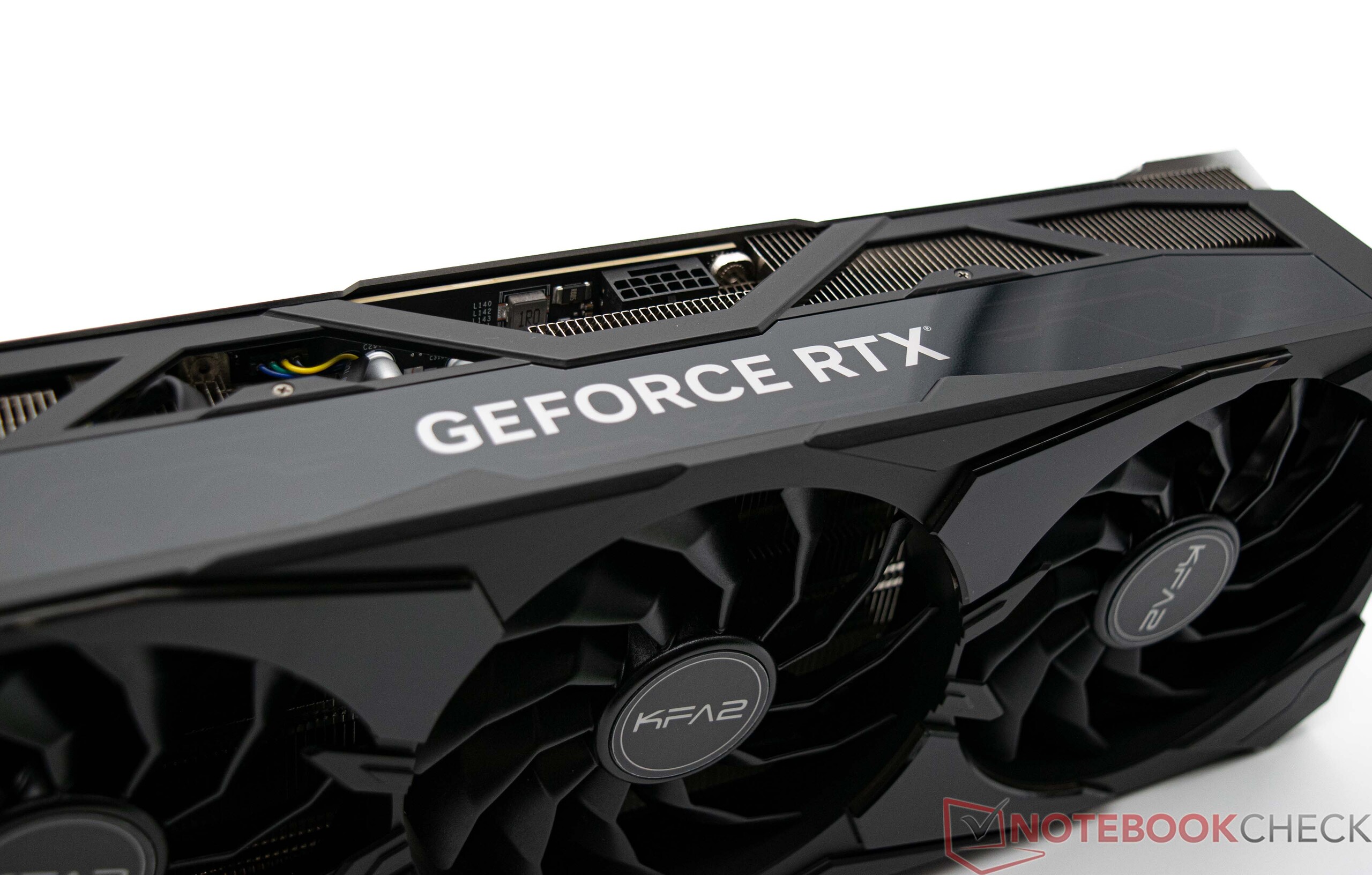

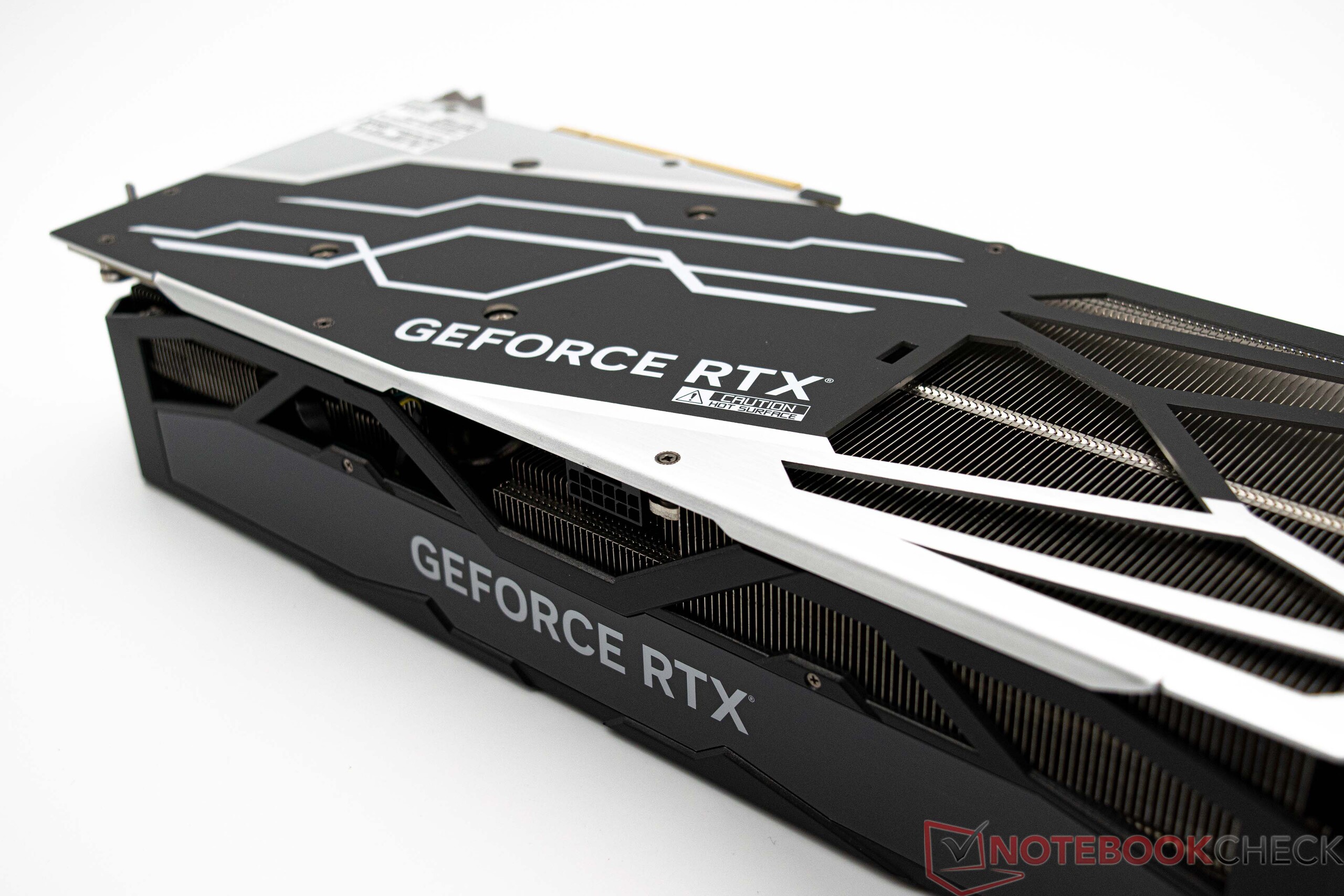

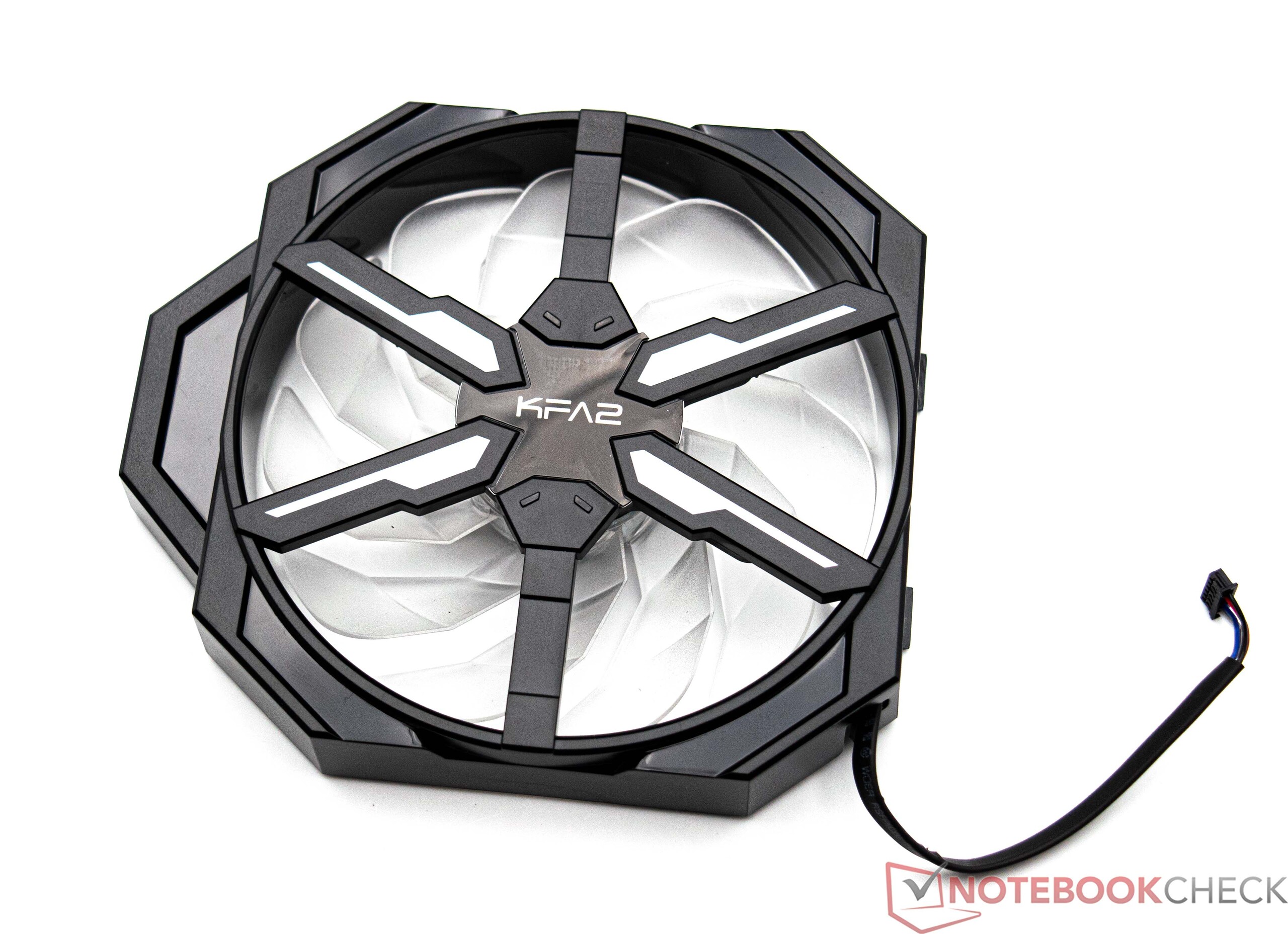

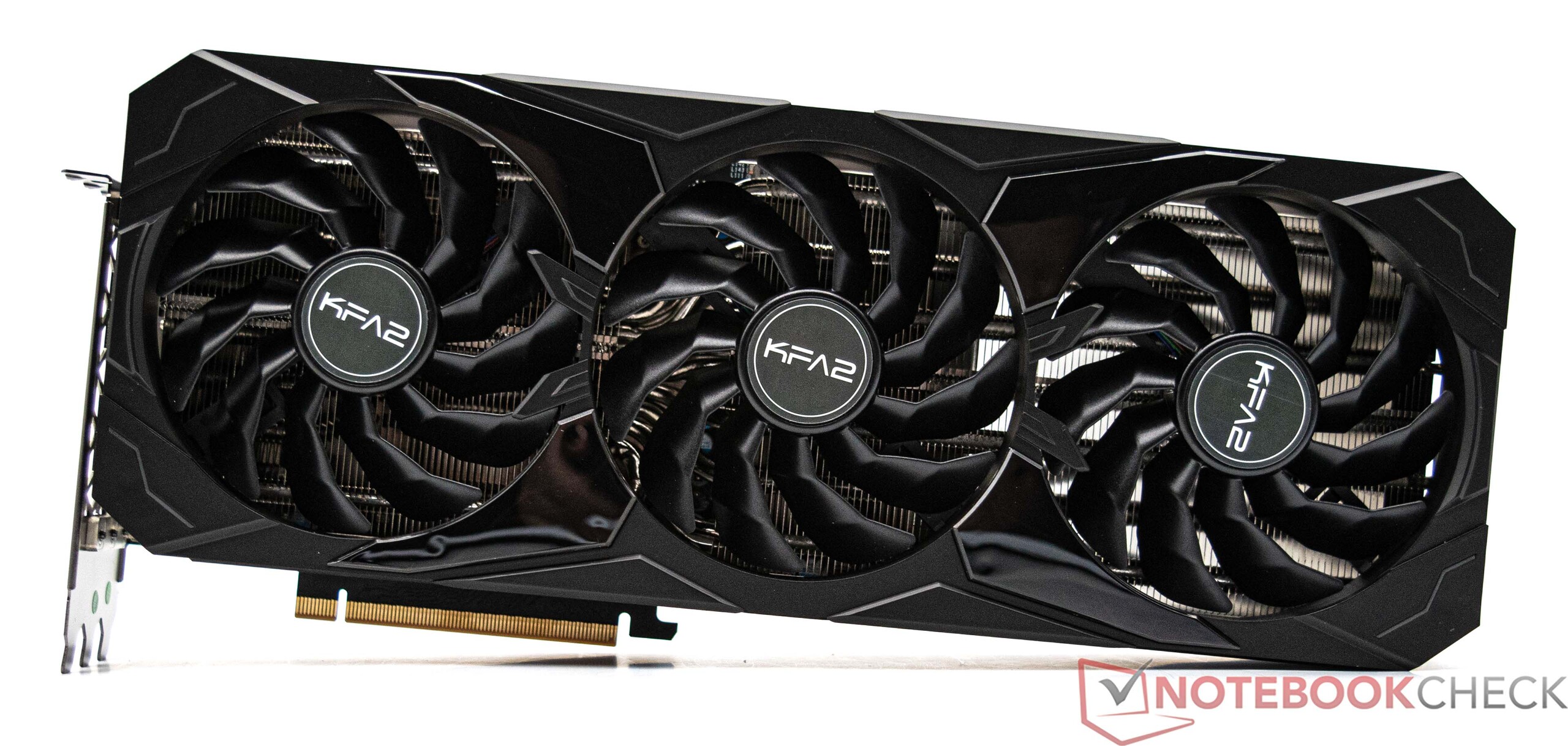

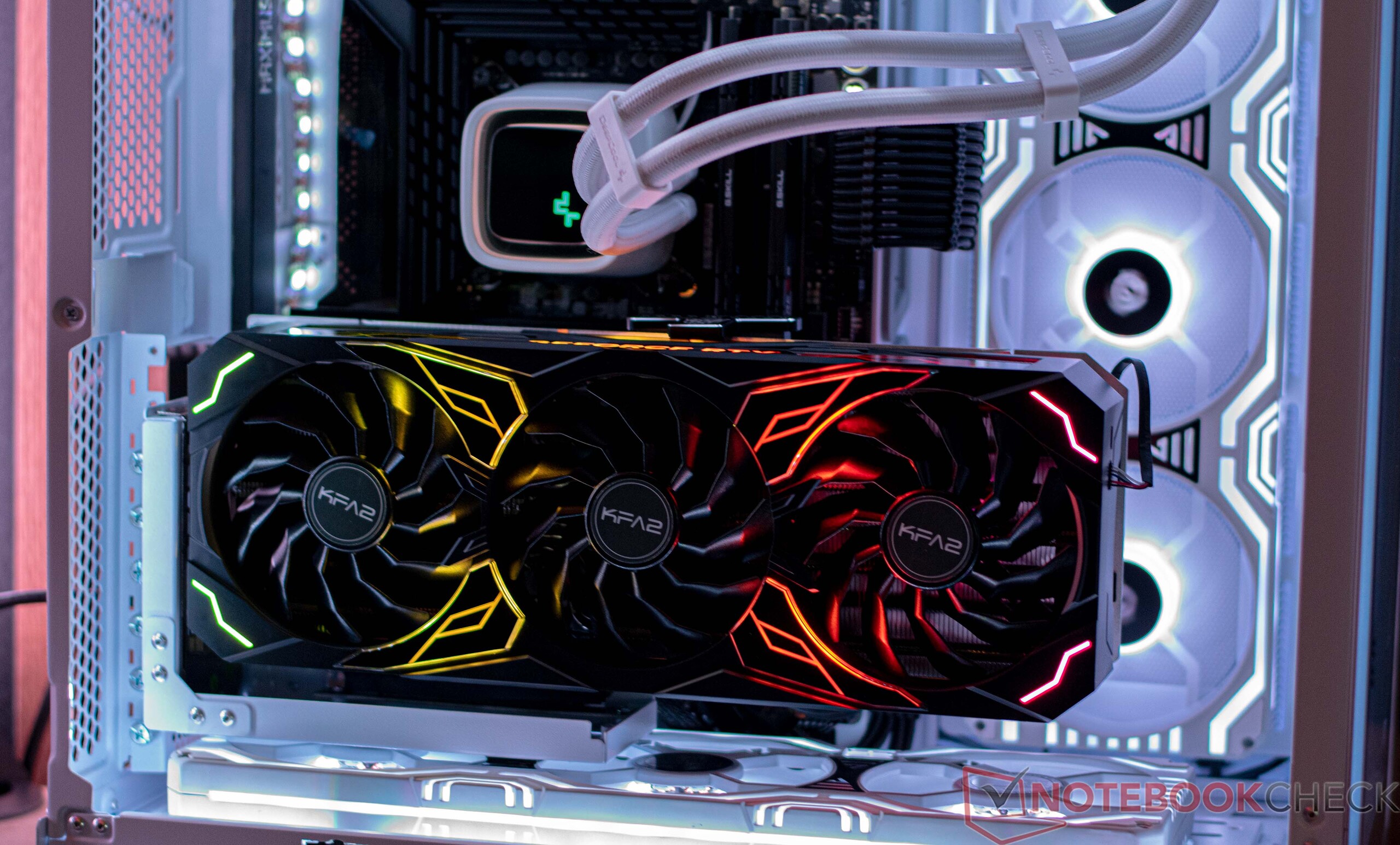

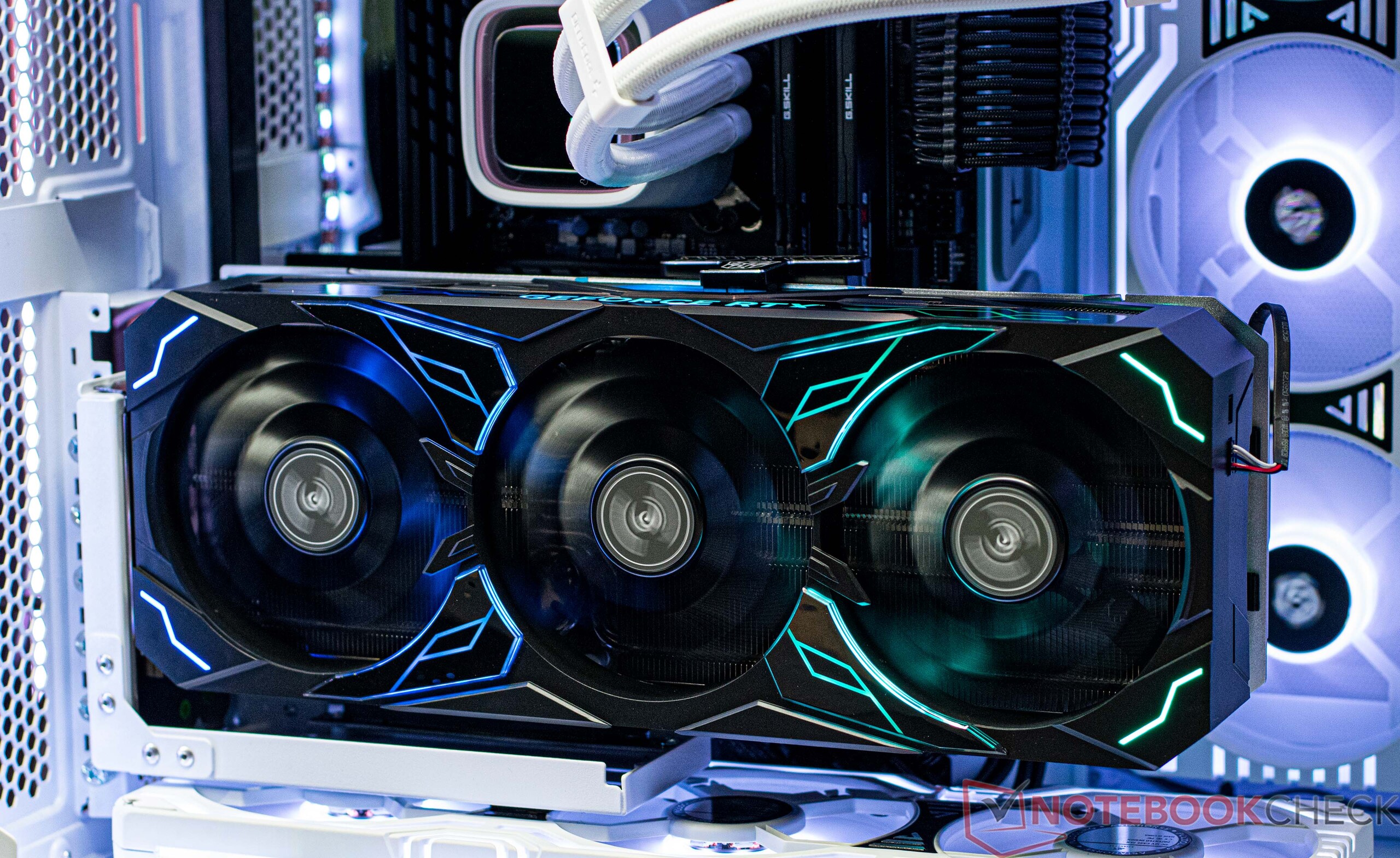

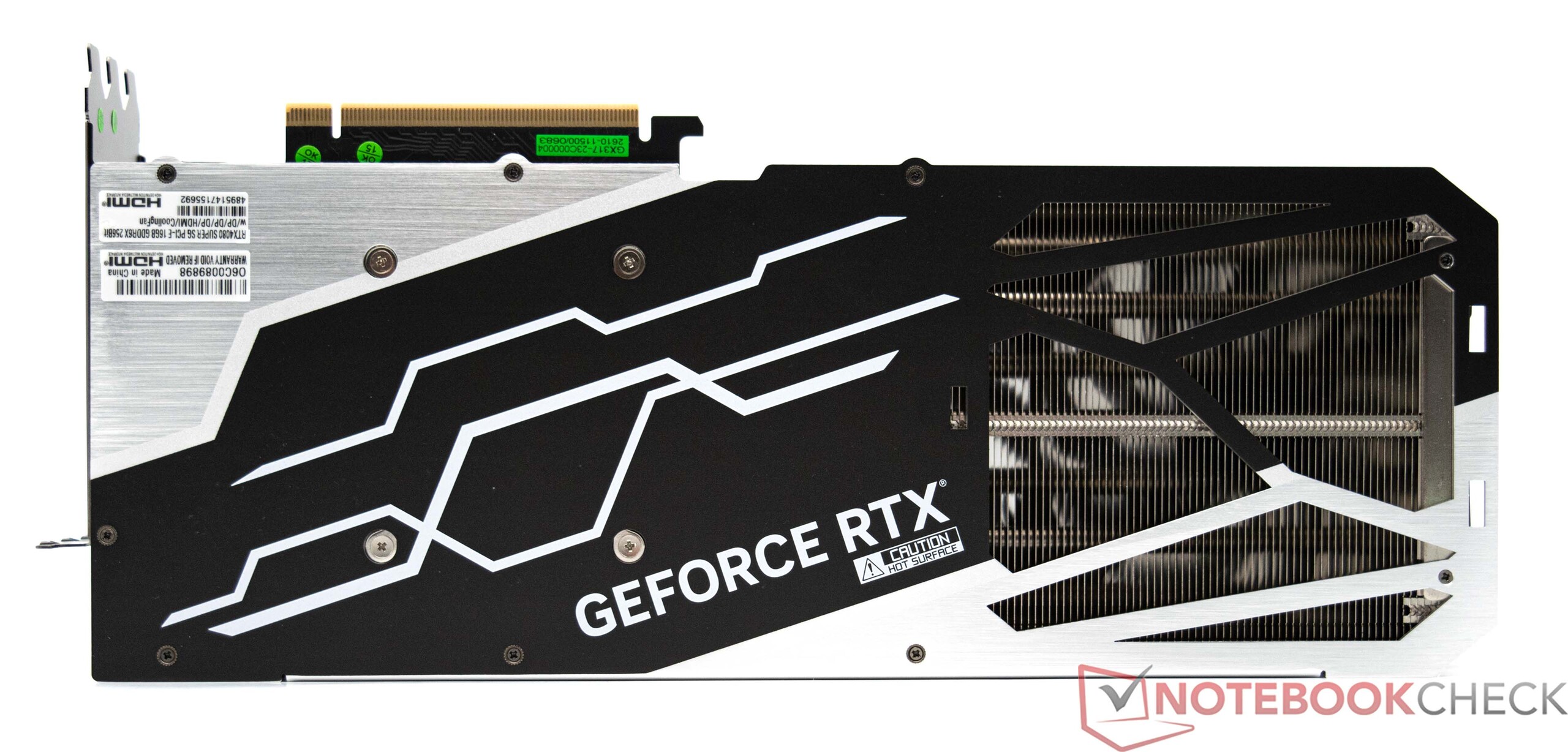

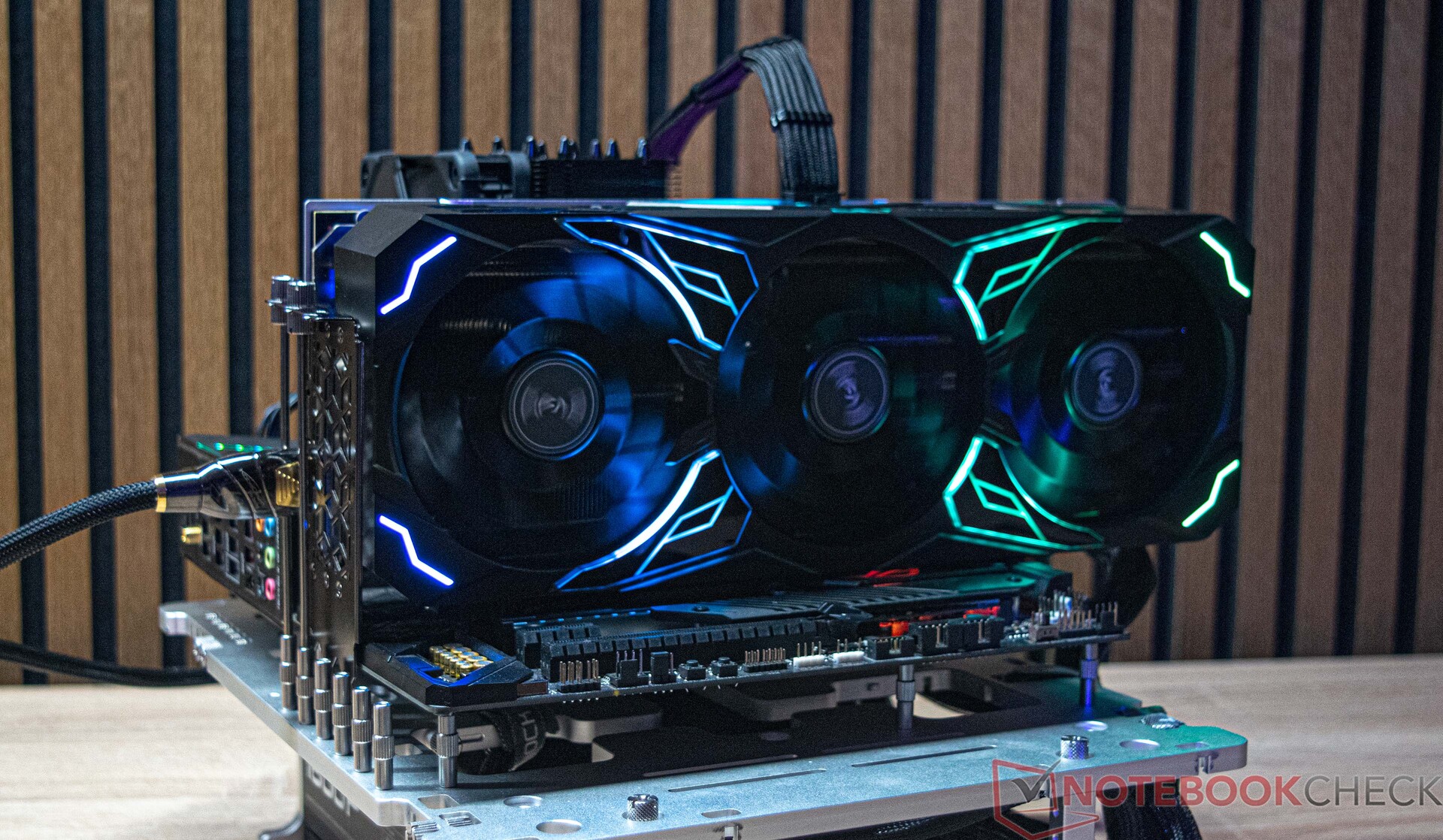

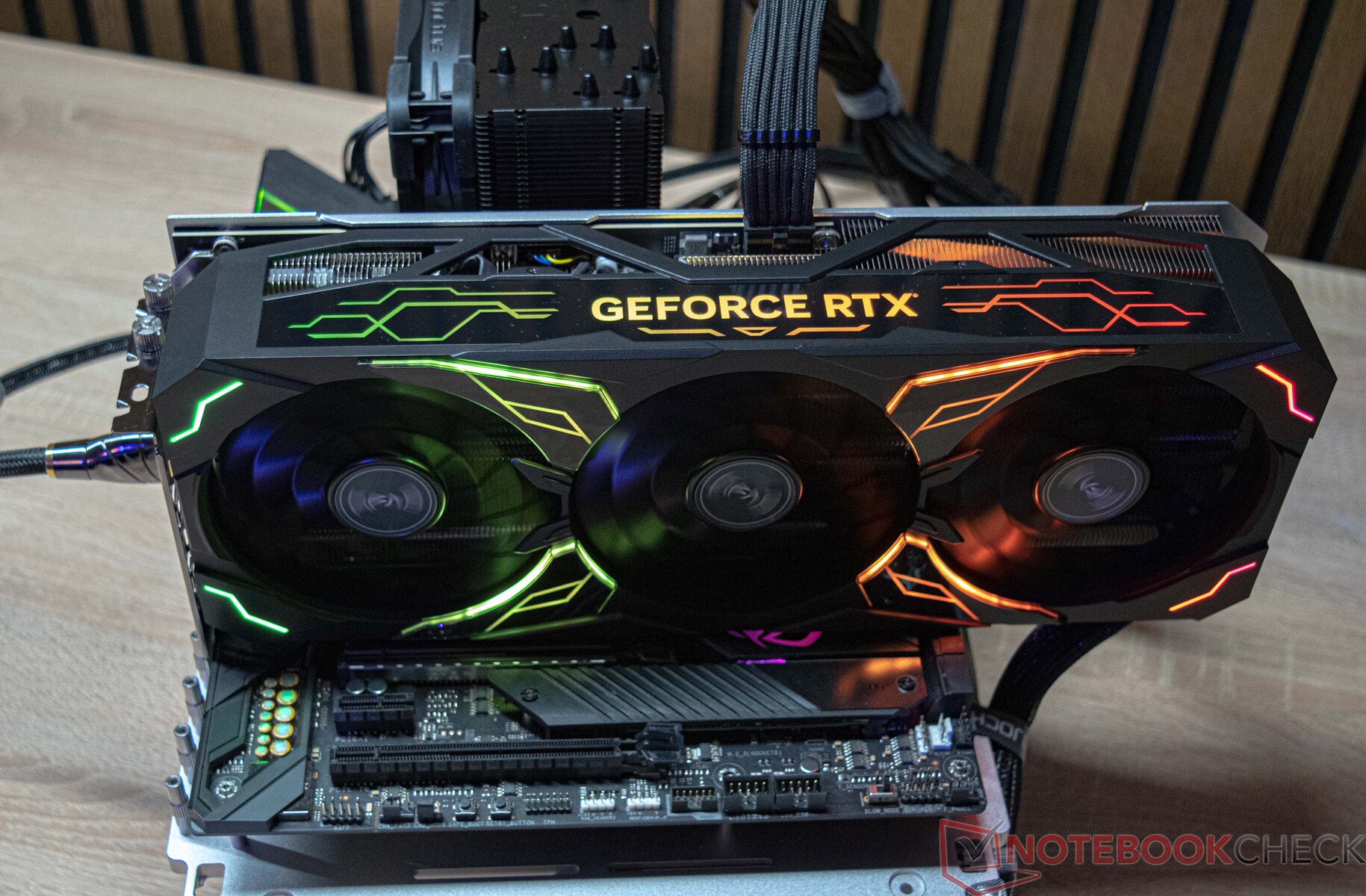

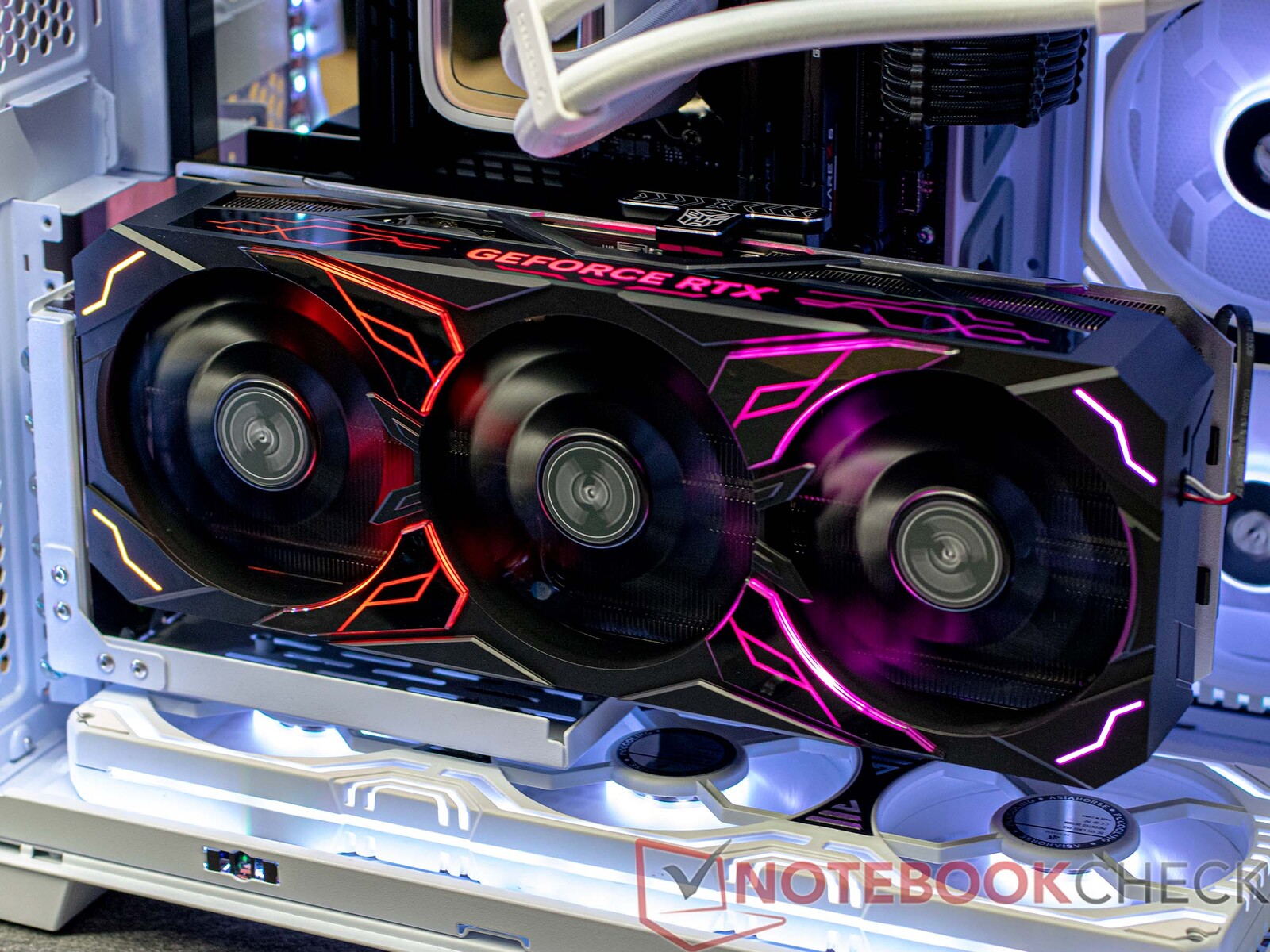

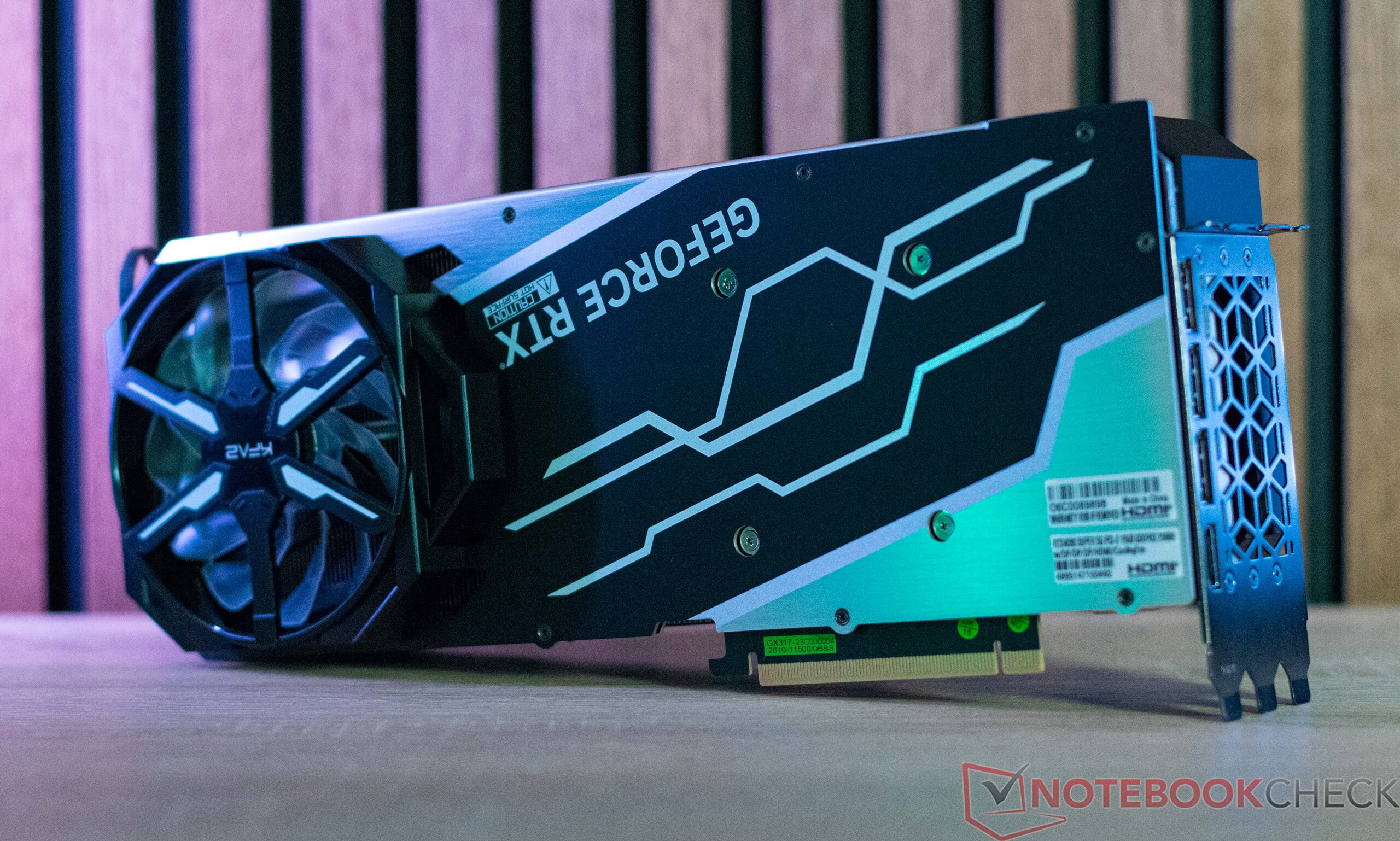

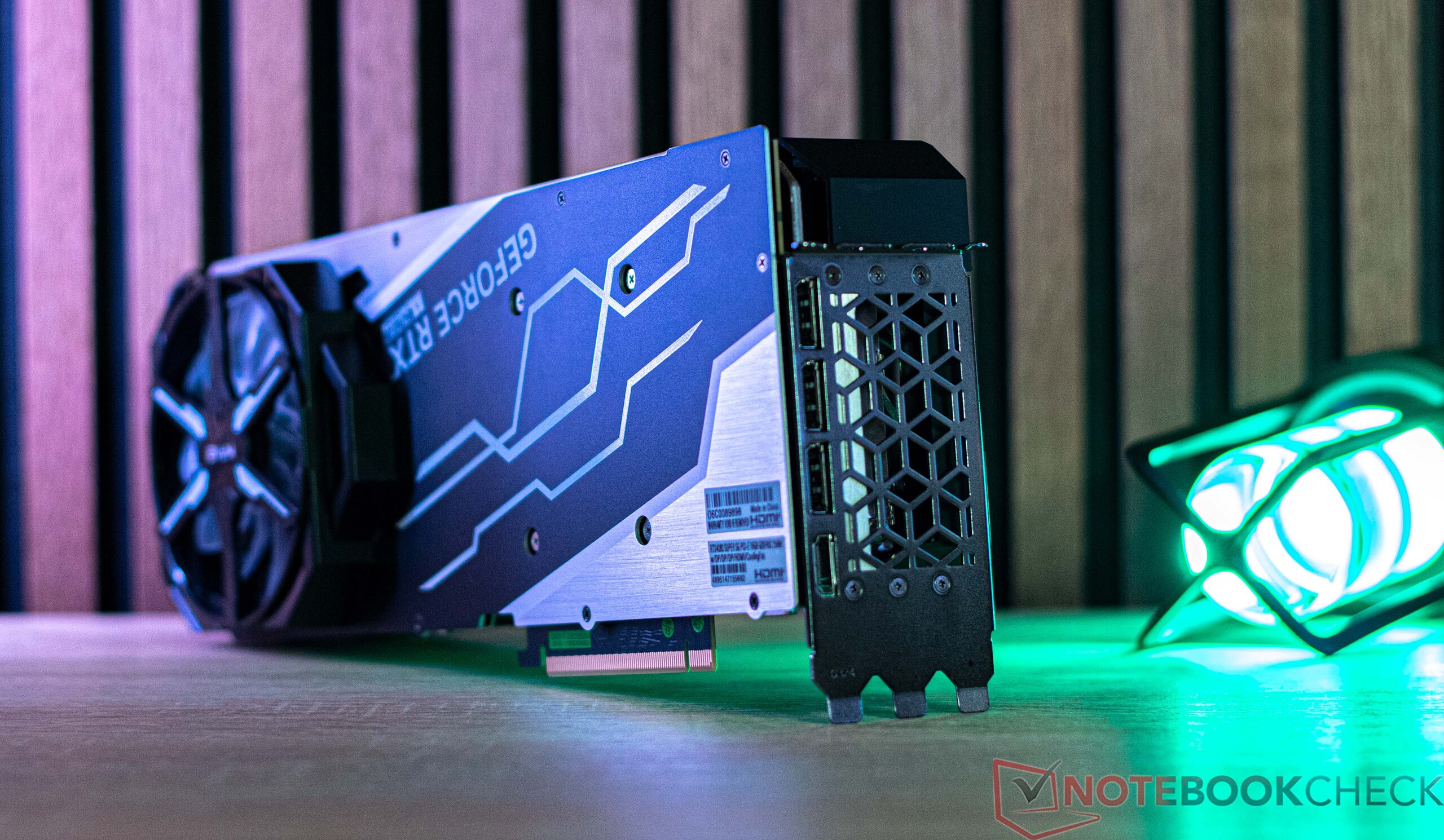

Aesthetically, the KFA2 GeForce RTX 4080 Super SG stands out with a ton of lit components, making it an eye-catcher. Those who love RGB are sure to get their money’s worth. But with an RRP of €1,249 (US$1,346), the manufacturer is charging significantly more than what Nvidia wants for the Founders Edition. The Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition, which has braved our series of tests, sticks to Nvidia’s RRP and will set you back €1,109 (US$999). The GPU continues to use the already familiar AD103 chip. This time round, however, the chip utilises the full 10,240 CUDA cores. The new card has the same amount of VRAM as the non-Super model, but memory bandwidth has been increased due to the slightly higher clock speeds. To provide power to the 320-watt graphics card, KFA2 has gone with a revised version of the usual 12VHPWR connector – also known as the 12V-2x6.

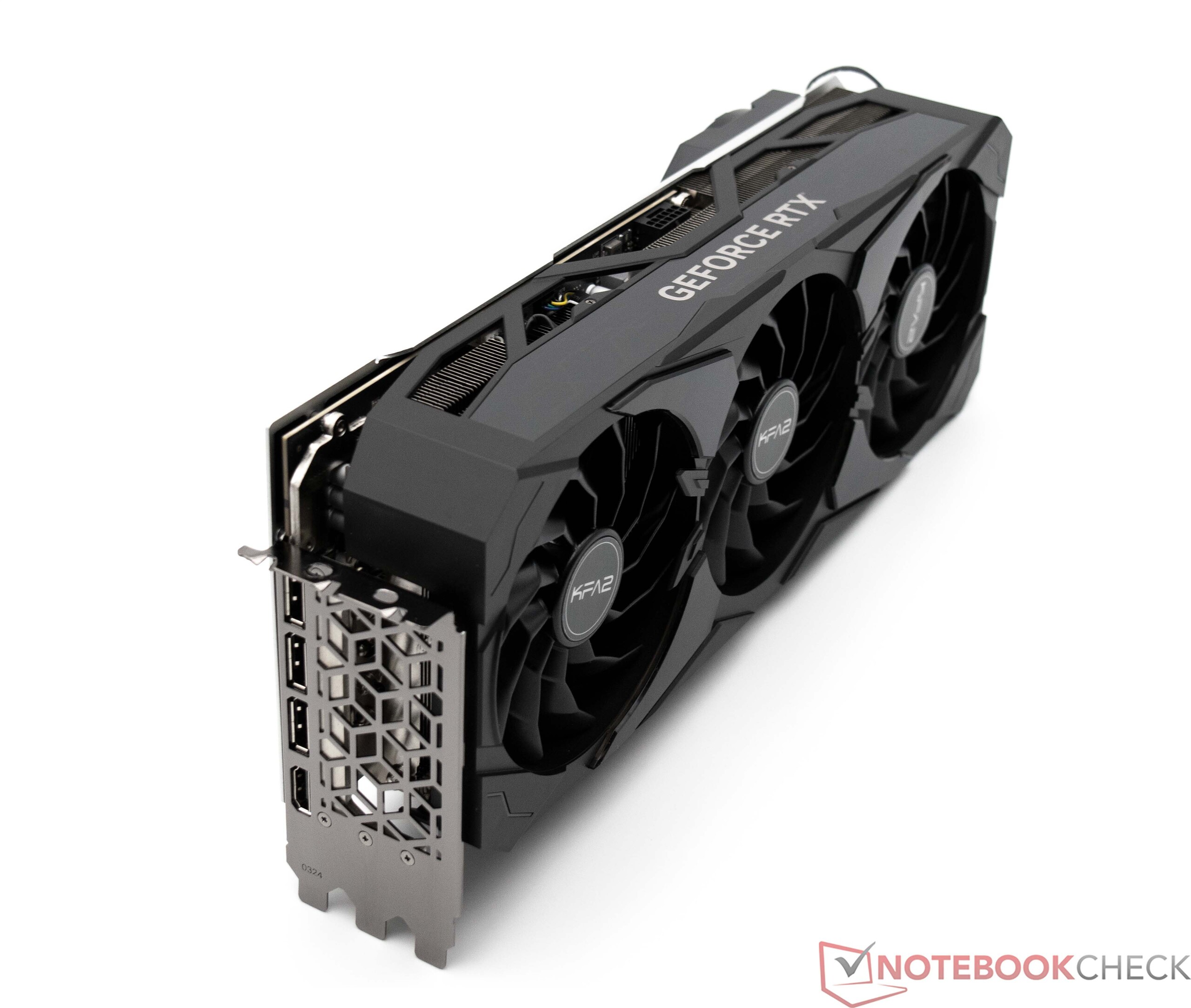

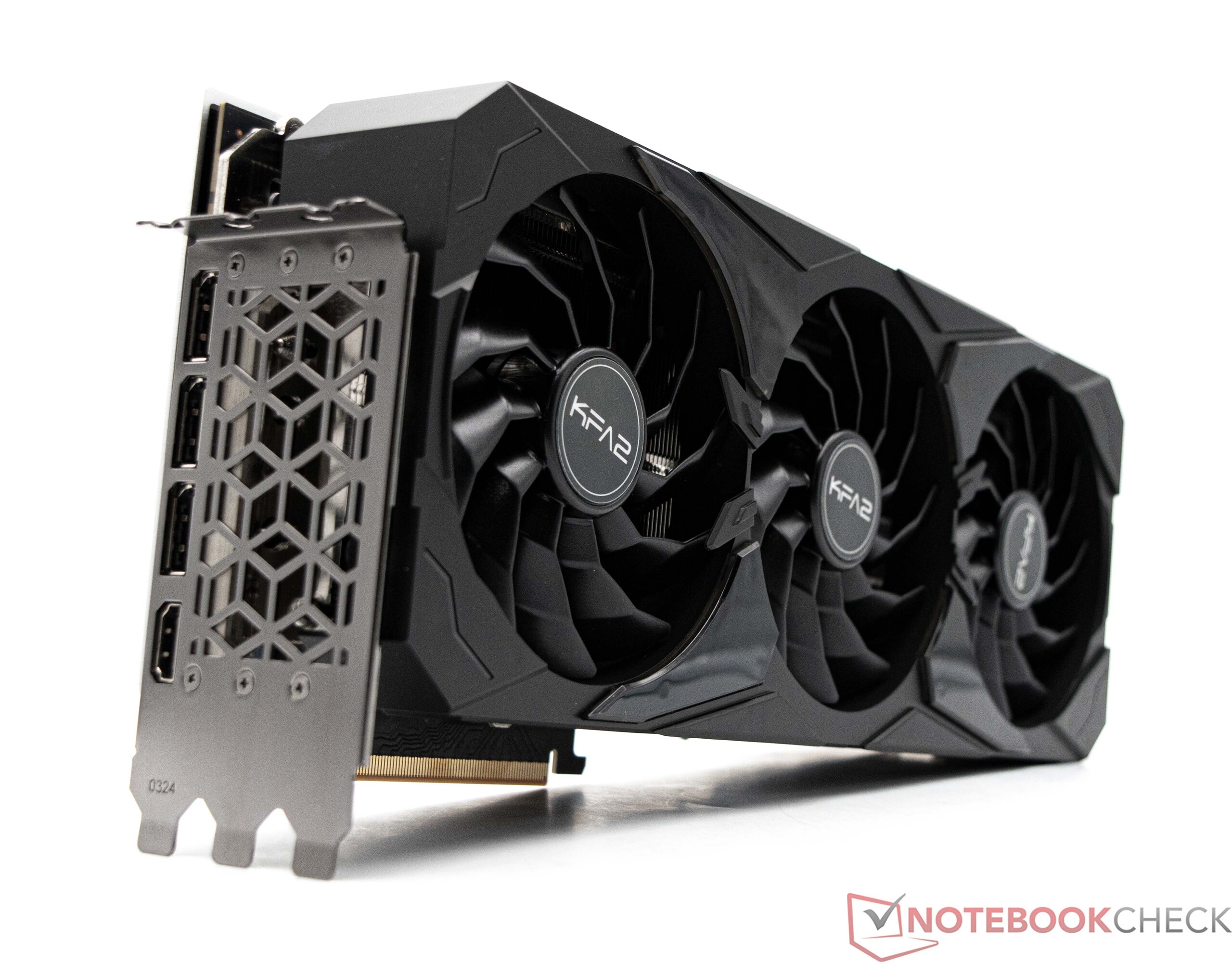

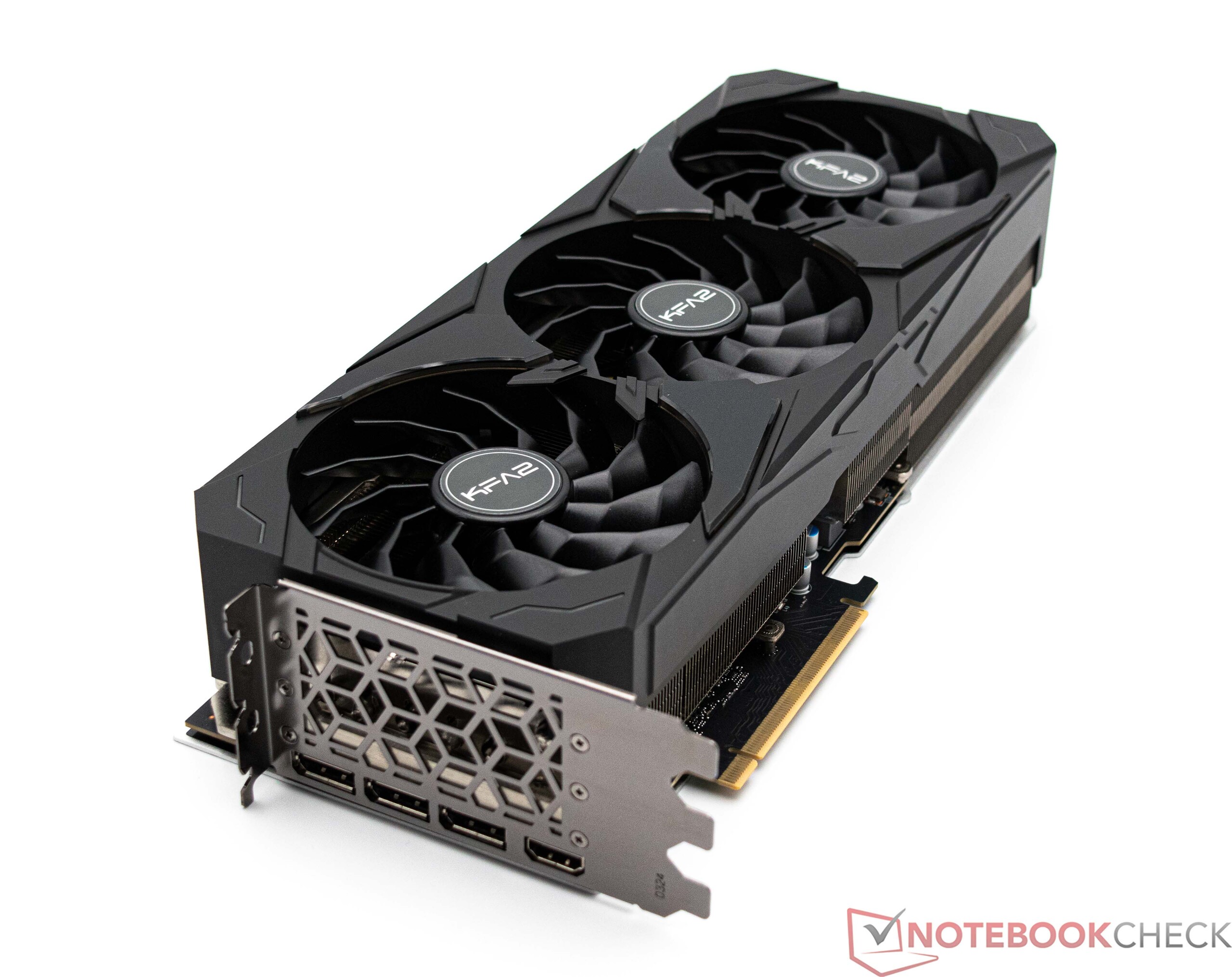

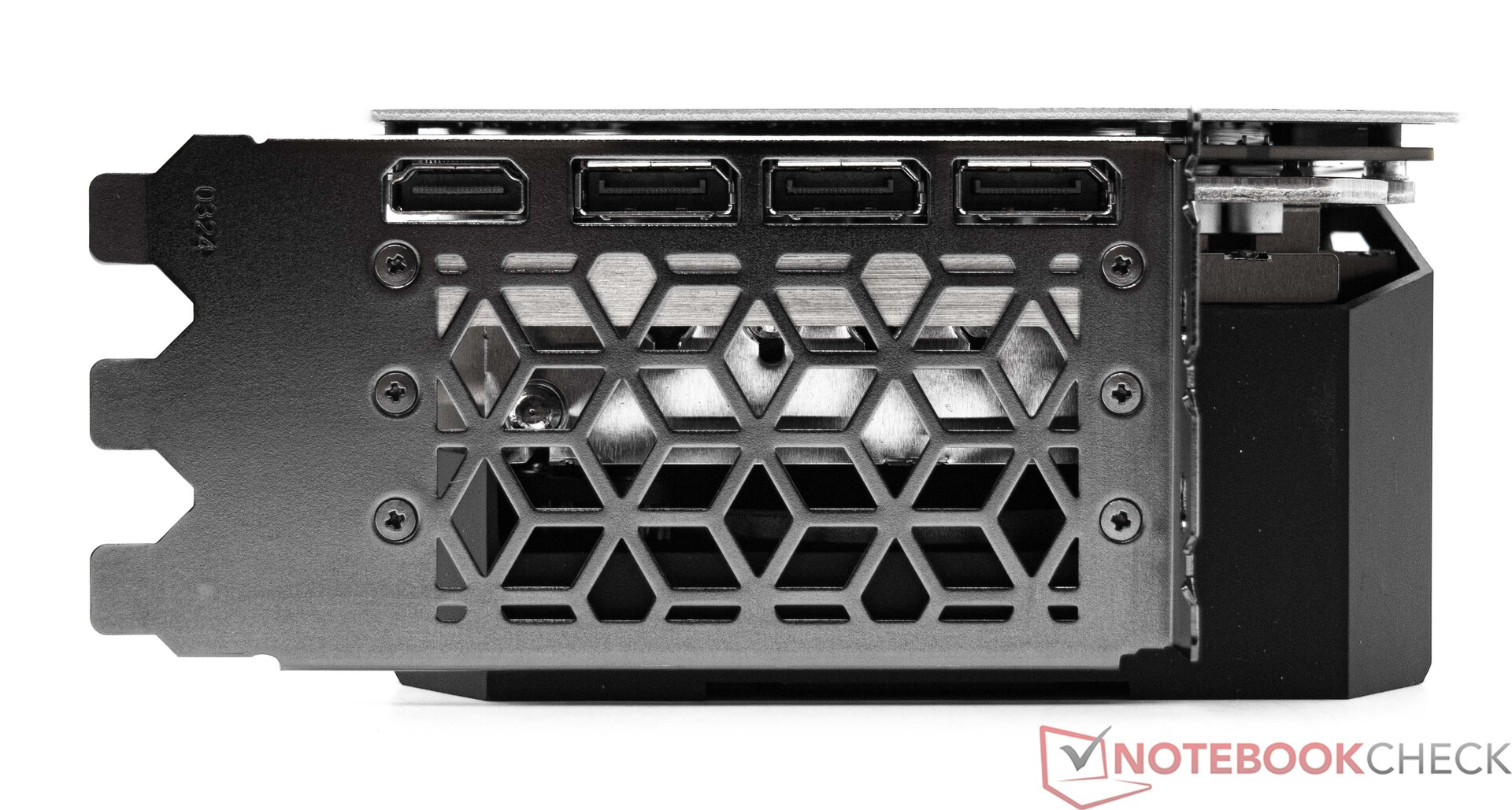

As before, monitors can only be connected via one HDMI 2.1a and three DisplayPort 1.4a. AMD has the upper hand here with a more updated set of features, as their cards have been equipped with DisplayPort 2.1 since the 7000 series.

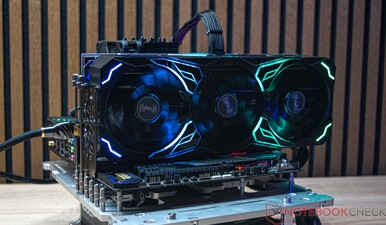

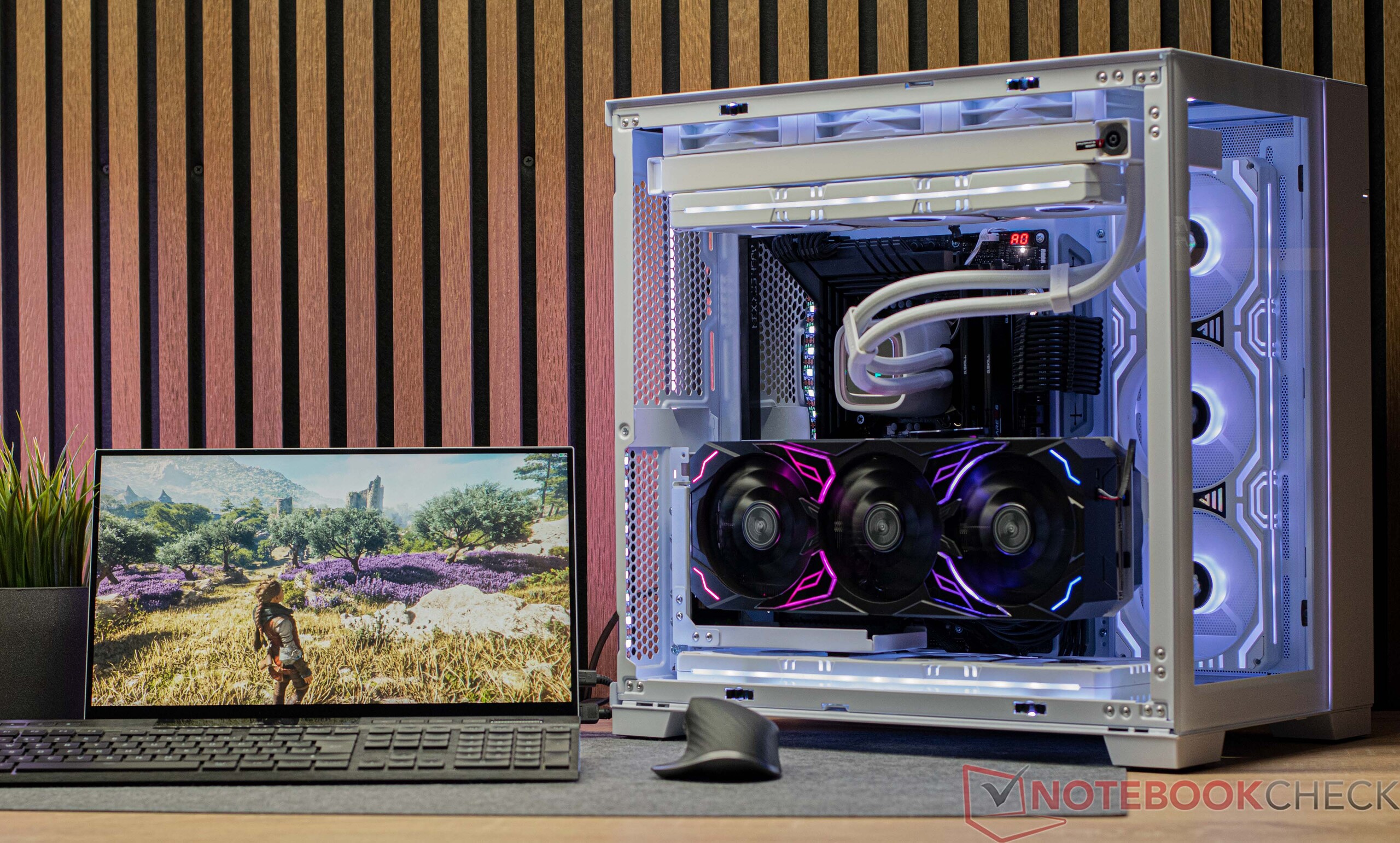

Info on our test systems

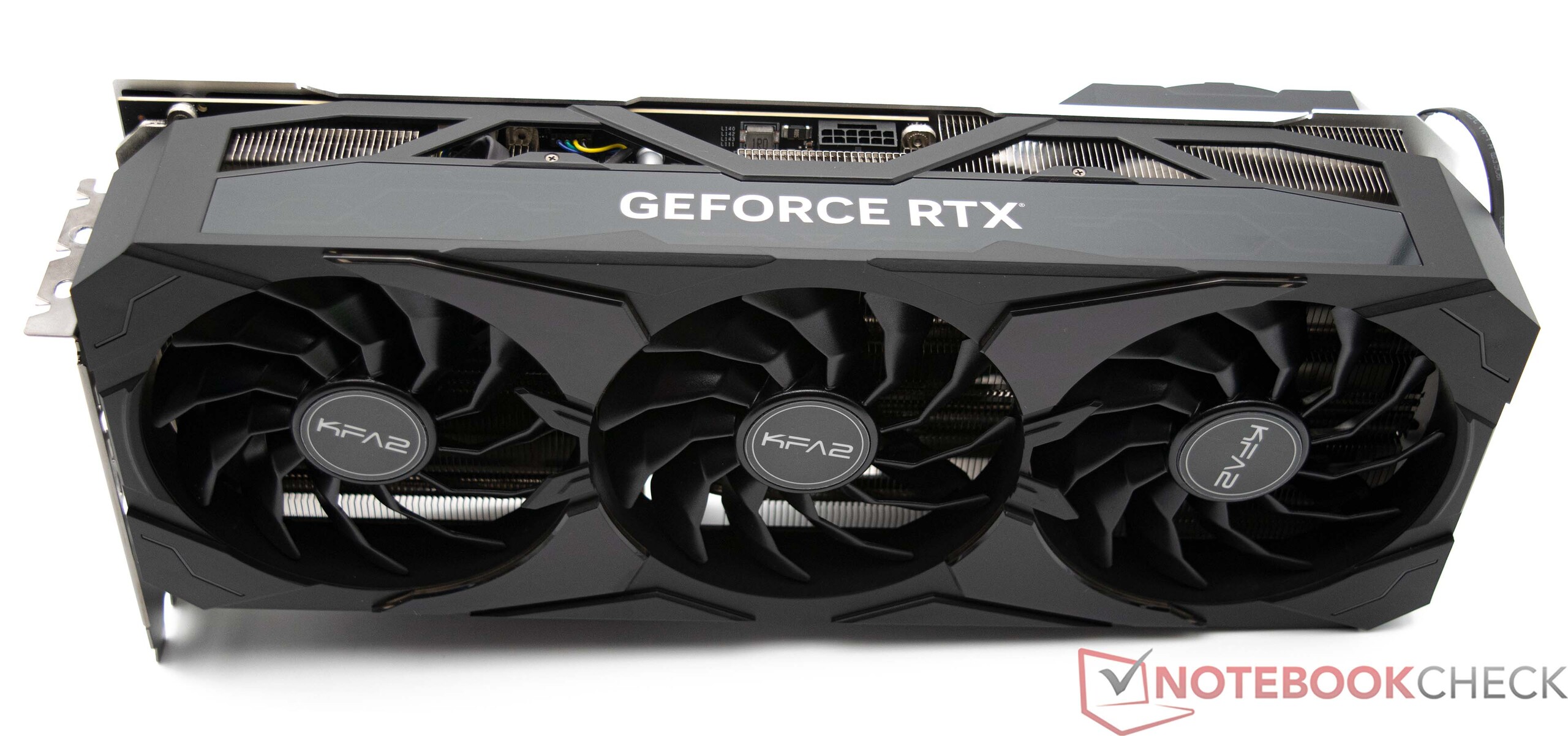

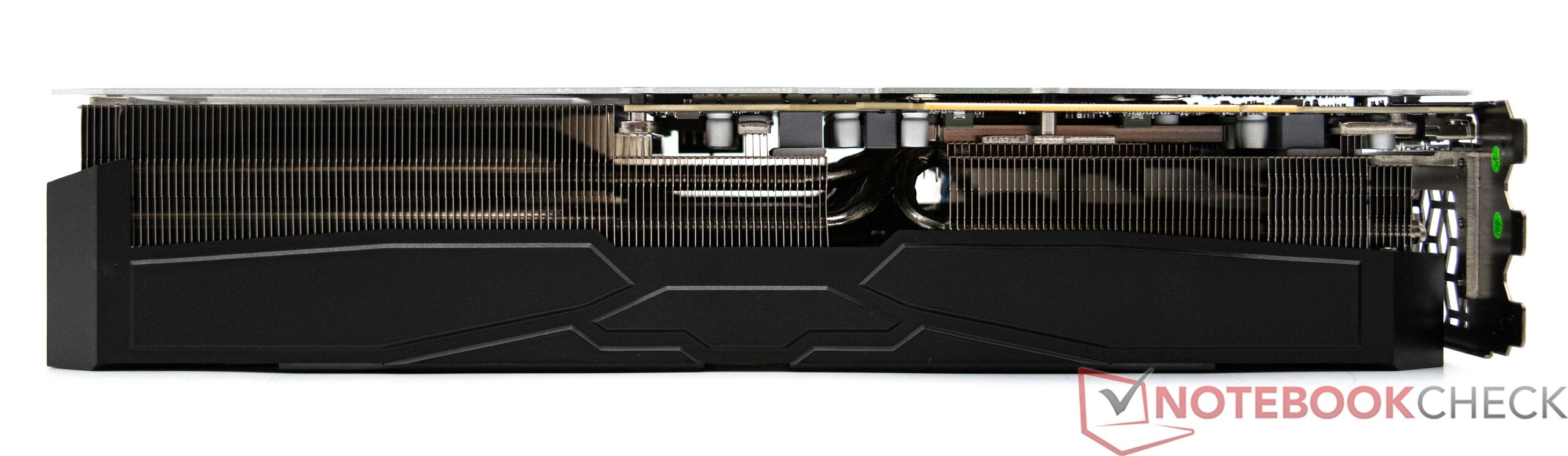

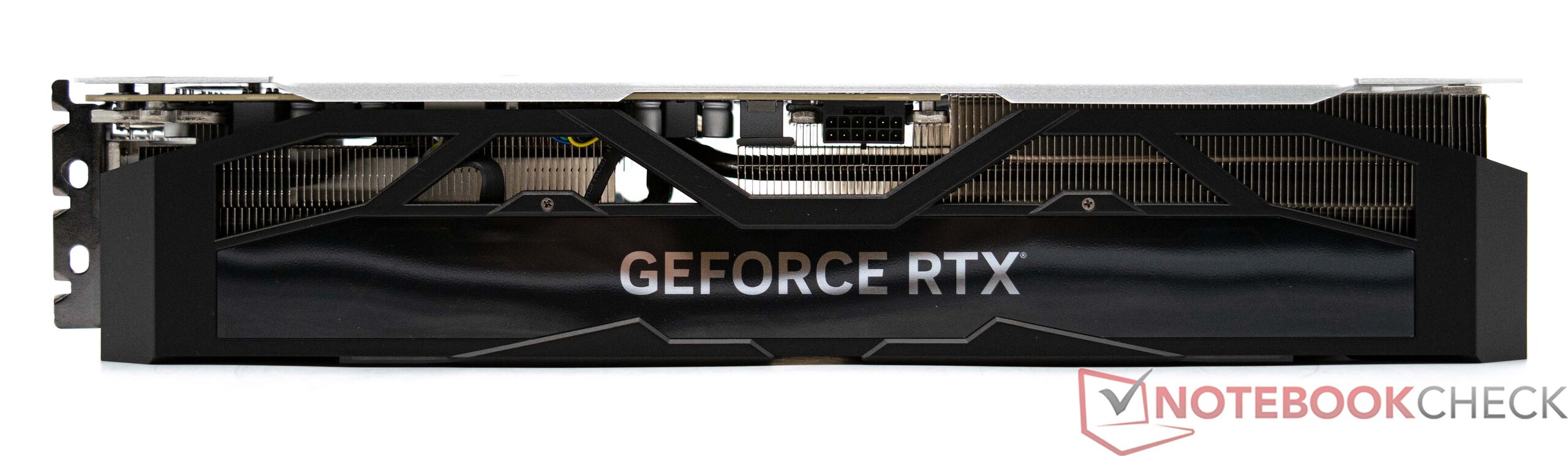

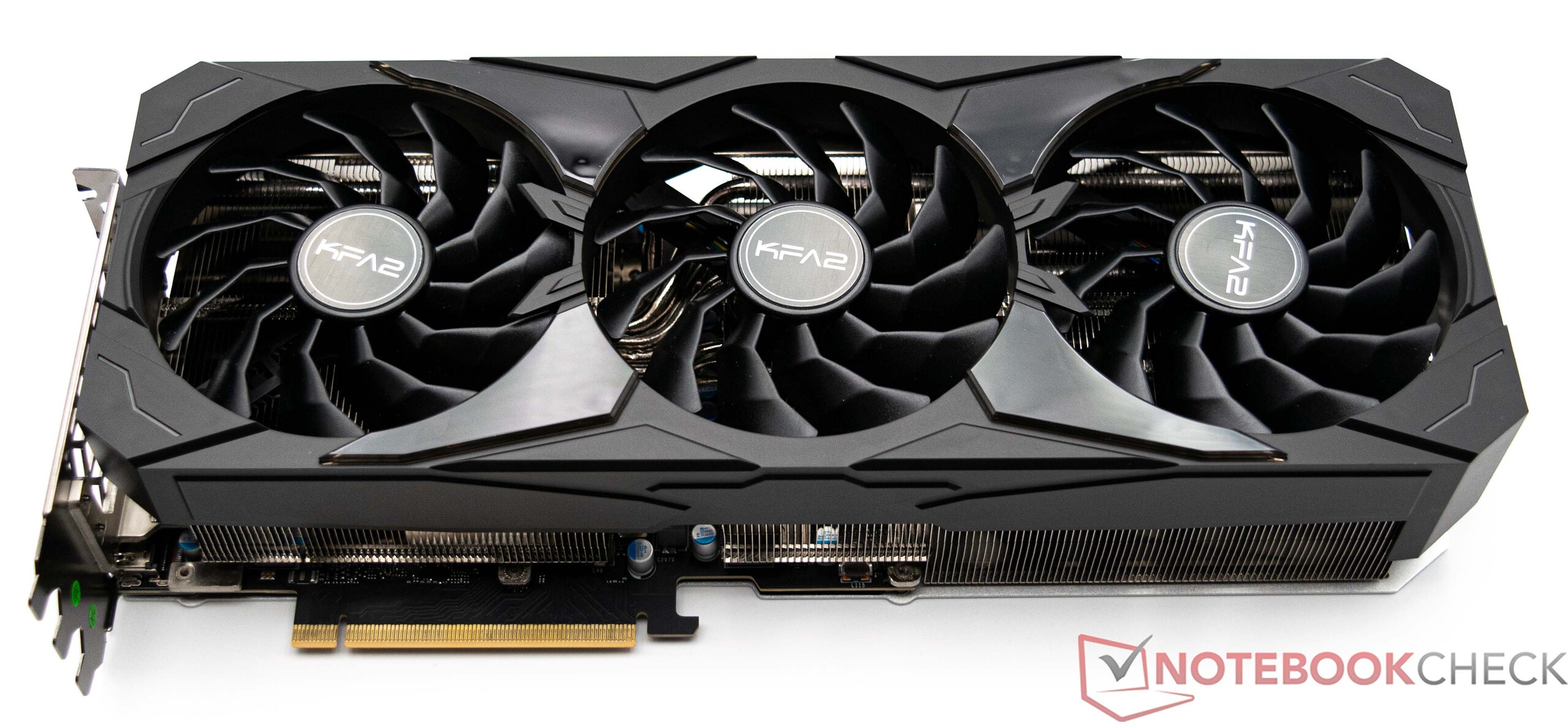

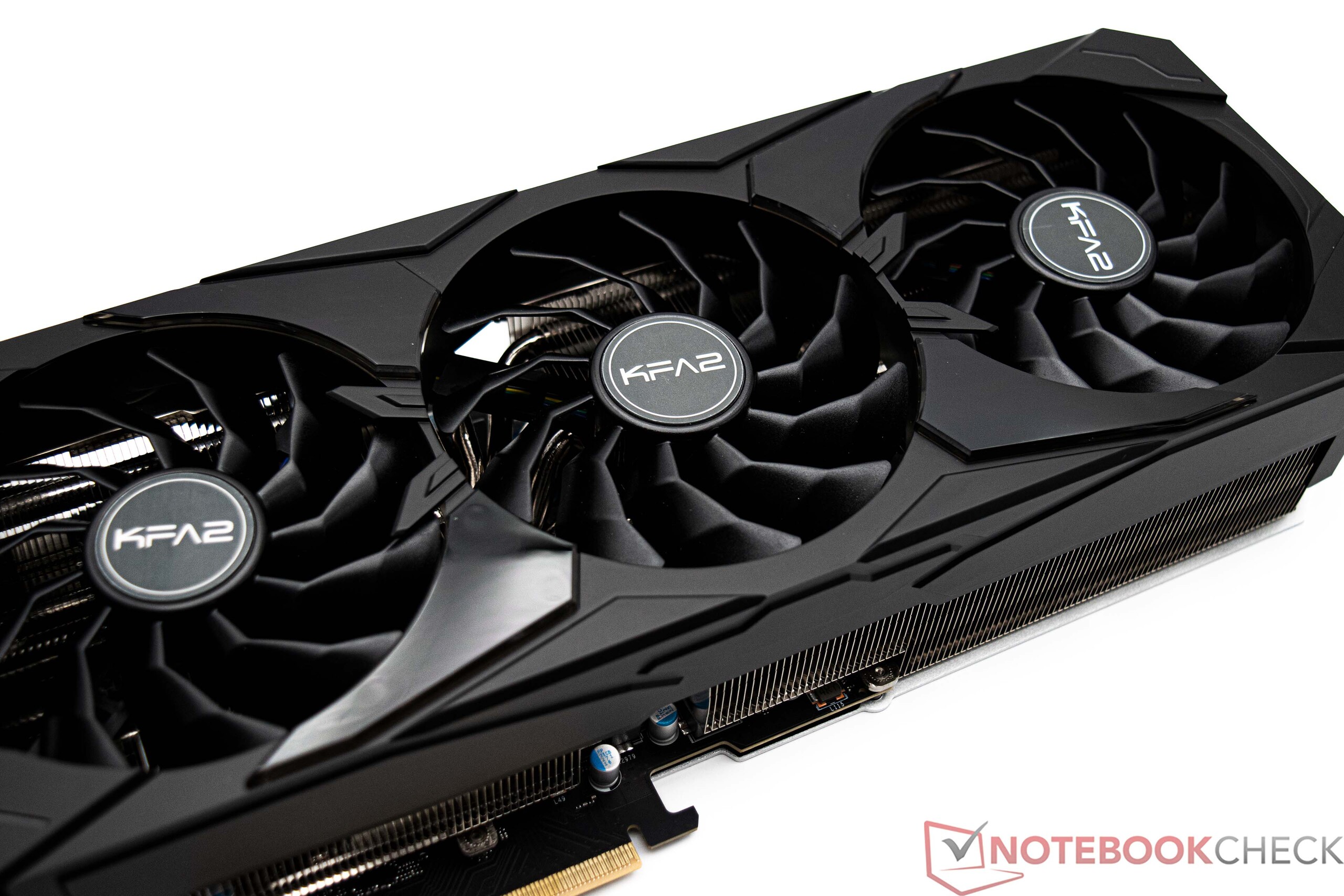

Detailed look at the KFA2 GeForce RTX 4080 Super SG (Serious Gaming)
Comparing the specs of GeForce GPUs
Specs | RTX 4090 | RTX 4080 Super | RTX 4080 | RTX 4070 Ti Super | RTX 4070 Ti | RTX 4070 Super | RTX 4070 | RTX 4060 Ti |
Chip | AD102 | AD103 | AD103 | AD103 | AD104 | AD104 | AD104 | AD106 |
FinFET process | 4 nm | 4 nm | 4 nm | 4 nm | 4 nm | 4 nm | 4 nm | 4 nm |
CUDA cores | 16.384 | 10.240 | 9.728 | 8.448 | 7.680 | 7.168 | 5.888 | 4.352 |
Texture units | 512 | 320 | 304 | 264 | 240 | 224 | 184 | 136 |
Tensor cores | 512 4th Gen. | 320 4th Gen. | 304 4th Gen. | 264 4th Gen. | 240 4th Gen. | 224 4th Gen. | 184 4th Gen. | 136 4th Gen. |
RT cores | 128 | 80 | 76 | 66 | 60 | 56 | 46 | 34 |
GPU base clock | 2,235 MHz | 2,295 MHz | 2,205 MHz | 2,340 MHz | 2,310 MHz | 1,980 MHz | 1,920 MHz | 2,310 MHz |
GPU boost clock | 2,520 MHz | 2,550 MHz | 2,505 MHz | 2,610 MHz | 2,610 MHz | 2,475 MHz | 2,475 MHz | 2,535 MHz |
Memory bus | 384 bit | 256 Bit | 256 Bit | 256 Bit | 256 Bit | 192 Bit | 192 Bit | 128 Bit |
Memory bandwidth | 1,008 GB/s | 736.3 GB/s | 716.8 GB/s | 672.3 GB/s | 504.2 GB/s | 504.2 GB/s | 504.2 GB/s | 288 GB/s |
Video memory | 24 GB GDDR6X | 16 GB GDDR6X | 16 GB GDDR6X | 16 GB GDDR6X | 12 GB GDDR6X | 12 GB GDDR6X | 12 GB GDDR6X | 8 / 16 GB GDDR6 |
Power consumption | 450 W | 320 W | 320 W | 285 W | 285 W | 220 W | 200 W | 160 W/ 165 W |

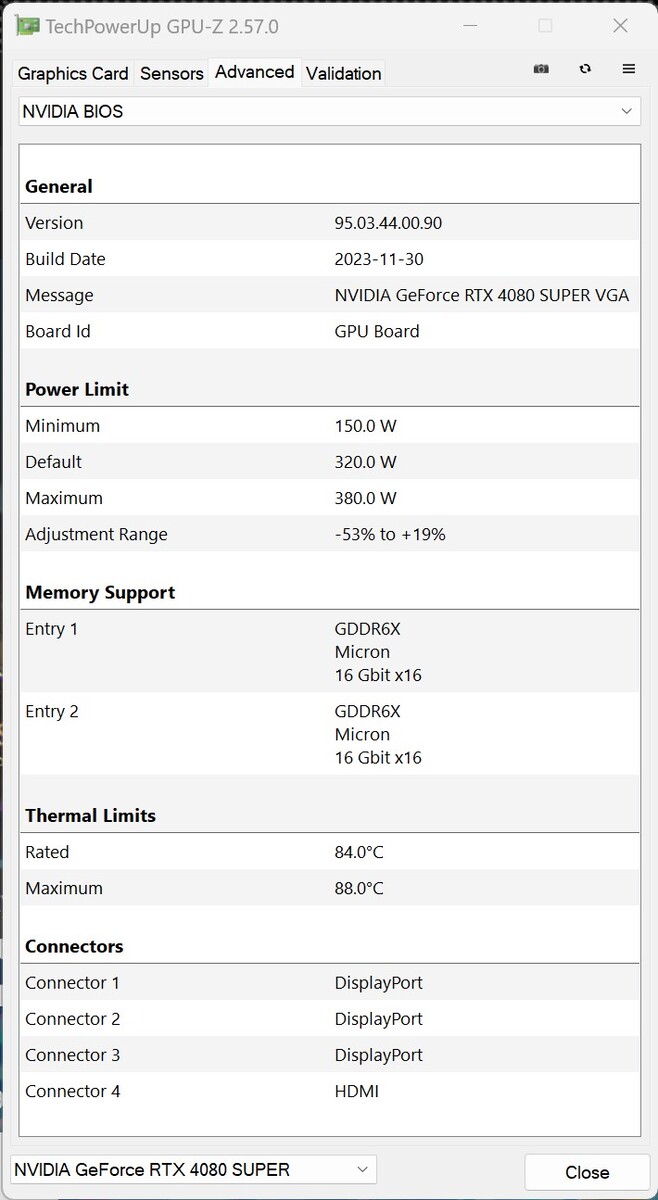

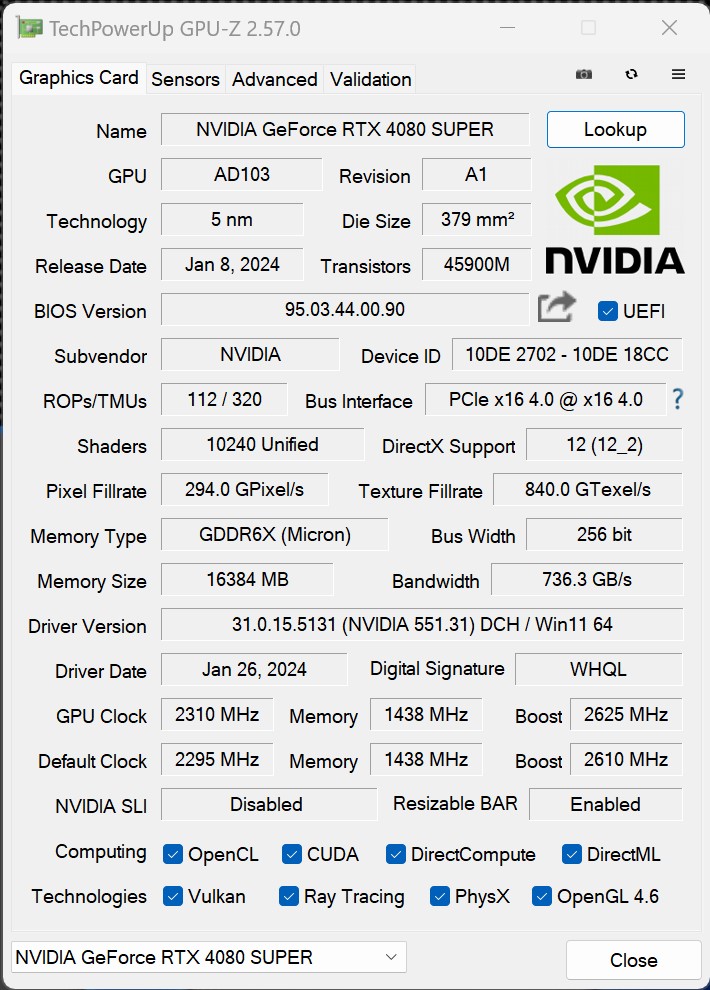

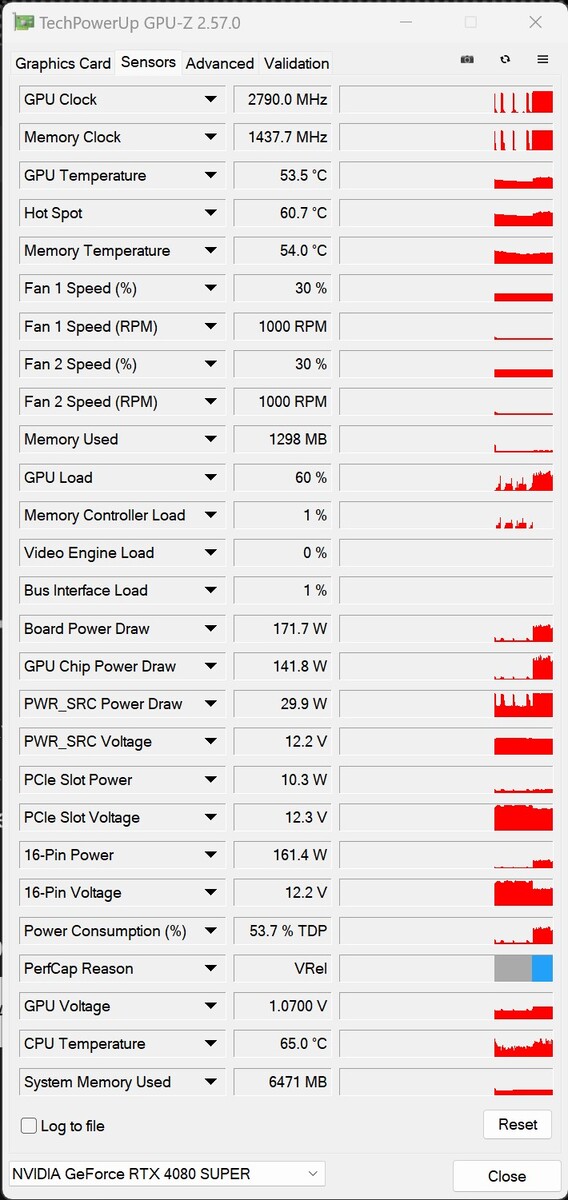

Clock speeds of the KFA2 GeForce RTX 4080 Super SG
For the GeForce RTX 4080 Super SG, KFA2 has retained the base clock specified by Nividia, but the boost clock has been bumped up slightly to 2,610 MHz. The card was consistently able to go much higher than that in our testing and always stayed close to the 2,800 MHz mark during our gaming tests. The KFA2 GeForce RTX 4080 Super SG too can be controlled using the Xtreme Tuner Plus tool, which allows for slightly higher base and boost clocks thanks to its 1-Click OC feature. That said, the 15 MHz more is anything but useful since the graphics card already runs much faster under load than the 2,625 MHz you get with 1-Click OC enabled.

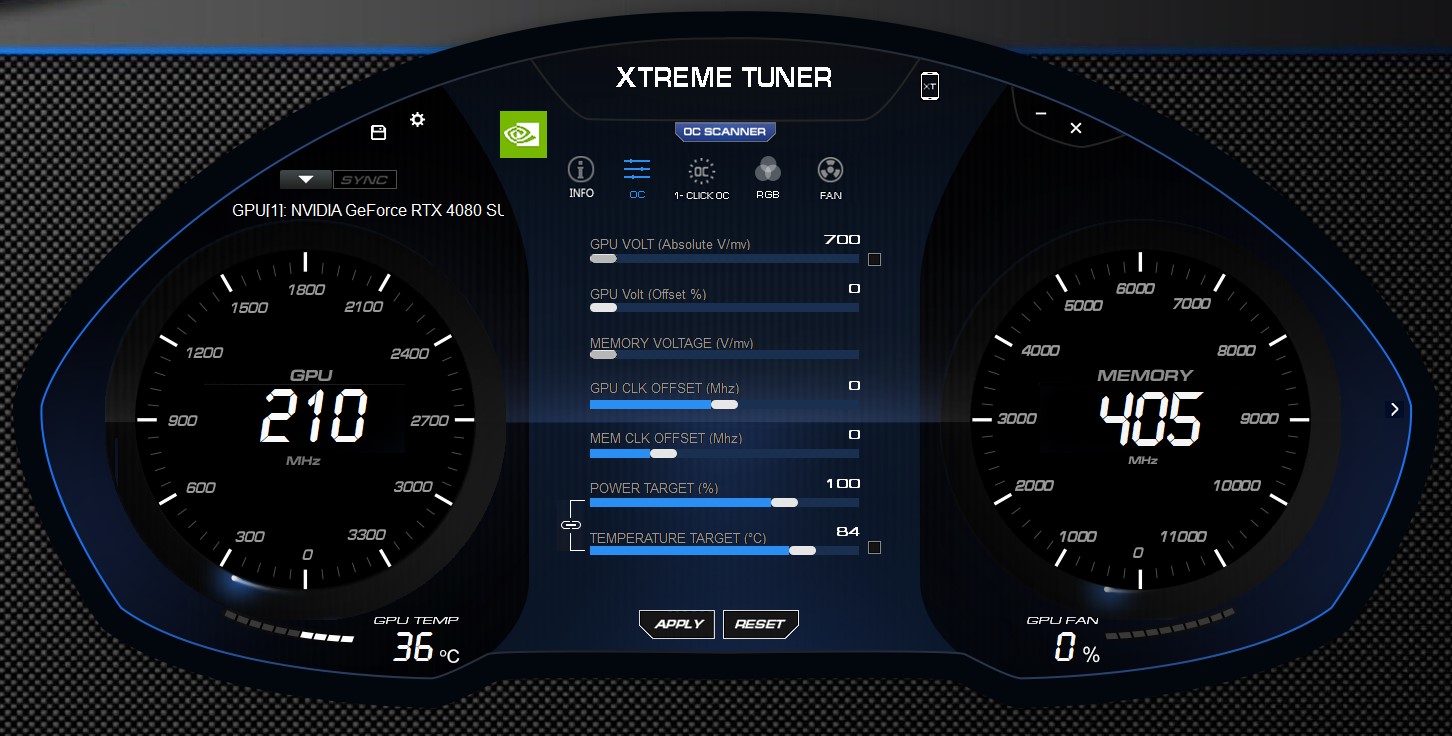

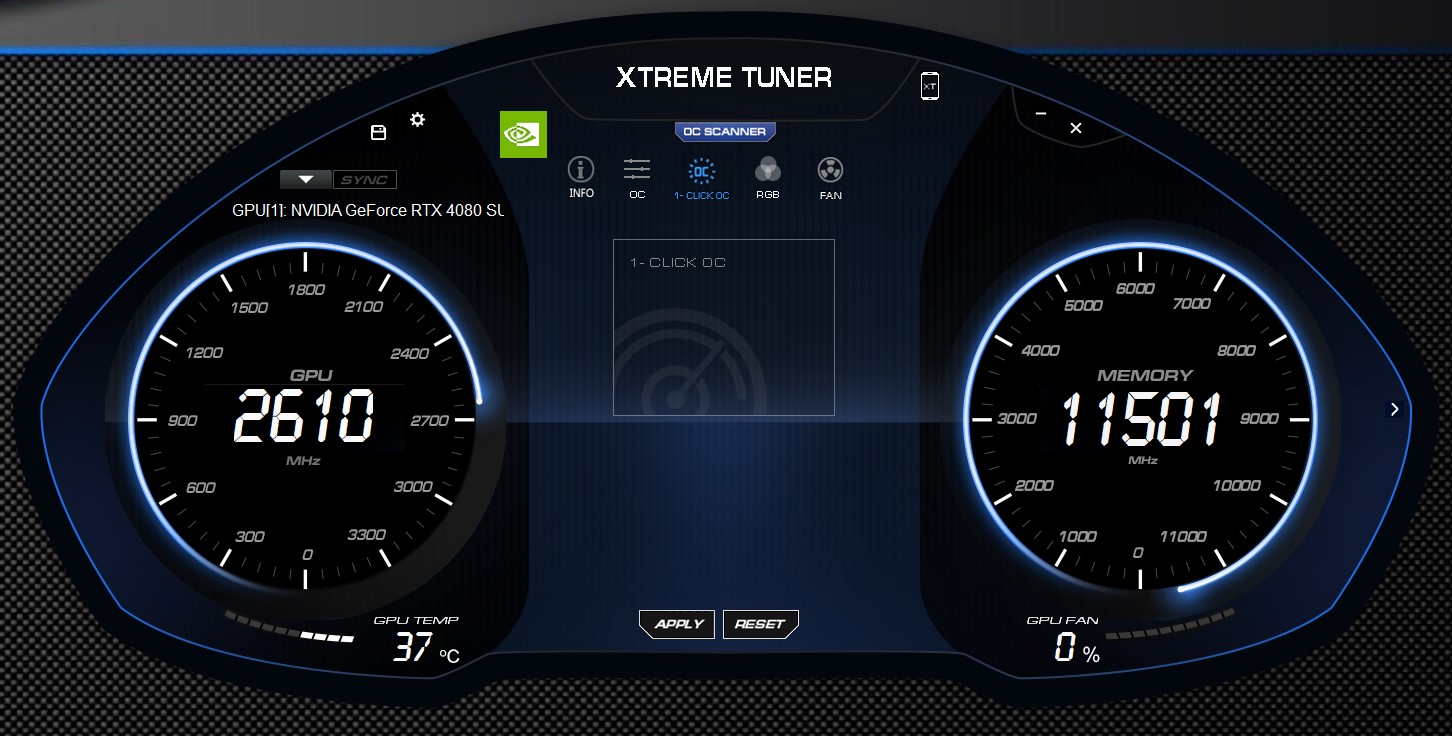

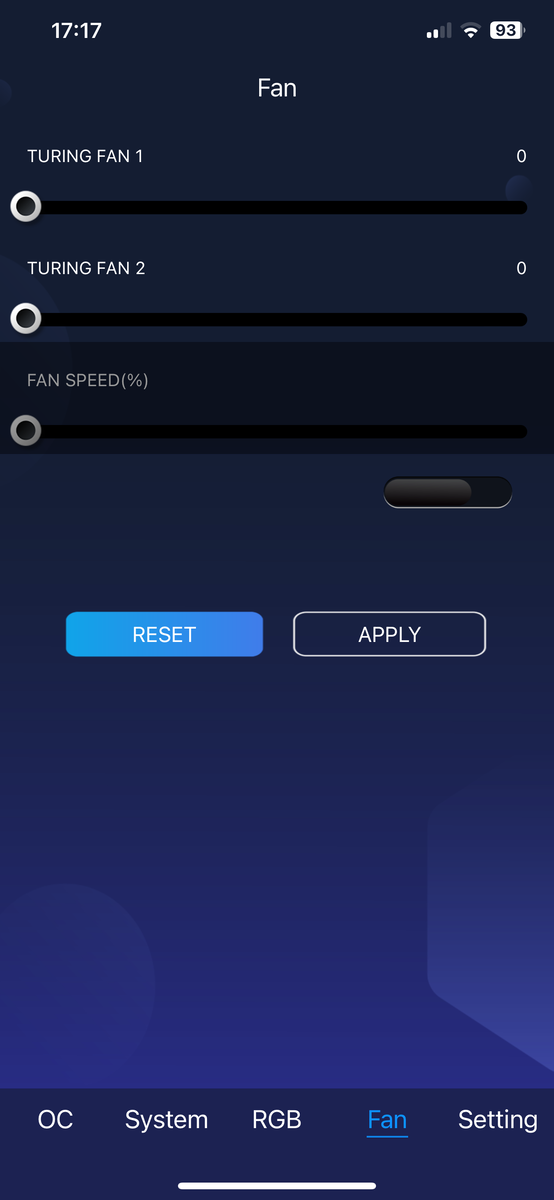

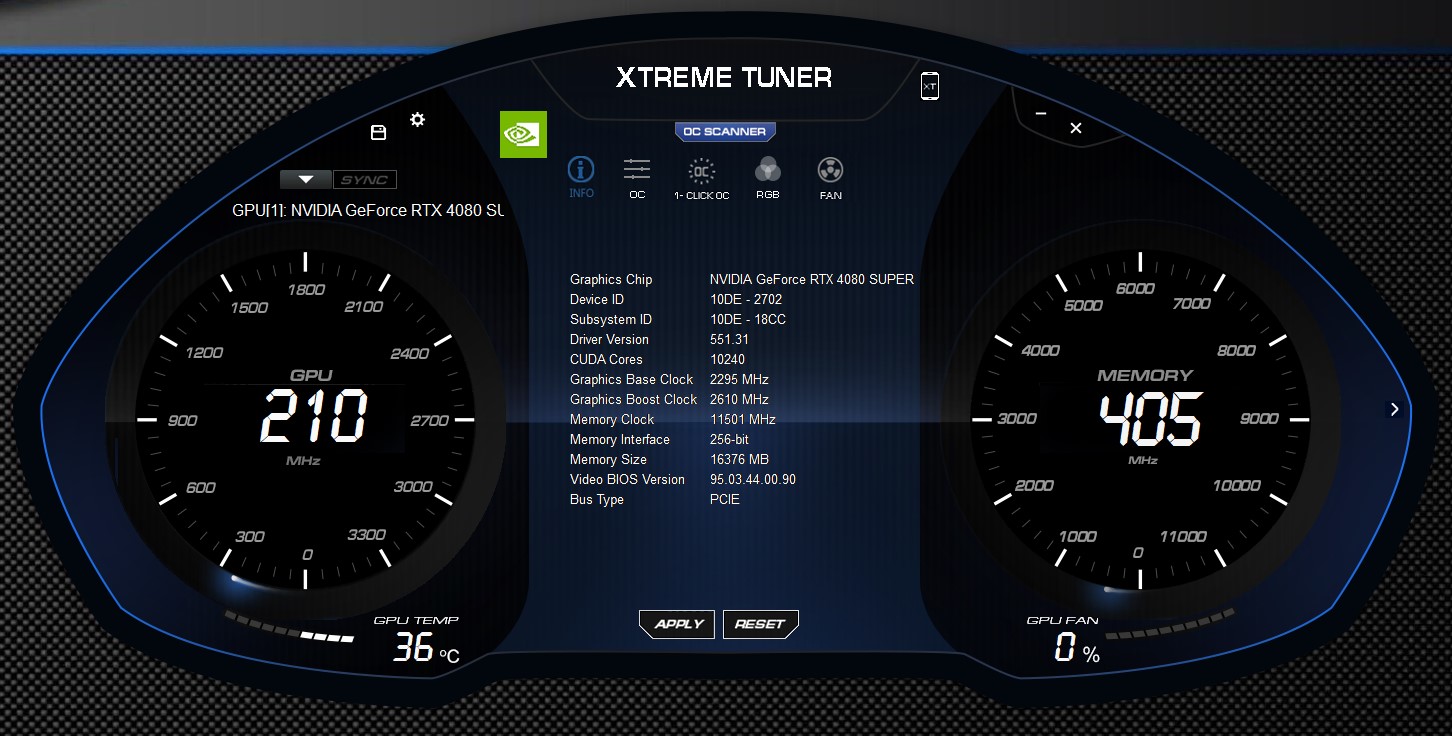

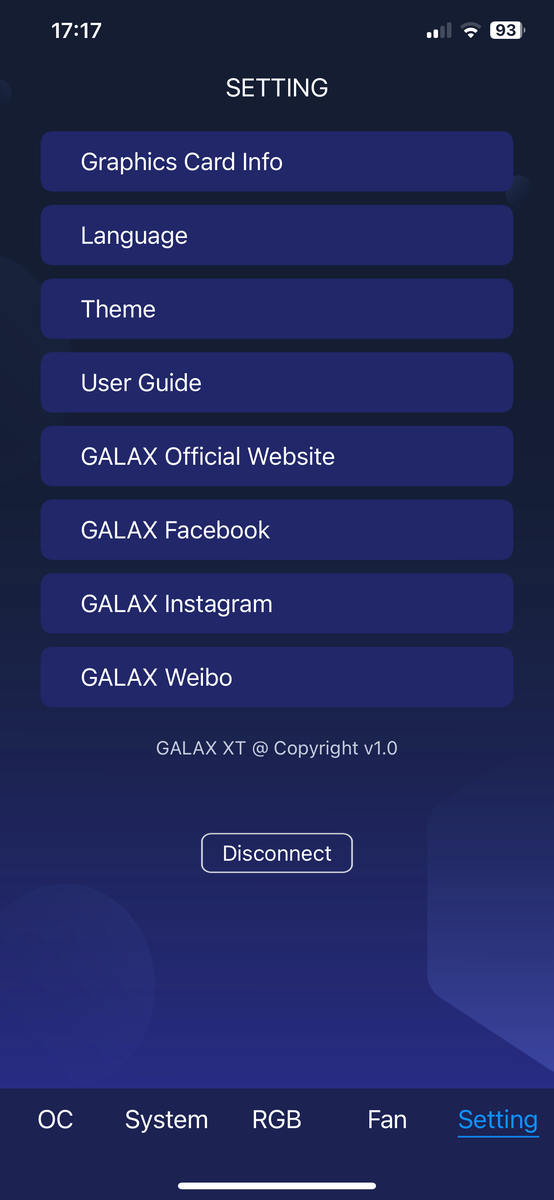

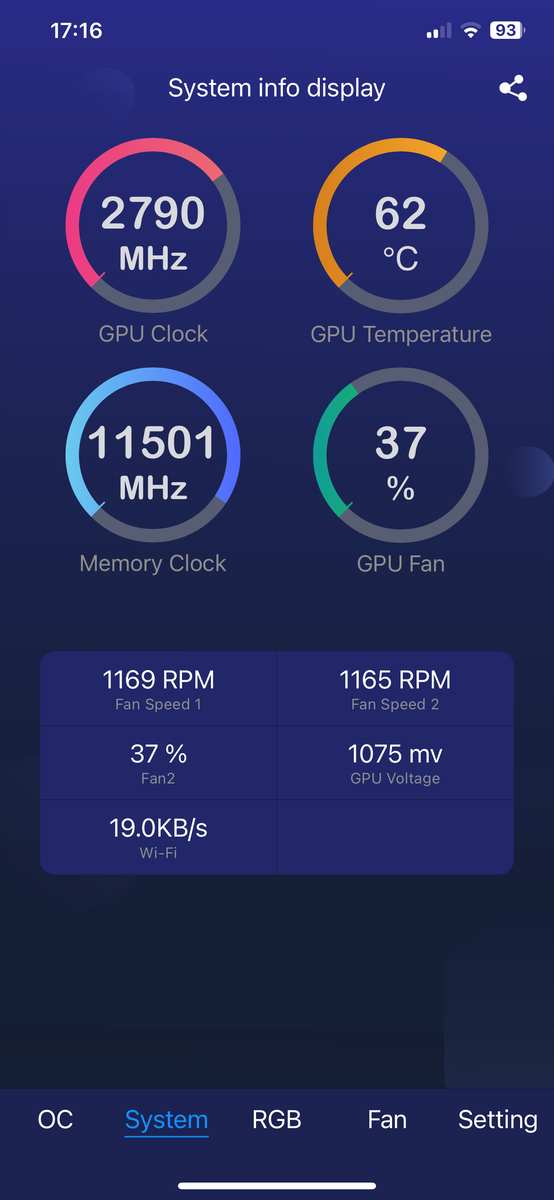

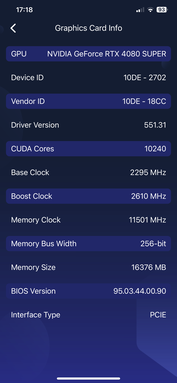

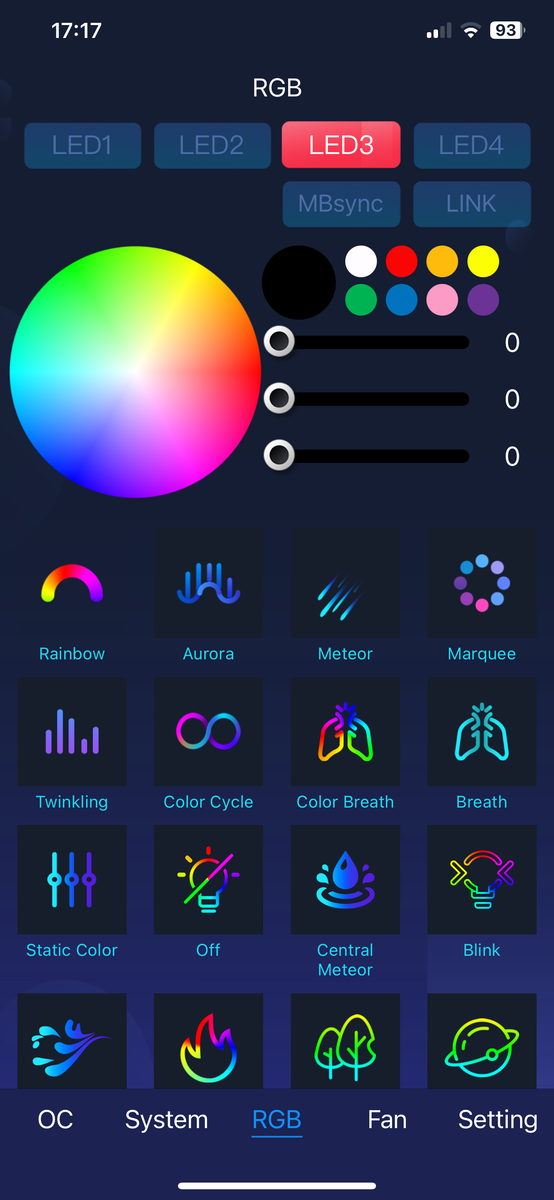

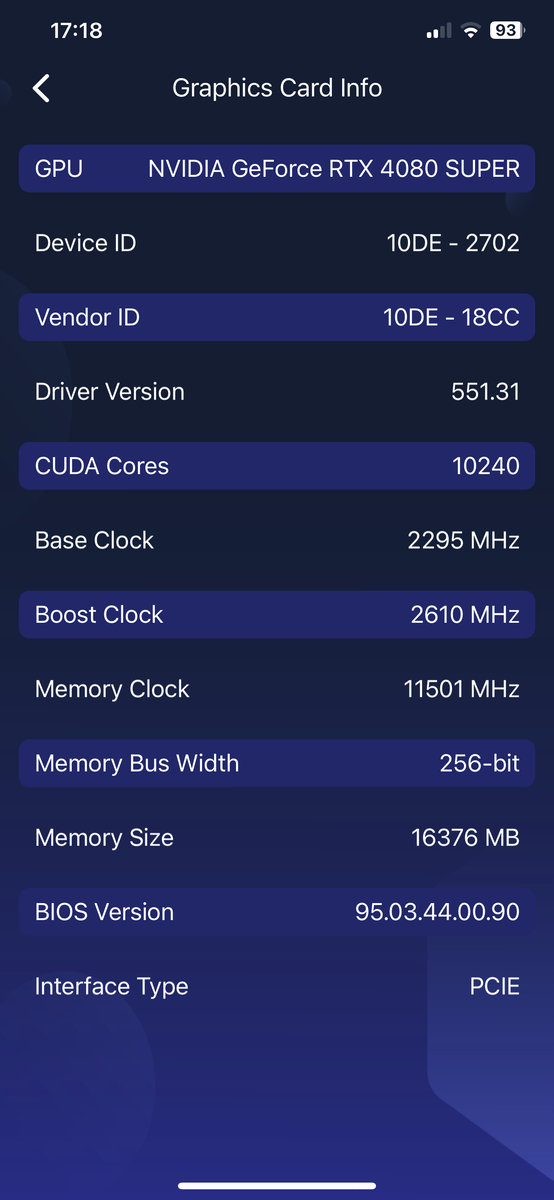

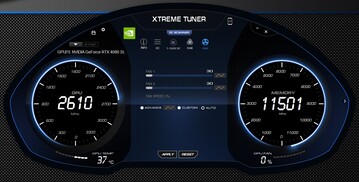

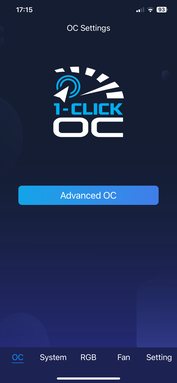

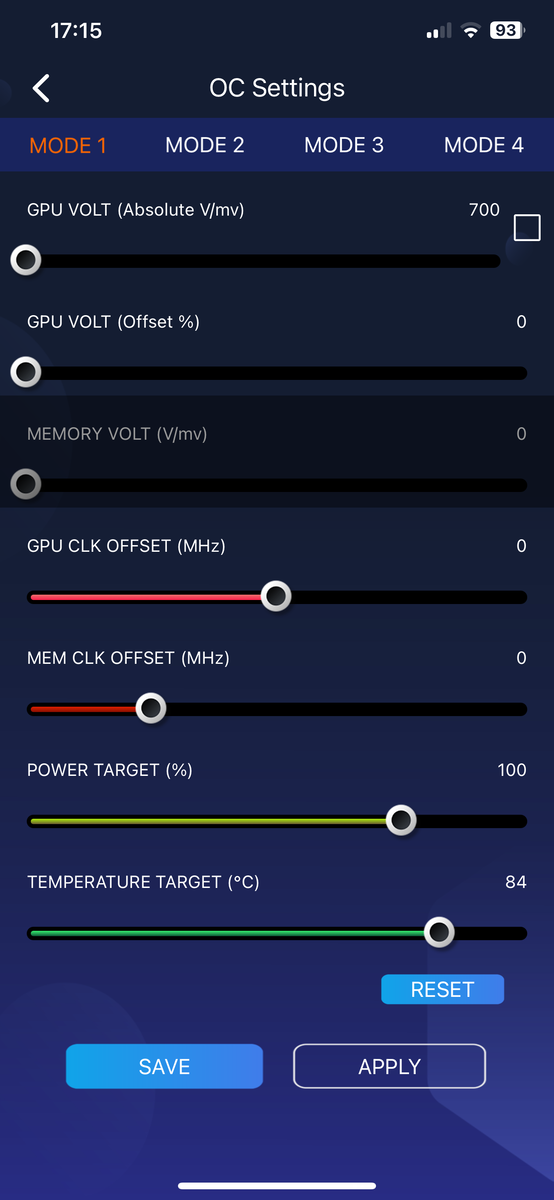

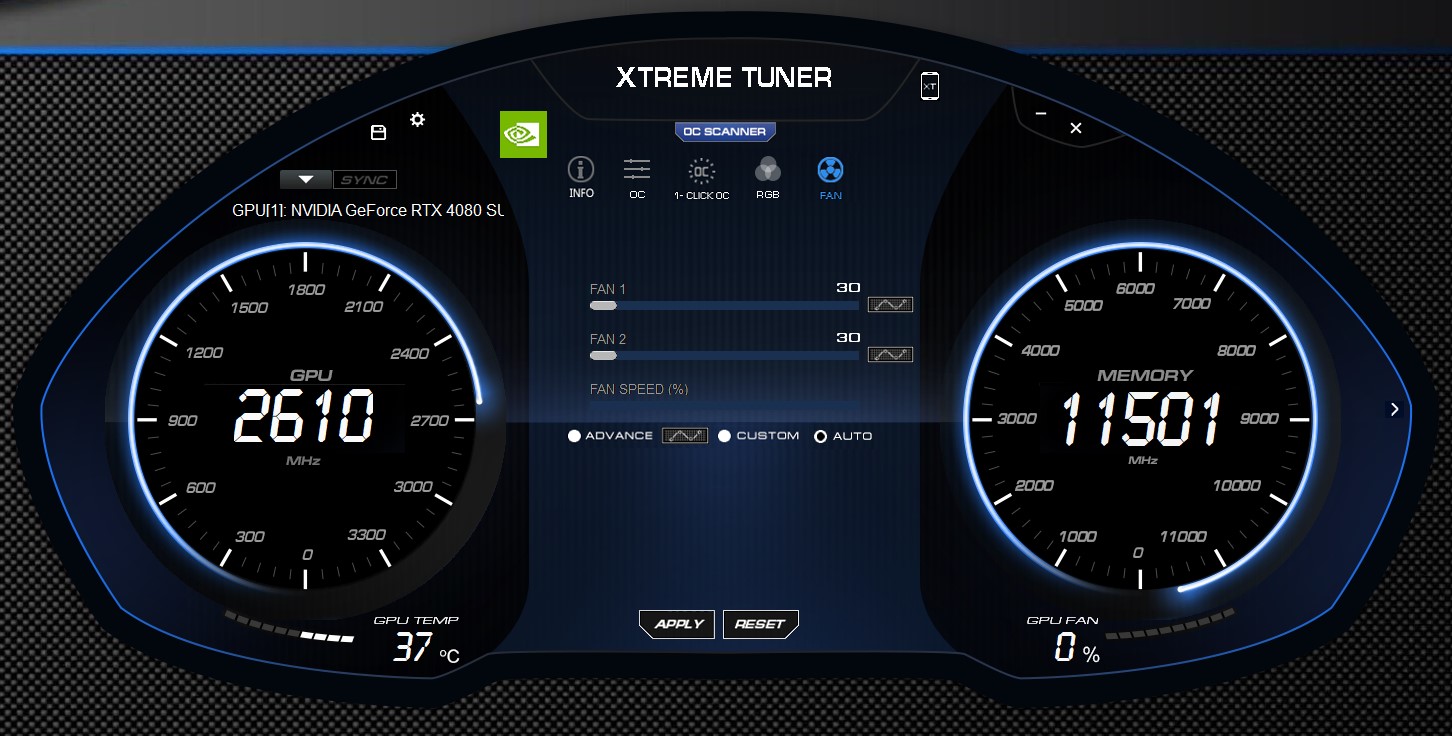

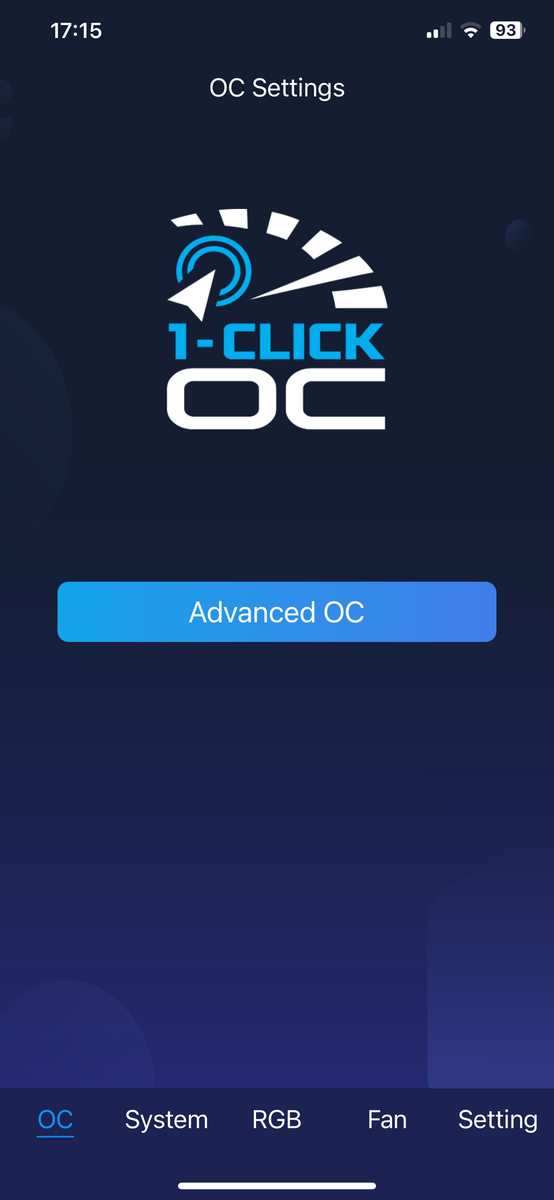

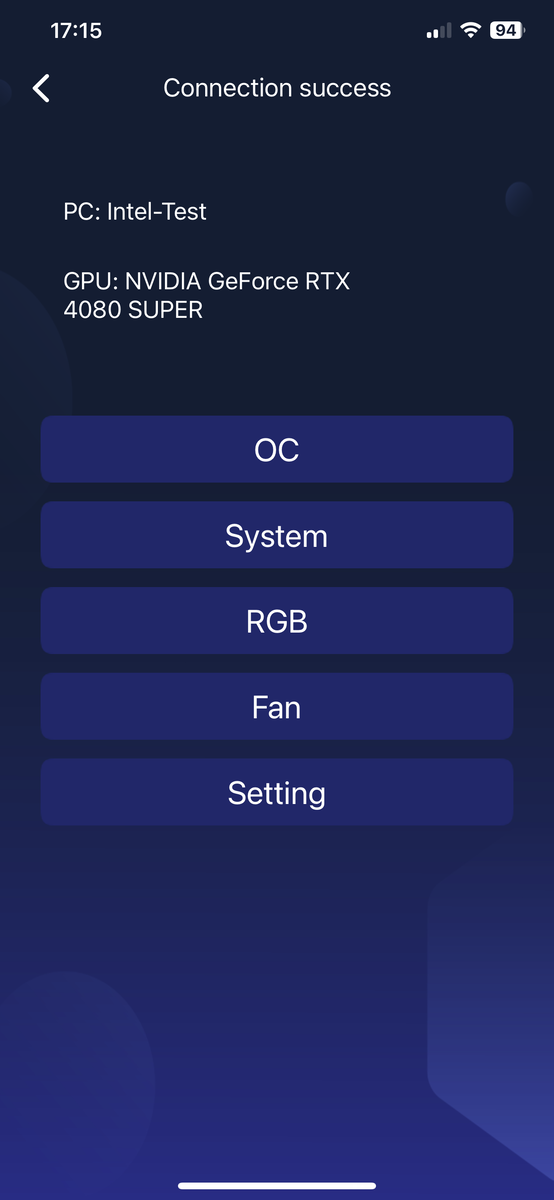

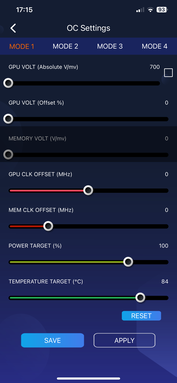

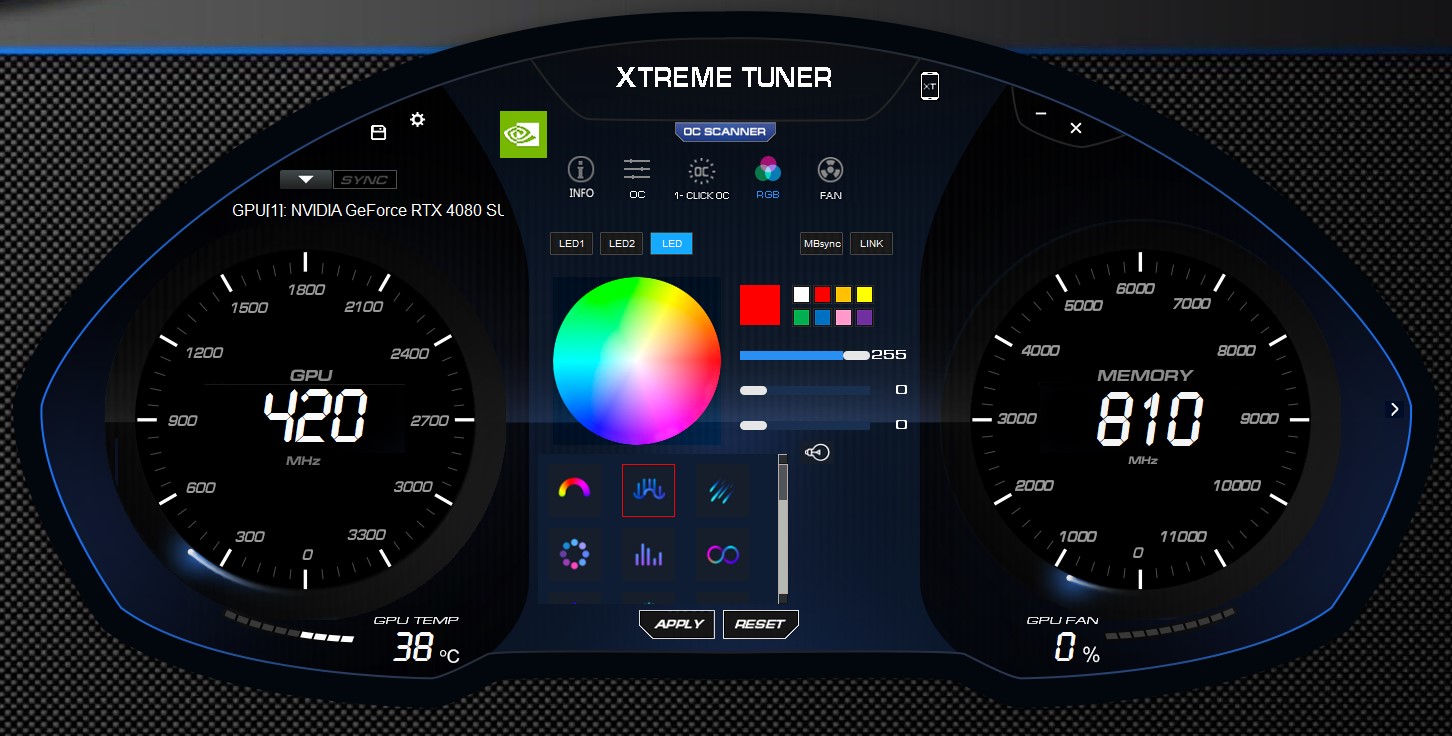

Xtreme Tuner Plus - KFA2 tuning utility and phone app
As is usual with KFA2, the company’s own Xtreme Tuner tool lets you view essential information about the GPU and modify its clock speeds. You can also use the tool to increase the power target and provide the graphics card with up to 380 watts of power. If you don’t want to control the dazzling RGB lighting on the KFA2 GeForce RTX 4080 Super SG via the motherboard, you can select one of the many predefined effects in the software. All the settings in Xtreme Tuner are also easily configurable using a smartphone. The setup process is quick and requires you to scan a QR code. But you need to ensure that both the PC and smartphone are connected to the same network.
Synthetic benchmarks
Looking at the results of the synthetic benchmarks, we only saw a slight increase in performance over the KFA2 GeForce RTX 4080 SG. In addition, we noticed the KFA2 GeForce RTX 4080 Super SG isn’t able to outperform the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition. Even though our review unit has a much bulkier cooler, we ultimately couldn’t get more performance out of it. The Nvidia GeForce RTX 4080 Super also couldn’t close the gap on the GeForce RTX 4090. Nividia’s top-end model continues to consistently deliver 20 to 30% more performance.
Against the competition from Team Red, the GeForce RTX 4080 Super can keep pace with AMD’s flagship graphics card, the Radeon RX 7900 XTX. In LuxMark and ComputeMark, our Nvidia card even managed to pull far ahead of the Radeon GPU. However, the results from PugetBench for Photoshop paint an entirely different picture.
3DMark 05 Standard | 87204 points | |
3DMark 06 Standard Score | 75879 points | |
3DMark Vantage P Result | 139305 points | |
3DMark 11 Performance | 59568 points | |
3DMark Ice Storm Standard Score | 326904 points | |
3DMark Cloud Gate Standard Score | 86716 points | |
3DMark Fire Strike Score | 46135 points | |
3DMark Fire Strike Extreme Score | 31656 points | |
3DMark Time Spy Score | 27079 points | |
Help |
Professional applications
Consumer graphics cards are suitable for professional use only to a limited extent. The reason for this is a lack of hardware support, which is primarily only reserved for professional graphics cards. Nonetheless, it’s still possible to use consumer GPUs for professional applications, albeit with performance loss. The new Super model similarly didn't surpass its predecessor by an appreciable margin here. You will get more performance from the Nvidia GeForce RTX 4090 or AMD RX 7900 series cards. Making a comparison with the Nvidia RTX 6000 Ada Generation (included in the table below) demonstrates what kind of performance can be achieved with a specialised workstation graphics card. AMD likewise offers workstation GPUs with their Radeon Pro models.
NVIDIA GeForce RTX 4080 Super i9-14900K | NVIDIA GeForce RTX 4090 i9-14900K | NVIDIA GeForce RTX 4080 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4060 Ti 16G R9 7950X | NVIDIA GeForce RTX 4060 R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 7900 GRE R9 7950X | AMD Radeon RX 6950 XT R9 7950X | AMD Radeon RX 7800 XT R9 7950X | AMD Radeon RX 7700 XT R9 7950X | AMD Radeon RX 7600 R9 7950X | NVIDIA RTX 6000 Ada Generation TR Pro 7995WX | Average of class | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPECviewperf 12 | 24% | -3% | -14% | -27% | -41% | -49% | 68% | 52% | 30% | 3% | 24% | 8% | -15% | 49% | -60% | |
1900x1060 3ds Max (3dsmax-05) | 485 | 565 16% | 502 4% | 436 -10% | 382 -21% | 290 -40% | 251 -48% | 553 14% | 502 4% | 444 -8% | 418 -14% | 427 -12% | 373 -23% | 279 -42% | 473 -2% | 192.2 ? -60% |
1900x1060 Catia (catia-04) | 238 | 291 22% | 221 -7% | 192 -19% | 161 -32% | 128 -46% | 113 -53% | 536 125% | 481 102% | 448 88% | 368 55% | 386 62% | 351 47% | 273 15% | 349 47% | 102.3 ? -57% |
1900x1060 Creo (creo-01) | 120 | 127 6% | 110 -8% | 99.4 -17% | 89.1 -26% | 73.4 -39% | 60.6 -49% | 187 56% | 176 47% | 155 29% | 163 36% | 148 23% | 123 3% | 115 -4% | 250 108% | 62.9 ? -48% |
1900x1060 Energy (energy-01) | 60.6 | 84.7 40% | 58.8 -3% | 48 -21% | 31.7 -48% | 22.6 -63% | 15.9 -74% | 85.2 41% | 72.4 19% | 40.3 -33% | 34.3 -43% | 38.4 -37% | 33.4 -45% | 25.5 -58% | 58.2 -4% | 14.6 ? -76% |
1900x1060 Maya (maya-04) | 317 | 340 7% | 309 -3% | 287 -9% | 284 -10% | 257 -19% | 233 -26% | 367 16% | 347 9% | 323 2% | 195 -38% | 304 -4% | 283 -11% | 236 -26% | 266 -16% | 105.4 ? -67% |
1900x1060 Medical (medical-01) | 202 | 303 50% | 171 -15% | 157 -22% | 132 -35% | 110 -46% | 82.4 -59% | 347 72% | 288 43% | 226 12% | 95.2 -53% | 200 -1% | 177 -12% | 128 -37% | 282 40% | 51.2 ? -75% |
1900x1060 Showcase (showcase-01) | 296 | 398 34% | 333 13% | 244 -18% | 190 -36% | 132 -55% | 109 -63% | 322 9% | 278 -6% | 222 -25% | 264 -11% | 235 -21% | 179 -40% | 127 -57% | 429 45% | 93.9 ? -68% |
1900x1060 Solidworks (sw-03) | 116 | 139 20% | 113 -3% | 118 2% | 109 -6% | 95.1 -18% | 91.2 -21% | 360 210% | 342 195% | 319 175% | 218 88% | 322 178% | 288 148% | 221 91% | 319 175% | 83.5 ? -28% |
SPECviewperf 13 | 22% | -0% | -15% | -29% | -44% | -52% | 54% | 36% | 37% | -4% | 29% | 12% | -17% | 54% | -55% | |
3ds Max (3dsmax-06) | 489 | 567 16% | 497 2% | 433 -11% | 381 -22% | 289 -41% | 252 -48% | 564 15% | 506 3% | 439 -10% | 416 -15% | 434 -11% | 371 -24% | 280 -43% | 496.95 2% | 183.9 ? -62% |
Catia (catia-05) | 345 | 428 24% | 340 -1% | 290 -16% | 241 -30% | 189 -45% | 163 -53% | 825 139% | 728 111% | 661 92% | 588 70% | 588 70% | 529 53% | 410 19% | 578.86 68% | 196.9 ? -43% |
Creo (creo-02) | 560 | 618 10% | 529 -6% | 455 -19% | 375 -33% | 301 -46% | 230 -59% | 613 9% | 567 1% | 470 -16% | 374 -33% | 442 -21% | 387 -31% | 294 -47% | 590.13 5% | 199.9 ? -64% |
Energy (energy-02) | 93.3 | 127 36% | 92.6 -1% | 72.8 -22% | 54.2 -42% | 45.3 -51% | 34.6 -63% | 187 100% | 147 58% | 150 61% | 60.8 -35% | 139 49% | 115 23% | 82.9 -11% | 230.06 147% | 35 ? -62% |
Maya (maya-05) | 750 | 881 17% | 678 -10% | 591 -21% | 510 -32% | 403 -46% | 343 -54% | 735 -2% | 670 -11% | 580 -23% | 460 -39% | 548 -27% | 487 -35% | 333 -56% | 637.3 -15% | 260 ? -65% |
Medical (medical-02) | 144 | 180 25% | 150 4% | 132 -8% | 112 -22% | 85.1 -41% | 76.5 -47% | 263 83% | 237 65% | 372 158% | 332 131% | 300 108% | 226 57% | 331.9 130% | 74.5 ? -48% | |
Showcase (showcase-02) | 295 | 400 36% | 334 13% | 244 -17% | 191 -35% | 133 -55% | 108 -63% | 323 9% | 279 -5% | 221 -25% | 264 -11% | 234 -21% | 179 -39% | 127 -57% | 430.2 46% | 117.8 ? -60% |
Solidworks (sw-04) | 185 | 199 8% | 179 -3% | 168 -9% | 157 -15% | 135 -27% | 127 -31% | 323 75% | 307 66% | 287 55% | 254 37% | 294 59% | 265 43% | 195 5% | 278 50% | 118.5 ? -36% |
SPECviewperf 2020 | 50% | -0% | -15% | -29% | -45% | -55% | 50% | 29% | 48% | -16% | 31% | 13% | -19% | 140% | -44% | |
3840x2160 Medical (medical-03) | 28.4 | 40.3 42% | 32.2 13% | 26.9 -5% | 22.2 -22% | 16.5 -42% | 13.7 -52% | 62.3 119% | 53.9 90% | 76.1 168% | 35 23% | 63.7 124% | 56.2 98% | 36.1 27% | 79 178% | 19.8 ? -30% |
3840x2160 Energy (energy-03) | 93.6 | 230 146% | 90.4 -3% | 75.7 -19% | 57.6 -38% | 44.9 -52% | 33.2 -65% | 129 38% | 99.6 6% | 133 42% | 69.3 -26% | 111 19% | 95 1% | 67 -28% | 457 388% | 47.9 ? -49% |
3840x2160 Creo (creo-03) | 138 | 148 7% | 128 -7% | 121 -12% | 112 -19% | 95.9 -31% | 85.9 -38% | 187 36% | 173 25% | 159 15% | 92.4 -33% | 151 9% | 130 -6% | 106 -23% | 191 38% | 77.4 ? -44% |
3840x2160 CATIA (catia-06) | 75.9 | 97.1 28% | 75.5 -1% | 61.2 -19% | 51.6 -32% | 38.5 -49% | 34 -55% | 127 67% | 113 49% | 107 41% | 59.7 -21% | 101 33% | 88.8 17% | 68 -10% | 139 83% | 46.6 ? -39% |
3840x2160 3ds Max (3dsmax-07) | 185 | 236 28% | 179 -3% | 147 -21% | 122 -34% | 88.8 -52% | 67.4 -64% | 167 -10% | 143 -23% | 134 -28% | 140 -24% | 125 -32% | 106 -43% | 72.9 -61% | 207 12% | 79.8 ? -57% |
Total Average (Program / Settings) | 32% /
29% | -1% /
-1% | -15% /
-15% | -28% /
-28% | -43% /
-43% | -52% /
-52% | 57% /
58% | 39% /
40% | 38% /
37% | -6% /
-4% | 28% /
27% | 11% /
11% | -17% /
-16% | 81% /
73% | -53% /
-54% |
Gaming performance
As in the synthetic benchmarks, the KFA2 GeForce RTX 4080 Super SG also didn't outperform the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition in our gaming tests. The review unit often ended up behind the Zotac card, though their performance is more or less comparable. What’s disappointing is the performance gain over the KFA2 GeForce RTX 4080 SG, which is just in the single-digit percentage range. This means we are a long way from getting any meaningful differences. But the lower price tag is an argument for the new Super model. If you can find an “old” Nvidia GeForce RTX 4080 for a good price at a clearance sale, it really isn’t necessary to go for the new Super card.
All the games used in our testing ran smoothly at 2160p and max settings. But this was already the case with the predecessor. The GeForce RTX 4080 Super is still fitted with only 16 GB of VRAM, which puts it at a disadvantage compared with AMD cards. Both the Radeon RX 7900 XT and the RX 7900 XTX offer significantly more video memory at 20 GB and 24 GB respectively. Right now, it’s worth taking a look at AMD because the company recently adjusted their GPU prices downwards. An AMD Radeon RX 7900 XTX may thus be a sensible option, considering various models are selling for as low as approx. €950 (US$1,025) at retailers.
Ray tracing, DLSS and Frame Generation
For those who don’t want to forgo features like ray tracing, Nvidia graphics cards currently provide better performance than their AMD counterparts. The KFA2 GeForce RTX 4080 Super SG boasts over 80 RT cores and thus offers slightly more performance than its non-Super predecessor. There are also 320 Tensor cores on board, which are required for DLSS and can significantly improve frame rates. If you want to use real-time ray tracing at 2160p resolution, it is essential to do so in combination with DLSS. Frame Generation is another way offered by Nvidia to increase frame rates. AMD’s FidelityFX Super Resolution 3 (FSR 3) is an alternative to DLSS and can even be used by Nvidia GPU. By contrast, DLSS is only available on Nvidia’s 20 series graphics cards and above.
Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 Ti SG | |
AMD Radeon RX 7900 XTX | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia Titan RTX | |
AMD Radeon RX 6800 | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super |
Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
Palit GeForce RTX 4090 GameRock OC | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
AMD Radeon RX 7900 XTX | |
Asus TUF Gaming GeForce RTX 4070 Ti Super | |
KFA2 GeForce RTX 4070 Ti SG | |
AMD Radeon RX 7900 XT | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 6750 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super |
Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4080 Super SG | |
Asus TUF Gaming GeForce RTX 4070 Ti Super | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7900 GRE | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 Ti SG | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 7700 XT | |
Sapphire Pulse Radeon RX 6750 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super |
The Callisto Protocol - 1920x1080 Ultra Preset (without FSR Upscaling) + Full Ray-Tracing | |
KFA2 GeForce RTX 4080 Super SG | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7900 XTX | |
Asus TUF Gaming GeForce RTX 4070 Ti Super | |
Sapphire Pulse Radeon RX 7700 XT | |
Palit GeForce RTX 4090 GameRock OC | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 7900 XT | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 Ti SG | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia Titan RTX | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6750 XT |
Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 7800 XT | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition |
Returnal | |
1920x1080 Epic Preset + Epic Ray-Tracing | |
Palit GeForce RTX 4090 GameRock OC | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
Nvidia Titan RTX | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6800 | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
3840x2160 Epic Preset + Epic Ray-Tracing | |
Palit GeForce RTX 4090 GameRock OC | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
Nvidia Titan RTX | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6800 | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition |
F1 23 - 1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (1038401) | |
Palit GeForce RTX 4090 GameRock OC (1022189) | |
KFA2 GeForce RTX 4080 Super SG (1070925) | |
Asus TUF Gaming GeForce RTX 4070 Ti Super (1057599) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
AMD Radeon RX 7800 XT (1022189) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
Nvidia Titan RTX (1021115) | |
Sapphire Pulse Radeon RX 7700 XT (1026791) | |
AMD Radeon RX 6800 (1016022) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1026791) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) |
Star Wars Jedi Survivor - 1920x1080 Epic Preset + Ray Tracing | |
Palit GeForce RTX 4090 GameRock OC | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia Titan RTX | |
AMD Radeon RX 6800 | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super |
Hogwarts Legacy - 1920x1080 Ultra Preset + Full Ray Tracing AA:High T | |
KFA2 GeForce RTX 4080 Super SG | |
Palit GeForce RTX 4090 GameRock OC | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
Nvidia Titan RTX | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6800 | |
Nvidia GeForce RTX 2070 Super | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition |
Ghostwire Tokyo - 1920x1080 Highest Settings + Maximum Ray Tracing | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
Asus TUF Gaming GeForce RTX 4070 Ti Super | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 Ti SG | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7800 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia Titan RTX | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super |
Ratchet & Clank Rift Apart | |
1920x1080 Very High Preset + Very High Raytracing AA:T | |
Palit GeForce RTX 4090 GameRock OC | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
AMD Radeon RX 7800 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia Titan RTX | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 7700 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
3840x2160 Very High Preset + Very High Raytracing + DLSS Quality + FG | |
Palit GeForce RTX 4090 GameRock OC | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
ASUS Dual GeForce RTX 4060 Ti OC |
Assassin's Creed Mirage - 3840x2160 Ultra High Preset (Adaptive Quality Off) + DLSS Quality | |
Palit GeForce RTX 4090 GameRock OC | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
Asus TUF Gaming GeForce RTX 4070 Ti Super | |
Nvidia Titan RTX | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super |
Avatar Frontiers of Pandora - 3840x2160 Ultra Preset + Quality DLSS | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
Asus TUF Gaming GeForce RTX 4070 Ti Super | |
Nvidia Titan RTX | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super |
EA Sports WRC - 3840x2160 Ultra Preset + Quality DLSS AA:Epic AF:16x | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
Nvidia Titan RTX | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super |
Alan Wake 2 | |
1920x1080 High Preset + High Ray Tracing | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
Asus TUF Gaming GeForce RTX 4070 Ti Super | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
3840x2160 High Preset + High Ray Tracing + Quality DLSS + FG | |
KFA2 GeForce RTX 4080 Super SG | |
Asus TUF Gaming GeForce RTX 4070 Ti Super | |
Palit GeForce RTX 4090 GameRock OC |
low | med. | high | ultra | QHD | 4K DLSS | 4K FSR | 4K | |
GTA V (2015) | 188.1 | 187.8 | 187.5 | 171.3 | 168.8 | 187 | ||
The Witcher 3 (2015) | 790 | 730 | 547 | 263 | 221 | 204 | ||
Dota 2 Reborn (2015) | 296 | 267 | 257 | 236 | 233 | |||
Assassin´s Creed Origins (2017) | 260 | 243 | 234 | 206 | 173 | 118 | ||
Final Fantasy XV Benchmark (2018) | 235 | 233 | 232 | 203 | 120.6 | |||
X-Plane 11.11 (2018) | 255 | 223 | 167.2 | 141.4 | ||||
Far Cry 5 (2018) | 270 | 237 | 227 | 212 | 208 | 146 | ||
Strange Brigade (2018) | 762 | 614 | 570 | 527 | 397 | 201 | ||
Shadow of the Tomb Raider (2018) | 332 | 313 | 312 | 301 | 252 | 136.2 | ||
Forza Horizon 4 (2018) | 369 | 344 | 342 | 322 | 306 | 305 | ||
Assassin´s Creed Odyssey (2018) | 228 | 231 | 209 | 156 | 132 | 93 | ||
Far Cry New Dawn (2019) | 228 | 198 | 191 | 173 | 171 | 141 | ||
Metro Exodus (2019) | 243 | 262 | 223 | 186.1 | 161.8 | 106 | ||
Anno 1800 (2019) | 202 | 192.9 | 160.2 | 86.7 | 82.7 | 64.3 | ||
Control (2019) | 238 | 238 | 237 | 167.5 | 98 | 84.6 | ||
Borderlands 3 (2019) | 257 | 226 | 207 | 195.8 | 170.9 | 98 | ||
F1 2020 (2020) | 605 | 501 | 498 | 423 | 345 | 206 | ||
Death Stranding (2020) | 240 | 240 | 240 | 240 | 239 | 153.8 | ||
Horizon Zero Dawn (2020) | 304 | 277 | 258 | 243 | 212 | 169 | 120 | |
Dirt 5 (2020) | 276 | 220 | 171 | 149 | 149 | 146 | ||
Assassin´s Creed Valhalla (2020) | 332 | 279 | 234 | 207 | 164 | 98 | ||
F1 2021 (2021) | 728 | 682 | 582 | 300 | 253 | 147.1 | ||
Far Cry 6 (2021) | 250 | 231 | 203 | 197.5 | 181 | 114.3 | ||
Guardians of the Galaxy (2021) | 250 | 251 | 252 | 243 | 242 | 147 | ||
Forza Horizon 5 (2021) | 382 | 301 | 280 | 193 | 174 | 130 | ||
God of War (2022) | 274 | 268 | 233 | 165.7 | 138.9 | 100.6 | ||
GRID Legends (2022) | 279 | 250 | 230 | 222 | 207 | 164.9 | ||
Cyberpunk 2077 1.6 (2022) | 251 | 246 | 238 | 220 | 127.4 | 61.2 | ||
Ghostwire Tokyo (2022) | 319 | 315 | 313 | 307 | 278 | 128.4 | ||
Tiny Tina's Wonderlands (2022) | 482 | 409 | 305 | 242 | 172.6 | 92.3 | ||
F1 22 (2022) | 463 | 457 | 407 | 176.9 | 120.6 | 59.8 | ||
The Quarry (2022) | 384 | 293 | 255 | 208 | 149.4 | 82.8 | ||
A Plague Tale Requiem (2022) | 243 | 211 | 164.4 | 132.1 | 101.6 | 110.6 | 58.1 | |
Uncharted Legacy of Thieves Collection (2022) | 158.1 | 158.6 | 154 | 154.5 | 130.8 | 80.8 | ||
Spider-Man Miles Morales (2022) | 219 | 209 | 189.6 | 188.5 | 186.7 | 116.4 | ||
The Callisto Protocol (2022) | 286.4 | 266.6 | 258.5 | 206.3 | 167.8 | 110.5 | ||
Need for Speed Unbound (2022) | 282 | 275 | 249 | 223 | 182.7 | 105.9 | ||
High On Life (2023) | 466 | 404 | 329 | 278 | 177.3 | 76.7 | ||
The Witcher 3 v4.00 (2023) | 370 | 316 | 284 | 262 | 231 | 119.6 | ||
Dead Space Remake (2023) | 233 | 225 | 198.4 | 197.3 | 136.8 | 67.7 | ||
Hogwarts Legacy (2023) | 207 | 188.9 | 165.1 | 152 | 110.3 | 67 | ||
Returnal (2023) | 228 | 224 | 208 | 182 | 140 | 87 | ||
Atomic Heart (2023) | 300 | 285 | 226 | 183.7 | 143.3 | 84.8 | ||
Company of Heroes 3 (2023) | 380.3 | 345.6 | 293.5 | 293.2 | 238.8 | 151.3 | ||
Sons of the Forest (2023) | 146 | 142.2 | 138.1 | 136 | 133 | 104.2 | ||
Resident Evil 4 Remake (2023) | 348 | 293 | 276 | 195.6 | 154.6 | 88.9 | ||
The Last of Us (2023) | 230 | 204 | 189.8 | 172.5 | 120.9 | 100.8 | 61.8 | |
Dead Island 2 (2023) | 363 | 351 | 308 | 273 | 227 | 122.7 | ||
Star Wars Jedi Survivor (2023) | 189 | 184.9 | 172 | 171 | 117.6 | 57.3 | ||
Diablo 4 (2023) | 400 | 400 | 398 | 394 | 293 | 198.3 | 153 | |
F1 23 (2023) | 449 | 491 | 442 | 170.3 | 111.4 | 96.1 | 54.5 | |
Ratchet & Clank Rift Apart (2023) | 224 | 229 | 197.3 | 169.3 | 144.3 | 92.6 | ||
Baldur's Gate 3 (2023) | 247 | 243 | 238 | 233 | 186.7 | 160.2 | 101.2 | |
Atlas Fallen (2023) | 200 | 199.9 | 199.9 | 199.8 | 199 | 121.7 | ||
Immortals of Aveum (2023) | 149.3 | 131.2 | 120 | 89.9 | 109.2 | 53.5 | ||
Armored Core 6 (2023) | 119.7 | 119.9 | 119.8 | 119.9 | 114.1 | 110.2 | ||
Starfield (2023) | 160.8 | 149.9 | 127.3 | 118.7 | 99.8 | 67.8 | ||
Lies of P (2023) | 416 | 382 | 340 | 313 | 235 | 191.5 | 123 | |
Cyberpunk 2077 2.0 Phantom Liberty (2023) | 246 | 242 | 214 | 189.5 | 123 | 116.9 | 55 | |
Counter-Strike 2 (2023) | 351 | 344 | 341 | 336 | 274 | 152.4 | ||
Assassin's Creed Mirage (2023) | 278 | 258 | 246 | 201 | 164 | 138 | 102 | |
Total War Pharaoh (2023) | 640.5 | 412.6 | 286.2 | 234.3 | 213.5 | 120.2 | ||
Lords of the Fallen (2023) | 202 | 173.5 | 135.8 | 103.1 | 73.9 | 73.1 | 40.5 | |
Alan Wake 2 (2023) | 164.1 | 162 | 151.3 | 107.5 | 73.4 | 58.6 | ||
EA Sports WRC (2023) | 306 | 208 | 191.4 | 187.4 | 158.6 | 131.6 | 91.9 | |
Call of Duty Modern Warfare 3 2023 (2023) | 368 | 326 | 269 | 253 | 196 | 146 | 133 | |
Avatar Frontiers of Pandora (2023) | 212 | 194 | 171 | 136 | 93 | 83 | 49 | |
The Finals (2023) | 430 | 381 | 389 | 322 | 213 | 167.8 | 103.1 | |
Ready or Not (2023) | 526 | 384 | 370 | 321 | 210 | 166.7 | 96.3 | |
Prince of Persia The Lost Crown (2024) | 359 | 359 | 359 | 359 | 358 | |||
Palworld (2024) | 240 | 238 | 226 | 222 | 180.9 | 140.4 | 103.6 | |
Enshrouded (2024) | 183.2 | 164.6 | 143.5 | 125.7 | 100.9 | 89.8 | 87.8 | 63.1 |
Helldivers 2 (2024) | 214 | 202 | 199.1 | 196.7 | 165.8 | 99.4 |
Emissions - Massive cooler with four fans
Noise emissions
KFA2 has given the GeForce RTX 4080 Super SG a colossal heat sink with three 120 mm fans. An optional fan of the same size can be attached to the back of the card. Depending on the mounting method and hardware used, you may encounter compatibility issues that prevent the use of the optional fan. During our testing, we mounted the GPU vertically and didn’t experience any problems using the extra fan on the rear. One positive thing to highlight is the fan-stop mode, which allows the graphics card to run silently in 2D applications.
To determine how loud the graphics card runs, we installed the KFA2 GeForce RTX 4080 Super SG in our open test rig for noise measurement. As mentioned earlier, the fans don’t run at idle, enabling silent operation. The fans spin slowly at low load; in our testing, the review unit was barely audible at 26.7 dB(A). But the four fans revved up a decent amount during the stress test, and we measured a peak noise level of 44.3 dB(A). This means the graphics card is audible even when inside a closed case. Thanks to the fan frequencies, the noise level sounds somewhat quieter to the ears. We didn’t notice any annoying whistling or coil whine coming from our review unit.
Noise Level
Idle |
| 25.9 / 25.9 / 26 dB(A) |
Load |
| 26.7 / 44.3 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25.5 dB(A) |
Temperatures and power usage

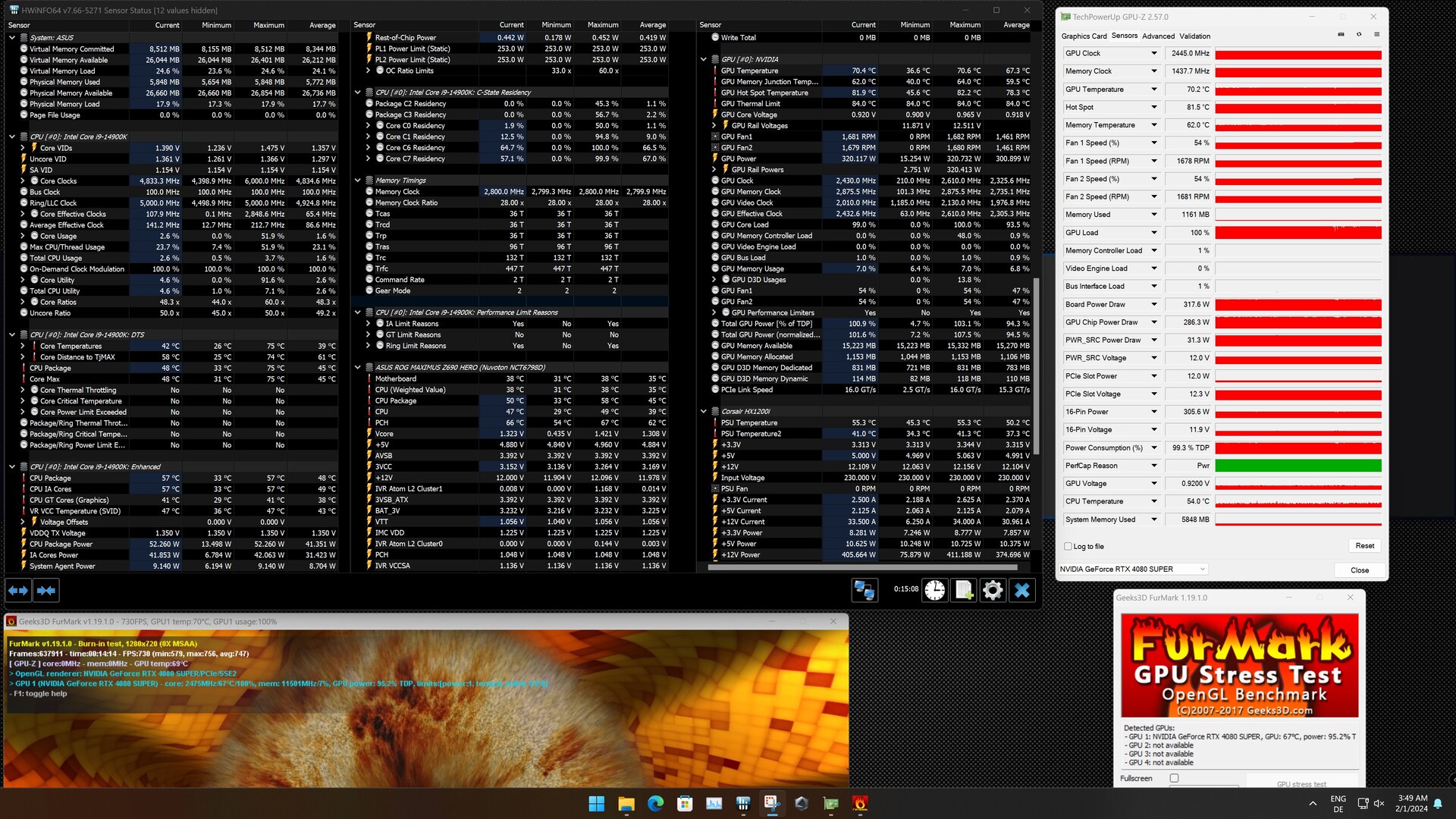

The KFA2 GeForce RTX 4080 Super SG was able to sustain peak performance during our stress test. However, we saw a max GPU hotspot temperature of 82°C (179.6°F), which caught our attention immediately given how large the cooler is. But the competing product from Zotac got even warmer at 85°C (185°F) in our testing. All in all, our review unit ran slightly cooler than the Zotac model on average. The graphics chip itself reached just a little higher than 70°C (158°F), whilst the VRAM only reached 64°C (147.2°F) according to HWiNFO.

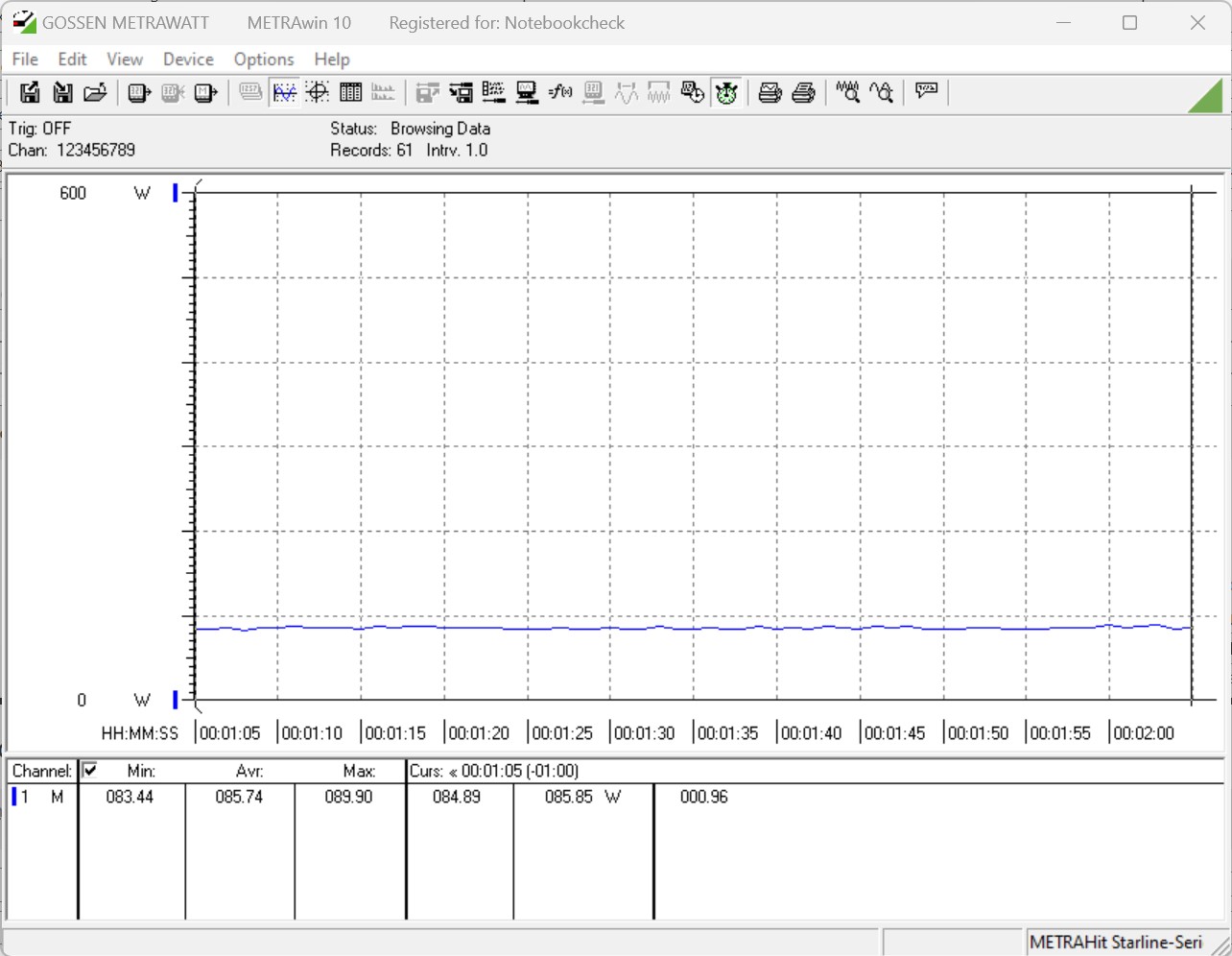

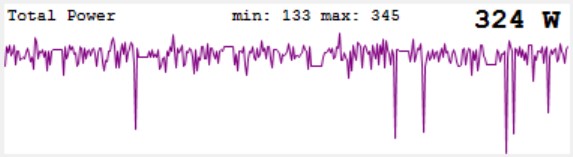

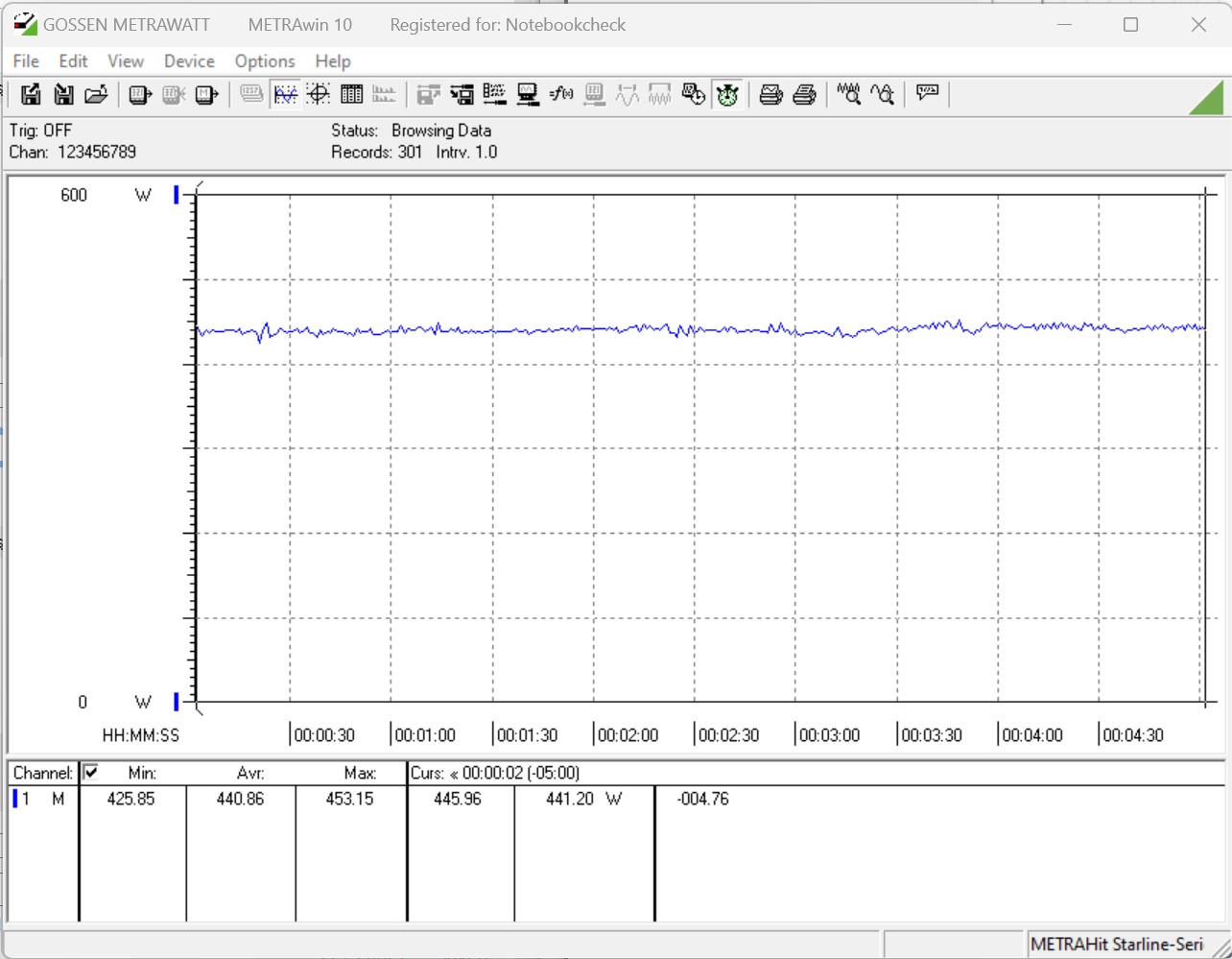

Up next, we’re going to turn our attention to the test system’s power consumption: at the mains socket, we measured an average power draw of 441 watts and 489 watts during the stress test and gaming test respectively. We also evaluated the GPU’s power consumption separately using the ElmorLabs PMD (power measurement device): the KFA2 GeForce RTX 4080 Super SG exhibited brief power spikes of up to 431 watts. In light of this, it is understandable why the manufacturer recommends using at least a 750-watt power supply made to the latest ATX 3.0 specifications.
Power Consumption / The Witcher 3 ultra (external Monitor) | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 Super SG | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7800 XT | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4080 Super SG | |
AMD Radeon RX 7900 GRE | |
Sapphire Pulse Radeon RX 6750 XT | |
AMD Radeon RX 7800 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4080 Super SG | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 |
* ... smaller is better

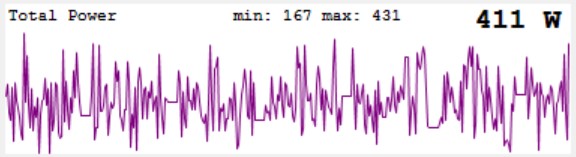

Power consumption with external monitor
Pros
Cons
Verdict - Massive RTX 4080 Super with tons of RGB
With the KFA2 GeForce RTX 4080 Super SG, the manufacturer has made product update simple for themselves. The graphics card is visually identical to its predecessor. There are only minor changes to the specs that go hand in hand with utilising the entire die of the AD103 graphics chip. Whilst the KFA2 GeForce RTX 4080 Super SG got a slight performance boost, it doesn’t translate to a subjectively noticeable improvement. But things look different when put in relation to the price, because the newer model launched at a much lower RRP than the non-Super model. As a result, it’s possible to overlook at the relatively small performance jump.

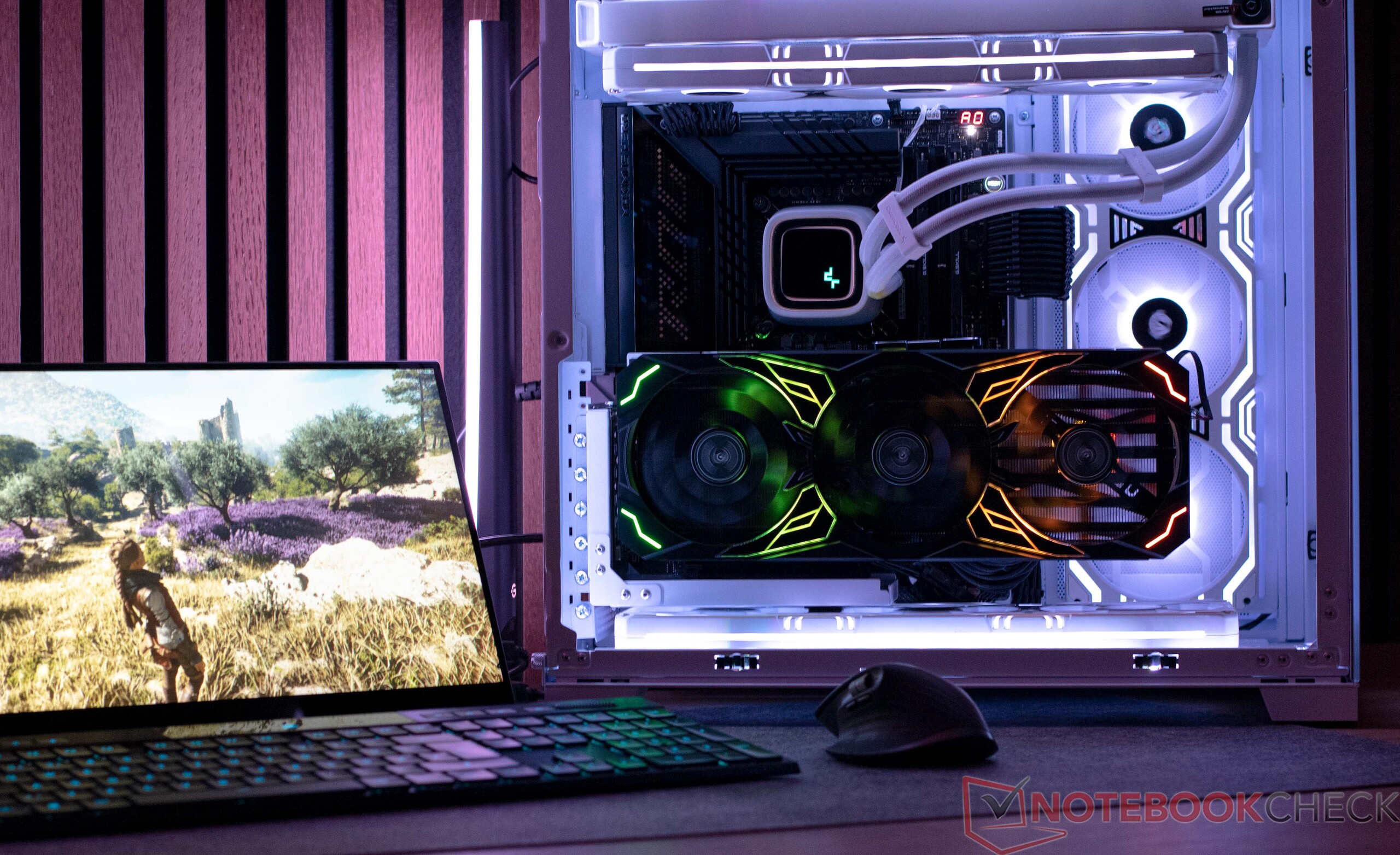

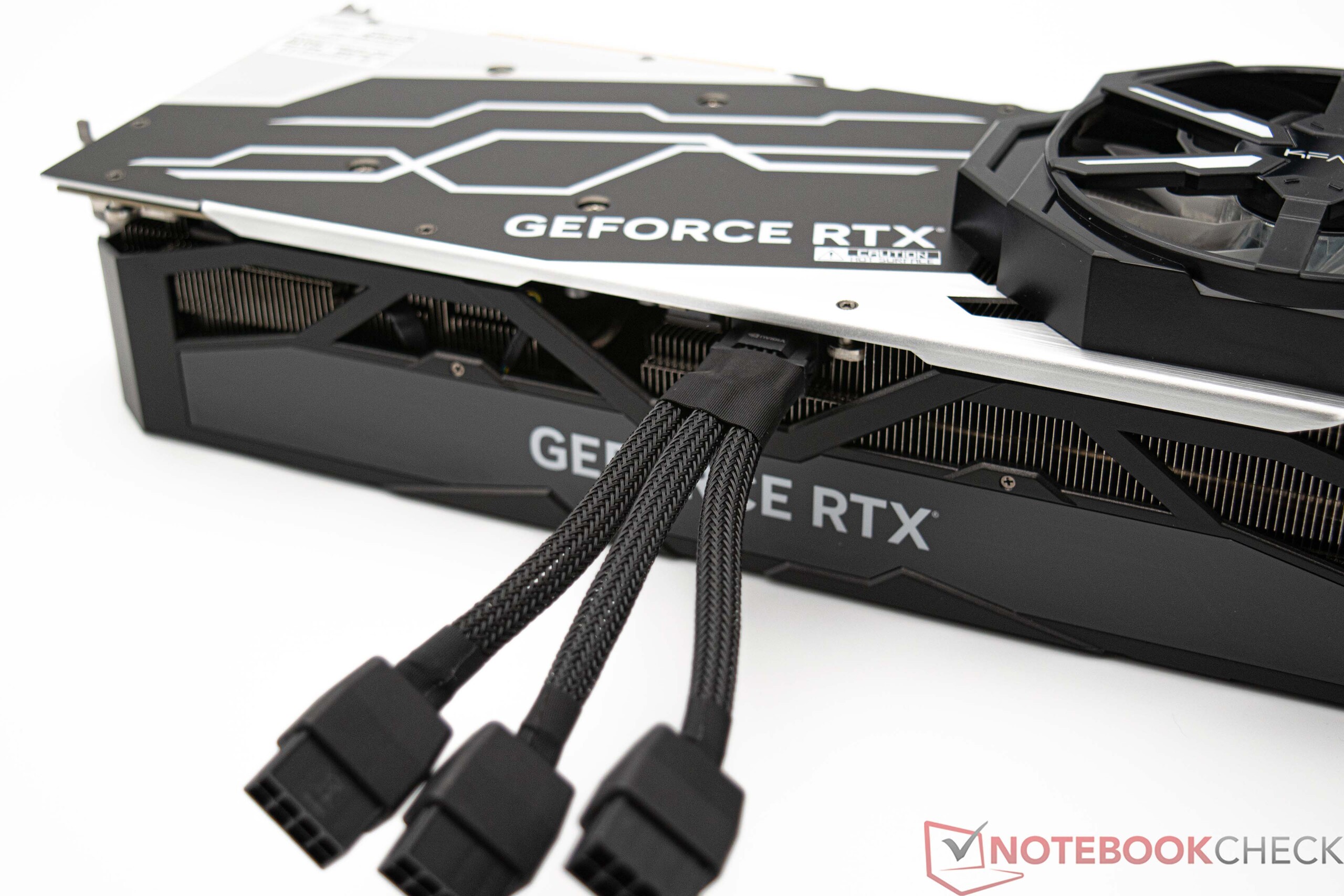

The KFA2 GeForce RTX 4080 Super SG has impeccable build quality. Of course, the card’s size carries a few issues with it. Measuring slightly longer than 35 cm (13.8 inches), the graphics card can’t fit in every PC case. The already familiar design stands out with stylish RGB lighting that you can also conveniently control using a smartphone app.
The KFA2 GeForce RTX 4080 Super SG is a snappy graphics card for 4K gaming. Together with its snazzy RGB lighting, the card is also a treat for the eyes.
The review sample from KFA2 impressed us throughout our review with its great and consistent performance. For the most part, the graphics card falls just behind the Nividia RTX 4090 and is thus faster than AMD’s current flagship, the Radeon RX 7900 XTX. Enabling ray tracing further widens the gap between Team Green and Team Red. Nvidia is able to pull ahead considerably in this area; whoever doesn’t want to miss out on ray tracing should go for an Nvidia graphics card. With an RRP of €1,249 (US$1,346), the KFA2 GeForce RTX 4080 Super SG isn’t able to keep up with an AMD Radeon RX 7900 XTX as far as price goes. The Radeon GPU can already be had for about €950 (US$1,024). It is also equipped with 24 GB of VRAM, whereas Nvidia still insists on sticking to 16 GB.
Price and availability
The KFA2 GeForce RTX Super SG is available from Notebooksbilliger or MediaMarkt at an RRP of €1,249 (US$1,346). In other regions, the graphics card is known as the GALAX GeForce RTX 4080 Super SG 1-Click OC.
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
