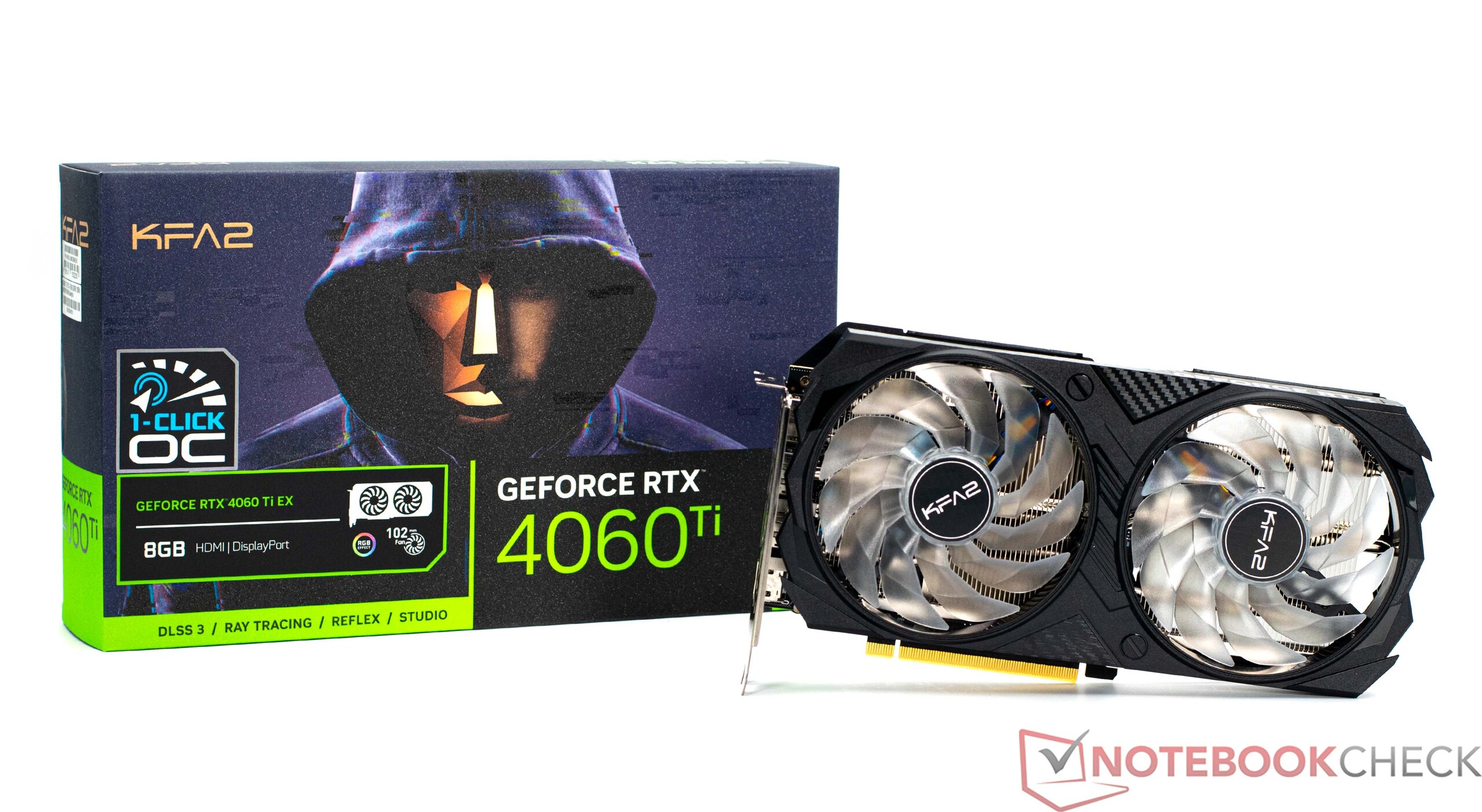

MagyarKFA2 GeForce RTX 4060 Ti EX graphics card review: A compact mid-range GPU with great features and sleek lighting
We recently tested the Nvidia GeForce RTX 4060 Ti's performance in the shape of an MSI GeForce RTX 4060 Ti Gaming X Trio 8G. At the time, it already became clear that the VRAM, with its 8 GB, is currently only partially sufficient enough to play modern games reliably, smoothly and with maximum detail settings. The GeForce RTX 4060 Ti EX, which we will be testing in this review, may well succumb to the same weakness, as this model also "only" features 8 GB VRAM. Graphics cards based on AD106 chips and with more VRAM have already been announced, but as of yet, these are not officially available to buy.

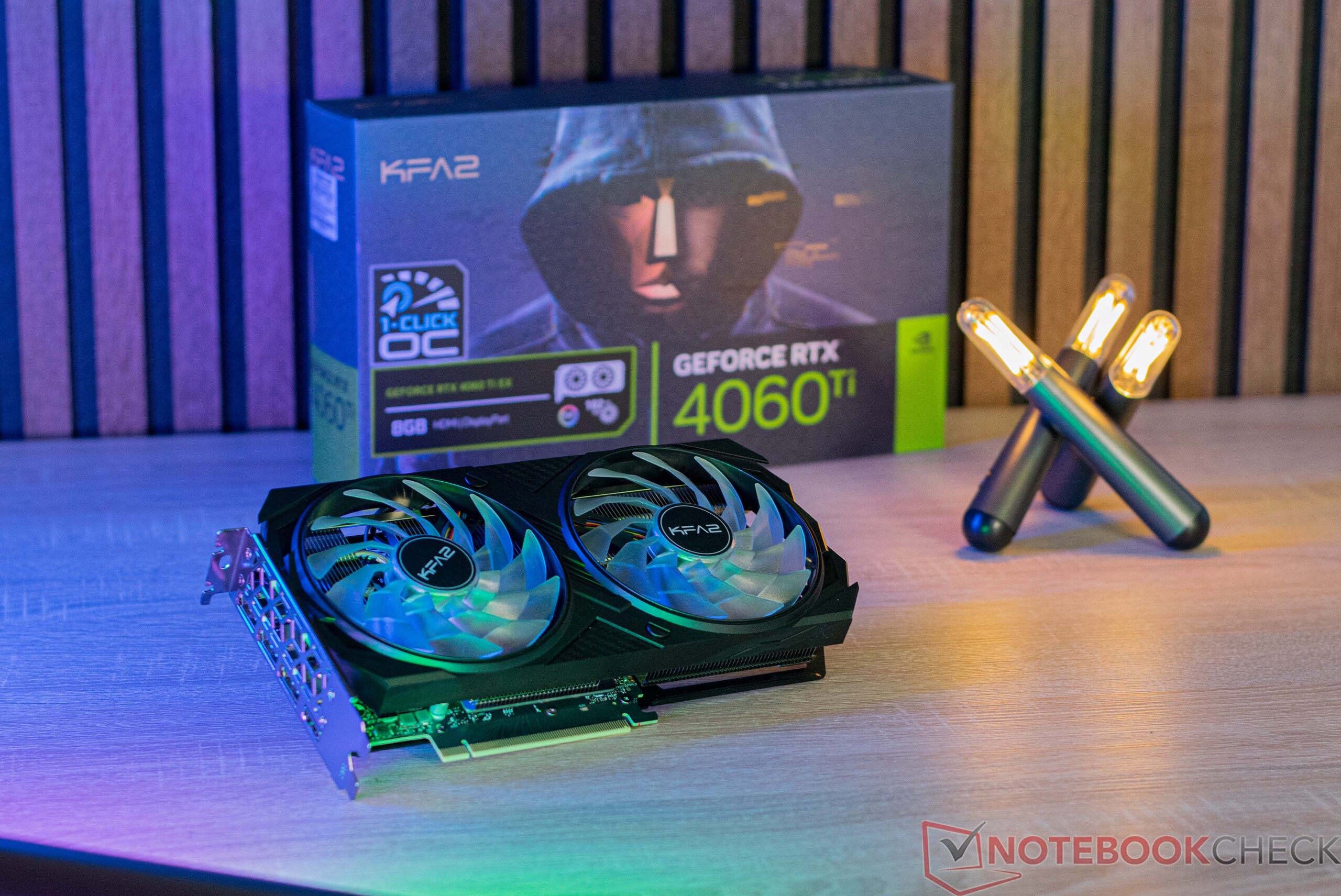

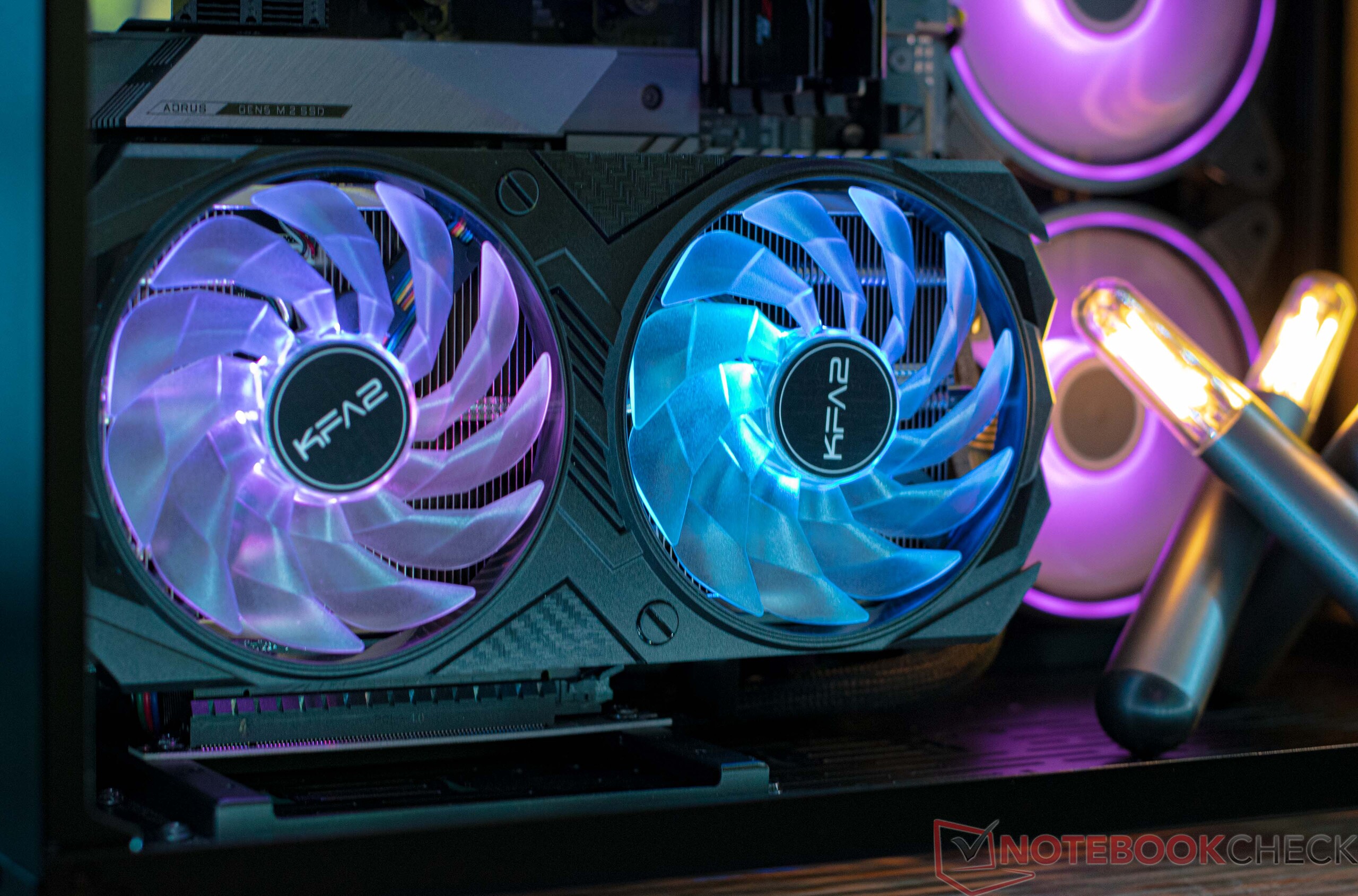

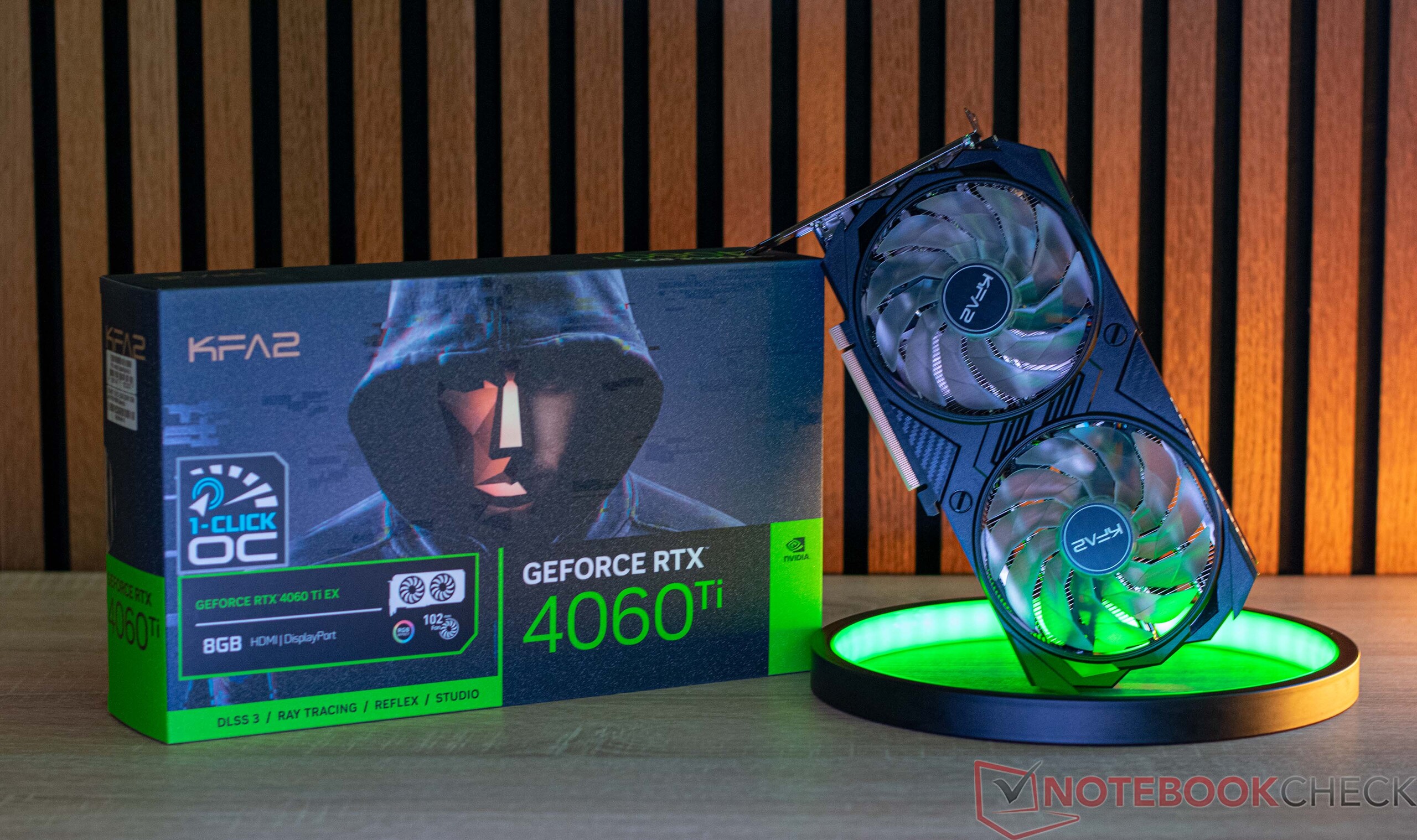

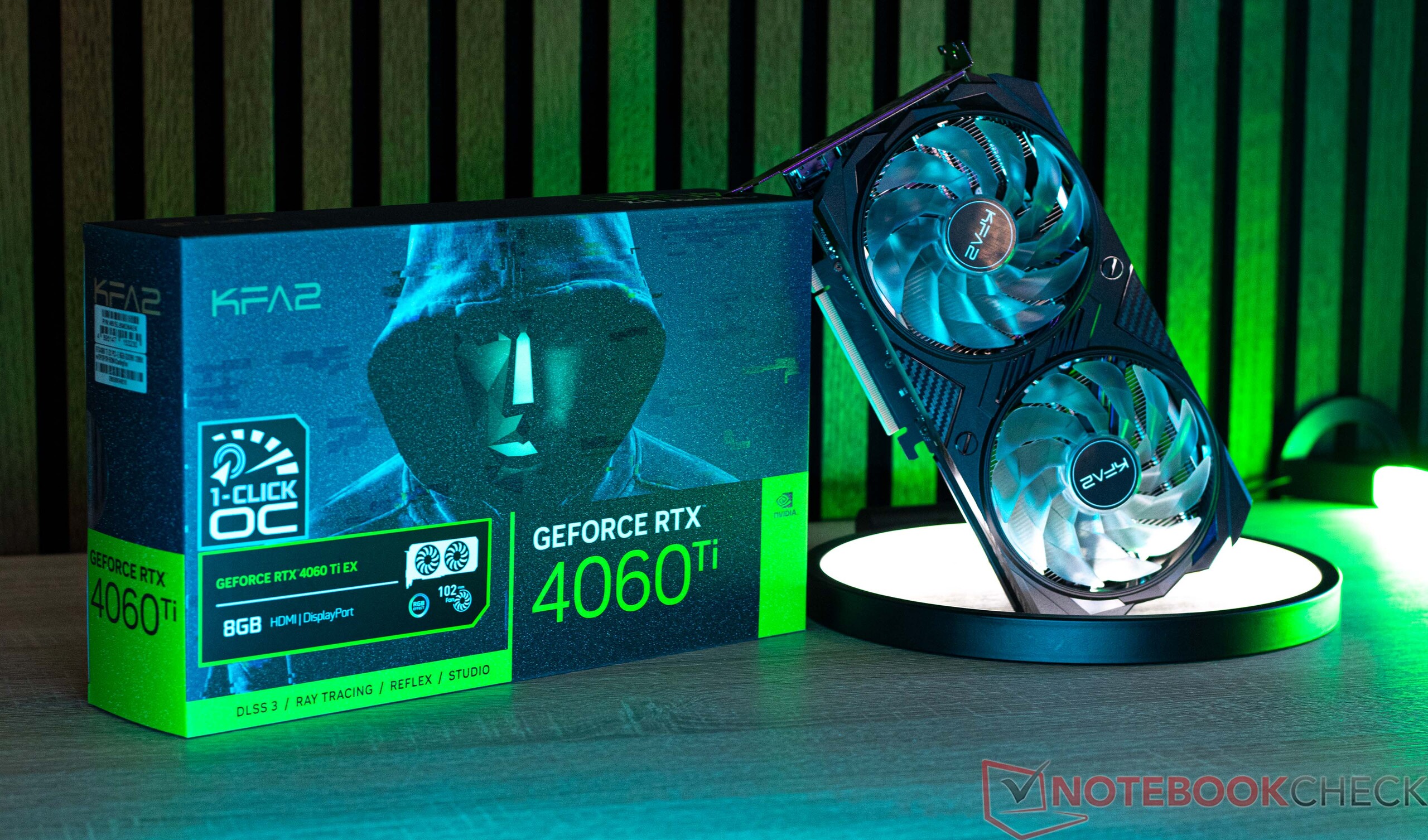

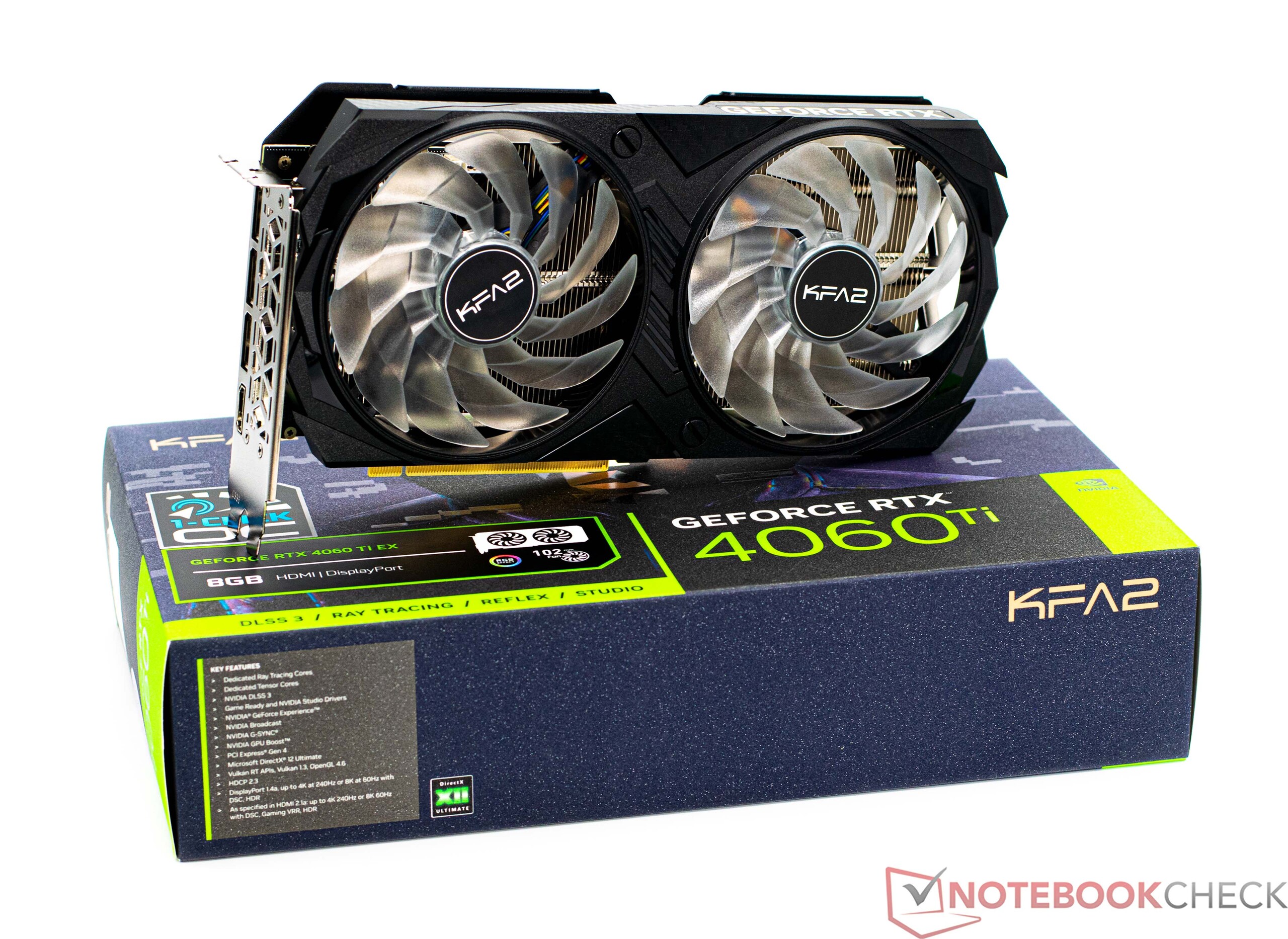

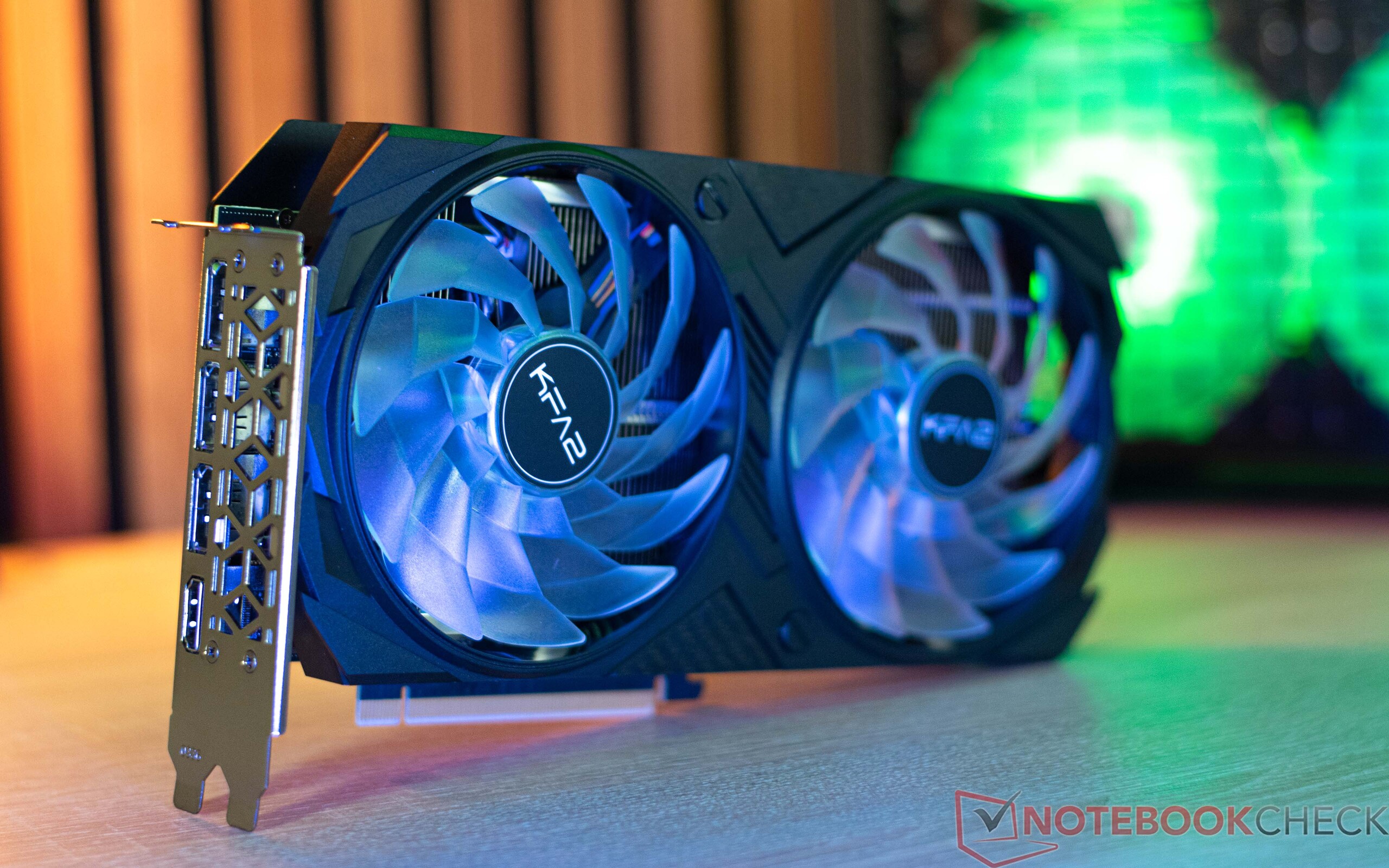

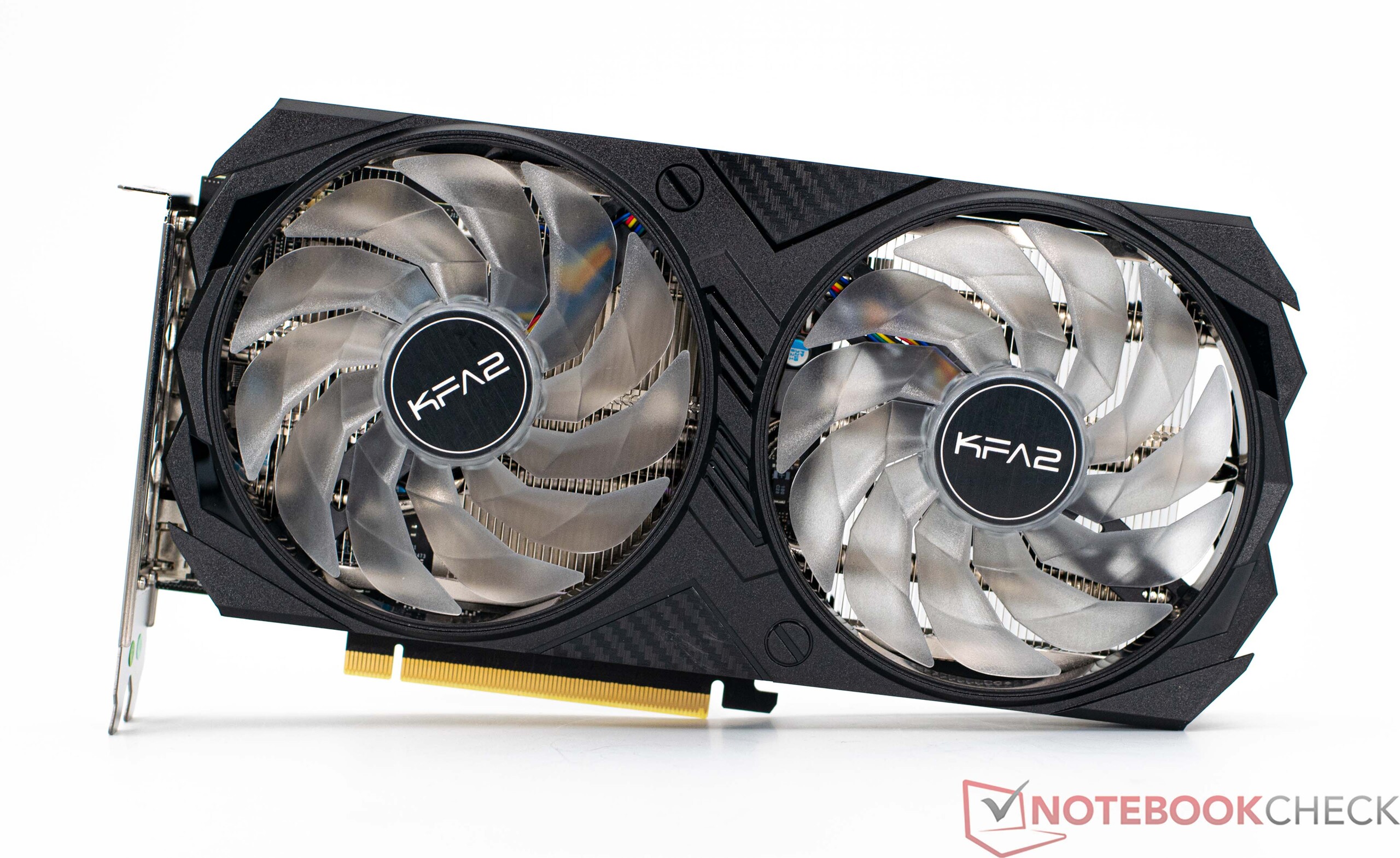

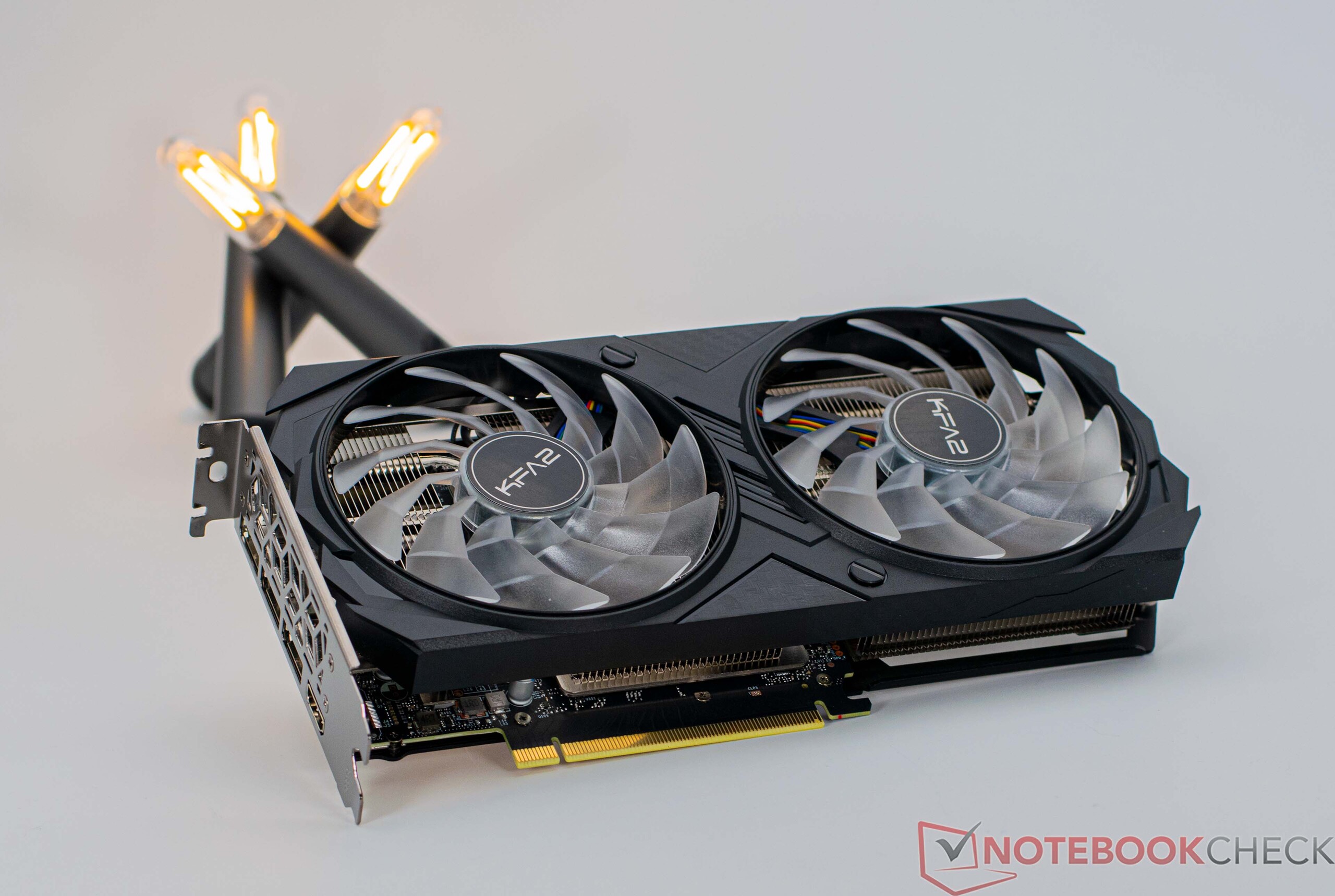

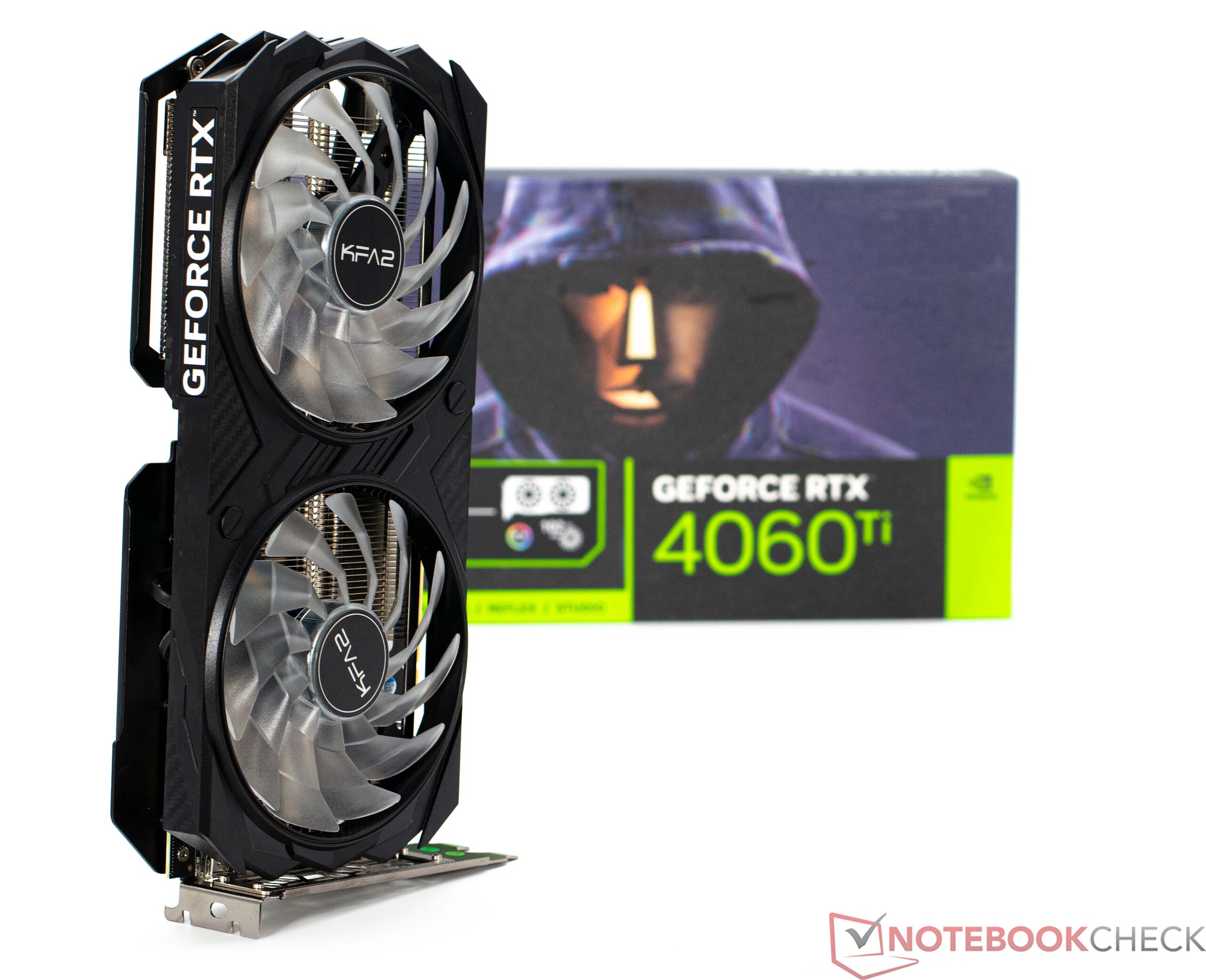

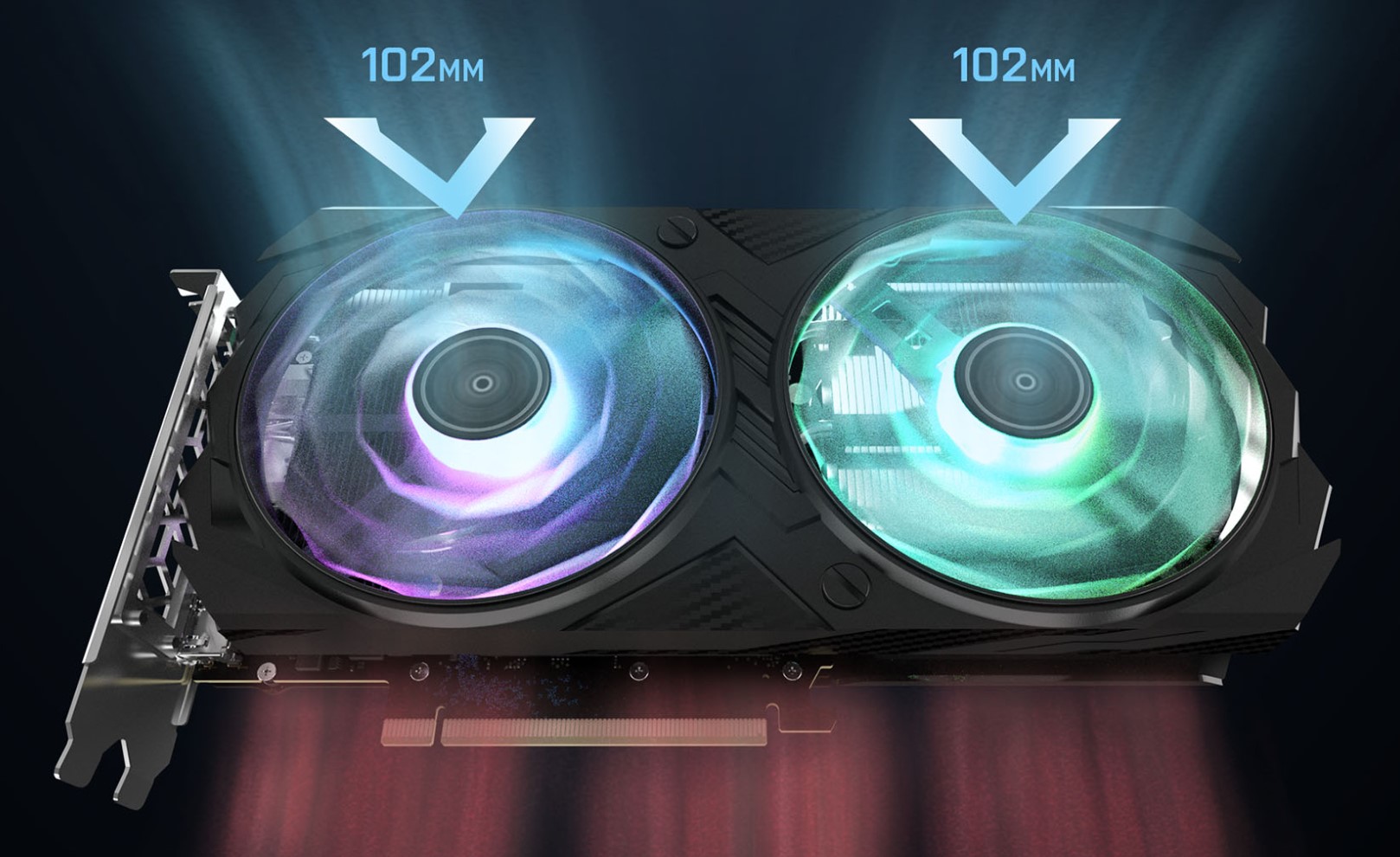

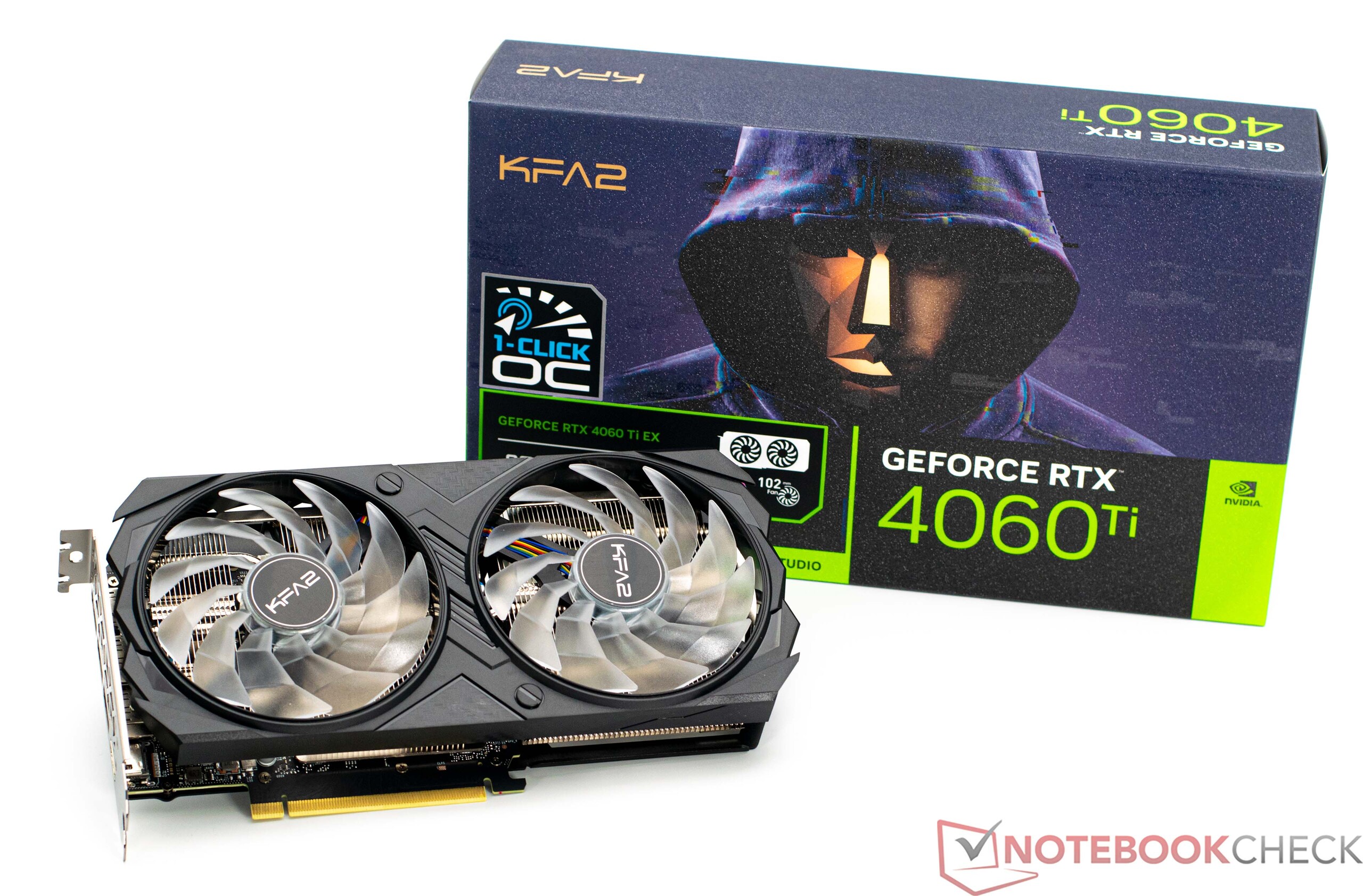

Our test sample made by KFA2 is considerably smaller than the MSI GeForce RTX 4060 Ti Gaming X Trio 8G, and as a result, it faces far fewer problems when it comes to squeezing into smaller cases. In addition, the 25-centimetre long graphics card only has a 2-slot cooler. This means that adjacent PCIe slots can still be used and aren't blocked by a large cooling unit. We saw no deviations in power consumption, meaning KFA2's model also has to make do with 160 watts. Due to its low power consumption, the power supply isn't faced with any difficult challenges. Different to the Founders Edition of the GeForce RTX 4060 Ti, the KFA2 GeForce RTX 4060 Ti EX utilizes the well-known and commonly used 6+2 pin PCIe power adapter. The reference model from Nvidia is equipped with a 12VHPWR connection.

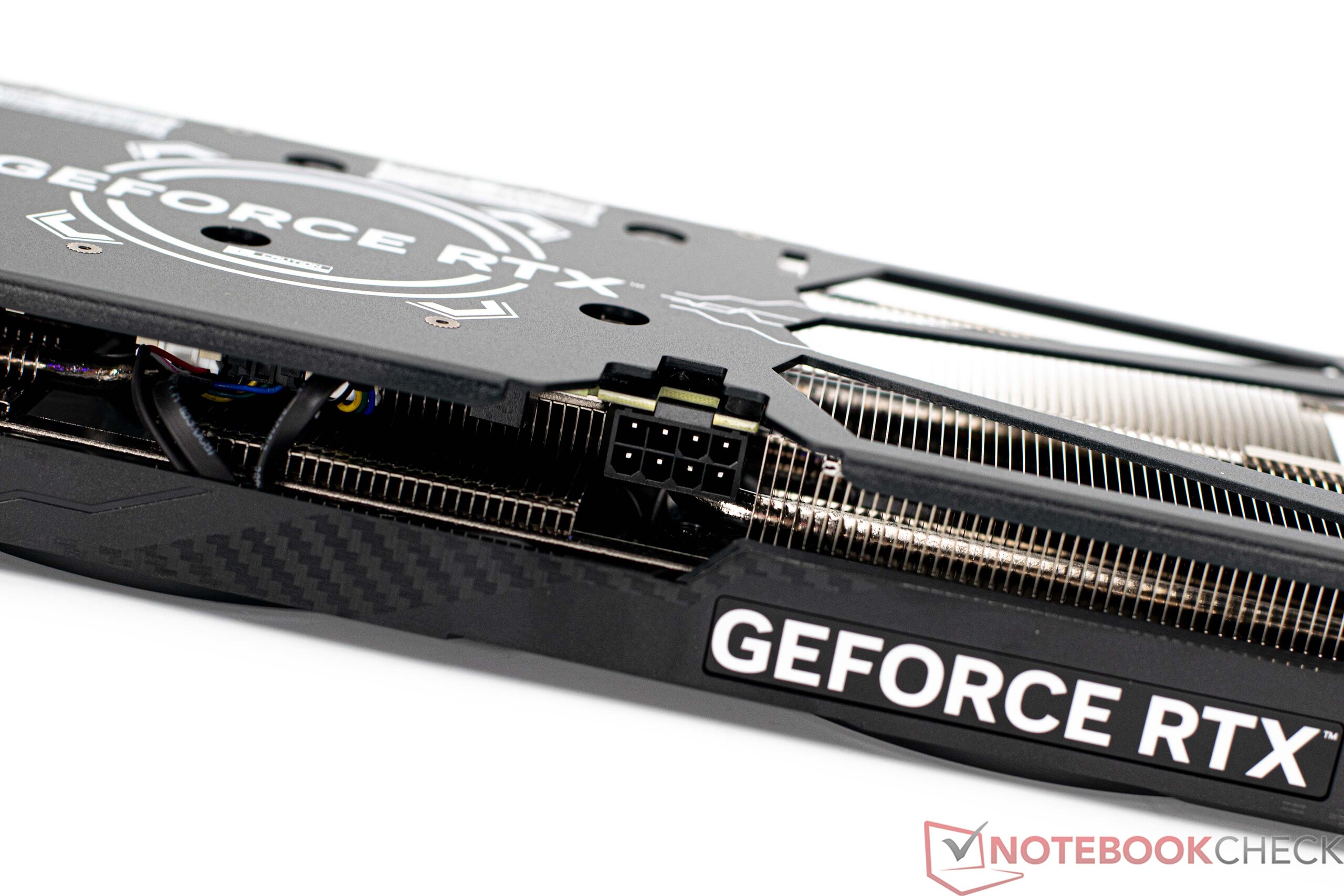

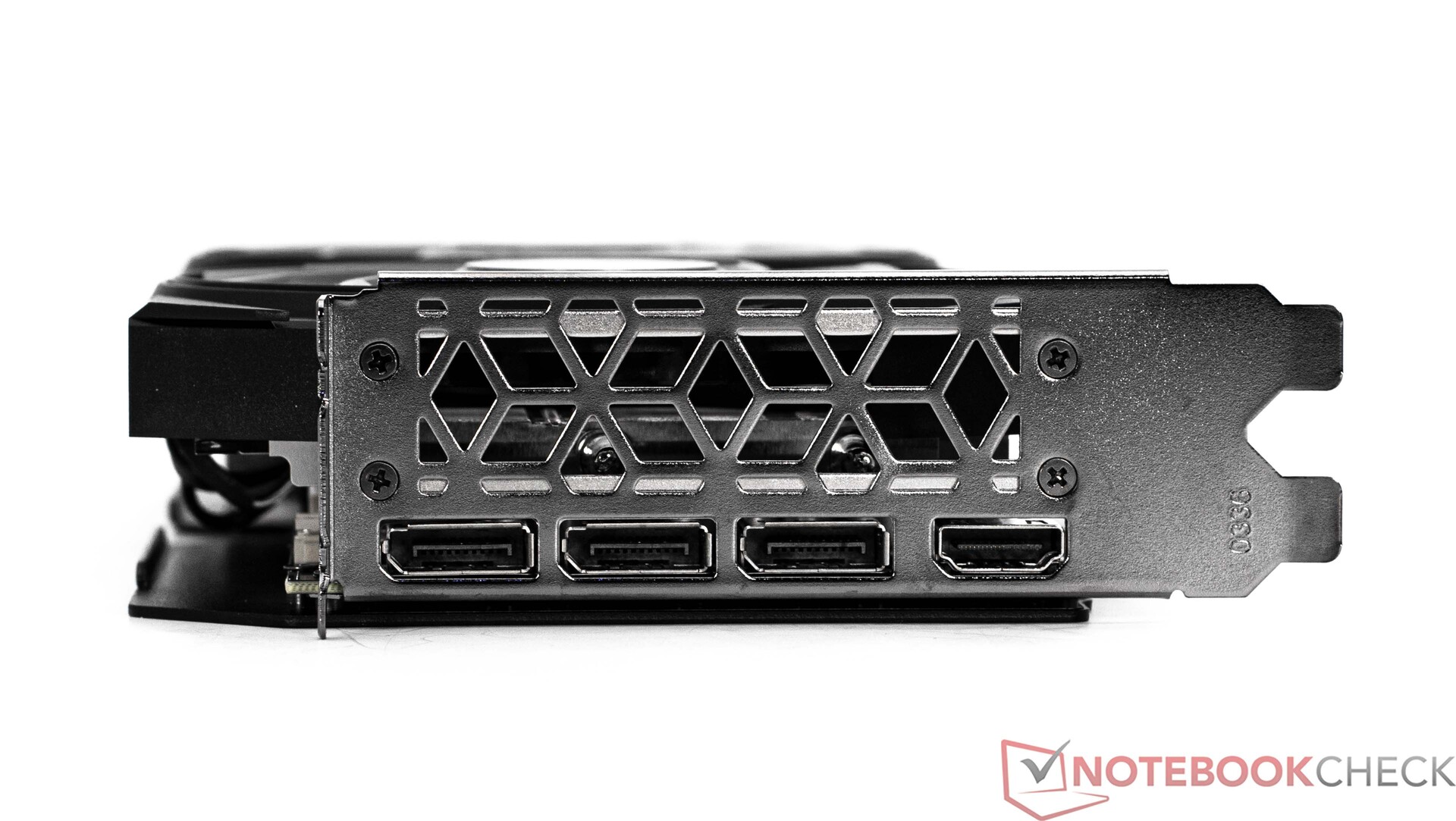

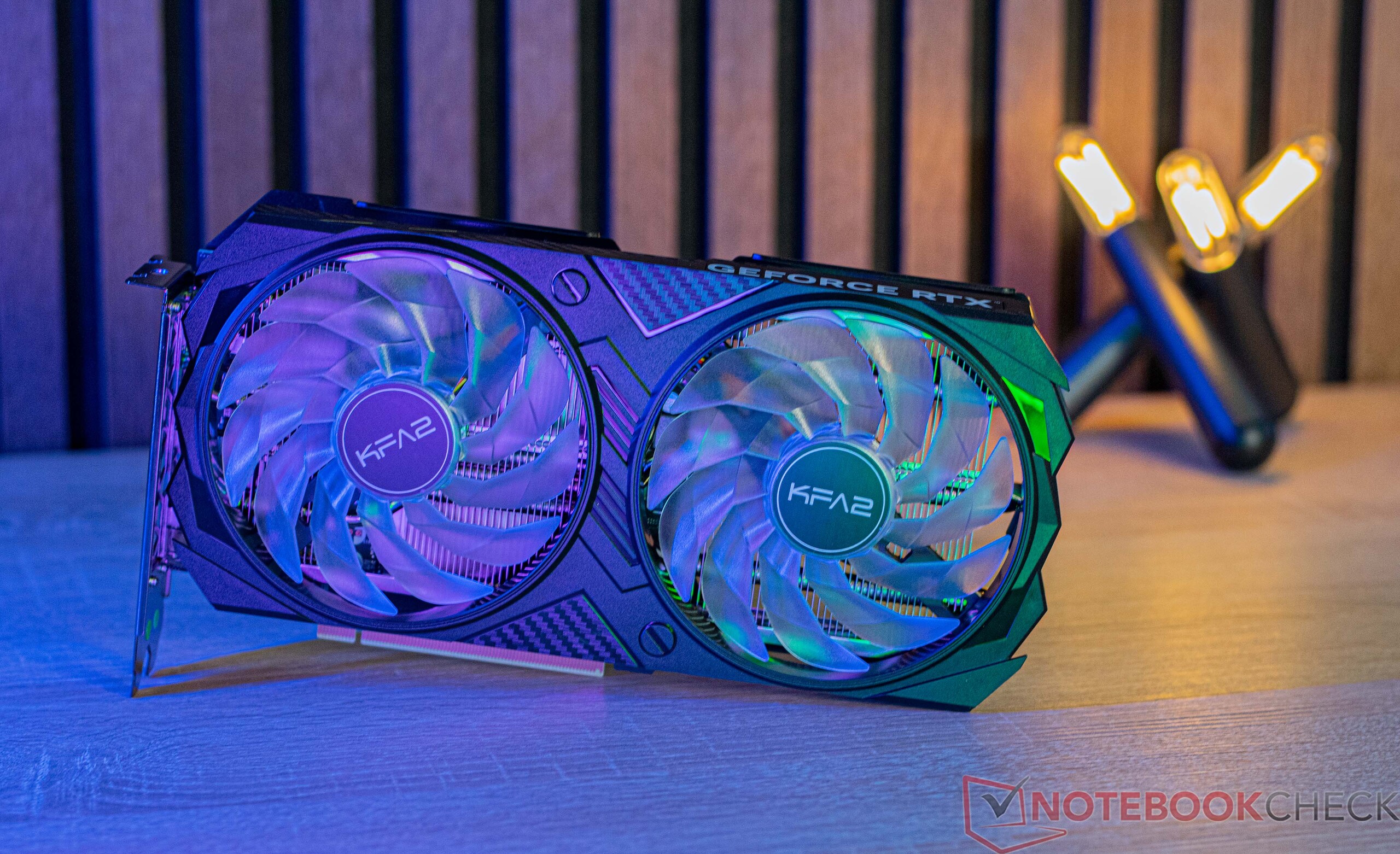

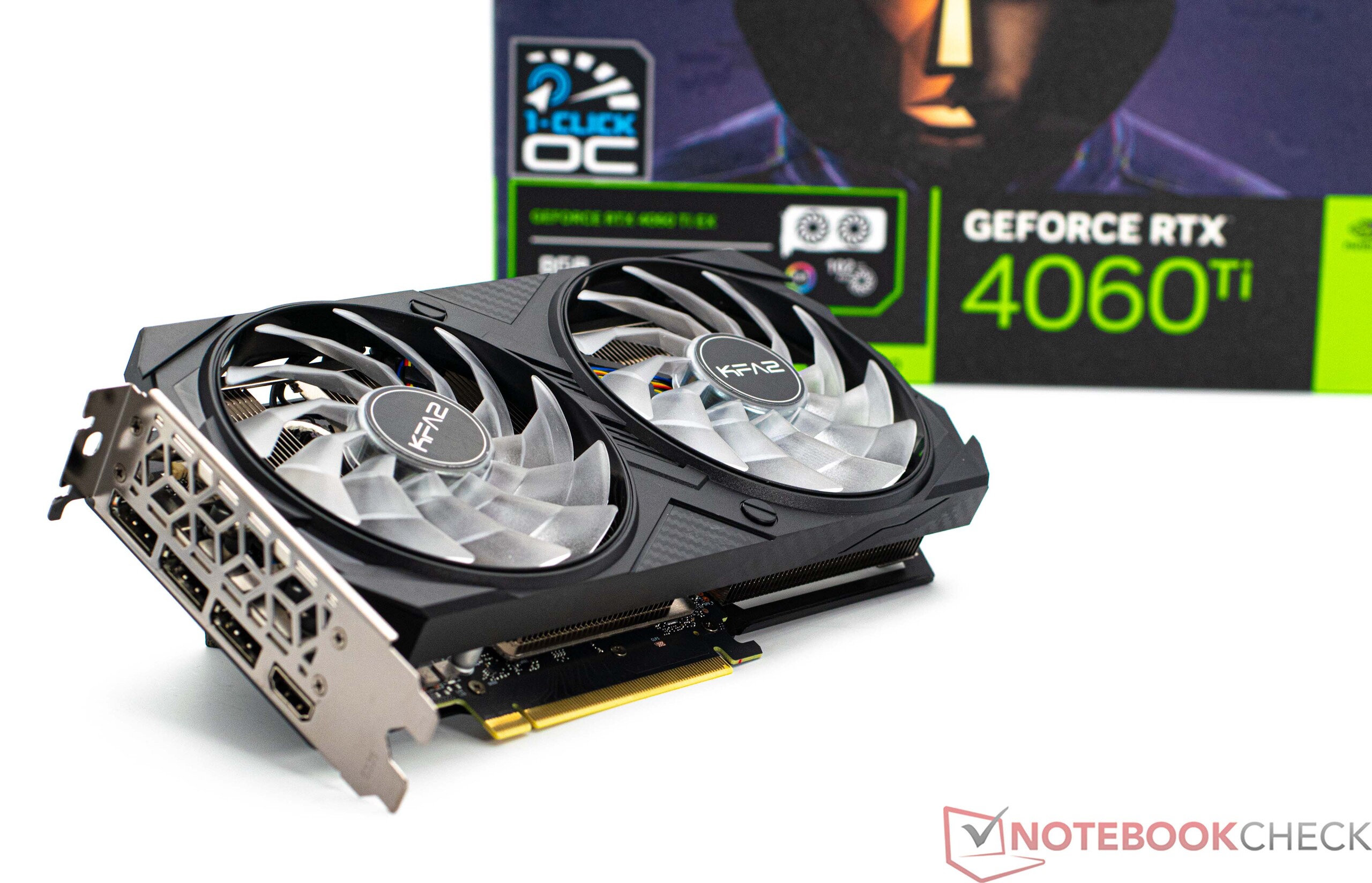

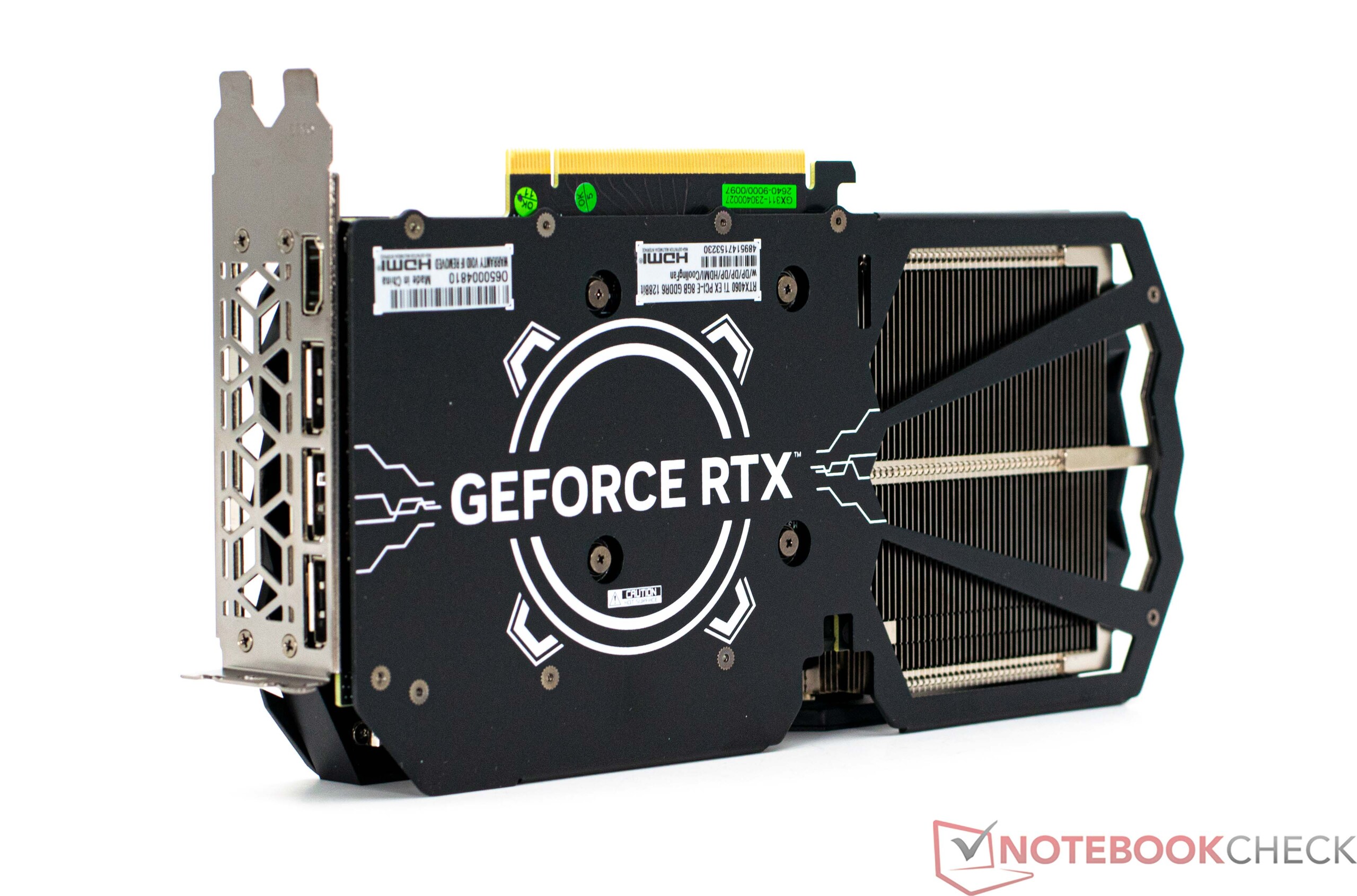

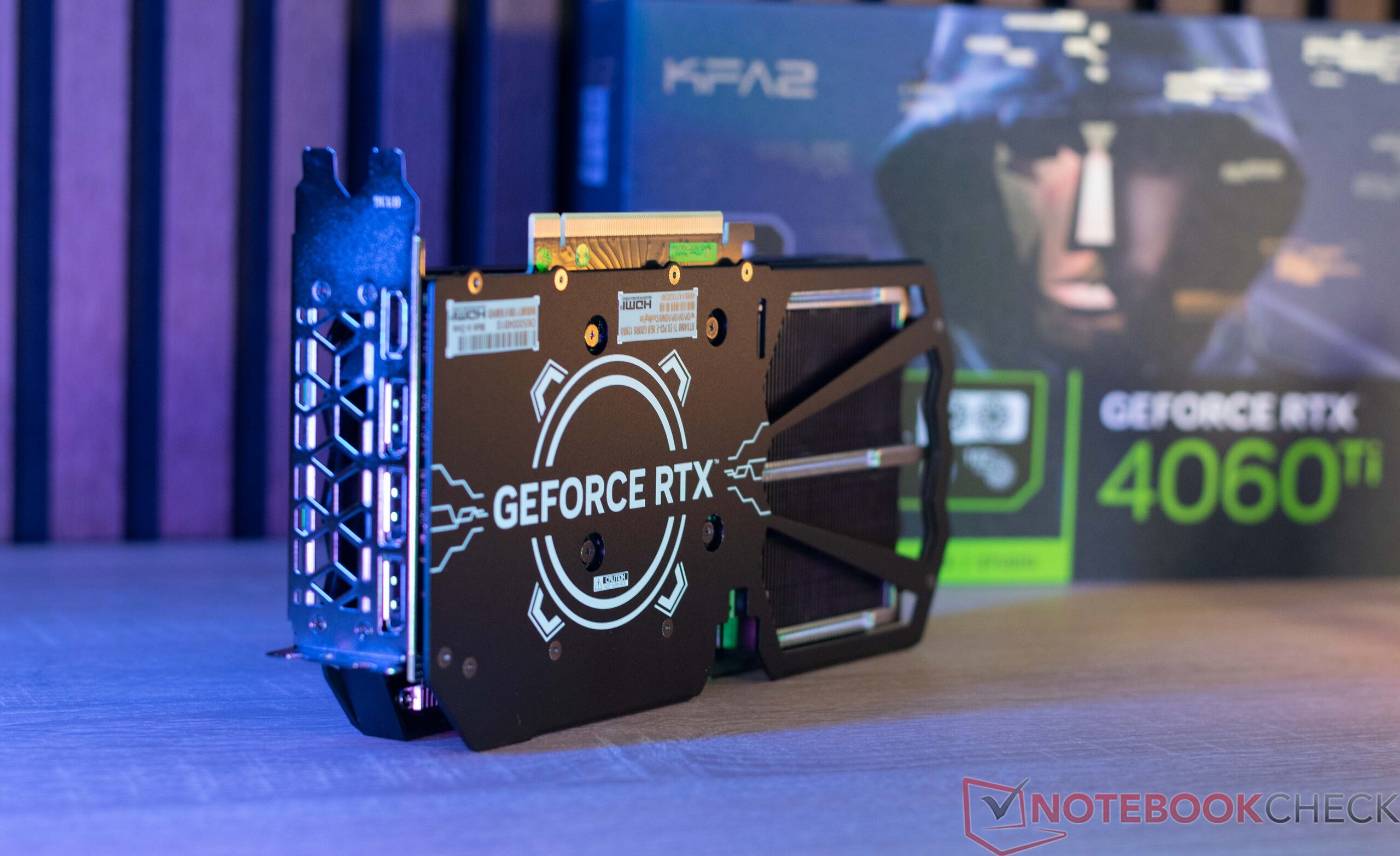

The graphics card features all the usual external connectivity options. However, it still doesn't have DisplayPort 2.1. Subsequently, screens can be connected via HDMI 2.1a (1x) and/or DisplayPort 1.4a (3x).

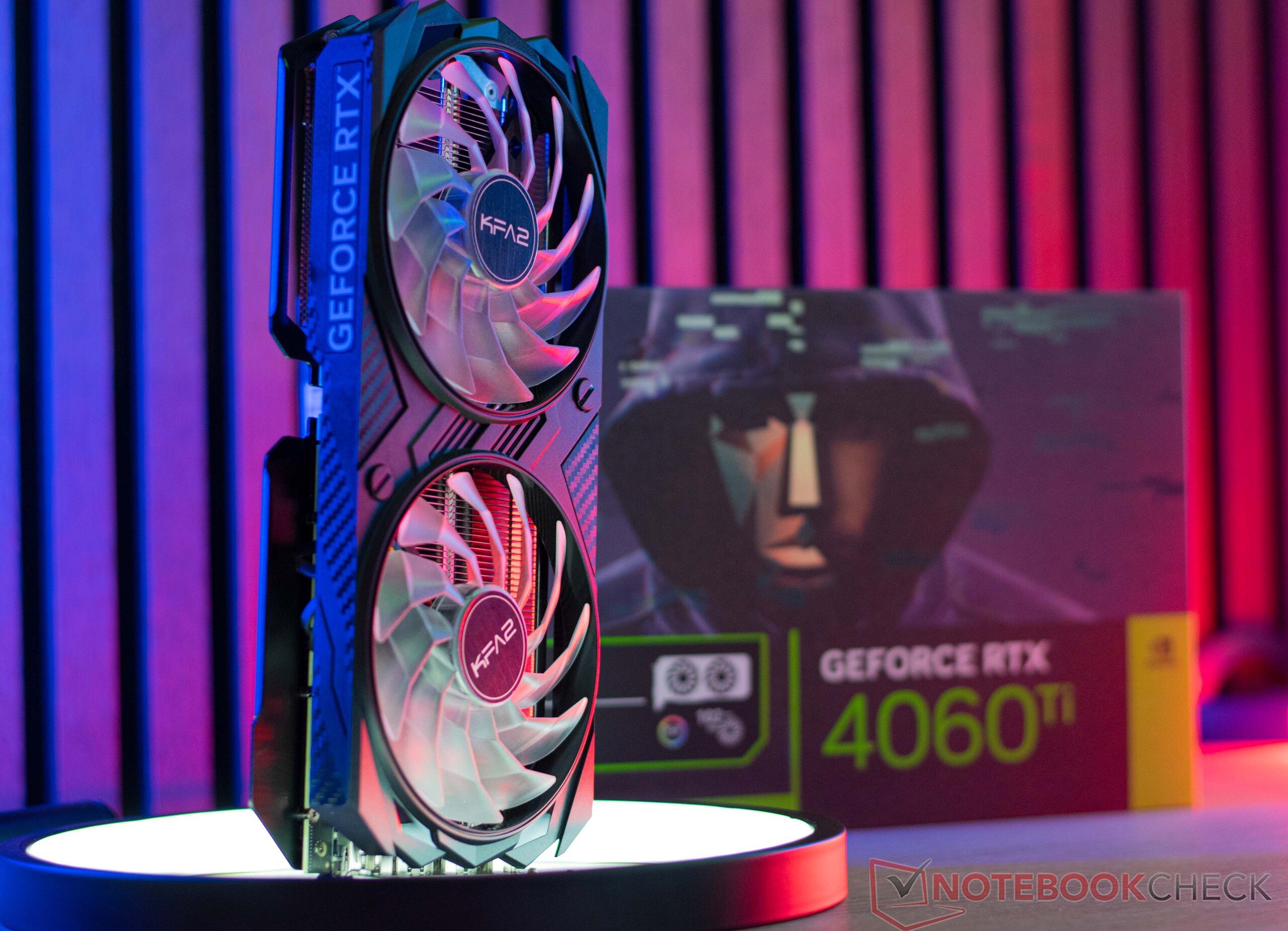

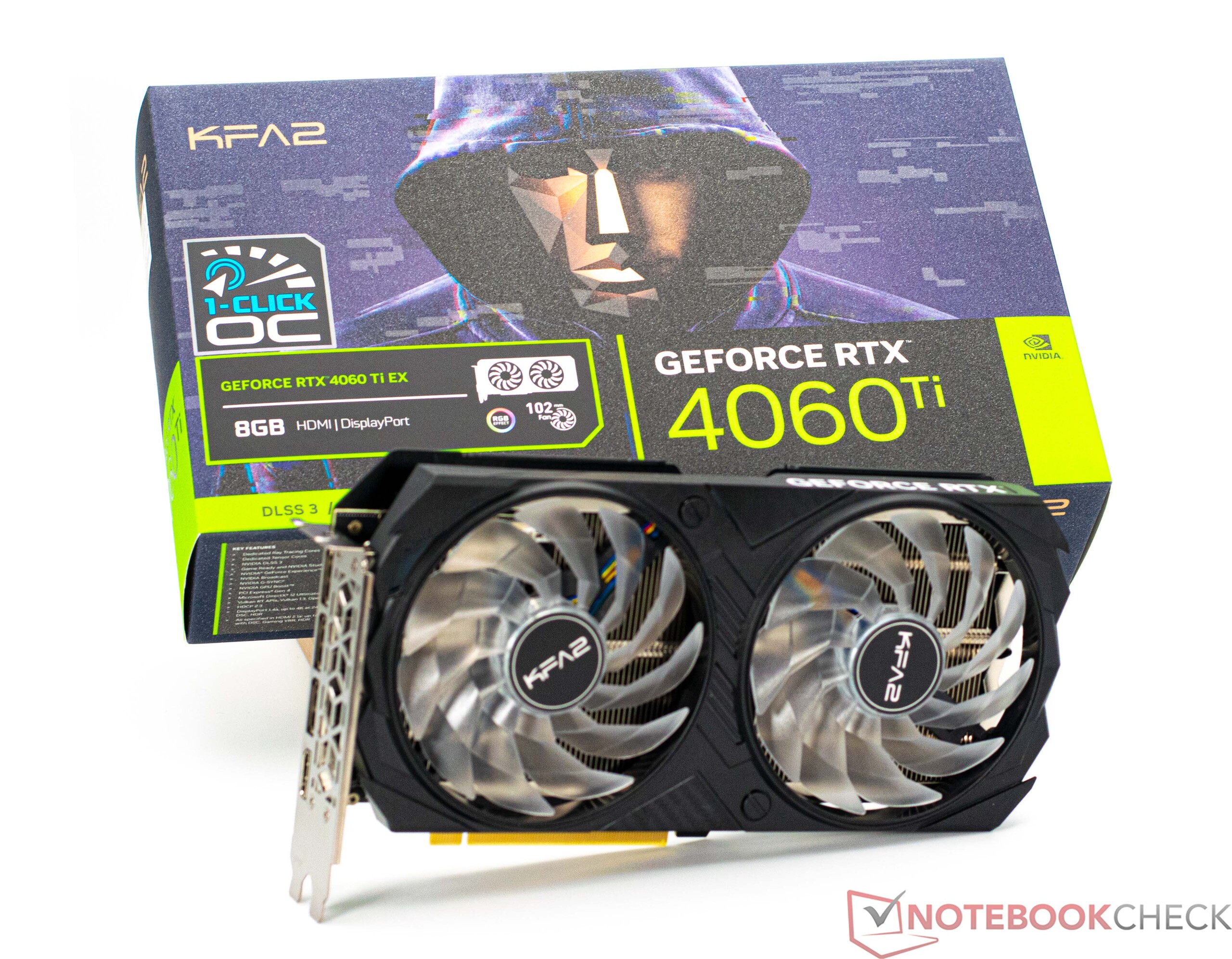

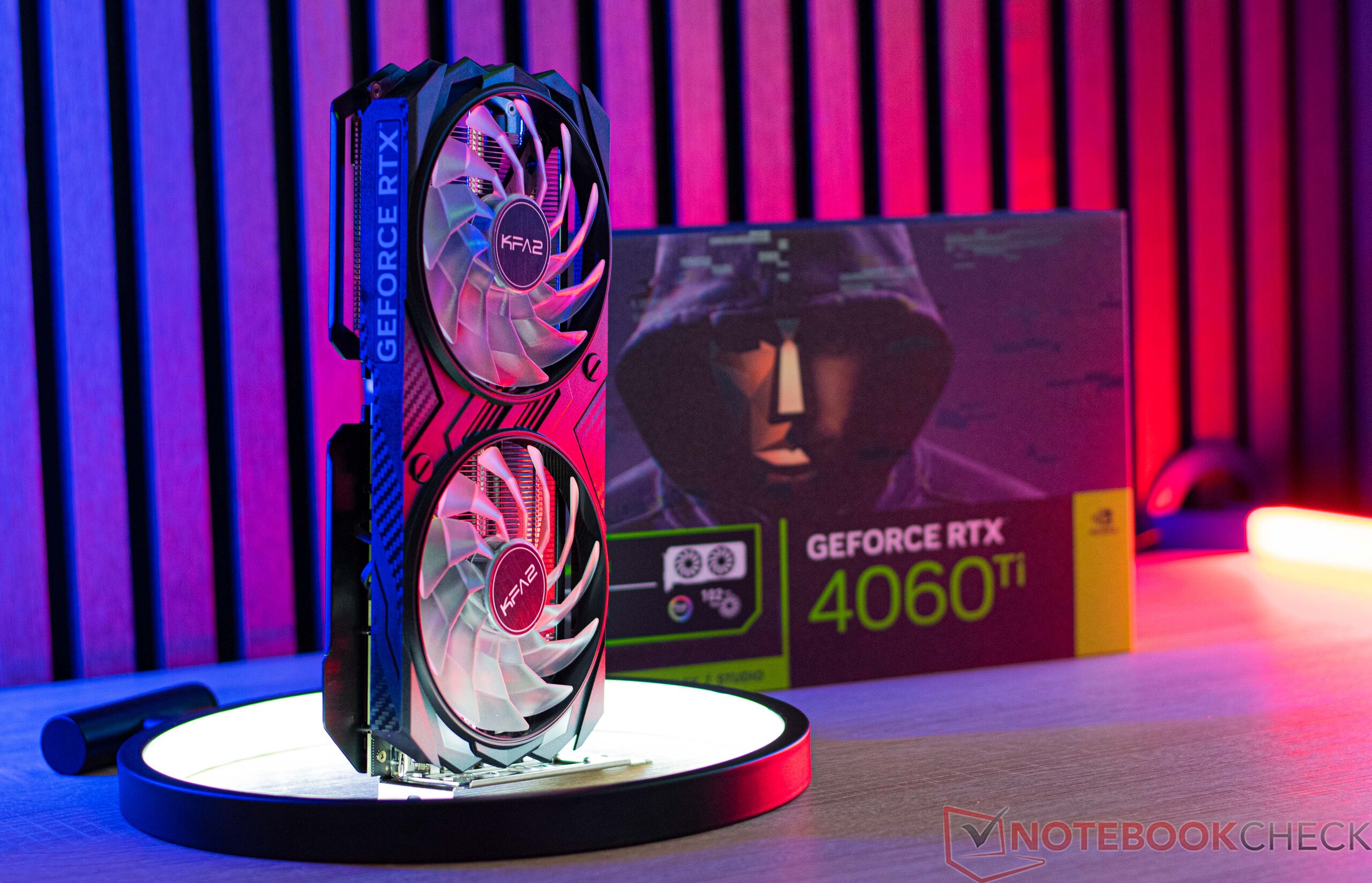

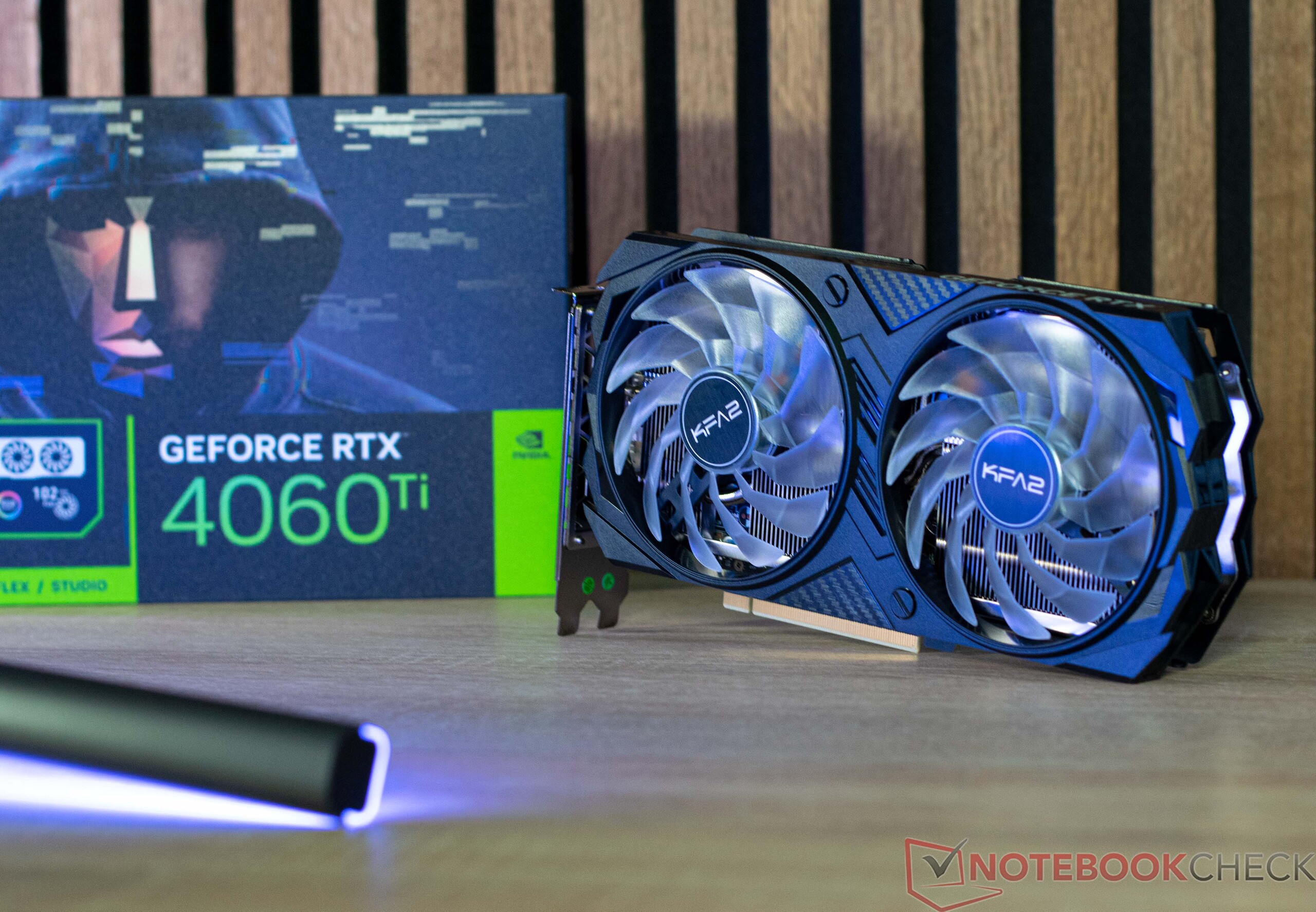

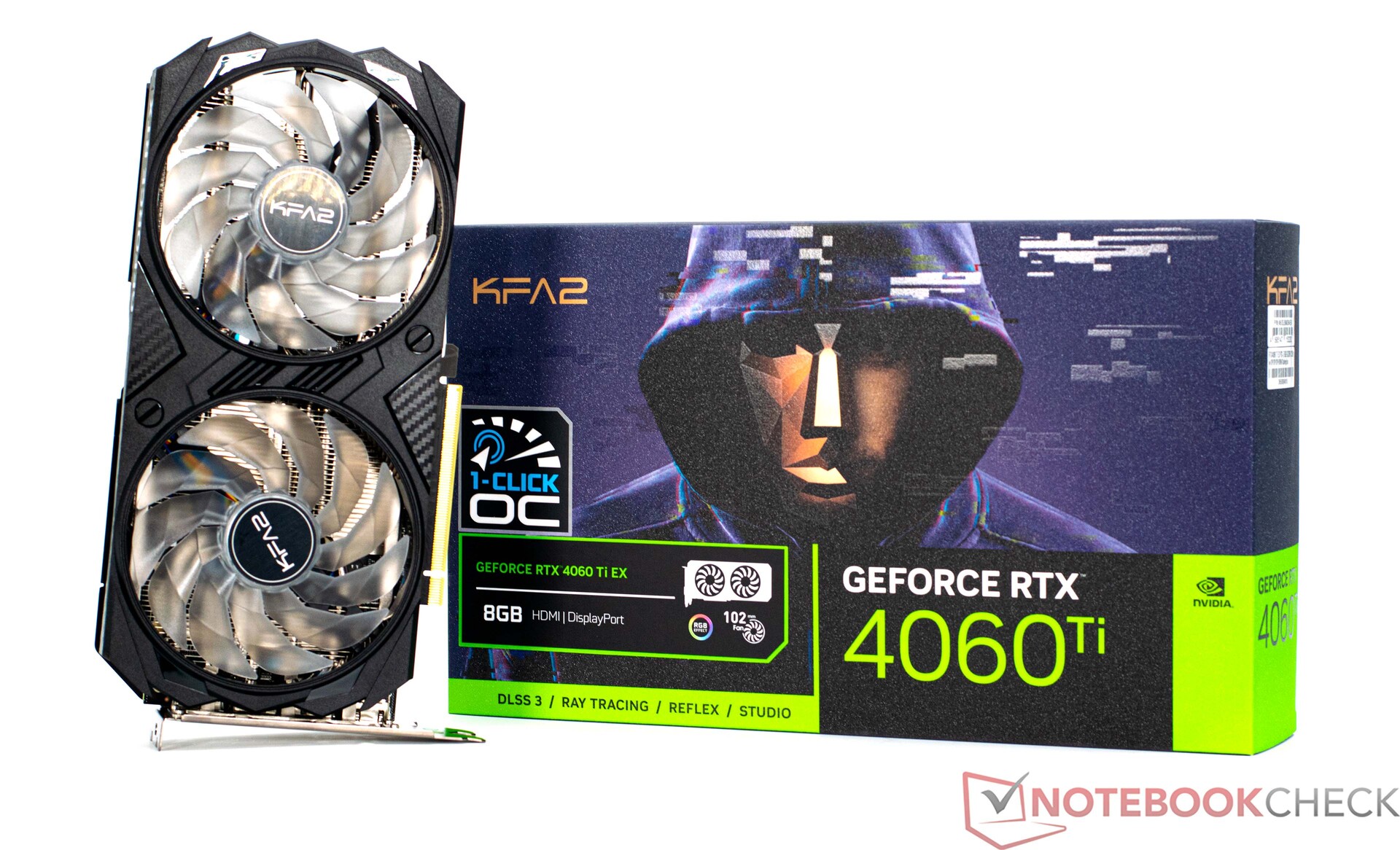

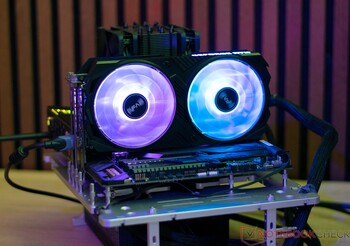

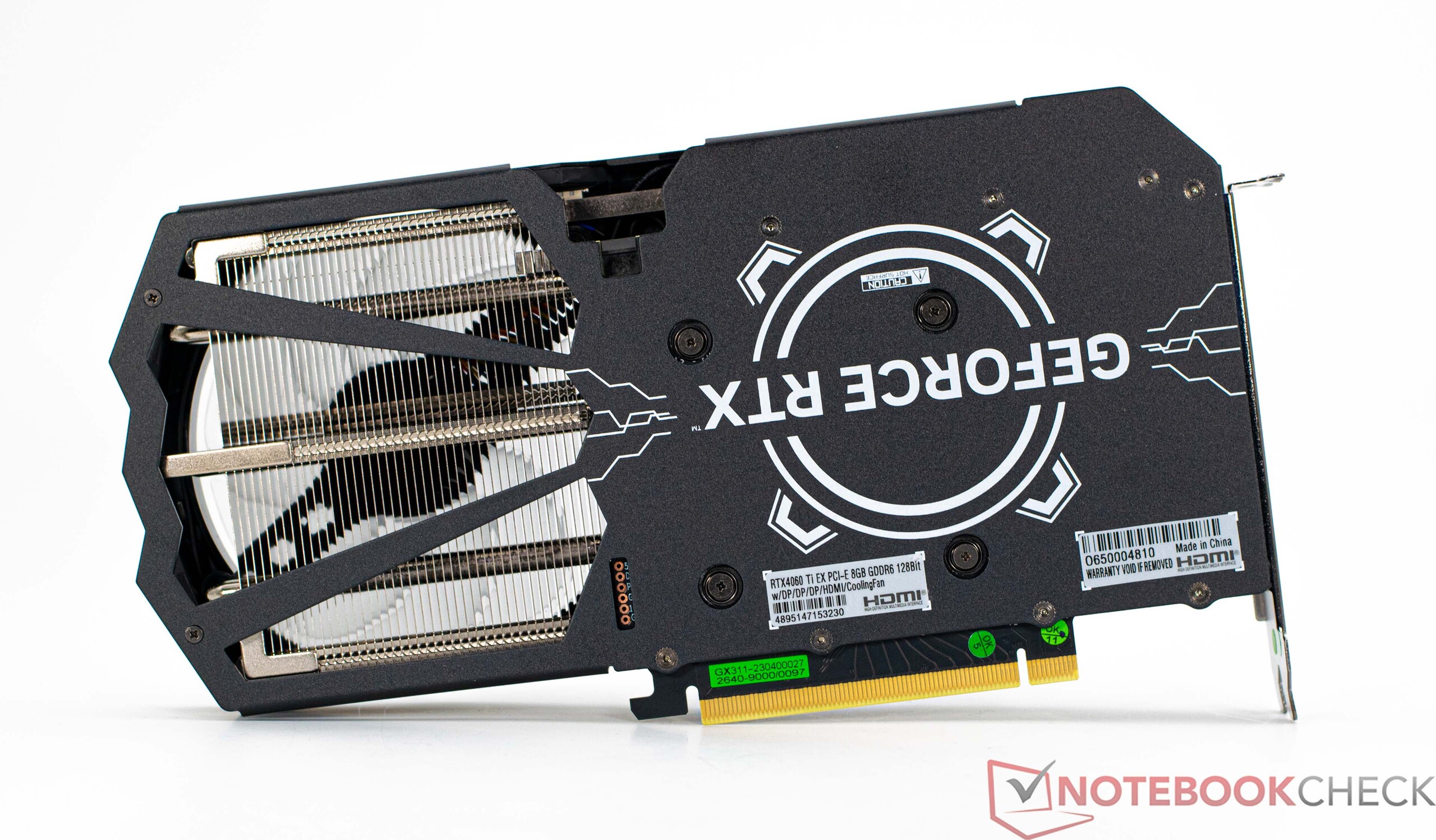

The KFA2 GeForce RTX 4060 Ti EX in detail
GeForce graphics card specs compared
| Features | RTX 4090 | RTX 4080 | RTX 4070 Ti | RTX 4070 | RTX 4060 Ti | RTX 3070 | RTX 3060 Ti |
| Chip | AD102 | AD103 | AD104 | AD104 | AD106 | GA104 | GA104 |
| FinFET process | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | 8 nm | 8 nm |
| CUDA cores | 16,384 | 9,728 | 7,680 | 5,888 | 4,352 | 5,888 | 4,864 |
| Texture units | 512 | 304 | 240 | 184 | 136 | 184 | 152 |
| Tensor cores | 512 4th gen | 304 4th gen | 240 4th gen | 184 4th gen | 136 4th gen | 184 3rd gen | 152 3rd gen |
| RT cores | 128 | 76 | 60 | 46 | 34 | 46 | 38 |
| GPU base clock | 2,235 MHz | 2,205 MHz | 2,310 MHz | 1,920 MHz | 2,310 MHz | 1,500 MHz | 1,410 MHz |
| GPU boost clock | 2,520 MHz | 2,505 MHz | 2,610 MHz | 2,475 MHz | 2,535 MHz | 1,725 MHz | 1,665 MHz |
| Memory bus | 384 Bit | 256 Bit | 192 Bit | 192 Bit | 128 Bit | 256 Bit | 256 Bit |
| Memory bandwidth | 1,008 GB/s | 716.8 GB/s | 504.2 GB/s | 504.2 GB/s | 288 GB/s | 448 GB/s | 448 GB/s |
| Video memory | 24 GB GDDR6X | 16 GB GDDR6X | 12 GB GDDR6 | 12 GB GDDR6X | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 |
| Power consumption | 450 W | 320 W | 285 W | 215 W | 160 W | 220 W | 200 W |

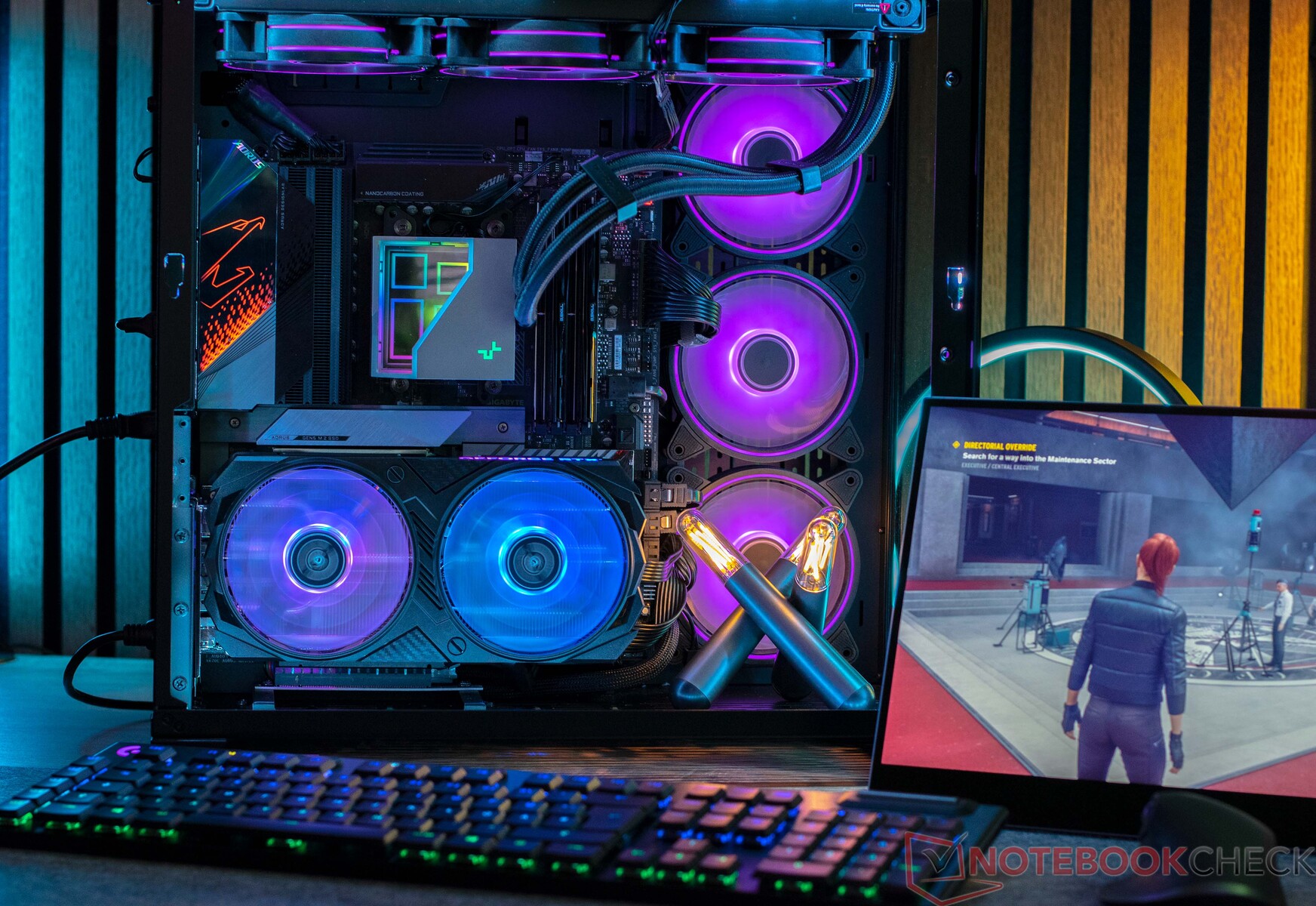

Infos about our test system
Our test system in detail
We used this system for the following benchmarks and tests:
- Lian-Li O11 Dynamic
- AMD Ryzen 9 7950X
- Gigabyte X670E Aorus Master, BIOS: F11
- Deepcool LT720
- Corsair HX1200i power supply
- G.Skill Trident Z5 Neo DDR5-6000 2x 16 GB, EXPO (DDR5-6000 CL30-38-38-96)
- Corsair MP600, 2 TB
- Crucial MX500, 2 TB
- Microsoft Windows 11 Professional 64 bit (version 22H2)

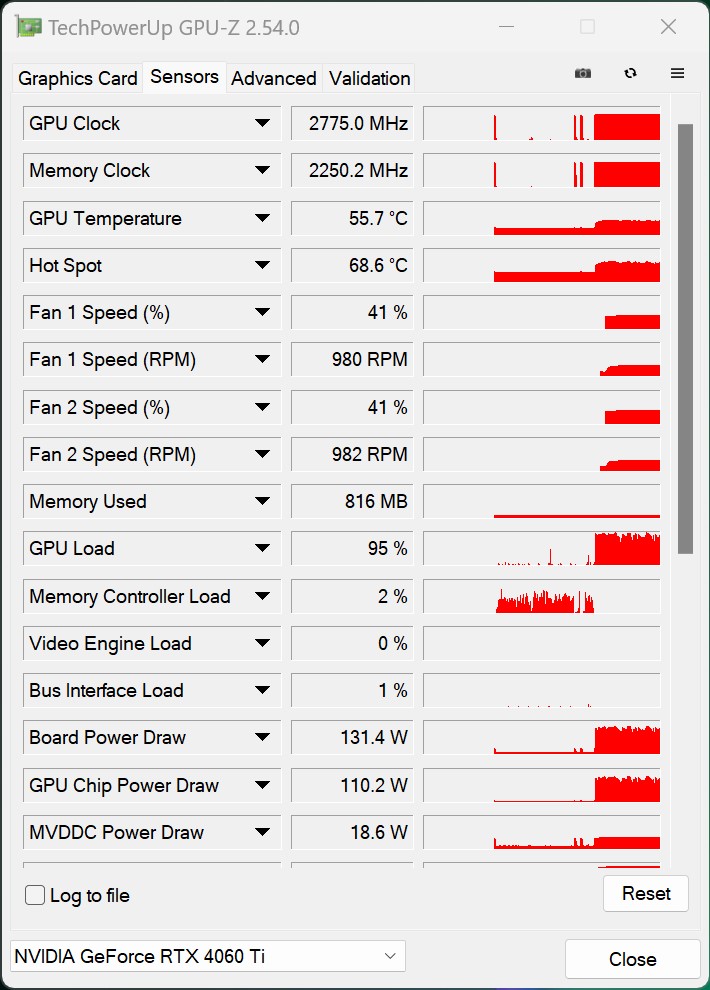

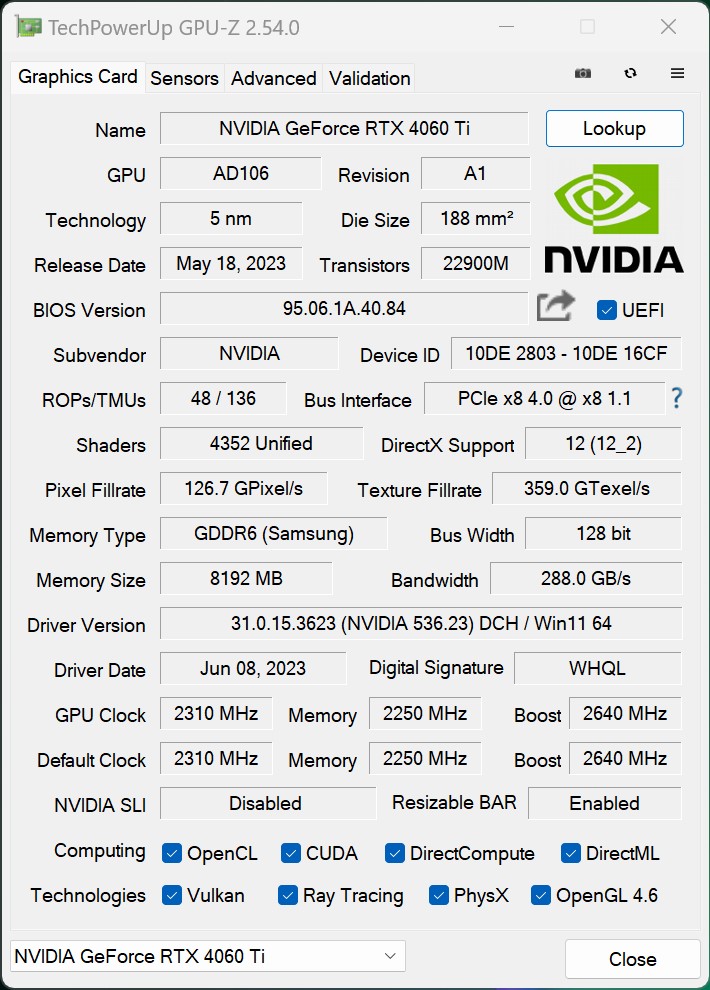

Details about the KFA2 GeForce RTX 4060 Ti EX

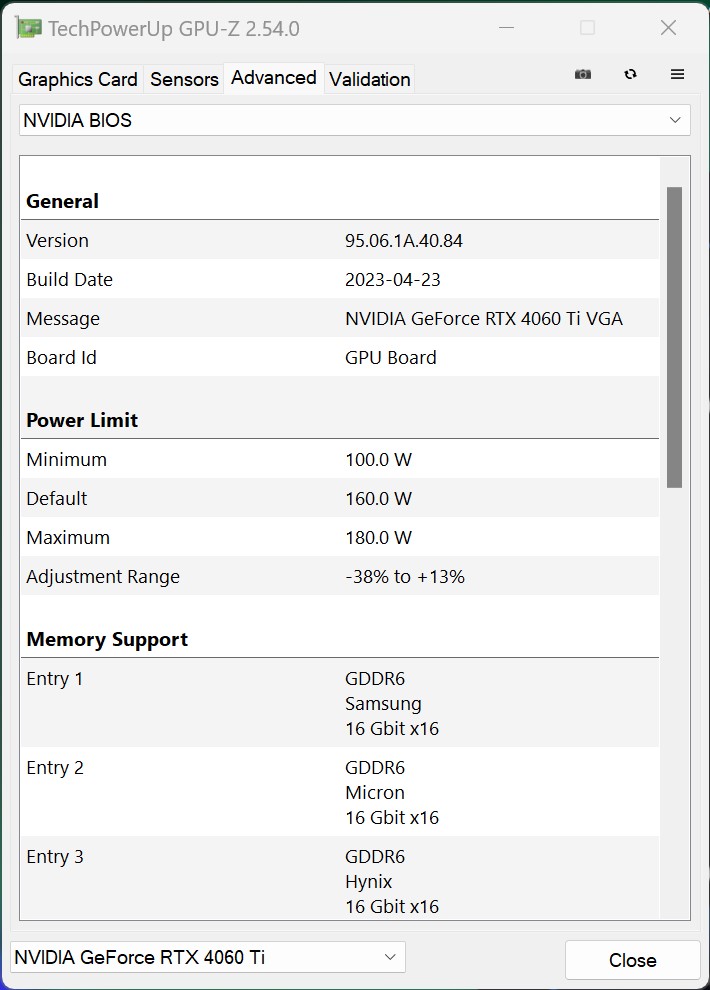

Compared to Nvidia's Founders Edition, KFA2 have given their GeForce RTX 4060 Ti E's boost clock a little more wiggle room. After all, our test sample is an OC model of the GeForce RTX 4060 Ti. On the standard profile, its rates are 2,640 MHz - a 105-MHz improvement. Using the tuning tool "Xtreme Tuner Plus", you can also activate the OC profile, which gives the graphics card an additional 15 MHz to work with (2,655 MHz boost clock). However, we ran all tests using the standard profile. We do not expect any performance increase through OC mode being activated, as the graphics card's boost clock rates were already way higher than expected in our benchmarks. The GPU's clock rates evened out between 2,700 to 2,775 MHz during our gaming tests. The KFA2 GeForce RTX 4060 Ti EX features the same amount of RAM as its predecessor, the Nvidia GeForce RTX 3060 Ti. Although, at 128 bits, its memory connection has shrunk considerably, leading to a much lower memory bandwidth (288 GB/s).

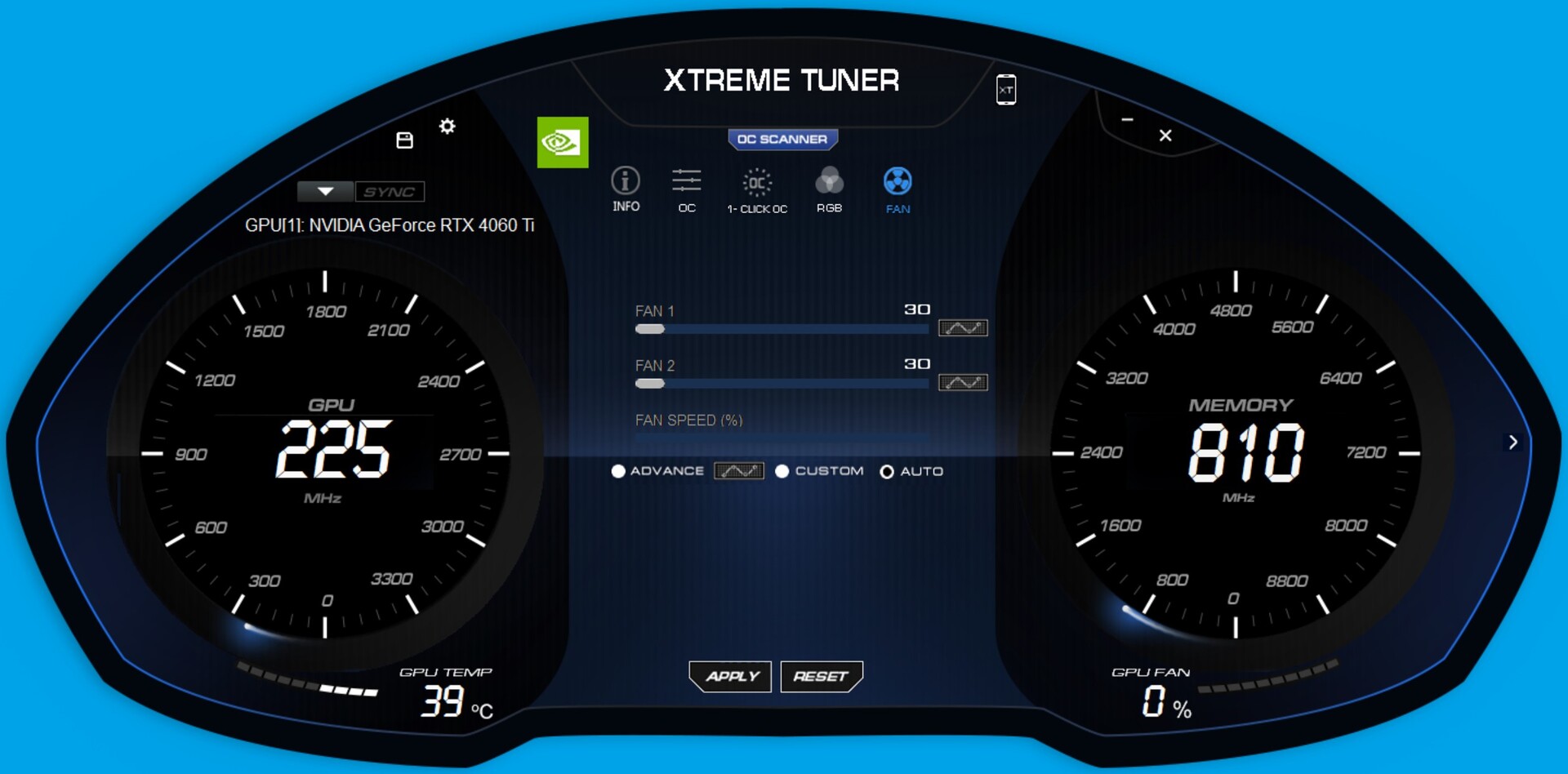

Xtreme Tuner Plus - More than just an OC tool

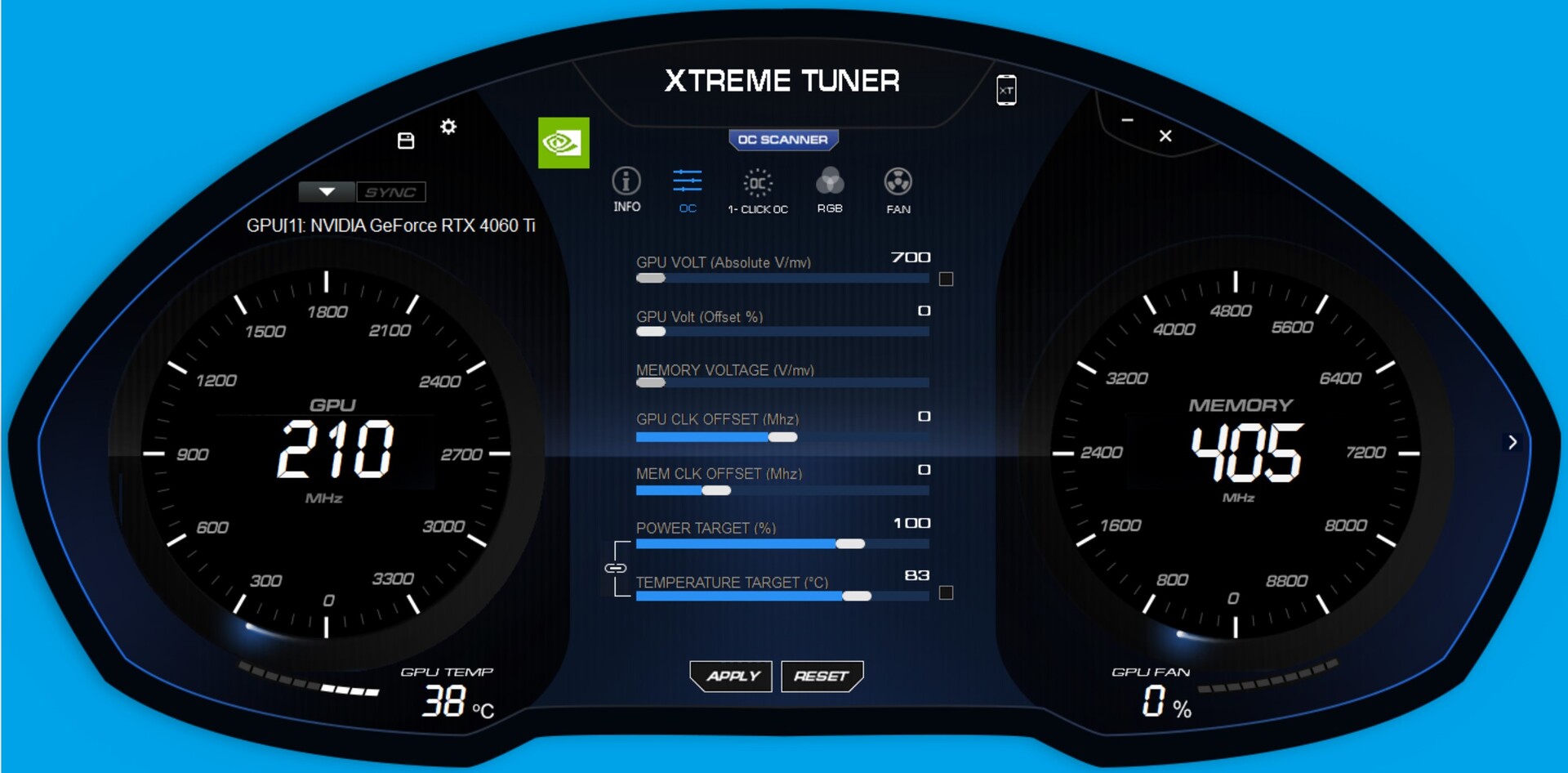

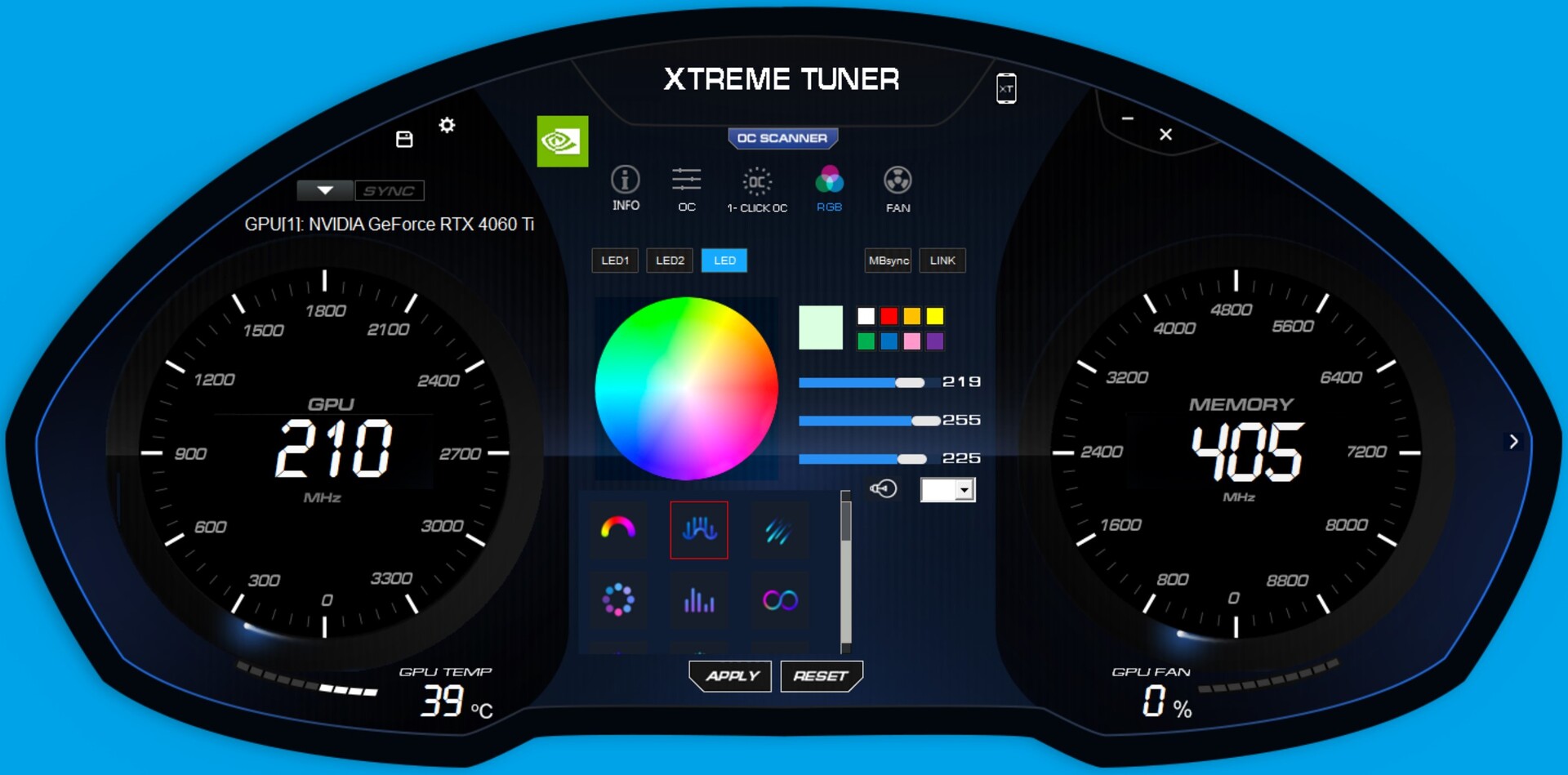

Using KFA2's in-house tool "Xtreme Tuner Plus", lots of the GeForce RTX 4060 Ti EX's data can be read out. The tool can also be used with other graphics cards from KFA2 or Galaxy. Consequently, you can change its GPU and VRAM clock rates. You can also make changes to its power consumption, from 68 to 112 per cent. Additionally, you can change the GPU's lighting with the help of a variety of set effects, and you can also determine the speed of the fans.

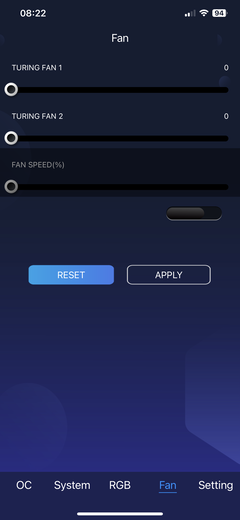

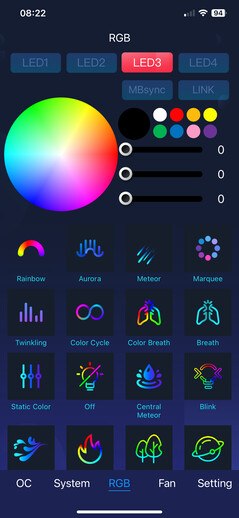

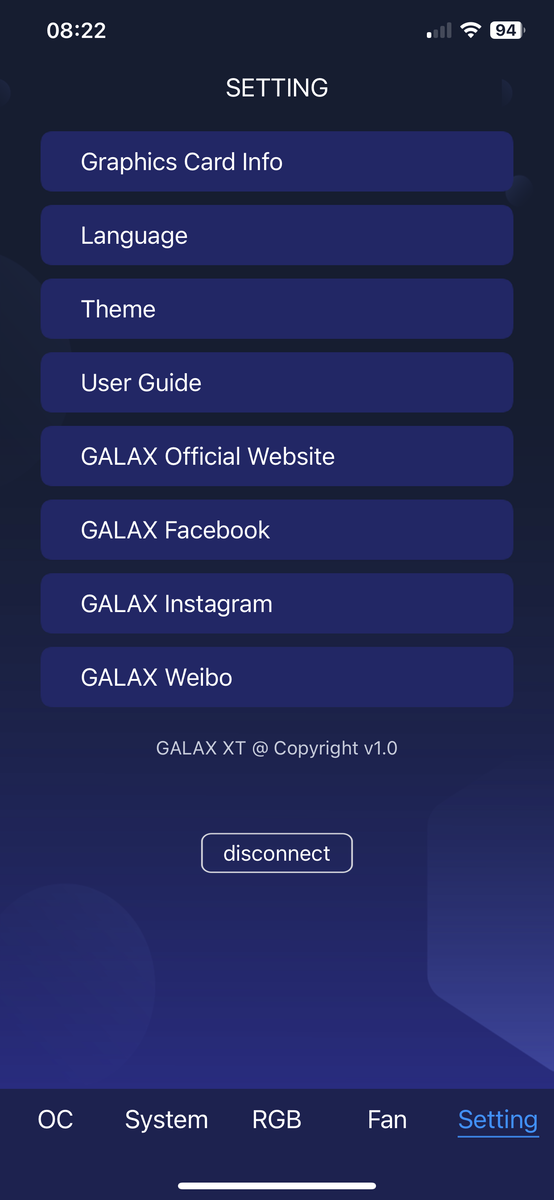

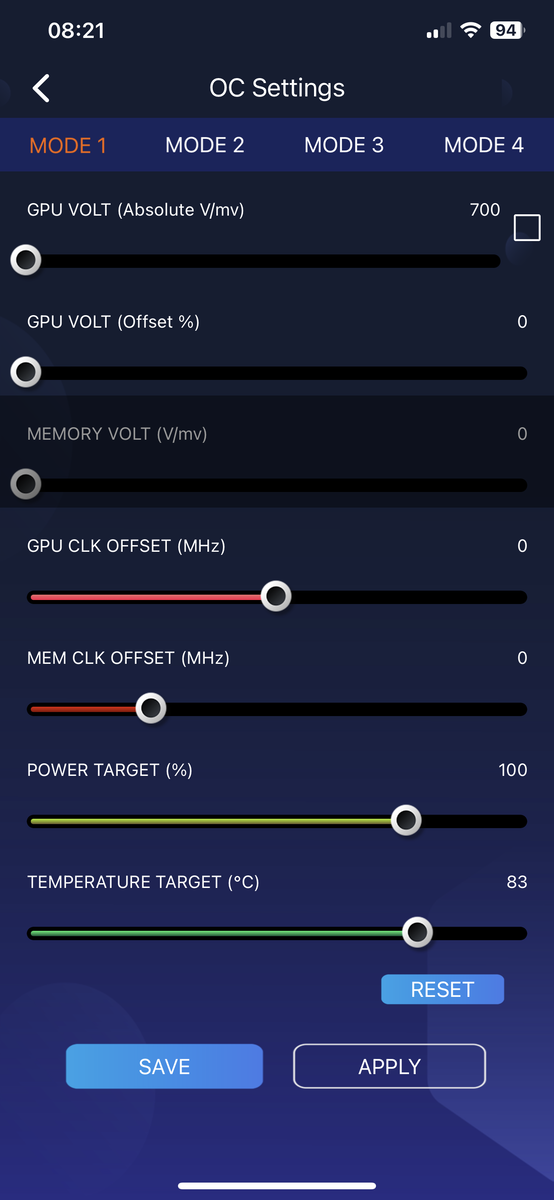

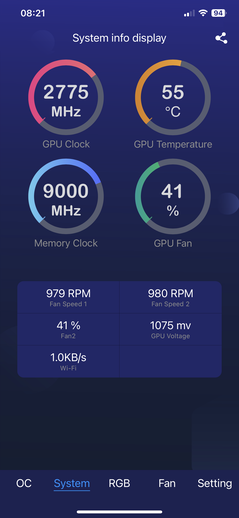

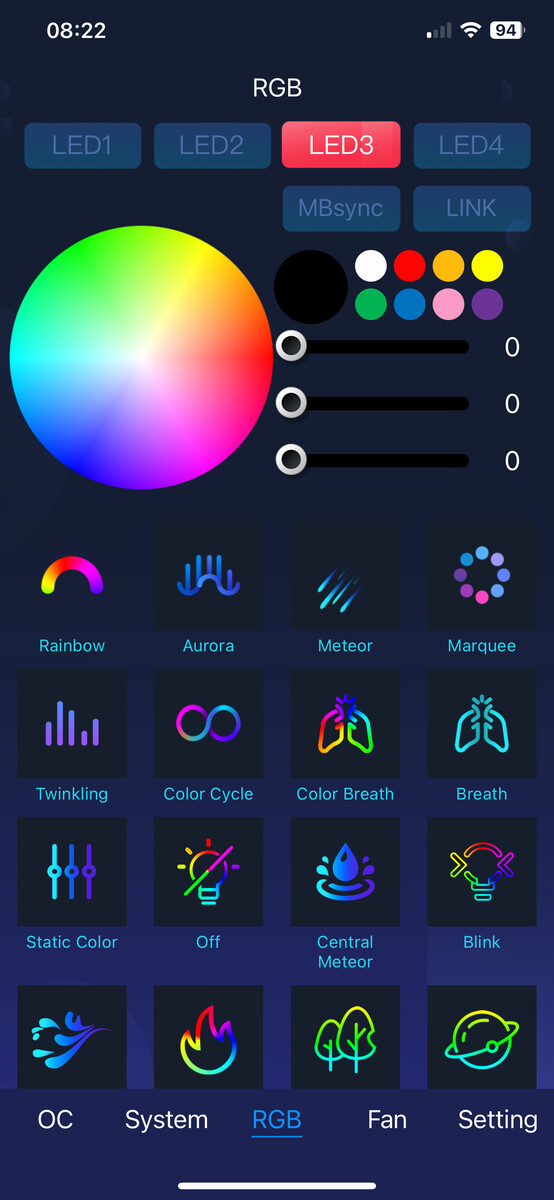

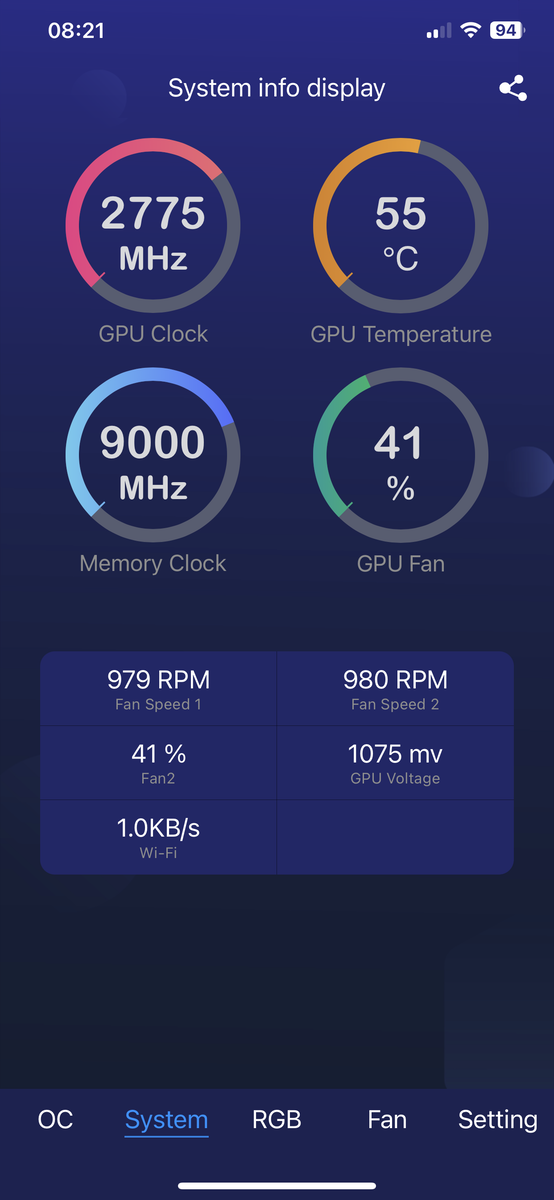

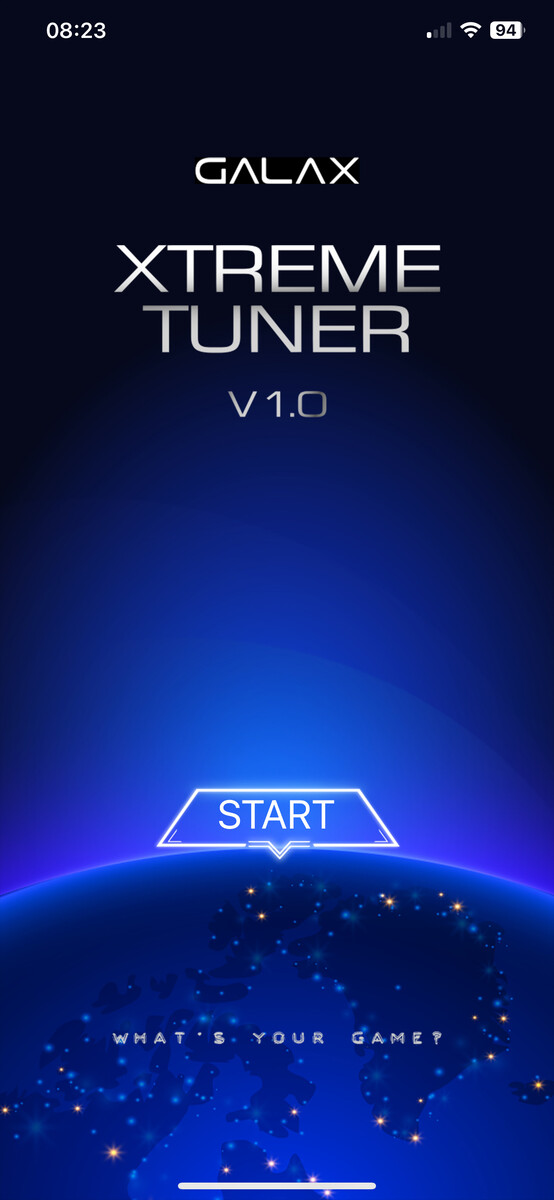

The manufacturer also offers a mobile app (iOS and Android) as an additional feature. In this way, you can make all of these changes from the comfort of your phone. In order to be able to access the hardware, you have to make sure that both devices (PC and phone) are connected to the same network.
Synthetic benchmarks
During the synthetic benchmarks, our KFA2 GeForce RTX 4060 Ti EX came just behind the MSI GeForce RTX 4060 Ti Gaming X Trio 8G. This means that the considerably smaller KFA2 GeForce RTX 4060 Ti EX managed to keep up well with an extremely large graphics card made by MSI. It lay 7 per cent ahead of the Nvidia GeForce RTX 3060 Ti. As a result, we didn't note a significant pure performance increase compared to the previous gen. This is a shame, because the Nvidia GeForce RTX 4090 was considerably more powerful than the Nvidia GeForce RTX 3090. An increase in performance within the same percentage area would mean that an Nvidia GeForce RTX 4060 Ti would be supposed to achieve the same performance levels as an Nvidia GeForce RTX 3090. As a mid-range model, this is unrealistic - however, a 20 per cent improvement similar to an Nvidia GeForce RTX 3060 Ti would've been great. Nvidia have simply made too many cuts. Its limitations compared to its predecessor are significant and due to its smaller number of shader units and smaller memory connection, it only achieved a one-figure performance increase.
On a small positive note, we would like to mention that its small increase in performance hasn't resulted in higher power consumption. Quite the opposite: Its good performance could also be attained with considerably reduced power consumption. In further course of this review, we will highlight this in more detail.
The KFA2 GeForce RTX 4060 Ti EX's AMD competitor is the AMD Radeon RX 6700 XT. This graphics card features a much bigger video memory (12 GB), however, it only came in 4 percentage points ahead of our test sample in the synthetic tests.
| Performance Rating - Percent | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| ASUS ROG Strix GeForce GTX 1060 | |
| Photoshop PugetBench | |
| GPU Score | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4080 SG | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Palit GeForce RTX 4090 GameRock OC | |
| Nvidia GeForce RTX 2060 Super | |
| Nvidia GeForce RTX 2070 Super | |
| PNY GeForce GTX 1660 | |
| Sapphire AMD Radeon RX 6950 XT Nitro+ Pure | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 3080 SG | |
| Overall Score | |
| AMD Radeon RX 7900 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 3070 Ti SG | |
| KFA2 GeForce RTX 4080 SG | |
| Palit GeForce RTX 4090 GameRock OC | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2060 Super | |
| Nvidia GeForce RTX 2070 Super | |
| PNY GeForce GTX 1660 | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sapphire AMD Radeon RX 6950 XT Nitro+ Pure | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 3080 SG | |
| Premiere Pro PugetBench | |
| GPU 0.9 | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 3070 Ti SG | |
| AMD Radeon RX 7900 XT | |
| Sapphire AMD Radeon RX 6950 XT Nitro+ Pure | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| PNY GeForce GTX 1660 | |
| Overall Score 0.9 | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4080 SG | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Nvidia GeForce RTX 2060 Super | |
| AMD Radeon RX 7900 XTX | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 3070 Ti SG | |
| AMD Radeon RX 7900 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| PNY GeForce GTX 1660 | |
| KFA2 GeForce RTX 3080 SG | |
| Sapphire AMD Radeon RX 6950 XT Nitro+ Pure | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| PNY GeForce GTX 1660 | |
| KFA2 GeForce GTX 1660 Super | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| Geekbench 5.0 - OpenCL Score 5.0 | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Sapphire AMD Radeon RX 6950 XT Nitro+ Pure | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Geekbench 6.0 | |
| GPU Vulkan | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 Ti EX | |
| GPU OpenCL | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 Ti EX | |
| V-Ray 5 Benchmark - GPU RTX | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 3070 Ti SG | |
| KFA2 GeForce RTX 4060 Ti EX | |
Professional uses
If you are looking to use your graphics card for productive tasks, then you should think about purchasing a graphics card specifically intended for professional use. To represent this, we have included the Nvidia RTX A6000 and Nvidia Titan RTX in our comparison table. Here, its potential becomes absolutely clear when the hardware is able to be used better thanks to optimized drivers. The difference in performance between the Nvidia Titan RTX and the KFA2 GeForce RTX 4060 Ti EX is especially interesting to look at. In the synthetic tests, there were only 20 percentage points between the two, although the Nvidia Titan RTX did far better during the rendering tests using SPECviewperf - coming in at a whopping 200 percentage points ahead.
We wouldn't entirely advise against using the KFA2 GeForce RTX 4060 Ti EX for GPU rendering. However, for anything more than just hobby use, you might want to look elsewhere.
| NVIDIA GeForce RTX 4060 Ti 8G R9 7950X | NVIDIA GeForce RTX 4060 Ti 8G R9 7950X | NVIDIA GeForce RTX 3060 Ti R9 5950X | NVIDIA GeForce RTX 3070 Ti R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | NVIDIA GeForce RTX 4080 R9 7950X | NVIDIA GeForce RTX 4090 R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | NVIDIA GeForce RTX 3080 12 GB R9 5900X | NVIDIA GeForce GTX 1660 (Desktop) R9 7950X | NVIDIA GeForce GTX 1660 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2060 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2070 Super (Desktop) R9 7950X | NVIDIA Titan RTX R9 7950X | NVIDIA RTX A6000 TR Pro 3975WX | Average of class | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 12 | -0% | -21% | 7% | 25% | 49% | 73% | 88% | 417% | 465% | -14% | -48% | -44% | -29% | -16% | 264% | 312% | 2% | |
| 1900x1060 3ds Max (3dsmax-05) | 289 | 287 -1% | 252 -13% | 330 14% | 382 32% | 436 51% | 502 74% | 571 98% | 502 74% | 553 91% | 334 16% | 153 -47% | 167 -42% | 220 -24% | 247 -15% | 315 9% | 336 16% | 196.2 ? -32% |
| 1900x1060 Catia (catia-04) | 127 | 128 1% | 109 -14% | 136 7% | 161 27% | 192 51% | 221 74% | 257 102% | 481 279% | 536 322% | 79.1 -38% | 65.1 -49% | 68 -46% | 84.5 -33% | 114 -10% | 332 161% | 229 80% | 100.1 ? -21% |
| 1900x1060 Creo (creo-01) | 74 | 75.4 2% | 57.8 -22% | 72.6 -2% | 89.1 20% | 99.4 34% | 110 49% | 115 55% | 176 138% | 187 153% | 74.4 1% | 46.1 -38% | 45.5 -39% | 58.8 -21% | 65.7 -11% | 197 166% | 136 84% | 62.6 ? -15% |
| 1900x1060 Energy (energy-01) | 22.9 | 23 0% | 13.9 -39% | 18 -21% | 31.7 38% | 48 110% | 58.8 157% | 54.7 139% | 72.4 216% | 85.2 272% | 17.2 -25% | 6.31 -72% | 8.38 -63% | 11.6 -49% | 12.4 -46% | 28.8 26% | 39.8 74% | 14 ? -39% |
| 1900x1060 Maya (maya-04) | 256 | 254 -1% | 197 -23% | 279 9% | 284 11% | 287 12% | 309 21% | 317 24% | 347 36% | 367 43% | 139 -46% | 131 -49% | 149 -42% | 200 -22% | 225 -12% | 260 2% | 144 -44% | 103.1 ? -60% |
| 1900x1060 Medical (medical-01) | 108 | 110 2% | 59.4 -45% | 106 -2% | 132 22% | 157 45% | 171 58% | 119 10% | 288 167% | 347 221% | 40.3 -63% | 36 -67% | 38.2 -65% | 49.5 -54% | 55.9 -48% | 101 -6% | 159 47% | 49.2 ? -54% |
| 1900x1060 Showcase (showcase-01) | 132 | 120 -9% | 144 9% | 199 51% | 190 44% | 244 85% | 333 152% | 457 246% | 278 111% | 322 144% | 226 71% | 65 -51% | 85.2 -35% | 121 -8% | 135 2% | 197 49% | 255 93% | 92.8 ? -30% |
| 1900x1060 Siemens NX (snx-02) | 14.5 | 14.7 1% | 12.3 -15% | 14.7 1% | 16.4 13% | 19 31% | 21.6 49% | 27.1 87% | 373 2472% | 400 2659% | 12 -17% | 9.41 -35% | 9.38 -35% | 10.1 -30% | 13.9 -4% | 283 1852% | 351 2321% | 55.3 ? 281% |
| 1900x1060 Solidworks (sw-03) | 95.1 | 95.7 1% | 71.1 -25% | 101 6% | 109 15% | 118 24% | 113 19% | 126 32% | 342 260% | 360 279% | 73.8 -22% | 69.3 -27% | 70.7 -26% | 79.7 -16% | 95.1 0% | 207 118% | 225 137% | 81.7 ? -14% |
| SPECviewperf 13 | -0% | -18% | 5% | 26% | 50% | 78% | 114% | 402% | 453% | 11% | -50% | -46% | -29% | -16% | 248% | 322% | 23% | |
| 3ds Max (3dsmax-06) | 290 | 289 0% | 252 -13% | 330 14% | 381 31% | 433 49% | 497 71% | 563 94% | 506 74% | 564 94% | 334 15% | 153 -47% | 166 -43% | 218 -25% | 247 -15% | 321 11% | 338 17% | 186.6 ? -36% |
| Catia (catia-05) | 185 | 188 2% | 161 -13% | 201 9% | 241 30% | 290 57% | 340 84% | 402 117% | 728 294% | 825 346% | 206 11% | 90.3 -51% | 94.9 -49% | 119 -36% | 163 -12% | 534 189% | 371 101% | 195.9 ? 6% |
| Creo (creo-02) | 295 | 299 1% | 225 -24% | 286 -3% | 375 27% | 455 54% | 529 79% | 552 87% | 567 92% | 613 108% | 324 10% | 138 -53% | 141 -52% | 203 -31% | 240 -19% | 386 31% | 366 24% | 200 ? -32% |
| Energy (energy-02) | 44.7 | 45.7 2% | 25.6 -43% | 30 -33% | 54.2 21% | 72.8 63% | 92.6 107% | 126 182% | 147 229% | 187 318% | 37.6 -16% | 9.93 -78% | 11.3 -75% | 21.9 -51% | 23.8 -47% | 51.8 16% | 132 195% | 34.1 ? -24% |
| Maya (maya-05) | 398 | 396 -1% | 344 -14% | 437 10% | 510 28% | 591 48% | 678 70% | 715 80% | 670 68% | 735 85% | 460 16% | 194 -51% | 214 -46% | 291 -27% | 344 -14% | 499 25% | 415 4% | 260 ? -35% |
| Medical (medical-02) | 91.2 | 92.9 2% | 72.2 -21% | 83.6 -8% | 112 23% | 132 45% | 150 64% | 186 104% | 237 160% | 263 188% | 102 12% | 40.5 -56% | 40.7 -55% | 54.2 -41% | 63.7 -30% | 92 1% | 184 102% | 72.2 ? -21% |
| Showcase (showcase-02) | 133 | 120 -10% | 145 9% | 198 49% | 191 44% | 244 83% | 334 151% | 455 242% | 279 110% | 323 143% | 228 71% | 64.9 -51% | 85.3 -36% | 122 -8% | 135 2% | 198 49% | 255 92% | 119 ? -11% |
| Siemens NX (snx-03) | 26.3 | 26.4 0% | 22.3 -15% | 26.4 0% | 29.5 12% | 34.1 30% | 39 48% | 49.1 87% | 675 2467% | 725 2657% | 26.3 0% | 16.9 -36% | 16.9 -36% | 18.2 -31% | 25 -5% | 512 1847% | 638 2326% | 124.7 ? 374% |
| Solidworks (sw-04) | 136 | 137 1% | 99.6 -27% | 146 7% | 157 15% | 168 24% | 179 32% | 186 37% | 307 126% | 323 138% | 108 -21% | 102 -25% | 104 -24% | 119 -12% | 136 0% | 218 60% | 192 41% | 117.7 ? -13% |
| SPECviewperf 2020 v1 | 0% | -19% | 11% | 32% | 57% | 87% | 142% | 436% | 496% | 20% | -50% | -48% | -29% | -20% | 304% | 388% | 57% | |
| 3840x2160 Siemens NX (snx-04) | 20 | 20.3 2% | 18.2 -9% | 22.2 11% | 23.9 20% | 27.5 38% | 31.9 60% | 41.3 107% | 476 2280% | 514 2470% | 21.8 9% | 12.7 -36% | 12.7 -36% | 14 -30% | 19.8 -1% | 375 1775% | 481 2305% | 94.7 ? 374% |
| 3840x2160 Medical (medical-03) | 17.3 | 17.7 2% | 11.4 -34% | 16.3 -6% | 22.2 28% | 26.9 55% | 32.2 86% | 45.9 165% | 53.9 212% | 62.3 260% | 18.8 9% | 7.48 -57% | 7.41 -57% | 10.3 -40% | 12 -31% | 16.5 -5% | 37.9 119% | 19.7 ? 14% |
| 3840x2160 Maya (maya-06) | 236 | 226 -4% | 215 -9% | 290 23% | 305 29% | 372 58% | 447 89% | 498 111% | 401 70% | 481 104% | 314 33% | 106 -55% | 118 -50% | 162 -31% | 185 -22% | 274 16% | 329 39% | 207 ? -12% |
| 3840x2160 Energy (energy-03) | 44.2 | 44.9 2% | 14.5 -67% | 39.1 -12% | 57.6 30% | 75.7 71% | 90.4 105% | 141 219% | 99.6 125% | 129 192% | 37.2 -16% | 12.5 -72% | 13.7 -69% | 22.9 -48% | 17.8 -60% | 93.9 112% | 63 43% | 48.1 ? 9% |
| 3840x2160 Creo (creo-03) | 95.8 | 96.1 0% | 76.6 -20% | 99.3 4% | 112 17% | 121 26% | 128 34% | 133 39% | 173 81% | 187 95% | 90 -6% | 55.2 -42% | 57.7 -40% | 77.2 -19% | 85.8 -10% | 135 41% | 111 16% | 78.8 ? -18% |
| 3840x2160 CATIA (catia-06) | 38.9 | 39.2 1% | 37.9 -3% | 48 23% | 51.6 33% | 61.2 57% | 75.5 94% | 95.3 145% | 113 190% | 127 226% | 53.7 38% | 19.2 -51% | 21 -46% | 30.5 -22% | 36.7 -6% | 90.9 134% | 82.4 112% | 46.7 ? 20% |
| 3840x2160 3ds Max (3dsmax-07) | 74.6 | 74.5 0% | 80.1 7% | 99 33% | 122 64% | 147 97% | 179 140% | 228 206% | 143 92% | 167 124% | 128 72% | 45.5 -39% | 48.3 -35% | 63.1 -15% | 69.7 -7% | 118 58% | 137 84% | 81.7 ? 10% |
| Total Average (Program / Settings) | 0% /
-0% | -19% /
-19% | 8% /
7% | 28% /
27% | 52% /
52% | 79% /
79% | 115% /
113% | 418% /
417% | 471% /
469% | 6% /
5% | -49% /
-49% | -46% /
-46% | -29% /
-29% | -17% /
-17% | 272% /
269% | 341% /
337% | 27% /
25% |
Gaming benchmarks
Regarding our performance expectations for the KFA2 GeForce RTX 4060 Ti EX, you have to first note that Nvidia's target market for this GPU is gamers who primarily play games in 1,920 x 1,080 and who use high to maximum detail settings. In total, we would say the graphics card has fulfilled these aims, as a quick glance at the table listing the games we tested shows only green boxes when it comes to FullHD gaming. Only increased resolutions create some visible problems for the KFA2 GeForce RTX 4060 Ti EX as it struggles to keep frame rates on a playable level. At the end of the day, this is to be expected and Nvidia offer the perfect products for the job - namely the GeForce RTX 4070 (1,440p) up to the GeForce RTX 4090 (2,160p) which both take care of higher resolutions.
In general, you are currently still well-equipped with a mid-range model from the 3000 gen, which can still achieve good frame rates at 1,080p. Subsequently, we would note the KFA2 GeForce RTX 4060 Ti EX as rather an upgrade option from the older GTX era. Its increase in performance is huge and in case you also place great importance on up-to-date tech: it also supports features such as DLSS 3. This is exclusive to the RTX 4000 models and you could argue that this makes it worth purchasing. You also shouldn't forget its low power consumption. Here, the new Ada Lovelace architecture really shows its advantages over Ampere (RTX 3000 series).
On the other hand, we don't want to let KFA2's stingy treatment of its VRAM go unnoticed. We already talked about this in our MSI GeForce RTX 4060 Ti Gaming X Trio 8G review. We noted similar results with the KFA2 GeForce RTX 4060 Ti EX, which casts a poor light on the GPU's generally usable frame rates due to its bad FPS low values.
Compared to its competitors, the KFA2 GeForce RTX 4060 Ti EX still did well and in all areas, it came in on about the same level as the MSI GeForce RTX 4060 Ti Gaming X Trio 8G. Compared with AMD, the KFA2 GeForce RTX 4060 Ti EX often found itself up against the Sapphire Pulse Radeon RX 6750 XT. Even in higher resolutions, our test sample competed with the AMD card, even though the Radeon RX 6750 XT should offer considerably more room for textures thanks to its larger VRAM. Whether a 16-GB model of the GeForce RTX 4060 Ti will make a key difference - only time will tell.
| F1 2021 | |
| 2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (874931) | |
| KFA2 GeForce RTX 4080 SG (874931) | |
| AMD Radeon RX 7900 XTX (874931) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
| AMD Radeon RX 7900 XT (874931) | |
| NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
| KFA2 GeForce RTX 4070 EX Gamer (874931) | |
| KFA2 GeForce RTX 3080 SG (874931) | |
| KFA2 GeForce RTX 3070 Ti SG (874931) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (874931) | |
| Nvidia Titan RTX (874931) | |
| KFA2 GeForce RTX 4060 Ti EX (874931) | |
| Sapphire Pulse Radeon RX 6750 XT (874931) | |
| Nvidia GeForce RTX 2070 Super (874931) | |
| KFA2 GeForce GTX 1660 Super (874931) | |
| Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
| PNY GeForce GTX 1660 (874931) | |
| Nvidia GeForce RTX 2060 Super (874931) | |
| 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (874931) | |
| AMD Radeon RX 7900 XTX (874931) | |
| KFA2 GeForce RTX 4080 SG (874931) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
| AMD Radeon RX 7900 XT (874931) | |
| NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
| KFA2 GeForce RTX 4070 EX Gamer (874931) | |
| KFA2 GeForce RTX 3080 SG (874931) | |
| KFA2 GeForce RTX 3070 Ti SG (874931) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (874931) | |
| KFA2 GeForce RTX 4060 Ti EX (874931) | |
| Nvidia Titan RTX (874931) | |
| Sapphire Pulse Radeon RX 6750 XT (874931) | |
| Nvidia GeForce RTX 2070 Super (874931) | |
| Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
| KFA2 GeForce GTX 1660 Super (874931) | |
| Nvidia GeForce RTX 2060 Super (874931) | |
| PNY GeForce GTX 1660 (874931) | |
| F1 22 | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (923662) | |
| KFA2 GeForce RTX 4080 SG (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
| AMD Radeon RX 7900 XT (939134) | |
| NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
| KFA2 GeForce RTX 4070 EX Gamer (959964) | |
| KFA2 GeForce GTX 1660 Super (928484) | |
| PNY GeForce GTX 1660 (928484) | |
| KFA2 GeForce RTX 3070 Ti SG (939134) | |
| Nvidia Titan RTX (923650) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (959964) | |
| KFA2 GeForce RTX 4060 Ti EX (959964) | |
| Sapphire Pulse Radeon RX 6750 XT (959964) | |
| Nvidia GeForce RTX 2070 Super (923662) | |
| Nvidia GeForce RTX 2060 Super (923662) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
| NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
| AMD Radeon RX 7900 XT (939134) | |
| KFA2 GeForce RTX 4070 EX Gamer (959964) | |
| KFA2 GeForce GTX 1660 Super (928484) | |
| KFA2 GeForce RTX 3070 Ti SG (939134) | |
| PNY GeForce GTX 1660 (928484) | |
| Nvidia Titan RTX (923650) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (959964) | |
| KFA2 GeForce RTX 4060 Ti EX (959964) | |
| Sapphire Pulse Radeon RX 6750 XT (959964) | |
| Nvidia GeForce RTX 2070 Super (923662) | |
| Nvidia GeForce RTX 2060 Super (923662) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| A Plague Tale Requiem | |
| 2560x1440 Ultra Preset | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Sapphire Pulse Radeon RX 6750 XT | |
