AMD Radeon RX 7800 XT Desktop graphics card review: More affordable GeForce RTX 4070 performance
The AMD Radeon RX 7800 XT was introduced simultaneously with the AMD Radeon RX 7700 XT at this year's Gamescom in Cologne. With this, AMD completes its RX 7000 portfolio, and if we can believe the rumors, AMD will concentrate on the next graphics card generation from now on. We will therefore take a closer look at the AMD Radeon RX 7800 XT now. With this graphics card, AMD primarily targets gamers who want to play in 1,440p.

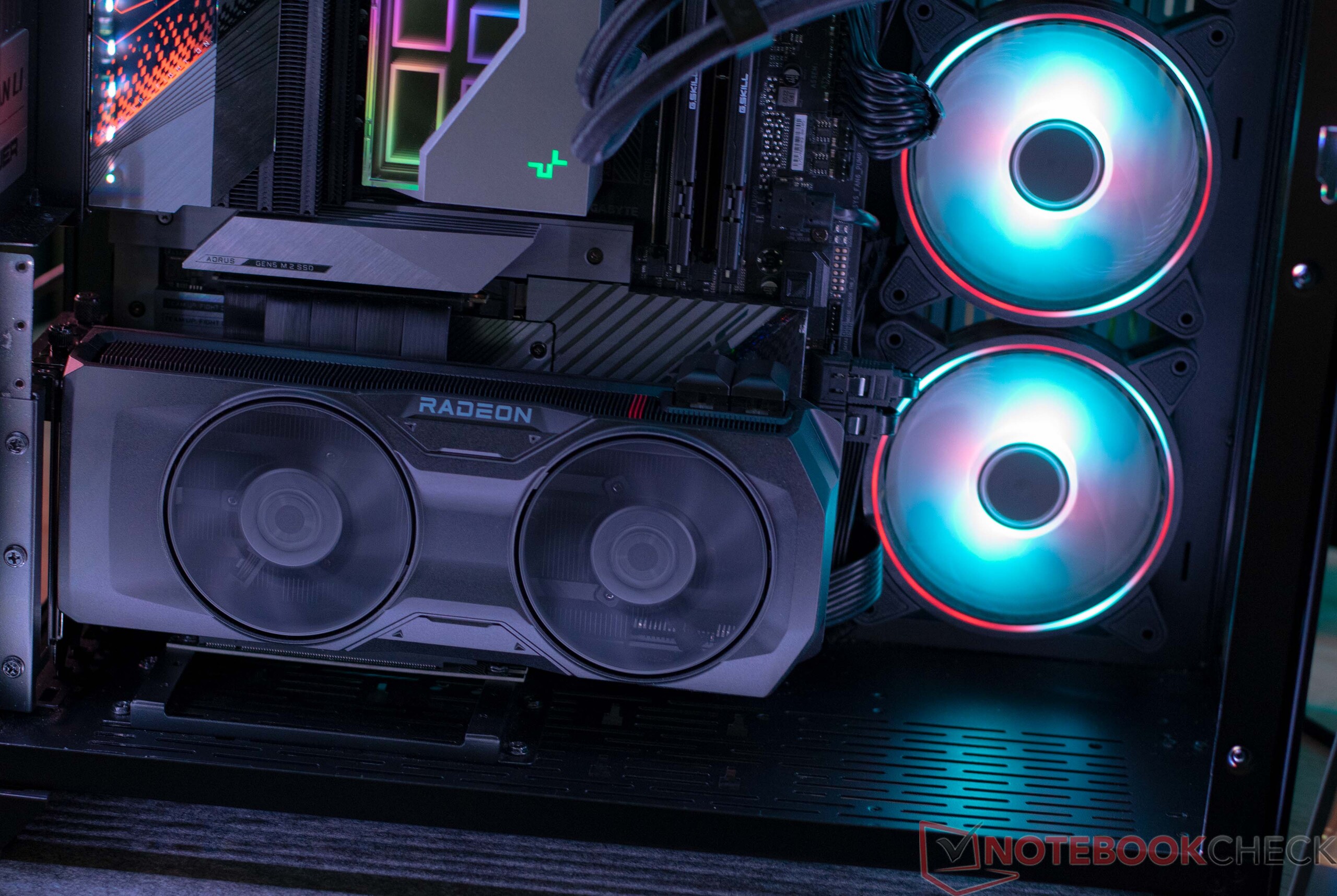

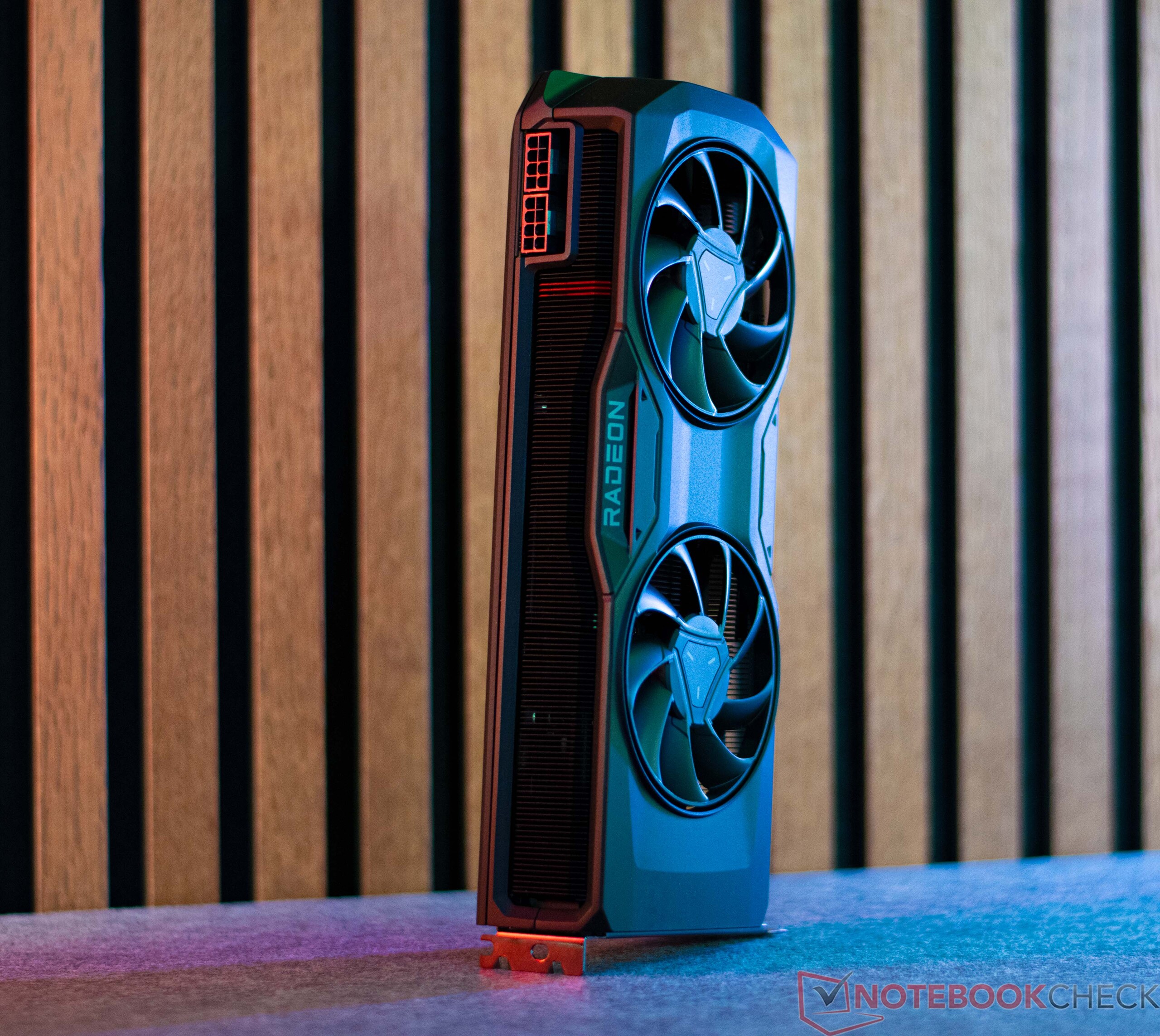

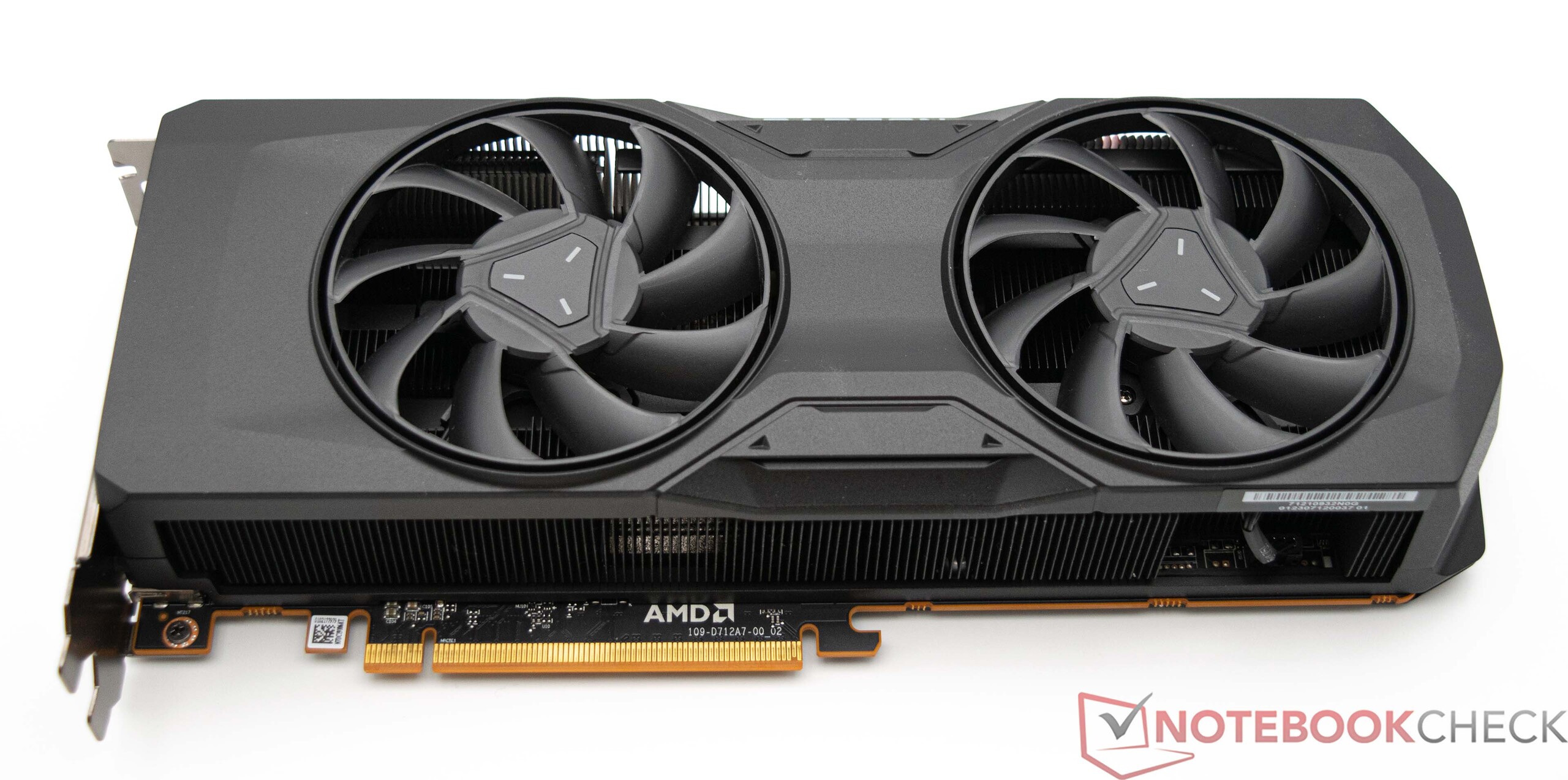

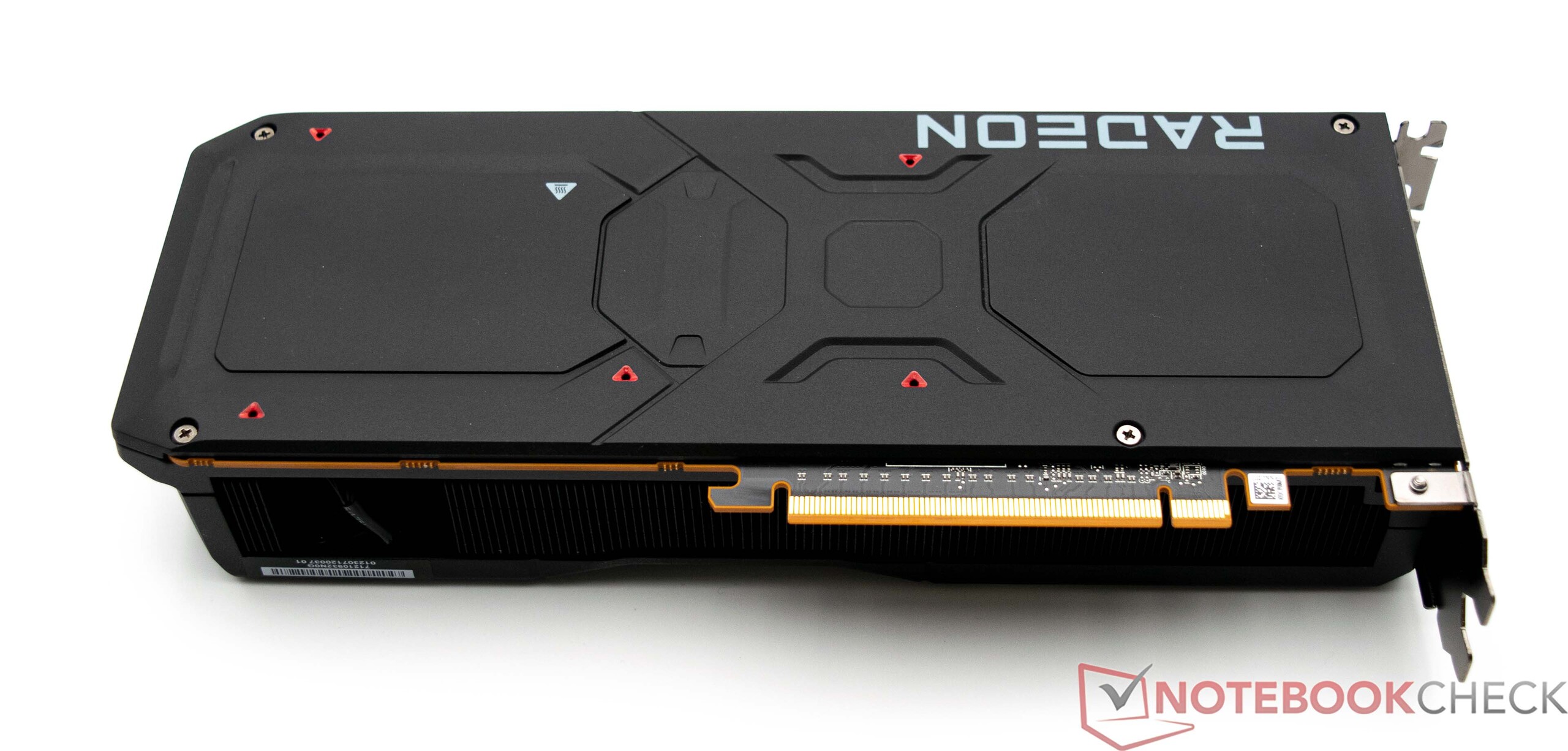

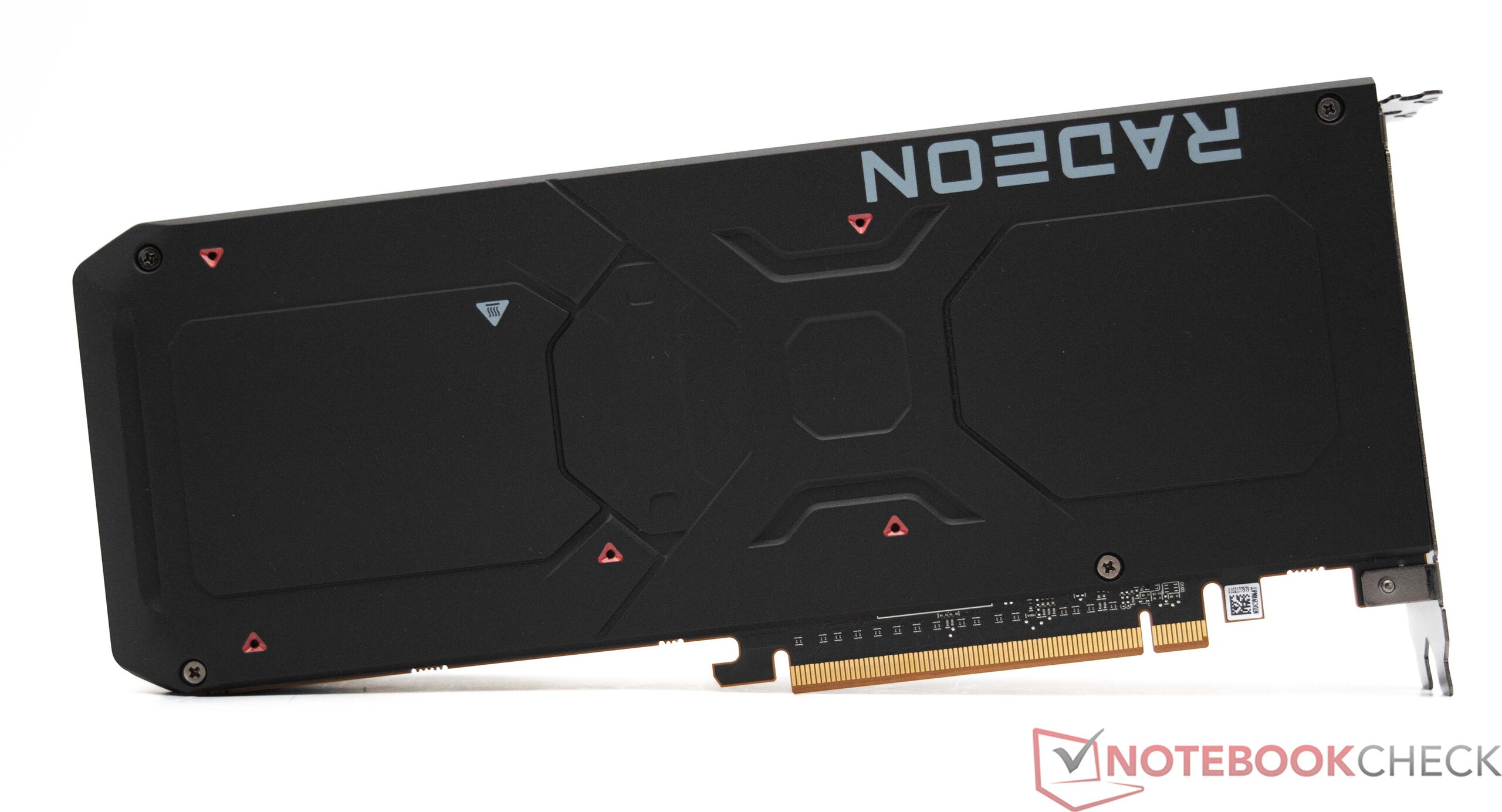

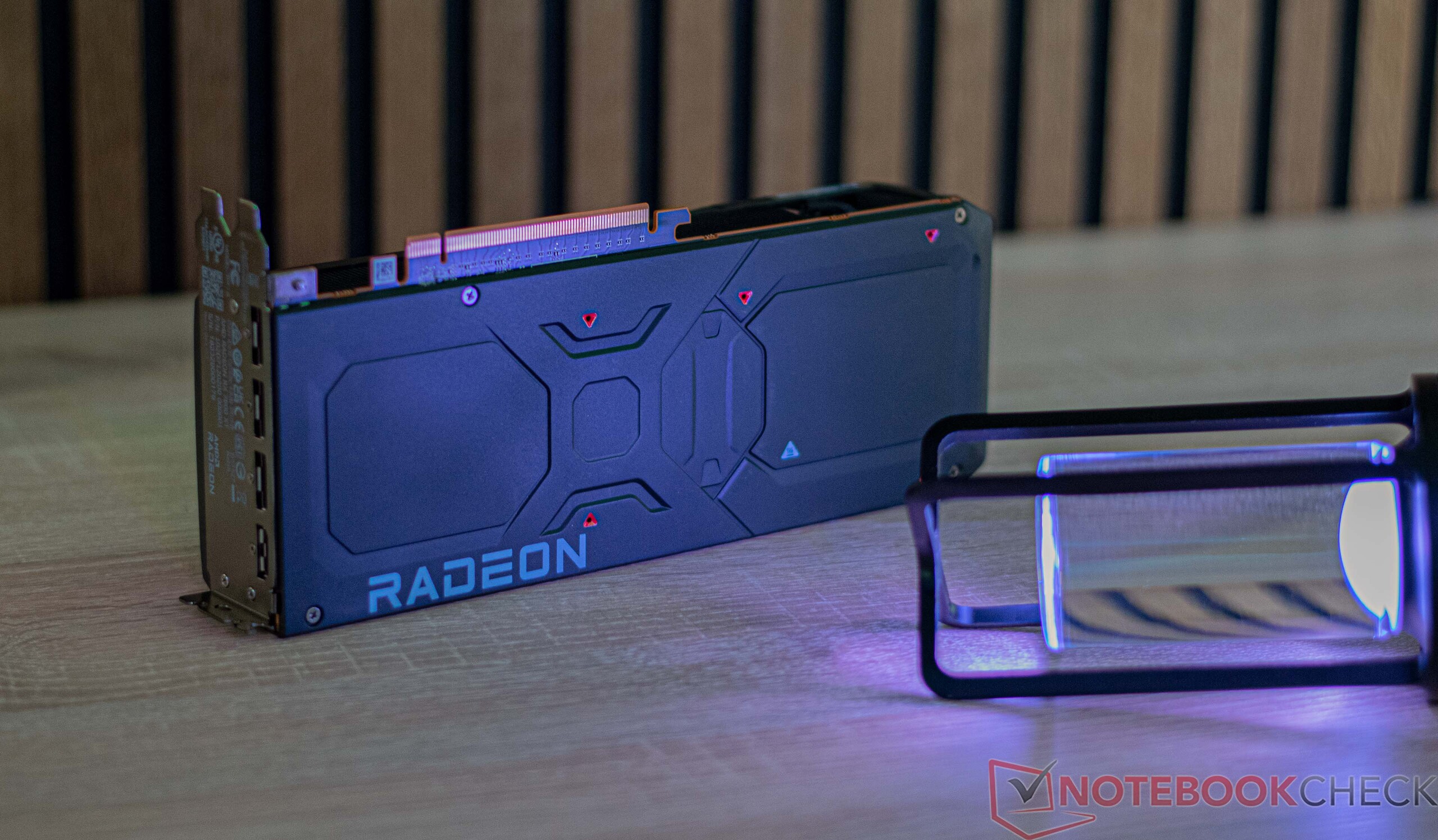

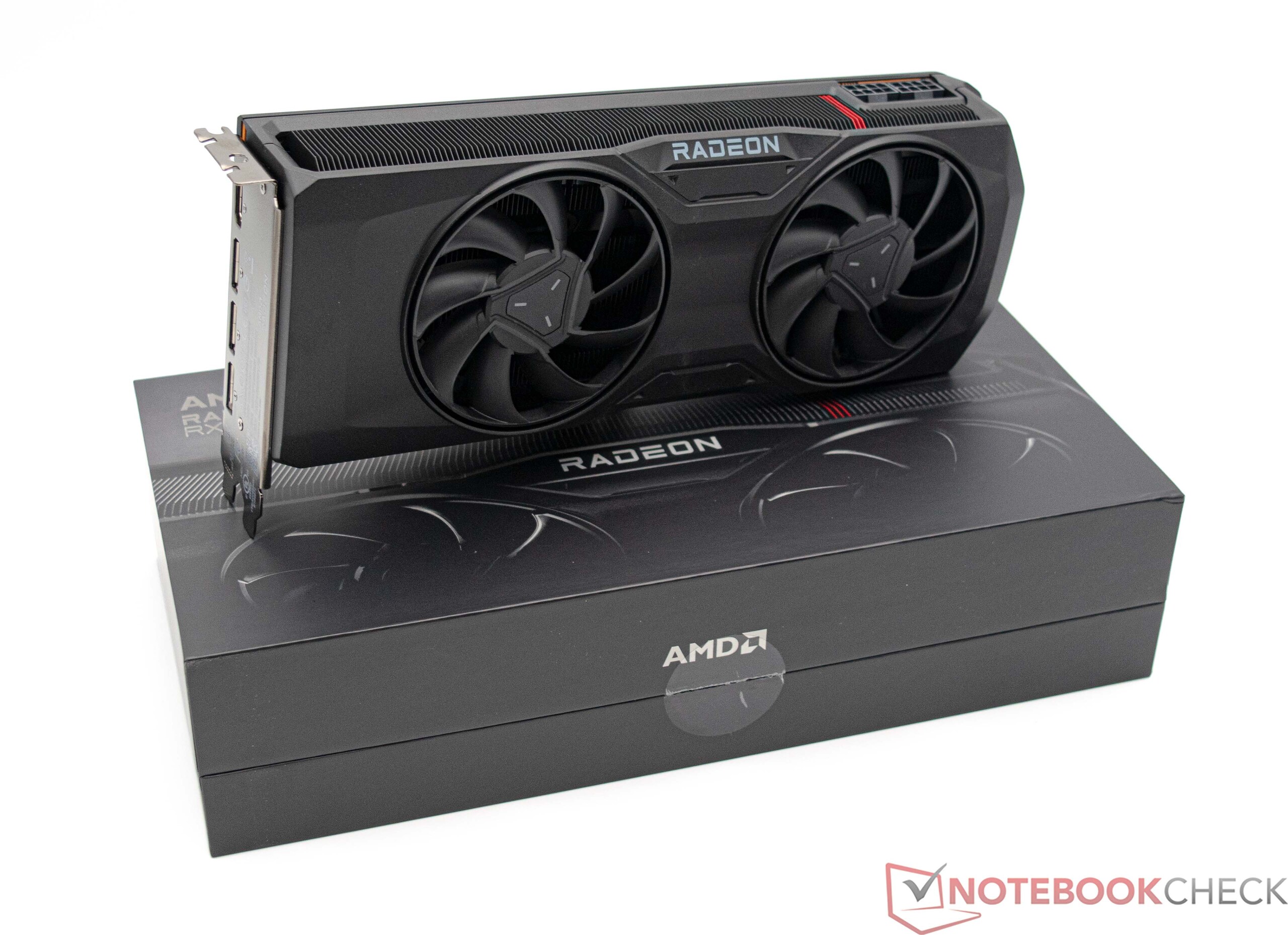

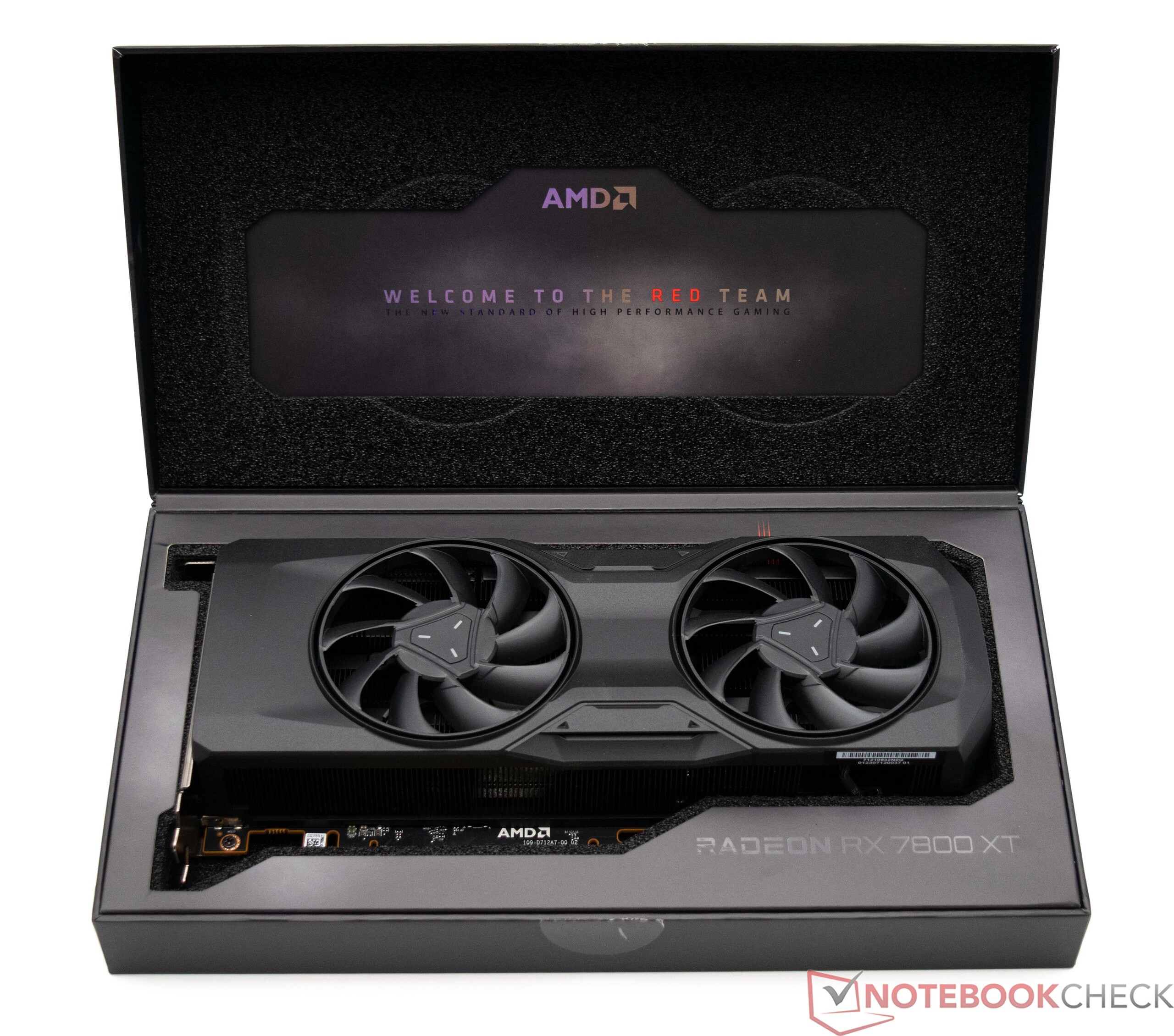

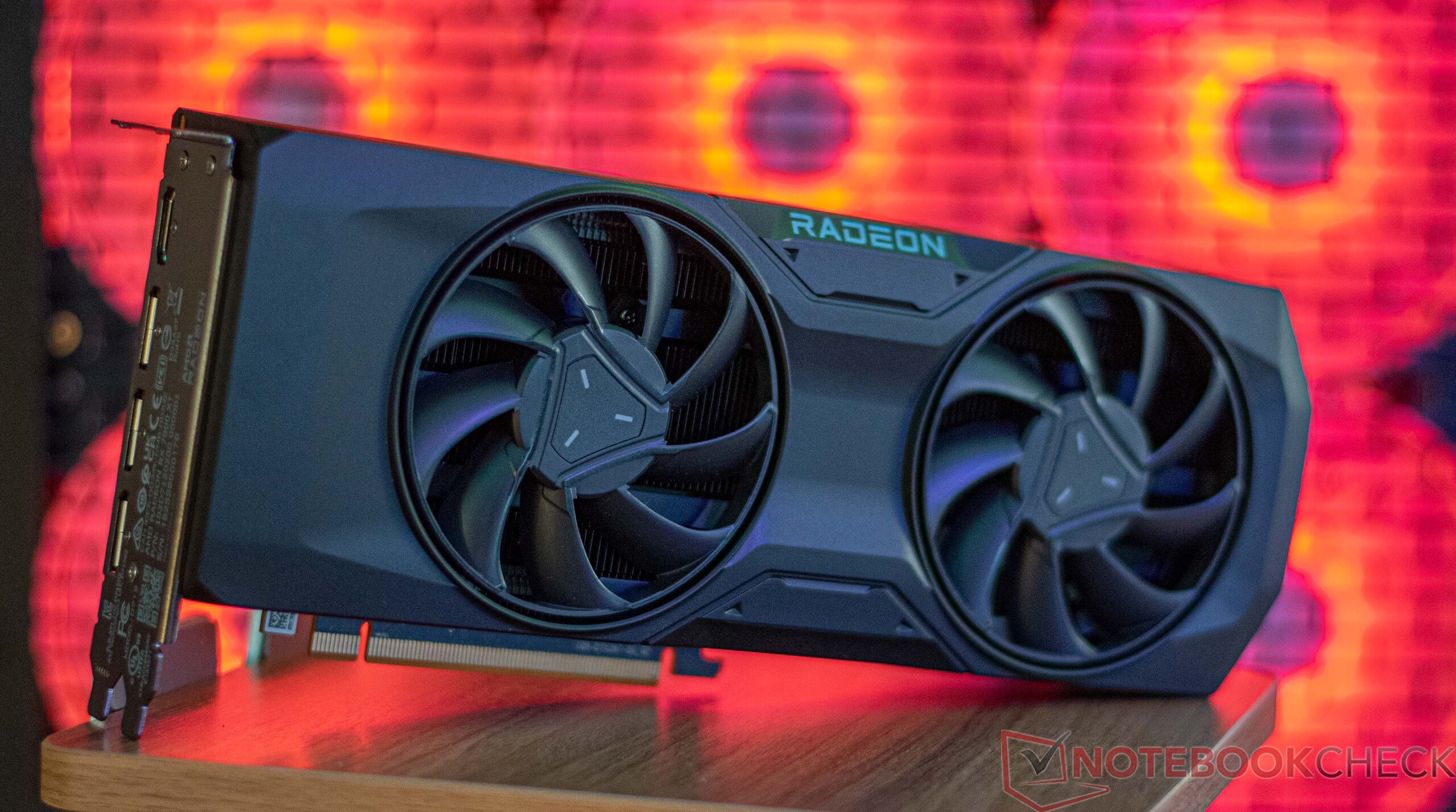

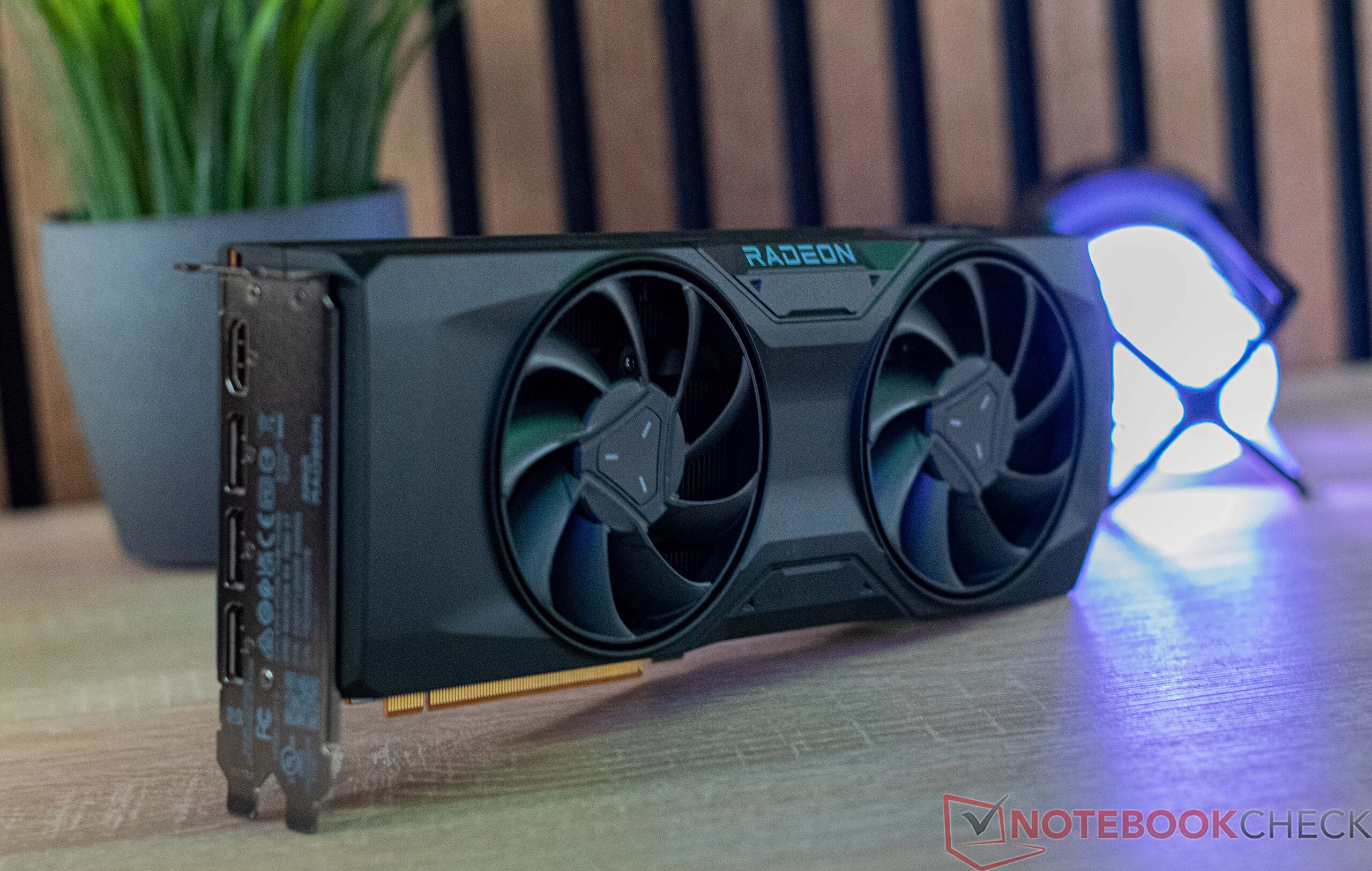

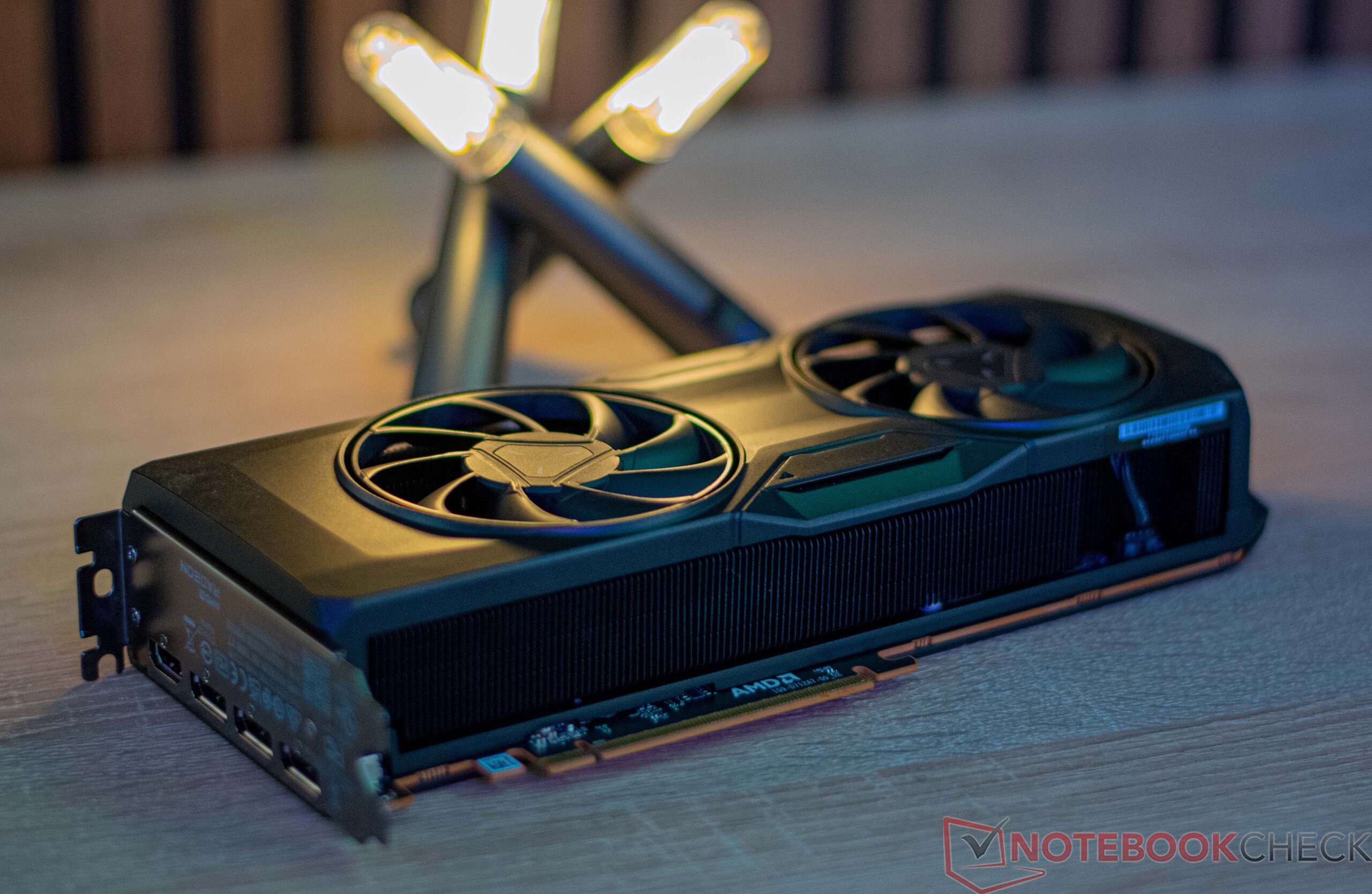

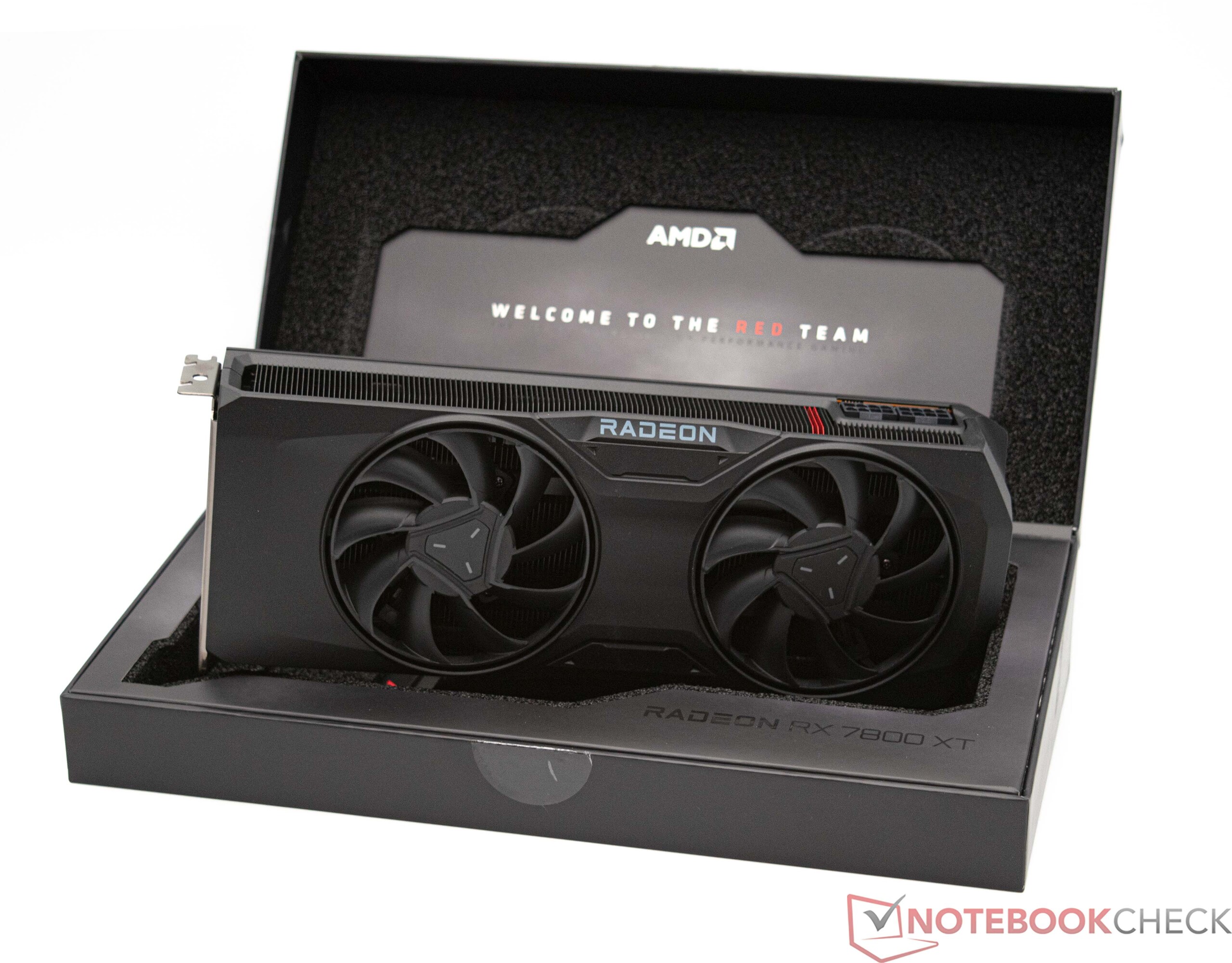

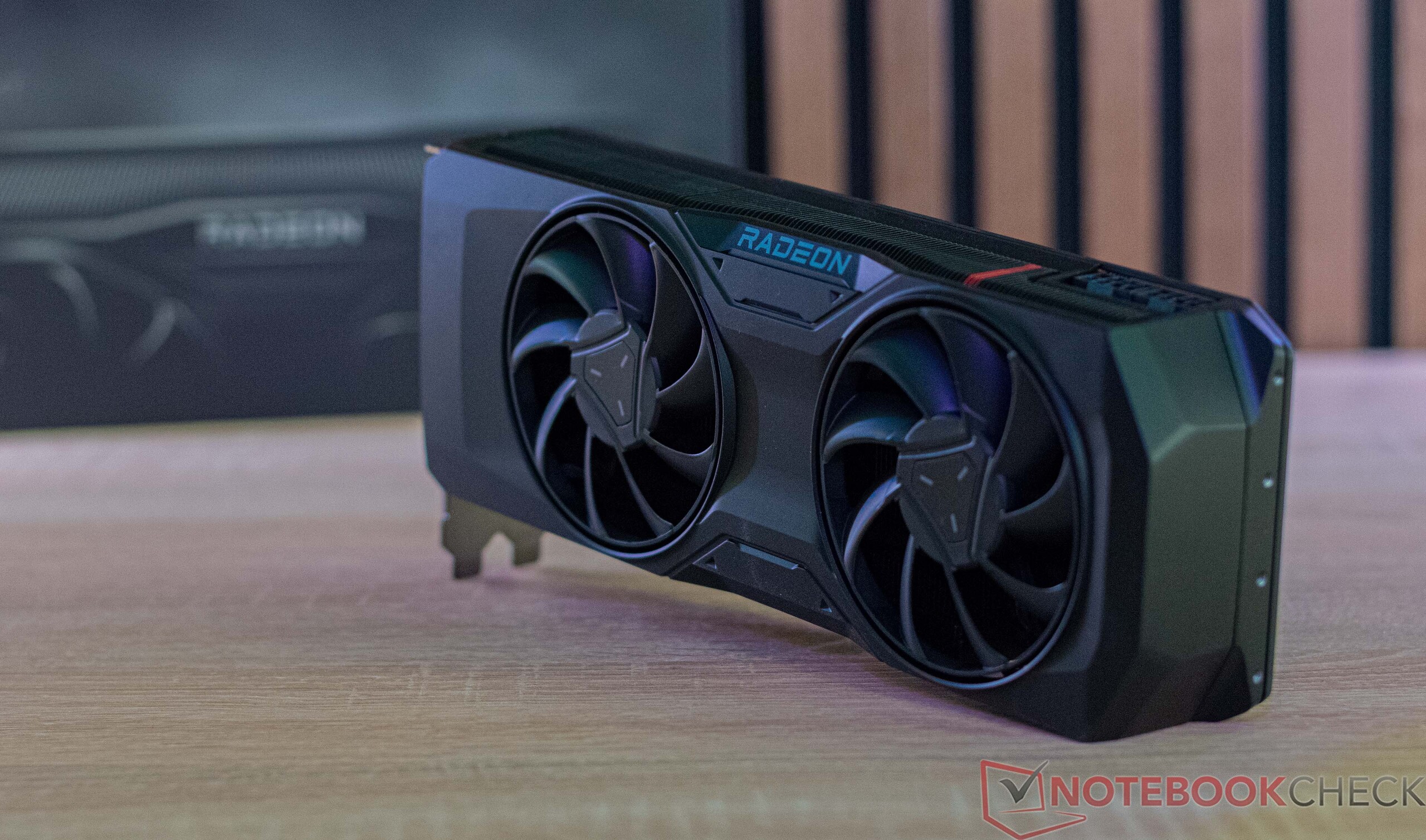

For our test, we use the AMD Radeon RX 7800 XT in the reference design. This model can be purchased directly in the online shop from AMD, currently costing 552 Euros ($499 in the US). Based on the same graphics chip, various models from the known board partners, some of which are equipped with significantly heftier cooling elements, are also available. Visually, the reference model from AMD lines up together with the 7000 series, with AMD keeping to its known design here. The 2.5 slot design appears compact, and two fans provide a sufficient amount of air. At a length of barely 27 cm (~10.6 in), the AMD Radeon RX 7800 XT can also fit into relatively compact cases.
The graphics chip called Navi 32 XT contains 3,840 shader units. In terms of VRAM, it is fairly well equipped with 16 GB, but we are already used to this with AMD. With this, we see the AMD Radeon RX 7800 XT as more of a direct successor of the AMD Radeon RX 6800. The new chipset design is also used for the AMD Radeon RX 7800 XT, and in addition to the GCD with 200 mm² (~0.31 in²), there are also four MCDs with 36.6 mm² (~0.057 in²) each. The VRAM is also connected via the MCDs, resulting in a storage connection of 256 bits. In terms of the power supply, we see two 6+2 pin PCIe power connections in our reference model. With a maximum power consumption of up to 263 watts, the AMD Radeon RX 7800 XT is not an efficient graphics card, though. Compared to the AMD Radeon RX 7900 GRE, which was introduced in the previous weeks, our test unit turns out worse in our comparison. So AMD appears to have some serious inhouse competitors here. On the other hand, you cannot just purchase the AMD Radeon RX 7900 GRE separately as usual, but you currently have to take the detour of purchasing a complete system or a PC upgrade kit consisting of a mainboard, CPU, and RAM instead.

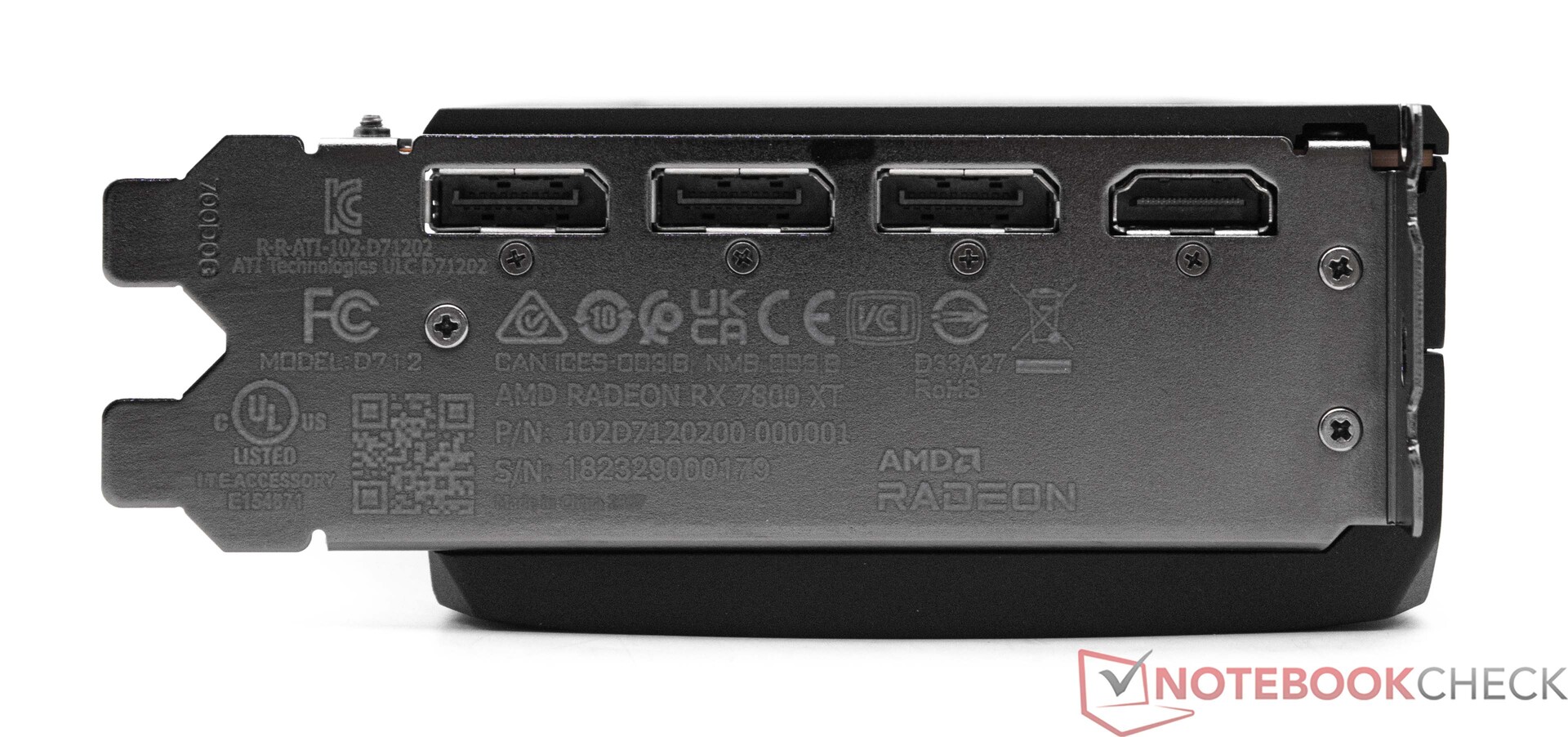

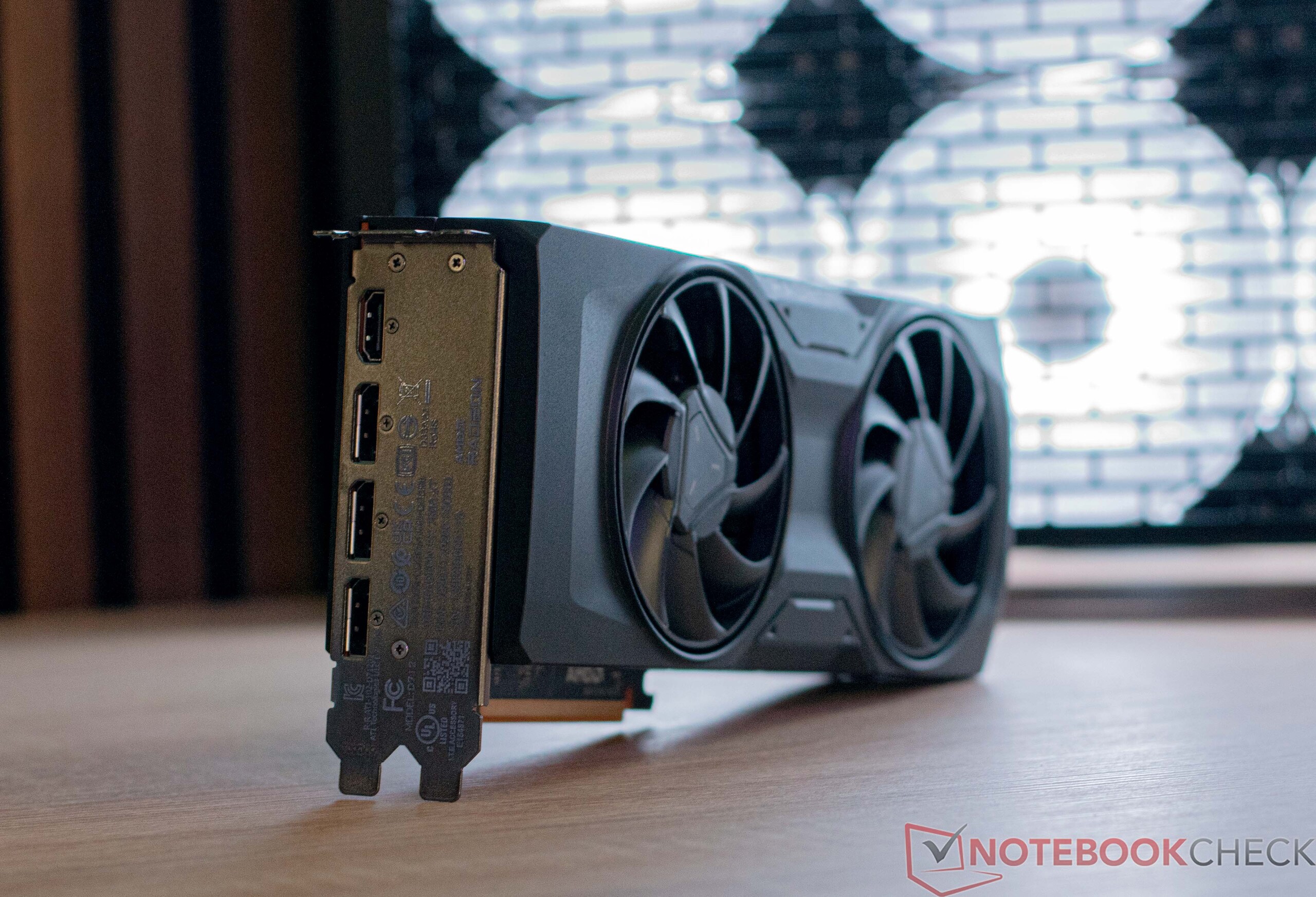

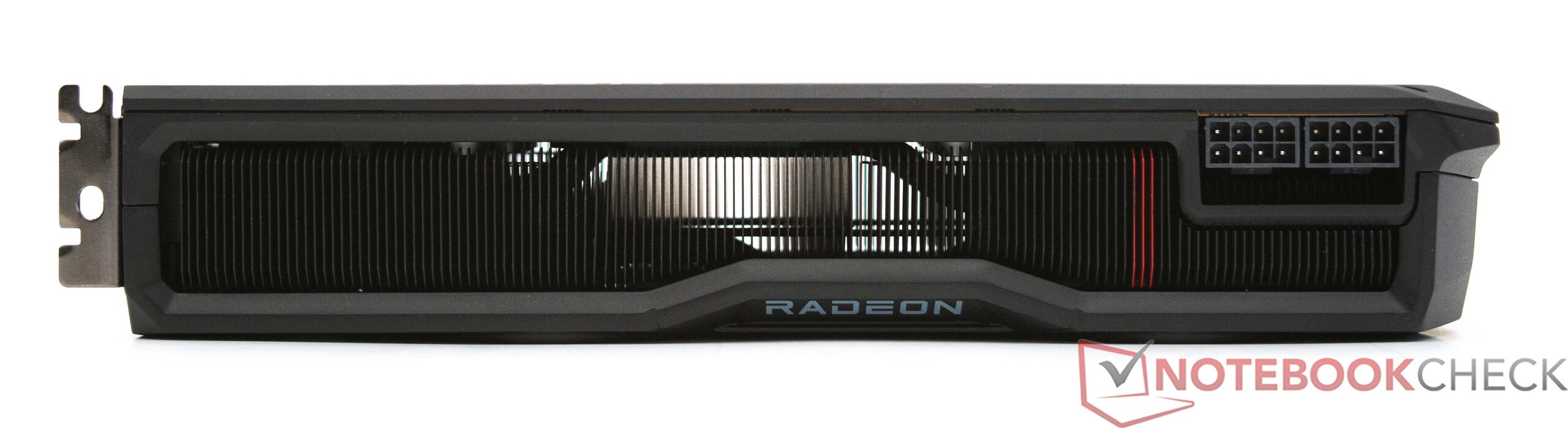

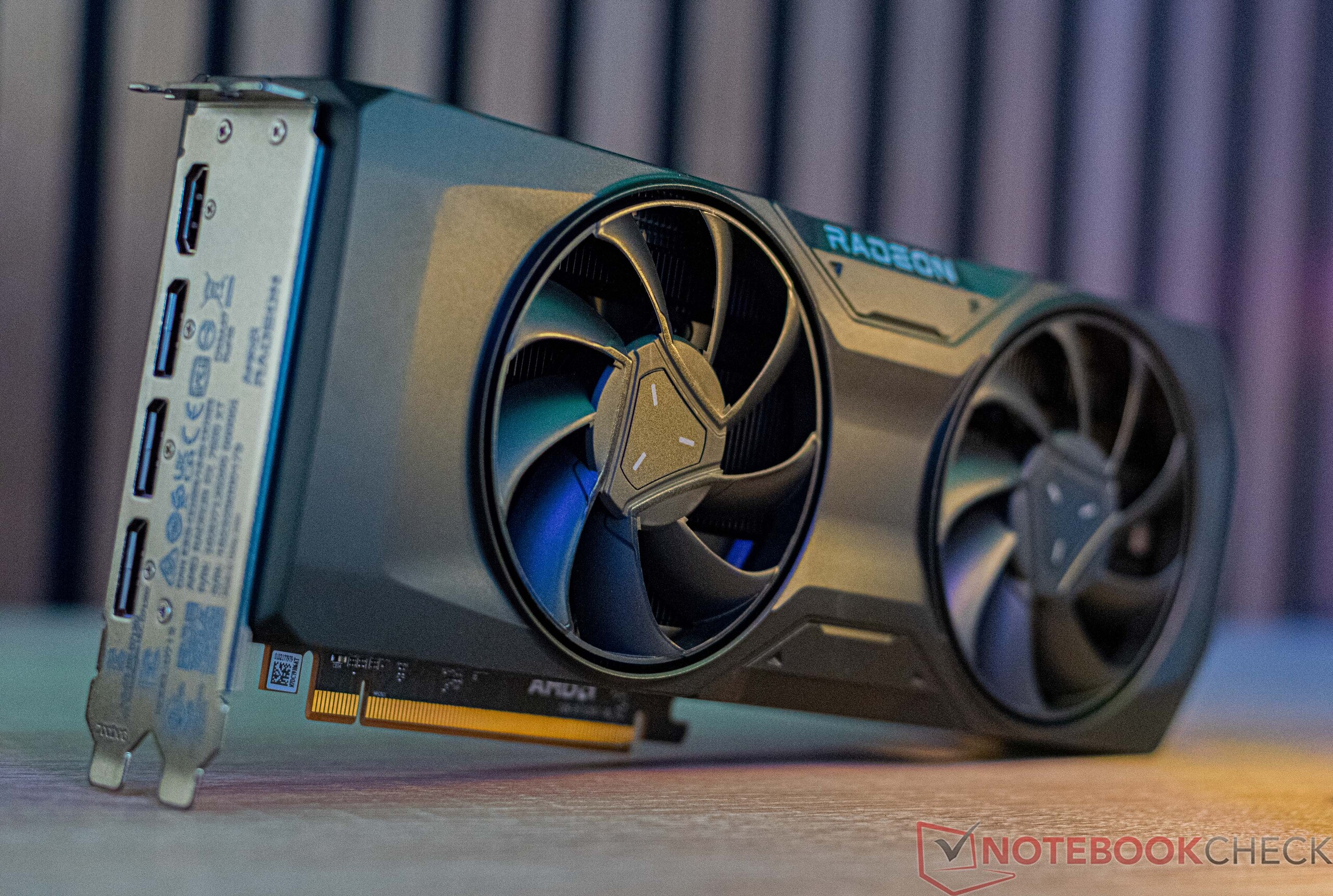

In terms of the external connections, you get the most current available. Even Nvidia is unable to keep up in this regard, and DisplayPort 2.1 is only available with the AMD graphics card of the 7000 generation. In total, the AMD Radeon RX 7800 XT offers 1x HDMI 2.1a and 3x DisplayPort 2.1, allowing you to connect up to four displays simultaneously.

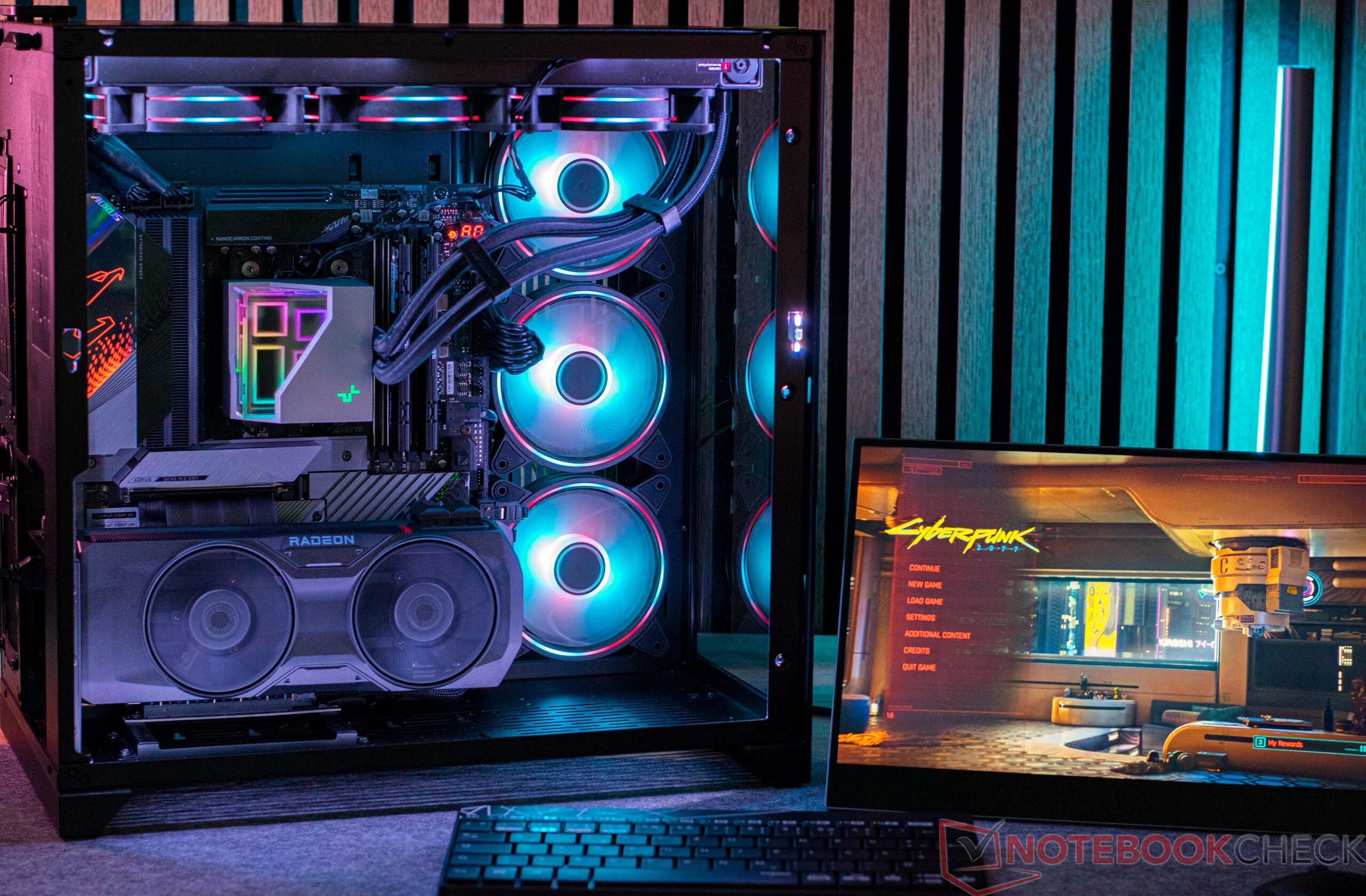

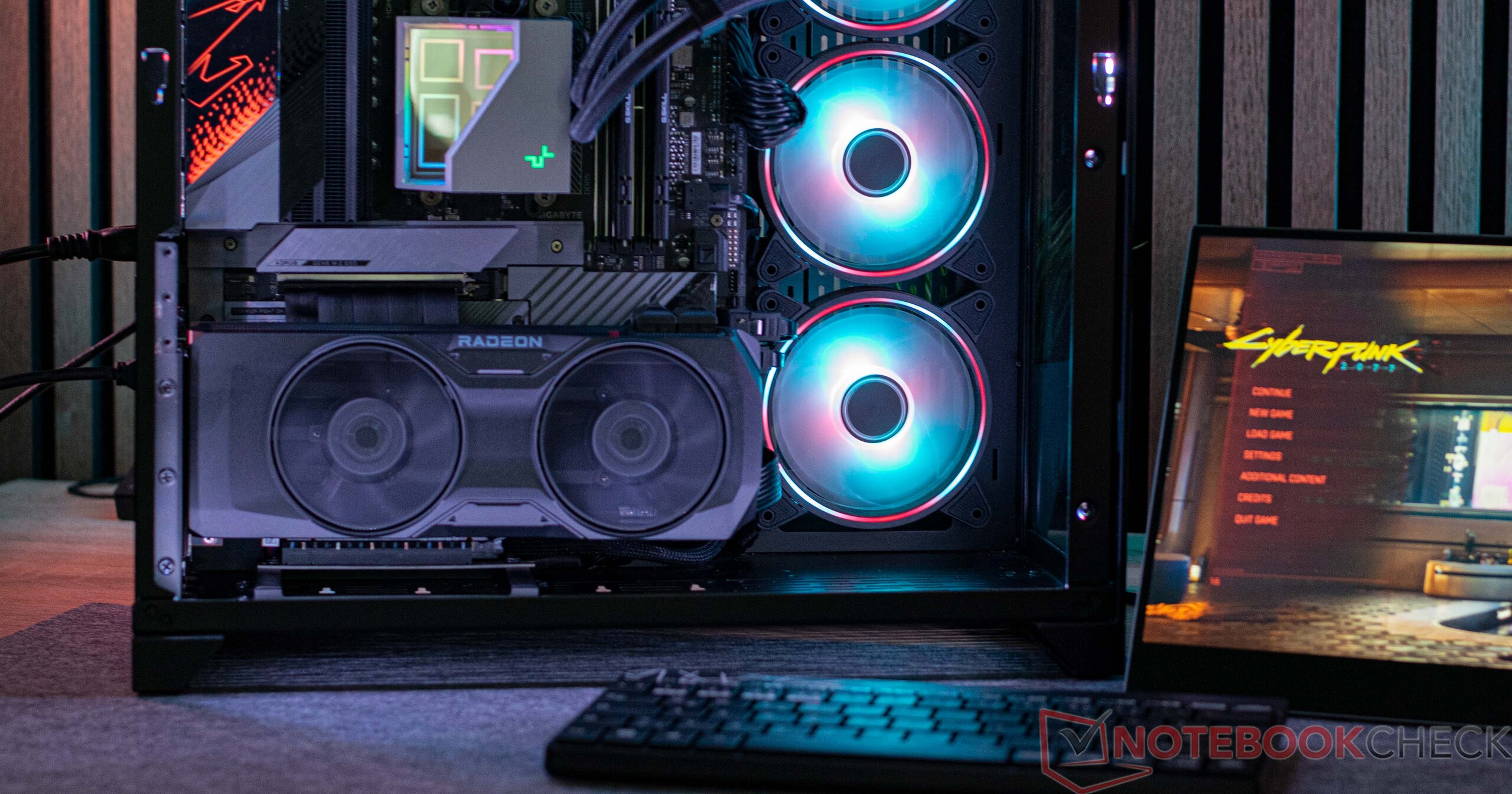

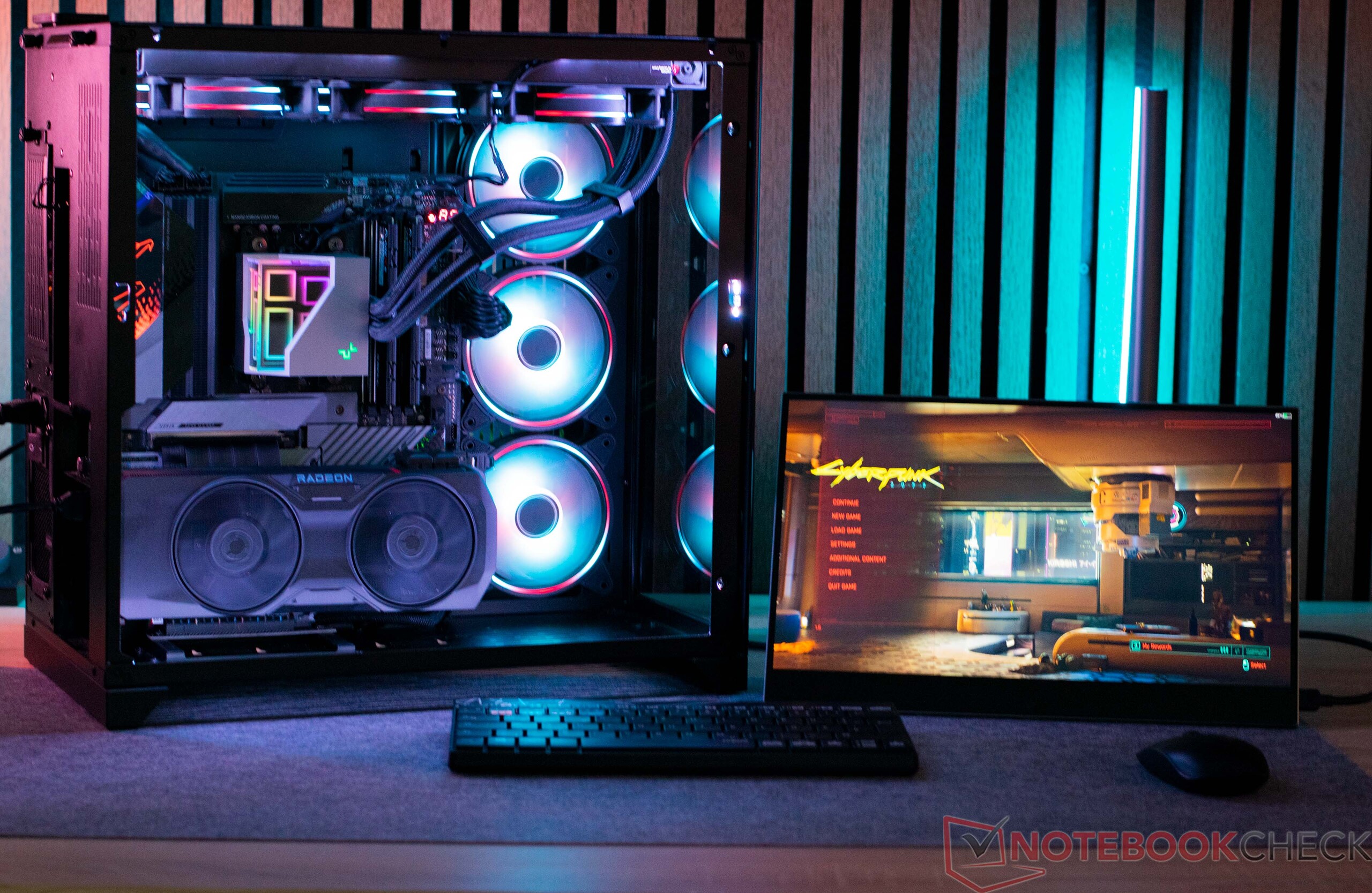

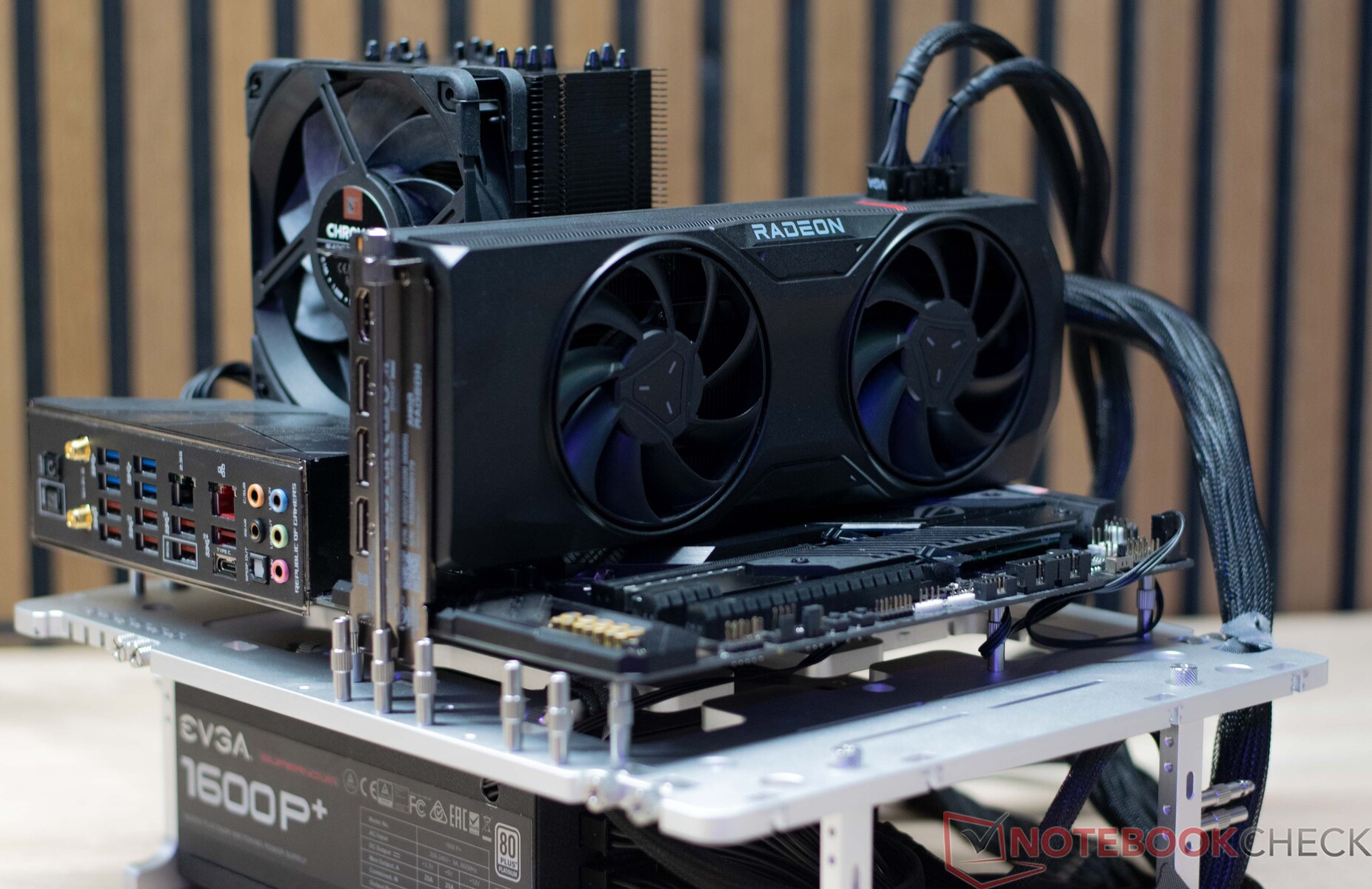

Information on our Test System

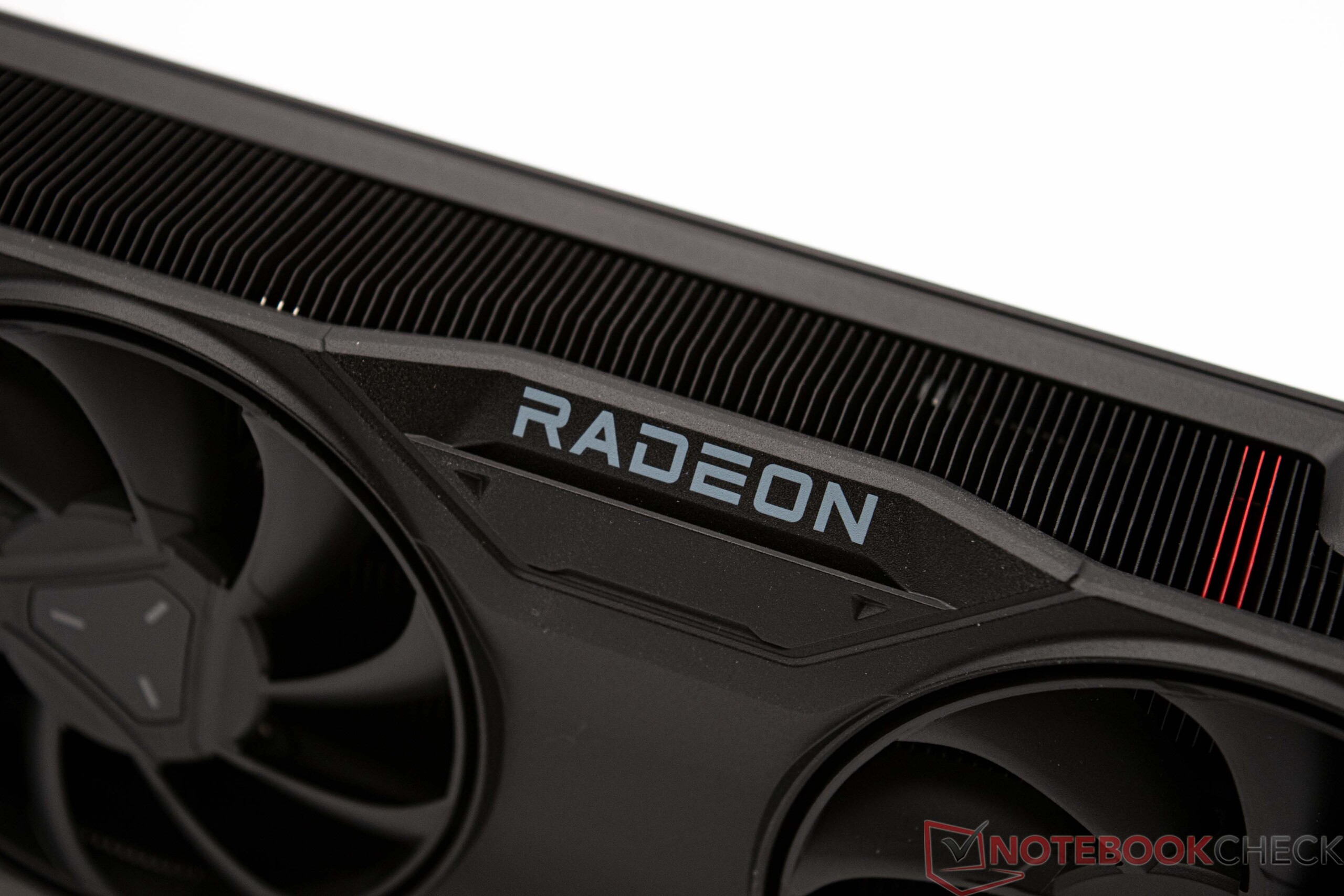

AMD Radeon RX 7800 XT in Detail
Comparison of the Radeon AMD GPUs
Specifications | Radeon RX 7900 XTX | Radeon RX 7900 XT | Radeon RX 7900 GRE | Radeon RX 7800 XT | Radeon RX 7700 XT | Radeon RX 7600 | Radeon RX 6800 XT | Radeon RX 6800 |
GPU | Navi 31 XTX | Navi 31 XT | Navi 31 XT | Navi 32 XT | Navi 32 XL | Navi 33 XL | Navi 21 XL | Navi 21 XL |
Manufacturing Process | 5/6 nm | 5/6 nm | 5/6 nm | 5/6 nm | 5/6 nm | 6 nm | 7 nm | 7 nm |
Compute Units | 96 | 84 | 80 | 60 | 54 | 32 | 72 | 60 |
Shading Units | 6,144 | 5,376 | 5,120 | 3,840 | 3,456 | 2,048 | 4,608 | 3,840 |
Texture Mapping Units | 384 | 336 | 320 | 240 | 216 | 128 | 288 | 240 |
Ray Accelerators | 96 | 84 | 80 | 60 | 54 | 32 | 72 | 60 |
Base Clock | 2,270 MHz | 2,000 MHz | 1,880 MHz | 1,295 MHz | 1,700 MHz | 1,720 MHz | 1,825 MHz | 1,700 MHz |
Game Clock | 2,300 MHz | 2,000 MHz | 1,880 MHz | 2,124 MHz | 2,171 MHz | 2,250 MHz | 2,015 MHz | 1,815 MHz |
Boost Clock | 2,500 MHz | 2,400 MHz | 2,245 MHz | 2,430 MHz | 2,544 MHz | 2,655 MHz | 2,250 MHz | 2,105 MHz |
Infinity Cache | 96 MB | 80 MB | 64 MB | 64 MB | 48 MB | 32 MB | 128 MB | 128 MB |
Memory Bus Width | 384 bit | 320 bit | 256 bit | 256 bit | 256 bit | 128 bit | 256 bit | 256 bit |
Memory Bandwidth | 960 GB/s | 800 GB/s | 576 GB/s | 620.8 GB/s | 432 GB/s | 288 GB/s | 512 GB/s | 512 GB/s |
Memory Size | 24 GB GDDR6 | 20 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 | 12 GB | 8 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 |
TBP | 355 W | 315 W | 260 W | 263 W | 245 W | 165 W | 300 W | 250 W |

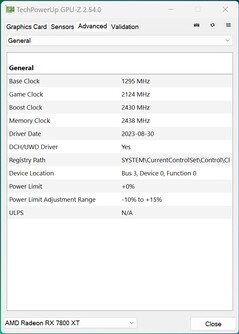

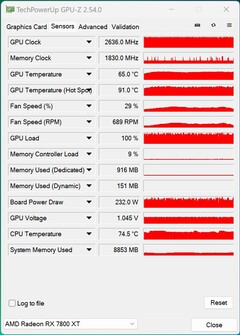

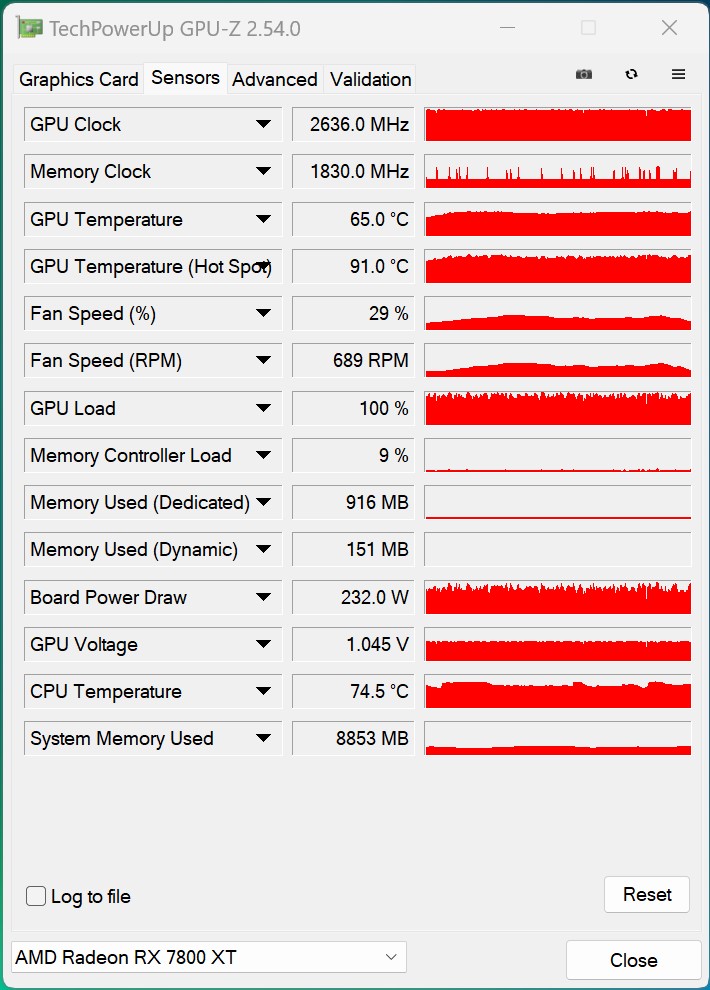

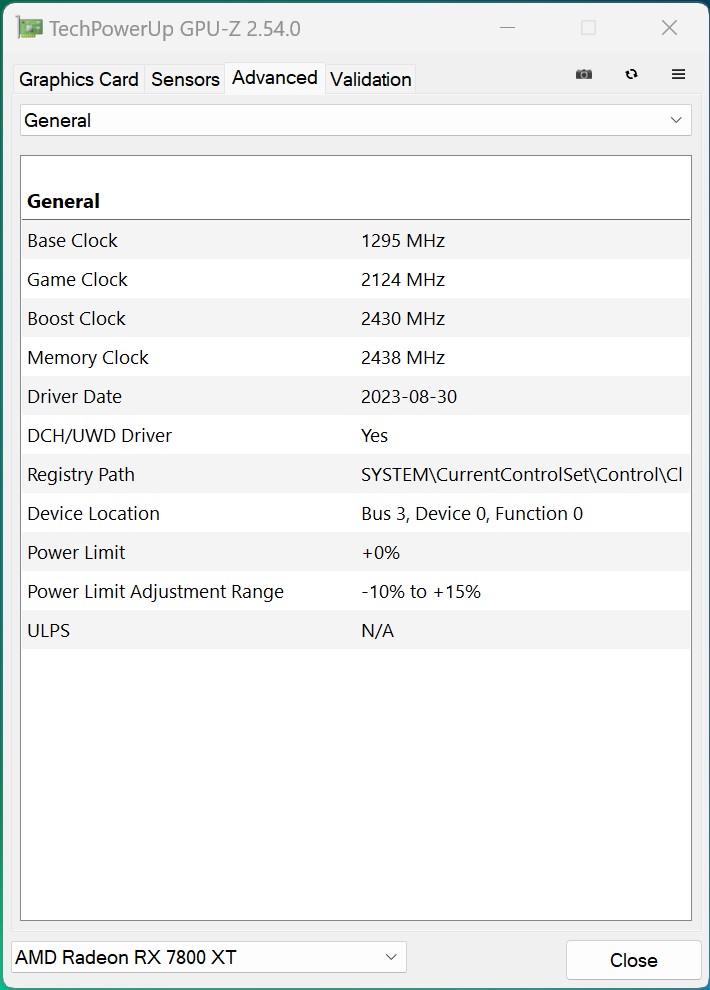

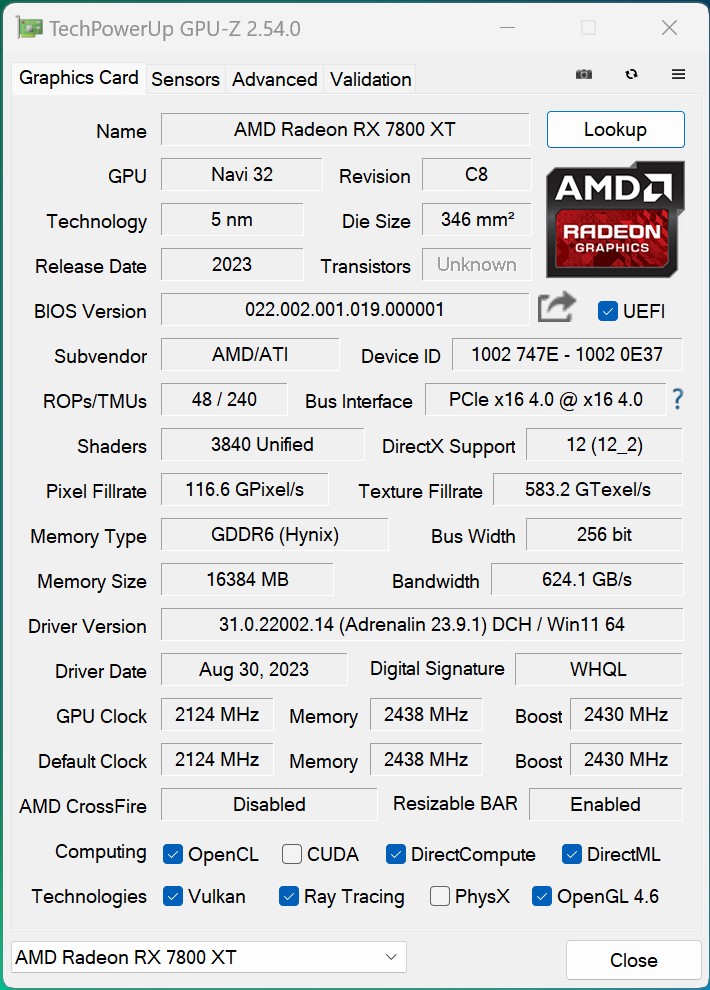

Clock Speeds of the AMD Radeon RX 7800 XT
Due to the fact that our test unit is the reference model, there are no deviations in terms of the clock speeds. According to the manufacturer specifications, 2,430 MHz are available for the boost clock speed. However, we often see values in our test that are even above the boost speed. For the VRAM, we note 2,438 MHz, resulting in a storage bandwidth of 620.8 GB/s. This is significantly higher than in an AMD Radeon RX 7900 GRE, which only reaches 576 GB/s here.
Synthetic Benchmarks
For the initial performance comparison, we take a look at the synthetic tests. The AMD Radeon RX 7800 XT is able to place just ahead of the KFA2 GeForce RTX 4070 EX Gamer here. Compared to the AMD Radeon RX 7900 GRE, our test unit has to accept a disadvantage of 9%, and compared to an AMD Radeon RX 6800, the AMD Radeon RX 7800 XT is only barely ahead. Only in the comparison with the Nvidia GeForce RTX 4070 Ti do we see a noticeable performance difference, but that graphics card remains beyond the reach of our test unit. AMD itself also considers the Nvidia GeForce RTX 4070 the direct competitor to the AMD Radeon RX 7800 XT.
Performance Rating - Percent | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
Unigine Heaven 4.0 | |
Extreme Preset DX11 | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
Extreme Preset OpenGL | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 6800 | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse Radeon RX 6600 | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 6800 | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse Radeon RX 6600 |
3DMark 11 | |
1280x720 Performance GPU | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 6700 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super | |
1280x720 Performance | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 6700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
LuxMark v2.0 64Bit | |
Room GPUs-only | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 | |
Sala GPUs-only | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 |
Photoshop PugetBench | |
GPU Score | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 7600 | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 4070 Ti | |
Overall Score | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 6650 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 4070 Ti |
Premiere Pro PugetBench | |
GPU 0.9 | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 6700 XT | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 | |
Overall Score 0.9 | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4070 Ti | |
AMD Radeon RX 7900 GRE | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6750 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6600 |
Affinity Photo 2 - Combined (Single / Multi GPU) | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4070 Ti | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 7900 GRE | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6600 |
3DMark 06 Standard Score | 66993 points | |
3DMark Vantage P Result | 131792 points | |
3DMark 11 Performance | 47729 points | |
3DMark Ice Storm Standard Score | 272410 points | |
3DMark Cloud Gate Standard Score | 84676 points | |
3DMark Fire Strike Score | 43396 points | |
3DMark Fire Strike Extreme Score | 24439 points | |
3DMark Time Spy Score | 18518 points | |
Help |
Professional Applications
In professional applications, AMD recently has also been able to achieve good values with the "regular" graphics card, aside from the special workstation GPUs. Compared to Nvidia, AMD is clearly ahead here. But this also means that the direct competitors of the AMD Radeon RX 7800 XT are other inhouse graphics cards. We initially see a head-to-head competition with the AMD Radeon RX 6800, which still performs at eye level in the older SPECviewperf 12 benchmark. In SPECviewperf 13 and SPECviewperf 2020v1, the signs point toward the AMD Radeon RX 7800 XT, and the graphics card can take advantage of using the newer features here. Compared to the AMD Radeon RX 7900 GRE, we also still see a slight disadvantage for our test unit, resulting in the AMD Radeon RX 7800 XT placing behind the third fastest AMD graphics card - which is also reflected in its labeling.
AMD Radeon RX 7800 XT R9 7950X | AMD Radeon RX 6800 R9 7950X | AMD Radeon RX 6950 XT R9 7950X | AMD Radeon RX 7600 R9 7950X | AMD Radeon RX 7900 GRE R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | NVIDIA GeForce RTX 4060 R9 7950X | NVIDIA GeForce RTX 4060 Ti 8G R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | NVIDIA GeForce RTX 4080 R9 7950X | NVIDIA GeForce RTX 4090 R9 7950X | Average of class | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPECviewperf 12 | 3% | -22% | -31% | 7% | 30% | 45% | -59% | -52% | -38% | -26% | -14% | -8% | -67% | |
1900x1060 3ds Max (3dsmax-05) | 427 | 424 -1% | 418 -2% | 279 -35% | 444 4% | 502 18% | 553 30% | 251 -41% | 286 -33% | 382 -11% | 436 2% | 502 18% | 571 34% | 192.2 ? -55% |
1900x1060 Catia (catia-04) | 386 | 396 3% | 368 -5% | 273 -29% | 448 16% | 481 25% | 536 39% | 113 -71% | 128 -67% | 161 -58% | 192 -50% | 221 -43% | 257 -33% | 102.3 ? -73% |
1900x1060 Creo (creo-01) | 148 | 160 8% | 163 10% | 115 -22% | 155 5% | 176 19% | 187 26% | 60.6 -59% | 74.3 -50% | 89.1 -40% | 99.4 -33% | 110 -26% | 115 -22% | 62.9 ? -57% |
1900x1060 Energy (energy-01) | 38.4 | 48.4 26% | 34.3 -11% | 25.5 -34% | 40.3 5% | 72.4 89% | 85.2 122% | 15.9 -59% | 22.8 -41% | 31.7 -17% | 48 25% | 58.8 53% | 54.7 42% | 14.6 ? -62% |
1900x1060 Maya (maya-04) | 304 | 304 0% | 195 -36% | 236 -22% | 323 6% | 347 14% | 367 21% | 233 -23% | 252 -17% | 284 -7% | 287 -6% | 309 2% | 317 4% | 105.4 ? -65% |
1900x1060 Medical (medical-01) | 200 | 188 -6% | 95.2 -52% | 128 -36% | 226 13% | 288 44% | 347 74% | 82.4 -59% | 107 -46% | 132 -34% | 157 -21% | 171 -14% | 119 -40% | 51.2 ? -74% |
1900x1060 Showcase (showcase-01) | 235 | 229 -3% | 264 12% | 127 -46% | 222 -6% | 278 18% | 322 37% | 109 -54% | 122 -48% | 190 -19% | 244 4% | 333 42% | 457 94% | 93.9 ? -60% |
1900x1060 Siemens NX (snx-02) | 280 | 296 6% | 56.4 -80% | 210 -25% | 341 22% | 373 33% | 400 43% | 14.2 -95% | 14.5 -95% | 16.4 -94% | 19 -93% | 21.6 -92% | 27.1 -90% | 56.3 ? -80% |
1900x1060 Solidworks (sw-03) | 322 | 315 -2% | 218 -32% | 221 -31% | 319 -1% | 342 6% | 360 12% | 91.2 -72% | 94.8 -71% | 109 -66% | 118 -63% | 113 -65% | 126 -61% | 83.5 ? -74% |
SPECviewperf 13 | -8% | -22% | -35% | 7% | 14% | 28% | -62% | -55% | -42% | -31% | -18% | -4% | -63% | |
3ds Max (3dsmax-06) | 434 | 424 -2% | 416 -4% | 280 -35% | 439 1% | 506 17% | 564 30% | 252 -42% | 286 -34% | 381 -12% | 433 0% | 497 15% | 563 30% | 183.9 ? -58% |
Catia (catia-05) | 588 | 616 5% | 588 0% | 410 -30% | 661 12% | 728 24% | 825 40% | 163 -72% | 187 -68% | 241 -59% | 290 -51% | 340 -42% | 402 -32% | 196.9 ? -67% |
Creo (creo-02) | 442 | 431 -2% | 374 -15% | 294 -33% | 470 6% | 567 28% | 613 39% | 230 -48% | 298 -33% | 375 -15% | 455 3% | 529 20% | 552 25% | 199.9 ? -55% |
Energy (energy-02) | 139 | 93.6 -33% | 60.8 -56% | 82.9 -40% | 150 8% | 147 6% | 187 35% | 34.6 -75% | 45.3 -67% | 54.2 -61% | 72.8 -48% | 92.6 -33% | 126 -9% | 35 ? -75% |
Maya (maya-05) | 548 | 544 -1% | 460 -16% | 333 -39% | 580 6% | 670 22% | 735 34% | 343 -37% | 395 -28% | 510 -7% | 591 8% | 678 24% | 715 30% | 260 ? -53% |
Medical (medical-02) | 332 | 166 -50% | 226 -32% | 372 12% | 237 -29% | 263 -21% | 76.5 -77% | 92 -72% | 112 -66% | 132 -60% | 150 -55% | 186 -44% | 74.5 ? -78% | |
Showcase (showcase-02) | 234 | 230 -2% | 264 13% | 127 -46% | 221 -6% | 279 19% | 323 38% | 108 -54% | 121 -48% | 191 -18% | 244 4% | 334 43% | 455 94% | 117.8 ? -50% |
Siemens NX (snx-03) | 506 | 537 6% | 101 -80% | 379 -25% | 617 22% | 675 33% | 725 43% | 25.6 -95% | 26.3 -95% | 29.5 -94% | 34.1 -93% | 39 -92% | 49.1 -90% | 126.1 ? -75% |
Solidworks (sw-04) | 294 | 304 3% | 254 -14% | 195 -34% | 287 -2% | 307 4% | 323 10% | 127 -57% | 135 -54% | 157 -47% | 168 -43% | 179 -39% | 186 -37% | 118.5 ? -60% |
SPECviewperf 2020 | -13% | -37% | -36% | 13% | 10% | 25% | -66% | -61% | -47% | -37% | -26% | -4% | -56% | |
3840x2160 Siemens NX (snx-04) | 333 | 330 -1% | 98.4 -70% | 240 -28% | 402 21% | 476 43% | 514 54% | 19.5 -94% | 20.1 -94% | 23.9 -93% | 27.5 -92% | 31.9 -90% | 41.3 -88% | 94.1 ? -72% |
3840x2160 Medical (medical-03) | 63.7 | 36.4 -43% | 35 -45% | 36.1 -43% | 76.1 19% | 53.9 -15% | 62.3 -2% | 13.7 -78% | 17.5 -73% | 22.2 -65% | 26.9 -58% | 32.2 -49% | 45.9 -28% | 19.8 ? -69% |
3840x2160 Maya (maya-06) | 331 | 315 | 178 | 346 | 401 | 481 | 196 | 226 | 305 | 372 | 447 | 498 | 206 ? | |
3840x2160 Energy (energy-03) | 111 | 113 2% | 69.3 -38% | 67 -40% | 133 20% | 99.6 -10% | 129 16% | 33.2 -70% | 44.8 -60% | 57.6 -48% | 75.7 -32% | 90.4 -19% | 141 27% | 47.9 ? -57% |
3840x2160 Creo (creo-03) | 151 | 136 -10% | 92.4 -39% | 106 -30% | 159 5% | 173 15% | 187 24% | 85.9 -43% | 95.8 -37% | 112 -26% | 121 -20% | 128 -15% | 133 -12% | 77.4 ? -49% |
3840x2160 CATIA (catia-06) | 101 | 92.2 -9% | 59.7 -41% | 68 -33% | 107 6% | 113 12% | 127 26% | 34 -66% | 39.1 -61% | 51.6 -49% | 61.2 -39% | 75.5 -25% | 95.3 -6% | 46.6 ? -54% |
3840x2160 3ds Max (3dsmax-07) | 125 | 102 -18% | 140 12% | 72.9 -42% | 134 7% | 143 14% | 167 34% | 67.4 -46% | 74.5 -40% | 122 -2% | 147 18% | 179 43% | 228 82% | 79.8 ? -36% |
Total Average (Program / Settings) | -6% /
-5% | -27% /
-26% | -34% /
-34% | 9% /
8% | 18% /
19% | 33% /
34% | -62% /
-62% | -56% /
-56% | -42% /
-42% | -31% /
-31% | -19% /
-18% | -5% /
-5% | -62% /
-63% |
Gaming Performance
In addition to the synthetic tests, the pure gaming benchmarks are also interesting, reflecting the performance that can be expected. However, you also have to understand that some games will perform better on AMD and others better on Nvidia graphics cards. The AMD Radeon RX 7800 XT has a harder time here to come out on top against the KFA2 GeForce RTX 4070 EX Gamer. Overall, both models bring a similar performance. AMD's inhouse competitor in form of the AMD Radeon RX 7900 GRE is able to move ahead with a better performance across all games. The performance comparison is interesting, since the AMD Radeon RX 7900 GRE is more efficient on paper than the AMD Radeon RX 7800 XT in terms of the power consumption.
Most of the time, the AMD Radeon RX 7800 XT is able to achieve its advertised goal of shining as a 1,440p gaming GPU. Only in F1 23, our test unit is not quite able to maintain the average of 60 FPS. Since in the Ultra preset, raytracing is activated at the same time, it isn't quite sufficient anymore for higher frame rates here. Many games can also be enjoyed in 2,160p at times. Those who can make do without some details will also get good frame rates here. While in our opinion, it is not worth switching from an AMD Radeon RX 6800, those who currently still own an AMD Radeon RX of the 5000 series will be awarded by a clearly noticeable performance increase with an upgrade.

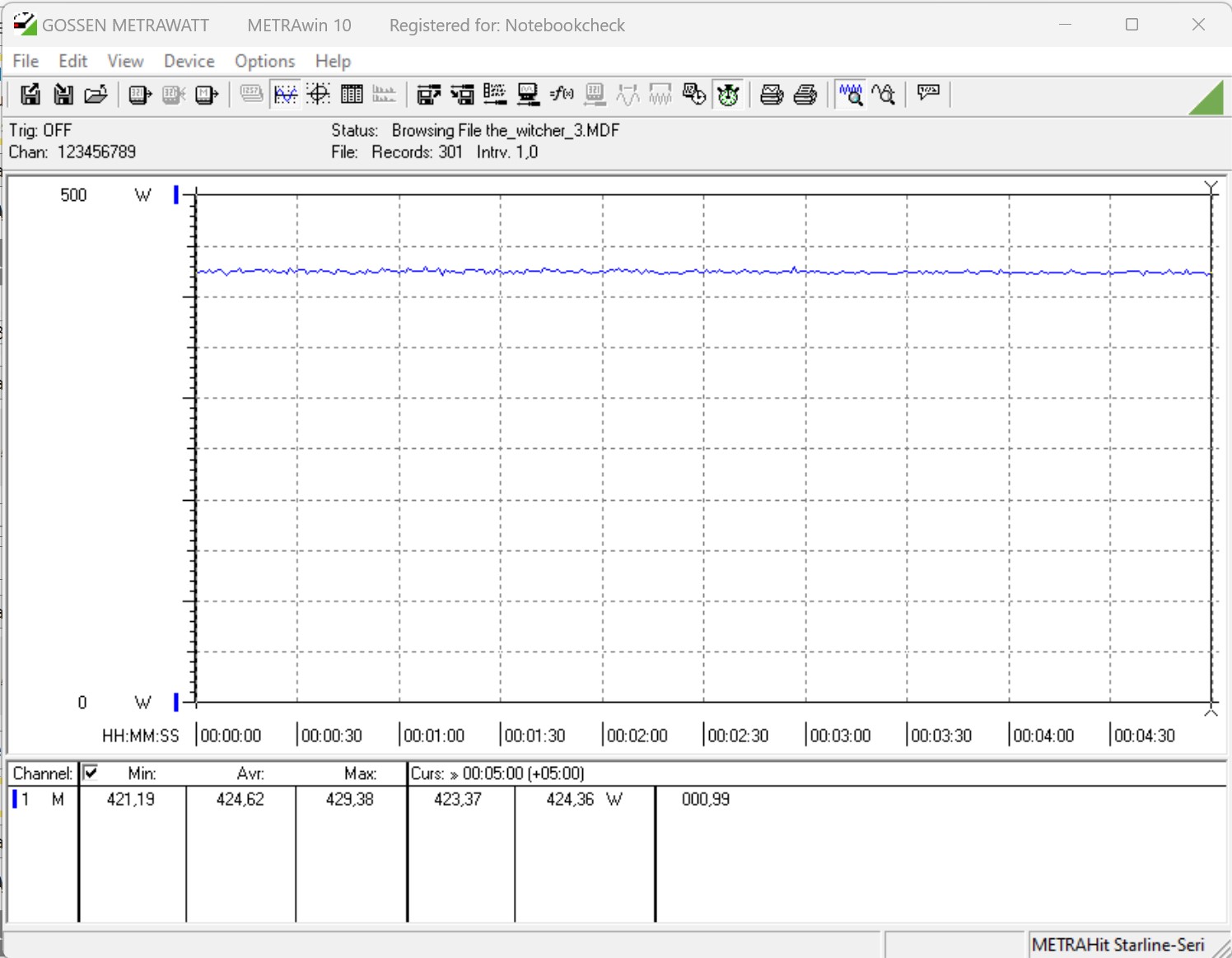

The Witcher 3 | |
1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
NVIDIA GeForce RTX 3090 Founders Edition | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
Nvidia Titan RTX | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
AMD Radeon RX 5700 XT | |
Nvidia GeForce RTX 2060 Super | |
AMD Radeon RX 5700 | |
Sapphire Pulse Radeon RX 6600 | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XTX | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
NVIDIA GeForce RTX 3090 Founders Edition | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
Nvidia Titan RTX | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
AMD Radeon RX 5700 XT | |
AMD Radeon RX 5700 | |
Sapphire Pulse Radeon RX 6600 | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 |
Far Cry 6 | |
3840x2160 Ultra Graphics Quality + HD Textures AA:T | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
AMD Radeon RX 5700 | |
AMD Radeon RX 5700 XT | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 | |
2560x1440 Ultra Graphics Quality + HD Textures AA:T | |
AMD Radeon RX 7900 XTX | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4080 SG | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
AMD Radeon RX 5700 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
AMD Radeon RX 5700 | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 | |
1920x1080 Ultra Graphics Quality + HD Textures AA:T | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7900 XTX | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
NVIDIA GeForce RTX 3090 Founders Edition | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia Titan RTX | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Nitro+ Radeon RX 6650 XT | |
AMD Radeon RX 5700 XT | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6600 | |
AMD Radeon RX 5700 | |
Nvidia GeForce RTX 2060 Super | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 |
F1 2021 | |
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
MSI Radeon RX 6950 XT Gaming X Trio (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
AMD Radeon RX 7900 GRE (874931) | |
AMD Radeon RX 7800 XT (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
AMD Radeon RX 5700 XT (874931) | |
AMD Radeon RX 6800 (874931) | |
Nvidia Titan RTX (874931) | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
AMD Radeon RX 5700 (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
Nvidia GeForce RTX 3060 Ti FE (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
PNY GeForce GTX 1660 (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
Sapphire Pulse Radeon RX 6600 (874931) | |
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
MSI Radeon RX 6950 XT Gaming X Trio (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
AMD Radeon RX 7900 GRE (874931) | |
AMD Radeon RX 7800 XT (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
AMD Radeon RX 5700 XT (874931) | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
AMD Radeon RX 6800 (874931) | |
Nvidia Titan RTX (874931) | |
AMD Radeon RX 5700 (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
Nvidia GeForce RTX 3060 Ti FE (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
PNY GeForce GTX 1660 (874931) | |
Sapphire Pulse Radeon RX 6600 (874931) |
F1 22 | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (923662) | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
AMD Radeon RX 5700 XT (959964) | |
AMD Radeon RX 7900 XT (939134) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
AMD Radeon RX 5700 (959964) | |
AMD Radeon RX 7900 GRE (959964) | |
MSI Radeon RX 6950 XT Gaming X Trio (939134) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
AMD Radeon RX 7800 XT (959964) | |
PNY GeForce GTX 1660 (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
Nvidia Titan RTX (923650) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
AMD Radeon RX 6800 (928484) | |
Nvidia GeForce RTX 3060 Ti FE (923650) | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT (946728) | |
Sapphire Pulse Radeon RX 6600 (946728) | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
AMD Radeon RX 7900 XT (939134) | |
AMD Radeon RX 5700 XT (959964) | |
MSI Radeon RX 6950 XT Gaming X Trio (939134) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
AMD Radeon RX 7900 GRE (959964) | |
AMD Radeon RX 7800 XT (959964) | |
AMD Radeon RX 5700 (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
PNY GeForce GTX 1660 (928484) | |
Nvidia Titan RTX (923650) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
Nvidia GeForce RTX 3060 Ti FE (923650) | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT (946728) | |
Sapphire Pulse Radeon RX 6600 (946728) |
Cyberpunk 2077 1.6 | |
2560x1440 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC (1.6) | |
AMD Radeon RX 7900 XTX (1.61) | |
KFA2 GeForce RTX 4080 SG (1.61) | |
AMD Radeon RX 7900 XT (1.61) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.61) | |
AMD Radeon RX 7900 GRE (1.6) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7800 XT (1.6) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 (1.61) | |
KFA2 GeForce RTX 3070 Ti SG (1.61) | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
Nvidia GeForce RTX 3060 Ti FE (1.5) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
Nvidia GeForce RTX 2070 Super (1.6) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.5) | |
Nvidia GeForce RTX 2060 Super (1.6) | |
AMD Radeon RX 5700 | |
Sapphire Pulse Radeon RX 6600 (1.5) | |
KFA2 GeForce GTX 1660 Super (1.6) | |
PNY GeForce GTX 1660 (1.6) | |
1920x1080 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC (1.6) | |
AMD Radeon RX 7900 XTX (1.61) | |
KFA2 GeForce RTX 4080 SG (1.61) | |
AMD Radeon RX 7900 XT (1.61) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.61) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE (1.6) | |
AMD Radeon RX 7800 XT (1.6) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 (1.61) | |
KFA2 GeForce RTX 3070 Ti SG (1.61) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 3060 Ti FE (1.5) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.5) | |
Nvidia GeForce RTX 2070 Super (1.6) | |
Nvidia GeForce RTX 2060 Super (1.6) | |
Sapphire Pulse Radeon RX 6600 (1.5) | |
AMD Radeon RX 5700 | |
KFA2 GeForce GTX 1660 Super (1.6) | |
PNY GeForce GTX 1660 (1.6) |
God of War | |
2560x1440 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4080 SG | |
MSI Radeon RX 6950 XT Gaming X Trio | |
NVIDIA GeForce RTX 3090 Founders Edition | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia Titan RTX | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 5700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
AMD Radeon RX 5700 | |
Sapphire Pulse Radeon RX 6600 | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 | |
1920x1080 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX | |
AMD Radeon RX 7900 XT | |
KFA2 GeForce RTX 4080 SG | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
NVIDIA GeForce RTX 3090 Founders Edition | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
Nvidia Titan RTX | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 3060 Ti FE | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2060 Super | |
AMD Radeon RX 5700 | |
Sapphire Pulse Radeon RX 6600 | |
AMD Radeon RX 5700 XT | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 |
GTA V | |
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
KFA2 GeForce RTX 4080 SG | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 3070 Ti SG | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
Nvidia Titan RTX | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
AMD Radeon RX 5700 XT | |
AMD Radeon RX 5700 | |
Sapphire Pulse Radeon RX 6600 | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 | |
2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia Titan RTX | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
AMD Radeon RX 5700 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
AMD Radeon RX 5700 | |
Sapphire Pulse Radeon RX 6600 | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 |
GRID Legends | |
2560x1440 Ultra Preset | |
AMD Radeon RX 7900 XTX (643827) | |
Palit GeForce RTX 4090 GameRock OC (591708) | |
AMD Radeon RX 7900 XT (643827) | |
MSI Radeon RX 6950 XT Gaming X Trio (643827) | |
KFA2 GeForce RTX 4080 SG (643827) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
AMD Radeon RX 7900 GRE (800660) | |
AMD Radeon RX 6800 (643827) | |
KFA2 GeForce RTX 3070 Ti SG (643827) | |
AMD Radeon RX 7800 XT (800660) | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
Sapphire Pulse Radeon RX 6750 XT (712825) | |
Nvidia Titan RTX (591708) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
Nvidia GeForce RTX 3060 Ti FE (591708) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
Sapphire Nitro+ Radeon RX 6650 XT (643827) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
Nvidia GeForce RTX 2070 Super (591708) | |
AMD Radeon RX 5700 XT (712825) | |
Nvidia GeForce RTX 2060 Super (623651) | |
Sapphire Pulse Radeon RX 6600 (683088) | |
AMD Radeon RX 5700 (712825) | |
KFA2 GeForce GTX 1660 Super (623651) | |
PNY GeForce GTX 1660 (623651) | |
1920x1080 Ultra Preset | |
AMD Radeon RX 7900 XTX (643827) | |
MSI Radeon RX 6950 XT Gaming X Trio (643827) | |
AMD Radeon RX 7900 XT (643827) | |
Palit GeForce RTX 4090 GameRock OC (591708) | |
KFA2 GeForce RTX 4080 SG (643827) | |
AMD Radeon RX 6800 (643827) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
KFA2 GeForce RTX 4070 EX Gamer (712825) | |
AMD Radeon RX 7900 GRE (800660) | |
Sapphire Pulse Radeon RX 6750 XT (712825) | |
AMD Radeon RX 7800 XT (800660) | |
KFA2 GeForce RTX 3070 Ti SG (643827) | |
Nvidia Titan RTX (591708) | |
Nvidia GeForce RTX 3060 Ti FE (591708) | |
Sapphire Nitro+ Radeon RX 6650 XT (643827) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
Nvidia GeForce RTX 2070 Super (591708) | |
Sapphire Pulse Radeon RX 6600 (683088) | |
AMD Radeon RX 5700 XT (712825) | |
Nvidia GeForce RTX 2060 Super (623651) | |
AMD Radeon RX 5700 (712825) | |
KFA2 GeForce GTX 1660 Super (623651) | |
PNY GeForce GTX 1660 (623651) |
Final Fantasy XV Benchmark | |
1920x1080 High Quality | |
Palit GeForce RTX 4090 GameRock OC (1.3) | |
KFA2 GeForce RTX 4080 SG (1.3) | |
AMD Radeon RX 7900 XTX (1.3) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
AMD Radeon RX 7900 XT (1.3) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.3) | |
NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
AMD Radeon RX 7900 GRE (1.3) | |
AMD Radeon RX 7800 XT (1.3) | |
AMD Radeon RX 6800 (1.3) | |
Nvidia Titan RTX (1.3) | |
KFA2 GeForce RTX 3070 Ti SG (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
Sapphire Pulse Radeon RX 6750 XT (1.3) | |
Nvidia GeForce RTX 3060 Ti FE (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
Nvidia GeForce RTX 2070 Super (1.3) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
Nvidia GeForce RTX 2060 Super (1.3) | |
AMD Radeon RX 5700 XT (1.3) | |
Sapphire Pulse Radeon RX 6600 (1.3) | |
AMD Radeon RX 5700 (1.3) | |
KFA2 GeForce GTX 1660 Super (1.3) | |
PNY GeForce GTX 1660 (1.3) | |
2560x1440 High Quality | |
Palit GeForce RTX 4090 GameRock OC (1.3) | |
KFA2 GeForce RTX 4080 SG (1.3) | |
AMD Radeon RX 7900 XTX (1.3) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.3) | |
AMD Radeon RX 7900 XT (1.3) | |
NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
AMD Radeon RX 7900 GRE (1.3) | |
AMD Radeon RX 7800 XT (1.3) | |
AMD Radeon RX 6800 (1.3) | |
KFA2 GeForce RTX 3070 Ti SG (1.3) | |
Nvidia Titan RTX (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
Sapphire Pulse Radeon RX 6750 XT (1.3) | |
Nvidia GeForce RTX 3060 Ti FE (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
Nvidia GeForce RTX 2070 Super (1.3) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
Nvidia GeForce RTX 2060 Super (1.3) | |
AMD Radeon RX 5700 XT (1.3) | |
AMD Radeon RX 5700 (1.3) | |
Sapphire Pulse Radeon RX 6600 (1.3) | |
KFA2 GeForce GTX 1660 Super (1.3) | |
PNY GeForce GTX 1660 (1.3) |
The Last of Us | |
1920x1080 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
AMD Radeon RX 6800 | |
Nvidia Titan RTX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
AMD Radeon RX 5700 XT | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Sapphire Pulse Radeon RX 6600 | |
AMD Radeon RX 5700 | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 | |
2560x1440 Ultra Preset | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7800 XT | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
AMD Radeon RX 5700 XT | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
AMD Radeon RX 5700 | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
KFA2 GeForce GTX 1660 Super | |
PNY GeForce GTX 1660 |
F1 23 | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (1022189) | |
AMD Radeon RX 5700 XT (1022189) | |
AMD Radeon RX 5700 (1022189) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
AMD Radeon RX 7800 XT (1022189) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
Nvidia Titan RTX (1021115) | |
PNY GeForce GTX 1660 (1016022) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
AMD Radeon RX 6800 (1016022) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (1022189) | |
AMD Radeon RX 5700 XT (1022189) | |
AMD Radeon RX 5700 (1022189) | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
PNY GeForce GTX 1660 (1016022) | |
AMD Radeon RX 7800 XT (1022189) | |
Nvidia Titan RTX (1021115) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
AMD Radeon RX 6800 (1016022) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) |
Hogwarts Legacy | |
1920x1080 Ultra Preset AA:High T | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
Nvidia Titan RTX | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Nitro+ Radeon RX 6650 XT | |
AMD Radeon RX 5700 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
AMD Radeon RX 5700 | |
PNY GeForce GTX 1660 | |
KFA2 GeForce GTX 1660 Super | |
2560x1440 Ultra Preset AA:High T | |
Palit GeForce RTX 4090 GameRock OC | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
Nvidia Titan RTX | |
Sapphire Pulse Radeon RX 6750 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Nitro+ Radeon RX 6650 XT | |
AMD Radeon RX 5700 XT | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce GTX 1660 Super | |
AMD Radeon RX 5700 | |
Sapphire Pulse Radeon RX 6600 | |
PNY GeForce GTX 1660 |
Raytracing Performance
The raytracing performance is and will remain AMD's Achilles' heel. Even with its RDNA 3 architecture, AMD is unable to pose any danger to Nvidia in this discipline. But you still don't have to completely give up on this feature, as you see in the benchmarks. However, the activated raytracing requires a reduction in the resolution to achieve adequate frame rates. Compared to an AMD Radeon RX 6800, the performance was noticeably increased with activated raytracing. We see up to 30% higher frame rates at times here. In the comparison with Nvidia, our test unit is only able to stand up to a GeForce RTX 4060 Ti.
Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 3070 Ti SG | |
AMD Radeon RX 7900 GRE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 6800 | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Sapphire Pulse Radeon RX 6600 |
Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 3070 Ti SG | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 6750 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Cyberpunk 2077 1.6 - 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1.6) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.61) | |
KFA2 GeForce RTX 3070 Ti SG (1.61) | |
AMD Radeon RX 7800 XT (1.6) | |
Nvidia GeForce RTX 3060 Ti FE (1.5) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
AMD Radeon RX 6800 (1.61) | |
Nvidia GeForce RTX 2070 Super (1.6) | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super (1.6) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.5) |
The Callisto Protocol - 1920x1080 Ultra Preset (without FSR Upscaling) + Full Ray-Tracing | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
ASUS Dual GeForce RTX 4060 Ti OC | |
MSI Radeon RX 6950 XT Gaming X Trio | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
PNY GeForce GTX 1660 | |
KFA2 GeForce GTX 1660 Super |
Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 7800 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT |
Control - 1920x1080 High Quality Preset & High Ray Tracing Preset (DX12) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Sapphire Pulse Radeon RX 6600 |
Returnal - 1920x1080 Epic Preset + Epic Ray-Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT |
F1 23 - 1920x1080 Ultra High Preset AA:T AF:16x | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
AMD Radeon RX 7800 XT (1022189) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
PNY GeForce GTX 1660 (1016022) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
AMD Radeon RX 6800 (1016022) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) |
low | med. | high | ultra | QHD | 4K | |
GTA V (2015) | 187.9 | 187.4 | 186.3 | 171.4 | 138.7 | 150 |
The Witcher 3 (2015) | 727.8 | 515.9 | 348.5 | 189.6 | 140.1 | 112.9 |
Dota 2 Reborn (2015) | 290.8 | 229 | 208.4 | 187.4 | 146 | |
Rise of the Tomb Raider (2016) | 394 | 300 | 211 | 180.3 | 94 | |
Final Fantasy XV Benchmark (2018) | 234 | 226 | 162.6 | 124.6 | 70.5 | |
X-Plane 11.11 (2018) | 164.7 | 133 | 101.6 | 72.4 | ||
Far Cry 5 (2018) | 206 | 182 | 175 | 162 | 161 | 103 |
Strange Brigade (2018) | 682 | 478 | 392 | 334 | 238 | 128.3 |
Shadow of the Tomb Raider (2018) | 368 | 270 | 250 | 221 | 158.1 | 82.7 |
Far Cry New Dawn (2019) | 176 | 155 | 151 | 136 | 134 | 109 |
Metro Exodus (2019) | 284 | 194.6 | 168.1 | 128.5 | 102.6 | 66.7 |
Control (2019) | 240 | 240 | 190.1 | 120.3 | 58.2 | |
Borderlands 3 (2019) | 240 | 211 | 173.8 | 141.8 | 105.5 | 57.9 |
F1 2020 (2020) | 532 | 458 | 408 | 272 | 213 | 128.1 |
Death Stranding (2020) | 239 | 238 | 236 | 233 | 188.7 | 106.9 |
F1 2021 (2021) | 687 | 616 | 481 | 207 | 155.9 | 90.2 |
Far Cry 6 (2021) | 231 | 205 | 188.4 | 180.1 | 147.3 | 85.5 |
Guardians of the Galaxy (2021) | 216 | 217 | 214 | 204 | 167 | 95 |
Farming Simulator 22 (2021) | 435 | 360 | 296 | 279 | 257 | 163.8 |
God of War (2022) | 216 | 218 | 183.4 | 122.8 | 101.7 | 67 |
GRID Legends (2022) | 259 | 229 | 205 | 187.5 | 173.5 | 128.6 |
Cyberpunk 2077 1.6 (2022) | 258 | 192.6 | 160.8 | 148.1 | 96.6 | 43.9 |
Ghostwire Tokyo (2022) | 284 | 272 | 274 | 270 | 178.4 | 81.9 |
Tiny Tina's Wonderlands (2022) | 411 | 320 | 201 | 157.6 | 108.6 | 57.2 |
F1 22 (2022) | 479 | 464 | 376 | 105.5 | 69.8 | 34.7 |
The Quarry (2022) | 257 | 192 | 154.3 | 121.5 | 84.6 | 45.9 |
A Plague Tale Requiem (2022) | 196.4 | 149.4 | 113.2 | 86.3 | 64.9 | 37.5 |
Uncharted Legacy of Thieves Collection (2022) | 148.2 | 127.1 | 119.8 | 110.8 | 89.6 | 55.4 |
Spider-Man Miles Morales (2022) | 173.1 | 184.5 | 167.2 | 150 | 116.7 | 72.8 |
The Callisto Protocol (2022) | 248.1 | 215.2 | 198.1 | 125.7 | 100.3 | 66 |
High On Life (2023) | 354 | 286 | 217 | 170.5 | 105.2 | 44.3 |
The Witcher 3 v4.00 (2023) | 323 | 280.4 | 247.4 | 217.6 | 157.8 | 76.9 |
Dead Space Remake (2023) | 182.8 | 173.3 | 150.4 | 148.3 | 99.8 | 50.5 |
Hogwarts Legacy (2023) | 213 | 185.3 | 142.7 | 108.2 | 76.4 | 44.2 |
Returnal (2023) | 193 | 184 | 165 | 135 | 104 | 60 |
Atomic Heart (2023) | 317 | 236 | 141.1 | 109.8 | 87.9 | 53.6 |
Company of Heroes 3 (2023) | 327.2 | 280.2 | 223.4 | 222.8 | 167.3 | 94.3 |
Sons of the Forest (2023) | 120.2 | 115 | 112.7 | 109.7 | 107 | 69.4 |
Resident Evil 4 Remake (2023) | 259 | 206 | 180.3 | 128.6 | 100.6 | 60.8 |
The Last of Us (2023) | 165.1 | 148.8 | 135.8 | 124.5 | 86.1 | 42.7 |
Dead Island 2 (2023) | 361 | 352 | 287 | 200 | 144.3 | 77.4 |
Star Wars Jedi Survivor (2023) | 147.9 | 135.8 | 126.6 | 117.5 | 76 | 37.1 |
Diablo 4 (2023) | 390 | 372 | 341 | 289 | 198.8 | 96.6 |
F1 23 (2023) | 543 | 502 | 366 | 87.4 | 55.8 | 27.3 |
Ratchet & Clank Rift Apart (2023) | 168.6 | 144.6 | 119.8 | 105.4 | 85.7 | 54.6 |
Baldur's Gate 3 (2023) | 228 | 188.6 | 157.3 | 152.9 | 105.7 | 58.9 |
Atlas Fallen (2023) | 186.4 | 181.2 | 172.5 | 167.9 | 136.8 | 76.3 |
Immortals of Aveum (2023) | 138 | 116.2 | 93.3 | 66.1 | 36.1 | |
Armored Core 6 (2023) | 119.6 | 119.6 | 119.5 | 119.7 | 119.7 | 70.6 |
Emissions - Okay, but not good enough
Noise Levels

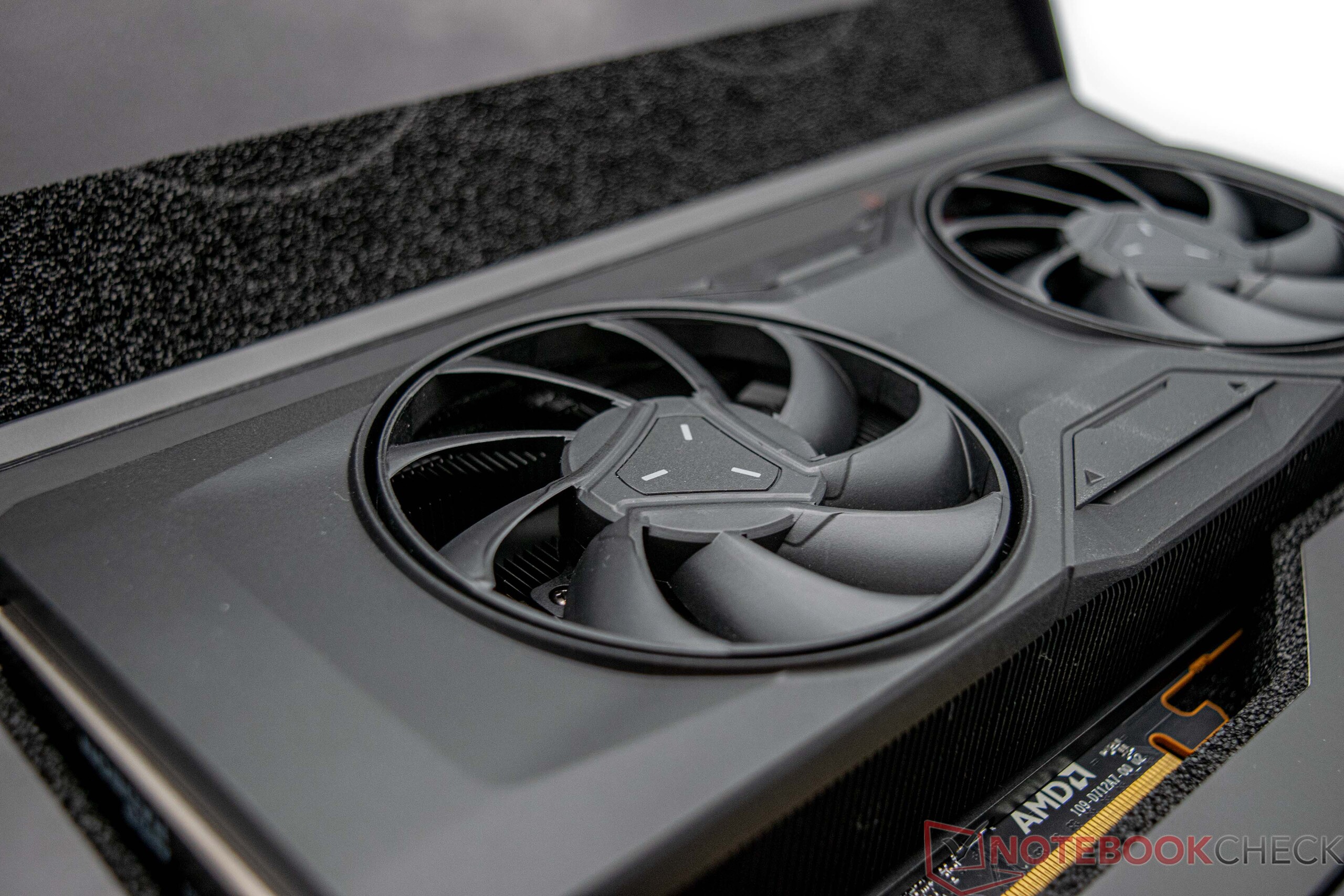

AMD has equipped the Radeon RX 7800 XT with a fan stop mode, allowing the graphics card to remain completely silent in 2D operation. Under average load, we note a noise level of barely 31 dB(A), which subjectively feels very quiet. During the stress test, on the other hand, both fans rev up significantly, resulting in a measurement of 43 dB(A) in an open setup. But this shouldn't turn out quite as loud in a closed case.
Noise Level
Idle |
| 26.8 / 27.2 / 27.3 dB(A) |
Load |
| 30.7 / 43 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 24.7 dB(A) |
AMD Radeon RX 7800 XT | KFA2 GeForce RTX 4070 Ti EX Gamer | KFA2 GeForce RTX 4070 EX Gamer | KFA2 GeForce RTX 4060 1-Click-OC 2X | ASUS Dual GeForce RTX 4060 Ti OC | XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
---|---|---|---|---|---|---|
Noise | -7% | -9% | 0% | -0% | 4% | |
off / environment * | 24.7 | 30 -21% | 30 -21% | 25.8 -4% | 25.4 -3% | 25.4 -3% |
Idle Minimum * | 26.8 | 30.1 -12% | 30.2 -13% | 25.9 3% | 26.7 -0% | 26.3 2% |
Idle Average * | 27.2 | 30.1 -11% | 30.2 -11% | 25.9 5% | 26.7 2% | 26.3 3% |
Idle Maximum * | 27.3 | 30.1 -10% | 30.2 -11% | 25.9 5% | 26.7 2% | 26.3 4% |
Load Average * | 30.7 | 30.2 2% | 31.8 -4% | 30.3 1% | 29.3 5% | 29.6 4% |
Witcher 3 ultra * | 42.6 | 40.2 6% | 45.2 -6% | 42.5 -0% | 39.6 7% | |
Load Maximum * | 43 | 44.7 -4% | 41.1 4% | 43.5 -1% | 46 -7% | 39.4 8% |
* ... smaller is better
Temperatures and Power Consumption
AMD has equipped its Radeon RX 7800 XT with a vapor chamber cooling element that is cooled by two axial fans. The cooling system basically works, and the temperatures are still quite a ways from the 100 °C (212 °F) limit. In the worst-case scenario, we see 83 °C (181 °F) as a GPU hot spot value. However, considering the power consumption, which is specified as 263 watts for the AMD Radeon RX 7900 GRE, it is a bit questionable why AMD uses a different cooling system here. Purely from the technical data, both models consume the same amount of power. In our measurements, we also note a similar power consumption under load. At 425 watts, our test system with its AMD Radeon RX 7800 XT is at the level of an Nvidia GeForce RTX 4070 Ti. AMD doesn't come close to the outstanding efficiency of the Nvidia graphics card. In the inhouse competition, the position of the AMD Radeon RX 7900 GRE is much better. We only note a slightly higher power consumption during gaming, even though the frame rates turn out better throughout. In the efficiency comparison, our test unit is at eye level with the KFA2 GeForce RTX 4060 Ti EX.
Due to the power consumption, AMD recommends using a power supply that can deliver at least 700 watts.
Power Consumption / The Witcher 3 ultra (external Monitor) | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 3080 SG | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7800 XT | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
KFA2 GeForce RTX 4070 EX Gamer | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3080 SG | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
Sapphire Pulse Radeon RX 6750 XT | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X |
Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
KFA2 GeForce RTX 3080 SG | |
Sapphire Nitro+ Radeon RX 6650 XT | |
NVIDIA GeForce RTX 3060 Ti Founders Edition |
* ... smaller is better
Power Consumption With External Monitor
Pros
Cons
Verdict - RX 7800 XT overshadowed by the RX 7900 GRE
AMD fields the Radeon RX 7800 XT as a good midrange model for those looking for gaming in 1,440p. The AMD Radeon RX 7800 XT delivers sufficient performance overall to give justice to this. If it only weren't for the competitors. But both Nvidia as well as AMD itself offer many graphics cards in this performance class in their portfolios. Even some graphics cards of the previous generation are possible competitors.
The AMD Radeon RX 7800 XT performs as promised, and Nvidia is currently unable to keep up with DisplayPort 2.1.
With 16 GB of VRAM, AMD delivers a good purchase argument for the Radeon RX 7800 XT, since Nvidia only equips its RTX 4070 models with 12 GB. However, we also saw in our gaming tests that this doesn't necessarily represent a disadvantage, and the AMD card is unable to move ahead of the Nvidia GeForce RTX 4070. Only occasionally, there are several games that perform better on the corresponding GPU architecture. But to stop recommending a purchase just because of that would be wrong, since we should always keep the whole picture in mind. And in that regard, AMD currently won't have an easy time with the Radeon RX 7800 XT, since the Radeon RX 7900 GRE offers a higher performance and the better cooling system without consuming significantly more power. So why not just grab the better model? You can do that, but only if you want to buy a whole new PC. The AMD Radeon RX 7900 GRE is currently not available for separate purchase. This is for a good reason, since AMD wants to establish the Radeon RX 7800 XT in the market. In the best case, that costs 552 Euros ($499 in the US) and can be purchased directly from AMD. Compared to Nvidia, AMD has a small advantage here, since their most affordable model starts at about 575 Euros (~$613).
The switch to a new graphics card model should always be well thought out to avoid a disappointment. Those who currently still own an AMD Radeon RX 6800 or RX 6800 XT should rather wait another generation with the update or switch to one of the two high-end models of the AMD graphics cards. As a real additional value, we could also mention the modern connections with DisplayPort 2.1, although there are currently only very few displays that can support this feature natively.
Price and Availability
The AMD online shop lists the AMD Radeon RX 7800 XT for $499, but it is currently out of stock. Alternatively, you can currently also get PowerColor or Sapphire AMD Radeon RX 7800 XT models from Amazon starting from $519.
Transparency
The present review sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
