MagyarKFA2 GeForce RTX 4060 1-Click OC 2X graphics card review: Current entry-level GPU uses more power than expected
With the announcement of RTX 4060 graphics cards based on the Ada Lovelace architecture, the expectations were high. But after the first tests of the Ti models, it quickly became clear that you cannot expect much of a performance jump compared to the predecessor series here. Basically, this is also the case with the KFA2 GeForce RTX 4060 1-Click OC 2X, which has to compete against a wide range of competitors in this test. More on that later.
But it is not all bad, and at least we see a fairly efficient model here that is currently sufficient for 1,080p gaming. It is well-served with 8 GB of VRAM, and more than that is simply unnecessary in this performance class. As the graphics chip, the AD107 with 3,072 shader units is used. The VRAM is connected via a 128-bit storage interface, resulting in a storage bandwidth of 272 GB/s. This is significantly less than was still available in the Nvidia GeForce RTX 3060. But you should also understand that compared to the GA104 with the GeForce RTX 3060, the AD107 has a significantly larger L2 cache (24 MB vs. 3 MB), allowing the graphics chip to process more data internally and thus compensating for the lower PCI Express bandwidth.

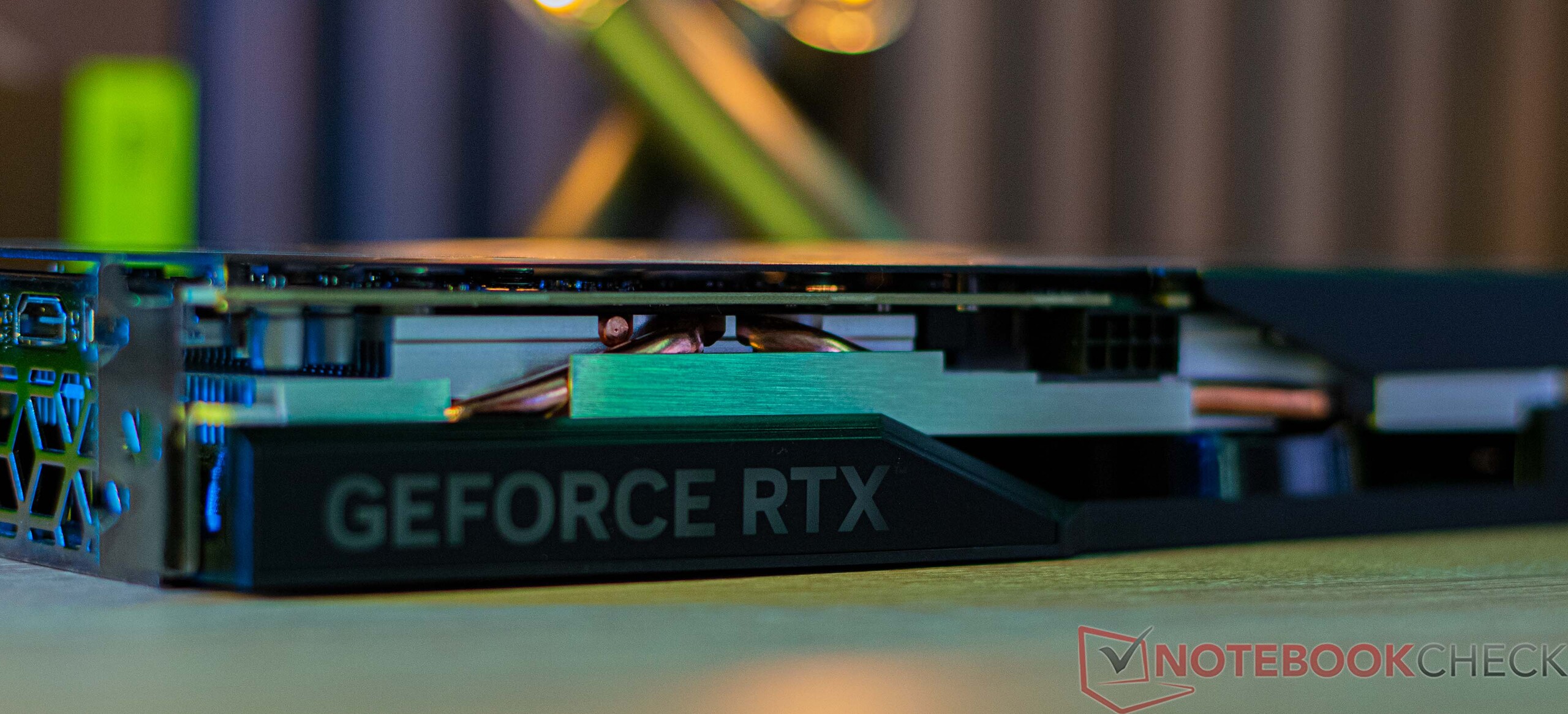

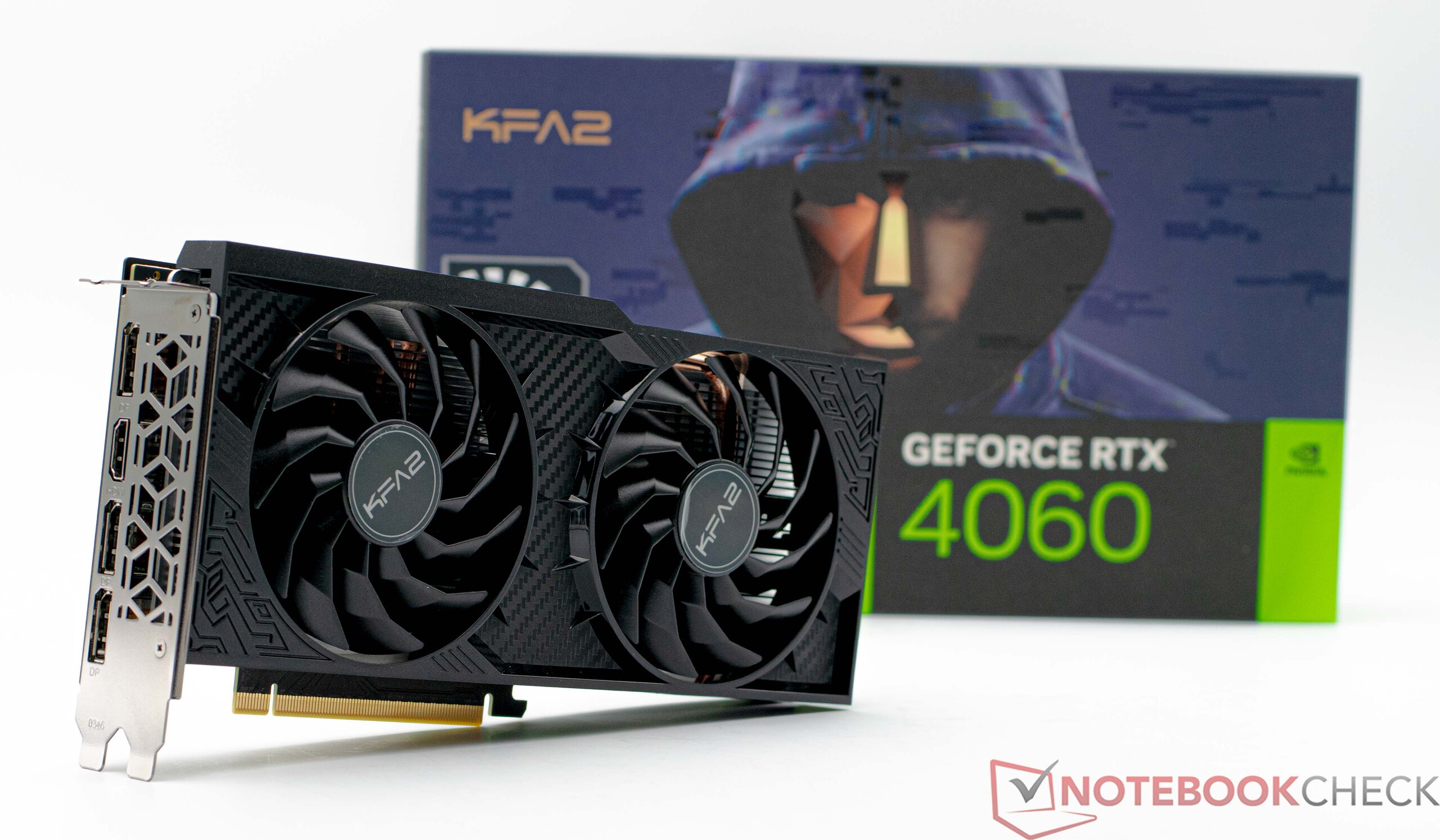

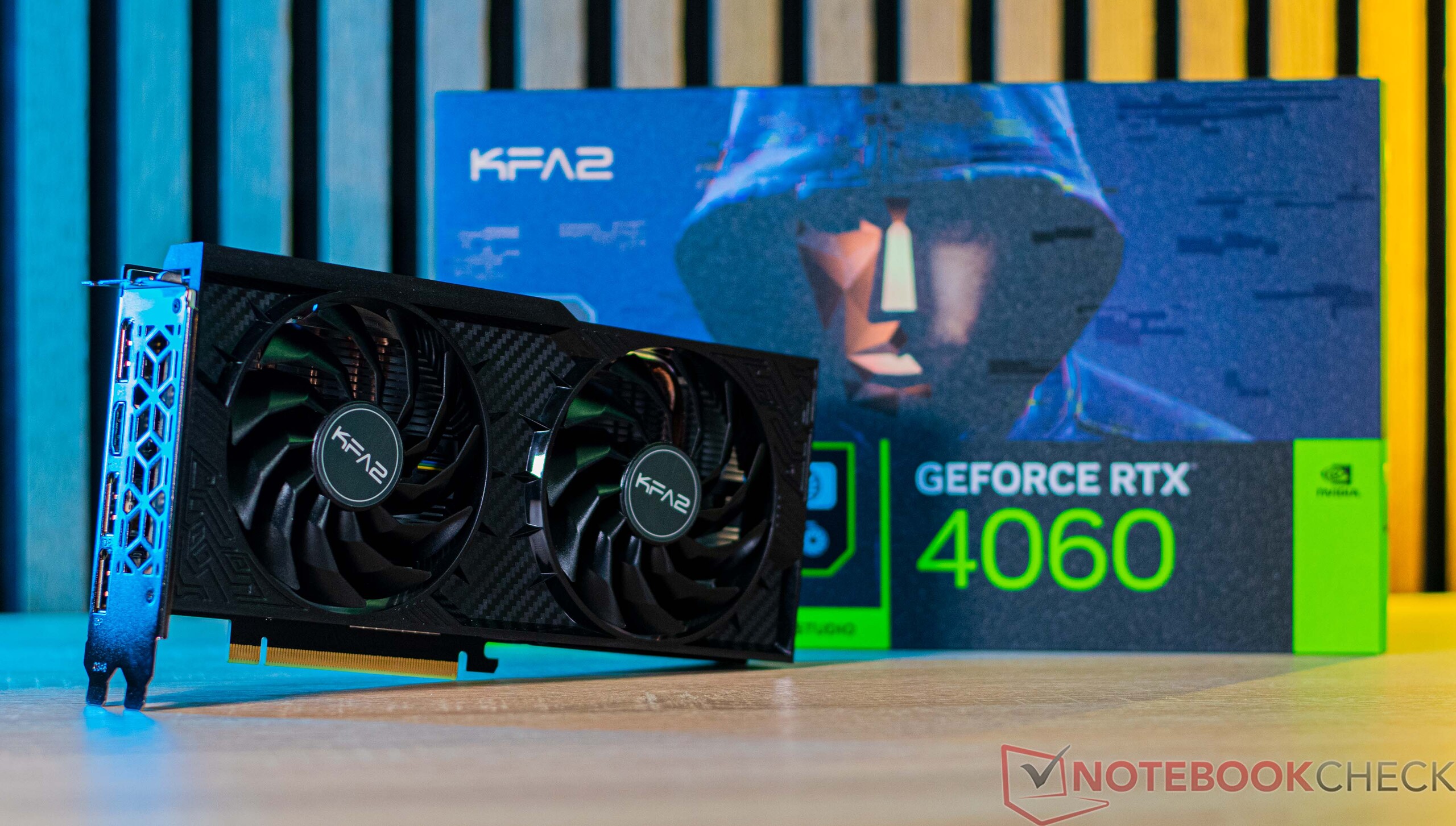

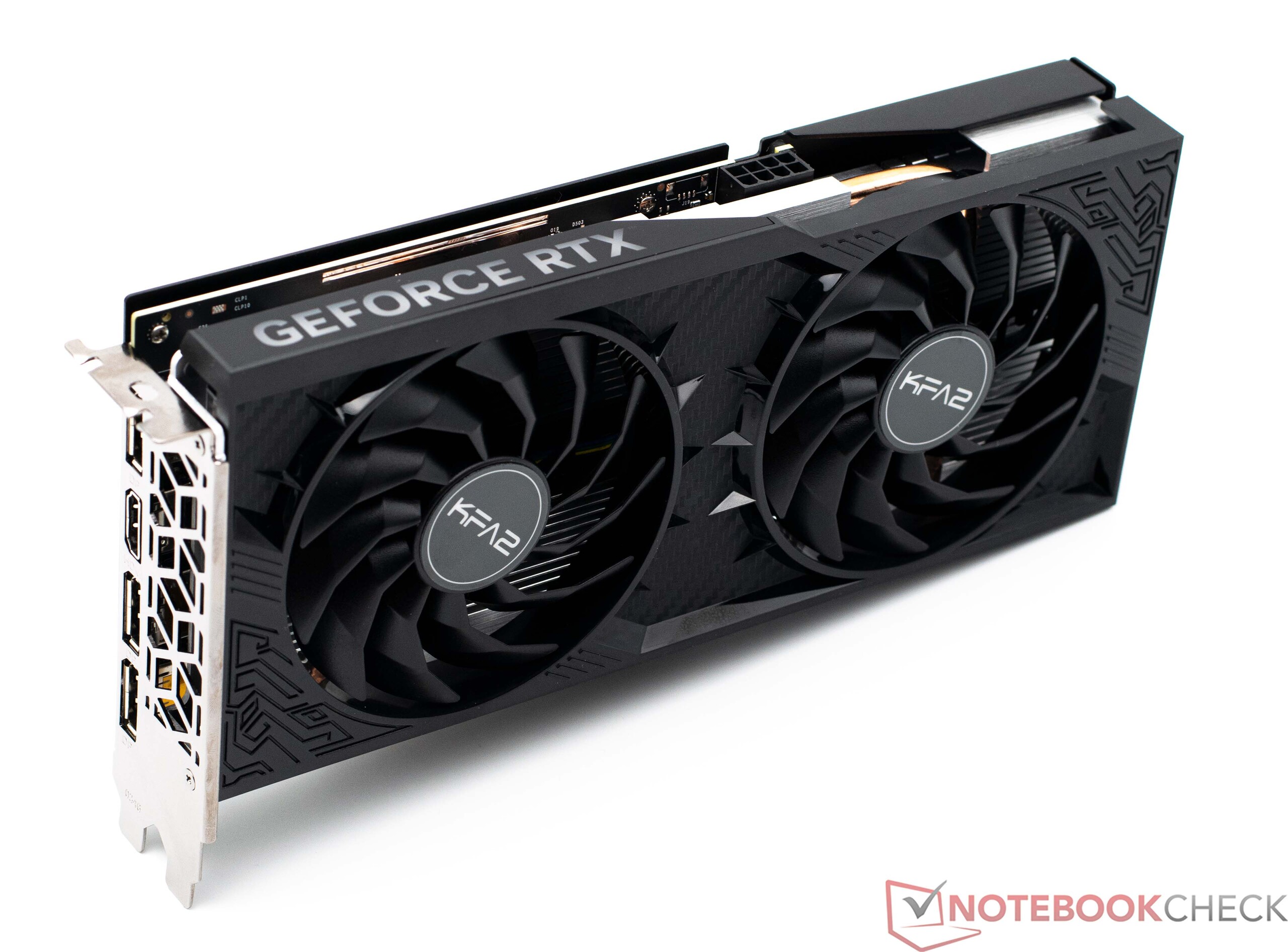

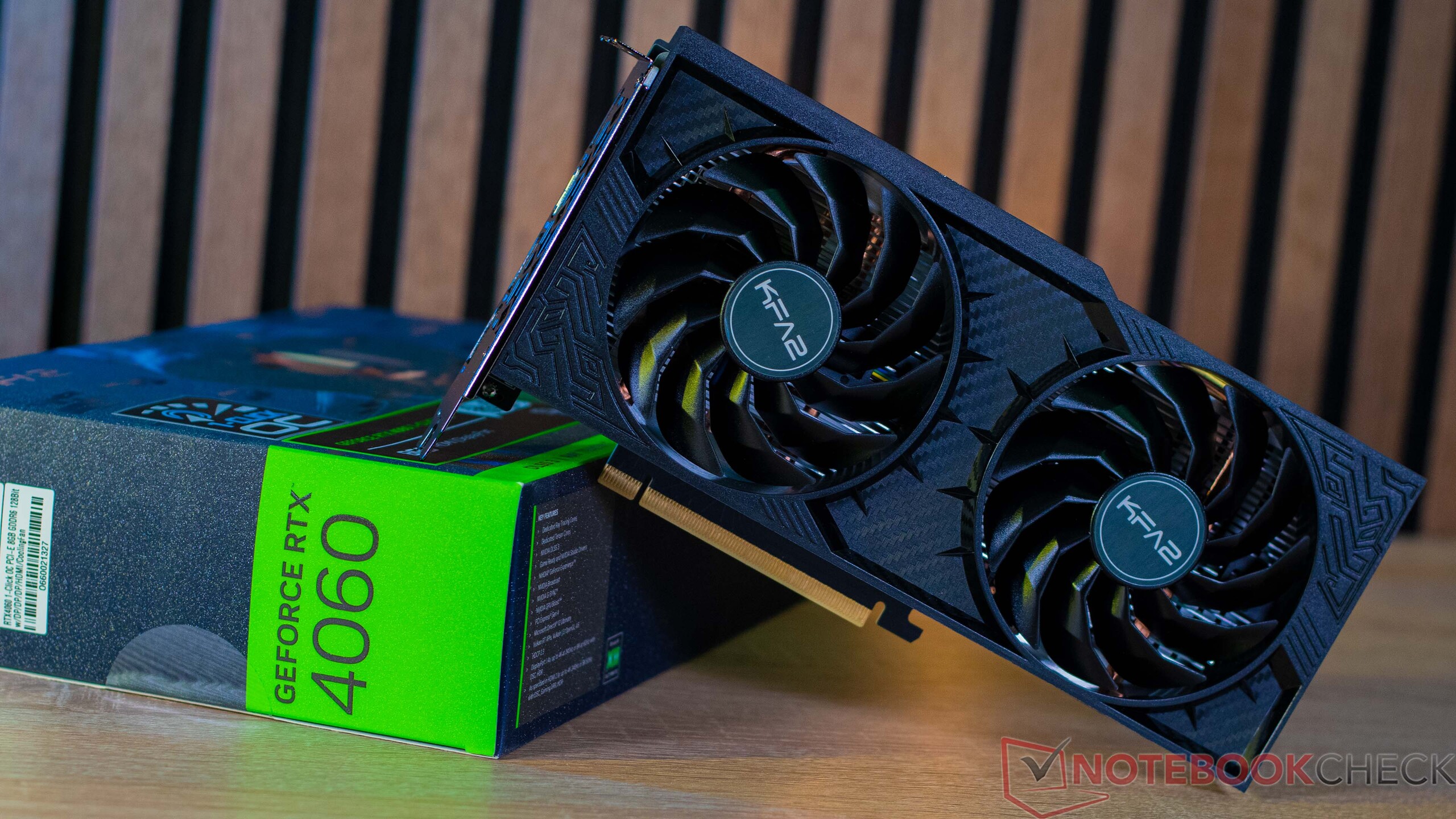

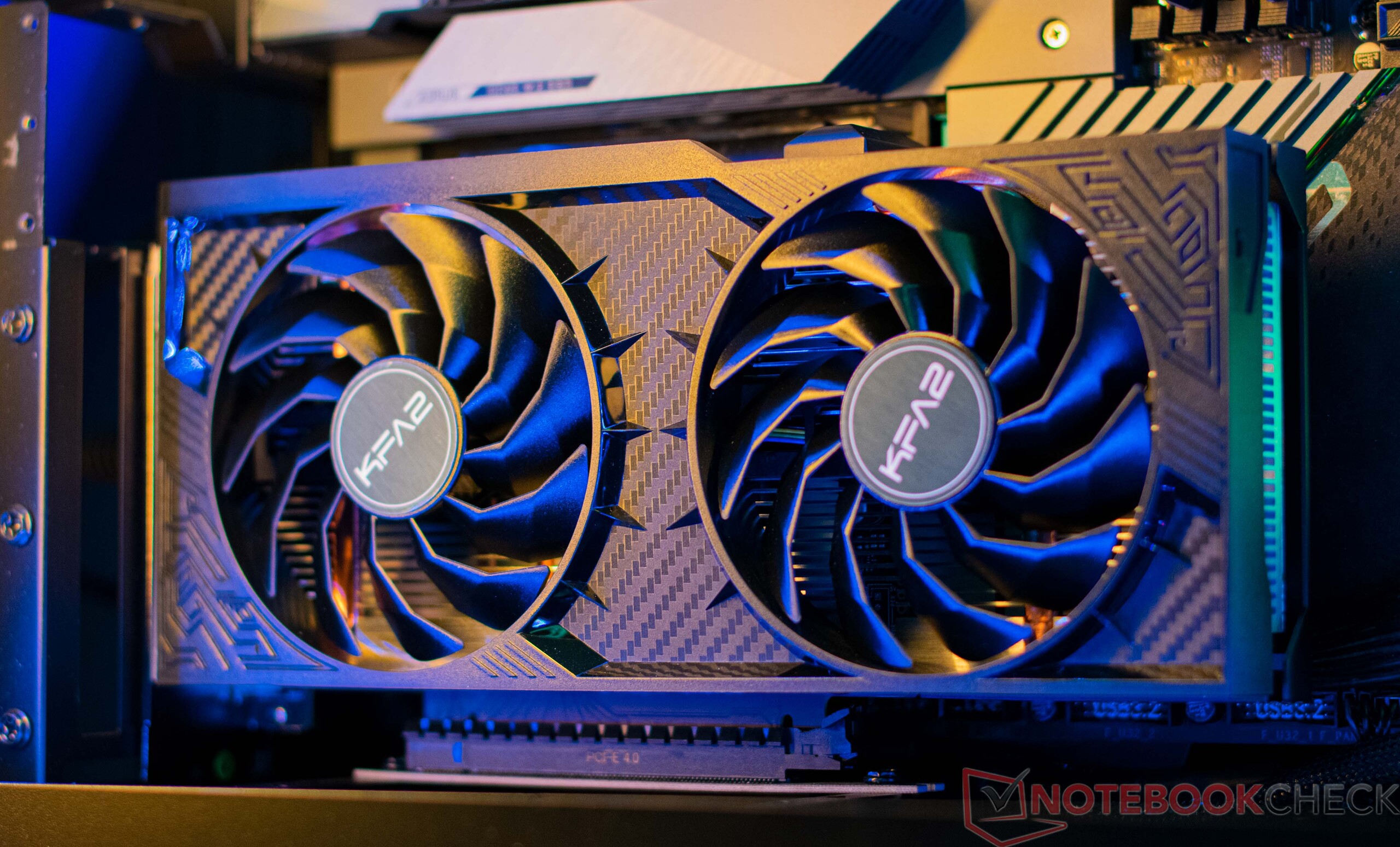

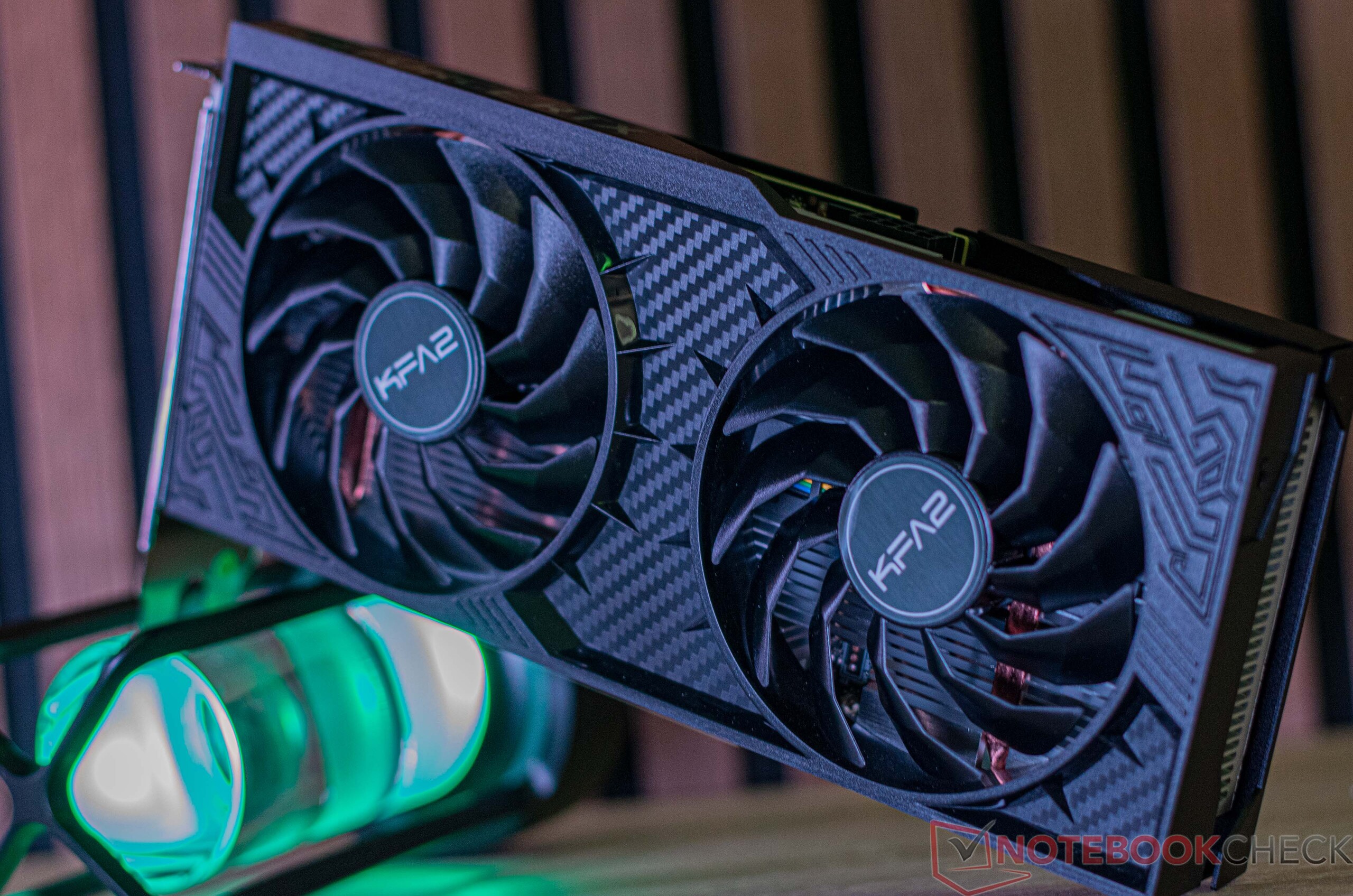

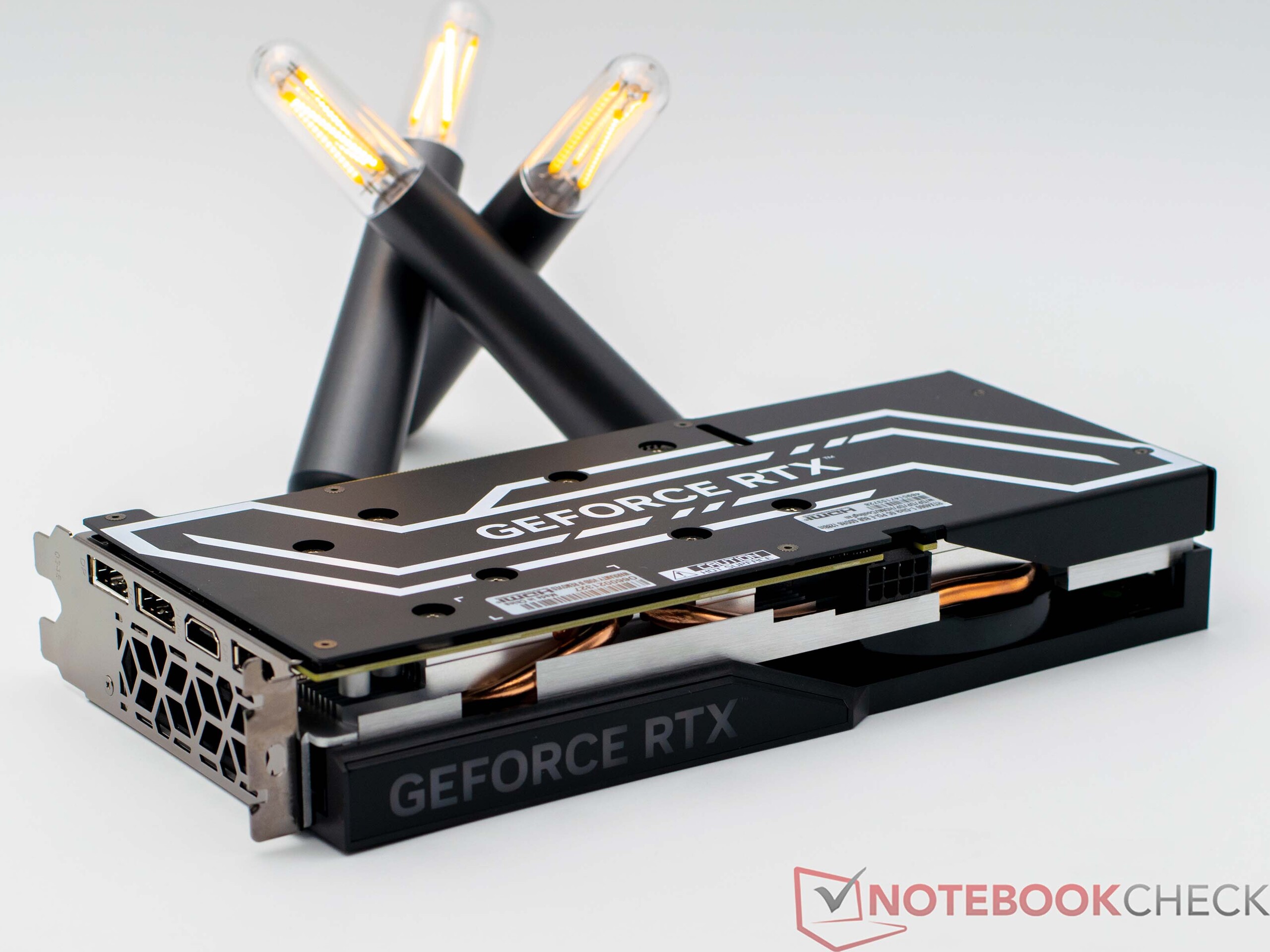

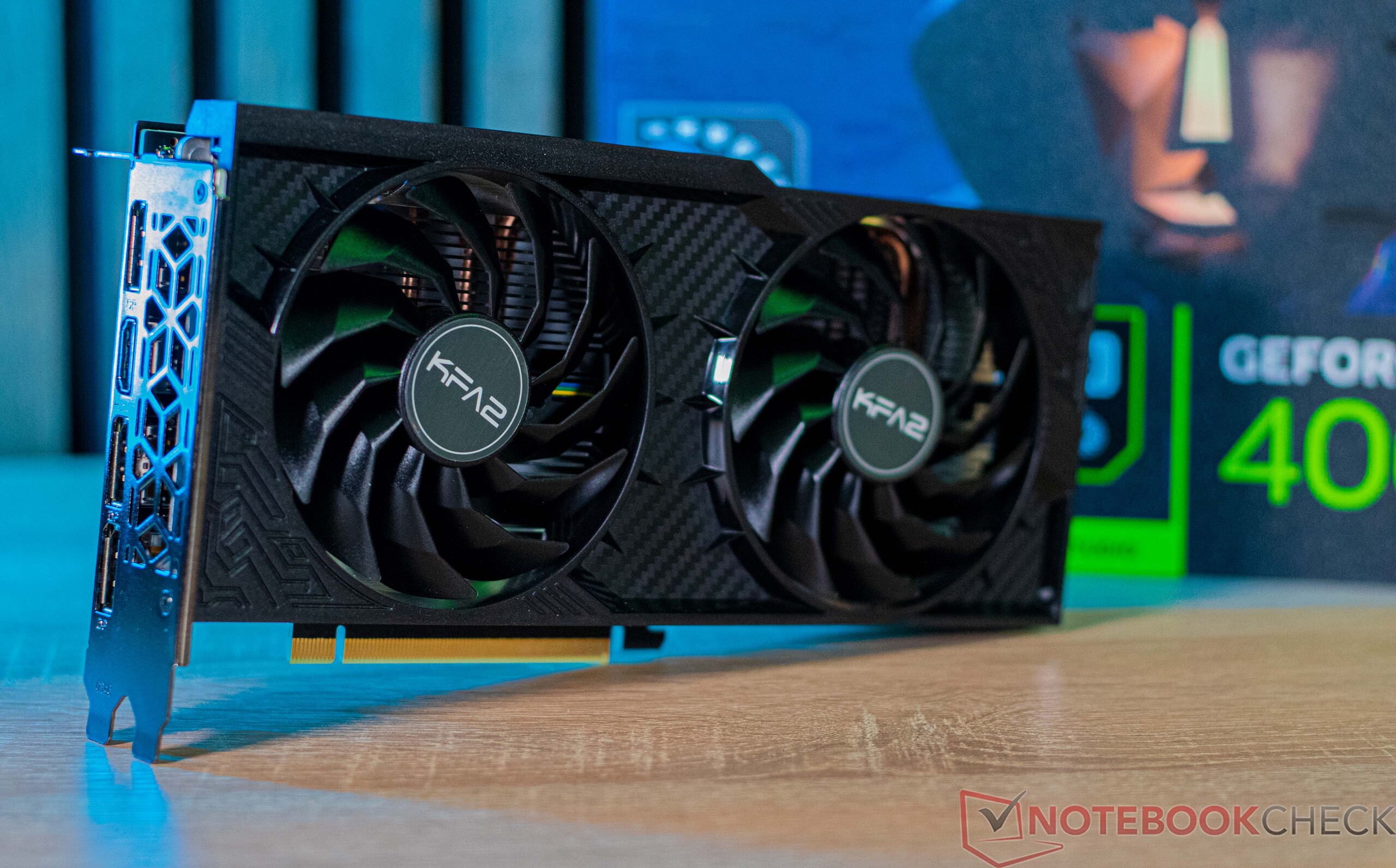

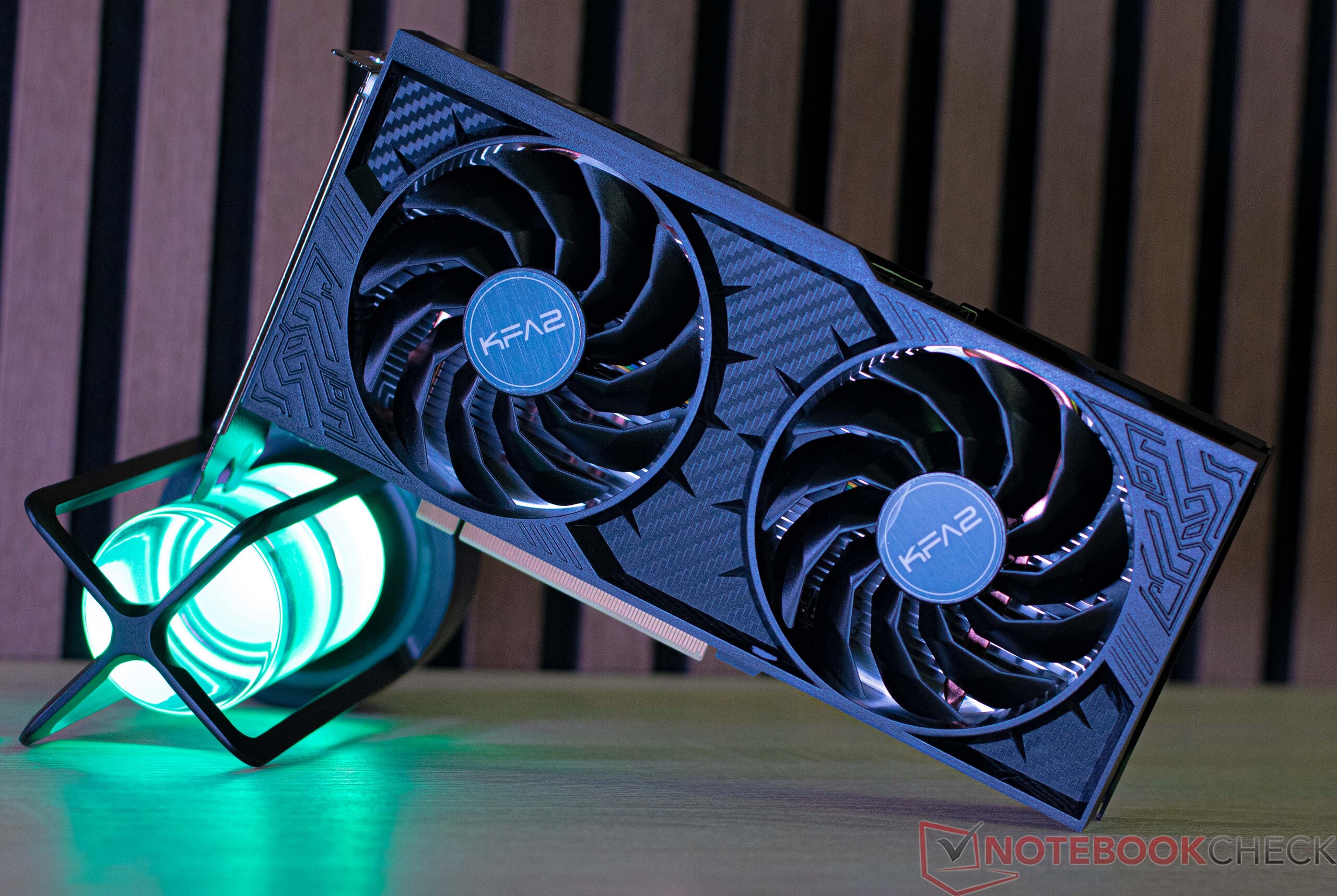

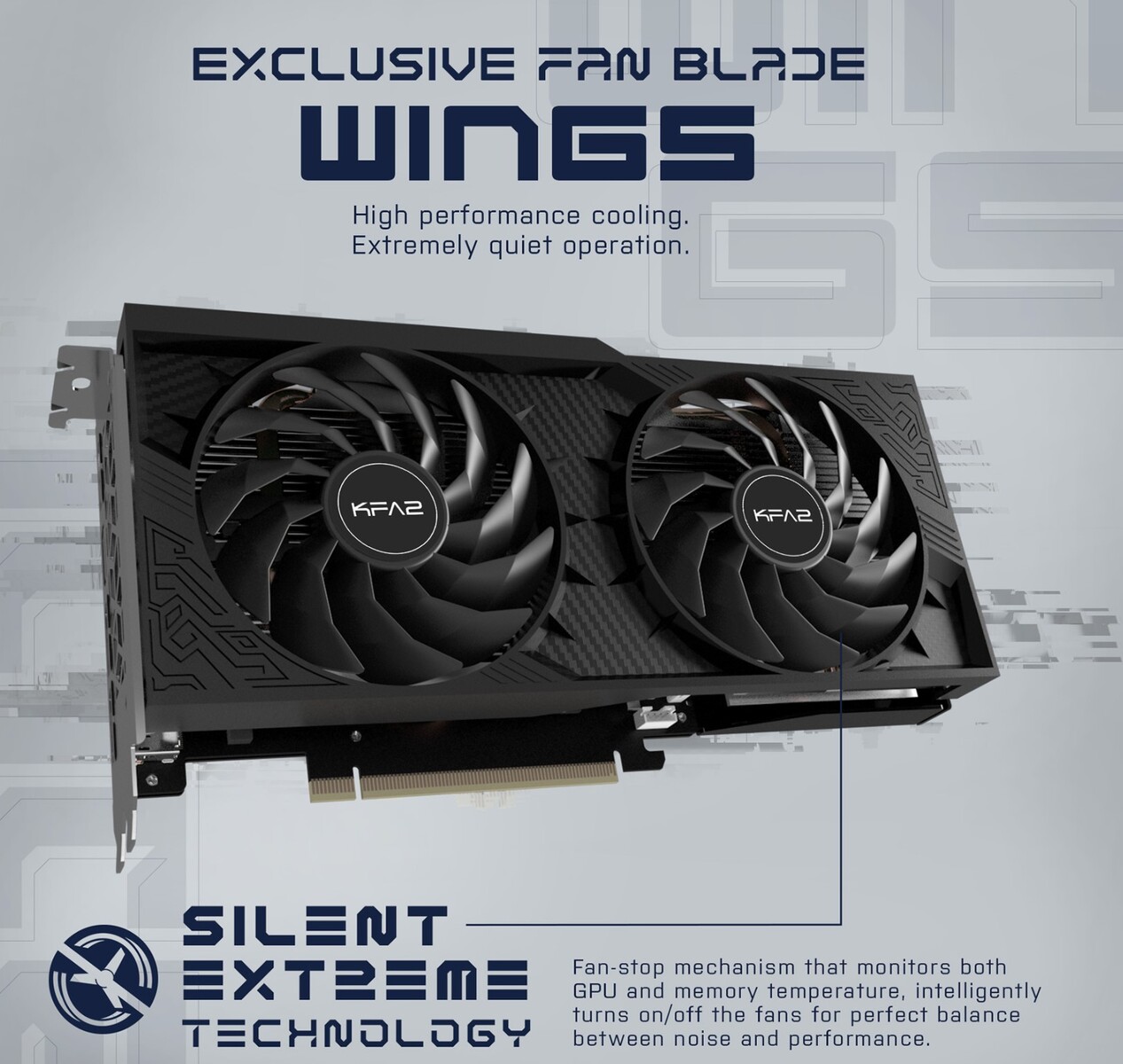

The KFA2 GeForce RTX 4060 1-Click OC 2X is an inconspicuous graphics card that almost completely forgoes elaborate RGB illumination. Only the lettering on the side is discreetly illuminated. Those who like more illumination should take a closer look at the KFA2 GeForce RTX 4060 EX (1-Click OC). The power for the KFA2 GeForce RTX 4060 1-Click OC 2X is provided via a 6+2 pin PCIe power connection.

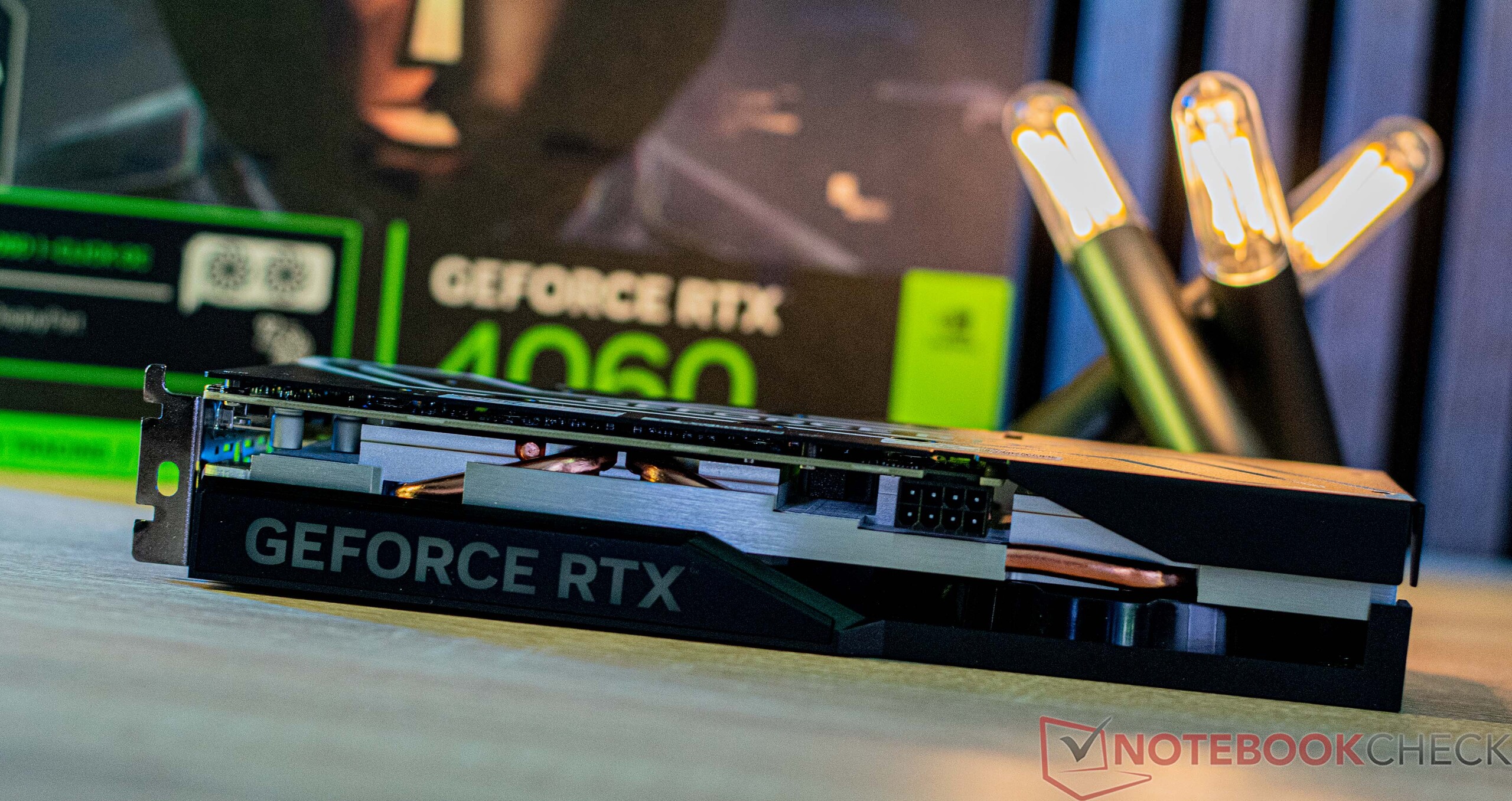

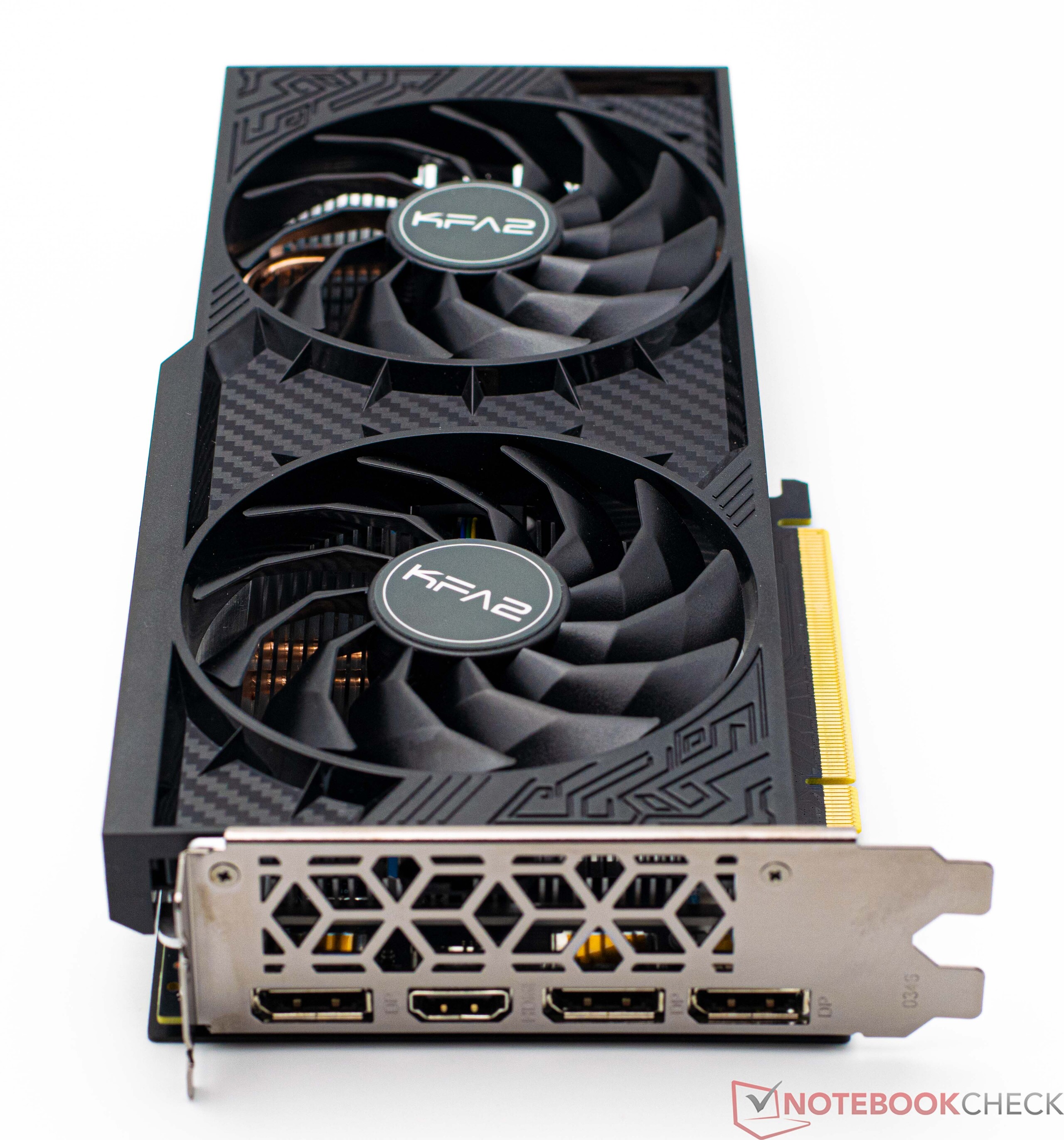

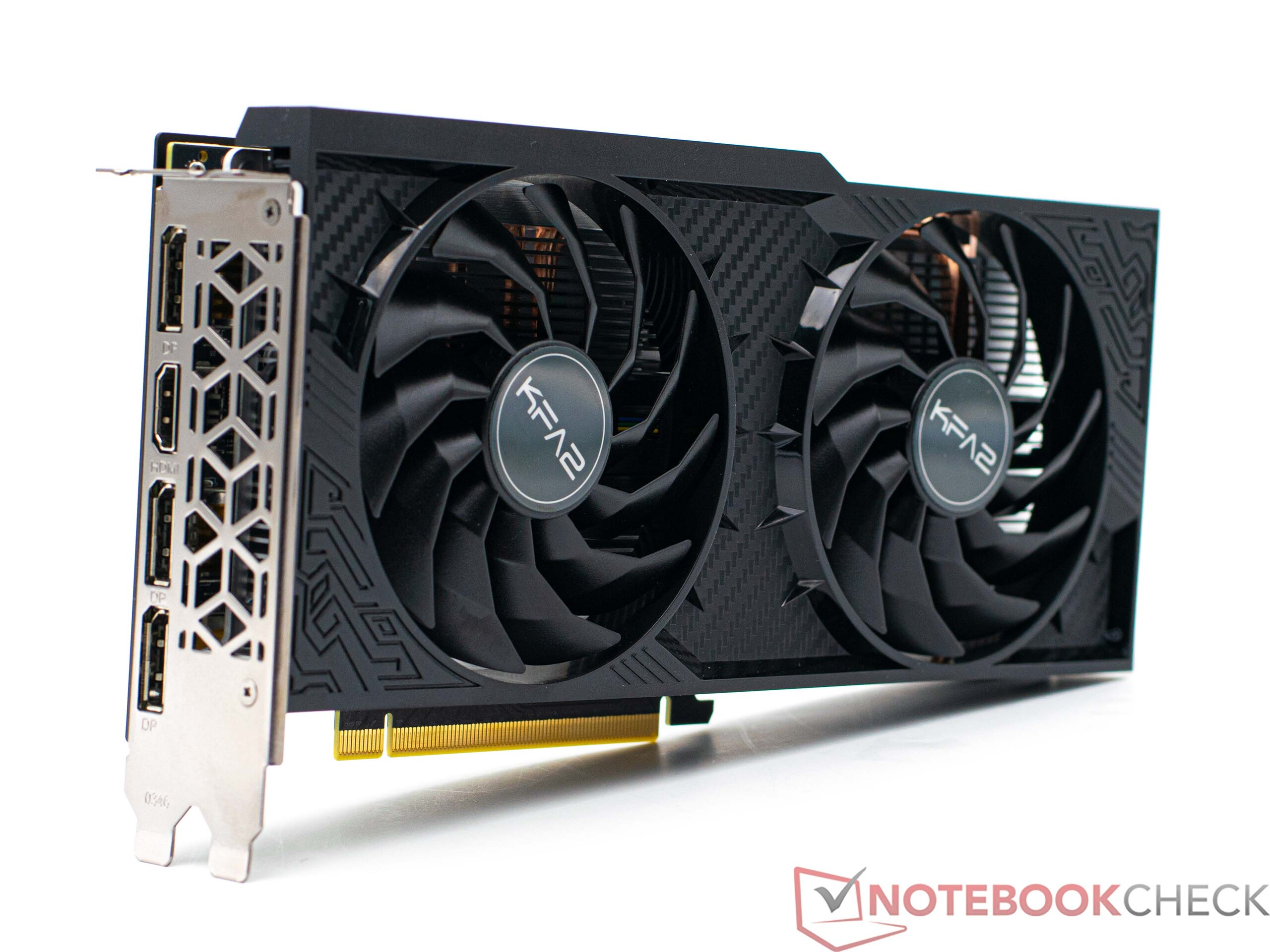

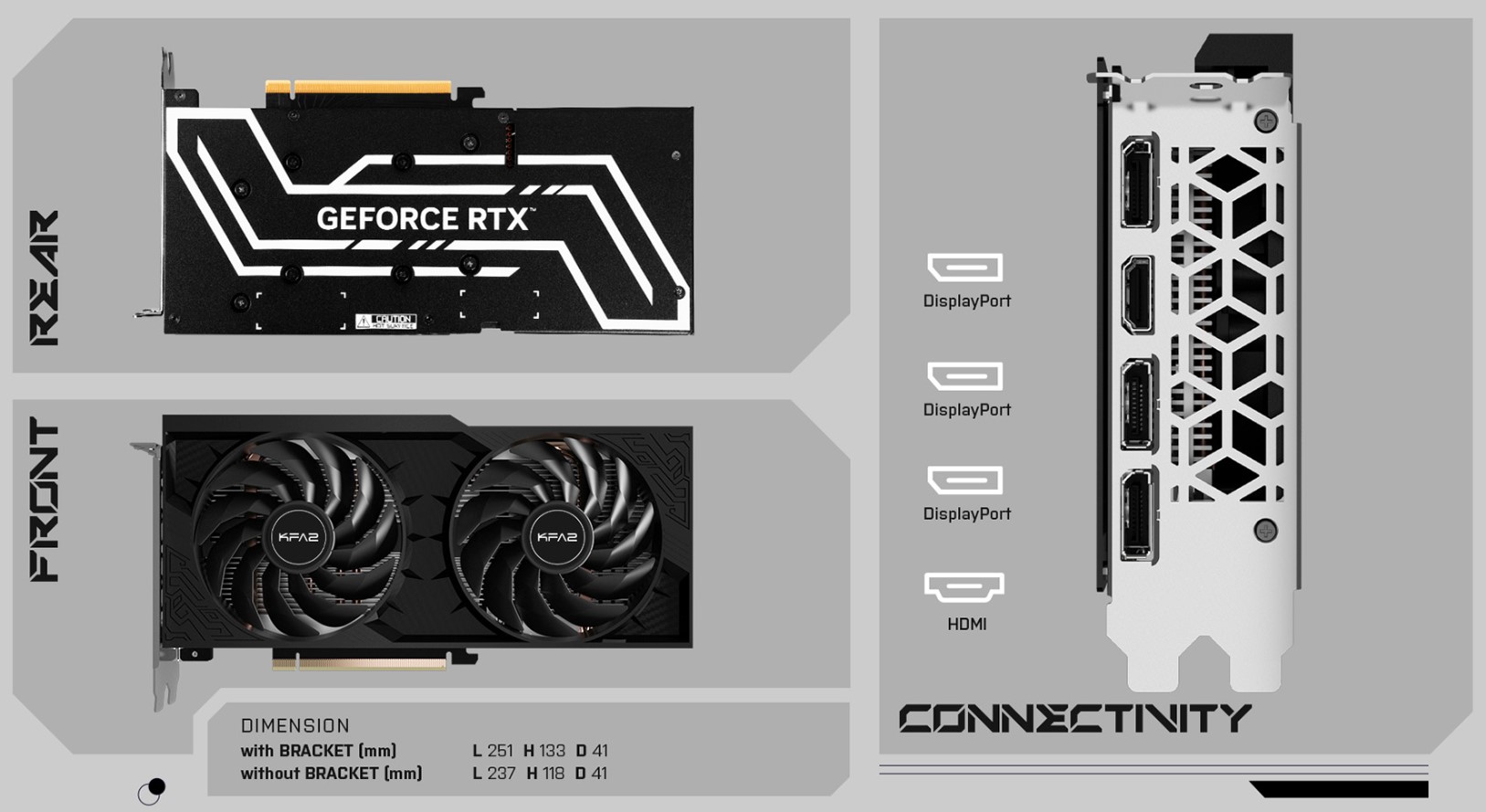

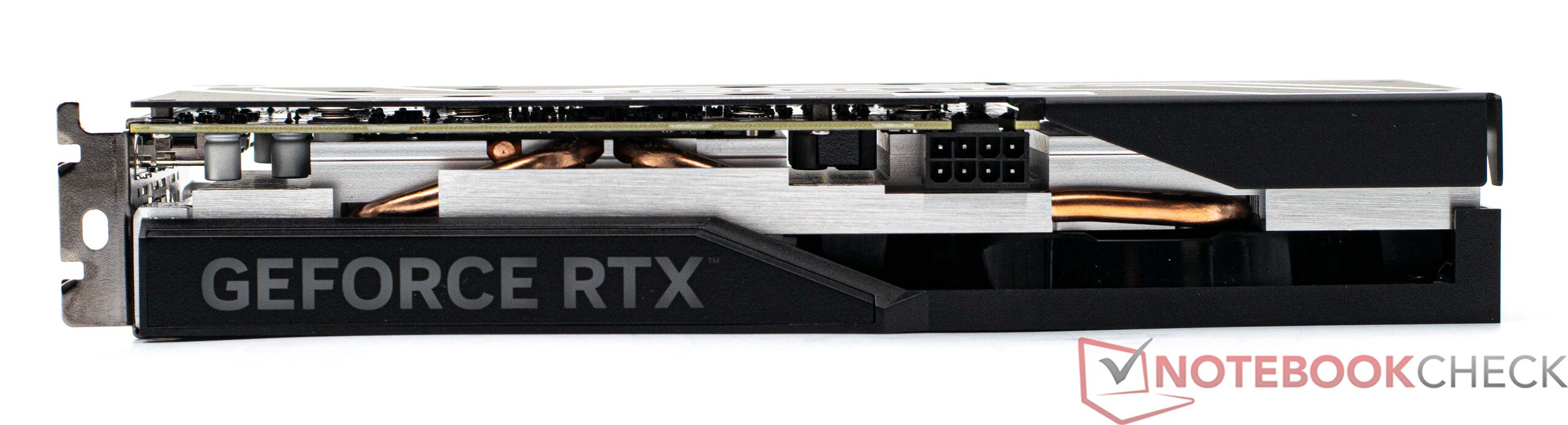

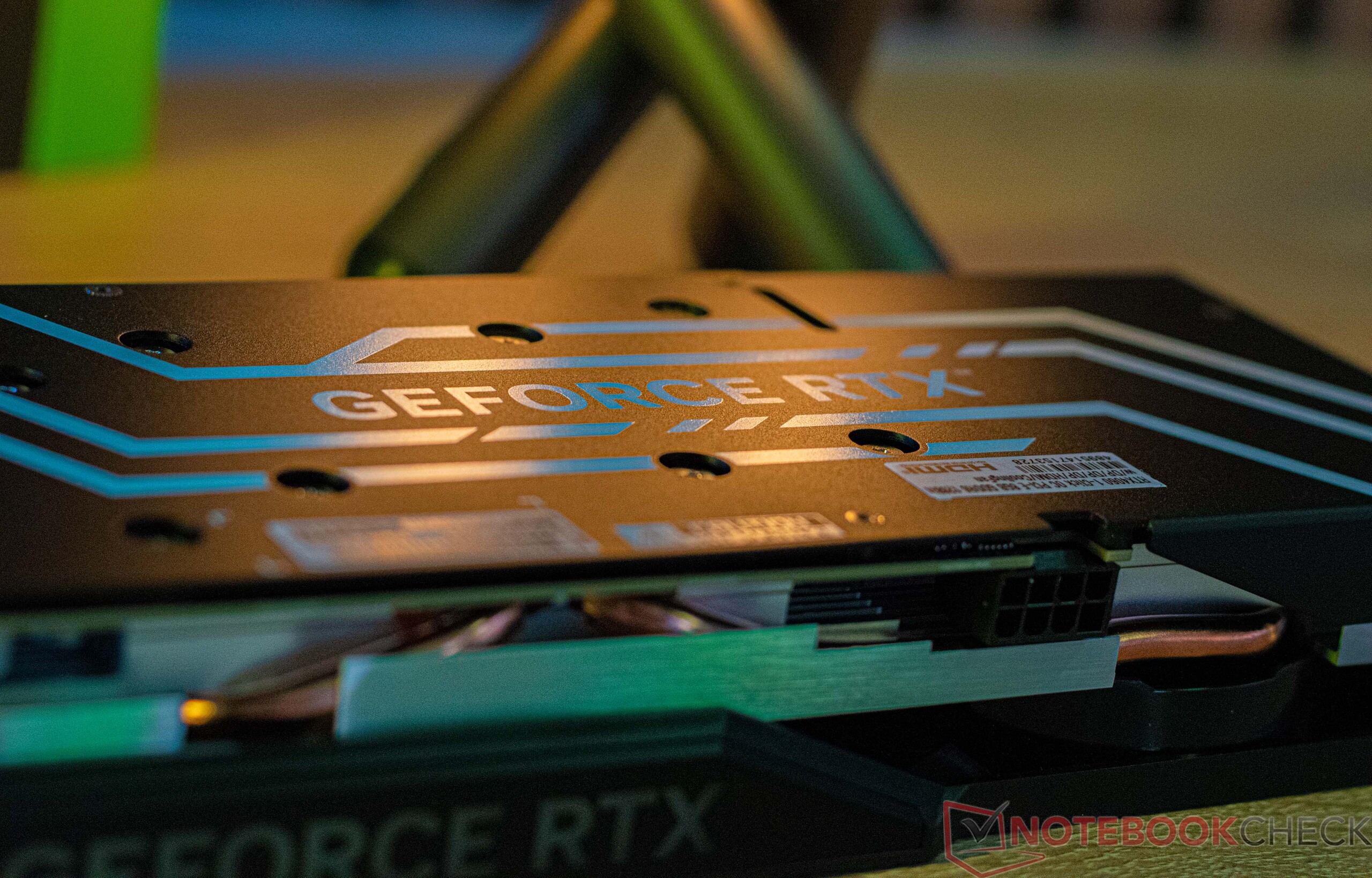

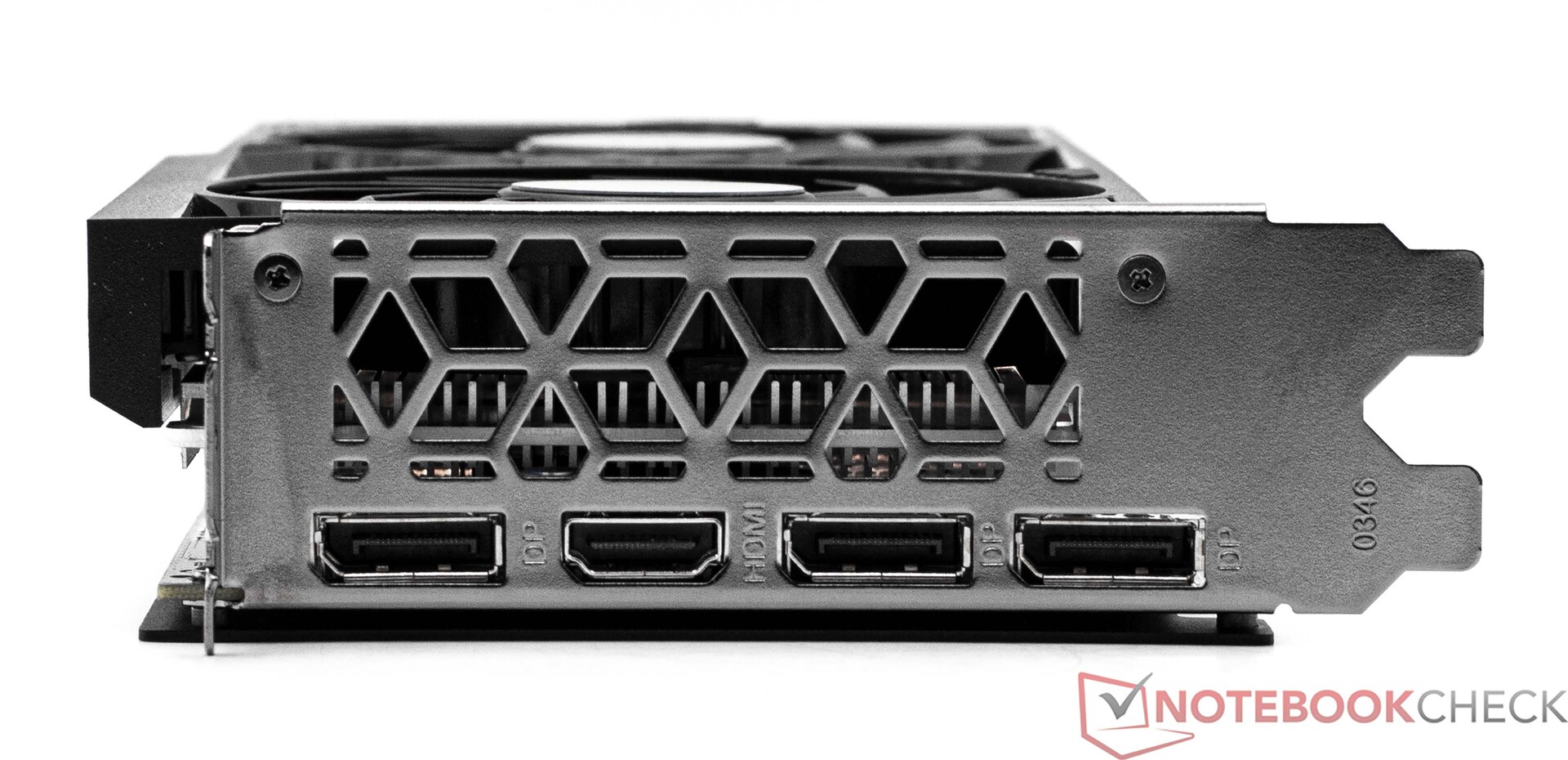

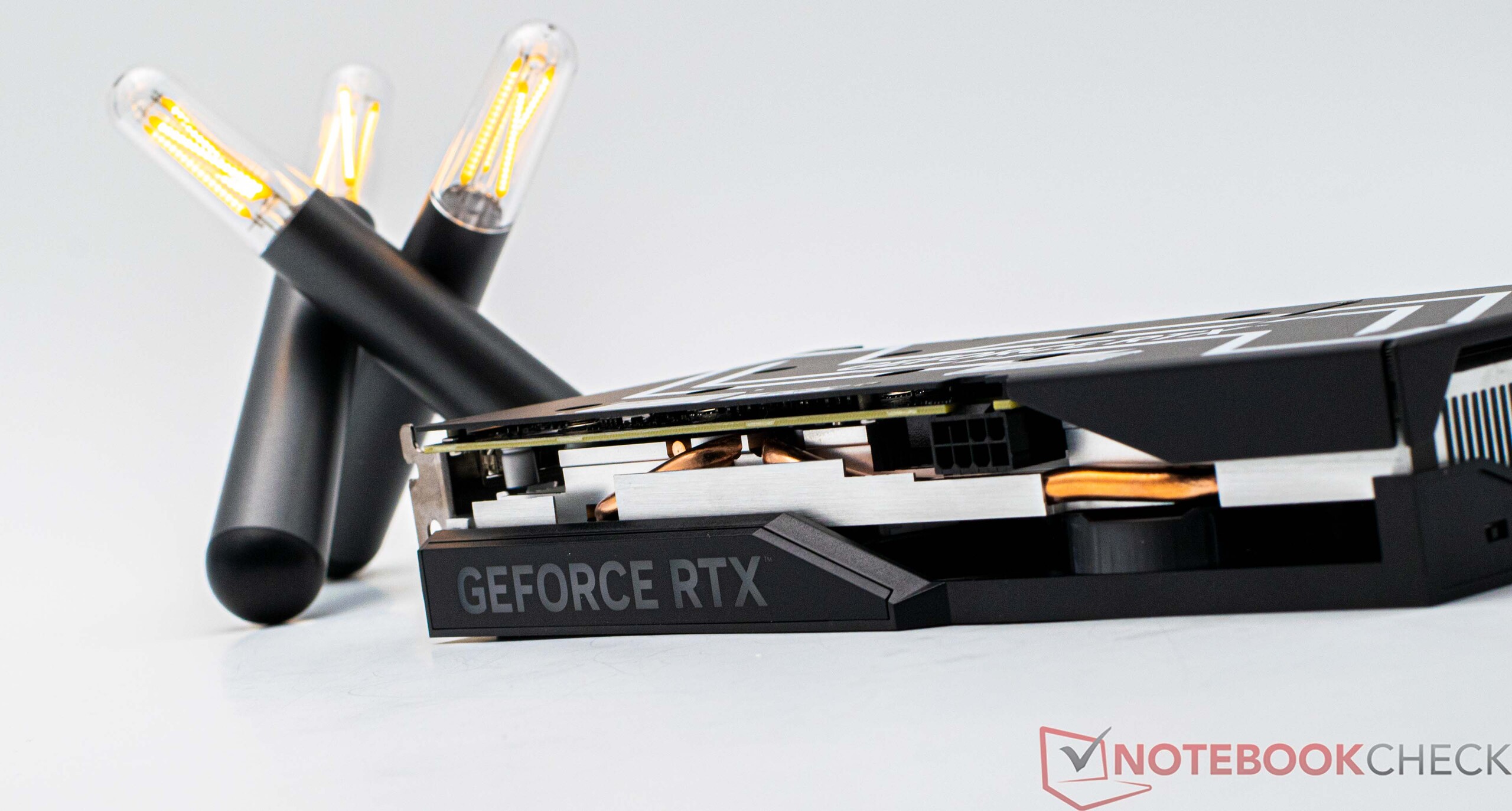

The external connections follow the usual standard. You still have to make do without DisplayPort 2.1, and displays can be connected via HDMI 2.1a (1x) and/or DisplayPort 1.4a (3x).
KFA2 GeForce RTX 4060 1-Click OC 2X in Detail
Specifications of the GeForce Graphics Cards in Comparison
| Equipment | RTX 4090 | RTX 4080 | RTX 4070 Ti | RTX 4070 | RTX 4060 Ti | RTX 4060 | RTX 3060 Ti | RTX 3060 |
| Chip | AD102 | AD103 | AD104 | AD104 | AD106 | AD107 | GA104 | GA104 |
| FinFET Process | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | 8 nm | 8 nm |
| CUDA Cores | 16,384 | 9,728 | 7,680 | 5,888 | 4,352 | 3,072 | 4,864 | 3,584 |
| Texture Units | 512 | 304 | 240 | 184 | 136 | 96 | 152 | 112 |
| Tensor Cores | 512 4th Gen. | 304 4th Gen. | 240 4th Gen. | 184 4th Gen. | 136 4th Gen. | 96 4th Gen. | 152 3rd Gen. | 112 3rd Gen. |
| RT Cores | 128 | 76 | 60 | 46 | 34 | 24 | 38 | 28 |
| GPU Base Clock | 2,235 MHz | 2,205 MHz | 2,310 MHz | 1,920 MHz | 2,310 MHz | 1,830 MHz | 1,410 MHz | 1,320 MHz |
| GPU Boost Clock | 2,520 MHz | 2,505 MHz | 2,610 MHz | 2,475 MHz | 2,535 MHz | 2,460 MHz | 1,665 MHz | 1,777 MHz |
| Memory Bus | 384 Bit | 256 Bit | 192 Bit | 192 Bit | 128 Bit | 128 Bit | 256 Bit | 192 Bit |
| Memory Bandwidth | 1,008 GB/s | 716.8 GB/s | 504.2 GB/s | 504.2 GB/s | 288 GB/s | 272 GB/s | 448 GB/s | 360 GB/s |
| Video Memory | 24 GB GDDR6X | 16 GB GDDR6X | 12 GB GDDR6 | 12 GB GDDR6X | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 12 GB GDDR6 |
| Power Consumption | 450 W | 320 W | 285 W | 215 W | 160 W | 115 W | 200 W | 170 W |

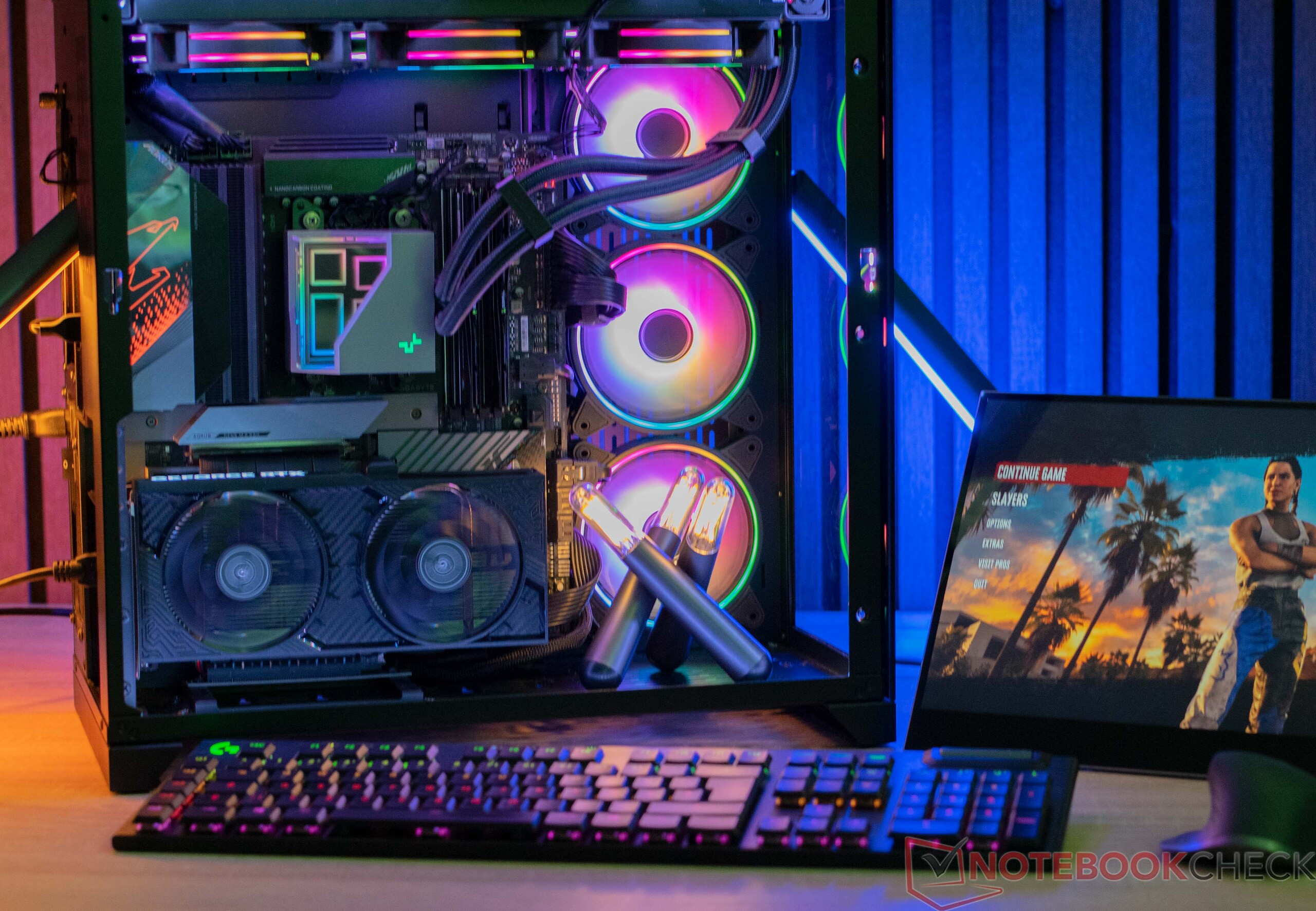

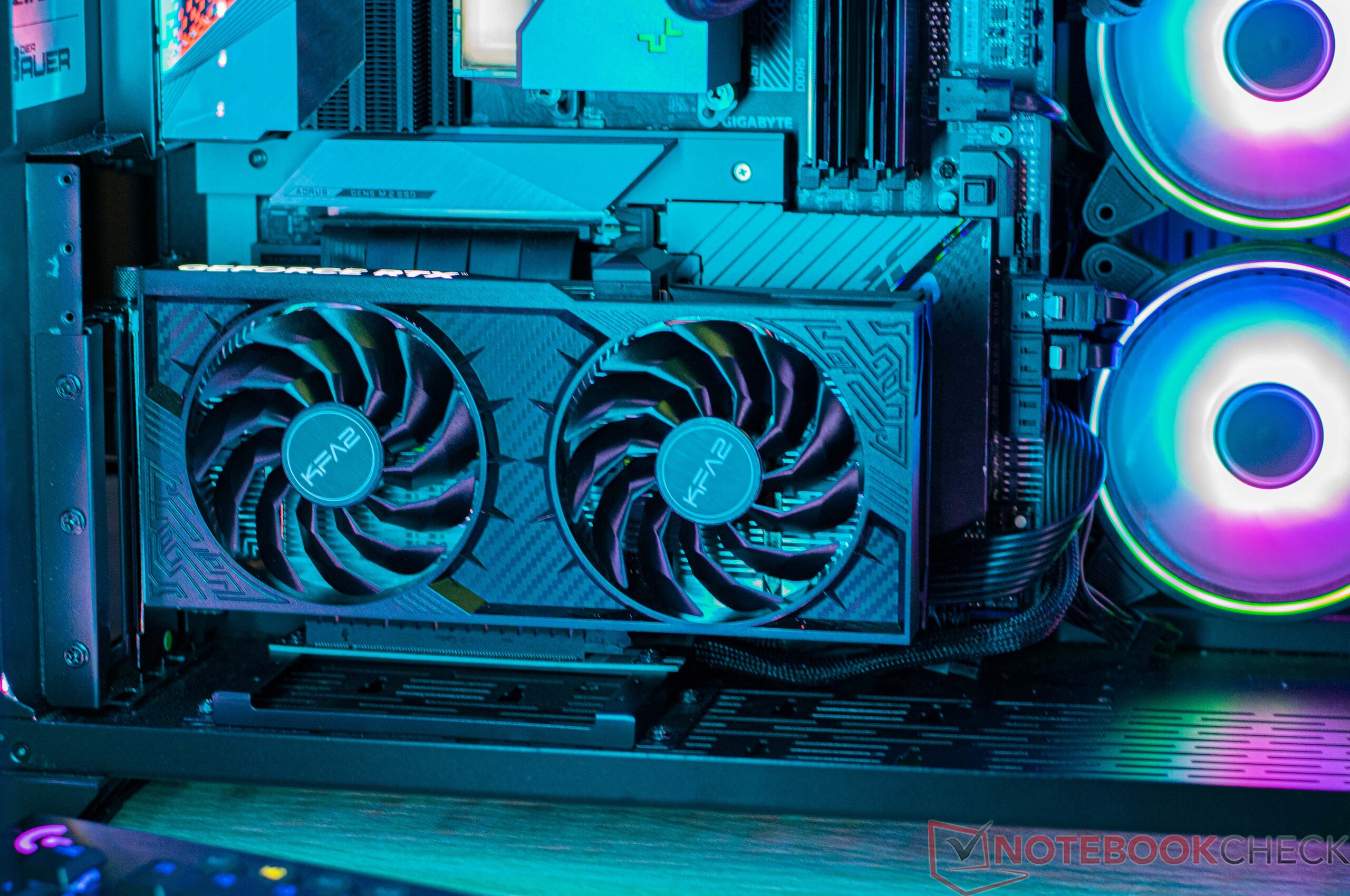

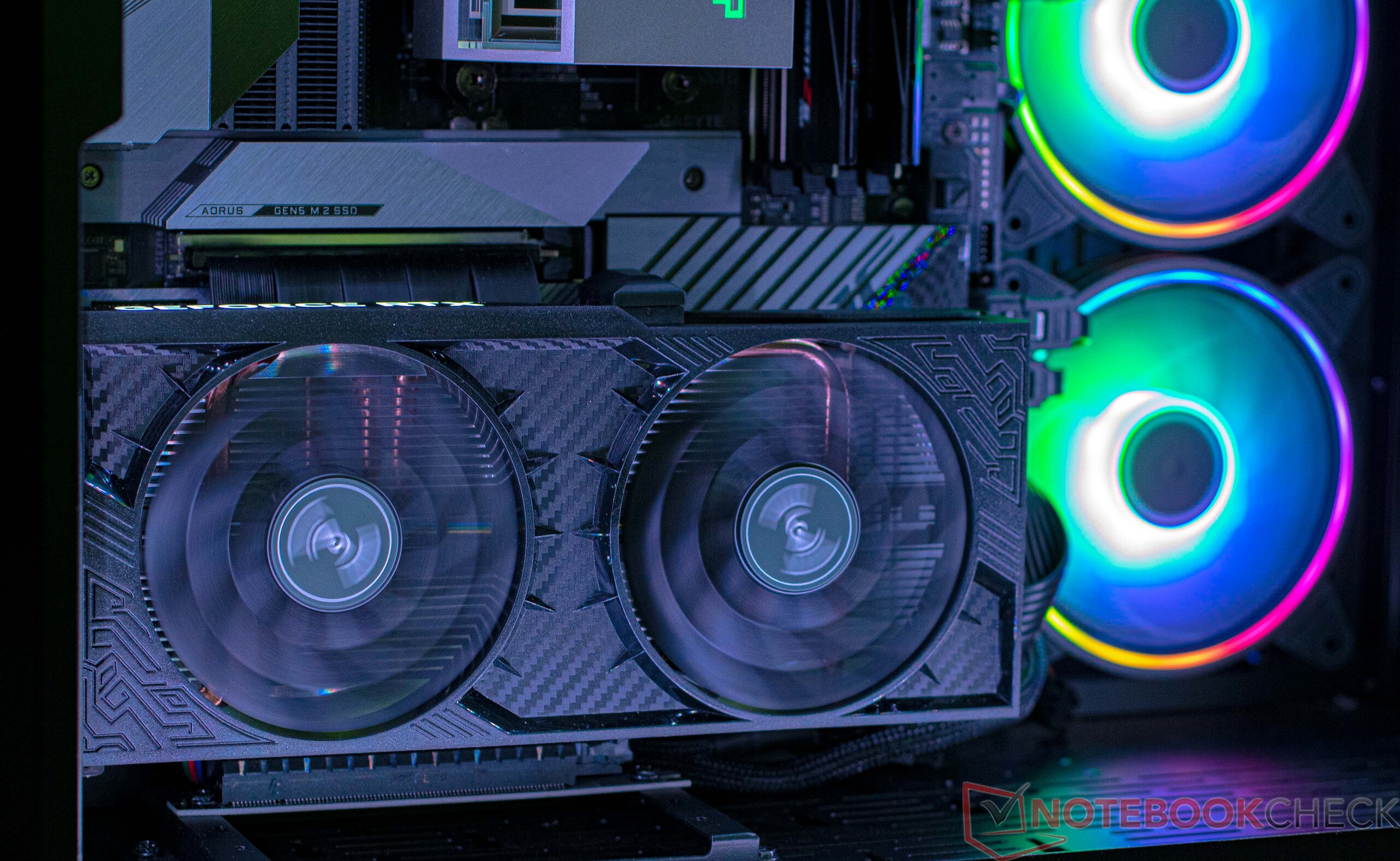

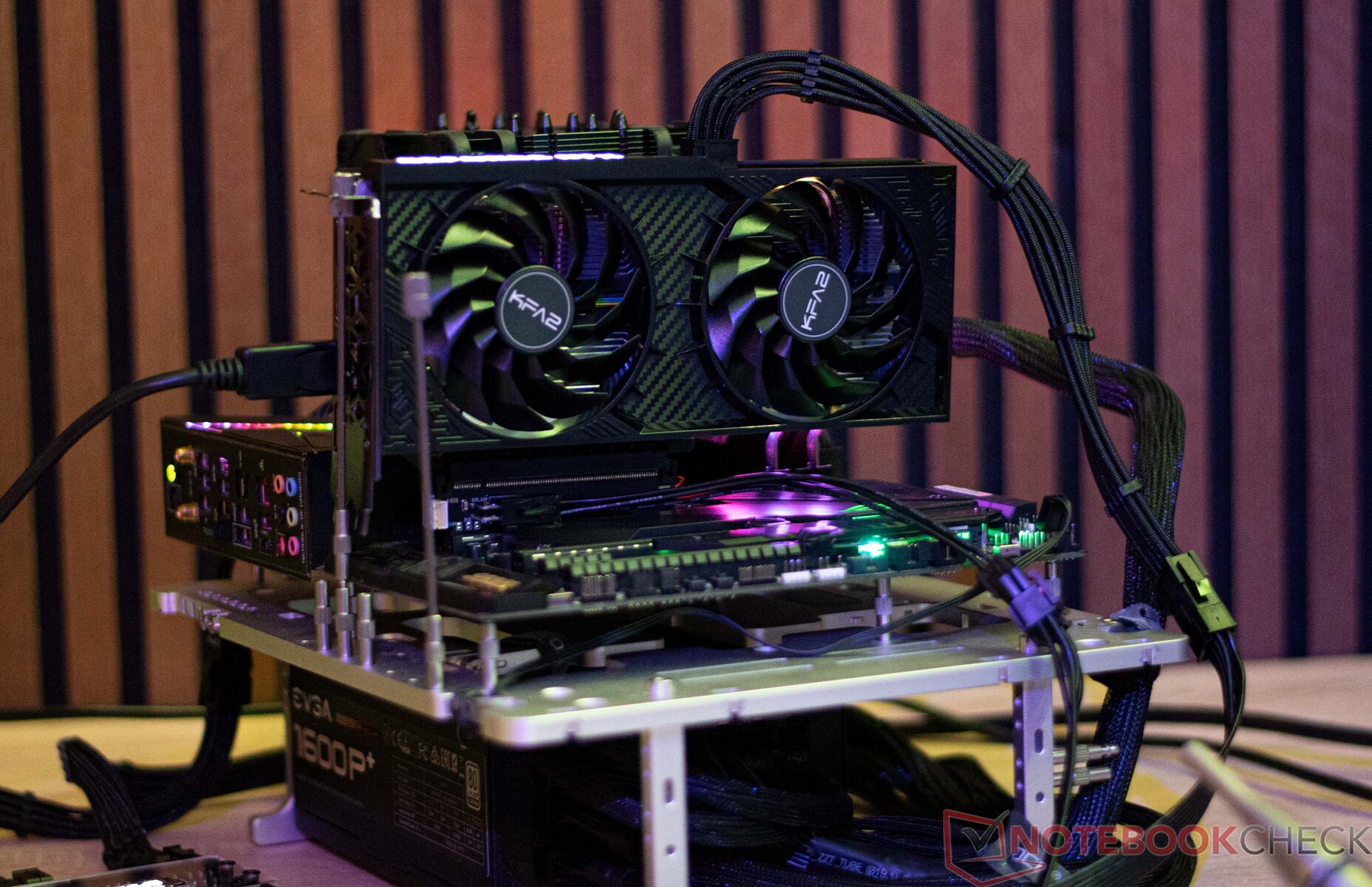

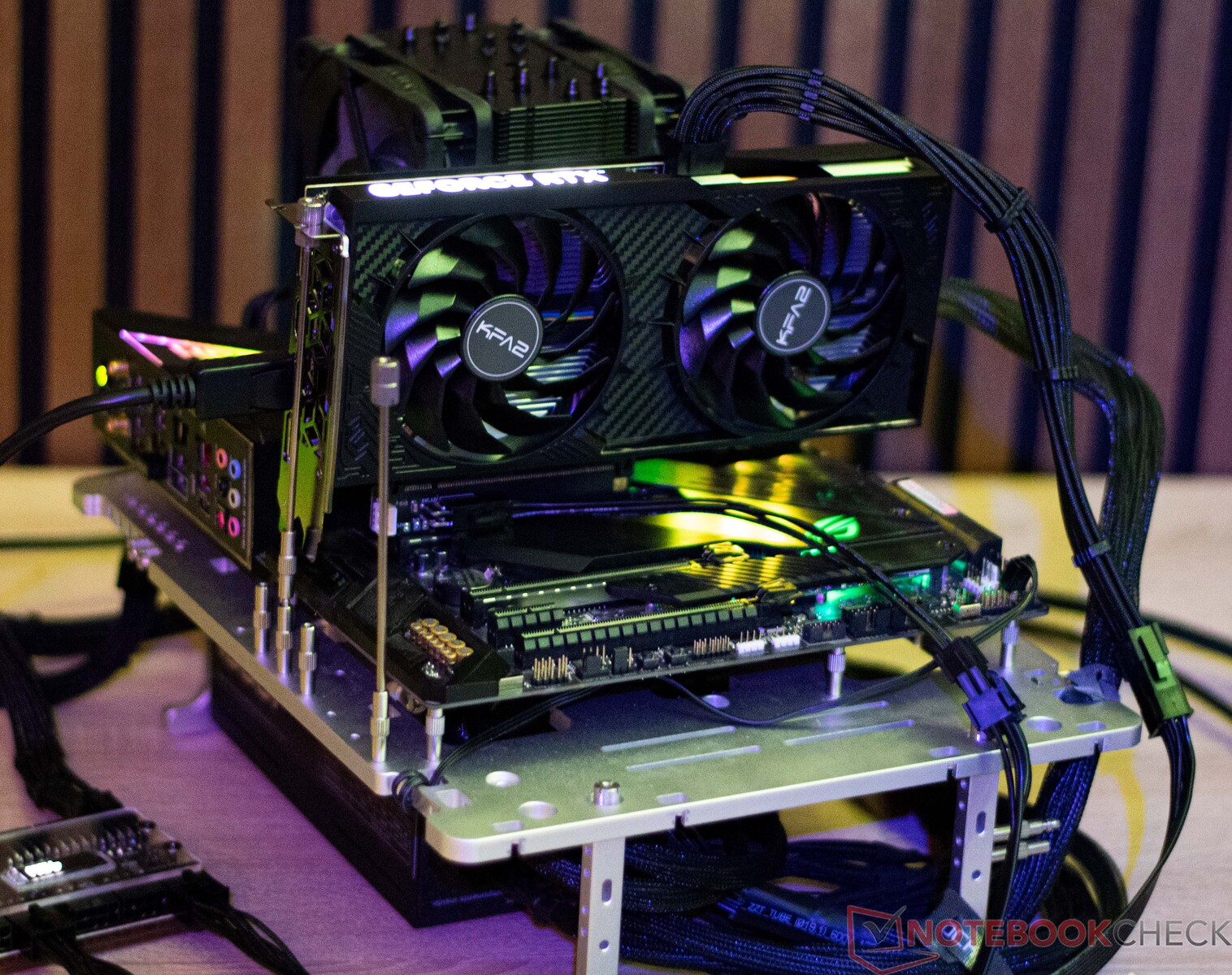

Information on our Test System

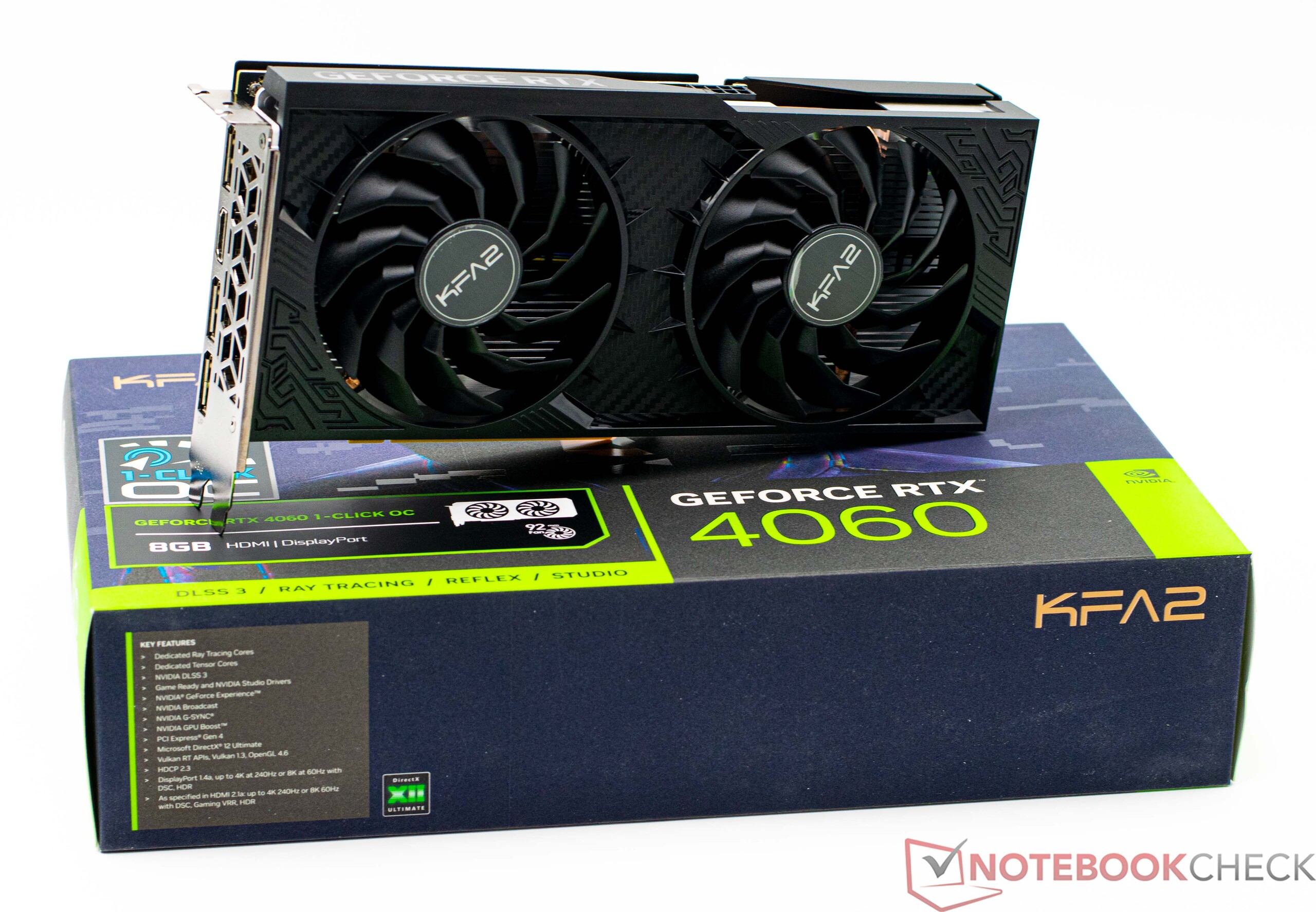

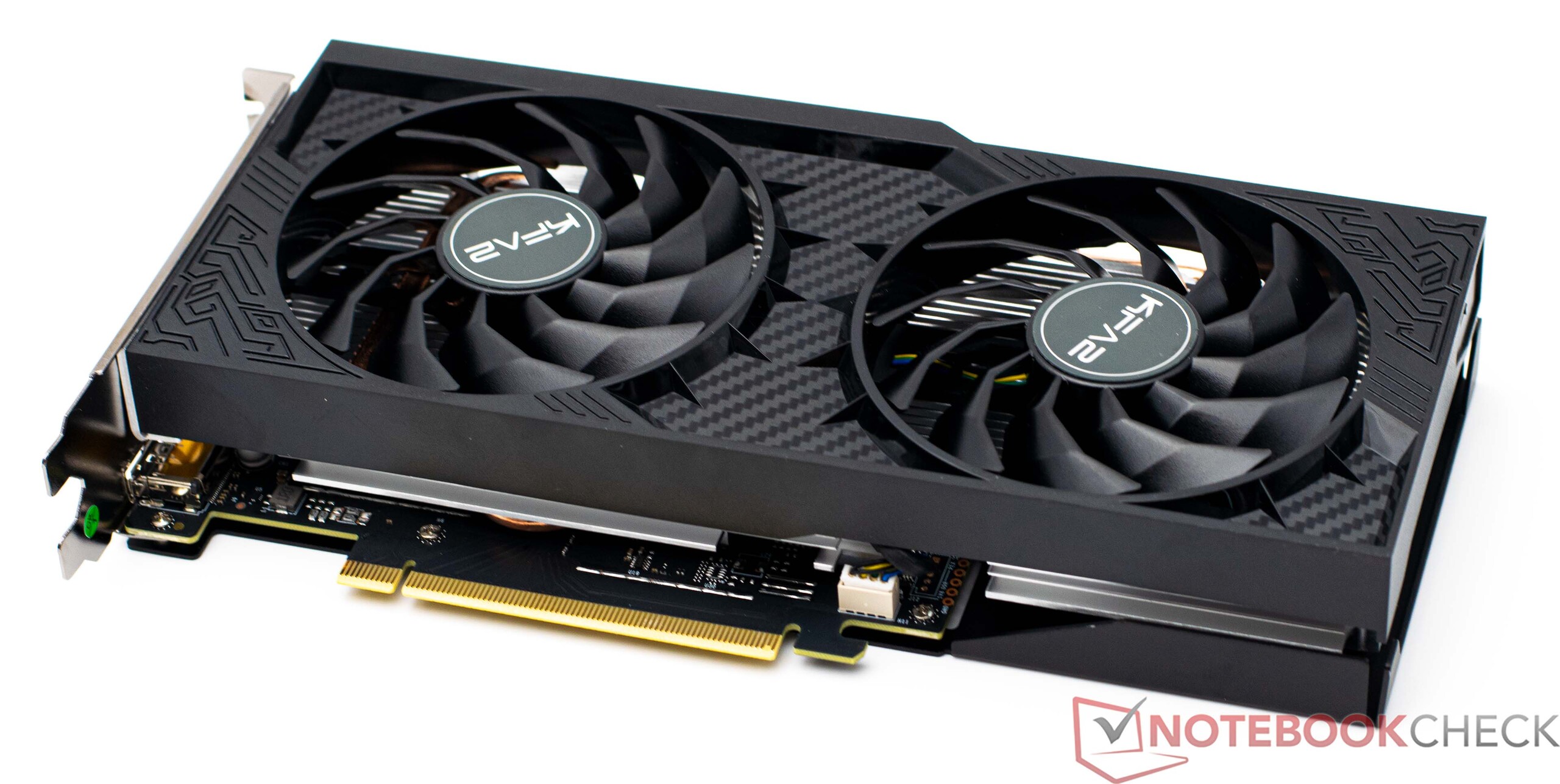

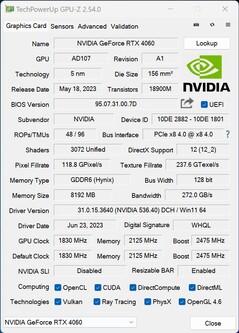

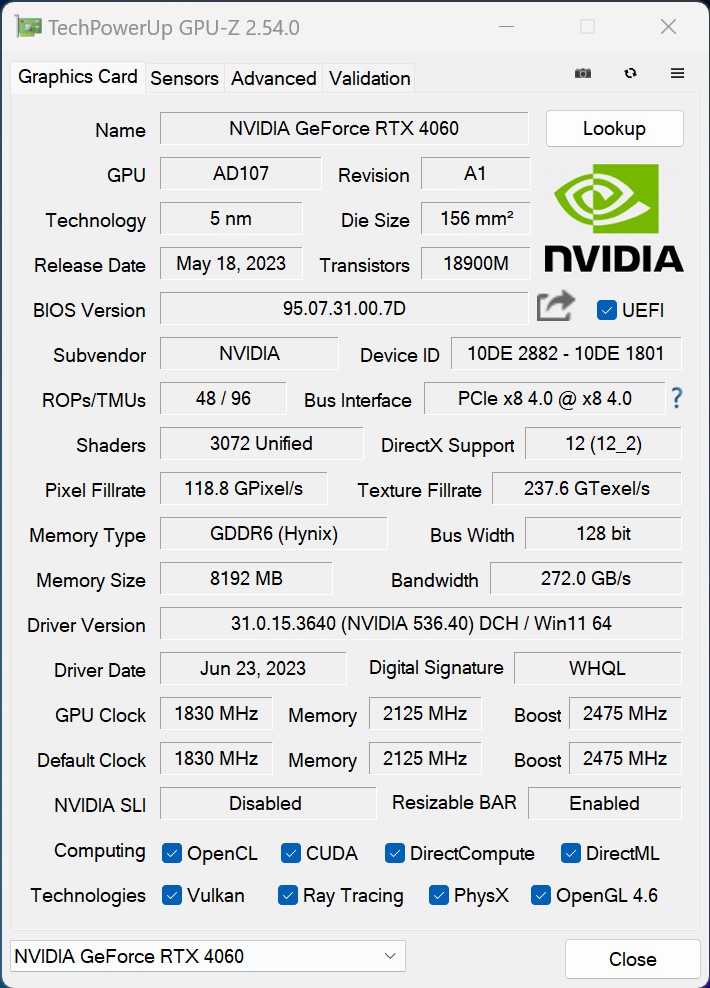

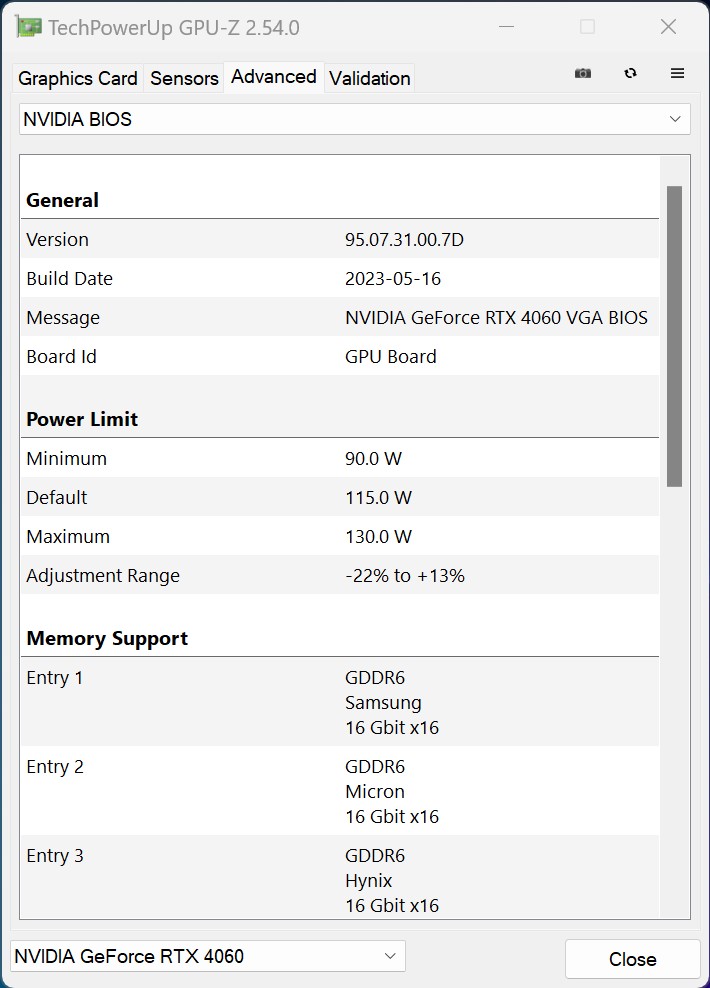

Details on the KFA2 GeForce RTX 4060 1-Click OC
There is no Founders Edition from Nvidia based on the GeForce RTX 4060, so the graphics card is only available from the other vendors such as Asus, MSI, Gigabyte, or KFA2. Our test unit is an OC model, which also implies slightly higher clock speeds. At the same time, we only see slightly higher Boost speeds, which are almost always surpassed anyways. The "Extreme Tuner Plus" tuning tool also allows you to activate the OC profile, which gives an additional 15 Hz (2,490 MHz Boost speed) to the graphics card. However, this doesn't result in a noticeable performance increase in practice.

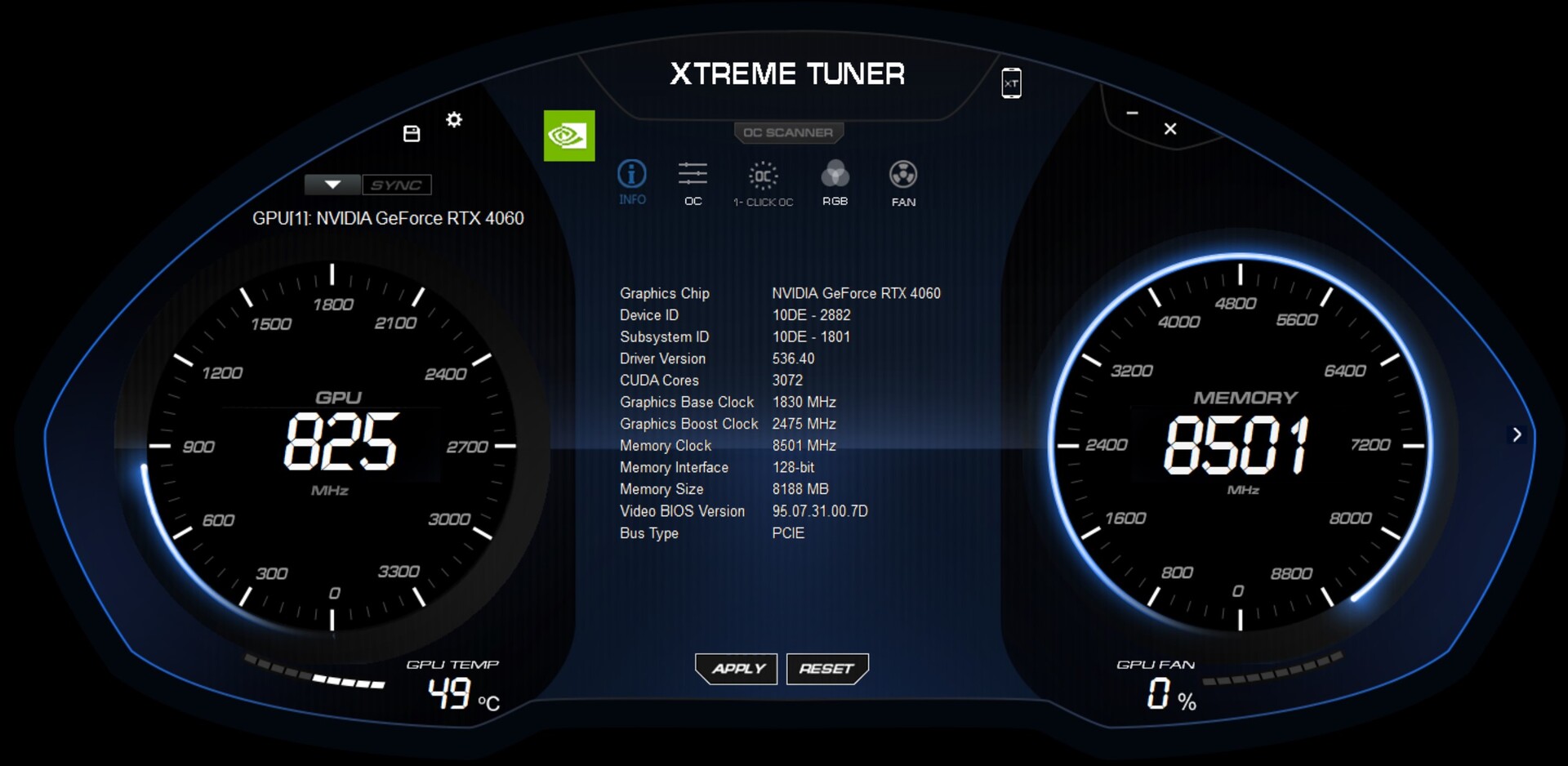

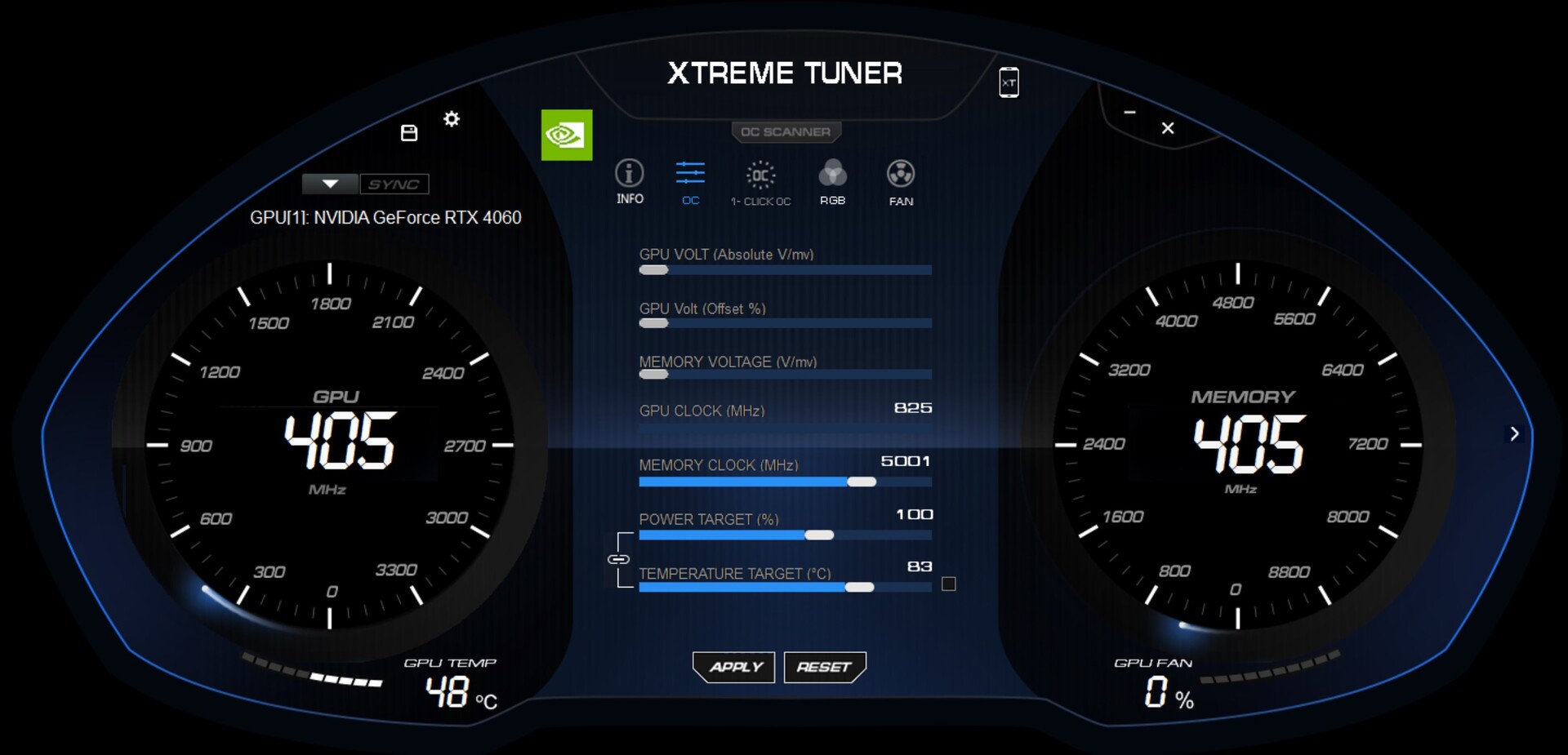

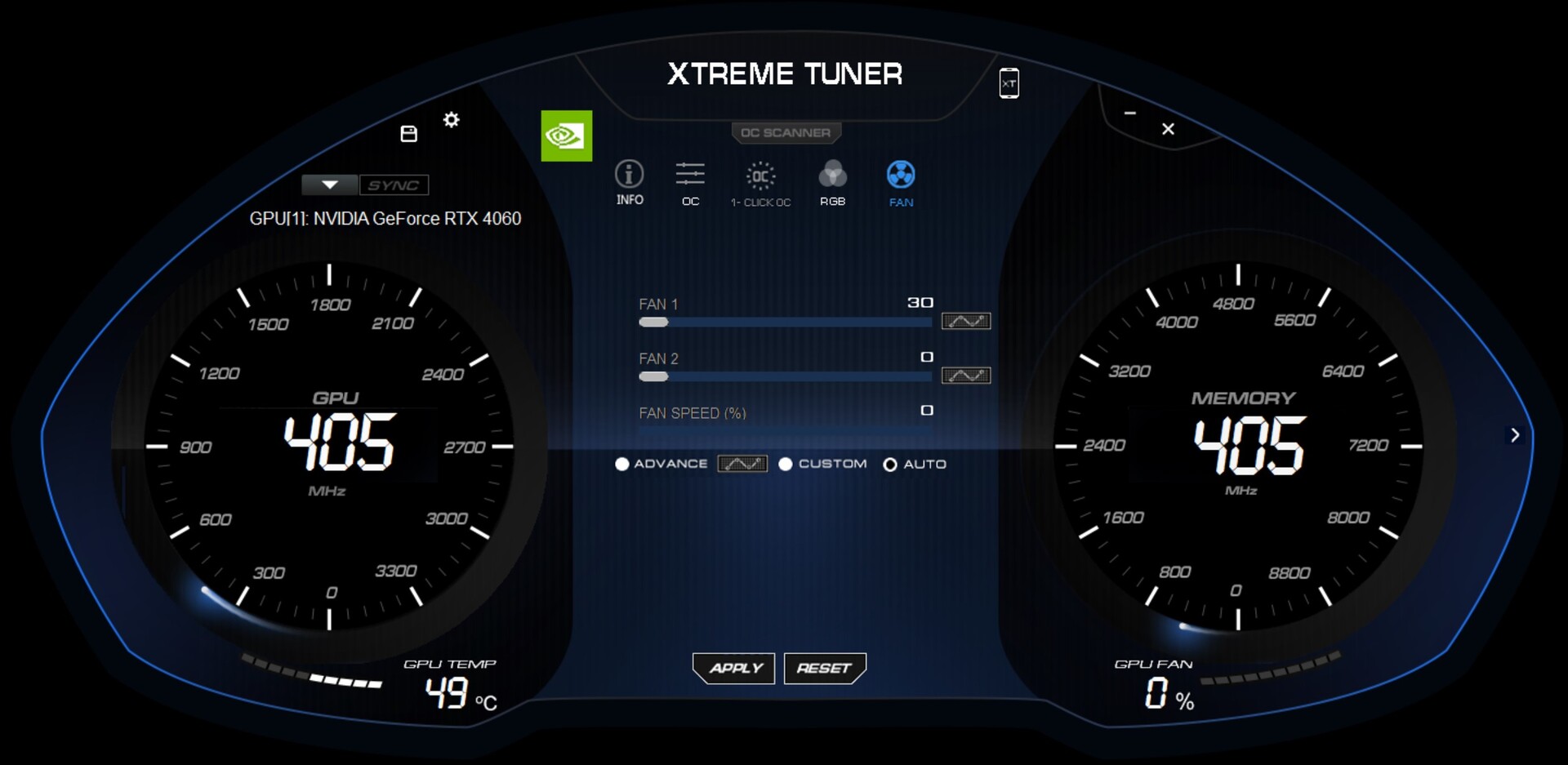

Xtreme Tuner Plus

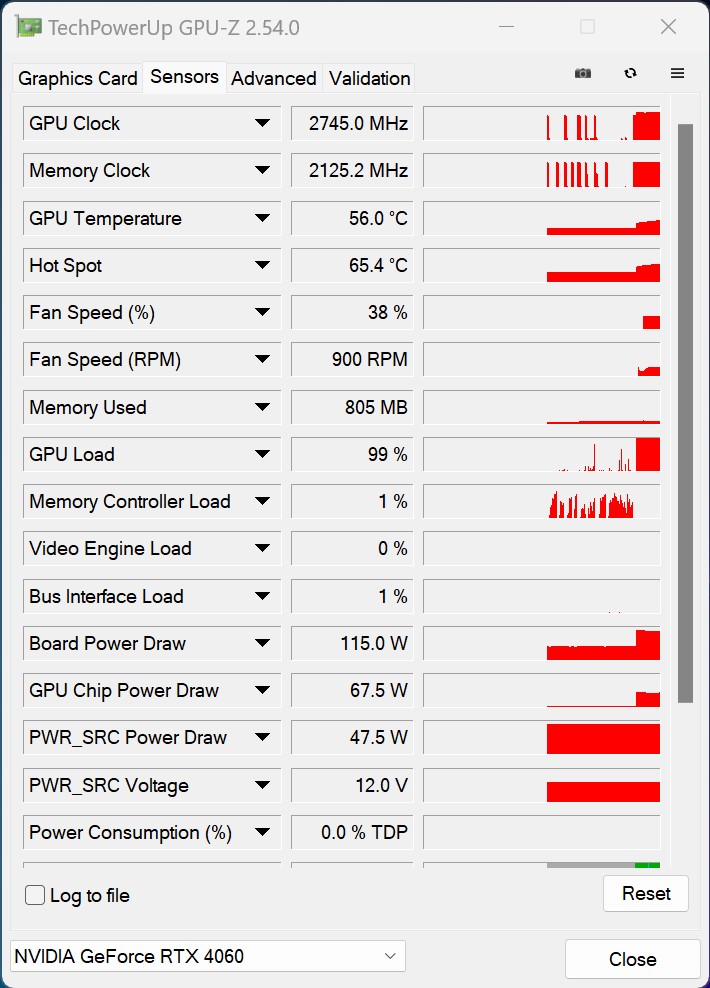

As customary for KFA2, you can find out some information on the graphics card using the inhouse Xtreme Tuner tool. Among other things, you can also make some minor modifications in the clock speeds and adjust the power consumption ranging from 78 to 113% here. The "illumination" segment is not relevant for this model, and you can only deactivate the available illumination of the KFA2 GeForce RTX 4060 1-Click OC 2X directly on the graphics card via a slider button.
Synthetic Benchmarks
In the synthetic benchmarks, we see that the KFA2 GeForce RTX 4060 1-Click OC 2X performs at the same level as an Nvidia GeForce RTX 2070 Super. Comparing it with AMD, our test unit is able to compete against an AMD Radeon RX 6650 XT. The performance isn't quite sufficient to beat the Nvidia GeForce RTX 3060 Ti, and our test unit loses some ground here, with the older model being about 7% faster.
On the other hand, the next faster representative of the Ada Lovelace models only surpasses it by about 15%. With the performance the KFA2 GeForce RTX 4060 1-Click OC 2X shows here, it won't have an easy time to compete against the more affordable AMD model. You can save almost 50 Euros (~$55), if you are content with an AMD Radeon RX 6650 XT. Those who don't want to miss out on the exclusive GeForce features have to pay more. At this point, the Nvidia GeForce RTX 3060 Ti is available for about 300 Euros (~$332), but that doesn't offer DLSS 3.0. In addition, the GeForce RTX 3060 Ti stresses the power supply more than a GeForce RTX 4060, which can be one of the criteria for the purchase decision. As an upgrade option, the KFA2 GeForce RTX 4060 1-Click OC 2X is only worthwhile if you currently still use an Nvidia GeForce GTX 1060 or Nvidia GeForce GTX 1660 Super.
| Performance Rating - Percent | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| ASUS ROG Strix GeForce GTX 1060 | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia Titan RTX | |
| PNY GeForce GTX 1660 | |
| KFA2 GeForce GTX 1660 Super | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| Geekbench 5.0 - OpenCL Score 5.0 | |
| Palit GeForce RTX 4090 GameRock OC | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Sapphire AMD Radeon RX 6950 XT Nitro+ Pure | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Geekbench 6.0 | |
| GPU Vulkan | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| GPU OpenCL | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| V-Ray 5 Benchmark - GPU RTX | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 3070 Ti SG | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Professional Application
Those looking for a graphics card for productive tasks should look for particular models that satisfy the planned purposes. As representatives, we included the two Nvidia RTX A6000 and Nvidia Titan RTX models in our comparison chart. AMD is also well positioned with its two Radeon RX 7900 XT and Radeon RX 7900 XTX high-end models.
Due to the low 3D performance and relatively small amount of VRAM, we wouldn't consider the KFA2 GeForce RTX 4060 1-Click OC 2X for professional uses. This isn't a problem, since it isn't the purpose of this graphics card. You can use the GeForce RTX 4060 for some smaller projects at home.
| NVIDIA GeForce RTX 4060 R9 7950X | NVIDIA GeForce RTX 4060 Ti 8G R9 7950X | NVIDIA GeForce RTX 3060 Ti R9 5950X | NVIDIA GeForce RTX 3070 Ti R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | NVIDIA GeForce RTX 4080 R9 7950X | NVIDIA GeForce RTX 4090 R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | NVIDIA GeForce RTX 3080 12 GB R9 5900X | NVIDIA GeForce GTX 1660 (Desktop) R9 7950X | NVIDIA GeForce GTX 1660 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2060 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2070 Super (Desktop) R9 7950X | NVIDIA Titan RTX R9 7950X | NVIDIA RTX A6000 TR Pro 3975WX | Average of class | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 12 | 17% | -8% | 26% | 48% | 79% | 108% | 124% | 470% | 525% | 2% | -40% | -35% | -17% | -3% | 296% | 347% | 16% | |
| 1900x1060 3ds Max (3dsmax-05) | 251 | 287 14% | 252 0% | 330 31% | 382 52% | 436 74% | 502 100% | 571 127% | 502 100% | 553 120% | 334 33% | 153 -39% | 167 -33% | 220 -12% | 247 -2% | 315 25% | 336 34% | 192.2 ? -23% |
| 1900x1060 Catia (catia-04) | 113 | 128 13% | 109 -4% | 136 20% | 161 42% | 192 70% | 221 96% | 257 127% | 481 326% | 536 374% | 79.1 -30% | 65.1 -42% | 68 -40% | 84.5 -25% | 114 1% | 332 194% | 229 103% | 102.3 ? -9% |
| 1900x1060 Creo (creo-01) | 60.6 | 75.4 24% | 57.8 -5% | 72.6 20% | 89.1 47% | 99.4 64% | 110 82% | 115 90% | 176 190% | 187 209% | 74.4 23% | 46.1 -24% | 45.5 -25% | 58.8 -3% | 65.7 8% | 197 225% | 136 124% | 62.9 ? 4% |
| 1900x1060 Energy (energy-01) | 15.9 | 23 45% | 13.9 -13% | 18 13% | 31.7 99% | 48 202% | 58.8 270% | 54.7 244% | 72.4 355% | 85.2 436% | 17.2 8% | 6.31 -60% | 8.38 -47% | 11.6 -27% | 12.4 -22% | 28.8 81% | 39.8 150% | 14.6 ? -8% |
| 1900x1060 Maya (maya-04) | 233 | 254 9% | 197 -15% | 279 20% | 284 22% | 287 23% | 309 33% | 317 36% | 347 49% | 367 58% | 139 -40% | 131 -44% | 149 -36% | 200 -14% | 225 -3% | 260 12% | 144 -38% | 105.4 ? -55% |
| 1900x1060 Medical (medical-01) | 82.4 | 110 33% | 59.4 -28% | 106 29% | 132 60% | 157 91% | 171 108% | 119 44% | 288 250% | 347 321% | 40.3 -51% | 36 -56% | 38.2 -54% | 49.5 -40% | 55.9 -32% | 101 23% | 159 93% | 51.2 ? -38% |
| 1900x1060 Showcase (showcase-01) | 109 | 120 10% | 144 32% | 199 83% | 190 74% | 244 124% | 333 206% | 457 319% | 278 155% | 322 195% | 226 107% | 65 -40% | 85.2 -22% | 121 11% | 135 24% | 197 81% | 255 134% | 93.9 ? -14% |
| 1900x1060 Siemens NX (snx-02) | 14.2 | 14.7 4% | 12.3 -13% | 14.7 4% | 16.4 15% | 19 34% | 21.6 52% | 27.1 91% | 373 2527% | 400 2717% | 12 -15% | 9.41 -34% | 9.38 -34% | 10.1 -29% | 13.9 -2% | 283 1893% | 351 2372% | 56.3 ? 296% |
| 1900x1060 Solidworks (sw-03) | 91.2 | 95.7 5% | 71.1 -22% | 101 11% | 109 20% | 118 29% | 113 24% | 126 38% | 342 275% | 360 295% | 73.8 -19% | 69.3 -24% | 70.7 -22% | 79.7 -13% | 95.1 4% | 207 127% | 225 147% | 83.5 ? -8% |
| SPECviewperf 13 | 17% | -4% | 22% | 48% | 77% | 111% | 154% | 451% | 509% | 31% | -42% | -38% | -17% | -2% | 277% | 360% | 39% | |
| 3ds Max (3dsmax-06) | 252 | 289 15% | 252 0% | 330 31% | 381 51% | 433 72% | 497 97% | 563 123% | 506 101% | 564 124% | 334 33% | 153 -39% | 166 -34% | 218 -13% | 247 -2% | 321 27% | 338 34% | 183.9 ? -27% |
| Catia (catia-05) | 163 | 188 15% | 161 -1% | 201 23% | 241 48% | 290 78% | 340 109% | 402 147% | 728 347% | 825 406% | 206 26% | 90.3 -45% | 94.9 -42% | 119 -27% | 163 0% | 534 228% | 371 128% | 196.9 ? 21% |
| Creo (creo-02) | 230 | 299 30% | 225 -2% | 286 24% | 375 63% | 455 98% | 529 130% | 552 140% | 567 147% | 613 167% | 324 41% | 138 -40% | 141 -39% | 203 -12% | 240 4% | 386 68% | 366 59% | 199.9 ? -13% |
| Energy (energy-02) | 34.6 | 45.7 32% | 25.6 -26% | 30 -13% | 54.2 57% | 72.8 110% | 92.6 168% | 126 264% | 147 325% | 187 440% | 37.6 9% | 9.93 -71% | 11.3 -67% | 21.9 -37% | 23.8 -31% | 51.8 50% | 132 282% | 35 ? 1% |
| Maya (maya-05) | 343 | 396 15% | 344 0% | 437 27% | 510 49% | 591 72% | 678 98% | 715 108% | 670 95% | 735 114% | 460 34% | 194 -43% | 214 -38% | 291 -15% | 344 0% | 499 45% | 415 21% | 260 ? -24% |
| Medical (medical-02) | 76.5 | 92.9 21% | 72.2 -6% | 83.6 9% | 112 46% | 132 73% | 150 96% | 186 143% | 237 210% | 263 244% | 102 33% | 40.5 -47% | 40.7 -47% | 54.2 -29% | 63.7 -17% | 92 20% | 184 141% | 74.5 ? -3% |
| Showcase (showcase-02) | 108 | 120 11% | 145 34% | 198 83% | 191 77% | 244 126% | 334 209% | 455 321% | 279 158% | 323 199% | 228 111% | 64.9 -40% | 85.3 -21% | 122 13% | 135 25% | 198 83% | 255 136% | 117.8 ? 9% |
| Siemens NX (snx-03) | 25.6 | 26.4 3% | 22.3 -13% | 26.4 3% | 29.5 15% | 34.1 33% | 39 52% | 49.1 92% | 675 2537% | 725 2732% | 26.3 3% | 16.9 -34% | 16.9 -34% | 18.2 -29% | 25 -2% | 512 1900% | 638 2392% | 126.1 ? 393% |
| Solidworks (sw-04) | 127 | 137 8% | 99.6 -22% | 146 15% | 157 24% | 168 32% | 179 41% | 186 46% | 307 142% | 323 154% | 108 -15% | 102 -20% | 104 -18% | 119 -6% | 136 7% | 218 72% | 192 51% | 118.5 ? -7% |
| SPECviewperf 2020 | 17% | -7% | 29% | 54% | 85% | 119% | 186% | 483% | 552% | 39% | -43% | -40% | -18% | -7% | 338% | 425% | 75% | |
| 3840x2160 Siemens NX (snx-04) | 19.5 | 20.3 4% | 18.2 -7% | 22.2 14% | 23.9 23% | 27.5 41% | 31.9 64% | 41.3 112% | 476 2341% | 514 2536% | 21.8 12% | 12.7 -35% | 12.7 -35% | 14 -28% | 19.8 2% | 375 1823% | 481 2367% | 94.1 ? 383% |
| 3840x2160 Medical (medical-03) | 13.7 | 17.7 29% | 11.4 -17% | 16.3 19% | 22.2 62% | 26.9 96% | 32.2 135% | 45.9 235% | 53.9 293% | 62.3 355% | 18.8 37% | 7.48 -45% | 7.41 -46% | 10.3 -25% | 12 -12% | 16.5 20% | 37.9 177% | 19.8 ? 45% |
| 3840x2160 Maya (maya-06) | 196 | 226 15% | 215 10% | 290 48% | 305 56% | 372 90% | 447 128% | 498 154% | 401 105% | 481 145% | 314 60% | 106 -46% | 118 -40% | 162 -17% | 185 -6% | 274 40% | 329 68% | 206 ? 5% |
| 3840x2160 Energy (energy-03) | 33.2 | 44.9 35% | 14.5 -56% | 39.1 18% | 57.6 73% | 75.7 128% | 90.4 172% | 141 325% | 99.6 200% | 129 289% | 37.2 12% | 12.5 -62% | 13.7 -59% | 22.9 -31% | 17.8 -46% | 93.9 183% | 63 90% | 47.9 ? 44% |
| 3840x2160 Creo (creo-03) | 85.9 | 96.1 12% | 76.6 -11% | 99.3 16% | 112 30% | 121 41% | 128 49% | 133 55% | 173 101% | 187 118% | 90 5% | 55.2 -36% | 57.7 -33% | 77.2 -10% | 85.8 0% | 135 57% | 111 29% | 77.4 ? -10% |
| 3840x2160 CATIA (catia-06) | 34 | 39.2 15% | 37.9 11% | 48 41% | 51.6 52% | 61.2 80% | 75.5 122% | 95.3 180% | 113 232% | 127 274% | 53.7 58% | 19.2 -44% | 21 -38% | 30.5 -10% | 36.7 8% | 90.9 167% | 82.4 142% | 46.6 ? 37% |
| 3840x2160 3ds Max (3dsmax-07) | 67.4 | 74.5 11% | 80.1 19% | 99 47% | 122 81% | 147 118% | 179 166% | 228 238% | 143 112% | 167 148% | 128 90% | 45.5 -32% | 48.3 -28% | 63.1 -6% | 69.7 3% | 118 75% | 137 103% | 79.8 ? 18% |
| Total Average (Program / Settings) | 17% /
17% | -6% /
-6% | 26% /
25% | 50% /
50% | 80% /
80% | 113% /
112% | 155% /
152% | 468% /
467% | 529% /
527% | 24% /
23% | -42% /
-42% | -38% /
-37% | -17% /
-17% | -4% /
-4% | 304% /
301% | 377% /
374% | 43% /
41% |
Gaming Benchmarks
In the gaming tests, the KFA2 GeForce RTX 4060 1-Click OC 2X places at a similar level as in the synthetic tests before. At eye level with the Nvidia GeForce RTX 2070 Super and AMD Radeon RX 6650 XT, we find our test unit in the middle of the test field. While it is only slightly behind the Nvidia GeForce RTX 3060 Ti, the MSI GeForce RTX 4060 Ti moves noticeably ahead by up to 30%.
Looking at it subjectively, we see the KFA2 GeForce RTX 4060 1-Click OC 2X exclusively in the 1,080p area. As always, the details depend on the respective game. At times, it is advisable to leave the slider controls at the medium to high detail levels. If the VRAM is in short supply, the frame rates drop noticeably. The GeForce RTX 4060 Ti already had to struggle with this problem, which was even worse there. Basically, we don't consider the 8 GB of VRAM of the GeForce RTX 4060 a problem, but you have to be clear what you can do with such a graphics card. We don't see the KFA2 GeForce RTX 4060 1-Click OC 2X as a future proof investment. However, those who work with a low budget and still use a GeForce of the Pascal generation will get a good performance upgrade here, without consuming more power.
| F1 22 | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (923662) | |
| KFA2 GeForce RTX 4080 SG (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
| AMD Radeon RX 7900 XT (939134) | |
| NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
| KFA2 GeForce RTX 4070 EX Gamer (959964) | |
| KFA2 GeForce GTX 1660 Super (928484) | |
| PNY GeForce GTX 1660 (928484) | |
| KFA2 GeForce RTX 3070 Ti SG (939134) | |
| Nvidia Titan RTX (923650) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (959964) | |
| Sapphire Pulse Radeon RX 6750 XT (959964) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
| Nvidia GeForce RTX 2070 Super (923662) | |
| Nvidia GeForce RTX 2060 Super (923662) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
| NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
| AMD Radeon RX 7900 XT (939134) | |
| KFA2 GeForce RTX 4070 EX Gamer (959964) | |
| KFA2 GeForce GTX 1660 Super (928484) | |
| KFA2 GeForce RTX 3070 Ti SG (939134) | |
| PNY GeForce GTX 1660 (928484) | |
| Nvidia Titan RTX (923650) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (959964) | |
| Sapphire Pulse Radeon RX 6750 XT (959964) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
| Nvidia GeForce RTX 2070 Super (923662) | |
| Nvidia GeForce RTX 2060 Super (923662) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| A Plague Tale Requiem | |
| 2560x1440 Ultra Preset | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| 1920x1080 Ultra Preset | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| Spider-Man Miles Morales | |
| 2560x1440 Very High Preset AA:T | |
| KFA2 GeForce RTX 4080 SG | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| PNY GeForce GTX 1660 | |
| KFA2 GeForce GTX 1660 Super | |
| 1920x1080 Very High Preset AA:T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce GTX 1660 Super | |
| PNY GeForce GTX 1660 | |
| GRID Legends | |
| 2560x1440 Ultra Preset | |
| AMD Radeon RX 7900 XTX (643827) | |
| Palit GeForce RTX 4090 GameRock OC (591708) | |
| AMD Radeon RX 7900 XT (643827) | |
| KFA2 GeForce RTX 4080 SG (643827) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
| NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
| KFA2 GeForce RTX 3070 Ti SG (643827) | |
| KFA2 GeForce RTX 4070 EX Gamer (712825) | |
| Sapphire Pulse Radeon RX 6750 XT (712825) | |
| Nvidia Titan RTX (591708) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (800660) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
| Nvidia GeForce RTX 2070 Super (591708) | |
| Nvidia GeForce RTX 2060 Super (623651) | |
| KFA2 GeForce GTX 1660 Super (623651) | |
| PNY GeForce GTX 1660 (623651) | |
| 1920x1080 Ultra Preset | |
| AMD Radeon RX 7900 XTX (643827) | |
| AMD Radeon RX 7900 XT (643827) | |
| Palit GeForce RTX 4090 GameRock OC (591708) | |
| KFA2 GeForce RTX 4080 SG (643827) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
| NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
| KFA2 GeForce RTX 4070 EX Gamer (712825) | |
| Sapphire Pulse Radeon RX 6750 XT (712825) | |
| KFA2 GeForce RTX 3070 Ti SG (643827) | |
| Nvidia Titan RTX (591708) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (800660) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
| Nvidia GeForce RTX 2070 Super (591708) | |
| Nvidia GeForce RTX 2060 Super (623651) | |
| KFA2 GeForce GTX 1660 Super (623651) | |
| PNY GeForce GTX 1660 (623651) | |
| Final Fantasy XV Benchmark | |
| 1920x1080 High Quality | |
| Palit GeForce RTX 4090 GameRock OC (1.3) | |
| KFA2 GeForce RTX 4080 SG (1.3) | |
| AMD Radeon RX 7900 XTX (1.3) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
| AMD Radeon RX 7900 XT (1.3) | |
| NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
| KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
| KFA2 GeForce RTX 3080 SG (1.3) | |
| Nvidia Titan RTX (1.3) | |
| KFA2 GeForce RTX 3070 Ti SG (1.3) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (1.3) | |
| Sapphire Pulse Radeon RX 6750 XT (1.3) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
| Nvidia GeForce RTX 2070 Super (1.3) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
| Nvidia GeForce RTX 2060 Super (1.3) | |
| KFA2 GeForce GTX 1660 Super (1.3) | |
| PNY GeForce GTX 1660 (1.3) | |
| 2560x1440 High Quality | |
| Palit GeForce RTX 4090 GameRock OC (1.3) | |
| KFA2 GeForce RTX 4080 SG (1.3) | |
| AMD Radeon RX 7900 XTX (1.3) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
| AMD Radeon RX 7900 XT (1.3) | |
| NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
| KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
| KFA2 GeForce RTX 3080 SG (1.3) | |
| KFA2 GeForce RTX 3070 Ti SG (1.3) | |
| Nvidia Titan RTX (1.3) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G (1.3) | |
| Sapphire Pulse Radeon RX 6750 XT (1.3) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
| Nvidia GeForce RTX 2070 Super (1.3) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
| Nvidia GeForce RTX 2060 Super (1.3) | |
| KFA2 GeForce GTX 1660 Super (1.3) | |
| PNY GeForce GTX 1660 (1.3) | |
| low | med. | high | ultra | QHD | 4K DLSS | 4K | |
| GTA V (2015) | 187.9 | 187.7 | 187.2 | 127.8 | 90.3 | 88.9 | |
| The Witcher 3 (2015) | 593.9 | 385.4 | 214.9 | 111.6 | 67.5 | ||
| Dota 2 Reborn (2015) | 307.5 | 264.1 | 250.7 | 228 | 144.8 | ||
| Final Fantasy XV Benchmark (2018) | 234 | 156.5 | 109.3 | 79.3 | 43 | ||
| X-Plane 11.11 (2018) | 211 | 194.5 | 148.6 | 125.5 | |||
| Far Cry 5 (2018) | 244 | 185 | 172 | 162 | 110 | 55 | |
| Strange Brigade (2018) | 686 | 272 | 217 | 189.8 | 129.1 | 69.8 | |
| Shadow of the Tomb Raider (2018) | 326 | 183.3 | 163.6 | 148.1 | 96 | 46.4 | |
| Far Cry New Dawn (2019) | 201 | 165 | 156 | 139 | 111 | 58 | |
| Metro Exodus (2019) | 267 | 138.8 | 102.6 | 80.2 | 62.9 | 38.3 | |
| Control (2019) | 236 | 130.5 | 92.6 | 58.4 | 34.1 | 28.4 | |
| Borderlands 3 (2019) | 242 | 186.7 | 124.8 | 93.9 | 64.8 | 33.8 | |
| Far Cry 6 (2021) | 209 | 162.4 | 139.5 | 122.1 | 85.4 | 40.9 | |
| Guardians of the Galaxy (2021) | 225 | 162 | 162 | 154 | 104 | 55 | |
| God of War (2022) | 147.8 | 122.6 | 100.4 | 70 | 57.2 | 37.3 | |
| GRID Legends (2022) | 258 | 211 | 180.4 | 143.7 | 112.7 | 67.1 | |
| Cyberpunk 2077 1.6 (2022) | 139.3 | 107.4 | 90.2 | 79.9 | 47.7 | 20.4 | |
| Ghostwire Tokyo (2022) | 188.3 | 177.6 | 177.2 | 175.5 | 101.5 | 46.1 | |
| Tiny Tina's Wonderlands (2022) | 247 | 190.5 | 121.5 | 92.4 | 62.6 | 26.6 | |
| F1 22 (2022) | 313 | 215 | 285 | 66.9 | 42.8 | 20.7 | |
| The Quarry (2022) | 174 | 126 | 103 | 80.5 | 54.7 | 17.5 | |
| A Plague Tale Requiem (2022) | 121.7 | 91.2 | 66.9 | 50.8 | 36 | 39.5 | 19.7 |
| Uncharted Legacy of Thieves Collection (2022) | 98.5 | 95.1 | 88.6 | 84.9 | 61.5 | 26.5 | |
| Spider-Man Miles Morales (2022) | 141.9 | 130.4 | 119.6 | 111.7 | 80.1 | 43.9 | |
| The Callisto Protocol (2022) | 162.3 | 161.7 | 160.1 | 189.3 | 120.3 | 67 | |
| High On Life (2023) | 287 | 170.6 | 141.3 | 109 | 65.1 | 26.4 | |
| The Witcher 3 v4.00 (2023) | 225 | 177.6 | 149.1 | 117.4 | 79.7 | 44.2 | |
| Dead Space Remake (2023) | 94.6 | 91.4 | 77.8 | 77.2 | 49.5 | ||
| Hogwarts Legacy (2023) | 148.1 | 111.8 | 85.1 | 66.5 | 46.3 | 24.9 | |
| Returnal (2023) | 111 | 106 | 97 | 82 | 59 | 32 | |
| Atomic Heart (2023) | 213 | 159.3 | 93.5 | 70.9 | 53.1 | 30.1 | |
| Company of Heroes 3 (2023) | 238.8 | 199.6 | 145.8 | 145.1 | 102.9 | 56.4 | |
| Sons of the Forest (2023) | 107.1 | 92.3 | 88.4 | 86.8 | 65.5 | 38.2 | |
| Resident Evil 4 Remake (2023) | 154 | 109.1 | 99.6 | 74.2 | 53.2 | 28.9 | |
| The Last of Us (2023) | 117.3 | 95.4 | 81.3 | 68.2 | 39.9 | 30.8 | 18.6 |
| Dead Island 2 (2023) | 304 | 258 | 184.2 | 138 | 89.7 | 43.5 | |
| Star Wars Jedi Survivor (2023) | 85.1 | 74 | 69.3 | 65.4 | 40.8 | 19.3 | |
| Diablo 4 (2023) | 278 | 237 | 206 | 174 | 112.7 | 73.3 | 55.4 |
| F1 23 (2023) | 319 | 285 | 195.2 | 60.2 | 38 | 31.8 | 16.5 |
Raytracing, DLSS, and FG (Frame Generation)
Fortunately, Nvidia hasn't removed the exclusive features of the RTX 4000 graphics cards from the KFA2 GeForce RTX 4060 1-Click OC 2X. However, you should still understand that activated raytracing will lead to a significant drop in the frame rates. We recommend the combination of raytracing and DLSS here, if the game offers this option. Currently, the number of games that support DLSS 3 is very small. You can find a list on this page.
In our opinion, a purchase decision for the Nvidia GeForce RTX 4060 should not be based on the raytracing performance. Those who are looking for gaming enjoyment without any compromises have to pay a much higher price for this.
| Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3070 Ti SG | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XT | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 4080 SG | |
| Nvidia Titan RTX | |
| Sapphire Pulse Radeon RX 6750 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Cyberpunk 2077 1.6 | |
| 3840x2160 Ray Tracing Ultra Preset (DLSS off) | |
| Palit GeForce RTX 4090 GameRock OC (1.6) | |
| KFA2 GeForce RTX 4080 SG (1.61) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX (1.61) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 XT (1.61) | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 3070 Ti SG (1.61) | |
| Nvidia GeForce RTX 2070 Super (1.6) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
| 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
| Palit GeForce RTX 4090 GameRock OC (1.6) | |
| KFA2 GeForce RTX 4080 SG (1.61) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX (1.61) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 XT (1.61) | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 3070 Ti SG (1.61) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
| Nvidia GeForce RTX 2070 Super (1.6) | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super (1.6) | |
| Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Nvidia Titan RTX | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| A Plague Tale Requiem | |
| 3840x2160 Ultra DLSS Quality + Frame Generation | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| 3840x2160 Ultra DLSS Quality | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Control | |
| 1920x1080 High Quality Preset & High Ray Tracing Preset (DX12) | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| NVIDIA GeForce RTX 3060 Ti FE | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| 3840x2160 High Quality Preset & High Ray Tracing Preset (DX12) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| 3840x2160 High Quality, High Ray Tracing, DLSS | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| The Last of Us - 3840x2160 Ultra Preset + Quality DLSS | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Returnal | |
| 1920x1080 Epic Preset + Epic Ray-Tracing | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| 3840x2160 Epic Preset + Epic Ray-Tracing | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Hogwarts Legacy | |
| 1920x1080 Ultra Preset + Full Ray Tracing AA:High T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| 3840x2160 Ultra Preset + Full Ray Tracing AA:High T | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Nvidia Titan RTX | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Diablo 4 - 3840x2160 Ultra Preset + DLSS Quality + FG | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Emissions of the KFA2 GeForce RTX 4060 1-Click OC 2X
Noise Levels
To measure the noise levels produced by the KFA2 GeForce RTX 4060 1-Click OC 2X, we insert the graphics card into the open frame of an older AM4 system. During our measurements, the fans for the CPU and power supply are deactivated, so that we are able to only measure the volume of the graphics card.
The fans remain deactivated in 2D operation, which is accompanied by silent operation. Under low load, we note a low noise level at 30.3 dB(A). However, during the stress test, the two 92-millimeter (~3.6 in) fans rev up significantly. At 43.5 dB(A), the KFA2 GeForce RTX 4060 1-Click OC 2X is clearly audible. We also notice some slight coil whine, but we wouldn't call it annoying.
Noise Level
| Idle |
| 25.9 / 25.9 / 25.9 dB(A) |
| Load |
| 30.3 / 43.5 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 25.8 dB(A) | ||
Temperatures

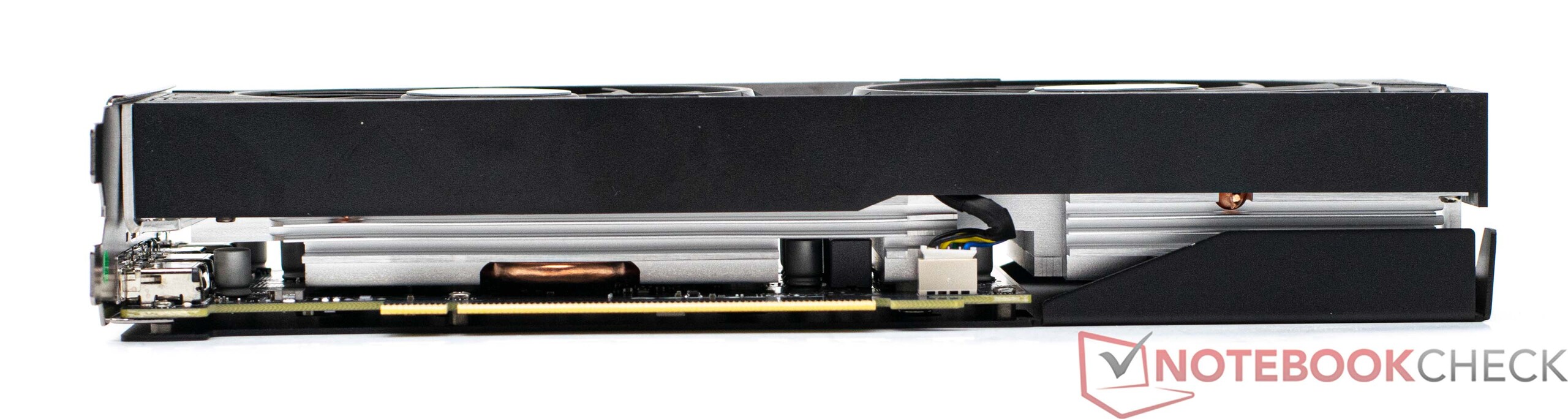

KFA2 has equipped the GeForce RTX 4060 1-Click OC 2X with two 92-millimeter (~3.6 in) axial fans. The distinctive fan design that we already saw in other RTX 4000 graphics cards is also used in this new entry-level model.

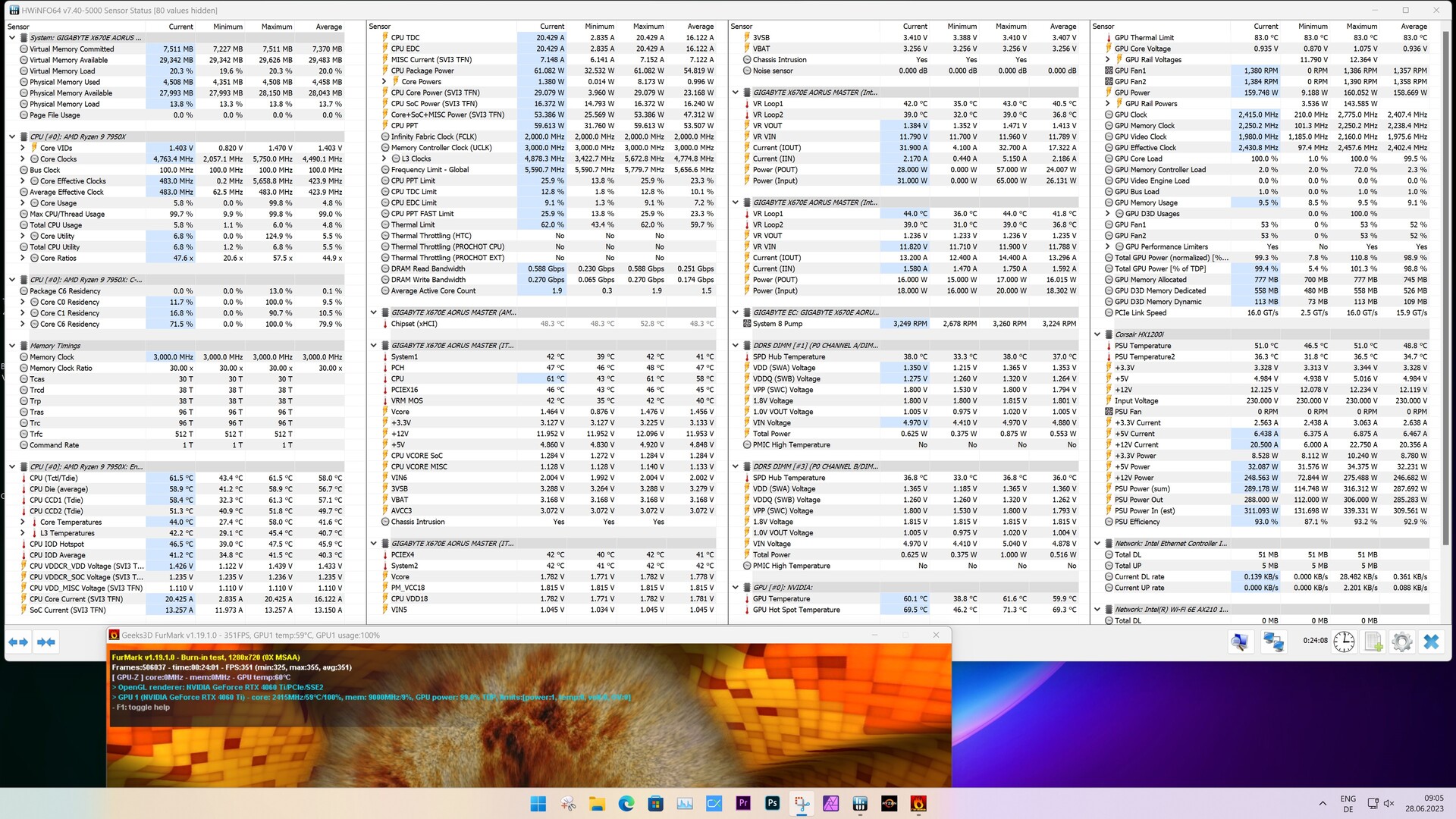

As already mentioned during the noise measurements, the KFA2 GeForce RTX 4060 1-Click OC 2X offers a fan stop mode, so the fans only start running under load. The thermal limit of the graphics processor lies at 83 °C (181 °F), which isn't reached at any time. At 61.6 °C (~143 °F) during the stress test, we measure a relatively low GPU temperature. With a hot-spot temperature of 71.3 °C (~160 °F), the KFA2 GeForce RTX 4060 1-Click OC 2X doesn't have any problems either. However, this also means that there is some room for improvement in terms of the noise volume. Those who make an effort in manually adjusting the fan curve will surely also be able to keep the graphics card significantly quieter.
Power Consumption

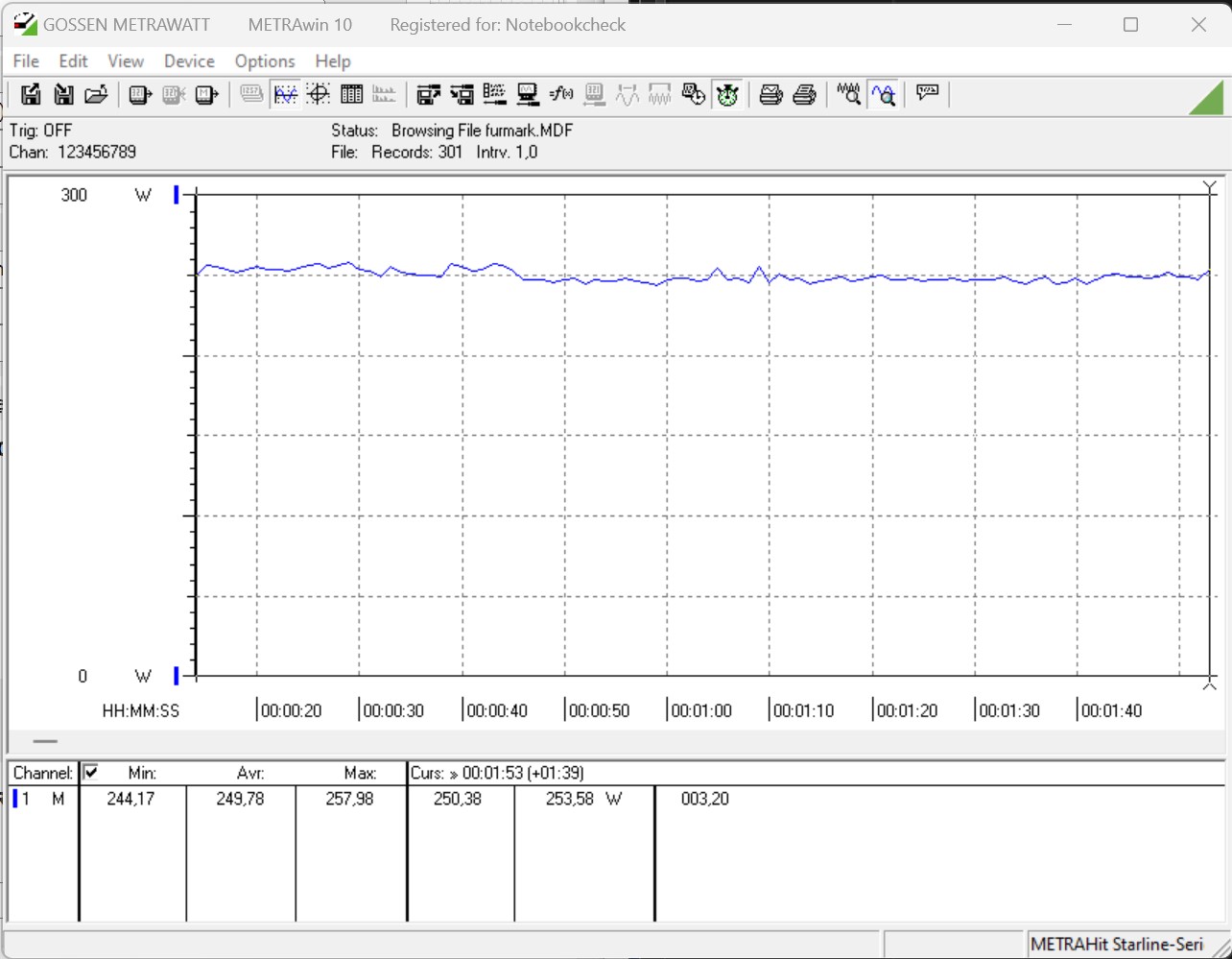

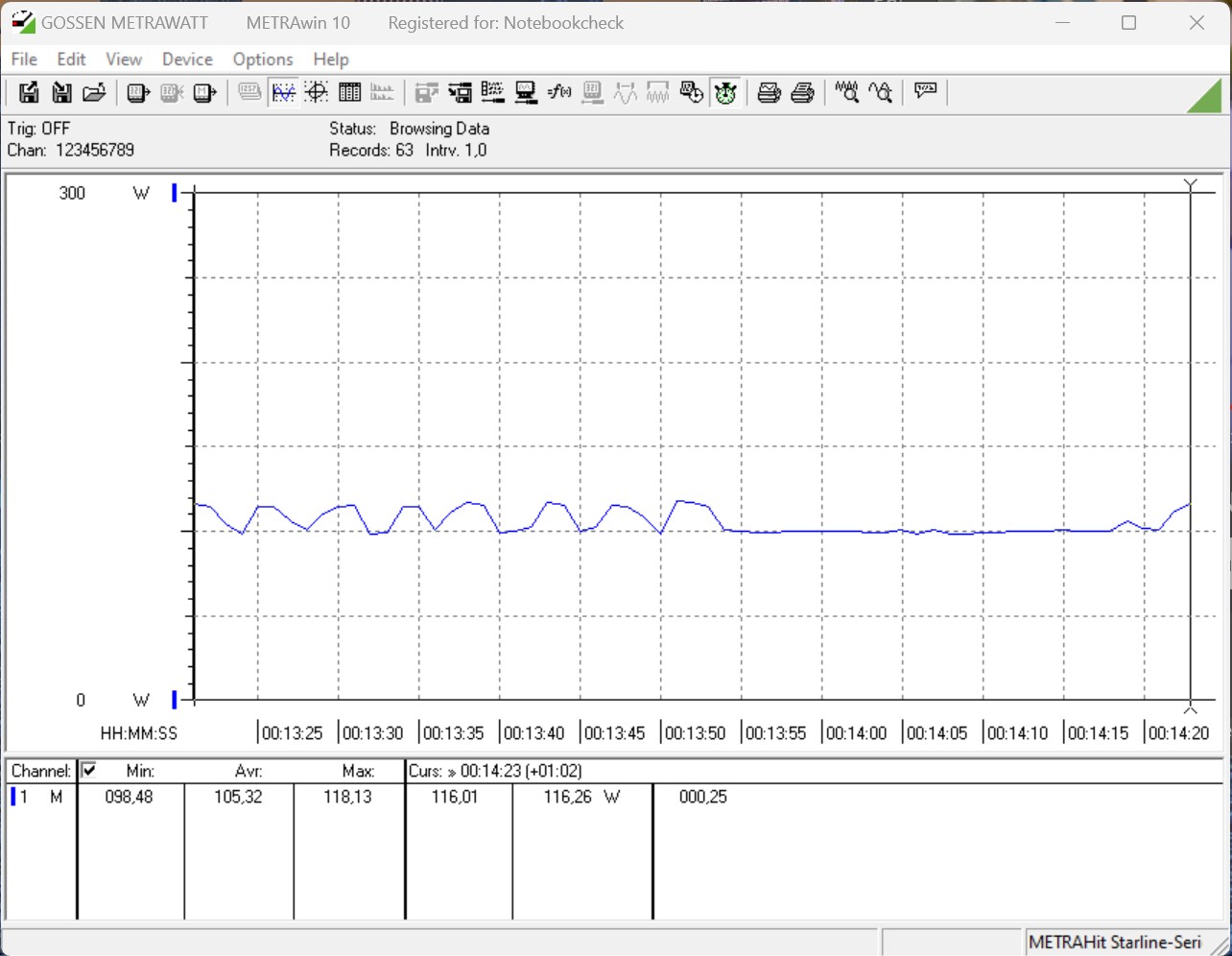

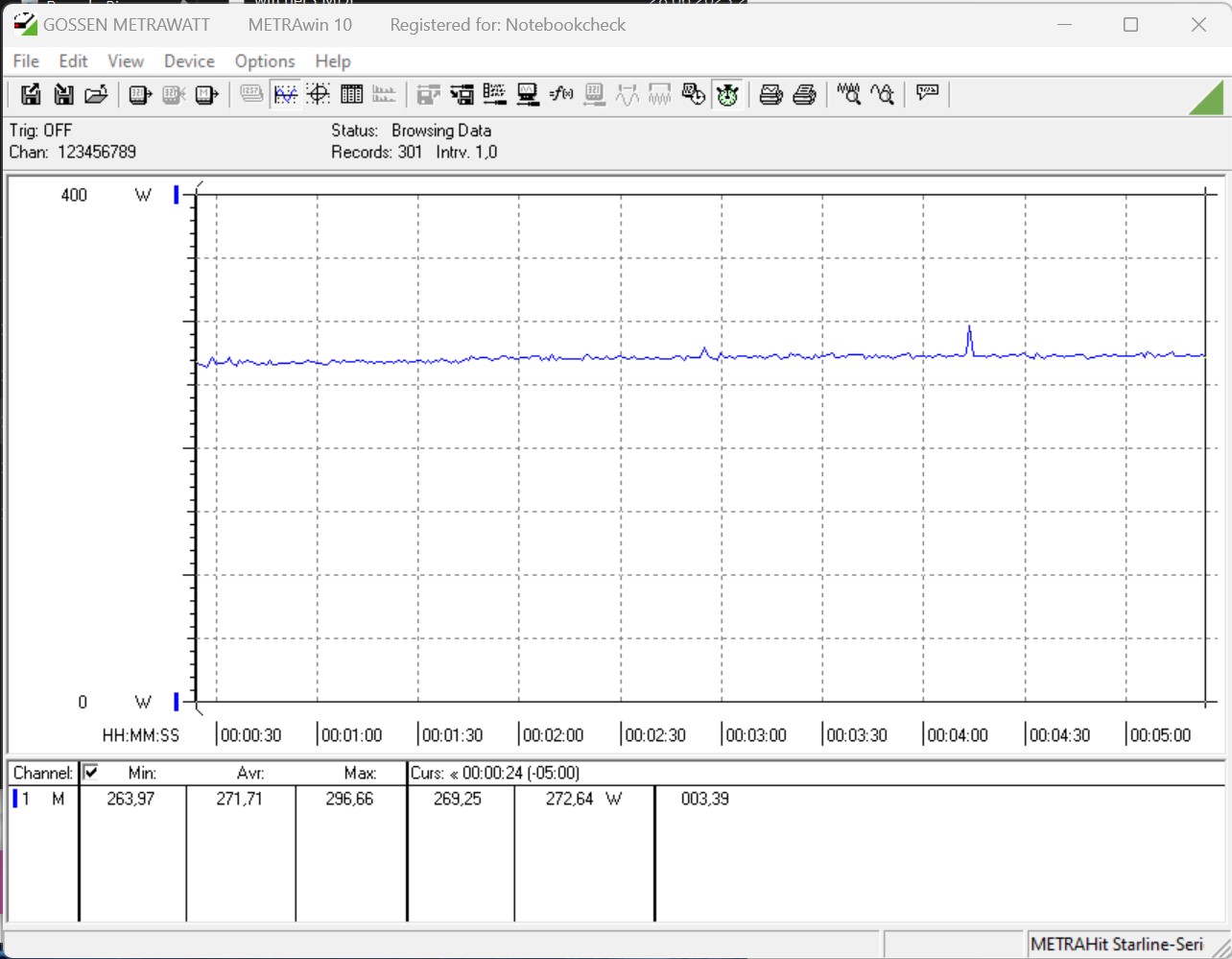

We determine the power consumption for the whole test system without the monitor. Our test system is equipped with six additional 120-millimeter (~4.7 in) fans. We also deactivate the additional RGB illumination. In our measurements, this combination shows itself as the best option, which is also accompanied by the low power consumption of the KFA2 GeForce RTX 4060 1-Click OC 2X. Our measurement device only shows about 270 watts while gaming, which is significantly more efficient than other competitors in our test here.

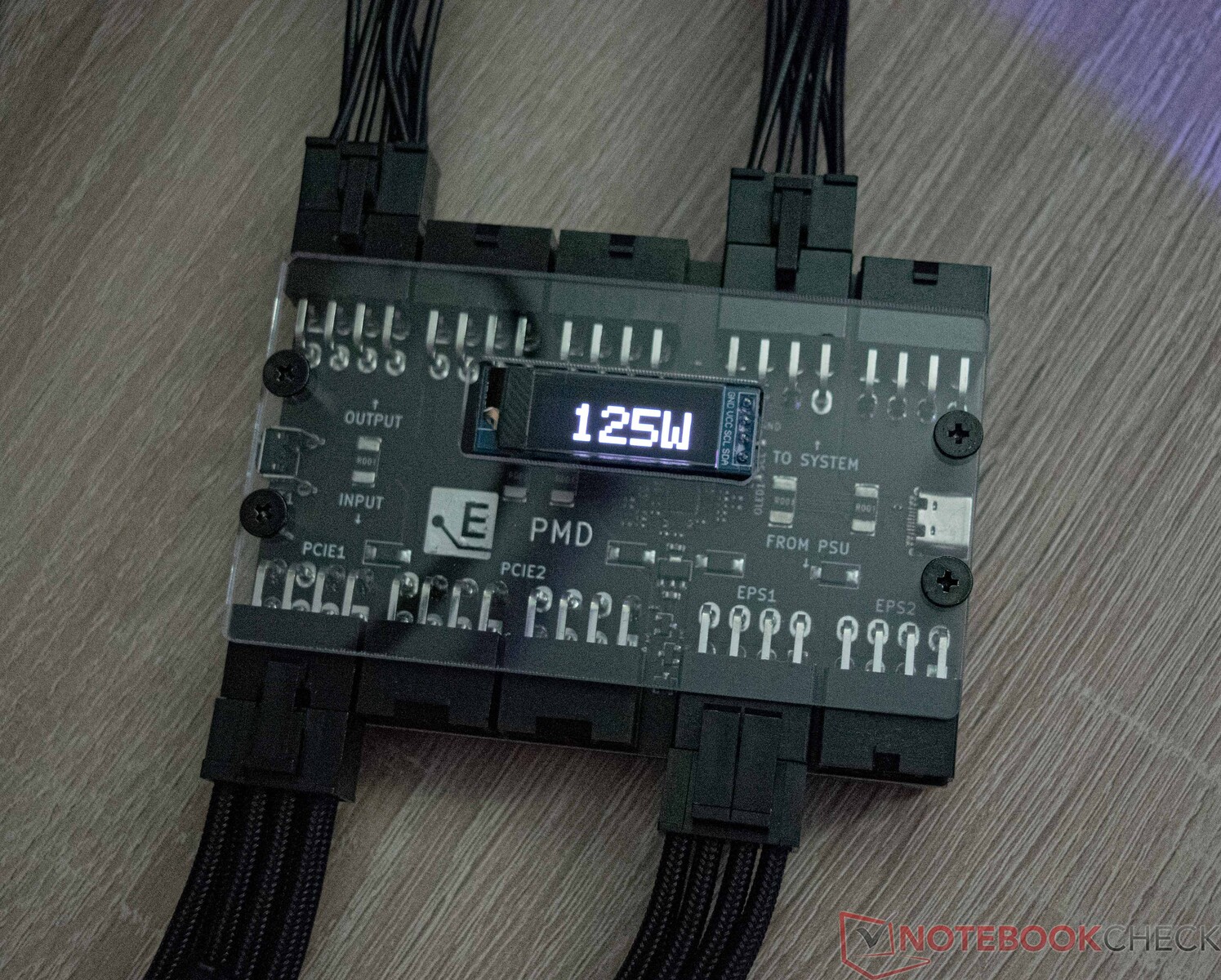

Because of the hefty critique in terms of the correct power consumption of the Nvidia GeForce RTX 4060, we also take a closer look at the KFA2 GeForce RTX 4060 1-Click OC 2X in this regard. We evaluate the direct power consumption that is really consumed via the 6+2 pin PCIe connection and the PCIe slot (12 Volt track). Our KFA2 test unit also exceeds the TDP of 115 watts specified by Nvidia without any trouble. In one picture, we capture the momentary consumption under load when gaming, documenting 125 watts. However, HWiNFO and various other measurement tools continue to show 115 watts. This is some curious behavior that might only happen due to the tight budget. But you can still run the graphics card within its specifications in terms of the 6+2 pin PCIe power connection and PCIe slot, and fortunately they are not exceeded in this case. On the other hand, you shouldn't be fooled by the 115 watts specification, since the KFA2 GeForce RTX 4060 1-Click OC 2X consumes almost 130 watts under load. The manufacturer recommends a 550-Watt power supply, and you should definitely stick with this recommendation to ensure reliable operation under load.
| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3080 SG | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3060 Ti Founders Edition (Idle: 111.39 W) | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI GeForce RTX 4060 Ti Gaming X Trio 8G | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| KFA2 GeForce RTX 3070 Ti SG | |
| KFA2 GeForce RTX 3080 SG | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| NVIDIA GeForce RTX 3060 Ti Founders Edition | |
* ... smaller is better
Power Consumption With External Monitor
Pros
Cons
Verdict - A small 1,080p graphics card for budget gaming PCs
The KFA2 GeForce RTX 4060 1-Click OC 2X offers solid equipment to pass as a modern 1,080p gaming graphics card. With 8 GB of VRAM, it falls into the standard level of the competitors in this price class, which wasn't always the case in the past.
The performance of the KFA2 GeForce RTX 4060 1-Click OC 2X is sufficient to play almost all the current games at medium to high detail level in 1,080p resolution. At maximum details, the new entry-level graphics card loses some steam at times. At the same time, we have some doubt about the card being futureproof. On the other hand, we have to praise Nvidia for the low power consumption. In our test, the configuration with the KFA2 GeForce RTX 4060 1-Click OC 2X was the most efficient model. However, the TDP specification is questionable. In our measurements, we see that 130 watts is more appropriate. Compared to the competitors that deliver a similar performance, this is still significantly less. This means that the efficiency crown in the entry-level graphics cards again goes to Nvidia.
The KFA2 GeForce RTX 4060 1-Click OC 2X is a solid and efficient graphics card. But it is not sufficient for the crown in the price-performance ratio.
The features such as raytracing and DLSS can also be used with the Nvidia GeForce RTX 4060 models. This is good and might be the decisive factor in the purchase decision. But you shouldn't be tempted too much by the colorful marketing labels, since the GeForce RTX 4060 can also quickly be overtaxed by activated raytracing. If the game doesn't additionally support DLSS, you should forgo raytracing.
In addition to the performance, the main factor in the purchase decision is also the price, and as usual, the KFA2 is very affordable in comparison. Currently, the KFA2 GeForce RTX 4060 1-Click OC 2X is available on the shelves. However, with the Radeon RX 6650 XT, AMD currently offers the better overall package, and you get the same performance for 240 Euros (~$266).
Price and Availability
The KFA2 GeForce RTX 4060 1-Click OC 2X is currently available in Germany from NBB.com (notebooksbilliger.de) for 299 Euro.
Transparency
The present review sample was made available to the author as a loan by the manufacturer or a shop for the purposes of review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review.
