MagyarAcer Predator BiFrost Arc A770 OC desktop graphics card review - How does Intel's most powerful gaming card with 16 GB VRAM perform?
It's already been a year ago that Intel introduced its desktop graphics card of the Arc series. Initially, there were multiple problems with its performance in many games, but with constant improvements of the driver, its performance capabilities were improved. With the Intel Arc A770, we are now taking a look at the top model of the series. You can look forward to 16 GB of VRAM, since Nvidia and AMD have only been offering 8 GB of VRAM in the 1080p gaming area for a long time. Only with the GeForce RTX 4060 Ti 16GB, Nvidia now offers a model with more video memory. In addition, we also want to mention the Intel Arc A770 with 8 GB, since Intel offers it at a slightly more affordable price.

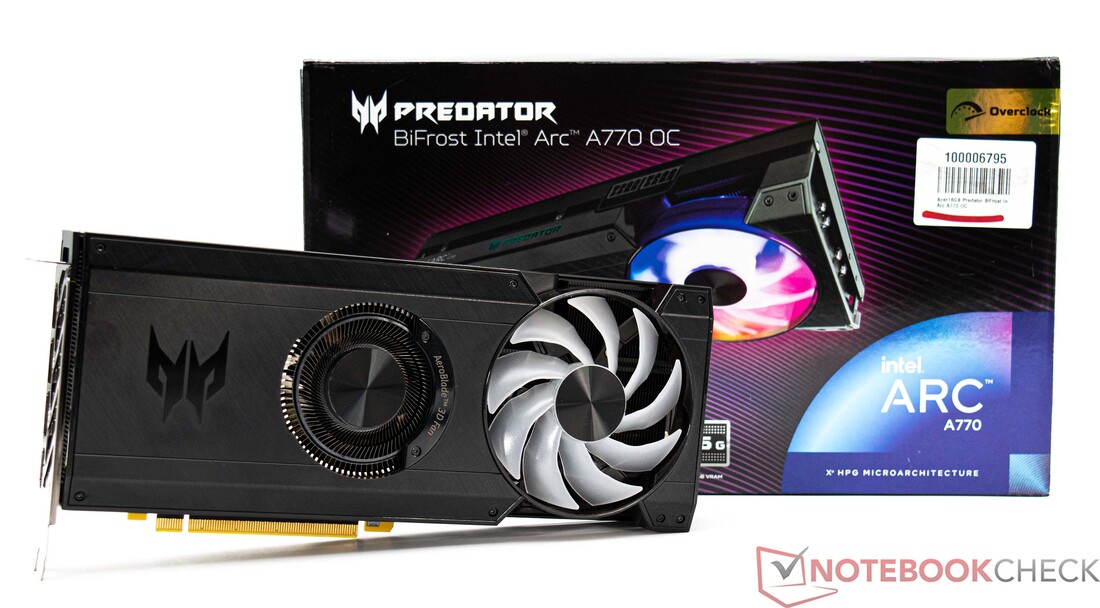

For this test, we use the Acer Predator BiFrost Arc A770 OC, which is only available in the 16-GB version. Intel itself also offers its own models on the market, and with "Asrock" and "Sparkle," there are also two additional board partners that market the Intel Arc graphics cards. As graphics chip, the DG2 512 with 4,096 shader units is used. The 16 GB of VRAM are connected via a 256-bit storage interface, and in combination with the storage speed, this results in a storage bandwidth of 560 GB/s. Acer specifies a power consumption of 210 watts in the Standard preset, but we can already mention here that we are only rarely able to reach this in our test.

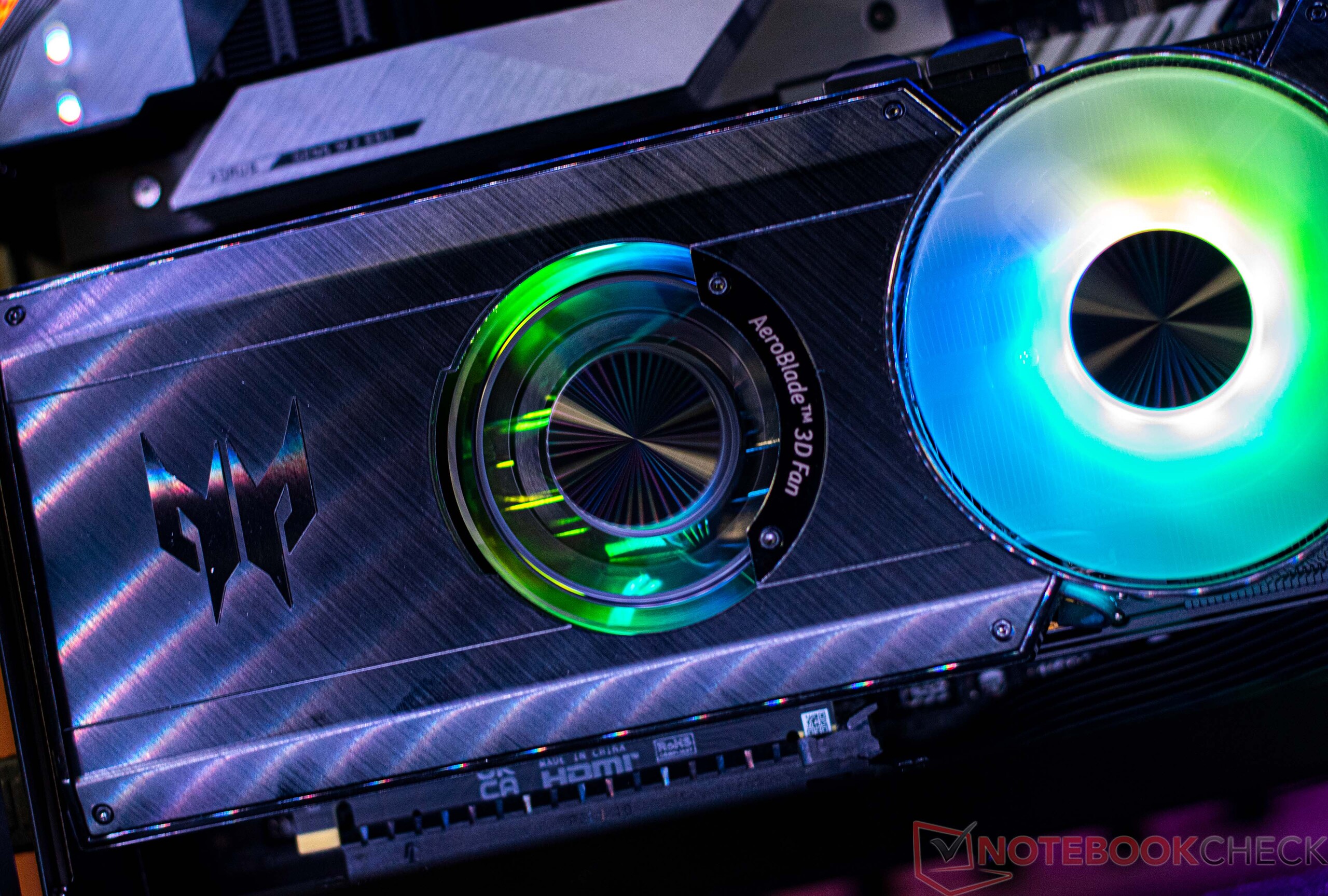

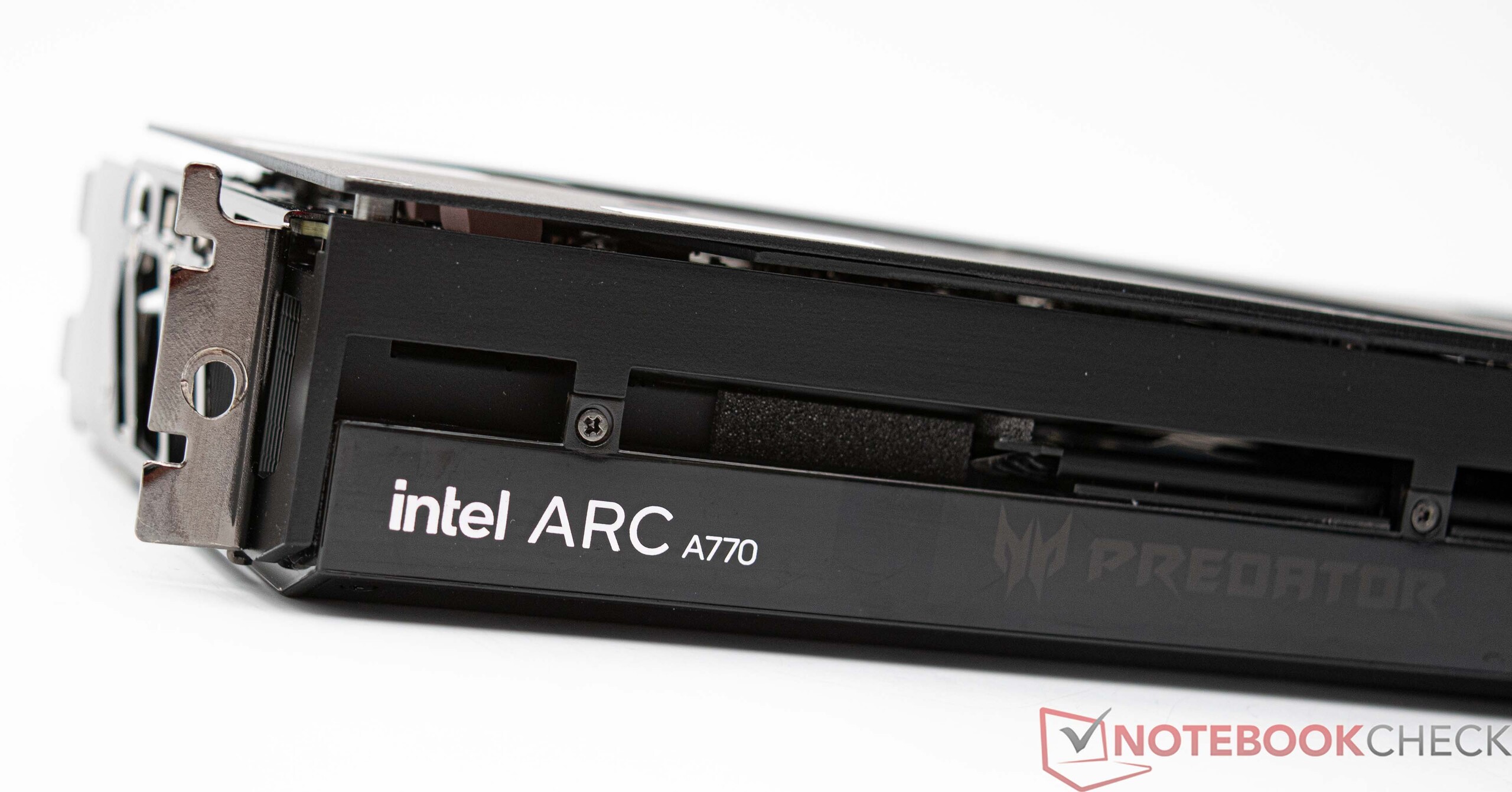

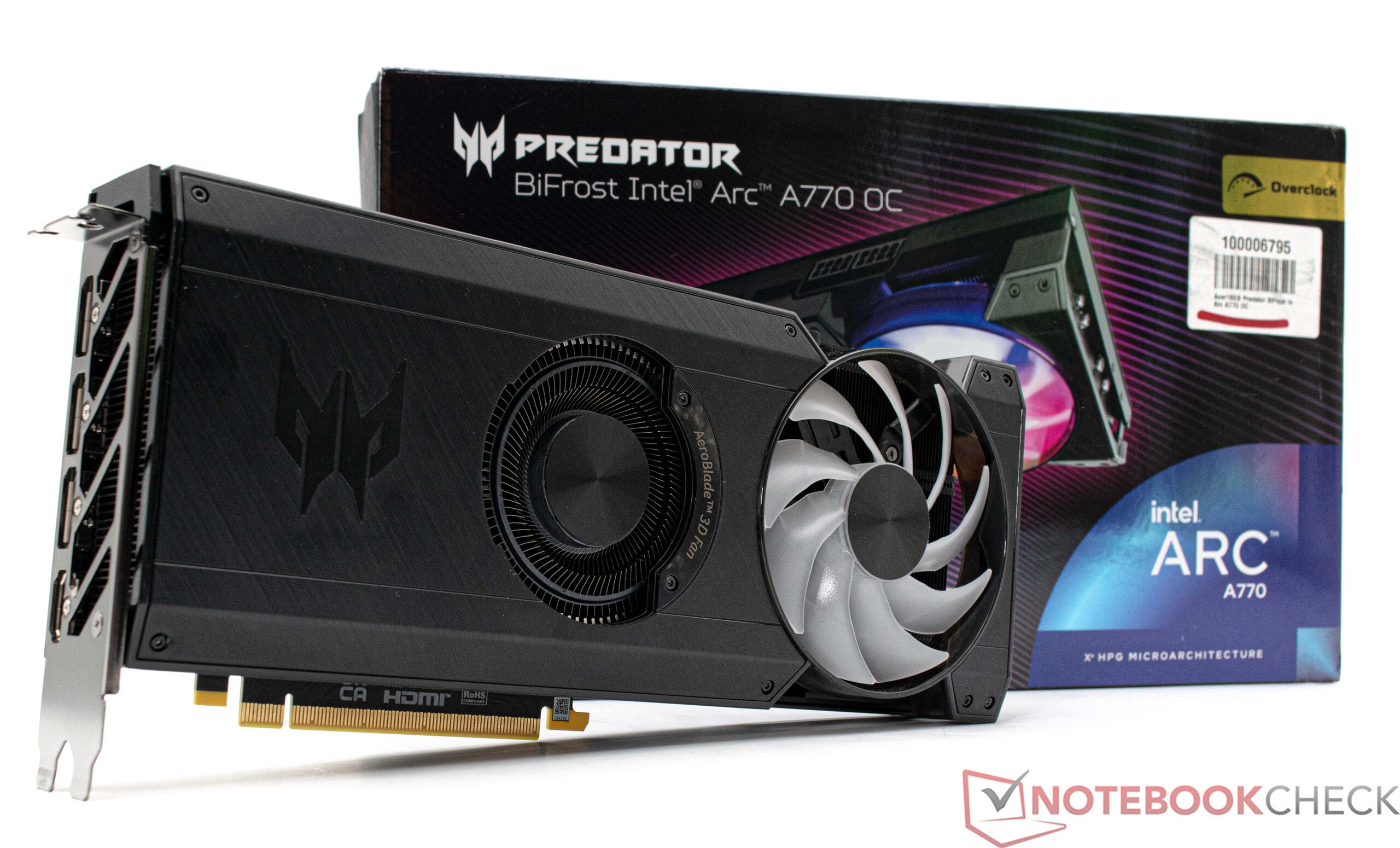

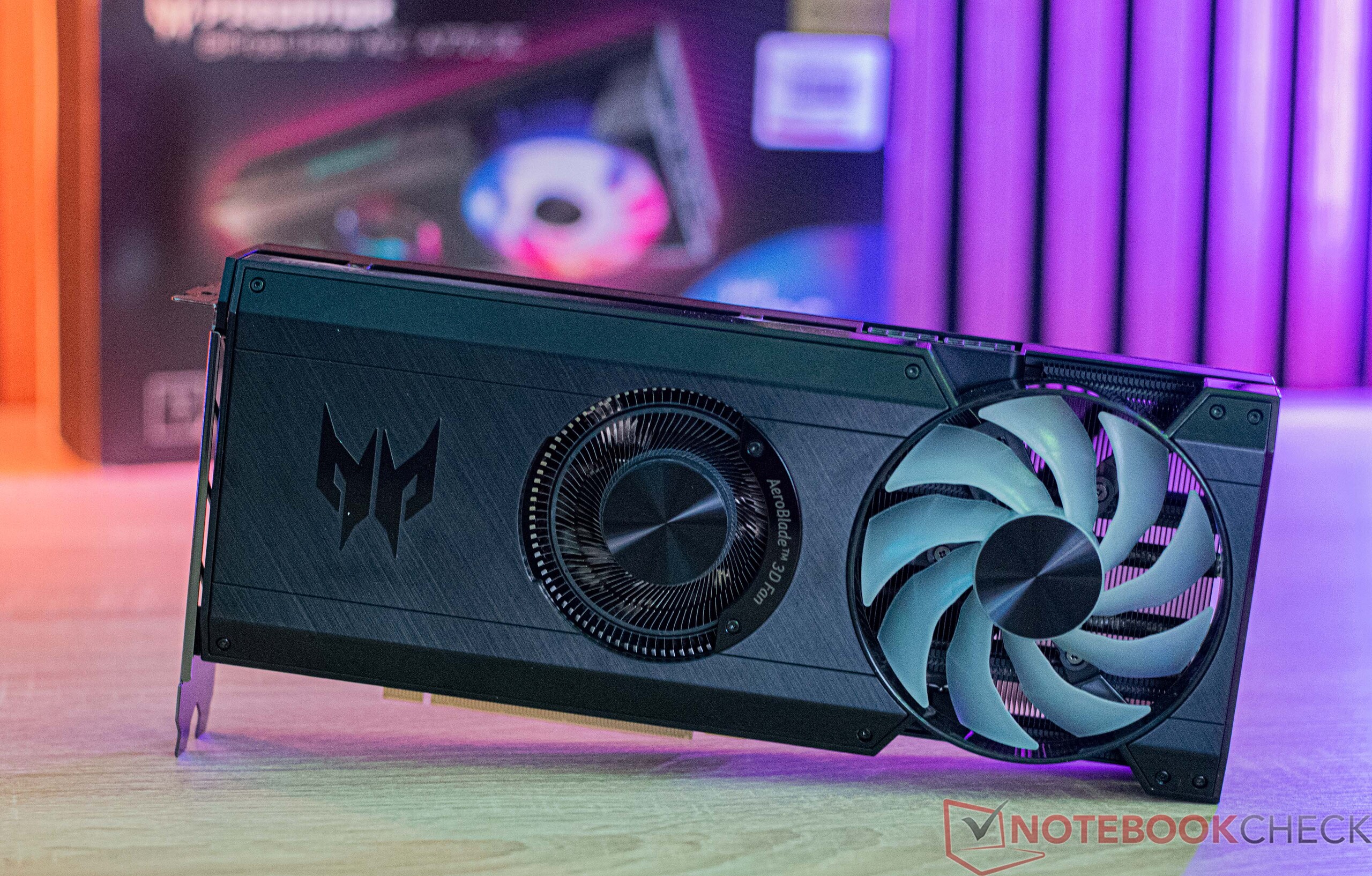

At first glance, the Acer Predator BiFrost Arc A770 OC looks a little unusual, and we like it. A discreet RGB illumination and the high-quality workmanship with some metal elements also provide a good haptic impression. Each of the fans is constructed differently, which also differentiates it from the known designs of many graphics cards. The smaller fan is made completely from metal, allowing the extremely thin fan blades to push more air past the cooling fins. The Aeroblade design is also used in many laptops. Next to the PCIe 4.0 x16 slot, the power is provided via two 6+2 pin PCIe power connectors. With its external connections, the Acer Predator BiFrost Arc A770 OC is almost up to the most current developments. In addition to the HDMI 2.1 connection, there are also three DisplayPort 2.0 connections. Nvidia only supports the 1.4 standard in its DisplayPort connections, while AMD offers DisplayPort 2.1 in all of its RX 7000 models.
Information on our Test System

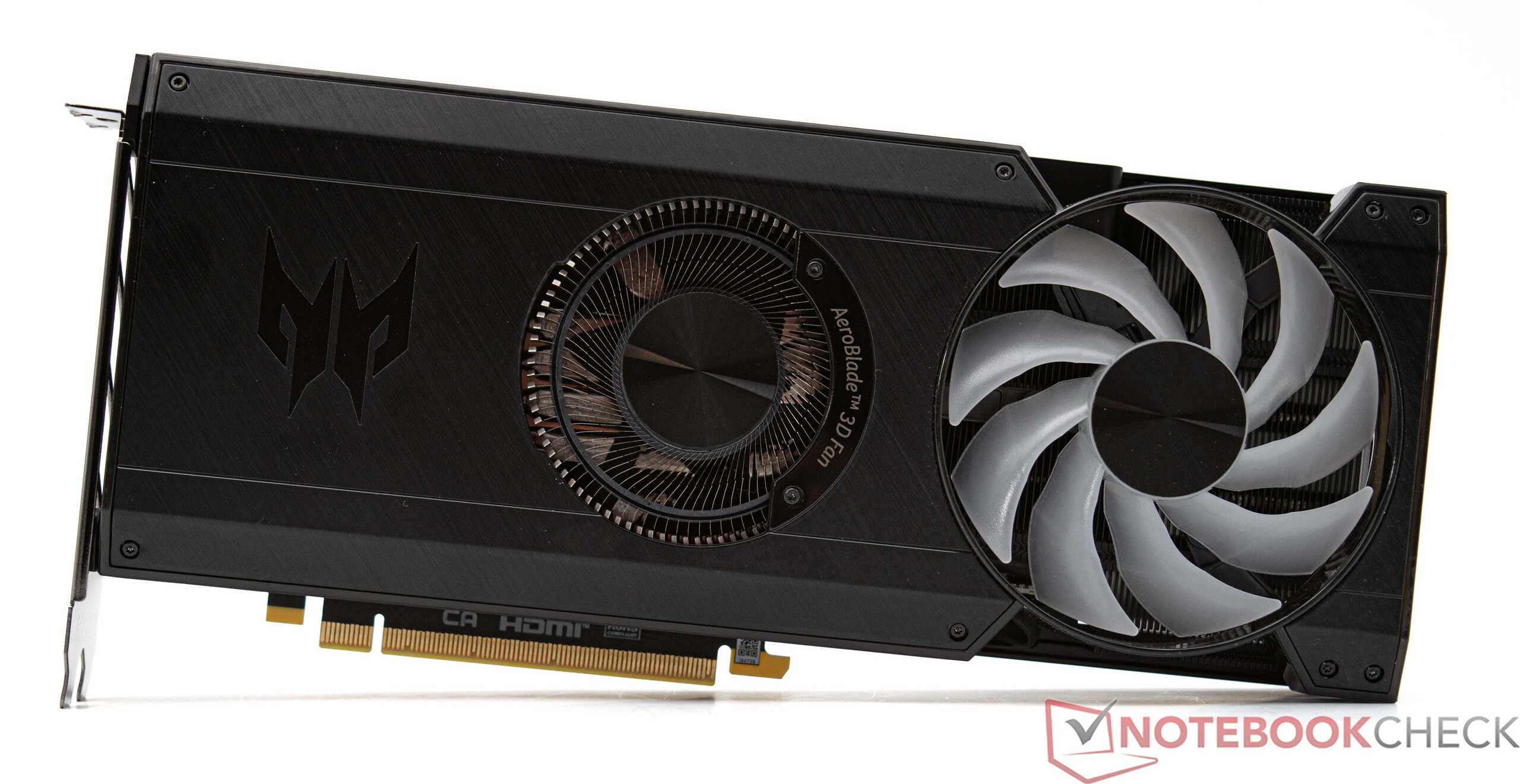

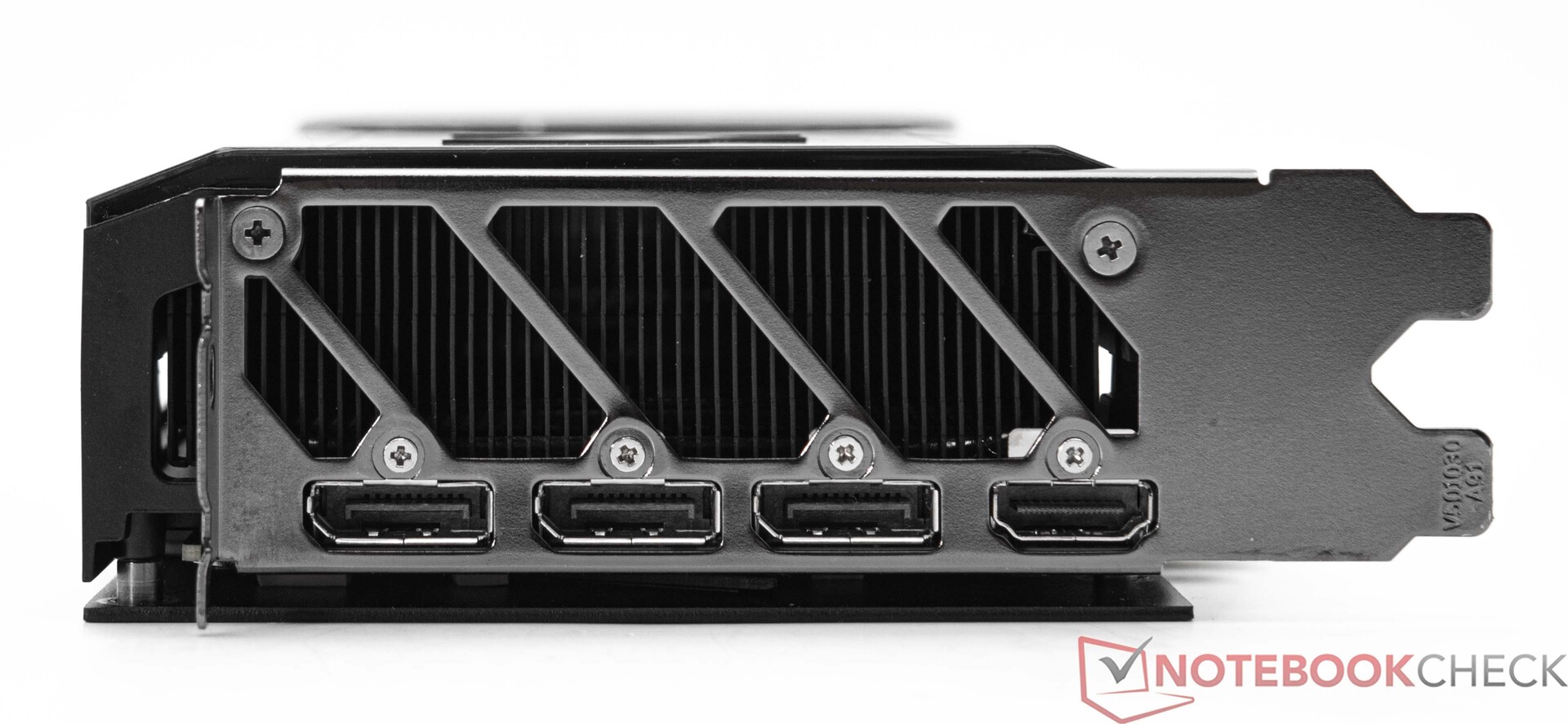

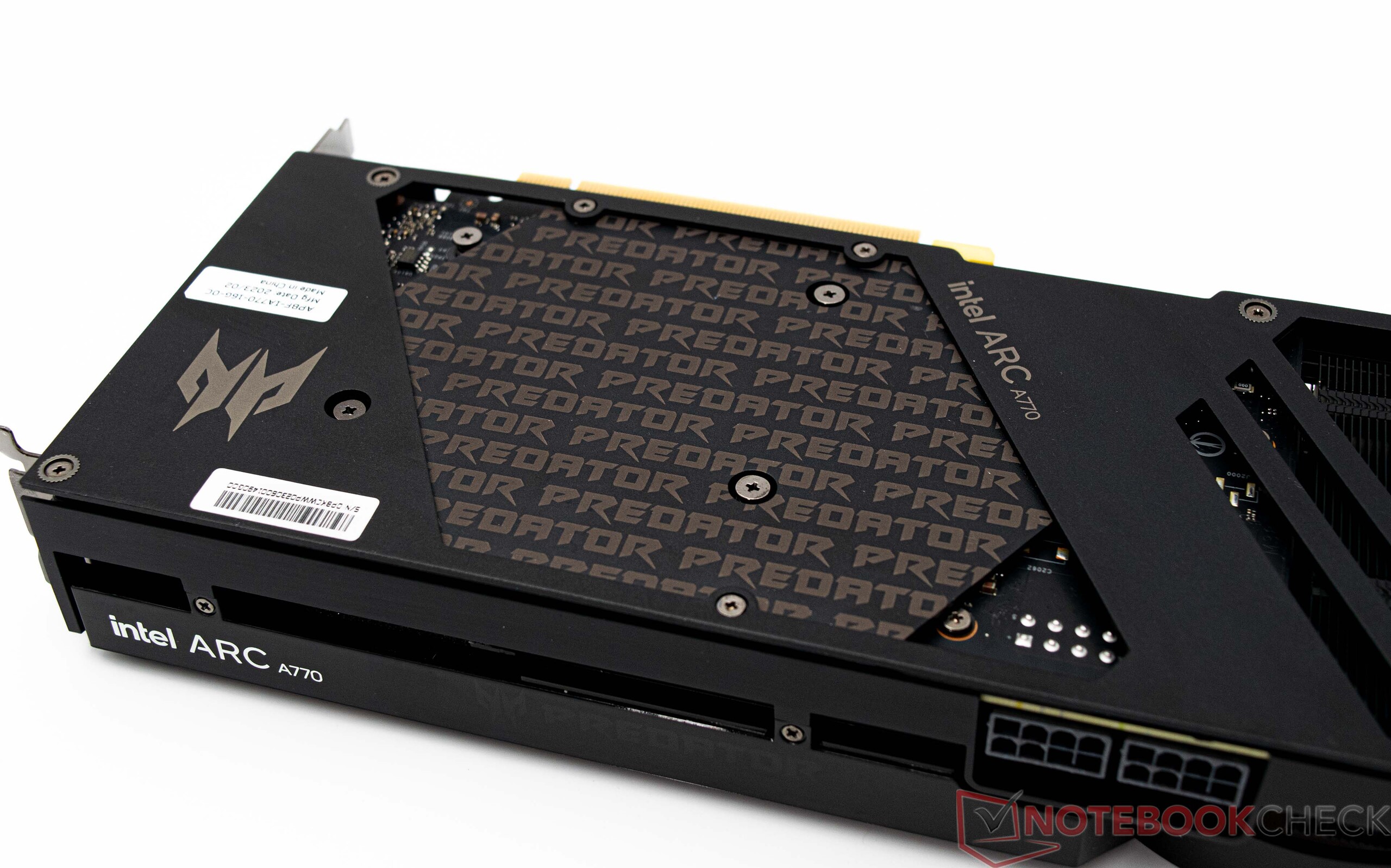

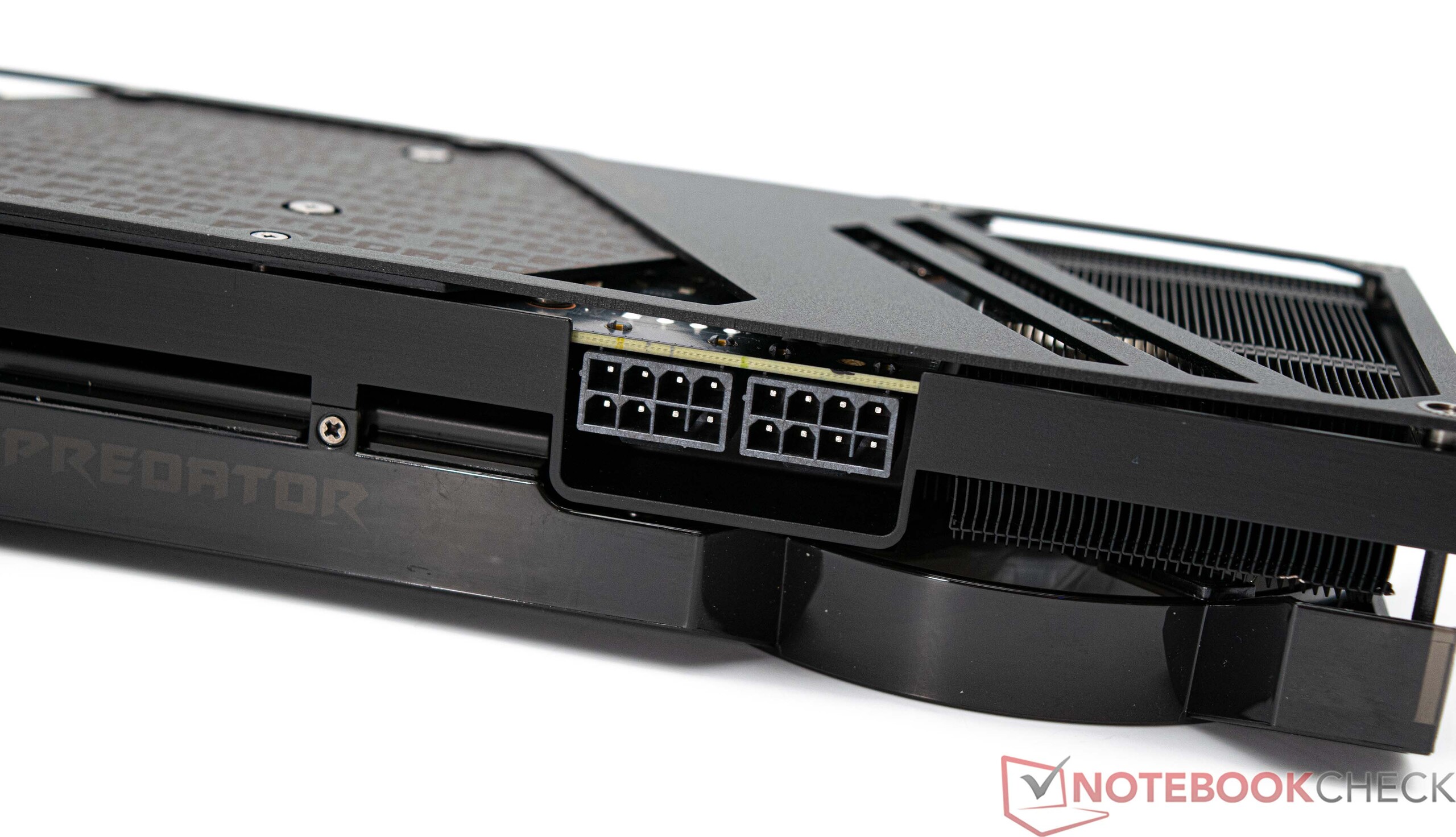

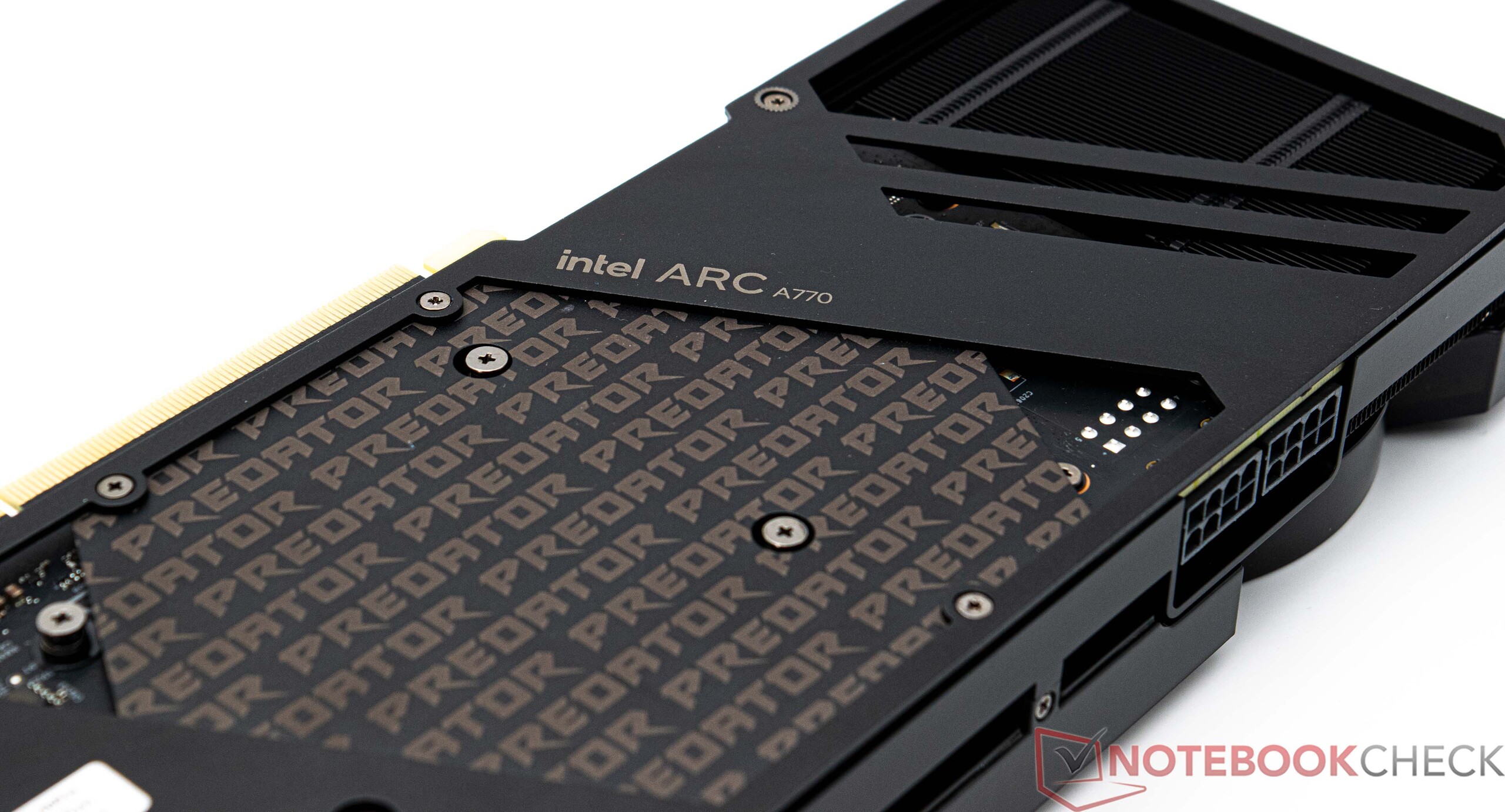

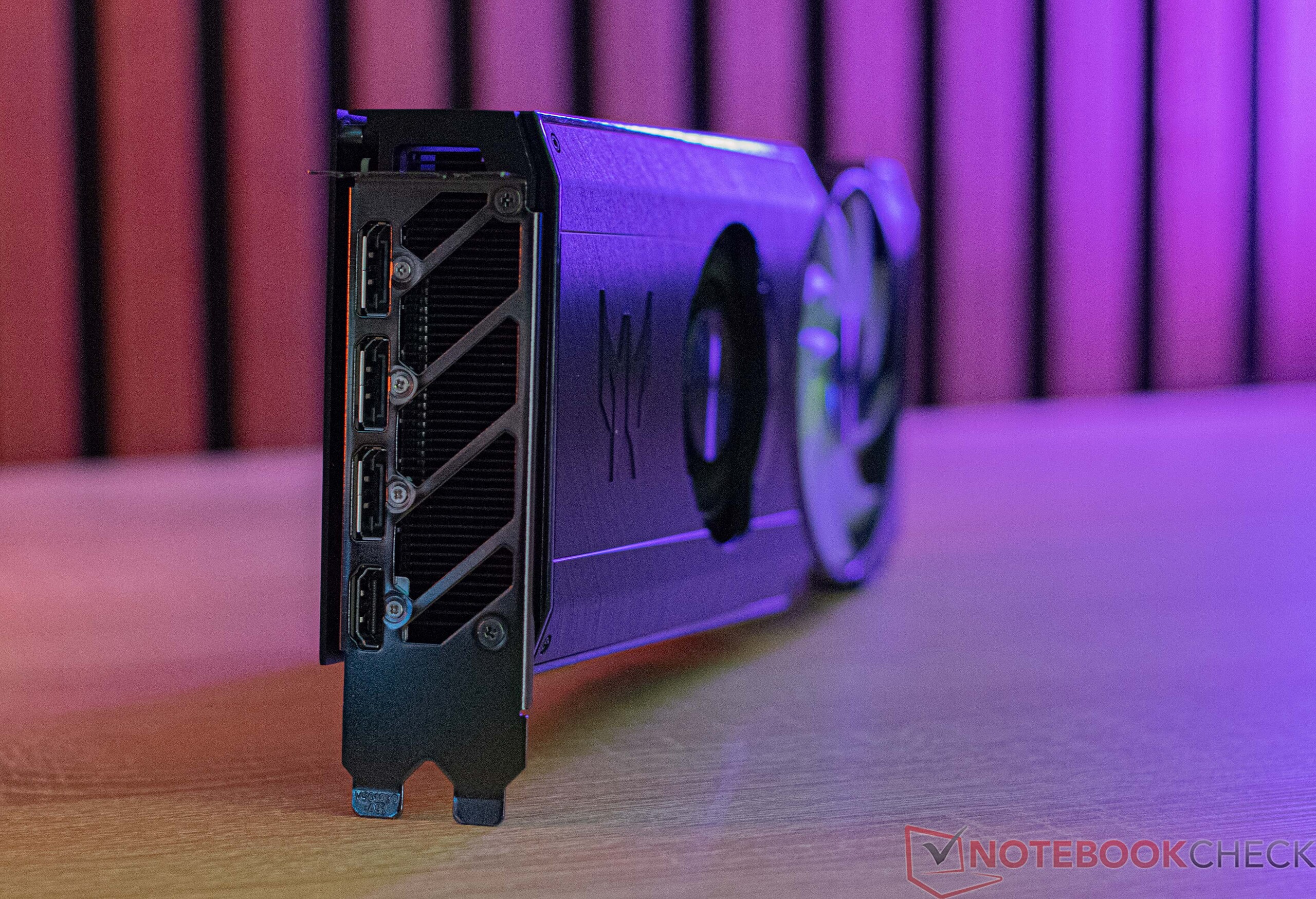

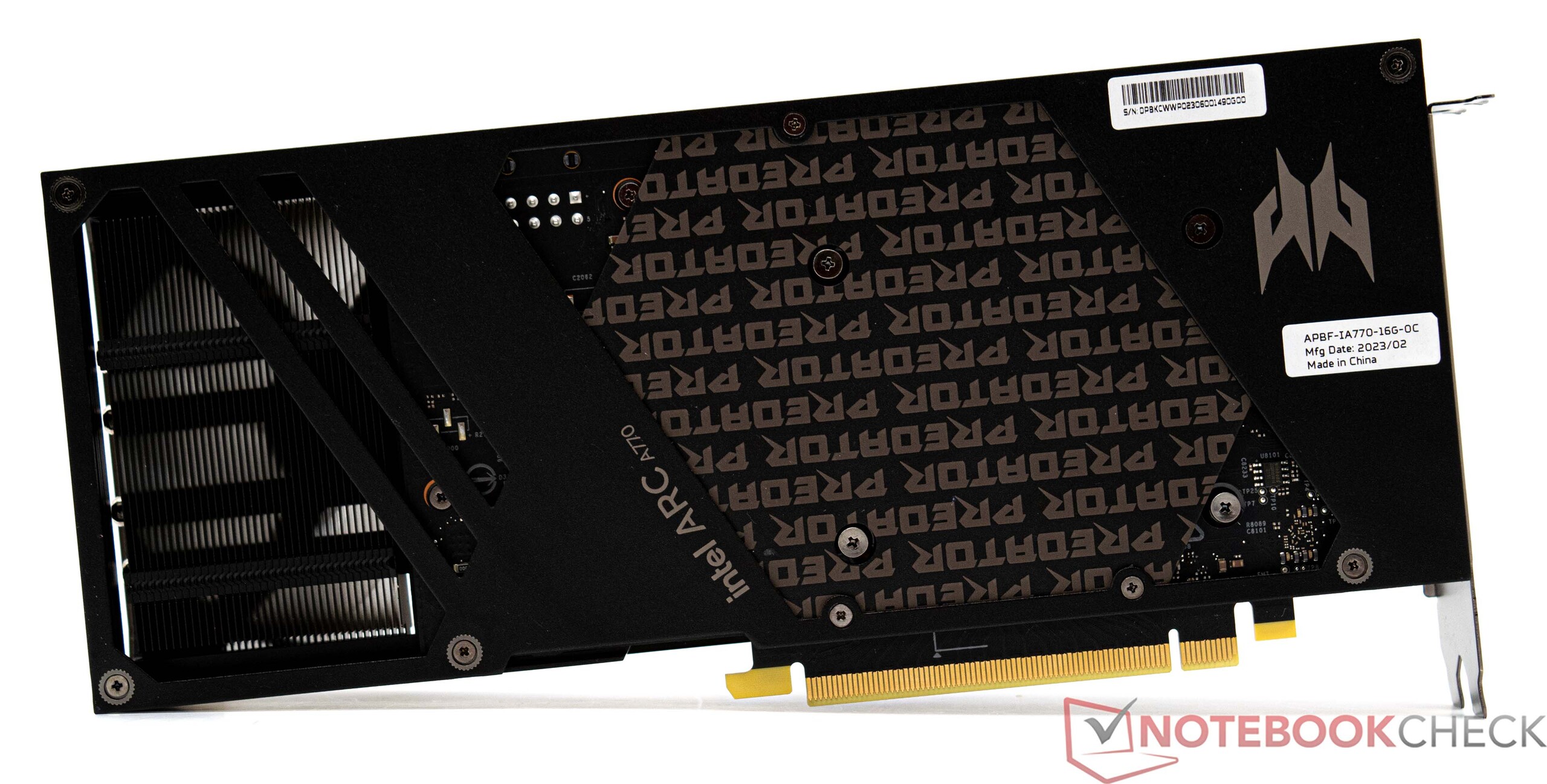

The Acer Predator BiFrost Arc A770 OC in Detail
Technical Data in Comparison
| Specifications | Intel Arc A770 | Intel Arc A750 | Intel Arc A580 | Intel Arc A380 | Radeon RX 7700 XT | Radeon RX 7600 | RTX 4060 Ti | RTX 4060 |
| GPU | DG2 512 | DG2 512 | DG2 512 | DG2 128 | Navi 32 XL | Navi 33 XL | AD106 | AD107 |
| Manufacturing Process | 6 nm | 6 nm | 6 nm | 6 nm | 5/6 nm | 6 nm | TSMC 4N | TSMC 4N |
| Shading Units | 4,096 | 3,584 | 3,072 | 1,024 | 3,456 | 2,048 | 4,352 | 3,072 |
| Texture Mapping Units | 256 | 224 | 192 | 64 | 216 | 128 | 136 | 96 |
| Ray Accelerators | 32 | 28 | 24 | 8 | 54 | 32 | 34 | 24 |
| Base Clock | 2,100 MHz | 2,050 MHz | 1,700 MHz | 2,000 MHz | 1,700 MHz | 1,720 MHz | 2,310 MHz | 1,830 MHz |
| Game Clock | - | - | - | - | 2.171 MHz | - | - | 1.815 MHz |
| Boost Clock | 2,400 MHz | 2,400 MHz | 2,000 MHz | 2,050 MHz | 2,544 MHz | 2,535 MHz | 2,460 MHz | 2,105 MHz |
| Cache | 16 MB | 16 MB | 8 MB | 4 MB | 48 MB | 32 MB | 32 MB | 24 MB |
| Memory Bus Width | 256 bit | 256 bit | 256 bit | 96 bit | 256 bit | 128 bit | 128 bit | 128 bit |
| Memory Bandwidth | 560 GB/s | 512 GB/s | 512 GB/s | 186 GB/s | 432 GB/s | 288 GB/s | 288 GB/s | 272 GB/s |
| Memory Size | 16 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 6 GB GDDR6 | 12 GB | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 |
| TBP | 225 W | 225 W | 175 W | 75 W | 245 W | 165 W | 160 W | 115 W |

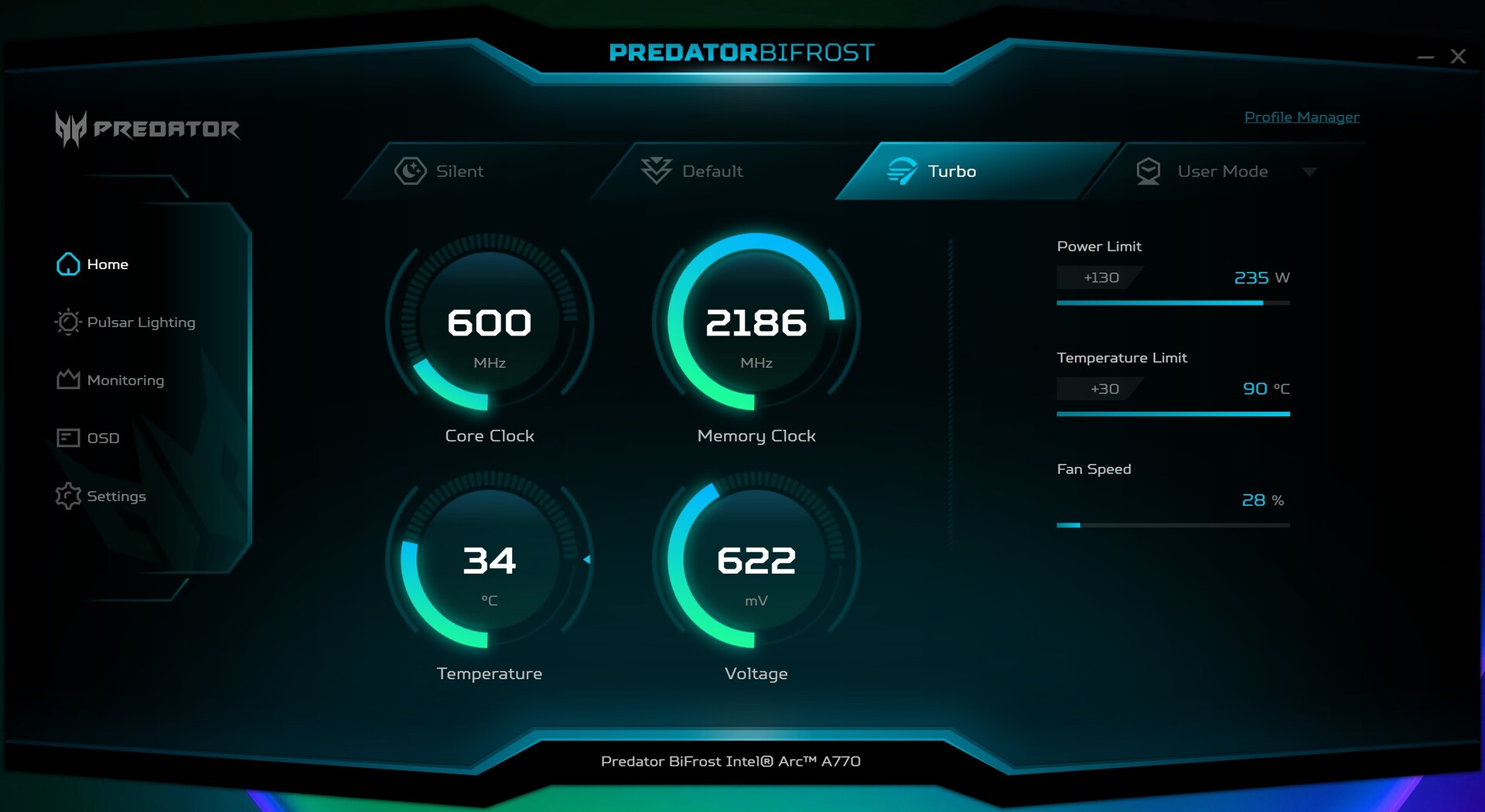

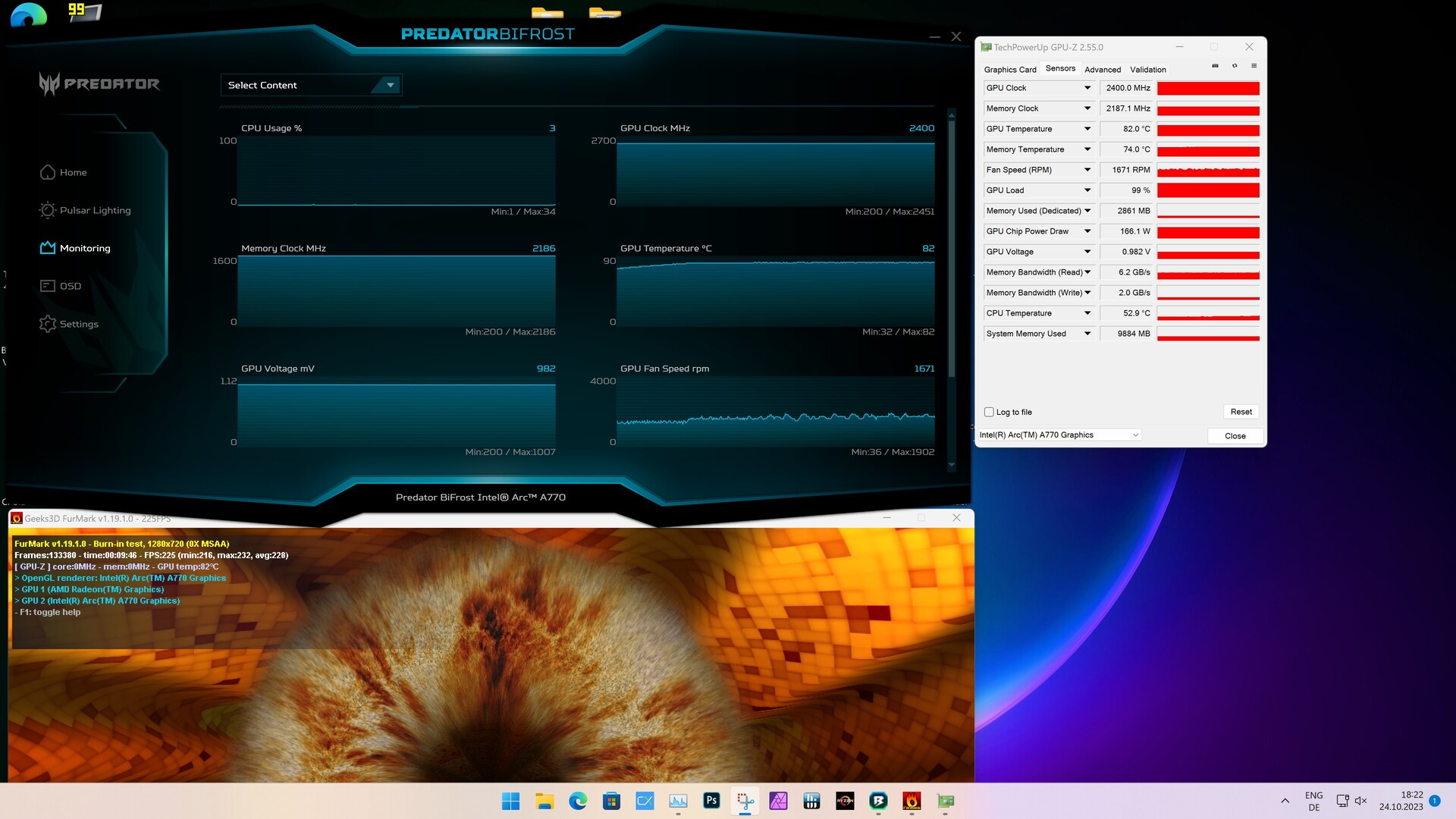

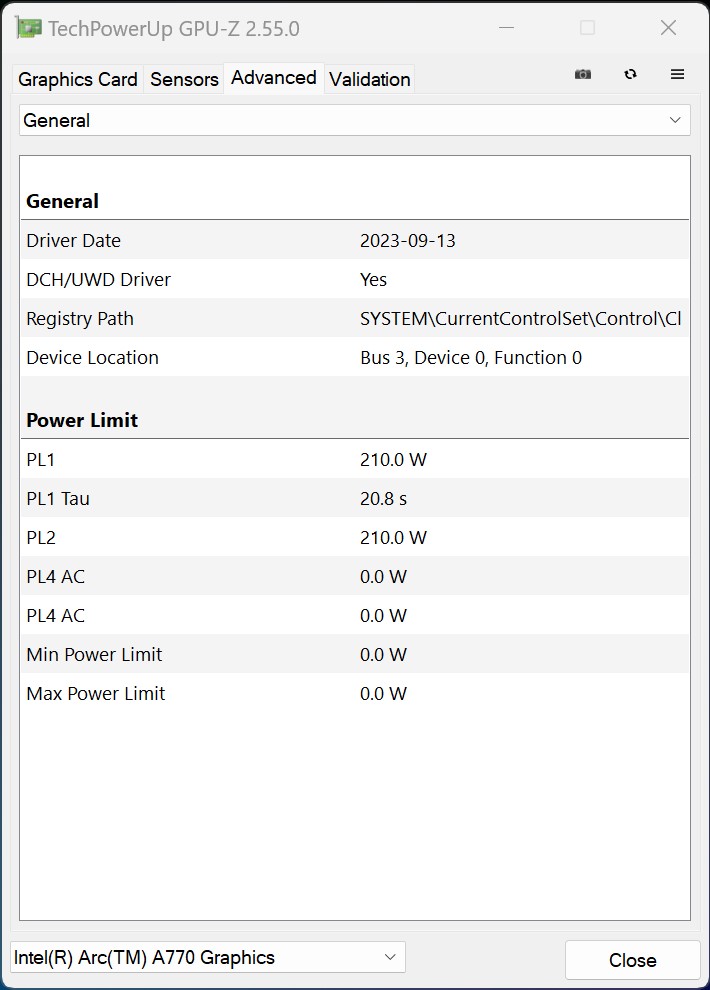

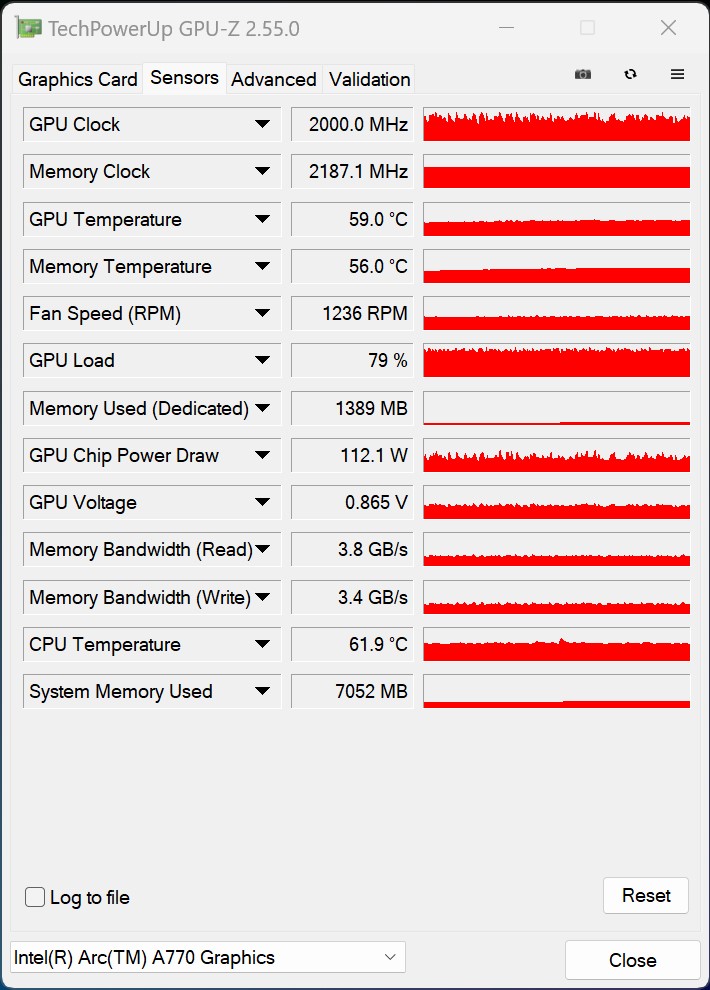

The Clock Speeds of the Acer Predator BiFrost Arc A770 OC
In terms of the speeds of the Acer Predator BiFrost Arc A770 OC, we see a basic clock speed of 2,200 MHz for the graphics chip, which is at least 100 MHz more than in the reference model from Intel. The boost speed is 2,400 MHz, which can be maintained throughout all of our tests. The video storage offers a 2,190 MHz speed, resulting in a storage bandwidth of 560 GB/s. This is significantly more than is offered by the direct competitors such as the AMD Radeon RX 7700 XT or the Nvidia GeForce RTX 4060 Ti. Acer specifies a power consumption of 210 watts for our test unit. When the Turbo mode is activated using the included tool, the Acer Predator BiFrost Arc A770 OC can consume up to 235 watts. However, all of our tests below are performed using the Default mode (210 watts). A Silent mode, which throttles the power consumption to 160 watts, is also available.
Synthetic Benchmarks
For our initial comparison, we take a look at the performance of the Acer Predator BiFrost Arc A770 OC in the synthetic benchmarks. Our test unit is only barely able to surpass the AMD Radeon RX 7600 in the performance rating, and the performance of the Acer Predator BiFrost Arc A770 OC isn't quite able to match that of Nvidia's GeForce RTX 4060 Ti. But the disadvantage of only 7% turns out small. On the other hand, if we take a look at the benchmark results in LuxMark, the Acer Predator BiFrost Arc A770 OC is able to assert itself easily, even being able to put some pressure on the AMD Radeon RX 7800 XT. AMD graphics cards don't seem to like this test, and all models are unable to produce a convincing performance here. Compared to the Nvidia GeForce RTX 4060 Ti, though, the disadvantage of our test card grows to more than 30%.
| Performance Rating - Percent | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 6700 XT | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2070 Super | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| LuxMark v2.0 64Bit | |
| Room GPUs-only | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 4070 | |
| NVIDIA GeForce RTX 4060 Ti 16G | |
| NVIDIA GeForce RTX 4060 | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| Intel Arc A770 | |
| AMD Radeon RX 7700 XT | |
| AMD Radeon RX 6700 XT | |
| AMD Radeon RX 6750 XT | |
| AMD Radeon RX 7600 | |
| AMD Radeon RX 6650 XT | |
| AMD Radeon RX 6600 | |
| Sala GPUs-only | |
| NVIDIA GeForce RTX 4070 Ti | |
| NVIDIA GeForce RTX 4070 | |
| AMD Radeon RX 7900 GRE | |
| NVIDIA GeForce RTX 4060 Ti 16G | |
| Intel Arc A770 | |
| AMD Radeon RX 7800 XT | |
| NVIDIA GeForce RTX 4060 | |
| AMD Radeon RX 7700 XT | |
| AMD Radeon RX 6700 XT | |
| AMD Radeon RX 6750 XT | |
| AMD Radeon RX 7600 | |
| AMD Radeon RX 6650 XT | |
| AMD Radeon RX 6600 | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| NVIDIA GeForce RTX 4070 | |
| NVIDIA GeForce RTX 4070 Ti | |
| AMD Radeon RX 7800 XT | |
| NVIDIA GeForce RTX 2070 Super (Desktop) | |
| AMD Radeon RX 7900 GRE | |
| NVIDIA GeForce RTX 2060 Super (Desktop) | |
| AMD Radeon RX 7700 XT | |
| AMD Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3060 Ti | |
| NVIDIA GeForce RTX 4060 | |
| NVIDIA GeForce RTX 4060 Ti 16G | |
| AMD Radeon RX 7600 | |
| Intel Arc A770 | |
| AMD Radeon RX 6650 XT | |
| AMD Radeon RX 6700 XT | |
| AMD Radeon RX 6600 | |
| 3DMark 05 Standard | 71200 points | |
| 3DMark 06 Standard Score | 58321 points | |
| 3DMark Vantage P Result | 103295 points | |
| 3DMark 11 Performance | 35386 points | |
| 3DMark Ice Storm Standard Score | 245874 points | |
| 3DMark Cloud Gate Standard Score | 69520 points | |
| 3DMark Fire Strike Score | 30755 points | |
| 3DMark Fire Strike Extreme Score | 15132 points | |
| 3DMark Time Spy Score | 14047 points | |
Help | ||
Professional Applications
Often professional applications can benefit from special graphics cards that are optimally adjusted due to some driver adjustments. Nvidia and AMD both offer some special workstation graphics cards in their portfolio. But often, the current gaming graphics cards also offer a sufficient amount of performance to be able to implement various rendering projects. However, we still recommend using a special graphics card for professional applications, in order to get the best performance possible. Compared to the competitors, the Acer Predator BiFrost Arc A770 OC is unable to produce a better performance, with even an aged Nvidia GeForce RTX 2060 Super offering a significantly higher performance in parts.
| Intel Arc A770 R9 7950X | NVIDIA GeForce RTX 2060 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 2070 Super (Desktop) R9 7950X | NVIDIA GeForce RTX 3060 Ti R9 7950X | NVIDIA GeForce RTX 4060 R9 7950X | NVIDIA GeForce RTX 4060 Ti 16G R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | AMD Radeon RX 7600 R9 7950X | AMD Radeon RX 7700 XT R9 7950X | AMD Radeon RX 7800 XT R9 7950X | AMD Radeon RX 7900 GRE R9 7950X | AMD Radeon RX 6600 R9 7950X | AMD Radeon RX 6650 XT R9 7950X | AMD Radeon RX 6700 XT R9 7950X | AMD Radeon RX 6750 XT R9 7950X | Average of class | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 12 | 50% | 68% | 87% | 89% | 143% | 219% | 325% | 203% | 291% | 349% | 373% | 228% | 286% | 324% | 275% | 58% | |
| 1900x1060 3ds Max (3dsmax-05) | 179 | 220 23% | 247 38% | 297 66% | 251 40% | 290 62% | 382 113% | 436 144% | 279 56% | 373 108% | 427 139% | 444 148% | 258 44% | 310 73% | 363 103% | 377 111% | 192.2 ? 7% |
| 1900x1060 Catia (catia-04) | 174 | 84.5 -51% | 114 -34% | 114 -34% | 113 -35% | 128 -26% | 161 -7% | 192 10% | 273 57% | 351 102% | 386 122% | 448 157% | 256 47% | 314 80% | 339 95% | 360 107% | 102.3 ? -41% |
| 1900x1060 Creo (creo-01) | 45.3 | 58.8 30% | 65.7 45% | 65.2 44% | 60.6 34% | 73.4 62% | 89.1 97% | 99.4 119% | 115 154% | 123 172% | 148 227% | 155 242% | 133 194% | 142 213% | 152 236% | 154 240% | 62.9 ? 39% |
| 1900x1060 Energy (energy-01) | 2.44 | 11.6 375% | 12.4 408% | 14.4 490% | 15.9 552% | 22.6 826% | 31.7 1199% | 48 1867% | 25.5 945% | 33.4 1269% | 38.4 1474% | 40.3 1552% | 31.3 1183% | 37.6 1441% | 40.6 1564% | 30.1 1134% | 14.6 ? 498% |
| 1900x1060 Maya (maya-04) | 183 | 200 9% | 225 23% | 251 37% | 233 27% | 257 40% | 284 55% | 287 57% | 236 29% | 283 55% | 304 66% | 323 77% | 218 19% | 246 34% | 268 46% | 277 51% | 105.4 ? -42% |
| 1900x1060 Medical (medical-01) | 46.7 | 49.5 6% | 55.9 20% | 65.6 40% | 82.4 76% | 110 136% | 132 183% | 157 236% | 128 174% | 177 279% | 200 328% | 226 384% | 102 118% | 137 193% | 150 221% | 144 208% | 51.2 ? 10% |
| 1900x1060 Showcase (showcase-01) | 119 | 121 2% | 135 13% | 150 26% | 109 -8% | 132 11% | 190 60% | 244 105% | 127 7% | 179 50% | 235 97% | 222 87% | 125 5% | 151 27% | 176 48% | 186 56% | 93.9 ? -21% |
| 1900x1060 Solidworks (sw-03) | 73.4 | 79.7 9% | 95.1 30% | 93.5 27% | 91.2 24% | 95.1 30% | 109 49% | 118 61% | 221 201% | 288 292% | 322 339% | 319 335% | 232 216% | 242 230% | 275 275% | 290 295% | 83.5 ? 14% |
| SPECviewperf 13 | 13% | 31% | 41% | 34% | 61% | 103% | 144% | 119% | 196% | 242% | 261% | 76% | 107% | 144% | 168% | 23% | |
| 3ds Max (3dsmax-06) | 179 | 218 22% | 247 38% | 297 66% | 252 41% | 289 61% | 381 113% | 433 142% | 280 56% | 371 107% | 434 142% | 439 145% | 258 44% | 310 73% | 360 101% | 379 112% | 183.9 ? 3% |
| Catia (catia-05) | 260 | 119 -54% | 163 -37% | 167 -36% | 163 -37% | 189 -27% | 241 -7% | 290 12% | 410 58% | 529 103% | 588 126% | 661 154% | 387 49% | 482 85% | 528 103% | 565 117% | 196.9 ? -24% |
| Creo (creo-02) | 90 | 203 126% | 240 167% | 243 170% | 230 156% | 301 234% | 375 317% | 455 406% | 294 227% | 387 330% | 442 391% | 470 422% | 279 210% | 317 252% | 353 292% | 389 332% | 199.9 ? 122% |
| Energy (energy-02) | 22.5 | 21.9 -3% | 23.8 6% | 26.1 16% | 34.6 54% | 45.3 101% | 54.2 141% | 72.8 224% | 82.9 268% | 115 411% | 139 518% | 150 567% | 44 96% | 59.8 166% | 74.3 230% | 80.6 258% | 35 ? 56% |
| Maya (maya-05) | 319 | 291 -9% | 344 8% | 372 17% | 343 8% | 403 26% | 510 60% | 591 85% | 333 4% | 487 53% | 548 72% | 580 82% | 348 9% | 403 26% | 462 45% | 482 51% | 260 ? -18% |
| Medical (medical-02) | 80.8 | 54.2 -33% | 63.7 -21% | 74.3 -8% | 76.5 -5% | 85.1 5% | 112 39% | 132 63% | 226 180% | 300 271% | 332 311% | 372 360% | 88.8 10% | 105 30% | 148 83% | 202 150% | 74.5 ? -8% |
| Showcase (showcase-02) | 119 | 122 3% | 135 13% | 150 26% | 108 -9% | 133 12% | 191 61% | 244 105% | 127 7% | 179 50% | 234 97% | 221 86% | 125 5% | 151 27% | 176 48% | 186 56% | 117.8 ? -1% |
| Solidworks (sw-04) | 77.5 | 119 54% | 136 75% | 135 74% | 127 64% | 135 74% | 157 103% | 168 117% | 195 152% | 265 242% | 294 279% | 287 270% | 220 184% | 231 198% | 272 251% | 286 269% | 118.5 ? 53% |
| SPECviewperf 2020 | -4% | 4% | 27% | 14% | 41% | 81% | 119% | 75% | 144% | 208% | 218% | 20% | 47% | 81% | 102% | 37% | |
| 3840x2160 Medical (medical-03) | 22.3 | 10.3 -54% | 12 -46% | 11.9 -47% | 13.7 -39% | 16.5 -26% | 22.2 0% | 26.9 21% | 36.1 62% | 56.2 152% | 63.7 186% | 76.1 241% | 20.9 -6% | 27.3 22% | 30.1 35% | 39.9 79% | 19.8 ? -11% |
| 3840x2160 Maya (maya-06) | 195 | 162 -17% | 185 -5% | 235 21% | 196 1% | 237 22% | 305 56% | 372 91% | 178 -9% | 261 34% | 346 77% | 161 -17% | 192 -2% | 258 32% | 279 43% | 206 ? 6% | |
| 3840x2160 Energy (energy-03) | 25 | 22.9 -8% | 17.8 -29% | 31.2 25% | 33.2 33% | 44.9 80% | 57.6 130% | 75.7 203% | 67 168% | 95 280% | 111 344% | 133 432% | 29.5 18% | 44.2 77% | 52.2 109% | 56.3 125% | 47.9 ? 92% |
| 3840x2160 Creo (creo-03) | 52.9 | 77.2 46% | 85.8 62% | 91.2 72% | 85.9 62% | 95.9 81% | 112 112% | 121 129% | 106 100% | 130 146% | 151 185% | 159 201% | 93.4 77% | 105 98% | 123 133% | 130 146% | 77.4 ? 46% |
| 3840x2160 CATIA (catia-06) | 38.9 | 30.5 -22% | 36.7 -6% | 40.5 4% | 34 -13% | 38.5 -1% | 51.6 33% | 61.2 57% | 68 75% | 88.8 128% | 101 160% | 107 175% | 60.8 56% | 70.1 80% | 77.2 98% | 83.8 115% | 46.6 ? 20% |
| 3840x2160 3ds Max (3dsmax-07) | 47.4 | 63.1 33% | 69.7 47% | 87 84% | 67.4 42% | 88.8 87% | 122 157% | 147 210% | 72.9 54% | 106 124% | 125 164% | 134 183% | 42.4 -11% | 51.5 9% | 85.4 80% | 96.8 104% | 79.8 ? 68% |
| Total Average (Program / Settings) | 20% /
22% | 34% /
37% | 52% /
54% | 46% /
49% | 82% /
85% | 134% /
139% | 196% /
203% | 132% /
138% | 210% /
216% | 266% /
275% | 284% /
290% | 108% /
116% | 147% /
156% | 183% /
192% | 182% /
189% | 39% /
39% |
Gaming Performance
The test results of the Acer Predator BiFrost Arc A770 OC are very good, and we are surprised that we hardly run into any problems during the tests. But there are some differences between newer and older games. The Arc A770 is significantly better when playing newer games. So the performance of the Acer Predator BiFrost Arc A770 OC varies considerably. In many older games, our test unit performs at the level of an AMD Radeon RX 6600, while at the same time, you can expect a significantly higher performance in newer games than with an Nvidia GeForce RTX 4060. But you have to make sure that Reziable BAR is activated to get the full performance from the graphics card.
Most games can be displayed smoothly in 1080p, even though there are some limitations. Among the more current games, Starfield is a bit of an outlier, but this could still be improved with some future driver optimizations. Another negative example is Forza Horizon 4, which is not good to play with the Acer Predator BiFrost Arc A770 OC.
We should mention again that the Acer Predator BiFrost Arc A770 OC was already introduced into the market a year ago. Compared to AMD's Radeon RX 6000 and Nvidia's RTX 3000 models, the performance of the Intel Arc A770 is at about the same level. With the introduction of the new graphics cards from AMD and Nvidia, the Intel Arc A770 gets more competitors, which also causes it to fall behind more. The rumor mill is working overtime, and with Battlemage, the successor of the current Intel Arc models is supposed to follow closely in the near future. But at this point, we don't know any details yet. With a decent performance increase and increased efficiency, Intel might be able to continue putting some pressure on the two top dogs in the area of gaming graphics cards.
The model used in this test is equipped with 16 GB of VRAM, which is good, since we even surpass the 8-GB mark already in 1080p. With this, we see significantly fewer frame drops at maximum details with the Acer Predator BiFrost Arc A770 OC. When we compare the P1 values, it is sufficient to barely beat the KFA2 GeForce RTX 4060. Due to the varying gaming performance, our test unit is unable to gain any larger advantage here. But the measured P1 values are fairly stable at the lower frame rates, ensuring a smooth gaming experience. With increasing resolutions, our test unit is able to move further ahead, and you can even enjoy some games in 1440p. The performance drop compared to graphics cards that are only equipped with 8 GB VRAM turns out significantly smaller.
| F1 2021 | |
| 2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (874931) | |
| KFA2 GeForce RTX 4080 SG (874931) | |
| AMD Radeon RX 7900 XTX (874931) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
| AMD Radeon RX 7900 XT (874931) | |
| MSI Radeon RX 6950 XT Gaming X Trio (874931) | |
| NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
| KFA2 GeForce RTX 4070 EX Gamer (874931) | |
| AMD Radeon RX 7900 GRE (874931) | |
| AMD Radeon RX 7800 XT (874931) | |
| KFA2 GeForce RTX 3070 Ti SG (874931) | |
| AMD Radeon RX 5700 XT (874931) | |
| AMD Radeon RX 6800 (874931) | |
| Nvidia Titan RTX (874931) | |
| ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (874931) | |
| AMD Radeon RX 5700 (874931) | |
| Sapphire Pulse Radeon RX 6750 XT (874931) | |
| Nvidia GeForce RTX 3060 Ti FE (874931) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (874931) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
| Nvidia GeForce RTX 2070 Super (874931) | |
| KFA2 GeForce GTX 1660 Super (874931) | |
| Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
| PNY GeForce GTX 1660 (874931) | |
| Nvidia GeForce RTX 2060 Super (874931) | |
| Sapphire Pulse Radeon RX 6600 (874931) | |
| 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (874931) | |
| AMD Radeon RX 7900 XTX (874931) | |
| KFA2 GeForce RTX 4080 SG (874931) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
| AMD Radeon RX 7900 XT (874931) | |
| MSI Radeon RX 6950 XT Gaming X Trio (874931) | |
| NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
| KFA2 GeForce RTX 4070 EX Gamer (874931) | |
| AMD Radeon RX 7900 GRE (874931) | |
| AMD Radeon RX 7800 XT (874931) | |
| KFA2 GeForce RTX 3070 Ti SG (874931) | |
| AMD Radeon RX 5700 XT (874931) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (874931) | |
| ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
| AMD Radeon RX 6800 (874931) | |
| Nvidia Titan RTX (874931) | |
| AMD Radeon RX 5700 (874931) | |
| Sapphire Pulse Radeon RX 6750 XT (874931) | |
| Nvidia GeForce RTX 3060 Ti FE (874931) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (874931) | |
| Nvidia GeForce RTX 2070 Super (874931) | |
| Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
| KFA2 GeForce GTX 1660 Super (874931) | |
| Nvidia GeForce RTX 2060 Super (874931) | |
| PNY GeForce GTX 1660 (874931) | |
| Sapphire Pulse Radeon RX 6600 (874931) | |
| F1 22 | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (923662) | |
| KFA2 GeForce RTX 4080 SG (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
| AMD Radeon RX 5700 XT (959964) | |
| AMD Radeon RX 7900 XT (939134) | |
| NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
| AMD Radeon RX 5700 (959964) | |
| AMD Radeon RX 7900 GRE (959964) | |
| MSI Radeon RX 6950 XT Gaming X Trio (939134) | |
| KFA2 GeForce RTX 4070 EX Gamer (959964) | |
| KFA2 GeForce GTX 1660 Super (928484) | |
| AMD Radeon RX 7800 XT (959964) | |
| PNY GeForce GTX 1660 (928484) | |
| KFA2 GeForce RTX 3070 Ti SG (939134) | |
| Nvidia Titan RTX (923650) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (959964) | |
| ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
| AMD Radeon RX 6800 (928484) | |
| Nvidia GeForce RTX 3060 Ti FE (923650) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (959964) | |
| Sapphire Pulse Radeon RX 6750 XT (959964) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
| Nvidia GeForce RTX 2070 Super (923662) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
| Nvidia GeForce RTX 2060 Super (923662) | |
| Sapphire Nitro+ Radeon RX 6650 XT (946728) | |
| Sapphire Pulse Radeon RX 6600 (946728) | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG (939134) | |
| AMD Radeon RX 7900 XTX (939134) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
| NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
| AMD Radeon RX 7900 XT (939134) | |
| AMD Radeon RX 5700 XT (959964) | |
| MSI Radeon RX 6950 XT Gaming X Trio (939134) | |
| KFA2 GeForce RTX 4070 EX Gamer (959964) | |
| AMD Radeon RX 7900 GRE (959964) | |
| AMD Radeon RX 7800 XT (959964) | |
| AMD Radeon RX 5700 (959964) | |
| KFA2 GeForce GTX 1660 Super (928484) | |
| KFA2 GeForce RTX 3070 Ti SG (939134) | |
| PNY GeForce GTX 1660 (928484) | |
| Nvidia Titan RTX (923650) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (959964) | |
| ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
| Nvidia GeForce RTX 3060 Ti FE (923650) | |
| AMD Radeon RX 6800 | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (959964) | |
| Sapphire Pulse Radeon RX 6750 XT (959964) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
| Nvidia GeForce RTX 2070 Super (923662) | |
| Nvidia GeForce RTX 2060 Super (923662) | |
| Sapphire Nitro+ Radeon RX 6650 XT (946728) | |
| Sapphire Pulse Radeon RX 6600 (946728) | |
| GRID Legends | |
| 2560x1440 Ultra Preset | |
| AMD Radeon RX 7900 XTX (643827) | |
| Palit GeForce RTX 4090 GameRock OC (591708) | |
| AMD Radeon RX 7900 XT (643827) | |
| MSI Radeon RX 6950 XT Gaming X Trio (643827) | |
| KFA2 GeForce RTX 4080 SG (643827) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
| NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
| AMD Radeon RX 7900 GRE (800660) | |
| AMD Radeon RX 6800 (643827) | |
| KFA2 GeForce RTX 3070 Ti SG (643827) | |
| AMD Radeon RX 7800 XT (800660) | |
| KFA2 GeForce RTX 4070 EX Gamer (712825) | |
| Sapphire Pulse Radeon RX 6750 XT (712825) | |
| Nvidia Titan RTX (591708) | |
| ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (800660) | |
| Nvidia GeForce RTX 3060 Ti FE (591708) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
| Sapphire Nitro+ Radeon RX 6650 XT (643827) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
| Nvidia GeForce RTX 2070 Super (591708) | |
| AMD Radeon RX 5700 XT (712825) | |
| Nvidia GeForce RTX 2060 Super (623651) | |
| Sapphire Pulse Radeon RX 6600 (683088) | |
| AMD Radeon RX 5700 (712825) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (800660) | |
| KFA2 GeForce GTX 1660 Super (623651) | |
| PNY GeForce GTX 1660 (623651) | |
| 1920x1080 Ultra Preset | |
| AMD Radeon RX 7900 XTX (643827) | |
| MSI Radeon RX 6950 XT Gaming X Trio (643827) | |
| AMD Radeon RX 7900 XT (643827) | |
| Palit GeForce RTX 4090 GameRock OC (591708) | |
| KFA2 GeForce RTX 4080 SG (643827) | |
| AMD Radeon RX 6800 (643827) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (712825) | |
| NVIDIA GeForce RTX 3090 Founders Edition (591708) | |
| KFA2 GeForce RTX 4070 EX Gamer (712825) | |
| AMD Radeon RX 7900 GRE (800660) | |
| Sapphire Pulse Radeon RX 6750 XT (712825) | |
| AMD Radeon RX 7800 XT (800660) | |
| KFA2 GeForce RTX 3070 Ti SG (643827) | |
| Nvidia Titan RTX (591708) | |
| Nvidia GeForce RTX 3060 Ti FE (591708) | |
| Sapphire Nitro+ Radeon RX 6650 XT (643827) | |
| ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (800660) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
| Nvidia GeForce RTX 2070 Super (591708) | |
| Sapphire Pulse Radeon RX 6600 (683088) | |
| AMD Radeon RX 5700 XT (712825) | |
| Nvidia GeForce RTX 2060 Super (623651) | |
| AMD Radeon RX 5700 (712825) | |
| KFA2 GeForce GTX 1660 Super (623651) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (800660) | |
| PNY GeForce GTX 1660 (623651) | |
| Final Fantasy XV Benchmark | |
| 1920x1080 High Quality | |
| Palit GeForce RTX 4090 GameRock OC (1.3) | |
| KFA2 GeForce RTX 4080 SG (1.3) | |
| AMD Radeon RX 7900 XTX (1.3) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
| AMD Radeon RX 7900 XT (1.3) | |
| MSI Radeon RX 6950 XT Gaming X Trio (1.3) | |
| NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
| KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
| AMD Radeon RX 7900 GRE (1.3) | |
| AMD Radeon RX 7800 XT (1.3) | |
| AMD Radeon RX 6800 (1.3) | |
| Nvidia Titan RTX (1.3) | |
| KFA2 GeForce RTX 3070 Ti SG (1.3) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
| Sapphire Pulse Radeon RX 6750 XT (1.3) | |
| Nvidia GeForce RTX 3060 Ti FE (1.3) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1.3) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
| Nvidia GeForce RTX 2070 Super (1.3) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
| Nvidia GeForce RTX 2060 Super (1.3) | |
| AMD Radeon RX 5700 XT (1.3) | |
| Sapphire Pulse Radeon RX 6600 (1.3) | |
| AMD Radeon RX 5700 (1.3) | |
| KFA2 GeForce GTX 1660 Super (1.3) | |
| PNY GeForce GTX 1660 (1.3) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1.3) | |
| 2560x1440 High Quality | |
| Palit GeForce RTX 4090 GameRock OC (1.3) | |
| KFA2 GeForce RTX 4080 SG (1.3) | |
| AMD Radeon RX 7900 XTX (1.3) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer (1.3) | |
| MSI Radeon RX 6950 XT Gaming X Trio (1.3) | |
| AMD Radeon RX 7900 XT (1.3) | |
| NVIDIA GeForce RTX 3090 Founders Edition (1.3) | |
| KFA2 GeForce RTX 4070 EX Gamer (1.3) | |
| AMD Radeon RX 7900 GRE (1.3) | |
| AMD Radeon RX 7800 XT (1.3) | |
| AMD Radeon RX 6800 (1.3) | |
| KFA2 GeForce RTX 3070 Ti SG (1.3) | |
| Nvidia Titan RTX (1.3) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
| Sapphire Pulse Radeon RX 6750 XT (1.3) | |
| Nvidia GeForce RTX 3060 Ti FE (1.3) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1.3) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
| Nvidia GeForce RTX 2070 Super (1.3) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1.3) | |
| Nvidia GeForce RTX 2060 Super (1.3) | |
| AMD Radeon RX 5700 XT (1.3) | |
| AMD Radeon RX 5700 (1.3) | |
| Sapphire Pulse Radeon RX 6600 (1.3) | |
| KFA2 GeForce GTX 1660 Super (1.3) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1.3) | |
| PNY GeForce GTX 1660 (1.3) | |
| F1 23 | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (1022189) | |
| AMD Radeon RX 5700 XT (1022189) | |
| AMD Radeon RX 5700 (1022189) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE (1016022) | |
| MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
| AMD Radeon RX 7800 XT (1022189) | |
| KFA2 GeForce GTX 1660 Super (1016022) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1022189) | |
| Nvidia Titan RTX (1021115) | |
| PNY GeForce GTX 1660 (1016022) | |
| Nvidia GeForce RTX 3060 Ti FE (1021115) | |
| AMD Radeon RX 6800 (1016022) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1026791) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
| Sapphire Pulse Radeon RX 6750 XT (1016022) | |
| Nvidia GeForce RTX 2070 Super (1021115) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
| Nvidia GeForce RTX 2060 Super (1021115) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
| Sapphire Pulse Radeon RX 6600 (1016022) | |
| 2560x1440 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (1022189) | |
| AMD Radeon RX 5700 XT (1022189) | |
| AMD Radeon RX 5700 (1022189) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE (1016022) | |
| MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
| KFA2 GeForce GTX 1660 Super (1016022) | |
| PNY GeForce GTX 1660 (1016022) | |
| AMD Radeon RX 7800 XT (1022189) | |
| Nvidia Titan RTX (1021115) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
| KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (1022189) | |
| Nvidia GeForce RTX 3060 Ti FE (1021115) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1026791) | |
| AMD Radeon RX 6800 (1016022) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
| Sapphire Pulse Radeon RX 6750 XT (1016022) | |
| Nvidia GeForce RTX 2070 Super (1021115) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
| Nvidia GeForce RTX 2060 Super (1021115) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
| Sapphire Pulse Radeon RX 6600 (1016022) | |
P1 Values of the KFA2 GeForce RTX 4060 Ti EX - 8 GB vs. 16 GB
Raytracing Performance
Intel's Arc graphics cards also support raytracing in terms of the hardware. The Arc A770 is equipped with 32 ray accelerators that deliver a fairly good performance in practice. Depending on the game, the performance also varies here, so that we are unable to put numbers to the performance in general. In some cases, an Nvidia GeForce RTX 4060 can be surpassed, while in other games, the Acer Predator BiFrost Arc A770 OC only competes with an AMD Radeon RX 7600. To get a clearer picture, you have to take a look at the individual games in more detail.
| Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| KFA2 GeForce RTX 3070 Ti SG | |
| AMD Radeon RX 7900 GRE | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| AMD Radeon RX 6800 | |
| Nvidia GeForce RTX 3060 Ti FE | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Sapphire Pulse Radeon RX 6600 | |
| Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Nvidia GeForce RTX 3060 Ti FE | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| AMD Radeon RX 6800 | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Cyberpunk 2077 1.6 - 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE (1.6) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
| MSI Radeon RX 6950 XT Gaming X Trio (1.61) | |
| KFA2 GeForce RTX 3070 Ti SG (1.61) | |
| AMD Radeon RX 7800 XT (1.6) | |
| Nvidia GeForce RTX 3060 Ti FE (1.5) | |
| Sapphire Pulse Radeon RX 7700 XT (1.6) | |
| Sapphire Pulse Radeon RX 7700 XT (1.6) | |
| Sapphire Pulse Radeon RX 7700 XT (1.6) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
| AMD Radeon RX 6800 (1.61) | |
| Nvidia GeForce RTX 2070 Super (1.6) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1.6) | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super (1.6) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1.5) | |
| The Callisto Protocol - 1920x1080 Ultra Preset (without FSR Upscaling) + Full Ray-Tracing | |
| AMD Radeon RX 7800 XT | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Nvidia GeForce RTX 3060 Ti FE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 6800 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| PNY GeForce GTX 1660 | |
| KFA2 GeForce GTX 1660 Super | |
| Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| AMD Radeon RX 7800 XT | |
| Nvidia GeForce RTX 3060 Ti FE | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Nvidia GeForce RTX 2060 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Returnal - 1920x1080 Epic Preset + Epic Ray-Tracing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Nvidia GeForce RTX 3060 Ti FE | |
| AMD Radeon RX 6800 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| F1 23 - 1920x1080 Ultra High Preset AA:T AF:16x | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE (1016022) | |
| MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
| AMD Radeon RX 7800 XT (1022189) | |
| KFA2 GeForce GTX 1660 Super (1016022) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
| PNY GeForce GTX 1660 (1016022) | |
| Sapphire Pulse Radeon RX 7700 XT (1026791) | |
| Nvidia GeForce RTX 3060 Ti FE (1021115) | |
| AMD Radeon RX 6800 (1016022) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1026791) | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
| Sapphire Pulse Radeon RX 6750 XT (1016022) | |
| Nvidia GeForce RTX 2070 Super (1021115) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
| Nvidia GeForce RTX 2060 Super (1021115) | |
| Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
| Sapphire Pulse Radeon RX 6600 (1016022) | |
| Star Wars Jedi Survivor - 1920x1080 Epic Preset + Ray Tracing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 7700 XT | |
| AMD Radeon RX 6800 | |
| Nvidia GeForce RTX 3060 Ti FE | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| Hogwarts Legacy - 1920x1080 Ultra Preset + Full Ray Tracing AA:High T | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| AMD Radeon RX 7900 GRE | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Nvidia GeForce RTX 3060 Ti FE | |
| Sapphire Pulse Radeon RX 7700 XT | |
| AMD Radeon RX 6800 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Nvidia GeForce RTX 2070 Super | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Ghostwire Tokyo - 1920x1080 Highest Settings + Maximum Ray Tracing | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| AMD Radeon RX 7800 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Nvidia GeForce RTX 3060 Ti FE | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6600 | |
| low | med. | high | ultra | QHD | 4K DLSS | 4K | |
| GTA V (2015) | 187.9 | 186.8 | 144.3 | 65 | 45 | 48.2 | |
| The Witcher 3 (2015) | 460 | 323 | 196.1 | 71.5 | 59.6 | 73 | |
| Dota 2 Reborn (2015) | 143.9 | 129.2 | 119.1 | 111.6 | 94.2 | ||
| Rise of the Tomb Raider (2016) | 63.2 | 59.2 | 62 | 62.5 | 62.1 | ||
| Assassin´s Creed Origins (2017) | 78 | 66 | 64 | 57 | 52 | 38 | |
| Final Fantasy XV Benchmark (2018) | 127.7 | 90.7 | 51 | 44.7 | 32.1 | ||
| X-Plane 11.11 (2018) | 101.6 | 90.4 | 70.7 | 58.3 | |||
| Far Cry 5 (2018) | 156 | 117 | 109 | 104 | 82 | 49 | |
| Strange Brigade (2018) | 666 | 304 | 258 | 216 | 157.8 | 89.2 | |
| Shadow of the Tomb Raider (2018) | 269 | 139 | 129.6 | 115.8 | 86.2 | 48.8 | |
| Forza Horizon 4 (2018) | 73 | 33 | 31 | 23 | 15 | 8 | |
| Assassin´s Creed Odyssey (2018) | 78 | 65 | 56 | 45 | 40 | 30 | |
| Apex Legends (2019) | 143.9 | 144 | 143.5 | 143.6 | 132.9 | 83.2 | |
| Far Cry New Dawn (2019) | 144 | 120 | 114 | 103 | 91 | 56 | |
| Metro Exodus (2019) | 204 | 149.2 | 103.4 | 84.9 | 70.7 | 46.7 | |
| Anno 1800 (2019) | 140.1 | 102.5 | 66.7 | 38.2 | 27.4 | 17.2 | |
| Control (2019) | 212 | 108.5 | 89.4 | 65.1 | 34.9 | ||
| Borderlands 3 (2019) | 116.7 | 100.4 | 95.8 | 84.3 | 65.4 | 35.5 | |
| F1 2020 (2020) | 277 | 203 | 171.1 | 121.1 | 99.7 | 65.2 | |
| Death Stranding (2020) | 191.1 | 143.2 | 136.1 | 134 | 102 | 61.4 | |
| Horizon Zero Dawn (2020) | 135 | 126 | 115 | 103 | 84 | 47 | |
| Watch Dogs Legion (2020) | 102.9 | 101.7 | 93.3 | 73.6 | 58.5 | 36.6 | |
| Dirt 5 (2020) | 99.7 | 82.9 | 66.3 | 58.3 | 56.5 | 54.9 | |
| Assassin´s Creed Valhalla (2020) | 116 | 92 | 79 | 72 | 60 | 38 | |
| F1 2021 (2021) | 562 | 333 | 256 | 124.4 | 94 | 54.3 | |
| Far Cry 6 (2021) | 195.6 | 134 | 116.9 | 100.9 | 79.3 | 48.8 | |
| Guardians of the Galaxy (2021) | 172 | 129 | 127 | 120 | 92 | 52 | |
| Forza Horizon 5 (2021) | 238 | 139 | 127 | 84 | 74 | 54 | |
| Farming Simulator 22 (2021) | 362 | 246 | 185.9 | 168.6 | 143.3 | 92.3 | |
| God of War (2022) | 87.8 | 80.5 | 69.3 | 54.3 | 47.7 | 34.5 | |
| GRID Legends (2022) | 161.1 | 133.7 | 110.5 | 92.6 | 81.7 | 68.4 | |
| Elden Ring (2022) | 60 | 60 | 60 | 60 | 60 | 50 | |
| Cyberpunk 2077 1.6 (2022) | 78 | 70 | 61.3 | 58.2 | 44.5 | 25.6 | |
| Ghostwire Tokyo (2022) | 148.8 | 146.7 | 146.3 | 138.8 | 99.7 | 50.3 | |
| Tiny Tina's Wonderlands (2022) | 203 | 162.9 | 114.6 | 94 | 65.8 | 34.1 | |
| F1 22 (2022) | 296 | 267 | 216 | 73.2 | 47.4 | 22.7 | |
| The Quarry (2022) | 125.4 | 100 | 80.4 | 61.5 | 43.4 | 22.4 | |
| A Plague Tale Requiem (2022) | 97.3 | 83.8 | 66.1 | 51.1 | 39.5 | 23.6 | |
| Uncharted Legacy of Thieves Collection (2022) | 63.5 | 61.4 | 59.4 | 57.5 | 47.8 | 29.5 | |
| Spider-Man Miles Morales (2022) | 137.3 | 124.4 | 117.4 | 111.5 | 87.2 | 47.2 | |
| The Callisto Protocol (2022) | 168.7 | 128.4 | 120.5 | 85.8 | 68.8 | 44.9 | |
| Need for Speed Unbound (2022) | 114.3 | 103.4 | 84.5 | 84.3 | 65.1 | 39.1 | |
| High On Life (2023) | 268 | 175.3 | 142.5 | 113.7 | 73 | 33.7 | |
| The Witcher 3 v4.00 (2023) | 154.9 | 129.7 | 115.6 | 104.5 | 94.8 | 52.1 | |
| Dead Space Remake (2023) | 79.2 | 76 | 69.5 | 67.7 | 48.8 | 26.5 | |
| Hogwarts Legacy (2023) | 125.1 | 92.2 | 74 | 62.2 | 47 | 27.4 | |
| Returnal (2023) | 93 | 90 | 83 | 72 | 58 | 37 | |
| Atomic Heart (2023) | 179.1 | 131.9 | 99.3 | 72.2 | 58.3 | 34.1 | |
| Company of Heroes 3 (2023) | 182.7 | 155.2 | 125.9 | 123.8 | 94.4 | 59 | |
| Sons of the Forest (2023) | 70.3 | 54.5 | 54.2 | 54 | 39.5 | 23 | |
| Resident Evil 4 Remake (2023) | 165.8 | 119.9 | 111 | 75.2 | 60.7 | 37.1 | |
| The Last of Us (2023) | 69.5 | 58.5 | 52.9 | 45.4 | 34.3 | 18.9 | |
| Dead Island 2 (2023) | 217 | 187.3 | 149 | 117.8 | 88.2 | 46 | |
| Star Wars Jedi Survivor (2023) | 81.1 | 73.1 | 68.4 | 65.1 | 44 | 22.3 | |
| Diablo 4 (2023) | 213 | 193.8 | 177.5 | 157.1 | 112.6 | 61.7 | |
| F1 23 (2023) | 299 | 264 | 196.7 | 67.2 | 44.2 | 21.4 | |
| Ratchet & Clank Rift Apart (2023) | 113 | 98 | 79.2 | 68.5 | 56.4 | 36.2 | |
| Baldur's Gate 3 (2023) | 130.1 | 109.6 | 94.6 | 90.9 | 63.8 | 33.8 | |
| Atlas Fallen (2023) | 141.4 | 133.9 | 126.3 | 108.9 | 79.4 | 44.3 | |
| Immortals of Aveum (2023) | 56.6 | 49 | 40.6 | 30.5 | 18.3 | ||
| Armored Core 6 (2023) | 71.6 | 69.3 | 68 | 67.9 | 66.9 | 46.7 | |
| Starfield (2023) | 48.9 | 42.8 | 36.3 | 33.6 | 28.8 | 20.5 | |
| Lies of P (2023) | 174.5 | 154.5 | 136.8 | 123.6 | 88.8 | 47.5 | |
| Cyberpunk 2077 2.0 Phantom Liberty (2023) | 116.3 | 99 | 88.3 | 83.2 | 58.6 | 9.65 | 30.4 |
| Counter-Strike 2 (2023) | 317 | 270 | 168.1 | 117 | 89.6 | 46.7 | |
| EA Sports FC 24 (2023) | 221 | 201 | 161.3 | 152.5 | 123 | 77 | |
| Assassin's Creed Mirage (2023) | 77 | 70 | 70 | 64 | 50 | 34 | |
| Total War Pharaoh (2023) | 386 | 244 | 151 | 119 | 86 | 46 | |
| Lords of the Fallen (2023) | 100.4 | 89.8 | 73.1 | 59.4 | 50.4 | 35.1 | |
| Alan Wake 2 (2023) | 56.5 | 55 | 51.6 | 36.1 | 20.1 | ||
| EA Sports WRC (2023) | 107.1 | 77.7 | 70.1 | 65.9 | 52.7 | 33.2 | |
| Call of Duty Modern Warfare 3 2023 (2023) | 106 | 97 | 79 | 75 | 57 | 36 | |
| Avatar Frontiers of Pandora (2023) | 65 | 61 | 52 | 42 | 30 | 16 | |
| The Finals (2023) | 204 | 161.7 | 146.2 | 121.5 | 83 | 40.5 | |
| Ready or Not (2023) | 202 | 198.3 | 190.6 | 134.9 | 86.6 | 38 |
Emissions - Low power consumption but unfortunately always audible
Noise Levels
The Acer Predator BiFrost Arc A770 OC has two different fans. Unfortunately, there is no fan stop mode, so the graphics card is always audible. At 39 dB(A), our test unit can be heard during idle operation and under low load. We perform all the noise measurements using an open test setup. If the graphics card is used in a closed case, the noise level should be lower. We measure the maximum noise level at 42.5 dB(A) during the stress test. In our comparison, the Acer Predator BiFrost Arc A770 OC places in the middle of the field. We have already tested both significantly louder as well as quieter desktop graphics cards in the past. The chart below compares our test unit with the current midrange graphics cards from AMD and Nvidia.
Noise Level
| Idle |
| 39 / 39 / 39 dB(A) |
| Load |
| 39 / 42.1 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 25.4 dB(A) | ||
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | AMD Radeon RX 7800 XT | KFA2 GeForce RTX 4070 Ti EX Gamer | KFA2 GeForce RTX 4070 EX Gamer | KFA2 GeForce RTX 4060 1-Click-OC 2X | ASUS Dual GeForce RTX 4060 Ti OC | XFX Speedster QICK 308 Radeon RX 7600 Black Edition | Sapphire Pulse Radeon RX 7700 XT | |
|---|---|---|---|---|---|---|---|---|
| Noise | 16% | 10% | 12% | 16% | 16% | 19% | 16% | |
| off / environment * | 25.4 | 24.7 3% | 30 -18% | 30 -18% | 25.8 -2% | 25.4 -0% | 25.4 -0% | 25 2% |
| Idle Minimum * | 39 | 26.8 31% | 30.1 23% | 30.2 23% | 25.9 34% | 26.7 32% | 26.3 33% | 27.4 30% |
| Idle Average * | 39 | 27.2 30% | 30.1 23% | 30.2 23% | 25.9 34% | 26.7 32% | 26.3 33% | 27.5 29% |
| Idle Maximum * | 39 | 27.3 30% | 30.1 23% | 30.2 23% | 25.9 34% | 26.7 32% | 26.3 33% | 28 28% |
| Load Average * | 39 | 30.7 21% | 30.2 23% | 31.8 18% | 30.3 22% | 29.3 25% | 29.6 24% | 32.6 16% |
| Witcher 3 ultra * | 41.5 | 42.6 -3% | 40.2 3% | 45.2 -9% | 42.5 -2% | 39.6 5% | 42.1 -1% | |
| Load Maximum * | 42.1 | 43 -2% | 44.7 -6% | 41.1 2% | 43.5 -3% | 46 -9% | 39.4 6% | 37.6 11% |
* ... smaller is better
Temperatures and Power Consumption
The cooling unit used in the Acer Predator BiFrost Arc A770 OC reminds us in parts of older graphics cards that were transferring the heat directly from the case. The principle is basically sound, and the graphics card shouldn't lead to significantly increased temperatures inside the case. During the stress test, we see a maximum temperature of 82 °C (180 °F), which shouldn't be cause for concern at all. In contrast to the noise measurements, we performed the temperature measurements and all the gaming tests using a closed case.
The power consumption of the Acer Predator BiFrost Arc A770 OC turns out surprisingly low. While gaming, we only measure 287 watts on average for the complete system. This is only minimally more than with a KFA2 GeForce RTX 4060. The stress test poses higher demands on the power supply. At 350 watts, our test system with the Acer Predator BiFrost Arc A770 OC consumes a similar amount of power as a system with an XFX Speedster QICK 308 Radeon RX 7600.
In terms of efficiency, the Acer Predator BiFrost Arc A770 OC is unable to keep up with the competitors. Acer recommends using a power supply with 650 watts for our test system. This is a good choice in our opinion, even though we did not reach the 400 Watt mark during the test.
| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 7800 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
* ... smaller is better
Power Consumption With External Monitor
Pros
Cons
Verdict - A good alternative for current games
The Acer Predator BiFrost Arc A770 OC is a solid desktop graphics card that is well-suited for playing games in 1080p. With 16 GB of VRAM, the graphics card is well equipped, which is a positive factor when playing many current games. Even in 1080p, there are many games that use more than 8 GB of VRAM. This prevents drops in the frame rates and ensures a smoother gaming experience overall, thanks to stable P1 values. All our tests ran surprisingly well, and we did not encounter any significant problems during the tests.
With the Acer Predator BiFrost Arc A770 OC, you currently get a solid graphics card to play modern games in 1080p.
Even though some games can also be played in 1440p, we see the graphics card more in the FullHD area. However, you also have to be aware that there are a few games that don't get along with the graphics card at all. We can only wait and see whether Intel will be able to improve the performance of the Arc graphics card further with the continuous driver adjustments. Since its release last year, an extreme amount of work has been done in terms of improvements, so that the top model is now even competitive with AMD and Nvidia. Another point that speaks for an Intel Arc graphics card is the AV1 support.
At a current price of 379 Euros (~$400), our test unit is slightly more expensive than an XFX Speedster QICK 308 Radeon RX 7600 or a KFA2 GeForce RTX 4060. But there is also more video storage and compared to the AMD model even a considerably higher raytracing performance. If Intel is able to further improve that with the next generation, it will be great for the customers, since the price of the graphics cards from Intel is good. There still remains a lot of work to be done for sure, but those who already splurged on a model of the Arc A770 when it was released last year will still be able to get some good, playable results with it now.
Price and Availability
The Acer Predator BiFrost Arc A770 OC is currently available from Acer directly for about $400 or from Amazon, where it currently costs $377.
Transparency
The present review sample was freely purchased by the author at his/her own expense. The manufacturer did not receive a copy of this review before publication, nor was there any obligation to publish it.
