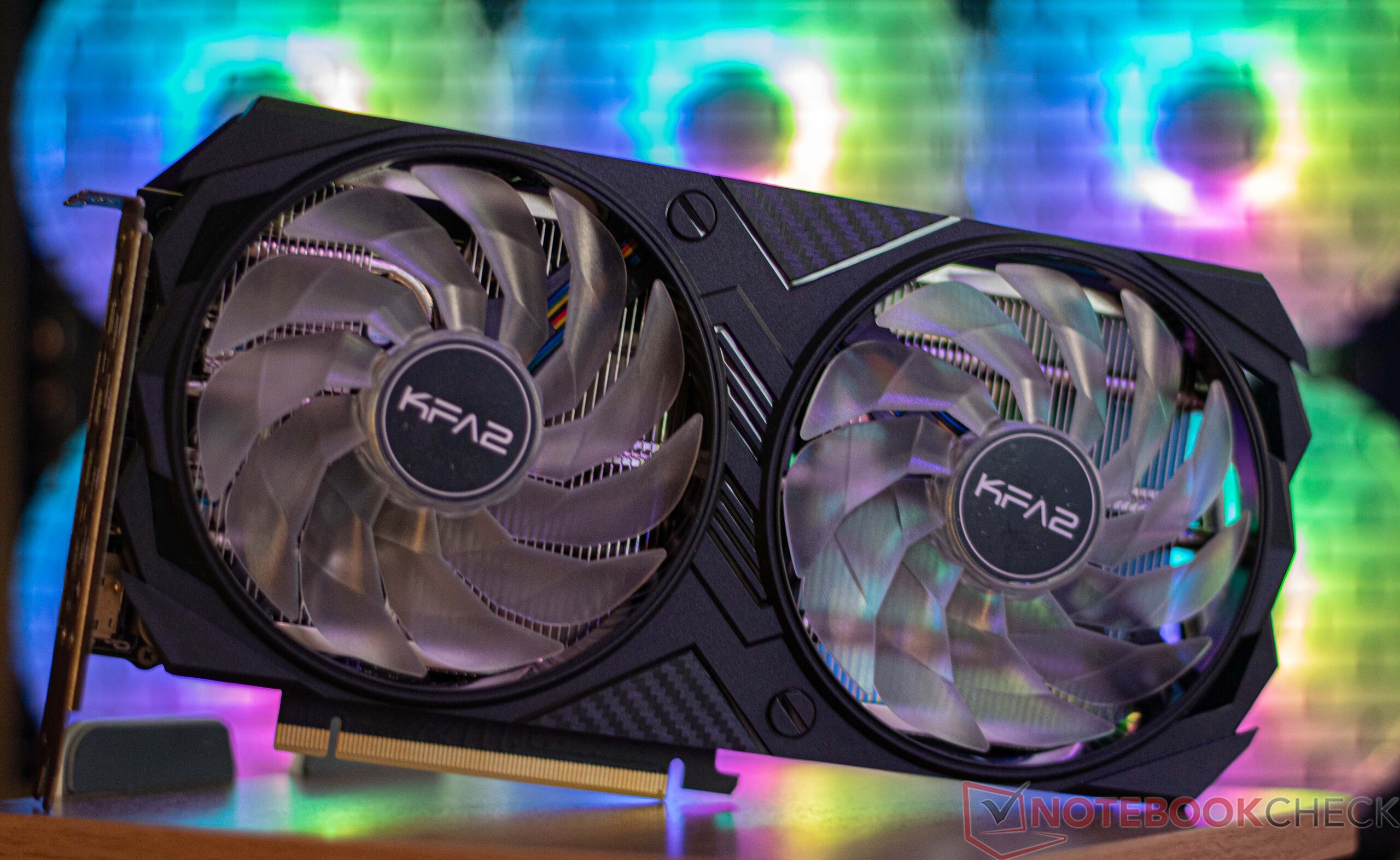

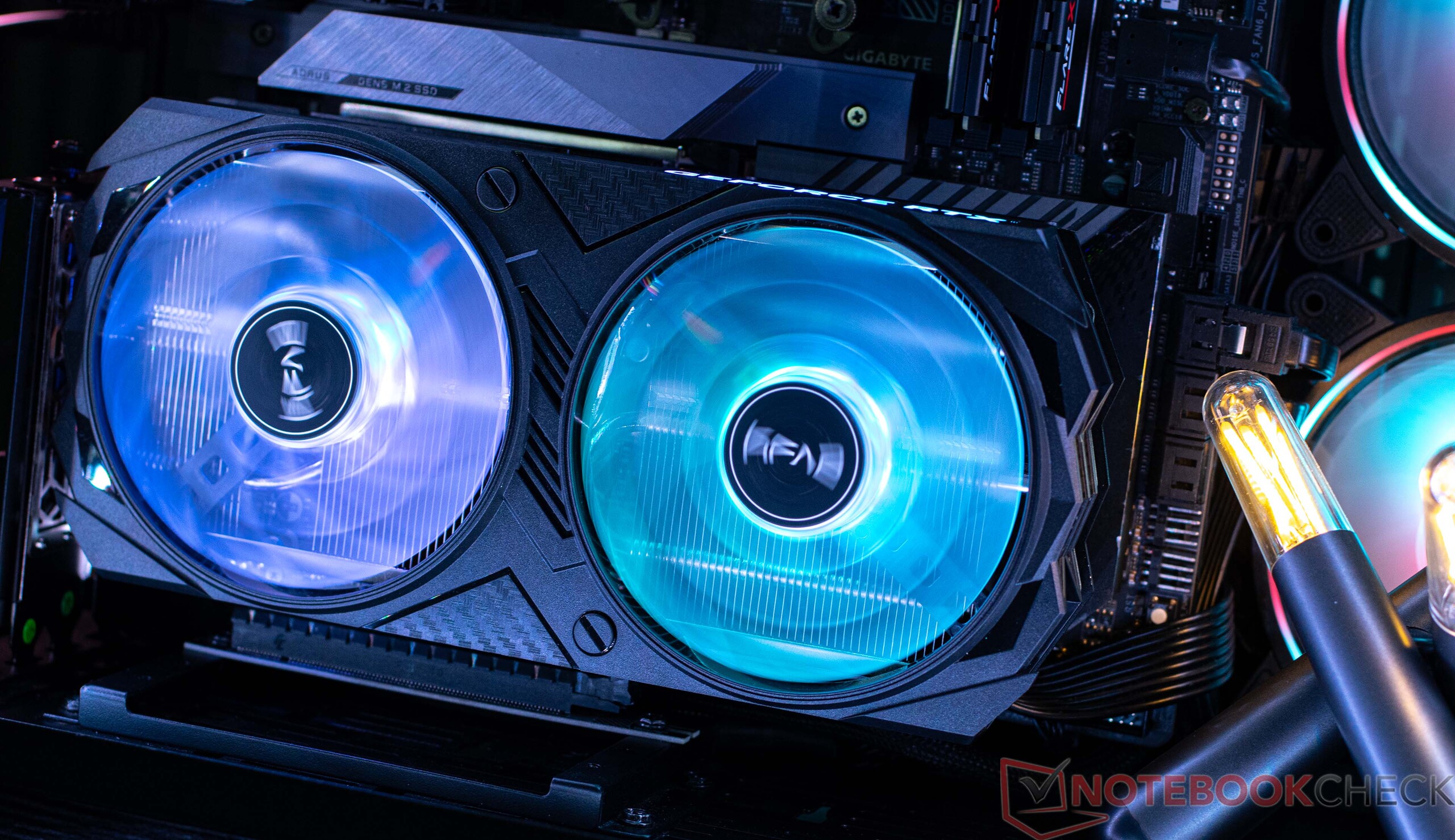

KFA2 GeForce RTX 4060 Ti EX 16 GB desktop graphics card review: A powerful mid-range GPU now with more VRAM

With the announcement of the Nvidia GeForce RTX 4060 Ti, the 16-GB model was simultaneously presented. However, this model took a little longer to start appearing on shelves. There was already quite a bit of criticism when it was announced, as Nvidia stayed true to its VRAM culture with the well-known 8-GB model. In order to mitigate the criticism a little bit, Nvidia also announced the GeForce RTX 4060 Ti with double the memory.

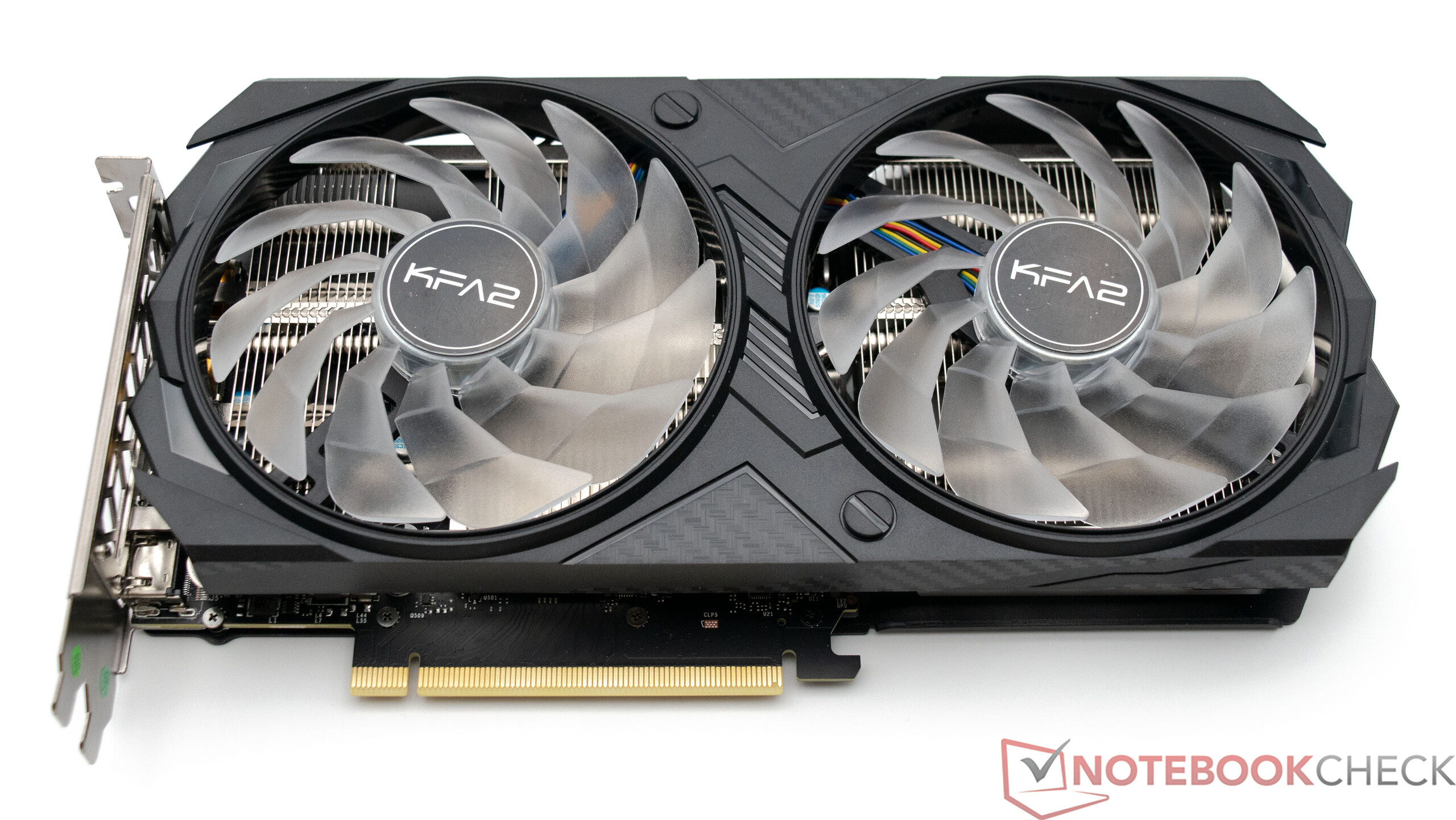

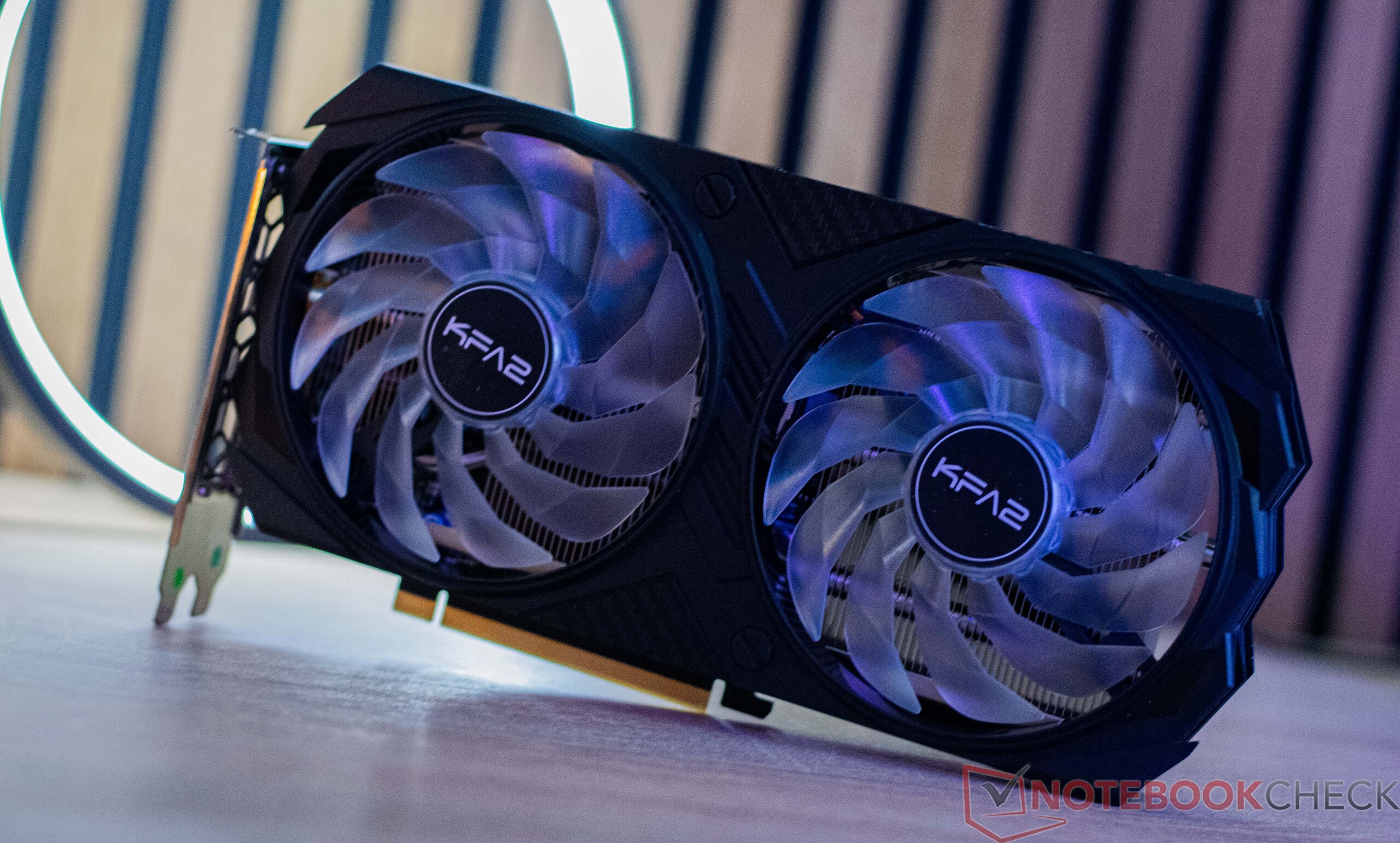

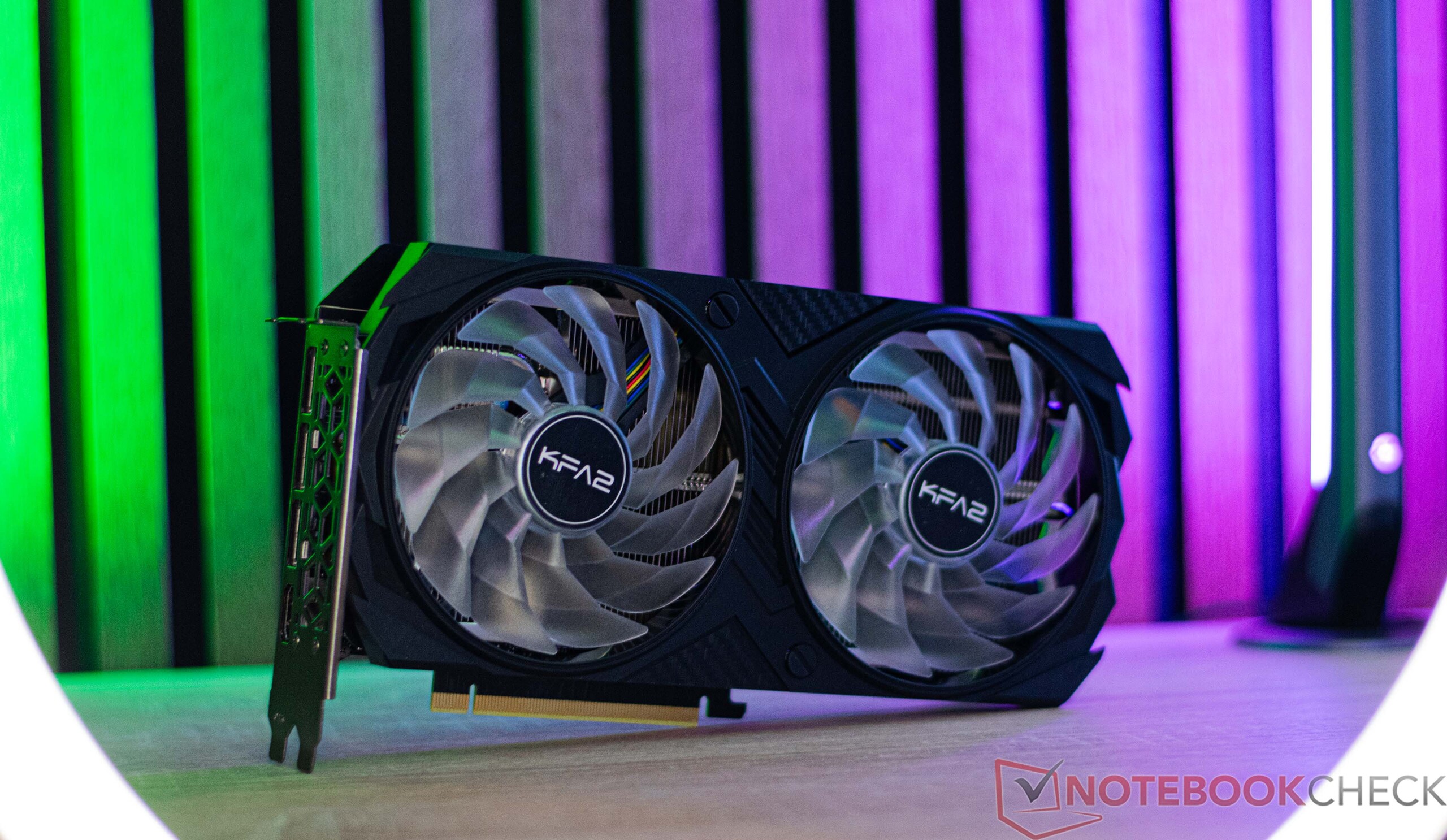

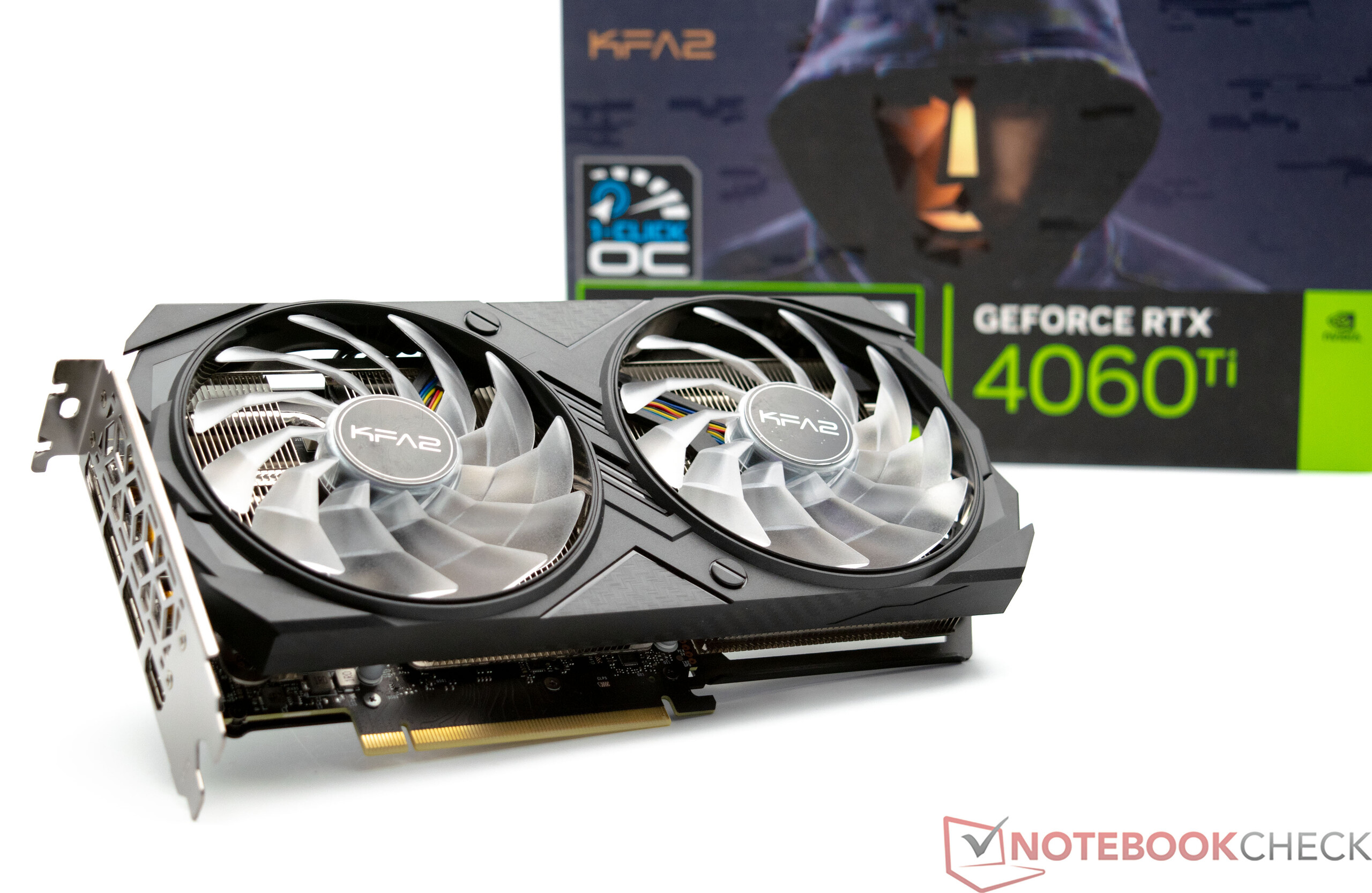

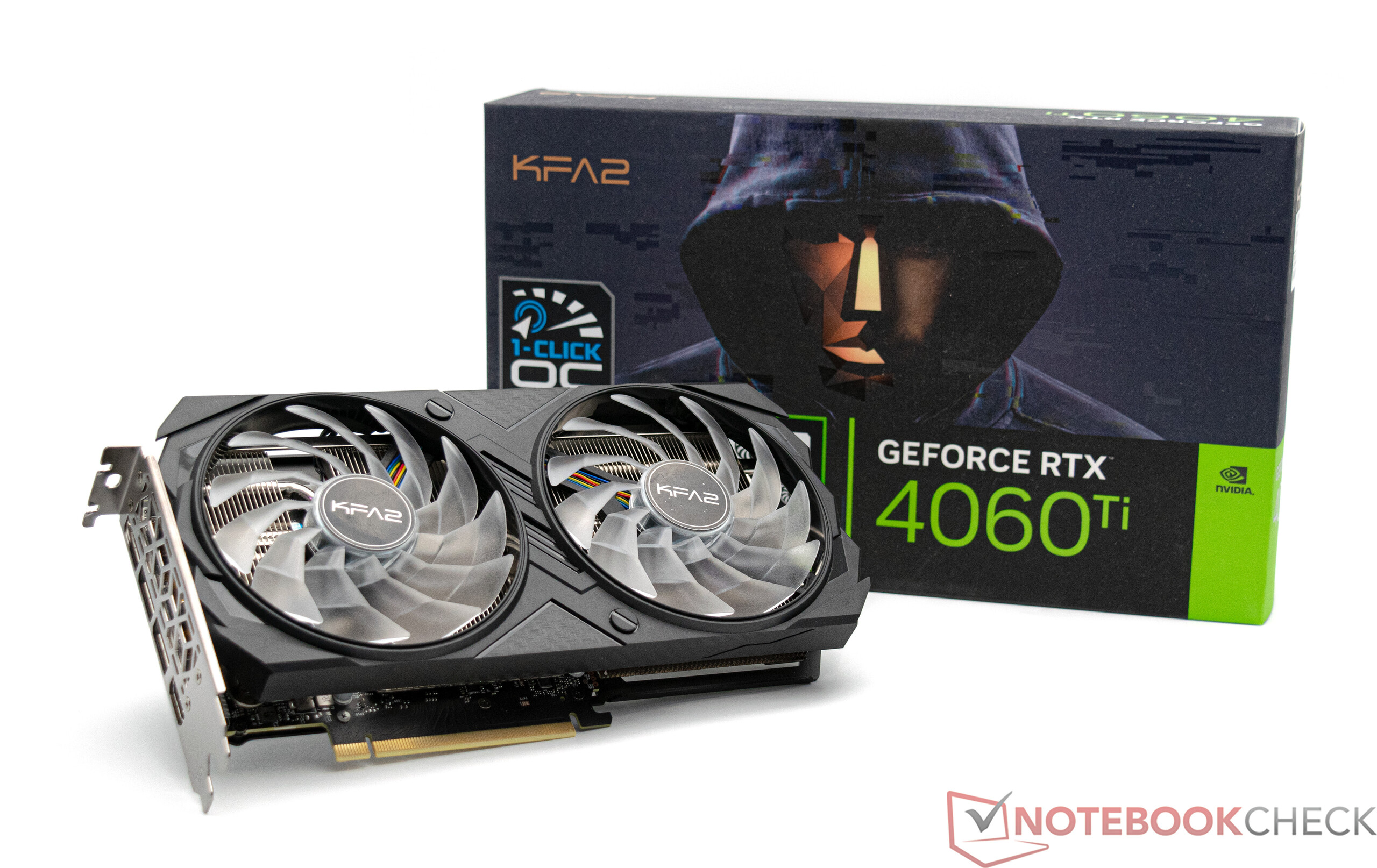

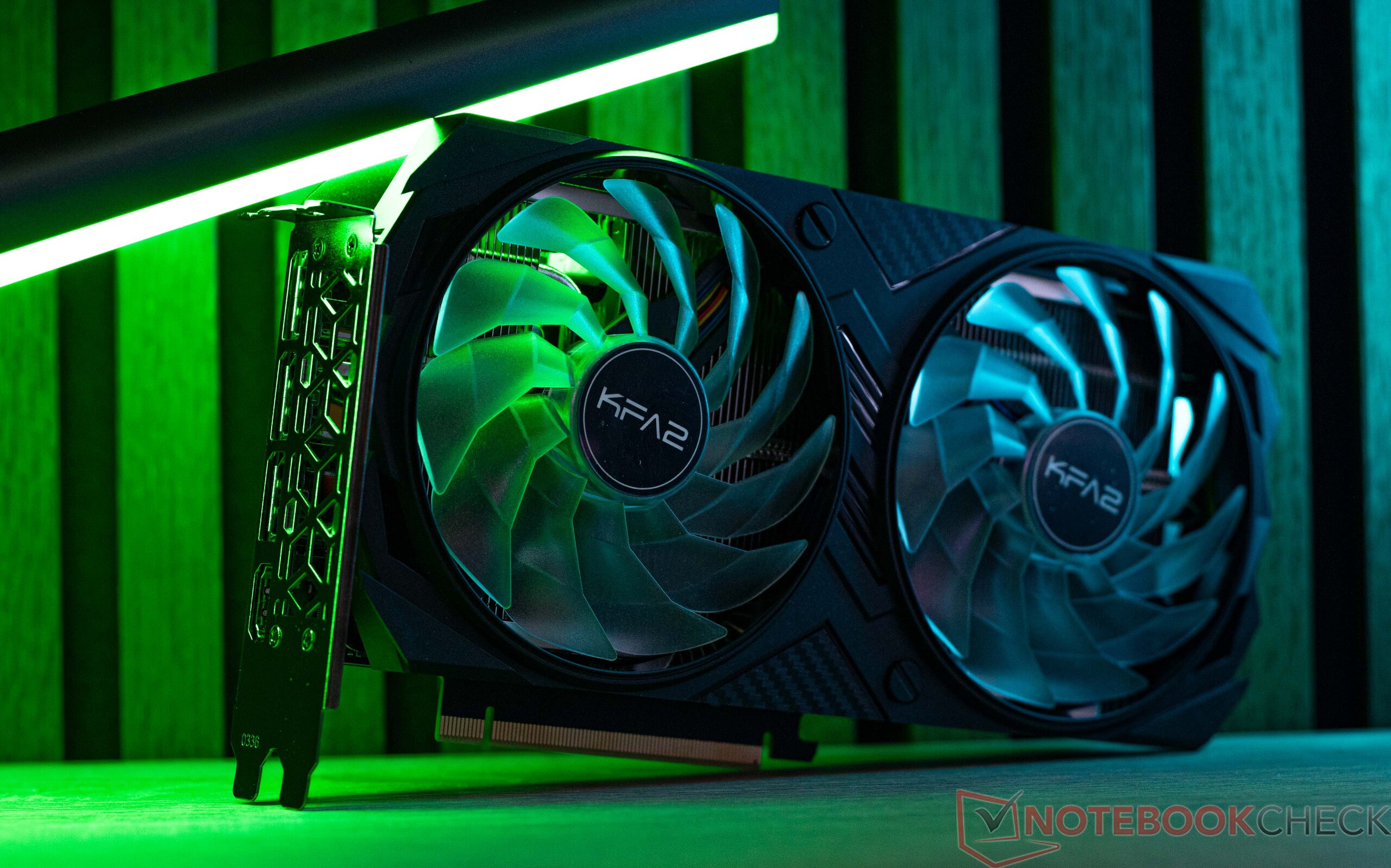

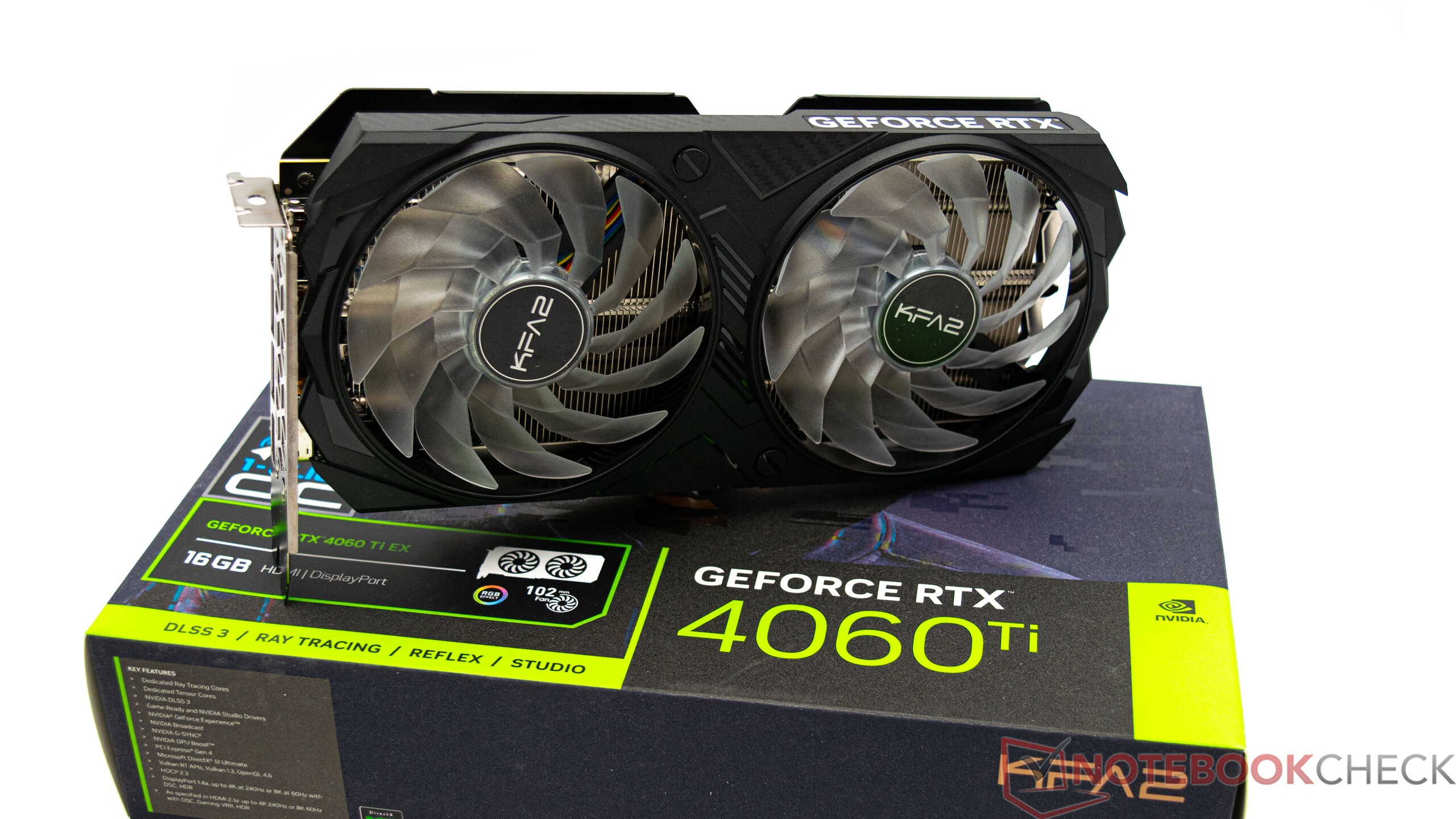

We will be taking a look at this model precisely, the KFA2 GeForce RTX 4060 Ti EX. We will also be comparing it to the competition and especially to the 8-GB model based on the same graphics chip. In general, all their tech specs are the same when it comes to shader units. This makes it clear that the 16-GB model won't offer more raw power. Smaller deviations can be found in its maximum power consumption, which now lies at 165 watts. This is only 5 watts more than on the 8-GB model. The previous test sample was also from KFA2 (KFA2 GeForce RTX 4060 Ti EX) which, visually, doesn't look any different to the 16-GB model. As a result, they have the exact same advantages and disadvantages. With a length of 25 centimetres, the graphics card is relatively compact and its 2-slot cooler is enough to cool the component effectively. It continues to rely on a 6+2 Pin PCIe connection as a power supply.

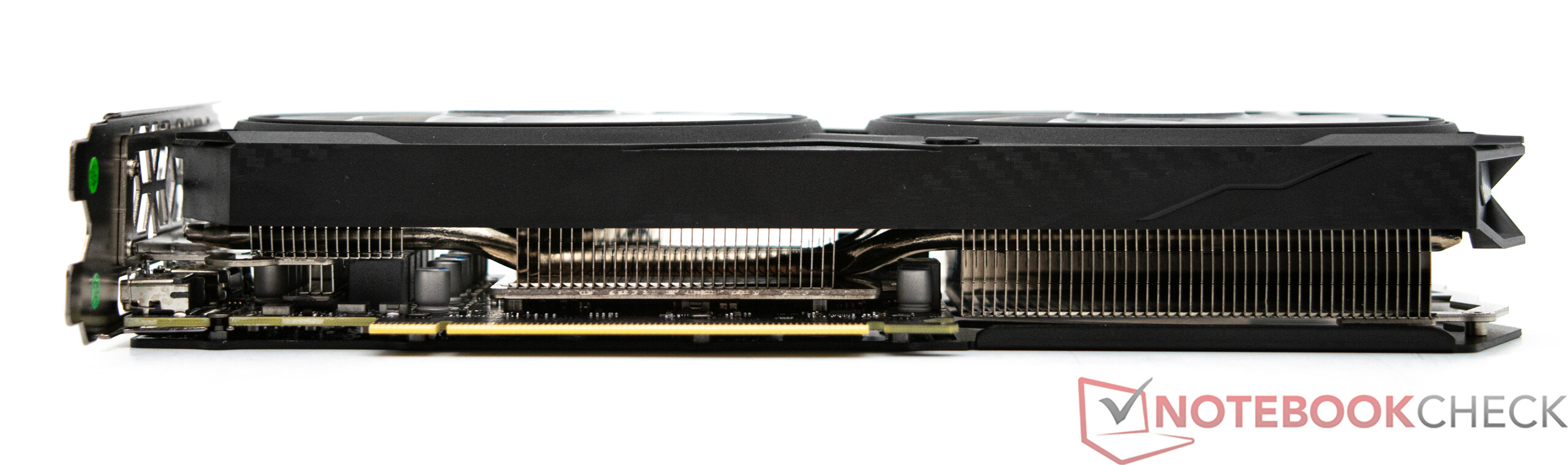

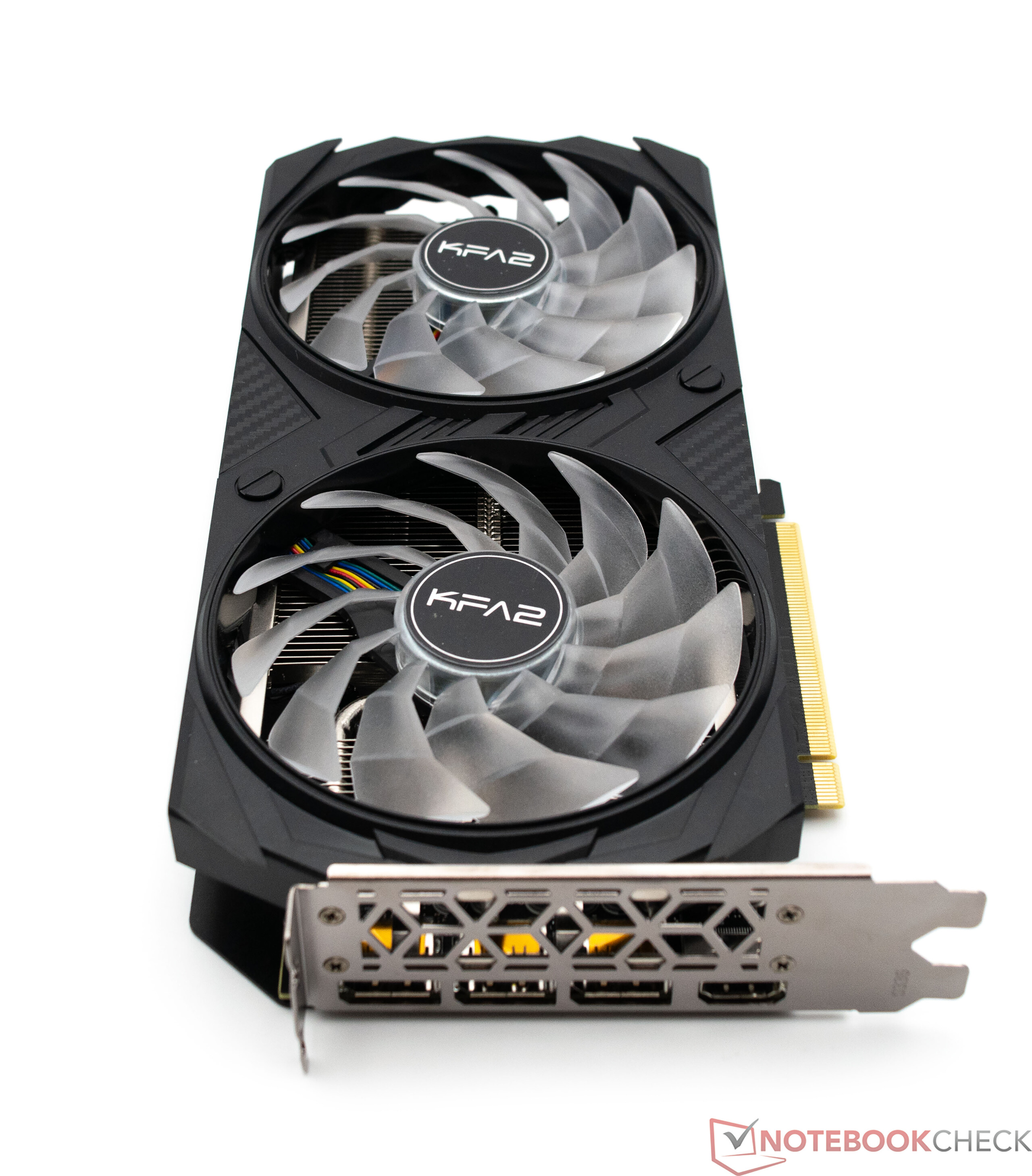

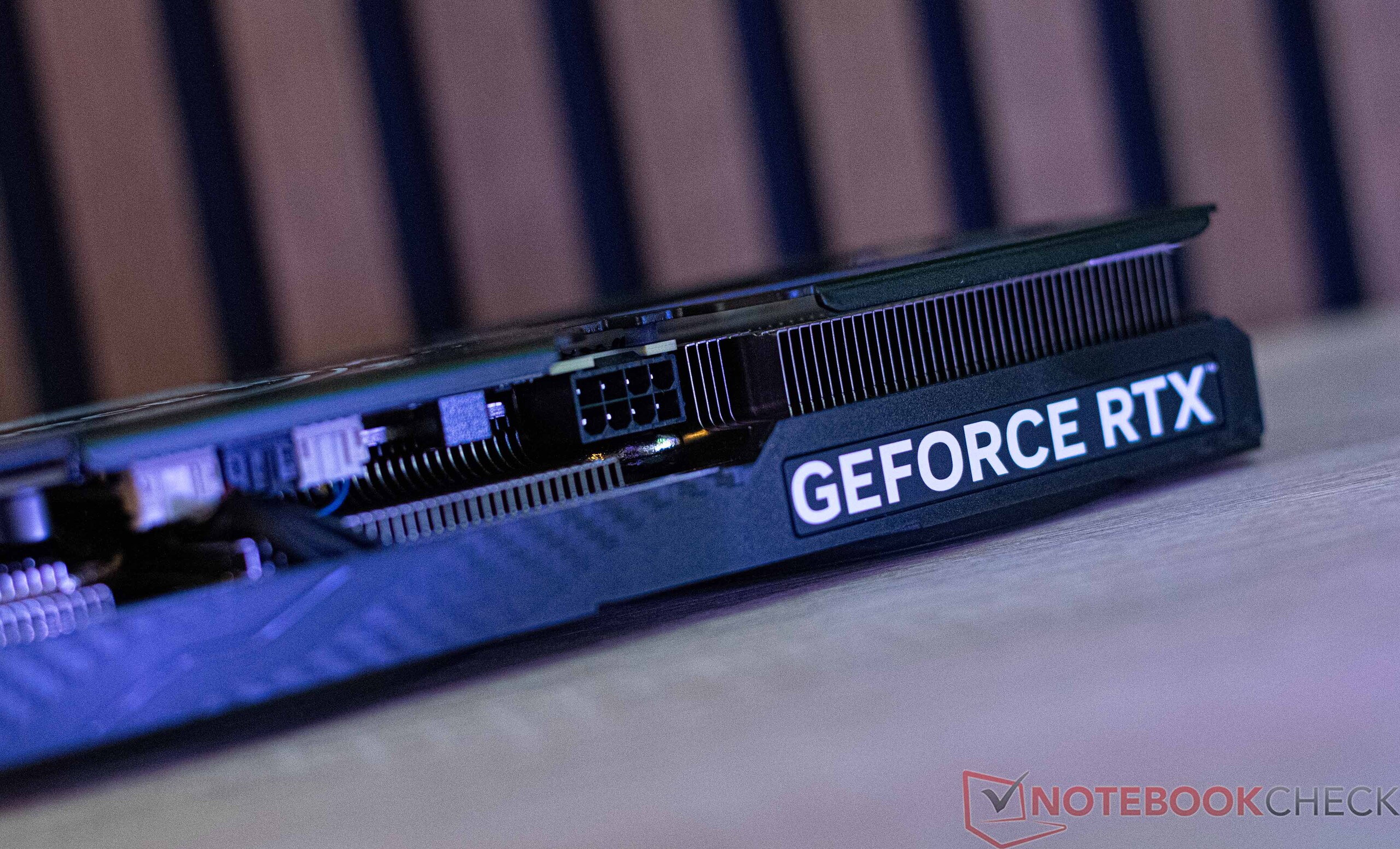

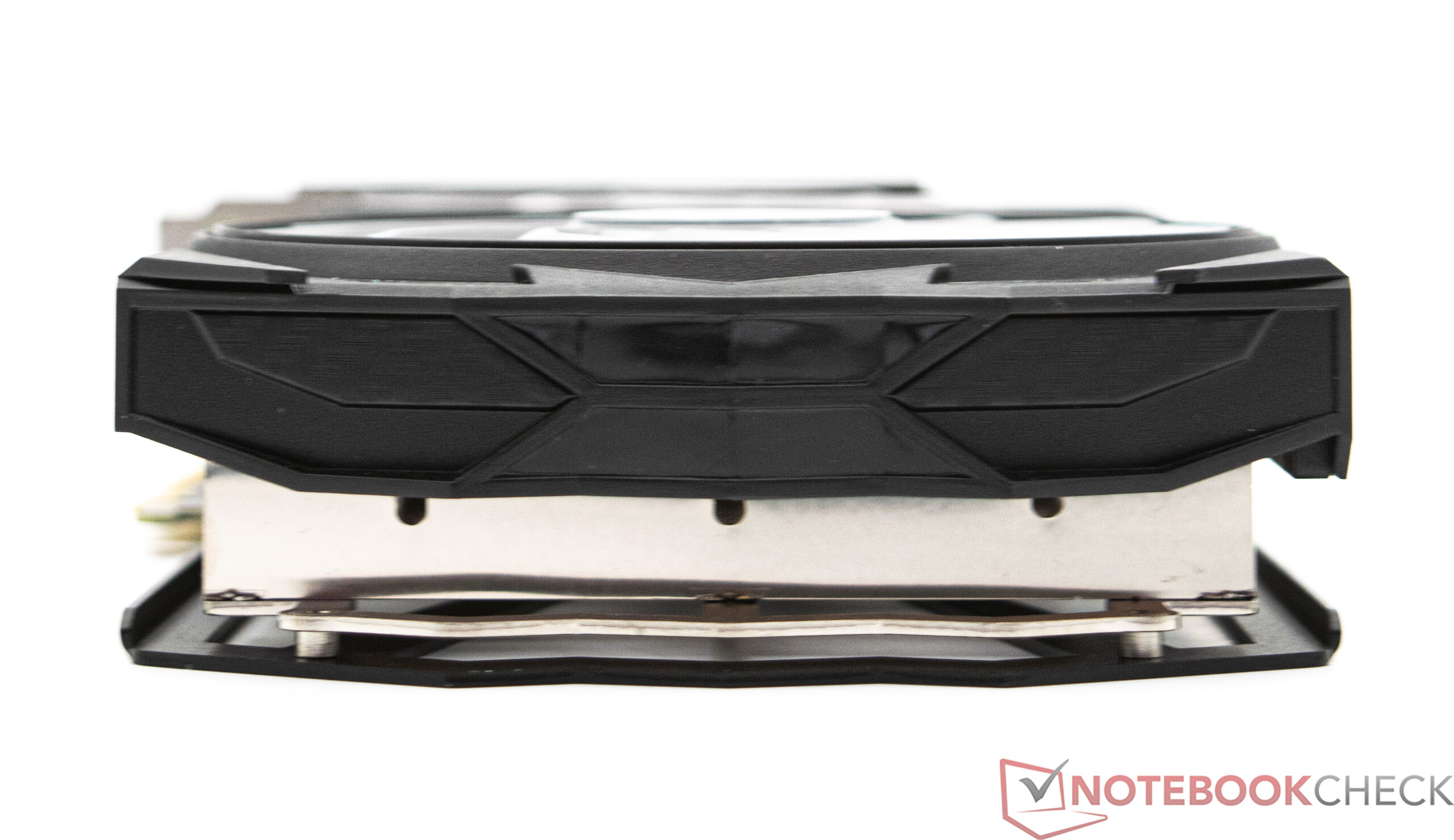

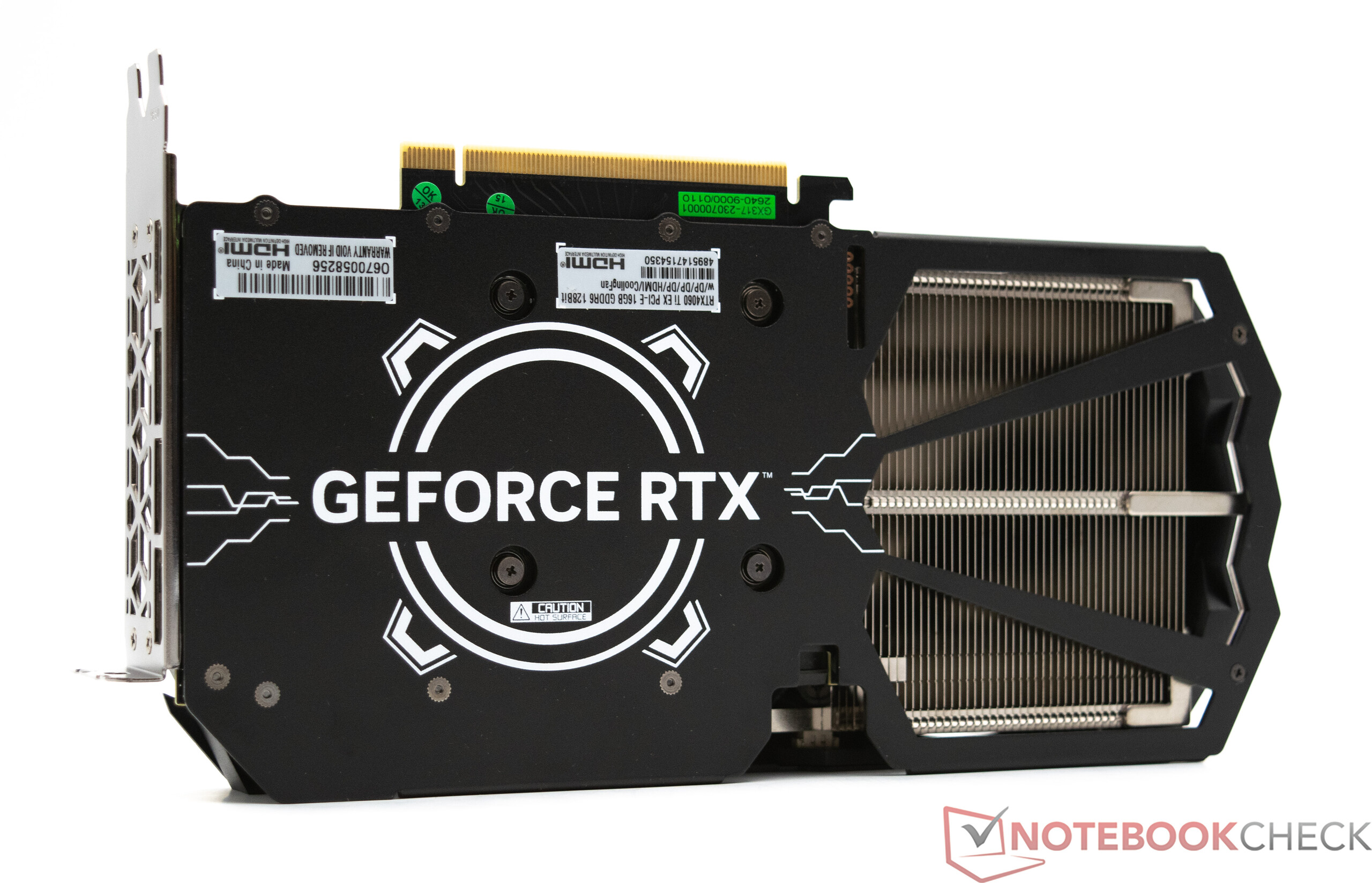

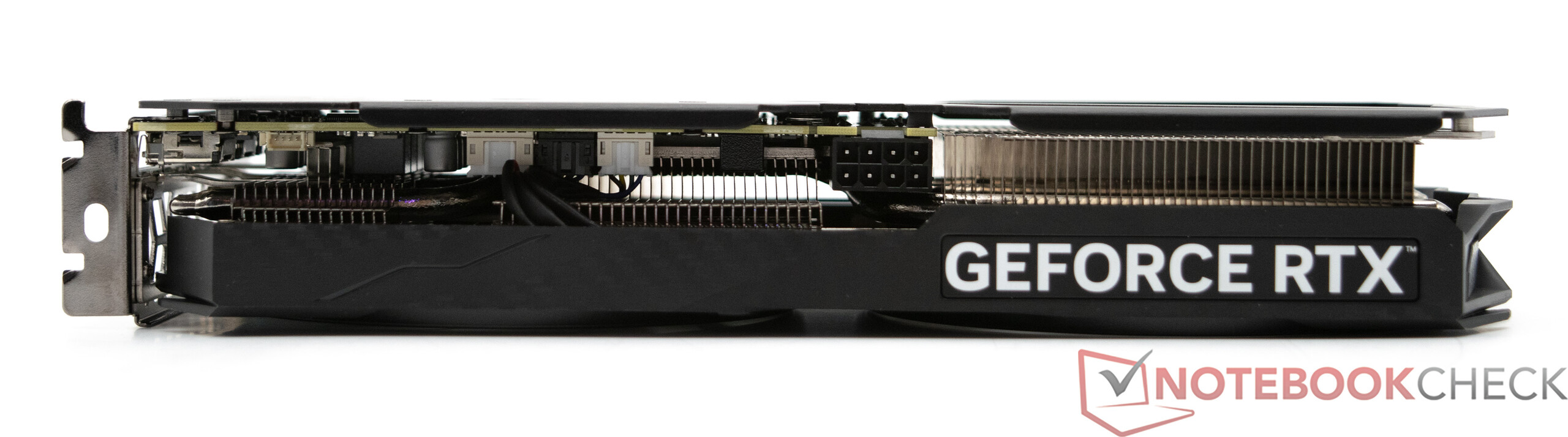

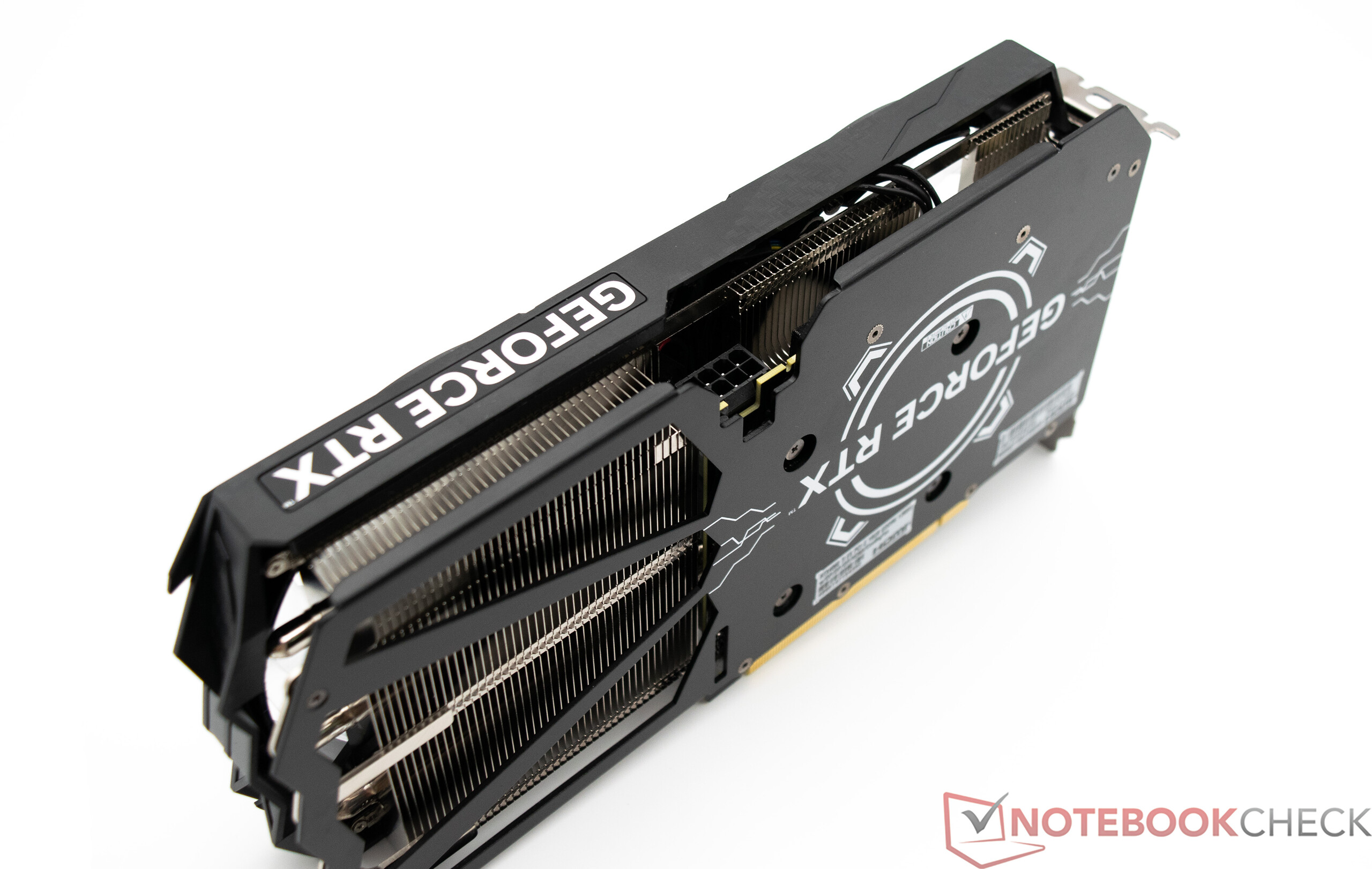

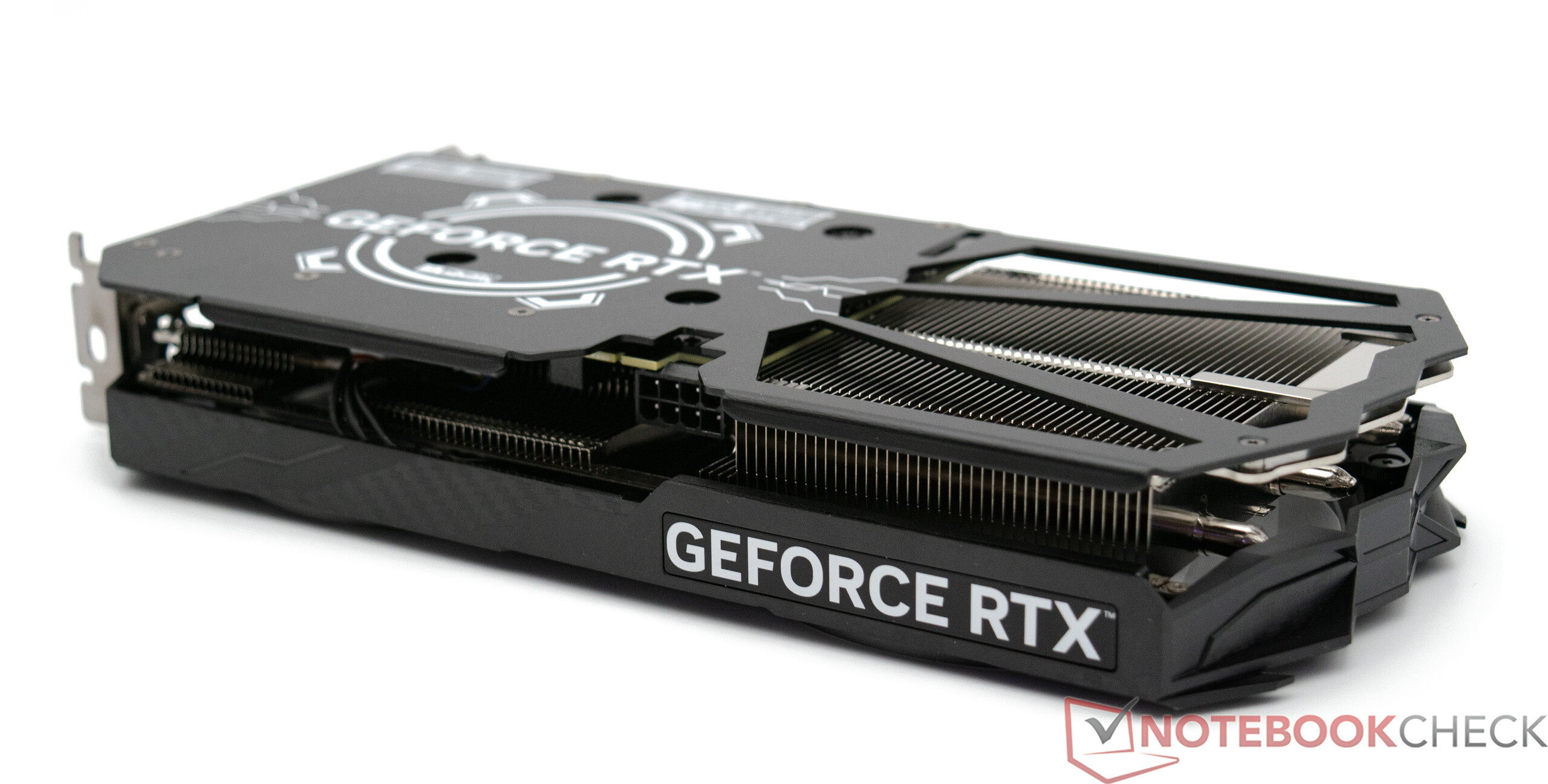

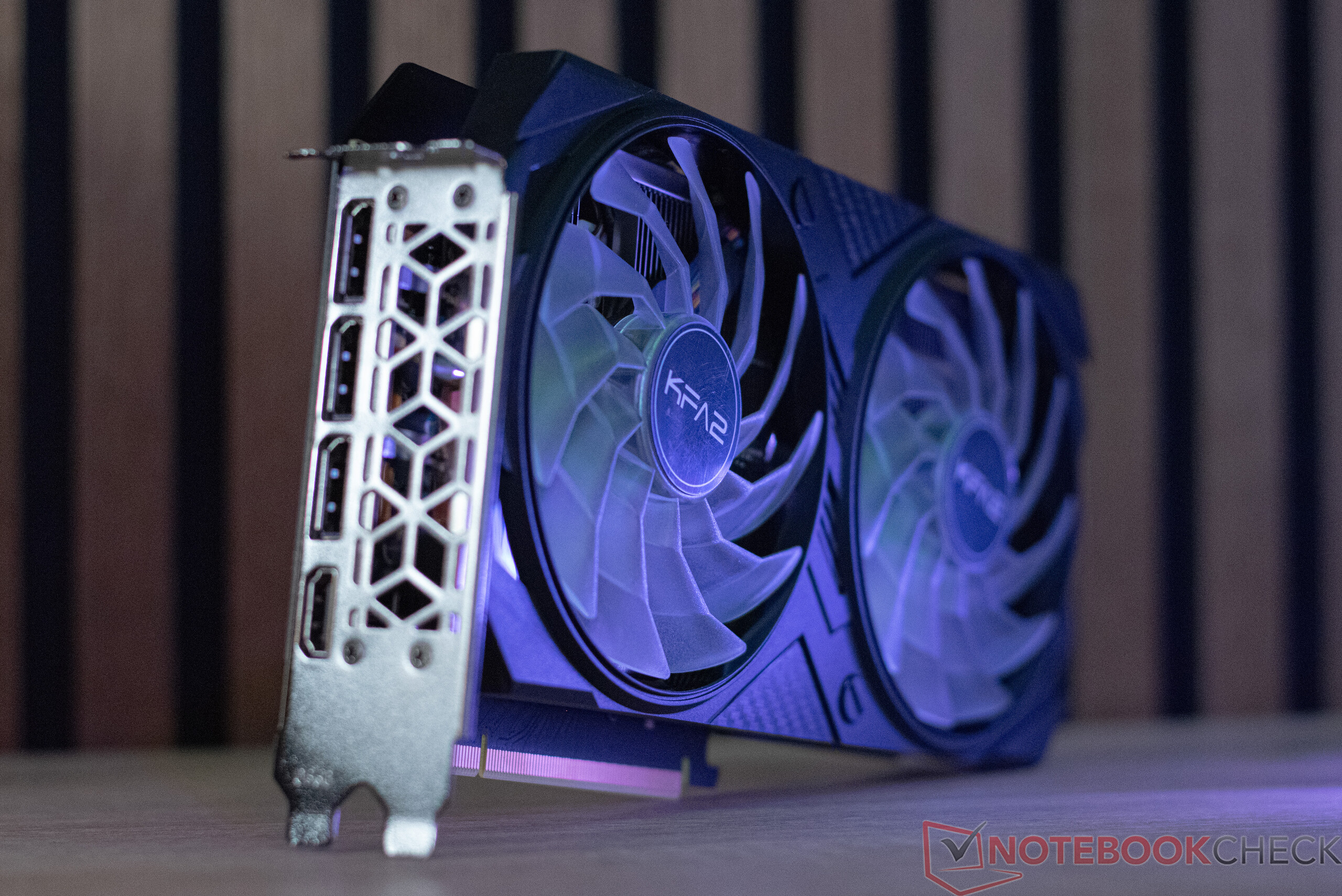

When it comes to external connections, the graphics card continues to forgo DisplayPort 2.1. Only AMD takes the lead here and has equipped its RX 7000 models with this modern connection. As a result, displays can be connected via HDMI 2.1a (1x) and/or DisplayPort 1.4a (3x).

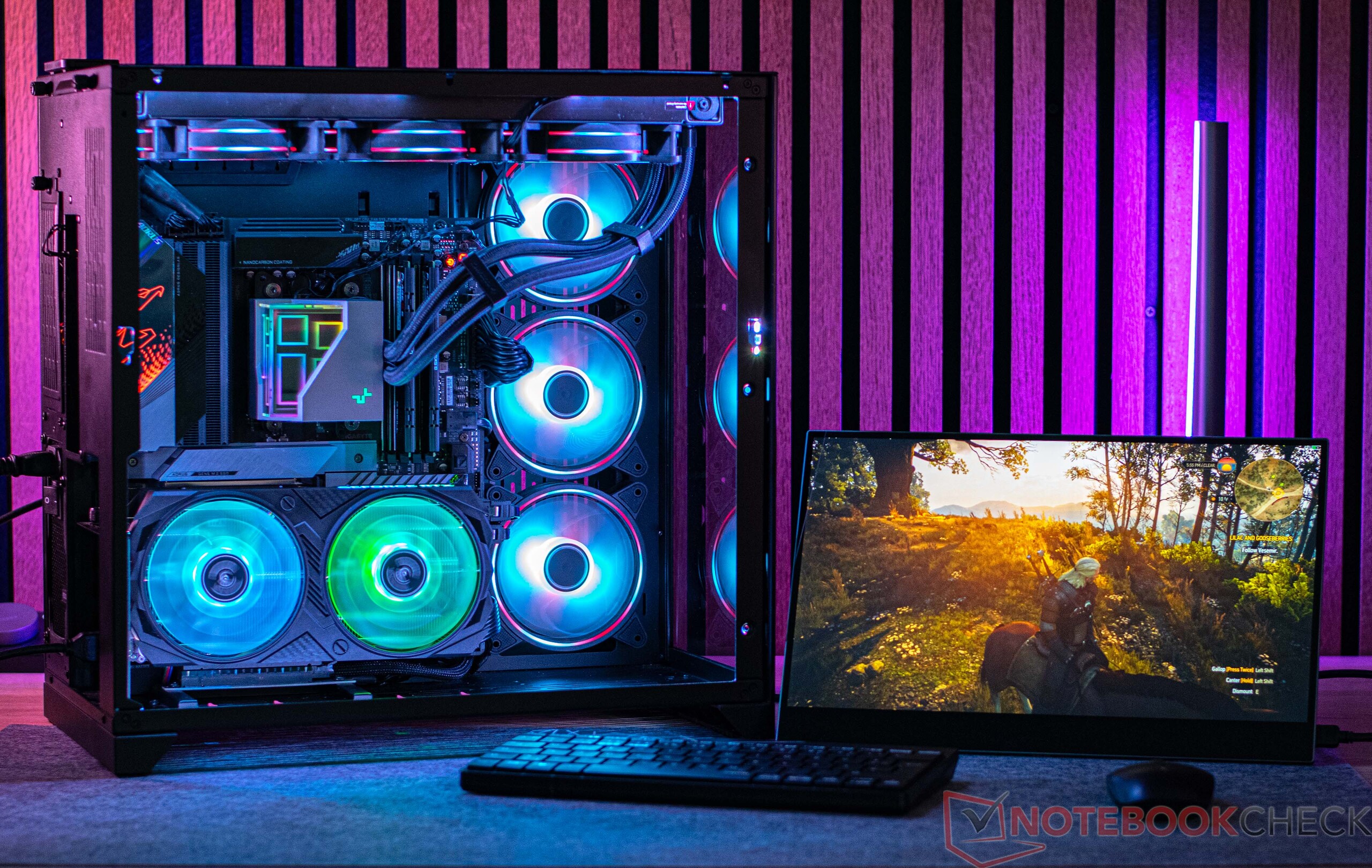

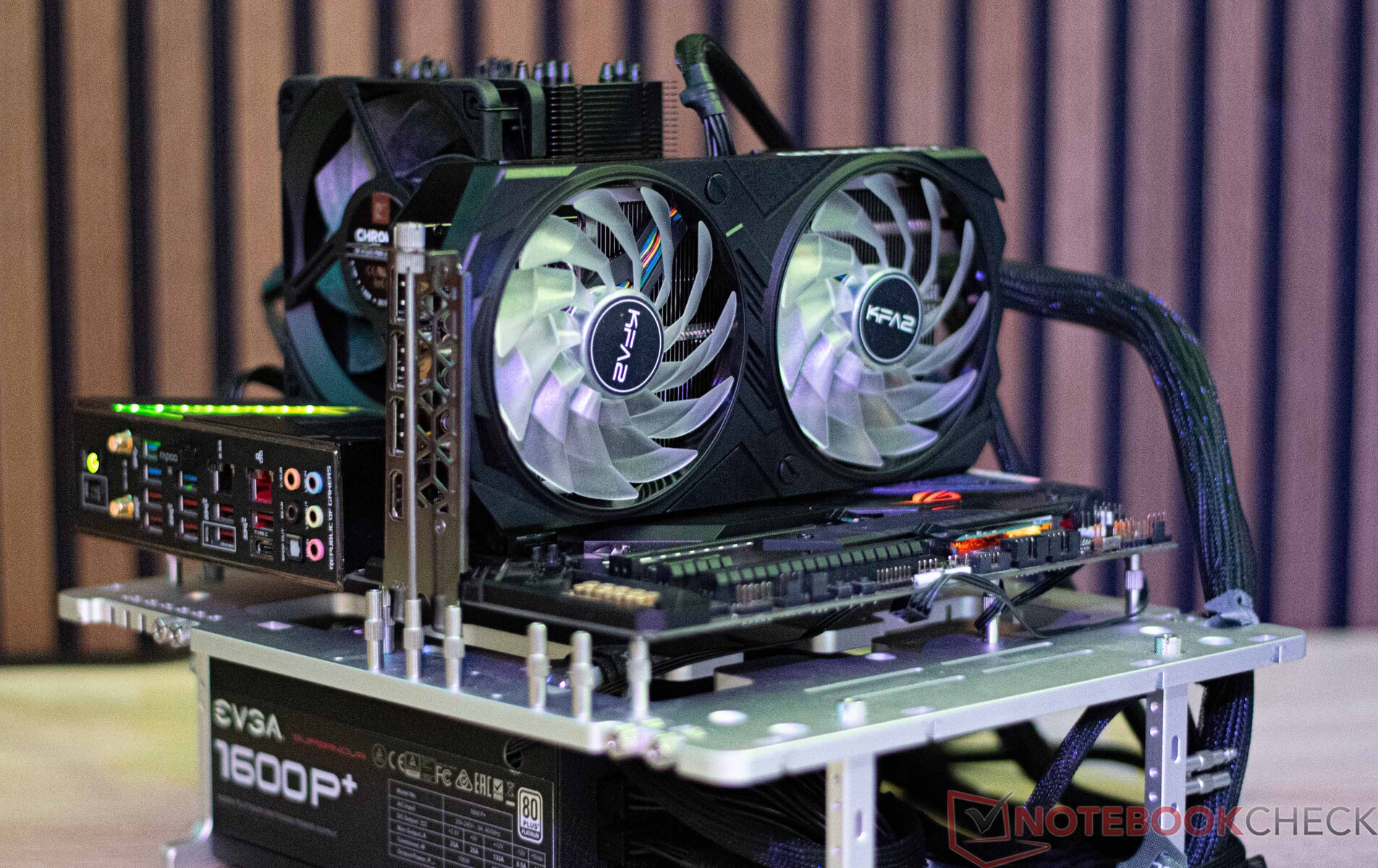

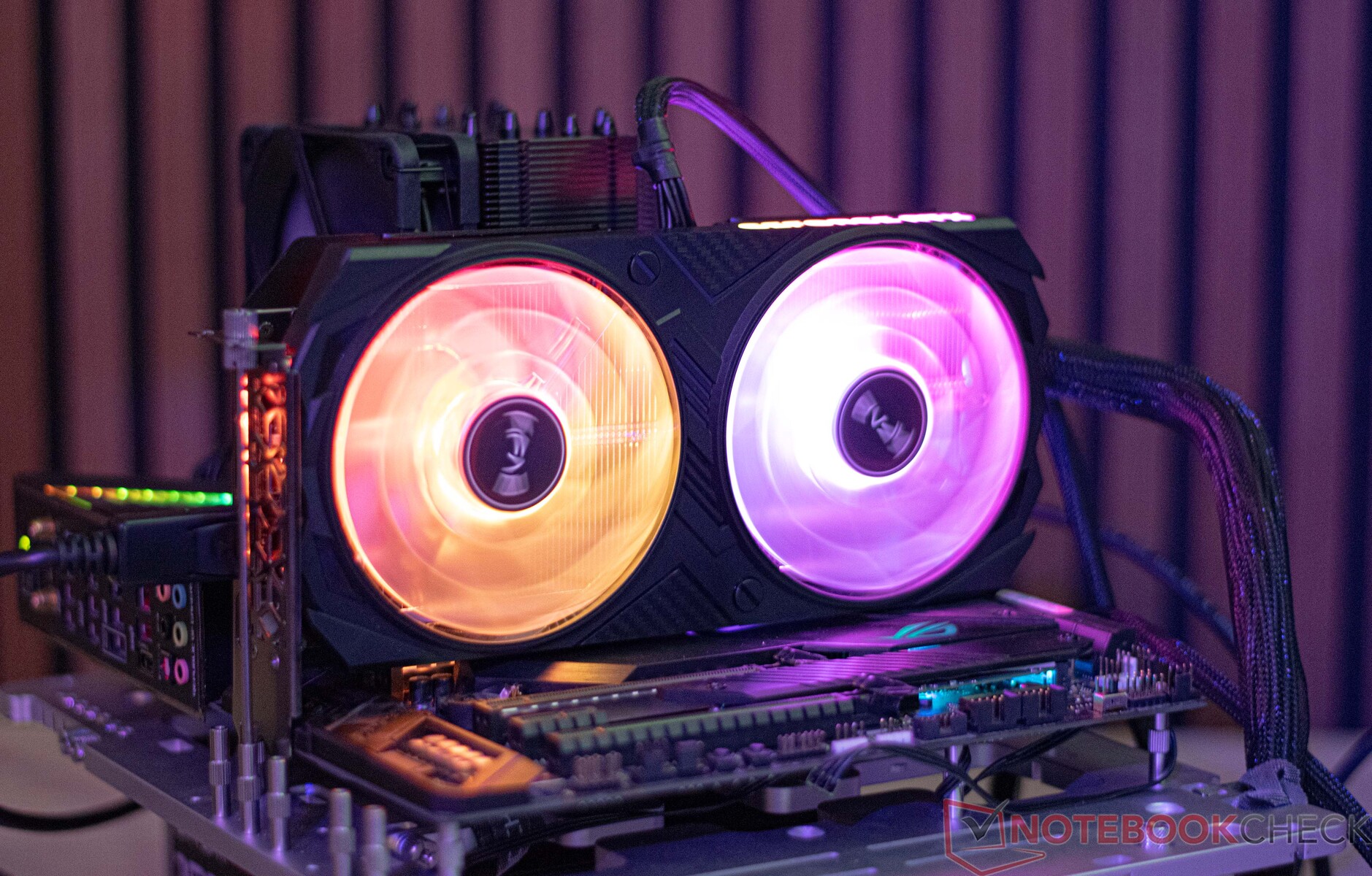

Infos about our test system
The specifications of GeForce graphics cards compared
Model | RTX 4090 | RTX 4080 | RTX 4070 Ti | RTX 4070 | RTX 4060 Ti | RTX 4060 Ti | RTX 3070 | RTX 3060 Ti |
Chip | AD102 | AD103 | AD104 | AD104 | AD106 | AD106 | GA104 | GA104 |
FinFET process | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | TSMC 4N | 8 nm | 8 nm |
CUDA cores | 16,384 | 9,728 | 7,680 | 5,888 | 4,352 | 4,352 | 5,888 | 4,864 |
Texture units | 512 | 304 | 240 | 184 | 136 | 136 | 184 | 152 |
Tensor cores | 512 4th gen | 304 4th gen | 240 4th gen | 184 4th gen | 136 4th gen | 136 4th gen | 184 3rd gen | 152 3rd gen |
RT cores | 128 | 76 | 60 | 46 | 34 | 34 | 46 | 38 |
GPU base clock | 2,235 MHz | 2,205 MHz | 2,310 MHz | 1,920 MHz | 2,310 MHz | 2,310 MHz | 1,500 MHz | 1,410 MHz |
GPU boost clock | 2,520 MHz | 2,505 MHz | 2,610 MHz | 2,475 MHz | 2,535 MHz | 2,535 MHz | 1,725 MHz | 1,665 MHz |
Memory bus | 384 bits | 256 bits | 192 bits | 192 bits | 128 bits | 128 bits | 256 bits | 256 bits |
Memory bandwidth | 1,008 GB/s | 716.8 GB/s | 504.2 GB/s | 504.2 GB/s | 288 GB/s | 288 GB/s | 448 GB/s | 448 GB/s |
Video memory | 24 GB GDDR6X | 16 GB GDDR6X | 12 GB GDDR6 | 12 GB GDDR6X | 16 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 |
Power consumption | 450 watts | 320 watts | 285 watts | 215 watts | 165 watts | 160 watts | 220 watts | 200 watts |

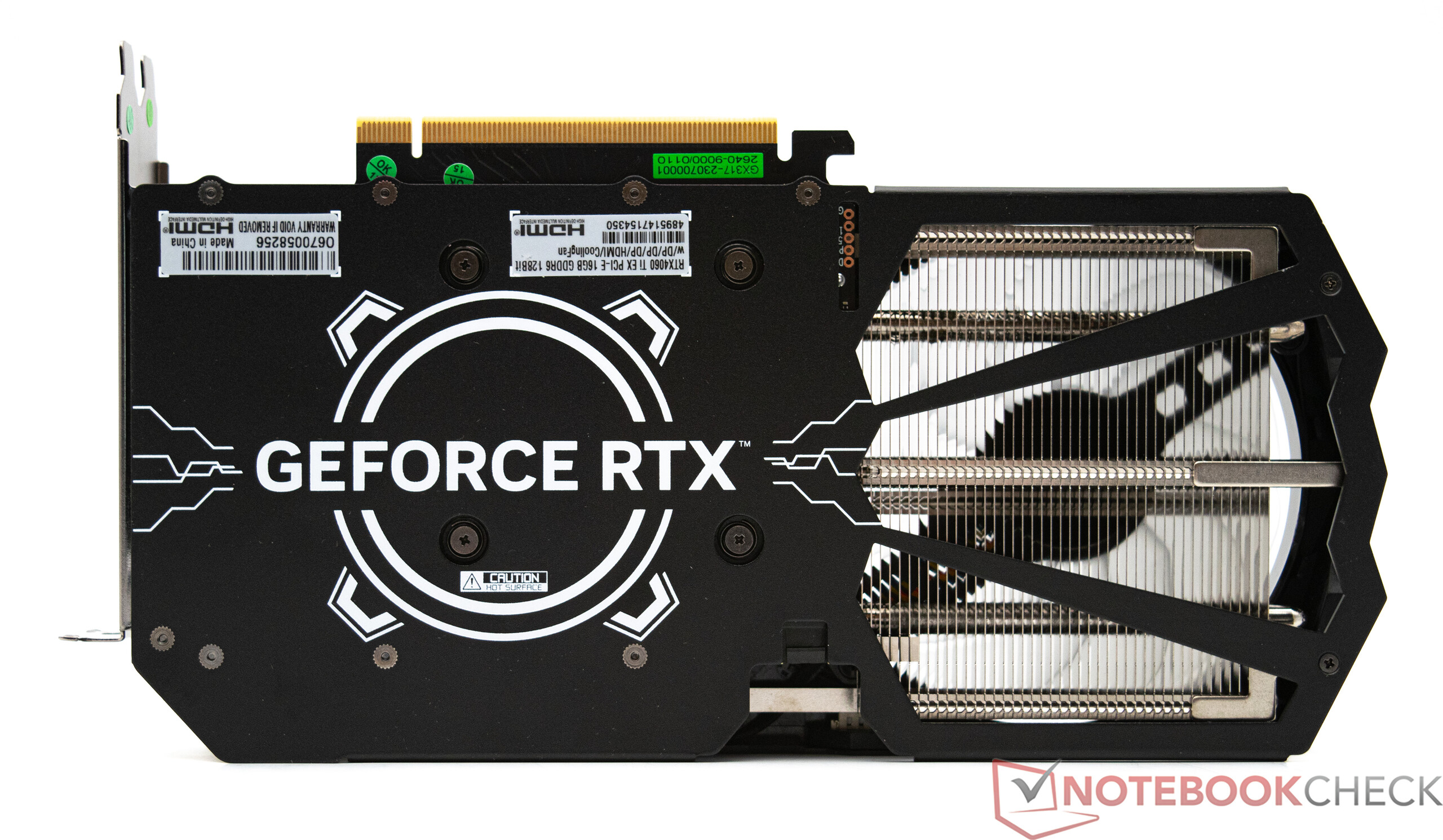

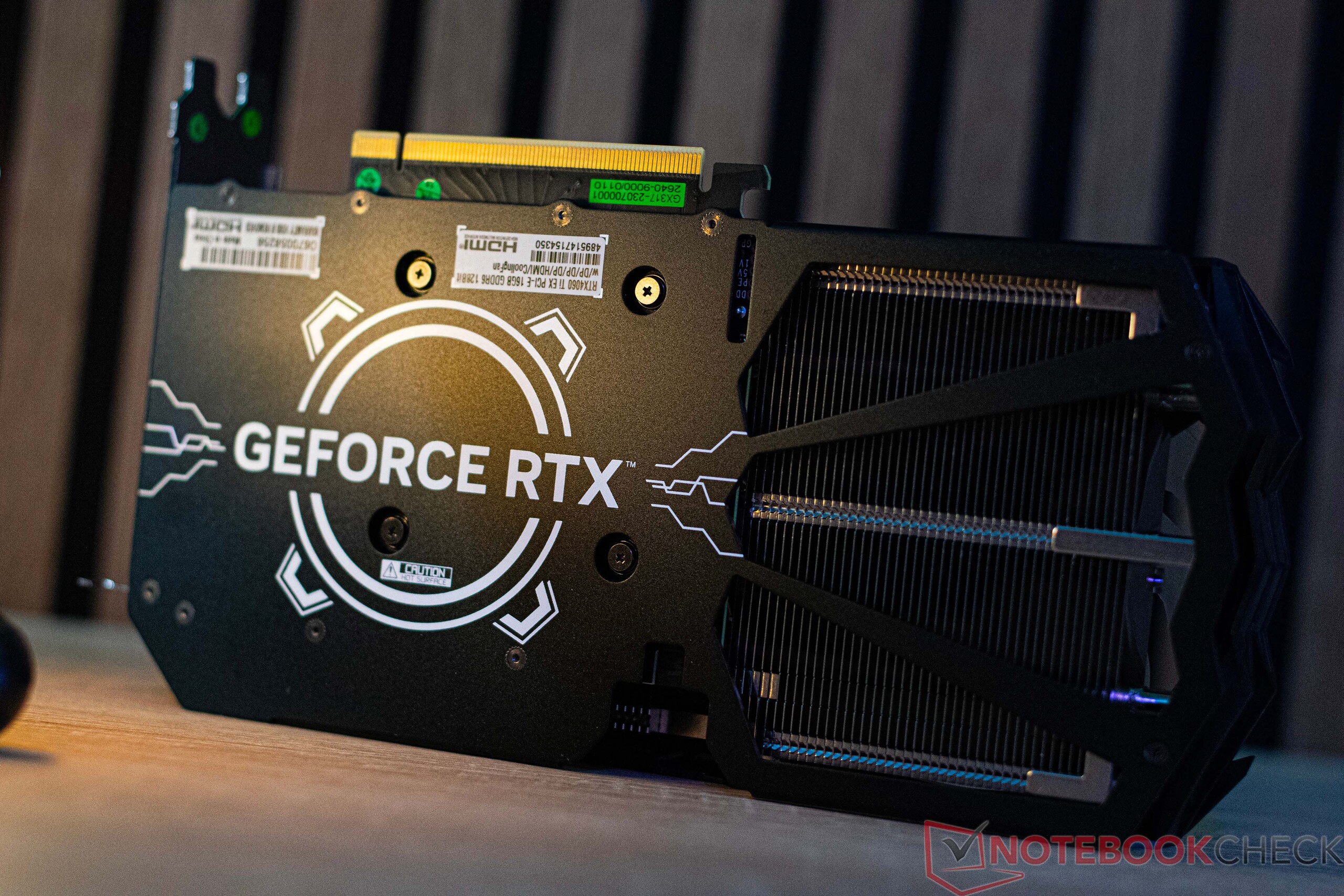

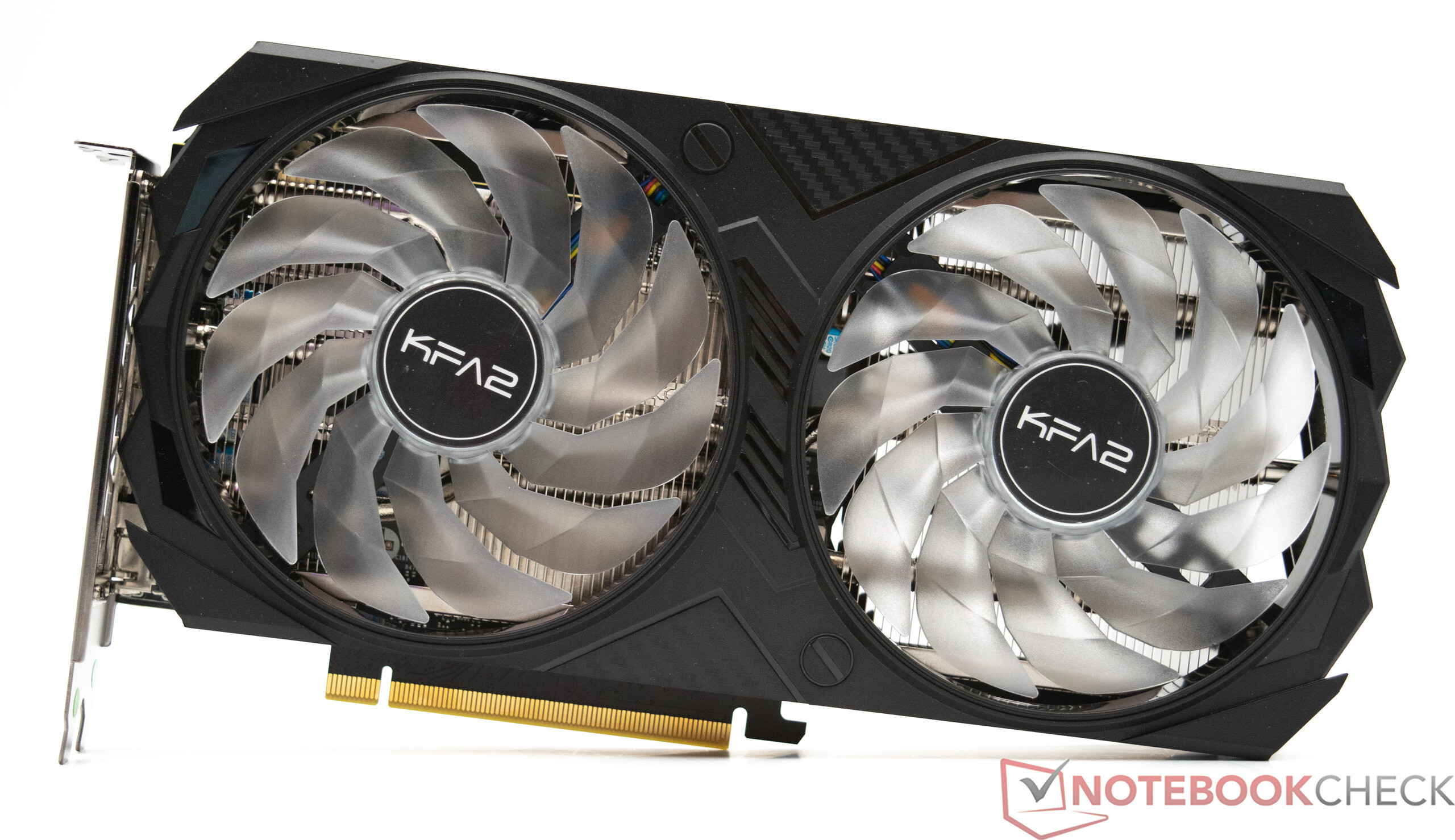

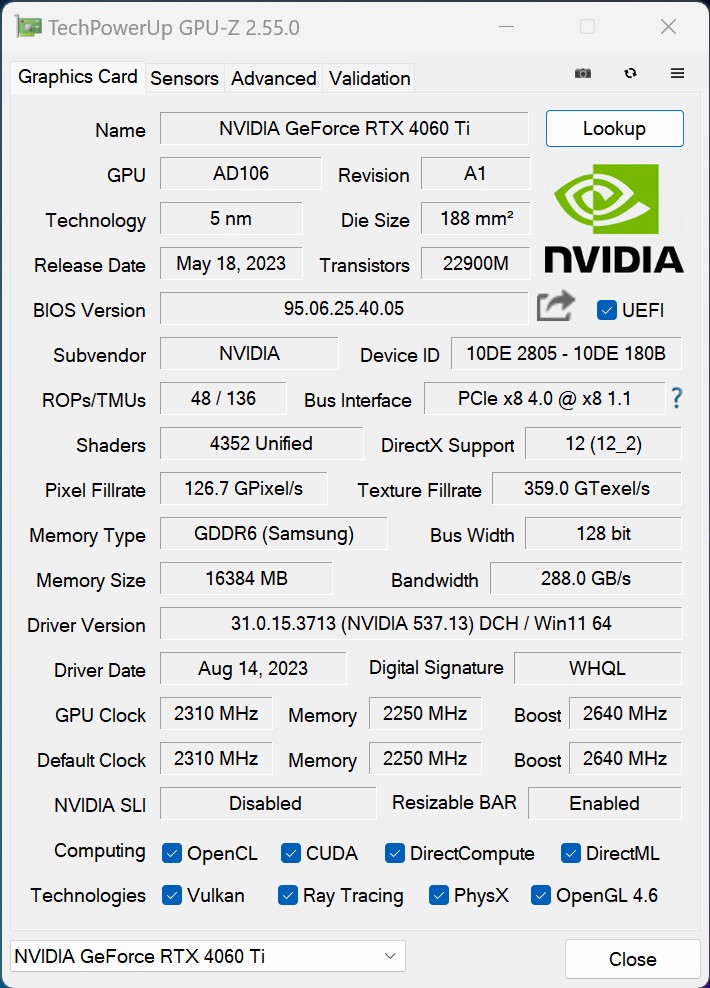

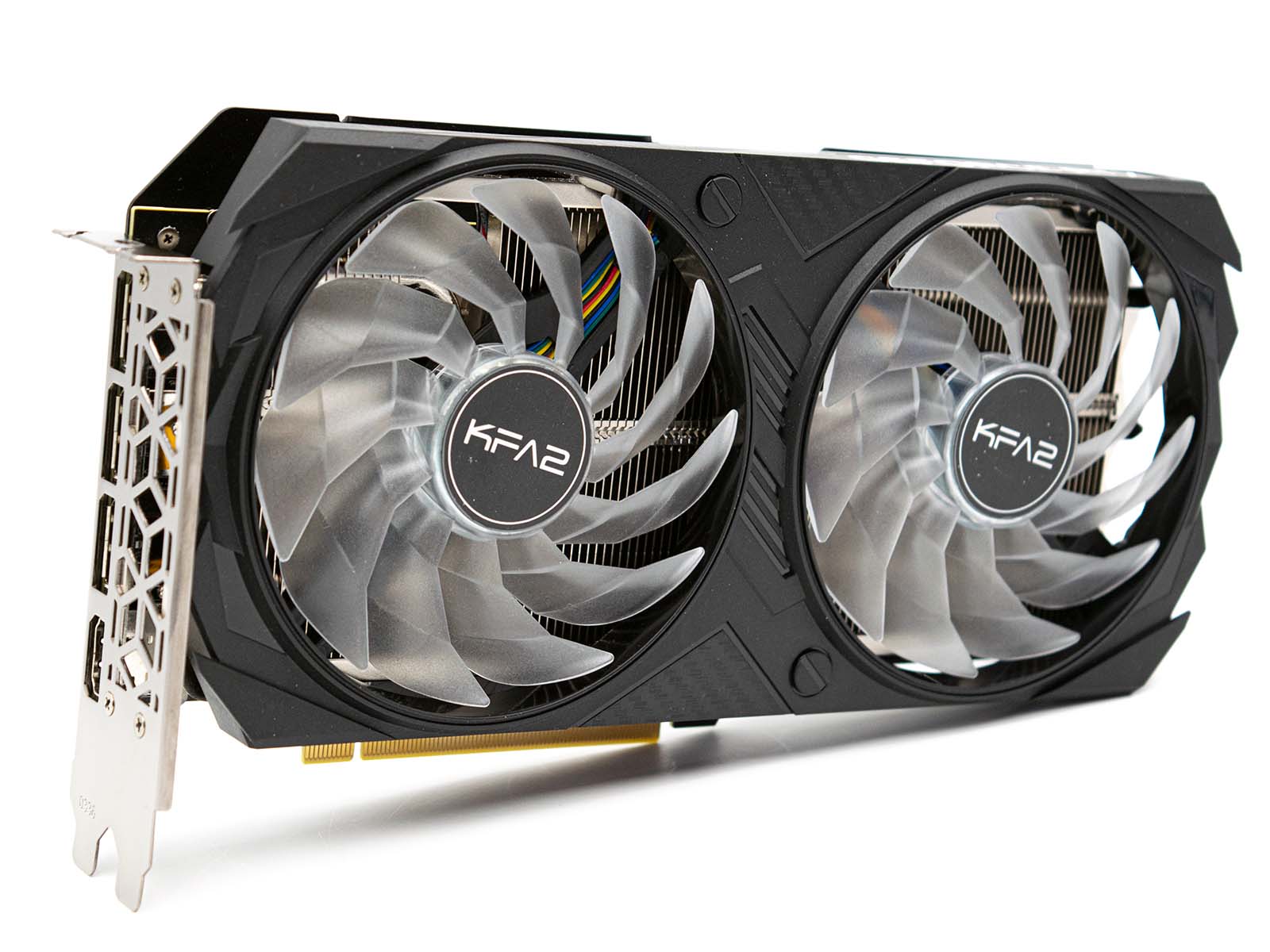

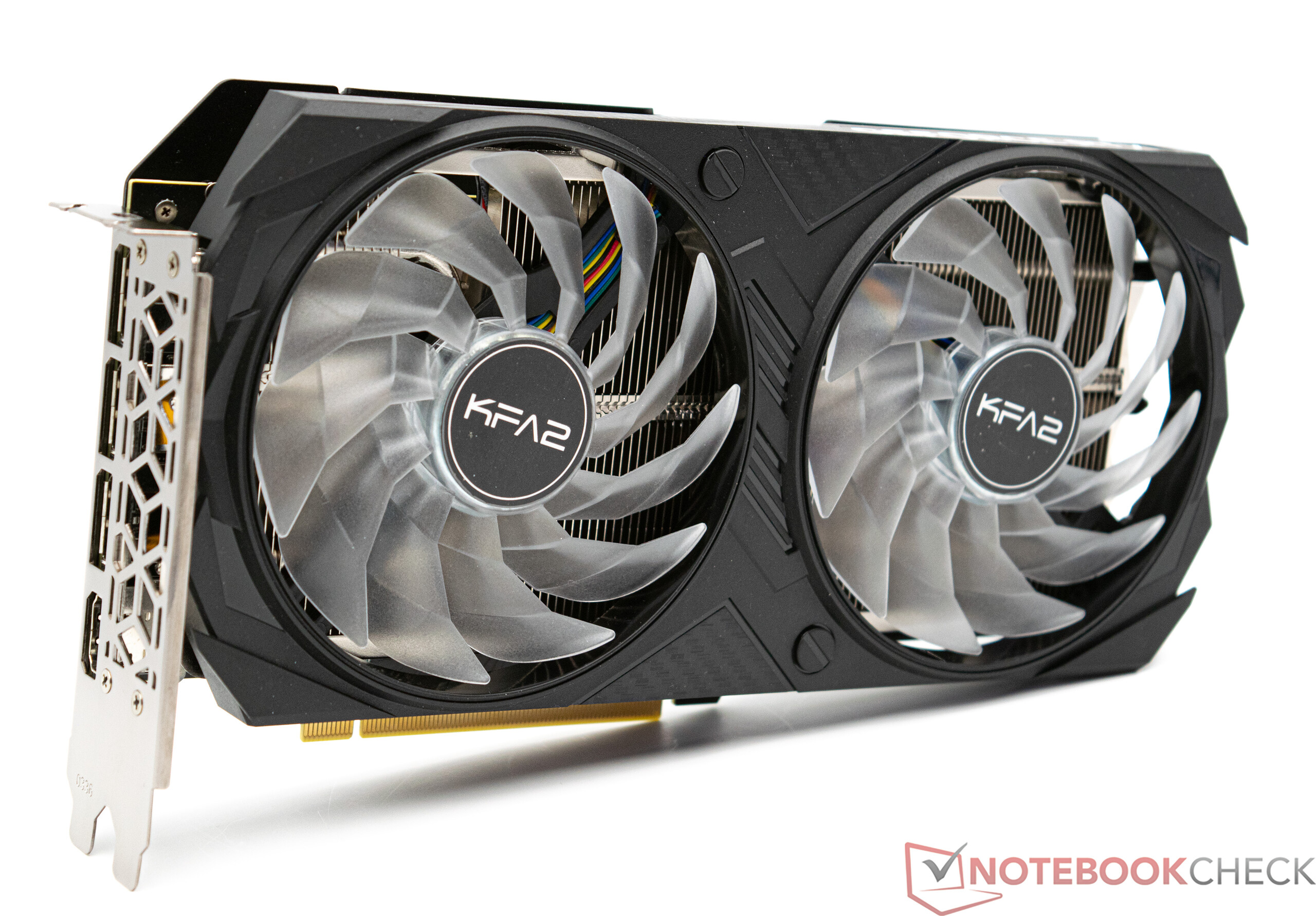

Details about the KFA2 GeForce RTX 4060 Ti EX 16 GB

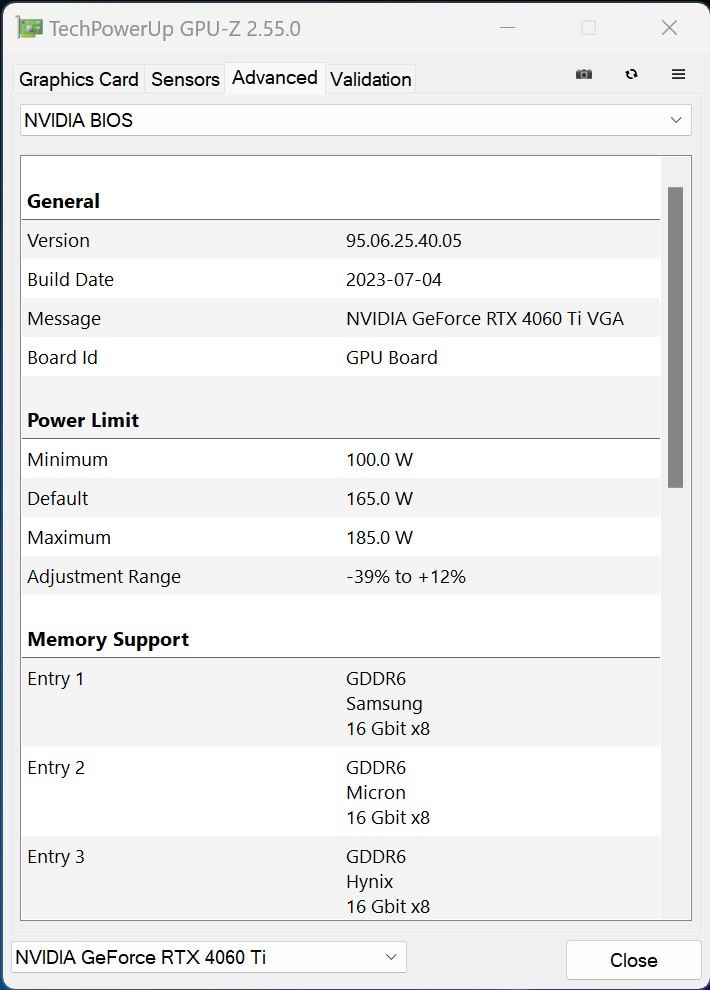

Different to the Nvidia GeForce RTX 4060 Ti with 8 GB VRAM, there is no Nvidia Founders Edition of the 16-GB model. This means you can get a range of models from well-known board partners only, including KFA2. Both models of the GeForce RTX 4060 Ti are fitted with the exact same graphics chip and there is also no difference in clock rates. As already mentioned, there is twice the amount of VRAM, although its clock rates remain the same. Its relatively tight memory interface (128 bits) is compensated by its significantly increased L2 cache compared to an Nvidia GeForce RTX 3060 Ti. Here, the bigger VRAM should also provide a little more relief, as more picture data can be processed directly in the graphics card and it doesn't have to be relocated.
Via the tuning tool "Xtreme Tuner Plus", the OC profile can additionally be activated, meaning the graphics card has access to 15 MHz more (2,655 MHz boost clock). In practice, this shouldn't be terribly noticeable, as the KFA2 GeForce RTX 4060 Ti EX 16 GB easily managed to exceed the stated boost clock during our gaming tests.

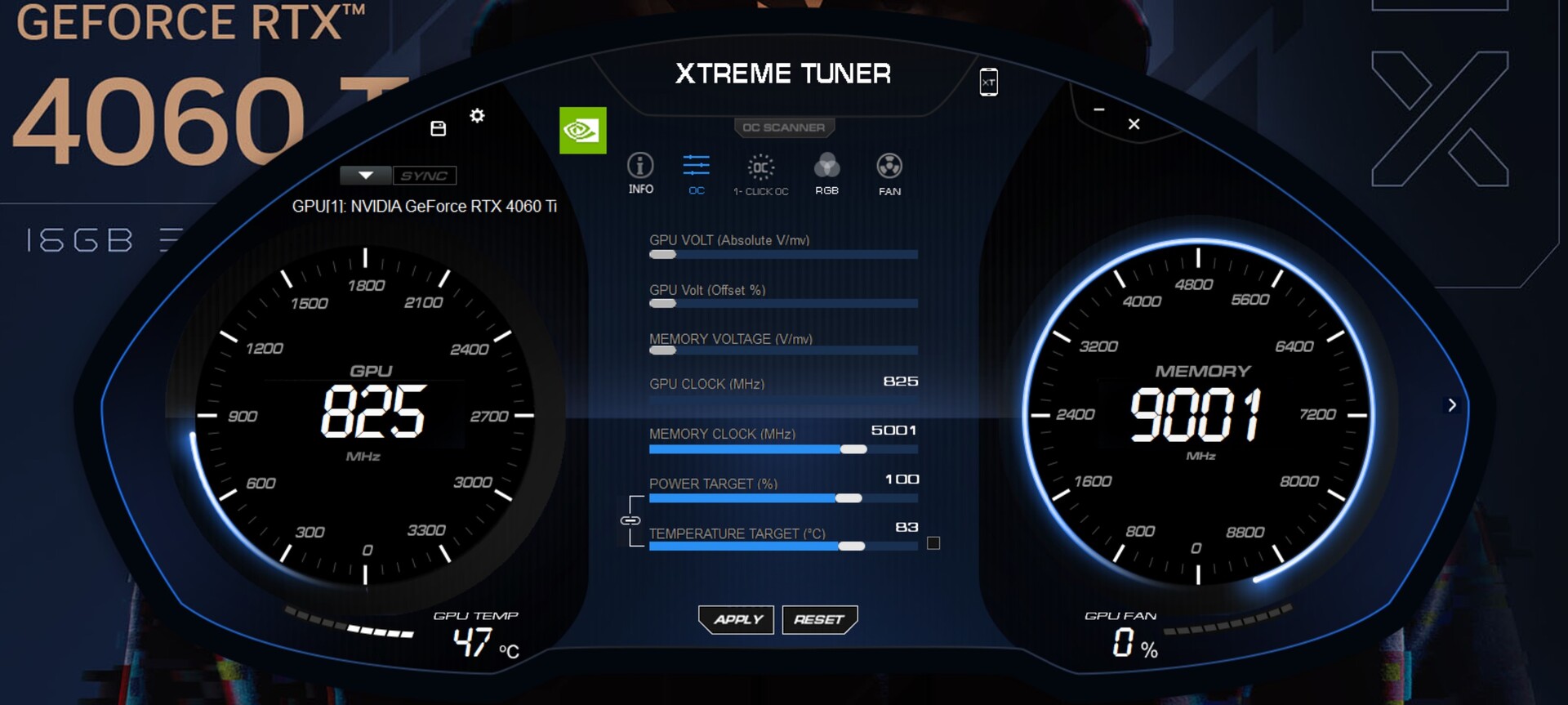

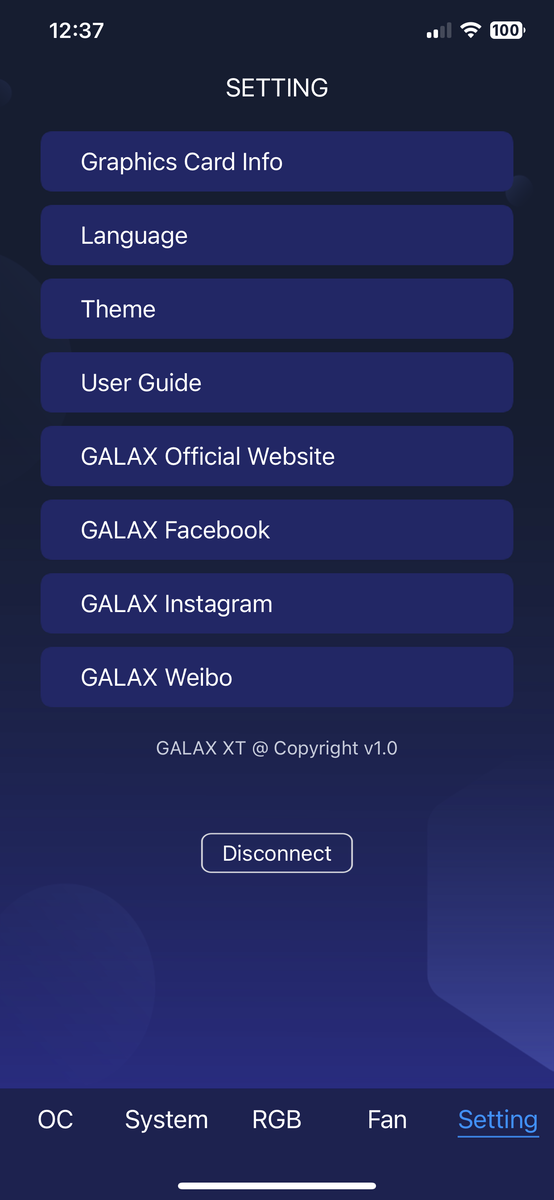

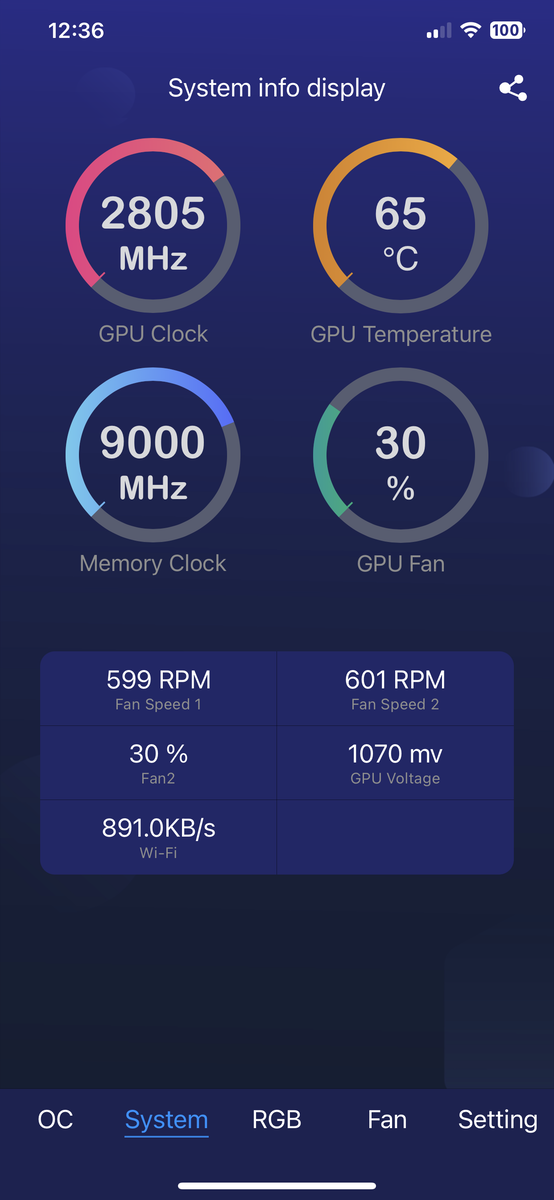

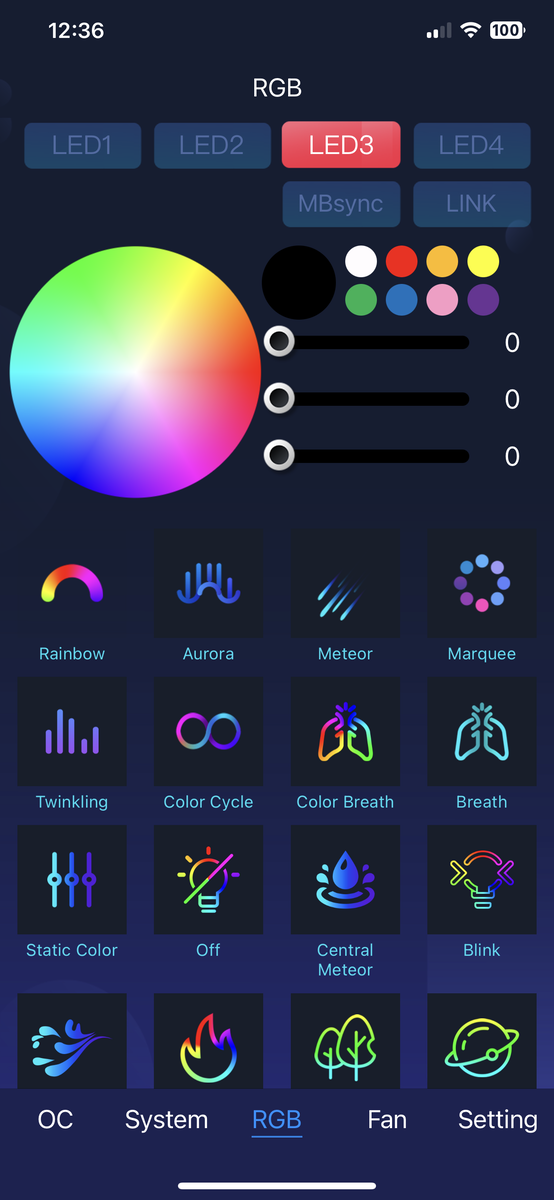

Xtreme Tuner Plus - Monitoring and control via a smartphone

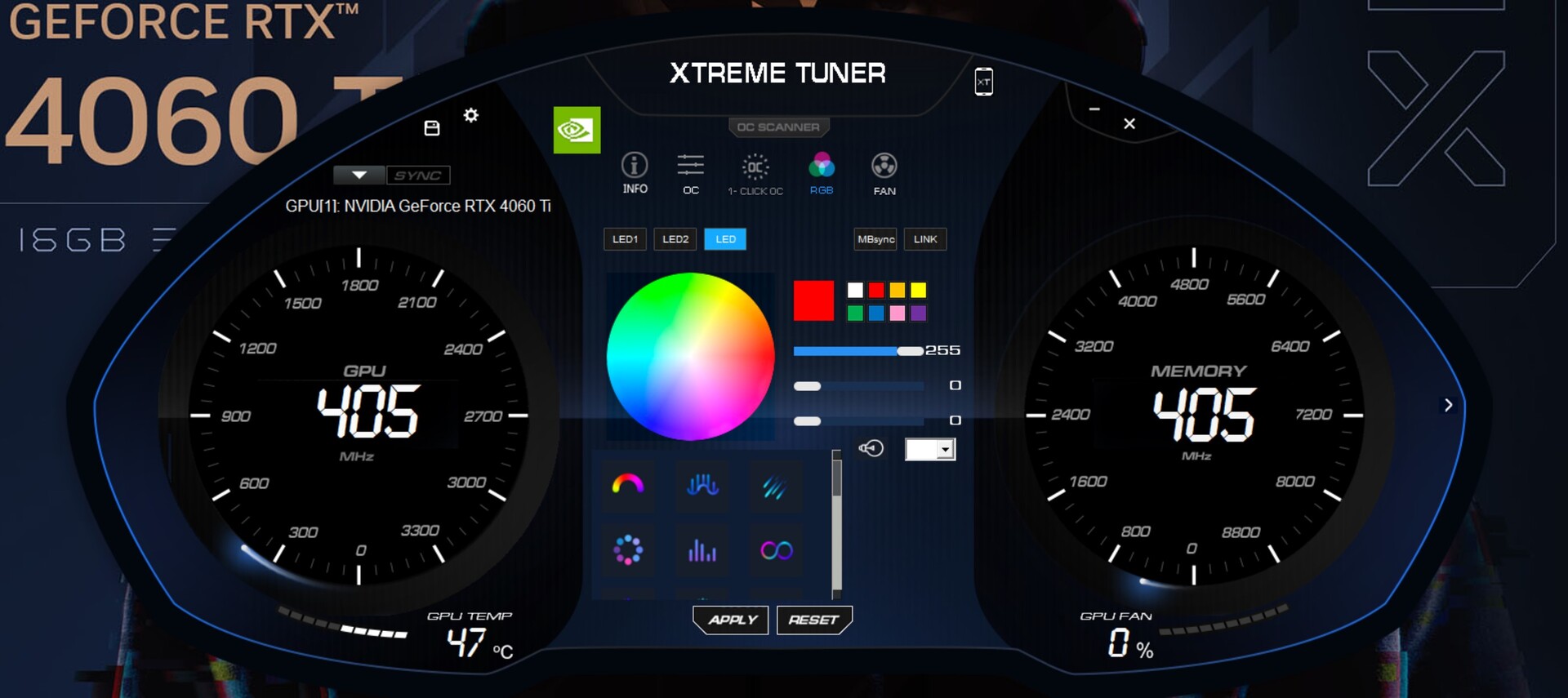

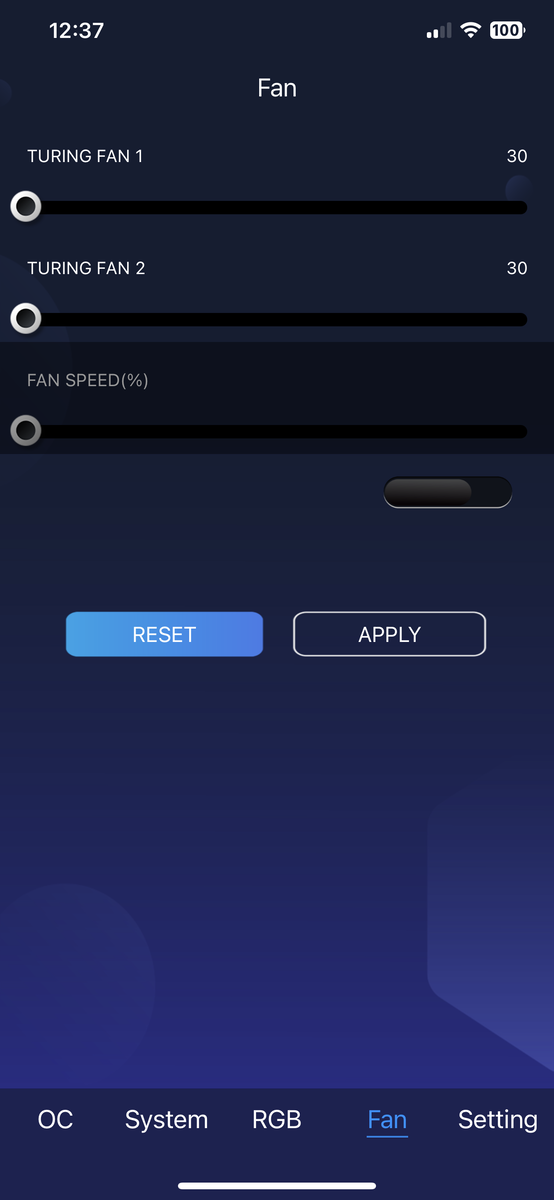

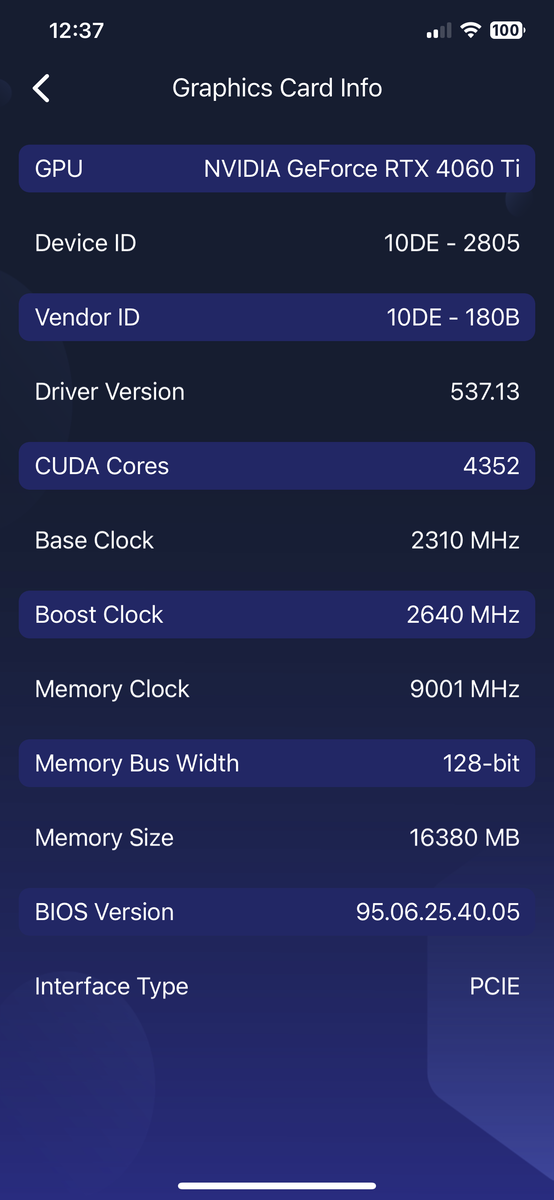

KFA2's own tool, "Xtreme Tuner Plus", is a program which lets you monitor the graphics card. The program can also be used to manually overclock the graphics card. In order to do so, the GPU and VRAM's Power Limits can be changed. Furthermore, you can use the tool to change the lighting effects and regulate the fan speed.

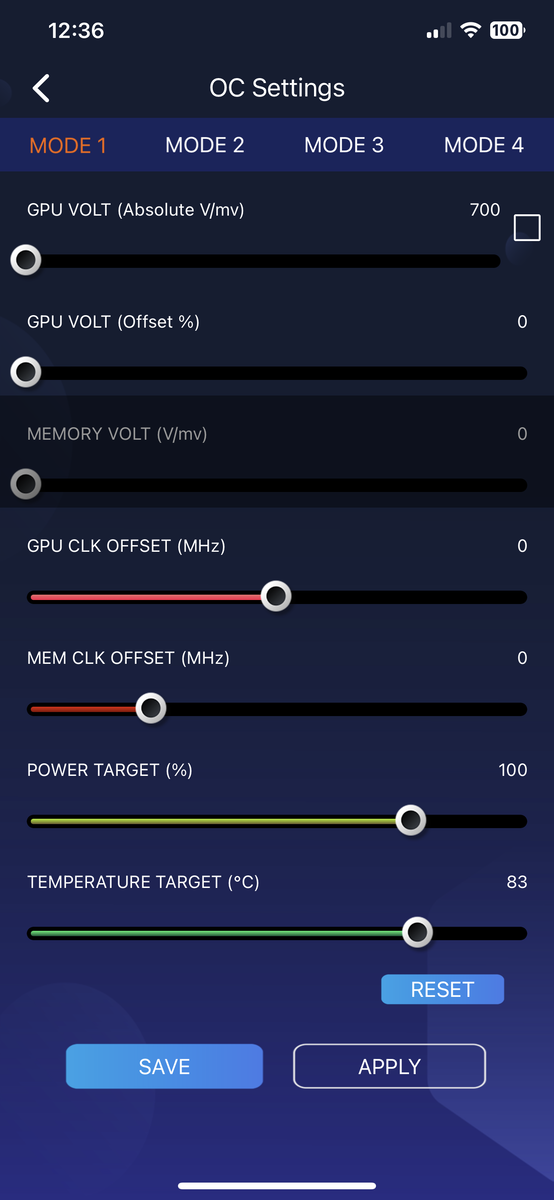

If you don't want to make these changes directly on the system, then you can also use your smartphone. In order to let your phone access the hardware, you just have to make sure that both devices (PC and phone) are connected to the same network.
Synthetic benchmarks
In the synthetic benchmarks, the 16-GB model of the KFA2 GeForce RTX 4060 Ti EX couldn't differentiate itself from the 8-GB version. Both graphics cards were the same speed, leading to the graphics card with more VRAM having no advantage here. It beat an AMD Radeon RX 7600's performance rating by 11 percentage points. When directly comparing both of the KFA2 models, the 16-GB model even did slightly worse. This slight disadvantage may also be a result of the variances that arise when performing benchmark checks. Its lead ahead of the Nvidia GeForce RTX 3060 Ti is also minor, which is a little disappointing.
However, one positive is its performance-to-power-consumption ratio. Compared to the predecessor model, the KFA2 GeForce RTX 4060 Ti EX 16 GB uses considerably less power.
Performance Rating - Percent | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Ryzen 9 7950X, AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
AMD Radeon RX 6700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
NVIDIA GeForce RTX 3060 Ti FE | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Nvidia GeForce RTX 2070 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
Unigine Heaven 4.0 | |
Extreme Preset DX11 | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Ryzen 9 7950X, AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
AMD Radeon RX 6700 XT | |
NVIDIA GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 | |
Extreme Preset OpenGL | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Ryzen 9 7950X, AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6700 XT | |
KFA2 GeForce RTX 4060 Ti EX | |
Sapphire Nitro+ Radeon RX 6650 XT | |
NVIDIA GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super |
3DMark 11 | |
1280x720 Performance GPU | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Ryzen 9 7950X, AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 4060 Ti EX | |
AMD Radeon RX 6700 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
NVIDIA GeForce RTX 3060 Ti FE | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6600 | |
Nvidia GeForce RTX 2060 Super | |
1280x720 Performance | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Ryzen 9 7950X, AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 4060 Ti EX | |
AMD Radeon RX 6700 XT | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
NVIDIA GeForce RTX 3060 Ti FE | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
LuxMark v2.0 64Bit | |
Room GPUs-only | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 Ti 16G | |
NVIDIA GeForce RTX 4060 Ti 8G | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 | |
Sala GPUs-only | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4070 | |
AMD Radeon RX 7900 GRE | |
NVIDIA GeForce RTX 4060 Ti 16G | |
NVIDIA GeForce RTX 4060 Ti 8G | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 4060 | |
AMD Radeon RX 6800 | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6600 |
Photoshop PugetBench | |
GPU Score | |
AMD Radeon RX 6800 | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 7600 | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 4060 Ti 8G | |
NVIDIA GeForce RTX 4070 Ti | |
NVIDIA GeForce RTX 4060 Ti 16G | |
Overall Score | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 6800 | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
AMD Radeon RX 6650 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4060 Ti 8G | |
NVIDIA GeForce RTX 4060 Ti 16G | |
AMD Radeon RX 6600 | |
NVIDIA GeForce RTX 4070 Ti |
Affinity Photo 2 - Combined (Single / Multi GPU) | |
NVIDIA GeForce RTX 4070 | |
NVIDIA GeForce RTX 4070 Ti | |
AMD Radeon RX 7800 XT | |
NVIDIA GeForce RTX 2070 Super (Desktop) | |
AMD Radeon RX 7900 GRE | |
NVIDIA GeForce RTX 2060 Super (Desktop) | |
NVIDIA GeForce RTX 3060 Ti | |
NVIDIA GeForce RTX 4060 | |
NVIDIA GeForce RTX 4060 Ti 8G | |
NVIDIA GeForce RTX 4060 Ti 16G | |
AMD Radeon RX 7600 | |
AMD Radeon RX 6800 | |
AMD Radeon RX 6650 XT | |
AMD Radeon RX 6700 XT | |
AMD Radeon RX 6600 |
3DMark 05 Standard | 85110 points | |
3DMark 06 Standard Score | 66993 points | |
3DMark Vantage P Result | 116054 points | |
3DMark 11 Performance | 38780 points | |
3DMark Ice Storm Standard Score | 250367 points | |
3DMark Cloud Gate Standard Score | 75160 points | |
3DMark Fire Strike Score | 31146 points | |
3DMark Fire Strike Extreme Score | 15216 points | |
3DMark Time Spy Score | 13605 points | |
Help |
Professional uses
More graphics memory is generally good when it comes to 3D uses. However, even during the three SPECvierperf tests, the KFA2 GeForce RTX 4060 Ti EX 16 GB couldn't profit from it. The models from AMD seem to be much more viable alternatives. The AMD Radeon RX 7600 already did much better than our test sample. For commercial uses, the graphics card also isn't the first choice, as AMD and Nvidia both offer specialized models which can achieve much better performance thanks to better driver adjustments in combination with the uses. One example of this can be seen in the Nvidia Titan RTX which achieved 200 percentage points more during the rendering tests.
NVIDIA GeForce RTX 4060 Ti 16G R9 7950X | NVIDIA GeForce RTX 4060 Ti 8G R9 7950X | NVIDIA GeForce RTX 3060 Ti R9 5950X | NVIDIA GeForce RTX 3070 Ti R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | NVIDIA GeForce RTX 4080 R9 7950X | NVIDIA GeForce RTX 4090 R9 7950X | AMD Radeon RX 7600 R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | NVIDIA Titan RTX R9 7950X | NVIDIA RTX A6000 TR Pro 3975WX | Average of class | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPECviewperf 12 | -1% | -21% | 7% | 24% | 49% | 72% | 88% | 182% | 411% | 458% | 259% | 307% | 0% | |
1900x1060 3ds Max (3dsmax-05) | 290 | 287 -1% | 252 -13% | 330 14% | 382 32% | 436 50% | 502 73% | 571 97% | 279 -4% | 502 73% | 553 91% | 315 9% | 336 16% | 196.2 ? -32% |
1900x1060 Catia (catia-04) | 128 | 128 0% | 109 -15% | 136 6% | 161 26% | 192 50% | 221 73% | 257 101% | 273 113% | 481 276% | 536 319% | 332 159% | 229 79% | 99.7 ? -22% |
1900x1060 Creo (creo-01) | 73.4 | 75.4 3% | 57.8 -21% | 72.6 -1% | 89.1 21% | 99.4 35% | 110 50% | 115 57% | 115 57% | 176 140% | 187 155% | 197 168% | 136 85% | 62.5 ? -15% |
1900x1060 Energy (energy-01) | 22.6 | 23 2% | 13.9 -38% | 18 -20% | 31.7 40% | 48 112% | 58.8 160% | 54.7 142% | 25.5 13% | 72.4 220% | 85.2 277% | 28.8 27% | 39.8 76% | 14 ? -38% |
1900x1060 Maya (maya-04) | 257 | 254 -1% | 197 -23% | 279 9% | 284 11% | 287 12% | 309 20% | 317 23% | 236 -8% | 347 35% | 367 43% | 260 1% | 144 -44% | 102.8 ? -60% |
1900x1060 Medical (medical-01) | 110 | 110 0% | 59.4 -46% | 106 -4% | 132 20% | 157 43% | 171 55% | 119 8% | 128 16% | 288 162% | 347 215% | 101 -8% | 159 45% | 49 ? -55% |
1900x1060 Showcase (showcase-01) | 132 | 120 -9% | 144 9% | 199 51% | 190 44% | 244 85% | 333 152% | 457 246% | 127 -4% | 278 111% | 322 144% | 197 49% | 255 93% | 92.7 ? -30% |
1900x1060 Siemens NX (snx-02) | 14.8 | 14.7 -1% | 12.3 -17% | 14.7 -1% | 16.4 11% | 19 28% | 21.6 46% | 27.1 83% | 210 1319% | 373 2420% | 400 2603% | 283 1812% | 351 2272% | 54.9 ? 271% |
1900x1060 Solidworks (sw-03) | 95.1 | 95.7 1% | 71.1 -25% | 101 6% | 109 15% | 118 24% | 113 19% | 126 32% | 221 132% | 342 260% | 360 279% | 207 118% | 225 137% | 81.2 ? -15% |
SPECviewperf 13 | -0% | -18% | 5% | 26% | 50% | 79% | 114% | 190% | 399% | 450% | 245% | 320% | 22% | |
3ds Max (3dsmax-06) | 289 | 289 0% | 252 -13% | 330 14% | 381 32% | 433 50% | 497 72% | 563 95% | 280 -3% | 506 75% | 564 95% | 321 11% | 338 17% | 186.6 ? -35% |
Catia (catia-05) | 189 | 188 -1% | 161 -15% | 201 6% | 241 28% | 290 53% | 340 80% | 402 113% | 410 117% | 728 285% | 825 337% | 534 183% | 371 96% | 195.3 ? 3% |
Creo (creo-02) | 301 | 299 -1% | 225 -25% | 286 -5% | 375 25% | 455 51% | 529 76% | 552 83% | 294 -2% | 567 88% | 613 104% | 386 28% | 366 22% | 200 ? -34% |
Energy (energy-02) | 45.3 | 45.7 1% | 25.6 -43% | 30 -34% | 54.2 20% | 72.8 61% | 92.6 104% | 126 178% | 82.9 83% | 147 225% | 187 313% | 51.8 14% | 132 191% | 33.9 ? -25% |
Maya (maya-05) | 403 | 396 -2% | 344 -15% | 437 8% | 510 27% | 591 47% | 678 68% | 715 77% | 333 -17% | 670 66% | 735 82% | 499 24% | 415 3% | 260 ? -35% |
Medical (medical-02) | 85.1 | 92.9 9% | 72.2 -15% | 83.6 -2% | 112 32% | 132 55% | 150 76% | 186 119% | 226 166% | 237 178% | 263 209% | 92 8% | 184 116% | 71.7 ? -16% |
Showcase (showcase-02) | 133 | 120 -10% | 145 9% | 198 49% | 191 44% | 244 83% | 334 151% | 455 242% | 127 -5% | 279 110% | 323 143% | 198 49% | 255 92% | 119 ? -11% |
Siemens NX (snx-03) | 26.6 | 26.4 -1% | 22.3 -16% | 26.4 -1% | 29.5 11% | 34.1 28% | 39 47% | 49.1 85% | 379 1325% | 675 2438% | 725 2626% | 512 1825% | 638 2298% | 123.8 ? 365% |
Solidworks (sw-04) | 135 | 137 1% | 99.6 -26% | 146 8% | 157 16% | 168 24% | 179 33% | 186 38% | 195 44% | 307 127% | 323 139% | 218 61% | 192 42% | 117.3 ? -13% |
SPECviewperf 2020 v1 | -2% | -21% | 8% | 28% | 54% | 82% | 136% | 187% | 432% | 491% | 300% | 384% | 54% | |
3840x2160 Siemens NX (snx-04) | 20.1 | 20.3 1% | 18.2 -9% | 22.2 10% | 23.9 19% | 27.5 37% | 31.9 59% | 41.3 105% | 240 1094% | 476 2268% | 514 2457% | 375 1766% | 481 2293% | 94.3 ? 369% |
3840x2160 Medical (medical-03) | 16.5 | 17.7 7% | 11.4 -31% | 16.3 -1% | 22.2 35% | 26.9 63% | 32.2 95% | 45.9 178% | 36.1 119% | 53.9 227% | 62.3 278% | 16.5 0% | 37.9 130% | 19.7 ? 19% |
3840x2160 Maya (maya-06) | 237 | 226 -5% | 215 -9% | 290 22% | 305 29% | 372 57% | 447 89% | 498 110% | 178 -25% | 401 69% | 481 103% | 274 16% | 329 39% | 208 ? -12% |
3840x2160 Energy (energy-03) | 44.9 | 44.9 0% | 14.5 -68% | 39.1 -13% | 57.6 28% | 75.7 69% | 90.4 101% | 141 214% | 67 49% | 99.6 122% | 129 187% | 93.9 109% | 63 40% | 48.3 ? 8% |
3840x2160 Creo (creo-03) | 95.9 | 96.1 0% | 76.6 -20% | 99.3 4% | 112 17% | 121 26% | 128 33% | 133 39% | 106 11% | 173 80% | 187 95% | 135 41% | 111 16% | 79 ? -18% |
3840x2160 CATIA (catia-06) | 38.5 | 39.2 2% | 37.9 -2% | 48 25% | 51.6 34% | 61.2 59% | 75.5 96% | 95.3 148% | 68 77% | 113 194% | 127 230% | 90.9 136% | 82.4 114% | 46.7 ? 21% |
3840x2160 3ds Max (3dsmax-07) | 88.8 | 74.5 -16% | 80.1 -10% | 99 11% | 122 37% | 147 66% | 179 102% | 228 157% | 72.9 -18% | 143 61% | 167 88% | 118 33% | 137 54% | 82.1 ? -8% |
Total Average (Program / Settings) | -1% /
-1% | -20% /
-20% | 7% /
6% | 26% /
26% | 51% /
51% | 78% /
77% | 113% /
111% | 186% /
186% | 414% /
412% | 466% /
464% | 268% /
266% | 337% /
333% | 25% /
23% |
Gaming benchmarks
After the synthetic tests gave us our first look at the KFA2 GeForce RTX 4060 Ti EX 16 GB's performance, it didn't surprise us when taking a look at our test sample's gaming performance. It seems to be getting more and more difficult for the 16-GB model to show itself in a good light. From a purely objective standpoint, the model was just as fast during the gaming tests - but at times, it was even slower. Compared to AMD, the KFA2 GeForce RTX 4060 Ti EX 16 GB had it easy and was always the faster model. Compared with AMD's 6000 series, it even achieved a performance similar to the AMD Radeon RX 6750 XT. However, we already saw this on the KFA2 GeForce RTX 4060 Ti EX 8 GB.
We had to actively search for games which can benefit from larger VRAM. In 1,080p, we only saw a noticeable difference in The Last of Us, although it takes playing games at 2,160p for the KFA2 GeForce RTX 4060 Ti EX 16 GB's gaming abilities to become noticeably better. The best example of this is Far Cry 6. Here, we measured a whopping 156 per cent increase in performance. When more than 8 GB VRAM was needed, the average frame rates collapsed rigorously. The 16-GB sample remedied this and we finally recorded a well-playable 53 FPS. Cumulatively, we noted a performance gain of 15 per cent in the eight games.
The FPS-low values show that it does sometimes make sense to go for the KFA2 GeForce RTX 4060 Ti EX 16 GB. The P1 values (the 1st percentile or 1 per cent low), represent the worst 1 per cent of the documented frame rates. This value is significantly better in the KFA2 GeForce RTX 4060 Ti EX 16 GB. This results in a subjectively smoother gaming experience because micro-stutters due to FPS fluctuations are less pronounced. As a result, we can note the biggest advantage of the KFA2 GeForce RTX 4060 Ti EX 16 GB over its 8 GB counterpart here.
F1 2021 | |
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
KFA2 GeForce RTX 3080 SG (874931) | |
AMD Radeon RX 7800 XT (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
Nvidia Titan RTX (874931) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (874931) | |
KFA2 GeForce RTX 4060 Ti EX (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
PNY GeForce GTX 1660 (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (874931) | |
AMD Radeon RX 7900 XTX (874931) | |
KFA2 GeForce RTX 4080 SG (874931) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (874931) | |
AMD Radeon RX 7900 XT (874931) | |
NVIDIA GeForce RTX 3090 Founders Edition (874931) | |
KFA2 GeForce RTX 4070 EX Gamer (874931) | |
AMD Radeon RX 7800 XT (874931) | |
KFA2 GeForce RTX 3080 SG (874931) | |
KFA2 GeForce RTX 3070 Ti SG (874931) | |
KFA2 GeForce RTX 4060 Ti EX (874931) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (874931) | |
Nvidia Titan RTX (874931) | |
Sapphire Pulse Radeon RX 6750 XT (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
Nvidia GeForce RTX 2070 Super (874931) | |
Sapphire Nitro+ Radeon RX 6650 XT (874931) | |
KFA2 GeForce GTX 1660 Super (874931) | |
Nvidia GeForce RTX 2060 Super (874931) | |
PNY GeForce GTX 1660 (874931) |
F1 22 | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC (923662) | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
AMD Radeon RX 7900 XT (939134) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
AMD Radeon RX 7800 XT (959964) | |
PNY GeForce GTX 1660 (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
Nvidia Titan RTX (923650) | |
KFA2 GeForce RTX 4060 Ti EX (959964) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (959964) | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG (939134) | |
AMD Radeon RX 7900 XTX (939134) | |
KFA2 GeForce RTX 4070 Ti EX Gamer (959964) | |
NVIDIA GeForce RTX 3090 Founders Edition (923650) | |
AMD Radeon RX 7900 XT (939134) | |
KFA2 GeForce RTX 4070 EX Gamer (959964) | |
AMD Radeon RX 7800 XT (959964) | |
KFA2 GeForce GTX 1660 Super (928484) | |
KFA2 GeForce RTX 3070 Ti SG (939134) | |
PNY GeForce GTX 1660 (928484) | |
Nvidia Titan RTX (923650) | |
KFA2 GeForce RTX 4060 Ti EX (959964) | |
KFA2 GeForce RTX 4060 Ti EX, 16GB GDDR6 (959964) | |
Sapphire Pulse Radeon RX 6750 XT (959964) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
Nvidia GeForce RTX 2070 Super (923662) | |
Nvidia GeForce RTX 2060 Super (923662) | |
Sapphire Nitro+ Radeon RX 6650 XT |
