Nvidia GeForce RTX 4080 Super 16 GB under review: Increased performance for the same money - promises, promises ...
Three Nvidia Super graphics cards were released in January 2024. In addition to the Nvidia GeForce RTX 4070 Super and the Nvidia GeForce RTX 4070 Ti Super, we can now officially report in detail on the Nvidia GeForce RTX 4080 Super. For this review, we are using the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition, which matches the clock rates of Nvidia's Founders Edition.

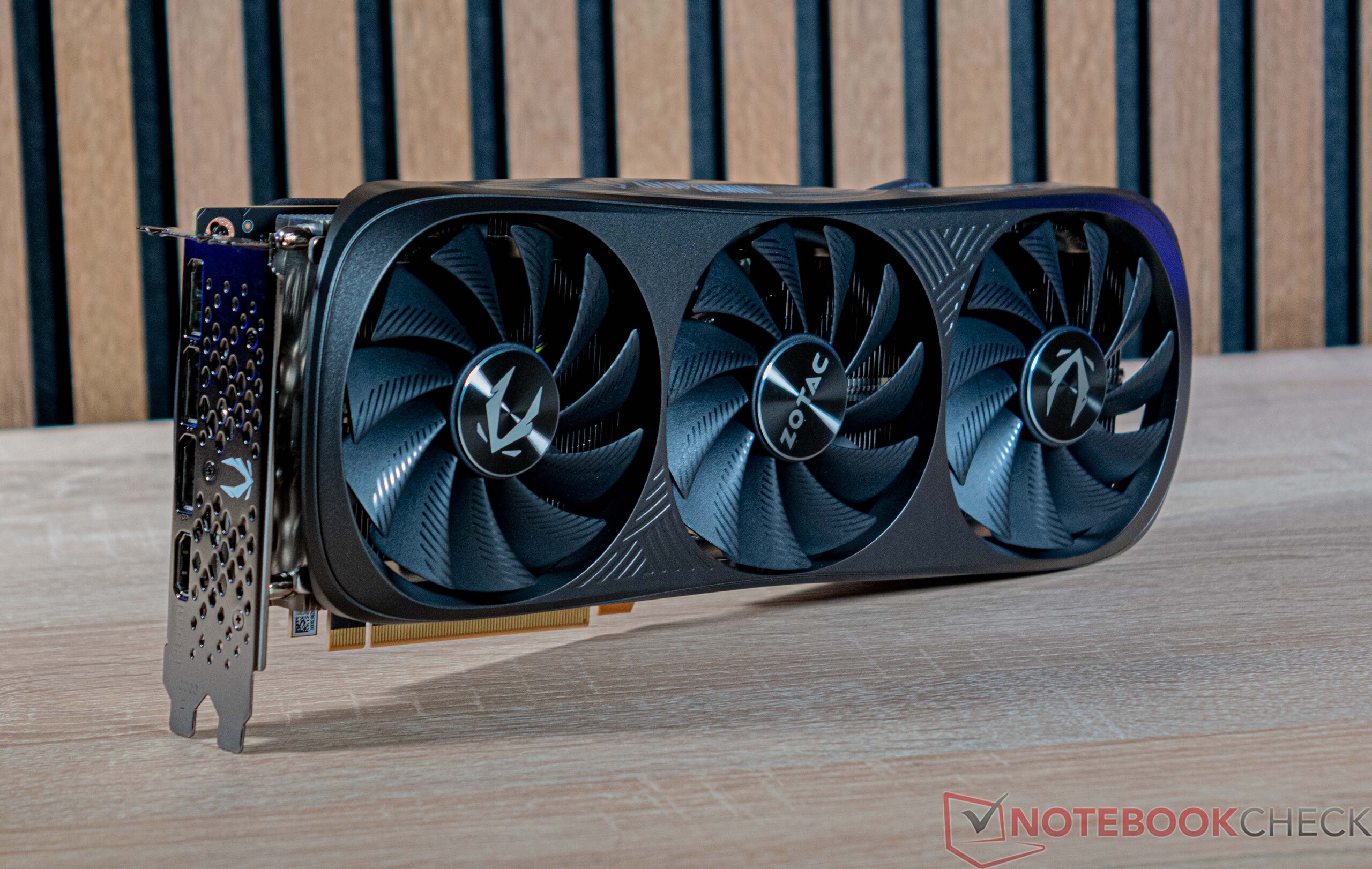

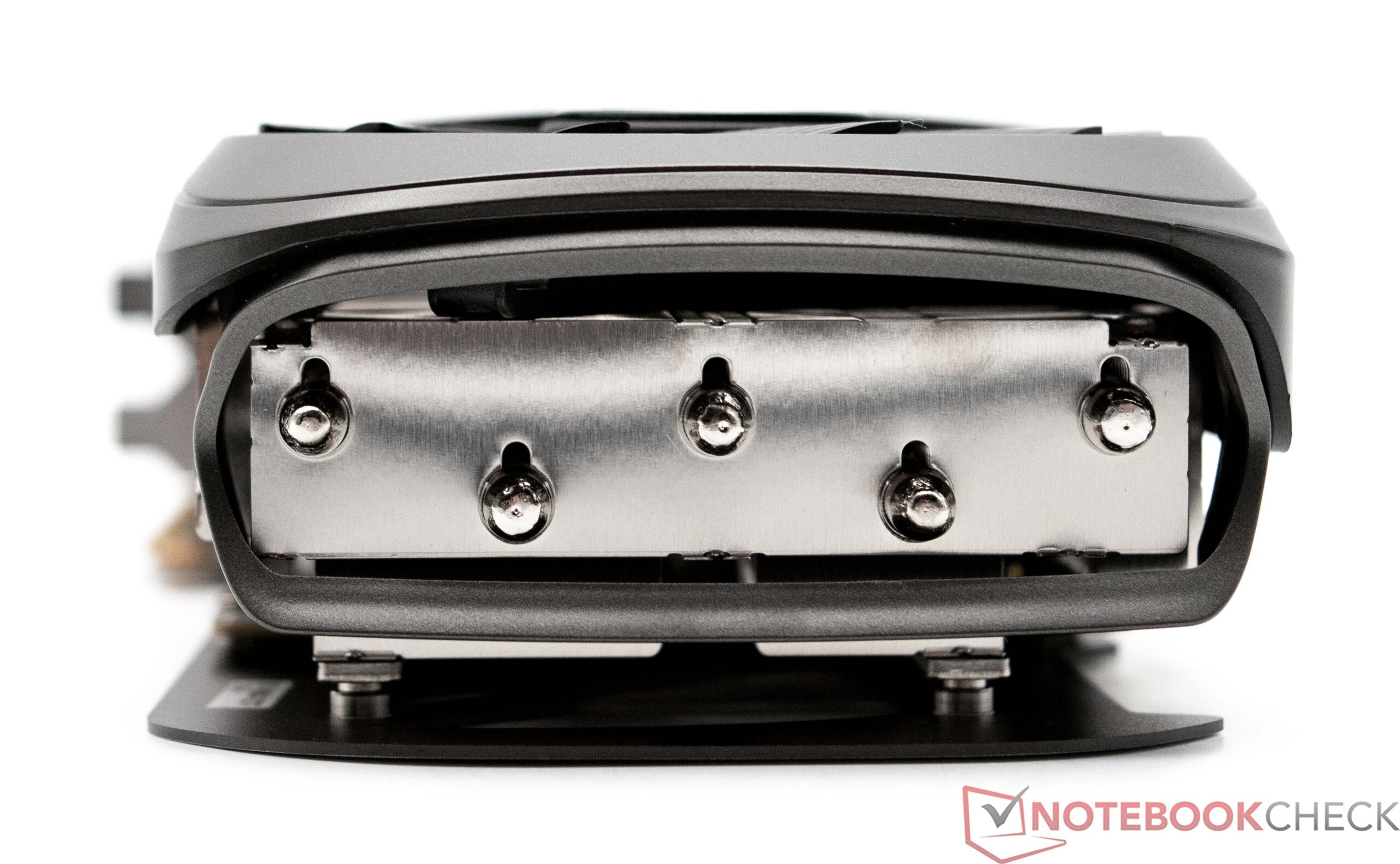

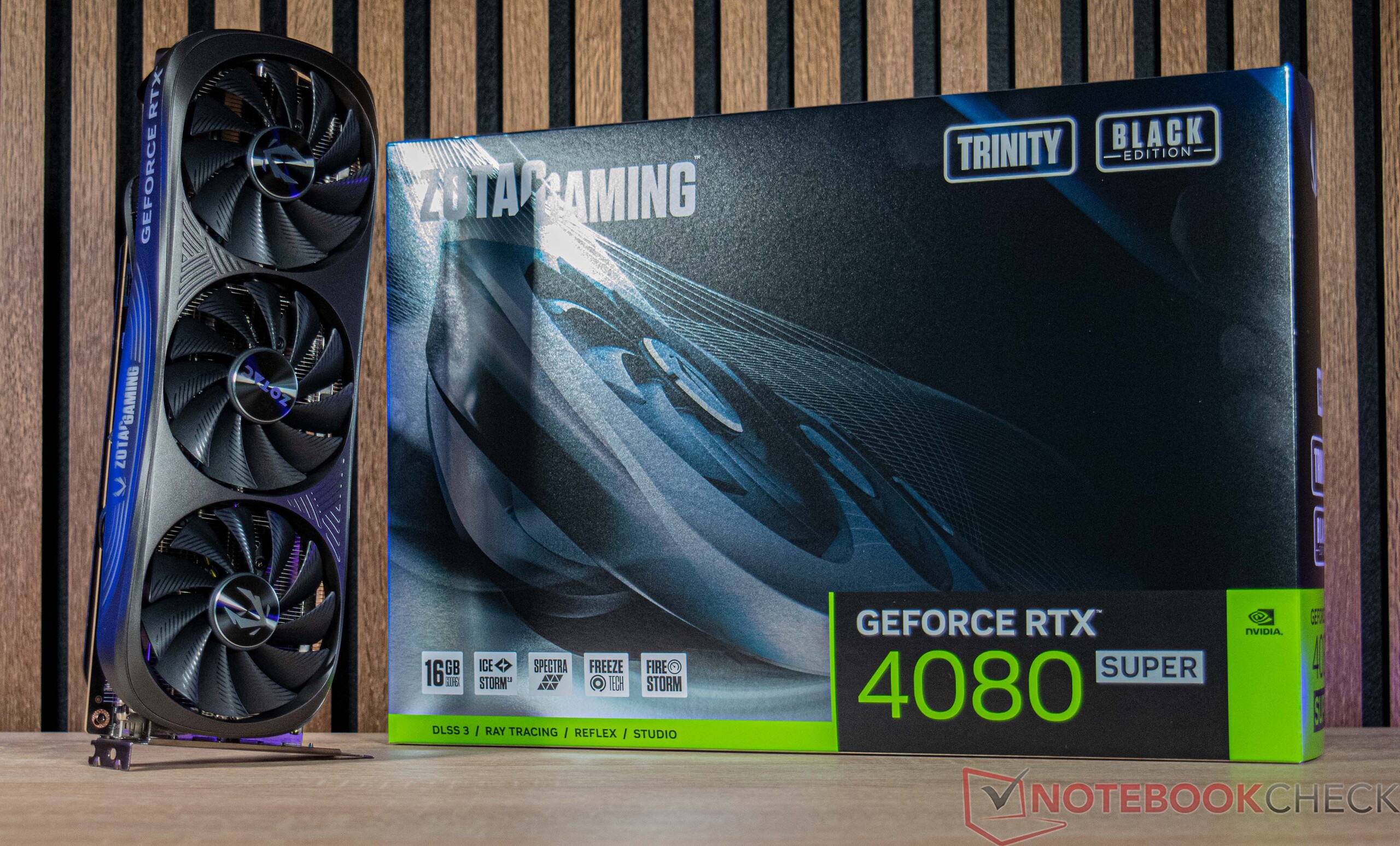

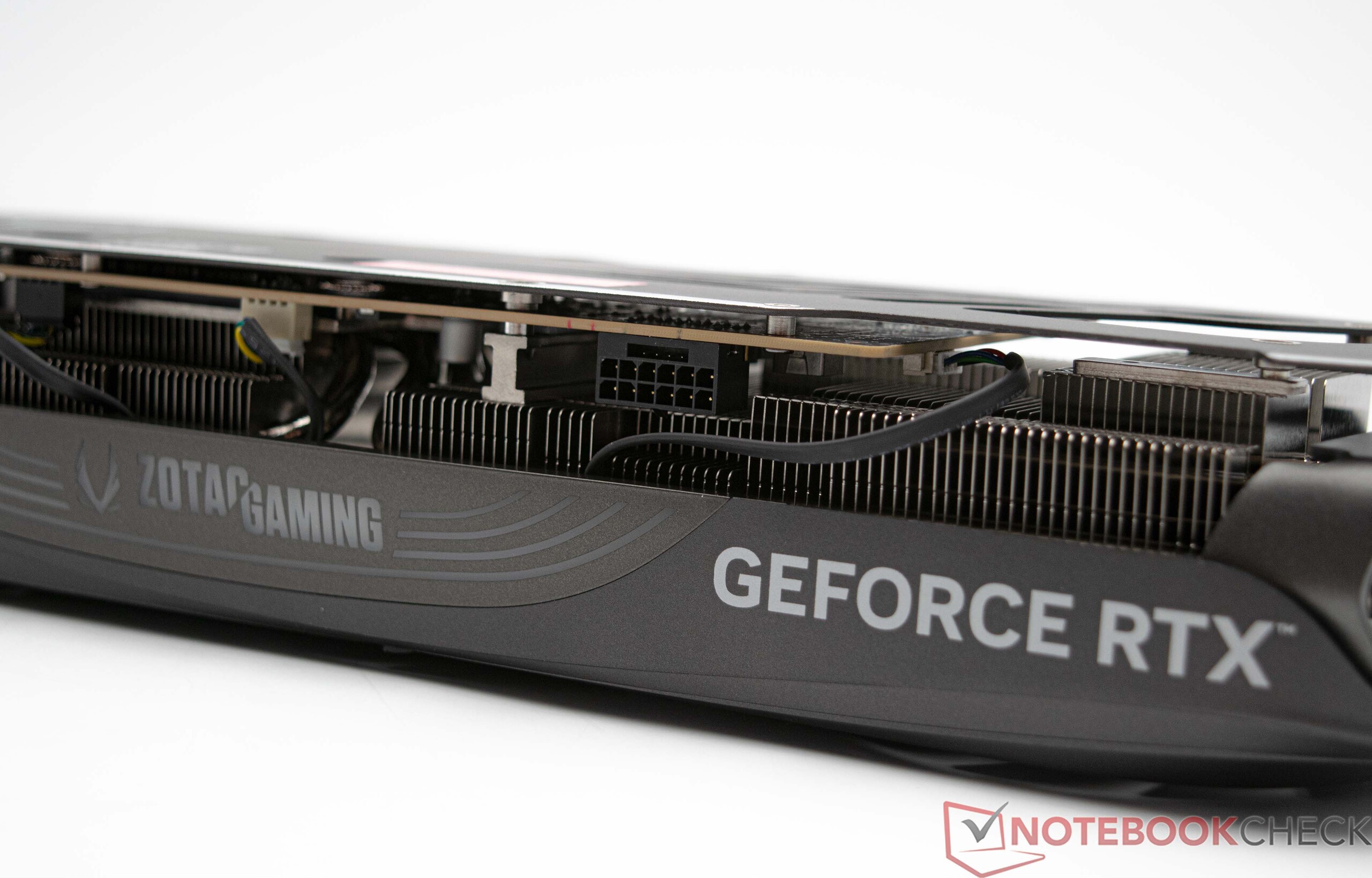

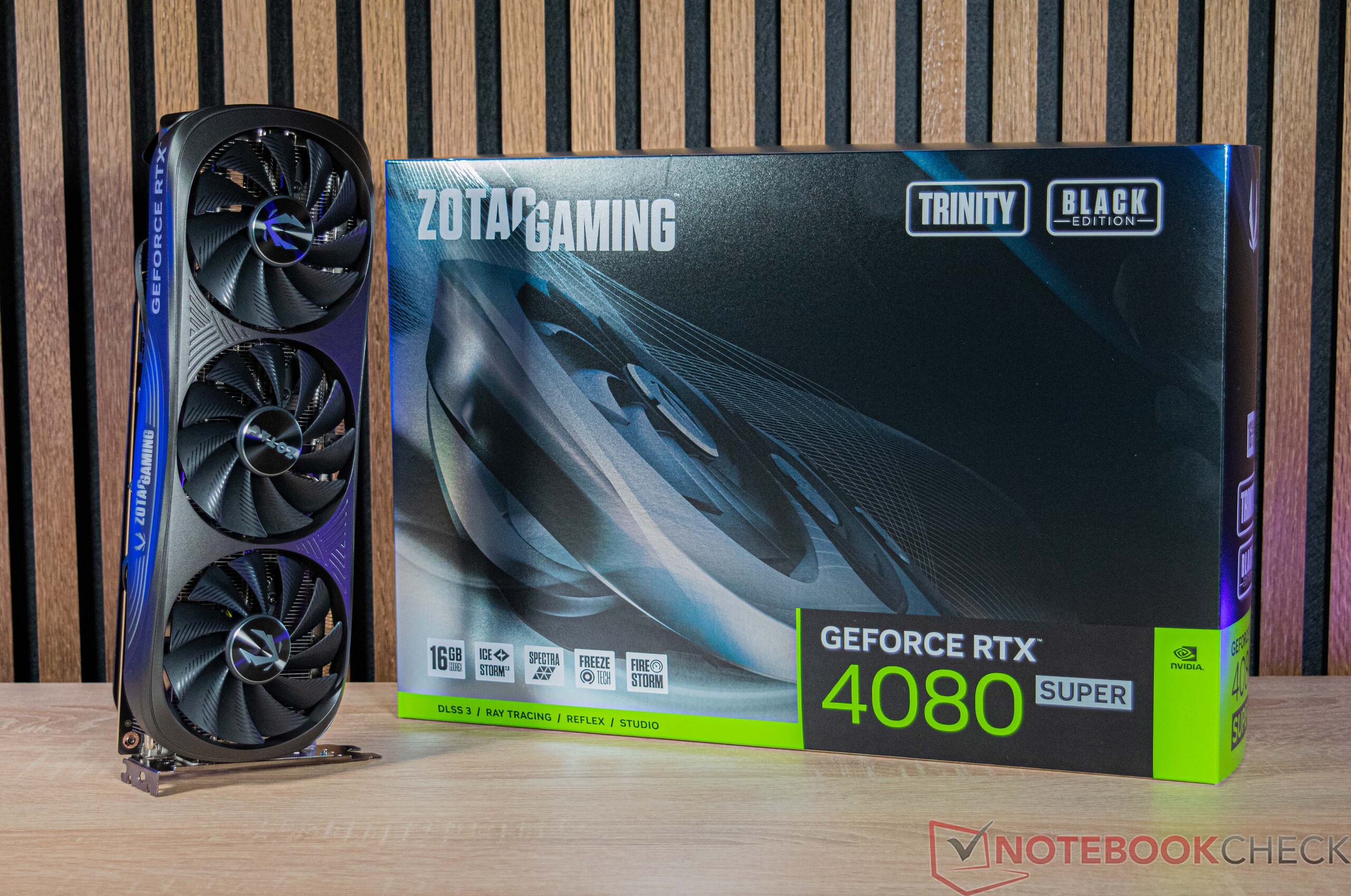

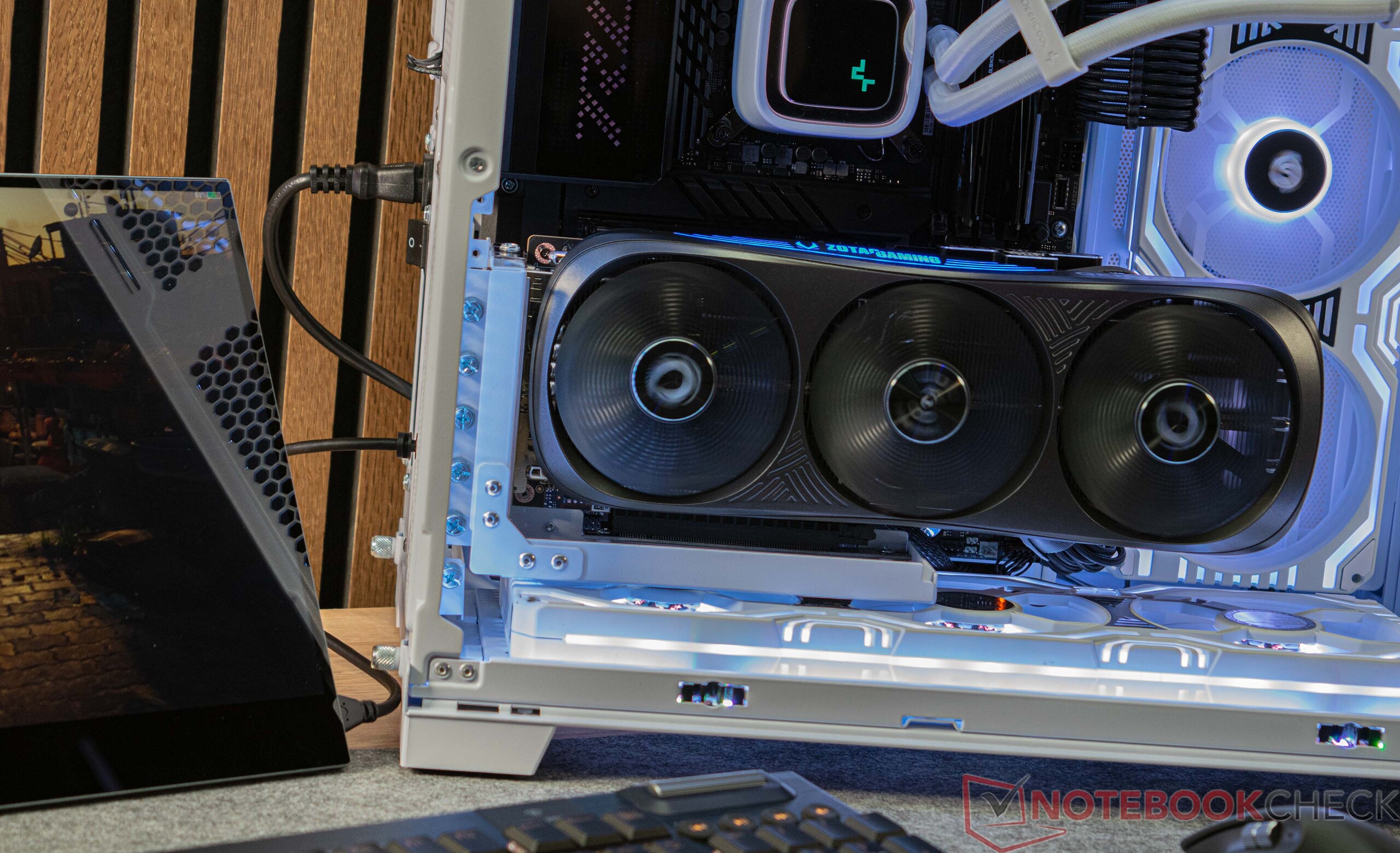

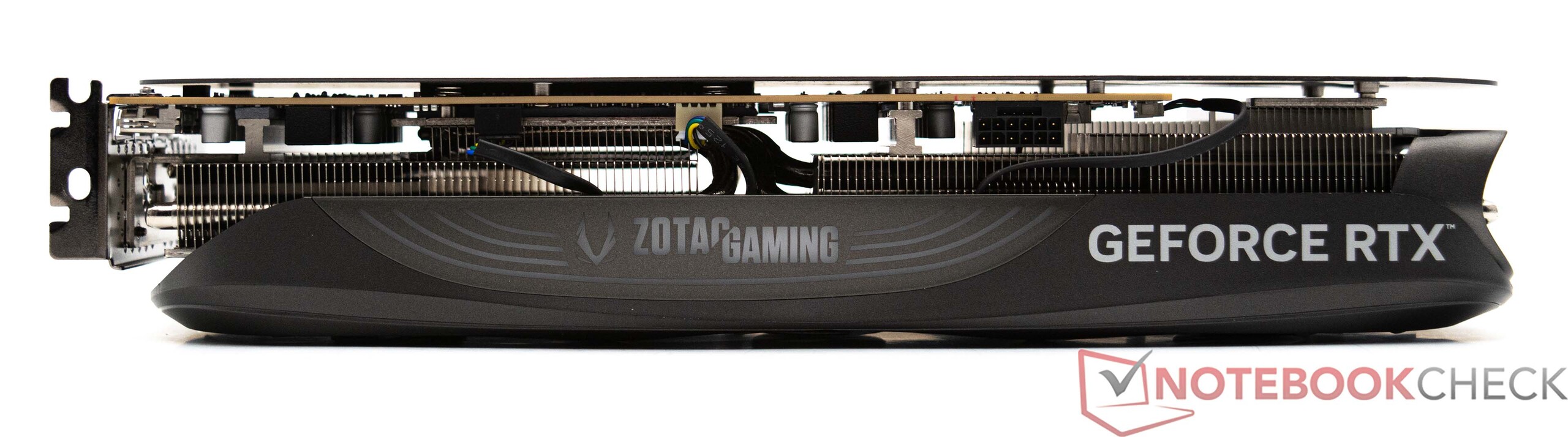

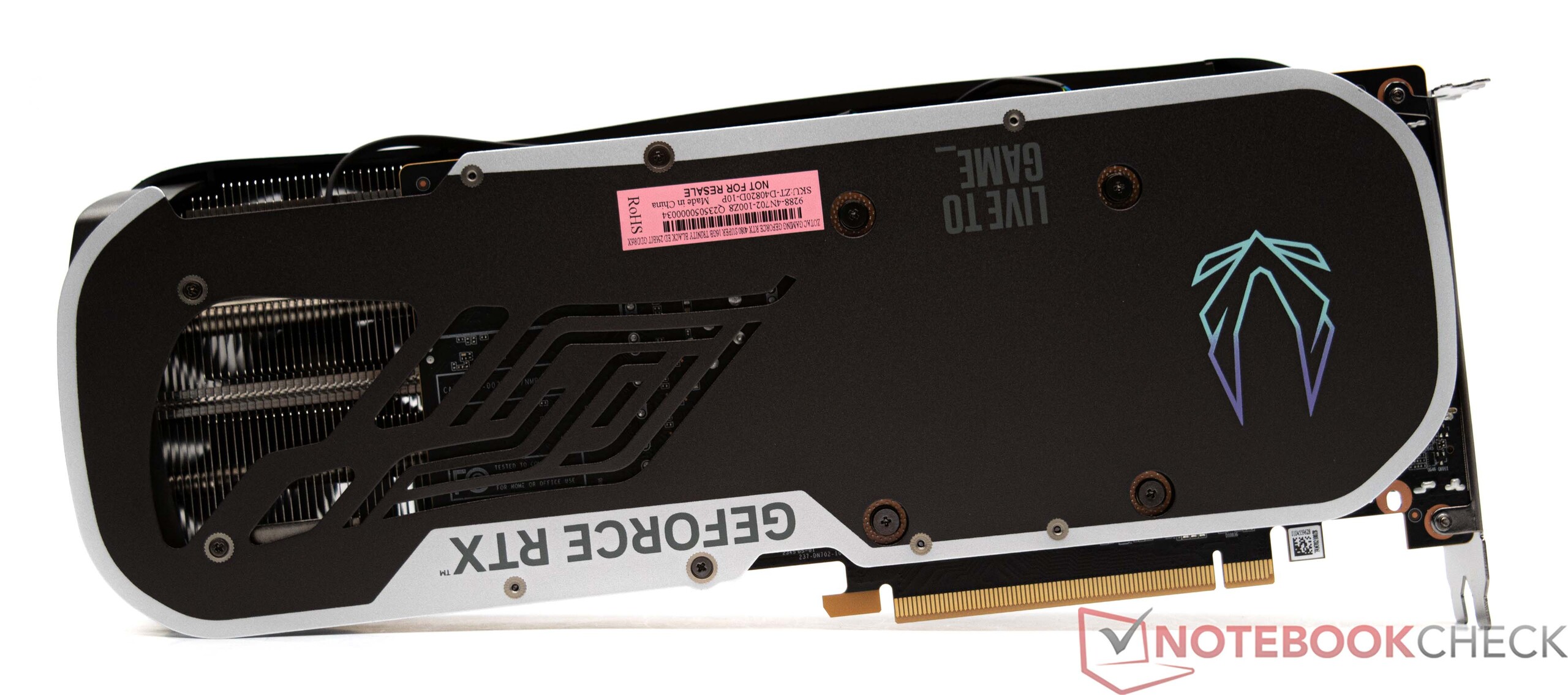

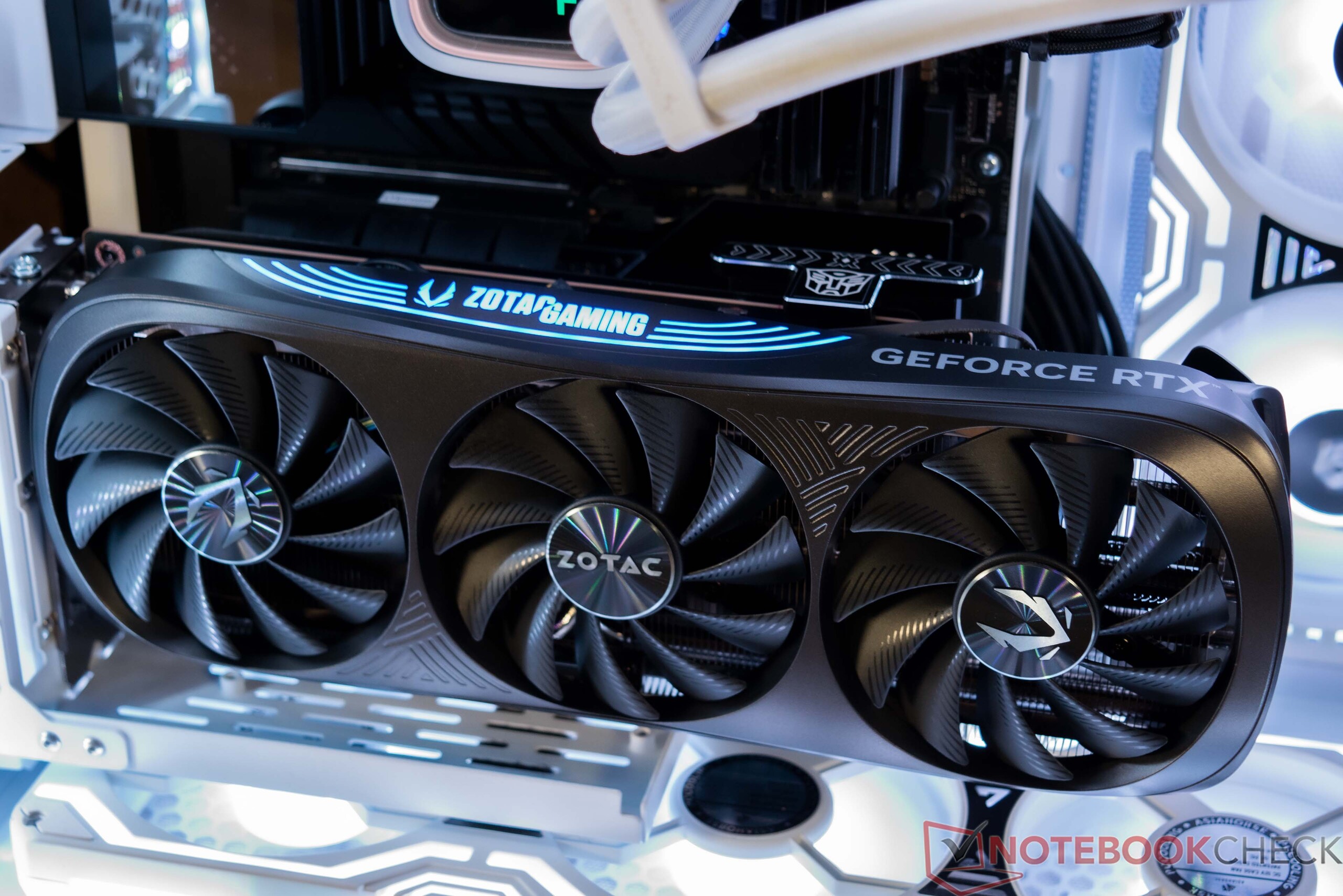

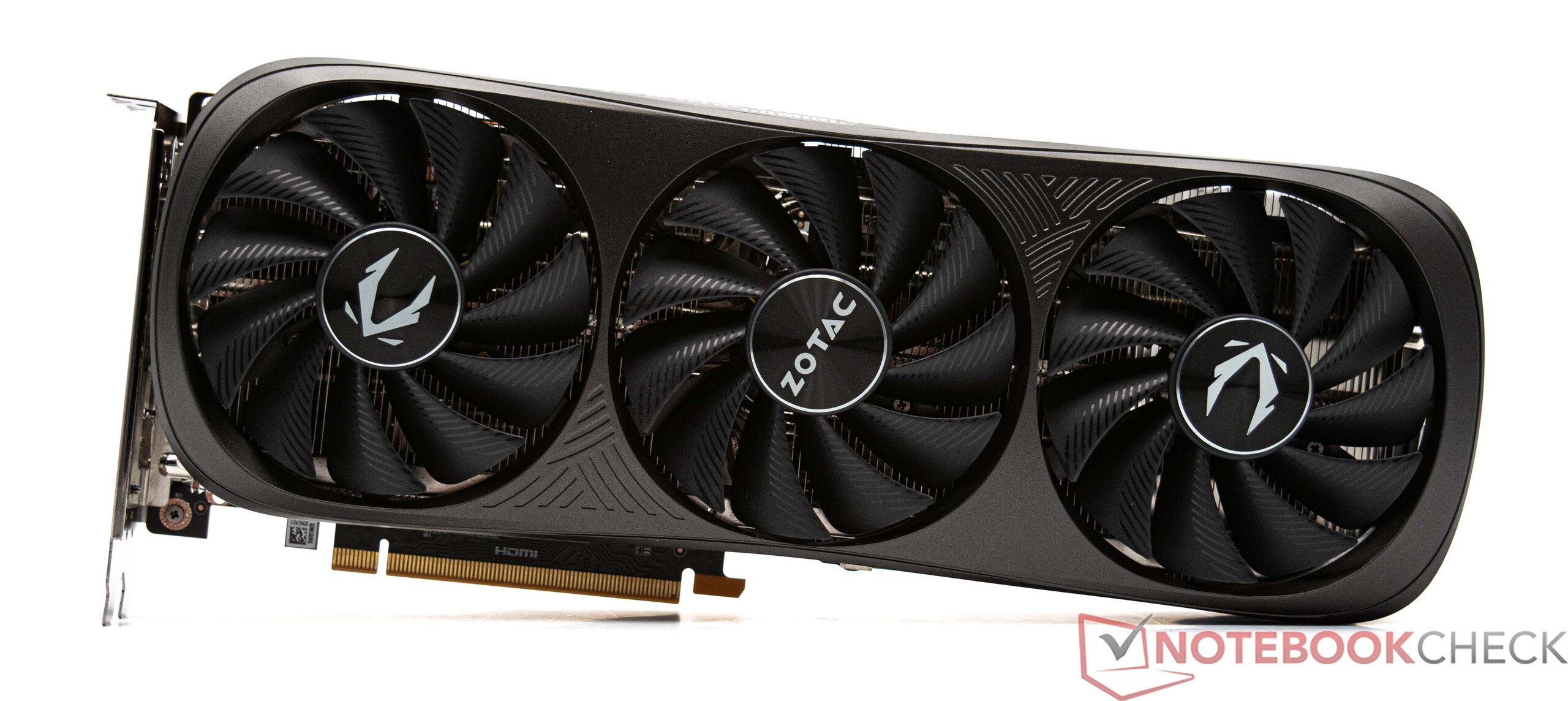

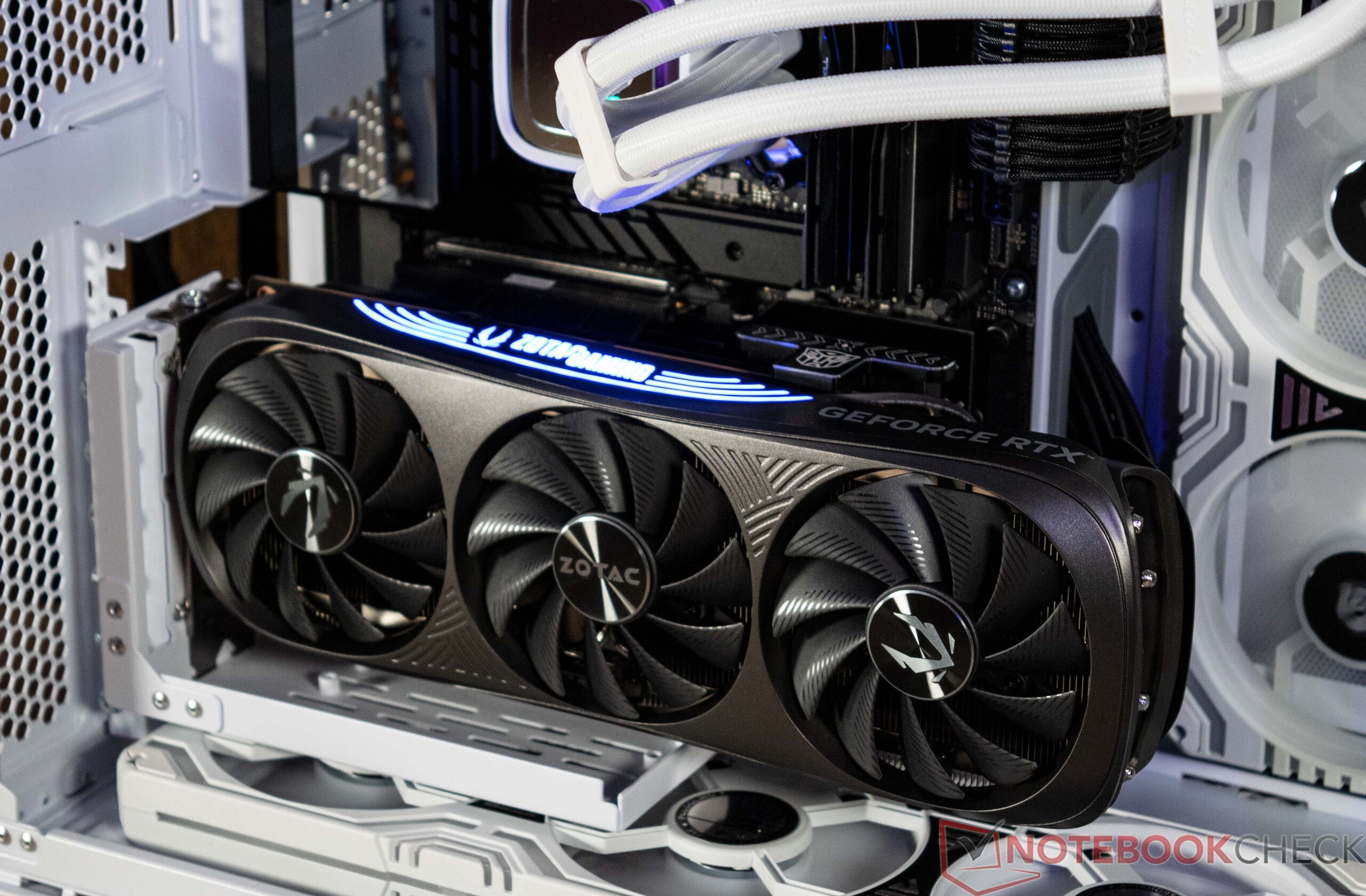

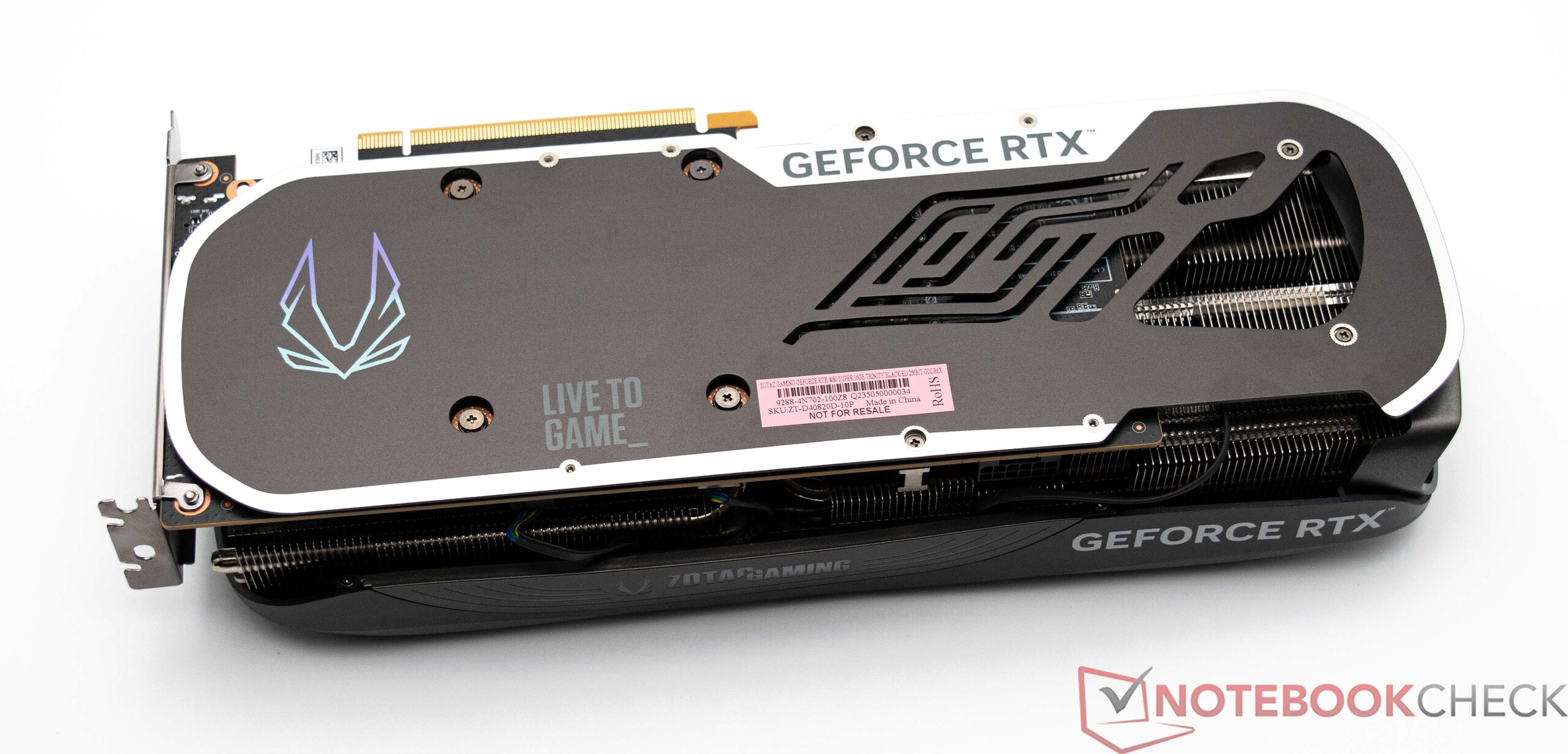

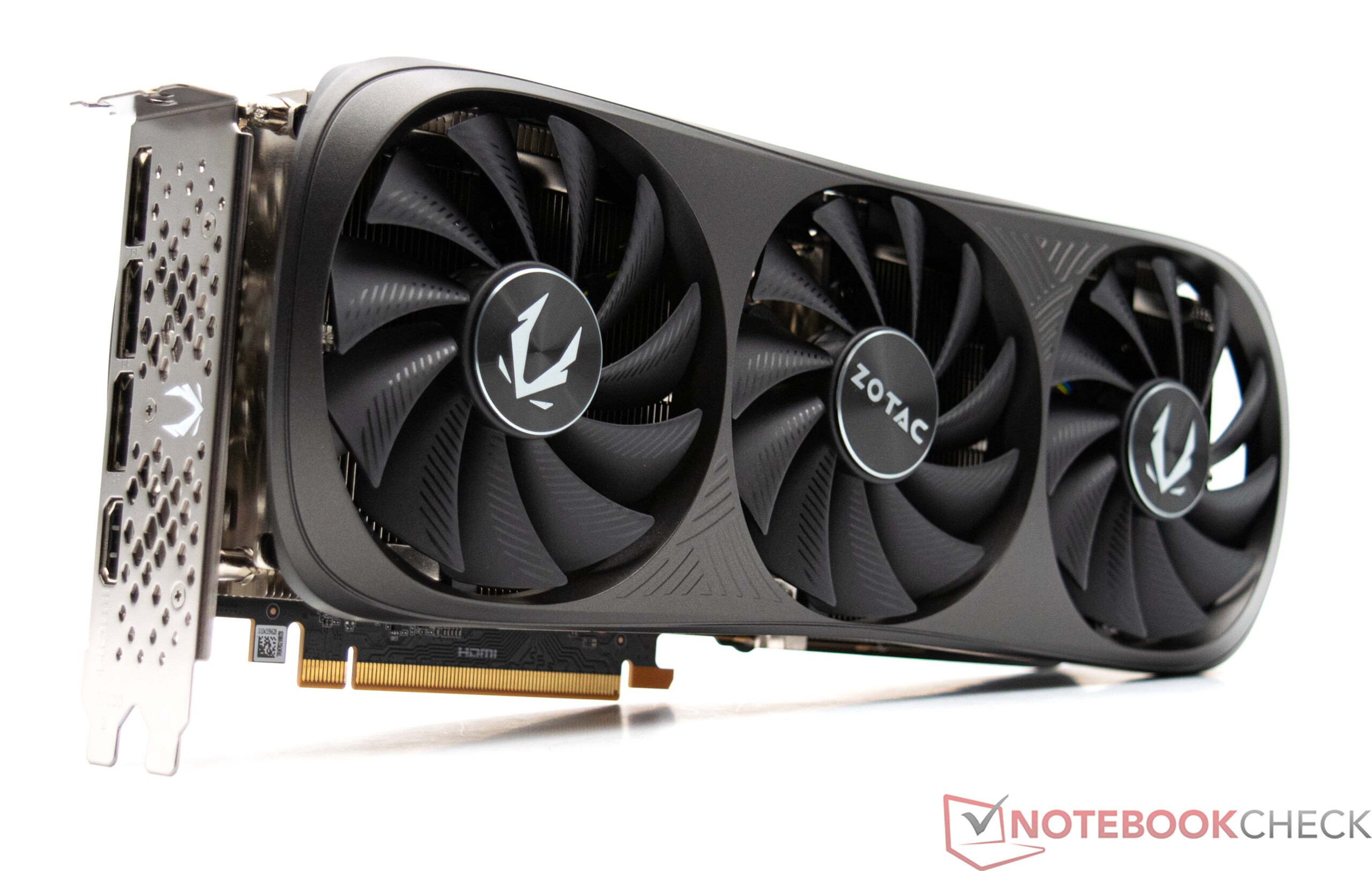

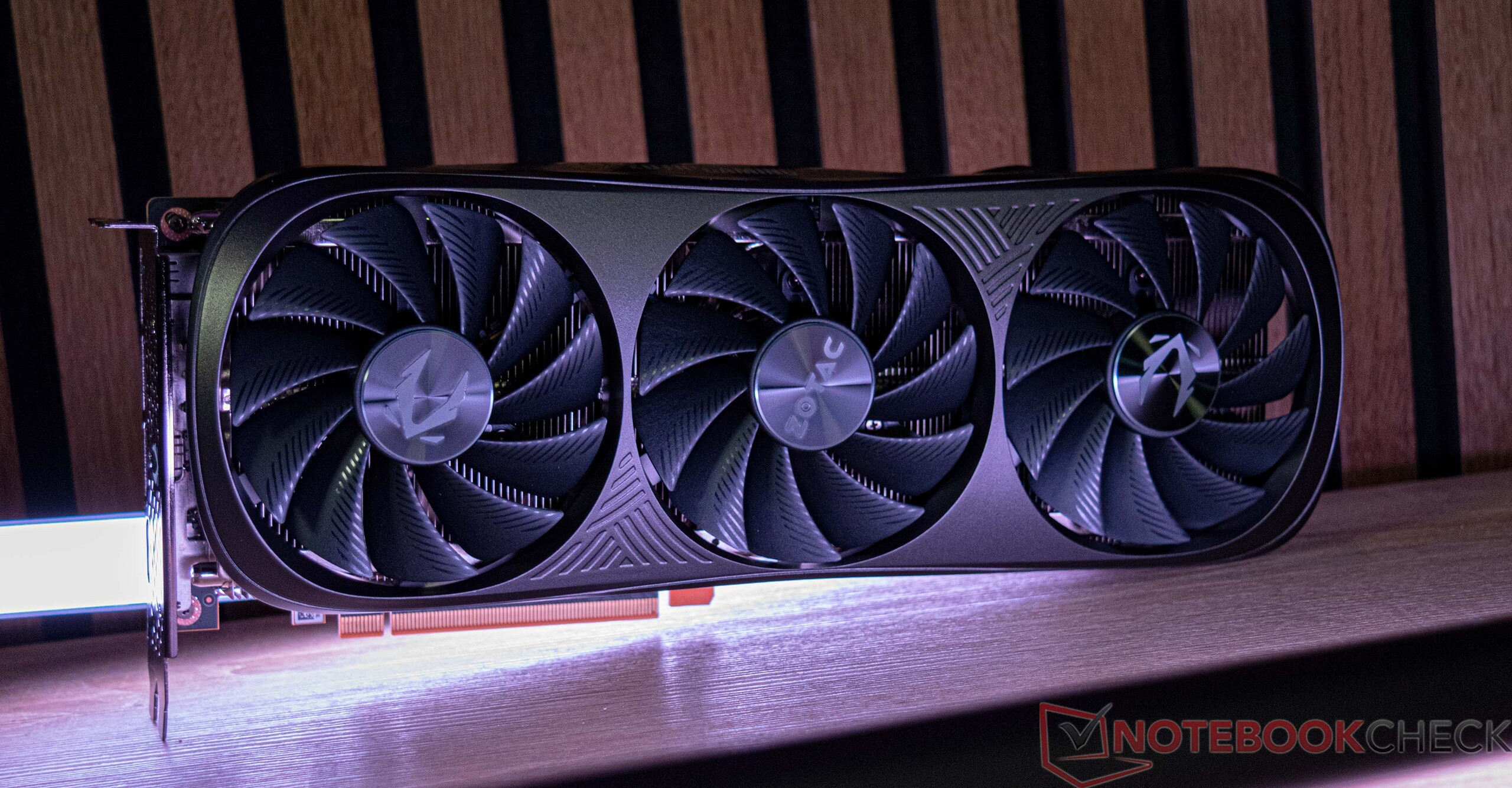

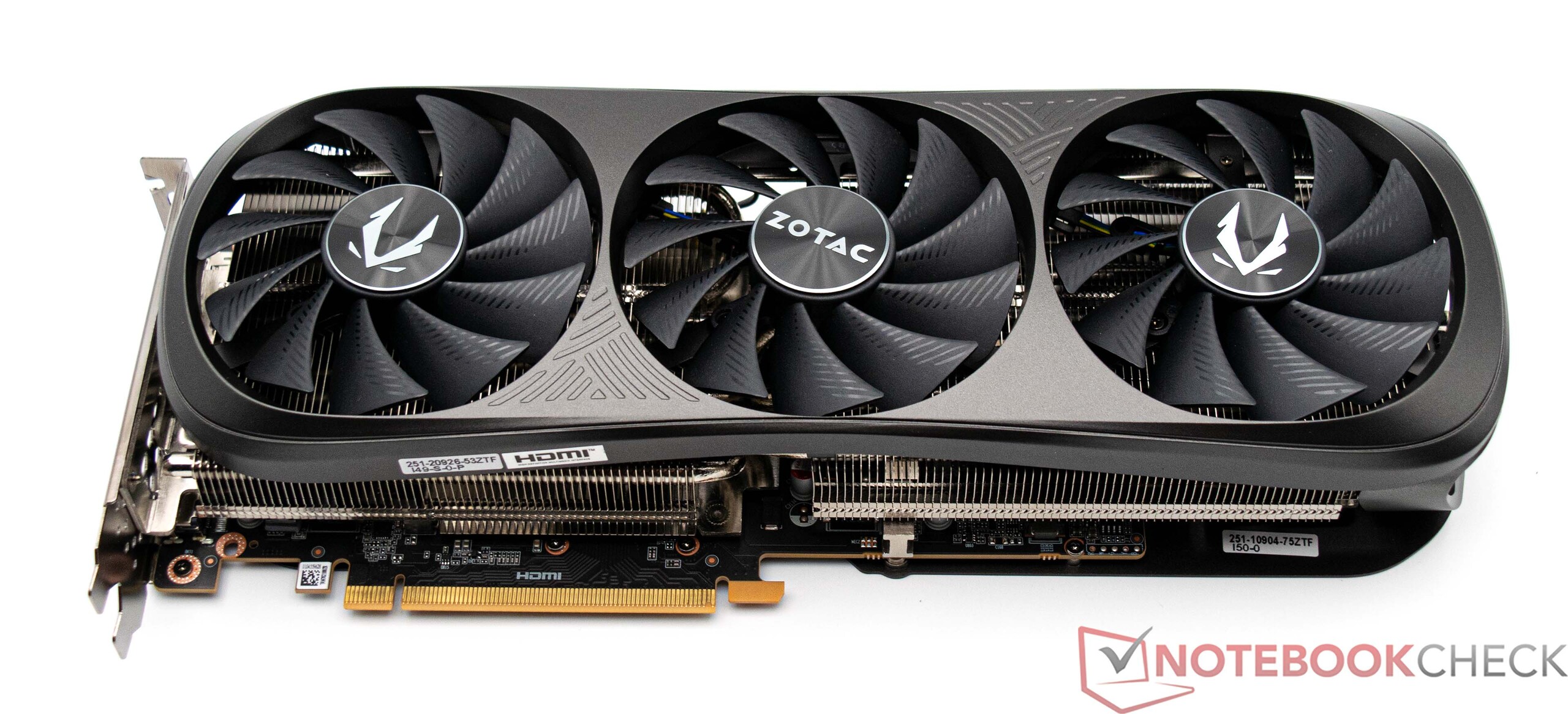

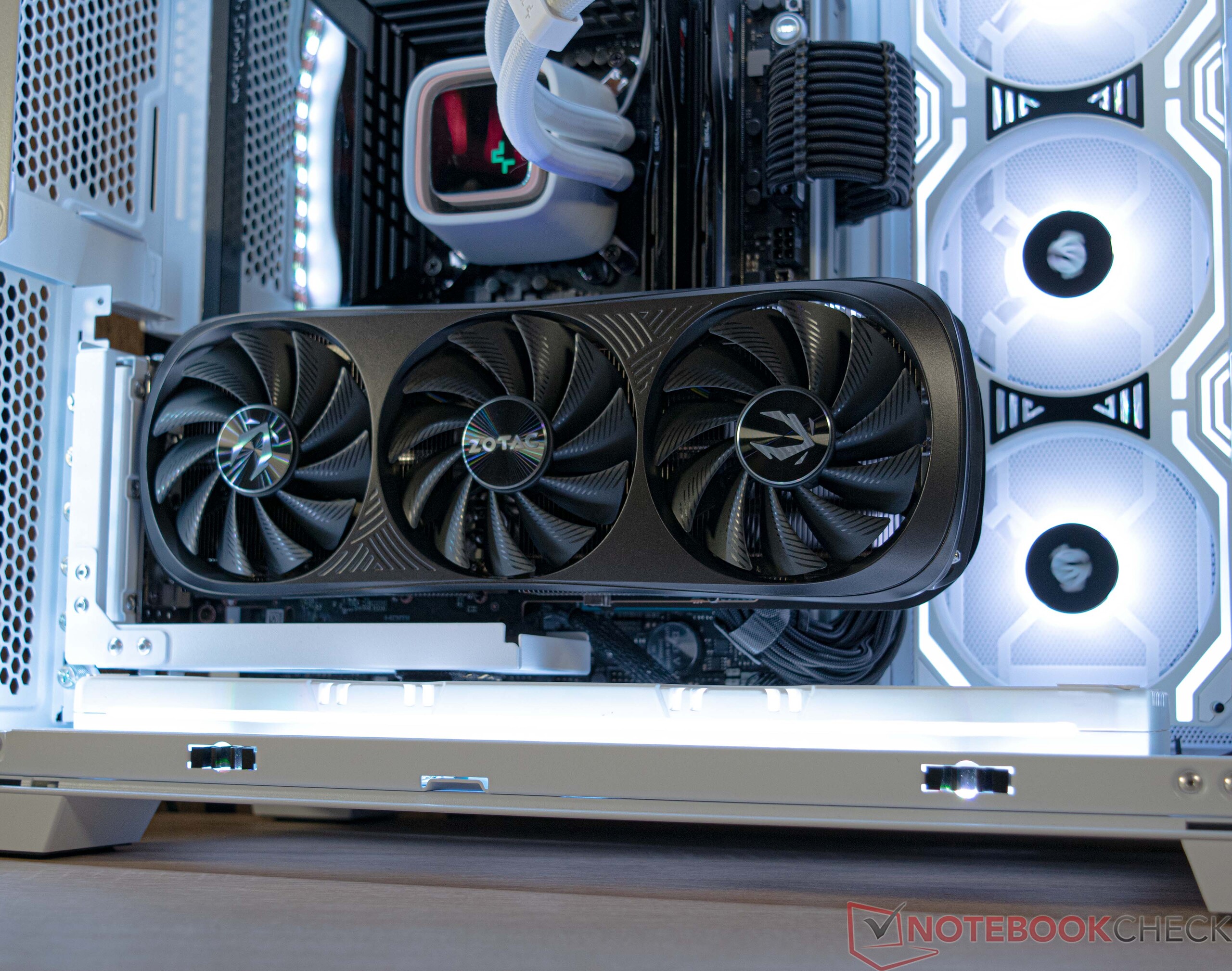

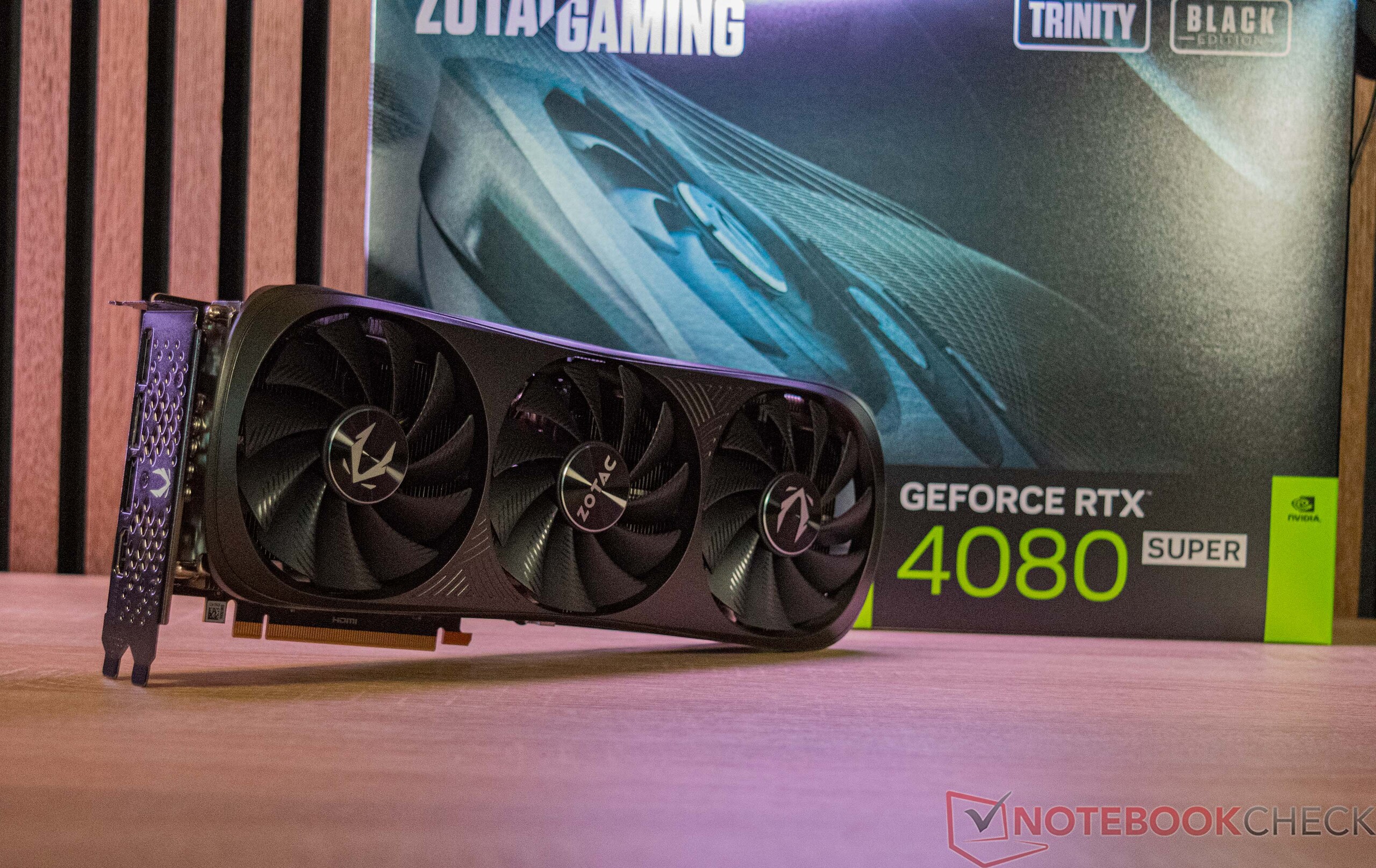

Visually, the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition is similar to the non-Super version. Zotac presently sells the Trinity Black Edition, as well as the Trinity OC White Edition and the AMP Extreme AIRO. Compared to our test sample's plain black, both of the alternatives are slightly overclocked and have a significantly more visual appeal. Nevertheless, the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition offers some visual highlights such as discreet RGB lighting and the somewhat special cooler design. The craftsmanship is generally of a satisfactory standard. A lot of plastic is used, mostly on the front. A sturdy metal cover is installed on the back, giving the graphics card good stability and preventing it from bending. This cover is also used for heat dissipation.

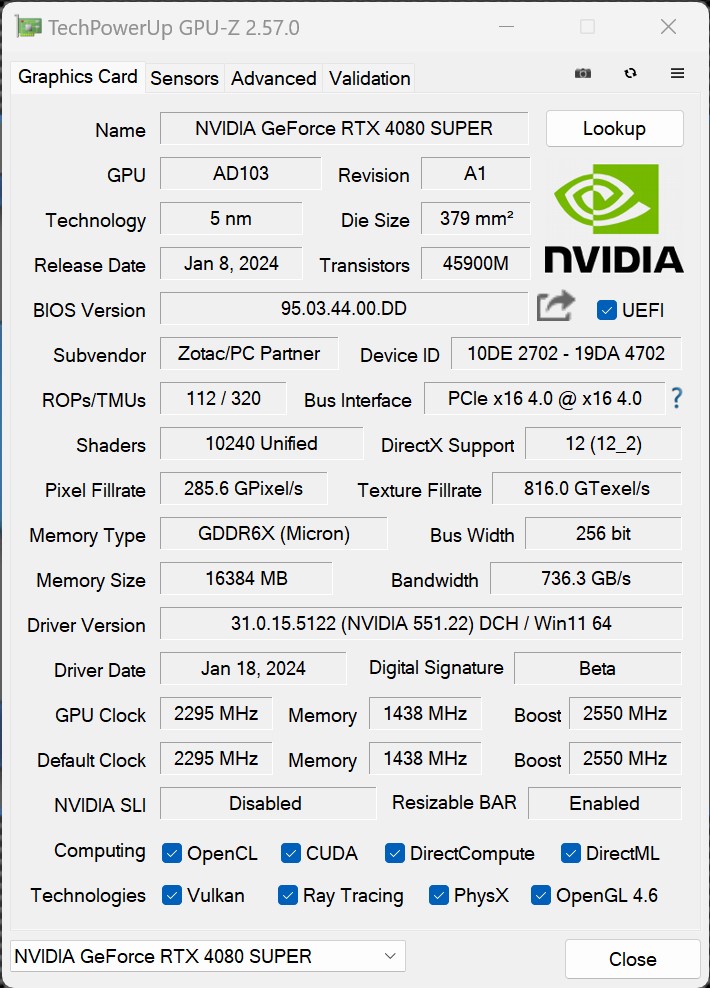

The AD103 is still used for the installed GPU chip, which is now equipped with a total of 10,240 computing units. The VRAM comprises of 16 GB, meaning that nothing has changed compared to the vanilla counterpart. However, due to somewhat higher clock speeds, memory bandwidth also increases. The 320-watt graphics card is powered by a 12VHPWR. Zotac includes a suitable adapter from 3x6 + 2 pin PCIe to 12VHPWR.

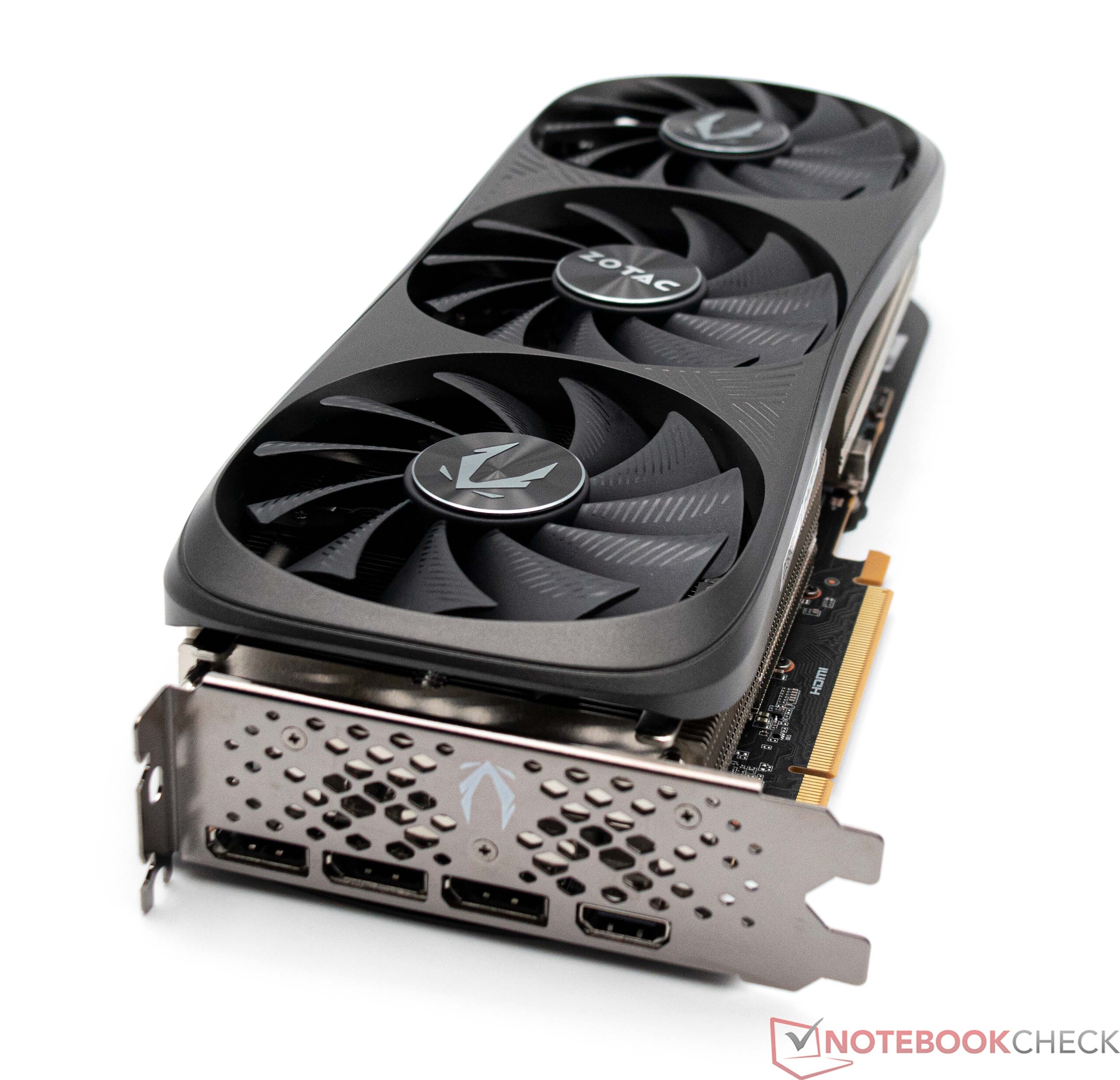

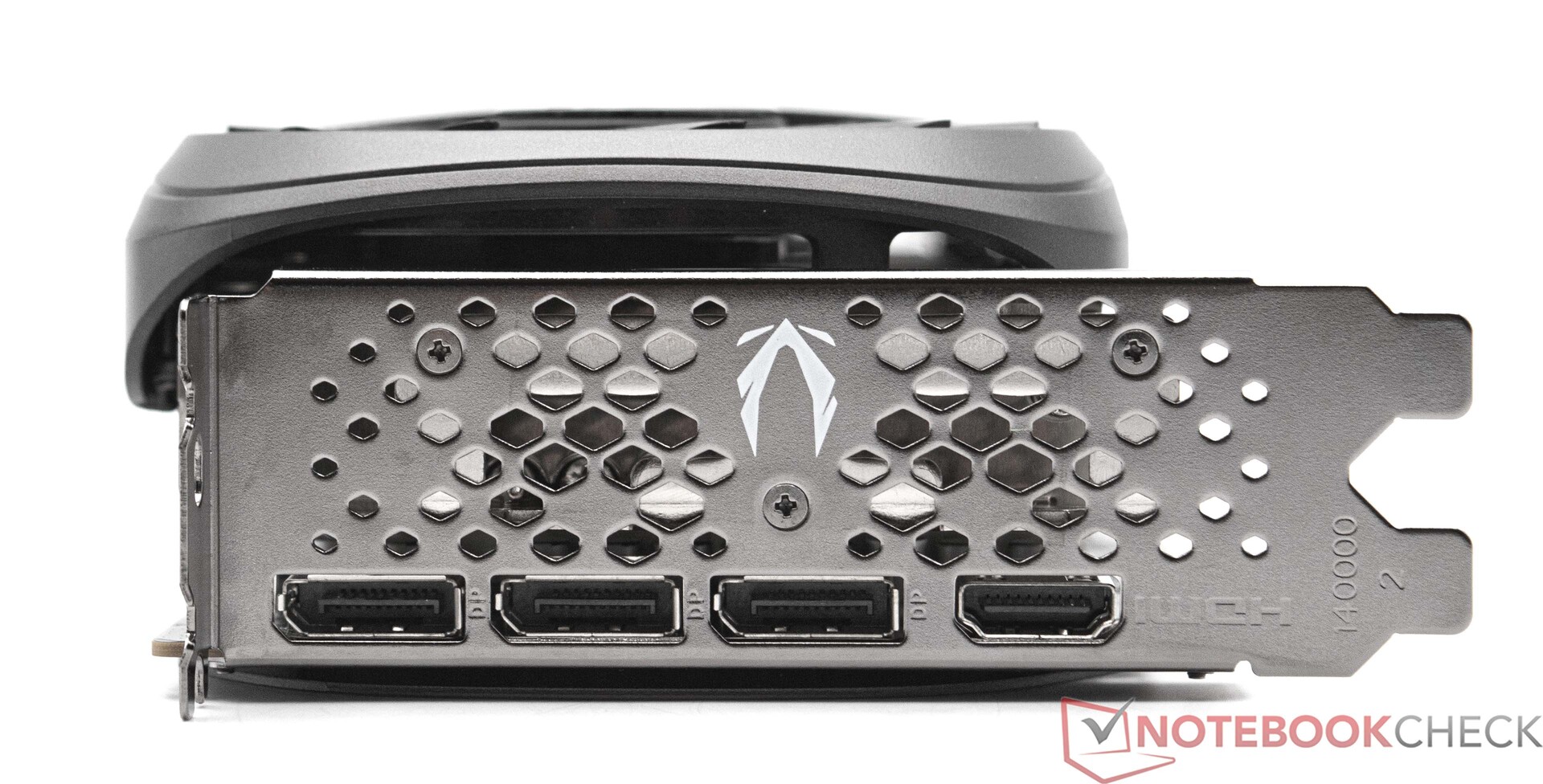

There are still no significant changes to the external connections: 1x HDMI 2.1a and 3x DisplayPort 1.4a. Since the 7000 series, AMD has maintained its lead in terms of hardware sophistication by incorporating DisplayPort version 2.1.

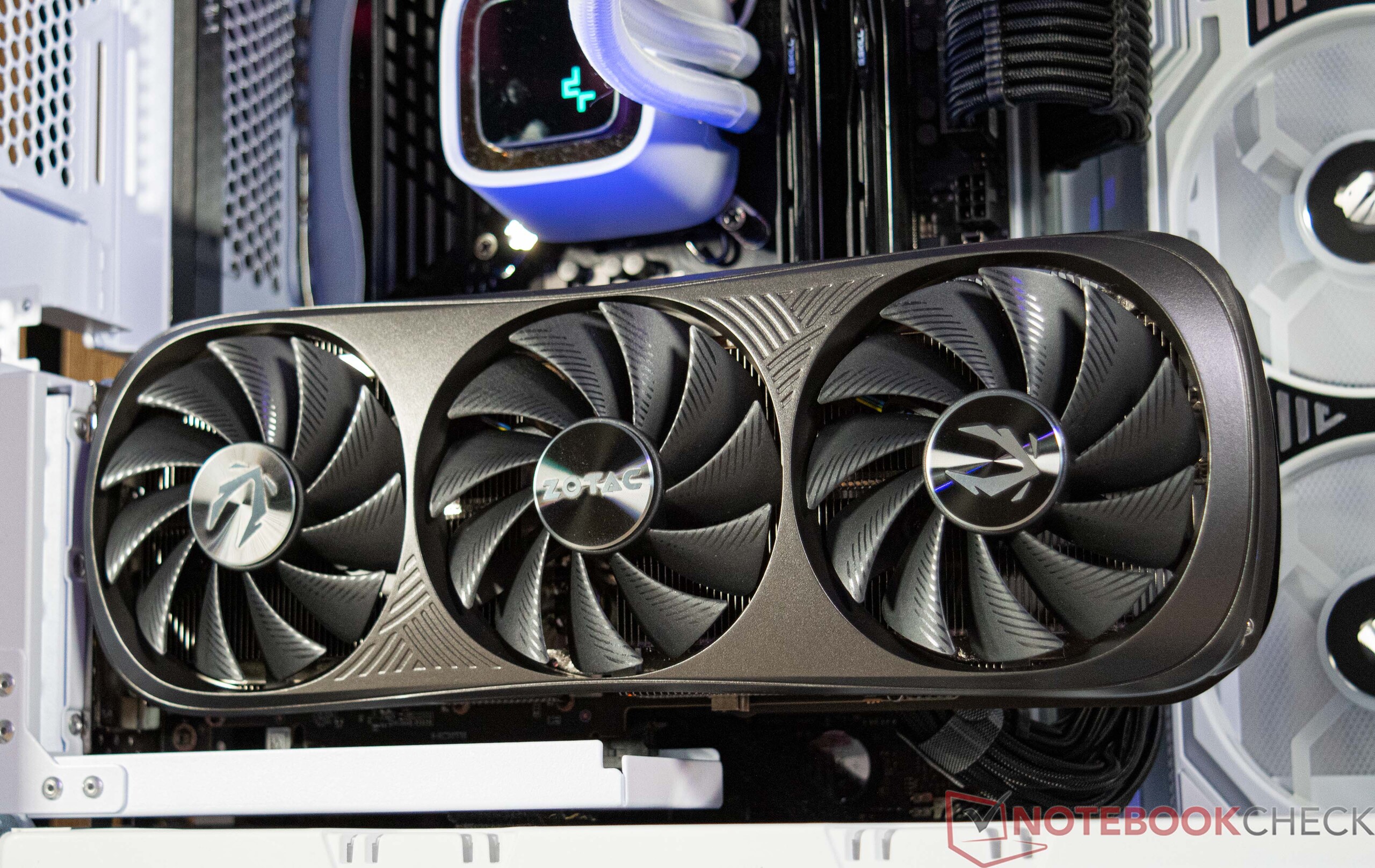

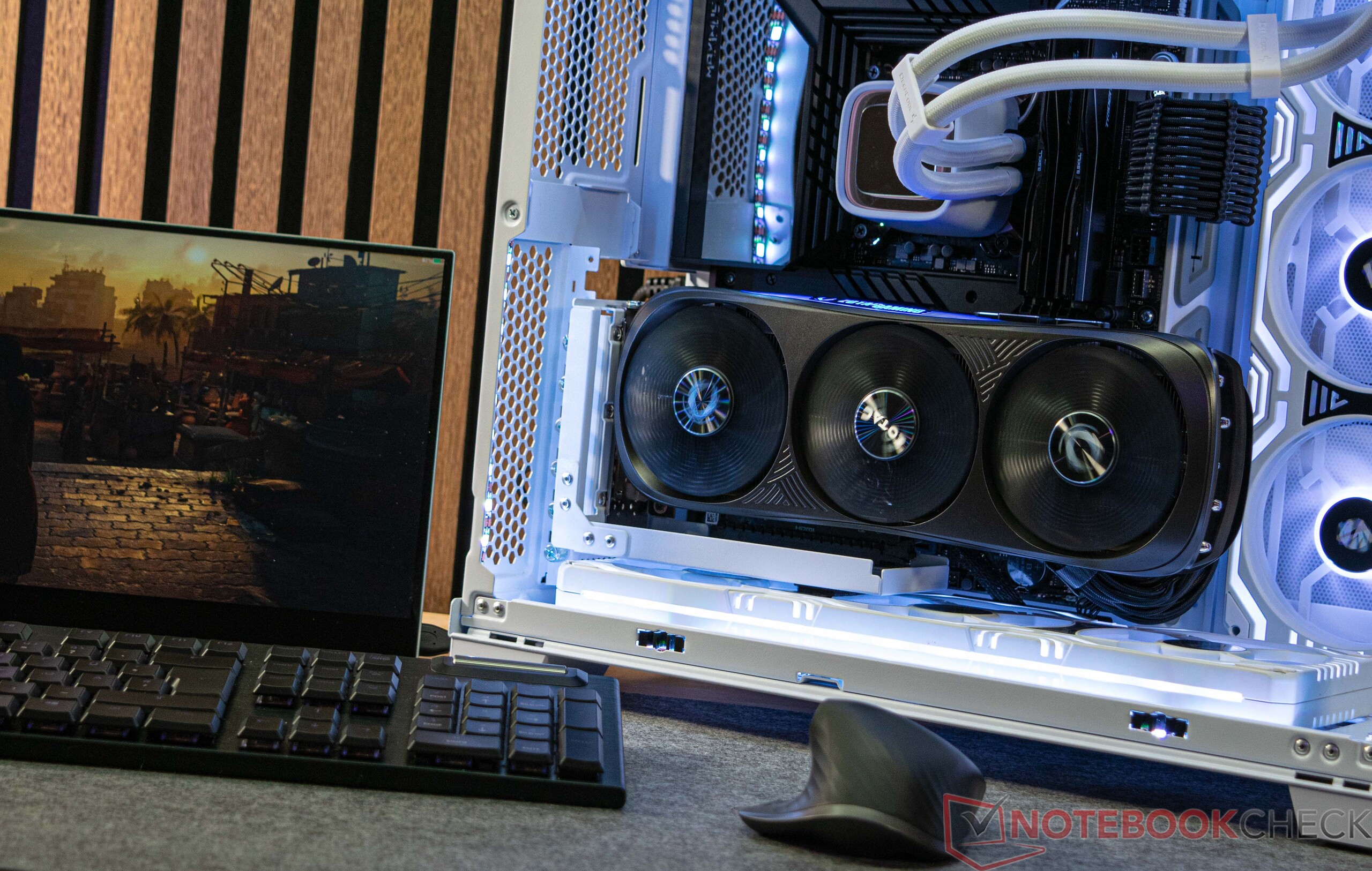

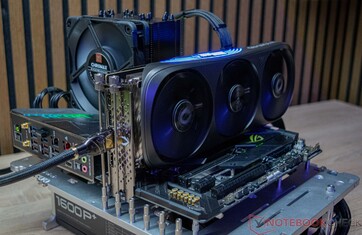

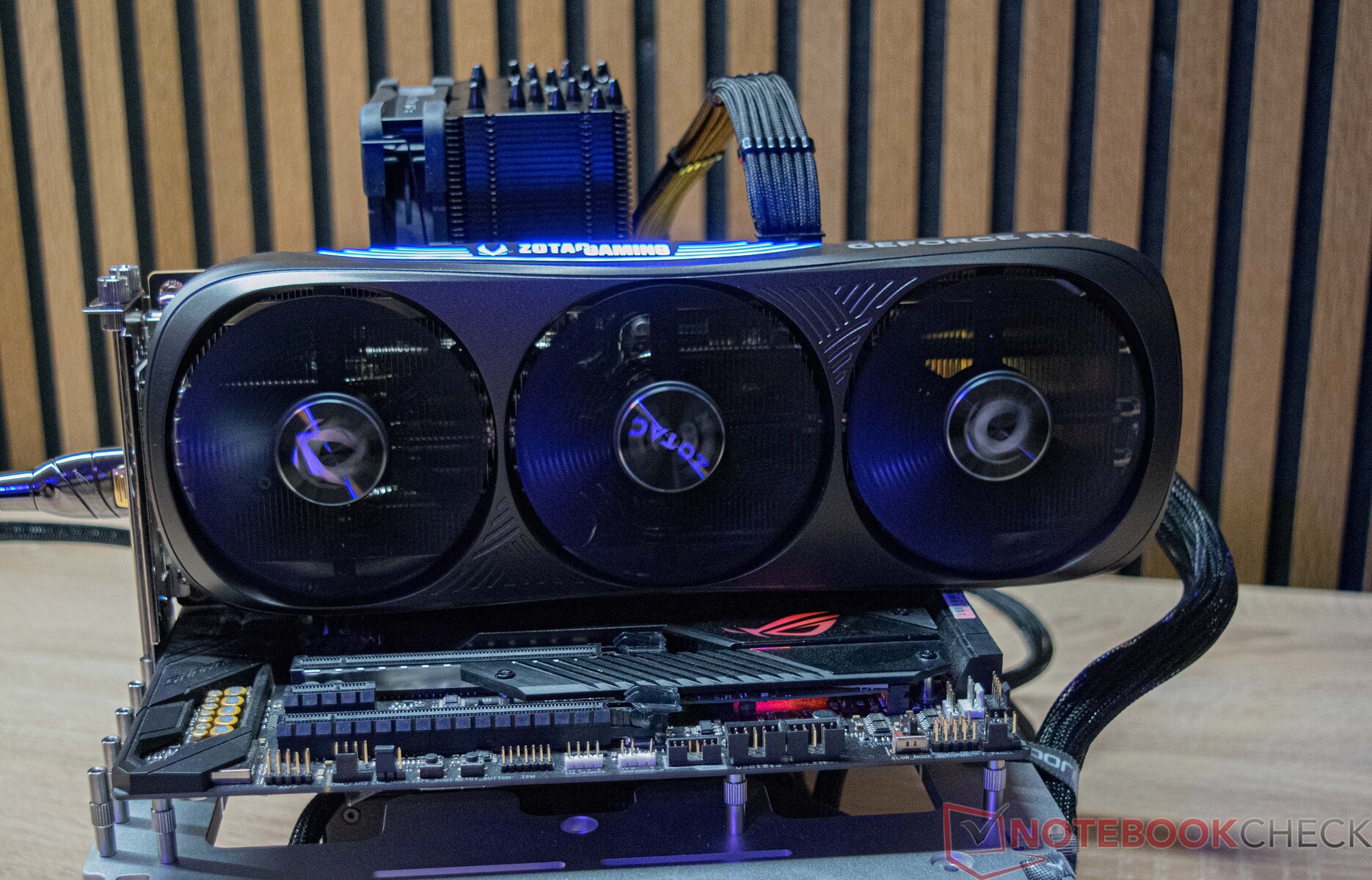

Information on our test system
GeForce graphics cards specs compared
| Features | RTX 4090 | RTX 4080 Super | RTX 4080 | RTX 4070 Ti Super | RTX 4070 Ti | RTX 4070 Super | RTX 4070 | RTX 4060 Ti |
| Chip | AD102 | AD103 | AD103 | AD103 | AD104 | AD104 | AD104 | AD106 |
| FinFET process | 4 nm | 4 nm | 4 nm | 4 nm | 4 nm | 4 nm | 4 nm | 4 nm |
| CUDA cores | 16.384 | 10.240 | 9.728 | 8.448 | 7.680 | 7.168 | 5.888 | 4.352 |
| Texture units | 512 | 320 | 304 | 264 | 240 | 224 | 184 | 136 |
| Tensor cores | 512 4. Gen. | 320 4. Gen. | 304 4. Gen. | 264 4. Gen. | 240 4. Gen. | 224 4. Gen. | 184 4. Gen. | 136 4. Gen. |
| RT cores | 128 | 80 | 76 | 66 | 60 | 56 | 46 | 34 |
| GPU base clock | 2.235 MHz | 2.295 MHz | 2.205 MHz | 2.340 MHz | 2.310 MHz | 1.980 MHz | 1.920 MHz | 2.310 MHz |
| GPU boost clock | 2.520 MHz | 2.550 MHz | 2.505 MHz | 2.610 MHz | 2.610 MHz | 2.475 MHz | 2.475 MHz | 2.535 MHz |
| Memory bus | 384 bit | 256 Bit | 256 Bit | 256 Bit | 256 Bit | 192 Bit | 192 Bit | 128 Bit |
| Memory bandwidth | 1.008 GB/s | 736.3 GB/s | 716.8 GB/s | 672.3 GB/s | 504.2 GB/s | 504.2 GB/s | 504.2 GB/s | 288 GB/s |
| Video memory | 24 GB GDDR6X | 16 GB GDDR6X | 16 GB GDDR6X | 16 GB GDDR6X | 12 GB GDDR6X | 12 GB GDDR6X | 12 GB GDDR6X | 8 / 16 GB GDDR6 |
| Power consumption | 450 W | 320 W | 320 W | 285 W | 285 W | 220 W | 200 W | 160 W/ 165 W |

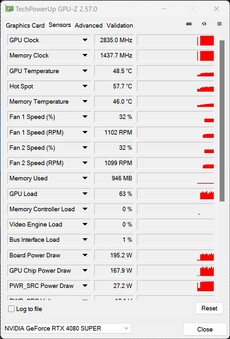

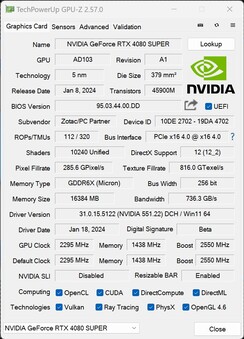

The clock rates of the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition

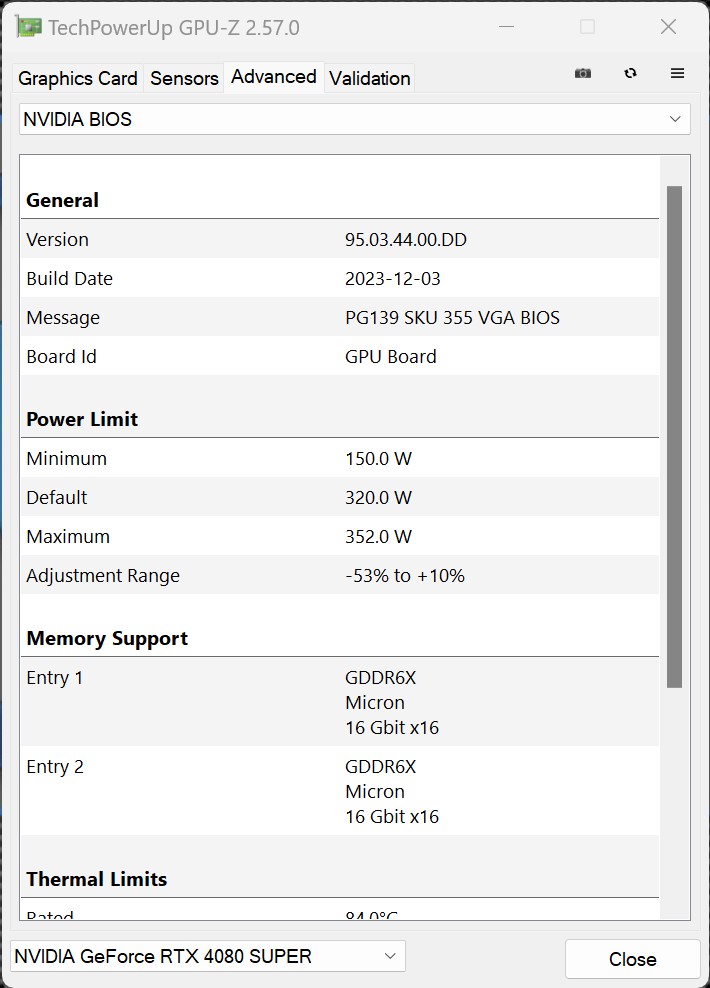

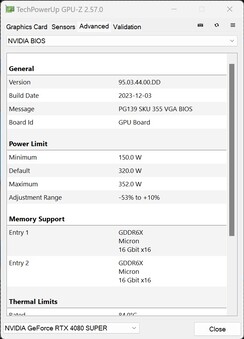

As previously indicated, Zotac adheres to Nvidia's specifications for the GeForce RTX 4080 Super Trinity Black Edition in terms of GPU chip and VRAM clock rates. The base clock rate is set at 2,295 MHz, with a specified boost mode of 2,550 MHz. During every game, we not only meet but also surpass this value, demonstrating that the graphics card has enough power to satisfy the specified requirements.

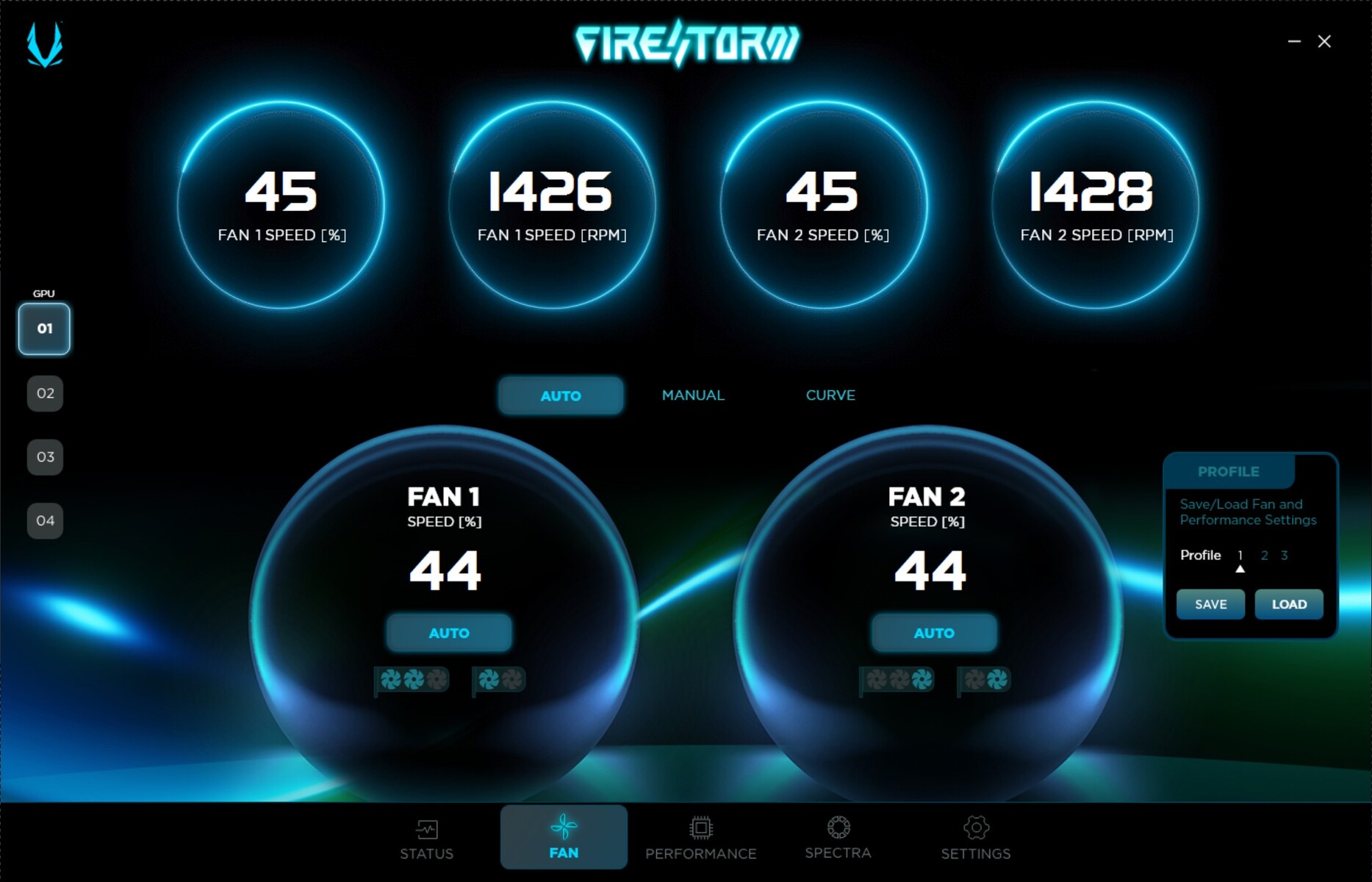

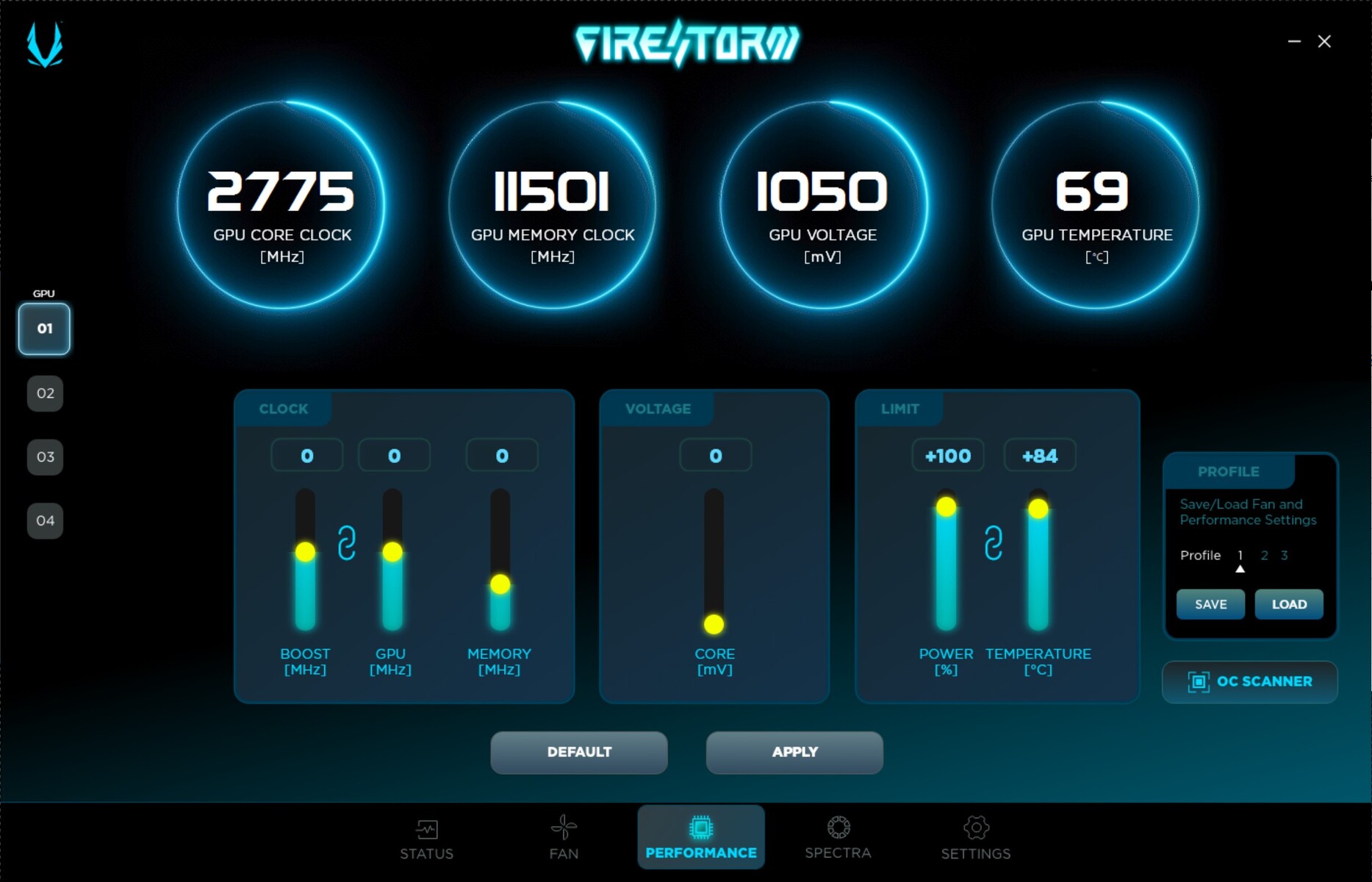

Zotac FireStorm Utility

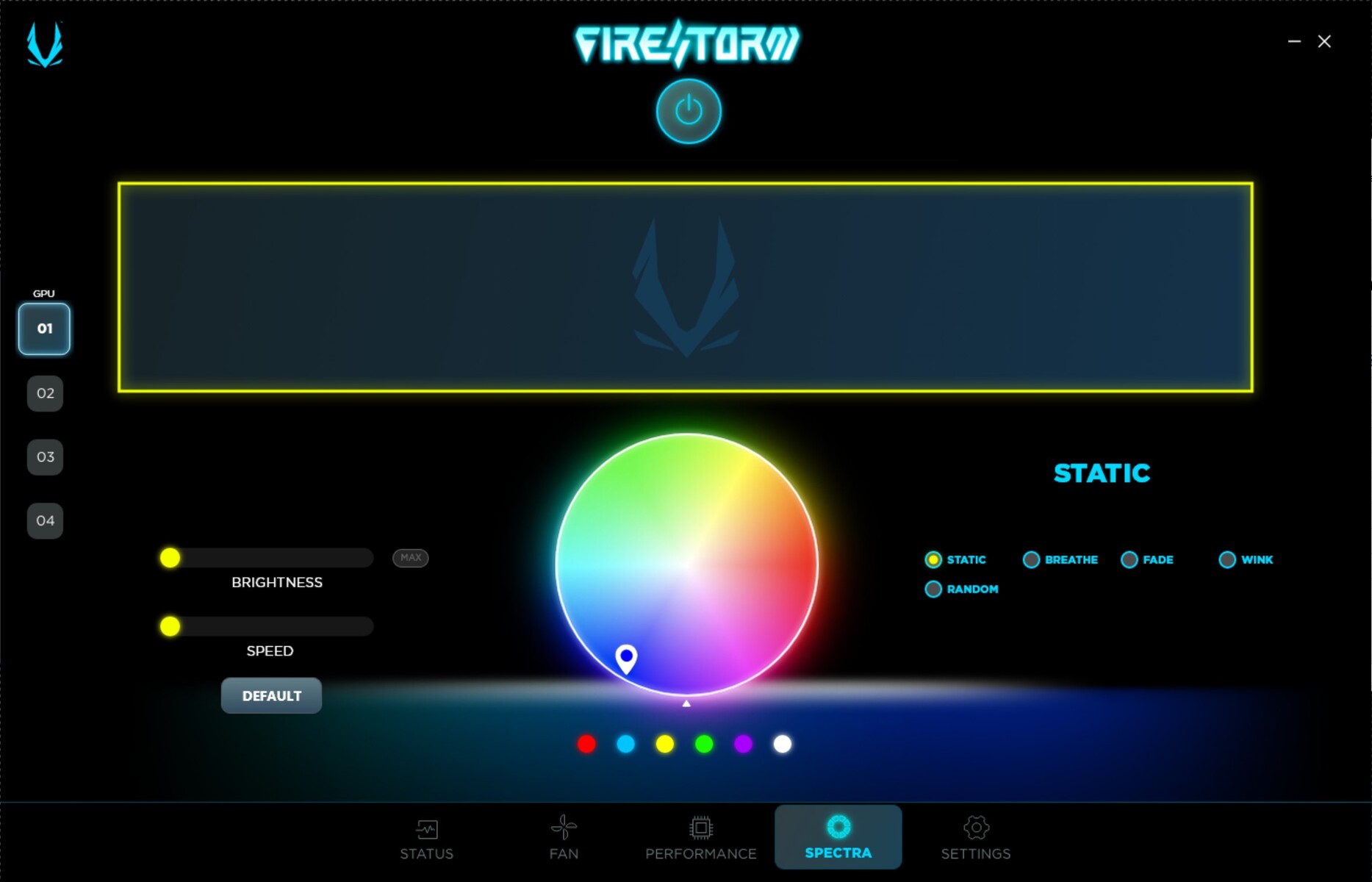

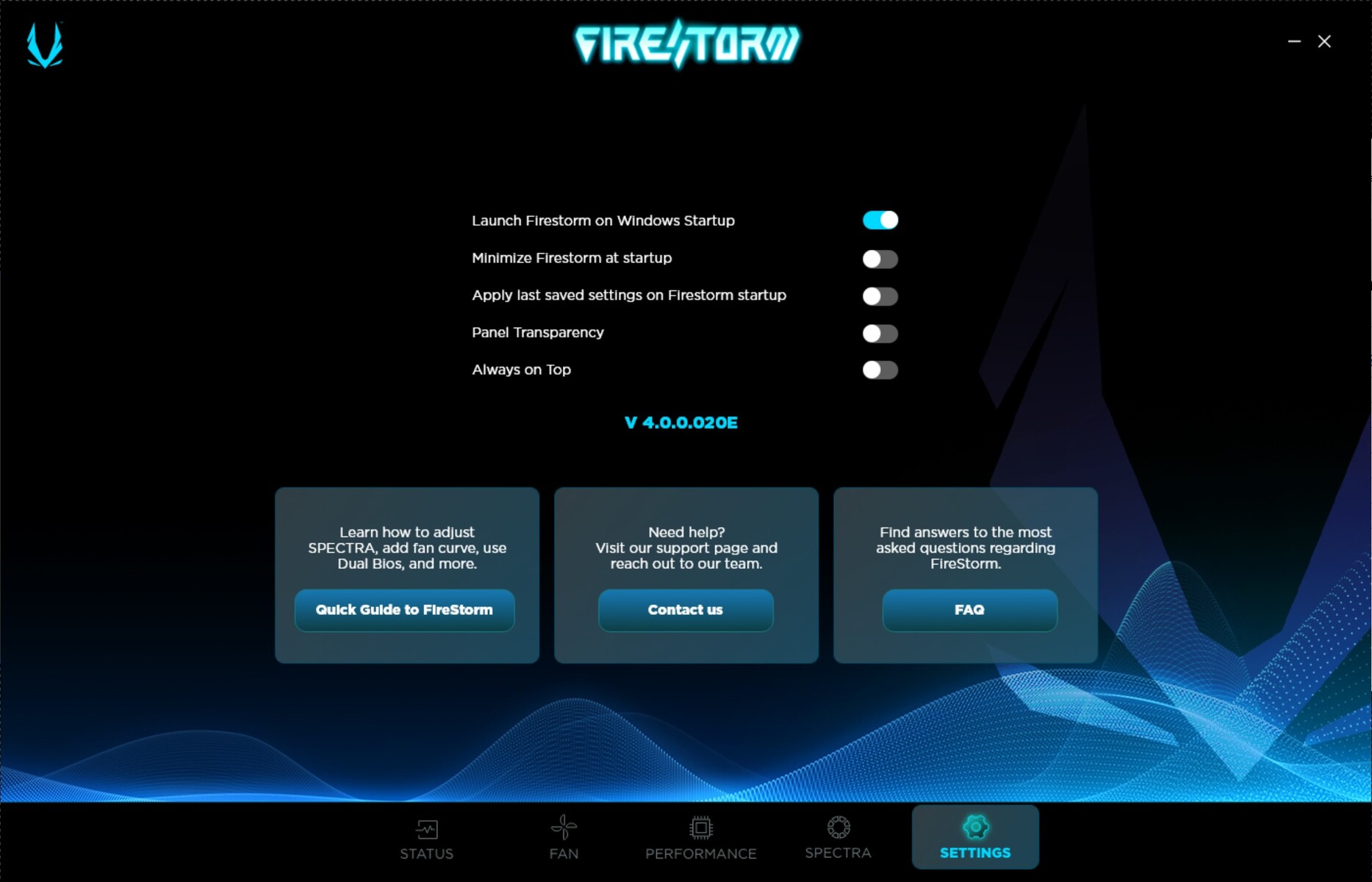

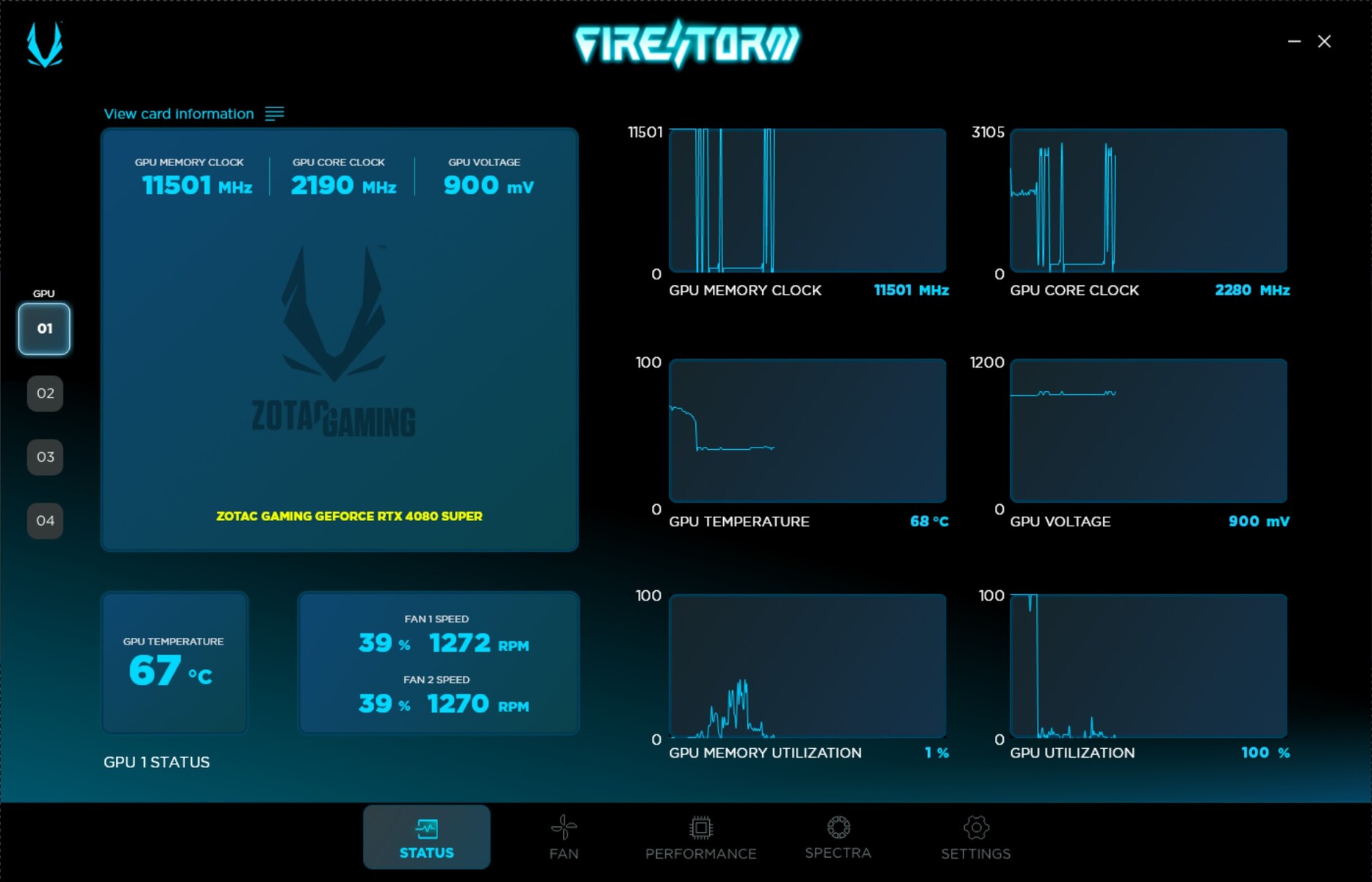

The FireStorm Utility tool allows users to adjust various settings on the graphics card, as depicted in the following screenshots. It's worth noting that no modifications were applied during the testing process.
Synthetic benchmarks
Before delving into the gaming benchmarks, let's first examine the synthetic benchmarks. The Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition performs as anticipated in synthetic benchmarks. While it demonstrates a slight lead over the KFA2 GeForce RTX 4080 SG it's important to note that the KFA2 model is factory overclocked. However, there remains a noticeable performance gap compared to the Palit GeForce RTX 4090 GameRock OC, with Nvidia's flagship maintaining a 24% advantage in cumulative comparison.
In comparison to its rival from the red corner, the GeForce RTX 4080 Super holds its ground favorably against the AMD Radeon RX 7900 XTX. It outperforms the AMD counterpart in Luxmark and Computemark tests, although the Photoshop PugetBench test favors AMD graphics cards, even surpassing the Nvidia GeForce RTX 4090. As expected, the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition falls behind in this particular test.
Professional uses
In the SPECviewperf render tests, the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition outperforms the KFA2 GeForce RTX 4080 SG. However, the performance difference is only in the single-digit percentage range. There is notably higher performance with an Nvidia GeForce RTX 4090 or with AMD's 7900 series models. A comparison to the Nvidia RTX 6000 ADA Generation shows the performance that can be expected from a dedicated workstation graphics card. AMD's portfolio also includes specialist workstation graphics cards, known as Radeon Pro models.
| NVIDIA GeForce RTX 4080 Super i9-14900K | NVIDIA GeForce RTX 4090 i9-14900K | NVIDIA GeForce RTX 4080 R9 7950X | NVIDIA GeForce RTX 4070 Ti R9 7950X | NVIDIA GeForce RTX 4070 R9 7950X | NVIDIA GeForce RTX 4060 Ti 16G R9 7950X | NVIDIA GeForce RTX 4060 R9 7950X | AMD Radeon RX 7900 XTX R9 7950X | AMD Radeon RX 7900 XT R9 7950X | AMD Radeon RX 7900 GRE R9 7950X | AMD Radeon RX 6950 XT R9 7950X | AMD Radeon RX 7800 XT R9 7950X | AMD Radeon RX 7700 XT R9 7950X | AMD Radeon RX 7600 R9 7950X | NVIDIA RTX 6000 Ada Generation TR Pro 7995WX | Average of class | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 12 | 20% | -6% | -18% | -30% | -43% | -51% | 61% | 46% | 25% | -2% | 18% | 4% | -19% | 43% | -60% | |
| 1900x1060 3ds Max (3dsmax-05) | 495 | 565 14% | 502 1% | 436 -12% | 382 -23% | 290 -41% | 251 -49% | 553 12% | 502 1% | 444 -10% | 418 -16% | 427 -14% | 373 -25% | 279 -44% | 473 -4% | 197 ? -60% |
| 1900x1060 Catia (catia-04) | 236 | 291 23% | 221 -6% | 192 -19% | 161 -32% | 128 -46% | 113 -52% | 536 127% | 481 104% | 448 90% | 368 56% | 386 64% | 351 49% | 273 16% | 349 48% | 107.9 ? -54% |
| 1900x1060 Creo (creo-01) | 122 | 127 4% | 110 -10% | 99.4 -19% | 89.1 -27% | 73.4 -40% | 60.6 -50% | 187 53% | 176 44% | 155 27% | 163 34% | 148 21% | 123 1% | 115 -6% | 250 105% | 65.1 ? -47% |
| 1900x1060 Energy (energy-01) | 60.4 | 84.7 40% | 58.8 -3% | 48 -21% | 31.7 -48% | 22.6 -63% | 15.9 -74% | 85.2 41% | 72.4 20% | 40.3 -33% | 34.3 -43% | 38.4 -36% | 33.4 -45% | 25.5 -58% | 58.2 -4% | 15.7 ? -74% |
| 1900x1060 Maya (maya-04) | 318 | 340 7% | 309 -3% | 287 -10% | 284 -11% | 257 -19% | 233 -27% | 367 15% | 347 9% | 323 2% | 195 -39% | 304 -4% | 283 -11% | 236 -26% | 266 -16% | 111.7 ? -65% |
| 1900x1060 Medical (medical-01) | 202 | 303 50% | 171 -15% | 157 -22% | 132 -35% | 110 -46% | 82.4 -59% | 347 72% | 288 43% | 226 12% | 95.2 -53% | 200 -1% | 177 -12% | 128 -37% | 282 40% | 55 ? -73% |
| 1900x1060 Showcase (showcase-01) | 336 | 398 18% | 333 -1% | 244 -27% | 190 -43% | 132 -61% | 109 -68% | 322 -4% | 278 -17% | 222 -34% | 264 -21% | 235 -30% | 179 -47% | 127 -62% | 429 28% | 98.3 ? -71% |
| 1900x1060 Solidworks (sw-03) | 131 | 139 6% | 113 -14% | 118 -10% | 109 -17% | 95.1 -27% | 91.2 -30% | 360 175% | 342 161% | 319 144% | 218 66% | 322 146% | 288 120% | 221 69% | 319 144% | 87.1 ? -34% |
| SPECviewperf 13 | 18% | -3% | -18% | -31% | -45% | -53% | 51% | 33% | 34% | -6% | 26% | 11% | -18% | 51% | -55% | |
| 3ds Max (3dsmax-06) | 497 | 567 14% | 497 0% | 433 -13% | 381 -23% | 289 -42% | 252 -49% | 564 13% | 506 2% | 439 -12% | 416 -16% | 434 -13% | 371 -25% | 280 -44% | 496.95 0% | 188.6 ? -62% |
| Catia (catia-05) | 348 | 428 23% | 340 -2% | 290 -17% | 241 -31% | 189 -46% | 163 -53% | 825 137% | 728 109% | 661 90% | 588 69% | 588 69% | 529 52% | 410 18% | 578.86 66% | 202 ? -42% |
| Creo (creo-02) | 569 | 618 9% | 529 -7% | 455 -20% | 375 -34% | 301 -47% | 230 -60% | 613 8% | 567 0% | 470 -17% | 374 -34% | 442 -22% | 387 -32% | 294 -48% | 590.13 4% | 206 ? -64% |
| Energy (energy-02) | 93.7 | 127 36% | 92.6 -1% | 72.8 -22% | 54.2 -42% | 45.3 -52% | 34.6 -63% | 187 100% | 147 57% | 150 60% | 60.8 -35% | 139 48% | 115 23% | 82.9 -12% | 230.06 146% | 36.8 ? -61% |
| Maya (maya-05) | 767 | 881 15% | 678 -12% | 591 -23% | 510 -34% | 403 -47% | 343 -55% | 735 -4% | 670 -13% | 580 -24% | 460 -40% | 548 -29% | 487 -37% | 333 -57% | 637.3 -17% | 268 ? -65% |
| Medical (medical-02) | 145 | 180 24% | 150 3% | 132 -9% | 112 -23% | 85.1 -41% | 76.5 -47% | 263 81% | 237 63% | 372 157% | 332 129% | 300 107% | 226 56% | 331.9 129% | 79.8 ? -45% | |
| Showcase (showcase-02) | 333 | 400 20% | 334 0% | 244 -27% | 191 -43% | 133 -60% | 108 -68% | 323 -3% | 279 -16% | 221 -34% | 264 -21% | 234 -30% | 179 -46% | 127 -62% | 430.2 29% | 120.6 ? -64% |
| Solidworks (sw-04) | 187 | 199 6% | 179 -4% | 168 -10% | 157 -16% | 135 -28% | 127 -32% | 323 73% | 307 64% | 287 53% | 254 36% | 294 57% | 265 42% | 195 4% | 278 49% | 121.5 ? -35% |
| SPECviewperf 2020 | 48% | -2% | -16% | -30% | -46% | -55% | 48% | 28% | 46% | -17% | 29% | 12% | -20% | 138% | -42% | |
| 3840x2160 Medical (medical-03) | 28.7 | 40.3 40% | 32.2 12% | 26.9 -6% | 22.2 -23% | 16.5 -43% | 13.7 -52% | 62.3 117% | 53.9 88% | 76.1 165% | 35 22% | 63.7 122% | 56.2 96% | 36.1 26% | 79 175% | 21.6 ? -25% |
| 3840x2160 Energy (energy-03) | 93.7 | 230 145% | 90.4 -4% | 75.7 -19% | 57.6 -39% | 44.9 -52% | 33.2 -65% | 129 38% | 99.6 6% | 133 42% | 69.3 -26% | 111 18% | 95 1% | 67 -28% | 457 388% | 51.3 ? -45% |
| 3840x2160 Creo (creo-03) | 141 | 148 5% | 128 -9% | 121 -14% | 112 -21% | 95.9 -32% | 85.9 -39% | 187 33% | 173 23% | 159 13% | 92.4 -34% | 151 7% | 130 -8% | 106 -25% | 191 35% | 77.9 ? -45% |
| 3840x2160 CATIA (catia-06) | 76.3 | 97.1 27% | 75.5 -1% | 61.2 -20% | 51.6 -32% | 38.5 -50% | 34 -55% | 127 66% | 113 48% | 107 40% | 59.7 -22% | 101 32% | 88.8 16% | 68 -11% | 139 82% | 47.8 ? -37% |
| 3840x2160 3ds Max (3dsmax-07) | 190 | 236 24% | 179 -6% | 147 -23% | 122 -36% | 88.8 -53% | 67.4 -65% | 167 -12% | 143 -25% | 134 -29% | 140 -26% | 125 -34% | 106 -44% | 72.9 -62% | 207 9% | 81.5 ? -57% |
| Total Average (Program / Settings) | 29% /
26% | -4% /
-4% | -17% /
-17% | -30% /
-30% | -45% /
-45% | -53% /
-53% | 53% /
54% | 36% /
37% | 35% /
33% | -8% /
-7% | 24% /
24% | 9% /
8% | -19% /
-19% | 77% /
68% | -52% /
-54% |
Gaming performance
Like the regular model of the GeForce RTX 4080, the new super counterpart also scores exceptionally well in gaming performance. We tested a variety of games with the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition, and both older and current titles posed no significant challenge. In most cases, our test sample was positioned directly behind the Palit GeForce RTX 4090 GameRock OC. However, in a few games, AMD managed to gain a slight advantage, moving into second place with the Radeon RX 7900 XTX.
All tested games can be played smoothly in 2160p. When compared to AMD, the Nvidia GeForce RTX 4080 Super may be at a disadvantage due to its 16 GB of VRAM. Significantly more graphics memory is available with the AMD Radeon RX 7900 XT and XTX, which have 20 and 24 GB VRAM. In terms of pricing, an AMD Radeon RX 7900 XTX appears to be the more sensible option, as various models are currently available for roughly $950.
Ray tracing, DLSS and Frame Generation
Nvidia's significant advantage lies in ray tracing performance, as well as DLSS and Frame Generation. The Nvidia GeForce RTX 4080 Super is equipped with 80 RT cores and 320 tensor units, providing a slight increase in performance compared to an Nvidia GeForce RTX 4080. However, users should not expect a noticeable performance gain in direct comparison. When using ray tracing in the native 2,160p resolution, DLSS is required. Additionally, there's another feature called Frame Generation for achieving even higher frame rates, but this one is exclusive to graphics cards in the RTX 4000 series.
| Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti SG | |
| AMD Radeon RX 7900 XTX | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| AMD Radeon RX 7900 GRE | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Nvidia Titan RTX | |
| AMD Radeon RX 6800 | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Nvidia GeForce RTX 2060 Super | |
| Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
| Palit GeForce RTX 4090 GameRock OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| AMD Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 4070 Ti Super | |
| KFA2 GeForce RTX 4070 Ti SG | |
| AMD Radeon RX 7900 XT | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7800 XT | |
| Nvidia Titan RTX | |
| Sapphire Pulse Radeon RX 7700 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 4070 Ti Super | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 GRE | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 Ti SG | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| AMD Radeon RX 6800 | |
| Nvidia Titan RTX | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| The Callisto Protocol - 1920x1080 Ultra Preset (without FSR Upscaling) + Full Ray-Tracing | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| AMD Radeon RX 7800 XT | |
| AMD Radeon RX 7900 GRE | |
| AMD Radeon RX 7900 XTX | |
| Asus TUF Gaming GeForce RTX 4070 Ti Super | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Palit GeForce RTX 4090 GameRock OC | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| AMD Radeon RX 7900 XT | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| KFA2 GeForce RTX 4070 Ti SG | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 6800 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Nvidia Titan RTX | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 GRE | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| AMD Radeon RX 7800 XT | |
| Nvidia Titan RTX | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Nvidia GeForce RTX 2060 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| F1 23 - 1920x1080 Ultra High Preset AA:T AF:16x | |
| Palit GeForce RTX 4090 GameRock OC (1038401) | |
| Palit GeForce RTX 4090 GameRock OC (1022189) | |
| Zotac RTX 4080 Super Trinity Black Edition (1057599) | |
| Asus TUF Gaming GeForce RTX 4070 Ti Super (1057599) | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE (1016022) | |
| MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
| AMD Radeon RX 7800 XT (1022189) | |
| ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
| Nvidia Titan RTX (1021115) | |
| Sapphire Pulse Radeon RX 7700 XT (1026791) | |
| AMD Radeon RX 6800 (1016022) | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1026791) | |
| Sapphire Pulse Radeon RX 6750 XT (1016022) | |
| Nvidia GeForce RTX 2070 Super (1021115) | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
| Nvidia GeForce RTX 2060 Super (1021115) | |
| Star Wars Jedi Survivor - 1920x1080 Epic Preset + Ray Tracing | |
| Palit GeForce RTX 4090 GameRock OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Nvidia Titan RTX | |
| AMD Radeon RX 6800 | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Nvidia GeForce RTX 2060 Super | |
| Hogwarts Legacy - 1920x1080 Ultra Preset + Full Ray Tracing AA:High T | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| AMD Radeon RX 7900 GRE | |
| Nvidia Titan RTX | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| AMD Radeon RX 6800 | |
| Nvidia GeForce RTX 2070 Super | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2060 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Ghostwire Tokyo - 1920x1080 Highest Settings + Maximum Ray Tracing | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| Asus TUF Gaming GeForce RTX 4070 Ti Super | |
| AMD Radeon RX 7900 XTX | |
| KFA2 GeForce RTX 4070 Ti SG | |
| AMD Radeon RX 7900 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| AMD Radeon RX 7800 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Nvidia Titan RTX | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Nvidia GeForce RTX 2060 Super | |
| Ratchet & Clank Rift Apart | |
| 1920x1080 Very High Preset + Very High Raytracing AA:T | |
| Palit GeForce RTX 4090 GameRock OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| AMD Radeon RX 7800 XT | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Nvidia Titan RTX | |
| AMD Radeon RX 6800 | |
| Sapphire Pulse Radeon RX 7700 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| 3840x2160 Very High Preset + Very High Raytracing + DLSS Quality + FG | |
| Palit GeForce RTX 4090 GameRock OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| ASUS Dual GeForce RTX 4060 Ti OC | |
| Assassin's Creed Mirage - 3840x2160 Ultra High Preset (Adaptive Quality Off) + DLSS Quality | |
| Palit GeForce RTX 4090 GameRock OC | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| Asus TUF Gaming GeForce RTX 4070 Ti Super | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Avatar Frontiers of Pandora - 3840x2160 Ultra Preset + Quality DLSS | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| Asus TUF Gaming GeForce RTX 4070 Ti Super | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| EA Sports WRC - 3840x2160 Ultra Preset + Quality DLSS AA:Epic AF:16x | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| Nvidia Titan RTX | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| Alan Wake 2 | |
| 1920x1080 High Preset + High Ray Tracing | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| Asus TUF Gaming GeForce RTX 4070 Ti Super | |
| MSI Radeon RX 6950 XT Gaming X Trio | |
| Nvidia Titan RTX | |
| Sapphire Pulse Radeon RX 7700 XT | |
| AMD Radeon RX 6800 | |
| Sapphire Pulse Radeon RX 6750 XT | |
| Nvidia GeForce RTX 2070 Super | |
| Nvidia GeForce RTX 2060 Super | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| 3840x2160 High Preset + High Ray Tracing + Quality DLSS + FG | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| Asus TUF Gaming GeForce RTX 4070 Ti Super | |
| Palit GeForce RTX 4090 GameRock OC | |
| low | med. | high | ultra | QHD | 4K DLSS | 4K FSR | 4K | |
|---|---|---|---|---|---|---|---|---|
| GTA V (2015) | 188.1 | 187.8 | 187.6 | 172.8 | 170.6 | 187.3 | ||
| The Witcher 3 (2015) | 791 | 732 | 549 | 269 | 221 | 207 | ||
| Dota 2 Reborn (2015) | 299.4 | 271.4 | 259.8 | 241.9 | 235.1 | |||
| Assassin´s Creed Origins (2017) | 266 | 249 | 234 | 210 | 175 | 118 | ||
| Final Fantasy XV Benchmark (2018) | 234 | 233 | 228 | 203 | 122.4 | |||
| Far Cry 5 (2018) | 277 | 243 | 233 | 233 | 218 | 145 | ||
| Strange Brigade (2018) | 760 | 617 | 568 | 529 | 401 | 202 | ||
| Shadow of the Tomb Raider (2018) | 324 | 309 | 308 | 298 | 250 | 135 | ||
| Assassin´s Creed Odyssey (2018) | 253 | 239 | 214 | 159 | 137 | 98 | ||
| Far Cry New Dawn (2019) | 227 | 197 | 190 | 170 | 170 | 142 | ||
| Metro Exodus (2019) | 312 | 281 | 230 | 191.2 | 163.1 | 105.9 | ||
| Control (2019) | 237 | 238 | 235 | 166.1 | 84.4 | |||
| Borderlands 3 (2019) | 263 | 234 | 217 | 201 | 172.3 | 97.9 | ||
| F1 2020 (2020) | 615 | 505 | 499 | 427 | 345 | 205 | ||
| Death Stranding (2020) | 240 | 240 | 240 | 239 | 239 | 153.2 | ||
| Horizon Zero Dawn (2020) | 309 | 277 | 259 | 246 | 212 | 169 | 119 | |
| Dirt 5 (2020) | 282.9 | 221.5 | 167.9 | 151.9 | 149.4 | 142 | ||
| Assassin´s Creed Valhalla (2020) | 362 | 282 | 240 | 210 | 166 | 99 | ||
| F1 2021 (2021) | 733 | 696 | 586 | 307 | 253 | 146.7 | ||
| Far Cry 6 (2021) | 266 | 232 | 208 | 209 | 189 | 114.1 | ||
| Guardians of the Galaxy (2021) | 250 | 248 | 246 | 239 | 236 | 146 | ||
| Forza Horizon 5 (2021) | 425 | 315 | 290 | 196 | 175 | 131 | ||
| God of War (2022) | 282 | 279 | 235 | 166.7 | 139.3 | 100.6 | ||
| GRID Legends (2022) | 277 | 250 | 233 | 222 | 210 | 163.6 | ||
| Cyberpunk 2077 1.6 (2022) | 249 | 246 | 239 | 199 | 128.9 | 60.6 | ||
| Ghostwire Tokyo (2022) | 317 | 310 | 309 | 304 | 276 | 128.8 | ||
| Tiny Tina's Wonderlands (2022) | 495 | 414 | 305 | 242 | 171.7 | 91.9 | ||
| F1 22 (2022) | 449 | 465 | 412 | 175.7 | 118.1 | 59.6 | ||
| The Quarry (2022) | 384 | 294 | 253 | 210 | 148.3 | 82.5 | ||
| A Plague Tale Requiem (2022) | 255 | 216 | 173.4 | 138.7 | 101 | 112.4 | 58.2 | |
| Uncharted Legacy of Thieves Collection (2022) | 164.5 | 159.4 | 158.8 | 156.7 | 133.6 | 81.1 | ||
| Spider-Man Miles Morales (2022) | 217 | 210 | 190.6 | 193 | 183.2 | 117.6 | ||
| The Callisto Protocol (2022) | 297.1 | 272.7 | 262.9 | 207.2 | 169 | 110.9 | ||
| Need for Speed Unbound (2022) | 283 | 271 | 241 | 241 | 175.4 | 97.6 | ||
| High On Life (2023) | 465 | 405 | 320 | 279 | 179.7 | 76.1 | ||
| The Witcher 3 v4.00 (2023) | 356 | 312 | 275 | 268 | 230 | 116 | ||
| Dead Space Remake (2023) | 237 | 229 | 200 | 198 | 138.4 | 67.9 | ||
| Hogwarts Legacy (2023) | 202 | 180.1 | 167.3 | 155.2 | 112.2 | 68.6 | ||
| Returnal (2023) | 225 | 224 | 202 | 178 | 142 | 86 | ||
| Atomic Heart (2023) | 300 | 274 | 207 | 170.9 | 133.1 | 79.9 | ||
| Company of Heroes 3 (2023) | 377 | 340 | 289 | 287 | 237 | 149 | ||
| Sons of the Forest (2023) | 143.9 | 140.3 | 135.9 | 133.8 | 131.7 | 101.9 | ||
| Resident Evil 4 Remake (2023) | 346 | 291 | 277 | 193.9 | 152.5 | 89.1 | ||
| The Last of Us (2023) | 227 | 204 | 191.1 | 172.3 | 121 | 98.8 | 60.7 | |
| Dead Island 2 (2023) | 373 | 354 | 319 | 285 | 230 | 122.3 | ||
| Star Wars Jedi Survivor (2023) | 188.3 | 183.2 | 175.9 | 168.4 | 117.1 | 58.6 | ||
| Diablo 4 (2023) | 400 | 400 | 399 | 394 | 297 | 197.6 | 148.9 | |
| F1 23 (2023) | 475 | 498 | 450 | 169.9 | 110.7 | 96.1 | 55.5 | |
| Ratchet & Clank Rift Apart (2023) | 237 | 228 | 189.9 | 171.4 | 143.2 | 91.6 | ||
| Atlas Fallen (2023) | 199.8 | 199.8 | 199.9 | 199.8 | 198.4 | 121.6 | ||
| Immortals of Aveum (2023) | 147.6 | 134.1 | 121.8 | 92 | 108.6 | 53.5 | ||
| Starfield (2023) | 160.2 | 160.3 | 137.1 | 125.1 | 105.2 | 68.9 | ||
| Lies of P (2023) | 396 | 370 | 332 | 306 | 233 | 190.8 | 121.8 | |
| Baldur's Gate 3 (2023) | 304 | 275 | 254 | 251 | 187.6 | 160.6 | 103.4 | |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 250 | 240 | 214 | 193 | 131.6 | 116.2 | 62.8 | |
| Assassin's Creed Mirage (2023) | 279 | 260 | 245 | 202 | 164 | 138 | 103 | |
| Total War Pharaoh (2023) | 632 | 409 | 286 | 230 | 213 | 120 | ||
| Lords of the Fallen (2023) | 203 | 172.7 | 136 | 102.6 | 73.7 | 72.7 | 40.1 | |
| Alan Wake 2 (2023) | 165.6 | 158.5 | 147.7 | 106.7 | 73.3 | 57.9 | ||
| EA Sports WRC (2023) | 294 | 201 | 191.3 | 181.7 | 158.2 | 131.8 | 89.8 | |
| Call of Duty Modern Warfare 3 2023 (2023) | 365 | 324 | 268 | 250 | 194 | 145 | 132 | |
| Avatar Frontiers of Pandora (2023) | 214 | 197 | 172 | 136 | 94 | 84 | 49 | |
| The Finals (2023) | 421 | 393 | 379 | 319 | 213 | 166.7 | 102.2 | |
| Ready or Not (2023) | 376 | 403 | 374 | 337 | 221 | 205 | 99.1 | |
| Prince of Persia The Lost Crown (2024) | 359 | 359 | 359 | 359 | 358 | |||
| Palworld (2024) | 240 | 238 | 225 | 226 | 181.2 | 140.4 | 104.3 | |
| Enshrouded (2024) | 178.9 | 158.4 | 137.3 | 116.6 | 93.3 | 84 | 82.9 | 58.4 |
Emissions
System noise

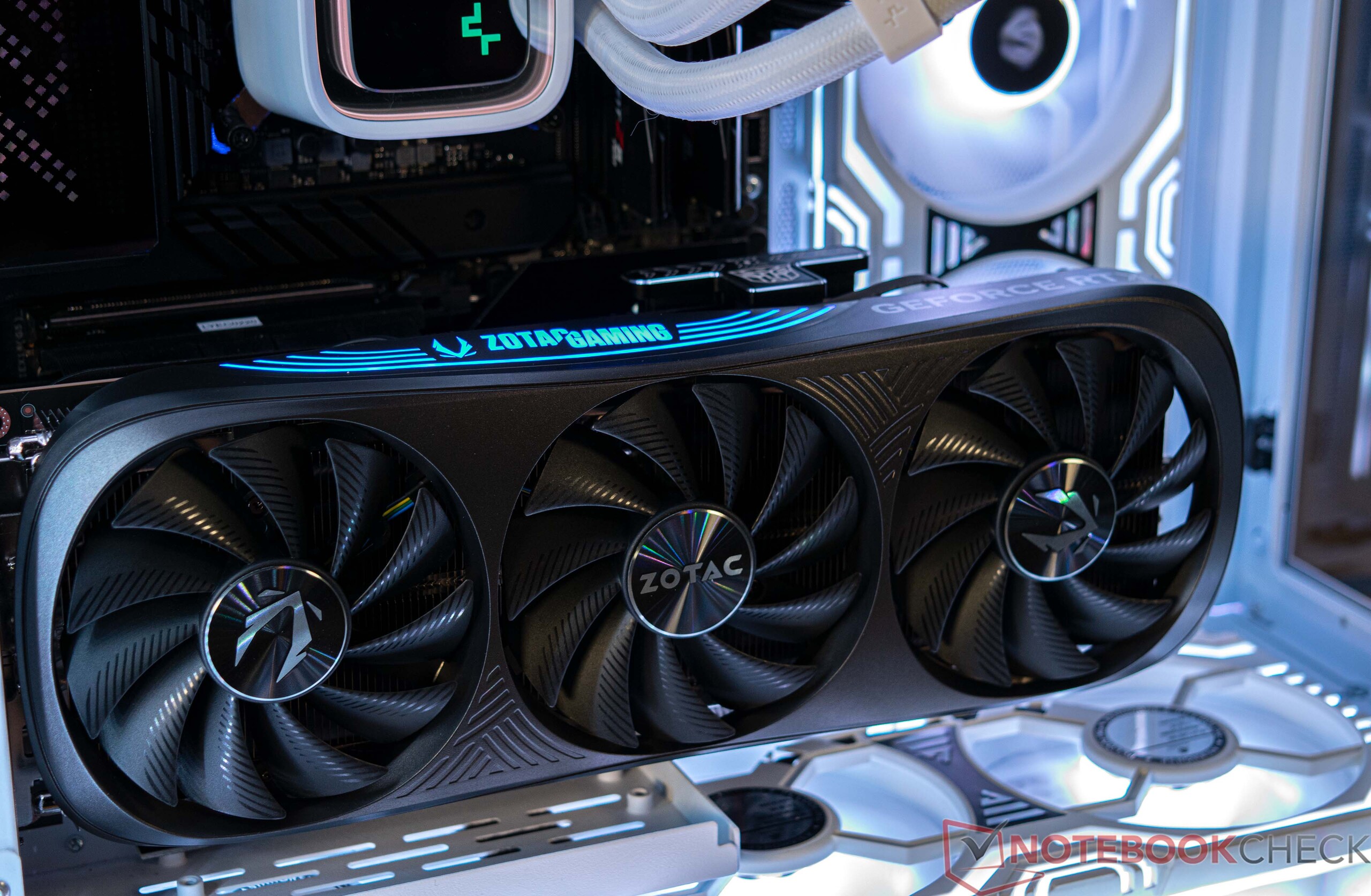

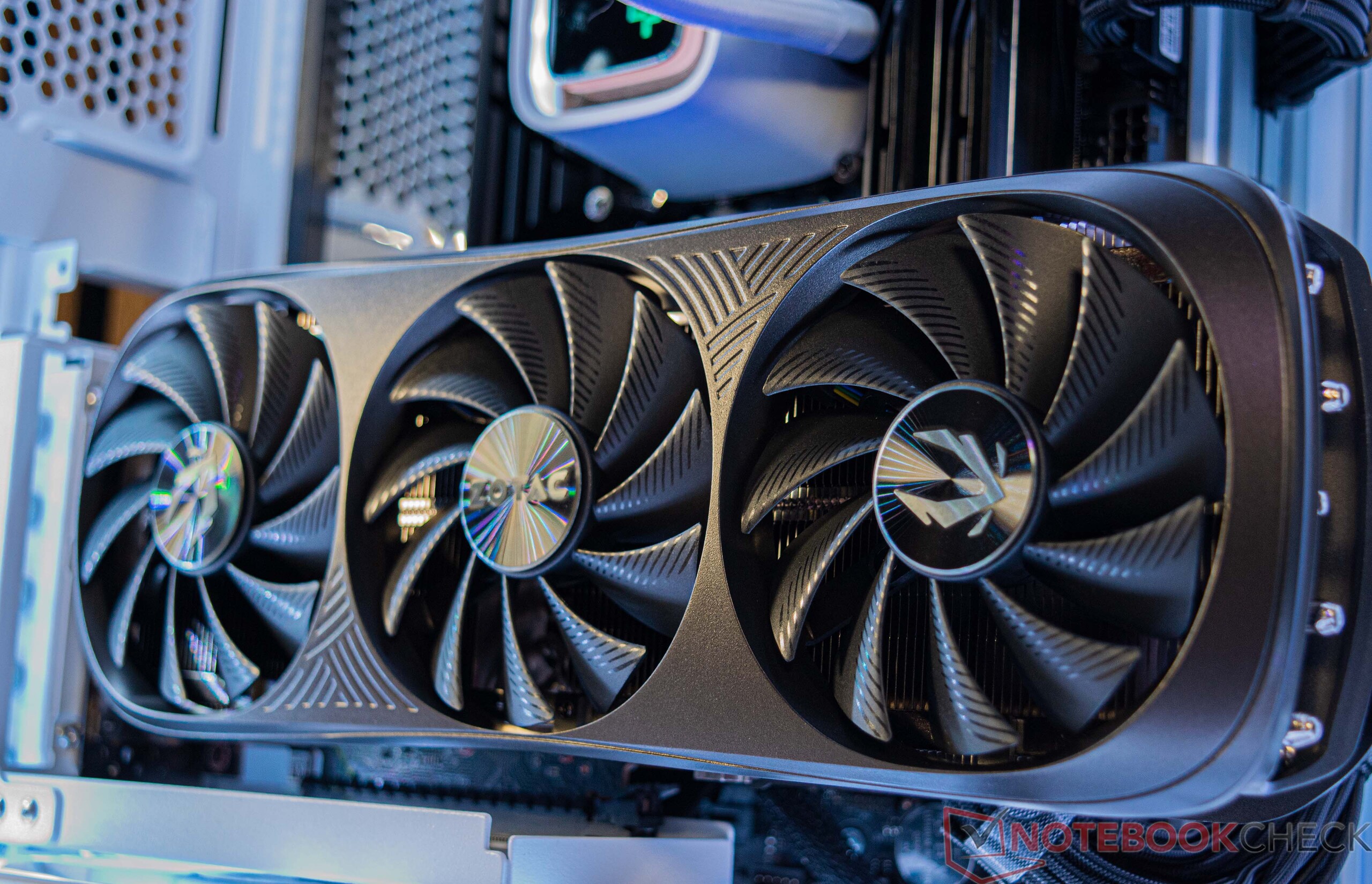

The GeForce RTX 4080 Super Trinity Black Edition from Zotac comes with a sizable heat sink. On the front, there are three 90-millimeter fans. Additionally, the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition is equipped with a fan stop mode, allowing the graphics card to operate completely silently in 2D mode and under low load. The three fans run at a nice volume that is hardly audible from the closed case, even when they are under load. We occasionally noticed coil whining during our test, mostly in certain game menus, as soon as extremely high frame rates were attained.
To document the volume of the graphics card, we placed the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition on our volume measurement system in an open setup. We could not record any sound emissions when in idle mode since all fans were turned off. The fans spin slowly when there is some load, therefore we only record 32.5 dB(A). We reach just around 44 dB(A) at full load.
Noise Level
| Idle |
| 25.9 / 26 / 26 dB(A) |
| Load |
| 32.5 / 43.8 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 25.5 dB(A) | ||
Temperatures and power consumption

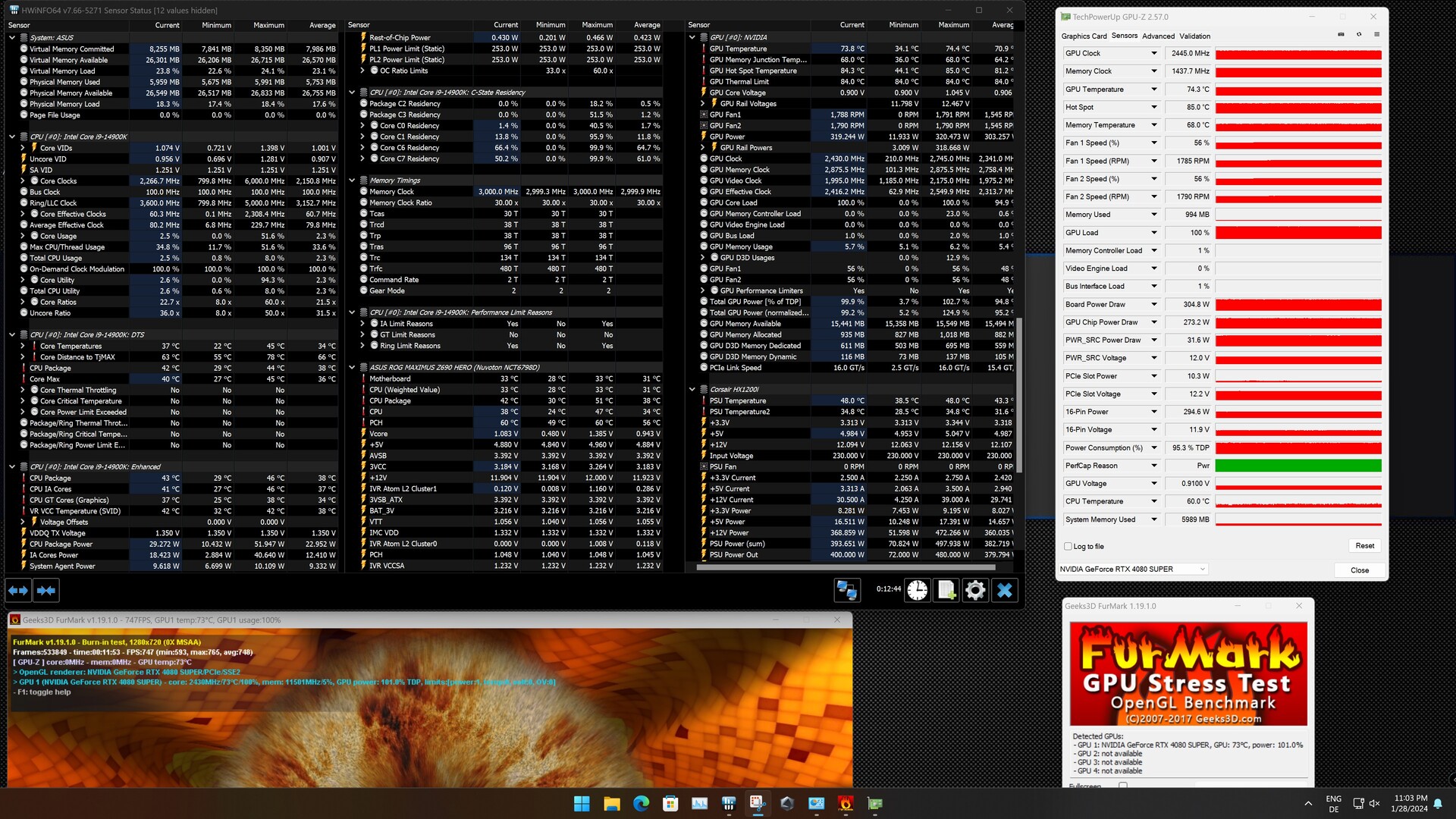

The clever cooling design effectively manages the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition's temperature without excessively increasing its size. With the exception of the volume measurements, all tests were conducted in a closed case. The defined power limit of 320 watts is consistently reached during the stress test and can be maintained over an extended period. We observe slightly above 74 °C for the chip, which is within acceptable limits. In contrast, HWiNFO indicates only 68 °C for the VRAM during testing.

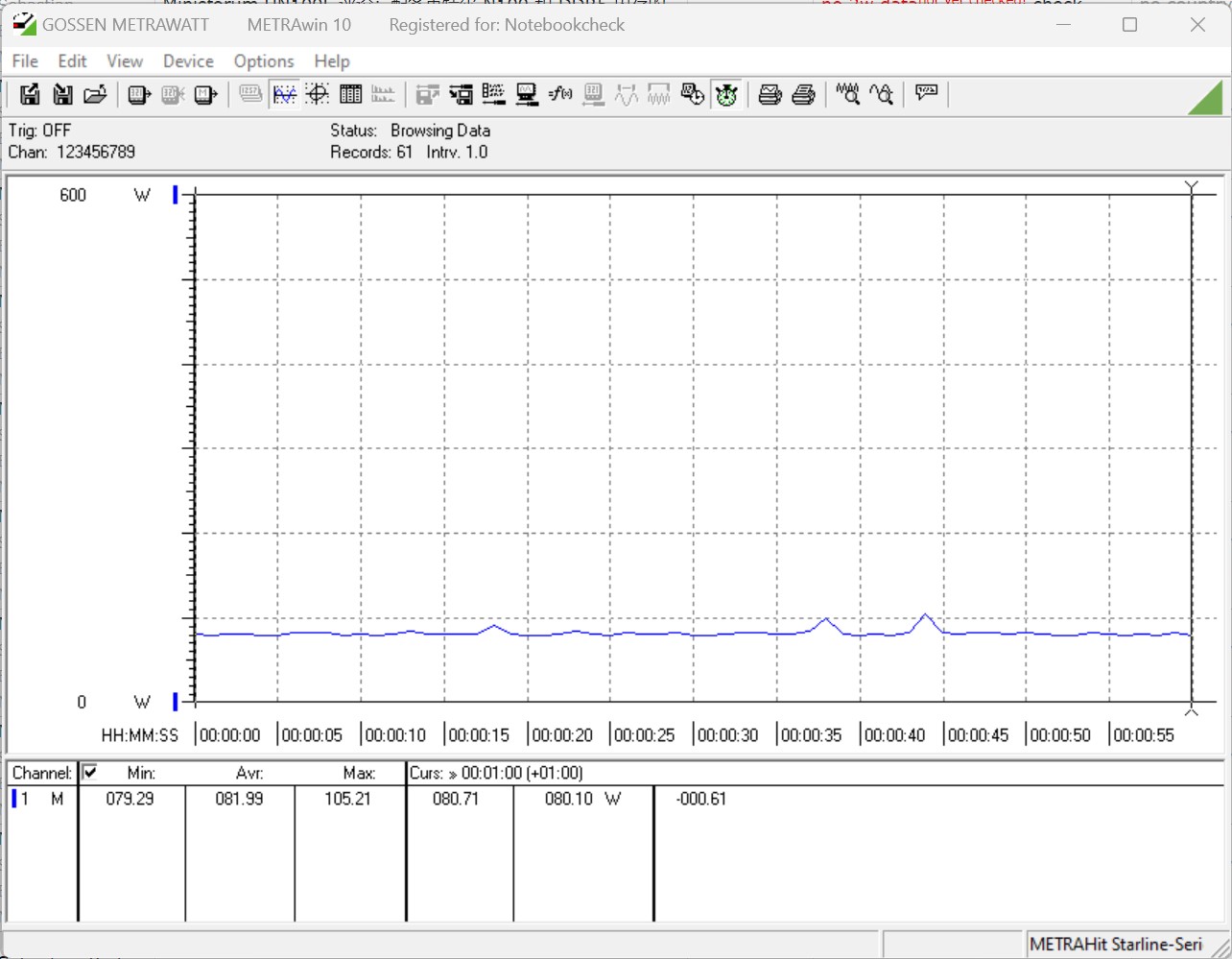

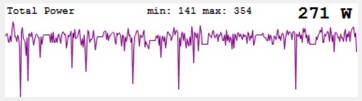

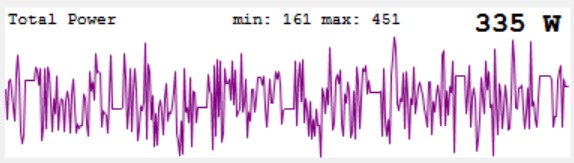

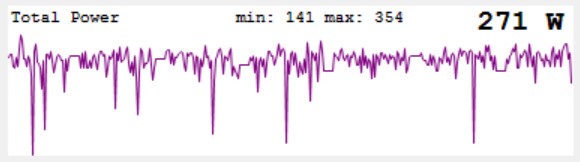

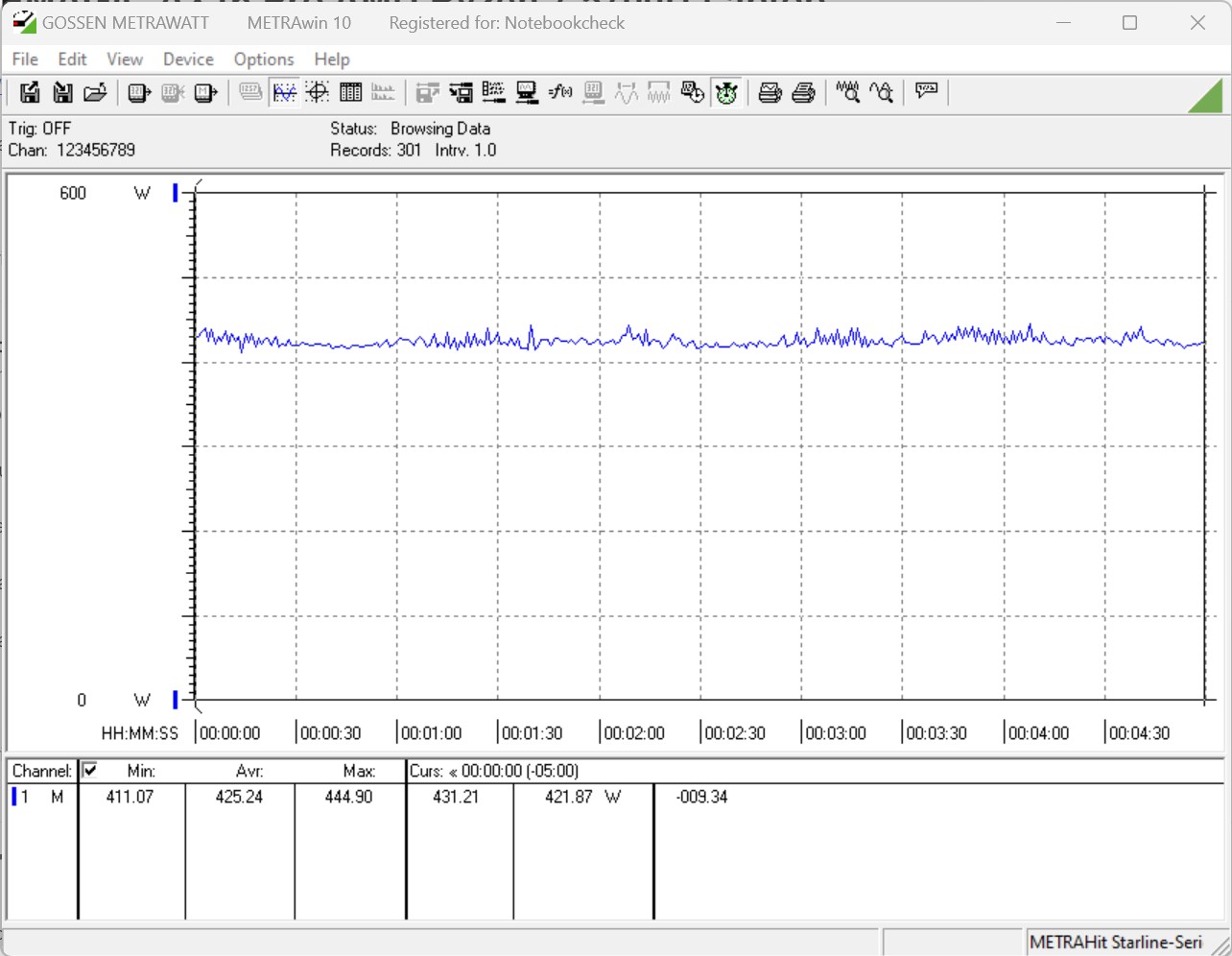

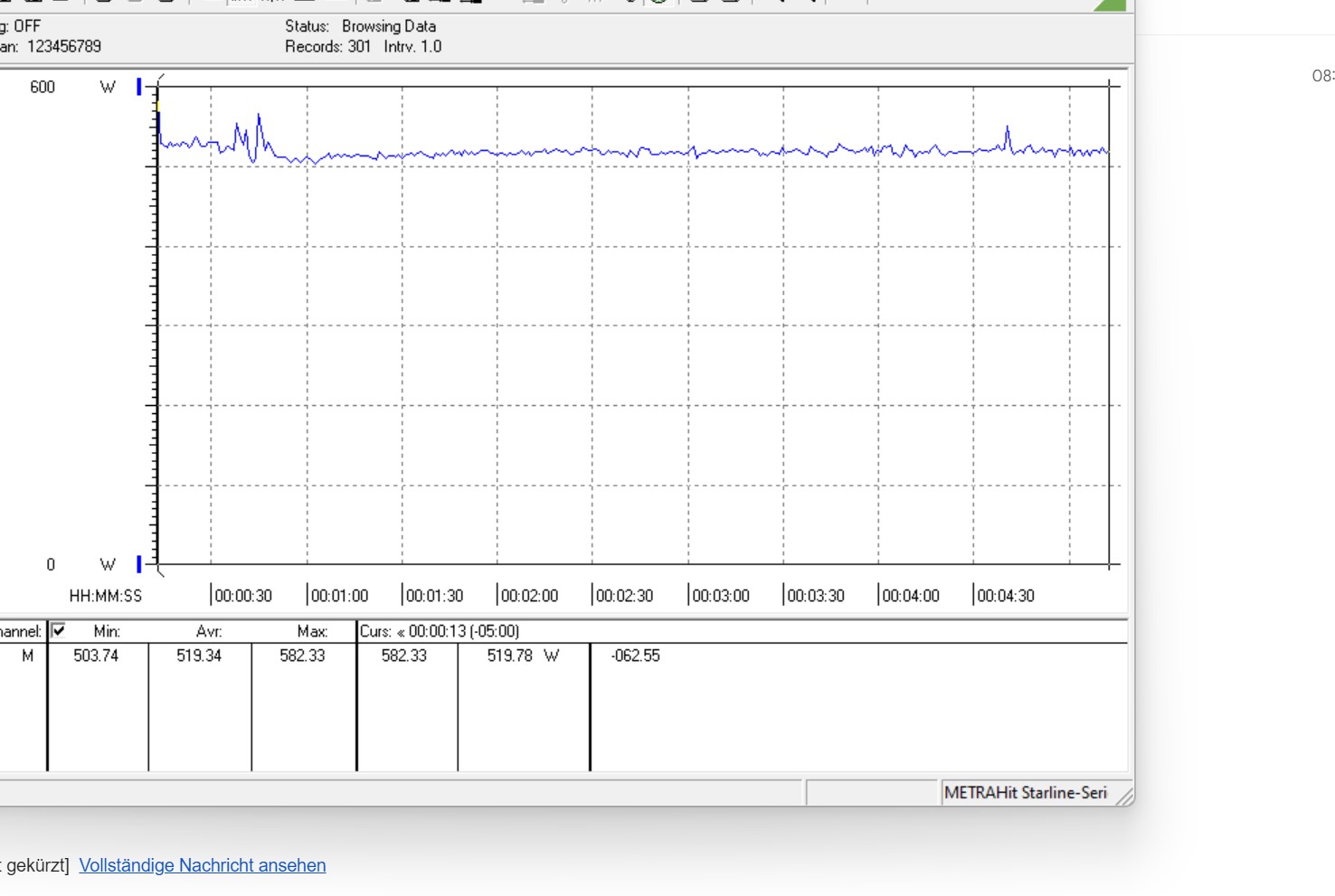

Now, let's dive into the power consumption of the test system: In this instance, the stress test displays an average of 425 watts, whereas gaming generates a display of 519 watts. Using the Elmor PMD (Power Measurement Device), we also examine the graphics card's power consumption through the 12-volt rails. To summarize, we repeatedly observe short load peaks of up to 450 watts and even slightly higher during gaming. The producer recommends a power supply of 750 watts, which should be followed due to these load peaks. It is also advisable to use an up-to-date power supply built according to the latest ATX 3.0 specification.
| Power Consumption / The Witcher 3 ultra (external Monitor) | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| Palit GeForce RTX 4090 GameRock OC | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7800 XT | |
| Sapphire Pulse Radeon RX 6750 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4060 Ti EX | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
| KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
| KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| AMD Radeon RX 7900 GRE | |
| Sapphire Pulse Radeon RX 6750 XT | |
| AMD Radeon RX 7800 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
| Palit GeForce RTX 4090 GameRock OC | |
| KFA2 GeForce RTX 4080 SG | |
| AMD Radeon RX 7900 XT | |
| AMD Radeon RX 7900 XTX | |
| Zotac RTX 4080 Super Trinity Black Edition | |
| KFA2 GeForce RTX 4070 Ti EX Gamer | |
| AMD Radeon RX 7900 GRE | |
| KFA2 GeForce RTX 4070 EX Gamer | |
| KFA2 GeForce RTX 4060 Ti EX | |
| AMD Radeon RX 7800 XT | |
| KFA2 GeForce RTX 4060 1-Click-OC 2X | |
| Sapphire Pulse Radeon RX 6750 XT | |
| NVIDIA GeForce RTX 3090 Founders Edition | |
| XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
| KFA2 GeForce RTX 3070 Ti SG | |
| Sapphire Nitro+ Radeon RX 6650 XT | |
| Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
* ... smaller is better
Power consumption with external monitor
Pros
Cons
Verdict - RTX 4080 Super, more performance without additional costs
The Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition delivers slightly superior performance compared to the Nvidia GeForce RTX 4080, unleashing the full potential of the AD103 graphics processor. However, when pitted against an overclocked standard variant of the RTX 4080, there may be a deadlock in specific scenarios. Yet, adhering to the reference model ensures that you receive enhanced performance at the same price point. Nvidia's decision not to increase the cost might be attributed to AMD's recent price reduction for its top models, which now share a similar price range. Additionally, AMD maintains an advantage in terms of installed VRAM. The implications of this competition remain speculative for the future. Notably, the limitations of insufficient VRAM were evident in the Nvidia GeForce RTX 4060 Ti.
Despite being a more compact iteration of the GeForce RTX 4080 Super, the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition continuously provides excellent gaming performance. The discreet RGB lighting is seamlessly integrated into the cooler, avoiding obtrusiveness.
The craftsmanship is satisfactory but could benefit from refinement. Internal connection cables for fans and RGB lighting slightly detract from the visual appeal. The fan cover, made from plastic, doesn't match the backplate's perceived quality. Subjectively, the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition stands out as a stylish graphics card. With its curved design, Zotac has successfully created a distinctive aesthetic.
Zotac's test sample impresses with consistently robust and stable performance. In certain aspects, the second-fastest model from Nvidia surpasses AMD's flagship, the AMD Radeon RX 7900 XTX. For those considering ray tracing, opting for a current graphics card from the green corner is advisable. Priced at $1,399, the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition may not be a budget option. If the vanilla model drops to around $1,000 post the Nvidia GeForce RTX 4080 Super release, considering the older model might be worthwhile. However, the market price stabilization of the graphics card after launch remains uncertain for now.
Price and availability
Our test unit of the Zotac Gaming GeForce RTX 4080 Super Trinity Black Edition is already listed in various shops. Amazon is currently offering the test sample for $1,399.
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
