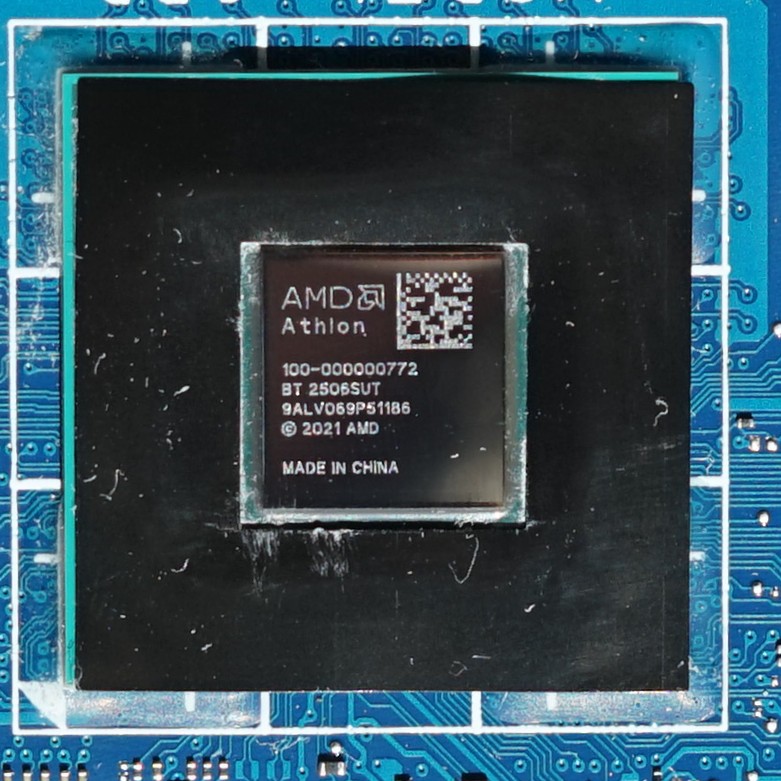

AMD Athlon Silver 7120U

The AMD Athlon Silver 7120U is a mobile processor for cheap laptops of the Mendocino series. It integrates two older Zen 2 cores (similar to the Ryzen 4000 series). The CPU cores clock from 2.4 GHz (base) to 3.5 GHz (single core Turbo) and can use 2 MB L3 cache. The Athlon Silver does not support SMT/Hyperthreading and therefore can only work on 2 threads simultaneously. The integrated memory controller only supports fast LPDDR5 memory (5500 MHz max.). Compared to the faster Mendocino models like the Ryzen 5 7520U, the 7120U offers only two cores, no SMT, less L3 cache and reduced clock speeds, leading to a clearly lower CPU performance.

The integrated graphics card (Radeon 610M iGPU) uses the modern RDNA 2 architecture, but only 2 CUs (128 shaders) and clocks with up to 1.9 GHz.

The CPU performance should be to the fastest Ryzen dual-core (Ryzen 3 3250U, 2.6 - 3.5 GHz, Zen 1) but clearly stay behind modern quad-core CPUs (in multi threaded tests).

The Mendocino series are produced in a relatively modern 6nm FinFET process at TSMC and should offer a good power efficiency. The Athlon Silver 7120U is rated at 8-15 W TDP and therefore well suited for thin and light laptops.

Series	AMD Mendocino (Zen 2, Ryzen 7020)
Codename	Mendocino (Zen 2)
Series: Mendocino (Zen 2, Ryzen 7020) Mendocino (Zen 2) AMD Ryzen 5 7520C 2.8 - 4.3 GHz 4 / 8  4 MB L3 AMD Ryzen 3 7320C 2.4 - 4.1 GHz 4 / 8  4 MB L3 AMD Athlon Gold 7220U 2.4 - 3.7 GHz 2 / 4  4 MB L3 AMD Athlon Gold 7220C 2.4 - 3.7 GHz 2 / 4  4 MB L3 AMD Athlon Silver 7120U « 2.4 - 3.5 GHz 2 / 2  2 MB L3 AMD Athlon Silver 7120C 2.4 - 3.5 GHz 2 / 2  2 MB L3
Clock Rate	2400 - 3500 MHz
Level 1 Cache	128 KB
Level 2 Cache	1 MB
Level 3 Cache	2 MB
Number of Cores / Threads	2 / 2
Power Consumption (TDP = Thermal Design Power)	15 Watt
Manufacturing Technology	6 nm
Features	XFR, FMA3, SSE 4.2, AVX2, SMT
GPU	AMD Radeon 610M ( - 1900 MHz)
64 Bit	64 Bit support
Architecture	x86
Announcement Date	09/20/2022
Product Link (external)	www.amd.com

Benchmarks

- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

No reviews found for this CPU (yet).
