The last 17-inch Blackwell Mohican: MSI Vector 17 HX AI gaming laptop review
Intel Core Ultra 9 275HX | Nvidia GeForce RTX 5080 Laptop | 17.00" | 3 kg

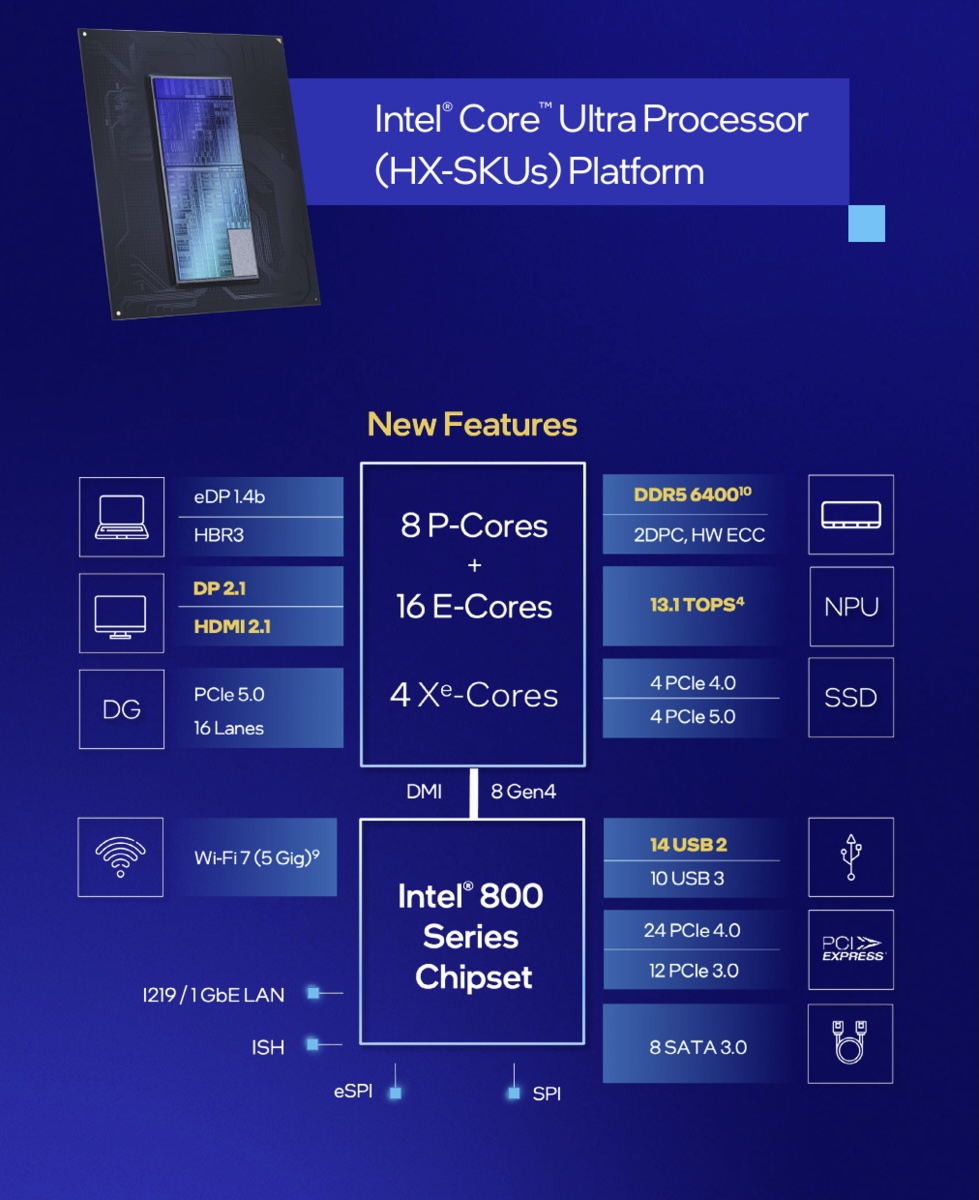

The Intel Core Ultra 9 275HX is a mobile high-end CPU for gaming notebooks based on the Arrow Lake architecture. It offers 24 cores consisting of 8 fast performance cores with up to 5.4 GHz and 16 smaller efficiency cores with up to 4.6 GHz clock speed. The CPU has access to 40 MB L2 cache and 36 MB L3 cache and is specified with a TDP of 55 watts.
The SoC integrates a small dedicated NPU called AI Boost with 13 TOPS (Int8) and optionally supports vPro Essentials. The integrated memory controller supports up to 192 GB DDR5-6400 (dual channel, ECC optional). The integrated GPU (iGPU) is a small Intel Graphics graphics card with four Xe cores running at 300 - 1900 MHz.
The performance of the Ultra 9 275HX is only slightly behind the top model, the Core Ultra 9 285HX, due to the 100 MHz lower boost clock of the P-cores Core Ultra 9 285HX and therefore also remains below the similar Desktop Core Ultra 9 285K (higher clocked with up to 5.7 GHz and more TDP with 125 watts). Due to the improved IPC of the cores (especially the efficiency cores), the CPU should perform just behind or at the level of the Raptor Lake Core i9-14900HX (8 + 16 cores, max 5.8 / 4.1 GHz). This makes the CPU ideal for very demanding tasks such as high-end gaming and content creation.
The Arrow Lake-HX chips are based on the desktop Arrow Lake-S chips and are composed of several chiplets. The CPU part is manufactured at TSMC in the modern N3B (3nm) process, the GPU also comes from TSMC in the N5P process. The SoC and I/O tile are manufactured in the TSMC N6 process. The base tile is manufactured by Intel in the 22nm process and carries the individual chiplets thanks to Fovero's 3D packaging.
Codename | Arrow Lake-HX | ||||||||||||||||||||||||
Series | Intel Arrow Lake | ||||||||||||||||||||||||
Series: Arrow Lake Arrow Lake-HX
| |||||||||||||||||||||||||
Clock Rate | 2100 - 5400 MHz | ||||||||||||||||||||||||
Level 2 Cache | 40 MB | ||||||||||||||||||||||||
Level 3 Cache | 36 MB | ||||||||||||||||||||||||
Number of Cores / Threads | 24 / 24 8 x 5.4 GHz Intel Lion Cove P-core 16 x 4.6 GHz Intel Skymont E-core | ||||||||||||||||||||||||
Power Consumption (TDP = Thermal Design Power) | 55 Watt | ||||||||||||||||||||||||
TDP Turbo PL2 | 160 Watt | ||||||||||||||||||||||||
Manufacturing Technology | 3 nm | ||||||||||||||||||||||||
GPU | Intel Graphics 4-Core iGPU (Arc) (300 - 1900 MHz) | ||||||||||||||||||||||||
64 Bit | 64 Bit support | ||||||||||||||||||||||||
Architecture | x86 | ||||||||||||||||||||||||
Announcement Date | 01/06/2025 | ||||||||||||||||||||||||
Product Link (external) | www.intel.com |
