There was about a two-month gap between our reviews of the two laptops, as the Legion Pro 7 16 arrived a bit earlier than the more affordable Legion Pro 5 16.
Processor - Only the Pro 5 has slower and more affordable options
Both of our review units are equipped with the same processor, namely the high-end Intel Core Ultra 9 275HX. However, only the Pro 5 is optionally available with the slightly less powerful Ultra 7 255HX.
Graphics card - RTX 5090 only available on the Pro 7
As for the graphics card, both can be configured individually, but our Pro 7 features the Nvidia GeForce RTX 5080 Laptop, while the Pro 5 is powered by the RTX 5070 Ti Laptop. Potentially, both laptops can be bought with the same GPU. However, it seems the Pro 5 is currently only available with the RTX 5060, RTX 5070 or RTX 5070 Ti. On the other hand, the Pro 7 is also available with an RTX 5070 Ti, but it can also be equipped with the RTX 5080 or RTX 5090.
Display - Almost similar OLED panels
Let's focus on the two configurations that we reviewed. Both feature nearly the same brilliant 16-inch Samsung OLED panel. The only difference between the two panels is a single letter in the version number (ATNA60HS01-0 and ATNA60HU01-0). Apparently, the Pro 7 OLED can be more color-accurate after calibration, which might be relevant for content creators. Also, its response times are a bit faster. Most remaining specifications, however, are identical or very similar.
Lenovo Legion 5 Pro 16IAX10H ATNA60HS01-0 (Samsung SDC420A), OLED, 2560x1600, 16", 165 Hz | Lenovo Legion Pro 7i 16 Gen 10 Samsung ATNA60HU01-0, OLED, 2560x1600, 16", 240 Hz | |
---|---|---|
Display | 0% | |
Display P3 Coverage | 99.9 | 99.5 0% |
sRGB Coverage | 100 | 100 0% |
AdobeRGB 1998 Coverage | 94.1 | 94.4 0% |
Response Times | 27% | |
Response Time Grey 50% / Grey 80% * | 2 ? | 0.28 ? 86% |
Response Time Black / White * | 1.4 ? | 0.43 ? 69% |
PWM Frequency | 1300 | 1438 ? |
PWM Amplitude * | 16.7 | 29 -74% |
Screen | 11% | |
Brightness middle | 518 | 490.4 -5% |
Brightness | 522 | 498 -5% |
Brightness Distribution | 97 | 97 0% |
Black Level * | ||
Colorchecker dE 2000 * | 2.49 | 3.2 -29% |
Colorchecker dE 2000 max. * | 5.25 | 6.04 -15% |
Colorchecker dE 2000 calibrated * | 2.15 | 0.84 61% |
Greyscale dE 2000 * | 3.02 | 1 67% |
Gamma | 2.37 93% | 2.24 98% |
CCT | 6426 101% | 6373 102% |
Total Average (Program / Settings) | 13% /
12% |
* ... smaller is better
Communication - Wi-Fi 6 vs Wi-Fi 7
There's another difference in terms of wireless connectivity. While the Legion 5 took a step backwards and only comes with Wi-Fi 6, while the predecessor had Wi-Fi 6E. It also has comparatively slow transfer rates for its class. In contrast to that, the Legion 7 supports Wi-Fi 7 with fast transfer rates. Both Wi-Fi modules are replaceable, so the Legion 5 can be upgraded in this regard.
Cooling system - More fans in the Legion Pro 7

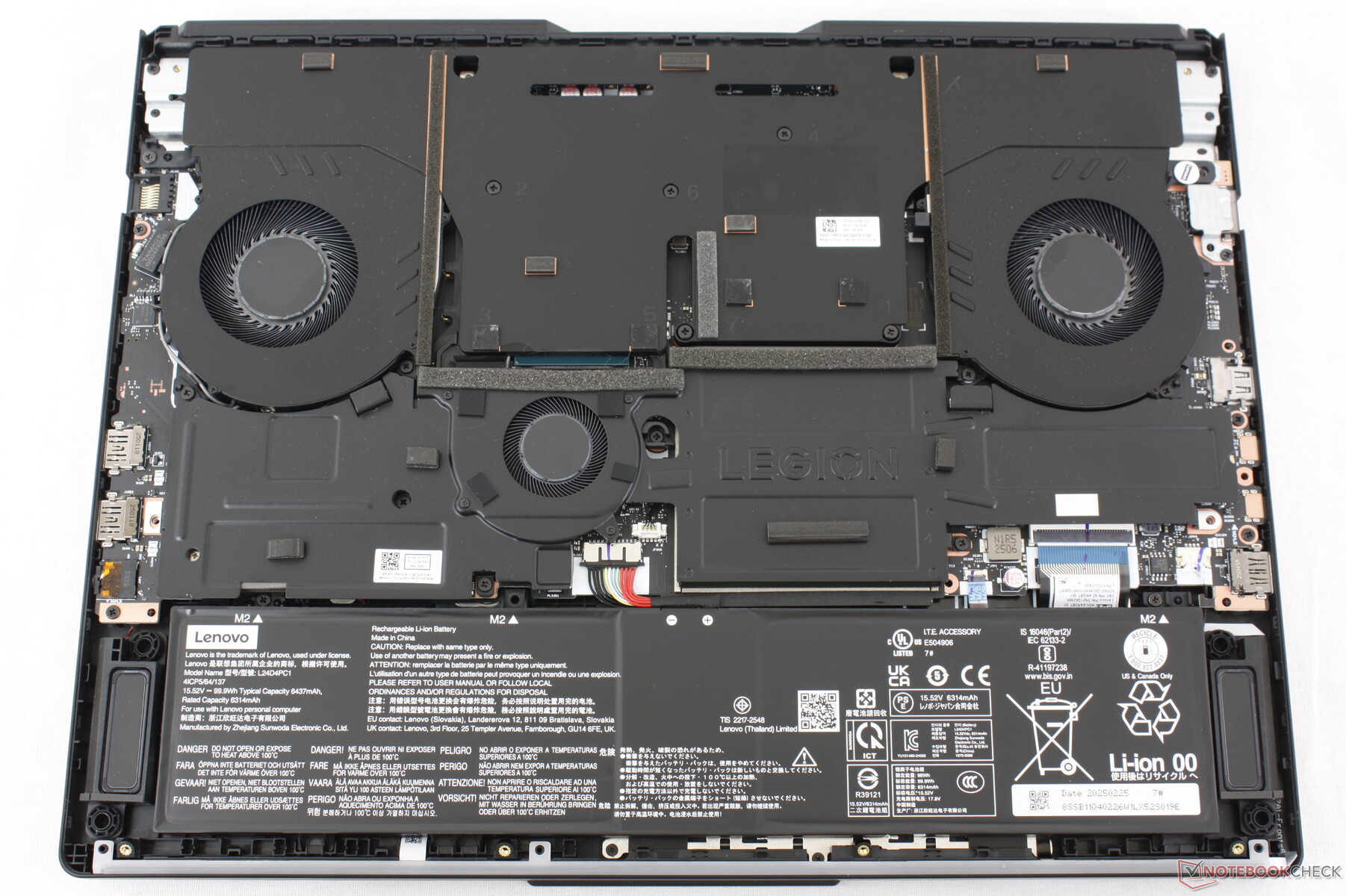

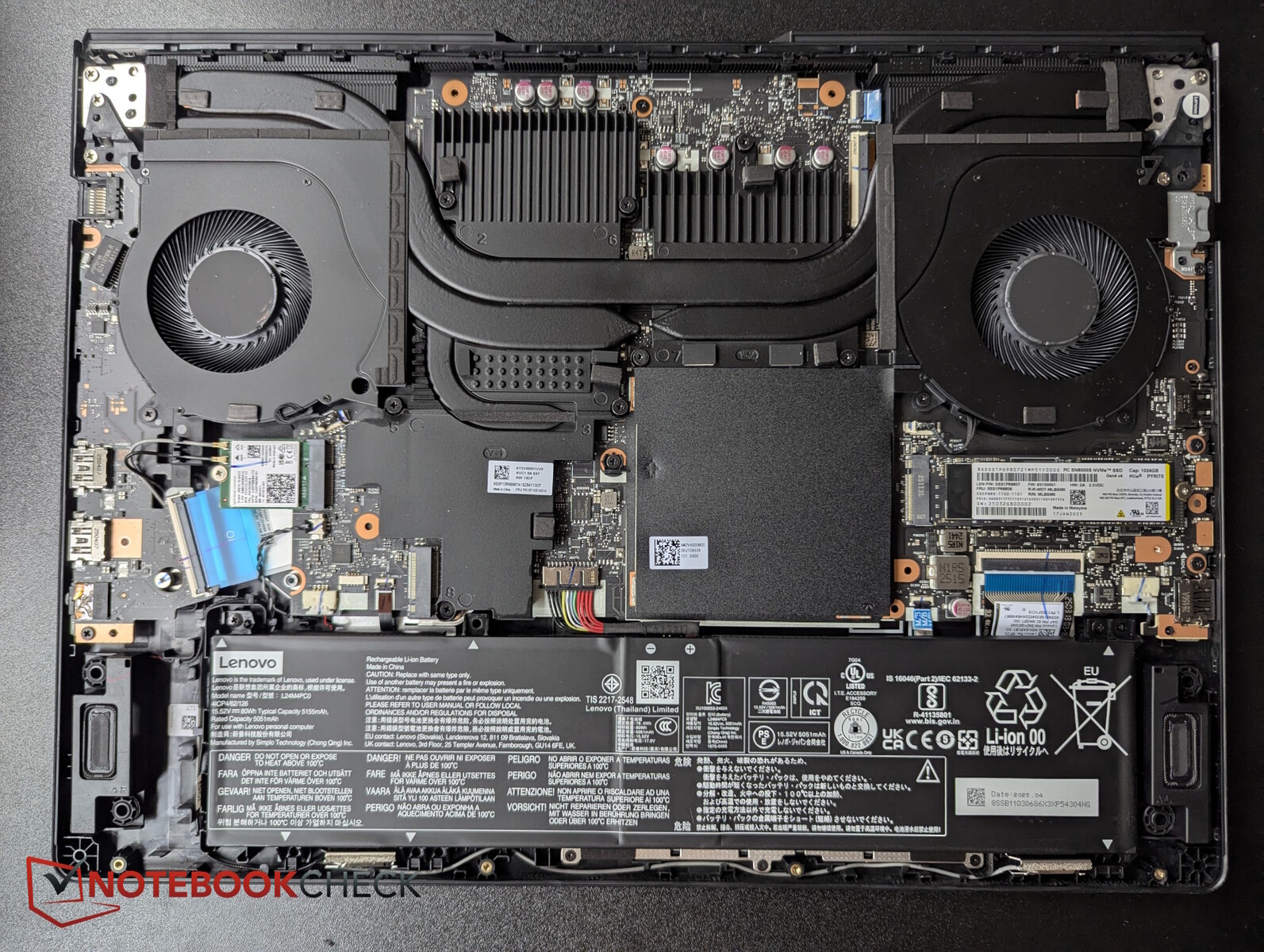

We opened both gaming laptops to take a look at the internal differences. As it turns out, only the Pro 7 has a small third fan, which should result in better cooling. However, this also has drawbacks, as the additional metal cover next to the fan makes it harder for users to access certain components for maintenance.
Lenovo Legion 5 Pro 16IAX10H GeForce RTX 5070 Ti Laptop, Ultra 9 275HX, Western Digital PC SN8000S SDEPNRK-1T00 | Lenovo Legion Pro 7i 16 Gen 10 GeForce RTX 5080 Laptop, Ultra 9 275HX, SK Hynix HFS001TEJ9X115N | |
---|---|---|
Noise | 13% | |
off / environment * | 24 | 22.9 5% |
Idle Minimum * | 24 | 22.9 5% |
Idle Average * | 24 | 22.9 5% |
Idle Maximum * | 30.9 | 26.3 15% |
Load Average * | 55.9 | 27.8 50% |
Cyberpunk 2077 ultra * | 56.72 | 54.2 4% |
Load Maximum * | 56.72 | 53.9 5% |
* ... smaller is better
CPU performance comparison - Differences under sustained load
The cooling system may also cause differences in performance. While the Pro 5 CPU loses about 7% of its performance in the first five runs of our Cinebench R15 continuous loop, the same CPU in the Pro 7 maintains its performance and doesn't throttle. Both benchmarks were conducted in performance mode. Aside from sustained performance, however, both models perform similarly across all CPU benchmarks, meaning the Pro 5 only has a minimal loss under constant load for a longer time.
Cinebench R15 Multi loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating | |
Lenovo Legion 5 Pro 16IAX10H | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average Intel Core Ultra 9 275HX | |
Average of class Gaming |
Cinebench R23 / Multi Core | |
Lenovo Legion 5 Pro 16IAX10H | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average Intel Core Ultra 9 275HX (30712 - 40970, n=17) | |
Average of class Gaming (5668 - 40970, n=144, last 2 years) |
Cinebench R23 / Single Core | |
Lenovo Legion 5 Pro 16IAX10H | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average Intel Core Ultra 9 275HX (2009 - 2267, n=17) | |
Average of class Gaming (1136 - 2267, n=144, last 2 years) |
Cinebench R20 / CPU (Multi Core) | |
Lenovo Legion 5 Pro 16IAX10H | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average Intel Core Ultra 9 275HX (12026 - 16108, n=17) | |
Average of class Gaming (2179 - 16108, n=144, last 2 years) |
Cinebench R20 / CPU (Single Core) | |
Lenovo Legion 5 Pro 16IAX10H | |
Average Intel Core Ultra 9 275HX (774 - 870, n=17) | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average of class Gaming (439 - 870, n=144, last 2 years) |
Cinebench R15 / CPU Multi 64Bit | |
Lenovo Legion 5 Pro 16IAX10H | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average Intel Core Ultra 9 275HX (4756 - 6271, n=17) | |
Average of class Gaming (1537 - 6271, n=144, last 2 years) |
Cinebench R15 / CPU Single 64Bit | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Lenovo Legion 5 Pro 16IAX10H | |
Average Intel Core Ultra 9 275HX (306 - 343, n=17) | |
Average of class Gaming (191.9 - 343, n=142, last 2 years) |
Blender / v2.79 BMW27 CPU | |
Average of class Gaming (80 - 517, n=141, last 2 years) | |
Lenovo Legion 5 Pro 16IAX10H | |
Average Intel Core Ultra 9 275HX (82 - 116, n=17) | |
Lenovo Legion Pro 7i 16 Gen 10 |
7-Zip 18.03 / 7z b 4 | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average Intel Core Ultra 9 275HX (98236 - 124155, n=17) | |
Lenovo Legion 5 Pro 16IAX10H | |
Average of class Gaming (23795 - 148086, n=142, last 2 years) |
7-Zip 18.03 / 7z b 4 -mmt1 | |
Average Intel Core Ultra 9 275HX (6063 - 7149, n=17) | |
Lenovo Legion 5 Pro 16IAX10H | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average of class Gaming (4199 - 7573, n=142, last 2 years) |
Geekbench 6.4 / Multi-Core | |
Lenovo Legion 5 Pro 16IAX10H | |
Average Intel Core Ultra 9 275HX (16033 - 21668, n=18) | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average of class Gaming (5340 - 22104, n=138, last 2 years) |
Geekbench 6.4 / Single-Core | |
Lenovo Legion 5 Pro 16IAX10H | |
Average Intel Core Ultra 9 275HX (2886 - 3160, n=18) | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average of class Gaming (1490 - 3219, n=138, last 2 years) |
Geekbench 5.5 / Multi-Core | |
Average Intel Core Ultra 9 275HX (19105 - 25855, n=17) | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Lenovo Legion 5 Pro 16IAX10H | |
Average of class Gaming (4557 - 27010, n=141, last 2 years) |
Geekbench 5.5 / Single-Core | |
Lenovo Legion 5 Pro 16IAX10H | |
Average Intel Core Ultra 9 275HX (2033 - 2292, n=17) | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average of class Gaming (986 - 2423, n=141, last 2 years) |
HWBOT x265 Benchmark v2.2 / 4k Preset | |
Lenovo Legion 5 Pro 16IAX10H | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Average Intel Core Ultra 9 275HX (30.7 - 43.8, n=17) | |
Average of class Gaming (7.7 - 44.3, n=142, last 2 years) |
LibreOffice / 20 Documents To PDF | |
Average of class Gaming (19 - 96.6, n=140, last 2 years) | |
Average Intel Core Ultra 9 275HX (33.2 - 62.1, n=17) | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Lenovo Legion 5 Pro 16IAX10H |
R Benchmark 2.5 / Overall mean | |
Average of class Gaming (0.3551 - 0.759, n=143, last 2 years) | |
Average Intel Core Ultra 9 275HX (0.3943 - 0.4568, n=17) | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Lenovo Legion 5 Pro 16IAX10H |
* ... smaller is better
Latencies - Advantage for the Pro 7
In our latency test, the Pro 7 performed better with a latency less than half of that of the Pro 5. In our YouTube test, the Pro 5 dropped 18 frames in total, while the Pro 7 only dropped a single frame.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
Lenovo Legion 5 Pro 16IAX10H | |
Lenovo Legion Pro 7i 16 Gen 10 |
* ... smaller is better
Mass storage - Tie
Even though they are from different manufacturers, the two SSDs in these Lenovo gaming laptops are very similar. Neither device can be declared a winner here, especially since SSDs often vary depending on the specific configuration.
Sustained read performance: DiskSpd Read Loop, Queue Depth 8
Graphics performance - Barely better in 3DMark
Needless to say, a proper GPU comparison is challenging considering these notebooks are equipped with two different graphics cards. That said, the RTX 5070 Ti and RTX 5080 are generally quite close in terms of performance. In 3DMark, the RTX 5080-powered Legion 7 is only about 4 to 5 percent ahead of the Legion 5 with the RTX 5070 Ti, which is a fairly negligible difference.
3DMark Performance Rating - Percent | |
Lenovo Legion Pro 7i 16 Gen 10 -1! | |
Lenovo Legion 5 Pro 16IAX10H | |
Average Nvidia GeForce RTX 5070 Ti Laptop | |
Average of class Gaming |
Gaming performance - RTX 5070 Ti vs RTX 5080
What appeared to be an insignificant difference between the two GPUs in synthetic benchmarks turns into a real advantage for the RTX 5080 in the Pro 7 in our gaming tests. Across all games tested, the 7 series had a lead of around 16%. The performance over time in Cyberpunk 2077 also clearly shows the superiority of the more expensive laptop. But can we draw conclusions about a potential difference between the two models if they had the same GPU? Not really, because the Legion 5 graph also looks very stable. It's just that the performance of an RTX 5070 Ti is naturally lower than that of an RTX 5080.
Performance Rating - Percent | |
Lenovo Legion Pro 7i 16 Gen 10 -1! | |
Lenovo Legion 5 Pro 16IAX10H | |
Average of class Gaming |
Cyberpunk 2077 2.2 Phantom Liberty - 1920x1080 Ultra Preset (FSR off) | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Lenovo Legion 5 Pro 16IAX10H | |
Average of class Gaming (6.76 - 166.5, n=119, last 2 years) |
Baldur's Gate 3 - 1920x1080 Ultra Preset AA:T | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Lenovo Legion 5 Pro 16IAX10H | |
Average of class Gaming (34.5 - 246, n=84, last 2 years) |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Lenovo Legion 5 Pro 16IAX10H | |
Average of class Gaming (12.1 - 186.9, n=123, last 2 years) |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Lenovo Legion 5 Pro 16IAX10H | |
Average of class Gaming (19.2 - 212, n=139, last 2 years) |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Lenovo Legion 5 Pro 16IAX10H | |
Average of class Gaming (38.9 - 456, n=131, last 2 years) |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Lenovo Legion 5 Pro 16IAX10H | |
Average of class Gaming (65.1 - 248, n=142, last 2 years) |
X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
Lenovo Legion Pro 7i 16 Gen 10 | |
Lenovo Legion 5 Pro 16IAX10H | |
Average of class Gaming (33.4 - 166.2, n=144, last 2 years) |
Cyberpunk 2077 ultra FPS
Verdict
We found differences between the two models in the following three areas:
- Specifications: The Pro 7 can be equipped with a more powerful GPU and has faster Wi-Fi.
- Display: Both have nearly identical OLED panels. For those looking for absolutely accurate colors, the Pro 7 is better.
- Cooling System: The Pro 7 has a third fan, which results in more consistent sustained CPU performance. Additionally, the Pro 7 is cooler and quieter.
Each gamer should weigh these differences against the asking price. Even with the RTX 5070 Ti, the Legion Pro 7 16IAX10H (or Legion Pro 7i 16) costs over €3,000. The Legion Pro 5 16IAX10 (or Legion Pro 5i 16) usually costs several hundreds less. In Germany, both models variants are available directly at Lenovo, where the Pro 7 is priced at €3,099, and the Pro 5 around €2,500.
