AMD FX-8800P
The AMD FX-8800P is the top-tier Carrizo APU of 2015 for mainstream laptops . It is a SoC containing two Excavator CPU modules (with 4 integer and 2 FP units counted as 4 compute cores), a Radeon R7 graphics card with 8 compute cores (512 shaders), a DDR3-2133 (35 Watt cTDP) memory controller and a video engine (including UVD 6 with hardware HEVC / H.265 decoding).
The performances of the CPU and GPU cores depend on the configurable TDP. This cTDP can range from 12 to 35 Watts depending on the cooling solution and size of the laptop. Thus, clock speeds of the compute cores will vary. E.g., the GPU can score between 1992 points (15 Watts) to 2753 points (+38% with 35 Watts cTDP) in 3DMark 11 (P).
According to AMD, the 35 Watt configuration scores 12% (Cinebench single-thread) and 15% (Cinebench Multi-threaded) higher compared to the previous Steamroller generation (most likely the AMD FX-7600P ). If configured to 15 Watt instead, the gains are higher (40% to 55%) compared to the 19 Watt Kaveri FX-7500 APU.
More technical details and features of the 6th generation of APUs (Carrizo) can be found in our launch article .
Series AMD Carrizo Codename Carrizo Series: Carrizo Carrizo Clock Rate 2100 - 3400 MHz Level 2 Cache 2 MB Number of Cores / Threads 4 / 4 Max. Power Consumption (TDP = Thermal Design Power) 12-35 Watt Transistor Count 3100 Million Manufacturing Technology 28 nm Socket FP4 BGA Features HSA 1.0 GPU AMD Radeon R7 (Carrizo) ( - 800 MHz)64 Bit 64 Bit support Announcement Date 06/03/2015
Benchmarks Cinebench R15 - CPU Multi 64Bit
min: 207 avg: 255.3 median: 277 (13%) max: 282 Points
...
...
Cinebench R15 - CPU Single 64Bit
min: 78 avg: 81.3 median: 82 (42%) max: 84 Points
...
...
Cinebench R11.5 - CPU Multi 64Bit
min: 2.53 avg: 3.1 median: 3.4 (14%) max: 3.39 Points
...
...
Cinebench R11.5 - CPU Single 64Bit
min: 0.88 avg: 0.9 median: 1 (43%) max: 0.98 Points
...
...
Cinebench R10 - Rendering Single 32Bit
min: 2417 avg: 2604 median: 2604 (33%) max: 2791 Points
AMD Geode LX 800 -95%
...
...
Cinebench R10 - Rendering Multiple CPUs 32Bit
min: 6820 avg: 7860 median: 7860 (16%) max: 8900 Points
...
...
wPrime 2.0x - 1024m *
377.5 seconds (4%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 377.53
...
Intel Core i5-2400 -1%
Intel Core i5-2400 -1%
Intel Core i5-2400 -1%
Intel Core i5-2400 -1%
...
VIA C3-M C3-M-1200 2141%
wPrime 2.0x - 32m *
12 seconds (2%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 12.016
...
Intel Core i5-2500K -3%
Intel Core i5-2500K -3%
Intel Core i5-2500K -3%
Intel Core i5-2500K -3%
Intel Core i5-2400 -3%
Intel Core i5-2400 -3%
Intel Core i5-2400 -3%
Intel Core i5-2400 -3%
Intel Core i7-960 1%
...
WinRAR - Result
1543 KB/s (18%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 1543
...
...
X264 HD Benchmark 4.0 - Pass 2
21.1 fps (12%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 21.07
Intel Pentium 4 2.4 GHz -91%
...
...
X264 HD Benchmark 4.0 - Pass 1
93.5 fps (40%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 93.47
...
...
TrueCrypt - Serpent Mean 100MB
0.3 GB/s (16%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 0.266
Intel Pentium 4 2.4 GHz -93%
...
...
Intel Xeon E5-2680 530%
TrueCrypt - Twofish Mean 100MB
0.5 GB/s (21%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 0.446
...
...
TrueCrypt - AES Mean 100MB
2.2 GB/s (18%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 2.2
...
AMD FX-8800P
...
3DMark 06 - CPU
4227 Points (33%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 4227
...
Intel Core 2 Quad (Desktop) Q9550 0%
Intel Core 2 Quad (Desktop) Q9550 0%
Intel Core 2 Quad (Desktop) Q9550 0%
Intel Core 2 Quad (Desktop) Q9550 0%
...
Super Pi mod 1.5 XS 1M *
19.1 Seconds (4%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 19.06
...
Intel Core 2 Extreme (Desktop) QX6700 0%
Intel Core 2 Extreme (Desktop) QX6700 0%
Intel Core 2 Extreme (Desktop) QX6700 0%
Intel Core 2 Extreme (Desktop) QX6700 0%
...
VIA C3-M C3-M-1200 2329%
Super Pi mod 1.5 XS 2M *
41.4 Seconds (2%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 41.39
...
...
Super Pi Mod 1.5 XS 32M *
873.7 Seconds (4%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 873.71
...
...
VIA C3-M C3-M-1200 2477%
3DMark Vantage - P CPU no PhysX 1280x1024
min: 10073 avg: 10091.5 median: 10091.5 (18%) max: 10110 Points
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 10073
Lenovo IdeaPad Y700-15ACZ Radeon R7 (Carrizo) 8192 MB 800 / 1600 MHz shared Memory 15.201.1301.1007 10110
...
AMD FX-8800P
...
3DMark 11 - Performance Physics 1280x720
min: 2363 avg: 2764.3 median: 2753.5 (17%) max: 3187 points
Acer Aspire E5-552G-F62G Radeon R8 M365DX 8192 MB 15.200.1065.0 2363
Lenovo IdeaPad Y700-15ACZ Radeon R7 (Carrizo) 8192 MB 800 / 1600 MHz shared Memory 15.201.1301.1007 2698
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 2809
Lenovo Y700 Radeon R9 M385X 8192 MB 3187
...
...
3DMark - Ice Storm Standard Physics 1280x720
min: 24378 avg: 30900.8 median: 32521 (21%) max: 34183 Points
Acer Aspire E5-552G-F62G Radeon R8 M365DX 8192 MB 15.200.1065.0 24378
Lenovo IdeaPad Y700-15ACZ Radeon R7 (Carrizo) 8192 MB 800 / 1600 MHz shared Memory 15.201.1301.1007 31260
Lenovo IdeaPad Y700-15ACZ Radeon R7 (Carrizo) 8192 MB 33782
Lenovo Y700 Radeon R9 M385X 8192 MB 34183
...
...
3DMark - Cloud Gate Standard Physics 1280x720
min: 2106 avg: 2720 median: 2843 (7%) max: 2943 Points
Acer Aspire E5-552G-F62G Radeon R8 M365DX 8192 MB 15.200.1065.0 2106
Lenovo IdeaPad Y700-15ACZ Radeon R7 (Carrizo) 8192 MB 800 / 1600 MHz shared Memory 15.201.1301.1007 2774
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 2843
Lenovo Y700 Radeon R9 M385X 8192 MB 2934
Lenovo IdeaPad Y700-15ACZ Radeon R7 (Carrizo) 8192 MB 2943
...
...
3DMark - Fire Strike Physics 1920x1080
min: 4031 avg: 4119 median: 4119 (18%) max: 4207 Points
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 4031
Lenovo IdeaPad Y700-15ACZ Radeon R7 (Carrizo) 8192 MB 4207
...
...
Geekbench 3 - 32 Bit Multi-Core Score
6349 Points (20%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 6349
...
AMD FX-8800P
...
Geekbench 3 - 32 Bit Single-Core Score
2085 Points (45%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 2085
...
AMD FX-8800P
...
Geekbench 3 - 64 Bit Multi-Core Score
6719 Points (18%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 6719
...
...
Geekbench 3 - 64 Bit Single-Core Score
2218 Points (47%)
Lenovo Y700-15ACZ Radeon R9 M385X 8192 MB 1000 / 4800 MHz 2048MB GDDR5 15.201.1301.1007 2218
...
...
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
v1.6b2
#0 no ids found in url (should be separated by "_") +0s ... 0s
#1 Did not recreate cache, as it is less than 5 days old! +0.004s ... 0.004s
#2 got avg benchmarks for devices +0.036s ... 0.04s
#3 min, max, avg, median took s +1.787s ... 1.827s
#4 return log +0.004s ... 1.831s

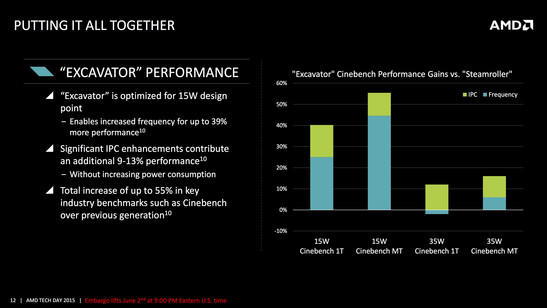

Performance gains in Cinebench (single- and multithreaded) compared to the previous generation of Steamroller cores (in Kaveri). Comparison of the 3 Carrizo launch APUs in 3DMark 11 Performance test (from AMD)
