MediaTek Kompanio 520

Mediatek Kompanio 520

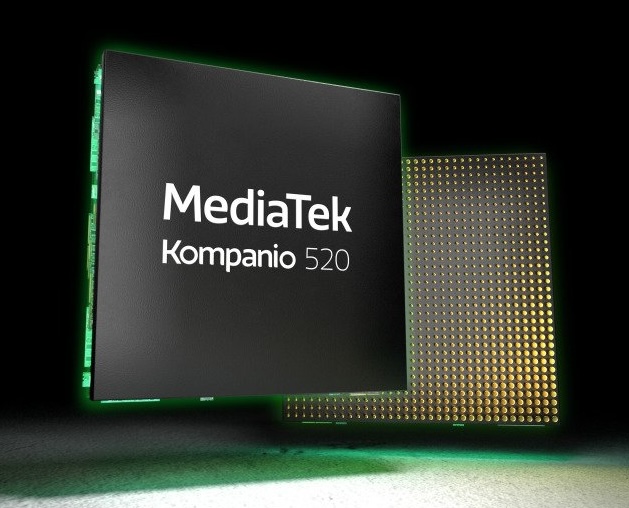

The MediaTek Kompanio 520 is an ARM-based octa-core SoC for ChromeBooks. It integrates eight CPU cores in two clusters. The performance cluster uses two ARM Cortex-A76 with up to 2 GHz. The efficiency cluster uses six small ARM Cortex-A55 cores, also with up to 2 GHz. The memory controller supports LPDDR4x-3733 and the Kompanio supports eMMC 5.1 with Hardware Command Queue for the memory connection.

The integrated graphics card is also from ARM (Mali G52 MC2 2EE) with two cores. The GPU can control a maximum of two displays simultaneously (2520x1080 60Hz internal and 1920x1080 60Hz external).

Wi-Fi is not directly integrated, but the combination with the MediaTek Filogic Wi-Fi 6 chip is intended.

The chip is manufactured in the older 7nm process.

SeriesMediatek MediaTek Kompanio 500
Codename2x Cortex-A76 / 6x A55
Clock Rate2000 MHz
Number of Cores / Threads8 / 8
2 x 2.0 GHz ARM Cortex-A76
6 x 2.0 GHz ARM Cortex-A55
Manufacturing Technology7 nm
Features2x ARM Cortex-A76, 6x ARM Cortex-A55
GPUARM Mali-G52 MP2
64 Bit64 Bit support
ArchitectureARM
Announcement Date11/10/2022
Product Link (external)www.mediatek.com

Benchmarks

3DMark - 3DMark Sling Shot Extreme (ES 3.1) Unlimited Physics
2889 Points (34%)
+ 1 benchmarks and specifications   + Show comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.4 64 Bit Single-Core
510 points (22%)
+ 1 benchmarks and specifications   - Hide comparison chart
Geekbench 5.5 - Geekbench 5.1 - 5.4 64 Bit Multi-Core
1532 points (3%)
+ 1 benchmarks and specifications   - Hide comparison chart
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
min: 1814     avg: 1890     median: 1889.8 (2%)     max: 1965.5 ms
+ 2 benchmarks and specifications   + Show comparison chart
Sunspider - Sunspider 1.0 Total Score *
min: 172.6     avg: 178.9     median: 178.9 (2%)     max: 185.2 ms
+ 2 benchmarks and specifications   + Show comparison chart
Octane V2 - Octane V2 Total Score
min: 22414     avg: 22929     median: 22928.5 (21%)     max: 23443 Points
+ 2 benchmarks and specifications   + Show comparison chart
WebXPRT 4 - WebXPRT 4 Score
min: 80     avg: 80.5     median: 80.5 (23%)     max: 81 Points
+ 2 benchmarks and specifications   + Show comparison chart
WebXPRT 3 - WebXPRT 3 Score
121 Points (25%)
+ 1 benchmarks and specifications   + Show comparison chart
PCMark for Android - PCM f. Android Storage 2.0 random write internal
min: 1.09     avg: 1.2     median: 1.2 (1%)     max: 1.37 MB/s
+ 2 benchmarks and specifications   + Show comparison chart
PCMark for Android - PCM f. Android Storage 2.0 seq write internal
min: 81.31     avg: 81.9     median: 81.9 (3%)     max: 82.5 MB/s
+ 2 benchmarks and specifications   + Show comparison chart
PCMark for Android - PCM f. Android Storage 2.0 random read internal
min: 6.6     avg: 7.1     median: 7.1 (9%)     max: 7.5 MB/s
+ 2 benchmarks and specifications   + Show comparison chart
PCMark for Android - PCM f. Android Storage 2.0 seq read internal
min: 99.17     avg: 108.1     median: 108.1 (3%)     max: 117 MB/s
+ 2 benchmarks and specifications   + Show comparison chart
PCMark for Android - PCM f. Android Storage 2.0 score
min: 2565     avg: 2641     median: 2641 (4%)     max: 2717 Points
+ 2 benchmarks and specifications   + Show comparison chart
PCMark for Android - PCM f. Android Work Score 3.0
min: 6885     avg: 6905     median: 6904.5 (32%)     max: 6924 Points
+ 2 benchmarks and specifications   + Show comparison chart
CrossMark - CrossMark Overall
min: 348     avg: 352.5     median: 352.5 (14%)     max: 357 Points
+ 2 benchmarks and specifications   + Show comparison chart
CrXPRT 2 - CrXPRT2 Performance Score
78 Points (43%)
+ 1 benchmarks and specifications   + Show comparison chart
Power Consumption - Geekbench 5.5 Power Consumption 150cd *
6.7 Watt (3%)
+ 1 benchmarks and specifications   + Show comparison chart
012345678910Tooltip
Power Consumption - Idle Power Consumption 150cd 1min *
min: 3.49     avg: 4.1     median: 4.1 (5%)     max: 4.64 Watt
+ 2 benchmarks and specifications   + Show comparison chart
012345Tooltip
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
