Intel Atom x5-Z8550

Intel Z8550

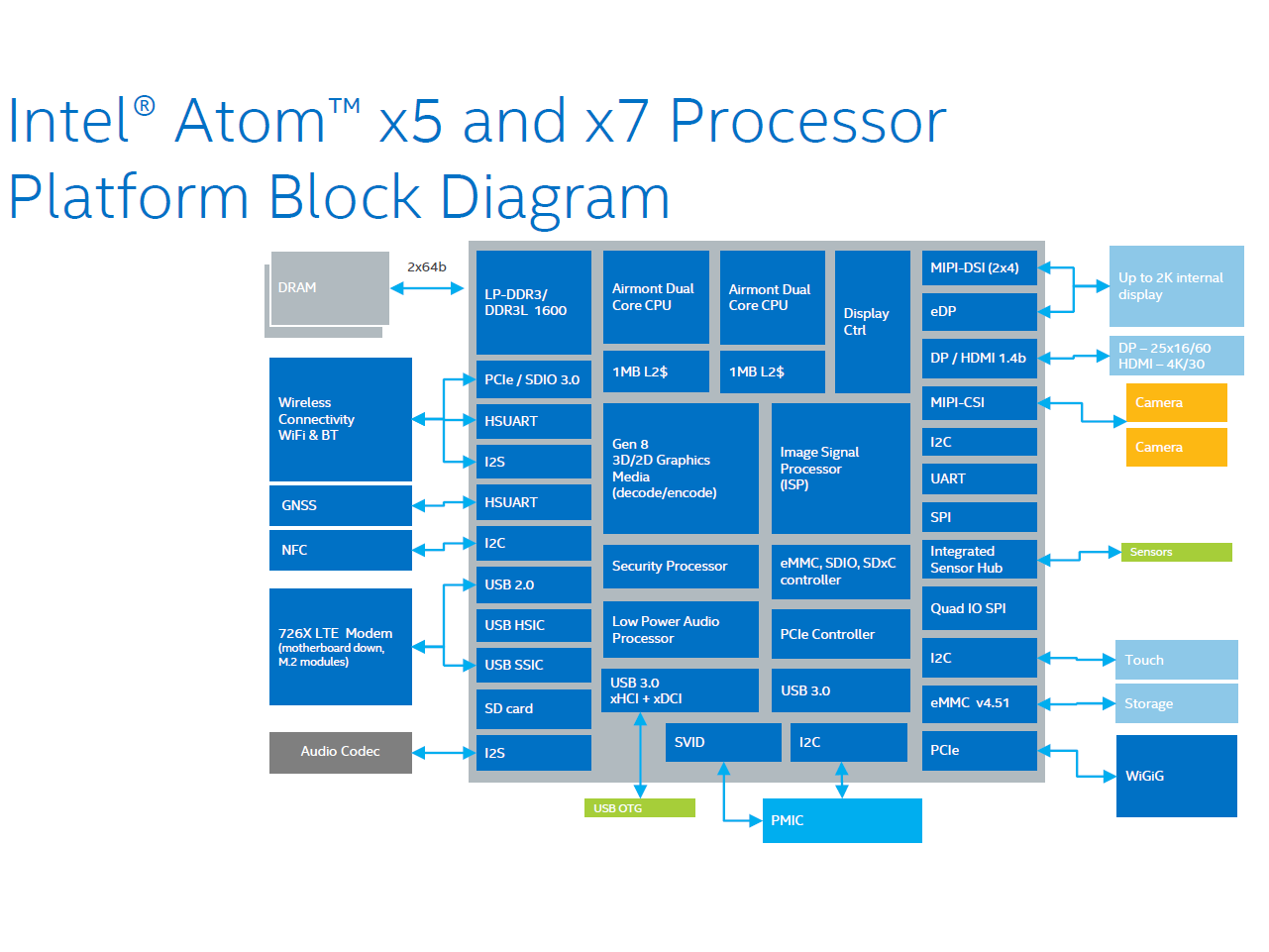

The Intel Atom x5-Z8550 is a power efficient quad-core SoC for Windows and Android devices (tablets and convertibles), which has been presented in February 2016. It is clocked at 1.44 - 2.4 GHz and part of the Cherry Trail platform. Thanks to its new 14 nanometer low-power process (P1273) with tri-gate transistors, energy efficiency has been significantly improved over its predecessor Bay Trail-T (e.g. Atom Z3795). In addition to the CPU cores, the SoC offers a DirectX 11.2-capable GPU as well as a LPDDR3 Memory Controller (2x 64 bit, 25.6 GB/s). Compared to the previous year x5-Z8500, the boost clock speed gained 160 MHz (from 2.24 to 2.4 GHz).

Architecture

The processor cores are based on the Airmont architecture, which is basically a slightly modified shrink of the previous Silvermont core. While performance per clock has not been improved, the more efficient 14 nm process may lead to a better utilization of the CPU Burst (alias Turbo Boost) and therefore a somewhat higher performance in certain situations.

Performance

Compared to the Atom x7-Z8700, the Atom x5-Z8550 offers a similar boost speed and should therefore perform on a similar level. Compared to ARM-based SoCs it should offer a similar performance as a Qualcomm Snapdragon 810 (CPU wise).

Using Windows, the chip is adequate for everyday tasks such as Internet or Office, but not for very complex software or modern games.

Graphics

The HD Graphics (Cherry Trail) was renamed to Intel HD Graphics 400 in this generation. It is still based on the Intel Gen8 architecture, which supports DirectX 11.2 and is also found in the Broadwell series (e.g. HD Graphics 5300). With 12 EUs (Execution Units) and a clock speed of up to 600 MHz, the GPU is about twice as fast as the HD Graphics (Bay Trail) and will handle older and less demandig Windows games (e.g. Counter-Strike: GO) in very low settings at decent frame rates. The GPU also supports 4K/H.265 video acceleration.

Compared to ARM SoCs, the HD Graphics offers a performance similar to the Qualcomm Adreno 330 or PowerVR G6430.

Power Consumption

The entire SoC is rated at an SDP of 2 watts, which indicates a TDP of less than 4 watts. Thus, the chip can be used in passively cooled tablets.

SeriesIntel Atom x5
CodenameCherry Trail
Clock Rate1440 - 2400 MHz
Level 2 Cache2048 KB
Number of Cores / Threads4 / 4
Manufacturing Technology14 nm
Max. Temperature90 °C
FeaturesIntel HD Graphics (Cherry Trail, 200 - 600 MHz), Wireless Display, AES-NI, max. 8 GB Dual-Channel LPDDR3-1600 (25,6 GB/s), 3x USB 3.0, 2x PCIe 2.0
GPUIntel HD Graphics 400 (Braswell) (200 - 600 MHz)
64 Bit64 Bit support
Announcement Date03/02/2015
Product Link (external)Intel Atom x5 Z8550

Benchmarks

Geekbench 4.0 - 64 Bit Multi-Core Score
0%
100%
min: 3118     avg: 3118 (11%)     median: 3118 (11%)     max: 3118 Points
PCMark for Android - Work performance score
0%
100%
min: 4504     avg: 4504 (54%)     median: 4504 (54%)     max: 4504 Points
Cinebench R15 - CPU Single 64Bit
0%
100%
min: 36     avg: 36 (18%)     median: 36 (18%)     max: 36 Points
Cinebench R15 - CPU Multi 64Bit
0%
100%
min: 134     avg: 134 (6%)     median: 134 (6%)     max: 134 Points
3DMark - Cloud Gate Standard Physics 1280x720
0%
100%
min: 1369     avg: 1369 (3%)     median: 1369 (3%)     max: 1369 Points
3DMark - Ice Storm Unlimited Physics 1280x720 offscreen
0%
100%
min: 13056     avg: 13056 (19%)     median: 13056 (19%)     max: 13056 Points
3DMark 11 - Performance Physics 1280x720
0%
100%
min: 1737     avg: 1737 (11%)     median: 1737 (11%)     max: 1737 points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
