HiSilicon Kirin 955

 Kirin 955

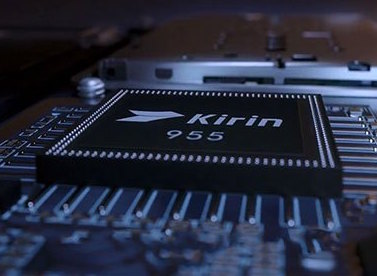

The HiSilicon Kirin 955 is a ARM-based high-end Octa-Core-SoC for Android based smartphones and tablets. It was announced in the beginning of 2016 together with the Huawei P9. It contains 8 processor cores (4x Cortex-A72, 4x Cortex-A53), a ARM Mali T880 MP4 GPU (see for information and benchmarks), a dual-channel LPDDR4 memory controller and a LTE Cat. 5 radio. In the beginning of 2016 it is one of the fastest ARM bases SoCs on the market. Compared to the slightly older Kirin 950, the 955 is a higher clocked version (A72 cores clock at 2.5 versus 2.3 GHz).

The Kirin 955 is one of the first SoCs that use the new Cortex-A72 architecture. Compared to the A57 cores, the A72 ones offer a 15 percent higher per MHz performance and should be more energy efficient. In the Kirin 955, the four Cortex-A72 cores are able to clock up to 2.5 GHz. Furthermore, the processor includes four power saving cores based on the Cortex-A53 architecture that are clocked with 1.8 GHz (max.).

The Kirin 955 is manufactured in 16nm at TSMC (16FF+ process).

Series
CodenameCortex-A72/-A53
Series: Cortex-A72/-A53
» HiSilicon Kirin 9552.5 GHz8 / 8 Cortex-A72/-A53
HiSilicon Kirin 950 compare2.3 GHz8 / 8 Cortex-A72/-A53
Clock Rate2500 MHz
Number of Cores / Threads8 / 8
Manufacturing Technology16 nm
FeaturesARM Mali-T880 MP4 GPU, 4x Cortex-A72 (2.5 GHz) + 4x Cortex-A53 (1.8 GHz, big.LITTLE), LTE Cat. 6, 2x 32 Bit LPDDR4-3200 Memory Controller (25.6 GB/s)
GPUARM Mali-T880 MP4 ( - 900 MHz)
64 Bit64 Bit support
ArchitectureARM
Announcement Date04/06/2016

Benchmarks

- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Add one or more devices and compare

In the following list you can select (and also search for) devices that should be added to the comparison. You can select more than one device.

restrict list:

show all (including archived), 2021, 2020
v1.17
log 02. 04:02:53

#0 no ids found in url (should be separated by "_") +0s ... 0s

#1 not redirecting to Ajax server +0s ... 0s

#2 did not recreate cache, as it is less than 5 days old! Created at Sat, 27 Nov 2021 14:17:39 +0100 +0.001s ... 0.001s

#3 composed specs +0.057s ... 0.058s

#4 did output specs +0s ... 0.058s

#5 getting avg benchmarks for device 8059 +0.001s ... 0.058s

#6 got single benchmarks 8059 +0.009s ... 0.068s

#7 got avg benchmarks for devices +0s ... 0.068s

#8 No cached benchmark found, getting uncached values +0.219s ... 0.286s

#9 min, max, avg, median took s +0.013s ... 0.299s

#10 return log +0.03s ... 0.329s

Reviews for the Kirin 955 processor

Honor Note 8 (ARM Mali-T880 MP4, 6.60")
» Honor Note 8 - External Review

Huawei P9 (ARM Mali-T880 MP4, 5.20")
» Huawei P9 Smartphone Review - Review
» Huawei P9 - External Review

Huawei P9 Plus (ARM Mali-T880 MP4, 5.50")
» Huawei P9 Plus Smartphone Review - Review
» Huawei P9 Plus - External Review
