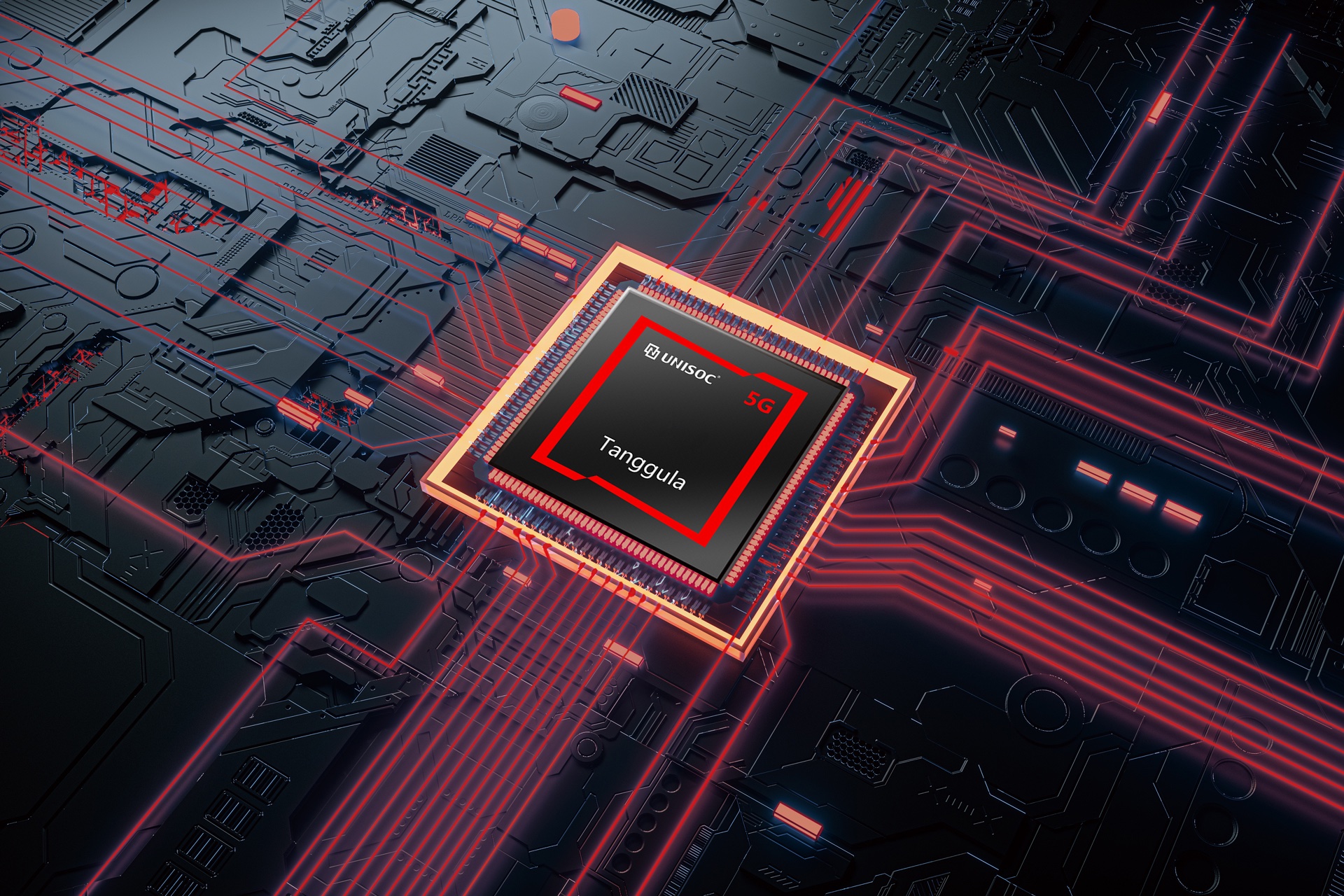

UNISOC Tangula T770
The Unisoc T770 Tanggula (former Spreadtrum) is a mid range SoC for Android based smartphones and tablets. It integrates an octa-core CPU with three clusters. One fast ARM Cortex-A76 clocked at up to 2.5 GHz, three more A76 performance cores clocked at up to 2.2 GHz and a power efficiency cluster of four ARM-Cortex-A55 cores with up to 2 GHz. The integrated memory controller supports LPDDR4/4X with up to 2133 MHz (2x 16 Bit). The integrated ISP supports two main cameras and two subsidiary cameras (up to 108 MPix). The integrated graphics card is an ARM Mali-G57 MC4 (4 cores) at up to 780 MHz. Unisoc also specifies that the T770 offers hardware AI acceleration.
The chip is manufactured in the modern 6nm process.
| Codename | Cortex-A76 / A55 |
| Clock Rate | 2000 - 2500 MHz |
| Number of Cores / Threads | 8 / 8 |
| Manufacturing Technology | 6 nm |
| Features | ISP (2 main + 2 subsidiary, 108M 4-in-1, 64M ZSL) |
| GPU | ARM Mali-G57 MP4 ( - 780 MHz) |
| 64 Bit | 64 Bit support |
| Architecture | ARM |
| Announcement Date | 01/01/2020 |
Benchmarks
- Average benchmark values for this graphics card* Smaller numbers mean a higher performance
No reviews found for this CPU (yet).
