The MediaTek Dimensity 8200 is a upper mid-range ARM-based SoC (system-on-a-chip) that is manufactured using the modern 4 nm process. It was specially designed for use in Android smartphones and is in the upper class in terms of performance. It supports all current mobile communication standards, including 5G SA.
The CPU works with a total of eight cores, which are divided into two clusters. In the first cluster, an ARM Cortex-A78 power core clocked at 3.1 GHz is joined by three further ARM Cortex-A78 power cores clocked at 3 GHz. In the second cluster, four ARM Cortex-A55 power cores operate at 2.0 GHz. LPDDR5 RAM can be used as RAM and UFS 3.1 is supported as internal memory.
In terms of connectivity, dual 5G with a theoretical peak download speed of up to 4.7 GBit/s is available, as well as WiFi 6E and Bluetooth 5.3.

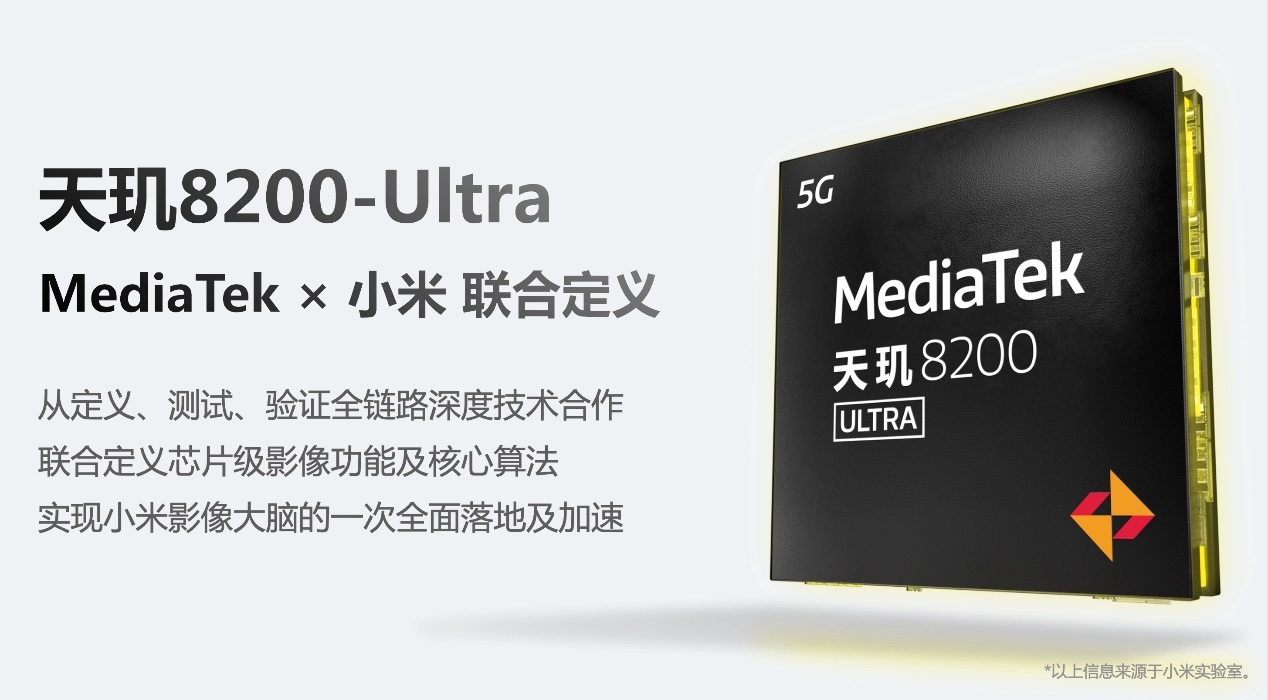

The Mediatek Dimensity 8200-Ultra is a variant of the otherwise identical Mediatek Dimensity 8200 that has been specially customised for Xiaomi and features improvements to the camera ISP. An Imagiq 785 image processor is responsible for processing the camera data. Video recordings are supported with up to 4K at 60 fps. The CPU part of the older Dimensity 8100 is very similar and offers the same CPU and GPU cores.
The integrated ARM Mali-G610 MC6 graphics unit can power displays with a resolution of up to 2,960 x 1,440 pixels (WQHD+) and a refresh rate of up to 120 Hz. With Full HD+, even up to 180 Hz is possible.
| Codename | Cortex-A78 / A55 |
| Clock Rate | 2000 - 3100 MHz |
| Level 3 Cache | 4 MB |
| Number of Cores / Threads | 8 / 8 1 x 3.1 GHz ARM Cortex-A78 3 x 3.0 GHz ARM Cortex-A78 4 x 2.0 GHz ARM Cortex-A55 |
| Manufacturing Technology | 4 nm |
| Features | ARM Mali-G610 MC6 GPU, Dual 5G modem, WiFi 6E, Bluetooth 5.3, H.264/HEVC video decoding |
| GPU | ARM Mali-G610 MP6 |
| 64 Bit | 64 Bit support |
| Architecture | ARM |
| Announcement Date | 06/01/2023 |
| Product Link (external) | www.google.com |
