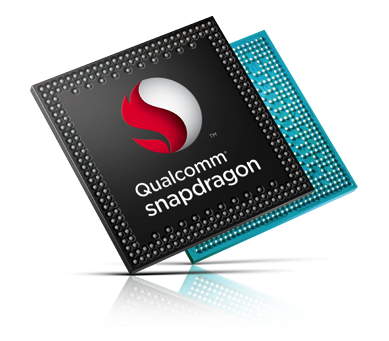

Qualcomm Snapdragon 212 APQ8009
The Qualcomm Snapdragon 212 APQ8009 is an entry level SoC for Android based tablets and smartphones. It contains four ARM Cortex-A7 CPU cores (quad core) with a clock rate of up to 1.3 GHz, an Adreno 304 graphics card, an LPDDR2/LPDDR3 memory controller (max. 533 MHz), a eMMC 4.5 port, but no 3G/LTE radio module.
The performance of the Cortex-A7 cores is rather low and positioned in the entry level of 2015. In our tests of the CAT S40 smartphone, daily tasks and browsing however imposed no problem for the SoC.
The integrated Adreno 304 graphics card is clocked at 400 MHz and also positioned in the entry level. Therefore, demanding games may not run smoothly in high settings.
The integrated video engine allows the encoding and decoding of 1080p H.264 videos and decoding of H.265 videos. The main display can be driven with up to 1280x720 Pixels.
The SoC integrates Bluetooth 4.1 + BLE and 802.11n (2.4 GHz) WiFi.
The SoC is manufactured in a 28 nm LP process (at TSMC most likely). Due to the low energy consumption of the SoC it is also suited for small smartphones.
|Series||Qualcomm Snapdragon 200|
|Series: Snapdragon 200 Cortex-A7|
|Clock Rate||1300 MHz|
|Number of Cores / Threads||4 / 4|
|Manufacturing Technology||28 nm|
|Features||Bluetooth 4.1, 802.11n (2.4 GHz) WLAN|
|GPU||Qualcomm Adreno 304 (400 MHz)|
|Product Link (external)||Qualcomm Snapdragon 200 212 APQ8009|
