Intel Atom Z2460

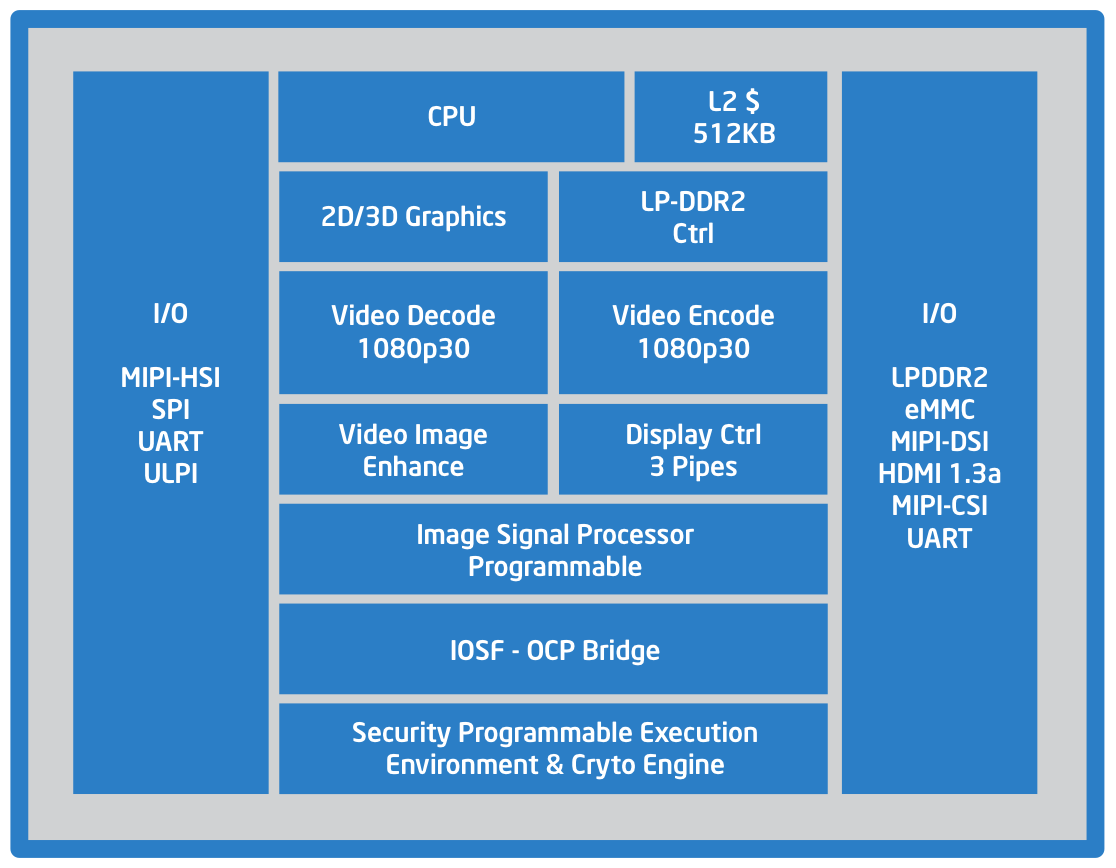

The Intel Atom Z2460 is a SoC (System on a Chip) with the Codename Penwell and part of the Medfield platform. The Z2460 is a one chip SoC and integrates a single core Atom processor (Saltwell) clocked at 1.3 - 2.0 GHz. Due to Hyper-Threading two threads can be executed on the single core (for improved efficiency).
The Saltwell CPU core is still very similar to the first Intel Atom. Therefore, the performance per clock should be very similar (only very small enhancements). However, the CPU now features additional 256 KB low-power-cache (on a separate voltage plane) to allow the CPU and L2 cache to enter a lower power state. Furthermore, the Atom now supports some sort of Turbo Boost and can reach up to 2.0 GHz shortly (1.3 GHz base frequency). Furthermore, the CPU core can be downclocked to 100 MHz (in 100 MHz steps) to save power.
The integrated graphics card is based on a PowerVR SGX 540 design and clocked at 400 MHz. The video decoder (MPEG4.2, H.264, VC1, WMV) and encoder (MPEG4.2, H.264) also stem from Imagination Technologies (VDX385 and VDE285) and should allow 1080p30 de- and encoding of videos.
Furthermore, a dual channel LPDDR2 memory controller (2x 32 Bit) for a maximum of 1GB RAM is integrated.
The whole SoC was optimized for power efficiency and low power consumption. It is produced with a 32nm LP (low power) process. At 100 MHz the SoC should consume about 50 mW and at 1.6 GHz about 750 mW. Therefore, the Z2460 is even suited for smartphones and Intel is keen to point out the the average power consumption is very good compared to competitors like the iPhone 4S.
Series: Atom Penwell
|Clock Rate||1300 - 1600 MHz|
|Level 1 Cache||56 KB|
|Level 2 Cache||512 KB|
|Number of Cores / Threads||1 / 2|
|Power Consumption (TDP = Thermal Design Power)||4? Watt|
|Manufacturing Technology||32 nm|
|GPU||PowerVR SGX540 (400 MHz)|
