Nvidia Tegra 2 (250)

NVIDIA 2 (250)

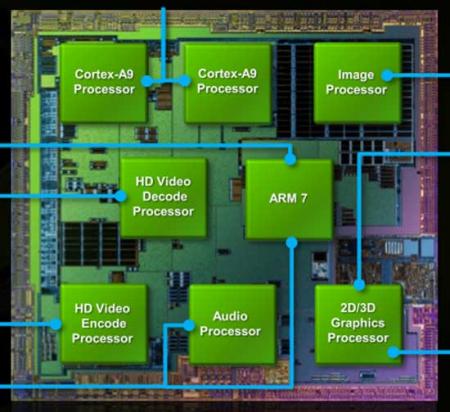

The NVIDIA Tegra 250 is a SOC (System on a Chip) of the Tegra 2 (T20/AP20H) series. It contains a dual-core ARM Cortex-A9 processor, a GeForce ULP graphics card, a DDR2 memory controller, video de- and encoders, a dedicated audio processor and an additional ARM7 core for power saving and management work.

The processing core contains two ARM Cortex-A9 MPCore cores without NEON SIMD Instructions (Single Instruction Multiple Data). Each core is clocked up to 1 GHz but the performance per MHz is significantly slower than x86 processors like Atom or AMD C-Series.

The integrated GeForce ULP graphics card offers 8 cores (4 pixel- and 4 vertex shaders) and is clcoked with 300 (AP20H) or 333 MHz. Rumors speak of a relation to the old GeForce 7 architecture. The graphics card has no dedicated memory (uses shared memory). It supports OpenGL ES 2.0 as an interface for programmers. Up to two displays can be used simultaneously (one HDMI with up to 1080p and an internal with up to 1680x1050).

Video de- and encoding is also handled by separate processors, that are capable of decoding H.264 (Main Profile), Sorenson and VP6-E (Flash codecs) and encoding 1080p H.264. Furthermore a dedicated music en- and decoder is also on-board.

The integrated single channel 32 Bit DDR2 memory controller supports up to 1 GB of DDR2-667 or LPDDR2-600.

The Nvidia Tegra 250 is manufactured in 40nm at TSMC and is rumored to have a TDP of 0.5-1W. Therefore it is suited for small tablets and even large phones.

SeriesNVIDIA Tegra
CodenameT20 Harmony
Clock Rate1000 MHz
Level 1 Cache128 KB
Level 2 Cache1 MB
Number of Cores / Threads2 / 2
Power Consumption (TDP = Thermal Design Power)1 Watt
Manufacturing Technology40 nm
FeaturesDDR2-667 memory controller, integrated GeForce graphics card
GPUNVIDIA GeForce ULP (Tegra 2)
ArchitectureARM
Announcement Date01/01/2010
Product Link (external)NVIDIA Tegra 2 (250)

Benchmarks

Geekbench 2 - 32 Bit - Geekbench Stream
min: 166     avg: 178     median: 184 (1%)     max: 184 Points
+ 3 benchmarks and specifications   + Show comparison chart
Geekbench 2 - 32 Bit - Geekbench Memory
min: 815     avg: 903     median: 941 (9%)     max: 954 Points
+ 3 benchmarks and specifications   + Show comparison chart
Geekbench 2 - 32 Bit - Geekbench Floating Point
min: 1218     avg: 1252     median: 1259 (2%)     max: 1279 Points
+ 3 benchmarks and specifications   + Show comparison chart
Geekbench 2 - 32 Bit - Geekbench Integer
min: 706     avg: 709     median: 707 (1%)     max: 715 Points
+ 3 benchmarks and specifications   + Show comparison chart
Geekbench 2 - 32 Bit - Geekbench Total Score
min: 852     avg: 884     median: 894 (2%)     max: 907 Points
+ 3 benchmarks and specifications   + Show comparison chart
Linpack Android / IOS - Linpack Multi Thread
min: 29.951     avg: 40     median: 34.5 (1%)     max: 61.851 MFLOPS
+ 11 benchmarks and specifications   + Show comparison chart
Linpack Android / IOS - Linpack Single Thread
min: 29.221     avg: 32.7     median: 31 (3%)     max: 37.763 MFLOPS
+ 3 benchmarks and specifications   + Show comparison chart
Sunspider - Sunspider 0.9.1 Total Score *
min: 1908     avg: 2847     median: 2195 (21%)     max: 8339 ms
+ 15 benchmarks and specifications   + Show comparison chart
Quadrant Standard Edition 2.0 - Quadrant Standard 2.0 Total Score
min: 1415     avg: 1793     median: 1911 (4%)     max: 2078 points
+ 5 benchmarks and specifications   + Show comparison chart
AnTuTu v3 - AnTuTu v3 CPU
2548 Points (17%)
+ 1 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
