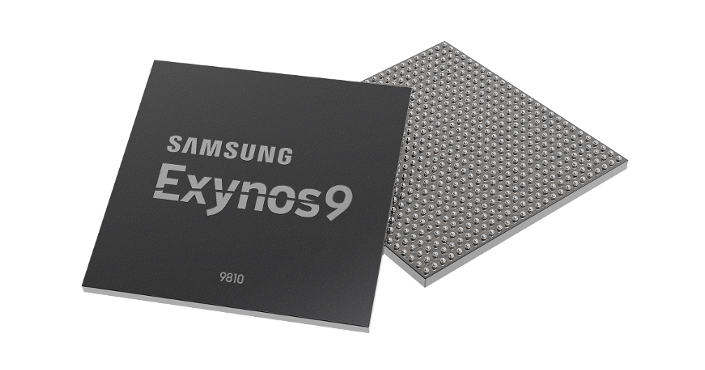

Samsung Exynos 9810
The Samsung Exynos 9 9810 is a mobile SoC for smartphones and tablets. It was announced early 2018 and should be integrated in the upcoming Samsung Galaxy S9 series (at least partly). It integrates eight CPU cores (octa core) in two clusters. The performance cluster integrates four Samsung M3 at 2.9 GHz and the power efficiency cluster four small ARM Cortex-A55 cores at 1.9 GHz. The Samsung M3 cores are based on Samsungs own design and now offer a wider pipeline, improved cache memory and bigger caches. This leads to a twice as fast single-core performance and a 40 percent improved multi-core performance according to Samsung (most likely compared to the previous Exynos 8898).
The integrated LTE modem also got a siginifcant upgrade and now supports Cat.18/13 LTE for up to 1.2 Gbps download and 200 Mbps upload. This is achieved with 6x20 MHz CA, 256-QAM in download and 2x20 MHz in upload.
As a GPU, Samsung integrates a ARM Mali G72MP18 (only 18 clusters, compared to the 20 clusters of the predecessor G71MP20). Most likely Samsung increases performance due to a higher core clock of the graphics card.
The memory controller looks similar to the 8898 and supports LPDDR4x 1800 MHz. The video engine now also supports 10 bit videos (as before 4k120 H.265/HEVC, H.264 and VP9 de- and encoding).
The SoC is produced at Samsung in the new 10nm LPP process (the Exynos 8898 still used the 10nm LPE process) that should also help with some of the performance gains.
|Codename||Exynos M3 / Cortex-A55|
|Series: Exynos Exynos M3 / Cortex-A55|
|Clock Rate||<=2900 MHz|
|Number of Cores / Threads||8 / 8|
|Manufacturing Technology||10 nm|
|Features||ARM Mali-G72MP18 GPU , 4x Exynos M3 (max 2.9 GHz), 4x Cortex-A55 (max 1.9 GHz) big.LITTLE, LPDDR4x Memory Controller|
|GPU||ARM Mali-G72 MP18|
|64 Bit||64 Bit support|
|Product Link (external)||Samsung Exynos Exynos 9810|
