GPD G1 eGPU review: External AMD Radeon RX 7600M XT with 8 GB of VRAM uses USB4 or OCuLink
Portable handheld PCs and mini-PCs are getting increasingly popular. These devices are based on mobile components that are predominantly used in laptops. At the same time, iGPU performance is constantly improving with ever more powerful SoCs. Leading the way is AMD, whose current line of Zen 4 Phoenix processors allow the company to raise the bar even higher in terms of 3D performance. The Radeon 780M is the fastest iGPU available right now, thus putting AMD far ahead of Intel in integrated graphics. However, many modern games are already pushing the Radeon 780M to its limits. The GPD G1 is here to tackle this issue. But first, you'll need to make sure you have a device with a USB4 or an OCuLink port to be able to use the eGPU. The latter is natively supported by GPD’s own handheld devices (i.e. 2023 version of GPD Win 4).
The external graphics solution houses an AMD Radeon RX 7600M XT graphics chip with 8 GB of VRAM. The manufacturer has also managed to pack everything into a relatively compact enclosure, including the power supply. The external GPU even offers additional external interfaces, such as USB ports and an SD card reader, and monitors can be connected to the device via DisplayPort or HDMI. Priced at €630 (US$655) before tax, the eGPU docking station is certainly no a steal. Nevertheless, there is currently no comparable products of this size that can boost the 3D performance of mini-PCs or popular handhelds so easily and significantly.

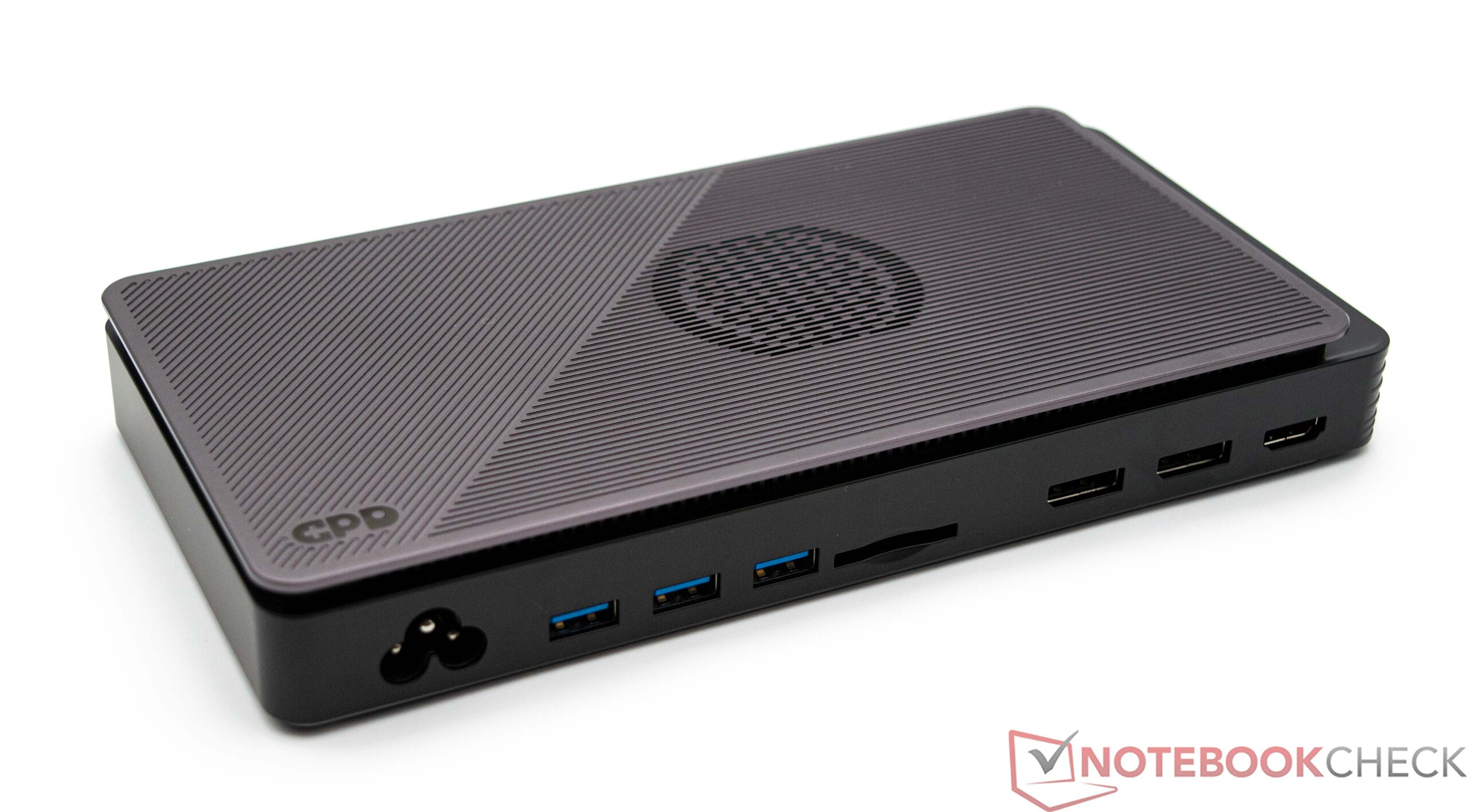

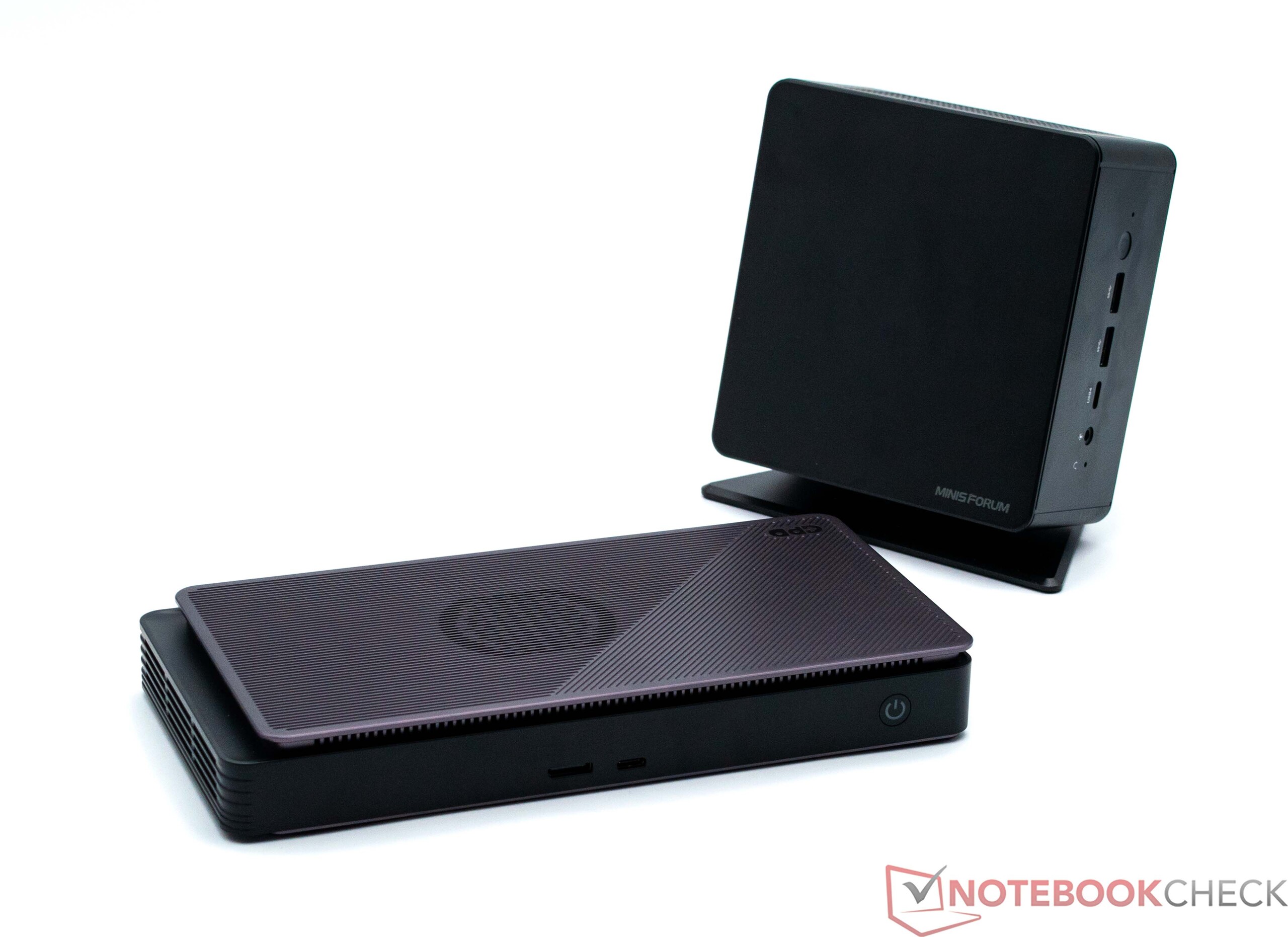

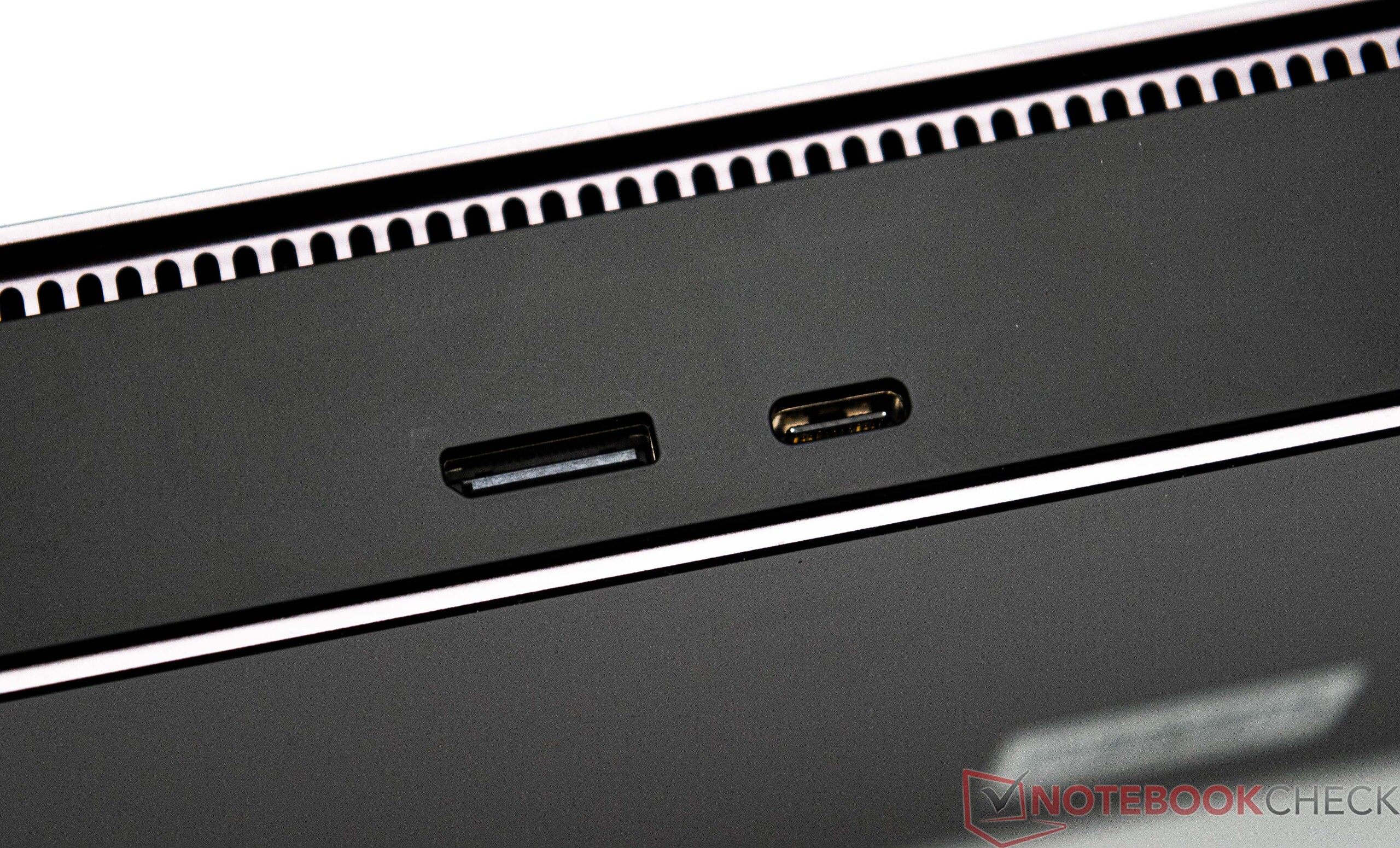

Detailed look at the GPD G1 with AMD Radeon RX 7600M XT
Comparison of various AMD Radeon GPUs
Specifications | Radeon RX 7900 XTX | Radeon RX 7900 XT | Radeon RX 7900 GRE | Radeon RX 7800 XT | Radeon RX 7700 XT | Radeon RX 7600 | Radeon RX 7600M XT | Radeon RX 6650 XT | Radeon RX 6600 XT | Radeon RX 6600 |
GPU | Navi 31 XTX | Navi 31 XT | Navi 31 XT | Navi 32 XT | Navi 32 XL | Navi 33 | Navi 33 | Navi 23 | Navi 23 | Navi 23 |
Manufacturing Process | 5/6 nm | 5/6 nm | 5/6 nm | 5/6 nm | 5/6 nm | 6 nm | 6 nm | 7 nm | 7 nm | 7 nm |
Compute Units | 96 | 84 | 80 | 60 | 54 | 32 | 32 | 32 | 32 | 28 |
Shading Units | 6,144 | 5,376 | 5,120 | 3,840 | 3,456 | 2,048 | 2,048 | 2,048 | 2,048 | 1,792 |
Texture Mapping Units | 384 | 336 | 320 | 240 | 216 | 128 | 128 | 128 | 128 | 112 |
Ray Accelerators | 96 | 84 | 80 | 60 | 54 | 32 | 32 | 32 | 32 | 28 |
Base Clock | 2,270 MHz | 2,000 MHz | 1,880 MHz | 1,295 MHz | 1,700 MHz | 1,720 MHz | 1,437 MHz | 2,055 MHz | 1,968 MHz | 1,626 MHz |
Game Clock | 2,300 MHz | 2,000 MHz | 1,880 MHz | 2,124 MHz | 2,171 MHz | 2,250 MHz | 2,330 MHz | 2,410 MHz | 2,359 MHz | 2,044 MHz |
Boost Clock | 2,500 MHz | 2,400 MHz | 2,245 MHz | 2,430 MHz | 2,544 MHz | 2,655 MHz | 2,608 MHz | 2,635 MHz | 2,589 MHz | 2,491 MHz |
Infinity Cache | 96 MB | 80 MB | 64 MB | 64 MB | 48 MB | 32 MB | 32 MB | 32 MB | 32 MB | 32 MB |
Memory Bus Width | 384-bit | 320-bit | 256-bit | 256-bit | 256-bit | 128-bit | 128-bit | 128-bit | 128-bit | 128-bit |
Memory Bandwidth | 960 GB/s | 800 GB/s | 576 GB/s | 620.8 GB/s | 432 GB/s | 288 GB/s | 288 GB/s | 280.3 GB/s | 256 GB/s | 224 GB/s |
Memory Size | 24 GB GDDR6 | 20 GB GDDR6 | 16 GB GDDR6 | 16 GB GDDR6 | 12 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 | 8 GB GDDR6 |
TBP | 355 W | 315 W | 260 W | 263 W | 245 W | 165 W | 120 W | 176 W | 160 W | 132 W |

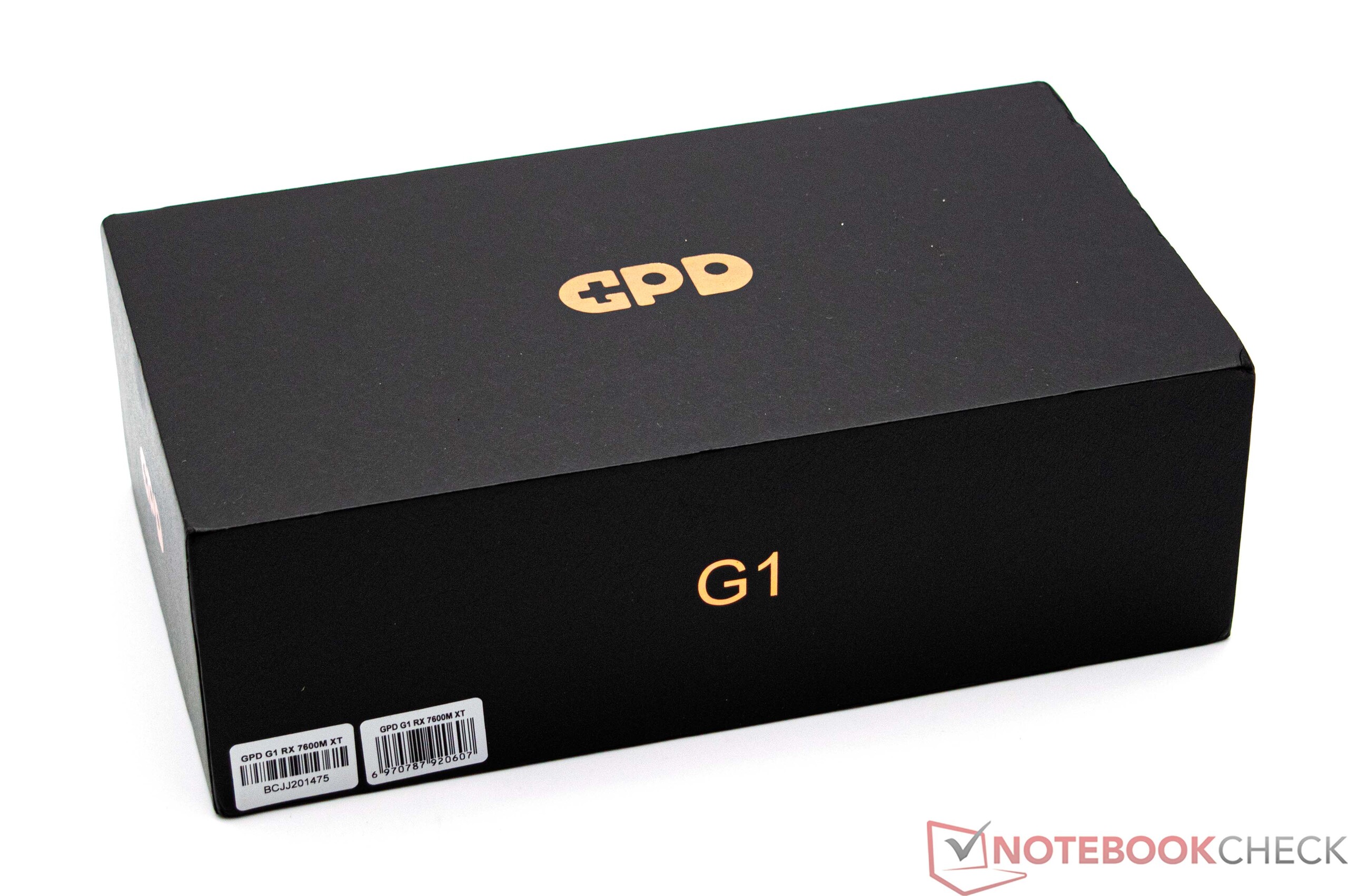

Package contents

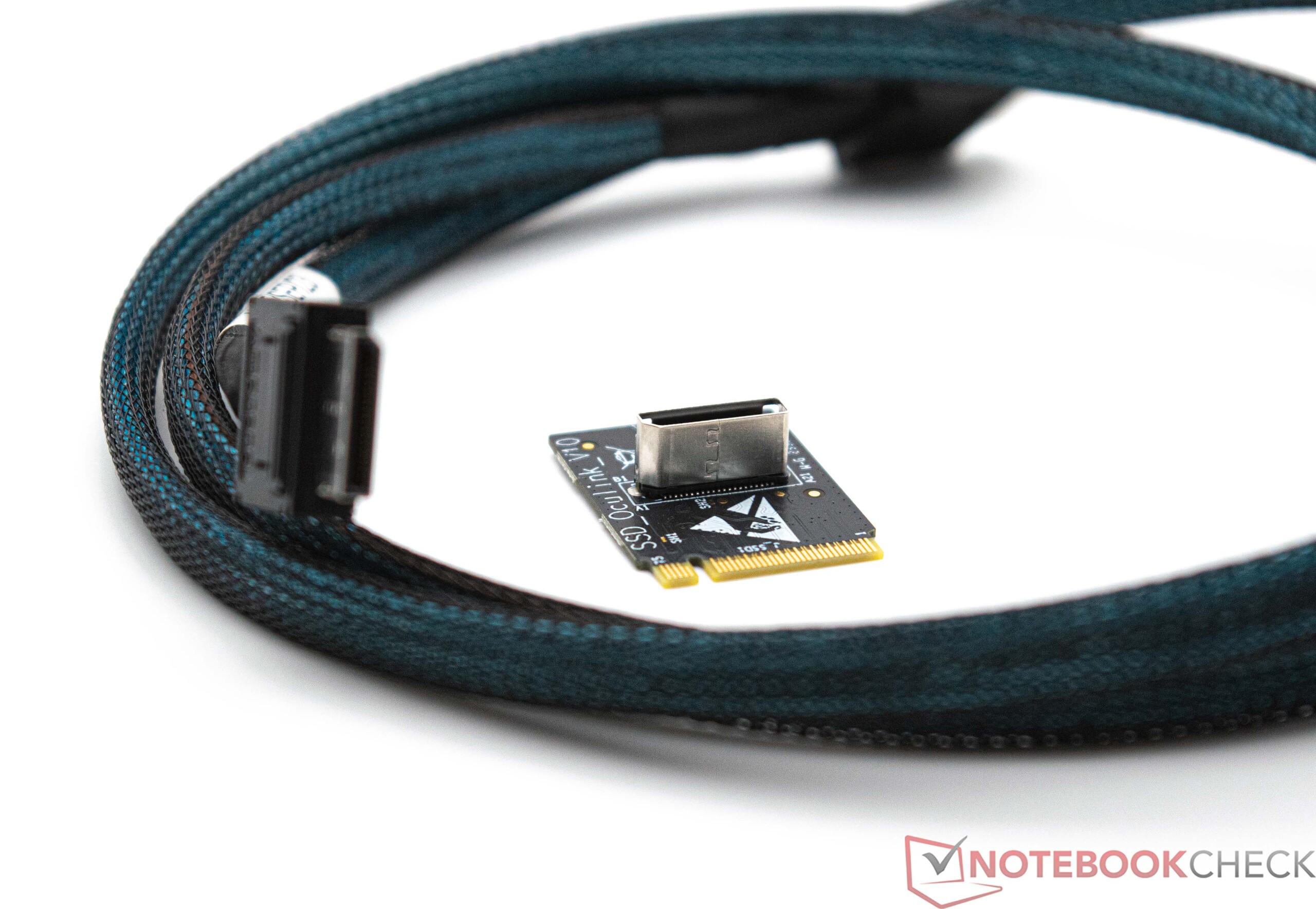

The box contents are fairly barebones: other than the eGPU, you’ll only find a power cord and a USB-C cable. Those who want to connect the GPD G1 using the faster OCuLink interface will require an additional cable. Depending on the model, you can expect to fork out roughly another €50 (US$54) for an M.2-2230 adapter and a suitable cable.

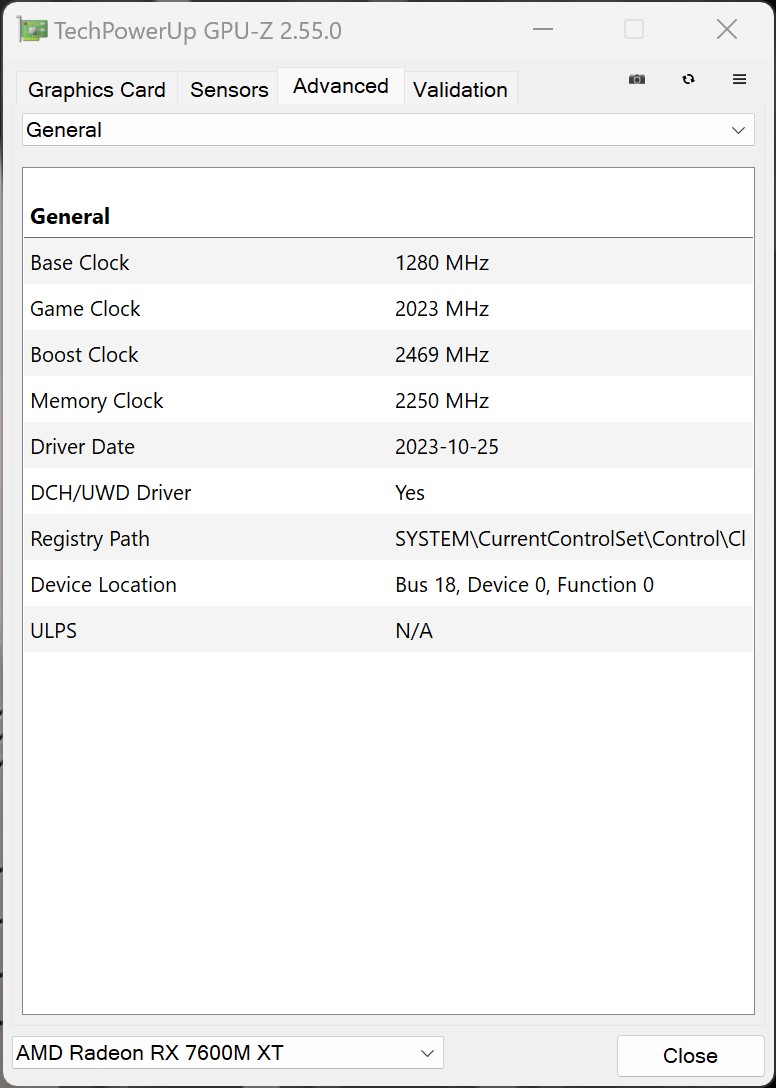

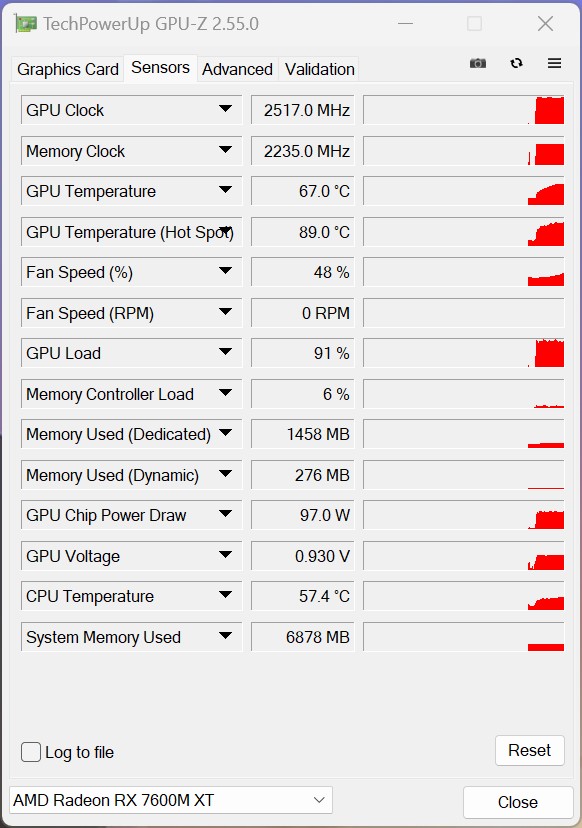

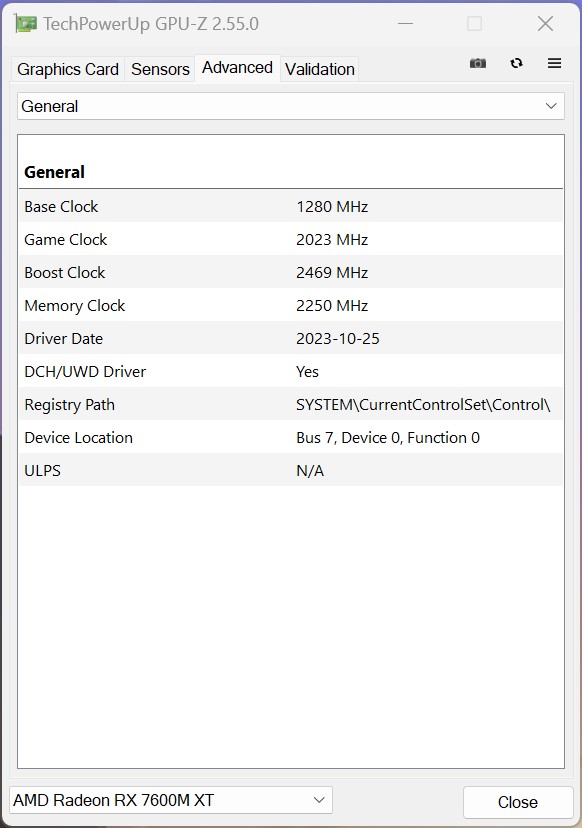

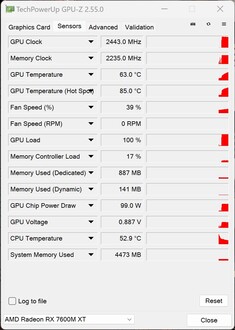

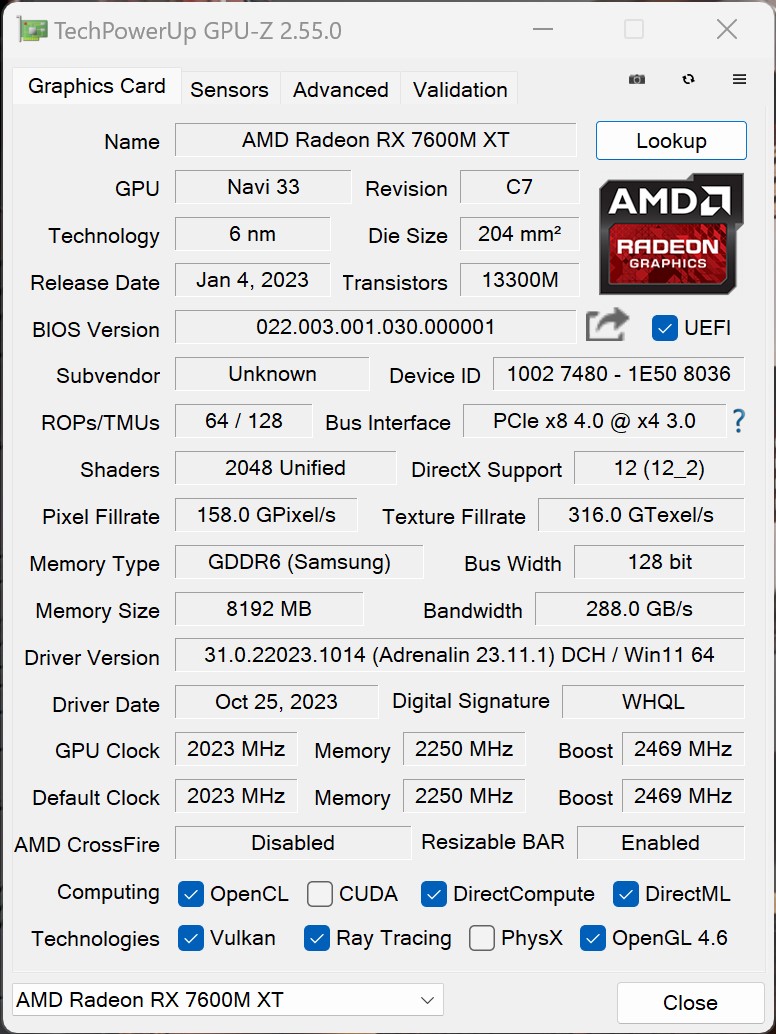

Clock speeds of the GPD G1 AMD Radeon RX 7600M XT
GPD indicates that the G1 eGPU has a base clock speed of 2,023 MHZ but is capable of boosting up to 2,469 MHz. During our testing, though, the device was almost always able to go beyond the boost clock. The mobile Radeon RX 7600M XT runs slightly slower than the desktop version of the Radeon RX 7600. The lower power draw is the fundamental reason for this decision. That said, no concession had to be made when it comes to VRAM. Much like the the Radeon RX 7600, the GPD G1 features 8 GB of GDDR6 VRAM paired with a 128-bit memory bus. As a result, they both have the same memory bandwidth of 288 GB/s.

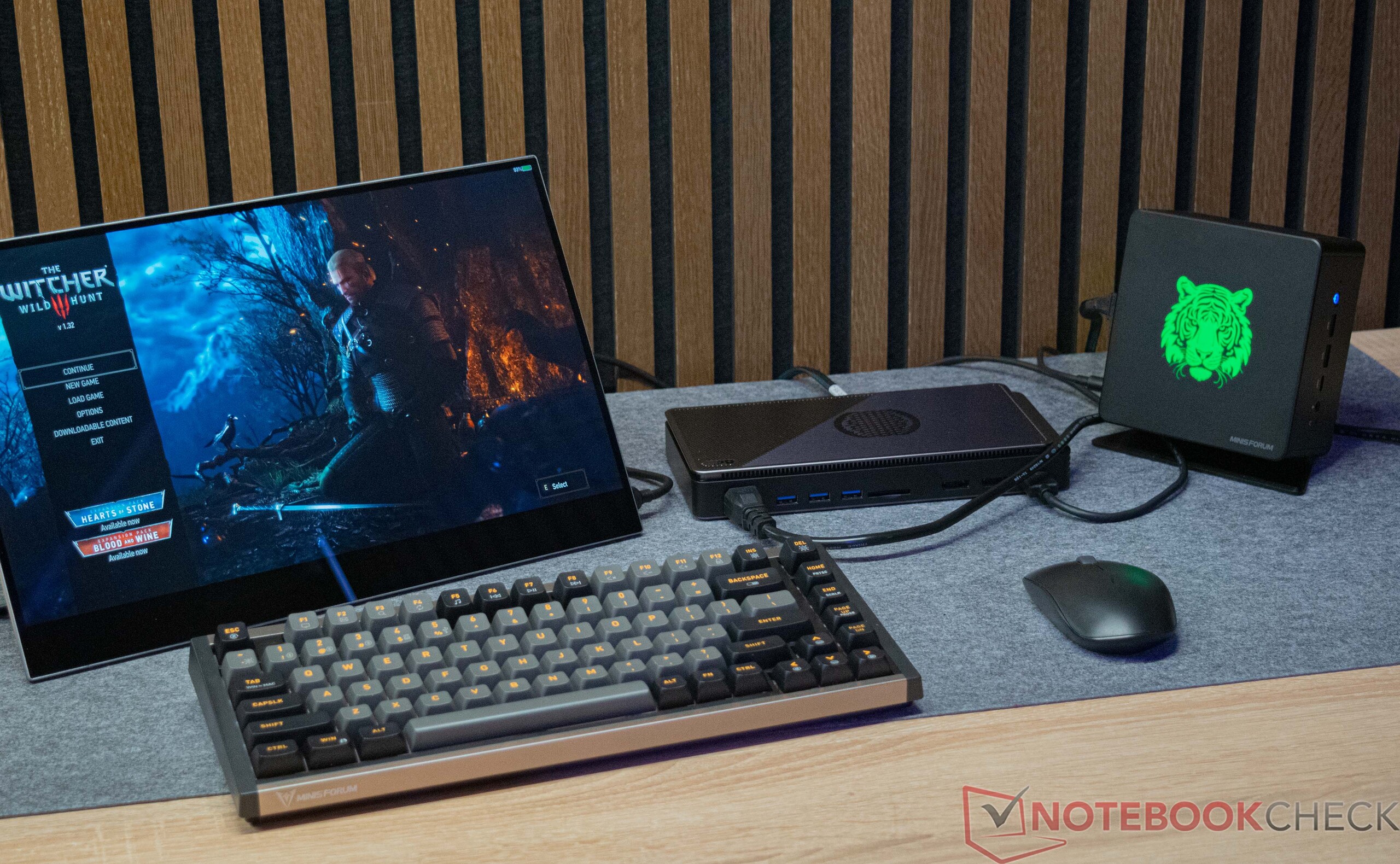

Test conditions

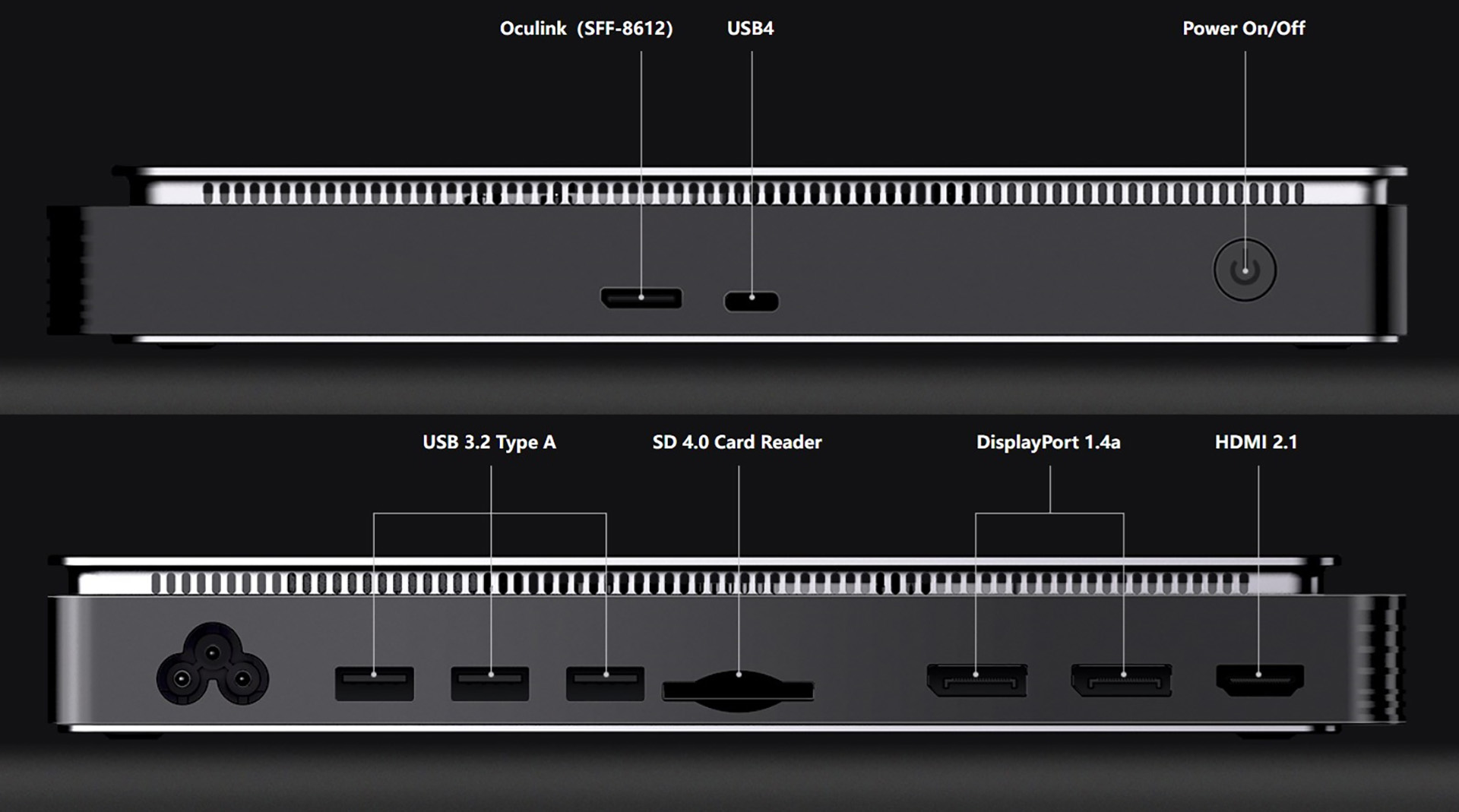

The GPD G1 eGPU can connect to a device via USB4 or OCuLink. We first used our GPU test system fitted with an AMD Ryzen 9 7950X to find out how the G1 stacks up against the desktop graphics cards in our testing. Because the Asus TUF Gaming X670E-Plus doesn’t have a native OCuLink interface, we had to resort to using an M.2 adapter. At this point, we need to mention that the eGPU is only connected at PCIe 3.0 speed despite having support for PCIe 4.0. Using it with other M.2 slots likewise didn’t yield higher data transfer rates. As a point of reference, you can say that the 40 Gbps speed of USB4 is reached in this case. To have a direct comparison between USB4 and OCuLink, we also conducted additional tests by pairing the GPD G1 with a Minisforum UM780 XTX. The Minisforum mini-PC is one of the few devices on the market that are equipped with this interface. In this combination, the GPD eGPU was able to showcase its full power with PCIe 4.0 x4.
Synthetic benchmarks
We first compared the performance of the GPD G1 with various desktop graphics cards in order to check out how it measures up in an identical test system. The mobile graphics chip in the GPD G1 is only around 20 percentage points behind its desktop counterpart (AMD Radeon RX 7600). But this was to be expected owing to the lower power consumption. In contrast, our review unit is just 15% less powerful than an Nvidia GeForce RTX 4060.
Performance Rating - Percent | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 5600 XT |
Unigine Heaven 4.0 | |
Extreme Preset DX11 | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 5600 XT | |
Extreme Preset OpenGL | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 5600 XT |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 5600 XT | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 5600 XT |
3DMark 11 | |
1280x720 Performance GPU | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT | |
1280x720 Performance | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 5600 XT | |
Sapphire Pulse Radeon RX 6600 | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Minisforum Neptune Series HX77G |
LuxMark v2.0 64Bit | |
Room GPUs-only | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 7700 XT | |
Minisforum Neptune Series HX77G | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT | |
Sala GPUs-only | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 7700 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Minisforum Neptune Series HX77G | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT |
Affinity Photo 2 - Combined (Single / Multi GPU) | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT |
3DMark 06 Standard Score | 26616 points | |
3DMark Vantage P Result | 99297 points | |
3DMark 11 Performance | 27492 points | |
3DMark Ice Storm Standard Score | 211414 points | |
3DMark Cloud Gate Standard Score | 57801 points | |
3DMark Fire Strike Score | 26214 points | |
3DMark Fire Strike Extreme Score | 12999 points | |
3DMark Time Spy Score | 9803 points | |
Help |
Professional applications
AMD consistently performs well in benchmarks related to rendering performance. The GPD G1 likewise managed to produce a relatively good result. That said, the G1 doesn’t offer quite enough performance for professional use. AMD has the PRO Series in their lineup for such applications, whilst Nvidia markets their professional graphics cards under the Quadro brand. You can certainly use the Radeon RX 7600 XT in the GPD G1 for smaller projects in a personal or semi-professional setting. It also supports the popular AV1 format for decoding and encoding videos.
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) R9 7950X | XFX Speedster QICK 308 Radeon RX 7600 Black Edition R9 7950X | Sapphire Pulse Radeon RX 5600 XT R9 7950X | Minisforum Neptune Series HX77G R7 7735HS | Sapphire Pulse Radeon RX 6600 R9 7950X | KFA2 GeForce RTX 4060 1-Click-OC 2X R9 7950X | ASUS Dual GeForce RTX 4060 Ti OC R9 7950X | Sapphire Pulse Radeon RX 7700 XT R9 7950X | Average of class | |
---|---|---|---|---|---|---|---|---|---|
SPECviewperf 12 | 14% | 25% | 6% | 14% | -23% | -9% | 47% | -40% | |
1900x1060 3ds Max (3dsmax-05) | 206 | 279 35% | 224 9% | 246 19% | 258 25% | 251 22% | 286 39% | 373 81% | 192.2 ? -7% |
1900x1060 Catia (catia-04) | 235 | 273 16% | 180 -23% | 248 6% | 256 9% | 113 -52% | 128 -46% | 351 49% | 102.3 ? -56% |
1900x1060 Creo (creo-01) | 90.3 | 115 27% | 93.6 4% | 109 21% | 133 47% | 60.6 -33% | 74.3 -18% | 123 36% | 62.9 ? -30% |
1900x1060 Energy (energy-01) | 24 | 25.5 6% | 95.4 298% | 31.3 30% | 31.3 30% | 15.9 -34% | 22.8 -5% | 33.4 39% | 14.6 ? -39% |
1900x1060 Maya (maya-04) | 208 | 236 13% | 90 -57% | 198 -5% | 218 5% | 233 12% | 252 21% | 283 36% | 105.4 ? -49% |
1900x1060 Medical (medical-01) | 113 | 128 13% | 103 -9% | 97.6 -14% | 102 -10% | 82.4 -27% | 107 -5% | 177 57% | 51.2 ? -55% |
1900x1060 Showcase (showcase-01) | 121 | 127 5% | 129 7% | 120 -1% | 125 3% | 109 -10% | 122 1% | 179 48% | 93.9 ? -22% |
1900x1060 Solidworks (sw-03) | 225 | 221 -2% | 167 -26% | 214 -5% | 232 3% | 91.2 -59% | 94.8 -58% | 288 28% | 83.5 ? -63% |
SPECviewperf 13 | 13% | -32% | -5% | -4% | -25% | -12% | 53% | -32% | |
3ds Max (3dsmax-06) | 205 | 280 37% | 224 9% | 246 20% | 258 26% | 252 23% | 286 40% | 371 81% | 183.9 ? -10% |
Catia (catia-05) | 354 | 410 16% | 259 -27% | 381 8% | 387 9% | 163 -54% | 187 -47% | 529 49% | 196.9 ? -44% |
Creo (creo-02) | 263 | 294 12% | 87.9 -67% | 273 4% | 279 6% | 230 -13% | 298 13% | 387 47% | 199.9 ? -24% |
Energy (energy-02) | 73.4 | 82.9 13% | 22.8 -69% | 41.8 -43% | 44 -40% | 34.6 -53% | 45.3 -38% | 115 57% | 35 ? -52% |
Maya (maya-05) | 321 | 333 4% | 218 -32% | 340 6% | 348 8% | 343 7% | 395 23% | 487 52% | 260 ? -19% |
Medical (medical-02) | 190 | 226 19% | 69.7 -63% | 130 -32% | 88.8 -53% | 76.5 -60% | 92 -52% | 300 58% | 74.5 ? -61% |
Showcase (showcase-02) | 121 | 127 5% | 128 6% | 121 0% | 125 3% | 108 -11% | 121 0% | 179 48% | 117.8 ? -3% |
Solidworks (sw-04) | 207 | 195 -6% | 185 -11% | 201 -3% | 220 6% | 127 -39% | 135 -35% | 265 28% | 118.5 ? -43% |
SPECviewperf 2020 | 16% | -56% | -21% | -17% | -19% | -5% | 64% | -5% | |
3840x2160 Medical (medical-03) | 23.9 | 36.1 51% | 12.3 -49% | 20.7 -13% | 20.9 -13% | 13.7 -43% | 17.5 -27% | 56.2 135% | 19.8 ? -17% |
3840x2160 Maya (maya-06) | 165 | 178 8% | 74.4 -55% | 162 -2% | 161 -2% | 196 19% | 226 37% | 261 58% | 206 ? 25% |
3840x2160 Energy (energy-03) | 90.5 | 67 -26% | 17.8 -80% | 19.1 -79% | 29.5 -67% | 33.2 -63% | 44.8 -50% | 95 5% | 47.9 ? -47% |
3840x2160 Creo (creo-03) | 87.4 | 106 21% | 36.2 -59% | 88.4 1% | 93.4 7% | 85.9 -2% | 95.8 10% | 130 49% | 77.4 ? -11% |
3840x2160 CATIA (catia-06) | 63.1 | 68 8% | 23.6 -63% | 55.1 -13% | 60.8 -4% | 34 -46% | 39.1 -38% | 88.8 41% | 46.6 ? -26% |
3840x2160 3ds Max (3dsmax-07) | 54.5 | 72.9 34% | 37.8 -31% | 42.5 -22% | 42.4 -22% | 67.4 24% | 74.5 37% | 106 94% | 79.8 ? 46% |
Total Average (Program / Settings) | 14% /
14% | -21% /
-18% | -7% /
-5% | -2% /
-1% | -22% /
-22% | -9% /
-9% | 55% /
53% | -26% /
-28% |
Gaming performance
The GPD G1 has great gaming performance and is largely better than a Radeon RX 6600. Nonetheless, it is lacking somewhat in power to match the Radeon RX 7600. Considering its performance, you shouldn’t expect to use the eGPU for anything more than Full HD gaming. But it is good enough as an expansion for handheld PCs. Because the RX 7600M XT is paired with only 8 GB of VRAM, the eGPU may sometimes hit its VRAM limit when running games at max settings, resulting in relatively poor P1 values (1% low). The Radeon RX 7600M XT also supports ray tracing, though we can only say this is a good marketing gimmick. In practice, enabling ray tracing reduces frame rates so much that it is no longer possible to game comfortably.
Looking at the games tested, we see that the GPD G1 can mostly produce good frame rates at high presets. However, there was a major outlier in Ratchet & Clank: Rift Apart. We weren’t able to get playable frame rates regardless of the preset selected. At the moment, we can’t entirely rule out the possibility that this is caused by driver issues. But when you consider how much the GPD G1 costs, the results obtained here are clearly not good enough. Comparable desktop graphics cards in the price range would be something like the AMD Radeon RX 7800 XT and Nvidia GeForce RTX 4070.
The Witcher 3 | |
1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 5600 XT | |
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 5600 XT |
Metro Exodus | |
2560x1440 Ultra Quality AF:16x | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 5600 XT | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
1920x1080 Ultra Quality AF:16x | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 5600 XT |
Far Cry 5 | |
2560x1440 Ultra Preset AA:T | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 5600 XT | |
1920x1080 Ultra Preset AA:T | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT | |
Minisforum Neptune Series HX77G |
F1 2021 | |
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x | |
Sapphire Pulse Radeon RX 7700 XT (874931) | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
Sapphire Pulse Radeon RX 5600 XT (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (874931) | |
Sapphire Pulse Radeon RX 6600 (874931) | |
Minisforum Neptune Series HX77G (874931) | |
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
ASUS Dual GeForce RTX 4060 Ti OC (874931) | |
Sapphire Pulse Radeon RX 7700 XT (874931) | |
Sapphire Pulse Radeon RX 5600 XT (874931) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (874931) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (874931) | |
Sapphire Pulse Radeon RX 6600 (874931) | |
Minisforum Neptune Series HX77G (874931) |
F1 22 | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Sapphire Pulse Radeon RX 5600 XT (959964) | |
Sapphire Pulse Radeon RX 7700 XT (959964) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (959964) | |
Minisforum Neptune Series HX77G (959964) | |
Sapphire Pulse Radeon RX 6600 (946728) | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Sapphire Pulse Radeon RX 5600 XT (959964) | |
Sapphire Pulse Radeon RX 7700 XT (959964) | |
ASUS Dual GeForce RTX 4060 Ti OC (959964) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (959964) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (959964) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (959964) | |
Minisforum Neptune Series HX77G (959964) | |
Sapphire Pulse Radeon RX 6600 (946728) |
Cyberpunk 2077 1.6 | |
2560x1440 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT (1.6) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1.6) | |
Minisforum Neptune Series HX77G (1.6) | |
Sapphire Pulse Radeon RX 6600 (1.5) | |
Sapphire Pulse Radeon RX 5600 XT | |
1920x1080 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT (1.6) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1.6) | |
Sapphire Pulse Radeon RX 6600 (1.5) | |
Minisforum Neptune Series HX77G (1.6) | |
Sapphire Pulse Radeon RX 5600 XT |
A Plague Tale Requiem | |
2560x1440 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 5600 XT | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
1920x1080 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 5600 XT | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G |
Spider-Man Miles Morales | |
2560x1440 Very High Preset AA:T | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
1920x1080 Very High Preset AA:T | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT |
Borderlands 3 | |
2560x1440 Badass Overall Quality (DX11) | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 5600 XT | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
1920x1080 Badass Overall Quality (DX11) | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 5600 XT | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G |
God of War | |
2560x1440 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 5600 XT | |
Sapphire Pulse Radeon RX 6600 | |
1920x1080 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT |
GTA V | |
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 5600 XT | |
2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT | |
Minisforum Neptune Series HX77G |
The Quarry | |
2560x1440 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 5600 XT | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
1920x1080 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT | |
Minisforum Neptune Series HX77G |
Tiny Tina's Wonderlands | |
2560x1440 Badass Preset (DX12) | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 5600 XT | |
1920x1080 Badass Preset (DX12) | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 5600 XT |
GRID Legends | |
2560x1440 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT (800660) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (800660) | |
Minisforum Neptune Series HX77G (800660) | |
Sapphire Pulse Radeon RX 6600 (683088) | |
Sapphire Pulse Radeon RX 5600 XT (712825) | |
1920x1080 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT (800660) | |
ASUS Dual GeForce RTX 4060 Ti OC (800660) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (800660) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (800660) | |
Sapphire Pulse Radeon RX 6600 (683088) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (800660) | |
Minisforum Neptune Series HX77G (800660) | |
Sapphire Pulse Radeon RX 5600 XT (712825) |
Final Fantasy XV Benchmark | |
1920x1080 High Quality | |
Sapphire Pulse Radeon RX 7700 XT (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1.3) | |
Sapphire Pulse Radeon RX 6600 (1.3) | |
Minisforum Neptune Series HX77G (1.3) | |
Sapphire Pulse Radeon RX 5600 XT (1.3) | |
2560x1440 High Quality | |
Sapphire Pulse Radeon RX 7700 XT (1.3) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.3) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.3) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.3) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1.3) | |
Sapphire Pulse Radeon RX 6600 (1.3) | |
Minisforum Neptune Series HX77G (1.3) | |
Sapphire Pulse Radeon RX 5600 XT (1.3) |
The Last of Us | |
1920x1080 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
Sapphire Pulse Radeon RX 5600 XT | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
2560x1440 Ultra Preset | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Pulse Radeon RX 5600 XT | |
Sapphire Pulse Radeon RX 6600 | |
Minisforum Neptune Series HX77G | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) |
F1 23 | |
1920x1080 Ultra High Preset AA:T AF:16x | |
Sapphire Pulse Radeon RX 5600 XT (1022189) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
Sapphire Pulse Radeon RX 7700 XT (1026791) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) | |
Minisforum Neptune Series HX77G (1038401) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1050579) | |
2560x1440 Ultra High Preset AA:T AF:16x | |
Sapphire Pulse Radeon RX 5600 XT (1022189) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
Sapphire Pulse Radeon RX 7700 XT (1026791) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) | |
Minisforum Neptune Series HX77G (1038401) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1050579) |
Hogwarts Legacy | |
1920x1080 Ultra Preset AA:High T | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT | |
2560x1440 Ultra Preset AA:High T | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 | |
Sapphire Pulse Radeon RX 5600 XT |
P1 values of the GPD G1 AMD Radeon RX 7600M XT
Ray tracing performance
Spider-Man Miles Morales - 1920x0180 Very High Preset + Ray-Tracing AA:T | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 3070 Ti SG | |
AMD Radeon RX 7900 GRE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6800 | |
Nvidia GeForce RTX 3060 Ti FE | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Acer Predator BiFrost Arc A750 OC | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Sapphire Pulse Radeon RX 6600 | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) |
Metro Exodus - 1920x1080 Ultra Quality DXR AF:16x | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Pulse Radeon RX 7700 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Acer Predator BiFrost Arc A750 OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Nvidia GeForce RTX 2070 Super | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
Far Cry 6 - 1920x1080 Ultra Graphics Quality + HD Textures + DXR AA:T | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
AMD Radeon RX 6800 | |
Sapphire Pulse Radeon RX 7700 XT | |
Sapphire Pulse Radeon RX 6750 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Acer Predator BiFrost Arc A750 OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Nvidia GeForce RTX 2070 Super | |
Nvidia GeForce RTX 2060 Super | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) |
Cyberpunk 2077 1.6 - 1920x1080 Ray Tracing Ultra Preset (DLSS off) | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1.6) | |
ASUS Dual GeForce RTX 4060 Ti OC (1.6) | |
MSI Radeon RX 6950 XT Gaming X Trio (1.61) | |
KFA2 GeForce RTX 3070 Ti SG (1.61) | |
AMD Radeon RX 7800 XT (1.6) | |
Nvidia GeForce RTX 3060 Ti FE (1.5) | |
Sapphire Pulse Radeon RX 7700 XT (1.6) | |
Sapphire Pulse Radeon RX 7700 XT (1.6) | |
Sapphire Pulse Radeon RX 7700 XT (1.6) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1.6) | |
AMD Radeon RX 6800 (1.61) | |
Nvidia GeForce RTX 2070 Super (1.6) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1.6) | |
Sapphire Pulse Radeon RX 6750 XT | |
Acer Predator BiFrost Arc A750 OC (1.6) | |
Nvidia GeForce RTX 2060 Super (1.6) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1.6) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1.6) | |
Sapphire Nitro+ Radeon RX 6650 XT (1.5) |
Guardians of the Galaxy - 1920x1080 Ultra Preset + Ultra Ray-Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
ASUS Dual GeForce RTX 4060 Ti OC | |
AMD Radeon RX 7800 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Nvidia GeForce RTX 2060 Super | |
Acer Predator BiFrost Arc A750 OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) |
Returnal - 1920x1080 Epic Preset + Epic Ray-Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
AMD Radeon RX 7800 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Acer Predator BiFrost Arc A750 OC | |
Sapphire Nitro+ Radeon RX 6650 XT | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) |
F1 23 - 1920x1080 Ultra High Preset AA:T AF:16x | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE (1016022) | |
MSI Radeon RX 6950 XT Gaming X Trio (1016022) | |
AMD Radeon RX 7800 XT (1022189) | |
KFA2 GeForce GTX 1660 Super (1016022) | |
ASUS Dual GeForce RTX 4060 Ti OC (1012607) | |
PNY GeForce GTX 1660 (1016022) | |
Sapphire Pulse Radeon RX 7700 XT (1026791) | |
Nvidia GeForce RTX 3060 Ti FE (1021115) | |
AMD Radeon RX 6800 (1016022) | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 (1026791) | |
KFA2 GeForce RTX 4060 1-Click-OC 2X (1008687) | |
Sapphire Pulse Radeon RX 6750 XT (1016022) | |
Acer Predator BiFrost Arc A750 OC (1042581) | |
Nvidia GeForce RTX 2070 Super (1021115) | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition (1016022) | |
Nvidia GeForce RTX 2060 Super (1021115) | |
Sapphire Nitro+ Radeon RX 6650 XT (1016022) | |
Sapphire Pulse Radeon RX 6600 (1016022) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) (1050579) |
Star Wars Jedi Survivor - 1920x1080 Epic Preset + Ray Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7800 XT | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6800 | |
Nvidia GeForce RTX 3060 Ti FE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Acer Predator BiFrost Arc A750 OC | |
Nvidia GeForce RTX 2060 Super | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6600 |
Hogwarts Legacy - 1920x1080 Ultra Preset + Full Ray Tracing AA:High T | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7900 GRE | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Nvidia GeForce RTX 3060 Ti FE | |
Sapphire Pulse Radeon RX 7700 XT | |
AMD Radeon RX 6800 | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Nvidia GeForce RTX 2070 Super | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 6750 XT | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Acer Predator BiFrost Arc A750 OC | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) |
Ghostwire Tokyo - 1920x1080 Highest Settings + Maximum Ray Tracing | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
KFA2 GeForce RTX 4070 EX Gamer | |
AMD Radeon RX 7900 GRE | |
MSI Radeon RX 6950 XT Gaming X Trio | |
AMD Radeon RX 7800 XT | |
ASUS Dual GeForce RTX 4060 Ti OC | |
Sapphire Pulse Radeon RX 7700 XT | |
Nvidia GeForce RTX 3060 Ti FE | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Sapphire Pulse Radeon RX 6750 XT | |
Acer Predator BiFrost Arc A750 OC | |
Nvidia GeForce RTX 2070 Super | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Nvidia GeForce RTX 2060 Super | |
Sapphire Pulse Radeon RX 6600 |
low | med. | high | ultra | QHD | 4K DLSS | 4K | |
GTA V (2015) | 188.4 | 188 | 183.7 | 93.7 | 68.4 | 73.3 | |
The Witcher 3 (2015) | 487 | 329 | 171.7 | 100.2 | 71.7 | 52.2 | |
Dota 2 Reborn (2015) | 228.3 | 164 | 170.9 | 119.5 | 91.4 | ||
Rise of the Tomb Raider (2016) | 280 | 199.4 | 128.1 | 108.3 | 49.3 | ||
Assassin´s Creed Origins (2017) | 125 | 89 | 89 | 73 | 59 | 37 | |
Final Fantasy XV Benchmark (2018) | 234 | 131.7 | 92.4 | 67.7 | 35.8 | ||
X-Plane 11.11 (2018) | 148.4 | 116 | 92.2 | 63.3 | |||
Far Cry 5 (2018) | 193 | 161 | 152 | 141 | 102 | 50 | |
Strange Brigade (2018) | 598 | 254 | 208 | 180.2 | 119.3 | 64.7 | |
Shadow of the Tomb Raider (2018) | 317 | 159.2 | 146.8 | 120.6 | 77.5 | 32.5 | |
Forza Horizon 4 (2018) | 273 | 237 | 233 | 174 | 138 | 89 | |
Assassin´s Creed Odyssey (2018) | 135 | 125 | 114 | 79 | 60 | 29 | |
Apex Legends (2019) | 144 | 144 | 143.9 | 139.6 | 124.4 | 98.8 | |
Far Cry New Dawn (2019) | 158 | 141 | 137 | 122 | 105 | 56 | |
Metro Exodus (2019) | 236 | 130 | 95.4 | 74.2 | 57.9 | 34.6 | |
The Division 2 (2019) | 194 | 184 | 144 | 103 | 67 | 29 | |
Anno 1800 (2019) | 112.3 | 109.1 | 94 | 48.4 | 38.5 | 21.6 | |
Control (2019) | 236 | 110.4 | 81.5 | 53.4 | 27.2 | ||
Borderlands 3 (2019) | 225 | 162.4 | 110.5 | 85 | 58.1 | 30.7 | |
F1 2020 (2020) | 448 | 246 | 196 | 134.4 | 102.2 | 60 | |
Death Stranding (2020) | 174.3 | 128.3 | 118.3 | 116.1 | 86.4 | 48.6 | |
Horizon Zero Dawn (2020) | 147 | 117 | 106 | 96 | 79 | 42 | |
Watch Dogs Legion (2020) | 142 | 136 | 123 | 49 | 34 | 17 | |
Dirt 5 (2020) | 98 | 78.4 | 60.4 | 51.6 | 50.9 | 50.5 | |
Assassin´s Creed Valhalla (2020) | 229 | 143 | 116 | 93 | 67 | 29 | |
F1 2021 (2021) | 512 | 349 | 250 | 109.2 | 69 | 32.5 | |
Far Cry 6 (2021) | 187.8 | 156.4 | 135.7 | 103.9 | 64.9 | 1 | |
Guardians of the Galaxy (2021) | 165 | 118 | 118 | 110 | 81 | 46 | |
Forza Horizon 5 (2021) | 216 | 192 | 176 | 63 | 50 | 27 | |
Farming Simulator 22 (2021) | 429 | 232 | 196.8 | 167.1 | 130.1 | 82.3 | |
God of War (2022) | 139.2 | 115.4 | 92.6 | 64.1 | 52.3 | 33.1 | |
GRID Legends (2022) | 208 | 176.1 | 148.9 | 128.9 | 107.7 | 67.5 | |
Cyberpunk 2077 1.6 (2022) | 115.9 | 95.6 | 81 | 74.3 | 47.6 | 21.7 | |
Ghostwire Tokyo (2022) | 173.1 | 152.3 | 150.7 | 149.3 | 89.1 | 41.9 | |
Tiny Tina's Wonderlands (2022) | 237 | 183.9 | 117.1 | 90.1 | 59.5 | 19.6 | |
F1 22 (2022) | 294 | 263 | 203 | 48.6 | 26.6 | 5.01 | |
The Quarry (2022) | 145.1 | 108 | 88.7 | 66.8 | 39.4 | 11.6 | |
A Plague Tale Requiem (2022) | 102 | 77 | 56.6 | 43.2 | 31.6 | 18.4 | |
Uncharted Legacy of Thieves Collection (2022) | 74.4 | 71 | 64.6 | 62.3 | 39.4 | 6.73 | |
Spider-Man Miles Morales (2022) | 114.7 | 101.1 | 94.4 | 84.3 | 36.3 | 20.7 | |
The Callisto Protocol (2022) | 181.9 | 127.5 | 114.8 | 75.1 | 56.4 | 33 | |
Need for Speed Unbound (2022) | 137 | 120.9 | 90.3 | 90.1 | 66.3 | 30.2 | |
High On Life (2023) | 270 | 130.8 | 168.5 | 101.1 | 57.1 | 20 | |
The Witcher 3 v4.00 (2023) | 197.9 | 169.8 | 141.5 | 113.7 | 72.6 | 37.7 | |
Dead Space Remake (2023) | 80.6 | 67.2 | 65.9 | 77.1 | 44.2 | 12.3 | |
Hogwarts Legacy (2023) | 141.5 | 107.4 | 81.4 | 63.2 | 43.8 | 22.9 | |
Returnal (2023) | 101 | 97 | 87 | 73 | 53 | 29 | |
Atomic Heart (2023) | 173.1 | 130.9 | 79.9 | 60.9 | 46.4 | 27.6 | |
Company of Heroes 3 (2023) | 159.8 | 142.7 | 109.5 | 107.9 | 79.1 | 46.5 | |
Sons of the Forest (2023) | 111.6 | 101.1 | 93.1 | 92.1 | 64.7 | 35.3 | |
Resident Evil 4 Remake (2023) | 135.6 | 101.2 | 88.6 | 57.8 | 43.7 | 10.5 | |
The Last of Us (2023) | 89.9 | 73 | 60.2 | 41.6 | 25.4 | 8.81 | |
Dead Island 2 (2023) | 250 | 215 | 161.2 | 114.3 | 79.2 | 38.1 | |
Star Wars Jedi Survivor (2023) | 79.6 | 70.1 | 66 | 61.3 | 37.8 | 16.8 | |
Diablo 4 (2023) | 205 | 243 | 184.4 | 147.5 | 89.4 | 47.2 | |
F1 23 (2023) | 289 | 265 | 188.4 | 28.9 | 6.88 | 3.18 | |
Ratchet & Clank Rift Apart (2023) | 26.5 | 21 | 12.8 | 11.5 | 9.4 | 6.7 | |
Baldur's Gate 3 (2023) | 126.7 | 104.5 | 89.7 | 87.3 | 59.7 | 30.2 | |
Atlas Fallen (2023) | 138.3 | 132.4 | 120.5 | 97.1 | 67.1 | 6.5 | |
Immortals of Aveum (2023) | 73.8 | 63.2 | 48.5 | 26.1 | 8.04 | ||
Armored Core 6 (2023) | 114.4 | 98.4 | 91.5 | 59.2 | 77.9 | 34.4 | |
Starfield (2023) | 66 | 57.7 | 47.9 | 43.8 | 35.9 | 22.5 | |
Lies of P (2023) | 174.3 | 149 | 127 | 113.7 | 76.5 | 37.7 | |
Cyberpunk 2077 2.0 Phantom Liberty (2023) | 117 | 93.7 | 79.2 | 70.7 | 44.6 | 1.13 | 19.1 |
Counter-Strike 2 (2023) | 348 | 316 | 192.8 | 132.2 | 84.3 | 39.3 | |
EA Sports FC 24 (2023) | 202 | 172.2 | 142.7 | 128.3 | 105.3 | 68.7 | |
Assassin's Creed Mirage (2023) | 139 | 124 | 110 | 68 | 52 | 24 | |
Total War Pharaoh (2023) | 382.8 | 244.5 | 140.1 | 107.7 | 71.2 | 35.4 | |
Lords of the Fallen (2023) | 83.3 | 69.5 | 46.9 | 33 | 21.5 | 4.6 | |
Alan Wake 2 (2023) | 71.4 | 60.8 | 57.2 | 27.7 | 11.1 | ||
EA Sports WRC (2023) | 140.7 | 95.6 | 85.4 | 76.9 | 54.9 | 30 | |
Call of Duty Modern Warfare 3 2023 (2023) | 158 | 143 | 96 | 83 | 61 | 34 |
Comparing GPD G1's performance over USB4 and OCuLink
To demonstrate the best performance you can get from the GPD G1, we ran additional benchmarks with the eGPU connected to the Minisforum UM780 XTX. This mini-PC features both USB4 ports and an OCuLink interface, which lets the Radeon RX 7600 XT operate at PCIe 4.0 x4 speed. In direct comparison, it is very easy to see the performance difference between the two interfaces. With optimal connection, the mini-PC performs at a similar level to our GPU test system. The OCuLink interface provides 16% more performance than USB4 thanks to its higher bandwidth.
Synthetic benchmarks
Performance Rating - Percent | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
3DMark | |
2560x1440 Time Spy Graphics | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
Fire Strike Extreme Graphics | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
3840x2160 Fire Strike Ultra Graphics | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
1920x1080 Fire Strike Graphics | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Unigine Superposition | |
7680x4320 8k Optimized | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
3840x2160 4k Optimized | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
1920x1080 1080p Extreme | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
1920x1080 1080p High | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
1280x720 720p Low | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Unigine Heaven 4.0 | |
Extreme Preset DX11 | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
Extreme Preset OpenGL | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Unigine Valley 1.0 | |
1920x1080 Extreme HD DirectX AA:x8 | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
1920x1080 Extreme HD Preset OpenGL AA:x8 | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
3DMark 11 | |
1280x720 Performance GPU | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) | |
1280x720 Performance | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Gaming performance
In terms of gaming performance, the GPD G1 is able to deliver much better results over OCuLink. At lower resolutions, we are already hovering around the bandwidth limit of the USB4 connection. This is not the case when using the OCuLink interface. In other words, if you have the means to do so, you should definitely connect the GPD G1 using OCuLink in order to get the best performance from the device.
Performance Rating - Percent | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Final Fantasy XV Benchmark - 1920x1080 High Quality | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Far Cry 5 - 1920x1080 Ultra Preset AA:T | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Far Cry New Dawn - 1920x1080 Ultra Preset | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
F1 22 - 1920x1080 Ultra High Preset AA:T AF:16x | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Metro Exodus - 1920x1080 Ultra Quality AF:16x | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
GRID Legends - 1920x1080 Ultra Preset | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 4.0) | |
GPD G1 Radeon RX 7600M XT (USB4 @PCIe x4 3.0) |
Emissions - Efficient but audible
Noise emissions
GPD has placed a fan in the middle of the unit, which draws in air from the top and the sides. This design is fundamentally sound and well-conceived. That said, you can definitely hear the fan running. Even at idle, we were already measuring 36 dB(A) of noise from the unit. The eGPU reached as loud as 55.7 dB(A) during the stress test – a level that can be described as annoying. Anyone who doesn’t have a pair of good headphones is going to keep hearing the graphics card running in the background. The noise feels even louder because the fan produces a relatively high-pitch sound. We wish the GPD G1 had a considerably more effective cooling solution. Using an external power supply would perhaps have been a better option, as this would leave more space in the enclosure for a larger cooler.
Noise Level
Idle |
| 36.6 / 36.6 / 36.6 dB(A) |
Load |
| 37.3 / 55.7 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25 dB(A) |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | XFX Speedster QICK 308 Radeon RX 7600 Black Edition | KFA2 GeForce RTX 4060 1-Click-OC 2X | ASUS Dual GeForce RTX 4060 Ti OC | Acer Predator BiFrost Arc A750 OC | Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | Sapphire Pulse Radeon RX 7700 XT | AMD Radeon RX 7800 XT | KFA2 GeForce RTX 4070 EX Gamer | KFA2 GeForce RTX 4070 Ti EX Gamer | |
---|---|---|---|---|---|---|---|---|---|---|
Noise | 22% | 21% | 20% | 13% | -1% | 20% | 20% | 12% | 12% | |
off / environment * | 25 | 25.4 -2% | 25.8 -3% | 25.4 -2% | 25.4 -2% | 25.4 -2% | 25 -0% | 24.7 1% | 30 -20% | 30 -20% |
Idle Minimum * | 36.6 | 26.3 28% | 25.9 29% | 26.7 27% | 29 21% | 39 -7% | 27.4 25% | 26.8 27% | 30.2 17% | 30.1 18% |
Idle Average * | 36.6 | 26.3 28% | 25.9 29% | 26.7 27% | 29.2 20% | 39 -7% | 27.5 25% | 27.2 26% | 30.2 17% | 30.1 18% |
Idle Maximum * | 36.6 | 26.3 28% | 25.9 29% | 26.7 27% | 29.3 20% | 39 -7% | 28 23% | 27.3 25% | 30.2 17% | 30.1 18% |
Load Average * | 37.3 | 29.6 21% | 30.3 19% | 29.3 21% | 35.1 6% | 39 -5% | 32.6 13% | 30.7 18% | 31.8 15% | 30.2 19% |
Load Maximum * | 55.7 | 39.4 29% | 43.5 22% | 46 17% | 49.7 11% | 42.1 24% | 37.6 32% | 43 23% | 41.1 26% | 44.7 20% |
Witcher 3 ultra * | 39.6 | 45.2 | 42.5 | 44.2 | 41.5 | 42.1 | 42.6 | 40.2 |
* ... smaller is better
Temperatures and power usage

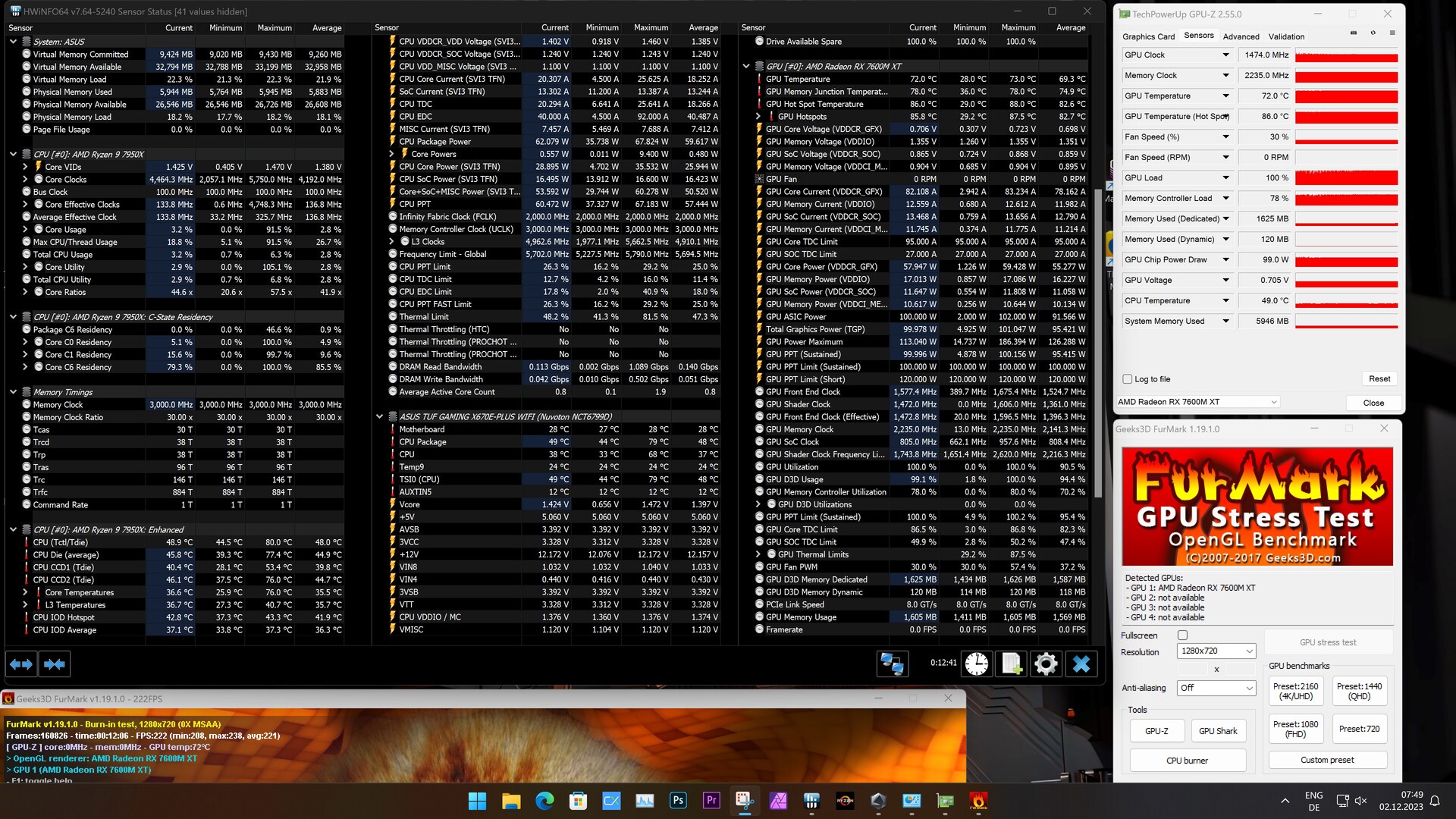

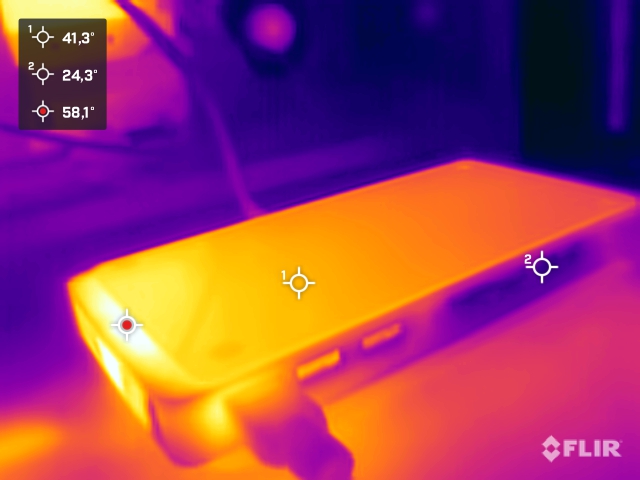

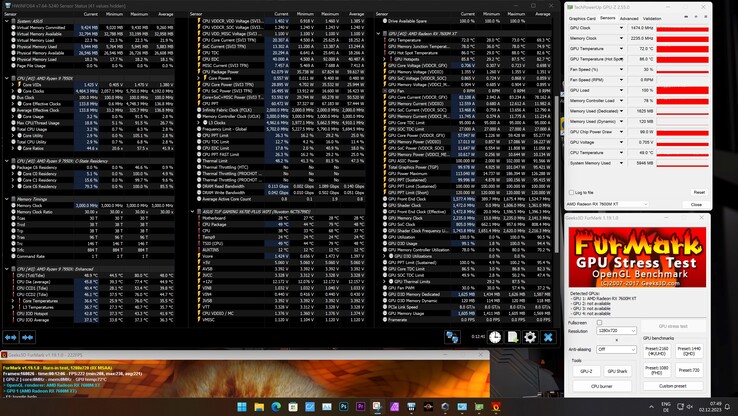

Given the high noise level, it is safe to assume that the fan must work very hard to keep the GPU’s temperatures in check. The device does this fairly well in practice: we saw GPU temps of 73°C (163.4°F) during the stress test. But GPU hotspot temps did peak at 88°C (190.4°F). The cooling unit is designed to direct air out of the case from the side. This is also where we recorded the highest temperatures on the case. Moreover, the bottom gets substantially warmer, which suggests that GPD uses this surface for heat dissipation as well.
When it comes to power consumption, the GPD G1 benefits from the use of a mobile graphics chip. Up to 100 watts of power is allocated to the Navi 33 chip itself – a level consistently reached during our testing. According to our power meter, the eGPU alone had a peak power draw of roughly 130 watts, including the usage of other components and various power losses caused by the PSU. It is thus no wonder that the power requirements of the overall setup (the eGPU plus our GPU test system) are relatively low: around 260 watts when gaming and 245 watts during the stress test (FurMark). These are decent numbers and as a whole slightly lower than what you need with an Nvidia GeForce RTX 4060.
The GPD G1 supports Power Delivery at up to 60 watts over its USB4 port.
Power Consumption / The Witcher 3 ultra (external Monitor) | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7800 XT | |
Sapphire Pulse Radeon RX 6750 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Acer Predator BiFrost Arc A750 OC | |
KFA2 GeForce RTX 4060 Ti EX | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) |
Power Consumption / FurMark 1.19 GPU Stress Test (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
AMD Radeon RX 7900 XTX (Idle: 86.5 W) | |
NVIDIA GeForce RTX 3090 Founders Edition | |
AMD Radeon RX 7900 XT (Idle: 84.6 W) | |
KFA2 GeForce RTX 3070 Ti SG (Idle: 88.9 W) | |
KFA2 GeForce RTX 4080 SG (Idle: 86.4 W) | |
Acer Predator BiFrost Arc A750 OC | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
Sapphire Pulse Radeon RX 6750 XT | |
AMD Radeon RX 7800 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
Sapphire Nitro+ Radeon RX 6650 XT | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) |
Power Consumption / Witcher 3 ultra Efficiency (external Monitor) | |
Palit GeForce RTX 4090 GameRock OC | |
KFA2 GeForce RTX 4080 SG | |
AMD Radeon RX 7900 XT | |
AMD Radeon RX 7900 XTX | |
KFA2 GeForce RTX 4070 Ti EX Gamer | |
AMD Radeon RX 7900 GRE | |
KFA2 GeForce RTX 4070 EX Gamer | |
KFA2 GeForce RTX 4060 Ti EX | |
AMD Radeon RX 7800 XT | |
KFA2 GeForce RTX 4060 1-Click-OC 2X | |
GPD G1 Radeon RX 7600M XT (OCuLink @PCIe x4 3.0) | |
Sapphire Pulse Radeon RX 6750 XT | |
NVIDIA GeForce RTX 3090 Founders Edition | |
XFX Speedster QICK 308 Radeon RX 7600 Black Edition | |
KFA2 GeForce RTX 3070 Ti SG | |
Sapphire Nitro+ Radeon RX 6650 XT | |
Acer Predator BiFrost Arc A770 OC, 16GB GDDR6 | |
Acer Predator BiFrost Arc A750 OC |
* ... smaller is better
Power consumption with external monitor
Pros
Cons
Verdict - An expensive toy
With the GPD G1, we have taken a look at a slightly different kind of GPU in this review. As an external graphics card, the device is limited in terms of use cases. There are certainly situations where it makes sense to use such an eGPU. But the question is whether you are willing to shell out the asking price. This is because the GPD G1 is by no means a bargain at over €700 (US$750). You could perhaps overlook the hefty price if the product has the performance to match. But all you can expect from the card is the power of a Radeon RX 6600, which can be had for as low as €205 (US$220) depending on the model. Of course, you need to factor in the price of an eGPU enclosure, but such products don’t usually cost more than €400 (US$430). Right now, the tiny form factor is one thing the GPD G1 has going for it. The device also natively supports OCuLink, which is a much faster interface. This is a feature not found on current eGPU enclosures from Razer or Sonnet. That said, the device paired with the G1 also needs to have an OCuLink interface in order for you to get optimal performance. The Minisforum UM780 XTX is one of those rare mini-PCs with such a port, which enables a noticeably higher performance than a USB4 connection. It thus remains to be seen whether other manufacturers are also going jump on this train and give their upcoming mini-PCs an OCuLink interface.
The GPD G1 lets you effortlessly transform a tiny computer into a compact gaming system. But the performance doesn’t match the asking price at all.
GPD itself offers the GPD Win 4 (2023), a compact handheld system comparable with a Steam Deck. This device is likewise capable of connecting to the GPD G1 natively using OCuLink. Though at this point, you may ask yourself whether this setup is still portable at all, because it really isn't any more.
Other than its compact form factor, the GPD G1 also brings additional interfaces to the table, such as USB ports, display outputs and an SD card reader capable of UHS-II speeds. That said, we really can’t sugarcoat things when it comes to noise level. The eGPU is simply too loud and distracting under load, hitting upwards of 55 dB(A) during out testing. The company should consider using an alternative cooling solution. Another point of our criticism is the package contents – providing only a USB4 cable is not enough. Considering how much the product costs, an OCuLink cable should have been included as well.
Price and availability
Transparency
The present review sample was freely purchased by the author at his/her own expense. The manufacturer did not receive a copy of this review before publication, nor was there any obligation to publish it.
