GPD Win Mini Zen 4 handheld review: Solid alternative to the Asus ROG Ally
The Win Mini is the latest PC gaming handheld from GPD who has been specializing in the category long before Valve and Asus popularized the concept. The latest model follows on the footsteps of the Pocket 3 and Win Max 2 with yet another brand new design and the newest AI-ready Zen 4 AMD chipset.
Our unit in review is the high-end configuration with the Hawk Point Ryzen 7 8840U CPU, integrated Radeon 780M GPU, 32 GB of soldered LPDDR5 6400 MT/s RAM, and 512 GB SSD. Other SKUs may come with the slower Ryzen 5 8640U and Radeon 760M graphics instead or have higher 2 TB storage options.
Competitors to the Win Mini include other Windows PC gaming handhelds like the Lenovo Legion Go, Valve Steam Deck, Asus ROG Ally, or Aokzoe A1. However, the Win Mini is unique in that it integrates a full QWERTY keyboard alongside the usual gaming controller buttons.
More GPD reviews:
Potential Competitors in Comparison
Rating | Version | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|---|
| 76.9 % | v8 | 06 / 2024 | GPD Win Mini 2024 7" R7 8840U, Radeon 780M | 526 g | 26 mm | 7.00" | 1920x1080 | |
| 80.3 % v7 (old) | v7 (old) | 03 / 2023 | GPD Win 4 R7 6800U, Radeon 680M | 607 g | 28 mm | 6.00" | 1920x1080 | |
| 84.5 % v7 (old) | v7 (old) | 07 / 2022 | GPD Win Max 2 i7-1260P, Iris Xe G7 96EUs | 1 kg | 23 mm | 10.10" | 2560x1600 | |
| 80.1 % v7 (old) | v7 (old) | 09 / 2023 | Aokzoe A1 R7 6800U, Radeon 680M | 735 g | 21 mm | 8.00" | 1920x1200 | |
| 87.5 % v7 (old) | v7 (old) | 05 / 2023 | Asus ROG Ally Z1 Extreme Z1 Extreme, Radeon 780M | 611 g | 21.22 mm | 7.00" | 1920x1080 | |
| 66.3 % | v8 | 01 / 2024 | Lenovo Legion Go Z1 Extreme, Radeon 780M | 845 g | 41 mm | 8.80" | 2560x1600 |
Note: We have recently updated our rating system and the results of version 8 are not comparable with the results of version 7. More information is available here .

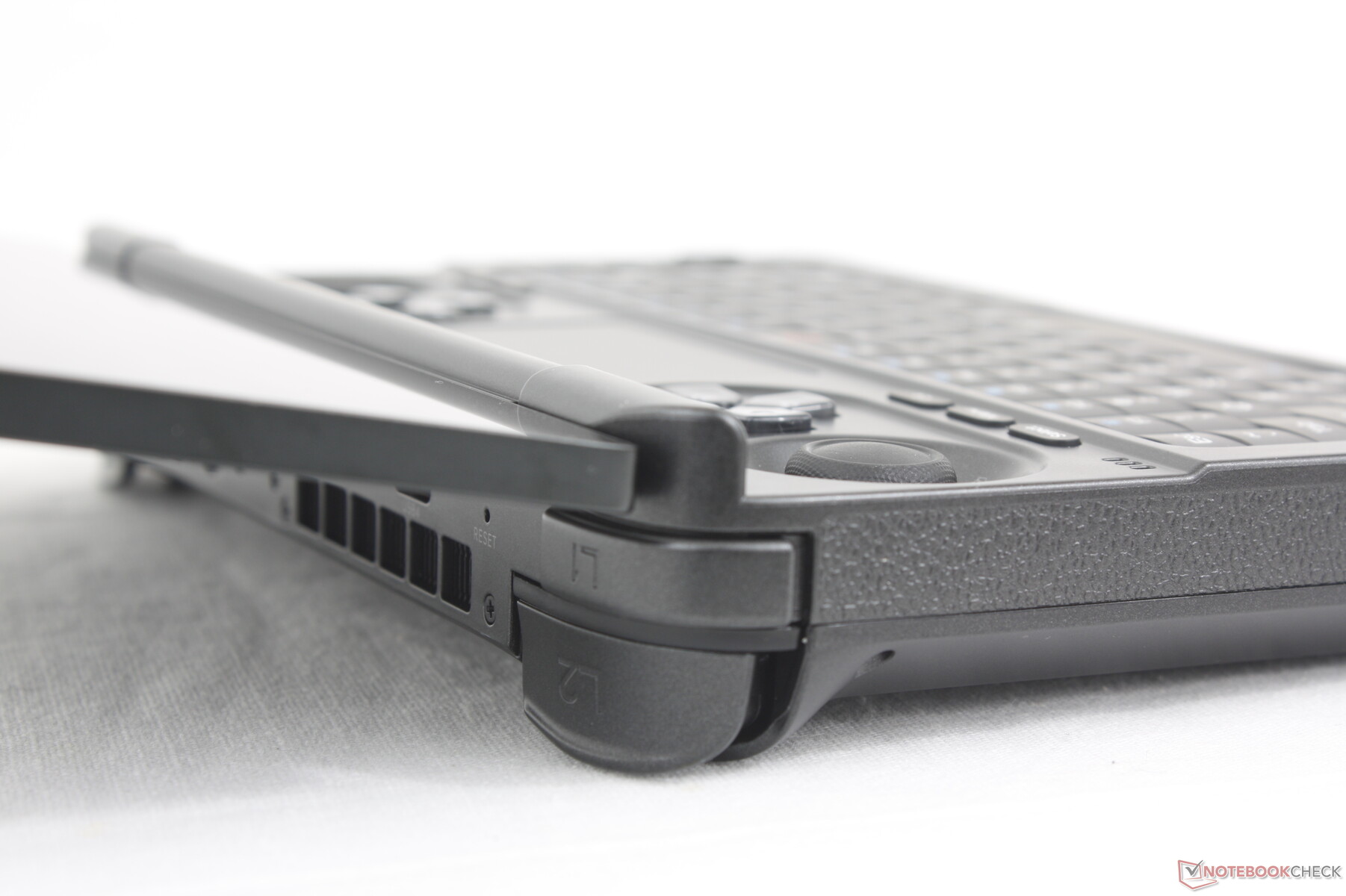

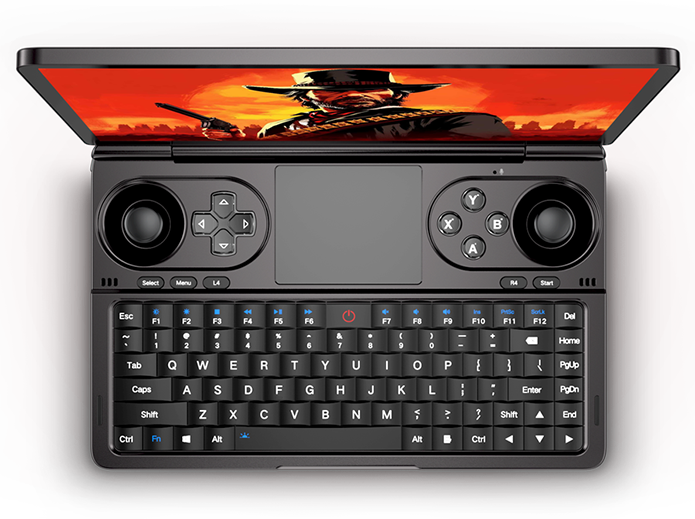

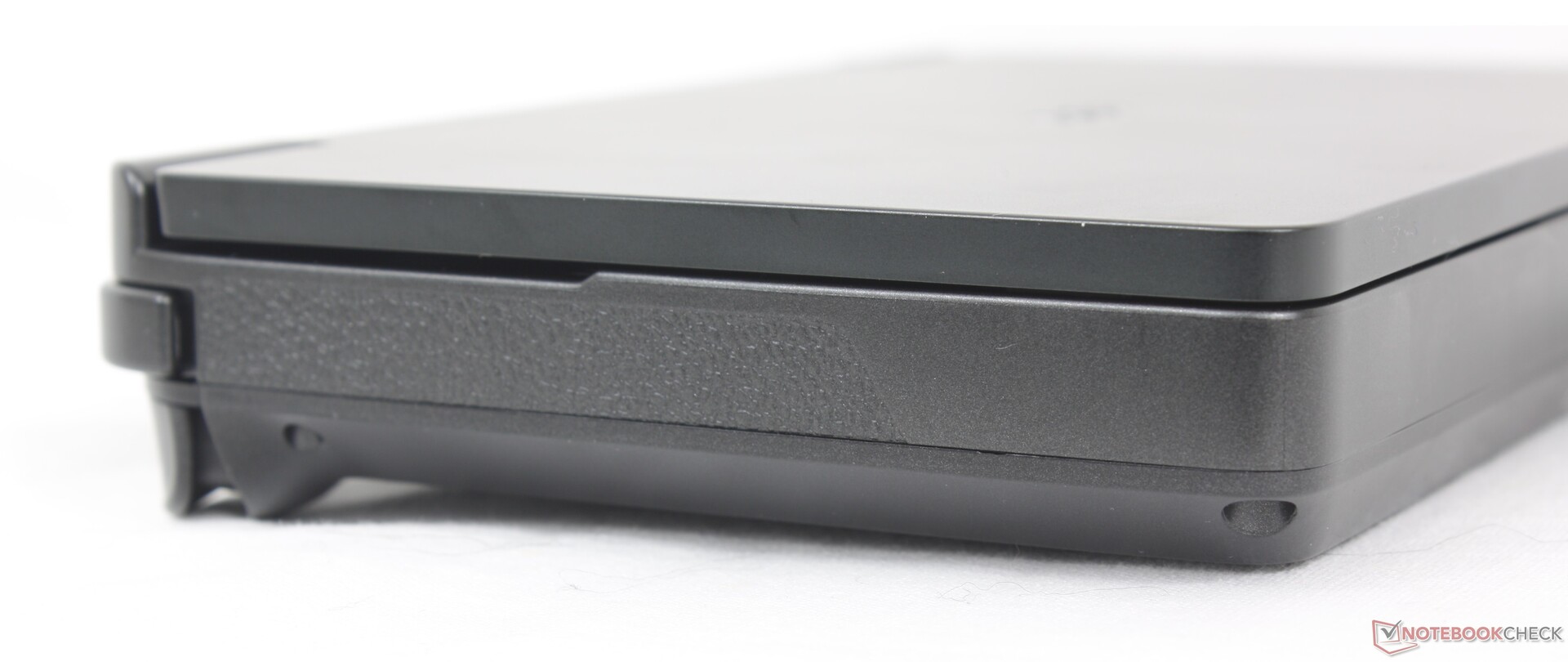

Case — Nintendo DS Vibes

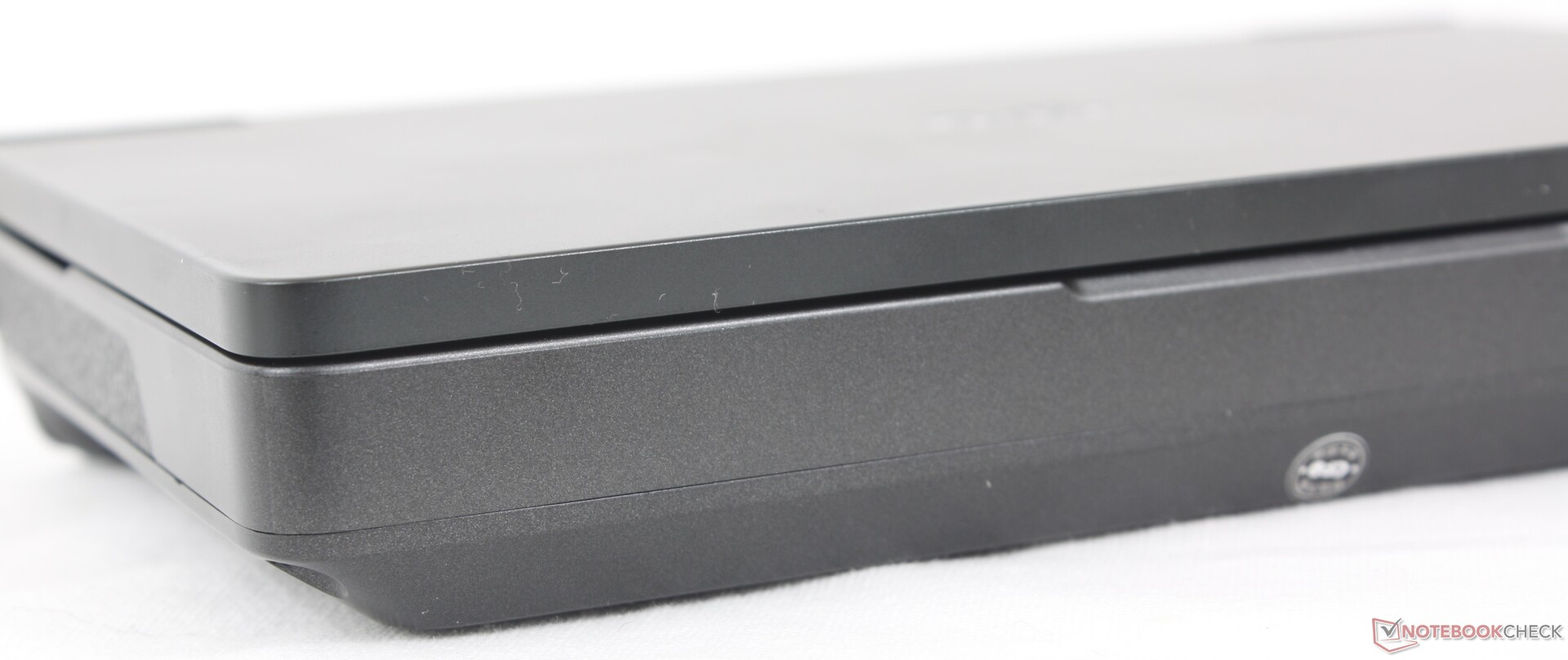

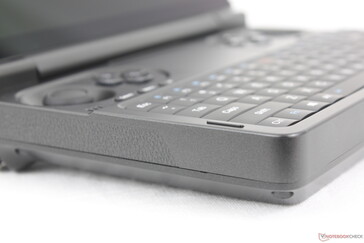

With a retail price of $1000 or more, the build quality of the Win Mini had better be nothing short of excellent to justify the relatively high cost. Thankfully, GPD has come a long way since the Win 3 days and it really shows with the Win Mini. Warping and creaking are almost non-existent when attempting to twist the device while all the buttons and keys feel firm for solid first impressions. It's able to stand toe-to-toe with the popular handhelds from larger manufacturers even if ergonomically the Win Mini controls may be less comfortable to grip.

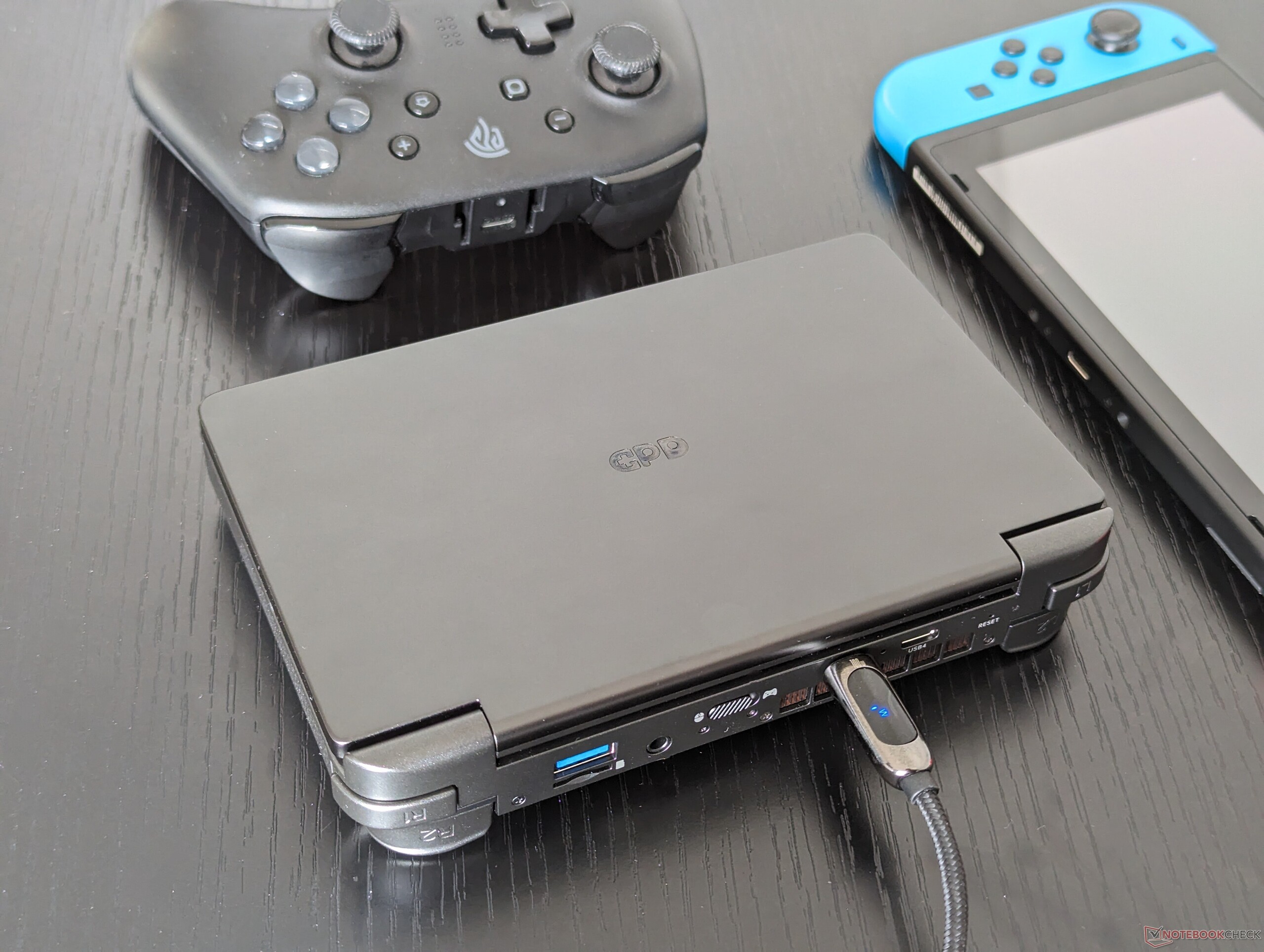

The system is surprisingly compact due to its clamshell design. Whereas the ROG Ally or Legion Go have their controller buttons along the edges of the screen, the buttons on the Win Mini are on the C cover to reduce the overall footprint. Asus' design is slightly thinner, but the savings in weight and volume favor the GPD by wide margins.

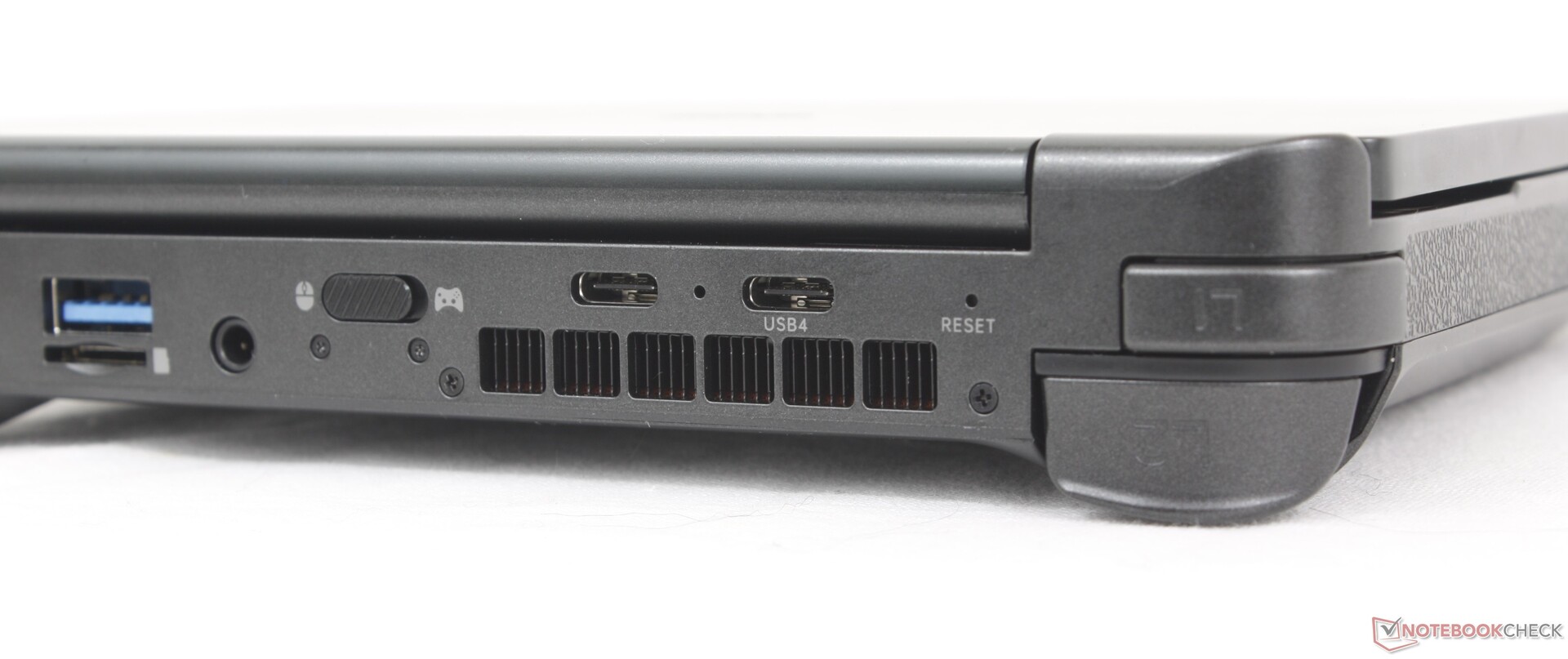

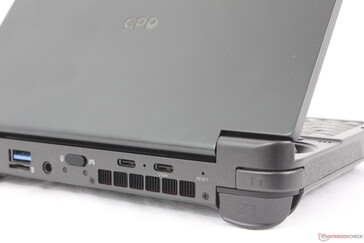

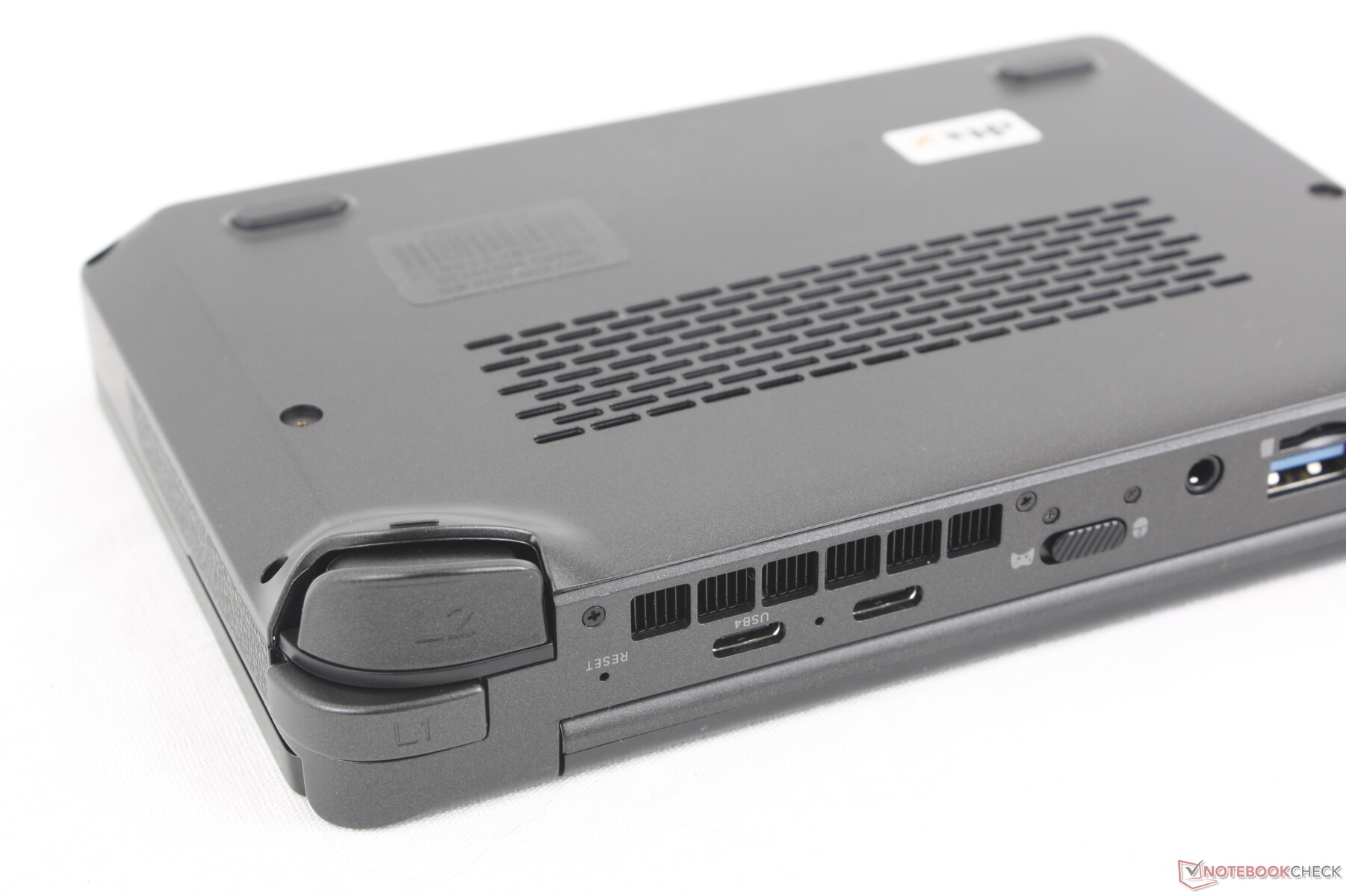

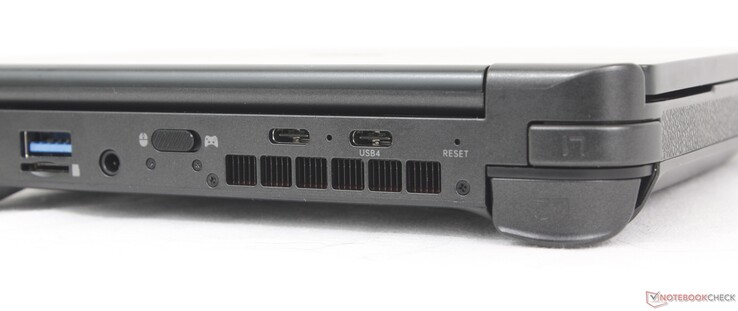

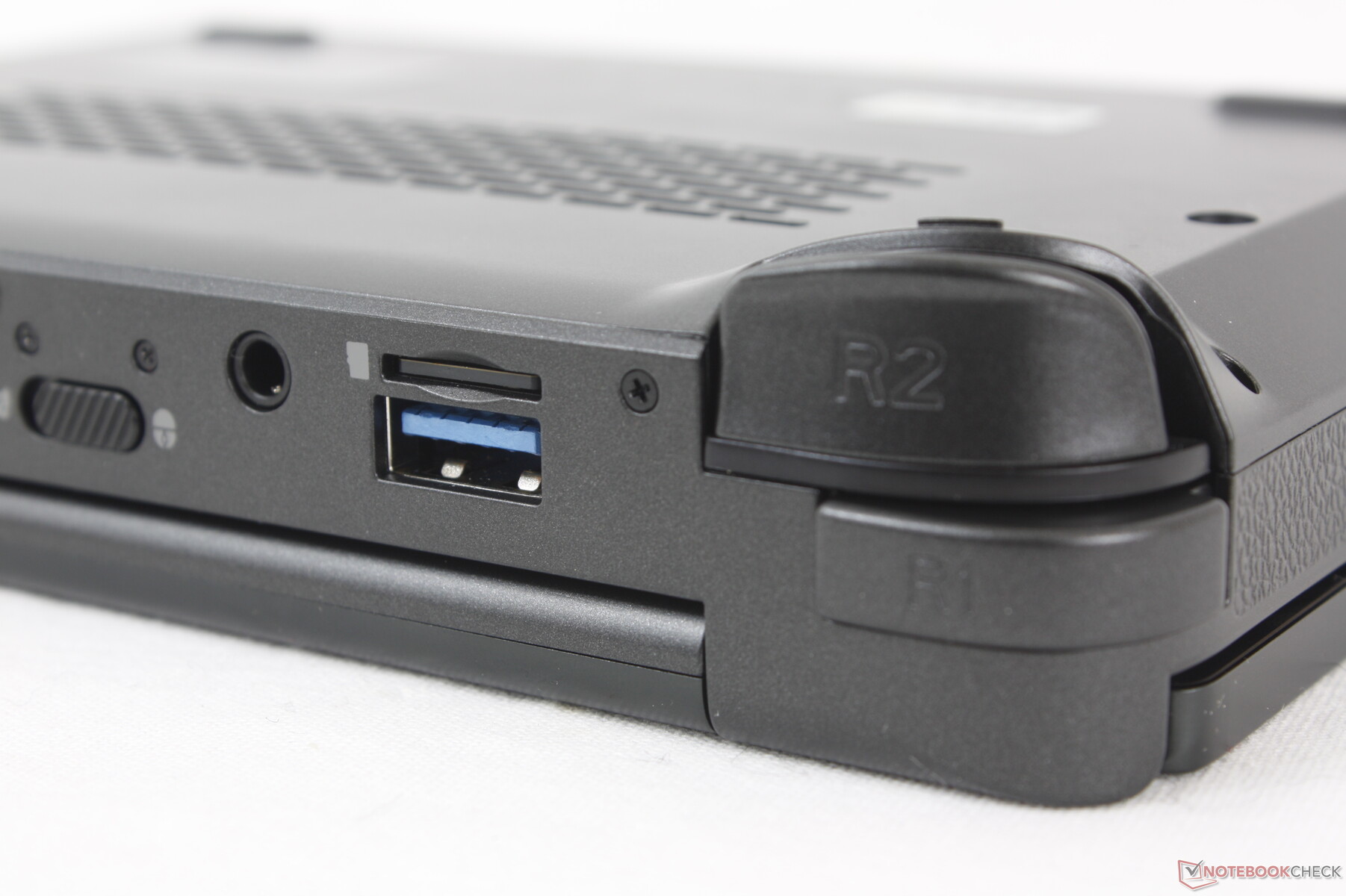

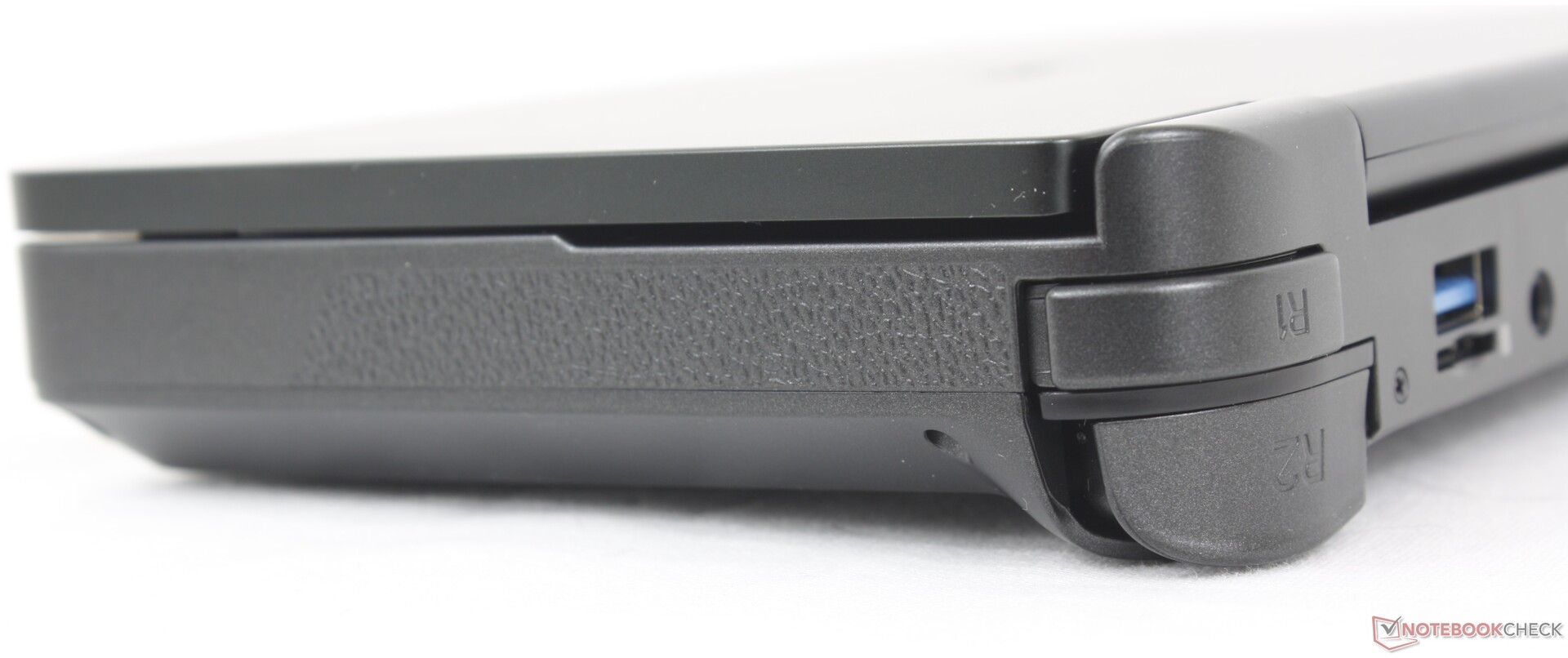

Connectivity — Finally, USB-A
Port options are respectable for the size with the inclusion of USB-A being the most notable as this port is missing on popular handhelds like the Legion Go and ROG Ally. The dual USB-C ports allow for more versatile docking and charging capabilities including compatibility with most eGPUs via USB4. External displays are supported via USB-C DP.
There is no integrated webcam.
SD Card Reader
The MicroSD card reader is slower than what GPD advertises even with our UHS-II test card. The manufacturer claims a read rate of 120 MB/s, but we're only able to reach just 21 to 86 MB/s in our real-world tests.
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| GPD Win Max 2 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Lenovo Legion Go | |
| Asus ROG Ally Z1 Extreme (Angelbird AV Pro V60) | |
| GPD Win 4 (AV Pro SD microSD 128 GB V60) | |
| Aokzoe A1 (Angelbird AV Pro V60) | |
| GPD Win Mini 2024 7" (AV Pro SD microSD 128 GB V60) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Asus ROG Ally Z1 Extreme (Angelbird AV Pro V60) | |
| GPD Win Max 2 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Aokzoe A1 (Angelbird AV Pro V60) | |
| Lenovo Legion Go | |
| GPD Win 4 (AV Pro SD microSD 128 GB V60) | |
| GPD Win Mini 2024 7" (AV Pro SD microSD 128 GB V60) | |
Communication
The unit ships with the same Intel AX210 as on the Legion Go or Win 4 for up to Wi-Fi 6E and Bluetooth 5.2 connectivity.
| Networking | |
| iperf3 transmit AXE11000 | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| GPD Win 4 | |
| iperf3 receive AXE11000 | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| GPD Win 4 | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| iperf3 transmit AXE11000 6GHz | |
| Lenovo Legion Go | |
| GPD Win Max 2 | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| GPD Win 4 | |
| iperf3 receive AXE11000 6GHz | |
| Lenovo Legion Go | |
| GPD Win Max 2 | |
| GPD Win Mini 2024 7" | |
| GPD Win 4 | |
| Aokzoe A1 | |

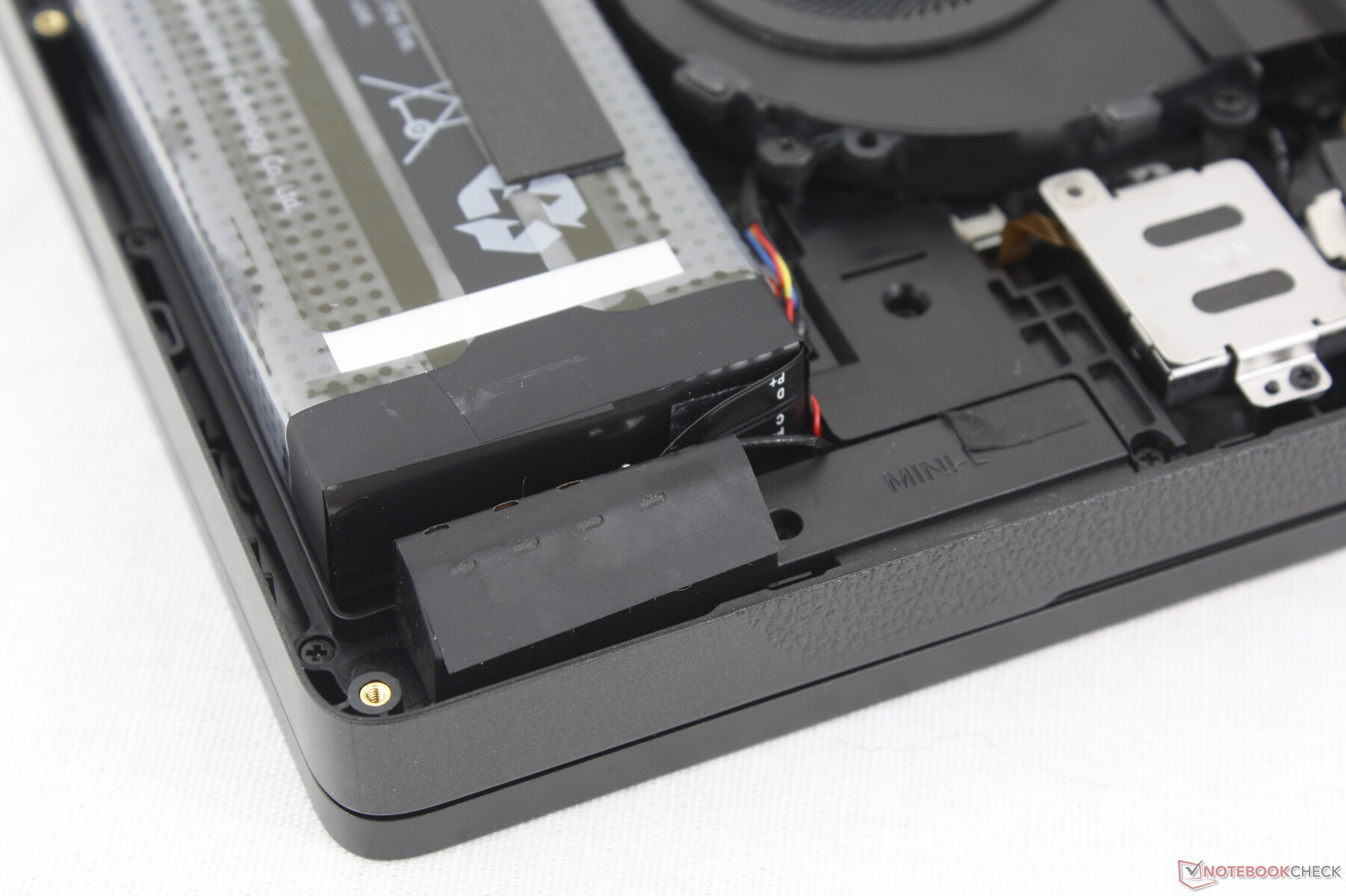

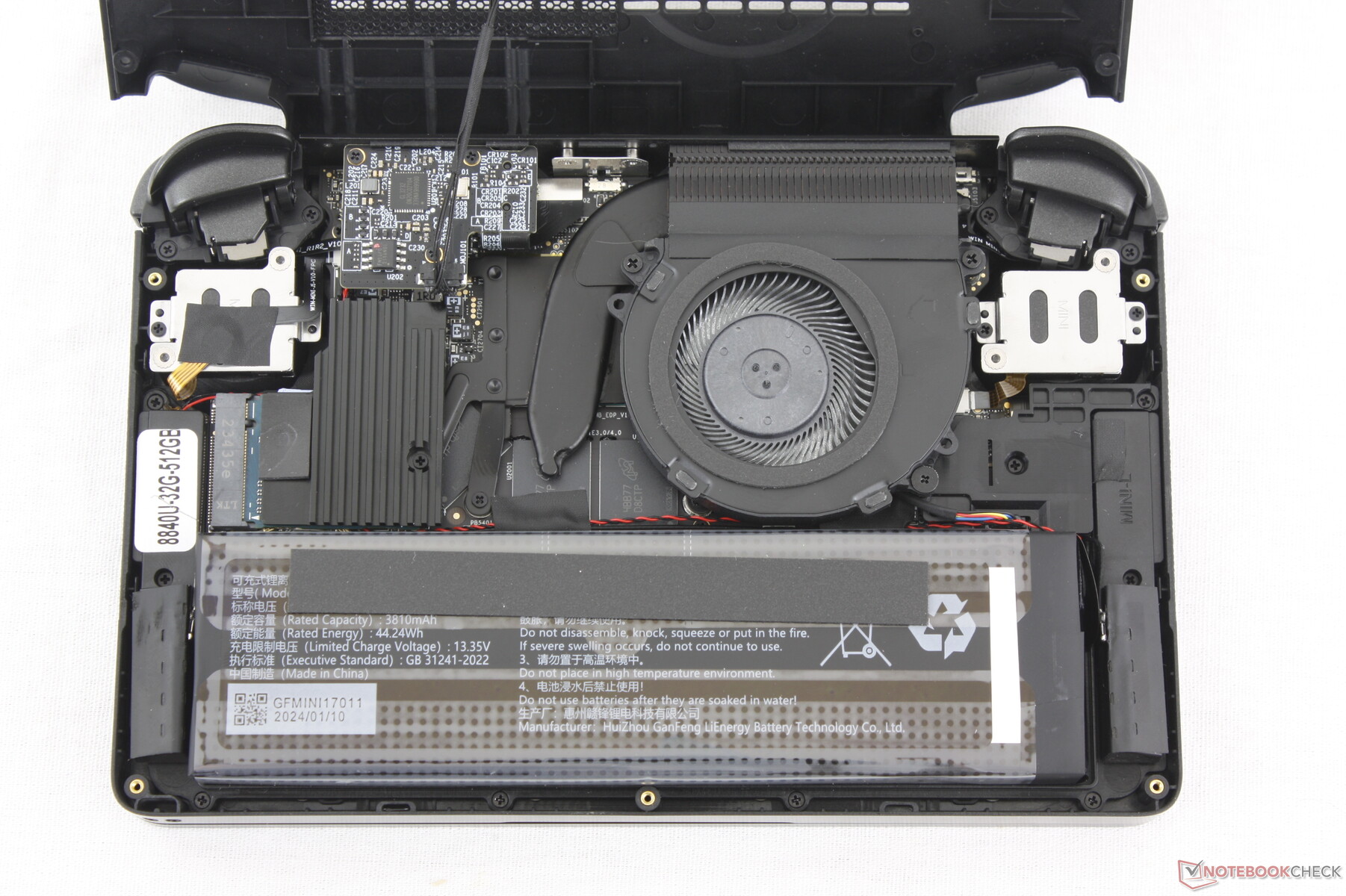

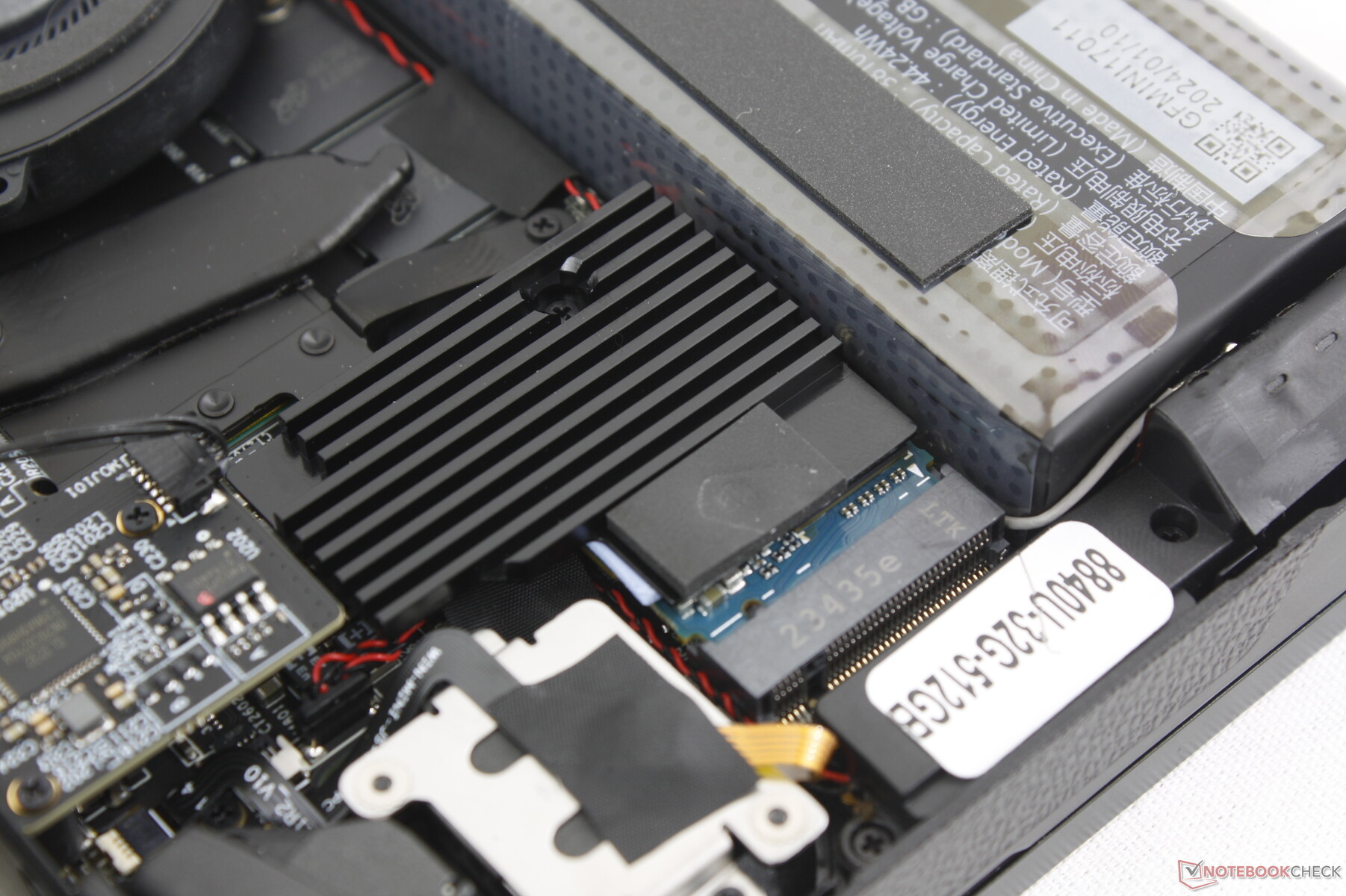

Maintenance

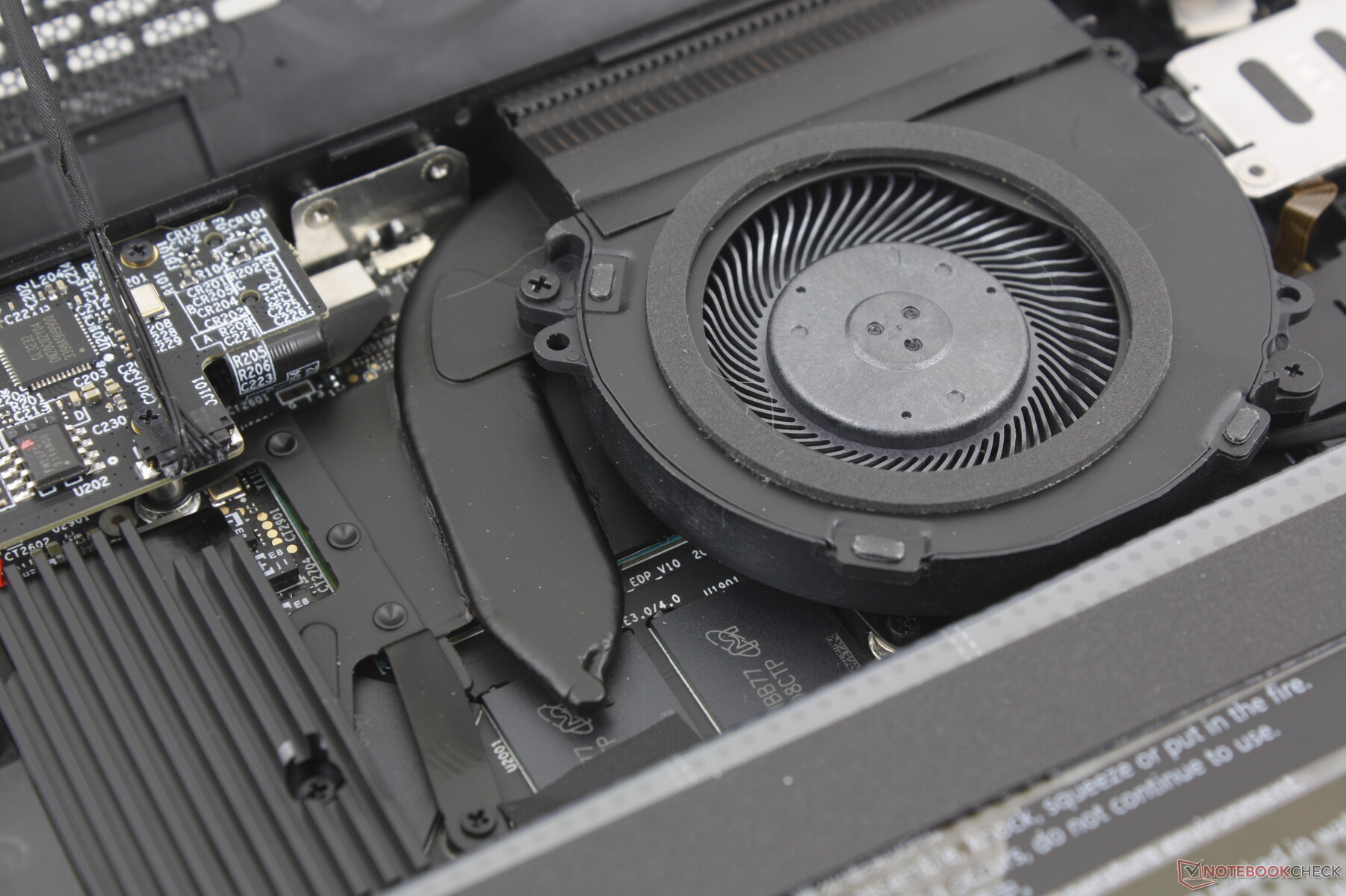

The bottom panel is secured by eight tiny Phillips screws for relatively easy removal. Only the M.2 2230 SSD is upgradeable, however, as the RAM and WLAN modules are soldered.
Accessories And Warranty
Detachable plastic controller grips are optional to improve the ergonomics when gaming. The standard one-year limited manufacturer warranty applies if purchased in the US.

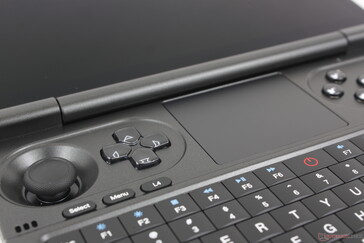

Input Devices — Average Ergonomics

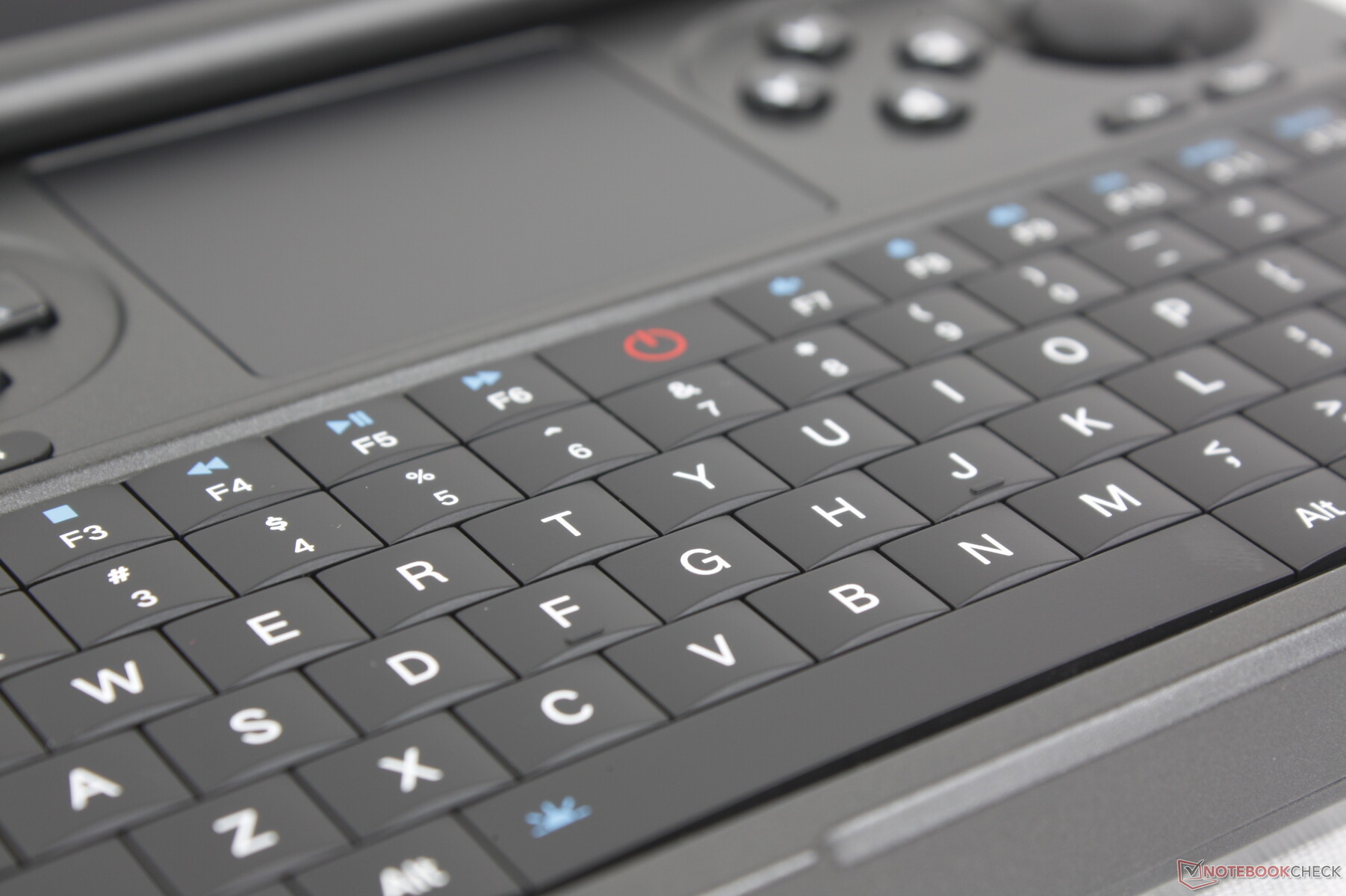

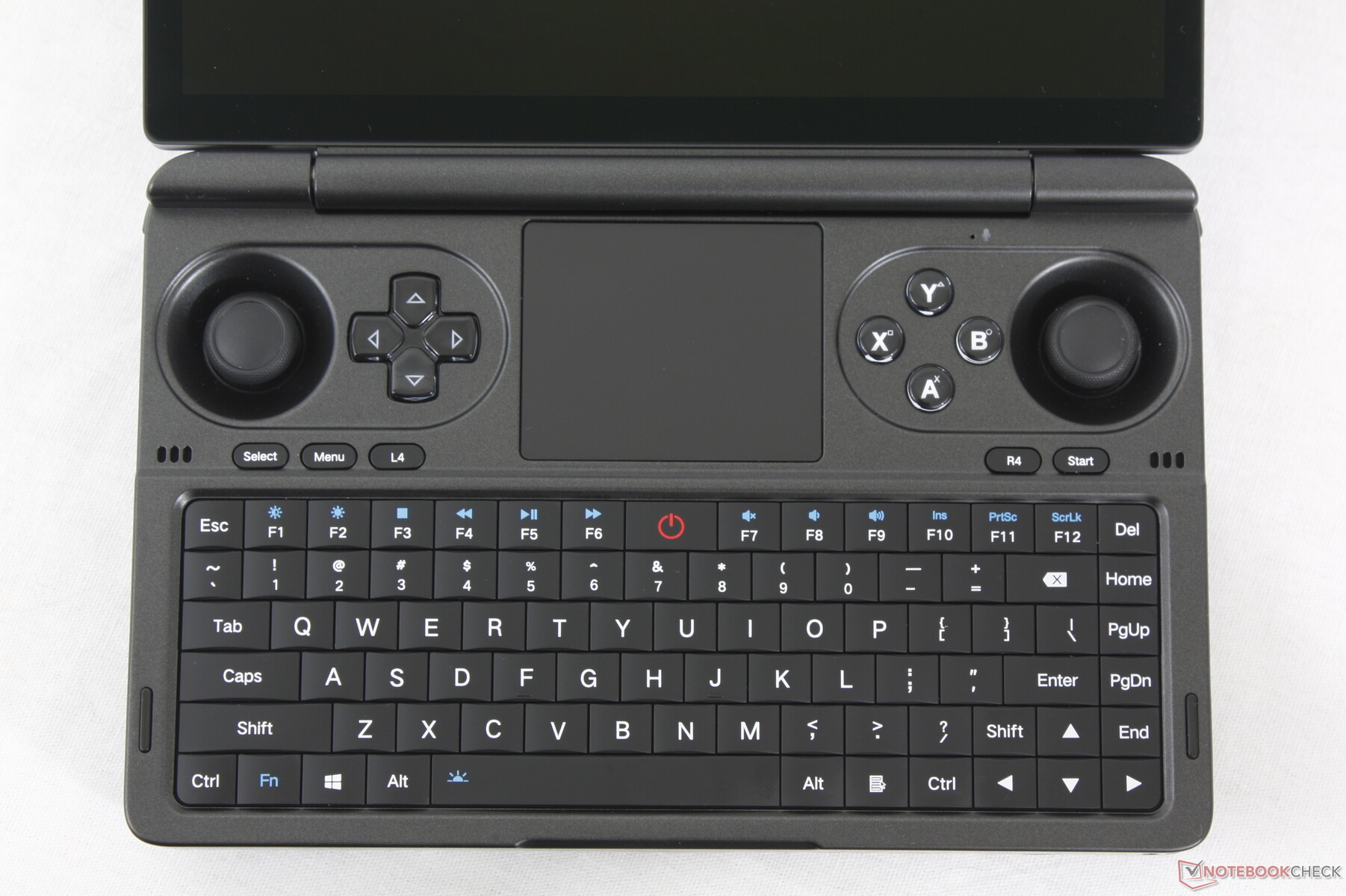

Keyboard
Keyboard designs get tricky on UMPC form factors and this is evident on all GDP products thus far. Whereas the Pocket 3 would incorporate more traditional plastic chiclet keys akin to a laptop, the Win Mini incorporates rubberized beveled keys more akin to an old Blackberry phone or old Samsung slider phone. Because of this, it's impossible to type quickly on the Win Mini meaning an external USB or Bluetooth keyboard is highly recommended for any sort of word processing. Typing is otherwise almost completely silent.

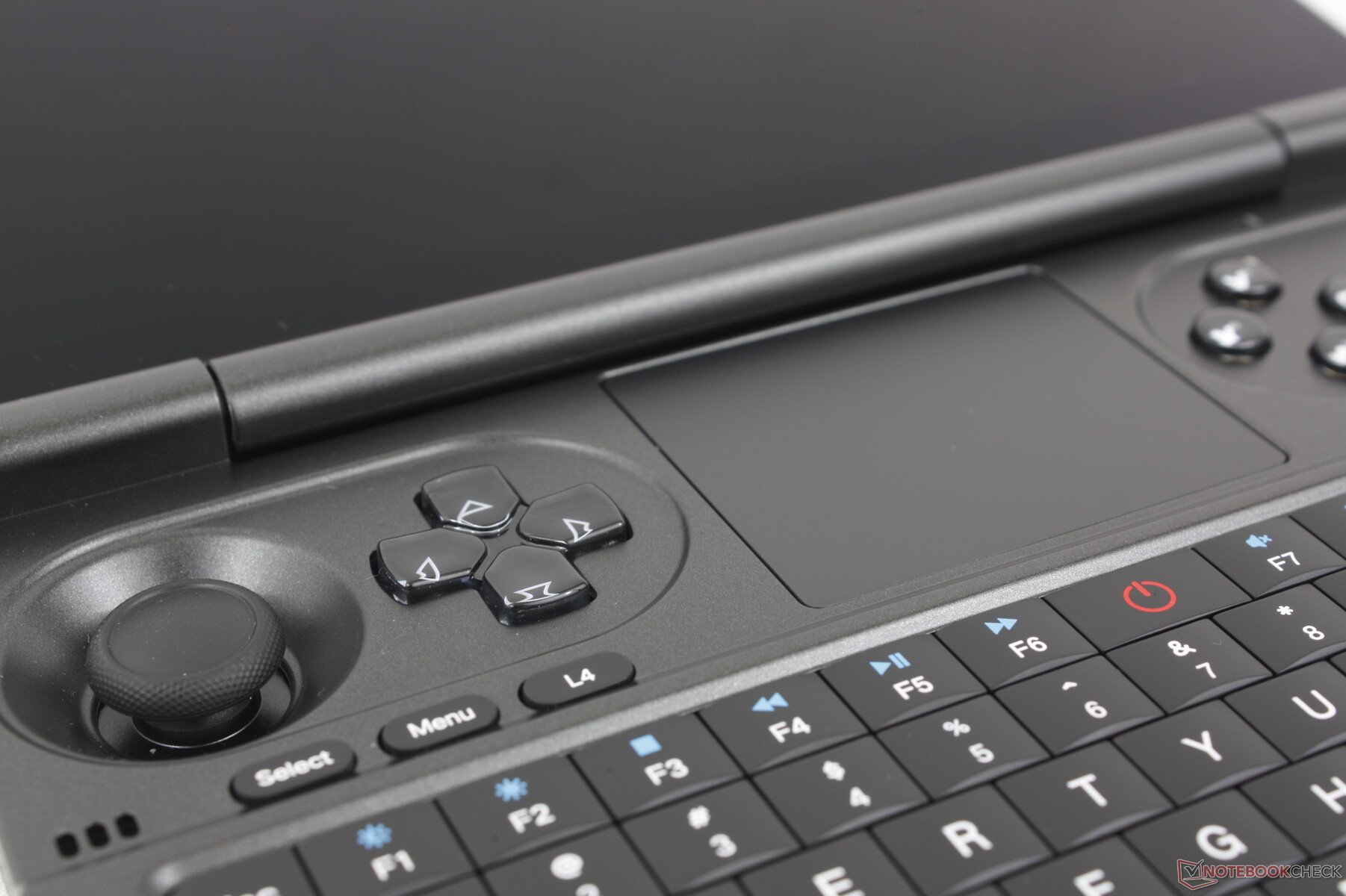

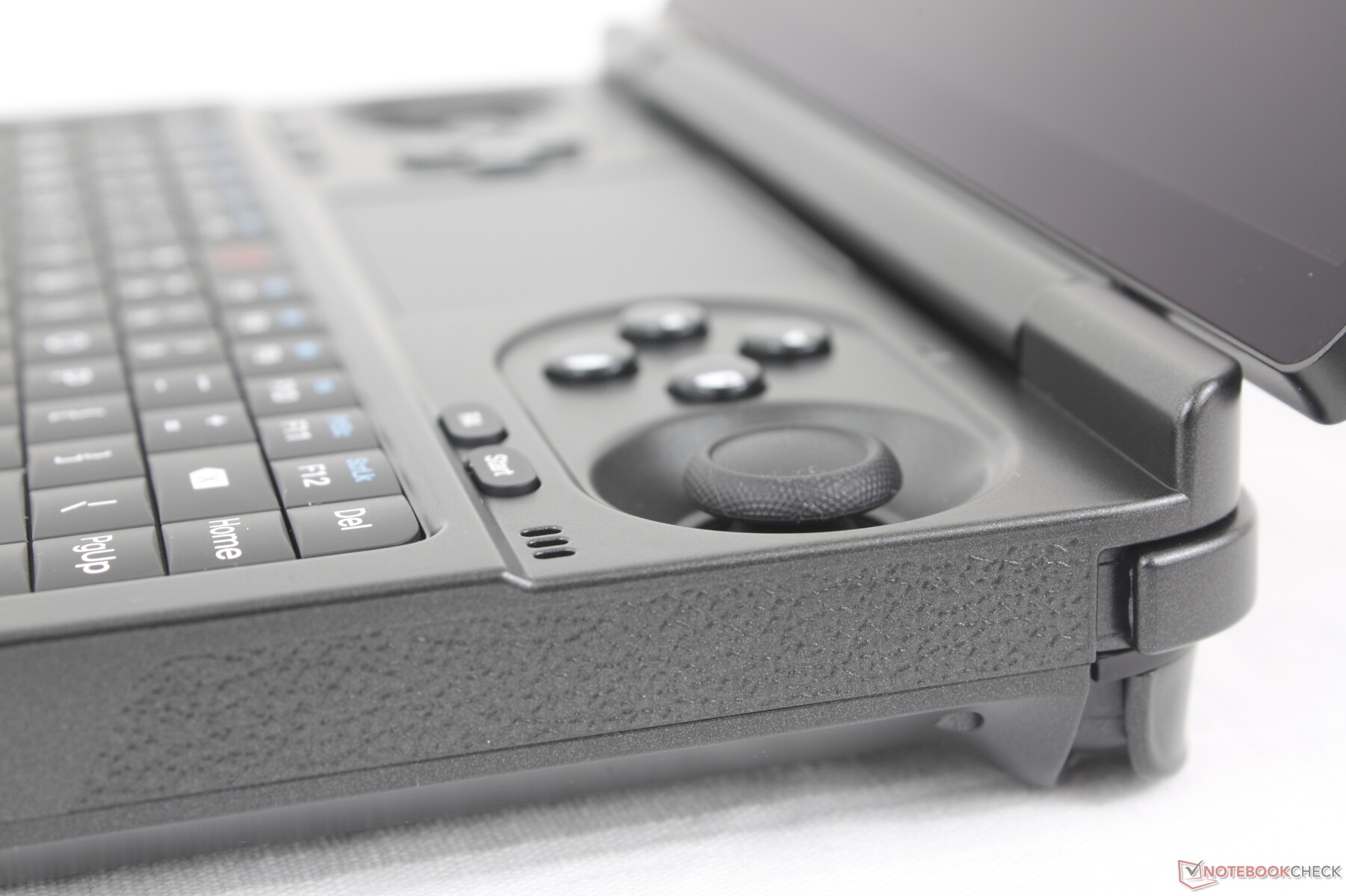

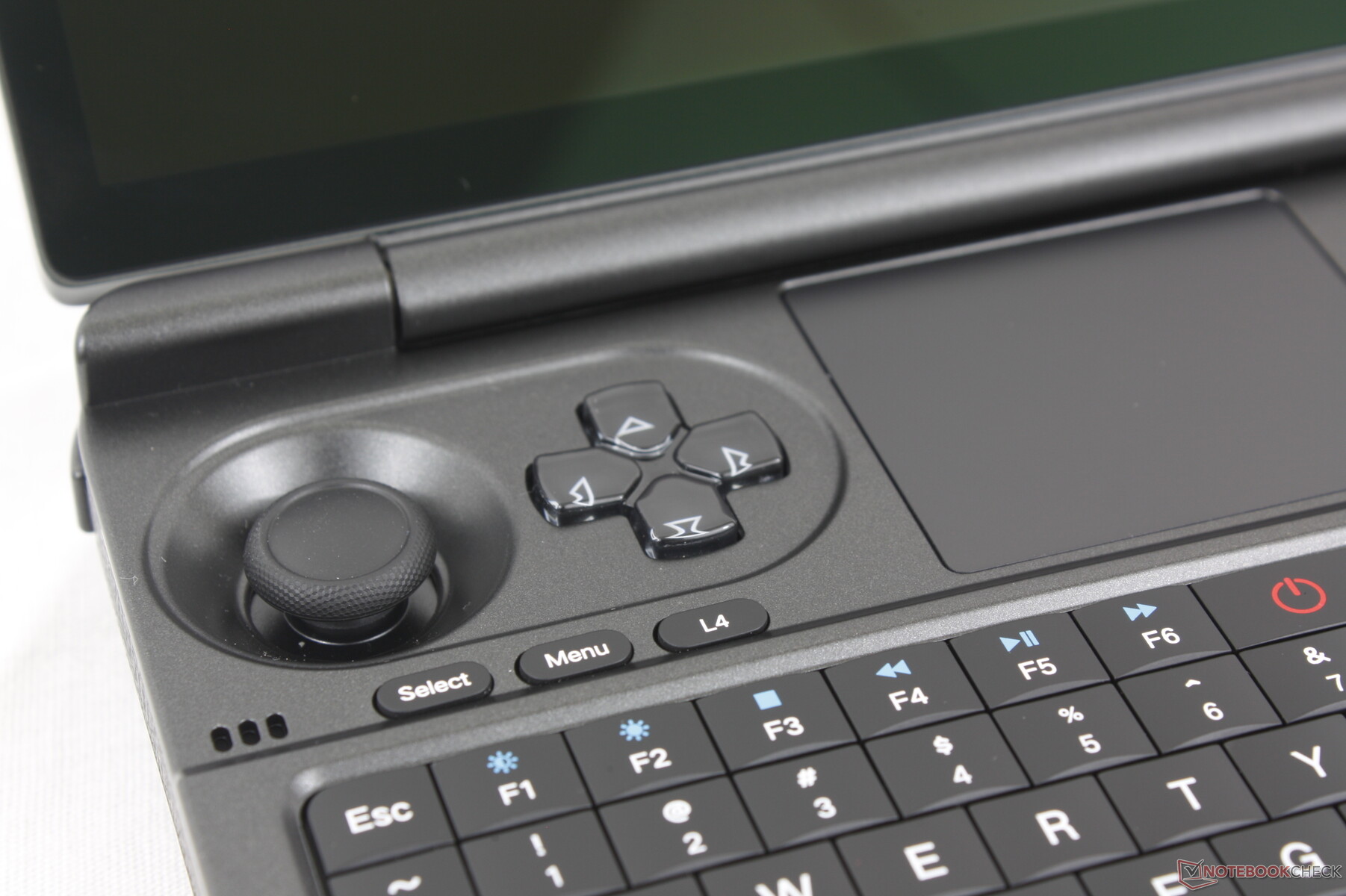

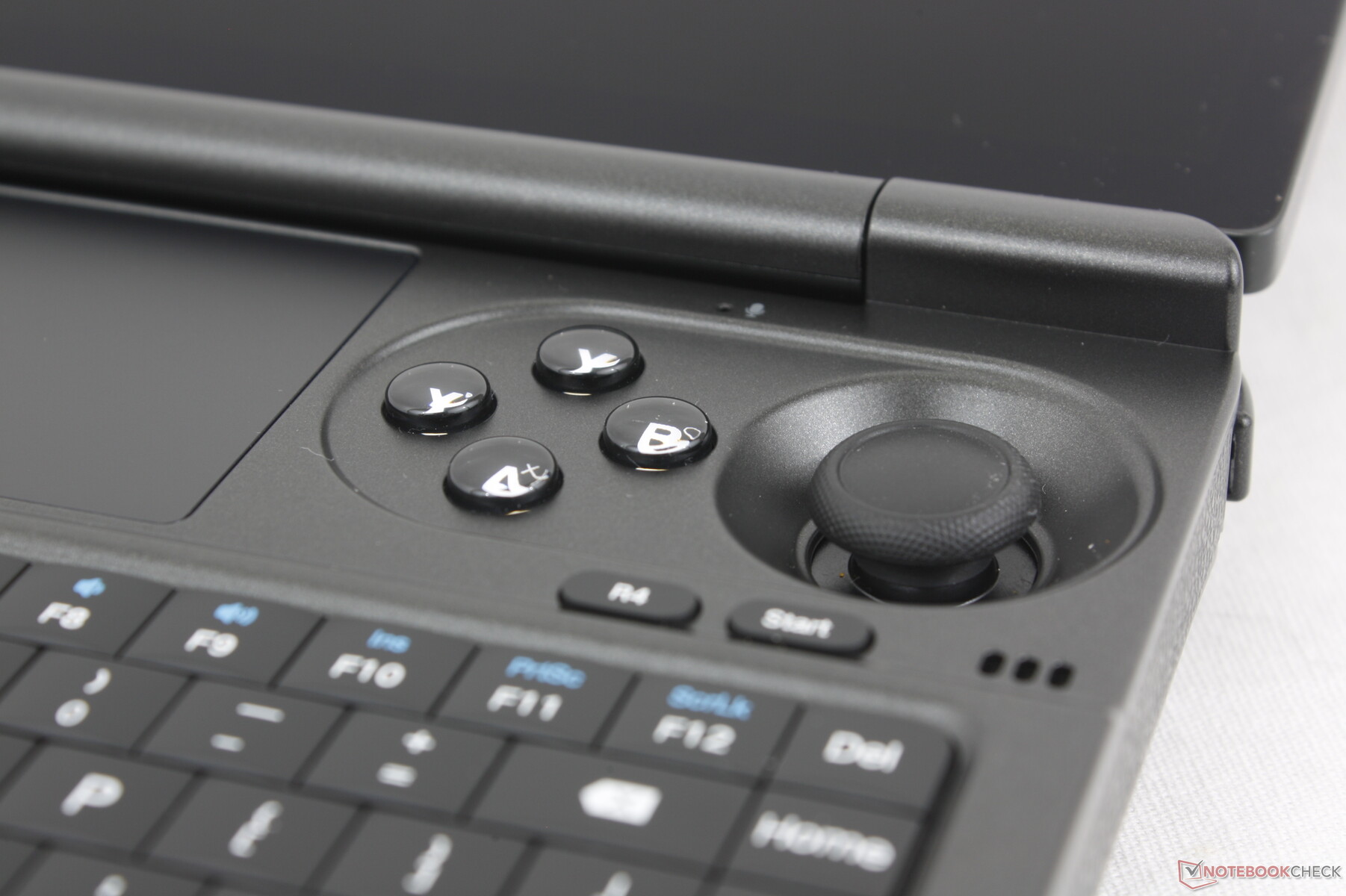

Gamepad
The integrated buttons are a mixed bag. Though their small sizes aren't an issue if you're accustomed to Switch controls, their positioning and tactility require getting used to. The directional pad and face buttons in particular are deeper towards the center of the device than on most other controllers meaning you'll have to stretch your thumbs more than usual to reach them. Feedback when pressing on the buttons is softer and shallower than on the Switch or Playstation controllers as well. The experience is satisfactory for shorter gaming sessions but still inferior to "proper" gaming handhelds from Valve, Asus, or others. Even the face buttons on the Win Max are firmer with stronger feedback than on the Win Mini.
Touchpad
Like the keyboard, the small multi-touch touchpad (4.8 x 3.9 cm) is only designed to be used occasionally or as a secondary input method to the touchscreen or joysticks. We find it much easier to simply touch the display directly especially since the touchpad integrates no tactile mouse keys which makes clicking unreliable. An external mouse becomes that much more important for workloads involving spreadsheets or cursor precision.

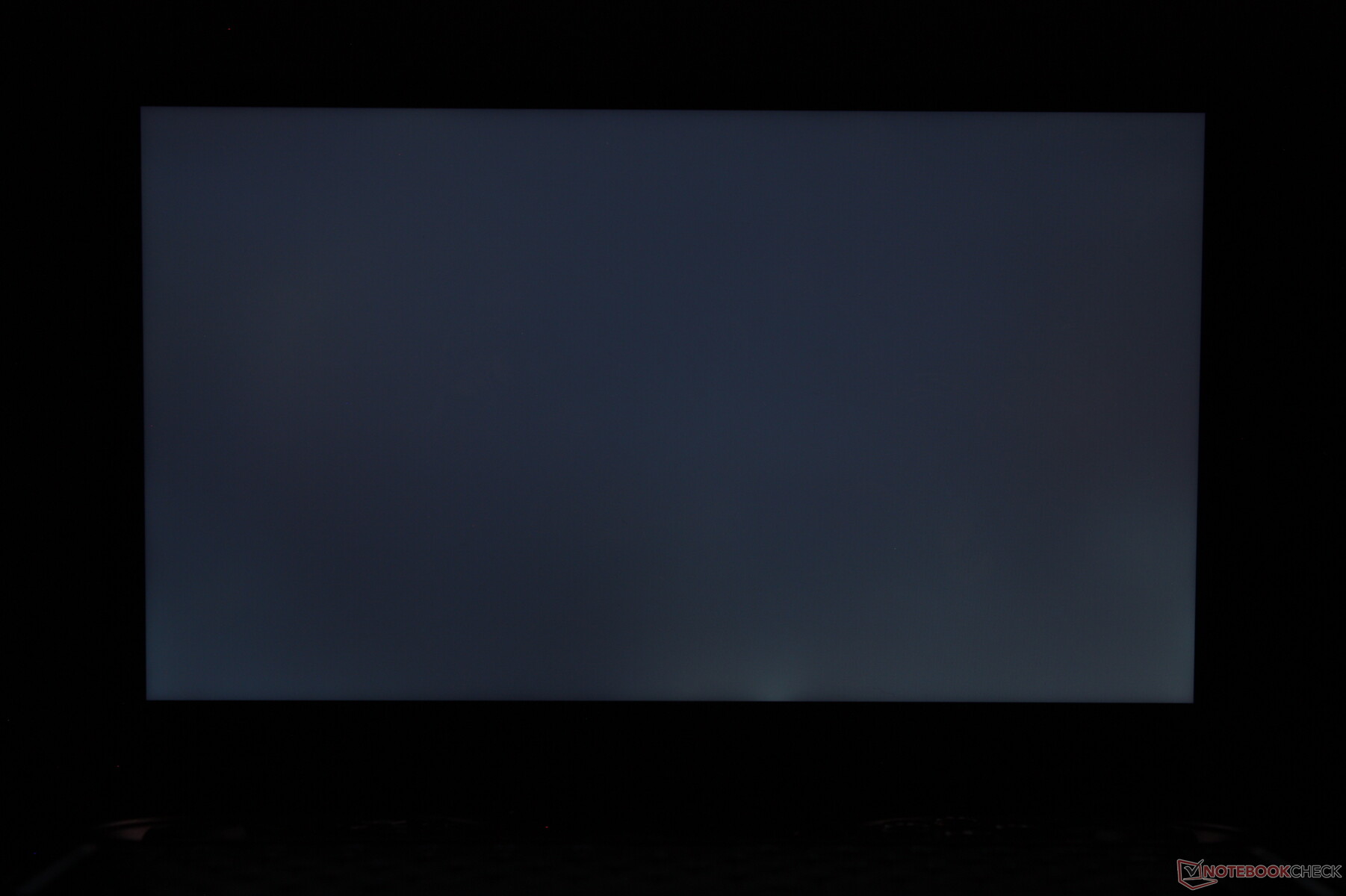

Display — The Asus ROG Ally Experience

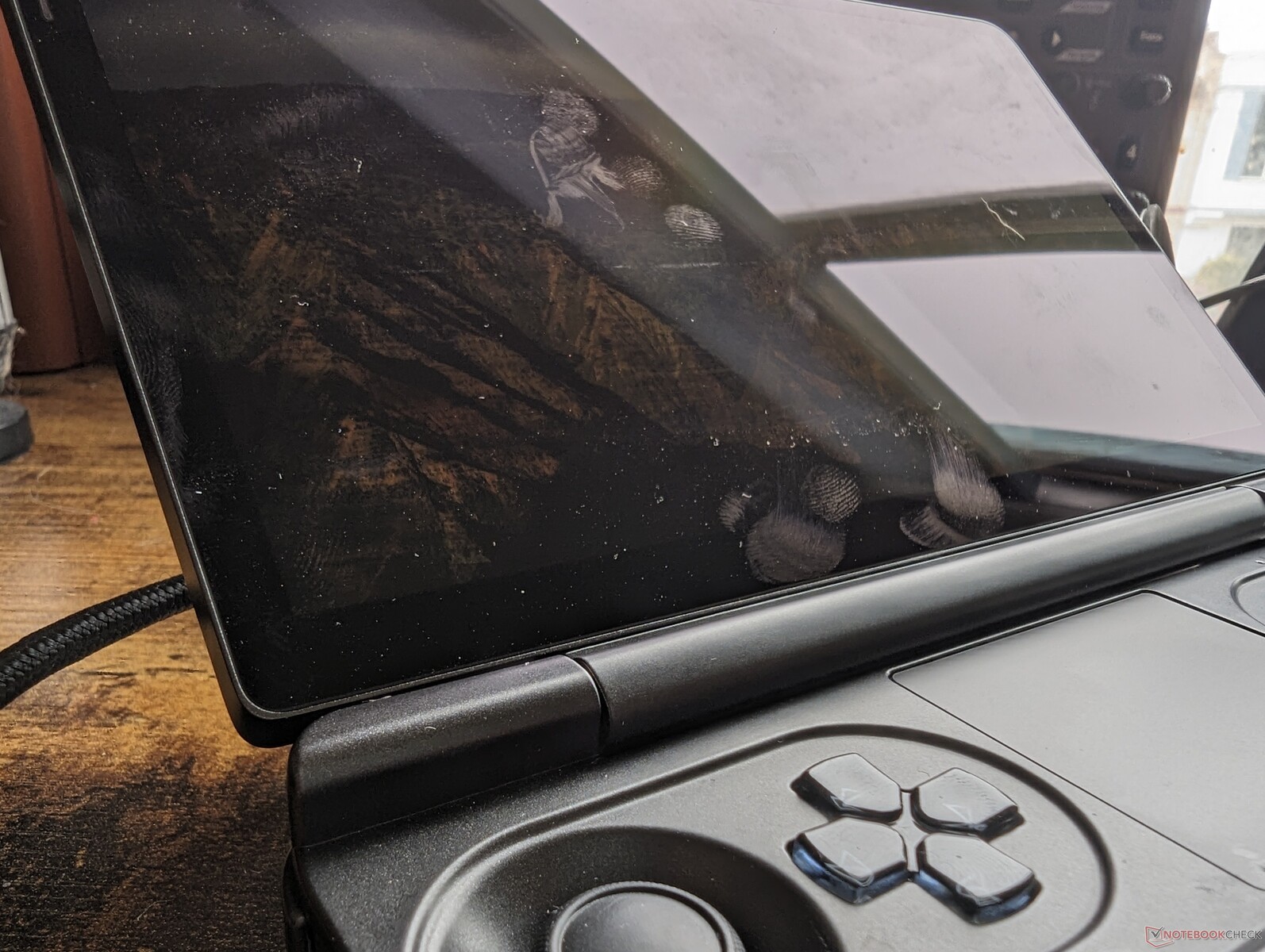

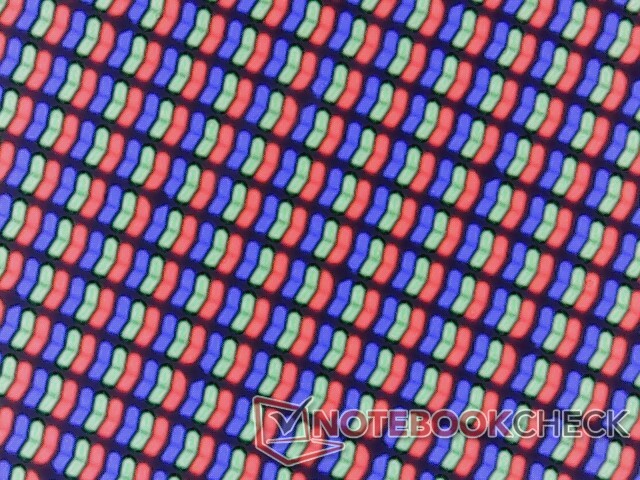

The Win Mini employs the exact same TL070FVSX01-0 IPS panel as found on the Asus ROG Ally for a very similar viewing experience between both models. Our independent measurements show that both have almost the same color coverages, black-white response times, brightness levels, and more. The GPD supports FreeSync Premium and a 120 Hz native refresh rate with Windows VRR down to 60 Hz — just like on the Asus.
| |||||||||||||||||||||||||
Brightness Distribution: 86 %
Center on Battery: 493 cd/m²
Contrast: 1049:1 (Black: 0.47 cd/m²)
ΔE Color 2.36 | 0.5-29.43 Ø4.83, calibrated: 1.3
ΔE Greyscale 4.4 | 0.09-98 Ø5.1

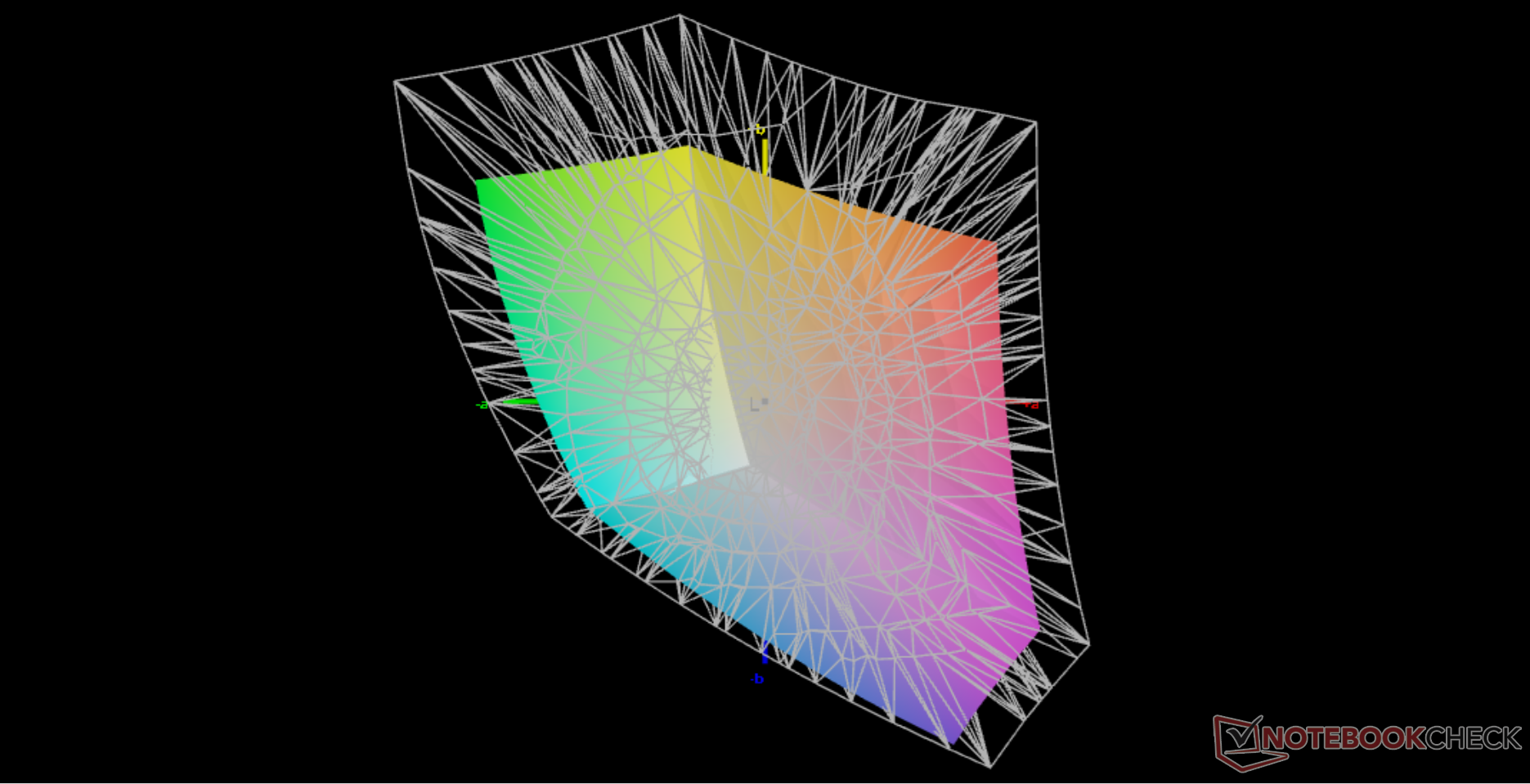

67% AdobeRGB 1998 (Argyll 2.2.0 3D)

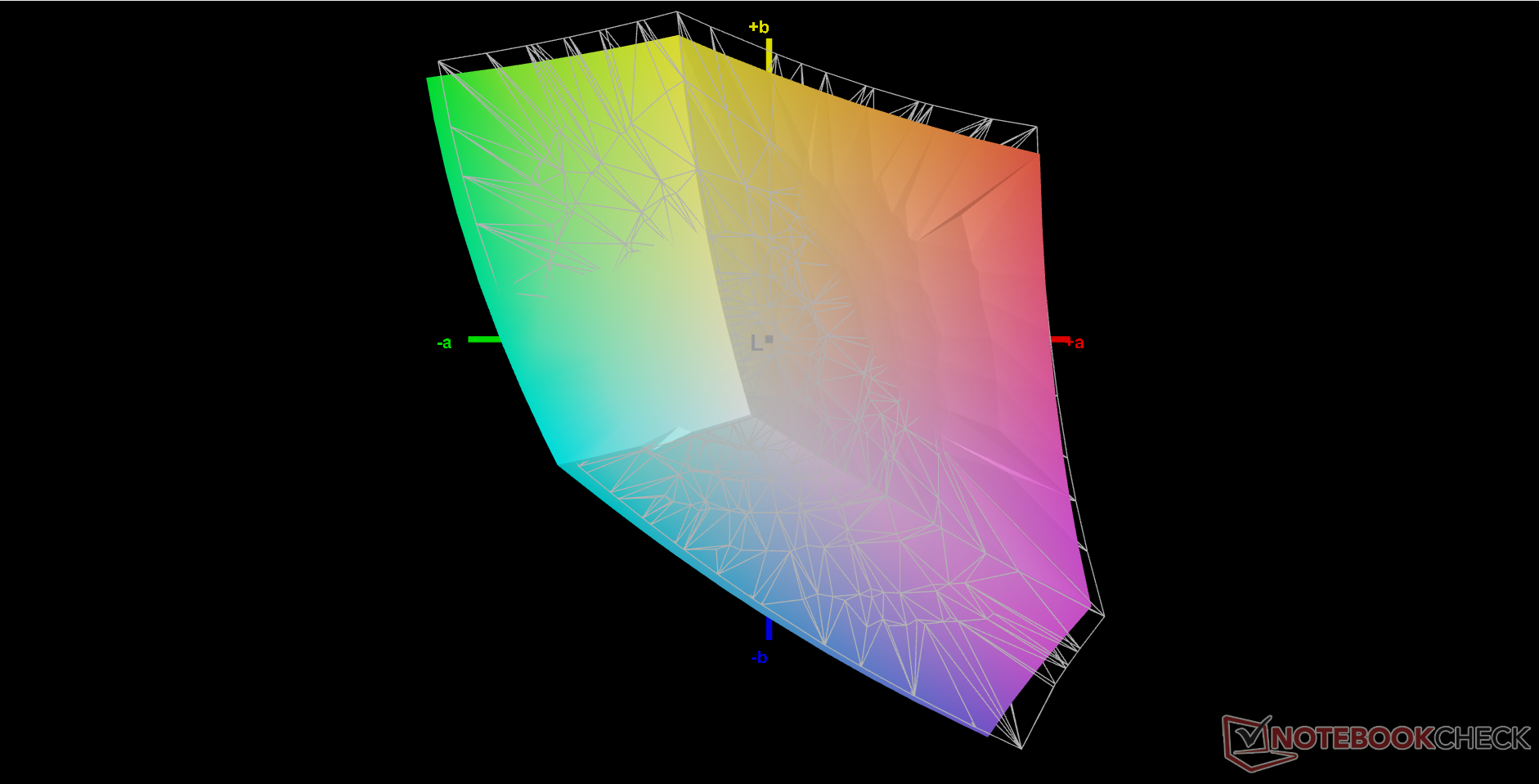

93.3% sRGB (Argyll 2.2.0 3D)
64.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.28
| GPD Win Mini 2024 7" TL070FVSX01-0, IPS, 1920x1080, 7" | GPD Win 4 G1618-04, IPS, 1920x1080, 6" | GPD Win Max 2 Toshiba HX_10.1_LCD, IPS, 2560x1600, 10.1" | Aokzoe A1 BOE0207, IPS, 1920x1200, 8" | Asus ROG Ally Z1 Extreme TL070FVSX01-0, IPS, 1920x1080, 7" | Lenovo Legion Go Legion Go Display, IPS, 2560x1600, 8.8" | |
|---|---|---|---|---|---|---|
| Display | -3% | 2% | 7% | 0% | 28% | |
| Display P3 Coverage | 64.8 | 63.1 -3% | 69.8 8% | 72.3 12% | 65.6 1% | 92.1 42% |
| sRGB Coverage | 93.3 | 92 -1% | 91 -2% | 92.6 -1% | 92.1 -1% | 99.56 7% |
| AdobeRGB 1998 Coverage | 67 | 64.6 -4% | 66.6 -1% | 73.4 10% | 67.9 1% | 90.09 34% |
| Response Times | -217% | -168% | -230% | -7% | -132% | |
| Response Time Grey 50% / Grey 80% * | 8.9 ? | 26.8 ? -201% | 21.2 ? -138% | 28.9 ? -225% | 10.5 ? -18% | 20.8 ? -134% |
| Response Time Black / White * | 6.3 ? | 20.9 ? -232% | 18.7 ? -197% | 21.1 ? -235% | 6 ? 5% | 14.4 ? -129% |
| PWM Frequency | 9970.7 | 700 | ||||
| Screen | -50% | -30% | -83% | -7% | -33% | |
| Brightness middle | 493 | 413.1 -16% | 396.7 -20% | 328.4 -33% | 513 4% | 411 -17% |
| Brightness | 470 | 407 -13% | 381 -19% | 323 -31% | 474 1% | 413 -12% |
| Brightness Distribution | 86 | 81 -6% | 89 3% | 92 7% | 84 -2% | 80 -7% |
| Black Level * | 0.47 | 0.39 17% | 0.36 23% | 0.39 17% | 0.38 19% | 0.42 11% |
| Contrast | 1049 | 1059 1% | 1102 5% | 842 -20% | 1350 29% | 979 -7% |
| Colorchecker dE 2000 * | 2.36 | 6.97 -195% | 6.31 -167% | 10.17 -331% | 3.7 -57% | 5.94 -152% |
| Colorchecker dE 2000 max. * | 6.36 | 14.11 -122% | 10.23 -61% | 18.14 -185% | 8.3 -31% | 10.56 -66% |
| Colorchecker dE 2000 calibrated * | 1.3 | 1.24 5% | 1.44 -11% | 1.07 18% | 2.95 -127% | |
| Greyscale dE 2000 * | 4.4 | 9.9 -125% | 5.5 -25% | 12.7 -189% | 5.1 -16% | 0.92 79% |
| Gamma | 2.28 96% | 2.04 108% | 2.17 101% | 2.7 81% | 2.14 103% | 1.93 114% |
| CCT | 7142 91% | 9571 68% | 7502 87% | 12502 52% | 7732 84% | 8064 81% |
| Total Average (Program / Settings) | -90% /
-64% | -65% /
-43% | -102% /
-85% | -5% /
-5% | -46% /
-34% |
* ... smaller is better

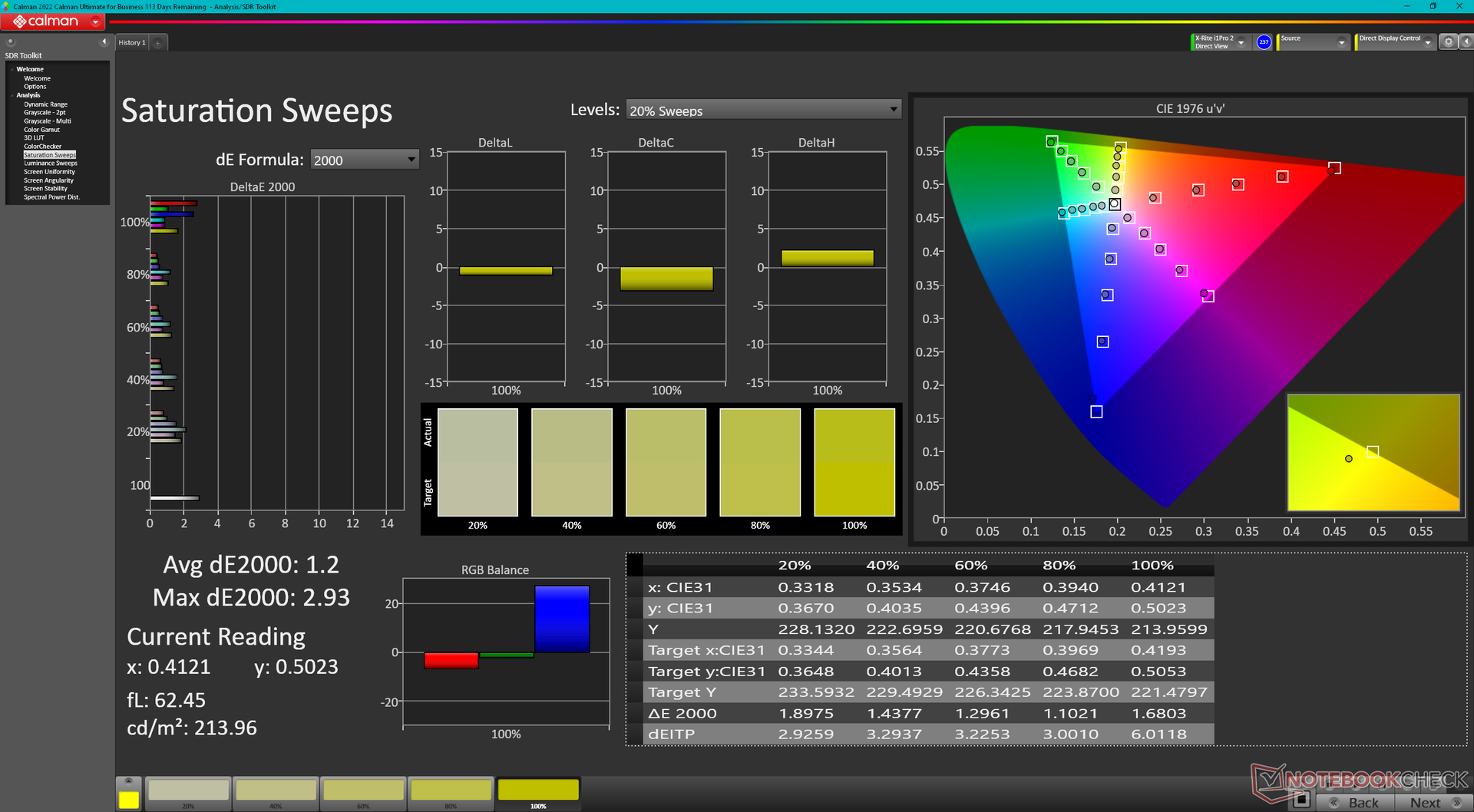

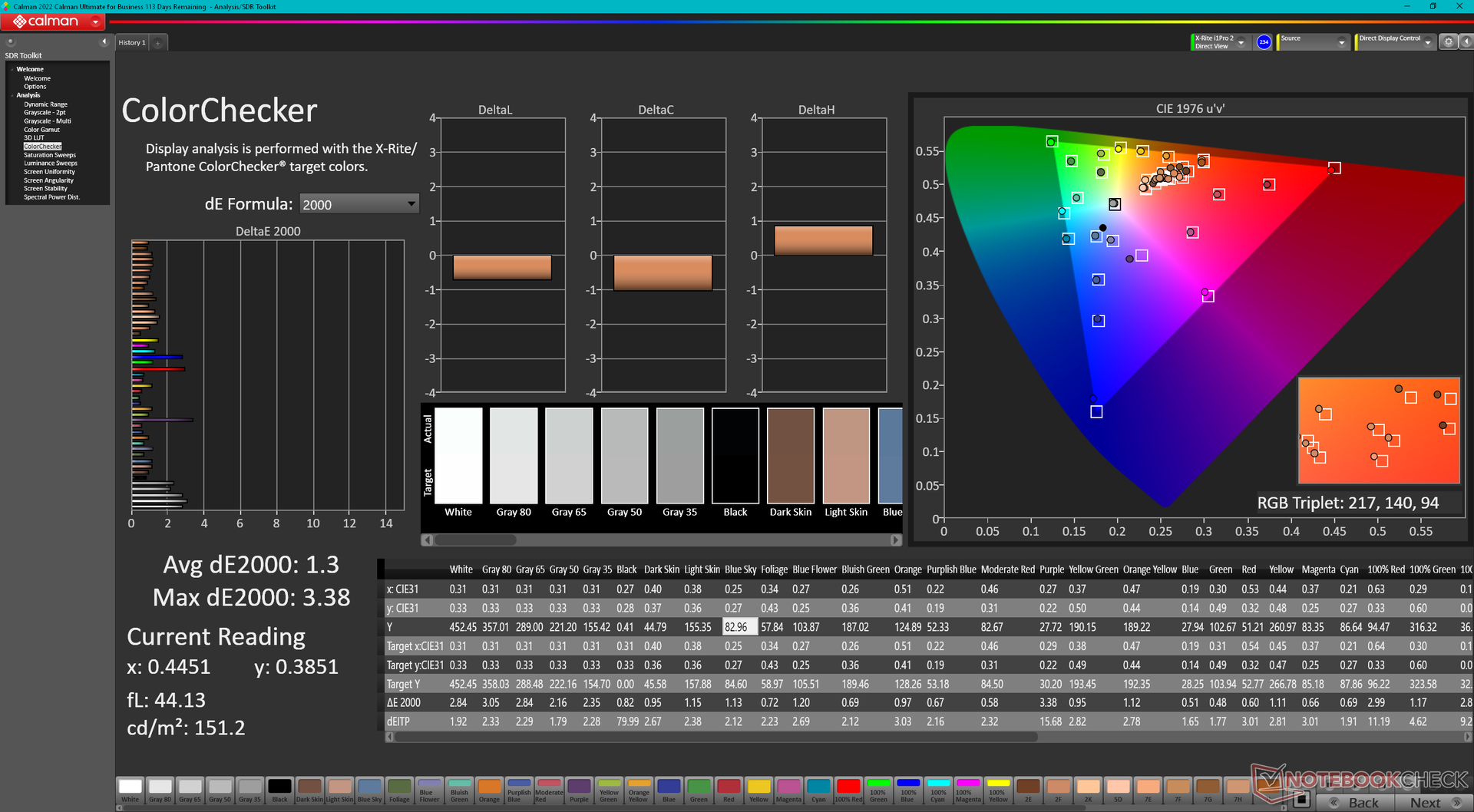

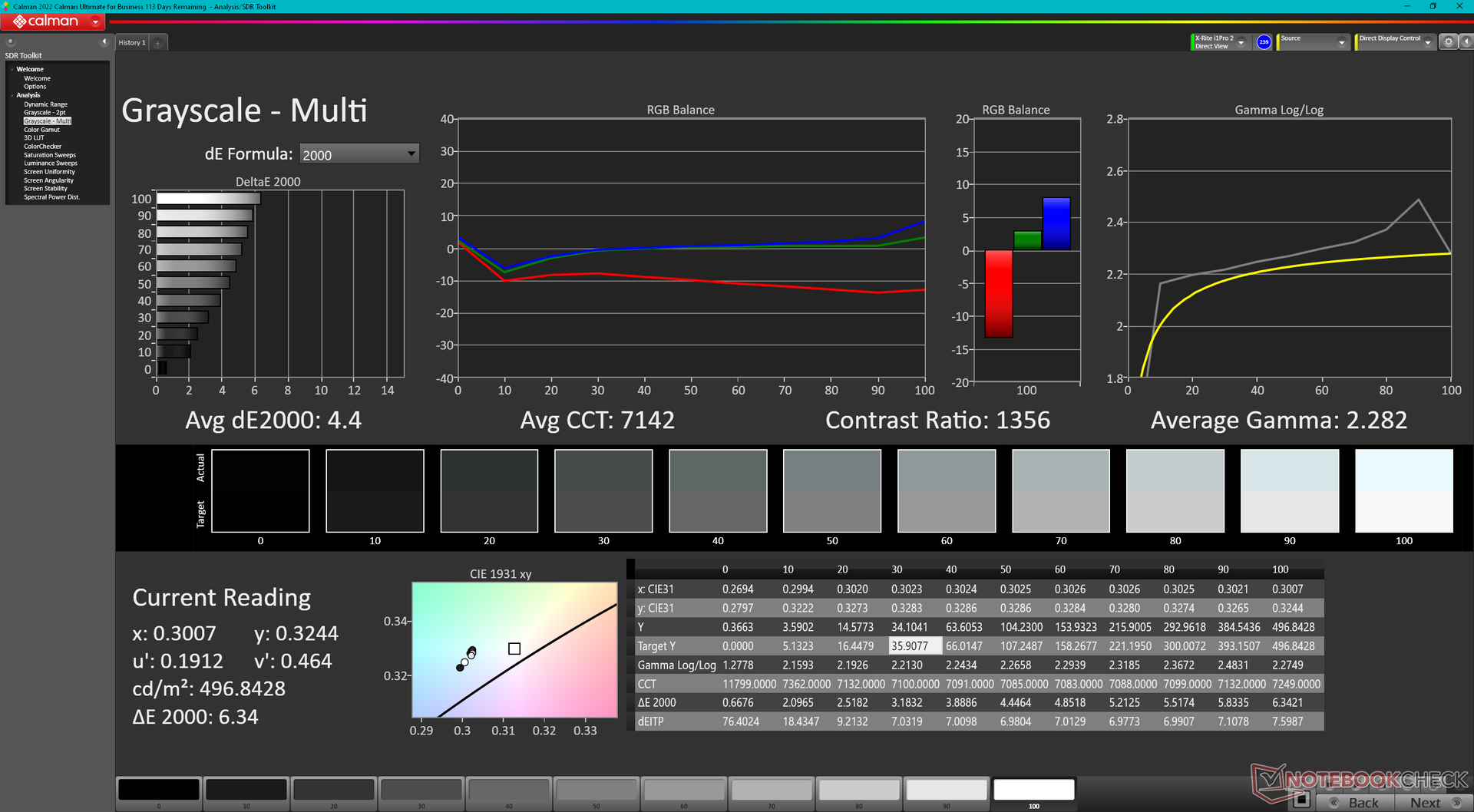

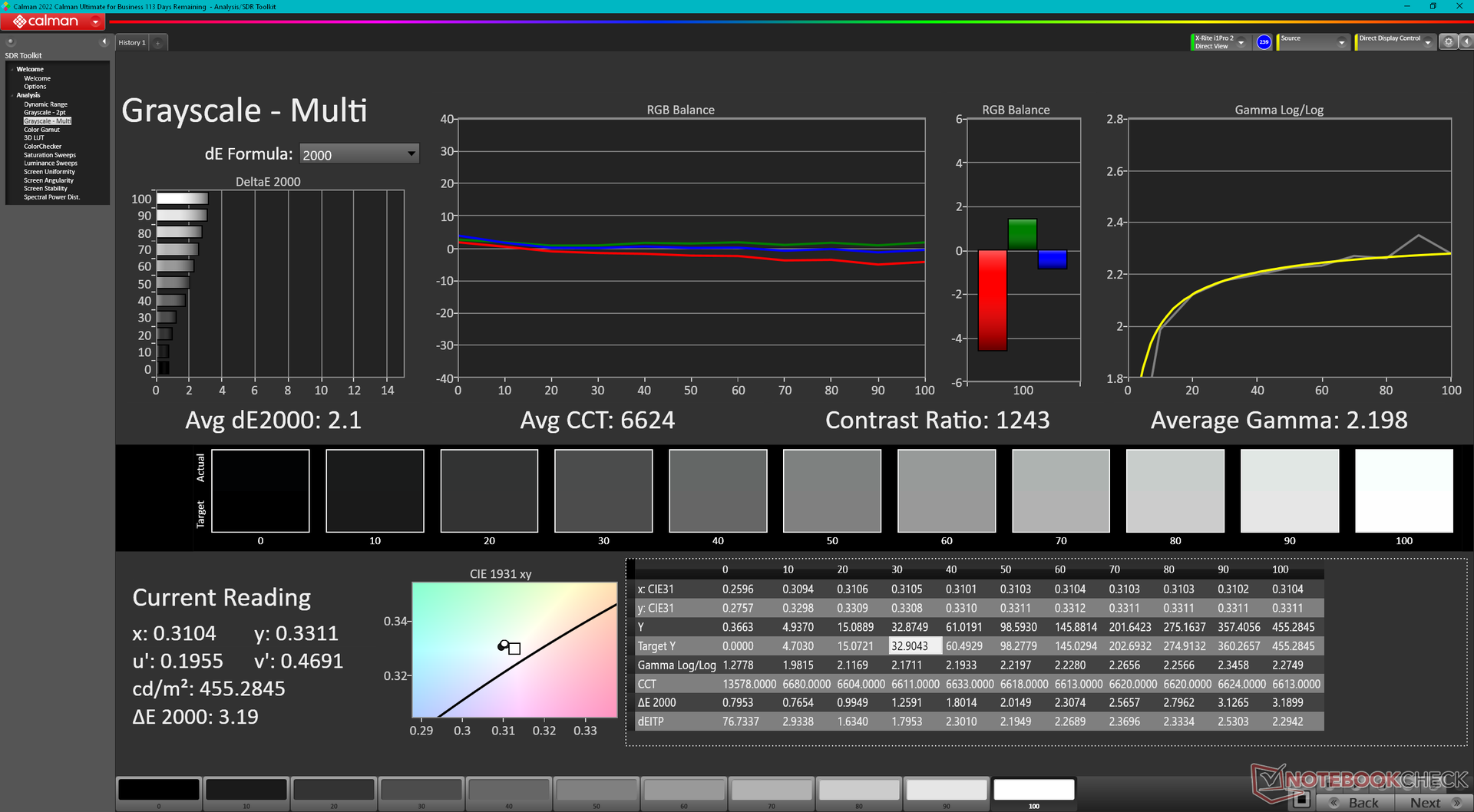

Calman results show color temperature to be slightly too cool but with otherwise decent grayscale and color accuracy. Nonetheless, a proper calibration would improve the average grayscale and color deltaE values from 4.4 and 2.36 down to just 2.1 and 1.3, respectively. We recommend applying our calibrated ICM profile above to get the most out of the sRGB display.
Display Response Times

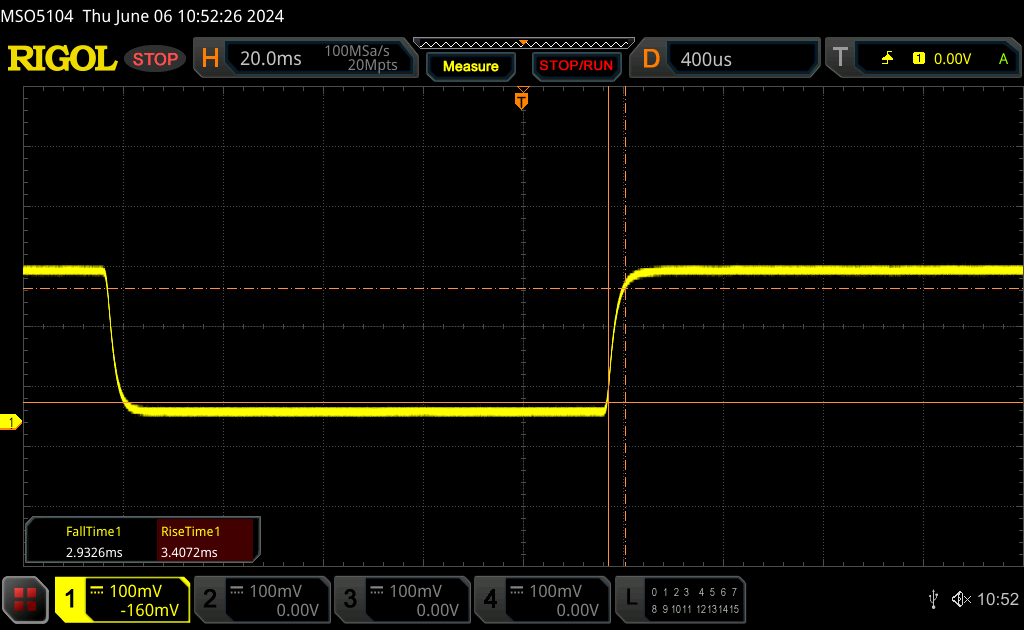

| ↔ Response Time Black to White | ||
|---|---|---|
| 6.3 ms ... rise ↗ and fall ↘ combined | ↗ 3.4 ms rise |  |
| ↘ 2.9 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 18 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.5 ms). | ||

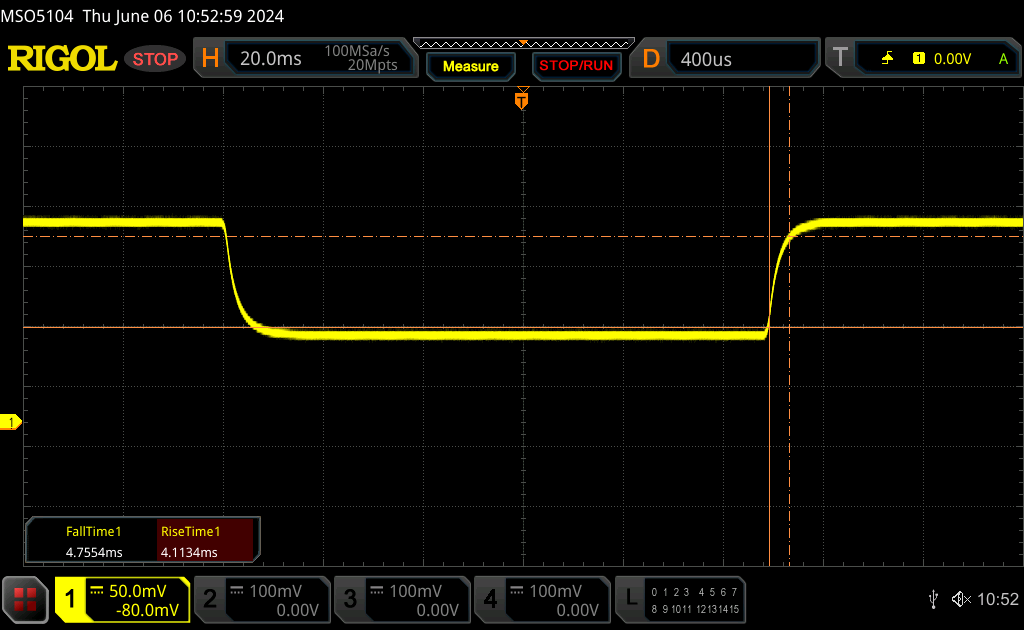

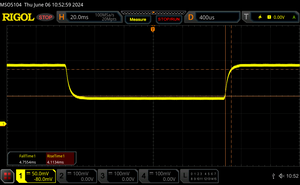

| ↔ Response Time 50% Grey to 80% Grey | ||
| 8.9 ms ... rise ↗ and fall ↘ combined | ↗ 4.1 ms rise |  |
| ↘ 4.8 ms fall | ||
| The screen shows fast response rates in our tests and should be suited for gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 20 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.1 ms). | ||

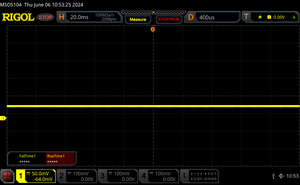

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8350 (minimum: 5 - maximum: 343500) Hz was measured. | |||

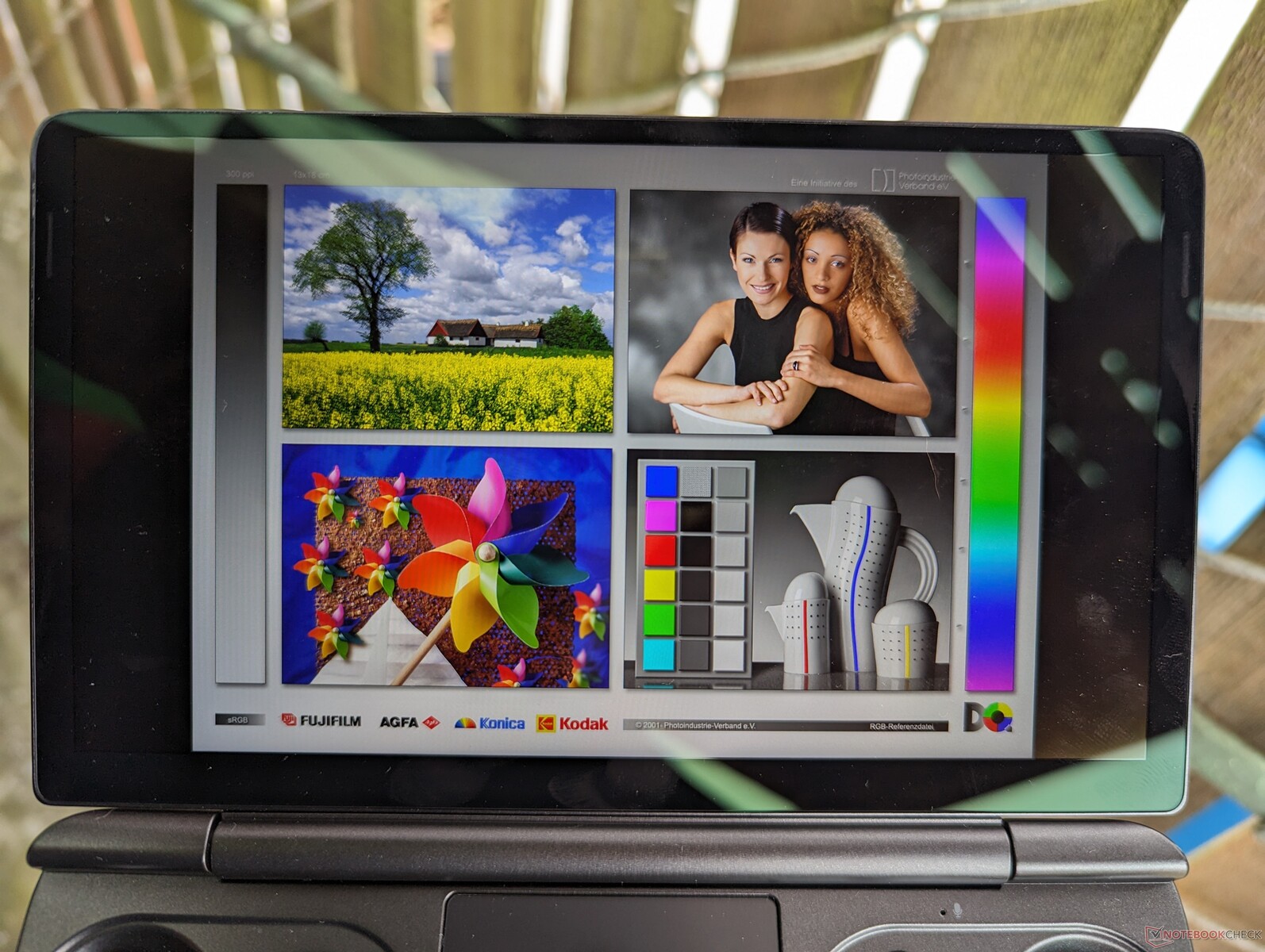

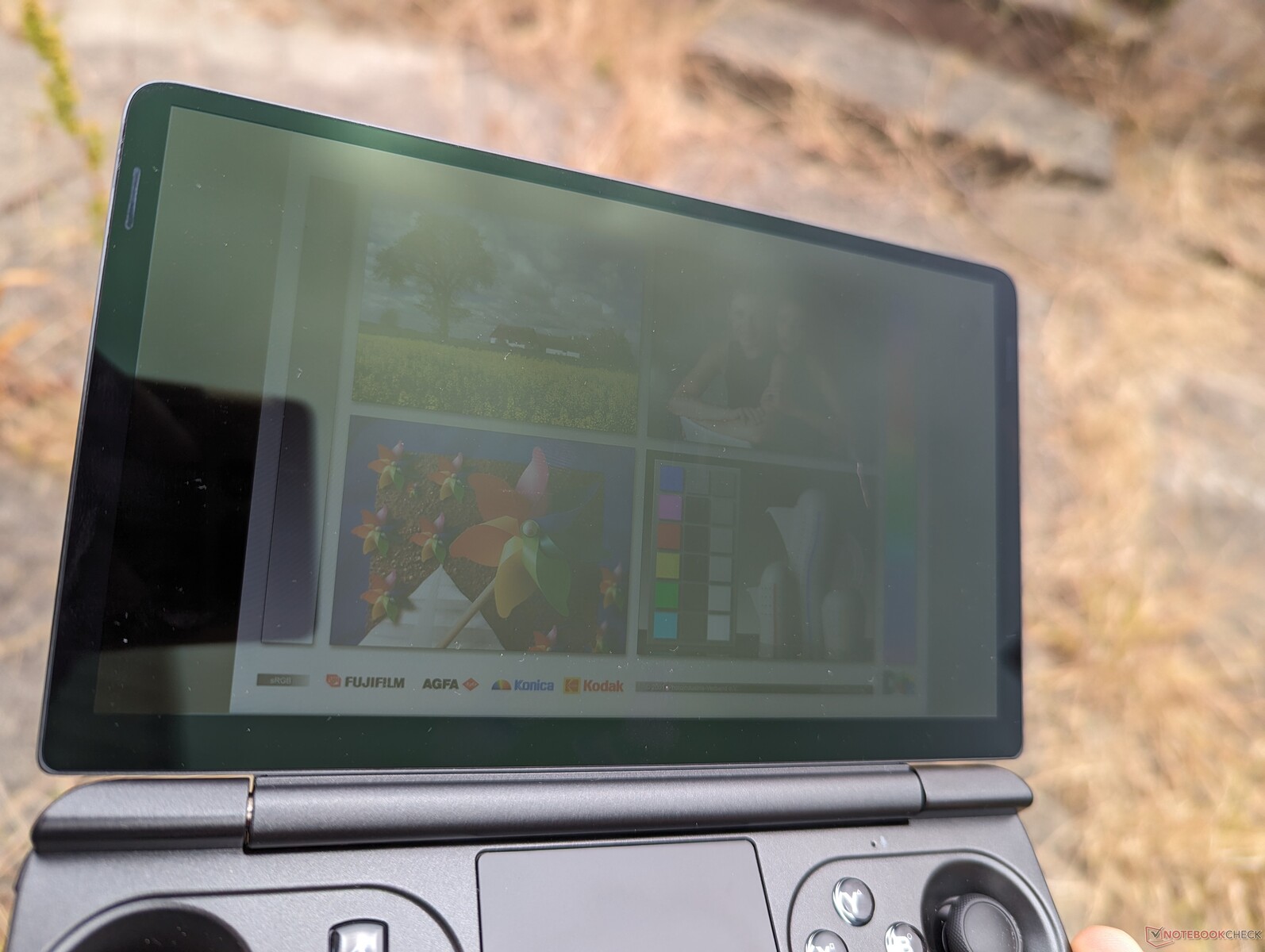

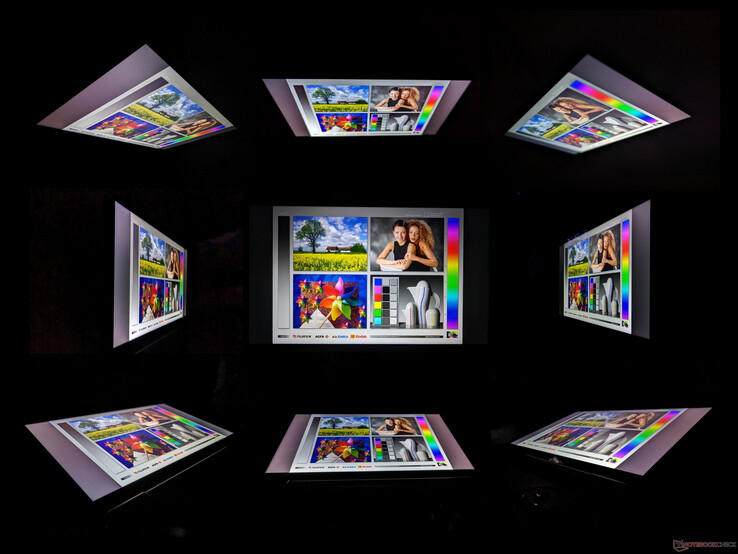

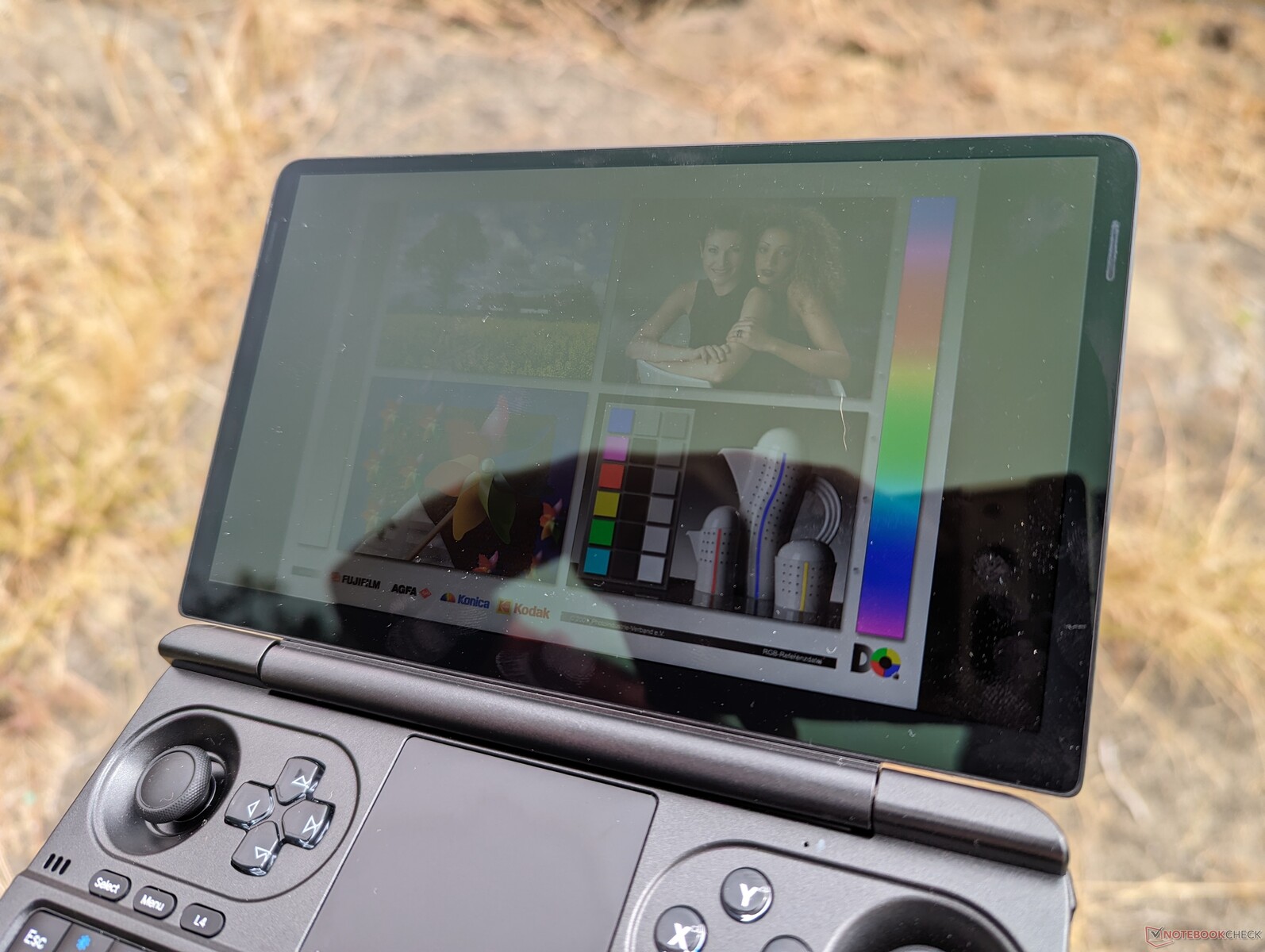

While 500 nits is brighter than on many other handhelds like the Win 4, Aokzoe A1, or Legion Go, it's still not bright enough to overcome glare when outdoors. The otherwise vibrant screen when indoors becomes faded and washed out under most outdoor conditions. For such a small screen where text sizes are extra small, the screen will need to be as bright as some smartphones where 1000 nits or higher are becoming commonplace.
Performance — AI-Ready AMD Zen 4 CPU
Testing Conditions
We set Windows to Performance mode prior to running the benchmarks below.
Processor

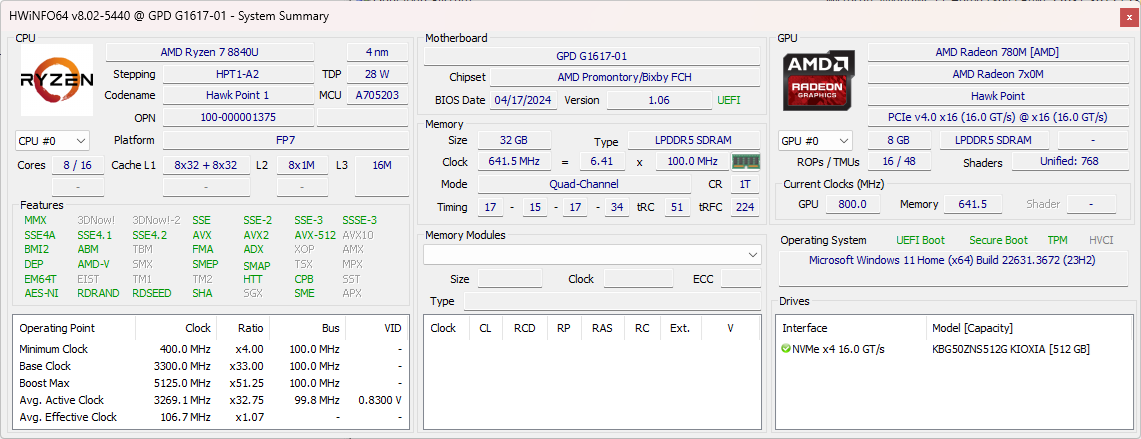

The Win Mini features the same Ryzen 7 8840U processor as found on the 14-inch Minisforum V3 convertible. Due partly to our much smaller 7-inch form factor, however, raw multi-thread performance is about 20 to 25 percent slower for an overall performance that is more in line with the two-year old Ryzen 7 6800U. Even the Ayaneo Kun running on the last generation Ryzen 7 7840U can run up to 50 percent faster than our GPD unit powered by the newer Ryzen 7 8840U. The manufacturer has almost certainly underclocked the AMD chip when compared to competitors sporting similar processors.

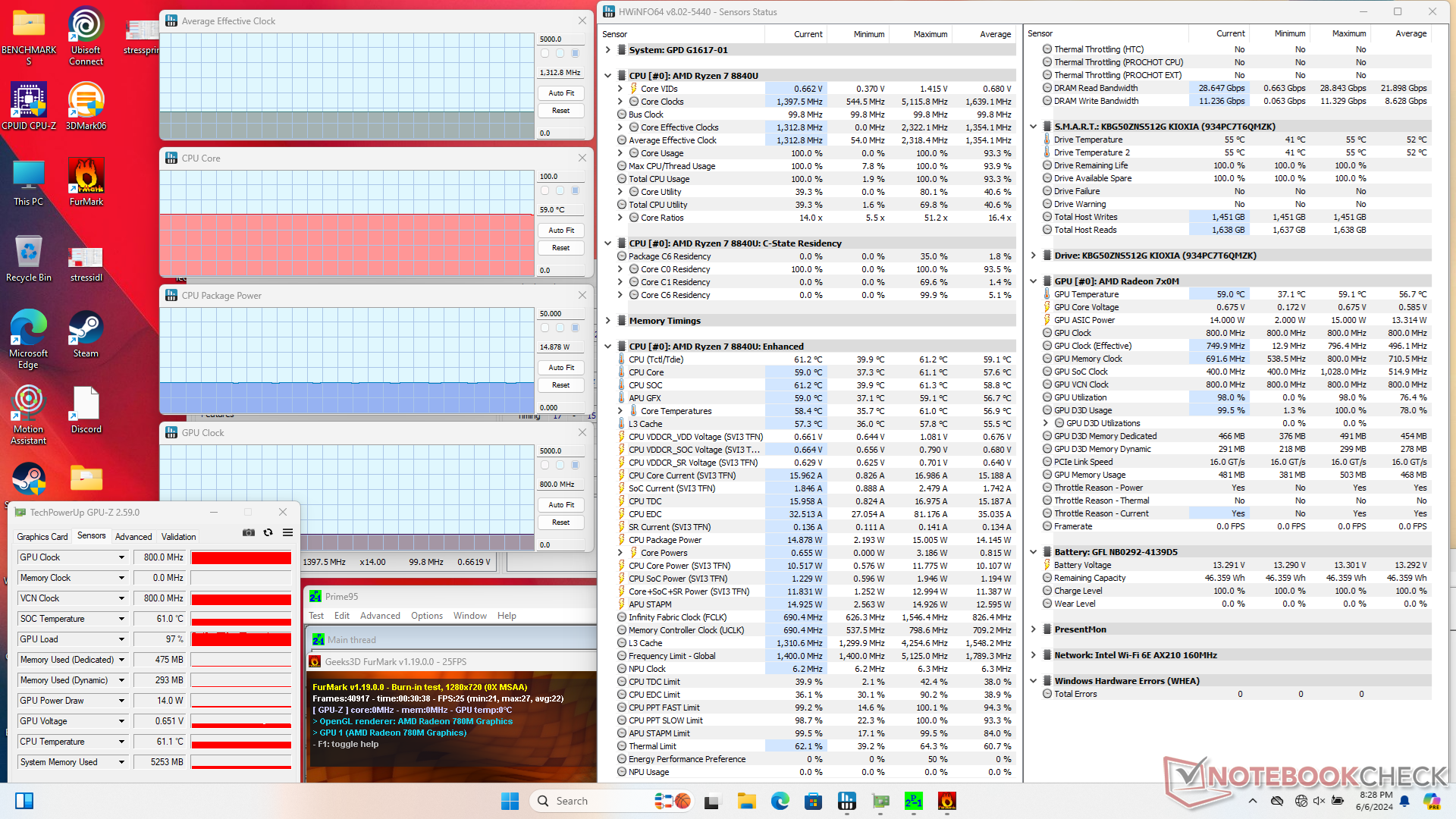

Furthermore, Turbo Core performance is essentially nonexistent as demonstrated by our CineBench R15 xT loop test results below.
Cinebench R15 Multi Loop
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Asus ROG Ally Z1 Extreme | |
| Asus Zenbook 14 OLED UM3406HA | |
| Lenovo Legion Go -2! | |
| Minisforum V3 | |
| Ayaneo Kun | |
| Average AMD Ryzen 7 8840U | |
| GPD Win Mini 2024 7" | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| Aokzoe A1 | |
| GPD Win 4 -2! | |
| GPD Win Max 2 -2! | |
| One Netbook XPlayer 2 -3! | |
| GPD Win Max 2021 -4! | |
| Cinebench R20 / CPU (Multi Core) | |
| Ayaneo Kun | |
| Asus ROG Ally Z1 Extreme | |
| Asus Zenbook 14 OLED UM3406HA | |
| Lenovo Legion Go | |
| Minisforum V3 | |
| Average AMD Ryzen 7 8840U (3987 - 5336, n=5) | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
| One Netbook XPlayer 2 | |
| GPD Win Max 2021 | |
| GPD Win Max 2 | |
| Cinebench R20 / CPU (Single Core) | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Max 2 | |
| Asus Zenbook 14 OLED UM3406HA | |
| Lenovo Legion Go | |
| GPD Win Mini 2024 7" | |
| Minisforum V3 | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| Ayaneo Kun | |
| Average AMD Ryzen 7 8840U (427 - 680, n=5) | |
| GPD Win 4 | |
| Aokzoe A1 | |
| GPD Win Max 2021 | |
| One Netbook XPlayer 2 | |
| Cinebench R15 / CPU Multi 64Bit | |
| Ayaneo Kun | |
| Asus ROG Ally Z1 Extreme | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| Asus Zenbook 14 OLED UM3406HA | |
| Lenovo Legion Go | |
| Minisforum V3 | |
| Average AMD Ryzen 7 8840U (1539 - 2453, n=5) | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
| One Netbook XPlayer 2 | |
| GPD Win Max 2021 | |
| GPD Win Max 2 | |
| Cinebench R15 / CPU Single 64Bit | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| Asus Zenbook 14 OLED UM3406HA | |
| GPD Win Mini 2024 7" | |
| Minisforum V3 | |
| GPD Win Max 2 | |
| Average AMD Ryzen 7 8840U (176.6 - 275, n=5) | |
| GPD Win 4 | |
| Ayaneo Kun | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| Aokzoe A1 | |
| GPD Win Max 2021 | |
| One Netbook XPlayer 2 | |
| Blender / v2.79 BMW27 CPU | |
| GPD Win Max 2 | |
| GPD Win Max 2021 | |
| One Netbook XPlayer 2 | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| GPD Win Mini 2024 7" | |
| GPD Win 4 | |
| Aokzoe A1 | |
| Average AMD Ryzen 7 8840U (239 - 315, n=5) | |
| Minisforum V3 | |
| Asus Zenbook 14 OLED UM3406HA | |
| Asus ROG Ally Z1 Extreme | |
| Ayaneo Kun | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Asus ROG Ally Z1 Extreme | |
| Asus Zenbook 14 OLED UM3406HA | |
| GPD Win Mini 2024 7" | |
| Minisforum V3 | |
| Average AMD Ryzen 7 8840U (4168 - 6469, n=5) | |
| GPD Win Max 2 | |
| Ayaneo Kun | |
| Aokzoe A1 | |
| GPD Win 4 | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| GPD Win Max 2021 | |
| One Netbook XPlayer 2 | |
| Geekbench 6.4 / Multi-Core | |
| Asus ROG Ally Z1 Extreme | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| Asus Zenbook 14 OLED UM3406HA | |
| Minisforum V3 | |
| Lenovo Legion Go | |
| Lenovo Legion Go | |
| Average AMD Ryzen 7 8840U (9609 - 12664, n=5) | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| Ayaneo Kun | |
| Geekbench 6.4 / Single-Core | |
| Asus Zenbook 14 OLED UM3406HA | |
| Lenovo Legion Go | |
| Lenovo Legion Go | |
| Minisforum V3 | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Mini 2024 7" | |
| Average AMD Ryzen 7 8840U (1654 - 2607, n=5) | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| Ayaneo Kun | |
| Aokzoe A1 | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Ayaneo Kun | |
| Asus ROG Ally Z1 Extreme | |
| Asus Zenbook 14 OLED UM3406HA | |
| Minisforum V3 | |
| Lenovo Legion Go | |
| Average AMD Ryzen 7 8840U (12.5 - 16.5, n=5) | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
| One Netbook XPlayer 2 | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| GPD Win Max 2021 | |
| GPD Win Max 2 | |
| LibreOffice / 20 Documents To PDF | |
| One Netbook XPlayer 2 | |
| GPD Win Max 2021 | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| Average AMD Ryzen 7 8840U (49 - 63.8, n=5) | |
| Ayaneo Kun | |
| Minisforum V3 | |
| Lenovo Legion Go | |
| GPD Win 4 | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| Asus Zenbook 14 OLED UM3406HA | |
| GPD Win Max 2 | |
| Asus ROG Ally Z1 Extreme | |
| R Benchmark 2.5 / Overall mean | |
| GPD Win Max 2021 | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| GPD Win 4 | |
| Aokzoe A1 | |
| Average AMD Ryzen 7 8840U (0.4514 - 0.678, n=5) | |
| Ayaneo Kun | |
| Ayaneo Kun | |
| Minisforum V3 | |
| GPD Win Mini 2024 7" | |
| Lenovo Legion Go | |
| GPD Win Max 2 | |
| Asus Zenbook 14 OLED UM3406HA | |
| Asus ROG Ally Z1 Extreme | |
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Ryzen 7 8840U | |
| Lenovo Legion Go | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| AIDA64 / FP32 Ray-Trace | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| Average AMD Ryzen 7 8840U (15166 - 20723, n=5) | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| AIDA64 / FPU Julia | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| Aokzoe A1 | |
| Average AMD Ryzen 7 8840U (64229 - 87120, n=5) | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
| GPD Win Max 2 | |
| AIDA64 / CPU SHA3 | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| Average AMD Ryzen 7 8840U (3156 - 3896, n=5) | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| AIDA64 / CPU Queen | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| Average AMD Ryzen 7 8840U (76873 - 110682, n=5) | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
| GPD Win Max 2 | |
| AIDA64 / FPU SinJulia | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| Average AMD Ryzen 7 8840U (10289 - 13143, n=5) | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
| GPD Win Max 2 | |
| AIDA64 / FPU Mandel | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| Aokzoe A1 | |
| Average AMD Ryzen 7 8840U (34209 - 45793, n=5) | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
| GPD Win Max 2 | |
| AIDA64 / CPU AES | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| GPD Win 4 | |
| Average AMD Ryzen 7 8840U (70017 - 119040, n=5) | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| GPD Win Max 2 | |
| AIDA64 / CPU ZLib | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Ryzen 7 8840U (654 - 869, n=5) | |
| Aokzoe A1 | |
| Lenovo Legion Go | |
| GPD Win Mini 2024 7" | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| AIDA64 / FP64 Ray-Trace | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| Average AMD Ryzen 7 8840U (7715 - 10812, n=5) | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| AIDA64 / CPU PhotoWorxx | |
| GPD Win Mini 2024 7" | |
| Average AMD Ryzen 7 8840U (34561 - 40481, n=5) | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| GPD Win Max 2 | |
| GPD Win 4 | |
| Aokzoe A1 | |
Stress Test

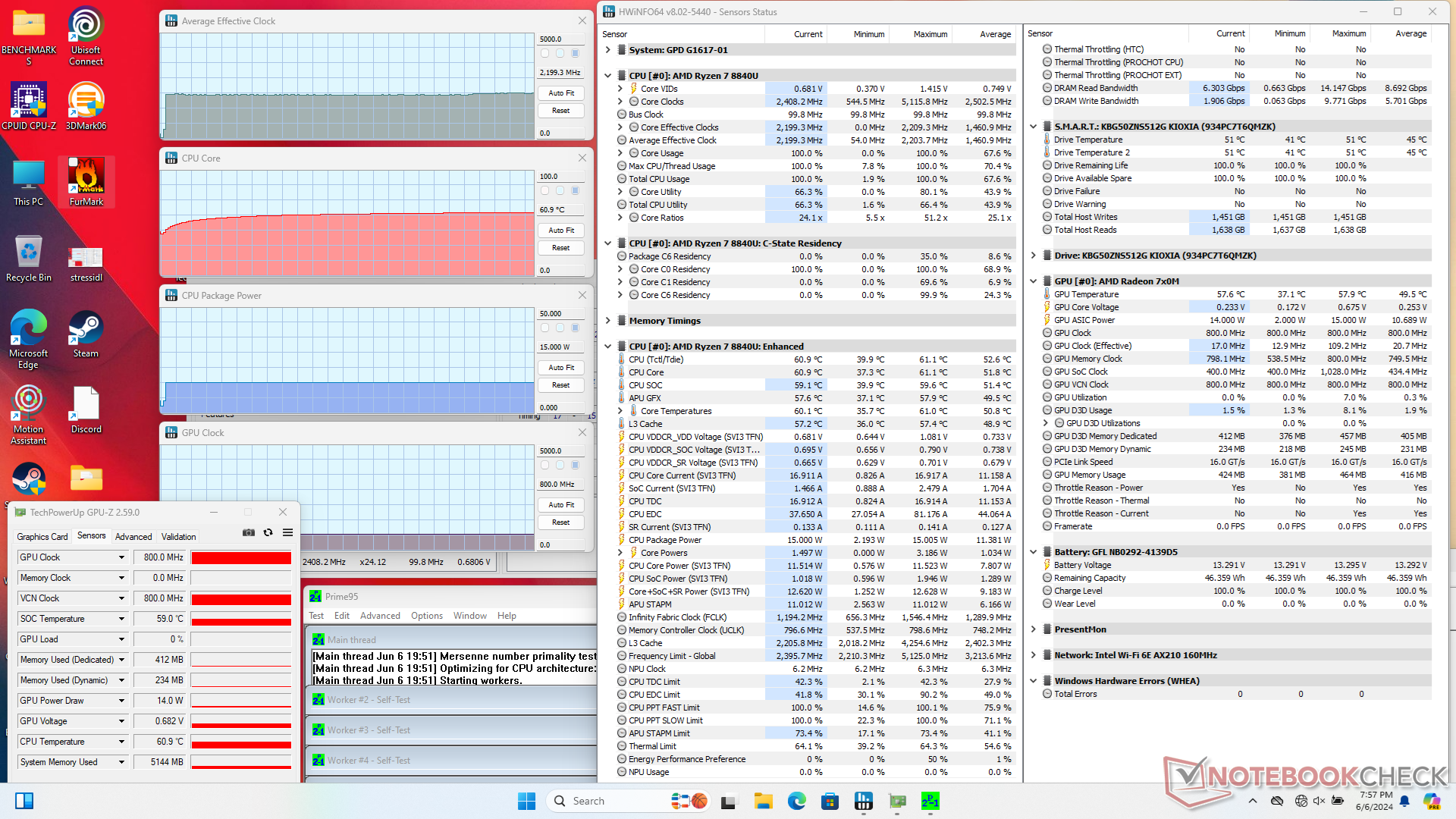

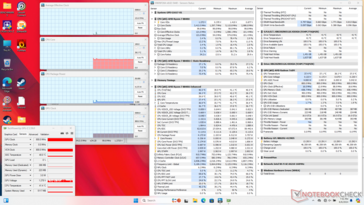

The CPU would boost to 2.2 GHz, 61 C, and 15 W when running Prime95 stress with no further dips or increases throughout the rest of the test. This observation complements the flat CineBench R15 xT results in the section above and relatively low power consumption levels in the section below. The limited 15 W power envelope is notably disappointing as Ryzen U-series CPUs in laptops like the HP Pavilion Plus 14 can often draw over 25 W in comparison.

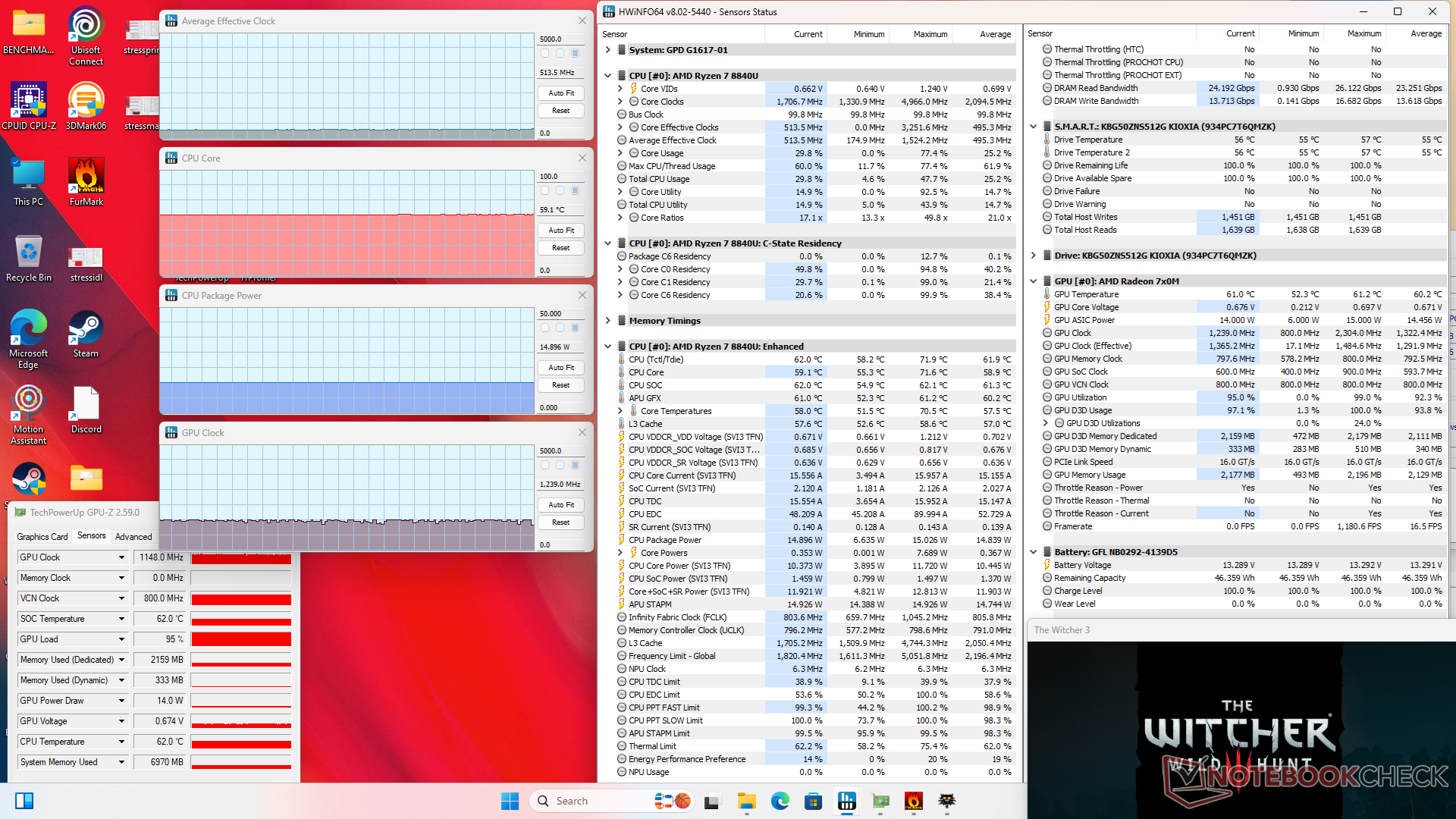

When running Witcher 3, the GPU would cycle between 1289 and 1499 MHz compared to a steady 1833 MHz on the aforementioned HP laptop. The manufacturer-imposed underclocking is apparent in this situation.
| Average CPU Clock (GHz) | GPU Clock (MHz) | Average CPU Temperature (°C) | |
| System Idle | -- | -- | 38 |
| Prime95 Stress | 2.2 | -- | 61 |
| Prime95 + FurMark Stress | 1.3 | 800 | 59 |
| Witcher 3 Stress | 0.5 | 1289 - 1499 | 59 |
System Performance

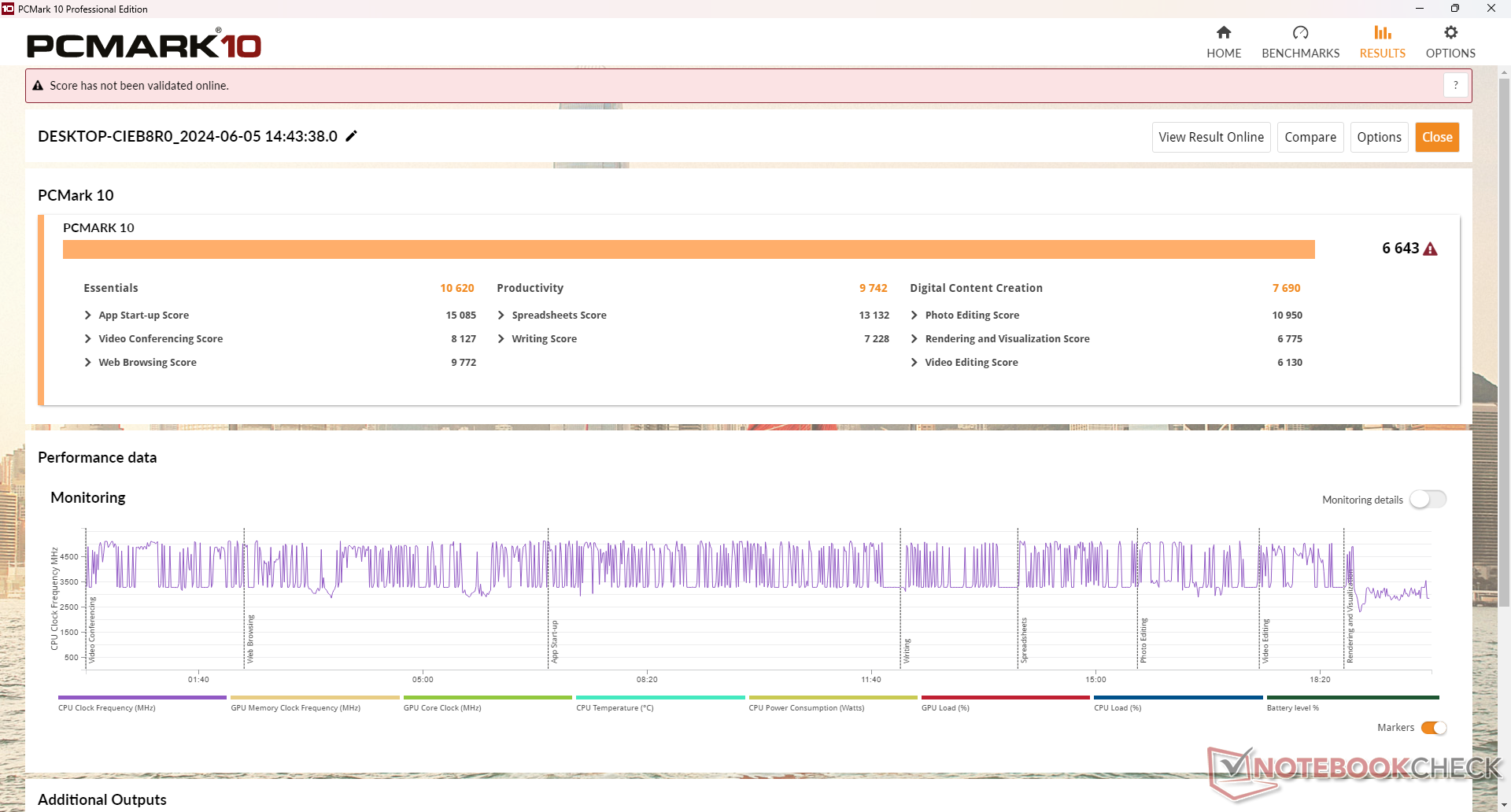

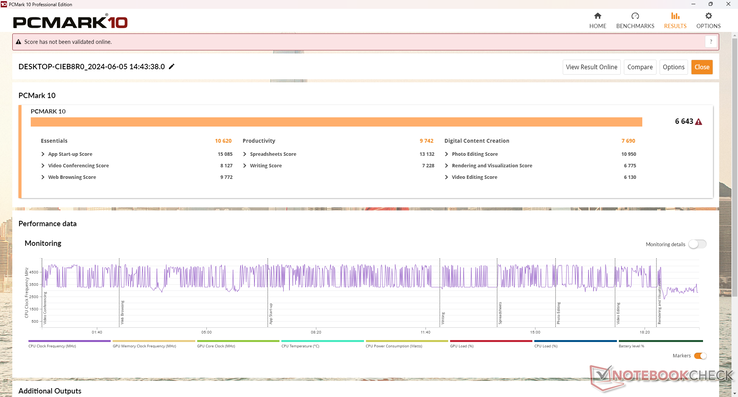

PCMark results are comparable to other high-end handhelds including the ROG Ally Z1 Extreme and Legion Go. Its Digital Content Creation subscore, however, is notably a bit slower which reflects the slightly slower GPU performance of the Win Mini.
Interestingly, WebXPRT 4 would always hang after several reruns and so this score has been omitted.
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| PCMark 10 / Score | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (5940 - 7098, n=5) | |
| Lenovo Legion Go | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| PCMark 10 / Essentials | |
| GPD Win Max 2 | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (9541 - 10664, n=5) | |
| GPD Win 4 | |
| Lenovo Legion Go | |
| PCMark 10 / Productivity | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (7522 - 10386, n=5) | |
| GPD Win 4 | |
| Lenovo Legion Go | |
| GPD Win Max 2 | |
| PCMark 10 / Digital Content Creation | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (7690 - 8762, n=5) | |
| Aokzoe A1 | |
| Lenovo Legion Go | |
| GPD Win Mini 2024 7" | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| CrossMark / Overall | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Max 2 | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (1541 - 1766, n=4) | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| CrossMark / Productivity | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Max 2 | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (1514 - 1695, n=4) | |
| GPD Win 4 | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| CrossMark / Creativity | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (1677 - 1948, n=4) | |
| GPD Win Max 2 | |
| GPD Win Mini 2024 7" | |
| GPD Win 4 | |
| Aokzoe A1 | |
| CrossMark / Responsiveness | |
| GPD Win Max 2 | |
| GPD Win 4 | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (1262 - 1543, n=4) | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| WebXPRT 3 / Overall | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Mini 2024 7" | |
| Lenovo Legion Go | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (216 - 306, n=5) | |
| WebXPRT 4 / Overall | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (170.4 - 249, n=4) | |
| Aokzoe A1 | |
| GPD Win 4 | |
| Mozilla Kraken 1.1 / Total | |
| Aokzoe A1 | |
| GPD Win 4 | |
| Average AMD Ryzen 7 8840U, AMD Radeon 780M (515 - 779, n=5) | |
| Lenovo Legion Go | |
| GPD Win Max 2 | |
| GPD Win Mini 2024 7" | |
* ... smaller is better
| PCMark 10 Score | 6643 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| Average AMD Ryzen 7 8840U (65911 - 76458, n=5) | |
| GPD Win Mini 2024 7" | |
| GPD Win Max 2 | |
| GPD Win 4 | |
| Aokzoe A1 | |
| AIDA64 / Memory Read | |
| GPD Win Max 2 | |
| Lenovo Legion Go | |
| Average AMD Ryzen 7 8840U (49381 - 61307, n=5) | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Mini 2024 7" | |
| GPD Win 4 | |
| Aokzoe A1 | |
| AIDA64 / Memory Write | |
| Lenovo Legion Go | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Mini 2024 7" | |
| Average AMD Ryzen 7 8840U (83400 - 106180, n=5) | |
| GPD Win Max 2 | |
| GPD Win 4 | |
| Aokzoe A1 | |
| AIDA64 / Memory Latency | |
| Lenovo Legion Go | |
| GPD Win Mini 2024 7" | |
| Average AMD Ryzen 7 8840U (98.9 - 133.7, n=5) | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win 4 | |
| Aokzoe A1 | |
| GPD Win Max 2 | |
* ... smaller is better
DPC Latency

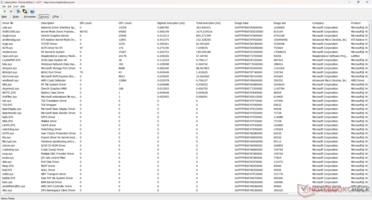

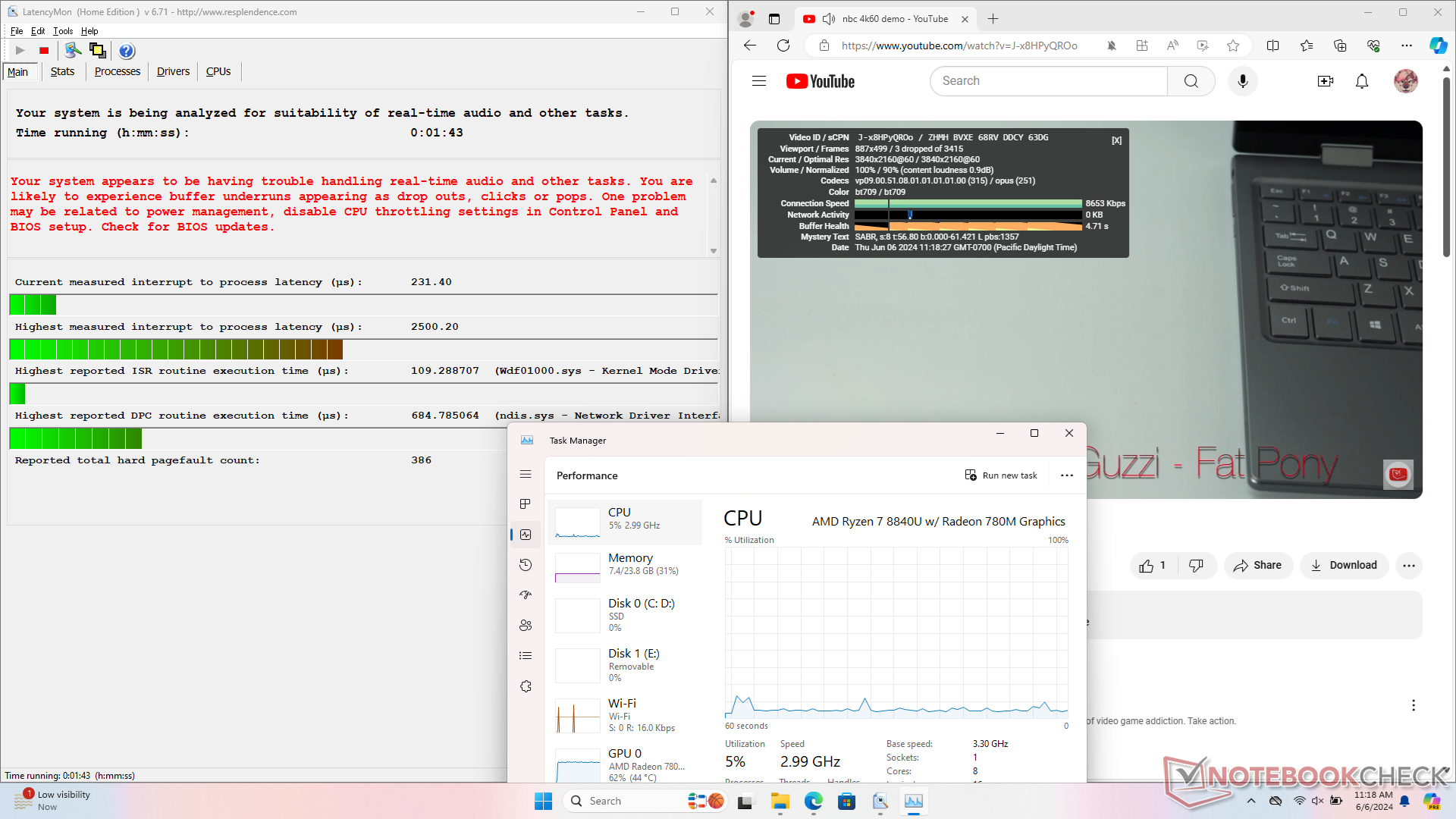

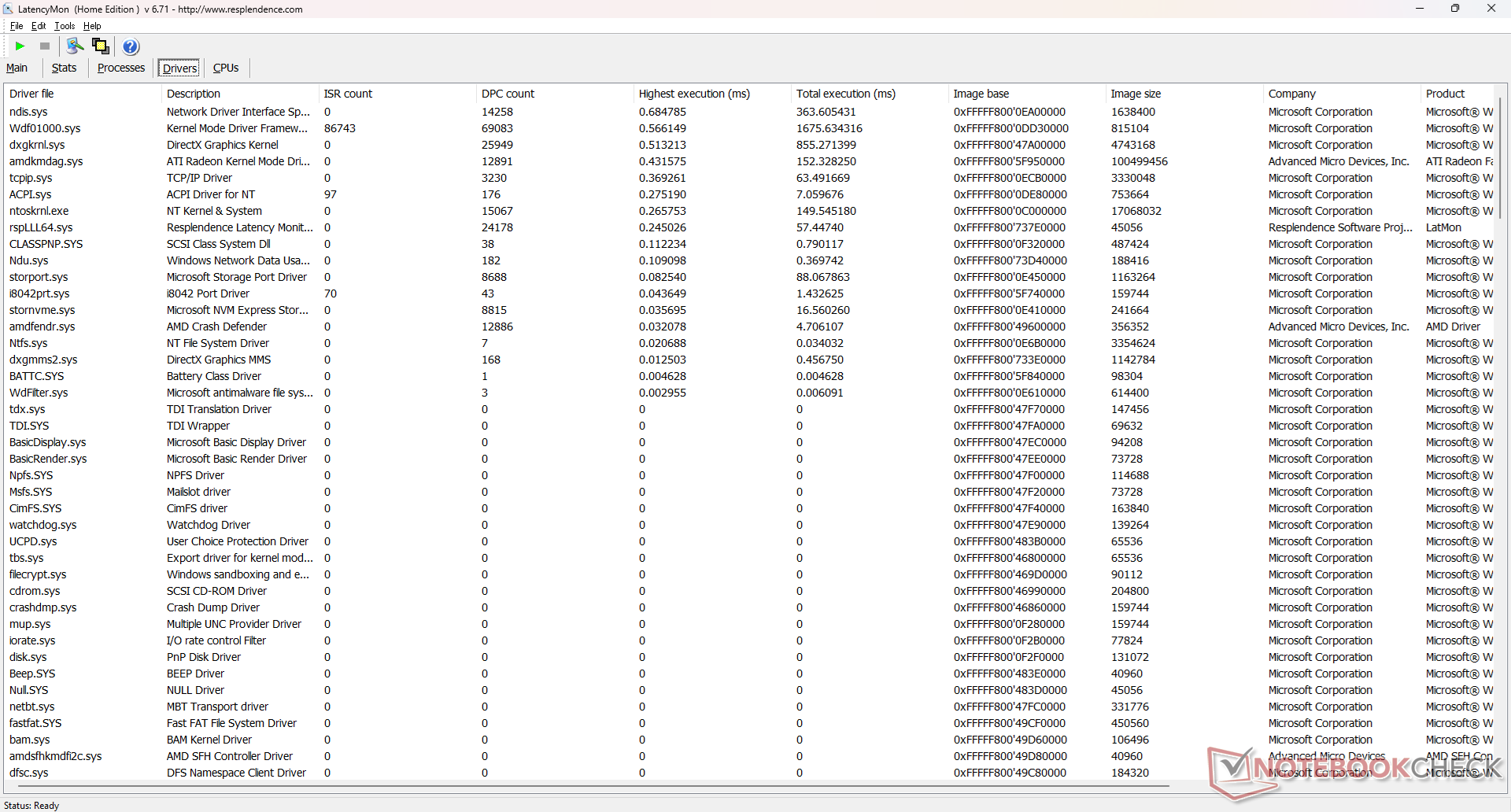

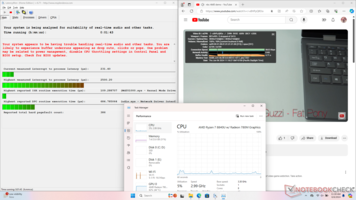

LatencyMon reveals DPC issues when opening multiple browser tabs of our homepage. 4K video playback at 60 FPS is imperfect as well with 3 dropped frames recorded over a 60-second period.
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| GPD Win Mini 2024 7" | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| Aokzoe A1 | |
* ... smaller is better
Storage Devices

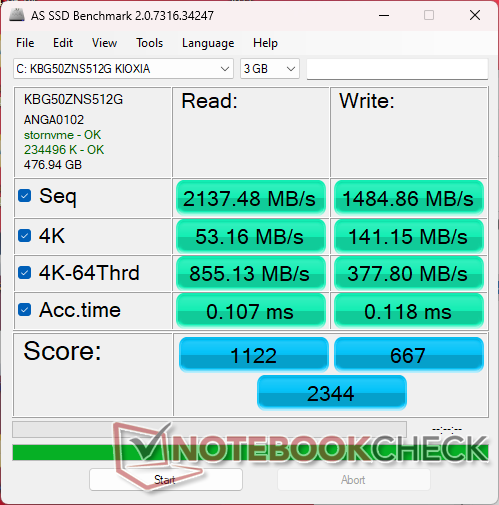

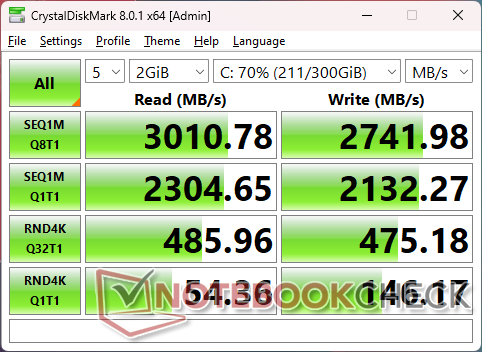

Our unit ships with the small M.2 2230 Kioxia KBG50ZNS512G PCIe4 NVMe SSD which can also be found on some full-size laptops including the Dell Inspiron 16 7635 2-in-1 or HP ProBook 445 G10. Unlike full-length M.2 2280 drives, however, shorter 2230 drives are more likely to throttle under load due to their higher densities. When running DiskSpd in a loop, for example, transfer rates would start out reasonably high at 2400 MB/s for the first minute or so before steadily declining to 1300 MB/s throughout the rest of the stress test.
| Drive Performance Rating - Percent | |
| Lenovo Legion Go | |
| GPD Win Max 2 | |
| GPD Win 4 | |
| Aokzoe A1 | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Mini 2024 7" -11! | |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
GPU Performance — Radeon 780M Is Great For Handhelds
The integrated Radeon 780M in our Win Mini is about 10 to 15 percent slower than the average laptop in our database equipped with the same GPU. This is perhaps not unexpected given the small form factor, but other gaming handhelds are nonetheless able to outperform our GPD. The Lenovo Legion Go and ROG Ally Z1 Extreme, for example, can each run up to 10 to 20 percent faster according to 3DMark. The overall slower performance can be attributed to the low TDP ceiling of the CPU as mentioned above.
Luckily, the Win Mini is still faster than Intel's last generation Iris Xe 96 EUs by about 40 to 50 percent.
| Power Profile | Graphics Score | Physics Score | Combined Score |
| Performance Mode | 6683 | 18658 | 2403 |
| Balanced Mode | 6726 (-1%) | 18475 (-1%) | 2413 (-0%) |
| Battery Power | 6467 (-3%) | 18376 (-2%) | 2397 (-0%) |
Running on Balanced mode instead of Performance mode does not entail significant performance losses as demonstrated by our Fire Strike results table above. Running on battery power impacts performance slightly more albeit by just a few percentage points.
| 3DMark Performance Rating - Percent | |
| Ayaneo Kun | |
| Asus Zenbook 14 OLED UM3406HA -1! | |
| Asus ROG Ally Z1 Extreme -1! | |
| Lenovo Legion Go | |
| Average AMD Radeon 780M | |
| Aokzoe A1 -1! | |
| GPD Win Mini 2024 7" | |
| One Netbook XPlayer 2 -1! | |
| GPD Win 4 -1! | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| GPD Win Max 2 | |
| GPD Win Max 2021 | |

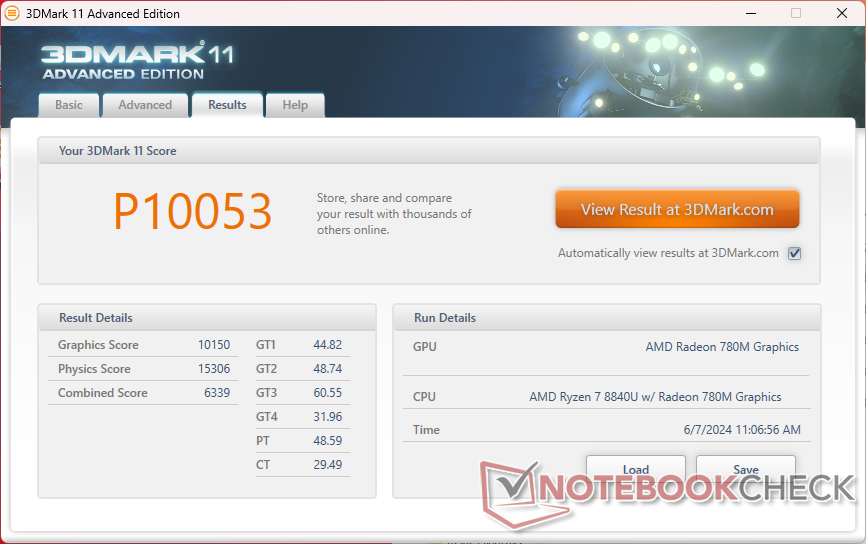

| 3DMark 11 Performance | 10053 points | |
| 3DMark Cloud Gate Standard Score | 28272 points | |
| 3DMark Fire Strike Score | 6177 points | |
| 3DMark Time Spy Score | 2688 points | |

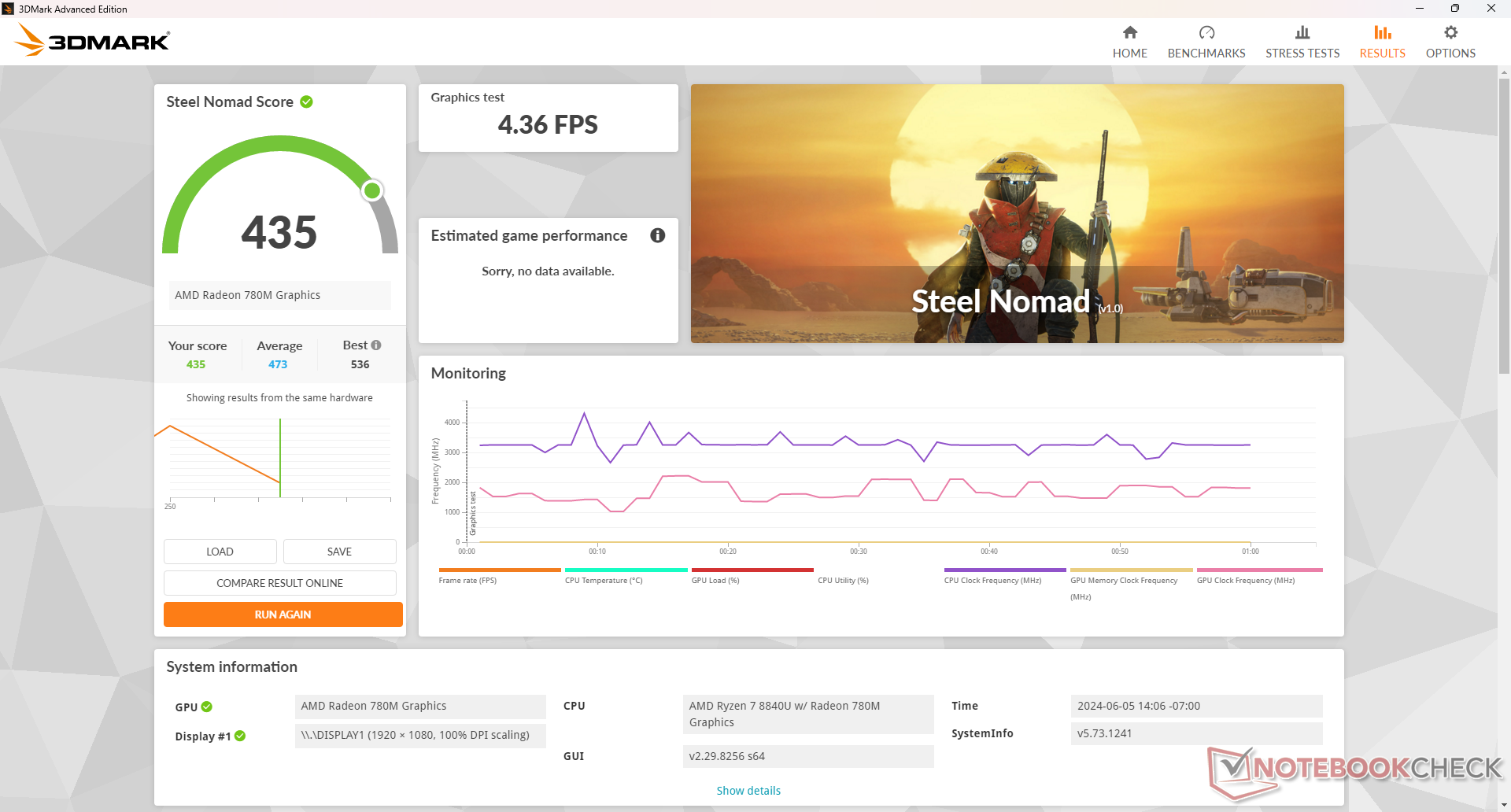

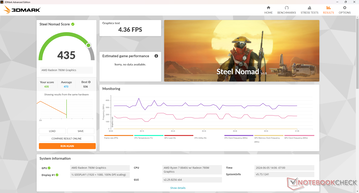

| 3DMark Steel Nomad Score | 435 points | |
Help | ||
* ... smaller is better
Gaming Performance
Performance in actual games is reflective of the 3DMark scores above where the GPD would be consistently slower than many competitors by moderate margins. This is most apparent in titles like Cyberpunk 2077 or F1 22 where the ROG Ally Z1 Extreme or Legion Go can be over 20 to 40 percent faster when on the same graphical settings.
| Performance Rating - Percent | |
| Lenovo Legion Go | |
| Asus ROG Ally Z1 Extreme | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
| GPD Win Max 2 | |
| The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Lenovo Legion Go | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| Asus ROG Ally Z1 Extreme | |
| Aokzoe A1 | |
| Lenovo Legion Go | |
| GPD Win Mini 2024 7" | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| Lenovo Legion Go | |
| Asus ROG Ally Z1 Extreme | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
| GPD Win Max 2 | |
| X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
| Aokzoe A1 | |
| Lenovo Legion Go | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Mini 2024 7" | |
| Tiny Tina's Wonderlands | |
| 1280x720 Lowest Preset (DX12) | |
| Average AMD Radeon 780M (62.6 - 152.7, n=25) | |
| Minisforum V3 | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| 1920x1080 Low Preset (DX12) | |
| Minisforum V3 | |
| Average AMD Radeon 780M (34.3 - 77.7, n=25) | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| 1920x1080 Medium Preset (DX12) | |
| Minisforum V3 | |
| Average AMD Radeon 780M (28.4 - 55.9, n=25) | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| 1920x1080 High Preset (DX12) | |
| Minisforum V3 | |
| Average AMD Radeon 780M (18.6 - 38.8, n=25) | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| 1920x1080 Badass Preset (DX12) | |
| Average AMD Radeon 780M (16.5 - 31.3, n=25) | |
| Minisforum V3 | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| The Witcher 3 | |
| 1024x768 Low Graphics & Postprocessing | |
| Asus Zenbook 14 OLED UM3406HA | |
| Minisforum V3 | |
| Average AMD Radeon 780M (74 - 163.3, n=40) | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| GPD Win Max 2021 | |
| 1366x768 Medium Graphics & Postprocessing | |
| Average AMD Radeon 780M (47.7 - 103.8, n=24) | |
| GPD Win Mini 2024 7" | |
| GPD Win 4 | |
| GPD Win Max 2 | |
| GPD Win Max 2021 | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| Asus Zenbook 14 OLED UM3406HA | |
| Minisforum V3 | |
| Asus ROG Ally Z1 Extreme | |
| Lenovo Legion Go | |
| Average AMD Radeon 780M (21.3 - 52.2, n=48) | |
| Ayaneo Kun | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| GPD Win 4 | |
| One Netbook XPlayer 2 | |
| GPD Win Max 2 | |
| GPD Win Max 2021 | |
| 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Ayaneo Kun | |
| Minisforum V3 | |
| Asus Zenbook 14 OLED UM3406HA | |
| Lenovo Legion Go | |
| Average AMD Radeon 780M (14.3 - 36, n=50) | |
| Asus ROG Ally Z1 Extreme | |
| GPD Win Mini 2024 7" | |
| Aokzoe A1 | |
| One Netbook XPlayer 2 | |
| GPD Win 4 | |
| GPD Win Max 2021 | |
| GPD Win Max 2 | |
| LG Gram 2in1 16 16T90R - G.AA78G | |
| Baldur's Gate 3 | |
| 1280x720 Low Preset AA:SM | |
| Average AMD Radeon 780M (30.7 - 67.6, n=24) | |
| GPD Win Mini 2024 7" | |
| 1920x1080 Low Preset AA:SM | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Radeon 780M (20.2 - 44.1, n=35) | |
| GPD Win Mini 2024 7" | |
| 1920x1080 Medium Preset AA:T | |
| Ayaneo Kun | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Radeon 780M (15.7 - 36.8, n=38) | |
| GPD Win Mini 2024 7" | |
| 1920x1080 High Preset AA:T | |
| Ayaneo Kun | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Radeon 780M (13.3 - 30.6, n=38) | |
| GPD Win Mini 2024 7" | |
| 1920x1080 Ultra Preset AA:T | |
| Ayaneo Kun | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Radeon 780M (12.8 - 29.6, n=37) | |
| GPD Win Mini 2024 7" | |
| F1 22 | |
| 1280x720 Ultra Low Preset AA:T AF:16x | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Radeon 780M (85.4 - 186.7, n=29) | |
| Minisforum V3 | |
| Aokzoe A1 | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
| 1920x1080 Low Preset AA:T AF:16x | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Radeon 780M (47 - 109.9, n=35) | |
| Minisforum V3 | |
| Aokzoe A1 | |
| GPD Win 4 | |
| One Netbook XPlayer 2 | |
| GPD Win Mini 2024 7" | |
| 1920x1080 Medium Preset AA:T AF:16x | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Radeon 780M (41.5 - 95, n=35) | |
| Minisforum V3 | |
| GPD Win 4 | |
| Aokzoe A1 | |
| One Netbook XPlayer 2 | |
| GPD Win Mini 2024 7" | |
| 1920x1080 High Preset AA:T AF:16x | |
| Asus ROG Ally Z1 Extreme | |
| Average AMD Radeon 780M (31.7 - 70.6, n=35) | |
| Minisforum V3 | |
| One Netbook XPlayer 2 | |
| GPD Win 4 | |
| Aokzoe A1 | |
| GPD Win Mini 2024 7" | |
| 1920x1080 Ultra High Preset AA:T AF:16x | |
| Average AMD Radeon 780M (9.92 - 19.3, n=27) | |
| Asus ROG Ally Z1 Extreme | |
| Minisforum V3 | |
| Aokzoe A1 | |
| One Netbook XPlayer 2 | |
| GPD Win 4 | |
| GPD Win Mini 2024 7" | |
Unfortunately, idling on Witcher 3 to test for frame rate stability reveals that the Win Mini suffers from the same stuttering effects as on last year's Win 4. This issue was widely reported on by Win 4 users and so it's disappointing to see it return on the Win Mini. Frame rates would cycle between 40 and 45 FPS for seemingly no reason as shown by the graph below. FreeSync helps to keep screen tearing from being an issue, but the unstable frame rates should have been avoided in the first place.
Witcher 3 FPS Chart
| low | med. | high | ultra | |
|---|---|---|---|---|
| The Witcher 3 (2015) | 120.3 | 76.5 | 41.5 | 25.1 |
| Dota 2 Reborn (2015) | 107.9 | 84.3 | 67.8 | 62.2 |
| Final Fantasy XV Benchmark (2018) | 63.2 | 32.3 | 24.5 | |
| X-Plane 11.11 (2018) | 48.1 | 33.1 | 27.4 | |
| Far Cry 5 (2018) | 60 | 38 | 36 | 34 |
| Strange Brigade (2018) | 143.2 | 59.7 | 49.7 | 42.6 |
| Tiny Tina's Wonderlands (2022) | 51.6 | 39.9 | 24.9 | 22.2 |
| F1 22 (2022) | 72.2 | 65.2 | 46.6 | 12.4 |
| Baldur's Gate 3 (2023) | 30.2 | 24.3 | 21.1 | 20.2 |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 32.7 | 24.8 | 20.1 | 16.9 |
Emissions — Smaller Fan = Higher Pitch
System Noise
Cramming a U-series processor designed for laptops into a portable 7-inch chassis puts a lot of pressure on the cooling solution. Thus, it's no surprise that the small 35 mm fan in the Win Mini never stops running no matter the onscreen load. Fan noise can be quiet when idling on desktop, but this quickly changes to the more audible mid 30 dB(A) range when playing video or web browsing even if on Power Saver mode.
When gaming, the Win Mini is louder than the ROG Ally Z1 Extreme but quieter than the Legion Go. We would like to see a larger diameter fan on future iterations of the model to lower the pitch.
Noise Level
| Idle |
| 24.7 / 26.2 / 28 dB(A) |
| Load |
| 34.2 / 42.5 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 24.2 dB(A) | ||
| GPD Win Mini 2024 7" Radeon 780M, R7 8840U, Kioxia BG5 KBG50ZNS512G | GPD Win 4 Radeon 680M, R7 6800U, BiWin CE480Y2D100-1TB | GPD Win Max 2 Iris Xe G7 96EUs, i7-1260P, BiWin NQ200 1TB CNF82GS1D00-1TB | Aokzoe A1 Radeon 680M, R7 6800U | Asus ROG Ally Z1 Extreme Radeon 780M, Z1 Extreme, Micron 2400 MTFDKBK512QFM | Lenovo Legion Go Radeon 780M, Z1 Extreme, WD PC SN740 512GB SDDPMQD-512G-1101 | |
|---|---|---|---|---|---|---|
| Noise | -18% | 3% | -6% | 4% | 5% | |
| off / environment * | 24.2 | 24 1% | 22.6 7% | 23 5% | 23.3 4% | 23 5% |
| Idle Minimum * | 24.7 | 31.2 -26% | 23.7 4% | 23.3 6% | 23.3 6% | 23 7% |
| Idle Average * | 26.2 | 31.2 -19% | 23.7 10% | 27.1 -3% | 23.3 11% | 23 12% |
| Idle Maximum * | 28 | 33.5 -20% | 28.5 -2% | 37.3 -33% | 27.3 2% | 25 11% |
| Load Average * | 34.2 | 45.5 -33% | 36.5 -7% | 37.4 -9% | 39.2 -15% | 37 -8% |
| Witcher 3 ultra * | 43 | 48.6 -13% | 39.8 7% | 41.2 4% | 39.2 9% | 46 -7% |
| Load Maximum * | 42.5 | 49 -15% | 40.5 5% | 46.2 -9% | 39.2 8% | 37 13% |
* ... smaller is better

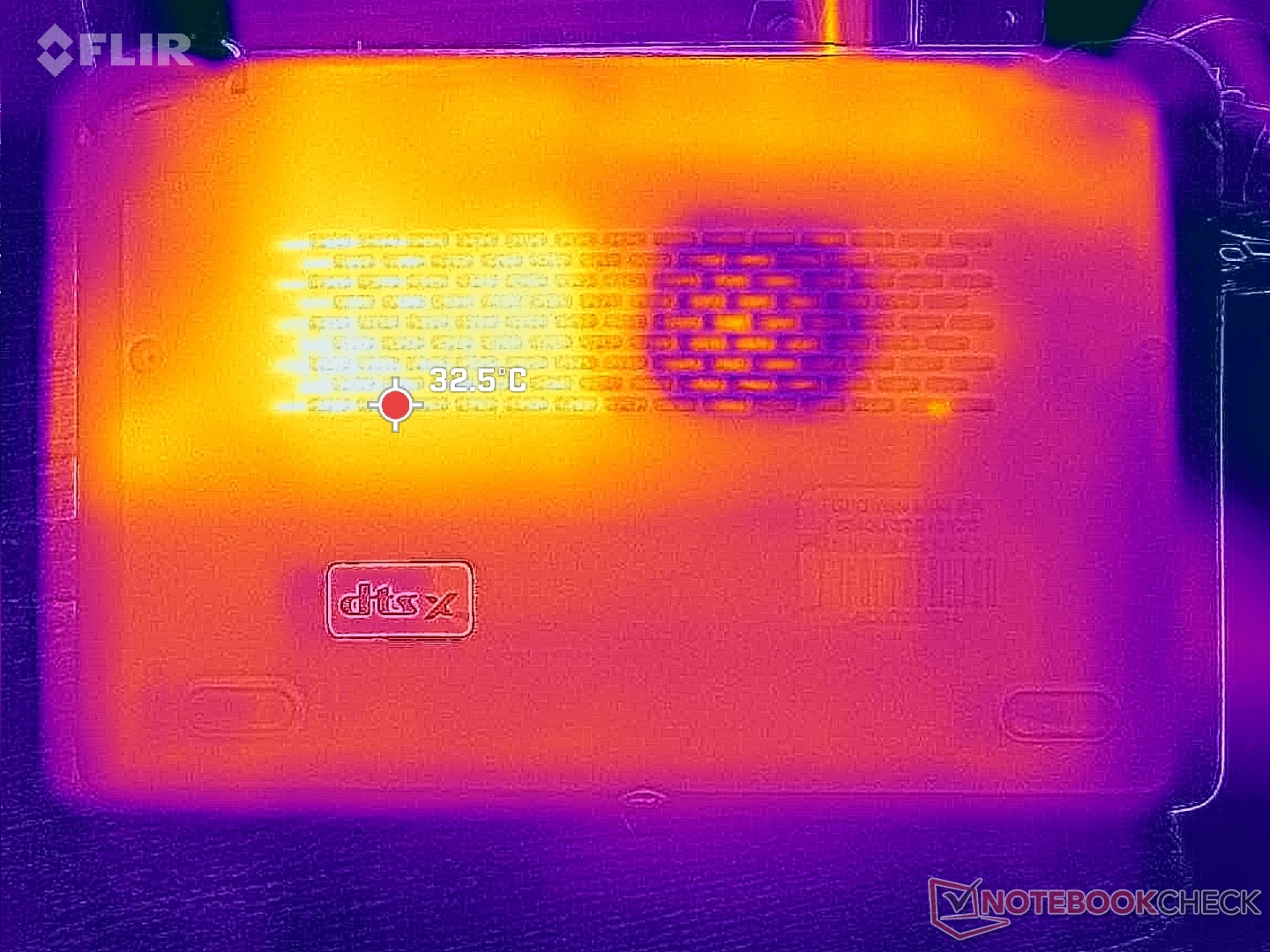

Temperature

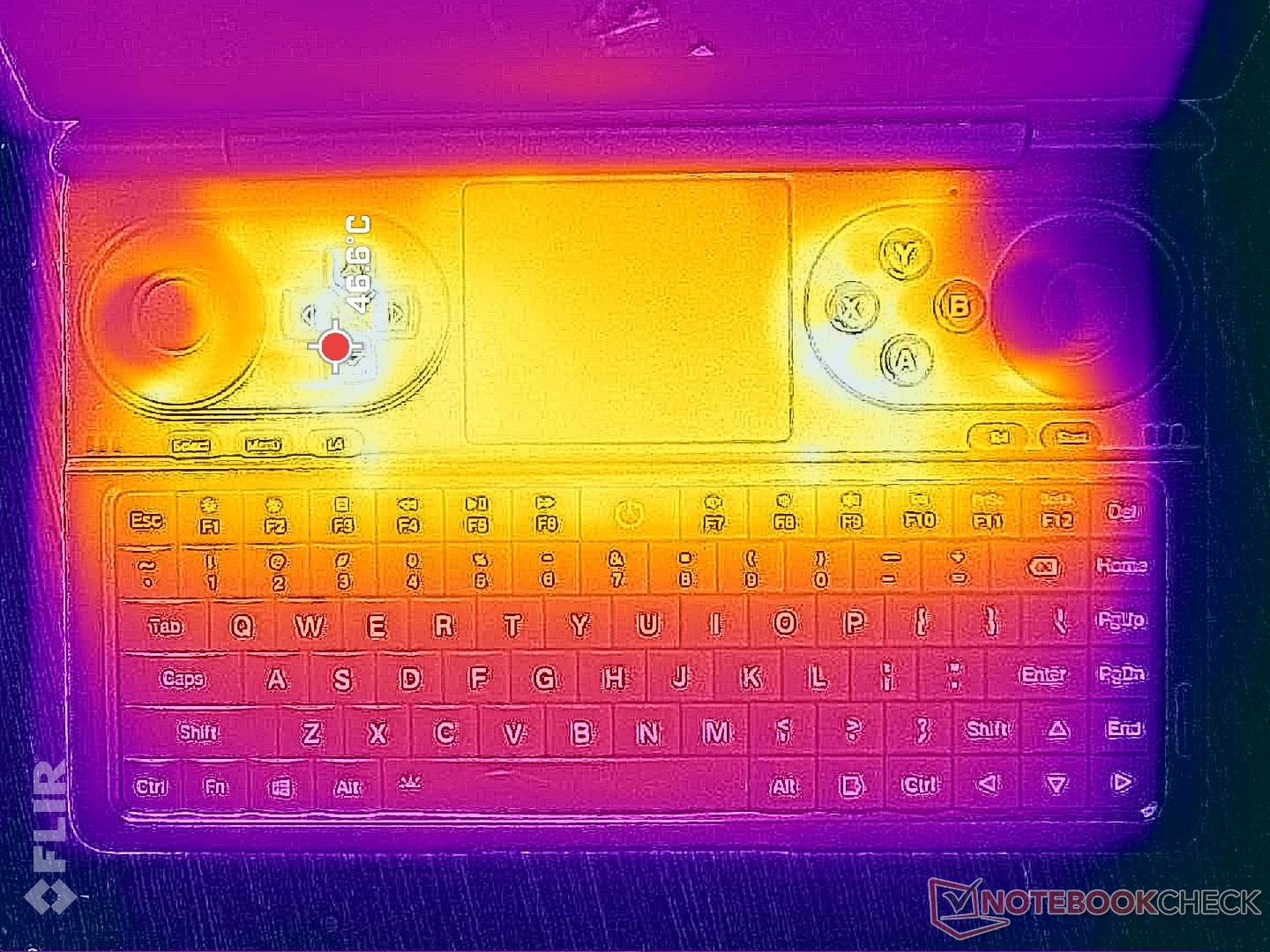

The back half of the chassis above the keyboard can become quite warm at over 46 C when gaming. Since the trackpad and controller buttons are positioned here, users should be prepared for sweaty fingers if the game requires face button controls. Conversely, the joysticks and shoulder buttons remain much cooler and more comfortable to use. It's still not ideal when compared to the ROG Ally or Aokzoe designs, but that is the compromise for having both a fully integrated controller and QWERTY keyboard all-in-one.
(-) The maximum temperature on the upper side is 46.6 °C / 116 F, compared to the average of 38.4 °C / 101 F, ranging from 26.6 to 55 °C for the class Handheld / UMPC.

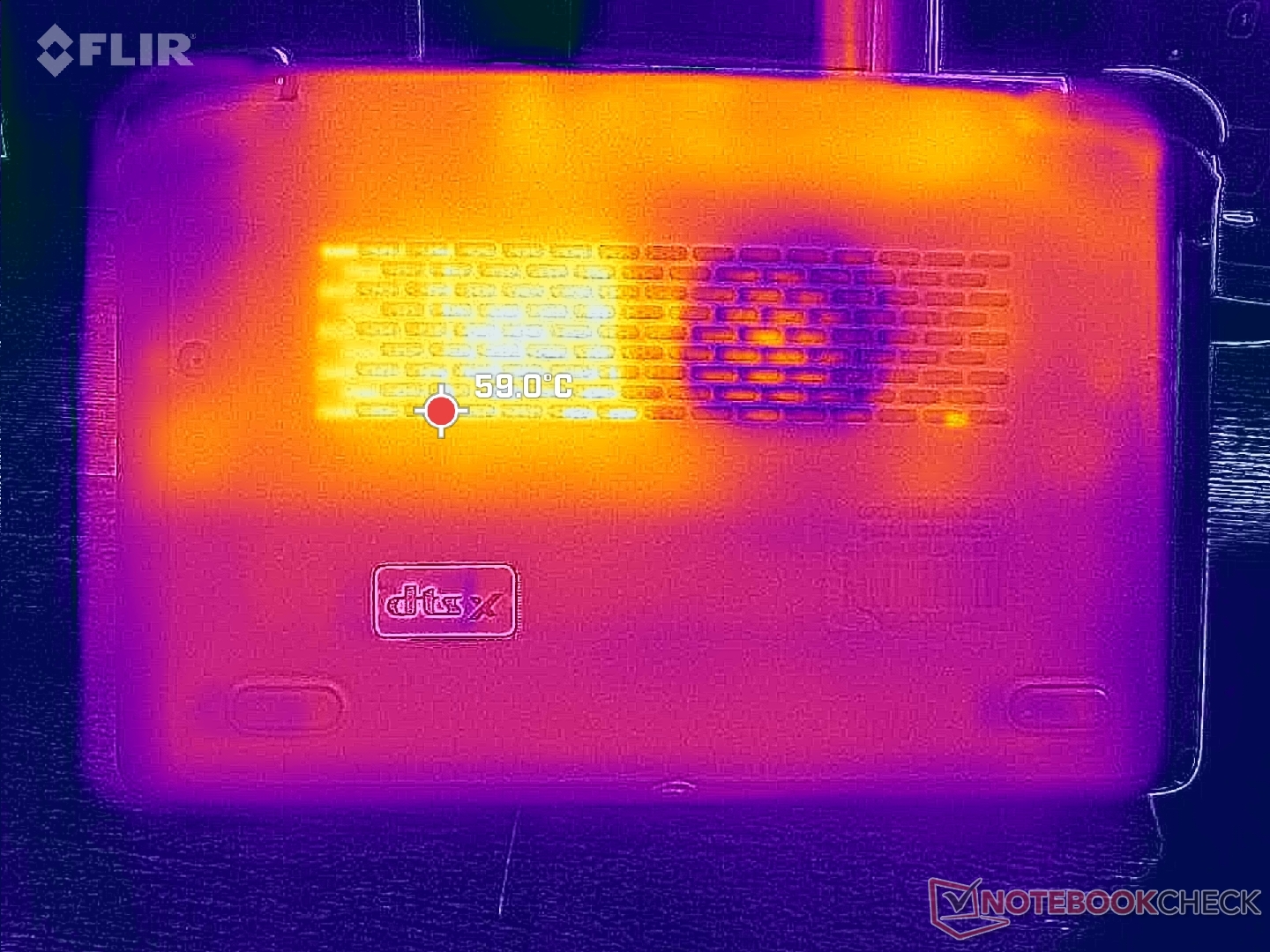

(-) The bottom heats up to a maximum of 48 °C / 118 F, compared to the average of 38 °C / 100 F

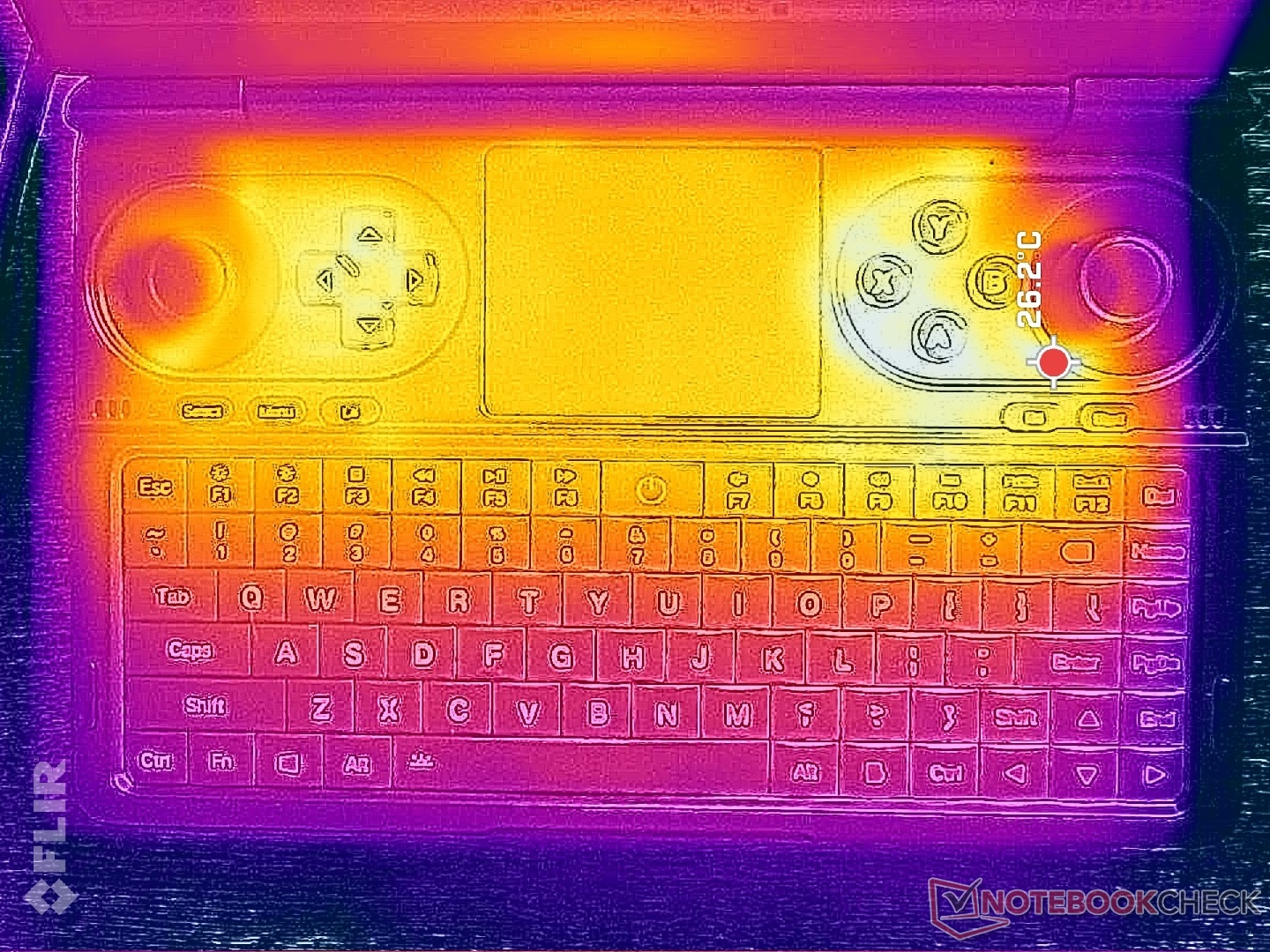

(+) In idle usage, the average temperature for the upper side is 28.8 °C / 84 F, compared to the device average of 31.6 °C / 89 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.6 °C / 90.7 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 30.5 °C / 86.9 F (-2.1 °C / -3.8 F).
| GPD Win Mini 2024 7" AMD Ryzen 7 8840U, AMD Radeon 780M | GPD Win 4 AMD Ryzen 7 6800U, AMD Radeon 680M | GPD Win Max 2 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs | Aokzoe A1 AMD Ryzen 7 6800U, AMD Radeon 680M | Asus ROG Ally Z1 Extreme AMD Ryzen Z1 Extreme, AMD Radeon 780M | Lenovo Legion Go AMD Ryzen Z1 Extreme, AMD Radeon 780M | |
|---|---|---|---|---|---|---|
| Heat | 27% | 28% | 4% | 13% | ||
| Maximum Upper Side * | 46.6 | 35 25% | 28.6 39% | 41.6 11% | 44.4 5% | |
| Maximum Bottom * | 48 | 26.8 44% | 33 31% | 41.6 13% | 37.9 21% | |
| Idle Upper Side * | 32.6 | 28.4 13% | 24.6 25% | 34.8 -7% | 29.9 8% | |
| Idle Bottom * | 33.6 | 25 26% | 27.6 18% | 33.6 -0% | 28.3 16% |
* ... smaller is better
Speakers

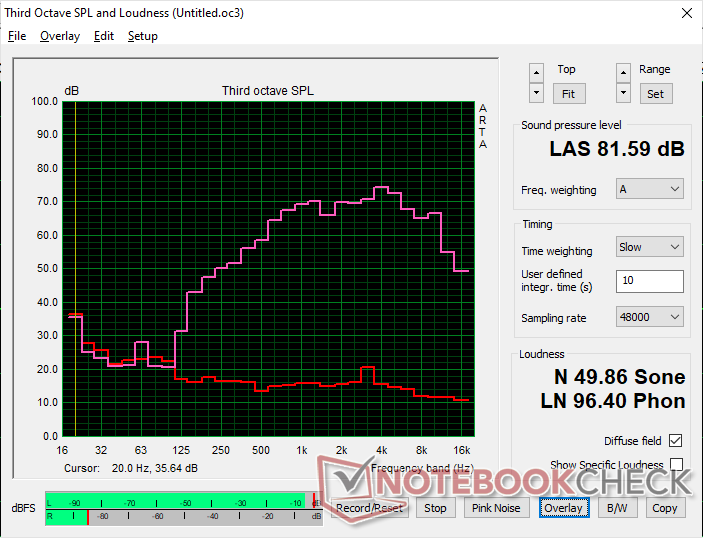

GPD Win Mini 2024 7" audio analysis
(±) | speaker loudness is average but good (81.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.4% lower than median
(±) | linearity of bass is average (10.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.2% away from median
(+) | mids are linear (6.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.5% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.7% difference to median)
Compared to same class
» 78% of all tested devices in this class were better, 11% similar, 11% worse
» The best had a delta of 12%, average was 18%, worst was 23%
Compared to all devices tested
» 60% of all tested devices were better, 7% similar, 33% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Apple MacBook Pro 16 2021 M1 Pro audio analysis
(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Energy Management — Conservative Consumption For Long Runtimes
Power Consumption
Power consumption is lower than expected even when gaming or running high loads. Witcher 3, for example, demands just 33 W compared to 45 W to 54 W on the Win 4 despite the fact that both models offer similar gaming performance. Similarly, Prime95 would also top out at around 33 W compared to 50+ W on the Win 4. Performance-per-watt has evidently increased significantly between Zen 3+ Rembrandt and Zen 4 Hawk Point which explains the impressive battery life in the next section below.
We're able to record a maximum consumption of 35 W from the small (~6 x 6 x 2.9 cm) 65 W USB-C wall wart AC adapter when running Prime95 stress. Consumption can reach over 50 W if charging and gaming simultaneously to ensure adequate charging levels during heavy use.
| Off / Standby | 1.3 / 1.7 Watt |
| Idle | 6.1 / 7.9 / 9 Watt |
| Load |
32.6 / 34.9 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| GPD Win Mini 2024 7" R7 8840U, Radeon 780M, Kioxia BG5 KBG50ZNS512G, IPS, 1920x1080, 7" | GPD Win 4 R7 6800U, Radeon 680M, BiWin CE480Y2D100-1TB, IPS, 1920x1080, 6" | GPD Win Max 2 i7-1260P, Iris Xe G7 96EUs, BiWin NQ200 1TB CNF82GS1D00-1TB, IPS, 2560x1600, 10.1" | Aokzoe A1 R7 6800U, Radeon 680M, , IPS, 1920x1200, 8" | Asus ROG Ally Z1 Extreme Z1 Extreme, Radeon 780M, Micron 2400 MTFDKBK512QFM, IPS, 1920x1080, 7" | Lenovo Legion Go Z1 Extreme, Radeon 780M, WD PC SN740 512GB SDDPMQD-512G-1101, IPS, 2560x1600, 8.8" | |
|---|---|---|---|---|---|---|
| Power Consumption | -44% | -43% | -46% | -29% | -59% | |
| Idle Minimum * | 6.1 | 7.5 -23% | 5.8 5% | 8.8 -44% | 4.2 31% | 11.5 -89% |
| Idle Average * | 7.9 | 12.4 -57% | 10.2 -29% | 11.3 -43% | 6.1 23% | 12 -52% |
| Idle Maximum * | 9 | 13 -44% | 11.5 -28% | 11.5 -28% | 6.3 30% | 17.4 -93% |
| Load Average * | 32.6 | 46 -41% | 47.7 -46% | 32.1 2% | 56.6 -74% | 45 -38% |
| Witcher 3 ultra * | 33.3 | 45.2 -36% | 45.6 -37% | 58.3 -75% | 64.1 -92% | 42.6 -28% |
| Load Maximum * | 34.9 | 56 -60% | 76.8 -120% | 64.5 -85% | 67.2 -93% | 54 -55% |
* ... smaller is better

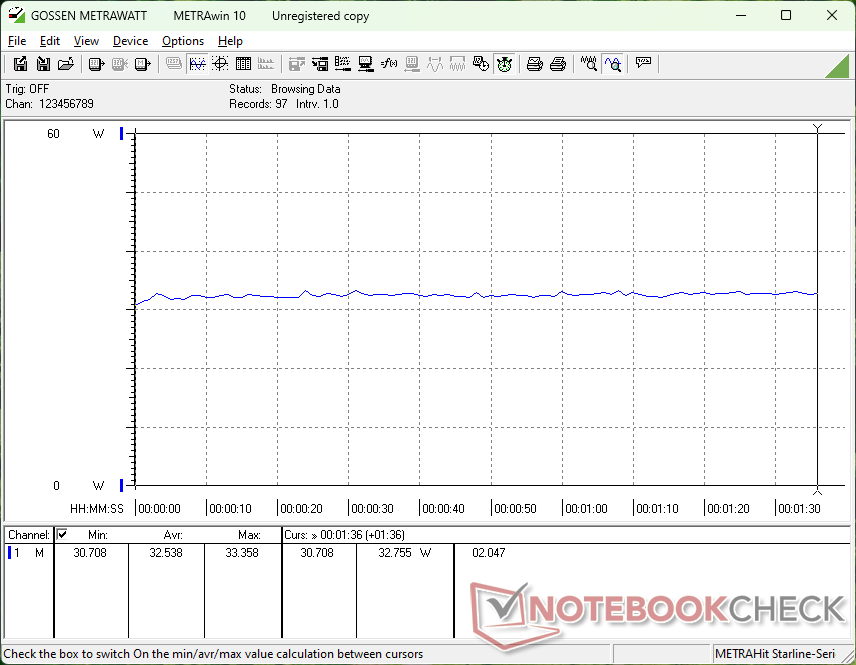

Power Consumption Witcher 3 / Stresstest

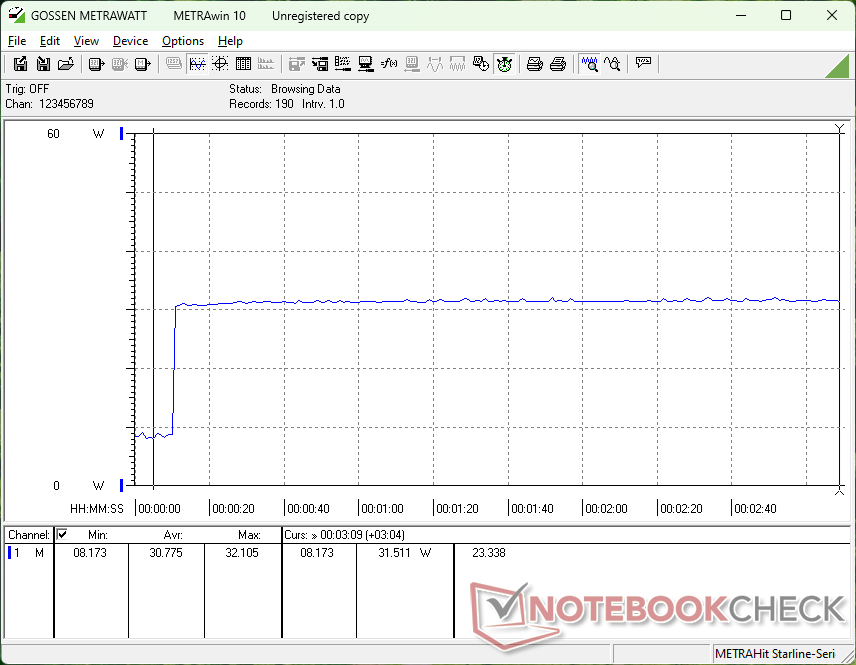

Power Consumption external Monitor
Battery Life
Runtimes are quite long despite the small battery capacity of 46 Wh. Browsing the web on Balanced mode would last for just over 8.5 hours to be slightly longer than both the Win 4 and ROG Ally Z1 Extreme. If gaming, however, runtimes would drop to just 90 minutes.
Charging from empty to full capacity is unfortunately quite slow at a little over 2 hours compared to 90 minutes on most other laptops. The time it takes to charge the battery can therefore be longer than the actual battery life when playing games.
| GPD Win Mini 2024 7" R7 8840U, Radeon 780M, 44 Wh | GPD Win 4 R7 6800U, Radeon 680M, 46 Wh | GPD Win Max 2 i7-1260P, Iris Xe G7 96EUs, 70 Wh | Aokzoe A1 R7 6800U, Radeon 680M, 65 Wh | Asus ROG Ally Z1 Extreme Z1 Extreme, Radeon 780M, 40 Wh | Lenovo Legion Go Z1 Extreme, Radeon 780M, 49.2 Wh | |
|---|---|---|---|---|---|---|
| Battery Runtime | -22% | 5% | -32% | -10% | -31% | |
| Reader / Idle | 861 | 581 -33% | 923 7% | 431 -50% | ||
| WiFi v1.3 | 518 | 450 -13% | 523 1% | 381 -26% | 465 -10% | 358 -31% |
| Load | 96 | 77 -20% | 103 7% | 78 -19% | ||
| H.264 | 568 | |||||
| Witcher 3 ultra | 57 | |||||
| Gaming | 97 |
Pros
Cons
Verdict — Jack Of All Trades, Master Of None
The Win Mini has a handful of compelling features over other gaming handhelds. Perhaps most significantly, its clamshell design and integrated keyboard are arguably more travel-friendly and versatile for users who want a UMPC that can game and also run the occasional office tasks. Chassis rigidity and even battery life are surprisingly good for such a small machine from a lesser-known brand like GPD. Key pillars like build quality, display quality, and core specifications are competitive against the current crop of popular handhelds from Asus, Lenovo, Valve, MSI, and others.
The GPD Win Mini feels luxurious and versatile with its standout design and integrated buttons. In terms of gaming performance and ergonomics, however, it doesn't quite reach the same levels as the less expensive Steam Deck or ROG Ally.
On the flip side, the GPD handheld suffers from the traditional "jack of all trades, master of none" problem where certain aspects have been traded in favor of its dual-purpose controller-keyboard design. More specifically, CPU and GPU performances are one or two steps slower than most other handhelds while the controller and keyboard just aren't very comfortable to use for extended periods. Optional removable grips are available as mentioned above, but at that point you may as well carry an external mouse, small Bluetooth keyboard, or dedicated controller in your bag.
Other aspects of the Win Mini deserve more fine-tuning including the high-pitched fan noise, unstable frame rates, and imperfect 4K60 video playback. Perhaps the biggest drawback of the model, however, is its high asking price of over $1000 in a market where faster gaming handhelds can be found for several hundred dollars less. You will therefore have to really value the integrated keyboard and clamshell design to justify the price premium.
Price and Availability
Amazon is now shipping the GPD Win Mini with the Ryzen 7840U, 32 GB RAM, and 2 TB SSD for $1050.
Note: We have recently updated our rating system and the results of version 8 are not comparable with the results of version 7. More information is available here .
GPD Win Mini 2024 7"
- 06/12/2024 v8
Allen Ngo
More articles related to this device
GPD Win Mini 2024 7" (Win Series)Related Articles
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
Price comparison
