Anno 2205 Notebook Benchmarks

Florian Glaser (translated by Ariana Brodsky), 11/09/2015

Moon landing. There is currently much heated debate as to whether Anno 2205 can live up to its predecessor in the realm of game mechanics. Here at Notebookcheck, we're primarily concerned with the city-builder game's graphics. Do the visuals do justice to the future world scenario? We tested a number of notebook GPUs at various settings.

Anno-2205-Logo

Working For Notebookcheck

Are you a loyal reader of notebookcheck? Are you a techie who knows how to write? Then join our Team!

Especially wanted:
Review Editor -
Details here
News Editor - Details here

For the original German article, see here.

Graphics

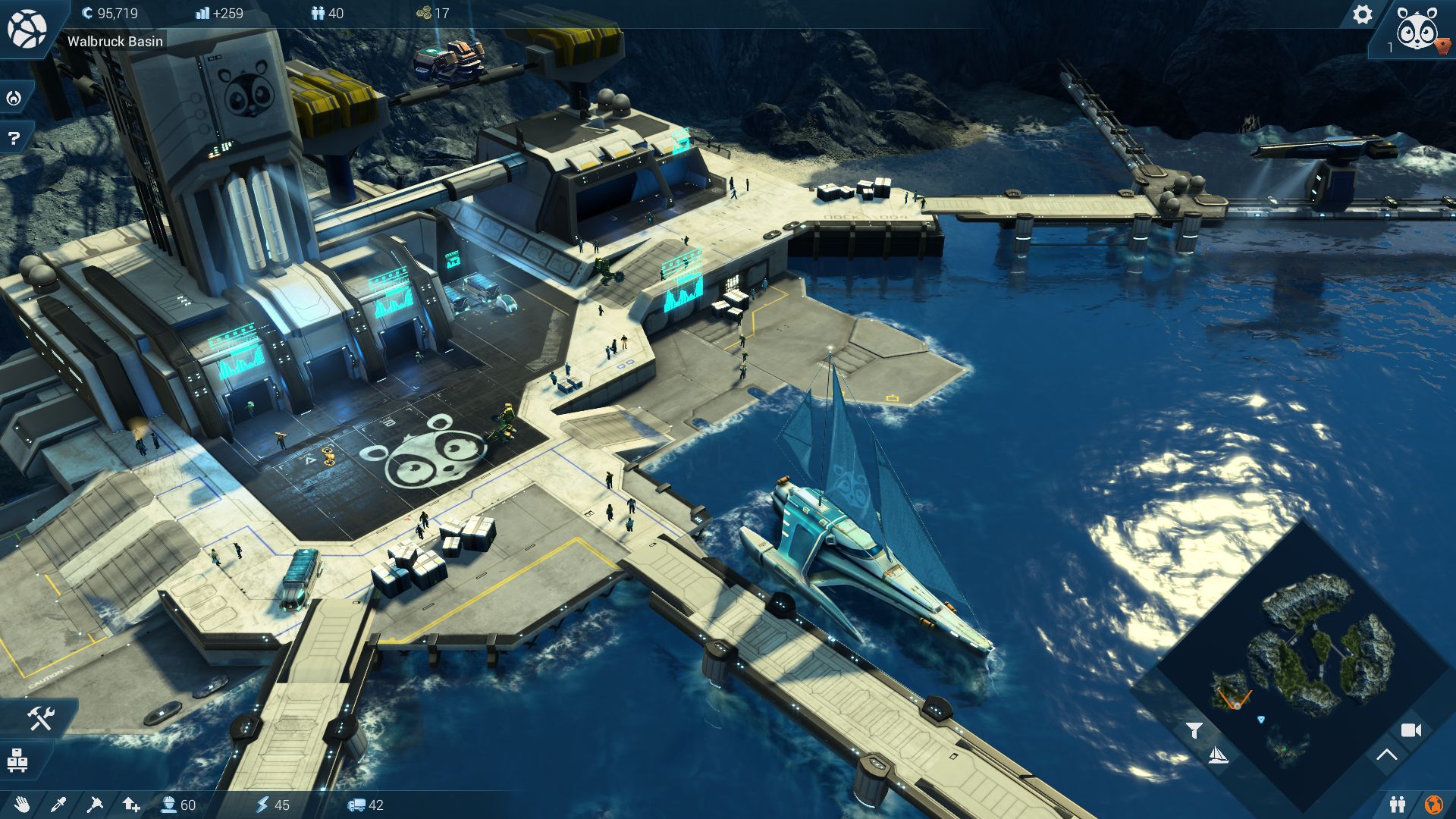

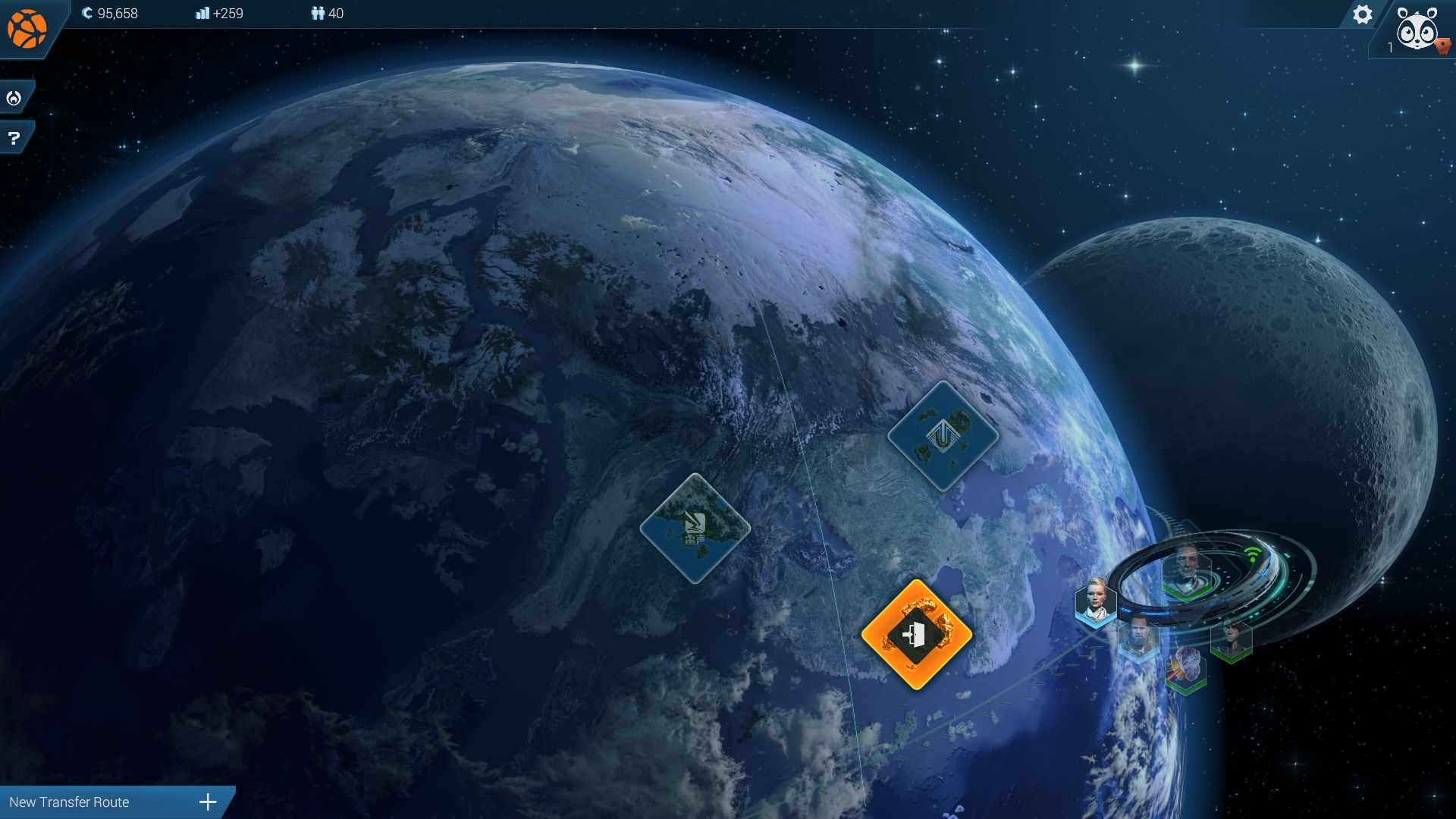

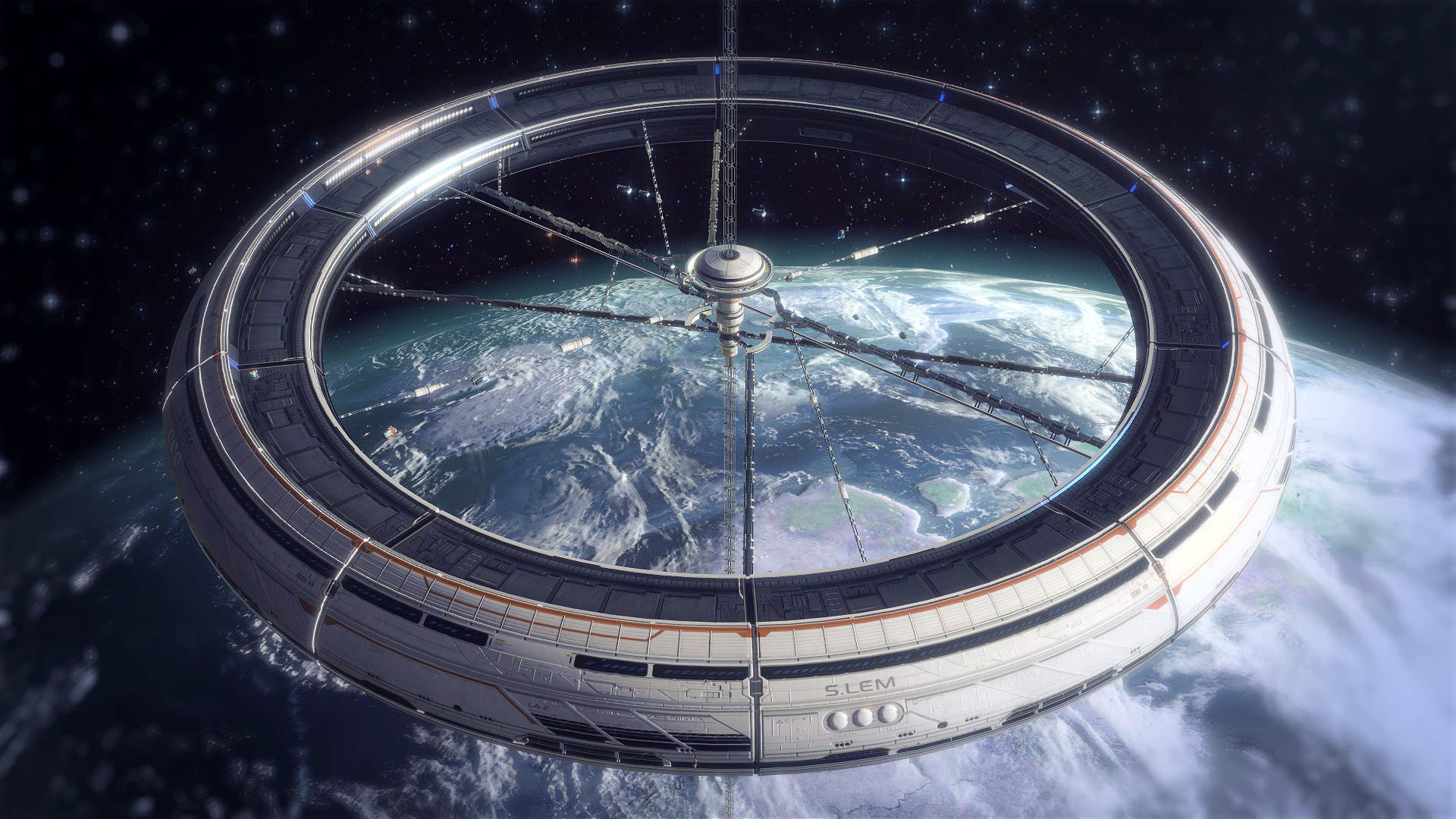

No doubt about it: Anno 2205 is one of the most beautiful strategy/city-building games ever made. Whether from far away or several times magnified with zoom, graphically the title looks superb from almost every point of view. From the carefully designed houses to the authentic-looking vegetation, every detail is simply world-class. While older games in the series often displayed objects and people at unrealistic proportions, characters and vehicles are now properly sized in relation to buildings. The closer the player moves the camera towards the unfolding scenes, the more visible the developer's efforts become. Blue Byte has created a fanciful place where dozens of cars roam the streets and cheerful people stroll about in the park. The studio's competition rarely dreams up so much hustle and bustle.

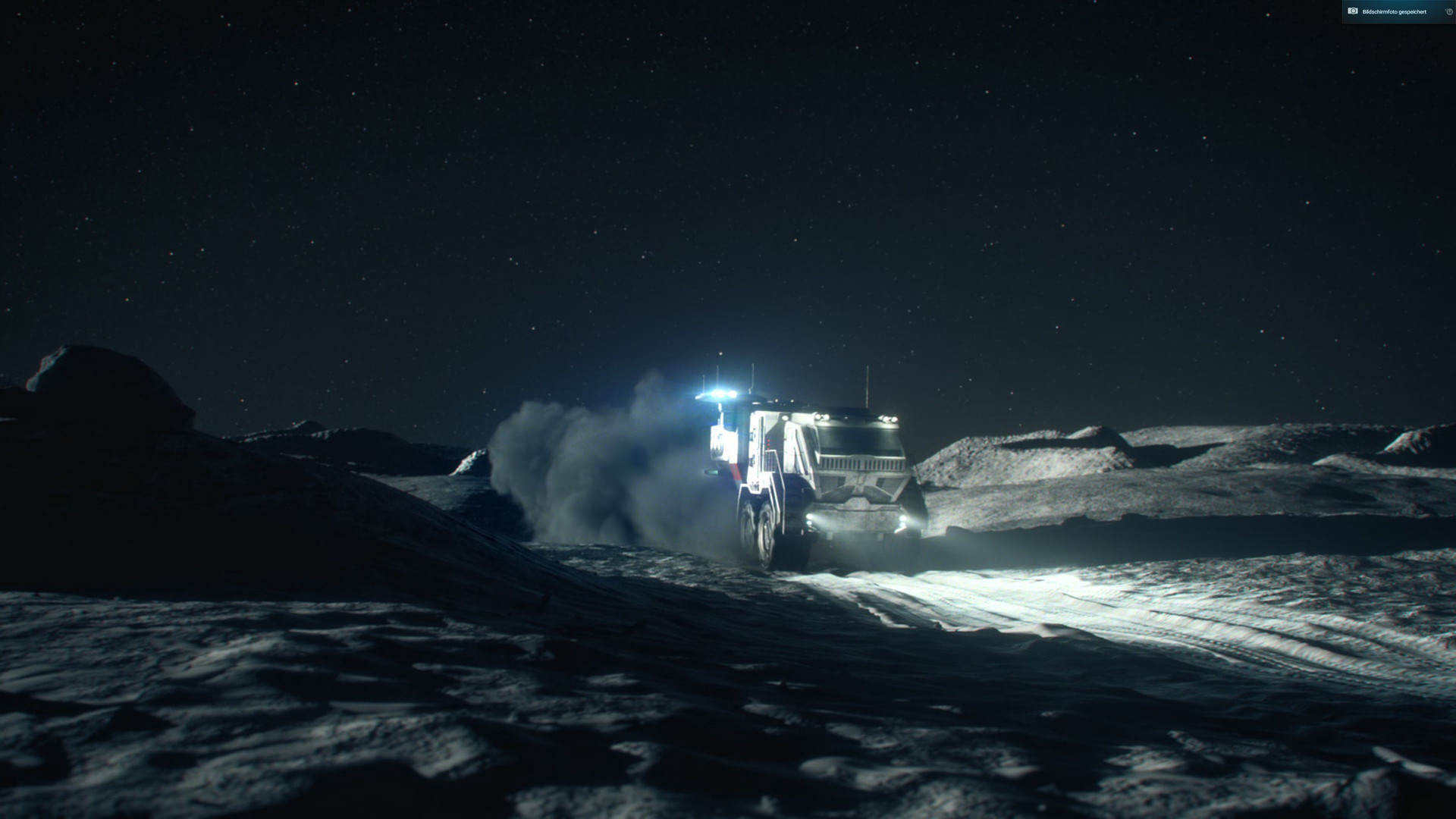

The graphics splendor is enhanced by an optional day and night cycle, as well as distinct weather patterns and regional conditions. Over the course of the unending campaign, the player isn't just exposed to idyllic island worlds: You can also inhabit the arctic, and even colonize the moon. Because the game difficulty varies depending on the sector, the player is constantly confronted with new challenges. Thanks to the well-designed and successfully executed introduction, Anno newbies should be able to quickly figure out both the city-building aspect and the economic simulation (the combat system is just generally simple).

Anno 2205
Anno 2205
Anno 2205

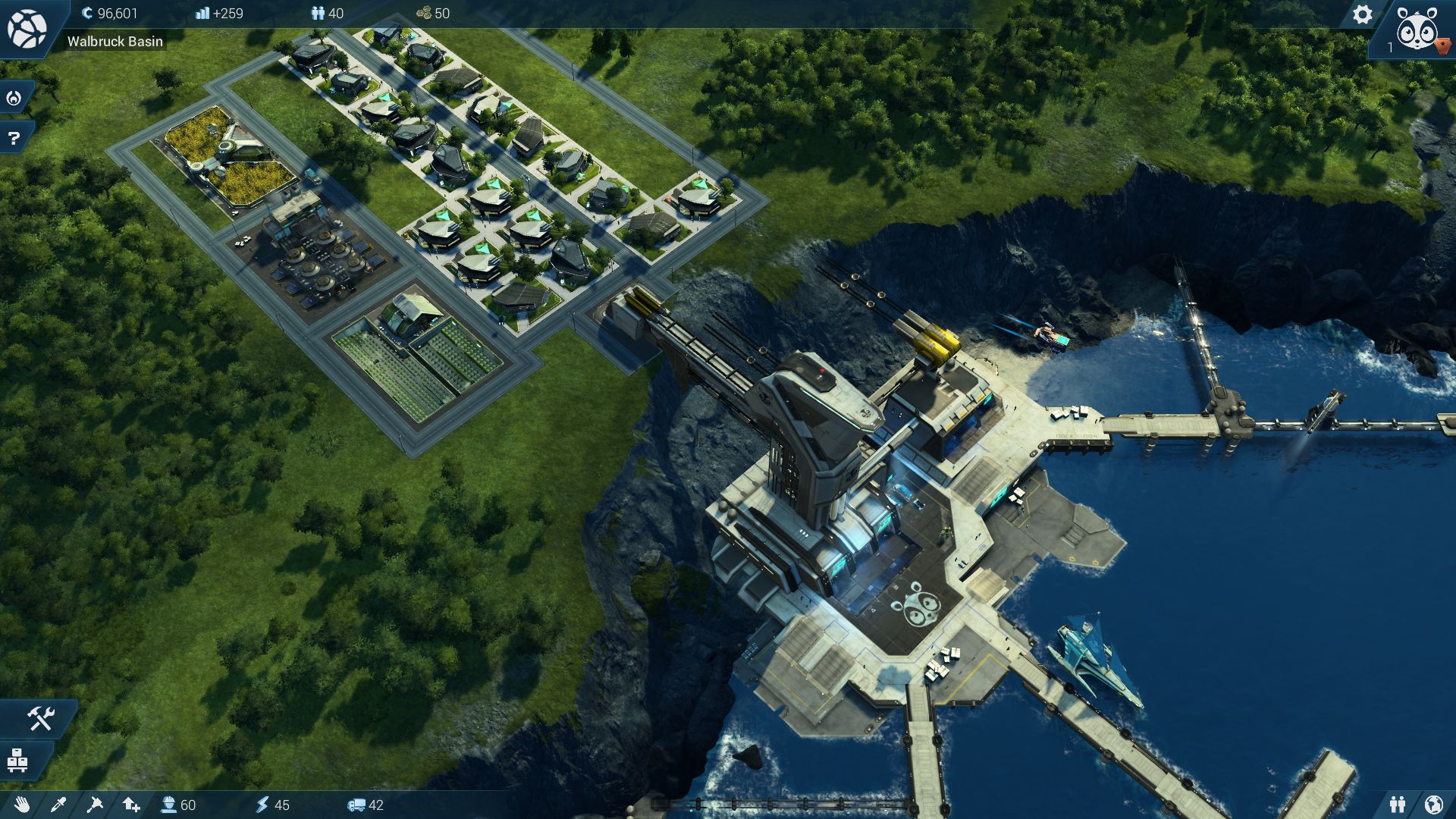

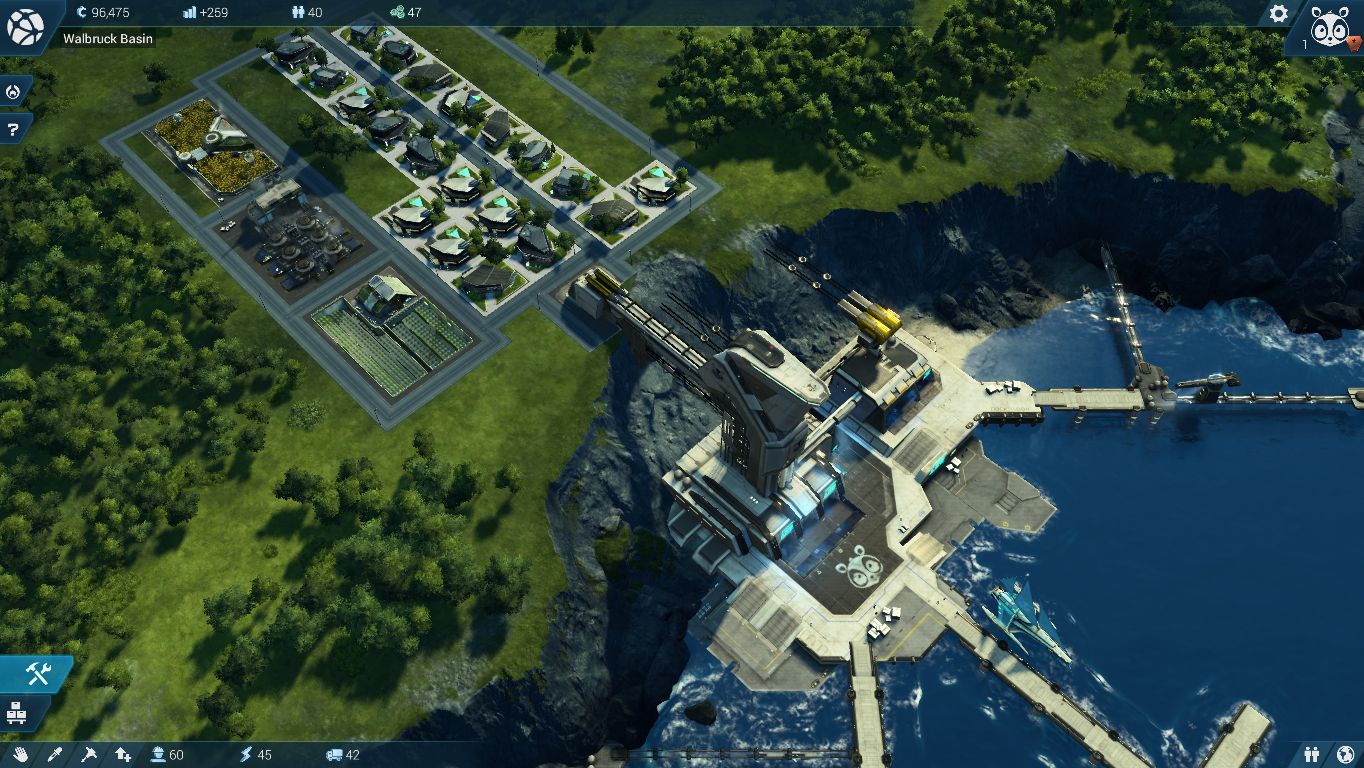

But back to the graphics: If we had to critique something, it would be the look of the water. Even at maximum details, the surface, waves and breakers aren't completely convincing. Still, this doesn't do much damage to the generally exquisite visuals. The game also deserves praise for its numerous settings options. Alongside resolution and image mode, the graphics menu contains 14 further possible adjustments.

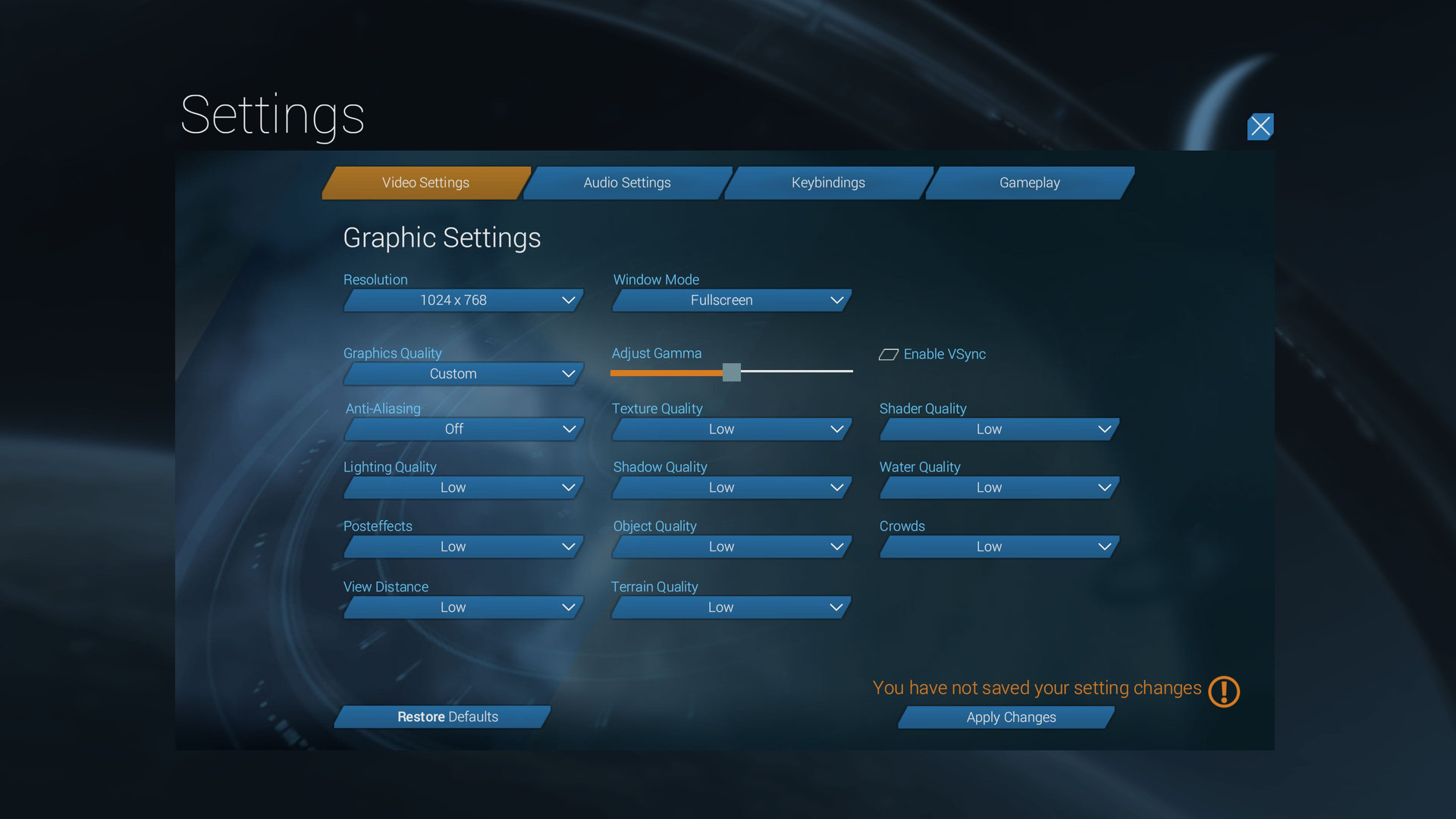

For those who don't feel like going through the lengthy process of tuning, Anno 2205 offers the option to adjust the overall quality in one go. The five presets (Low to Ultra High) take care of the "small stuff." With the exception of anti-aliasing, all of the levels are well-balanced. Because anti-aliasing is already activated on the Medium preset, the game demands more of the hardware than comparable titles do. In general, Anno 2205 requires a very powerful system; the results from our benchmark tests underscore this fact. Excellent: The game doesn't need to be restarted after settings changes. As far as we can tell, all of the options are correctly applied.

Anno 2205
Anno 2205
Anno 2205

In our experience, the engine (specially designed for Anno 2205) runs without any errors. Both during gaming and in the benchmark tests, we didn't experience any crashes or significant drops in performance. The little bugs in the realm of sound (radio messages sometimes cut out mid-sentence) are forgivable, as are the fairly unobtrusive appearances of better texture and polygon levels. The only thing that got on our nerves was the fact that the mouse often has issues when a 4K display is set to 3840x2180 pixels (only part of the screen is reachable). When this happens, usually it helps to change the window mode (Alt + Enter) or briefly select a different resolution.

Warning: Even with the brand new driver, notebooks with graphics switching (Optimus for Nvidia, Enduro for AMD) use the processor's chip. The user must assign the program-exe to the dedicated GPU to attain the expected level of performance. On the plus side, the game's file size is quite moderate (~13 GB download). The load times are also reasonable.

Anno 2205
Anno 2205
Anno 2205

Benchmark

Unlike in our review of The Sims 4, we chose not to use a manual camera tracking shot for the Anno 2205 benchmark; instead we used the "Rotate Camera" feature hidden in the bottom right corner. The "Camera Sequences" option would seem a good choice here, but during the air tour sequence the performance demands drop significantly, rendering the scene a poor representation of the real gaming experience. The same goes for the impressive "Postcard View." Our benchmark sequence takes place in the beautiful "Walbruck Basin" sector, complete with a dense forest, high mountains and tons of water.

In order to tax our test devices as much as possible, we embellished almost the entire starting island with buildings. As the video below shows, the camera zooms out before the benchmark begins and centers on the "Security Department." We start our Fraps recording as soon as the image begins to turn and Anno 2205 fades out the overlay. After a complete 360-degree rotation, which takes about 30 seconds when the computer's performance is good, the benchmark ends. Because the sequence is identical every time, the comparability between computers is excellent. However, the minimum frame rates aren't very informative, as they are very dependent on the region, city size, camera movement and zoom level.

Results

The higher the graphics quality, the higher the system requirements. Intel GPUs perform especially poorly. Neither the HD Graphics 4600 (Haswell) nor the HD Graphics 5500 (Broadwell) can fluidly render Anno 2205. Even at minimum details and 1024x768 pixels, the entry-level models didn't manage more than 20 fps. It's not clear where the fault for the bad performance lies: It could be with the Intel driver, or the developer might have poorly optimized the game for Intel chips. Nvidia and AMD GPUs currently do better, though mid-range GPUs like the GeForce GT 740M or GT 750M only successfully run the game at low settings. For 1366x768 pixels and medium graphics quality, you'll need at least a GTX 850M. High details, 4x anti-aliasing and 1920x1080 pixels even require a GTX 970M.

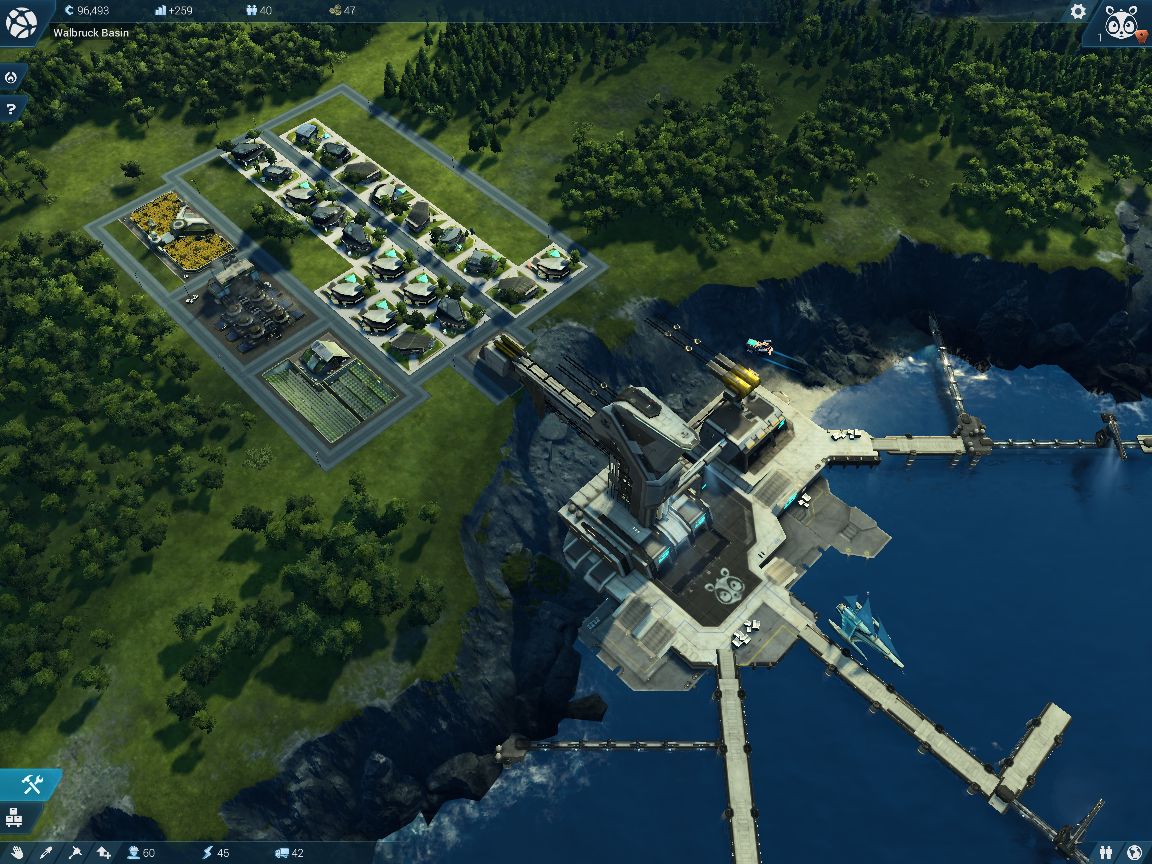

Low Settings
Low Settings

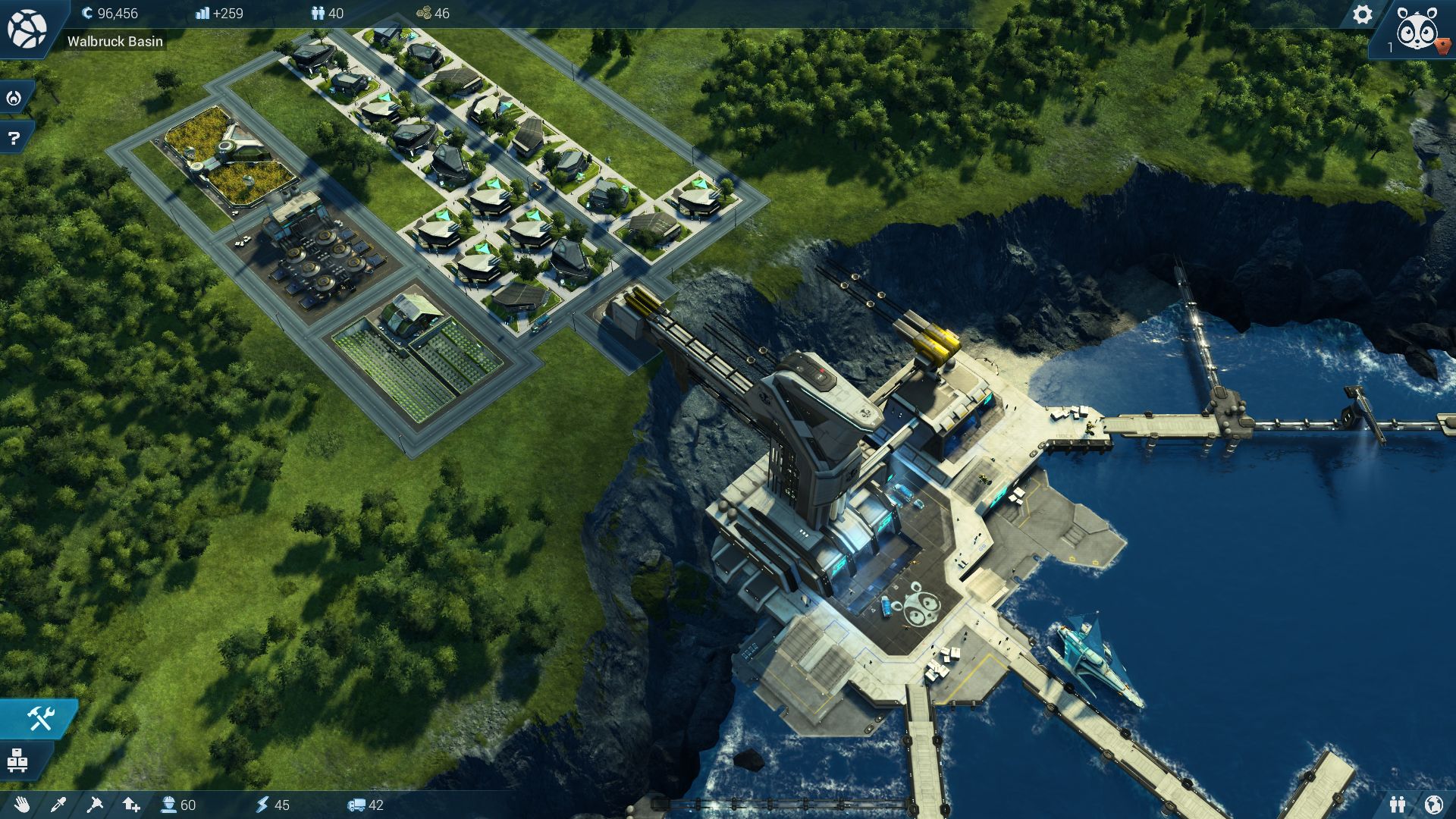

Medium Settings
Medium Settings

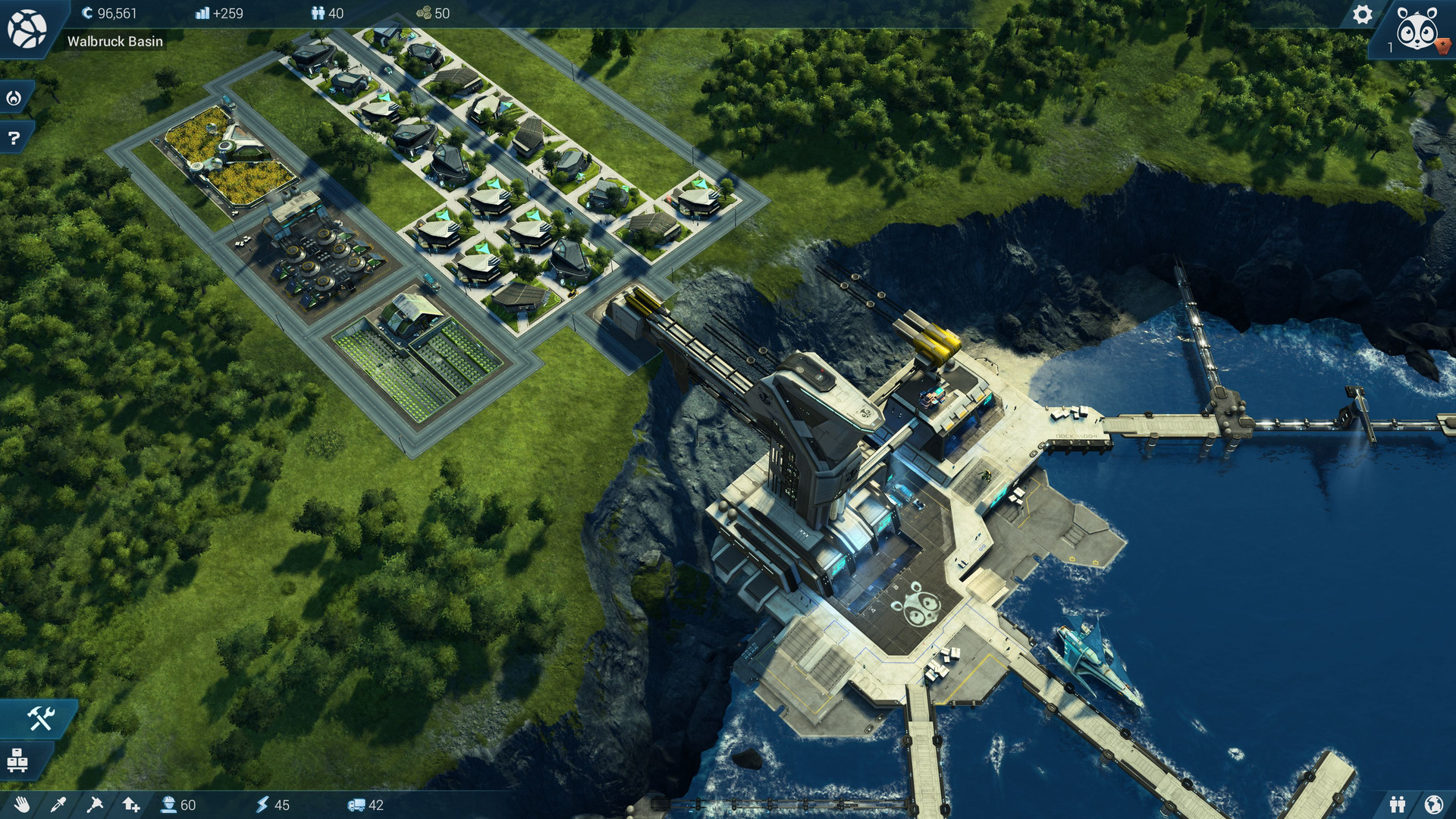

High Settings
High Settings
Ultra High Settings
Ultra High Settings
4K Settings
4K Settings
Low Settings
Low Settings
Medium Settings
Medium Settings
High Settings
High Settings
Ultra High Settings
Ultra High Settings
4K Settings
4K Settings

The performance demands are extremely high on the maximum setting, which only differs from the "High" preset in shader quality, anti-aliasing and range of vision. Neither the leading notebook graphics card - the GeForce GTX 980M - nor its GTX 980 desktop counterpart can take on these settings without stuttering. You'll need a GTX 980 Ti or an SLI system composed of two GTX 980M chips to run the game at "Ultra High." Things look similar in the 4K arena. No test device managed more than 35 fps when faced with a mixture of 3840x2160 pixels, high details and 4x MSAA. Here's a tip: Nvidia's Kepler architecture is substantially weaker at maximum settings than the following generation (Maxwell). For instance, a GeForce GTX 880M performs below a GTX 960M, even though the latter usually computes much more slowly.

Anno 2205
    3840x2160 High Preset AA:4x     1920x1080 Ultra High Preset AA:8x     1920x1080 High Preset AA:4x     1366x768 Medium Preset AA:2x     1024x768 Low Preset
NVIDIA GeForce GTX 980, 3770K
Desktop-PC
34.2 (min: 32) fps ∼39%
31.6 (min: 29) fps ∼42%
84.3 (min: 77) fps ∼56%
145.4 (min: 139) fps ∼81%
156.4 (min: 148) fps ∼81%
AMD Radeon R9 290X, 4790K
Sapphire Radeon R9 290X Tri-X OC
26.9 (min: 25) fps ∼31%
26 (min: 23) fps ∼34%
66 (min: 61) fps ∼44%
126 (min: 111) fps ∼70%
170 (min: 157) fps ∼88%
NVIDIA GeForce GTX 980M, 4700MQ
Schenker W504
23.8 (min: 20) fps ∼27%
22.7 (min: 19) fps ∼30%
52.2 (min: 43) fps ∼35%
126.4 (min: 106) fps ∼71%
135.1 (min: 128) fps ∼70%
NVIDIA GeForce GTX 970M, 4700MQ
Schenker W504
18.6 (min: 17) fps ∼21%
16.8 (min: 14) fps ∼22%
44.2 (min: 34) fps ∼29%
100.4 (min: 81) fps ∼56%
139.9 (min: 117) fps ∼72%
NVIDIA GeForce GTX 950, 3770K
Desktop-PC
14.4 (min: 12) fps ∼16%
13.3 (min: 11) fps ∼18%
40.3 (min: 37) fps ∼27%
88.6 (min: 80) fps ∼49%
144.6 (min: 140) fps ∼75%
NVIDIA GeForce GTX 880M, 4700MQ
Schenker W504
16.7 (min: 14) fps ∼19%
8.8 (min: 5) fps ∼12%
39.8 (min: 36) fps ∼26%
77.8 (min: 71) fps ∼43%
134.8 (min: 125) fps ∼70%
NVIDIA GeForce GTX 870M, 4700MQ
Schenker W504
13.5 (min: 12) fps ∼15%
6.8 (min: 4) fps ∼9%
33.6 (min: 29) fps ∼22%
66.1 (min: 59) fps ∼37%
116.3 (min: 107) fps ∼60%
NVIDIA GeForce GTX 960M, 4720HQ
Schenker XMG A505
10.4 (min: 8) fps ∼12%
10.1 (min: 7) fps ∼13%
26.1 (min: 23) fps ∼17%
57.6 (min: 52) fps ∼32%
105.2 (min: 97) fps ∼55%
NVIDIA GeForce GTX 860M, 4700MQ
Schenker W504
7.9 (min: 5) fps ∼9%
4.9 (min: 2) fps ∼6%
20.9 (min: 18) fps ∼14%
47.4 (min: 42) fps ∼26%
78.8 (min: 71) fps ∼41%
NVIDIA GeForce GTX 850M, 4340M
Schenker M504
7.3 (min: 2) fps ∼8%
8.4 (min: 6) fps ∼11%
19.3 (min: 16) fps ∼13%
44.8 (min: 40) fps ∼25%
81.8 (min: 74) fps ∼42%
NVIDIA GeForce GT 750M, 4702MQ
Schenker M503
2.4 (min: 1) fps ∼3%
11.3 (min: 7) fps ∼7%
24.2 (min: 22) fps ∼14%
42.4 (min: 40) fps ∼22%
NVIDIA GeForce GT 740M, 4200M
HP Envy 15-j011sg
3.4 (min: 1) fps ∼4%
8.1 (min: 5) fps ∼5%
18.2 (min: 16) fps ∼10%
31.7 (min: 29) fps ∼16%
NVIDIA GeForce GT 720M, 4200M
MSI CX61-i572M
1.7 fps ∼2%
6.2 fps ∼4%
13.9 fps ∼8%
24.8 fps ∼13%
Intel Iris Pro Graphics 5200, 4750HQ
Schenker Technologies S413
10.9 (min: 8) fps ∼6%
25.8 (min: 20) fps ∼13%
Intel HD Graphics 4600, 4700MQ
Schenker W504
3.7 (min: 1) fps ∼2%
6.5 (min: 4) fps ∼4%
14.4 (min: 12) fps ∼7%
Intel HD Graphics 5500, 5010U
Intel NUC Kit NUC5i3RYH
2.8 (min: 1) fps ∼2%
5 (min: 1) fps ∼3%
8.3 (min: 7) fps ∼4%
Discussion

Test Systems

Four of our test devices are courtesy of Schenker Technologies (mysn.de):

  • W504 (Core i7-4700MQ, 8 GB DDR3, GeForce GTX 860M, GTX 870M, GTX 880M, GTX 970M, GTX 980M)
  • A505 (Core i7-4720HQ, 8 GB DDR3, GeForce GTX 960M)
  • M504 (Core i5-4340M, 8 GB DDR3, GeForce GTX 850M)
  • M503 (Core i7-4702MQ, 8 GB DDR3, GeForce GT 750M)

Three notebooks came from Nvidia:

Intel provided us with another:

  • Schenker S413 (Core i7-4750HQ, 8 GB DDR3, Iris Pro Graphics 5200)

The desktop computers contain CPUs/APUs from Intel and AMD, SSDs from Micron, Intel and Samsung, motherboards from Intel and Asus, as well as graphics cards from Nvidia and AMD. We use the Asus PB287Q as our 4K monitor.

GPU drivers: Nvidia 358.50, AMD 15.10 Beta, Intel 20.19.15.4300 (Win 10) and Intel 10.18.14.4294 (Win 7).

Overview

Show Restrictions
Pos      Model                                     Anno 2205
 Anno 2205 (2015)
low
1024x768
Low Preset
med.
1366x768
Medium Preset
2xAA
high
1920x1080
High Preset
4xAA
ultra
1920x1080
Ultra High Preset
8xAA
4k
3840x2160
High Preset
4xAA
 1NVIDIA Titan X Pascal
112.2
114
101.1
76
88.1
 2NVIDIA GeForce GTX 1080 SLI (Laptop)
102
57.1
68.4
 3NVIDIA GeForce GTX 1070 SLI (Laptop)
111
49.8
54.8
 4NVIDIA GeForce GTX 1080 (Desktop)
188
176
151
602
712
 5NVIDIA GeForce GTX 1080 (Laptop)
114
56.3
66.8
 6NVIDIA GeForce GTX 980 SLI (Laptop)
170.1
157.1
88
31.5
35.4
 7NVIDIA GeForce GTX 1070 (Desktop)
140
472
57.52
 8NVIDIA GeForce GTX 1070 (Laptop)
91.22
44.63
49.23
 10NVIDIA GeForce GTX 980 Ti
43.9
52.2
 12AMD Radeon R9 Fury
171
140
76
33
34.3
 13AMD Radeon R9 Nano
31.4
32.6
 14NVIDIA GeForce GTX 980
156.4
145.4
84.3
31.6
34.2
 15NVIDIA GeForce GTX 980 (Laptop)
157.952
145.32
94.62
32.452
37.552
 18AMD Radeon R9 390X
143.6
132.6
69.8
27.7
29.3
 19NVIDIA GeForce GTX 970M SLI
116.3
110.3
55.6
17.5
21.4
 20NVIDIA GeForce GTX 1060 (Desktop)
146
135
96.9
31.9
38.2
 22AMD Radeon RX 480
70
28.7
26.1
 23NVIDIA GeForce GTX 1060 (Laptop)
96.152
89.152
79.23
28.63
32.4
 25NVIDIA GeForce GTX 970
126.2
92
27.252
34.1
Pos      Model                                     Anno 2205
lowmed.highultra4k
 31AMD Radeon R9 290X
170
126
66
26
26.9
 38NVIDIA GeForce GTX 980M
131.22
126.43
63.13
22.73
23.52
 39NVIDIA Quadro M5000M
193
179
82
34
 40AMD Radeon R9 280X
129
95
52
22.7
22.8
 41AMD Radeon R9 380
160.1
96.5
44.2
17.6
17.8
 42NVIDIA GeForce GTX 960
175.2
124.7
57
20.6
20.9
 43NVIDIA GeForce GTX 1050 Ti (Notebook)
63.7
20.6
24
 44NVIDIA GeForce GTX 1050 Ti (Desktop)
61.8
20.7
 45NVIDIA GeForce GTX 970M
127.84
107.054
54.84
17.24
19.22
 48NVIDIA GeForce GTX 680
113.8
101.6
56.3
13.8
23
 56NVIDIA Quadro M3000M
179
123
58
21
 57NVIDIA GeForce GTX 1050 (Desktop)
54.3
17
19.6
 58NVIDIA GeForce GTX 1050 (Notebook)
113
92
43.7
13.9
 59AMD FirePro W7170M
146
93
43
20
 61AMD Radeon R7 370
115
71
30
13.6
13.5
 63NVIDIA GeForce GTX 880M
134.8
77.8
39.8
8.8
16.7
 64NVIDIA GeForce GTX 950
144.6
88.6
40.3
13.3
14.4
 71AMD Radeon RX 460 (Desktop)
33.3
13.4
12
 74NVIDIA GeForce GTX 965M
129.23
100.73
45.63
15.63
15.5
 75NVIDIA GeForce GTX 870M
116.3
66.1
33.6
6.8
13.5
Pos      Model                                     Anno 2205
lowmed.highultra4k
 77AMD Radeon HD 8970M
106
64.9
32
13.1
 87*AMD Radeon R9 M390
103
31.5
12
12
 92NVIDIA GeForce GTX 960M
105.23
60.052
26.13
10.23
10.152
 93*AMD Radeon Pro 460
120.9
25.9
8.8
 97*AMD Radeon Pro 455
86
17.5
7.7
 99NVIDIA GeForce GTX 860M
78.8
47.4
20.9
4.9
7.9
 107*AMD Radeon Pro 450
87
18.3
 108NVIDIA GeForce GTX 950M
853
42.63
19.63
8.852
 110AMD Radeon R9 M385X
47.4
50.5
24.1
9.9
 111NVIDIA GeForce GTX 850M
81.8
44.8
19.3
8.4
7.3
 112NVIDIA Quadro M1000M
121
65
30
14
12
 113AMD Radeon R9 M280X
45.1
37.1
17.1
 118NVIDIA GeForce 945M
63.3
37.8
17.2
7.3
 160NVIDIA Quadro K2100M
54
33
14
 175AMD FirePro W4100
38
19
10
5
3
 180NVIDIA GeForce GT 750M
42.4
24.2
11.3
2.4
 182NVIDIA GeForce 940MX
53.254
27.94
12.654
5.93
 184NVIDIA GeForce 940M
42.3
21.6
9.9
4.4
 190AMD Radeon R7 M370
35.4
19.8
8.7
4.1
 199*AMD Radeon R7 (Bristol Ridge)
26.1
14.4
6.7
Pos      Model                                     Anno 2205
lowmed.highultra4k
 201Intel Iris Pro Graphics 5200
25.8
10.9
 203NVIDIA GeForce GT 740M
31.7
18.2
8.1
3.4
 204NVIDIA GeForce 930M
40.6
22.3
9.7
4.8
 206*Intel Iris Graphics 550
44.1
27.5
11.7
5.3
 208*NVIDIA GeForce 920MX
38.1
19.1
 210Intel Iris Graphics 540
37.72
20.652
9.052
 240NVIDIA GeForce GT 640M
33.2
16
 241AMD Radeon R7 (Kaveri)
32.1
16.6
8
 242AMD Radeon R8 M365DX
28.92
18.42
5.92
2.9
 243*AMD Radeon R7 M460
31.4
16.5
7
3.7
 246AMD Radeon R7 M360
31.33
17.43
7.63
3.72
 248*AMD Radeon R7 (Carrizo)
23.72
14.152
6.5
2.2
 251AMD Radeon R8 M445DX
36
17.8
7.4
 252AMD Radeon R7 M440
35.3
17.1
7
 258AMD Radeon R7 M340
35.6
17.3
6.9
3.3
 259NVIDIA GeForce 920M
30.4
17.5
8.5
5.3
 260AMD Radeon R6 M340DX
30.5
16.4
6.7
3.1
 261Intel HD Graphics 630
36.6
21
8.5
 263Intel HD Graphics 530
9
4.6
 267AMD Radeon R5 (Bristol Ridge)
17.4
11
Pos      Model                                     Anno 2205
lowmed.highultra4k
 269*Intel HD Graphics 620
23.5
16.2
6.8
 270AMD Radeon R6 (Carrizo)
27.6
14.8
6.1
2.2
 291AMD FirePro W2100
23
15
7
3
2
 335AMD Radeon R5 M335
28.9
15.8
6.8
3.1
 336*AMD Radeon R5 M430
27.7
14.1
 337AMD Radeon R5 M330
25.4
13.7
 338AMD Radeon R5 M255
33
16.2
6.9
 340NVIDIA GeForce 910M
22.1
13.7
6.3
3.1
 342Intel HD Graphics 520
20.22
10.752
6.4
 343Intel Iris Graphics 6100
28.9
15.8
 344NVIDIA GeForce GT 720M
24.8
13.9
6.2
1.7
 363Intel HD Graphics 4600
13.62
5.852
3.352
 365Intel HD Graphics 5500
8.3
5
2.8
 408Intel HD Graphics 515
15.5
9.3
 409Intel HD Graphics 4400
21
9.2
 410*Intel HD Graphics 510
19.9
11
 439Intel HD Graphics 5300
10.6
6.1
 440*Intel HD Graphics 505
11.8
6.5
 457AMD Radeon R5 (Beema/Carrizo-L)
16.6
8
 460Intel HD Graphics 4200
18
7.7
Pos      Model                                     Anno 2205
lowmed.highultra4k
 506Intel HD Graphics 405 (Braswell)
10.8
6.9
 537Intel HD Graphics (Cherry Trail)
8.1
3.9
* Smaller values are better. / * Approximate position



Legend
5Stutters – This game is very likely to stutter and have poor frame rates. Based on all known benchmarks using the specified graphical settings, average frame rates are expected to fall below 25fps
May Stutter – This graphics card has not been explicitly tested on this game. Based on interpolated information from surrounding graphics cards of similar performance levels, stutters and poor frame rates are expected.
30Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 25fps
40Fluent – Based on all known benchmarks using the specified graphical settings, this game should run at or above 35fps
May Run Fluently – This graphics card has not been explicitly tested on this game. Based on interpolated information from surrounding graphics cards of similar performance levels, fluent frame rates are expected.
123Uncertain – This graphics card experienced unexpected performance issues during testing for this game. A slower card may be able to achieve better and more consistent frame rates than this particular GPU running the same benchmark scene.
Uncertain – This graphics card has not been explicitly tested on this game and no reliable interpolation can be made based on the performances of surrounding cards of the same class or family.
The value in the fields displays the average frame rate of all values in the database. Move your cursor over the value to see individual results.
static version load dynamic
Loading Comments
Comment this article:
> Notebook / Laptop Reviews and News > Reviews > Anno 2205 Notebook Benchmarks
Florian Glaser, 2015-11- 9 (Update: 2015-11-13)
