ARM Mali-T760 MP6

ARM Mali-T760 MP6

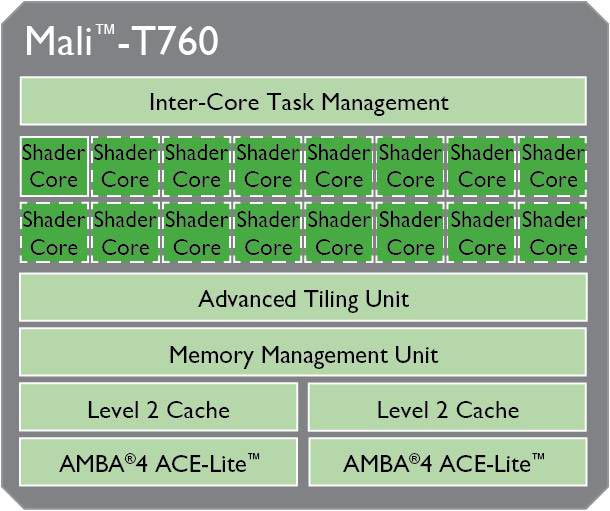

The ARM Mali-T760 MP6 is a mobile graphics solution for (mostly Android based) smartphones and tablets. The chip is available since Q1/2015 and for example integrated in the Exynos 5433 Octa SoC. Besides OpenGL ES 3.1, the GPU supports OpenCL 1.1 as well as DirectX 11. According to ARM, the Mali-T760 can be scaled from 1 - 16 cores/clusters.

The MP6 version offers 6 clusters clocked at up to 700 MHz (143 GFLOPS). According to first benchmarks, the performance is similar to the Adreno 420 and PowerVR GX6450. Therfore, even very demanding games of 2014 should run in high resolutions fluently.

Mali-T700 Series
Mali-T760 MP8 compare 8 @ 0.7 - 0.77 GHz
Mali-T760 MP6 6 @ 0.7 GHz
Mali-T760 MP4 compare 4 @ 0.6 GHz
Mali-T760 MP2 compare 2 @ 0.7 GHz
Mali-T720 MP4 compare 4 @ 0.6 GHz
Mali-T720 MP2 compare 2 @ 0.65 GHz
Mali-T720 compare 1 @ 0.6 GHz
CodenameMidgard (3rd Generation)
ArchitectureMidgard (3rd-gen)
Pipelines6 - unified
Core Speed700 MHz
Shared Memoryno
APIDirectX 11, OpenGL ES 3.1
FeaturesOpenGL ES 3.1, OpenCL 1.1, DirectX 11, Renderscript, FSAA/MSAA
Date of Announcement01.10.2013
Link to Manufacturer Pagehttp://www.arm.com/products/multimedia/m...
CPU in Mali-T760 MP6GPU Base SpeedGPU Boost / Turbo
Samsung Exynos 5433 Octa8 x 1900 MHz? MHz700 MHz

Benchmarks

3DMark - 3DMark Ice Storm Unlimited Graphics
min: 20006     avg: 20244     median: 20244 (3%)     max: 20482 Points
+ 2 benchmarks and specifications   + Show comparison chart
GFXBench (DX / GLBenchmark) 2.7
GFXBench 2.7 T-Rex HD Onscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench 2.7 T-Rex HD Onscreen C24Z16
29 fps (1%)
+ 2 benchmarks and specifications   + Show comparison chart
GFXBench T-Rex HD Offscreen C24Z16 +
GFXBench (DX / GLBenchmark) 2.7 - GFXBench T-Rex HD Offscreen C24Z16
min: 24     avg: 31     median: 31 (0%)     max: 38 fps
+ 2 benchmarks and specifications   + Show comparison chart
GFXBench 3.0 - GFXBench 3.0 Manhattan
min: 11     avg: 11.5     median: 11.5 (3%)     max: 12 fps
+ 2 benchmarks and specifications   + Show comparison chart
GFXBench 3.0 - GFXBench 3.0 Manhattan Offscreen
min: 10.4     avg: 13.7     median: 13.7 (1%)     max: 17 fps
+ 2 benchmarks and specifications   + Show comparison chart
Smartbench 2012 - Smartbench 2012 Gaming Index
4489 points (98%)
+ 2 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
