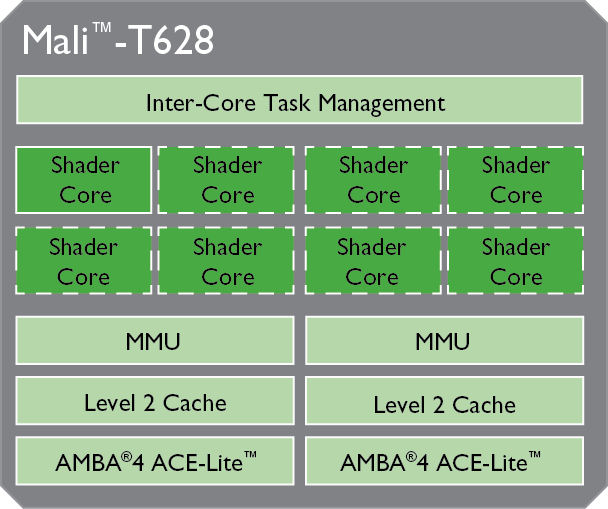

ARM Mali-T628 MP4

The ARM Mali-T628 MP4 is an integrated graphics card for (mostly Android based) smartphones and tablets. It was first introduced in the Kirin 920 SoC at the end of 2014. The GPU supports OpenGL ES 3.0, OpenCL 1.1 and DirectX 11. The Mali-T628 can be built with 1 to 8 clusters, the MP4 version offers four clusters that are clocked at about 600 MHz (77 GFLOPS). Displays of up to 2560x1600 are supported by the T628.

Depending on the benchmark, the 3D performance is slightly above the Adreno 320 (Snapdragon 600) or Adreno 405 (Snapdragon 610). At the time of launch in 2014 even high end games should run fluently on the Mali-T628MP4.

The power consumption of the Mali-T628MP4 is relatively high for smartphones. Therefore, it is used in rather big smartphones and tablets.

Benchmarks

3DMark - Ice Storm Unlimited Graphics Score 1280x720 offscreen

min: 8743     avg: 11771.1     median: 11984 (2%)     max: 14522 Points

+ 7 benchmarks and specifications- 7 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	8743
Huawei Mate S	Kirin 935	3072 MB			8931
Honor 7	Kirin 935	3072 MB	600 /  MHz		10579
Huawei MediaPad M2	Kirin 930	2048 MB			11984
Huawei MediaPad M2 10 inch	Kirin 930	2048 MB			13198
Honor 6 Plus	Kirin 925	3072 MB			14441
Honor 6	Kirin 920	3072 MB			14522

PowerVR SGX531 -95%

...

PowerVR GE8322 / IMG8322 -18%

ARM Mali-T624 -16%

ARM Mali-T830 MP2 -15%

PowerVR GE8320 -14%

Qualcomm Adreno 505 -14%

Qualcomm Adreno 320 -10%

PowerVR G6200 -8%

ARM Mali-G71 MP2 -2%

PowerVR SGX554MP4 -1%

ARM Mali-T628 MP4

Qualcomm Adreno 506 11%

ARM Mali-T880 MP2 13%

ARM Mali-T830 MP3 13%

PowerVR GX6250 22%

Intel HD Graphics (Bay Trail) 23%

ARM Mali-T628 MP6 25%

NVIDIA GeForce Tegra 4 32%

PowerVR G6400 35%

Qualcomm Adreno 330 51%

...

NVIDIA GeForce RTX 2080 Ti (Desktop) 4324%

0%

100%

3DMark - Ice Storm Extreme Graphics 1920x1080

min: 5319     avg: 7192.7     median: 7040 (1%)     max: 8607 Points

+ 7 benchmarks and specifications- 7 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Huawei Mate S	Kirin 935	3072 MB			5319
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	6064
Honor 7	Kirin 935	3072 MB	600 /  MHz		6785
Huawei MediaPad M2	Kirin 930	2048 MB			7040
Huawei MediaPad M2 10 inch	Kirin 930	2048 MB			7936
Honor 6	Kirin 920	3072 MB			8598
Honor 6 Plus	Kirin 925	3072 MB			8607

PowerVR GE8300 -32%

ARM Mali-T760 MP2 -32%

Qualcomm Adreno 405 -27%

Qualcomm Adreno 505 -22%

Qualcomm Adreno 320 -18%

ARM Mali-T860 MP2 -17%

PowerVR G6200 -14%

ARM Mali-T830 MP2 -12%

PowerVR GE8320 -1%

ARM Mali-T628 MP4

Qualcomm Adreno 506 1%

Intel HD Graphics (Bay Trail) 2%

NVIDIA GeForce Tegra 4 11%

ARM Mali-T880 MP2 20%

ARM Mali-T628 MP6 25%

Qualcomm Adreno 330 26%

PowerVR G6430 41%

PowerVR G6400 42%

Qualcomm Adreno 418 44%

...

NVIDIA GeForce GTX 1080 SLI (Laptop) 5317%

0%

100%

3DMark - Ice Storm Standard Graphics 1280x720

min: 9891     avg: 10429     median: 10515 (1%)     max: 10881 Points

+ 4 benchmarks and specifications- 4 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Huawei MediaPad M2 10 inch	Kirin 930	2048 MB			(!)
Huawei Mate S	Kirin 935	3072 MB			9891
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	10515
Honor 7	Kirin 935	3072 MB	600 /  MHz		10881

PowerVR SGX554MP4 -36%

Intel Graphics Media Accelerator (GMA) 4500MHD -33%

ARM Mali-T830 MP2 -23%

ARM Mali-T760 MP2 -12%

ARM Mali-T624 -9%

PowerVR GE8320 -9%

NVIDIA GeForce Tegra 4 -6%

ARM Mali-T860 MP2 -5%

Qualcomm Adreno 405 -4%

ARM Mali-T628 MP4

PowerVR G6200 1%

ARM Mali-T880 MP4 2%

Qualcomm Adreno 320 2%

Qualcomm Adreno 505 4%

ARM Mali-T880 MP2 10%

Qualcomm Adreno 506 17%

AMD Radeon HD 6250 17%

Intel HD Graphics (Sandy Bridge) 32%

AMD Radeon HD 8180 39%

...

NVIDIA GeForce GTX 980 SLI (Laptop) 4128%

0%

100%

GFXBench (DX / GLBenchmark) 2.7
T-Rex HD Offscreen C24Z16 1920x1080 +

GFXBench (DX / GLBenchmark) 2.7 - T-Rex HD Offscreen C24Z16 1920x1080

min: 10     avg: 12.9     median: 12 (0%)     max: 17 fps

+ 7 benchmarks and specifications- 7 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	10
Honor 7	Kirin 935	3072 MB	600 /  MHz		10
Huawei Mate S	Kirin 935	3072 MB			10
Honor 6 Plus	Kirin 925	3072 MB			12
Huawei MediaPad M2	Kirin 930	2048 MB			15
Huawei MediaPad M2 10 inch	Kirin 930	2048 MB			16
Honor 6	Kirin 920	3072 MB			17

PowerVR SGX531 -96%

...

PowerVR SGX544MP2 -41%

Vivante GC4000 -36%

ARM Mali-T720 MP2 -27%

PowerVR SGX554MP4 -27%

ARM Mali-450 MP4 -19%

Qualcomm Adreno 504 -14%

ARM Mali-T720 MP4 -13%

ARM Mali-T830 MP1 -7%

ARM Mali-T604 MP4 -4%

ARM Mali-T628 MP4

Qualcomm Adreno 320 0%

PowerVR GE8300 9%

ARM Mali-T624 10%

PowerVR G6200 14%

Qualcomm Adreno 405 15%

Intel HD Graphics (Bay Trail) 22%

ARM Mali-T860 MP2 24%

ARM Mali-T760 MP4 24%

ARM Mali-T760 MP2 25%

...

NVIDIA GeForce GTX 1080 Max-Q 10514%

0%

100%

T-Rex HD Onscreen C24Z16 +

GFXBench (DX / GLBenchmark) 2.7 - T-Rex HD Onscreen C24Z16

min: 11     avg: 13.4     median: 13 (0%)     max: 17 fps

+ 7 benchmarks and specifications- 7 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	11
Honor 7	Kirin 935	3072 MB	600 /  MHz		11
Huawei Mate S	Kirin 935	3072 MB			11
Honor 6 Plus	Kirin 925	3072 MB			13
Huawei MediaPad M2	Kirin 930	2048 MB			14
Honor 6	Kirin 920	3072 MB			17
Huawei MediaPad M2 10 inch	Kirin 930	2048 MB			17

Qualcomm Adreno 200 -91%

...

Qualcomm Adreno 304 -22%

ARM Mali-T720 -20%

Qualcomm Adreno 305 -19%

PowerVR SGX544MP2 -17%

Qualcomm Adreno 302 -13%

ARM Mali-T760 MP4 -11%

ARM Mali-450 MP4 -7%

PowerVR SGX543MP3 -1%

Qualcomm Adreno 308 -1%

ARM Mali-T628 MP4

ARM Mali-T720 MP2 2%

ARM Mali-T720 MP4 10%

Vivante GC7000UL 12%

Qualcomm Adreno 320 15%

Qualcomm Adreno 504 27%

ARM Mali-T830 MP1 27%

Vivante GC4000 29%

Qualcomm Adreno 405 30%

ARM Mali-T830 MP2 36%

...

NVIDIA GeForce GTX 1050 (Laptop) 3309%

0%

100%

GFXBench 3.0 - Manhattan Offscreen OGL off screen

min: 5     avg: 6.9     median: 6 (1%)     max: 8 fps

+ 7 benchmarks and specifications- 7 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	5.5
Honor 7	Kirin 935	3072 MB	600 /  MHz		5.6
Huawei Mate S	Kirin 935	3072 MB			5.8
Honor 6 Plus	Kirin 925	3072 MB			6.6
Huawei MediaPad M2	Kirin 930	2048 MB			7.8
Honor 6	Kirin 920	3072 MB			8.1
Huawei MediaPad M2 10 inch	Kirin 930	2048 MB			8.8

ARM Mali-T624 -48%

ARM Mali-T720 MP4 -42%

Qualcomm Adreno 320 -38%

ARM Mali-T760 MP2 -36%

Qualcomm Adreno 504 -32%

ARM Mali-T830 MP1 -25%

Qualcomm Adreno 405 -12%

ARM Mali-T860 MP2 -5%

PowerVR GE8300 -5%

ARM Mali-T628 MP4

ARM Mali-T830 MP2 3%

ARM Mali-T760 MP4 3%

PowerVR G6200 4%

ARM Mali-T628 MP6 11%

Qualcomm Adreno 505 14%

PowerVR GE8322 / IMG8322 25%

PowerVR G6400 29%

PowerVR GE8320 36%

Qualcomm Adreno 506 39%

...

NVIDIA GeForce GTX 1070 SLI (Laptop) 7810%

0%

100%

GFXBench 3.0 - Manhattan Onscreen OGL on screen

min: 5     avg: 7.3     median: 7 (2%)     max: 8 fps

+ 7 benchmarks and specifications- 7 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	5.8
Huawei Mate S	Kirin 935	3072 MB			6.3
Honor 7	Kirin 935	3072 MB	600 /  MHz		6.5
Honor 6 Plus	Kirin 925	3072 MB			7.5
Huawei MediaPad M2	Kirin 930	2048 MB			7.8
Honor 6	Kirin 920	3072 MB			8.7
Huawei MediaPad M2 10 inch	Kirin 930	2048 MB			8.7

ARM Mali-T720 -36%

ARM Mali-T760 MP4 -28%

PowerVR GE8100 -24%

ARM Mali-T720 MP2 -21%

Qualcomm Adreno 302 -20%

Qualcomm Adreno 308 -19%

ARM Mali-T720 MP4 -18%

Qualcomm Adreno 304 -15%

Qualcomm Adreno 405 0%

ARM Mali-T628 MP4

ARM Mali-T628 MP6 6%

ARM Mali-T760 MP2 11%

ARM Mali-T830 MP2 14%

ARM Mali-T830 MP1 14%

Qualcomm Adreno 320 16%

PowerVR GX6250 17%

Qualcomm Adreno 504 21%

ARM Mali-T860 MP2 23%

Intel UHD Graphics 600 41%

...

NVIDIA GeForce GTX 1070 Max-Q 4880%

0%

100%

Basemark X 1.1 - High Quality

min: 5367     avg: 6038.5     median: 6038 (14%)     max: 6710 fps

+ 2 benchmarks and specifications- 2 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	5367
Honor 6	Kirin 920	3072 MB			6710

ARM Mali-400 MP -71%

Qualcomm Adreno 306 -69%

ARM Mali-T720 -65%

ARM Mali-400 MP4 -57%

ARM Mali-450 MP4 -39%

ARM Mali-T720 MP2 -38%

ARM Mali-T760 MP2 -25%

ARM Mali-T624 -18%

Qualcomm Adreno 320 -11%

ARM Mali-T628 MP4

ARM Mali-T860 MP2 6%

Intel HD Graphics (Bay Trail) 10%

Qualcomm Adreno 405 11%

ARM Mali-T628 MP6 28%

Qualcomm Adreno 505 33%

ARM Mali-T830 MP2 42%

PowerVR G6400 61%

NVIDIA GeForce Tegra 4 63%

ARM Mali-T880 MP2 65%

...

ARM Mali-G71 MP20 593%

0%

100%

Basemark X 1.1 - Medium Quality

min: 15858     avg: 18011     median: 18011 (40%)     max: 20164 fps

+ 2 benchmarks and specifications- 2 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Honor 6	Kirin 920	3072 MB			15858
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	20164

ARM Mali-T760 MP2 -37%

Qualcomm Adreno 320 -36%

ARM Mali-T624 -32%

Intel HD Graphics (Bay Trail) -28%

ARM Mali-T860 MP2 -23%

PowerVR G6400 -11%

ARM Mali-T830 MP2 -8%

Qualcomm Adreno 505 -8%

ARM Mali-T628 MP6 -2%

ARM Mali-T628 MP4

ARM Mali-T880 MP2 7%

NVIDIA GeForce Tegra 4 9%

PowerVR G6430 10%

Qualcomm Adreno 506 18%

Qualcomm Adreno 330 27%

Qualcomm Adreno 510 45%

Qualcomm Adreno 418 46%

ARM Mali-T880 MP4 65%

Qualcomm Adreno 430 71%

...

Qualcomm Adreno 540 148%

0%

100%

PassMark PerformanceTest Mobile V1 - 2D Graphics Tests

min: 1549     avg: 2512     median: 2512 (12%)     max: 3475 Points

+ 2 benchmarks and specifications- 2 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Honor 6	Kirin 920	3072 MB			1549
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	3475

PowerVR SGX543MP4 -90%

...

PowerVR SGX544 -9%

PowerVR SGX554MP4 -9%

ARM Mali-400 MP2 -9%

ARM Mali-T720 -8%

Qualcomm Adreno 320 -7%

Qualcomm Adreno 302 -6%

Qualcomm Adreno 305 -4%

Broadcom VideoCore-IV -3%

PowerVR G6430 -1%

ARM Mali-T628 MP4

PowerVR GE8320 3%

PowerVR GX6450 3%

PowerVR SGX540 3%

ARM Mali-400 MP4 3%

PowerVR SGX544MP2 5%

ARM Mali-T860 MP2 10%

Qualcomm Adreno 306 12%

Qualcomm Adreno 405 17%

ARM Mali-T720 MP2 17%

...

Apple A13 Bionic GPU 691%

0%

100%

PassMark PerformanceTest Mobile V1 - 3D Graphics Tests

min: 1013     avg: 1215.5     median: 1215 (19%)     max: 1418 Points

+ 2 benchmarks and specifications- 2 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Honor 6	Kirin 920	3072 MB			1013
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	1418

PowerVR GE8100 -82%

...

ARM Mali-450 MP4 -12%

ARM Mali-T880 MP2 -11%

PowerVR G6400 -10%

PowerVR SGX544MP2 -7%

PowerVR GXA6850 -5%

Qualcomm Adreno 505 -4%

Apple A9X / PowerVR Series 7XT -3%

ARM Mali-T830 MP2 -3%

Apple A10X Fusion GPU / PowerVR -2%

ARM Mali-T628 MP4

Intel HD Graphics (Bay Trail) 3%

ARM Mali-T760 MP2 5%

Qualcomm Adreno 330 9%

PowerVR G6430 12%

NVIDIA GeForce Tegra 4 13%

ARM Mali-G71 MP2 19%

ARM Mali-T880 MP4 21%

Qualcomm Adreno 506 21%

Qualcomm Adreno 612 23%

...

ARM Mali-G76 MP12 420%

0%

100%

Smartbench 2012 - Gaming Index

min: 3804     avg: 4224     median: 4310 (94%)     max: 4363 points

+ 6 benchmarks and specifications- 6 benchmarks and specifications   + Show comparison chart - Hide comparison chart

Model	CPU	Memory	Core / Memory	GPU Memory	Value
Huawei MediaPad M2	Kirin 930	2048 MB			3804
Honor 7	Kirin 935	3072 MB	600 /  MHz		4217
Huawei Mate S	Kirin 935	3072 MB			4293
Honor 6	Kirin 920	3072 MB			4327
Huawei P8	Kirin 930	3072 MB	600 /  MHz	OpenGL ES 3.0, OpenCL 1.1, DirectX 11	4340
Honor 6 Plus	Kirin 925	3072 MB			4363

unknown -70%

...

ARM Mali-T628 MP6 -16%

PowerVR SGX544MP2 -14%

NVIDIA GeForce Tegra 4 -14%

Qualcomm Adreno 420 -12%

ARM Mali-T720 MP4 -11%

Vivante GC7000UL -10%

ARM Mali-T720 MP2 -8%

ARM Mali-T860 MP2 -6%

Qualcomm Adreno 418 -1%

ARM Mali-T628 MP4

Qualcomm Adreno 330 0%

ARM Mali-T760 MP2 0%

PowerVR G6430 1%

Qualcomm Adreno 510 1%

Qualcomm Adreno 430 3%

Qualcomm Adreno 530 4%

ARM Mali-T624 5%

ARM Mali-T760 MP6 6%

NVIDIA Tegra K1 Kepler GPU 6%

...

ARM Mali-T880 MP4 9%

0%

100%

- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailed information on the benchmark results, click on the fps number.

Dead Trigger 2

2013

high

30

[X] Huawei MediaPad M2 10 inch
HiSilicon Kirin 930 2GHz
Mali-T628 MP4

 fps    + Compare - Hide Comparison

Qualcomm Adreno 320 -18%

...

Qualcomm Adreno 320 -18%

ARM Mali-T720 -4%

Qualcomm Adreno 305 -3%

Qualcomm Adreno 330 -1%

Qualcomm Adreno 405 -1%

ARM Mali-T628 MP4

Qualcomm Adreno 306 3%

ARM Mali-T720 MP2 11%

Qualcomm Adreno 508 20%

Qualcomm Adreno 418 20%

ARM Mali-G72 MP12 24%

Qualcomm Adreno 505 30%

ARM Mali-T830 MP2 33%

ARM Mali-T830 MP1 33%

Qualcomm Adreno 506 37%

...

Apple A13 Bionic GPU 100%

0%

100%

» The benchmarks indicate that the game is not playable in the tested settings.

Asphalt 8: Airborne

2013

high

27

[X] Huawei MediaPad M2 10 inch
HiSilicon Kirin 930 2GHz
Mali-T628 MP4

 fps    + Compare - Hide Comparison

Qualcomm Adreno 304 -52%

...

NVIDIA GeForce ULP (Tegra 3) -19%

ARM Mali-T720 MP2 -12%

PowerVR GX6250 -11%

Qualcomm Adreno 405 -10%

ARM Mali-T830 MP2 -10%

Qualcomm Adreno 505 -5%

ARM Mali-G71 MP2 -2%

NVIDIA GeForce Tegra 4 -2%

Qualcomm Adreno 320 -1%

ARM Mali-T628 MP4

Qualcomm Adreno 418 0%

Qualcomm Adreno 510 1%

ARM Mali-T880 MP4 1%

NVIDIA Tegra K1 Kepler GPU 3%

Qualcomm Adreno 330 4%

ARM Mali-T860 MP2 5%

Qualcomm Adreno 512 7%

ARM Mali-T830 MP3 7%

Qualcomm Adreno 430 7%

...

Intel HD Graphics (Cherry Trail) 74%

0%

100%

» The benchmarks indicate that the game is not playable in the tested settings.

Notebook reviews with ARM Mali-T628 MP4 graphics card

Honor 6: HiSilicon Kirin 920, 5", 0.1 kg
  Review » Honor 6 Smartphone Review

Honor 6 Plus: HiSilicon Kirin 925, 5.5", 0.2 kg
  Review » Honor 6 Plus Smartphone Review

Honor 7: HiSilicon Kirin 935, 5.2", 0.2 kg
  Review » Honor 7 Smartphone Review

Huawei Mate S: HiSilicon Kirin 935, 5.5", 0.2 kg
  Review » Huawei Mate S Smartphone Review

Huawei MediaPad M2: HiSilicon Kirin 930, 8", 0.3 kg
  Review » Huawei MediaPad M2 Tablet Review

Huawei MediaPad M2 10 inch: HiSilicon Kirin 930, 10.1", 0.5 kg
  Review » Huawei MediaPad M2 10 Tablet Review

Huawei P8: HiSilicon Kirin 930, 5.2", 0.1 kg
  Review » Huawei P8 Smartphone First Impressions

Honor 6: HiSilicon Kirin 920, 5", 0.1 kg
  External Review » Huawei Honor 6

Honor 6 Plus: HiSilicon Kirin 925, 5.5", 0.2 kg
  External Review » Honor 6 Plus

Honor 7: HiSilicon Kirin 935, 5.2", 0.2 kg
  External Review » Honor 7

Huawei Honor 6 Plus: unknown, 5.5", 0.2 kg
  External Review » Huawei Honor 6 Plus

Huawei Mate S: HiSilicon Kirin 935, 5.5", 0.2 kg
  External Review » Huawei Mate S

Huawei MediaPad M2: HiSilicon Kirin 930, 8", 0.3 kg
  External Review » Huawei MediaPad M2

Huawei MediaPad M2 10 inch: HiSilicon Kirin 930, 10.1", 0.5 kg
  External Review » Huawei MediaPad M2 10 inch

Huawei MediaPad X2: HiSilicon Kirin 930, 7", 0.2 kg
  External Review » Huawei MediaPad X2

Huawei P8: HiSilicon Kirin 930, 5.2", 0.1 kg
  External Review » Huawei P8

Huawei P8max: HiSilicon Kirin 935, 6.8", 0.2 kg
  External Review » Huawei P8max
