NVIDIA Tegra K1 Kepler GPU

NVIDIA GeForce ULP K1 (Tegra K1 Kepler GPU)

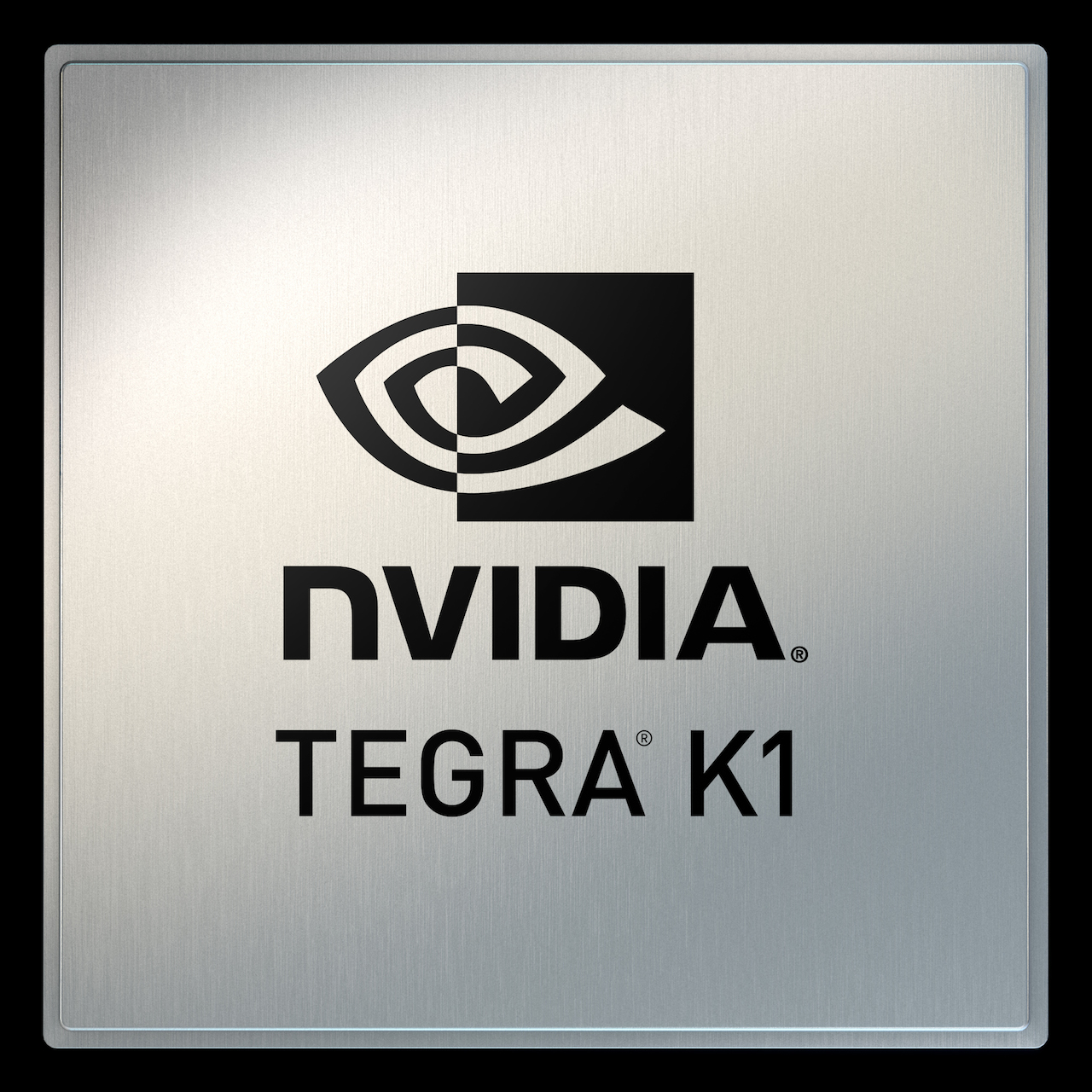

The NVIDIA Tegra K1 Kepler GPU (successor of the GeForce ULP series) is the integrated graphics card in the Tegra K1 (formerly known as Tegra 5). Compared to its predecessor, the GeForce ULP, it made the move to a unified shader architecture. It integrates a full-featured Kepler-based graphics card that includes a single SMX with 192 CUDA cores clocked at up to 950 MHz, 8 TMUs and 4 ROPs. Therefore, Tegra K1 offers about half the power of a GK208 chip (384 shaders, 32 TMUs, 8 ROPs) such as a GeForce GT 730M or 740M. This is a big step forward compared to the GeForce ULP in the Tegra 4 SoC, which was based on an old architecture with dedicated pixel- and vertex shaders that is similar to the GeForce 6 series of 2004 and supported only OpenGL ES 2.0. The new graphics card supports OpenGL 4.4 and DirectX 11 in hardware, or well above the current OpenGL ES 3.0 standard that is most common amongst the majority of mobile operating systems. Furthermore, the Kepler GPU can be used for general calculations using CUDA and OpenCL 1.2. As an example, Nvidia has shown how to perform real time video effects using the GPU and CUDA (Chimera 2).

Performance

In the 8-inch Nvidia Shield Tablet, Tegra K1 renders 66 fps in the GFXBench 2.7 T-Rex offscreen test. Compared to the competition, Nvidia's SoC is clearly faster than the Qualcomm Adreno 420 (max. 40 fps, Snapdragon 805), PowerVR GX6450 (max. 44 fps, Apple A8) and Mali-T628 MP6 (max. 31 fps, Exynos 5430). Except for the even (slightly) more powerful PowerVR GX6650 (max. 70 fps, Apple A8X), Tegra K1 has one of the fastest mobile GPUs in late 2014. Even the most demanding games and high resolution displays are handled without any problems.

More information on the SoC and performance data on the CPU can be found on the SoC page of the Tegra K1.

ManufacturerNVIDIA
Tegra K1 Series
GeForce ULP K1 (Tegra K1 Kepler GPU) 192 @ 950 MHz
CodenameLogan / NVEA / GK20A
ArchitectureKepler
Pipelines192 - unified
Core Speed *950 MHz
Shared Memoryyes
DirectXDirectX 11, Shader 5.0
technology28 nm
Date of Announcement06.01.2014
* The specified clock rates are only guidelines for the manufacturer and can be altered by them.
CPUGPU Base SpeedGPU Boost / Turbo
Nvidia Tegra K1 (Denver)2 x 2300 - 2500 MHz? MHz950 MHz
Nvidia Tegra K14 x 2300 MHz? MHz950 MHz
min. - max.? - ? MHz950 - 950 MHz

Benchmarks

GFXBench 3.0 - Manhattan Offscreen off screen
0% 100%
min: 30.9      avg: 31 (14%)     median: 31 (14%)     max: 31.2 fps
GFXBench 3.0 - Manhattan Onscreen on screen
0% 100%
min: 22.5      avg: 26.6 (2%)     median: 27.5 (2%)     max: 29.8 fps
Basemark X 1.1 - High Quality
0% 100%
min: 28746      avg: 28893.5 (98%)     median: 28893.5 (98%)     max: 29041 fps
Basemark X 1.1 - Medium Quality
0% 100%
min: 36584      avg: 37063 (89%)     median: 37063 (89%)     max: 37542 fps
GFXBench (DX / GLBenchmark) 2.7 - T-Rex HD Onscreen C24Z16
0% 100%
min: 43.4      avg: 51.4 (79%)     median: 53.7 (83%)     max: 57 fps
GFXBench (DX / GLBenchmark) 2.7 - T-Rex HD Offscreen C24Z16 1920x1080
0% 100%
min: 48      avg: 58 (6%)     median: 58.9 (7%)     max: 66 fps
3DMark (2013) - Ice Storm Unlimited Graphics Score 1280x720 offscreen
0% 100%
min: 24927      avg: 34788.5 (9%)     median: 37318.5 (10%)     max: 39590 Points
PassMark PerformanceTest Mobile V1 - 3D Graphics Tests
0% 100%
min: 2119      avg: 2314.5 (92%)     median: 2314.5 (92%)     max: 2510 Points
PassMark PerformanceTest Mobile V1 - 2D Graphics Tests
0% 100%
min: 4354      avg: 5448 (83%)     median: 5448 (83%)     max: 6542 Points
Antutu 3DRating - 3DRating V4.0 for OpenGL ES 2.0 1024x2048
0% 100%
min: 13320      avg: 13320 (100%)     median: 13320 (100%)     max: 13320 Points
Basemark ES 2.0 - Taiji Free
0% 100%
min: 59.69      avg: 59.8 (99%)     median: 59.8 (99%)     max: 60 fps
Smartbench 2012 - Gaming Index
0% 100%
min: 4435      avg: 4493.5 (99%)     median: 4493.5 (99%)     max: 4552 points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailled information on the benchmark results, click on the fps number.

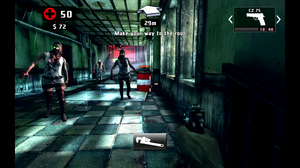

Dead Trigger 2
high
55 1920 x 1200   fps      Compare
» With all tested laptops playable in detail settings high.
Fifa 14 Mobile Android
high
24.8 1920 x 1080   fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.

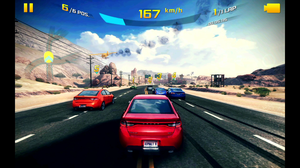

Asphalt 8: Airborne
high
27.7 1920 x 1200  fps  fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.

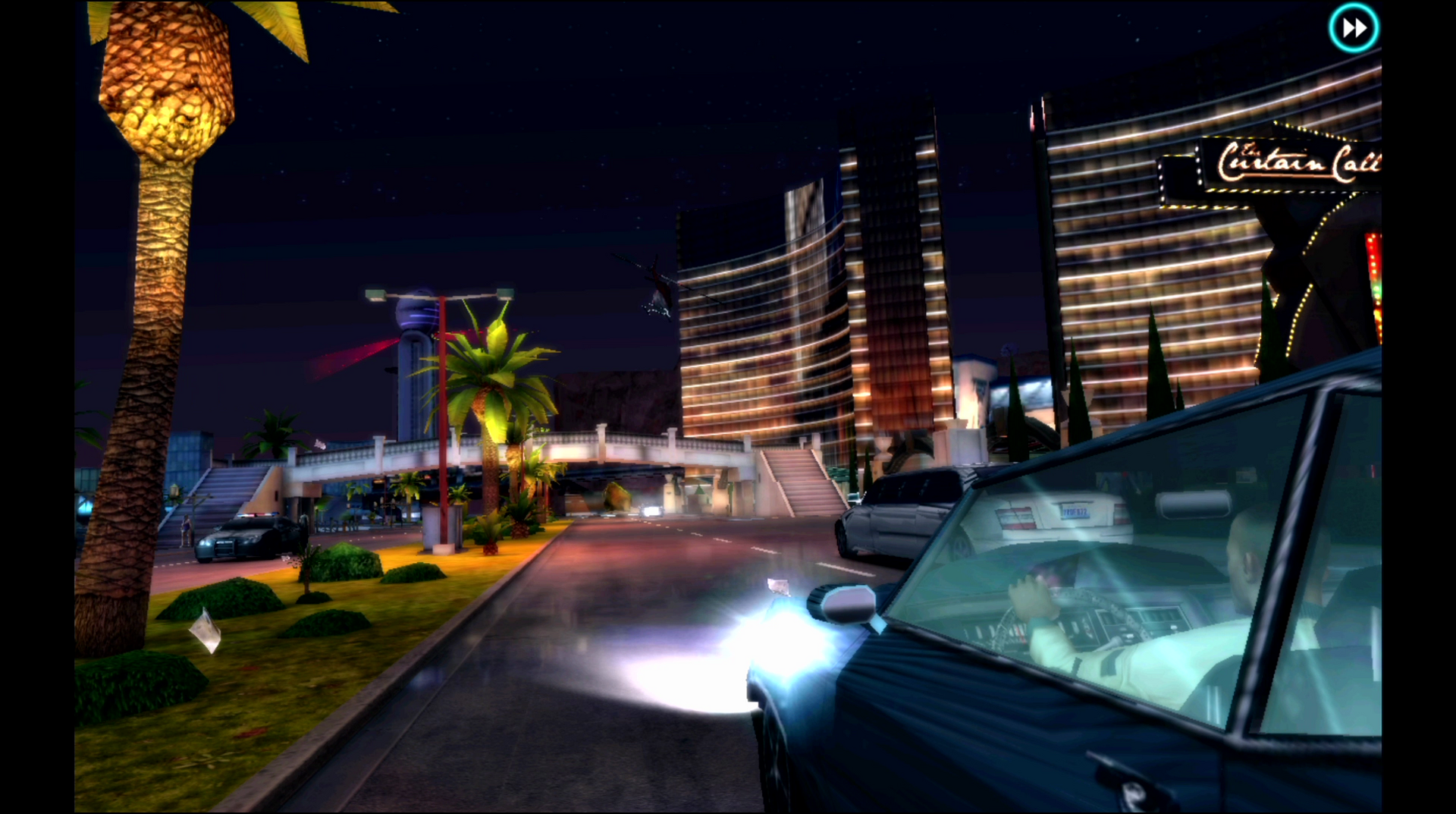

Gangstar Vegas
ultra
21.1 1920 x 1200  fps  fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.

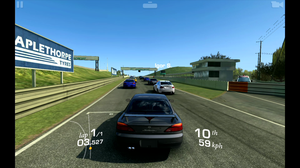

Real Racing 3
high
55 1920 x 1200  fps  fps      Compare
» With all tested laptops playable in detail settings high.

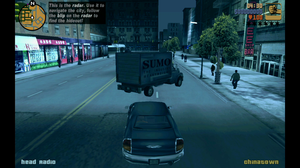

Grand Theft Auto 3 Android
low
52.2 1920 x 1200  fps  fps      Compare
» With all tested laptops playable in detail settings low.

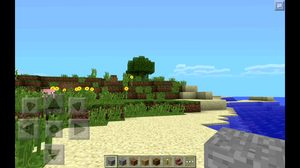

Minecraft - Pocket Edition
ultra
56 1920 x 1200   fps      Compare
» With all tested laptops playable in detail settings ultra.

For more games that might be playable and a list of all games and graphics cards visit our Gaming List
