NVIDIA GeForce Tegra 4

The NVIDIA Geforce in Tegra 4 SoC is an integrated graphics card for tablets and smartphones. It offers no unified shader architecture but still separate pixel and vertex shader (48 / 24).

Nvidia states that the GeForce GPU is faster than the ARM Mali-T604 in the Exynos 5 Dual-Core 5250, but a leaked GLBenchmark score positiones it slightly below. However, due to the very good gaming support (Tegra Zone), the Tegra 4 SoC should provide a very good gaming experience in Android devices.

ManufacturerNVIDIA
GeForce Tegra 4 Series
GeForce Tegra 4 48/24 cores
CodenameTegra 3
Pipelines48 / 24 Pixel- / Vertexshader
Shared Memoryyes
technology40 nm
Date of Announcement01.01.2010
Link to Manufacturer Pagehttp://www.nvidia.com/object/tegra-2.html
* The specified clock rates are only guidelines for the manufacturer and can be altered by them.
CPUGPU Base SpeedGPU Boost / Turbo
Nvidia Tegra 44 x 1800 - 1900 MHz? MHz? MHz
min. - max.? - ? MHz? - ? MHz

Benchmarks

GFXBench 3.0 - Manhattan Offscreen off screen
0% 100%
min: 0      avg: 0 (0%)     max: 0 fps
GFXBench 3.0 - Manhattan Onscreen on screen
0% 100%
min: 0      avg: 0 (0%)     max: 0 fps
Basemark X 1.1 - High Quality
0% 100%
min: 9368      avg: 9827 (33%)     median: 9413 (32%)     max: 10700 fps
Basemark X 1.1 - Medium Quality
0% 100%
min: 18657      avg: 19638 (47%)     median: 19277 (46%)     max: 20980 fps
Basemark X 1.0 - Off-Screen
0% 100%
min: 10.307      avg: 10.8 (51%)     median: 10.4 (49%)     max: 12.5 fps
GFXBench (DX / GLBenchmark) 2.7 - T-Rex HD Onscreen C24Z16
0% 100%
min: 10      avg: 19.1 (29%)     median: 14.2 (22%)     max: 39 fps
GFXBench (DX / GLBenchmark) 2.7 - T-Rex HD Offscreen C24Z16 1920x1080
0% 100%
min: 16      avg: 18.2 (2%)     median: 17.5 (2%)     max: 24 fps
3DMark (2013) - Ice Storm Unlimited Graphics Score 1280x720 offscreen
0% 100%
min: 13866      avg: 15576 (4%)     median: 14858 (4%)     max: 19580 Points
3DMark (2013) - Ice Storm Extreme Graphics 1920x1080
0% 100%
min: 6147      avg: 7998.3 (2%)     median: 8207 (2%)     max: 9104 Points
3DMark (2013) - Ice Storm Standard Graphics 1280x720
0% 100%
min: 6695      avg: 9807.3 (1%)     median: 9528 (1%)     max: 13478 Points
PassMark PerformanceTest Mobile V1 - 3D Graphics Tests
0% 100%
min: 1052      avg: 1372 (55%)     median: 1233 (49%)     max: 1779 Points
PassMark PerformanceTest Mobile V1 - 2D Graphics Tests
0% 100%
min: 3608      avg: 4192.7 (64%)     median: 3884 (59%)     max: 4967 Points
Antutu 3DRating - 3DRating V4.0 for OpenGL ES 2.0 1024x2048
0% 100%
min: 4909      avg: 9118 (68%)     median: 10601 (80%)     max: 11844 Points
Antutu 3DRating - Off-screen 1024x2048
0% 100%
min: 2877      avg: 2877 (100%)     median: 2877 (100%)     max: 2877 Points
GLBenchmark 2.5 - Egypt HD Offscreen Fixed Time 1920x1080
0% 100%
min: 41      avg: 42.3 (8%)     median: 43 (8%)     max: 43 fps
GLBenchmark 2.5 - Egypt HD Fixed Time
0% 100%
min: 27      avg: 34.3 (57%)     median: 28 (47%)     max: 48 fps
AnTuTu Benchmark v3 - GPU
0% 100%
min: 4843      avg: 4843 (50%)     median: 4843 (50%)     max: 4843 points
NenaMark2 -
0% 100%
min: 54.7      avg: 58.4 (87%)     median: 59.6 (89%)     max: 60 fps
Basemark ES 2.0 - Taiji Free
0% 100%
min: 40.45      avg: 51.8 (85%)     median: 59.6 (98%)     max: 59.97 fps
Smartbench 2012 - Gaming Index
0% 100%
min: 2103      avg: 3646.7 (80%)     median: 3932.5 (86%)     max: 4446 points
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card

Game Benchmarks

The following benchmarks stem from our benchmarks of review laptops. The performance depends on the used graphics memory, clock rate, processor, system settings, drivers, and operating systems. So the results don't have to be representative for all laptops with this GPU. For detailled information on the benchmark results, click on the fps number.

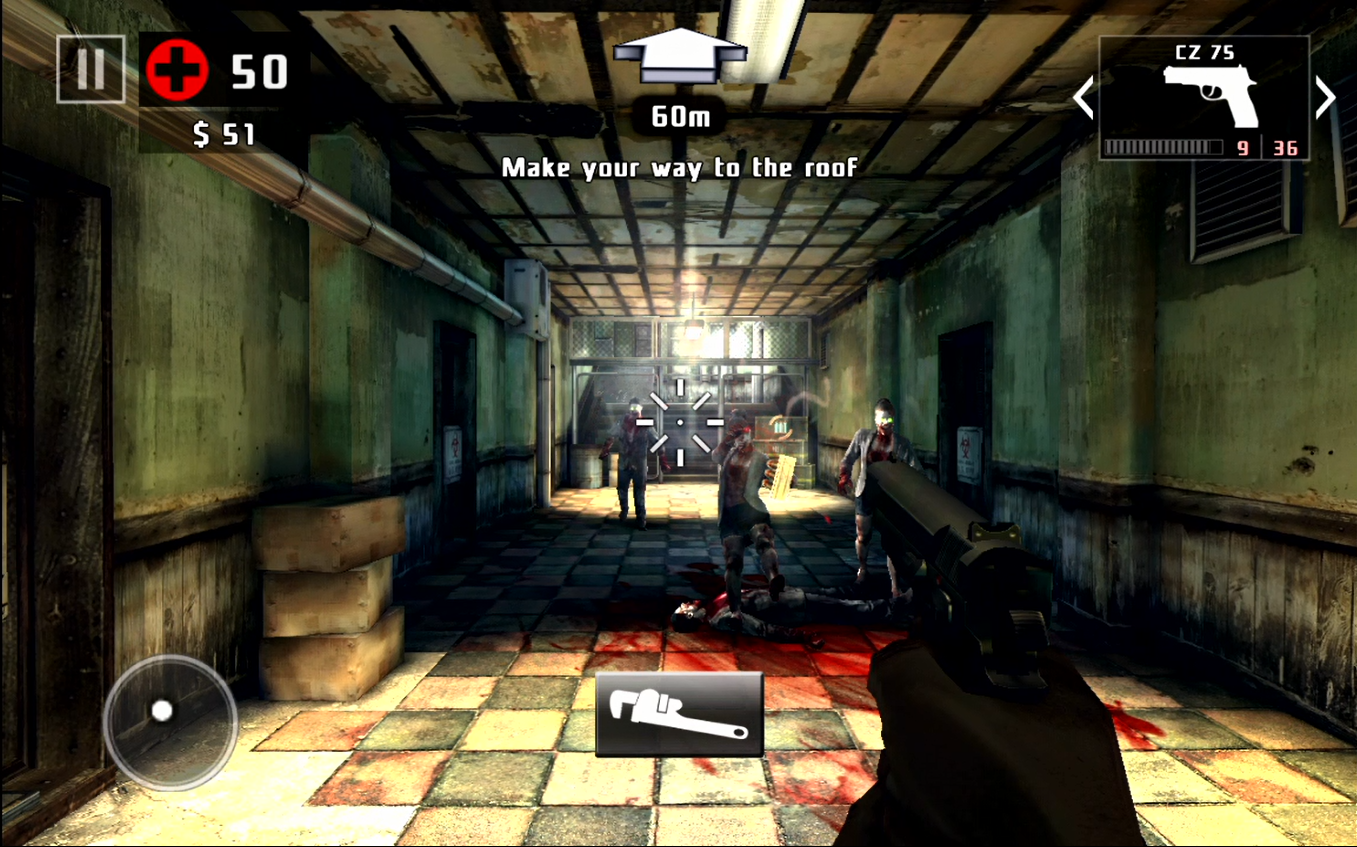

Dead Trigger 2
high
55.6 1280 x 800   fps      Compare
» With all tested laptops playable in detail settings high.

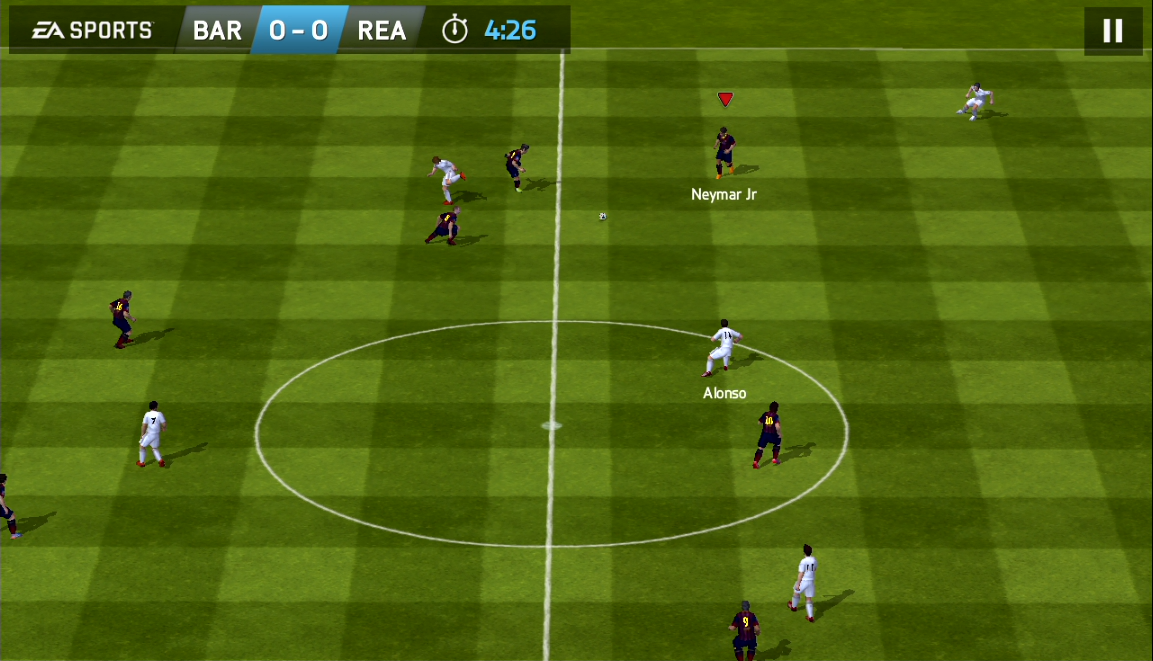

Fifa 14 Mobile Android
high
22.7 1280 x 750  24.6 1280 x 720 ~ 24 fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.

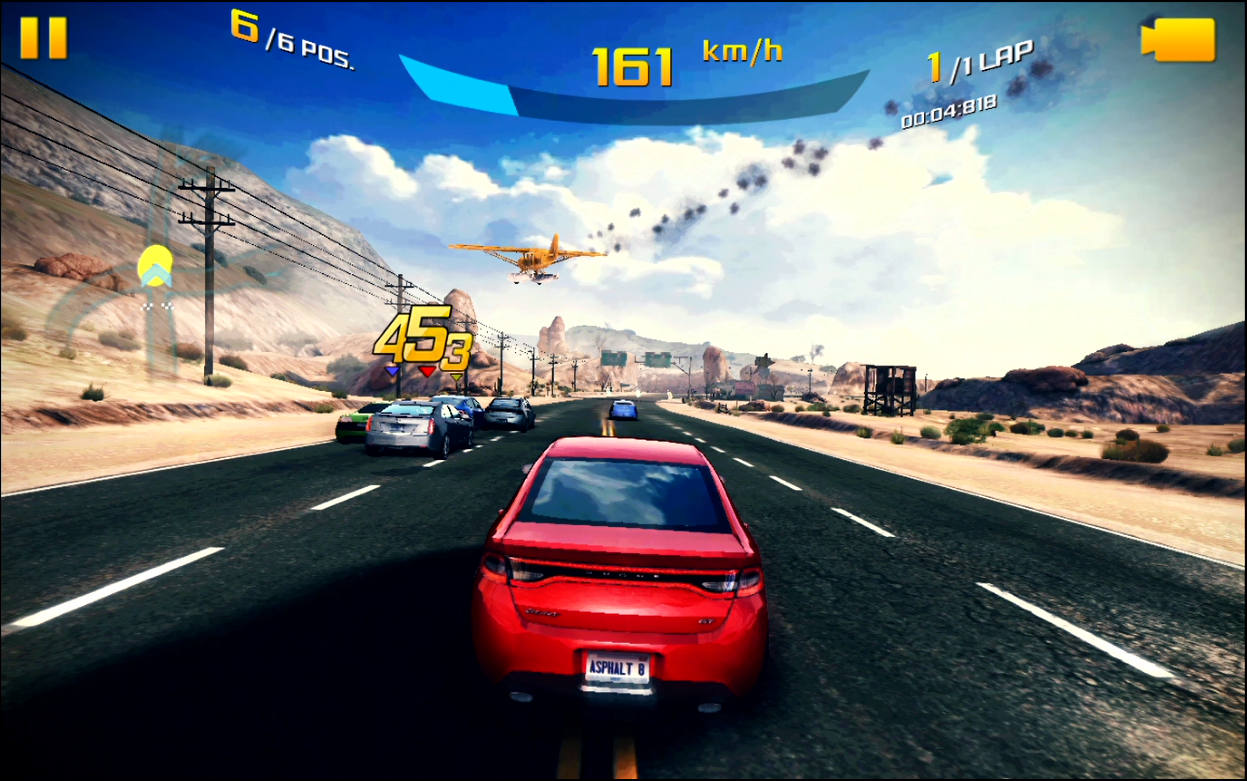

Asphalt 8: Airborne
low
25.8 1920x1080 28 1280x720 ~ 27 fps      Compare
high
23.1 1920x1080 28 1280x720 fps 28.6 1280 x 800  ~ 27 fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.

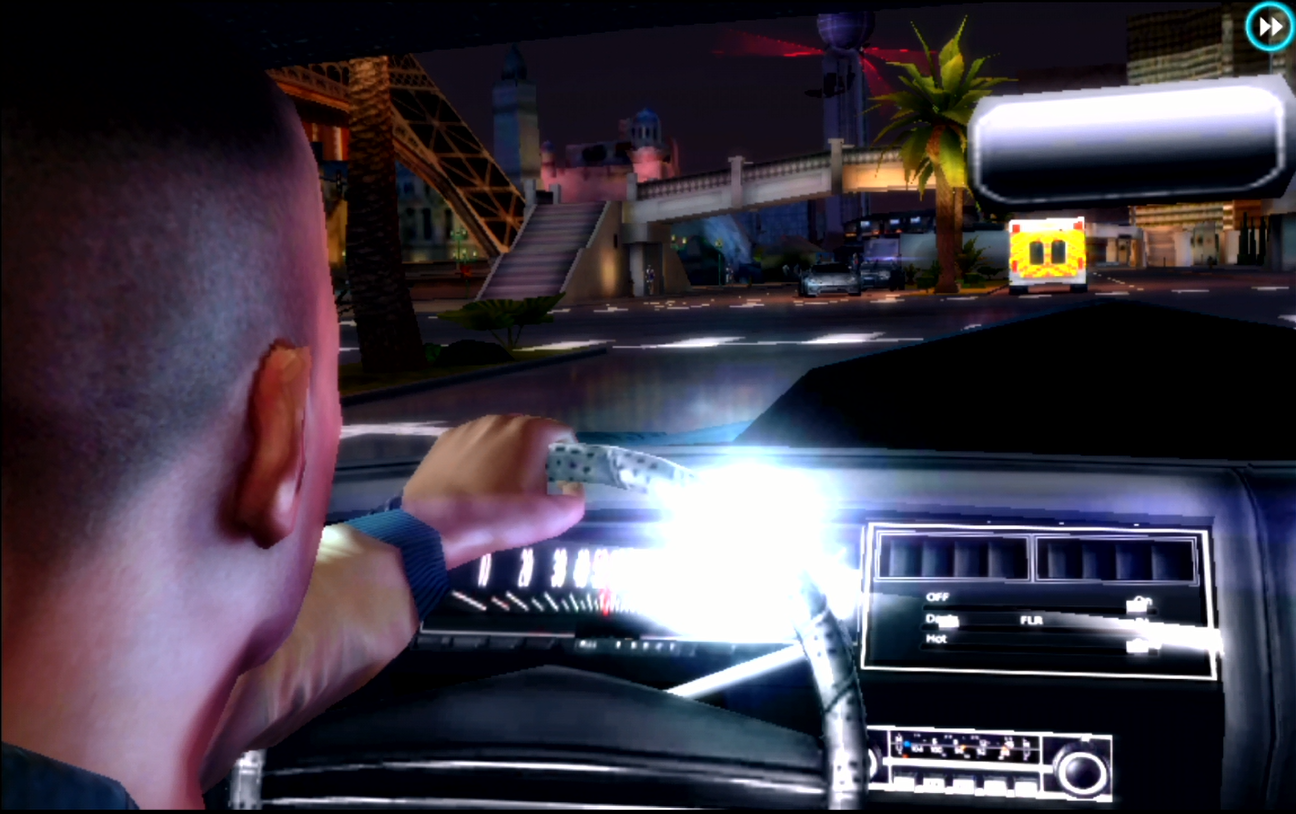

Gangstar Vegas
ultra
20.6 1280 x 800   fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.

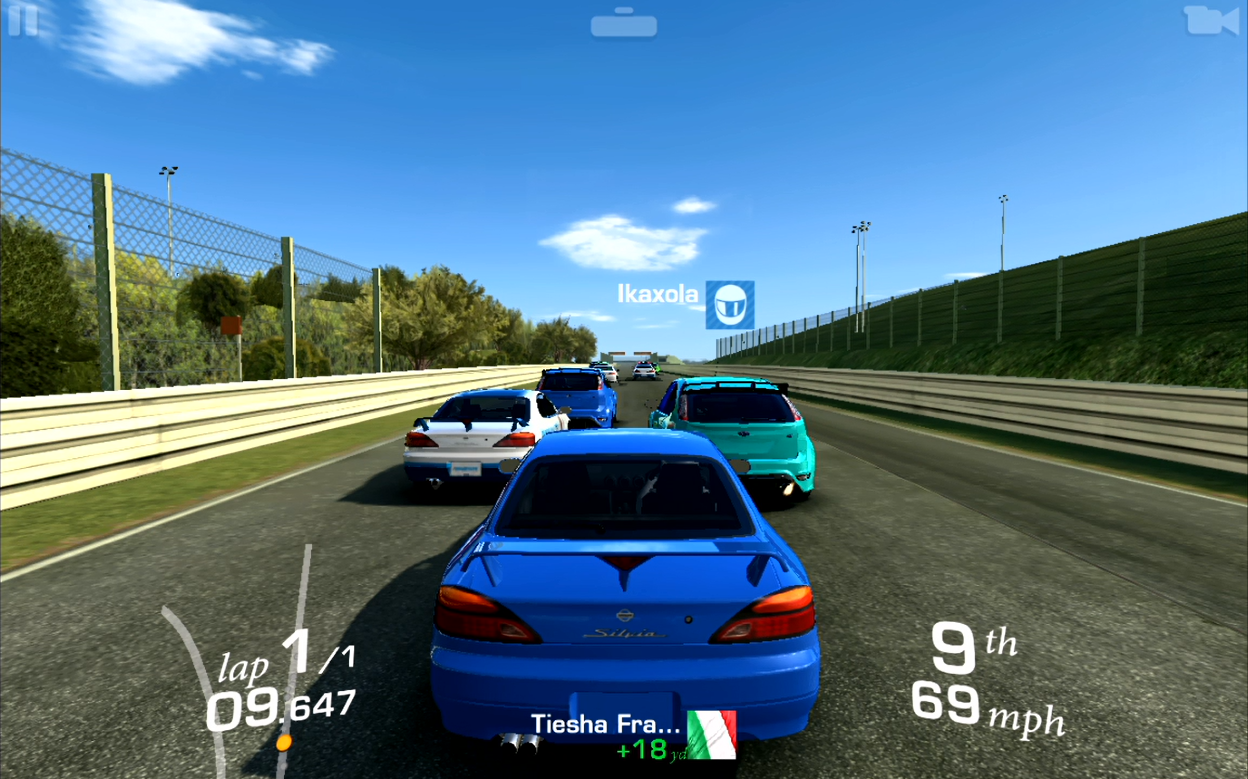

Real Racing 3
high
32.4 1280 x 800  57 1920x1080 58 1280x720 fps ~ 49 fps      Compare
» With most tested laptops playable in detail settings high.

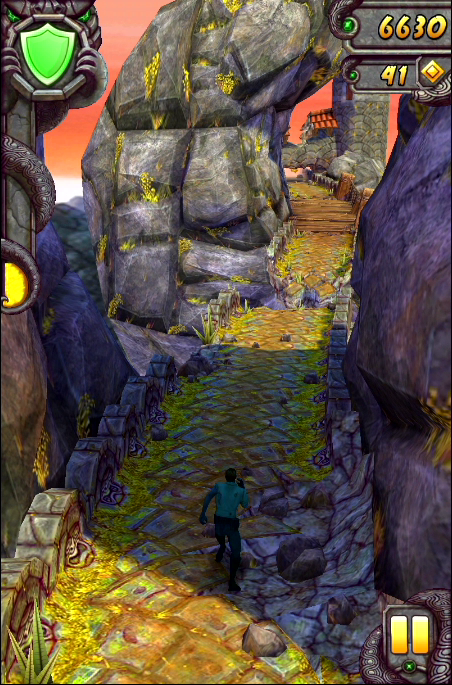

Temple Run 2
high
57 1920x1080 59.5 1280x720 59.7 1200x800  ~ 59 fps      Compare
» With all tested laptops playable in detail settings high.

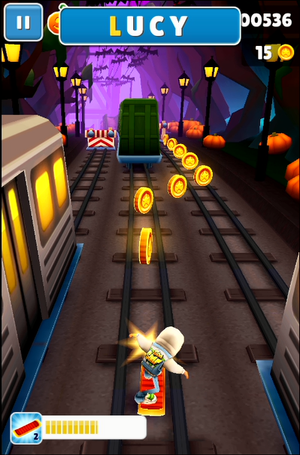

Subway Surfers
high
56 1920x1080 59.5 1280x720 59.6 1280 x 800  ~ 58 fps      Compare
» With all tested laptops playable in detail settings high.

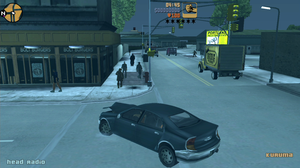

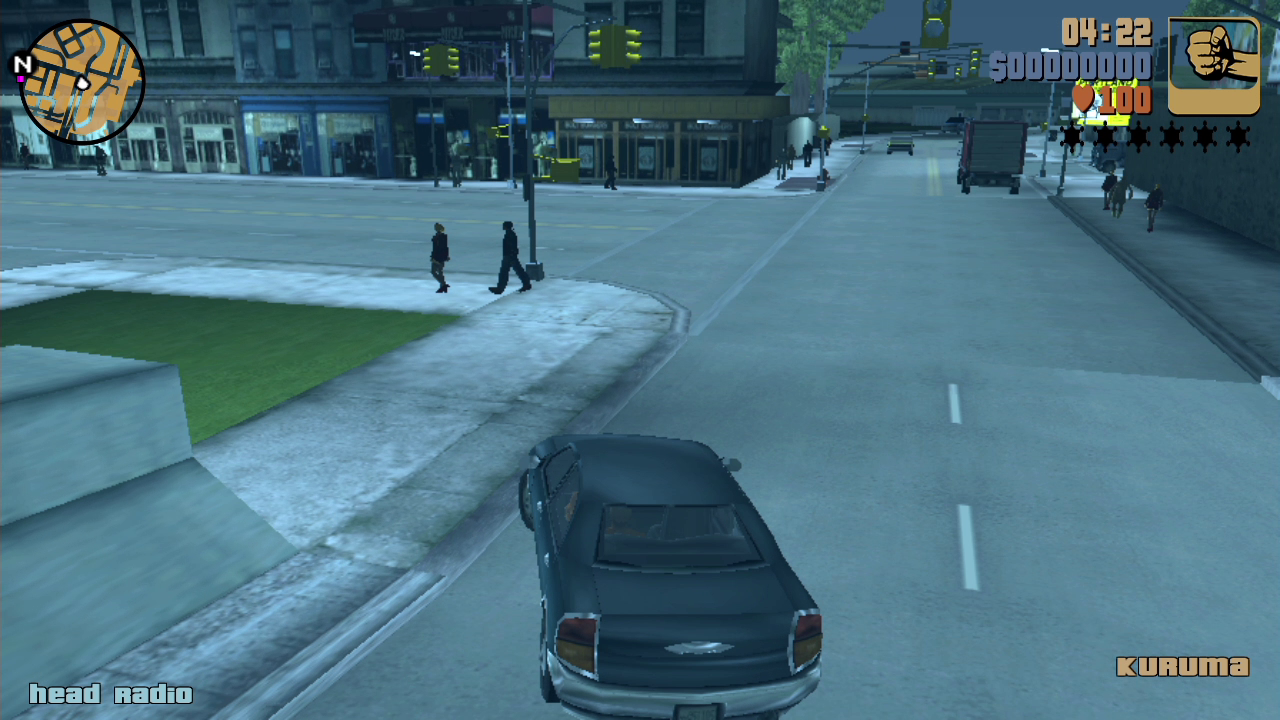

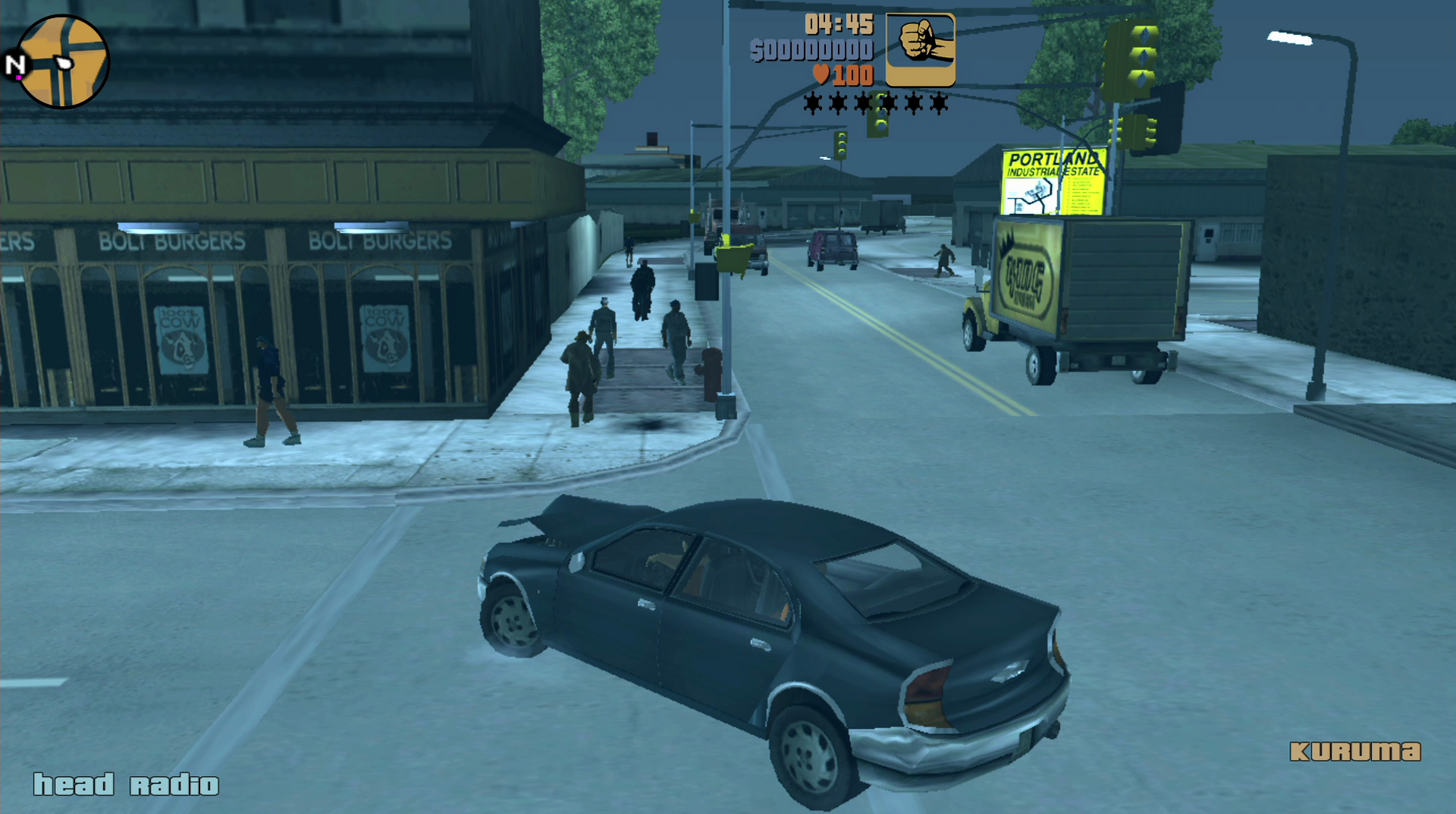

Grand Theft Auto 3 Android
low
28 1920x1080  fps 29 1280x720  fps ~ 29 fps      Compare
» The benchmarks indicate that the game is not playable in the tested settings.

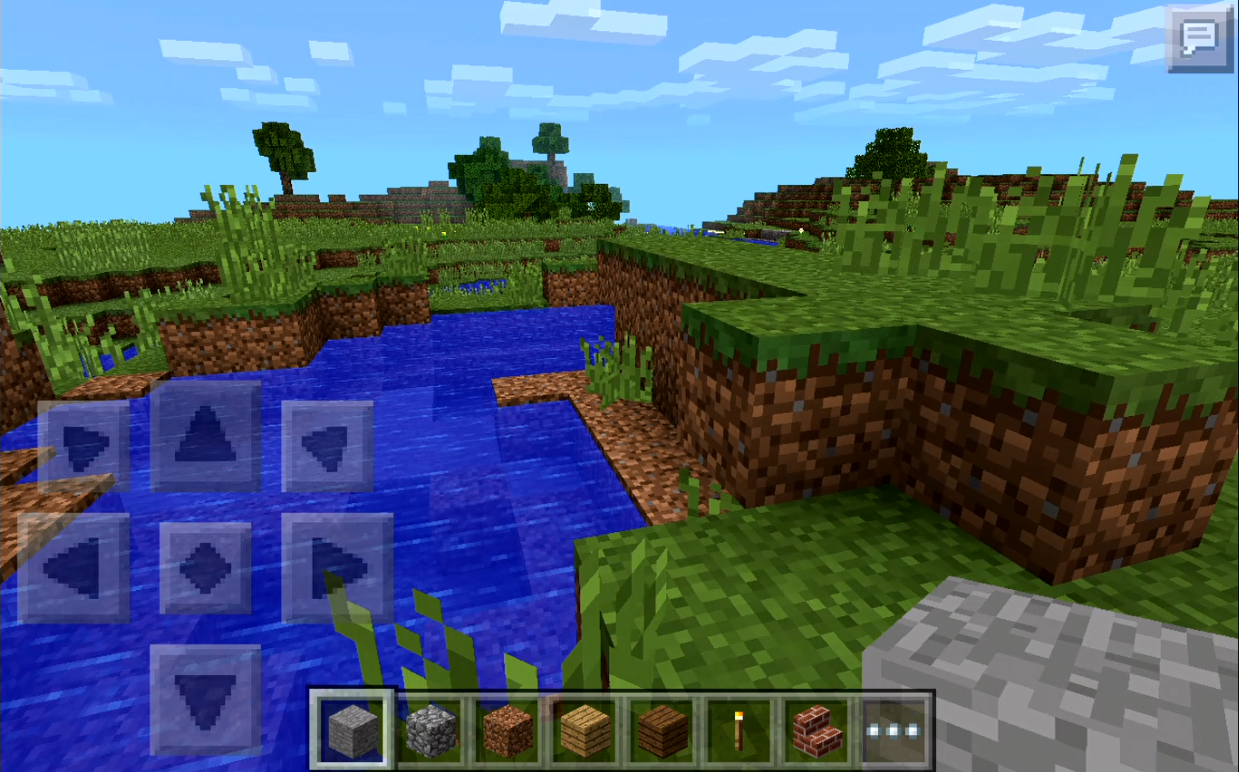

Minecraft - Pocket Edition
ultra
59 1280 x 800   fps      Compare
» With all tested laptops playable in detail settings ultra.

For more games that might be playable and a list of all games and graphics cards visit our Gaming List
