GMKtec NucBox K17 Review: Just how quiet an Intel Core Ultra mini PC can be

Name: GMK NucBox K17
Brand: GMK

Strong performance at low volume.

The GMKtec NucBox K17 combines the Intel Core Ultra 5 226V with a quiet cooling system and high energy efficiency. In this review, we’ll examine how this compact mini-PC performs in everyday use, under heavy load, and with multimedia and office applications, as well as its strengths and weaknesses compared to the competition.
Sebastian Bade 👁 (translated by Sebastian Bade) Published 07/04/2026 🇩🇪 🇳🇱 ...
Mini PC Desktop Intel Arc

Verdict - The GMKtec NucBox K17 impresses with its efficiency and low noise level

The GMKtec NucBox K17 made a strong overall impression in our test. With the Intel Core Ultra 5 226V, this compact mini-PC delivers high performance for everyday and productivity applications without consuming an excessive amount of energy. Particularly noteworthy are its extremely quiet operation, modern features including USB4, and straightforward maintenance. The integrated NPU and Arc Graphics 130V also make the K17 a future-proof platform for multimedia and AI applications.

Test device courtesy of GMKtec

Download your licensed rating image as PNG / SVG

There are limitations with soldered-on RAM, as well as with the Huawei eKitStor Xtreme 200E, whose performance drops under sustained load. Those who regularly benefit from high multithreaded performance or need a more powerful integrated GPU will find more powerful alternatives in the latest Ryzen AI systems, such as the Minisforum AI X1 or the Alliwava GH8. For users looking for a compact, energy-efficient, and exceptionally quiet mini-PC with good everyday performance, the GMKtec NucBox K17 is still one of the most interesting devices in its class.

Pros

+ High-quality, sturdy metal case

+ Energy-efficient Intel Core Ultra 5 226V

+ Quiet cooling system, even under heavy load

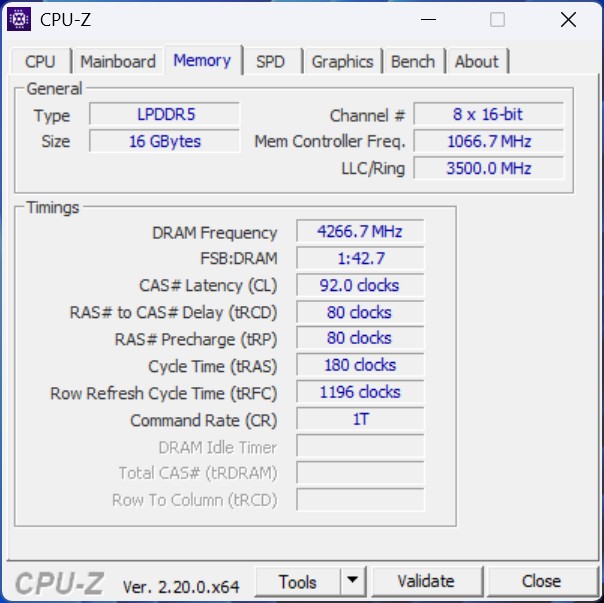

+ Fast LPDDR5x RAM at 8,533 MT/s

+ VESA mounting option

+ Consistently stable CPU performance

+ Multiple USB ports, including USB4

Cons

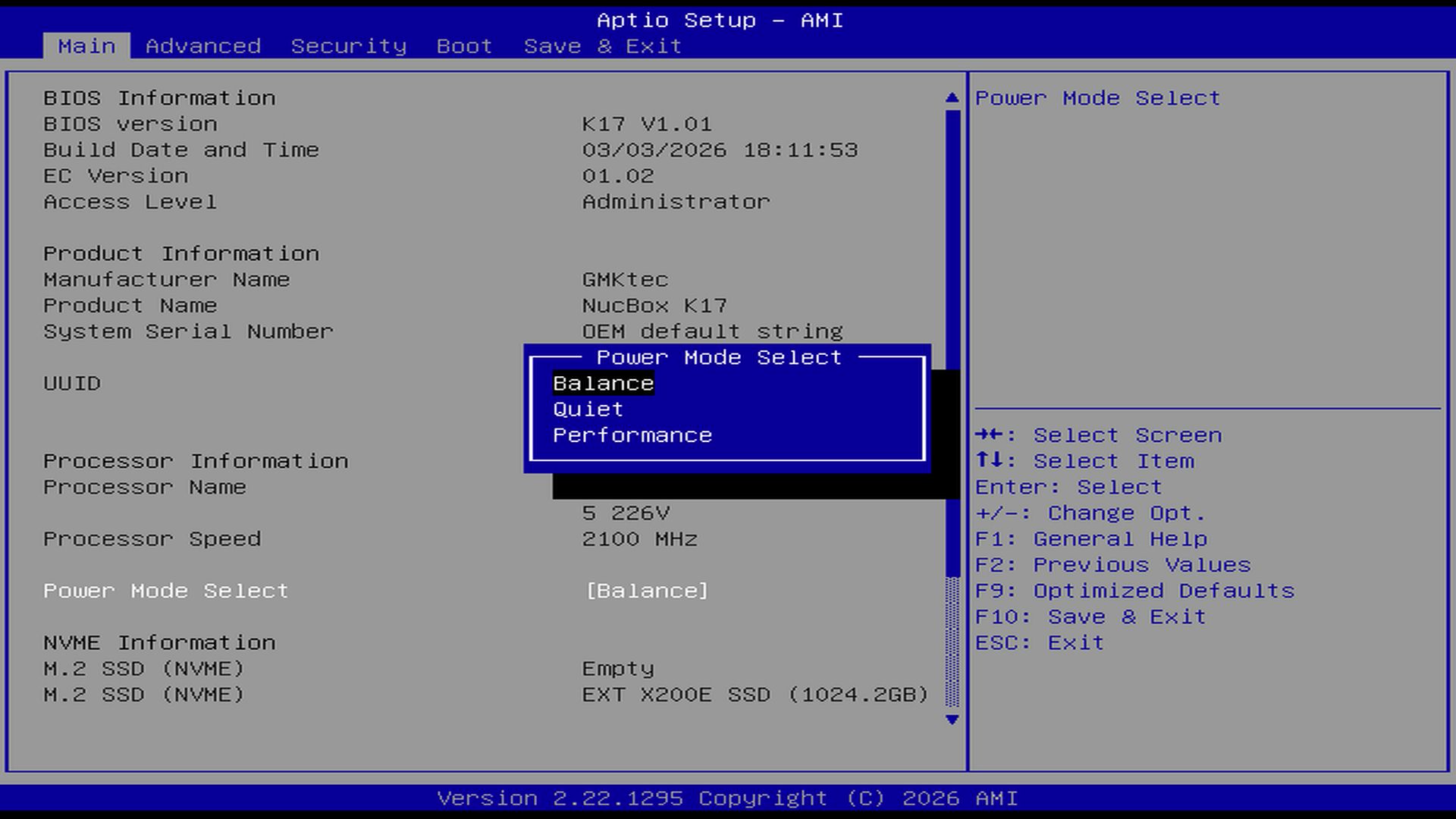

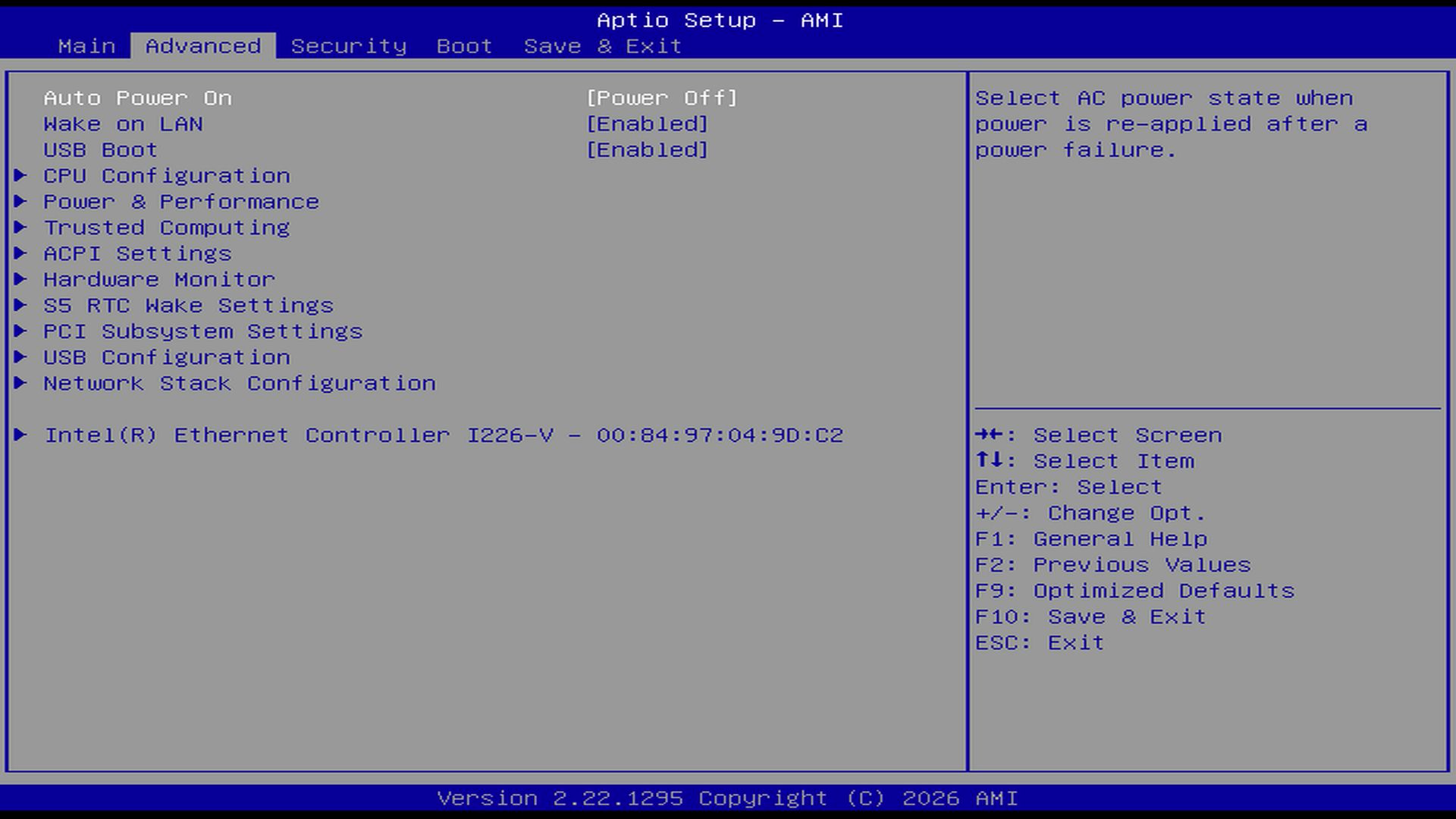

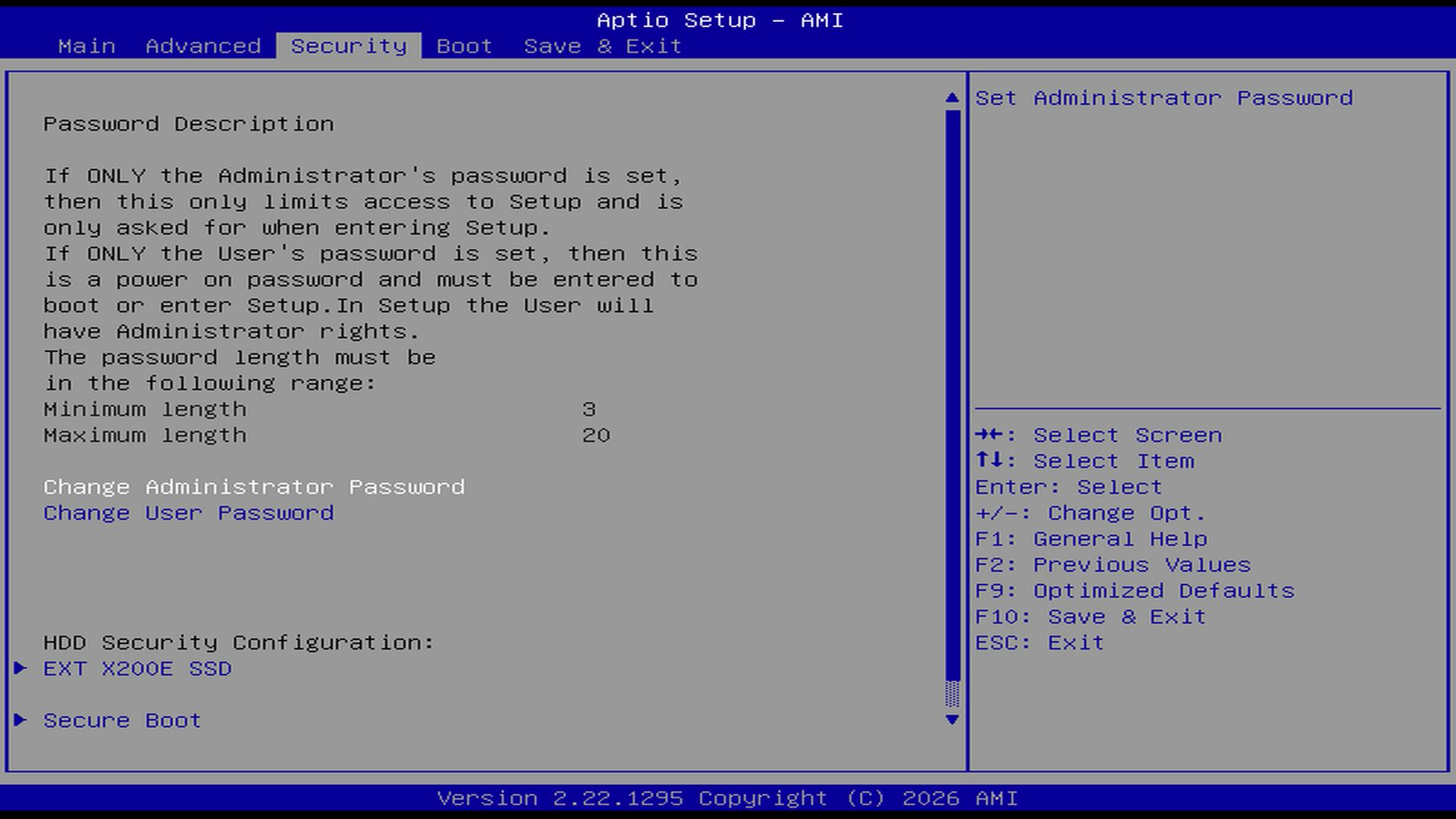

- Performance profiles can only be changed in UEFI

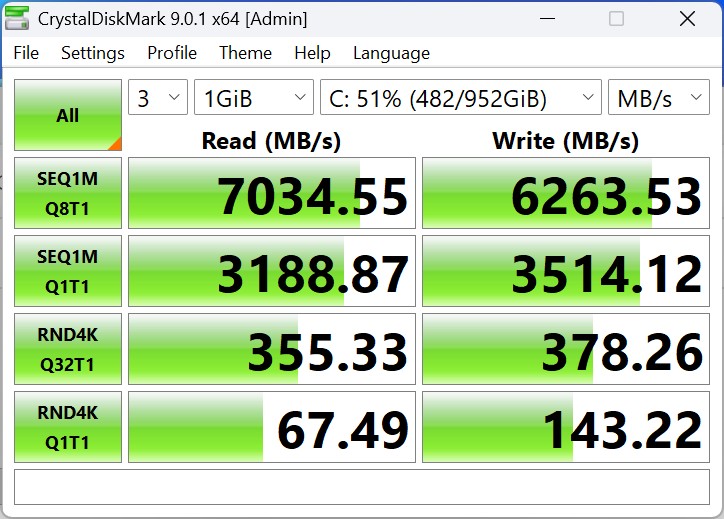

- SSD performance is unstable under load

- No OCuLink

- RAM cannot be expanded

Price and Availability

The GMKtec NucBox K17 is available both on Amazon and directly from the online store. On Amazon the NucBox K17 is priced at $619. In the GMKtec online store, however, the NucBox K17 is already available starting at $559.

$619.99

GMKtec K17 AI Mini PC, Intel Core Ultra 5 226V (Up to 4.5GHz), 16GB LPDDR5X 8533MT/s, 1TB PCIe 4.0 SSD, 97 Tops AI, Intel Arc 130V, Dual M.2 (Gen5+Gen4) Up to 16TB, USB4, 8K Triple Display, WiFi 6E

Verdict - The GMKtec NucBox K17 impresses with its efficiency and low noise level
Specifications
Case & Connectivity
Performance
Emissions
Energy Management
Notebookcheck Rating
Possible alternatives in comparison

With the NucBox K17, GMKtec is expanding its mini-PC portfolio with a particularly efficient model based on the Intel Core Ultra 5 226V. This compact computer is designed for users who value quiet operation, modern connectivity, and high everyday performance with low power consumption.

Specifications

GMK NucBox K17

Processor

Intel Core Ultra 5 226V 8c/8t, 4 x 4.5 GHz Intel Lion Cove P-Core, 4 x 3.5 GHz Intel Skymont E-Core, 25 W PL2 / Short Burst, 25 W PL1 / Sustained, Lunar Lake

Graphics adapter

Intel Arc Graphics 130V, Core: 1850 MHz, 32.0.101.8826

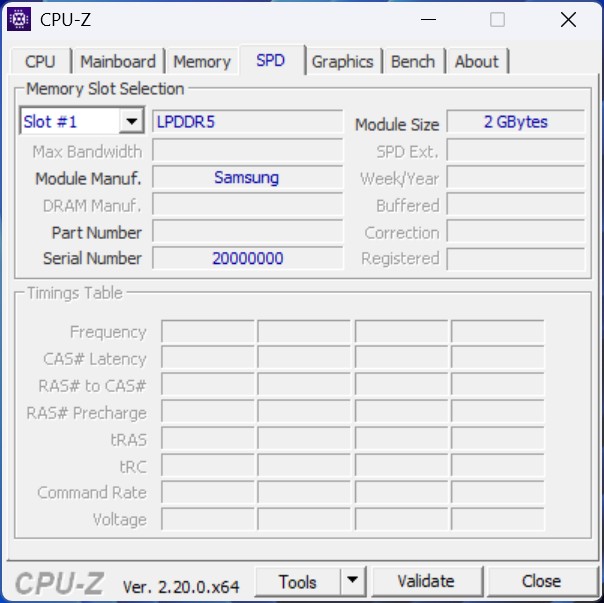

Memory

16 GB

, LPDDR5X, 8.533 MT/s, nicht erweiterbar

Mainboard

Intel Lunar Lake PCH

Storage

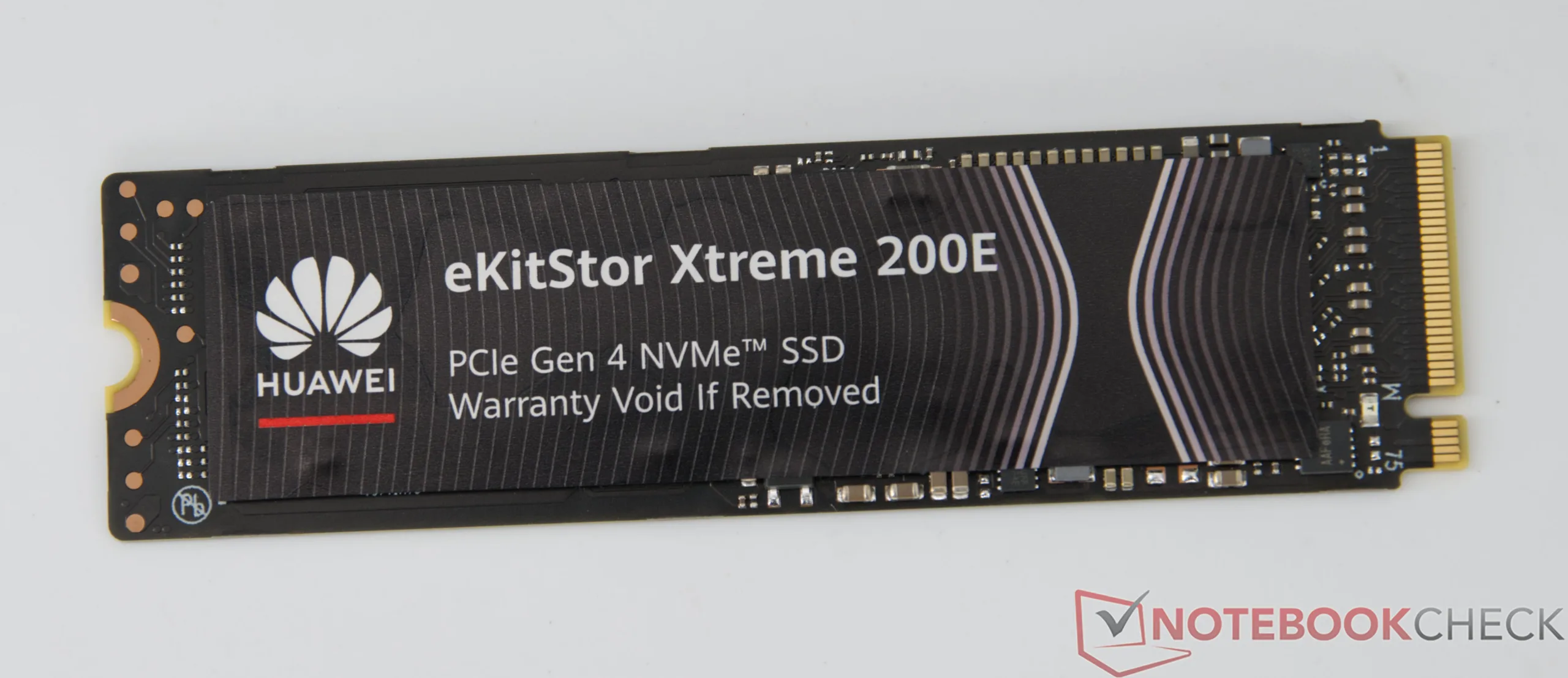

Huawei eKitStor Xtreme 200e 1 TB, 1024 GB

, 908 GB free

Soundcard

Intel Lunar Lake SOC - cAVS (Audio, Voice, Speech)

Connections

1 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 USB4 40 Gbps, USB-C Power Delivery (PD), 2 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 1×3,5-mm-CTIA-Audioanschluss

Networking

Intel Ethernet Controller I226-V (10/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 44.5 x 187 x 185 ( = 1.75 x 7.36 x 7.28 in)

Operating System

Microsoft Windows 11 Pro

Additional features

12 Months Warranty

Weight

461 g ( = 16.26 oz / 1.02 pounds), Power Supply: 242 g ( = 8.54 oz / 0.53 pounds)

Price

569 Euro

Amazon

$619.99

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

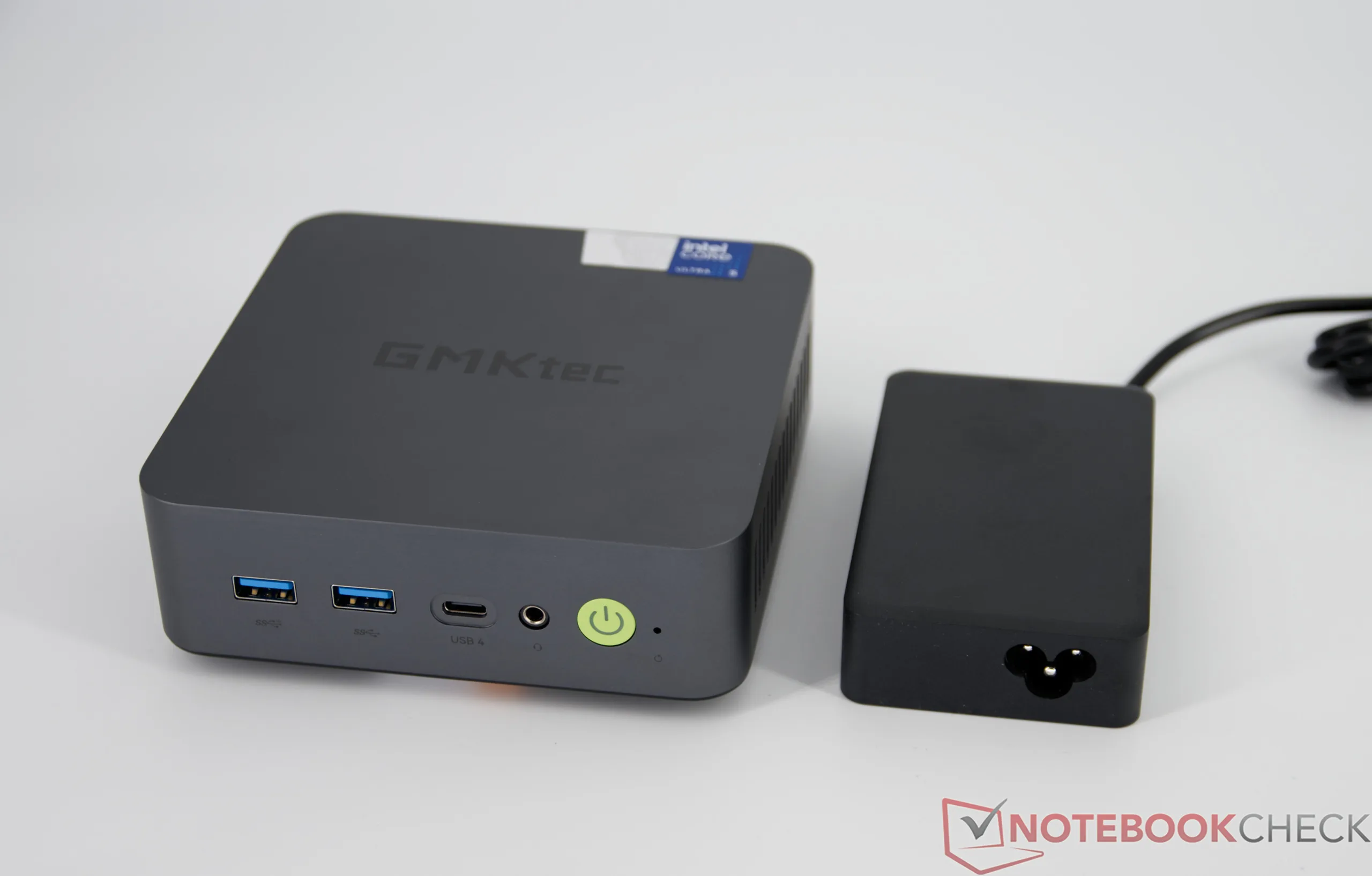

GMKtec NucBox K17 with power supply (20 V; 5 A)

Case & Connectivity

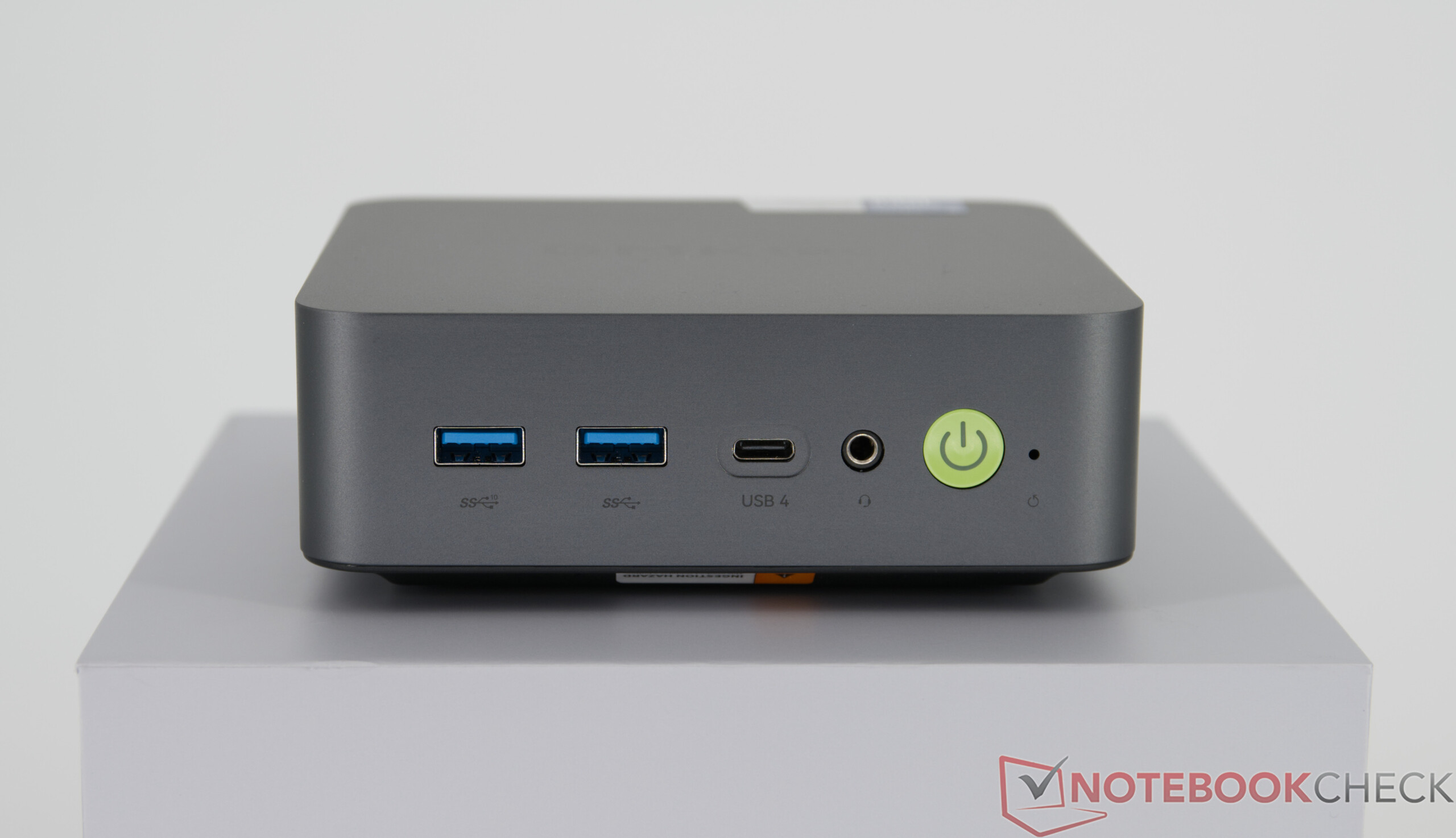

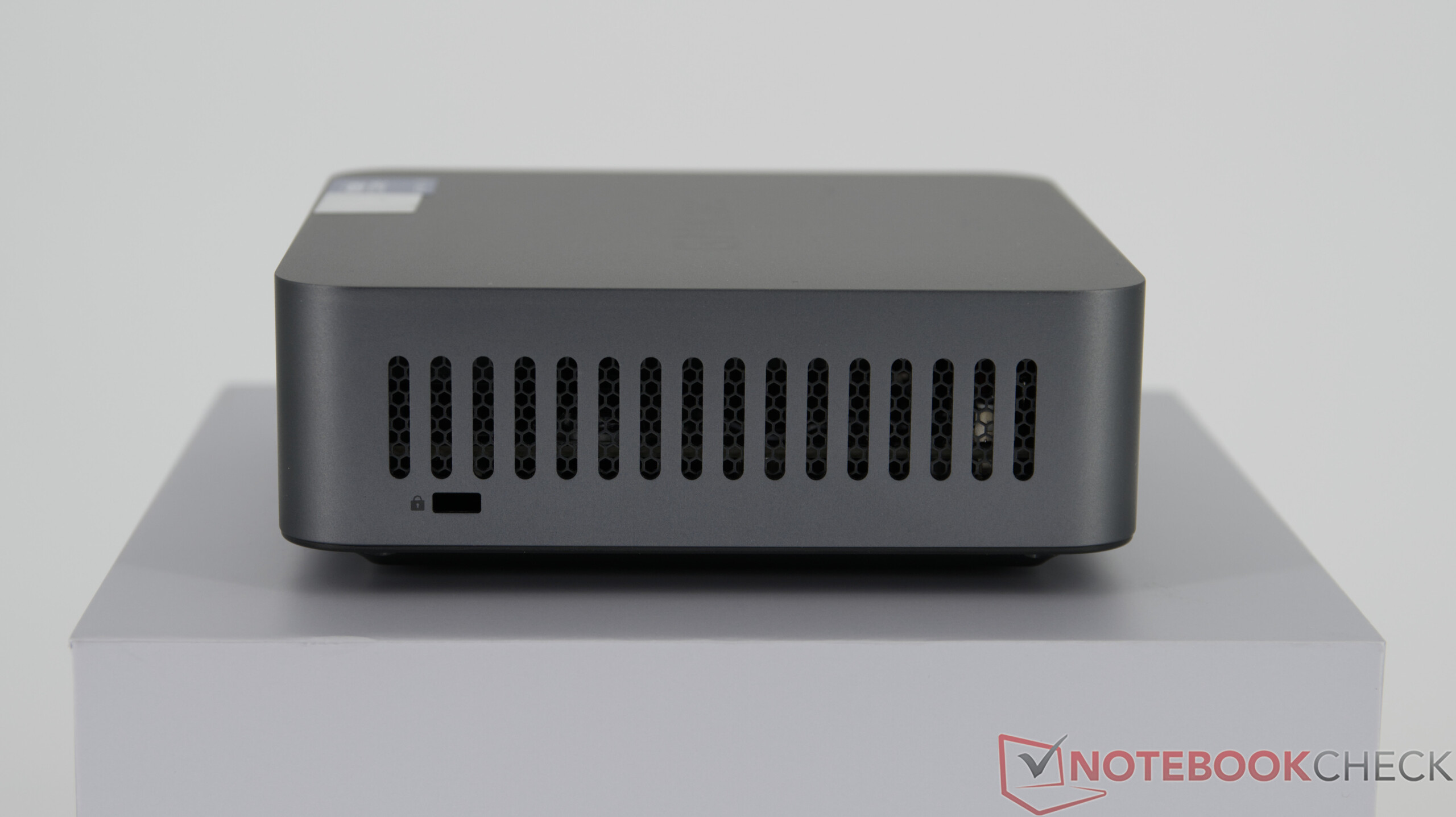

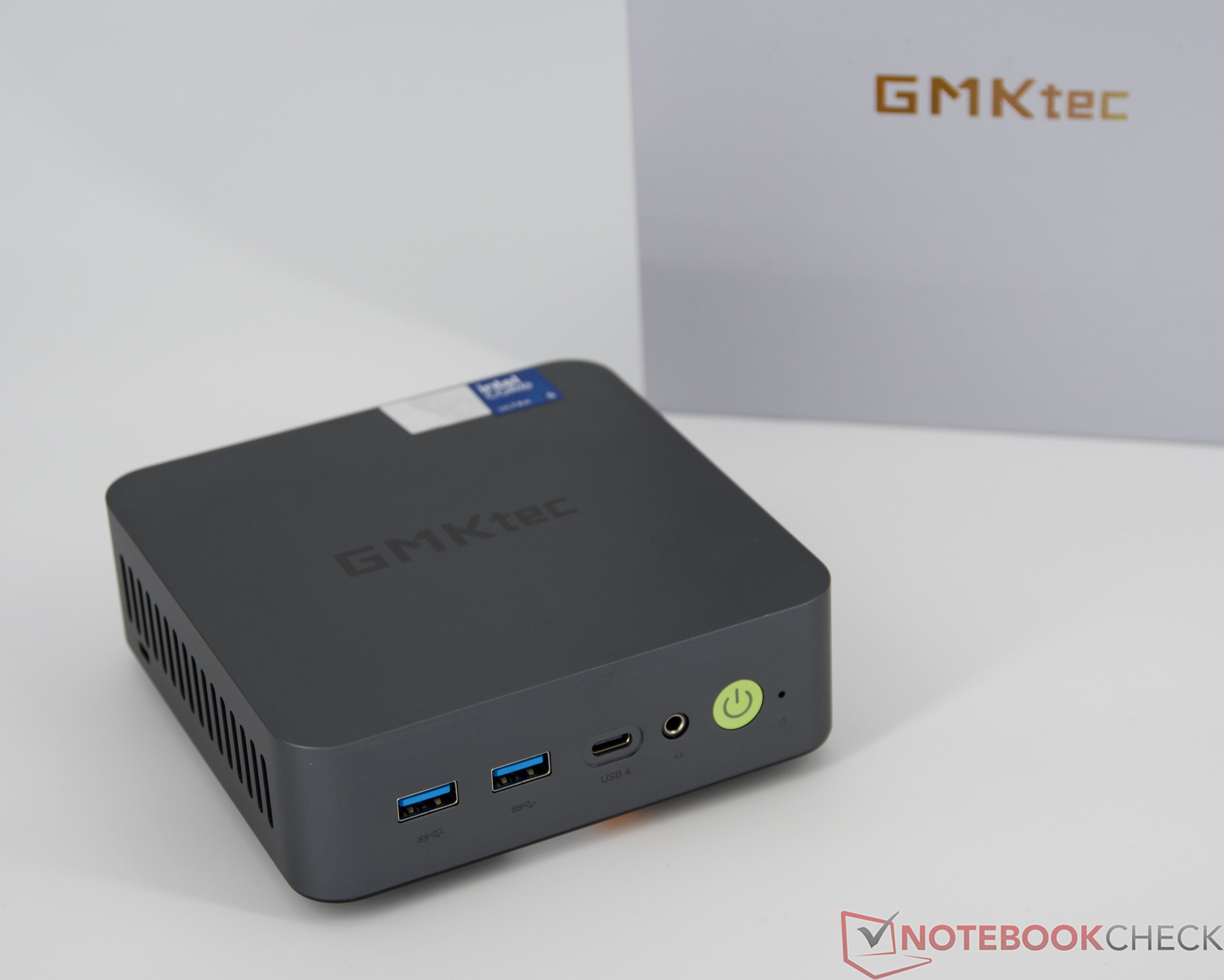

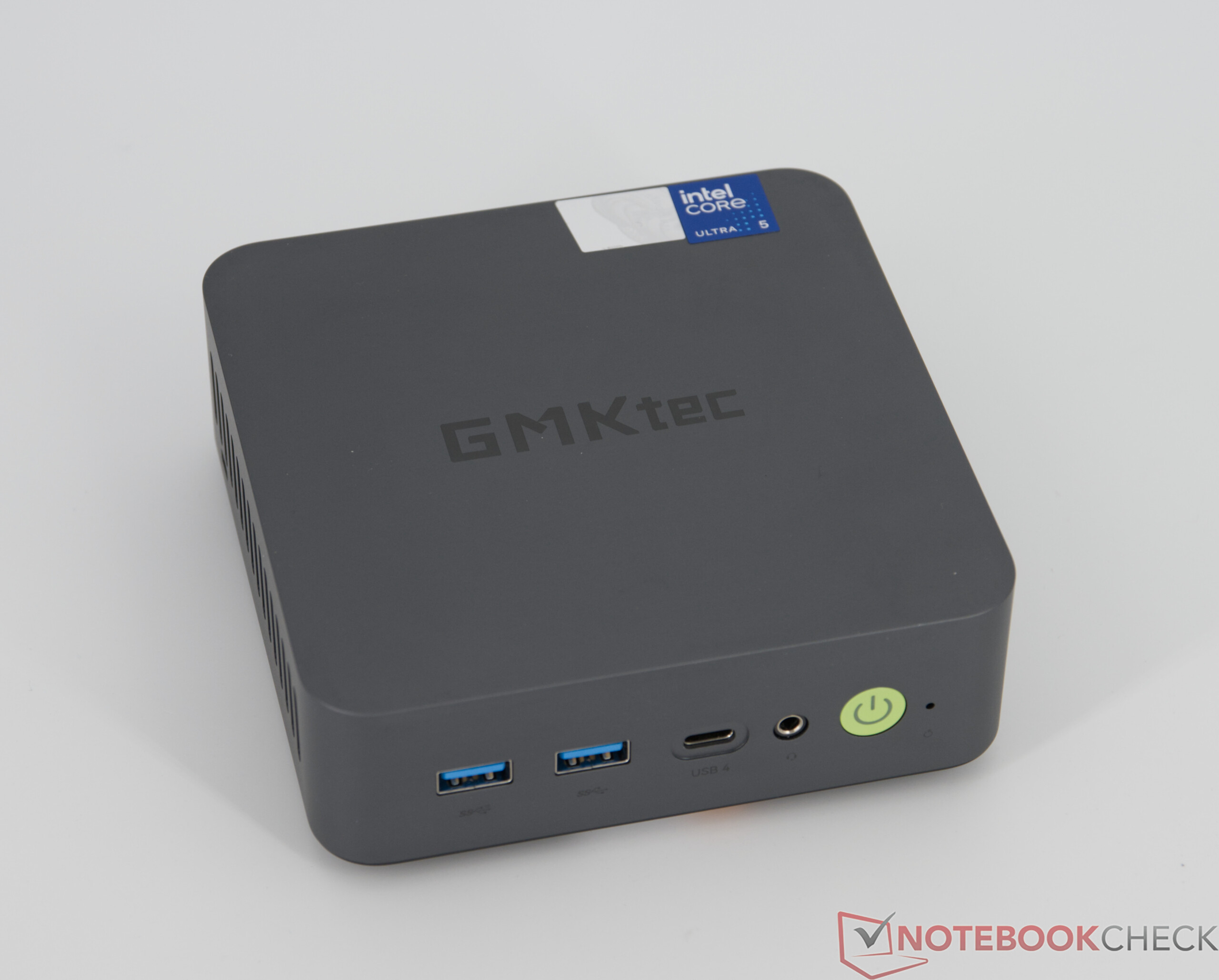

The GMKtec NucBox K17 fits seamlessly into the manufacturer’s familiar design concept. The case features a deliberately understated design and avoids flashy design elements—only the strikingly placed power button on the front adds a subtle touch. The combination of a robust metal chassis ensures high torsional rigidity without unnecessarily increasing the weight. The selection of ports is well-rounded overall. In addition to several USB ports, including USB4, a Gigabit Ethernet port is available, making the NucBox K17 a solid foundation for everyday use and productivity applications.

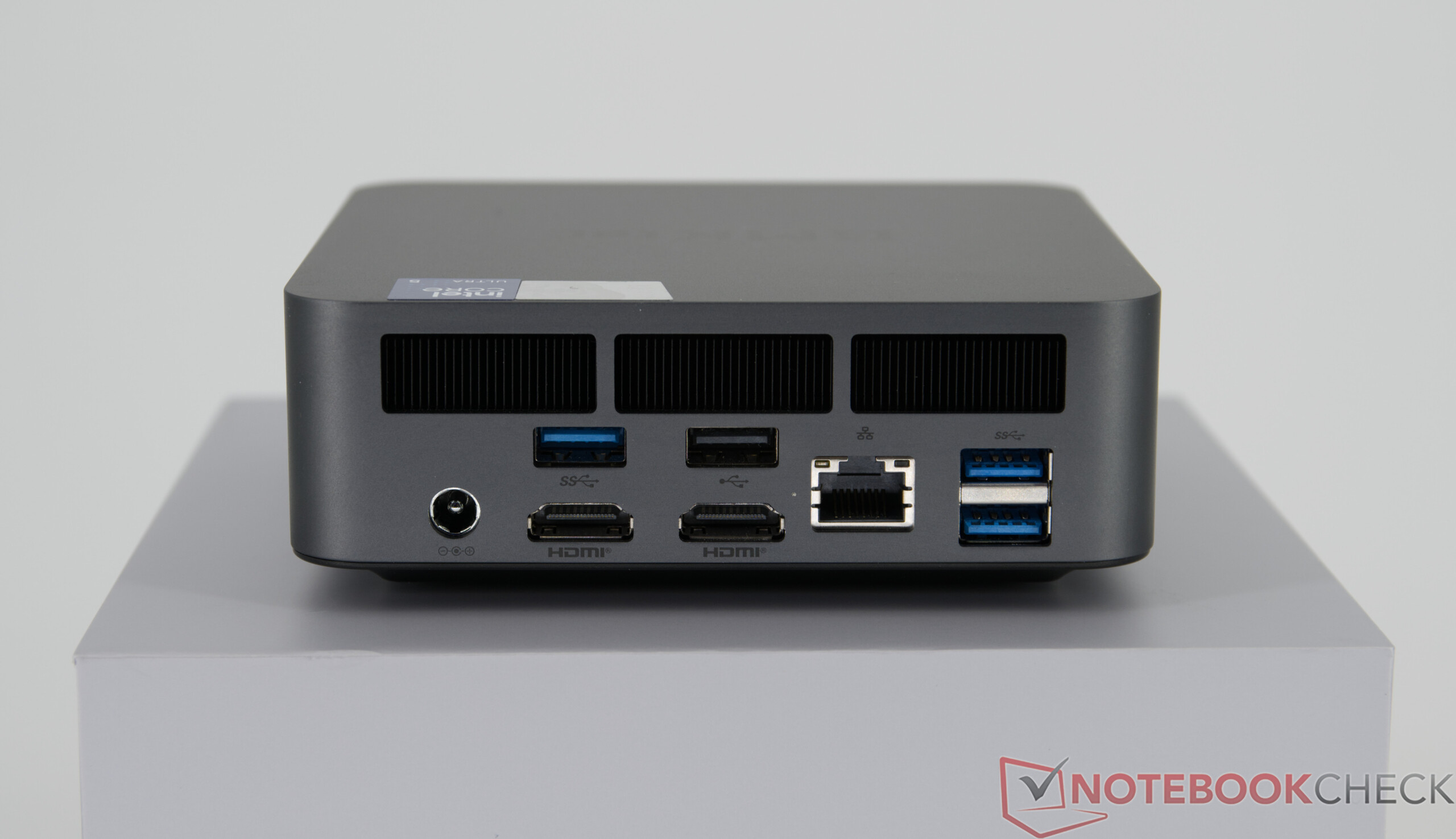

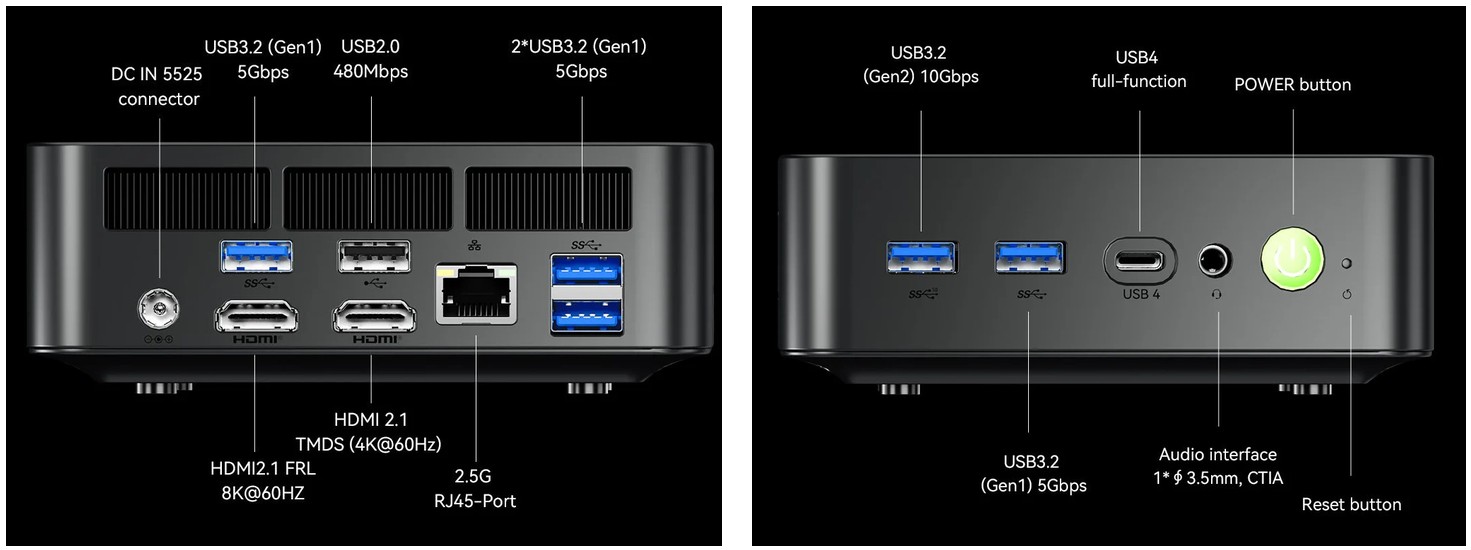

The external interfaces of the GMKtec NucBox K17 (Source: GMKtec)

Advertising

EVO-X3: Next-Gen AI Workstation in a Compact Format

The EVO-X3 from GMKtec, one of the leading providers of desktop AI supercomputers, combines desktop-class AI performance with a compact mini-PC form factor for local applications and use as a workstation. Powered by the AMD Ryzen AI Max+ 395, it integrates a 50-TOPS-XDNA-2 NPU and up to 126 TOPS of AI computing power, enabling 2.2 times faster LM Studio inference for local workloads compared to an RTX 4090.

It supports native deployment of large models such as Qwen3 235B and comes equipped with the pre-installed GMKtec Claw AI Suite, which enables immediate offline AI setup. The Radeon 8060S RDNA 3.5 graphics card delivers gaming performance on par with the RTX 4070, while 4 TB of storage, OCuLink, and Wi-Fi 7 expand the workstation’s flexibility.

Learn more about the EVO-X3 Workstation Mini PC.

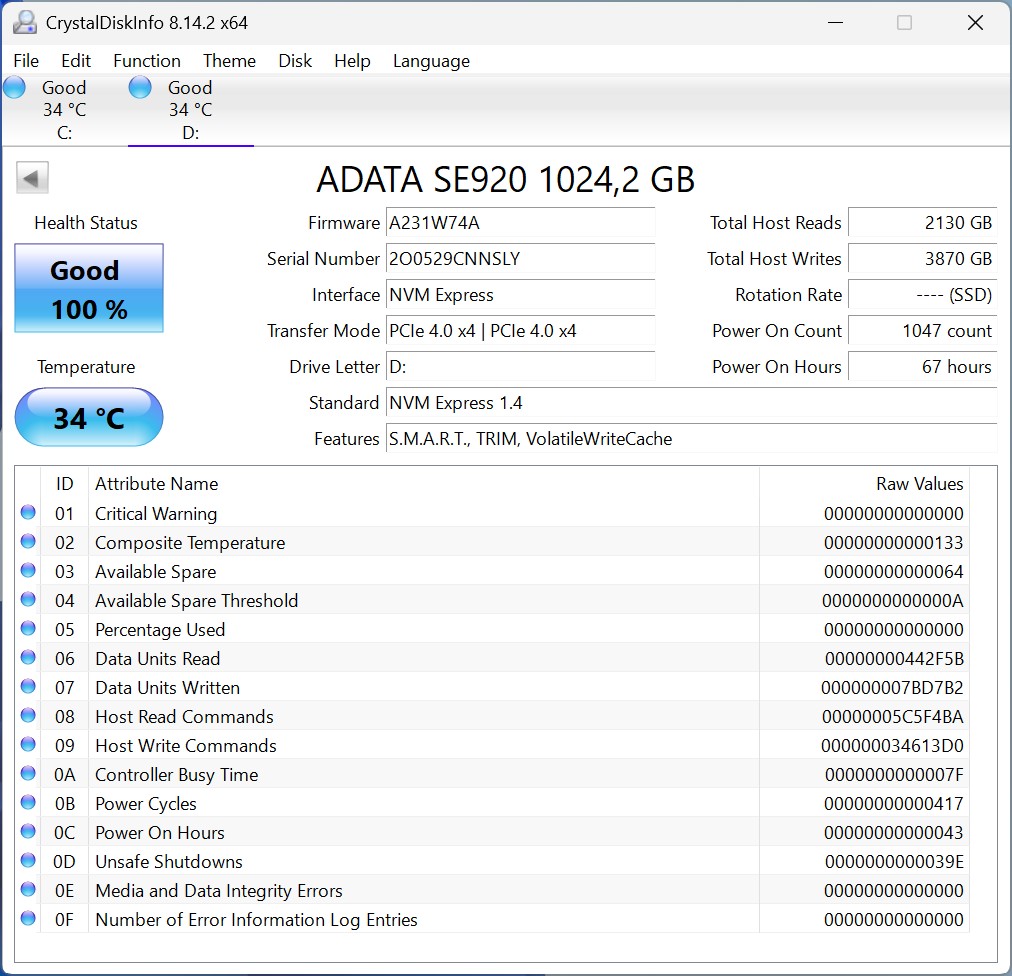

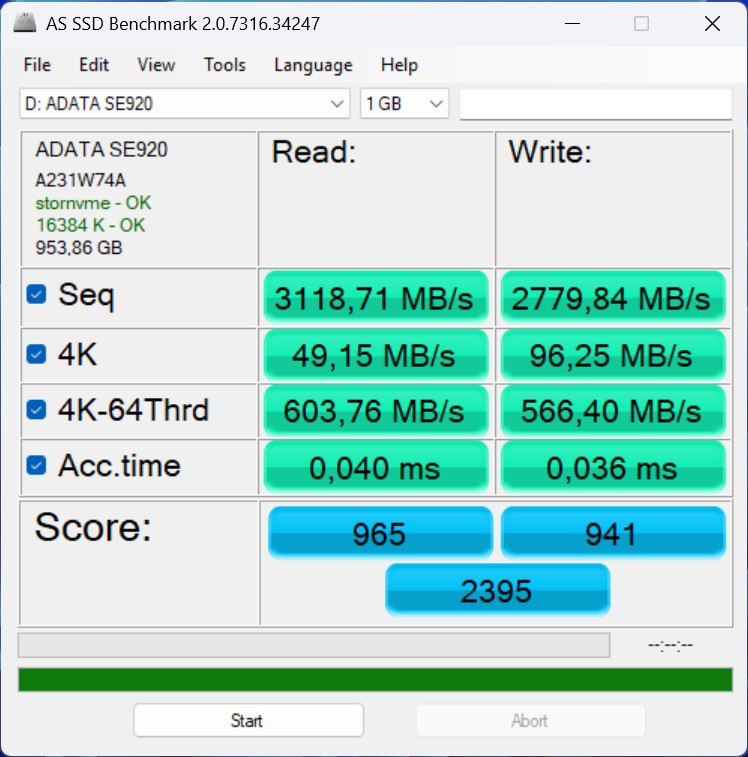

USB4 Speed (ADATA SE920)

Performance Test with the ADATA SE920 via USB4

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	3159.08 MB/s
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	3118.71 MB/s
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	3086.76 MB/s
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	3044.72 MB/s
Average of class Mini PC (423 - 3906, n=44, last 2 years)	2811 MB/s
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	916.64 MB/s

Networking
iperf3 receive AXE11000 6GHz
Minisforum AI X1, Ryzen 7 255 Mediatek MT7925B22M	1628 (1584^min - 1674^max) MBit/s
Average of class Mini PC (729 - 1814, n=60, last 2 years)	1553 MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (684 - 1779, n=63)	1467 MBit/s
GMK NucBox M7 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1195 (658^min - 1297^max) MBit/s
Alliwava GH8, R9 8945HS MediaTek Wi-Fi 6E MT7902	779 (522^min - 800^max) MBit/s
iperf3 transmit AXE11000 6GHz
Minisforum AI X1, Ryzen 7 255 Mediatek MT7925B22M	1857 (1753^min - 1931^max) MBit/s
Average of class Mini PC (504 - 1887, n=60, last 2 years)	1493 MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (394 - 1890, n=61)	1408 MBit/s
Alliwava GH8, R9 8945HS MediaTek Wi-Fi 6E MT7902	954 (907^min - 993^max) MBit/s
GMK NucBox M7 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	504 (440^min - 565^max) MBit/s
iperf3 transmit Wi-Fi6/7 RT-BE96U
Average of class Mini PC (973 - 1977, n=2, last 2 years)	1475 MBit/s +52%
GMK NucBox K17 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	973 (922^min - 1011^max) MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (n=1)	973 MBit/s 0%
iperf3 receive Wi-Fi6/7 RT-BE96U
Average of class Mini PC (1827 - 1967, n=2, last 2 years)	1897 MBit/s +4%
GMK NucBox K17 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1827 (1808^min - 1845^max) MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (n=1)	1827 MBit/s 0%

GMK NucBox K17; iperf3 receive Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø1826 (1808-1845) MBit/s

GMK NucBox K17; iperf3 transmit Wi-Fi6/7 RT-BE96U; iperf 3.1.3: Ø973 (922-1011) MBit/s

Accessories

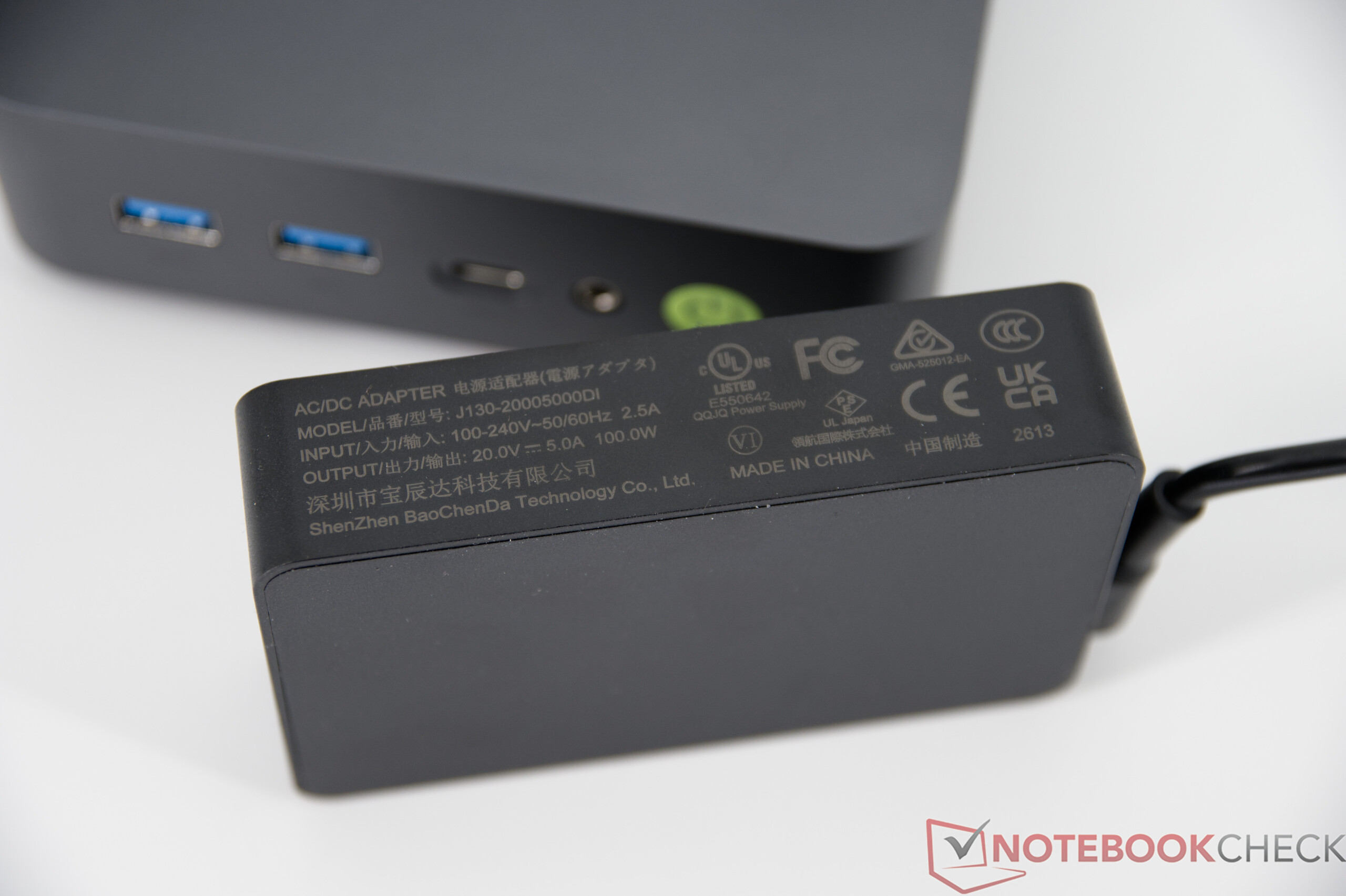

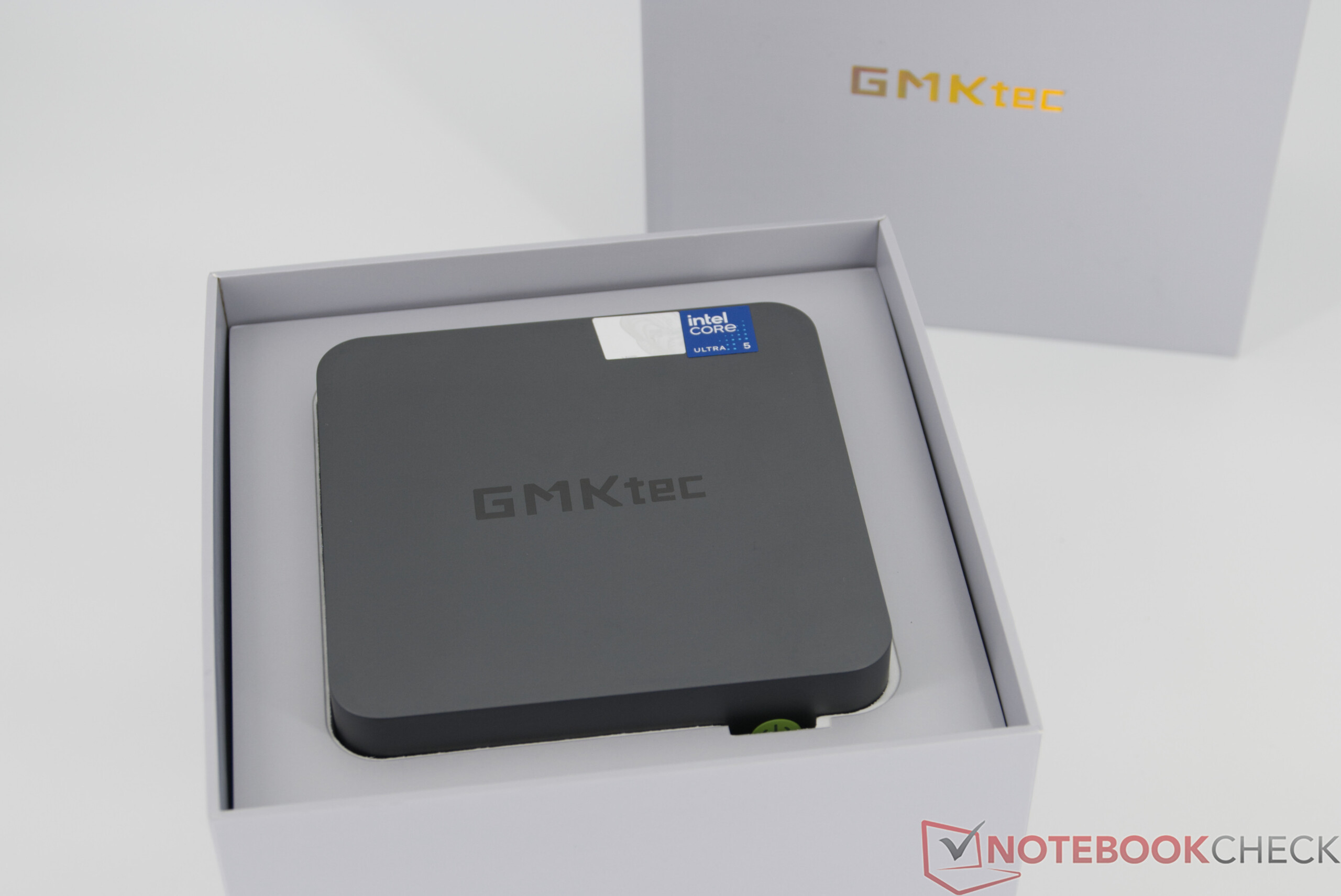

The GMKtec NucBox K17 comes with a compact 100-watt power supply, an HDMI cable, a VESA mount for space-saving installation on the back of a monitor, and a quick start guide with the most important information on setup and the available ports.

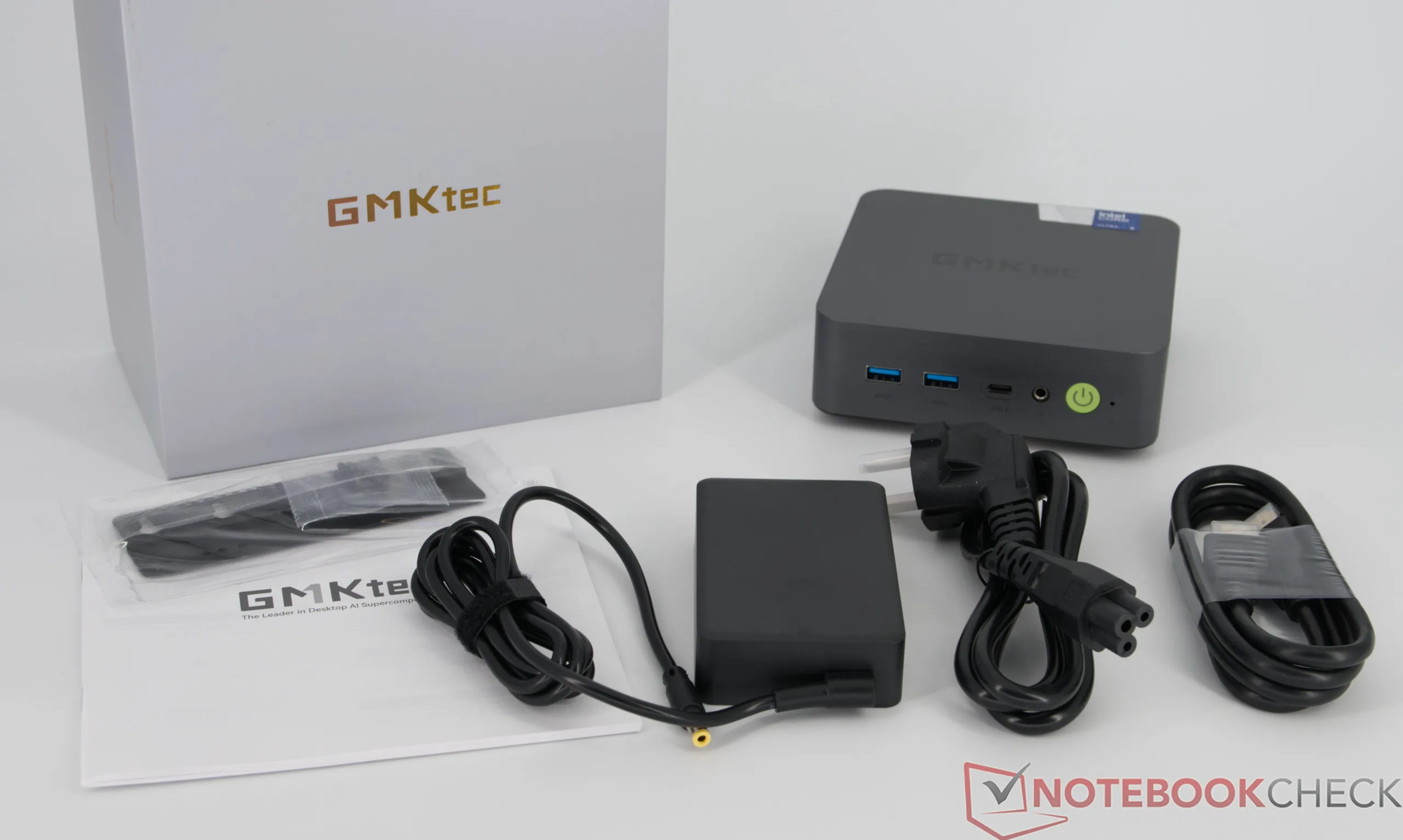

What's Included with the GMKtec NucBox K17

Maintenance

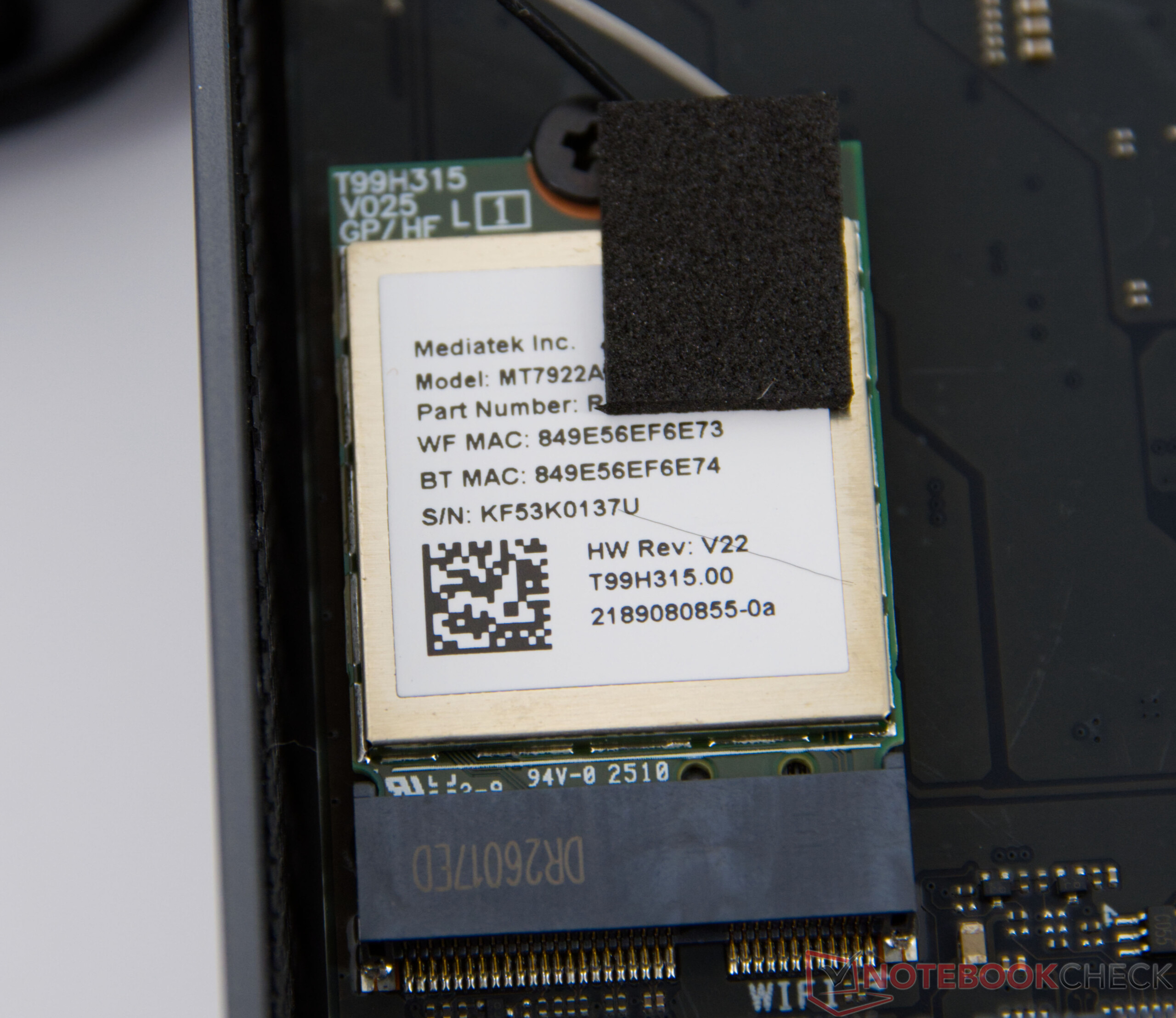

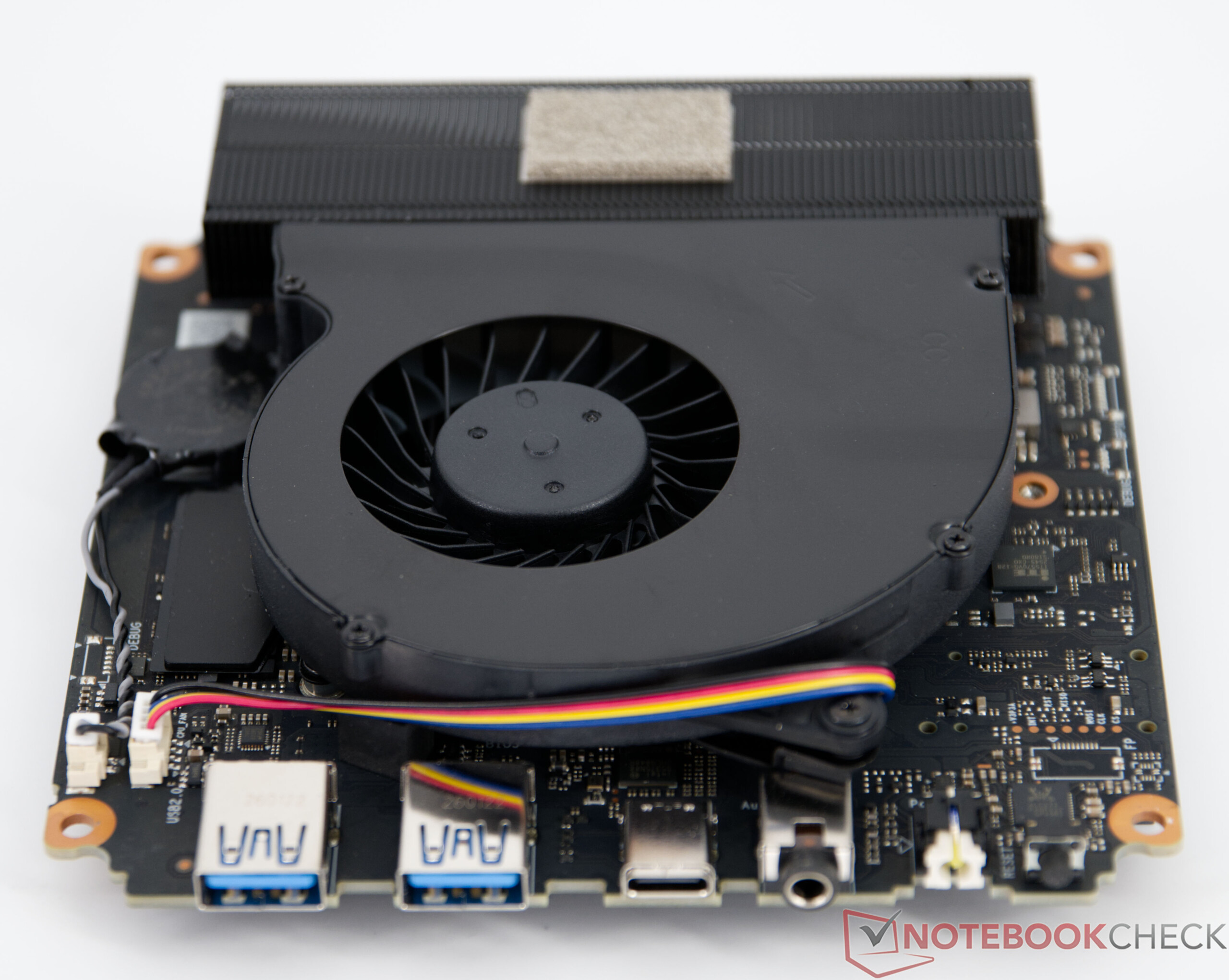

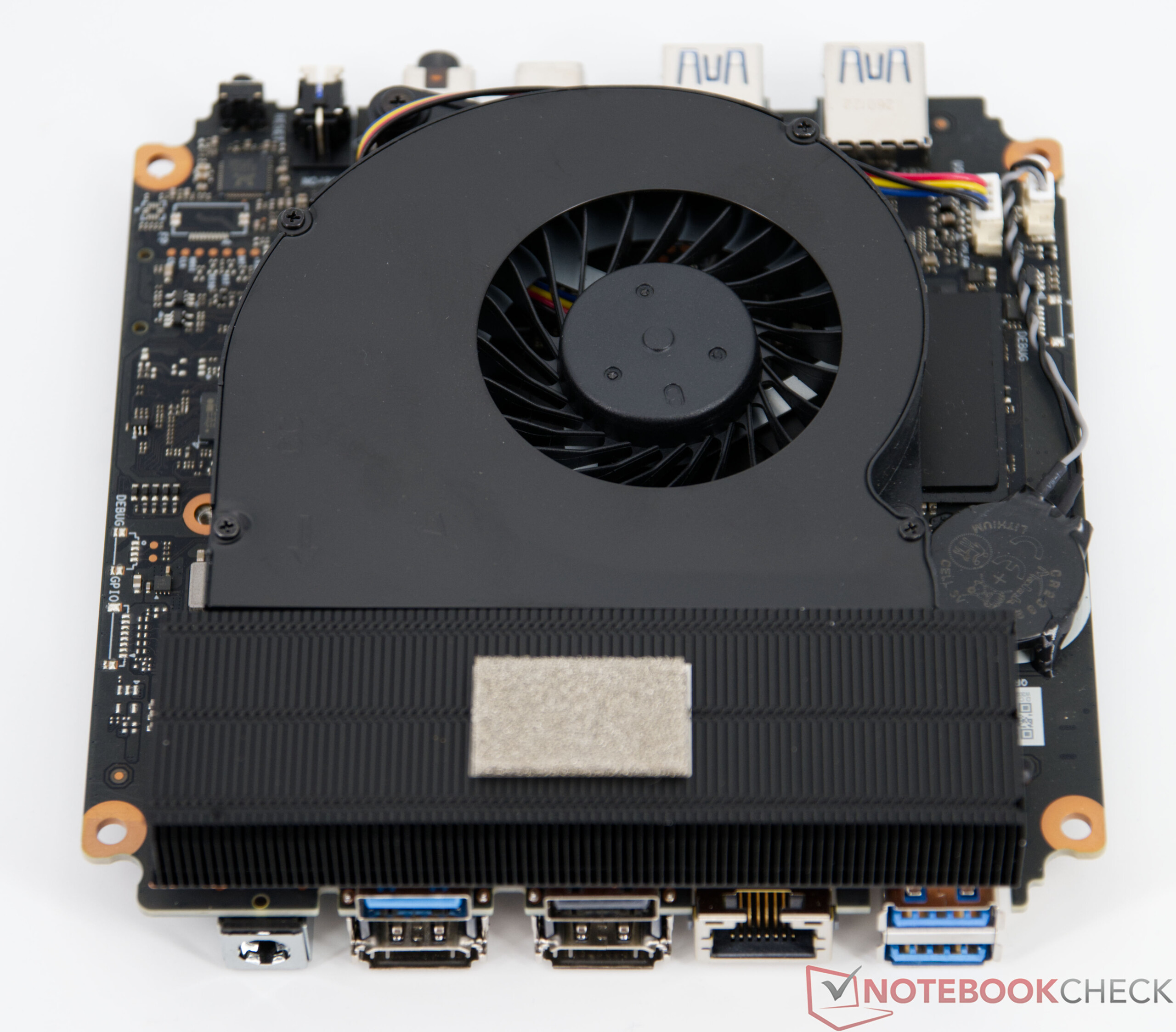

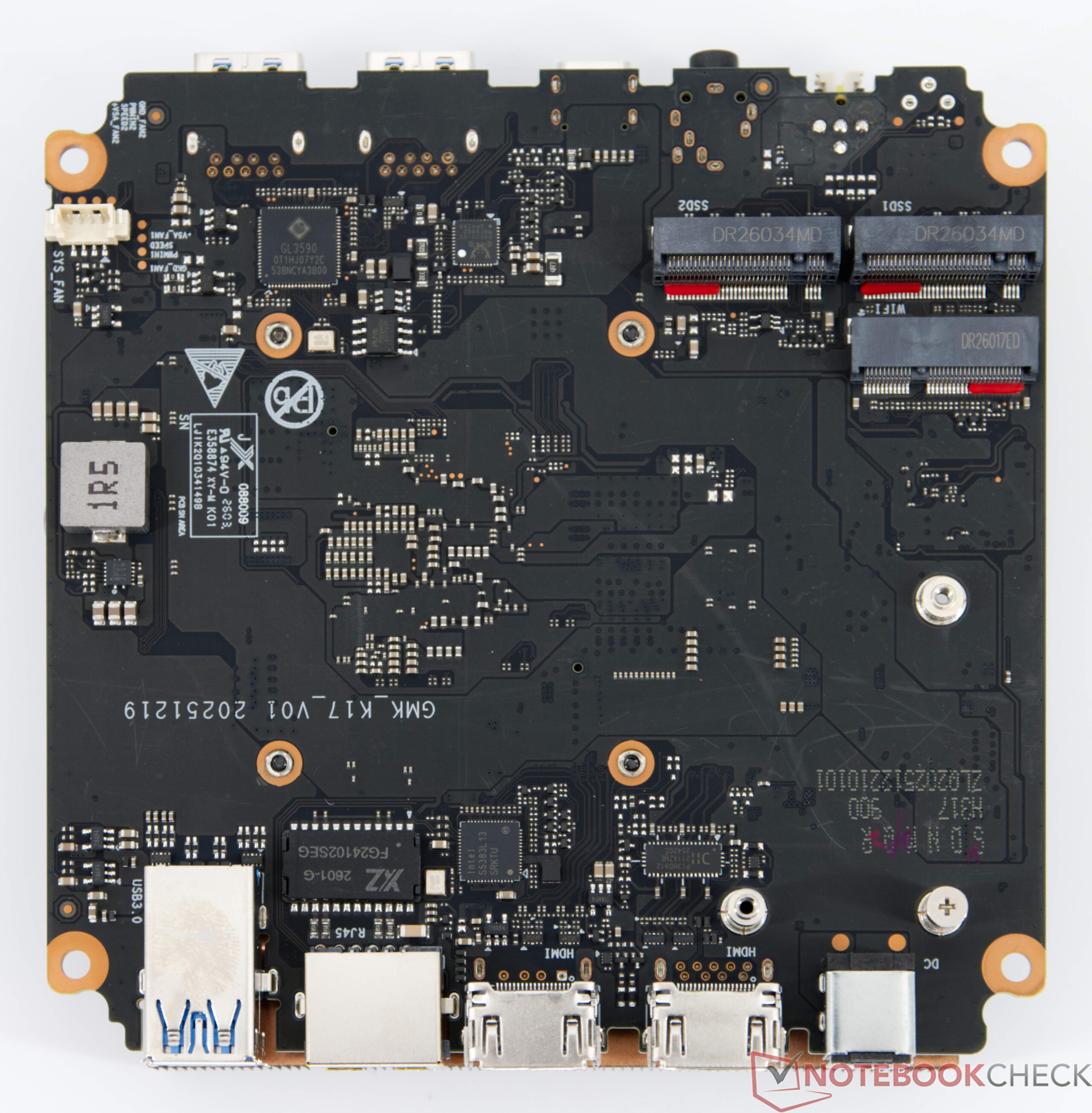

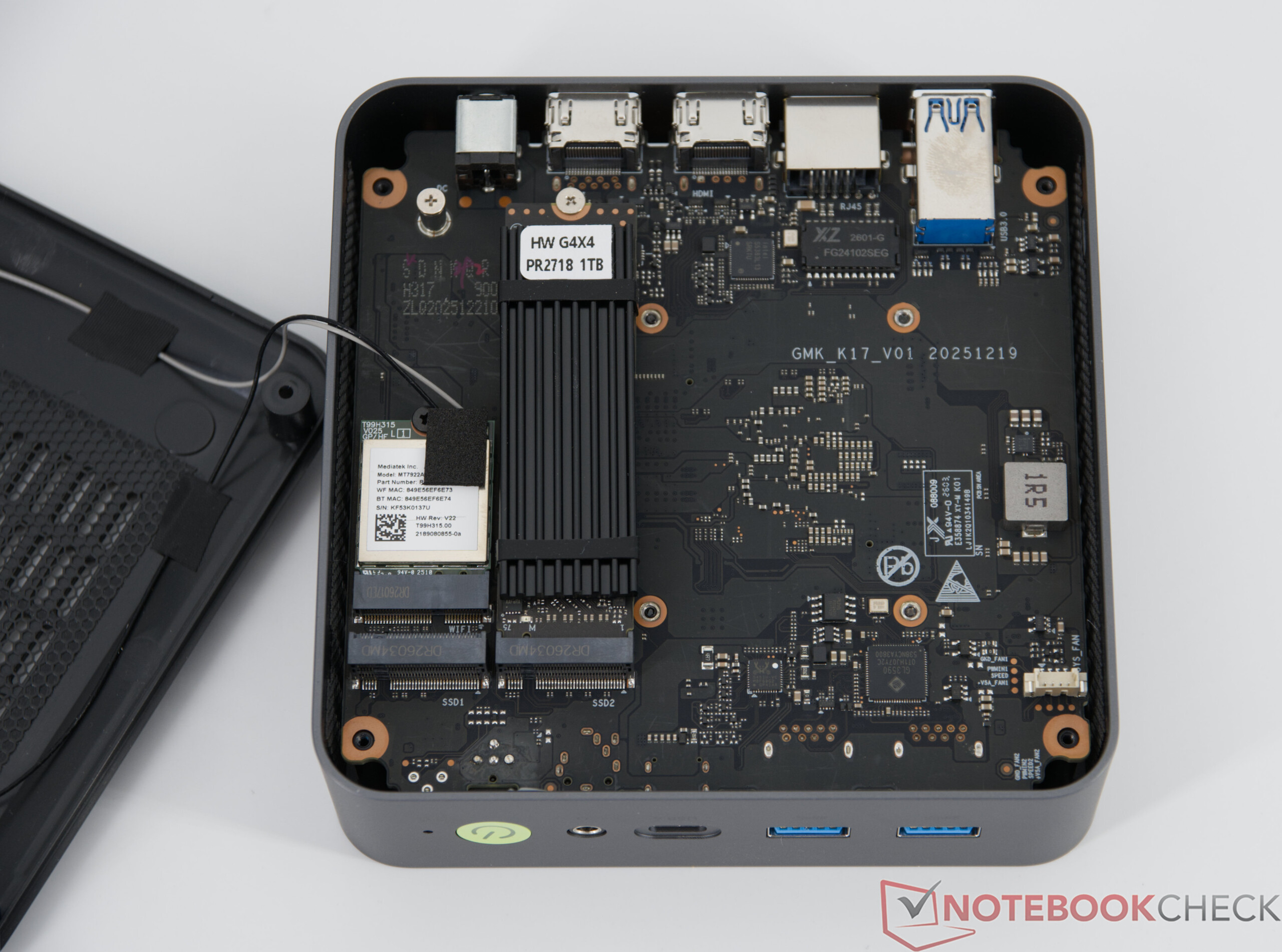

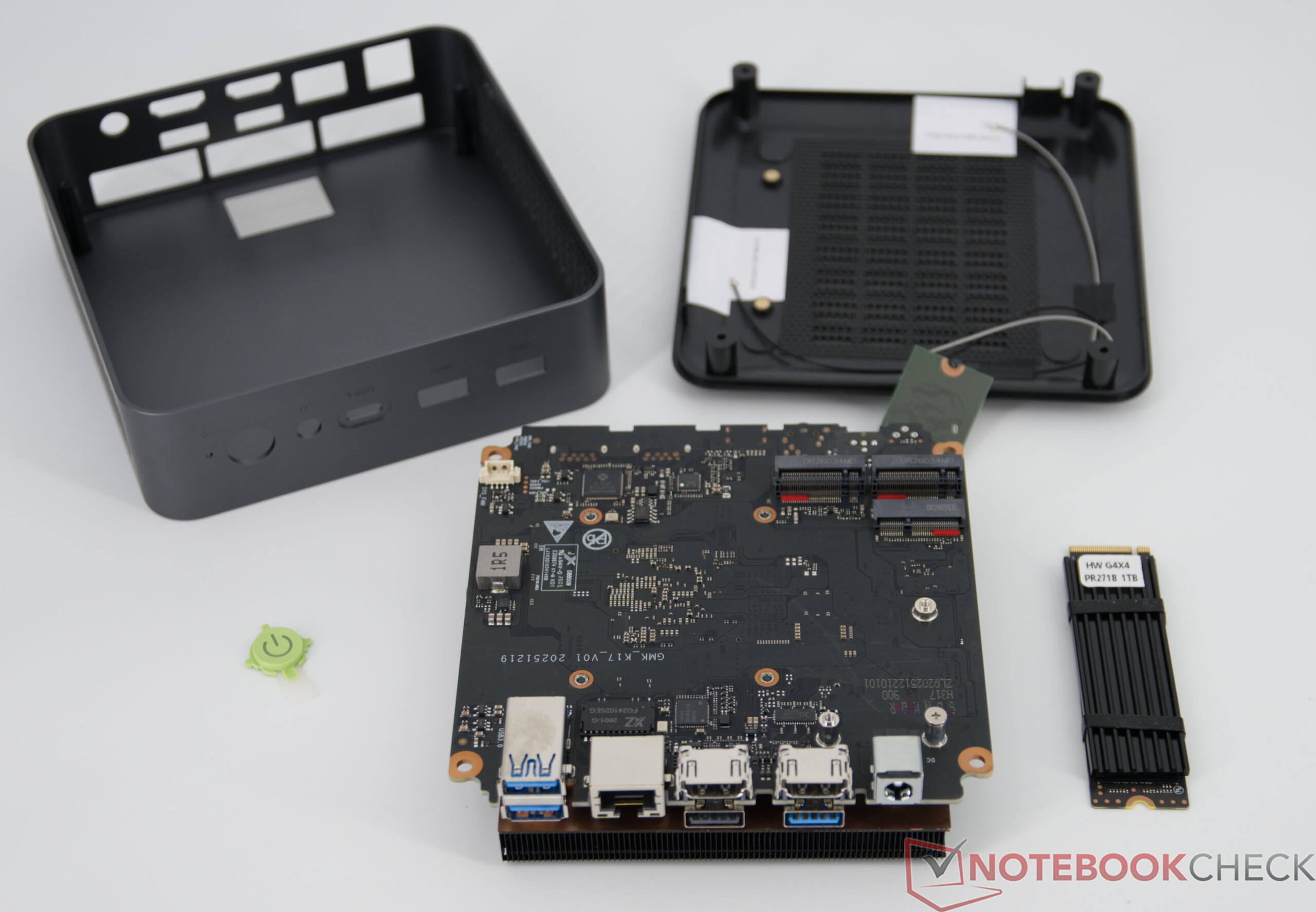

Maintenance on the GMKtec NucBox K17 is straightforward. Once the bottom panel is removed, the internal components are directly accessible, and the motherboard—including the cooling unit—can be easily removed. The only component that can be upgraded is the storage, via an additional M.2 slot. The RAM is soldered in place, while the Wi-Fi module can be replaced if necessary.

Sustainability

The manufacturer does not provide specific information regarding sustainability or environmental measures in the manufacturing process of the GMKtec NucBox K17. The packaging consists mainly of cardboard and includes only a few foam inserts to protect the mini-PC during shipping.

Performance

Test Conditions

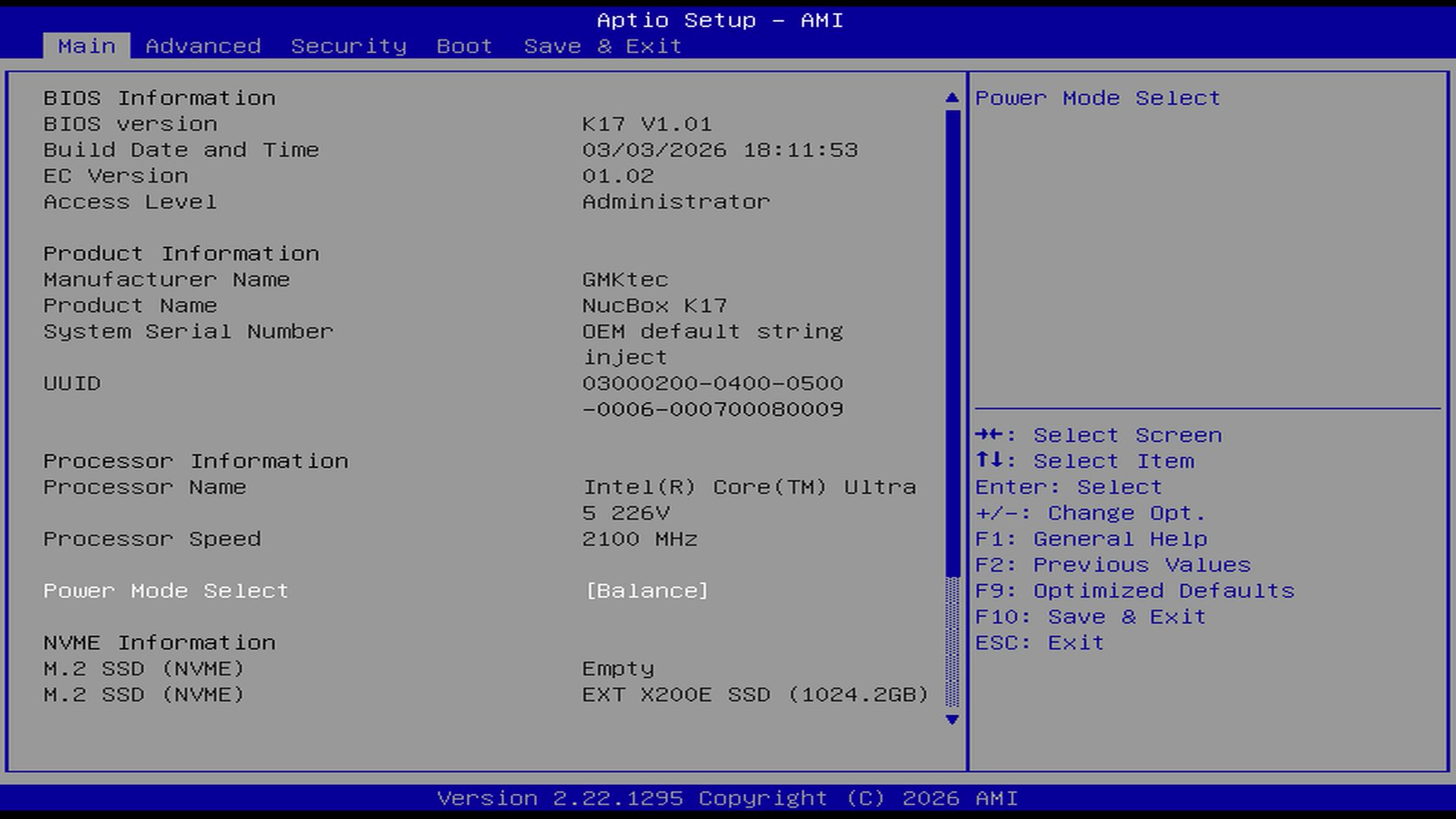

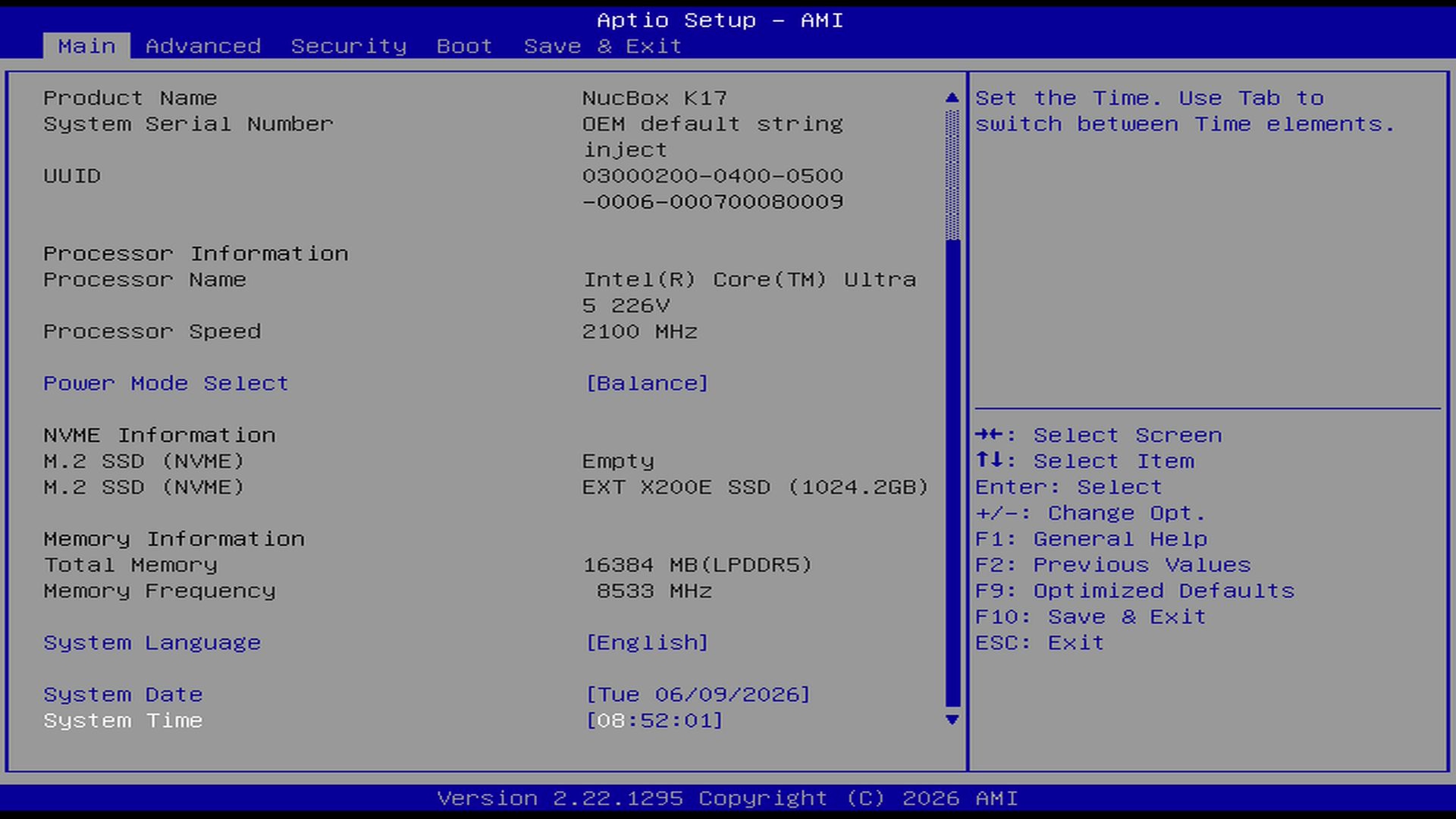

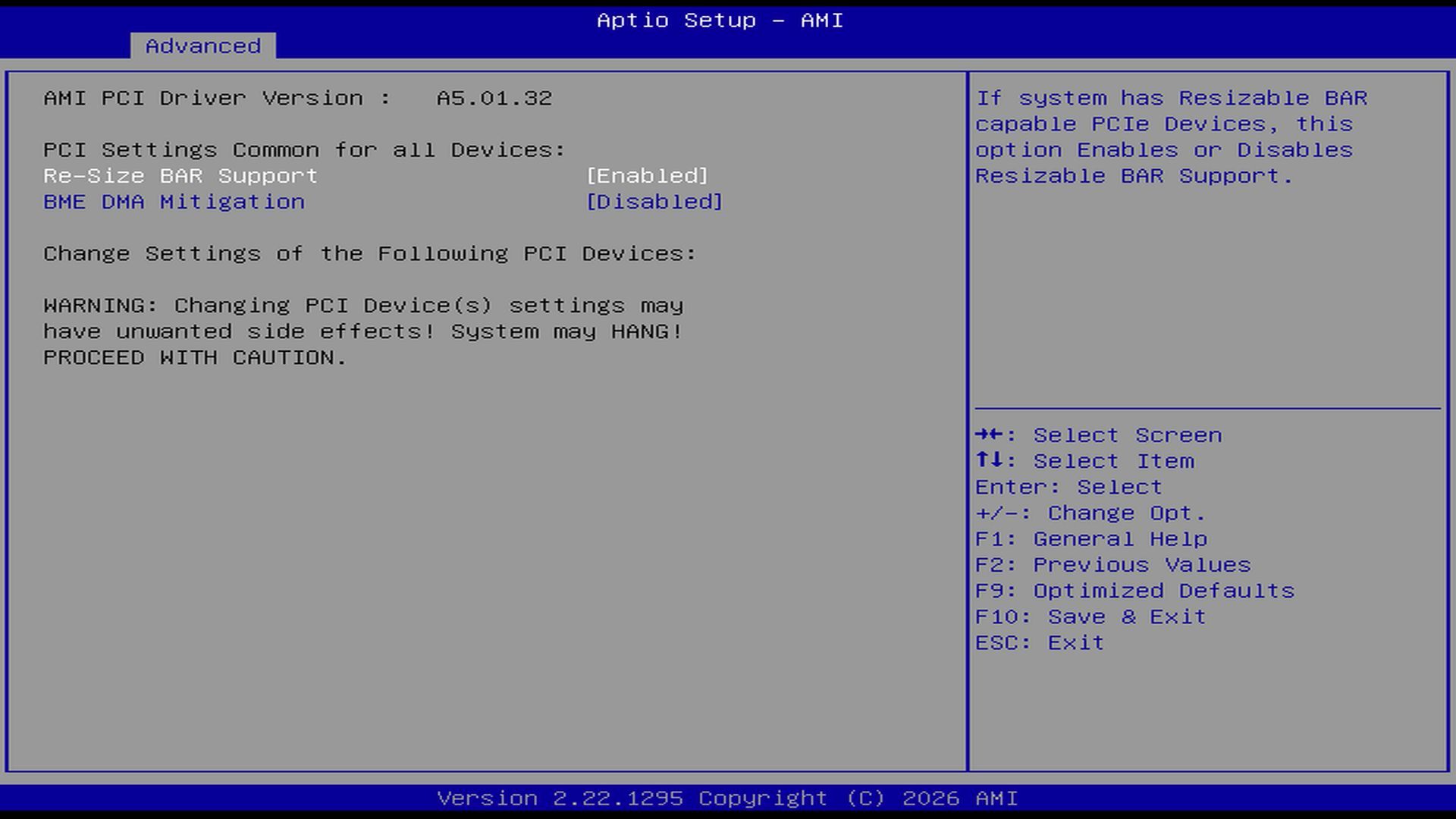

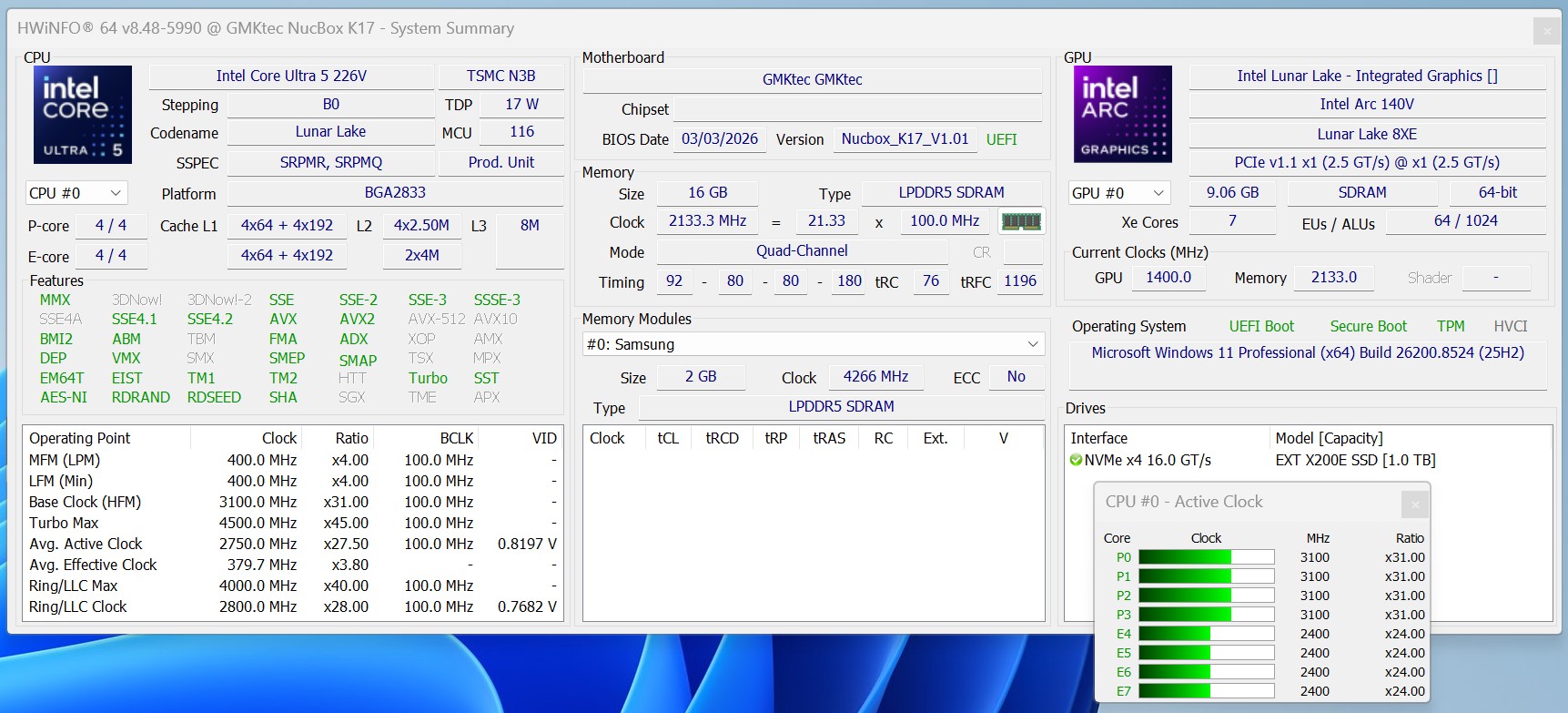

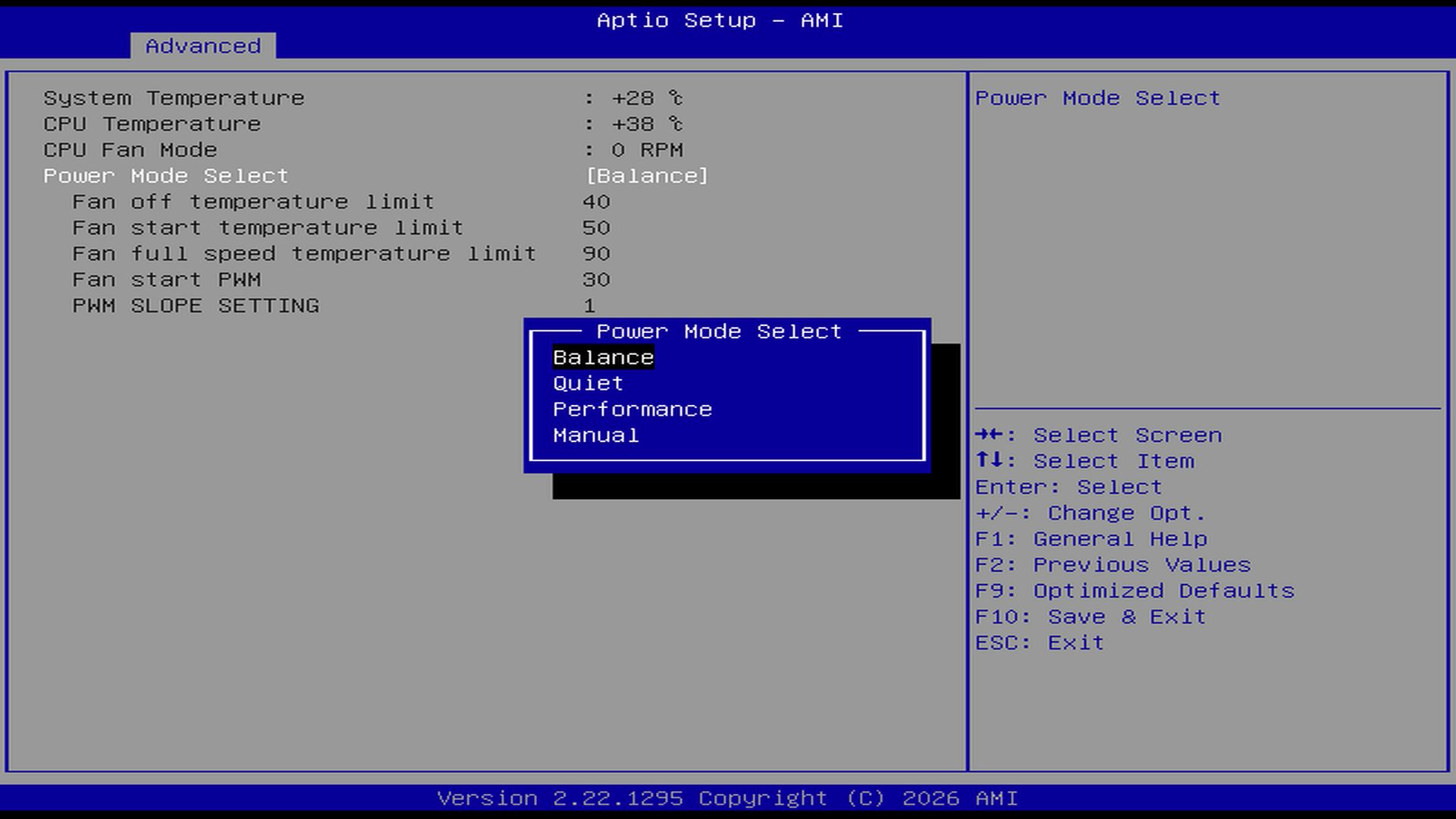

All benchmarks were run using the factory settings. The SoC operates at a TDP of 25 watts. The BIOS offers various options for adjusting performance limits and fan control to suit your needs.

Processor

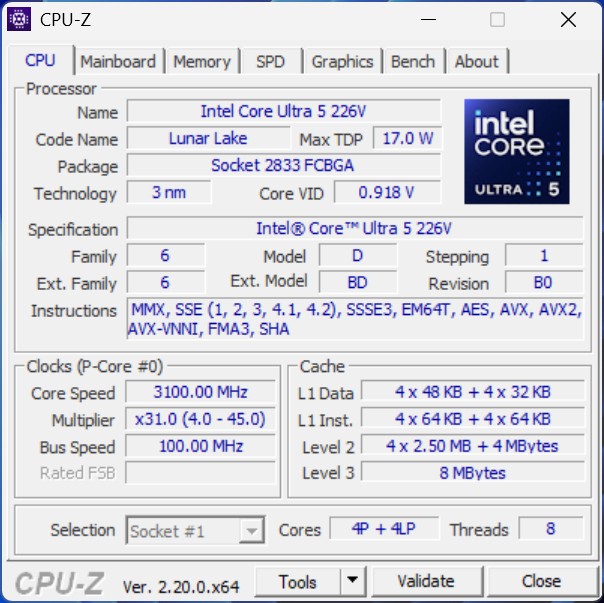

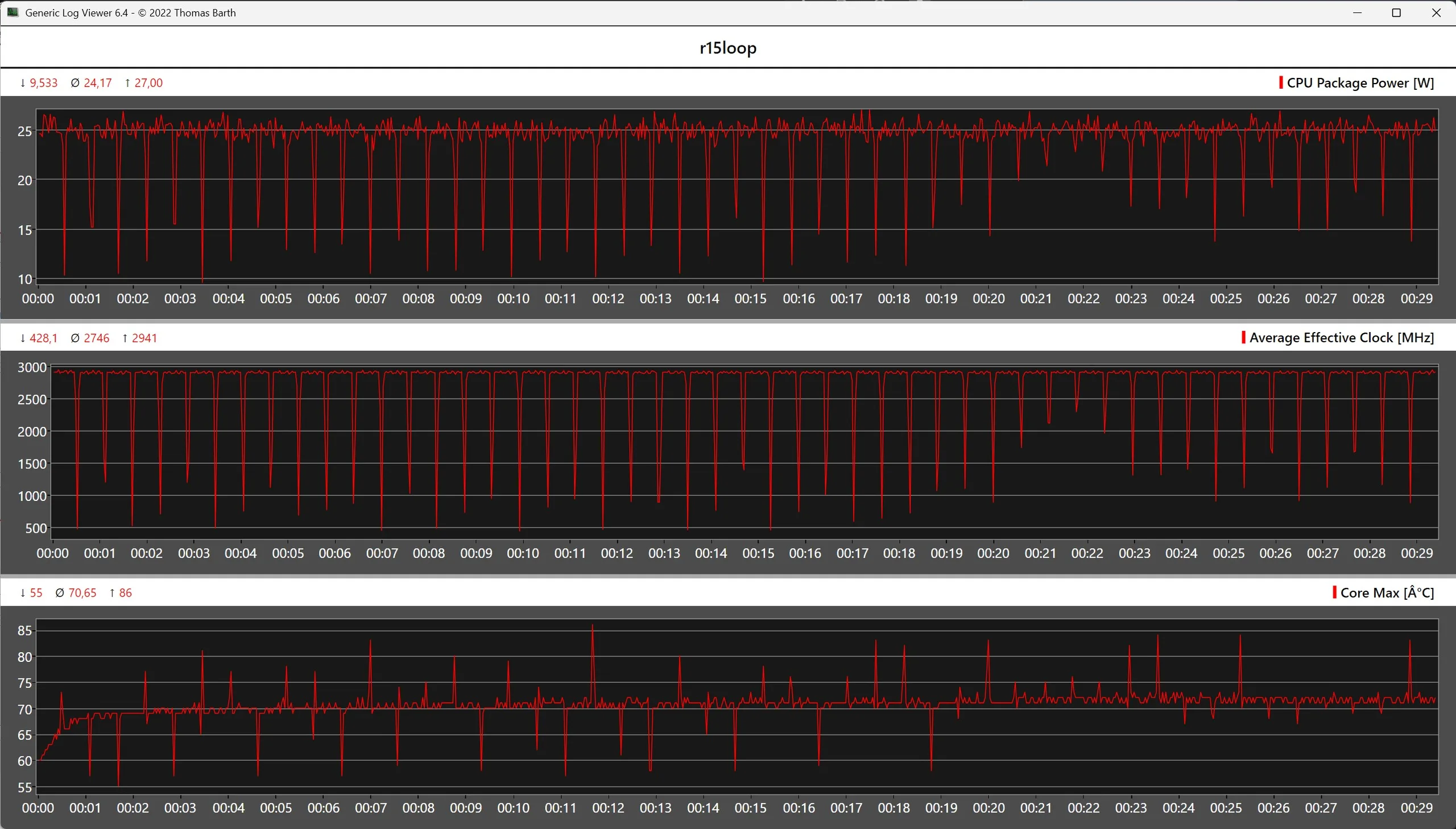

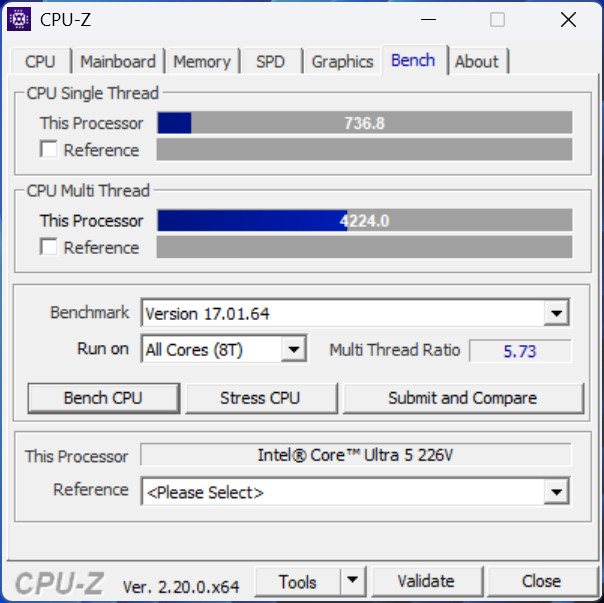

The Intel Core Ultra 5 226V delivers high performance for everyday and productivity applications in the GMKtec NucBox K17. The processor handles Office tasks, multitasking, and image editing with ease. The cooling solution also ensures consistently stable performance. In multithread benchmarks, however, the Core Ultra 5 226V falls short of the latest Ryzen APUs, such as those featured in the Minisforum AI X1 or Alliwava GH8.

Performance rating - Percent
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	51.5 pt
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	48.7 pt
GMK NucBox K17 Intel Core Ultra 5 226V	44.5 pt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	44.4 pt
Geekom A5 Pro AMD Ryzen 5 7530U	38.5 pt
Ninkear M7, (16+512) AMD Ryzen 5 7430U	37 pt

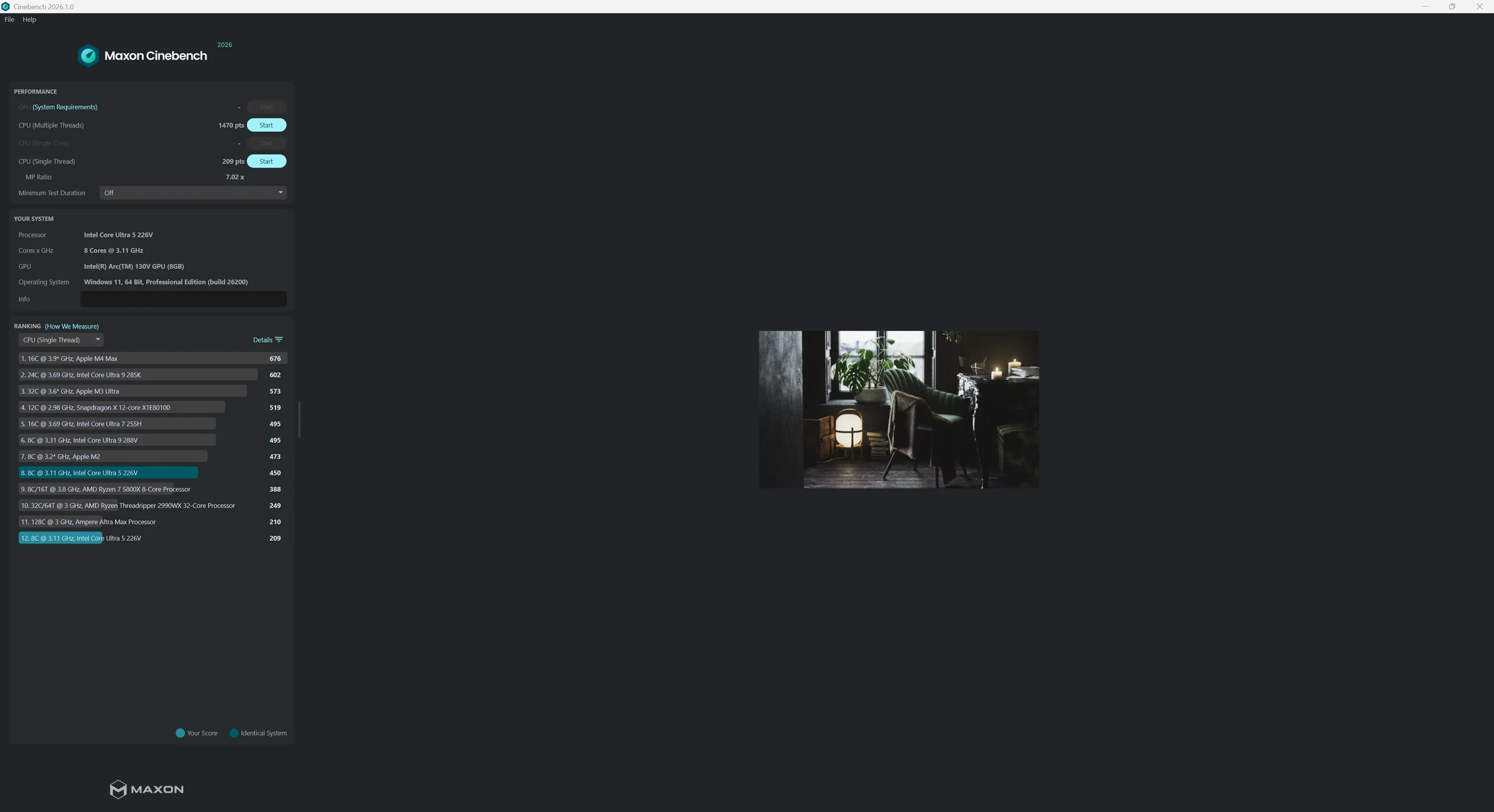

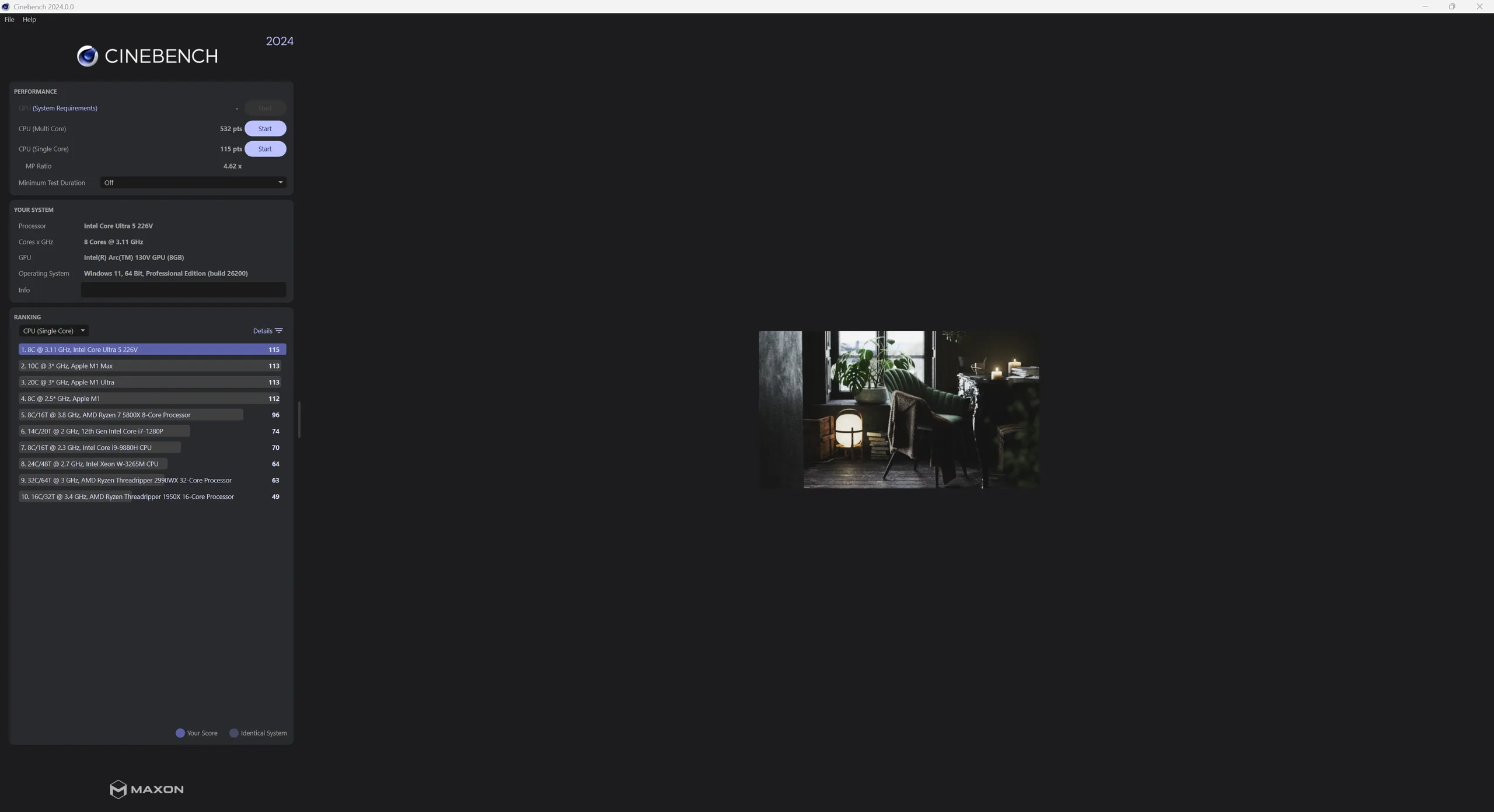

Cinebench 2024
CPU Multi Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	962 Points +84%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	838 Points +60%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	722 Points +38%
GMK NucBox K17 Intel Core Ultra 5 226V	523 Points
Geekom A5 Pro AMD Ryzen 5 7530U	398 Points -24%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	361 Points -31%
CPU Single Core
GMK NucBox K17 Intel Core Ultra 5 226V	115 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	104 Points -10%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	101 Points -12%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	89 Points -23%
Geekom A5 Pro AMD Ryzen 5 7530U	85 Points -26%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	82 Points -29%

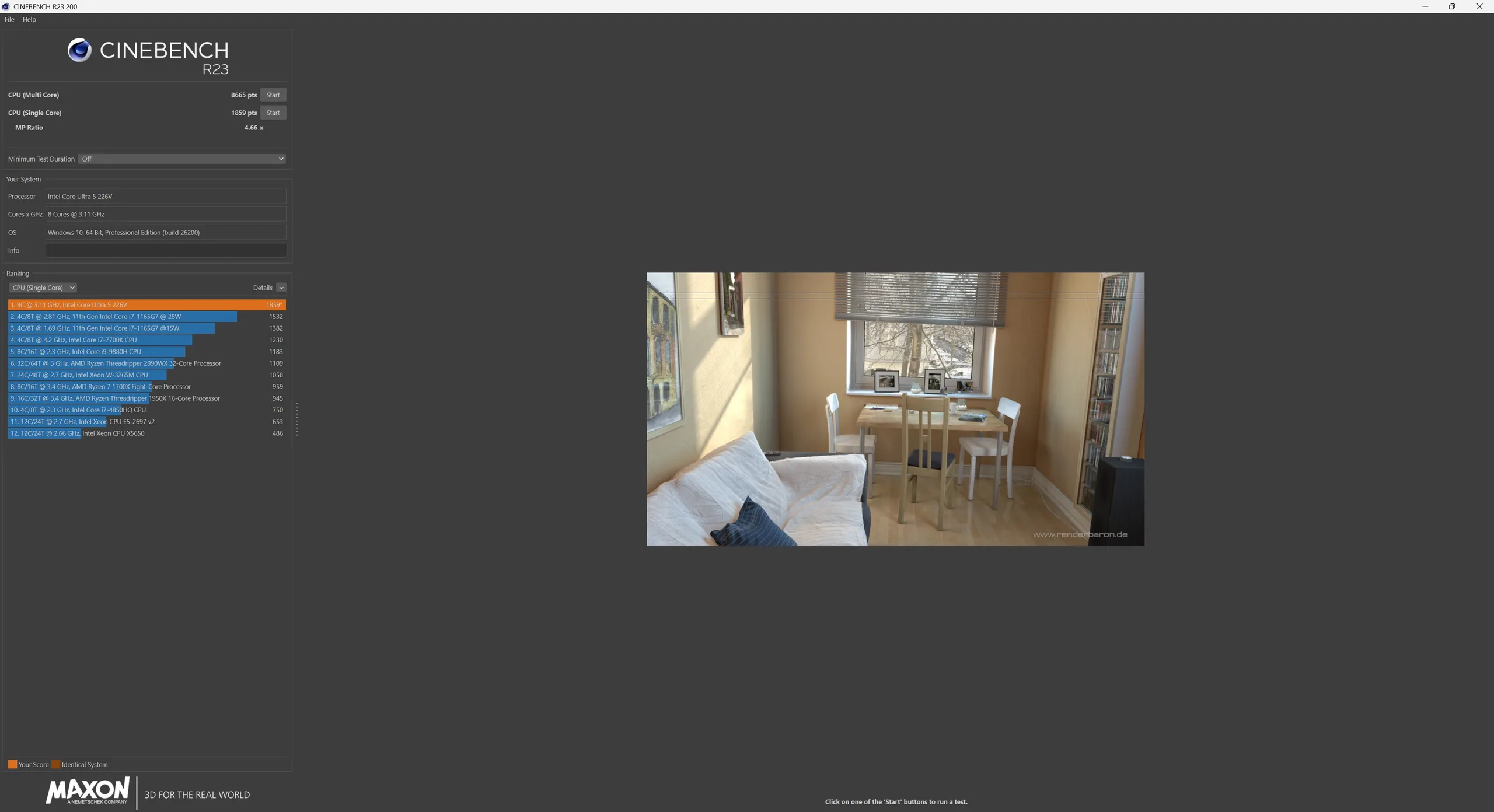

Cinebench R23
Multi Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	16876 Points +95%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	14816 Points +71%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	12945 Points +49%
GMK NucBox K17 Intel Core Ultra 5 226V	8665 Points
Geekom A5 Pro AMD Ryzen 5 7530U	6985 Points -19%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6561 Points -24%
Single Core
GMK NucBox K17 Intel Core Ultra 5 226V	1859 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1740 Points -6%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1691 Points -9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1536 Points -17%
Geekom A5 Pro AMD Ryzen 5 7530U	1435 Points -23%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1367 Points -26%

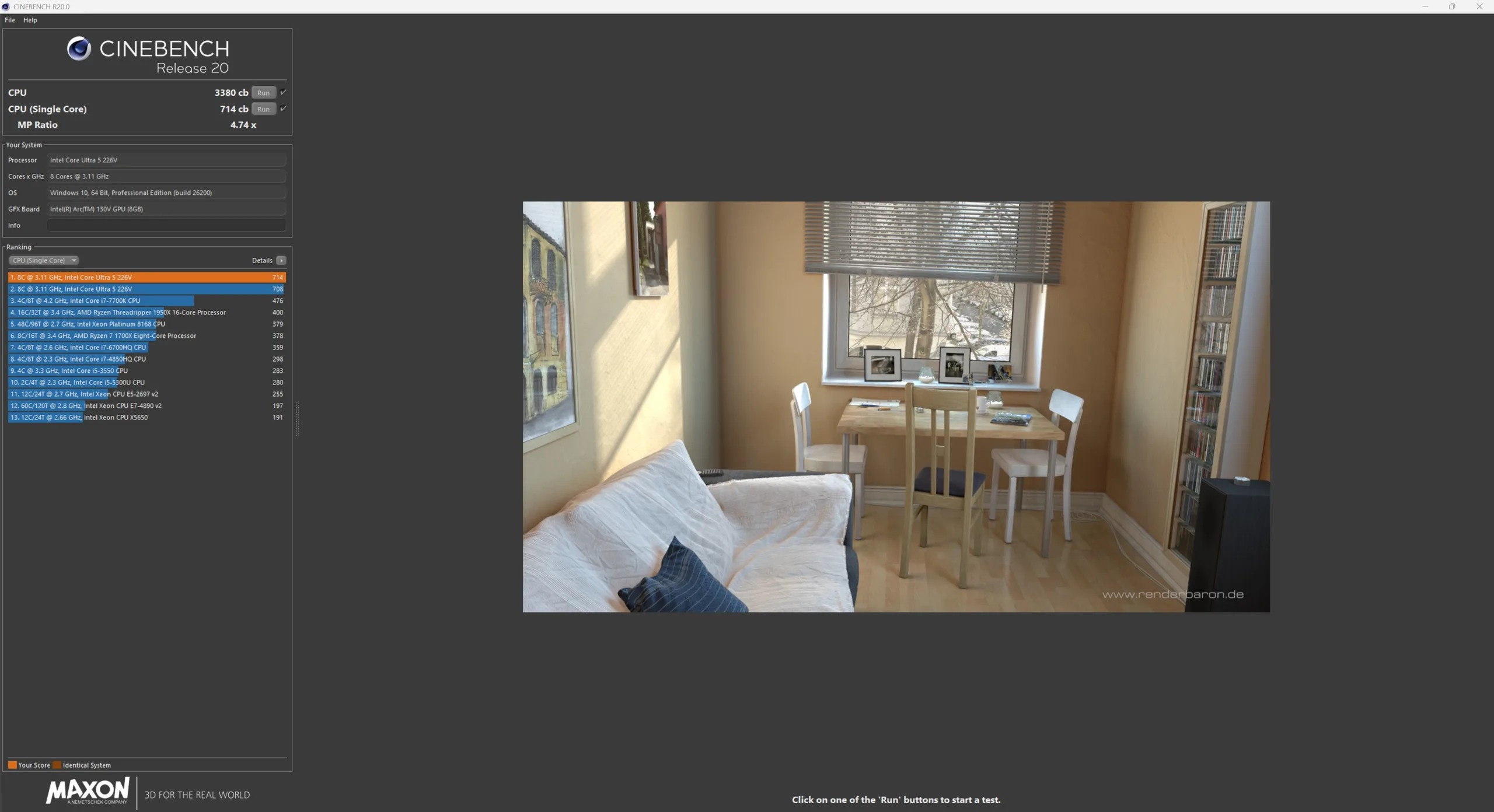

Cinebench R20
CPU (Multi Core)
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	6600 Points +95%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	5812 Points +72%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5022 Points +49%
GMK NucBox K17 Intel Core Ultra 5 226V	3380 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2902 Points -14%
Geekom A5 Pro AMD Ryzen 5 7530U	2780 Points -18%
CPU (Single Core)
GMK NucBox K17 Intel Core Ultra 5 226V	714 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	678 Points -5%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	652 Points -9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	591 Points -17%
Geekom A5 Pro AMD Ryzen 5 7530U	558 Points -22%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	535 Points -25%

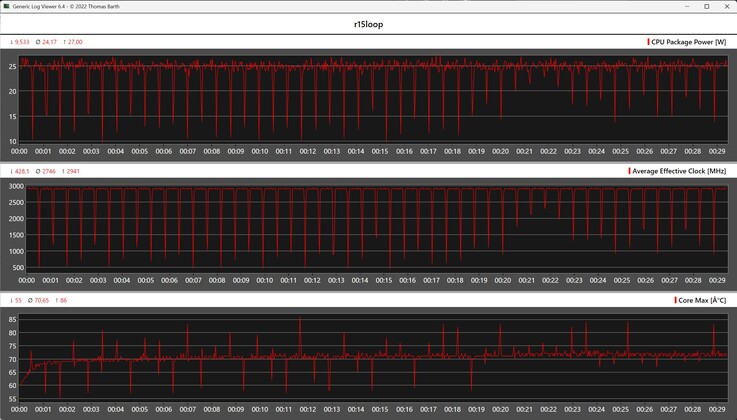

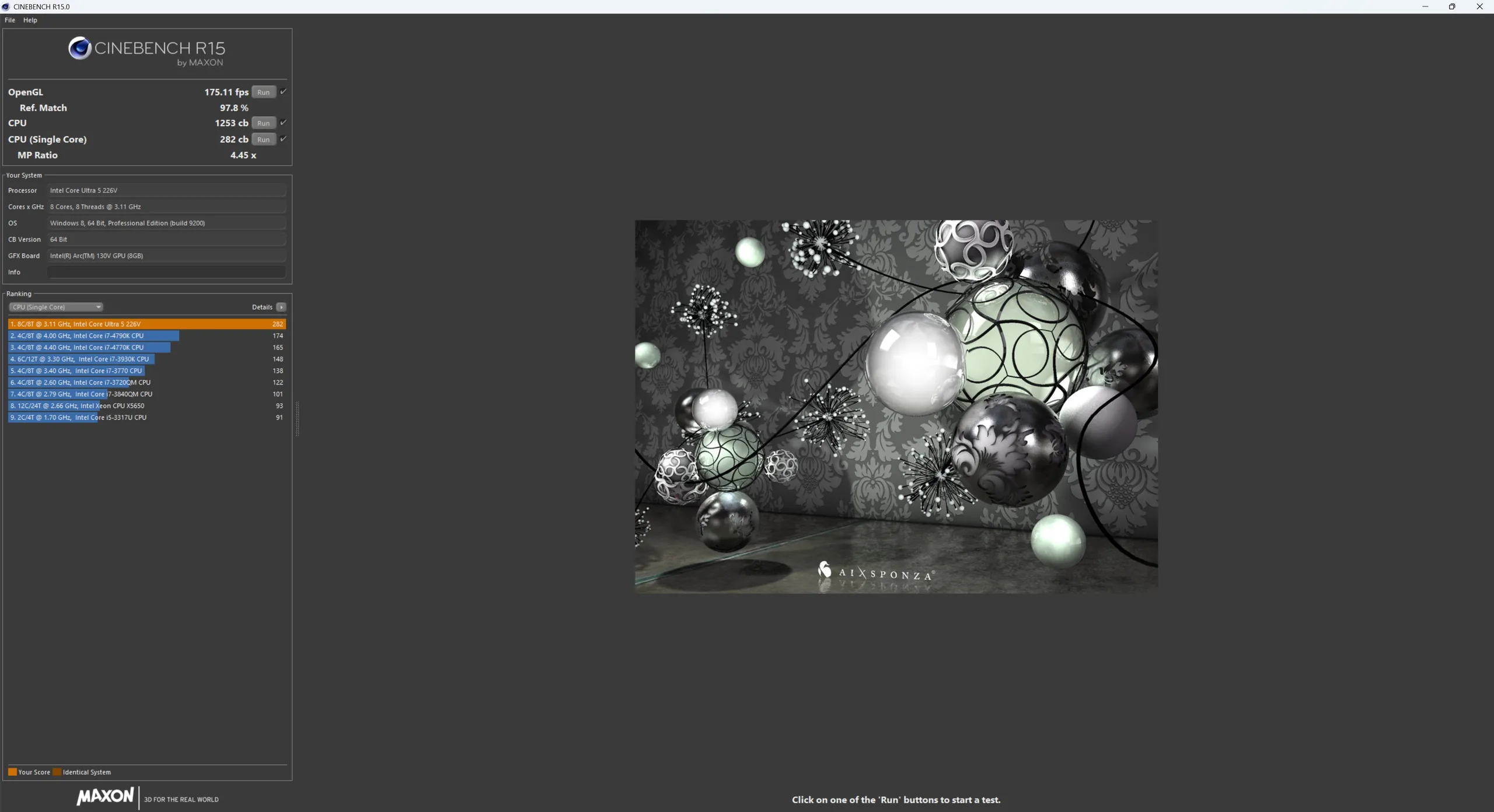

Cinebench R15
CPU Multi 64Bit
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2655 Points +112%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	2293 Points +83%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2092 Points +67%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1271 Points +1%
GMK NucBox K17 Intel Core Ultra 5 226V	1253 Points
Geekom A5 Pro AMD Ryzen 5 7530U	1101 Points -12%
CPU Single 64Bit
GMK NucBox K17 Intel Core Ultra 5 226V	282 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	273 Points -3%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	268 Points -5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	244 Points -13%
Geekom A5 Pro AMD Ryzen 5 7530U	231 Points -18%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	221 Points -22%

Cinebench R11.5
CPU Multi 64Bit
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	30.14 Points +91%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	27.36 Points +73%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	24.09 Points +53%
GMK NucBox K17 Intel Core Ultra 5 226V	15.79 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	14.67 Points -7%
Geekom A5 Pro AMD Ryzen 5 7530U	14.55 Points -8%
CPU Single 64Bit
GMK NucBox K17 Intel Core Ultra 5 226V	3.36 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	3.23 Points -4%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	3.18 Points -5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2.9 Points -14%
Geekom A5 Pro AMD Ryzen 5 7530U	2.75 Points -18%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2.65 Points -21%

Cinebench R10
Rendering Single CPUs 64Bit
GMK NucBox K17 Intel Core Ultra 5 226V	15701 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	14463 Points -8%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	14037 Points -11%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	12061 Points -23%
Geekom A5 Pro AMD Ryzen 5 7530U	11586 Points -26%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	11022 Points -30%
Rendering Multiple CPUs 64Bit
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	88096 Points +57%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	78086 Points +39%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	68830 Points +22%
GMK NucBox K17 Intel Core Ultra 5 226V	56263 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	47909 Points -15%
Geekom A5 Pro AMD Ryzen 5 7530U	47058 Points -16%

Blender
v2.79 BMW27 CPU
Geekom A5 Pro AMD Ryzen 5 7530U	448 Seconds * -16%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	447 Seconds * -16%
GMK NucBox K17 Intel Core Ultra 5 226V	387 Seconds *
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	241 Seconds * +38%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	220 Seconds * +43%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	190 Seconds * +51%
v3.3 Classroom CPU
Ninkear M7, (16+512) AMD Ryzen 5 7430U	854 Seconds * -33%
Geekom A5 Pro AMD Ryzen 5 7530U	792 Seconds * -23%
GMK NucBox K17 Intel Core Ultra 5 226V	642 Seconds *
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	405 Seconds * +37%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	357 Seconds * +44%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	310 Seconds * +52%
v4.3 Barbershop CPU
Ninkear M7, (16+512) AMD Ryzen 5 7430U	4229 Seconds * -29%
Geekom A5 Pro AMD Ryzen 5 7530U	3879 Seconds * -18%
GMK NucBox K17 Intel Core Ultra 5 226V	3291 Seconds *
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2038 Seconds * +38%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1732 Seconds * +47%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1505 Seconds * +54%

wPrime 2.10
32m
GMK NucBox K17 Intel Core Ultra 5 226V	7.806 s *
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	7.273 s * +7%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6.035 s * +23%
Geekom A5 Pro AMD Ryzen 5 7530U	5.509 s * +29%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	4.3 s * +45%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	3.265 s * +58%
1024m
GMK NucBox K17 Intel Core Ultra 5 226V	336.5 s *
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	184.594 s * +45%
Geekom A5 Pro AMD Ryzen 5 7530U	172.674 s * +49%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	156.81 s * +53%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	103.21 s * +69%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	76.877 s * +77%

X264 HD Benchmark 4.0
Pass 1
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	285 (282^min - 289^max) fps +3%
GMK NucBox K17 Intel Core Ultra 5 226V	275.5 (274^min - 276^max) fps
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	258 (253^min - 260^max) fps -6%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	252.5 (248^min - 254^max) fps -8%
Geekom A5 Pro AMD Ryzen 5 7530U	227.5 (213^min - 237^max) fps -17%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	218 (217^min - 220^max) fps -21%
Pass 2
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	151.55 (151.1^min - 152.1^max) fps +92%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	129.7 (129^min - 131^max) fps +64%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	119.75 (119.7^min - 120.1^max) fps +51%
GMK NucBox K17 Intel Core Ultra 5 226V	79.1 (79^min - 79.3^max) fps
Ninkear M7, (16+512) AMD Ryzen 5 7430U	75.15 (75^min - 75.2^max) fps -5%
Geekom A5 Pro AMD Ryzen 5 7530U	71.3 (65.3^min - 73.8^max) fps -10%

WinRAR - Result
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	7335 KB/s +50%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	6974 KB/s +43%
Geekom A5 Pro AMD Ryzen 5 7530U	6599 KB/s +35%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	6472 KB/s +33%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6053 KB/s +24%
GMK NucBox K17 Intel Core Ultra 5 226V	4880 KB/s

TrueCrypt
AES Mean 100MB
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	15 GB/s +159%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	13.2 GB/s +128%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	11.7 GB/s +102%
Geekom A5 Pro AMD Ryzen 5 7530U	7.5 GB/s +29%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	6.8 GB/s +17%
GMK NucBox K17 Intel Core Ultra 5 226V	5.8 GB/s
Twofish Mean 100MB
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2.1 GB/s +62%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1.8 GB/s +38%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1.7 GB/s +31%
GMK NucBox K17 Intel Core Ultra 5 226V	1.3 GB/s
Geekom A5 Pro AMD Ryzen 5 7530U	1.1 GB/s -15%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1 GB/s -23%
Serpent Mean 100MB
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1.3 GB/s +98%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1.2 GB/s +83%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1.1 GB/s +67%
Geekom A5 Pro AMD Ryzen 5 7530U	0.755 GB/s +15%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	0.716 GB/s +9%
GMK NucBox K17 Intel Core Ultra 5 226V	0.657 GB/s

Geekbench AI
Quantized CPU 1.2
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	7281 Points +69%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	6176 Points +44%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	4561 Points +6%
GMK NucBox K17 Intel Core Ultra 5 226V	4298 Points
Geekom A5 Pro AMD Ryzen 5 7530U	3353 Points -22%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2938 Points -32%
Half Precision CPU 1.2
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1868 Points +58%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1556 Points +31%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1406 Points +19%
GMK NucBox K17 Intel Core Ultra 5 226V	1184 Points
Geekom A5 Pro AMD Ryzen 5 7530U	1101 Points -7%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1019 Points -14%
Single Precision CPU 1.2
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	4003 Points +78%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	3559 Points +59%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	3089 Points +38%
Geekom A5 Pro AMD Ryzen 5 7530U	2288 Points +2%
GMK NucBox K17 Intel Core Ultra 5 226V	2243 Points
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1930 Points -14%
Quantized CPU 1.7
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	8522 Points +54%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	7265 Points +31%
GMK NucBox K17 Intel Core Ultra 5 226V	5529 Points
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5197 Points -6%
Geekom A5 Pro AMD Ryzen 5 7530U	3706 Points -33%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	3446 Points -38%
Half Precision CPU 1.7
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1942 Points +55%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1635 Points +30%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1497 Points +19%
GMK NucBox K17 Intel Core Ultra 5 226V	1253 Points
Geekom A5 Pro AMD Ryzen 5 7530U	1167 Points -7%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1083 Points -14%
Single Precision CPU 1.7
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	4324 Points +65%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	3658 Points +40%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	3300 Points +26%
GMK NucBox K17 Intel Core Ultra 5 226V	2621 Points
Geekom A5 Pro AMD Ryzen 5 7530U	2381 Points -9%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	2097 Points -20%

Geekbench 6.7
Single-Core
GMK NucBox K17 Intel Core Ultra 5 226V	2619 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2601 Points -1%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	2534 Points -3%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2078 Points -21%
Geekom A5 Pro AMD Ryzen 5 7530U	1991 Points -24%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1849 Points -29%
Multi-Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12843 Points +41%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	11516 Points +27%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9625 Points +6%
GMK NucBox K17 Intel Core Ultra 5 226V	9100 Points
Geekom A5 Pro AMD Ryzen 5 7530U	7067 Points -22%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5705 Points -37%

Geekbench 6.0
Single-Core
GMK NucBox K17 Intel Core Ultra 5 226V	3105 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	2507 Points -19%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	2427 Points -22%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	2028 Points -35%
Geekom A5 Pro AMD Ryzen 5 7530U	1919 Points -38%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1791 Points -42%
Multi-Core
GMK NucBox K17 Intel Core Ultra 5 226V	21003 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12573 Points -40%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	10970 Points -48%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9477 Points -55%
Geekom A5 Pro AMD Ryzen 5 7530U	6800 Points -68%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5499 Points -74%

Geekbench 5.5
Multi-Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12267 Points +52%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	10887 Points +35%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9241 Points +15%
GMK NucBox K17 Intel Core Ultra 5 226V	8063 Points
Geekom A5 Pro AMD Ryzen 5 7530U	6275 Points -22%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5343 Points -34%
Single-Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1921 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V	1914 Points
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1863 Points -3%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1517 Points -21%
Geekom A5 Pro AMD Ryzen 5 7530U	1512 Points -21%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1390 Points -27%

Geekbench 5.0
5.0 Multi-Core
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	12233 Points +50%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	10733 Points +32%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9288 Points +14%
GMK NucBox K17 Intel Core Ultra 5 226V	8152 Points
Geekom A5 Pro AMD Ryzen 5 7530U	6158 Points -24%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5310 Points -35%
5.0 Single-Core
GMK NucBox K17 Intel Core Ultra 5 226V	1865 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	1839 Points -1%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	1785 Points -4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	1476 Points -21%
Geekom A5 Pro AMD Ryzen 5 7530U	1437 Points -23%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	1360 Points -27%

Geekbench 4.4
64 Bit Multi-Core Score
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	49528 Points +72%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	43813 Points +52%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	36890 Points +28%
GMK NucBox K17 Intel Core Ultra 5 226V	28864 Points
Geekom A5 Pro AMD Ryzen 5 7530U	25100 Points -13%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	21491 Points -26%
64 Bit Single-Core Score
GMK NucBox K17 Intel Core Ultra 5 226V	8018 Points
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	7946 Points -1%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	7817 Points -3%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	6388 Points -20%
Geekom A5 Pro AMD Ryzen 5 7530U	6193 Points -23%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5766 Points -28%

3DMark 11 - 1280x720 Performance Physics
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	22746 Points +67%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	20702 Points +52%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	17073 Points +25%
GMK NucBox K17 Intel Core Ultra 5 226V	13612 Points
Geekom A5 Pro AMD Ryzen 5 7530U	11575 Points -15%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	10478 Points -23%

7-Zip 18.03
7z b 4
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	71883 MIPS +131%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	63882 MIPS +106%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	59045 MIPS +90%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	37081 MIPS +19%
Geekom A5 Pro AMD Ryzen 5 7530U	35907 MIPS +16%
GMK NucBox K17 Intel Core Ultra 5 226V	31083 MIPS
7z b 4 -mmt1
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	6467 MIPS +19%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	6287 MIPS +15%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	5662 MIPS +4%
GMK NucBox K17 Intel Core Ultra 5 226V	5452 MIPS
Geekom A5 Pro AMD Ryzen 5 7530U	5386 MIPS -1%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	5267 MIPS -3%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	21 fps +93%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	17.8 fps +63%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	16.3 fps +50%
GMK NucBox K17 Intel Core Ultra 5 226V	10.9 fps
Geekom A5 Pro AMD Ryzen 5 7530U	9.07 fps -17%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	8.47 fps -22%

R Benchmark 2.5 - Overall mean
Ninkear M7, (16+512) AMD Ryzen 5 7430U	0.598 sec * -26%
Geekom A5 Pro AMD Ryzen 5 7530U	0.519 sec * -9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	0.4932 sec * -4%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	0.4798 sec * -1%
GMK NucBox K17 Intel Core Ultra 5 226V	0.4746 sec *
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	0.4597 sec * +3%

LibreOffice - 20 Documents To PDF
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	74 s * -19%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	67 s * -8%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	63.5 s * -2%
GMK NucBox K17 Intel Core Ultra 5 226V	62.1 s *
Geekom A5 Pro AMD Ryzen 5 7530U	58.9 s * +5%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	55.8 s * +10%

3DMark
1920x1080 Fire Strike Physics
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	26674 Points +41%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	23457 Points +24%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	22990 Points +22%
GMK NucBox K17 Intel Core Ultra 5 226V	18892 Points
Geekom A5 Pro AMD Ryzen 5 7530U	15232 Points -19%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	13885 Points -27%
2560x1440 Time Spy CPU
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	11025 Points +67%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	10366 Points +57%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	9095 Points +38%
GMK NucBox K17 Intel Core Ultra 5 226V	6588 Points
Geekom A5 Pro AMD Ryzen 5 7530U	4860 Points -26%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	4321 Points -34%

Super Pi mod 1.5 XS 1M - 1M
Geekom A5 Pro AMD Ryzen 5 7530U	8.703 s * -2%
GMK NucBox K17 Intel Core Ultra 5 226V	8.517 s *
Ninkear M7, (16+512) AMD Ryzen 5 7430U	8.306 s * +2%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	7.859 s * +8%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	7.71 s * +9%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	7.401 s * +13%

Super Pi mod 1.5 XS 2M - 2M
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	19.277 s * -3%
Geekom A5 Pro AMD Ryzen 5 7530U	18.825 s * -1%
GMK NucBox K17 Intel Core Ultra 5 226V	18.695 s *
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	18.294 s * +2%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	18.231 s * +2%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	17.898 s * +4%

Affinity Photo 2 - Combined (Multi CPU)
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255	820 Points +136%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS	659 Points +89%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U	633 Points +82%
Ninkear M7, (16+512) AMD Ryzen 5 7430U	383 Points +10%
GMK NucBox K17 Intel Core Ultra 5 226V	348 Points
Geekom A5 Pro AMD Ryzen 5 7530U	338 Points -3%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

10157

Cinebench R10 Shading 64Bit

20192 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

56263 Points

Cinebench R10 Rendering Single CPUs 64Bit

15701 Points

Cinebench R10 Shading 32Bit

15120

Cinebench R10 Rendering Multiple CPUs 32Bit

37163

Cinebench R11.5 CPU Single 32Bit

2.95 Points

Cinebench R11.5 CPU Multi 32Bit

13.91 Points

Cinebench R11.5 OpenGL 32Bit

127.22 fps

Cinebench R11.5 CPU Single 64Bit

3.36 Points

Cinebench R11.5 CPU Multi 64Bit

15.79 Points

Cinebench R11.5 OpenGL 64Bit

127.43 fps

Cinebench R15 CPU Single 64Bit

282 Points

Cinebench R15 CPU Multi 64Bit

1253 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

175.11 fps

Cinebench R20 CPU (Single Core)

714 Points

Cinebench R20 CPU (Multi Core)

3380 Points

Cinebench R23 Multi Core

8665 Points

Cinebench R23 Single Core

1859 Points

Cinebench 2024 CPU Single Core

115 Points

Cinebench 2024 CPU Multi Core

523 Points

Cinebench 2026 CPU Multi

1470 Points

Cinebench 2026 CPU Single Thread

209 Points

Help

... in comparison

Performance rating
Minisforum AI X1, Ryzen 7 255 ^-1! AMD Ryzen 7 255, Radeon 780M	97.7 pt
Average of class Mini PC	89.8 pt
Alliwava GH8, R9 8945HS ^-1! AMD Ryzen 9 8945HS, Radeon 780M	86.6 pt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	68.6 pt
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	44.2 pt
Ninkear M7, (16+512) ^-1! AMD Ryzen 5 7430U, Vega 7	40.2 pt
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	39 pt

AIDA64 / FP32 Ray-Trace
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	27202 KRay/s +186%
Average of class Mini PC (974 - 82725, n=104, last 2 years)	24127 KRay/s +154%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	23462 KRay/s +147%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	14704 KRay/s +55%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	14643 KRay/s +54%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	9508 KRay/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	9335 KRay/s -2%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	7636 KRay/s -20%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	7609 KRay/s -20%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	7219 KRay/s -24%

AIDA64 / FPU Julia
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	110760 Points +129%
Average of class Mini PC (6115 - 363782, n=104, last 2 years)	100341 Points +107%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	95557 Points +97%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	92957 Points +92%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	92723 Points +91%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	54504 Points +13%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	48663 Points 0%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	48473 Points 0%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	48424 Points
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	48320 Points 0%

AIDA64 / CPU SHA3
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	4831 MB/s +119%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	4338 MB/s +97%
Average of class Mini PC (385 - 9475, n=104, last 2 years)	4285 MB/s +95%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	3104 MB/s +41%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	3099 MB/s +41%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2202 MB/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	2197 MB/s 0%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	1838 MB/s -17%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	1620 MB/s -26%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	1591 MB/s -28%

AIDA64 / CPU Queen
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	118448 Points +152%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	101809 Points +116%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	96912 Points +106%
Average of class Mini PC (20501 - 162855, n=87, last 2 years)	93043 Points +98%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	66646 Points +42%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	63855 Points +36%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	47070 Points

AIDA64 / FPU SinJulia
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	15213 Points +288%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	13669 Points +249%
Average of class Mini PC (1116 - 31931, n=104, last 2 years)	12830 Points +227%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	12571 Points +221%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	12535 Points +220%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	7619 Points +94%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	7611 Points +94%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	7413 Points +89%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	3921 Points
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	3915 Points 0%

AIDA64 / FPU Mandel
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	59408 Points +134%
Average of class Mini PC (3322 - 192994, n=104, last 2 years)	52589 Points +107%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	51296 Points +102%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	51217 Points +102%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	50872 Points +101%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	27917 Points +10%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	26914 Points +6%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	26912 Points +6%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	25349 Points
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	25323 Points 0%

AIDA64 / CPU AES
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	88405 MB/s +158%
Average of class Mini PC (9915 - 204742, n=103, last 2 years)	84650 MB/s +147%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	77854 MB/s +127%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	60867 MB/s +78%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	60825 MB/s +78%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	37339 MB/s +9%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	34228 MB/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	34222 MB/s 0%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	33618 MB/s -2%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	33497 MB/s -2%

AIDA64 / CPU ZLib
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	1088 MB/s +109%
Average of class Mini PC (127.2 - 2431, n=104, last 2 years)	1078 MB/s +107%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	935 MB/s +79%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	805 MB/s +55%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	802 MB/s +54%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	521 MB/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	516 MB/s -1%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	491 MB/s -6%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	447 MB/s -14%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	443 MB/s -15%

AIDA64 / FP64 Ray-Trace
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	13661 KRay/s +164%
Average of class Mini PC (537 - 43587, n=104, last 2 years)	12840 KRay/s +149%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	12443 KRay/s +141%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	7821 KRay/s +51%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	7802 KRay/s +51%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	5165 KRay/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	5133 KRay/s -1%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	4030 KRay/s -22%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	4008 KRay/s -22%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	3768 KRay/s -27%

AIDA64 / CPU PhotoWorxx
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	51770 MPixel/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v6.92.6600)	46620 MPixel/s -10%
Average of class Mini PC (8069 - 96843, n=104, last 2 years)	41414 MPixel/s -20%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (v6.92.6600)	39944 MPixel/s -23%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M (v6.92.6600)	39932 MPixel/s -23%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	27840 MPixel/s -46%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v6.92.6600)	27656 MPixel/s -47%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v6.92.6600)	17537 MPixel/s -66%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	17431 MPixel/s -66%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7 (v6.92.6600)	12161 MPixel/s -77%

AIDA64 / CPU CheckMate
Average of class Mini PC (1743 - 19453, n=17, last 2 years)	5800 MP/s +188%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M (v8.20.8100)	2829 MP/s +41%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (v8.20.8100)	2013 MP/s
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7 (v8.20.8100)	1743 MP/s -13%

Cinebench R15 Multi-Core Endurance Test

CPU metric during the Cinebench R15 loop

GMK NucBox K17 Intel Core Ultra 5 226V, Intel Core Ultra 5 226V: Ø1226 (1212.75-1232.63) Points

Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, AMD Ryzen 7 255: Ø2629 (2564.6-2672.19) Points

GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, AMD Ryzen 7 PRO 6850U: Ø2061 (2052.65-2070.29) Points

Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, AMD Ryzen 9 8945HS: Ø2241 (2154.59-2335.08) Points

Geekom A5 Pro AMD Ryzen 5 7530U, AMD Ryzen 5 7530U: Ø1095 (1078.55-1234.53) Points

System Performance

The GMKtec NucBox K17 impresses in everyday use with smooth system performance and fast response times. Thanks to the NPU integrated into the Intel Core Ultra 5 226V, the mini-PC is also suitable for AI-powered applications, provided they are supported accordingly. DPC latencies are at an average level, so there are no limitations for most use cases.

PCMark 10 / Score
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	7481 Points
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	6793 Points -9%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	6577 Points -12%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	6311 Points -16%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	6206 Points -17%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	5134 Points -31%

PCMark 10 / Essentials
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	9970 Points +7%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	9919 Points +7%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	9627 Points +3%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	9521 Points +2%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	9312 Points
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	9183 Points -1%

PCMark 10 / Productivity
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	14037 Points +1%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	13840 Points
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	9796 Points -29%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	9124 Points -34%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	8726 Points -37%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	8510 Points -39%

WebXPRT 4 / Overall
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	273 Points
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	236 Points -14%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	224 Points -18%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	212 Points -22%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	186.5 Points -32%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	180.6 Points -34%

WebXPRT 3 / Overall
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	295 Points +1%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	292 Points
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	277 Points -5%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	251 Points -14%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	238 Points -18%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	230 Points -21%

Mozilla Kraken 1.1 / Total
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	717 ms * -45%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	701 ms * -42%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	630 ms * -28%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	564 ms * -14%
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	511 ms * -3%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	494 ms *

CrossMark / Overall
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1727 Points +11%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	1575 Points +1%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1558 Points
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1442 Points -7%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	1230 Points -21%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	1185 Points -24%

CrossMark / Productivity
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1633 Points +7%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1529 Points
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	1501 Points -2%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1444 Points -6%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	1281 Points -16%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	1257 Points -18%

CrossMark / Creativity
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1986 Points +16%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	1788 Points +5%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1710 Points
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1498 Points -12%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	1270 Points -26%
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	1184 Points -31%

CrossMark / Responsiveness
Minisforum AI X1, Ryzen 7 255, AMD Ryzen 7 255 AMD Radeon 780M, Kingston OM8TAP41024K1-A00	1347 Points +8%
GMK NucBox M7 Ultra, AMD Ryzen 7 PRO 6850U AMD Radeon 680M, TWSC TSC3AN1T0-F6Q10S	1282 Points +3%
Alliwava GH8, R9 8945HS, AMD Ryzen 9 8945HS AMD Radeon 780M,	1246 Points 0%
GMK NucBox K17, Intel Core Ultra 5 226V Intel Arc Graphics 130V, Huawei eKitStor Xtreme 200e 1 TB	1244 Points
Ninkear M7, (16+512), AMD Ryzen 5 7430U AMD Radeon RX Vega 7, Faspeed P8-512G-SE	992 Points -20%
Geekom A5 Pro, AMD Ryzen 5 7530U AMD Radeon RX Vega 7, Wodposit WPBSN4M8-1TGP	991 Points -20%

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	102045 MB/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	100830 MB/s -1%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	68188 MB/s -33%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	67909 MB/s -33%
Average of class Mini PC (15933 - 163031, n=104, last 2 years)	67820 MB/s -34%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	47989 MB/s -53%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	47682 MB/s -53%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	38448 MB/s -62%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	38187 MB/s -63%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	21231 MB/s -79%

AIDA64 / Memory Read
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	85847 MB/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	84874 MB/s -1%
Average of class Mini PC (14143 - 123769, n=104, last 2 years)	65349 MB/s -24%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	61434 MB/s -28%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	60579 MB/s -29%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	45912 MB/s -47%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	45811 MB/s -47%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	40270 MB/s -53%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	40117 MB/s -53%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	23386 MB/s -73%

AIDA64 / Memory Write
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	111489 MB/s
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	111430 MB/s 0%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	86760 MB/s -22%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	82539 MB/s -26%
Average of class Mini PC (10630 - 216693, n=104, last 2 years)	76946 MB/s -31%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	49155 MB/s -56%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	49101 MB/s -56%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	40708 MB/s -63%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	40201 MB/s -64%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	23408 MB/s -79%

AIDA64 / Memory Latency
Average of class Mini PC (88.1 - 184.8, n=105, last 2 years)	101.4 ns * -13%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	96.3 ns * -8%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	93.4 ns * -4%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	94.2 ns * -5%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	93.5 ns * -4%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	86.1 ns * +4%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	91.2 ns * -2%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	91.1 ns * -2%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	89.5 ns *
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	88.2 ns * +1%

* ... smaller is better

UL Procyon for Windows / Overall Score Integer NPU
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (OpenVINO)	2186 Points +25%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (OpenVINO)	1748 Points
Geekom A9 Max, AI 9 HX 470 AMD Ryzen AI 9 HX 470, Radeon 890M (Ryzen AI)	1442 Points -18%

UL Procyon for Windows / Overall Score Integer GPU
Khadas Mind Pro Intel Core Ultra X7 358H, Arc B390 Panther Lake iGPU (Windows ML)	102 Points +89%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	79 Points +46%
Geekom A9 Max, AI 9 HX 470 AMD Ryzen AI 9 HX 470, Radeon 890M (Windows ML)	76 Points +41%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M (Windows ML)	56 Points +4%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V (Windows ML)	54 Points

DPC Latencies

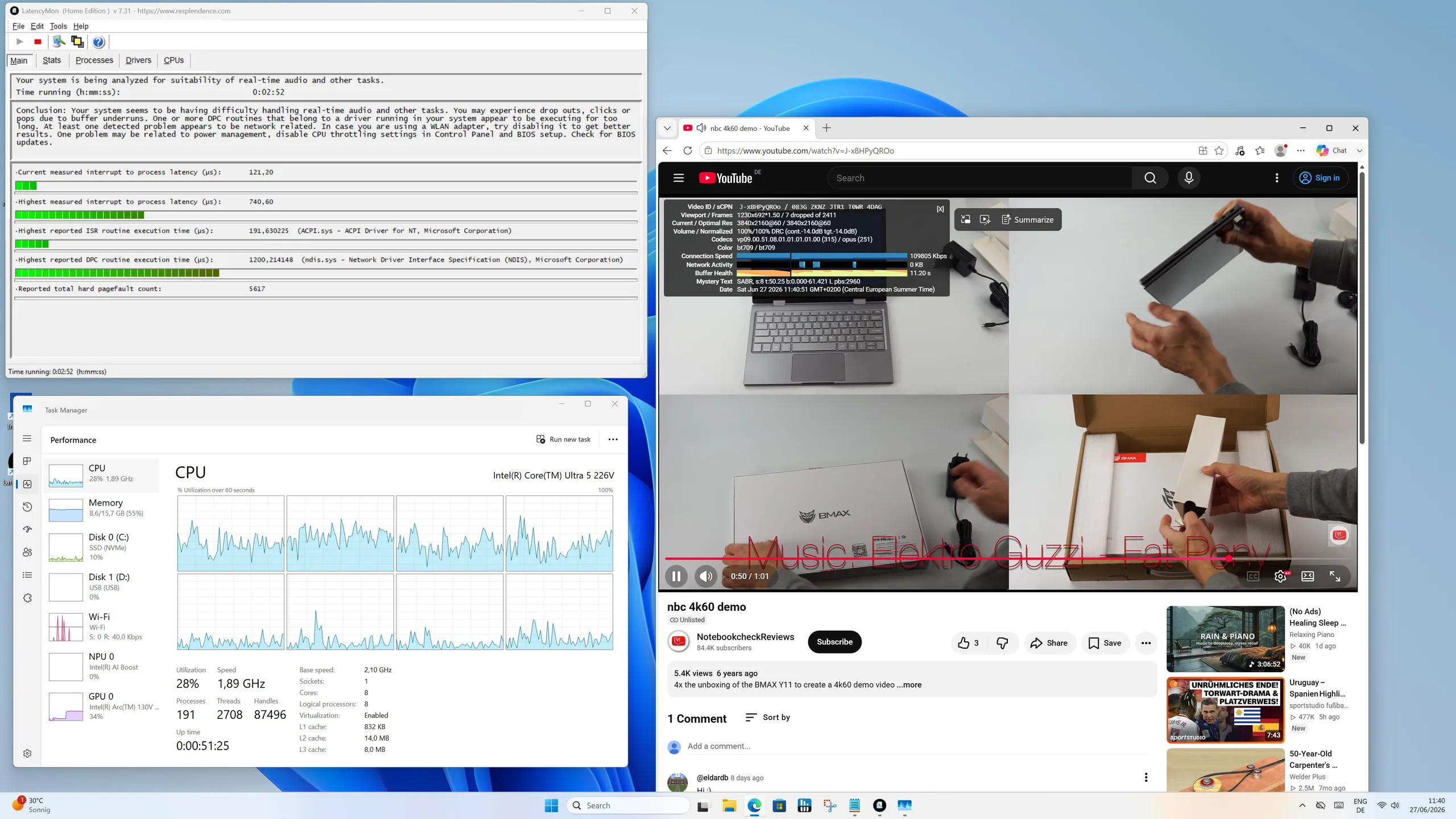

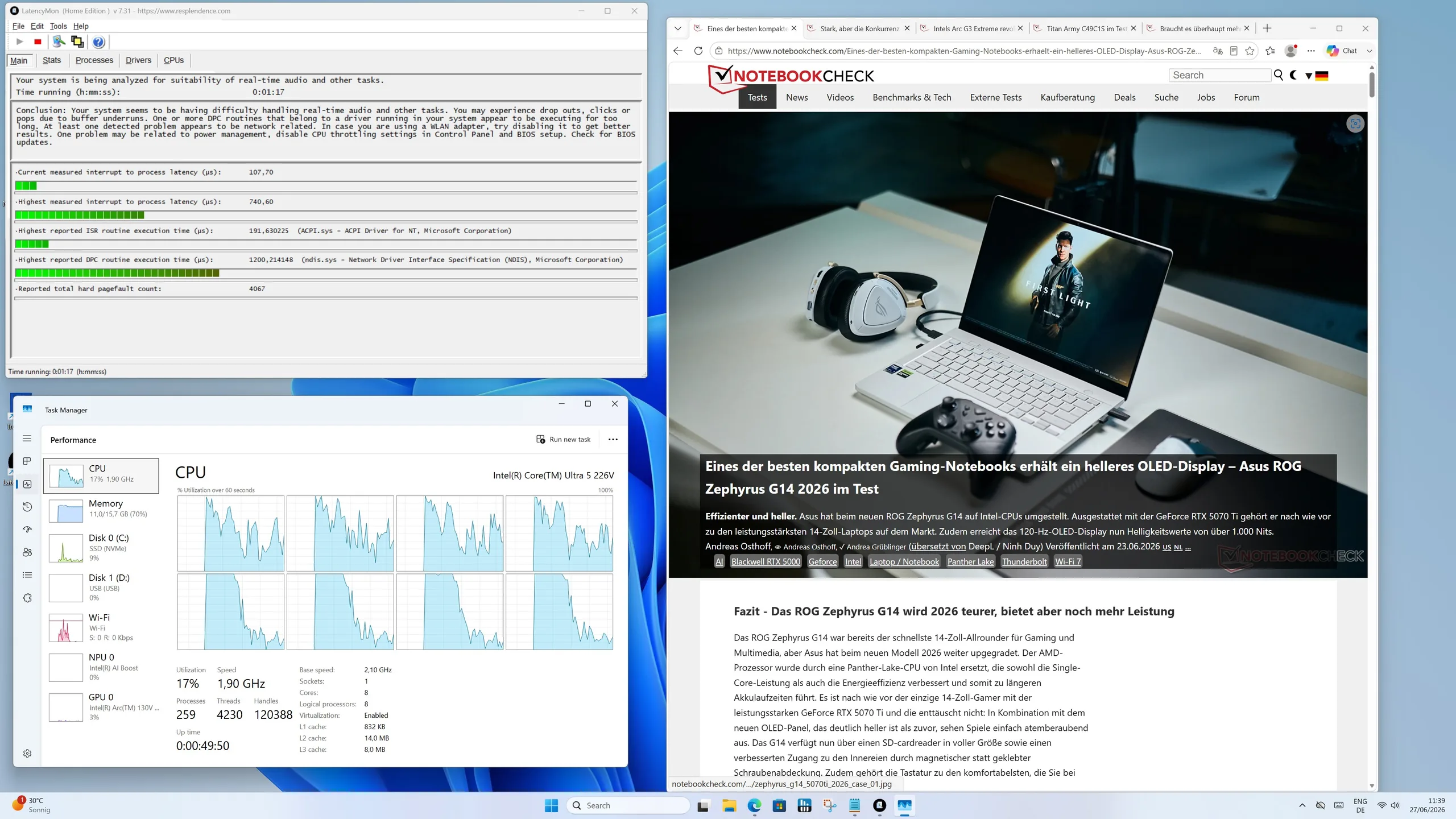

Maximum latency when opening multiple browser tabs

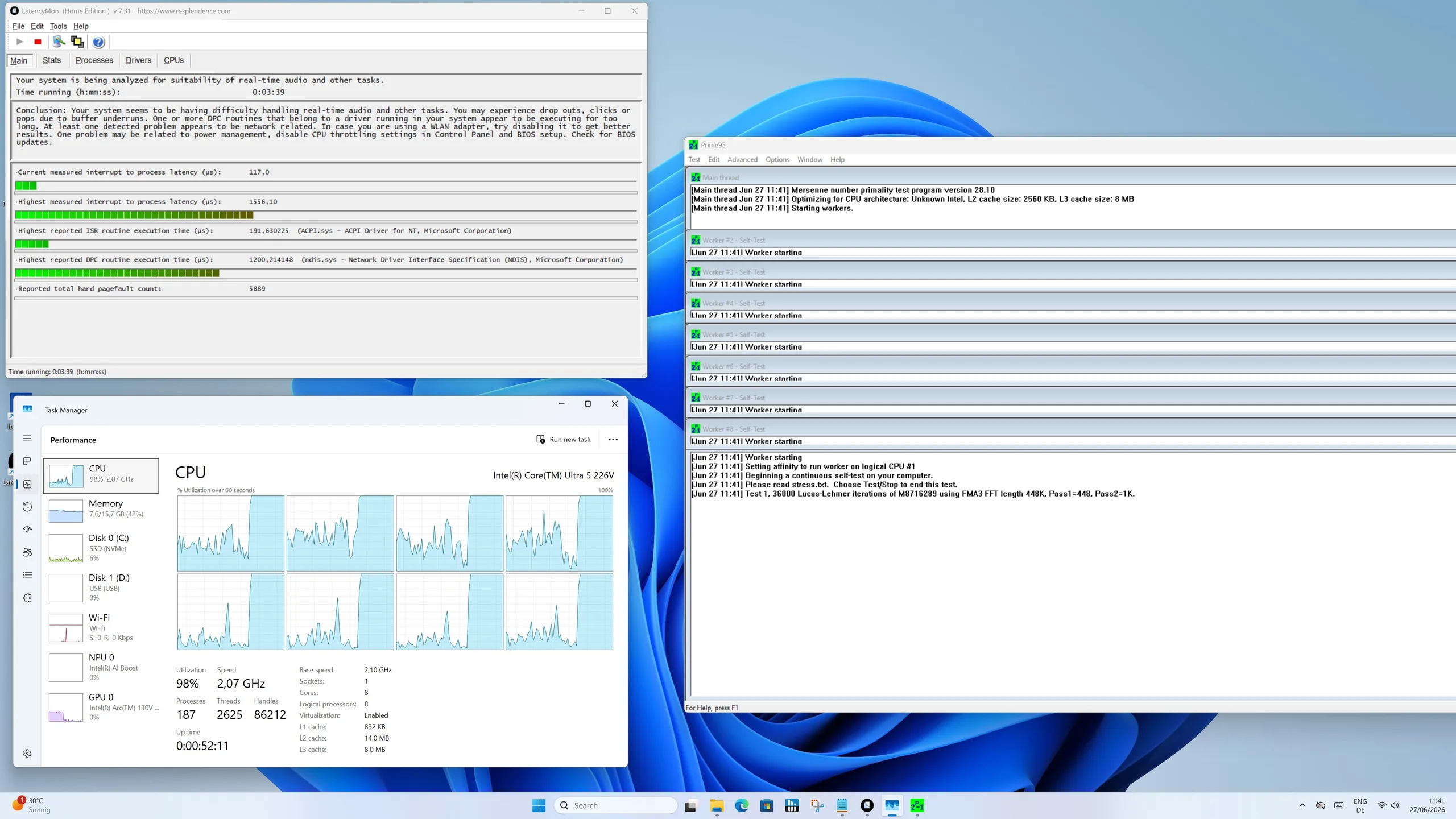

Maximum latency after ten seconds of Prime95

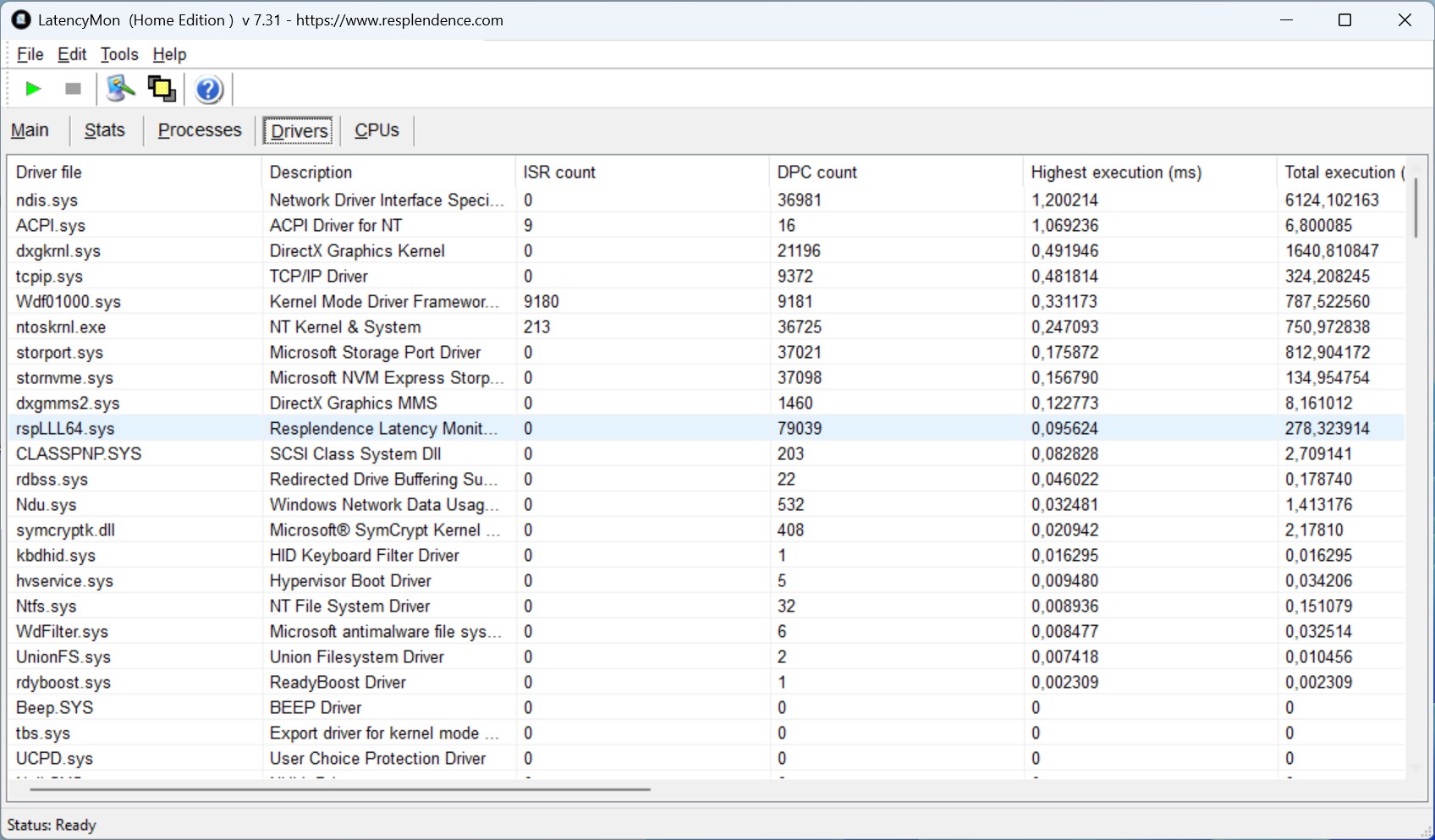

Drivers sorted by longest execution time

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	1519 μs * -27%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	1200 μs *
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	1030 μs * +14%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	637 μs * +47%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	503 μs * +58%

* ... smaller is better

Storage devices

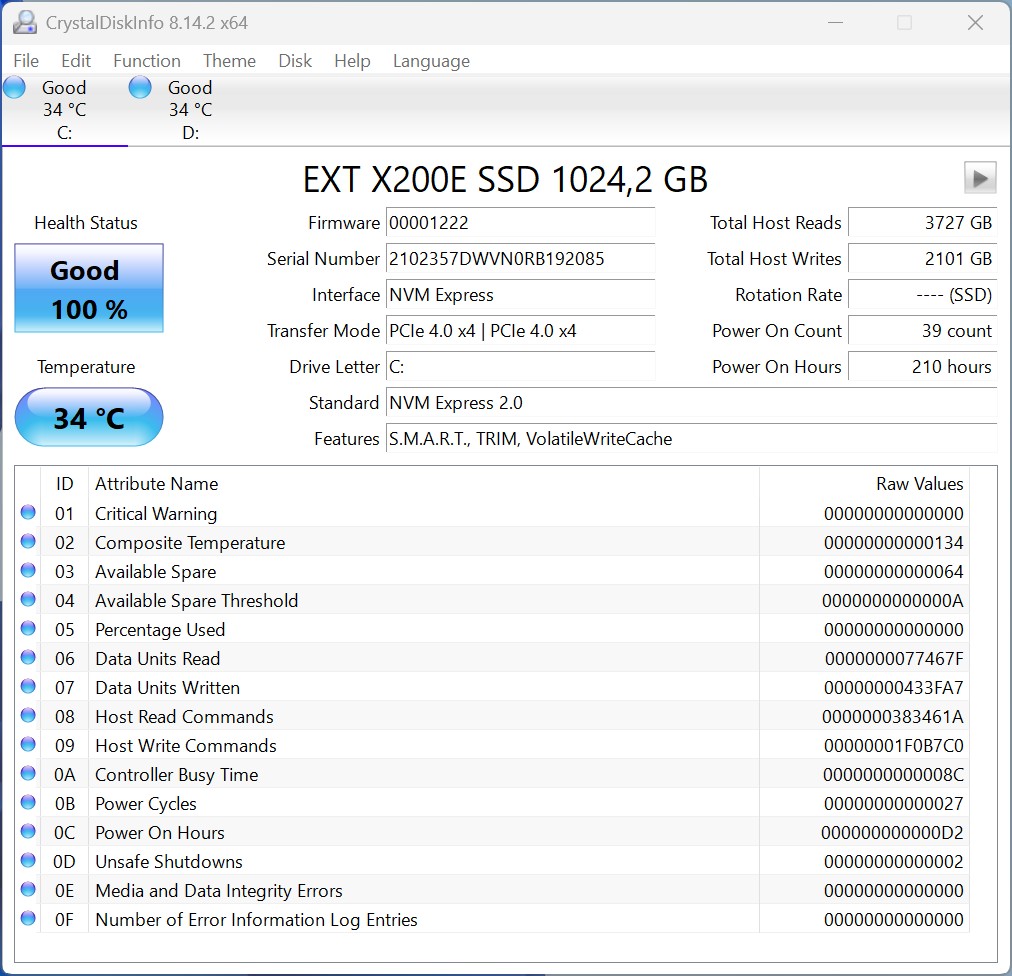

In our test configuration, the GMKtec NucBox K17 is equipped with a Huawei eKitStor Xtreme 200E with 1 TB of storage capacity. The M.2 SSD, connected via PCIe (4.0 x4), offers high transfer rates and ensures fast loading and response times in everyday use. However, under sustained load, maximum performance cannot be maintained continuously, which suggests temperature-induced throttling. A second M.2-2280 slot is also available for storage expansion.

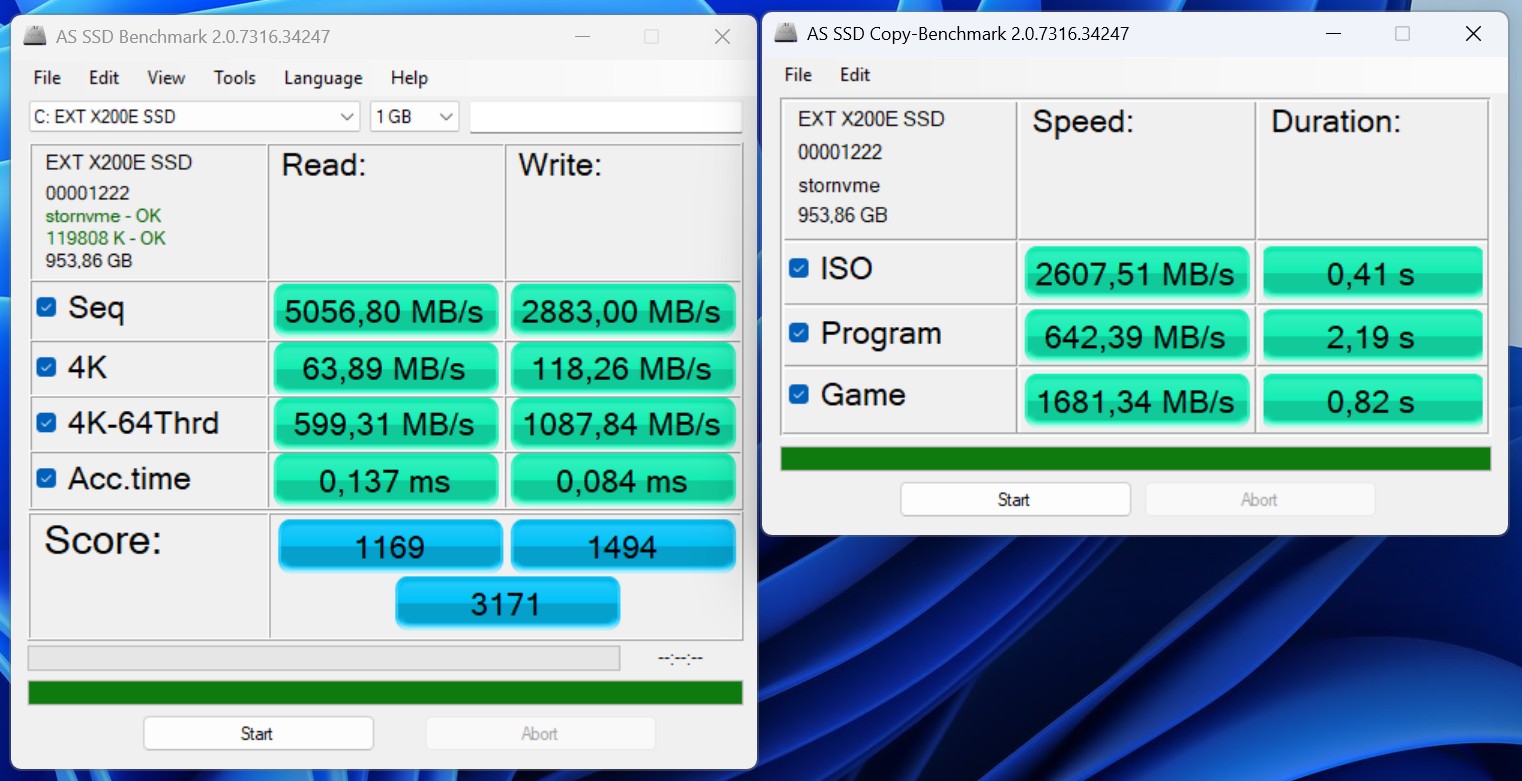

AS SSD

DiskSpd

Huawei eKitStor Xtreme 200e 1 TB

Sequential Read: 5056MB/s

Sequential Write: 2883MB/s

4K Read: 63.9MB/s

4K Write: 118.3MB/s

4K-64 Read: 599MB/s

4K-64 Write: 1088MB/s

Access Time Read: 0.137ms

Access Time Write: 0.084ms

Copy ISO: 2607.51MB/s

Copy Program: 642.39MB/s

Copy Game: 1681.34MB/s

Score Read: 1169Points

Score Write: 1494Points

Score Total: 3171Points

Drive Performance rating | DiskSpd | AS SSD | SPECworkstation 4.0

Drive Performance rating - Percent
Average of class Mini PC	83 pt
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	73.2 pt
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	69.2 pt
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	64.1 pt
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	62.2 pt
Alliwava GH8, R9 8945HS	51.6 pt
Ninkear M7, (16+512) Faspeed P8-512G-SE	47.7 pt

DiskSpd
seq read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3437 (2671.77^min - 3436.65^max) MB/s
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	2715 (2702.44^min - 2714.55^max) MB/s -21%
Average of class Mini PC (435 - 4960, n=91, last 2 years)	2620 MB/s -24%
Alliwava GH8, R9 8945HS	2309 (2261.36^min - 2308.54^max) MB/s -33%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2202 (2069.11^min - 2202.22^max) MB/s -36%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	1458 (1439.33^min - 1457.73^max) MB/s -58%
Ninkear M7, (16+512) Faspeed P8-512G-SE	863 (860.21^min - 862.77^max) MB/s -75%
seq write
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	3203 (3115.53^min - 3202.98^max) MB/s +65%
Average of class Mini PC (408 - 5556, n=91, last 2 years)	3108 MB/s +60%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	2629 (2599.42^min - 2628.78^max) MB/s +35%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2232 (2144.24^min - 2231.52^max) MB/s +15%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1945 (1600.49^min - 1945.32^max) MB/s
Alliwava GH8, R9 8945HS	1940 (1921.97^min - 1940.08^max) MB/s 0%
Ninkear M7, (16+512) Faspeed P8-512G-SE	752 (746.8^min - 751.62^max) MB/s -61%
seq q8 t1 read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	6829 (5502.51^min - 6829.17^max) MB/s
Average of class Mini PC (543 - 7117, n=91, last 2 years)	4673 MB/s -32%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	3709 (3283.51^min - 3708.95^max) MB/s -46%
Alliwava GH8, R9 8945HS	3575 (3028.71^min - 3575.41^max) MB/s -48%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	3193 (2896.67^min - 3192.61^max) MB/s -53%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2691 (2471.58^min - 2691.48^max) MB/s -61%
Ninkear M7, (16+512) Faspeed P8-512G-SE	996 (973.5^min - 996.04^max) MB/s -85%
seq q8 t1 write
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	4009 (3770.05^min - 4009.08^max) MB/s +30%
Average of class Mini PC (410 - 6647, n=91, last 2 years)	3710 MB/s +20%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	3256 (3140.69^min - 3256.03^max) MB/s +6%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3082 (2929.93^min - 3081.85^max) MB/s
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2575 (2312.31^min - 2574.67^max) MB/s -16%
Alliwava GH8, R9 8945HS	2039 (2034.99^min - 2038.76^max) MB/s -34%
Ninkear M7, (16+512) Faspeed P8-512G-SE	839 (834.46^min - 839.07^max) MB/s -73%
4k q1 t1 read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	61.8 (59.37^min - 61.83^max) MB/s
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	57.9 (55.63^min - 57.91^max) MB/s -6%
Average of class Mini PC (6.85 - 88.3, n=91, last 2 years)	56.8 MB/s -8%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	51.1 (46.29^min - 51.12^max) MB/s -17%
Alliwava GH8, R9 8945HS	49.6 (49.04^min - 49.57^max) MB/s -20%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	43.7 (42.75^min - 43.72^max) MB/s -29%
Ninkear M7, (16+512) Faspeed P8-512G-SE	30.3 (30.14^min - 30.32^max) MB/s -51%
4k q1 t1 write
Average of class Mini PC (29.6 - 366, n=91, last 2 years)	184.4 MB/s +78%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	144.6 (135.02^min - 144.55^max) MB/s +40%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	142.4 (137.59^min - 142.4^max) MB/s +38%
Alliwava GH8, R9 8945HS	136.2 (126.04^min - 136.17^max) MB/s +32%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	111.4 (106.87^min - 111.43^max) MB/s +8%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	103.5 (100.16^min - 103.46^max) MB/s
Ninkear M7, (16+512) Faspeed P8-512G-SE	40 (39.82^min - 40^max) MB/s -61%
4k q32 t16 read
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	2768 (2575.18^min - 2767.63^max) MB/s +376%
Average of class Mini PC (177.7 - 4349, n=91, last 2 years)	1608 MB/s +177%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	1055 (1028.03^min - 1055.25^max) MB/s +82%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	946 (944.86^min - 946.43^max) MB/s +63%
Alliwava GH8, R9 8945HS	918 (900.37^min - 917.98^max) MB/s +58%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	581 (564.79^min - 581.34^max) MB/s
Ninkear M7, (16+512) Faspeed P8-512G-SE	369 (367.06^min - 369.29^max) MB/s -36%
4k q32 t16 write
Average of class Mini PC (151.8 - 4288, n=91, last 2 years)	1437 MB/s +487%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1413 (525.05^min - 1412.75^max) MB/s +477%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	1365 (1269.15^min - 1364.79^max) MB/s +457%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	404 (399.8^min - 404.26^max) MB/s +65%
Alliwava GH8, R9 8945HS	367 (348.73^min - 366.7^max) MB/s +50%
Ninkear M7, (16+512) Faspeed P8-512G-SE	313 (289.5^min - 313.33^max) MB/s +28%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	245 (194.02^min - 244.8^max) MB/s

AS SSD
Score Total
Average of class Mini PC (507 - 10559, n=90, last 2 years)	5030 Points +59%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	4774 Points +51%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	4353 Points +37%
Ninkear M7, (16+512) Faspeed P8-512G-SE	4136 Points +30%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	3467 Points +9%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	3171 Points
Alliwava GH8, R9 8945HS	2948 Points -7%
Score Read
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	2069 Points +77%
Ninkear M7, (16+512) Faspeed P8-512G-SE	1771 Points +51%
Average of class Mini PC (192 - 3834, n=90, last 2 years)	1722 Points +47%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	1219 Points +4%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1210 Points +4%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1169 Points
Alliwava GH8, R9 8945HS	996 Points -15%
Score Write
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2550 Points +71%
Average of class Mini PC (210 - 5505, n=90, last 2 years)	2463 Points +65%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	1653 Points +11%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1647 Points +10%
Alliwava GH8, R9 8945HS	1504 Points +1%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1494 Points
Ninkear M7, (16+512) Faspeed P8-512G-SE	1471 Points -2%
Seq Read
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	5056 MB/s
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	3967 MB/s -22%
Average of class Mini PC (501 - 5766, n=90, last 2 years)	3896 MB/s -23%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	3131 MB/s -38%
Ninkear M7, (16+512) Faspeed P8-512G-SE	3031 MB/s -40%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2954 MB/s -42%
Alliwava GH8, R9 8945HS	2923 MB/s -42%
Seq Write
Average of class Mini PC (437 - 5654, n=90, last 2 years)	2969 MB/s +3%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2929 MB/s +2%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	2926 MB/s +1%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	2883 MB/s
Ninkear M7, (16+512) Faspeed P8-512G-SE	2676 MB/s -7%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	2415 MB/s -16%
Alliwava GH8, R9 8945HS	1485 MB/s -48%
4K Read
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	65.1 MB/s +2%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	63.9 MB/s
Average of class Mini PC (18.2 - 101.7, n=90, last 2 years)	59.9 MB/s -6%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	56.3 MB/s -12%
Ninkear M7, (16+512) Faspeed P8-512G-SE	53.1 MB/s -17%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	51 MB/s -20%
Alliwava GH8, R9 8945HS	43.3 MB/s -32%
4K Write
Average of class Mini PC (67.3 - 318, n=90, last 2 years)	179.2 MB/s +51%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	164.8 MB/s +39%
Alliwava GH8, R9 8945HS	132 MB/s +12%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	129.8 MB/s +10%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	118.3 MB/s
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	99.6 MB/s -16%
Ninkear M7, (16+512) Faspeed P8-512G-SE	96.3 MB/s -19%
4K-64 Read
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	1699 MB/s +184%
Ninkear M7, (16+512) Faspeed P8-512G-SE	1415 MB/s +136%
Average of class Mini PC (118.5 - 3321, n=90, last 2 years)	1272 MB/s +112%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	849 MB/s +42%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	772 MB/s +29%
Alliwava GH8, R9 8945HS	661 MB/s +10%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	599 MB/s
4K-64 Write
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	2093 MB/s +92%
Average of class Mini PC (96.3 - 4890, n=90, last 2 years)	1987 MB/s +83%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	1275 MB/s +17%
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	1261 MB/s +16%
Alliwava GH8, R9 8945HS	1224 MB/s +13%
Ninkear M7, (16+512) Faspeed P8-512G-SE	1107 MB/s +2%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	1088 MB/s
Access Time Read
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	0.164 ms * -20%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	0.154 ms * -12%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.137 ms *
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	0.128 ms * +7%
Alliwava GH8, R9 8945HS	0.115 ms * +16%
Average of class Mini PC (0.027 - 0.24, n=90, last 2 years)	0.08901 ms * +35%
Ninkear M7, (16+512) Faspeed P8-512G-SE	0.084 ms * +39%
Access Time Write
Alliwava GH8, R9 8945HS	0.135 ms * -61%
Ninkear M7, (16+512) Faspeed P8-512G-SE	0.102 ms * -21%
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	0.097 ms * -15%
Average of class Mini PC (0.013 - 0.706, n=90, last 2 years)	0.09406 ms * -12%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	0.09 ms * -7%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.084 ms *
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	0.057 ms * +32%

SPECworkstation 4.0 - Storage Score
Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00	0.86 Points +46%
Average of class Mini PC (0.2 - 1.1, n=65, last 2 years)	0.705 Points +19%
GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB	0.59 Points
Geekom A5 Pro Wodposit WPBSN4M8-1TGP	0.43 Points -27%
Alliwava GH8, R9 8945HS	0.4 Points -32%
Ninkear M7, (16+512) Faspeed P8-512G-SE	0.38 Points -36%
GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S	0.34 Points -42%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox K17 Huawei eKitStor Xtreme 200e 1 TB; diskspd 2.0.17 f: Ø3765 (1445.94-6800.23) MB/s

Minisforum AI X1, Ryzen 7 255 Kingston OM8TAP41024K1-A00; diskspd 2.0.17 f: Ø2676 (2375.73-2711.44) MB/s

GMK NucBox M7 Ultra TWSC TSC3AN1T0-F6Q10S; diskspd 2.0.17 f: Ø3141 (2808.34-3182.64) MB/s

Alliwava GH8, R9 8945HS ; diskspd 2.0.17 f: Ø3566 (3109.1-3575.64) MB/s

Geekom A5 Pro Wodposit WPBSN4M8-1TGP; diskspd 2.0.17 f: Ø3705 (3396.13-3713.34) MB/s

Ninkear M7, (16+512) Faspeed P8-512G-SE; diskspd 2.0.17 f: Ø995 (969.04-996.67) MB/s

Graphics Card and Gaming Performance

The Intel Core Ultra 5 226V features the integrated Intel Arc Graphics 130V with seven Xe2 cores. The iGPU offers sufficient performance for everyday multimedia tasks, high-resolution video playback, and hardware-accelerated media processing. In games, the performance is sufficient for older or less demanding titles at medium to high detail settings. Compared to faster integrated graphics solutions such as the Intel Arc Graphics 140V or AMD’s Radeon 780M and Radeon 890M , however, the Arc Graphics 130V falls short in benchmarks. Under sustained load, graphics performance remains largely consistent.

3DMark Performance rating | 3DMark 11 | 3DMark

3DMark Performance rating - Percent
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	100 pt
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	64.9 pt
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	57.6 pt
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	52.6 pt
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	47.7 pt
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	45.2 pt
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	21.5 pt
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	15.6 pt

3DMark 11 - 1280x720 Performance GPU
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	18261 Points +77%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	16539 Points +60%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	13594 Points +32%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	11003 Points +7%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10312 Points
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	9295 Points -10%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	5584 Points -46%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	4273 Points -59%

3DMark
2560x1440 Time Spy Graphics
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	6945 Points +121%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3148 Points
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3048 Points -3%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2874 Points -9%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	2429 Points -23%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2404 Points -24%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1014 Points -68%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	741 Points -76%
1920x1080 Fire Strike Graphics
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	16560 Points +96%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9561 Points +13%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	8463 Points
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	8404 Points -1%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	7106 Points -16%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	6823 Points -19%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	3528 Points -58%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	2404 Points -72%
Fire Strike Extreme Graphics
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	6661 Points +75%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	4720 Points +24%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	4136 Points +9%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3796 Points
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	3487 Points -8%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	3154 Points -17%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1471 Points -61%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	984 Points -74%
3840x2160 Fire Strike Ultra Graphics
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	3402 Points +92%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2406 Points +36%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2223 Points +25%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1826 Points +3%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1822 Points +3%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1772 Points
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	619 Points -65%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	508 Points -71%
1280x720 Sky Diver Graphics
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	51222 Points +86%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	28357 Points +3%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	27484 Points
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	26463 Points -4%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	22327 Points -19%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	21461 Points -22%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	11420 Points -58%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	7772 Points -72%

Unigine Heaven 4.0
Extreme Preset OpenGL
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	73.1 fps +96%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	44.5 fps +19%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	37.3 fps
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	36.5 fps -2%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	36.4 fps -2%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	31.9 fps -14%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	16.7 fps -55%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	10.8 fps -71%
Extreme Preset DX11
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	71.7 fps +173%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	45.9 fps +75%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	37.2 fps +41%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	34.8 fps +32%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	31.7 fps +21%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	26.3 fps
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	16.4 fps -38%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	10.8 fps -59%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	47.9 fps +93%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	26.6 fps +7%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	25.4 fps +2%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	24.8 fps
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	23.2 fps -6%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	22.5 fps -9%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	10.7 fps -57%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	6.9 fps -72%
1920x1080 Extreme HD Preset OpenGL AA:x8
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	49 fps +84%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	26.7 fps 0%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	26.7 fps
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	23.7 fps -11%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	21.9 fps -18%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	20.3 fps -24%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	11.1 fps -58%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	7.1 fps -73%

Unigine Superposition
1280x720 720p Low
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	22835 Points +113%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13545 Points +27%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	12536 Points +17%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	10697 Points
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	10353 Points -3%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	10202 Points -5%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	5585 Points -48%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	3911 Points -63%
1920x1080 1080p High
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	7652 Points +104%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	4518 Points +20%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	3751 Points
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	3638 Points -3%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	3247 Points -13%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	3028 Points -19%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1280 Points -66%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	983 Points -74%
1920x1080 1080p Extreme
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	3718 Points +119%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2100 Points +24%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1748 Points +3%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1694 Points
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1383 Points -18%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1321 Points -22%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	612 Points -64%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	483 Points -71%

ComputeMark v2.1
1024x600 Normal, Score
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	10562 Points +79%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	10533 Points +79%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	9629 Points +64%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	6117 Points +4%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	5886 Points
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	5163 Points -12%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	3297 Points -44%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	2883 Points -51%
1024x600 Normal, Fluid 3DTex
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1121 Points +21%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	929 Points
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	563 Points -39%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	475 Points -49%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	454 Points -51%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	408 Points -56%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	230 Points -75%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	148 Points -84%
1024x600 Normal, Fluid 2DTexArr
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1017 Points +59%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	641 Points
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	571 Points -11%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	487 Points -24%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	473 Points -26%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	423 Points -34%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	219 Points -66%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	131 Points -80%
1024x600 Normal, Mandel Vector
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2716 Points +119%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2526 Points +103%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	2180 Points +76%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1587 Points +28%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1242 Points
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1157 Points -7%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1013 Points -18%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	838 Points -33%
1024x600 Normal, Mandel Scalar
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2780 Points +155%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2596 Points +138%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	2379 Points +118%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1444 Points +32%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1092 Points
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	974 Points -11%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	889 Points -19%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	881 Points -19%
1024x600 Normal, QJuliaRayTrace
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3932 Points +98%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	3837 Points +93%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	3546 Points +79%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	2200 Points +11%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	2158 Points +9%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1983 Points
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	945 Points -52%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	885 Points -55%

LuxMark v2.0 64Bit
Room GPUs-only
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1449 Samples/s +45%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1051 Samples/s +5%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	997 Samples/s
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	922 Samples/s -8%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	911 Samples/s -9%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	894 Samples/s -10%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	456 Samples/s -54%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	372 Samples/s -63%
Sala GPUs-only
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	3930 Samples/s +46%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	2698 Samples/s
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1986 Samples/s -26%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1645 Samples/s -39%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1623 Samples/s -40%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1592 Samples/s -41%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	962 Samples/s -64%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	841 Samples/s -69%

Affinity Photo 2 - Combined (Single / Multi GPU)
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	10429 Points +67%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6245 Points
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2822 Points -55%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1980 Points -68%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1649 Points -74%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	1137 Points -82%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1072 Points -83%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1039 Points -83%

Geekbench AI
Quantized GPU 1.7
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	6908 Points +67%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	6278 Points +52%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	5586 Points +35%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	4668 Points +13%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	4556 Points +10%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	4133 Points
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	2167 Points -48%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	1498 Points -64%
Half Precision GPU 1.7
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	16188 Points +41%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13932 Points +21%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	11517 Points
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	11320 Points -2%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	8519 Points -26%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	8313 Points -28%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	3796 Points -67%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	3058 Points -73%
Single Precision GPU 1.7
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	9783 Points +55%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	8521 Points +35%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	7428 Points +18%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	6296 Points
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	6259 Points -1%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	5983 Points -5%
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	2848 Points -55%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	2013 Points -68%

Performance rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference

Performance rating
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	98.5 pt
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	91.3 pt
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	87.2 pt
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	73.8 pt
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	64.4 pt
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	48 pt
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	32.6 pt
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	24.5 pt

SPECworkstation 4.0 / Graphics Score
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2.36 Points +171%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2.06 Points +137%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1.61 Points +85%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1.6 Points +84%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1.55 Points +78%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	0.87 Points
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	0.68 Points -22%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	0.46 Points -47%

SPECworkstation 4.0 / Accelerator Score
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	2.19 Points +72%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2.15 Points +69%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2.13 Points +68%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1.77 Points +39%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1.43 Points +13%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	1.27 Points
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	0.7 Points -45%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	0.55 Points -57%

SPECworkstation 4.0 / Viewport Graphics
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2.36 Points +172%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	2.06 Points +137%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1.61 Points +85%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	1.6 Points +84%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1.55 Points +78%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	0.869 Points
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	0.683 Points -21%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	0.46 Points -47%

SPECworkstation 4.0 / HandBrake
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1.45 Points +66%
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1.44 Points +65%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1.37 Points +57%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1.2 Points +38%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	0.978 Points +12%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	0.872 Points
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	0.626 Points -28%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	0.535 Points -39%

SPECworkstation 4.0 / ONNX Inference
Khadas Mind Pro Intel Arc B390 12 Xe3 Panther Lake iGPU, Intel Core Ultra X7 358H	1.43 Points +108%
Peladn HO5, AI 9 HX 370 AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1.36 Points +97%
Minisforum AI X1, Ryzen 7 255 AMD Radeon 780M, AMD Ryzen 7 255	1.28 Points +86%
Alliwava GH8, R9 8945HS AMD Radeon 780M, AMD Ryzen 9 8945HS	1.06 Points +54%
GMK NucBox M7 Ultra AMD Radeon 680M, AMD Ryzen 7 PRO 6850U	0.765 Points +11%
GMK NucBox K17 Intel Arc Graphics 130V, Intel Core Ultra 5 226V	0.689 Points
Geekom A5 Pro AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	0.433 Points -37%
Ninkear M7, (16+512) AMD Radeon RX Vega 7, AMD Ryzen 5 7430U	0.308 Points -55%

	GMK NucBox K17, Intel Arc Graphics 130V Core Ultra 5 226V	Khadas Mind Pro, Intel Arc B390 12 Xe3 Panther Lake iGPU Ultra X7 358H	Peladn HO5, AI 9 HX 370, AMD Radeon 890M Ryzen AI 9 HX 370	Minisforum AI X1, Ryzen 7 255, AMD Radeon 780M Ryzen 7 255	GMK NucBox M7 Ultra, AMD Radeon 680M R7 PRO 6850U	Alliwava GH8, R9 8945HS, AMD Radeon 780M R9 8945HS	Geekom A5 Pro, AMD Radeon RX Vega 7 R5 7530U	Ninkear M7, (16+512), AMD Radeon RX Vega 7 R5 7430U	Average of class Mini PC
SPECviewperf 2020		75%	399%	320%	231%	195%	34%	-9%	483%
3840x2160 Medical (medical-03) (fps)	4.32	9.48 119%	25.9 500%	12.6 192%	11.9 175%	10.4 141%	2.76 -36%	2.05 -53%	22.9 ?(1.34 - 90.1, n=72, last 2 years) 430%
3840x2160 Energy (energy-03) (fps)	3.32	7.67 131%	14.3 331%	19.1 475%	7.66 131%	8.17 146%	3.05 -8%	2.32 -30%	33.7 ?(1.16 - 139, n=72, last 2 years) 915%
3840x2160 Creo (creo-03) (fps)	18.7	28.9 55%	38.2 104%	33.7 80%	29.8 59%	24.5 31%	13.7 -27%	8.66 -54%	49.8 ?(8.09 - 126, n=72, last 2 years) 166%
3840x2160 Siemens NX (snx-04) (fps)	6.7	7.09 6%	74.9 1018%	63.1 842%	59.3 785%	51.3 666%	26.8 300%	17.6 163%	51.5 ?(3.78 - 233, n=70, last 2 years) 669%
3840x2160 Maya (maya-06) (fps)	42.1	69.4 65%	59.1 40%	47.5 13%	45.1 7%	38.9 -8%	17.6 -58%	11.6 -72%	141.1 ?(11.6 - 542, n=71, last 2 years) 235%

3DMark 05 Standard		32742 points
3DMark 06 Standard Score		34075 points
3DMark Vantage P Result		33968 points
3DMark 11 Performance		10448 points
3DMark Ice Storm Standard Score		155213 points
3DMark Cloud Gate Standard Score		28090 points
3DMark Fire Strike Score		7518 points
3DMark Fire Strike Extreme Score		3734 points
3DMark Time Spy Score		3415 points
3DMark Steel Nomad Score		644 points
Help

... in comparison

GTA V | Dota 2 Reborn | Cyberpunk 2077 | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	175.9 (3.7^min, 125^P1) fps +52%
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	175.8 (3.95^min, 111.1^P1) fps +52%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	162.3 (5.48^min, 100^P1) fps +40%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	162.3 (5.21^min, 111.1^P1) fps +40%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	145.3 (6.3^min, 90.9^P1) fps +25%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	115.9 (16.7^min, 71.4^P1) fps
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	102.9 (11.2^min, 66.7^P1) fps -11%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	66.5 (14.7^min, 45.5^P1) fps -43%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	108.8 (13.5^min, 76.9^P1) fps +88%
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	81.5 (5.18^min, 52.6^P1) fps +41%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	64.8 (5.04^min, 43.5^P1) fps +12%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	58.3 (7.99^min, 40^P1) fps +1%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	57.9 (5.01^min, 41.7^P1) fps
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	50.9 (4.69^min, 34.5^P1) fps -12%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	20.6 (4.68^min, 14.7^P1) fps -64%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	14.6 (4.62^min, 10.3^P1) fps -75%

Dota 2 Reborn
1280x720 min (0/3) fastest
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	168.1 (143^min) fps +78%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	152.2 (128.4^min) fps +61%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	151.2 (131.3^min) fps +60%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	134.4 (114.9^min) fps +42%
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	129.5 (70.9^min) fps +37%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	111 (91.4^min) fps +17%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	101.5 (86.1^min) fps +7%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	94.5 (66.9^min) fps
1920x1080 high (2/3)
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	104 (71.4^min) fps +99%
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	98.7 (89^min) fps +89%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	92.5 (81.6^min) fps +77%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	84.8 (74.3^min) fps +62%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	81.4 (72.4^min) fps +56%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	52.3 (25.3^min) fps
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	50.7 (44^min) fps -3%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	36 (32.1^min) fps -31%

Cyberpunk 2077
1920x1080 Low Preset (FSR off)
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	85.6 (70.9^min) fps +136%
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	50.4 (42.7^min, 39.1^P1) fps +39%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	42.6 (36.3^min, 34.3^P1) fps +18%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	36.5 (31.2^min, 30^P1) fps +1%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	36.4 (31.2^min, 29.7^P1) fps +1%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	36.2 (30.3^min, 28.8^P1) fps
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	13.2 (10.6^min) fps -64%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	9.3 (7.42^min) fps -74%
1920x1080 High Preset (FSR off)
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	57.8 (48.8^min) fps +131%
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	28.9 (24.2^min, 22^P1) fps +16%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	26.9 (23.1^min, 21.5^P1) fps +8%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	25 (21.1^min, 20.3^P1) fps
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	21.7 (18.4^min, 15.1^P1) fps -13%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	20.7 (18^min, 17.3^P1) fps -17%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	8.37 (7.07^min) fps -67%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	5.82 (5.02^min) fps -77%

Baldur's Gate 3
1280x720 Low Preset AA:SM
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	84.3 (65.3^min, 69.5^P0.1, 72.1^P1) fps +77%
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	82.1 (49^min, 50.9^P0.1, 65.7^P1) fps +72%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	65.9 (48.5^min, 50.7^P0.1, 57.6^P1) fps +38%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	58.6 (36.1^min, 40.9^P0.1, 51.3^P1) fps +23%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	52.9 (43.8^min, 44.6^P0.1, 45.9^P1) fps +11%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	47.7 (29.8^min, 29.9^P0.1, 30^P1) fps
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	19.3 (11.6^min, 11.6^P0.1, 12.5^P1) fps -60%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	16.1 (11.9^min, 12.3^P0.1, 13.1^P1) fps -66%
1920x1080 High Preset AA:T
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	42.7 (36.1^min, 36.7^P0.1, 39.1^P1) fps +86%
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	32.8 (23^min, 23.6^P0.1, 25.6^P1) fps +43%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	26.3 (22.5^min, 22.6^P0.1, 23.5^P1) fps +15%
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	24.5 (19.6^min, 20.4^P0.1, 21.7^P1) fps +7%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	22.9 (19.8^min, 19.8^P0.1, 20^P1) fps
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	19.9 (17.6^min, 17.7^P0.1, 17.9^P1) fps -13%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	8.18 (1.909^min, 2.43^P0.1, 6.14^P1) fps -64%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	5.93 (4.67^min, 4.68^P0.1, 4.95^P1) fps -74%

F1 24
1920x1080 Low Preset AA:T AF:16x
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	160.3 (137^min, 110^P1) fps +116%
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	94 (77^min, 60^P1) fps +27%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	82.3 (70^min, 62^P1) fps +11%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	74.3 (65^min, 55^P1) fps
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	71.8 (52^min, 35^P1) fps -3%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	67.4 (56^min, 54^P1) fps -9%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	26.4 (12^min, 17^P1) fps -64%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	18.1 (13^min, 13^P1) fps -76%
1920x1080 High Preset AA:T AF:16x
Khadas Mind Pro Arc B390 Panther Lake iGPU, Ultra X7 358H, Western Digital SN740 SDDPTQE-2T00	109.6 (95^min, 77^P1) fps +133%
Peladn HO5, AI 9 HX 370 Radeon 890M, Ryzen AI 9 HX 370, Crucial P3 Plus CT1000P3PSSD8	61.2 (47^min, 33^P1) fps +30%
Minisforum AI X1, Ryzen 7 255 Radeon 780M, Ryzen 7 255, Kingston OM8TAP41024K1-A00	54.2 (34^min, 35^P1) fps +15%
GMK NucBox K17 Arc 130V, Core Ultra 5 226V, Huawei eKitStor Xtreme 200e 1 TB	47.1 (39^min, 37^P1) fps
GMK NucBox M7 Ultra Radeon 680M, R7 PRO 6850U, TWSC TSC3AN1T0-F6Q10S	44.9 (28^min, 22^P1) fps -5%
Alliwava GH8, R9 8945HS Radeon 780M, R9 8945HS	41.7 (36^min, 33^P1) fps -11%
Geekom A5 Pro Vega 7, R5 7530U, Wodposit WPBSN4M8-1TGP	16.8 (11^min, 11^P1) fps -64%
Ninkear M7, (16+512) Vega 7, R5 7430U, Faspeed P8-512G-SE	11.8 (1^min, 9^P1) fps -75%

FPS Chart - 30 Min. Cyberpunk 2077 1920 x 1080 Ultra Preset (FSR off)

GMK NucBox K17 Core Ultra 5 226V, Arc 130V: Ø16.4 (15.6-17.2) fps

Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M: Ø22.2 (21.4-22.5) fps

GMK NucBox M7 Ultra R7 PRO 6850U, Radeon 680M: Ø14.2 (12.6-14.4) fps

Alliwava GH8, R9 8945HS R9 8945HS, Radeon 780M: Ø17.5 (16.8-18.9) fps

Geekom A5 Pro R5 7530U, Vega 7: Ø7.09 (5.03-7.22) fps

Ninkear M7, (16+512) R5 7430U, Vega 7: Ø5.32 (4.2-5.99) fps

Khadas Mind Pro Ultra X7 358H, Arc B390 Panther Lake iGPU: Ø46.3 (43.6-47.2) fps

Peladn HO5, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M: Ø23.6 (19.3-24.9) fps

	low	med.	high	ultra
GTA V (2015)	115.9	111.1	57.9	23.6
The Witcher 3 (2015)	149.9	100	53.4	23.2
Dota 2 Reborn (2015)	94.5	78.9	52.3	77.6
X-Plane 11.11 (2018)	34.8	29.3	25.3
Baldur's Gate 3 (2023)	32.6	25.5	22.9	22.5
Cyberpunk 2077 (2023)	36.2	28.2	25	21.8
F1 24 (2024)	74.3	64.3	47.1	14.8

Emissions

System noise

The GMKtec NucBox K17 is one of the quietest mini PCs in its performance class. The compact cooling system operates very quietly during everyday use and remains pleasantly quiet even under load. The fan control is well-calibrated and prevents annoying sudden changes in speed, so the mini PC is barely audible even during extended periods of use.

Noise level

Idle		25.3 / 25.4 / 26.1 dB(A)
Load		27.4 / 28.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25.1 dB(A)

	GMK NucBox K17 Core Ultra 5 226V, Arc 130V	Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M	GMK NucBox M7 Ultra R7 PRO 6850U, Radeon 680M	Alliwava GH8, R9 8945HS R9 8945HS, Radeon 780M	Geekom A5 Pro R5 7530U, Vega 7	Ninkear M7, (16+512) R5 7430U, Vega 7
Noise		-25%	-30%	-33%	-9%	-5%
off / environment * (dB)	25.1	24.9 1%	24.8 1%	25 -0%	25 -0%	24.8 1%
Idle Minimum * (dB)	25.3	31.1 -23%	31.9 -26%	27.2 -8%	26.6 -5%	25.3 -0%
Idle Average * (dB)	25.4	31.2 -23%	31.9 -26%	27.2 -7%	26.6 -5%	25.7 -1%
Idle Maximum * (dB)	26.1	31.2 -20%	31.9 -22%	27.3 -5%	26.7 -2%	25.7 2%
Load Average * (dB)	27.4	36.7 -34%	41.7 -52%	45.5 -66%	33.5 -22%	33.6 -23%
Witcher 3 ultra * (dB)	28	37.9 -35%	37.8 -35%	44.9 -60%	31.2 -11%	28.8 -3%
Cyberpunk 2077 ultra * (dB)	29.1	37.8 -30%	39.1 -34%	45.5 -56%	31.2 -7%	28.7 1%
Load Maximum * (dB)	28.6	38.4 -34%	40.8 -43%	45.4 -59%	33.8 -18%	34.3 -20%

* ... smaller is better

Temperature

Despite sustained load, the GMKtec NucBox K17 shows no signs of overheating. Surface temperatures remain within safe limits at all times, and the cooling system operates reliably even inside the unit. The Intel Core Ultra 5 226V maintains a stable power consumption without any temperature-induced throttling.

Performance of the GMKtec NucBox K17 in the Stress Test

GMKtec NucBoc K17 during a stress test (top view)

GMKtec NucBoc K17 during a stress test (bottom view)

Max. Load

Idle

Cyberpunk


35.1 °C 95 F	36.3 °C 97 F	36.1 °C 97 F
33.9 °C 93 F	35.1 °C 95 F	34.7 °C 94 F
34 °C 93 F	34.3 °C 94 F	34.2 °C 94 F

Maximum: 36.3 °C = 97 F
Average: 34.9 °C = 95 F


35 °C 95 F	35 °C 95 F	32.2 °C 90 F
32.6 °C 91 F	31.1 °C 88 F	32.5 °C 91 F
32.1 °C 90 F	33.2 °C 92 F	32.6 °C 91 F

Maximum: 35 °C = 95 F
Average: 32.9 °C = 91 F

Power Supply (max.) 45 °C = 113 F | Room Temperature 22.9 °C = 73 F | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


31.8 °C 89 F	32 °C 90 F	32.2 °C 90 F
31.4 °C 89 F	31.7 °C 89 F	31.9 °C 89 F
31.5 °C 89 F	31.6 °C 89 F	31.8 °C 89 F

Maximum: 32.2 °C = 90 F
Average: 31.8 °C = 89 F


31.5 °C 89 F	32.2 °C 90 F	30.8 °C 87 F
33.5 °C 92 F	34.5 °C 94 F	31.9 °C 89 F
31.3 °C 88 F	31.5 °C 89 F	31.2 °C 88 F

Maximum: 34.5 °C = 94 F
Average: 32 °C = 90 F

Power Supply (max.) 35.5 °C = 96 F | Room Temperature 22.9 °C = 73 F | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


34.1 °C 93 F	35.1 °C 95 F	35 °C 95 F
33.2 °C 92 F	33.9 °C 93 F	33.5 °C 92 F
33 °C 91 F	33.3 °C 92 F	33.1 °C 92 F

Maximum: 35.1 °C = 95 F
Average: 33.8 °C = 93 F


34.3 °C 94 F	34.8 °C 95 F	31 °C 88 F
31.6 °C 89 F	31.8 °C 89 F	31.7 °C 89 F
31.4 °C 89 F	32.4 °C 90 F	31.8 °C 89 F

Maximum: 34.8 °C = 95 F
Average: 32.3 °C = 90 F

Power Supply (max.) 43.4 °C = 110 F | Room Temperature 22.9 °C = 73 F | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 34.9 °C / 95 F, compared to the average of 32.1 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 36.3 °C / 97 F, compared to the average of 35.4 °C / 96 F, ranging from 20.6 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 35 °C / 95 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 31.8 °C / 89 F, compared to the device average of 32.1 °C / 90 F.
(±) 3: The average temperature for the upper side is 33.8 °C / 93 F, compared to the average of 32.1 °C / 90 F for the class Mini PC.

Energy Management

The GMKtec NucBox K17 impresses with its low power consumption and high efficiency. Even when idle, the mini PC is exceptionally energy-efficient, and even under load, its power consumption remains impressively low given the performance it delivers. The included 100-watt power supply provides sufficient power reserves and reliably powers the mini PC throughout the test.

Power Consumption

Off / Standby	0.8 / 2 Watt
Idle	4.7 / 6.1 / 9.6 Watt
Load	32.7 / 41.3 Watt


Key: min: , med: , max: Metrahit Energy

	GMK NucBox K17 Core Ultra 5 226V, Arc 130V	Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M	GMK NucBox M7 Ultra R7 PRO 6850U, Radeon 680M	Alliwava GH8, R9 8945HS R9 8945HS, Radeon 780M	Geekom A5 Pro R5 7530U, Vega 7	Ninkear M7, (16+512) R5 7430U, Vega 7	Average Intel Arc Graphics 130V	Average of class Mini PC
Power Consumption		-55%	-104%	-59%	22%	-34%	-1%	-94%
Idle Minimum * (Watt)	4.7	4.4 6%	12.5 -166%	6.5 -38%	3.2 32%	9.3 -98%	3.91 ?(2.7 - 5.3, n=9) 17%	8.63 ?(2.3 - 35.9, n=90, last 2 years) -84%
Idle Average * (Watt)	6.1	5.9 3%	14.4 -136%	8.9 -46%	4.3 30%	10.7 -75%	6.02 ?(4.7 - 7.2, n=9) 1%	10.7 ?(2.59 - 37.1, n=89, last 2 years) -75%
Idle Maximum * (Watt)	9.6	6.9 28%	15.2 -58%	10.7 -11%	5.1 47%	12.6 -31%	7.39 ?(5.4 - 10, n=9) 23%	13.6 ?(2.7 - 44.4, n=90, last 2 years) -42%
Load Average * (Watt)	32.7	70.4 -115%	66.6 -104%	60.3 -84%	32.1 2%	37.7 -15%	34.2 ?(26.2 - 39.9, n=8) -5%	64.5 ?(21.2 - 170.6, n=90, last 2 years) -97%
Cyberpunk 2077 ultra external monitor * (Watt)	39.5	85.8 -117%	69.9 -77%	68.4 -73%	29.4 26%	32.3 18%
Load Maximum * (Watt)	41.3	97.4 -136%	75.5 -83%	82 -99%	43.5 -5%	43.4 -5%	58.6 ?(41.3 - 64.1, n=9) -42%	111.9 ?(27.9 - 423, n=90, last 2 years) -171%

* ... smaller is better

Power efficiency

Performance rating | Power Consumption

Performance rating - Percent
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	91.8 pt
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	84.7 pt
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	75.3 pt
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	73.4 pt
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	64 pt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	62.9 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	266 Points per Watt +19%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	238 Points per Watt +7%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	223 Points per Watt
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	208 Points per Watt -7%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	202 Points per Watt -9%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	197 Points per Watt -12%
Cinebench R23 Single Power Efficiency - external Monitor
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	85.7 Points per Watt
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	66.4 Points per Watt -23%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	66.1 Points per Watt -23%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	56.1 Points per Watt -35%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	46.2 Points per Watt -46%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	39.6 Points per Watt -54%
Cinebench R15 Multi Efficiency (external Monitor)
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	38.3 Points per Watt +20%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	33.8 Points per Watt +6%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	32.2 Points per Watt +1%
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	32 Points per Watt
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	31.6 Points per Watt -1%
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	29.8 Points per Watt -7%
Cyberpunk 2077 ultra Efficiency
GMK NucBox K17 Intel Core Ultra 5 226V, Arc 130V	0.4152 fps per Watt
Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255, Radeon 780M	0.2587 fps per Watt -38%
Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS, Radeon 780M	0.2558 fps per Watt -38%
Geekom A5 Pro AMD Ryzen 5 7530U, Vega 7	0.2412 fps per Watt -42%
GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U, Radeon 680M	0.2031 fps per Watt -51%
Ninkear M7, (16+512) AMD Ryzen 5 7430U, Vega 7	0.1647 fps per Watt -60%

energy consumption with an external monitor

GMK NucBox K17; Idle 1min (external Monitor): Ø6.14 (3.96-9.6) Watt

GMK NucBox K17; 1280x720 Prime95 28.10 and Furmark 1.25: Ø40.7 (40-41.1) Watt

GMK NucBox K17; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø39.5 (38.9-40.3) Watt

GMK NucBox K17; 3DMark06 Return To Proxycon: Ø32.7 (29.8-37.1) Watt

energy consumption with an external monitor

GMK NucBox K17; Prime95 V2810 Stress (external Monitor): Ø39.6 (39-41.3) Watt

GMK NucBox K17; Cinebench R15 Multi (external Monitor): Ø39.2 (37.6-39.6) Watt

GMK NucBox K17; Cinebench R23 Single (external Monitor): Ø21.7 (19.9-34.9) Watt

GMK NucBox K17; Cinebench R23 Multi (external Monitor): Ø38.9 (36.8-39.5) Watt

GMK NucBox K17; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø36.9 (35.7-39) Watt

Notebookcheck Rating

Back to the verdict

GMK NucBox K17 - 07/03/2026 v8
Sebastian Bade

Chassis

85 / 98 → 87%

Connectivity

66 / 81 → 81%

Weight

84%

Games Performance

50 / 80 → 62%

Application Performance

82 / 92 → 89%

Workstation

30%

AI Performance

87%

Temperature

92%

Noise

98%

Average

49%

82%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
0%

Power Use
71.8%

Repairability
0%

Software Updates
22.3%

Total Sustainability Score: 15.7%

Possible alternatives in comparison

Image	Model / Review	Price	Weight	Dimensions
1. 81.9%	GMK NucBox K17 Intel Core Ultra 5 226V ⎘ Intel Arc Graphics 130V ⎘ 16 GB Memory, 1024 GB SSD	Amazon: List Price: 569€	461 g	185 x 187 x 44.5 mm
2. 81.1%	Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: List Price: 579€	658 g	126 x 128 x 52 mm
3. 75.5%	GMK NucBox M7 Ultra AMD Ryzen 7 PRO 6850U ⎘ AMD Radeon 680M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: List Price: 469€	637 g	125 x 132 x 58 mm
4. 75%	Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory	Amazon: List Price: 769€	516 g	127 x 130 x 50 mm
5. 72.6%	Geekom A5 Pro AMD Ryzen 5 7530U ⎘ AMD Radeon RX Vega 7 ⎘ 16 GB Memory, 1024 GB SSD	Amazon: List Price: 619€	423 g	112 x 112 x 37 mm
6.	Ninkear M7, (16+512) AMD Ryzen 5 7430U ⎘ AMD Radeon RX Vega 7 ⎘ 16 GB Memory, 512 GB SSD	Amazon: List Price: 399€	400 g	107 x 116 x 36 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
i9-9980HK, GeForce RTX 2070 (Desktop)	518
HP Victus 15-fa2160ng i5-13420H, GeForce RTX 5050 Laptop	518
Acemagic AD15 i7-11800H, UHD Graphics Xe 32EUs (Tiger Lake-H)	519
GMK NucBox K17 Core Ultra 5 226V, Arc 130V	523
Lenovo ThinkPad X1 Carbon Gen 13 21NS0010GE Core Ultra 7 258V, Arc 140V	524
HP EliteBook Ultra G1i 14 Core Ultra 7 258V, Arc 140V	528
Lenovo IdeaCentre Mini 01IRH8-90W20081GF i5-13420H, UHD Graphics Xe G4 48EUs	528
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

GMKtec NucBox K17 Review: Just how quiet an Intel Core Ultra mini PC can be

Strong performance at low volume.

Verdict - The GMKtec NucBox K17 impresses with its efficiency and low noise level

Pros

Cons

Price and Availability

Table of Contents

Specifications

Case & Connectivity

EVO-X3: Next-Gen AI Workstation in a Compact Format

Size Comparison

USB4 Speed (ADATA SE920)

Accessories

Maintenance

Sustainability

Performance

Test Conditions

Processor

Cinebench R15 Multi-Core Endurance Test

System Performance

DPC Latencies

Storage devices

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Graphics Card and Gaming Performance

FPS Chart - 30 Min. Cyberpunk 2077 1920 x 1080 Ultra Preset (FSR off)

Emissions

System noise

Temperature

Energy Management

Power efficiency

energy consumption with an external monitor

energy consumption with an external monitor

Notebookcheck Rating

Possible alternatives in comparison

Transparency

More articles related to this device

Related Articles

3DMark 11 in comparison
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
Acer Aspire V17 Nitro BE VN7-793G-52XN i5-7300HQ, GeForce GTX 1060 Mobile	10386
Lenovo ThinkPad Z13 G1-21D20016GE R7 PRO 6860Z, Radeon 680M	10387
Aokzoe A1 R7 6800U, Radeon 680M	10423
GMK NucBox K17 Core Ultra 5 226V, Arc 130V	10448
Alienware 17 R3 (A17-9935) 6700HQ, GeForce GTX 980M	10464
MSI PS63 Modern 8SC i7-8565U, GeForce GTX 1650 Max-Q	10471
Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	10477
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
