Verdict: Powerful Strix Point mini PC with OCuLink and high efficiency
The Peladn HO5 presents itself in the test as a powerful mini PC that convincingly utilizes the potential of the Strix Point platform. With the AMD Ryzen AI 9 HX 370, the compact system offers very high CPU performance for productive tasks and demanding multi-threaded applications. The integrated Radeon 890M also delivers strong iGPU performance, enabling even moderate gaming in customized settings. Efficiency and temperatures are at a good level, even if the fan control could use some fine-tuning acoustically. The OCuLink interface further expands the range of applications, while the soldered RAM limits the upgradeability.
Peladn doesn't make any major mistakes with the HO5, making the mini PC a serious alternative to well-known brands such as Minisforum or Geekom. In terms of price, the HO5 doesn't break the bank at around 900 euros in the current comparison. Some competitors with the same CPU equipment are considerably pricier and rarely available for around $1,000.
Pros
Cons
Price and availability
Peladn sells its devices via its store. Meanwhile, the HO5 is offered there for around $1,000. It is also shipped from their warehouse in the US, and there are no additional costs. The device can also be ordered via Amazon (currently $919).
With the Peladn HO5, Peladn is launching a particularly powerful mini PC on the market, which offers a strong price-performance ratio in the price range below 1,000 euros and puts established competitors under noticeable pressure. The system is powered by the latest AMD Ryzen AI 9 HX 370 of the Strix Point generation - a modern processor with 12 cores and 24 threads that combines high computing power with an integrated RDNA 3.5 graphics unit.
Specifications
Case & Connectivity

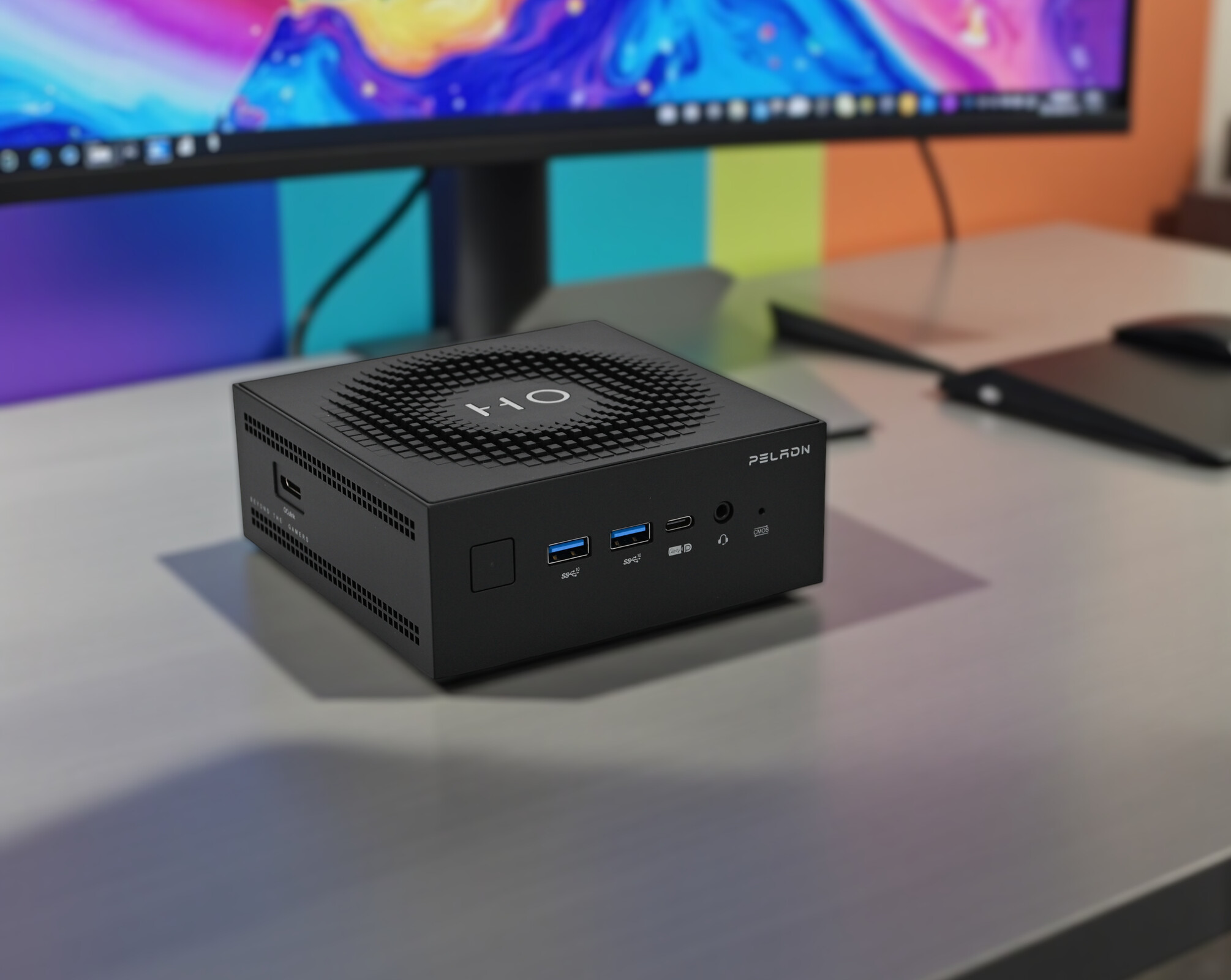

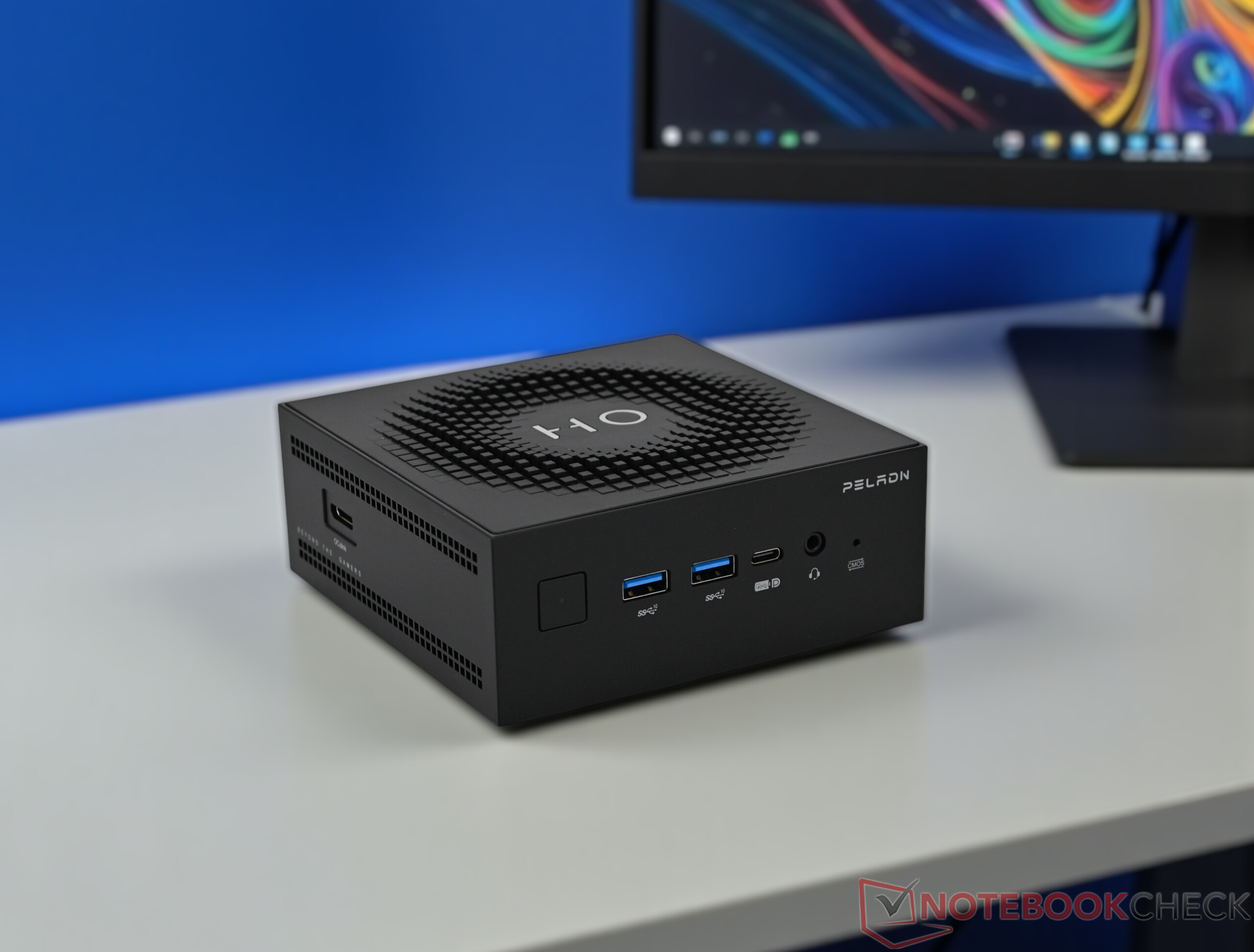

The Peladn HO5 is based on a simple plastic housing with compact dimensions, which is designed to be as lightweight as possible and suitable for everyday use. Discreet RGB lighting adds visual interest to the design on the top. The integrated touch surface on the top is practical: the lighting effects can be controlled directly on the device via the centrally positioned module, without any additional software.

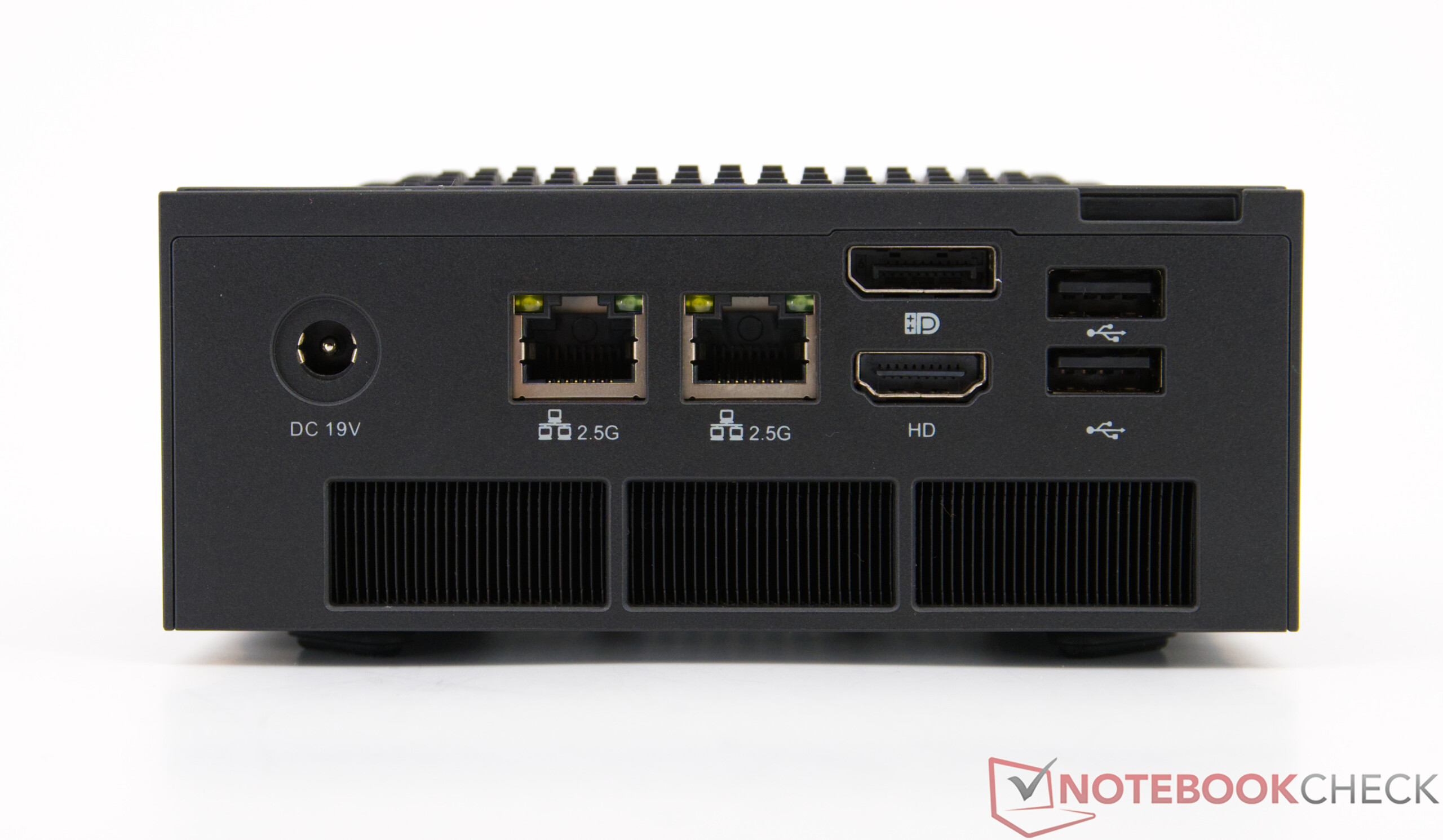

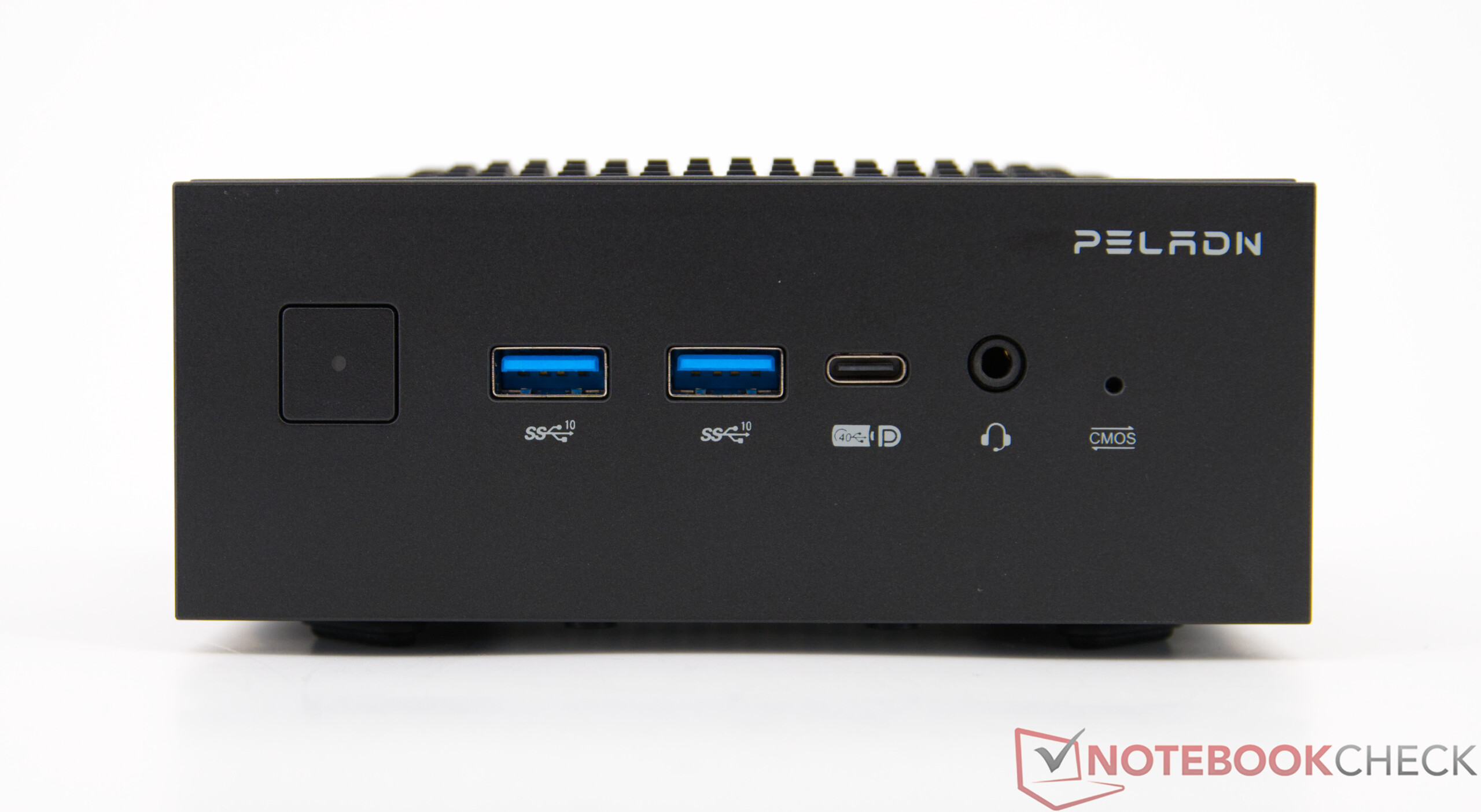

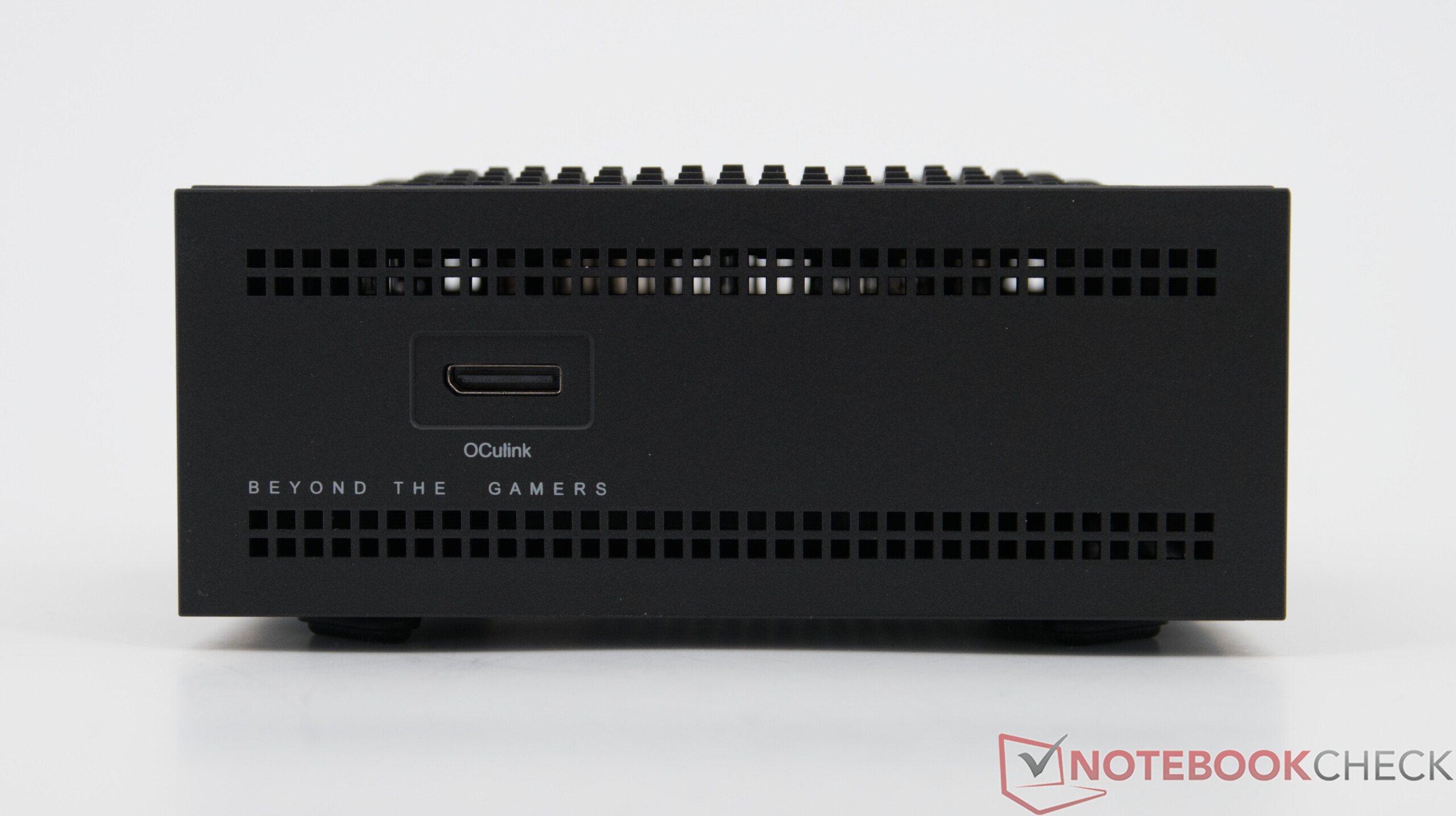

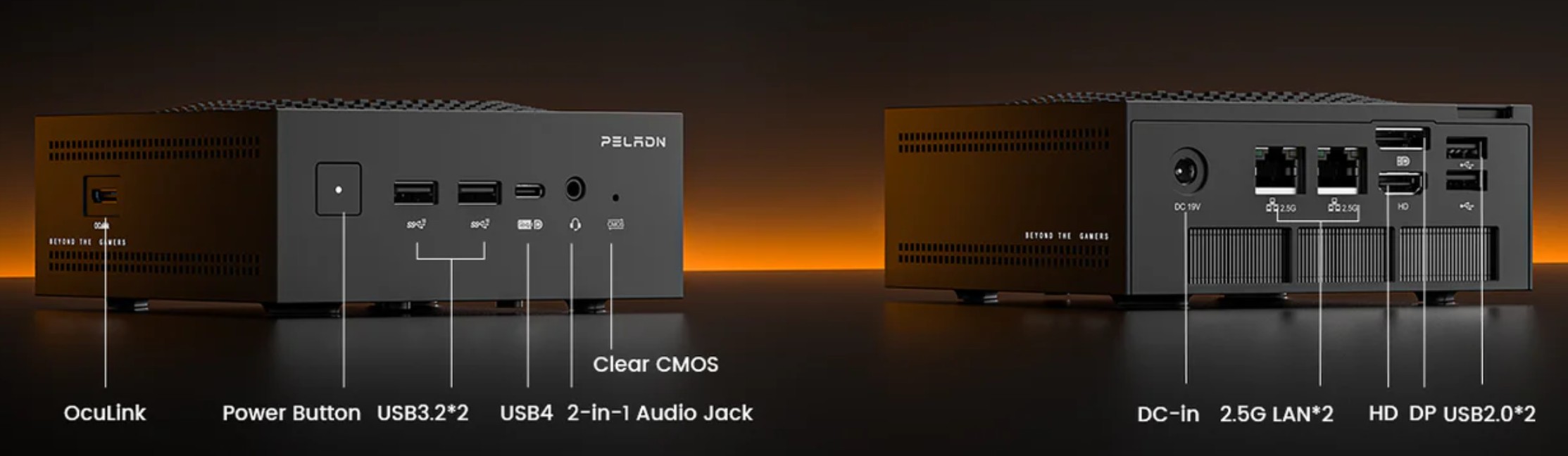

Most of the connections are spread across the front and rear and cover typical office and multimedia requirements with ease. Particularly noteworthy is the integrated OCuLink interface (on the side), which enables the connection of external graphics card solutions and gives the Mini-PC significantly more flexibility for graphics-intensive applications. The HO5 also boasts a modern network connection: With 2.5 Gigabit LAN and fast WLAN, the compact computer is ideally equipped for high data rates and demanding network environments.

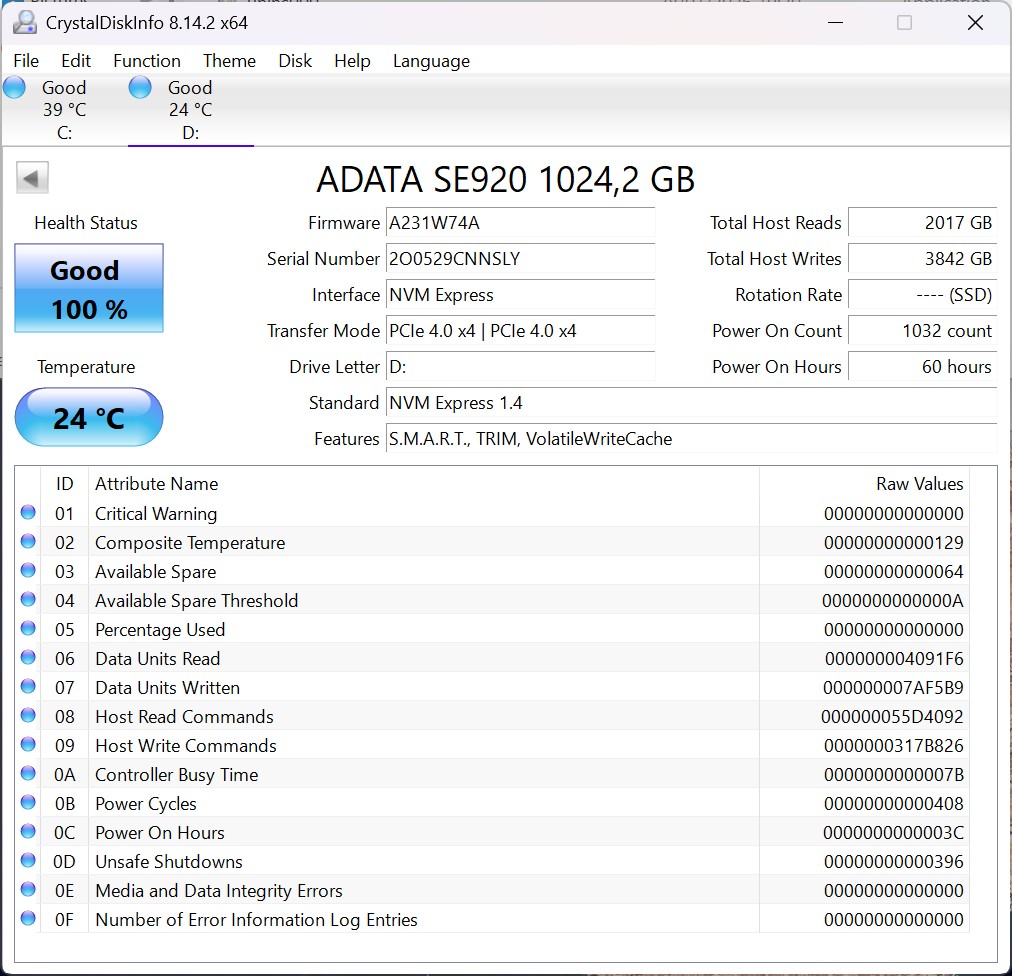

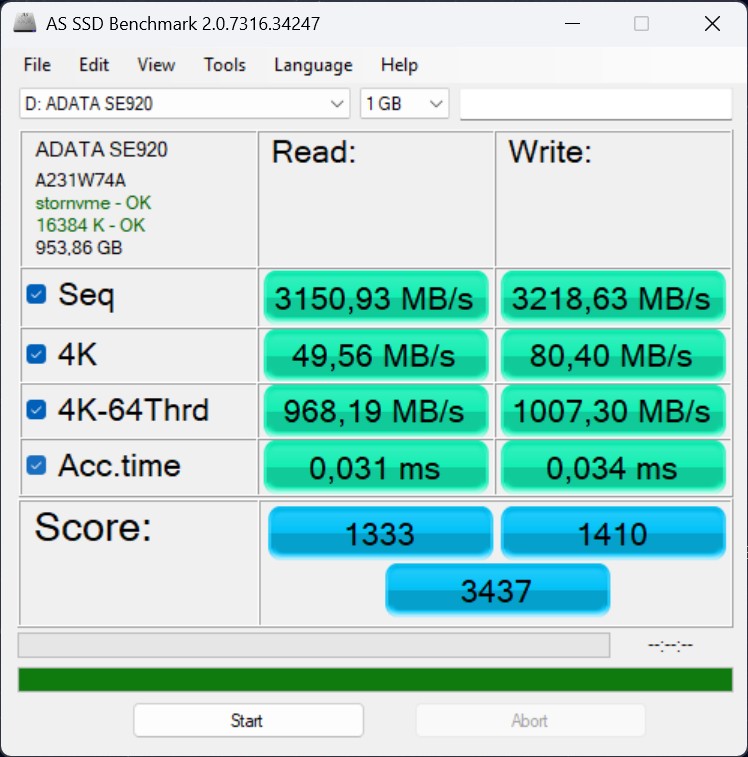

USB4-Speed (ADATA SE920)
| Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB) | |
| GMK EVO-T1 | |
| Alliwava GH8, R9 8945HS | |
| Peladn HO5, AI 9 HX 370 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Average of class Mini PC (423 - 3906, n=38, last 2 years) | |
| Geekom Mini IT15, Ultra 9 285H | |
Wi-Fi performance

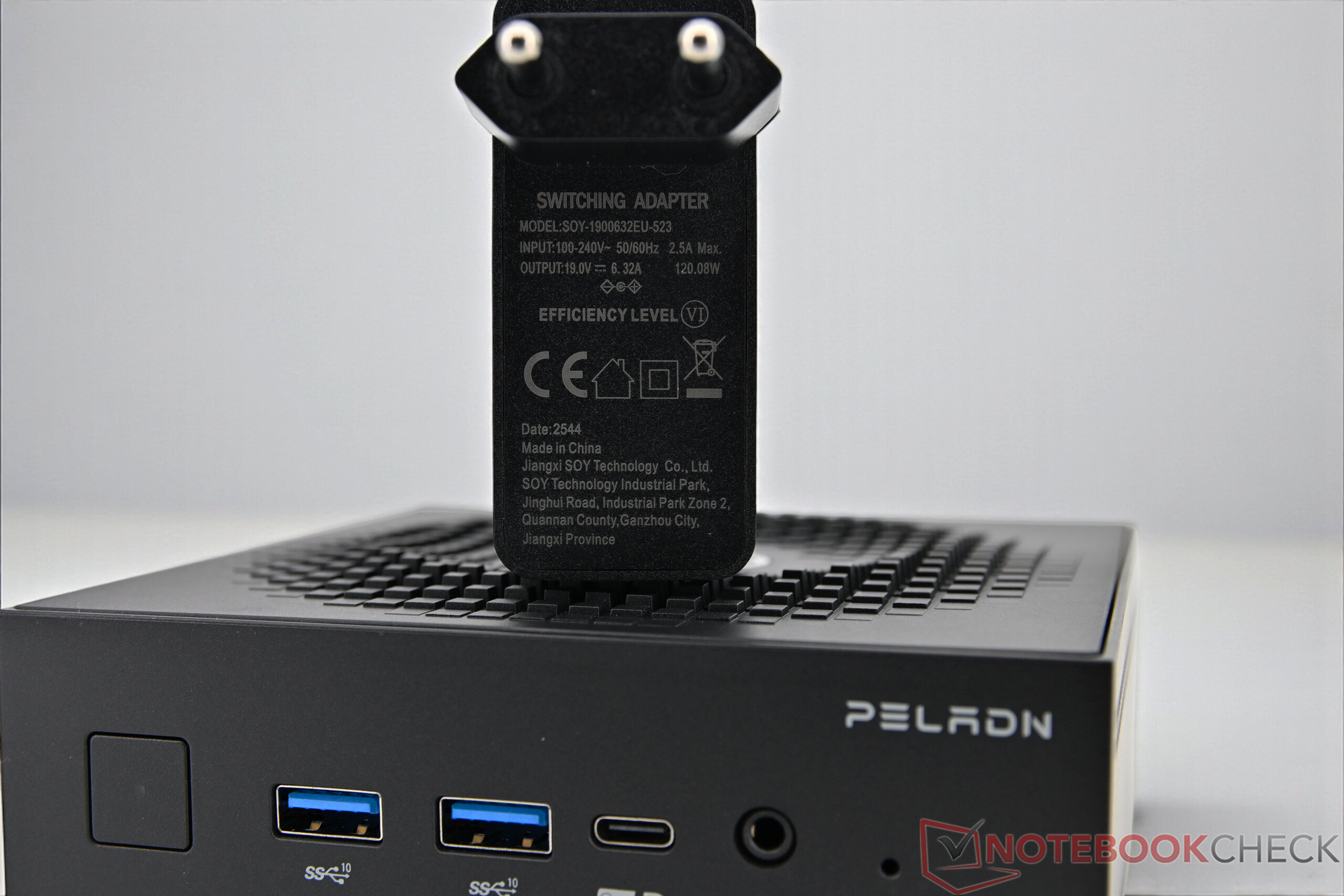

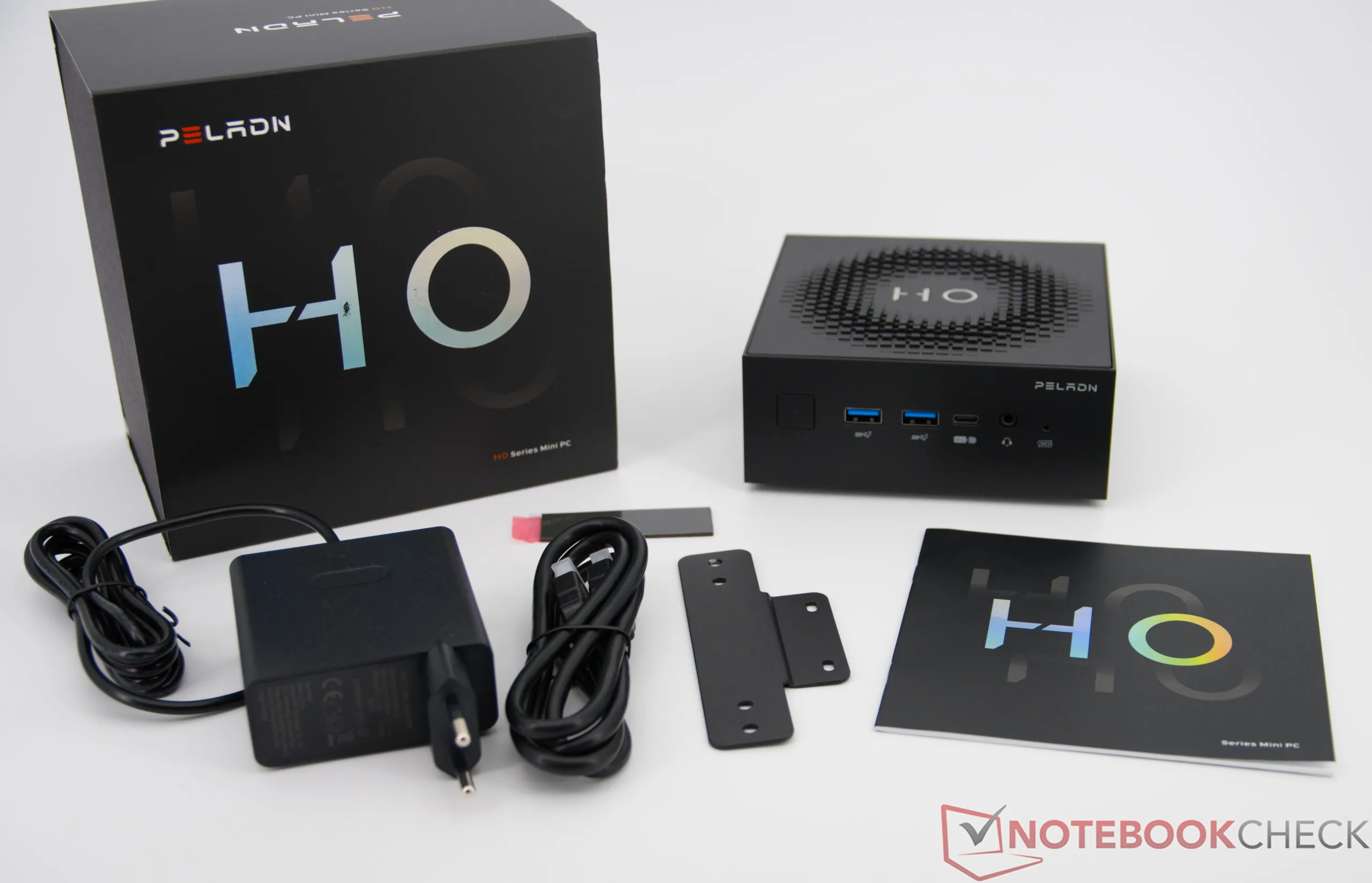

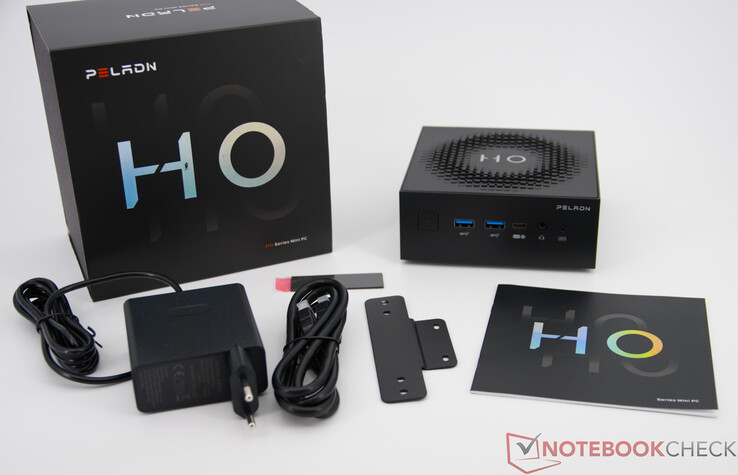

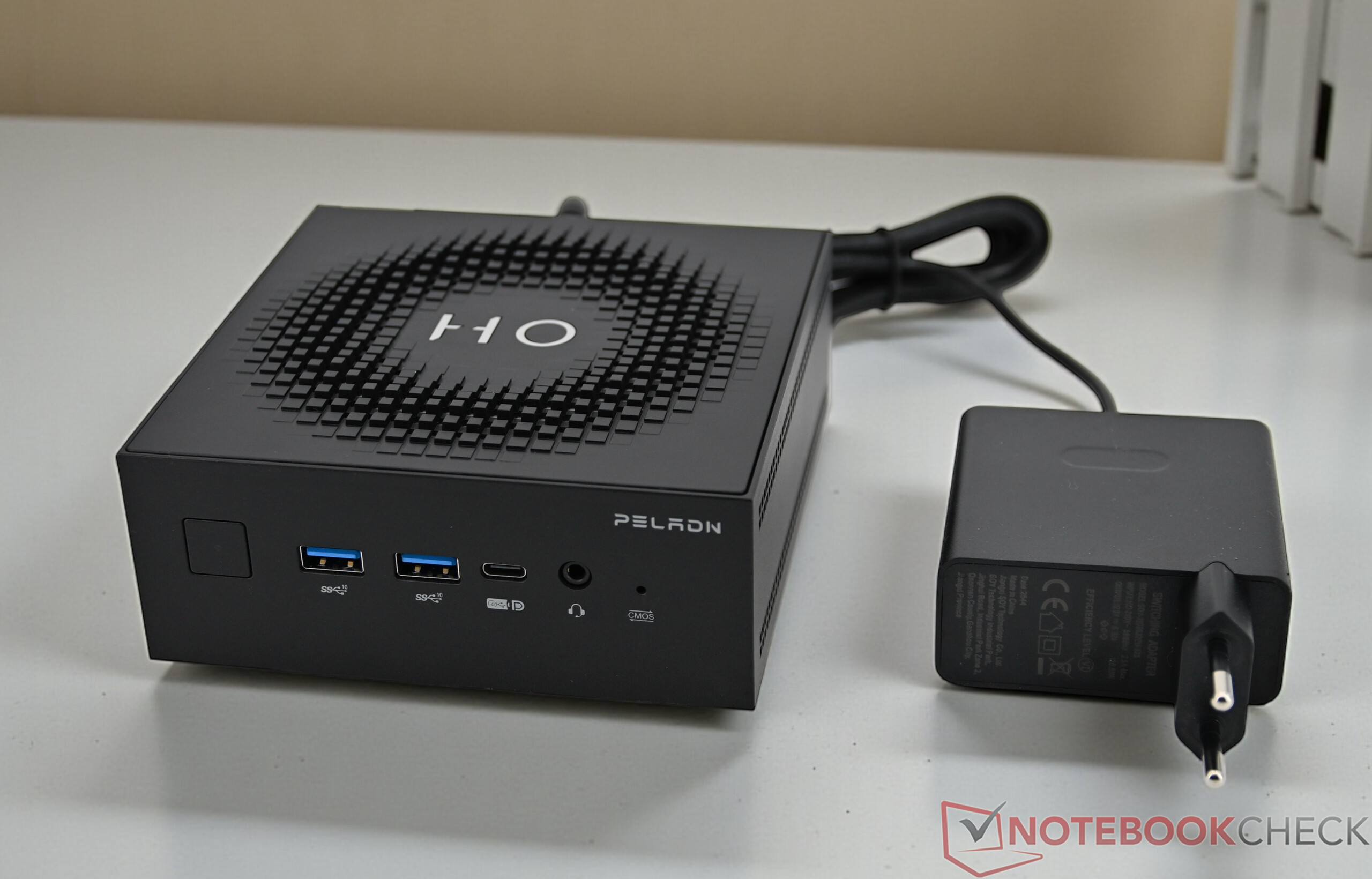

Accessories

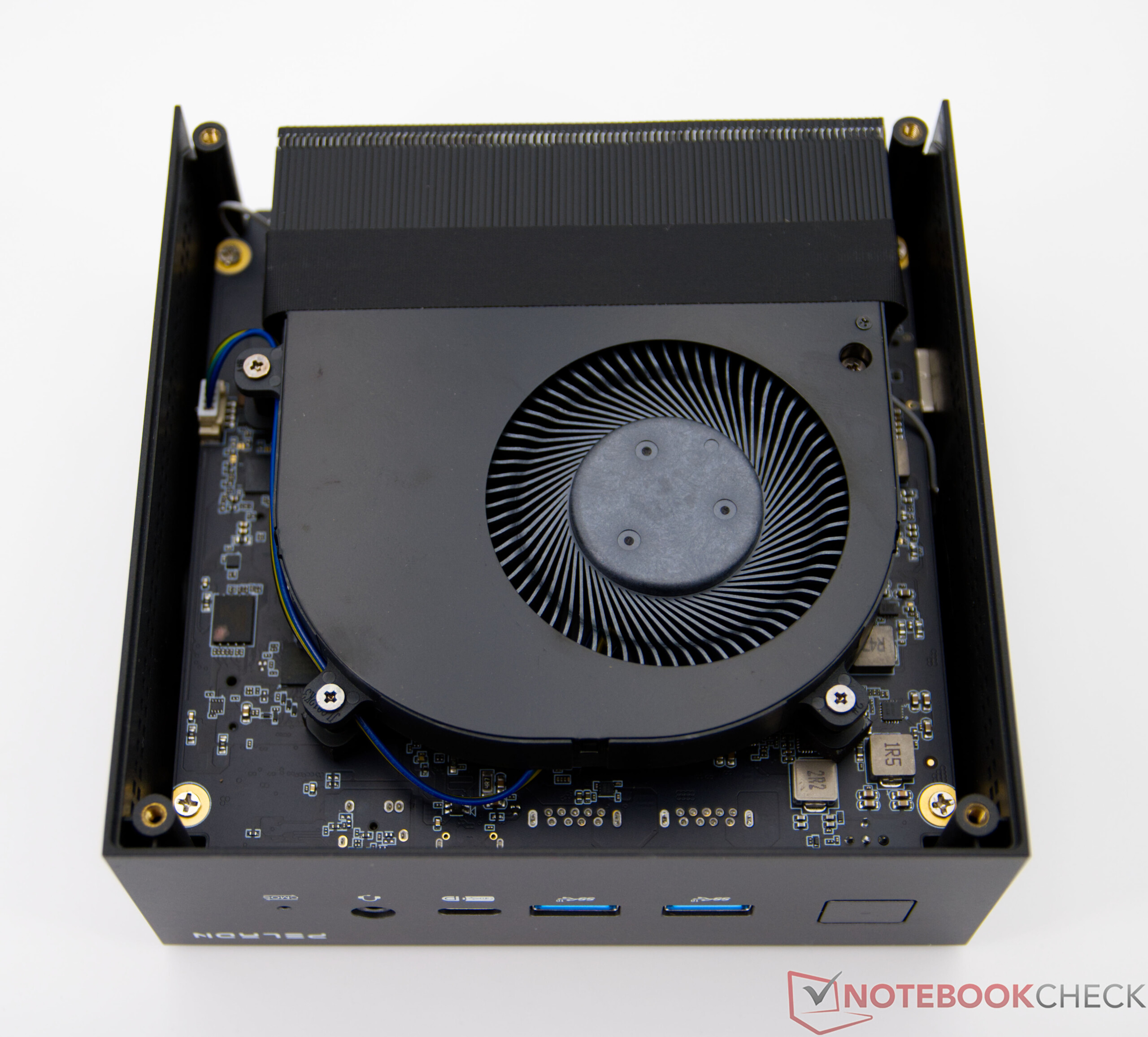

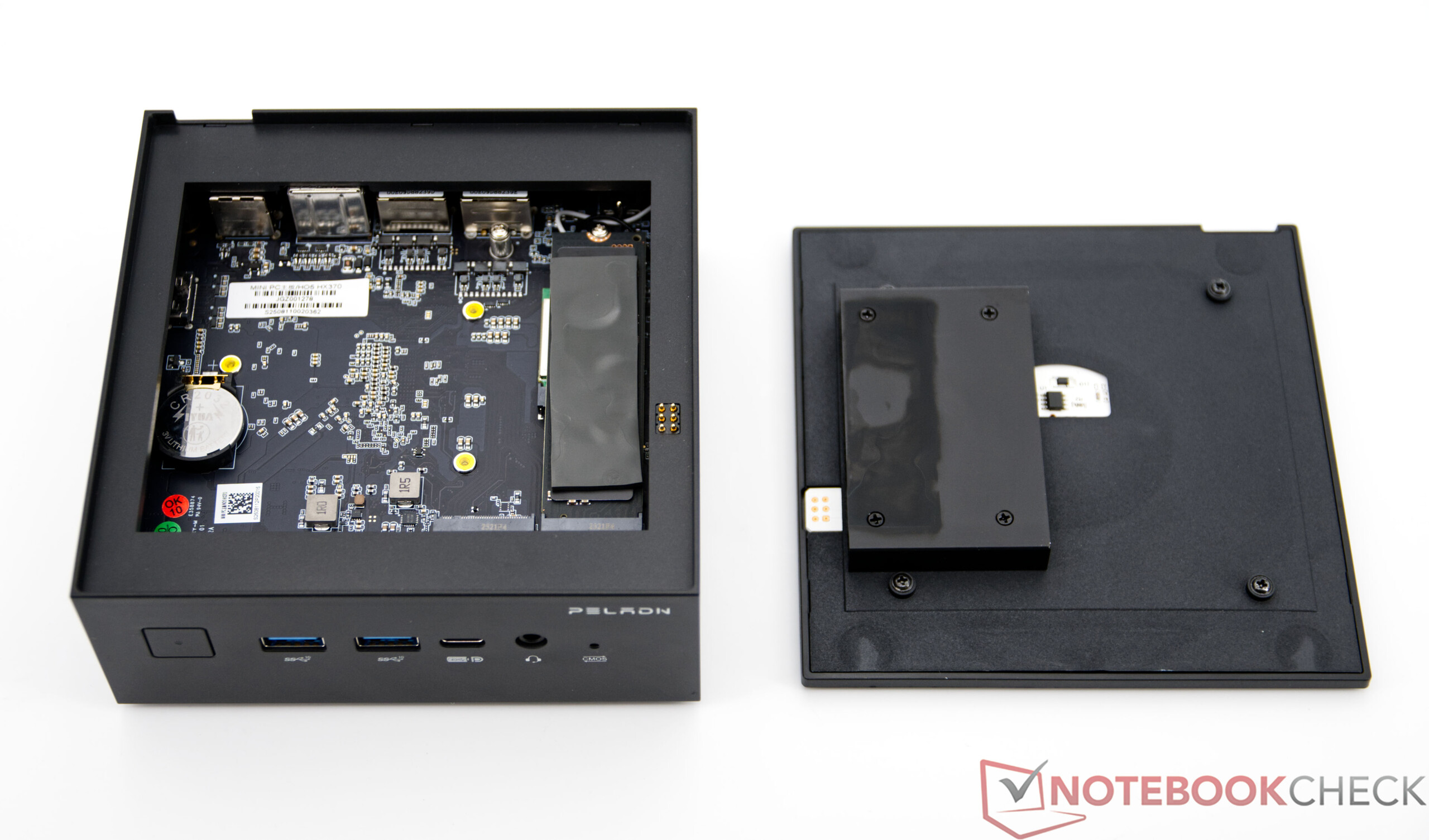

Maintenance

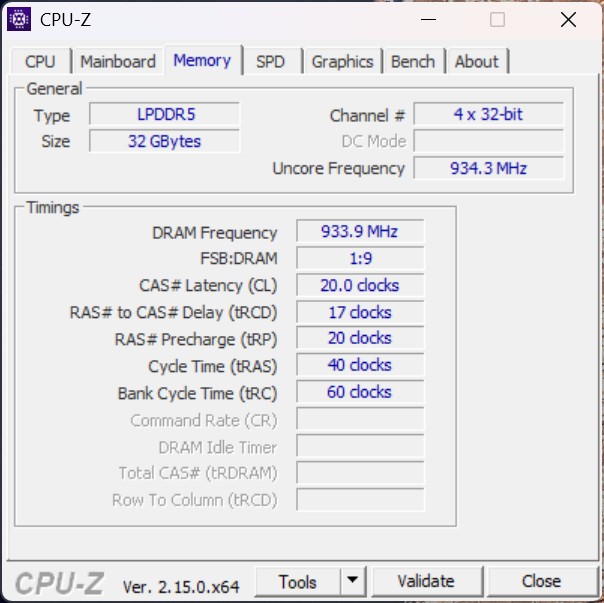

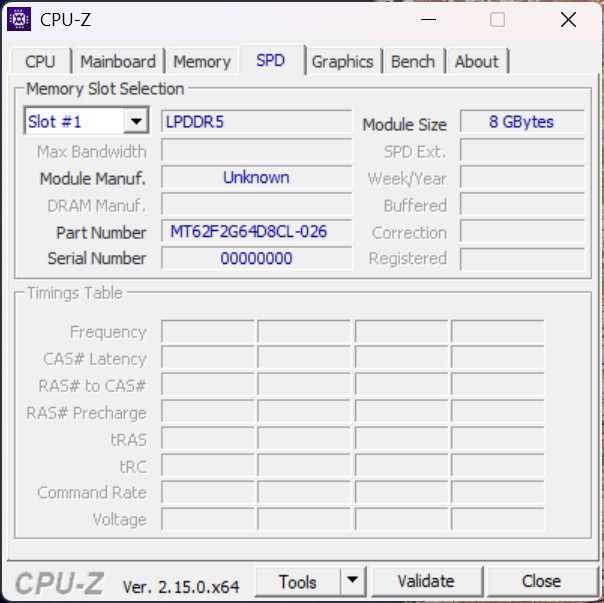

The Peladn HO5 is only available with a pre-installed SSD and soldered RAM. However, an additional slot for further mass storage is available. The top can be removed without tools and allows quick access to the components. The underside must be removed to access the CPU fan.
Sustainability
The manufacturer does not provide any specific information on sustainability aspects in the production of the Peladn HO5. The packaging consists mainly of cardboard and is only supplemented by a few foam elements to protect the device during transportation.
Test conditions

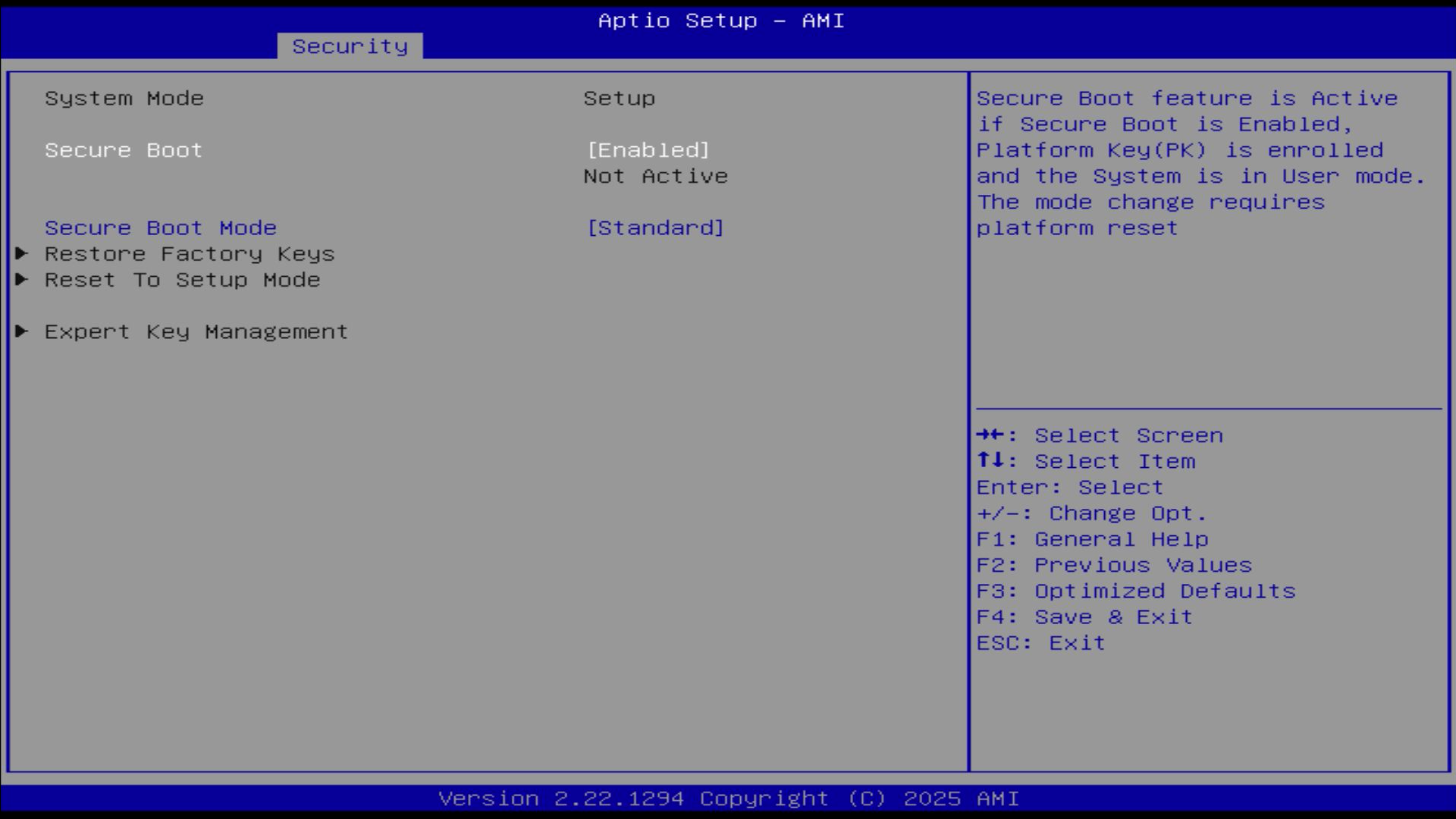

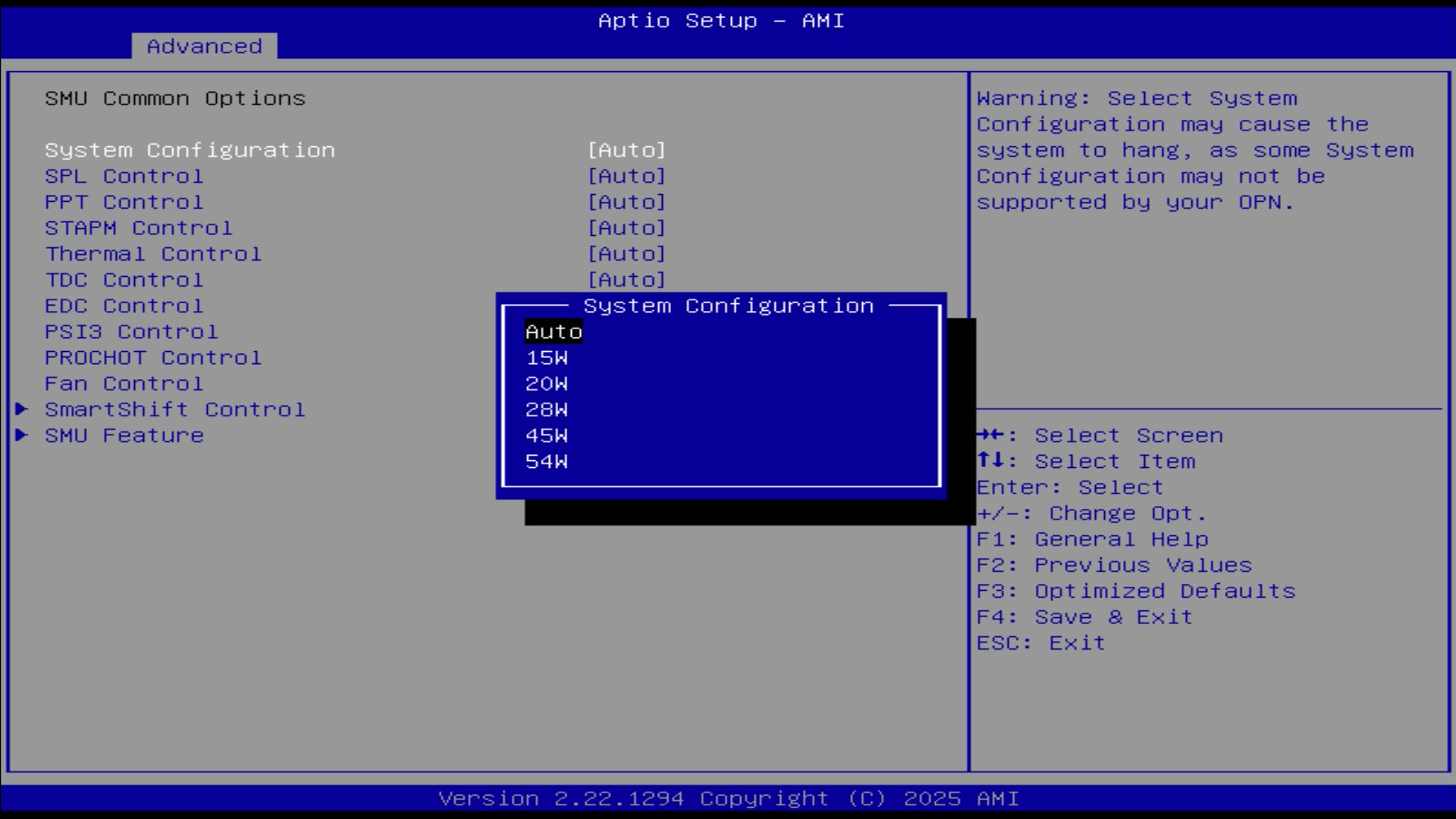

The benchmarks of the Peladn HO5 were carried out with the factory default settings. The SoC operates with a permanent TDP of 54 watts and the integrated graphics unit is assigned 2 GB of RAM ex works. The BIOS offers additional options to adjust the performance parameters of the processor and the integrated graphics unit.

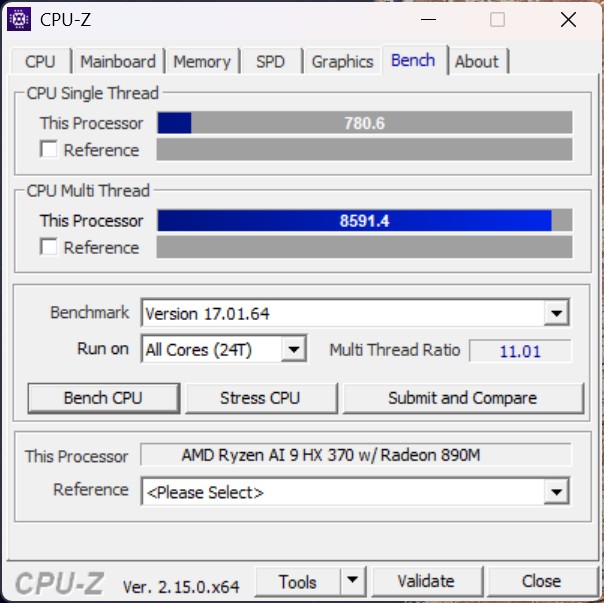

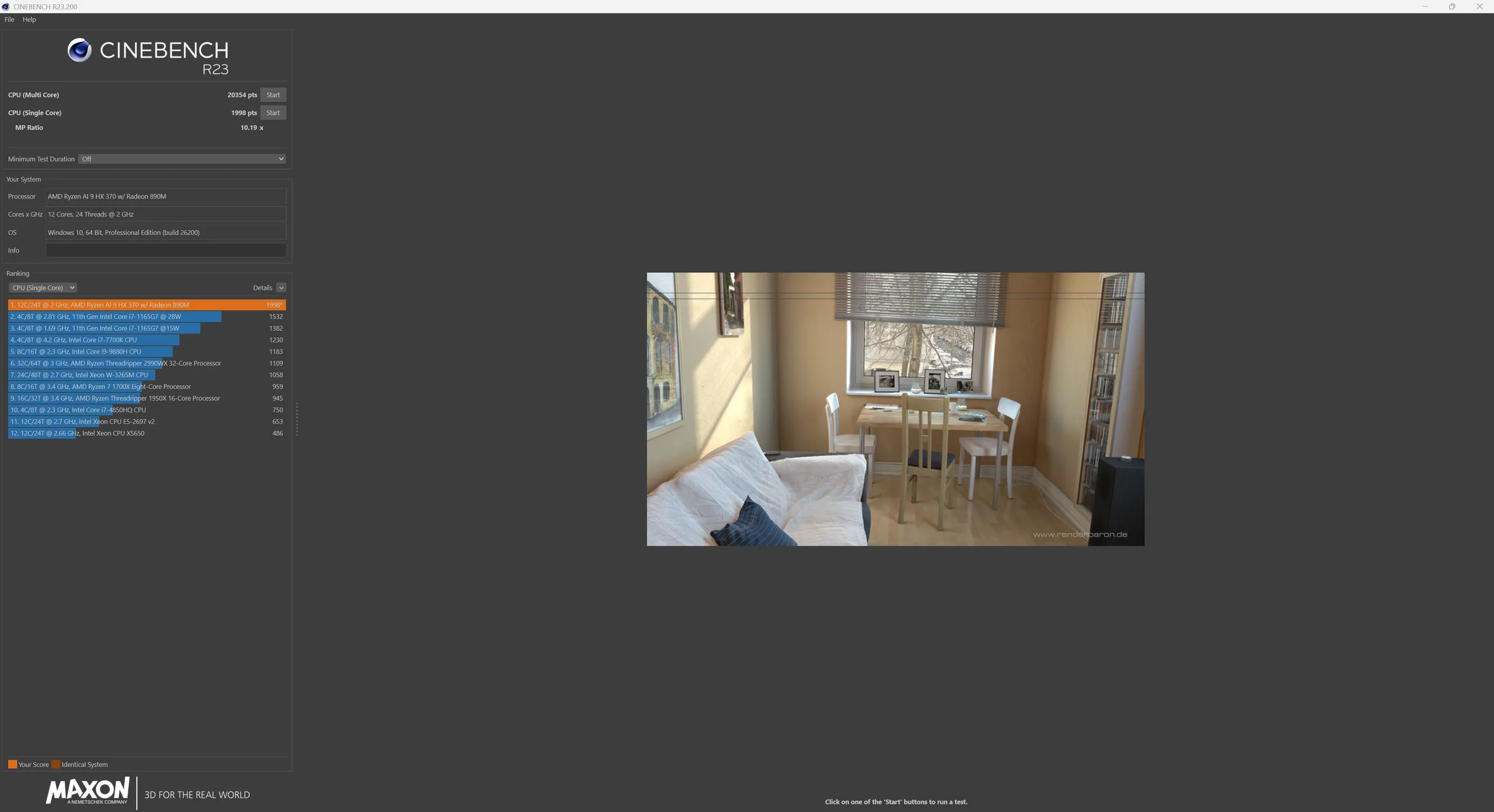

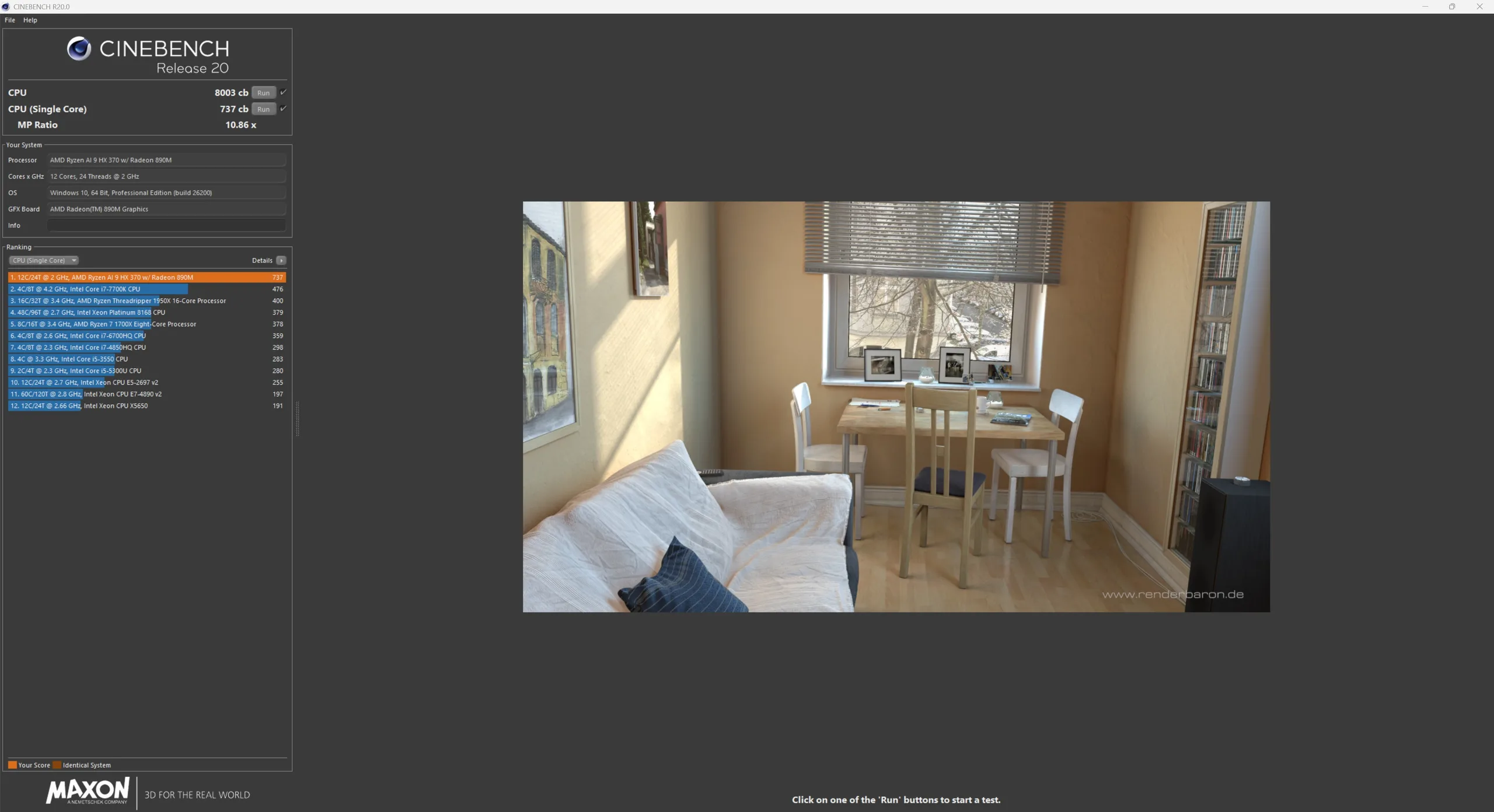

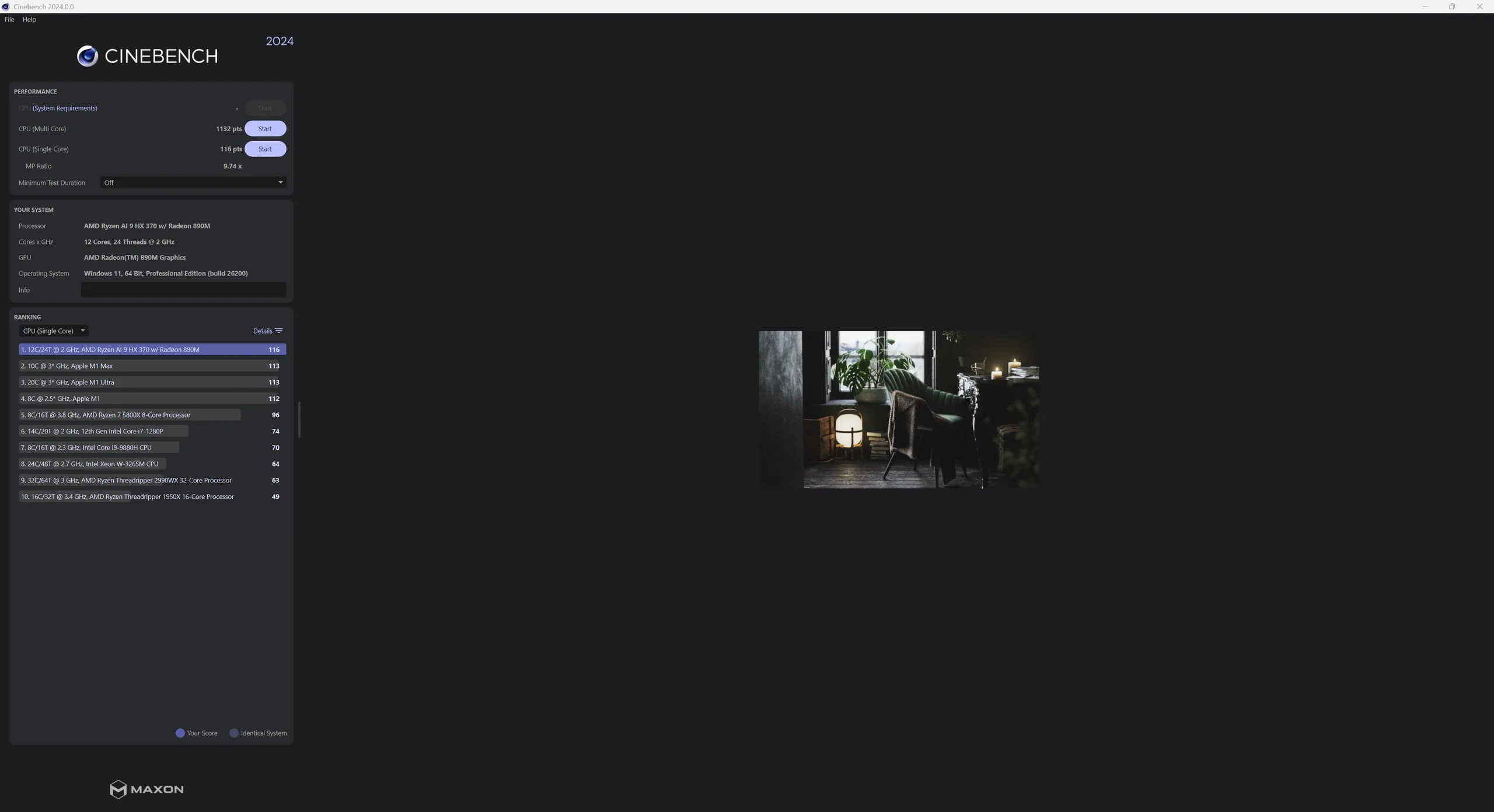

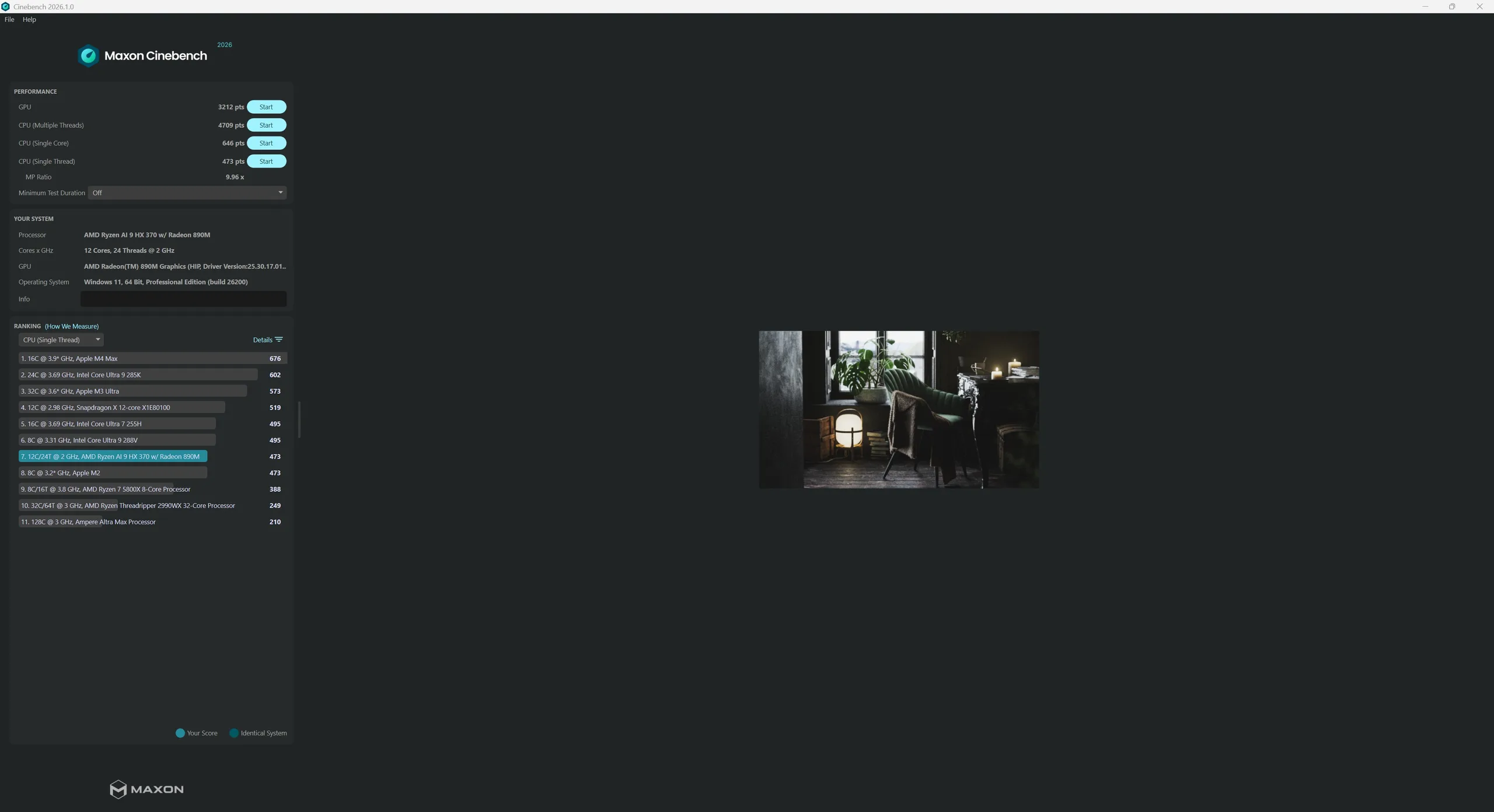

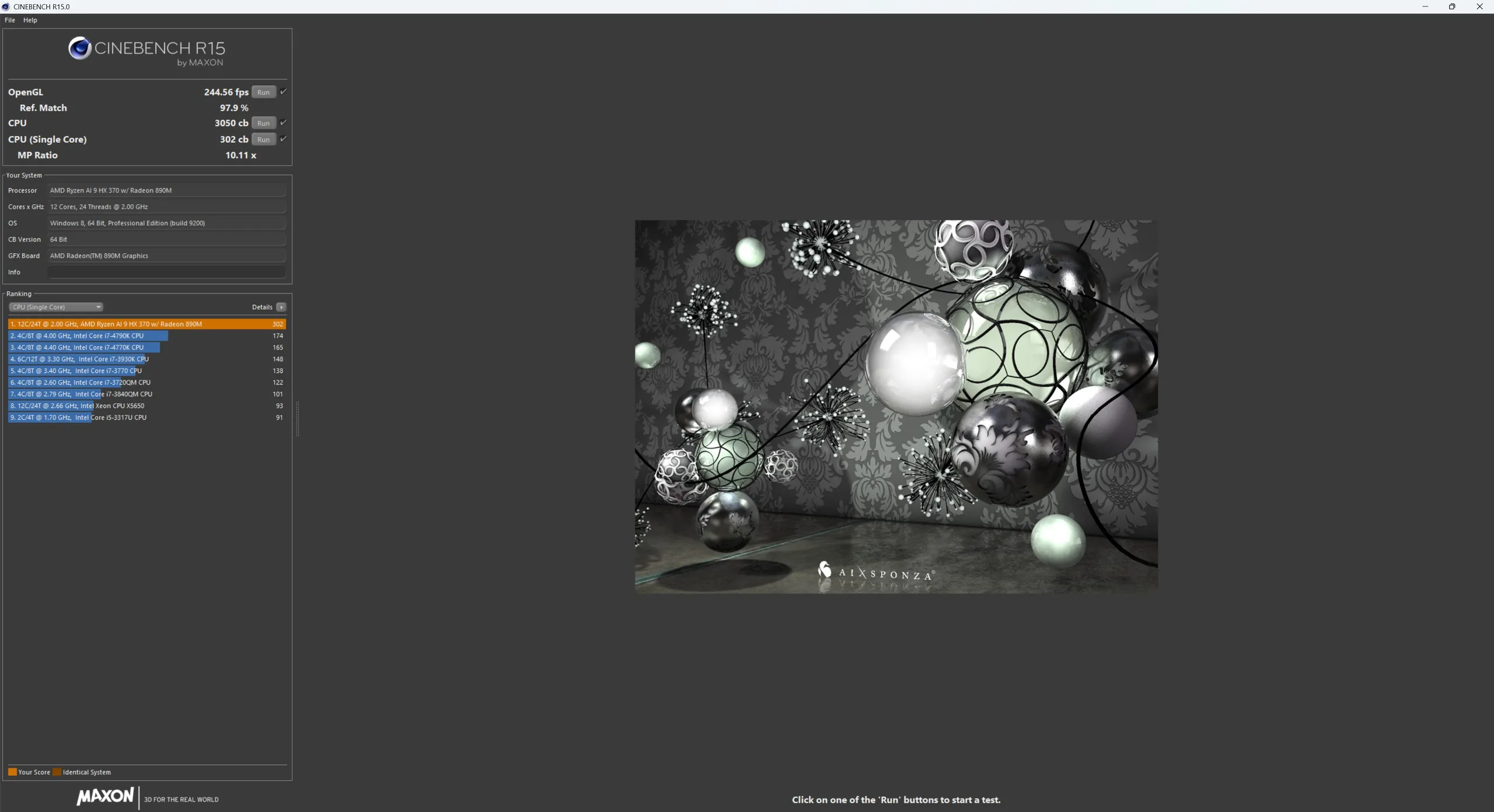

Processor

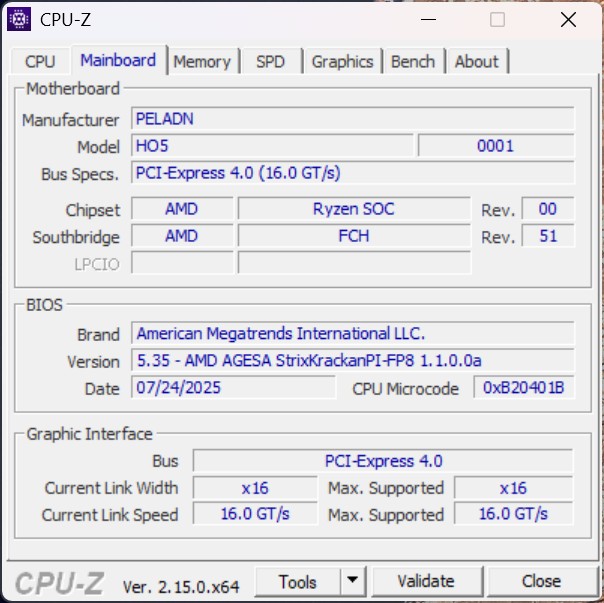

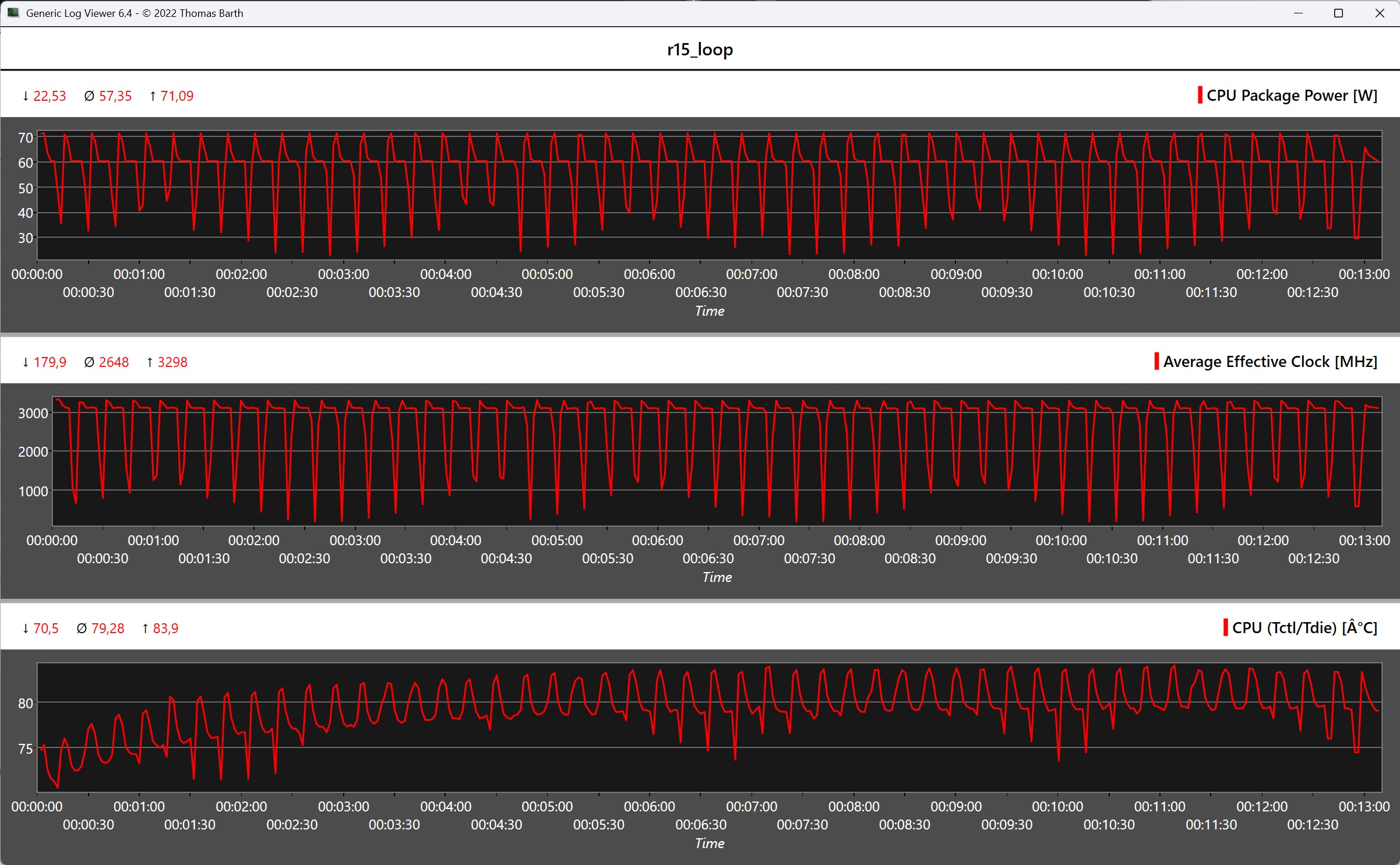

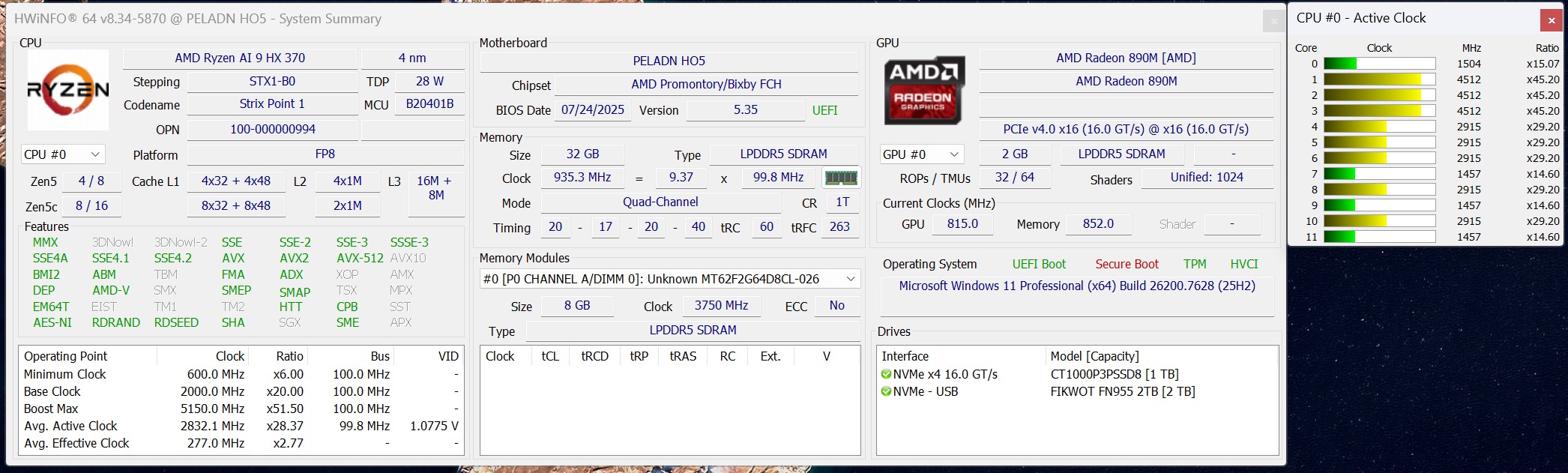

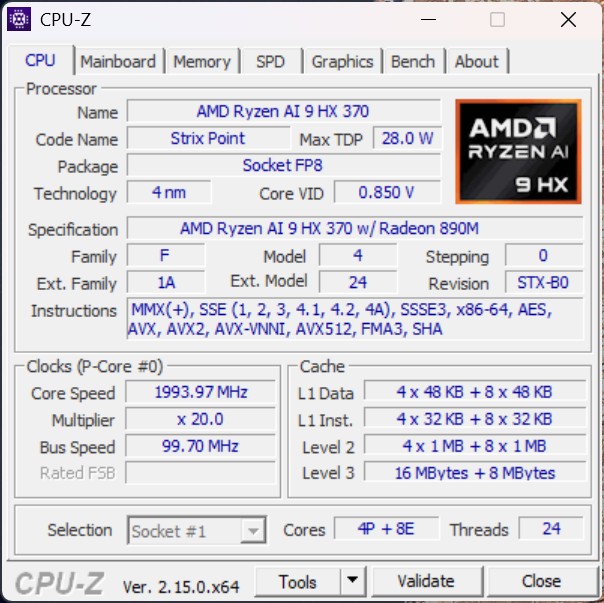

The Peladn HO5 uses the AMD Ryzen AI 9 HX 370 a 12-core processor based on the Zen 5 architecture, which consistently offers very high computing power. This clearly places the HO5 in the performance-oriented mini PC segment and clearly differentiates it from pure office solutions. Compared to other systems with the same processor, our test device delivers almost identical performance and is on a par. Compared to Intel-based competitors, the Ryzen AI 9 HX 370 is competitive and can easily compete with the Intel Core Ultra 9 285H without any problems.
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| AIDA64 / FP32 Ray-Trace | |
| BOSGAME M5 (v6.92.6600) | |
| Minisforum MS-A2 (v6.92.6600) | |
| Minisforum AI X1 Pro (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 370 (v6.92.6600) | |
| Peladn HO5, AI 9 HX 370 (v6.92.6600) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (v6.92.6600) | |
| Geekom A7 Max, R9 7940HS (v6.92.6600) | |
| Asus NUC 15 Pro+ (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Average of class Mini PC (974 - 82725, n=103, last 2 years) | |
| Geekom Mini IT15, Ultra 9 285H (v6.92.6600) | |
| AIDA64 / FPU Julia | |
| BOSGAME M5 (v6.92.6600) | |
| Minisforum MS-A2 (v6.92.6600) | |
| Minisforum AI X1 Pro (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 370 (v6.92.6600) | |
| Peladn HO5, AI 9 HX 370 (v6.92.6600) | |
| Asus NUC 15 Pro+ (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| Geekom A7 Max, R9 7940HS (v6.92.6600) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Average of class Mini PC (6115 - 227429, n=103, last 2 years) | |
| Geekom Mini IT15, Ultra 9 285H (v6.92.6600) | |
| AIDA64 / CPU SHA3 | |
| BOSGAME M5 (v6.92.6600) | |
| Minisforum MS-A2 (v6.92.6600) | |
| Minisforum AI X1 Pro (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 370 (v6.92.6600) | |
| Asus NUC 15 Pro+ (v6.92.6600) | |
| Peladn HO5, AI 9 HX 370 (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (v6.92.6600) | |
| Geekom A7 Max, R9 7940HS (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Average of class Mini PC (385 - 9475, n=103, last 2 years) | |
| Geekom Mini IT15, Ultra 9 285H (v6.92.6600) | |
| AIDA64 / CPU Queen | |
| BOSGAME M5 (v6.92.6600) | |
| Minisforum MS-A2 (v6.92.6600) | |
| Geekom A7 Max, R9 7940HS (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 370 (v6.92.6600) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (v6.92.6600) | |
| Average of class Mini PC (20501 - 184747, n=103, last 2 years) | |
| Peladn HO5, AI 9 HX 370 (v6.92.6600) | |
| Minisforum AI X1 Pro (v6.92.6600) | |
| Asus NUC 15 Pro+ (v6.92.6600) | |
| Geekom Mini IT15, Ultra 9 285H (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| AIDA64 / FPU SinJulia | |
| BOSGAME M5 (v6.92.6600) | |
| Minisforum MS-A2 (v6.92.6600) | |
| Minisforum AI X1 Pro (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 370 (v6.92.6600) | |
| Peladn HO5, AI 9 HX 370 (v6.92.6600) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (v6.92.6600) | |
| Geekom A7 Max, R9 7940HS (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Average of class Mini PC (1019 - 31931, n=103, last 2 years) | |
| Asus NUC 15 Pro+ (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| Geekom Mini IT15, Ultra 9 285H (v6.92.6600) | |
| AIDA64 / FPU Mandel | |
| BOSGAME M5 (v6.92.6600) | |
| Minisforum MS-A2 (v6.92.6600) | |
| Minisforum AI X1 Pro (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 370 (v6.92.6600) | |
| Peladn HO5, AI 9 HX 370 (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| Asus NUC 15 Pro+ (v6.92.6600) | |
| Geekom A7 Max, R9 7940HS (v6.92.6600) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Average of class Mini PC (3322 - 121827, n=103, last 2 years) | |
| Geekom Mini IT15, Ultra 9 285H (v6.92.6600) | |
| AIDA64 / CPU AES | |
| BOSGAME M5 (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Minisforum MS-A2 (v6.92.6600) | |
| Geekom Mini IT15, Ultra 9 285H (v6.92.6600) | |
| Average of class Mini PC (9214 - 325960, n=102, last 2 years) | |
| Geekom A7 Max, R9 7940HS (v6.92.6600) | |
| Minisforum AI X1 Pro (v6.92.6600) | |
| Asus NUC 15 Pro+ (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Peladn HO5, AI 9 HX 370 (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 370 (v6.92.6600) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| AIDA64 / CPU ZLib | |
| BOSGAME M5 (v6.92.6600) | |
| Minisforum MS-A2 (v6.92.6600) | |
| Minisforum AI X1 Pro (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 370 (v6.92.6600) | |
| Peladn HO5, AI 9 HX 370 (v6.92.6600) | |
| Asus NUC 15 Pro+ (v6.92.6600) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| Geekom A7 Max, R9 7940HS (v6.92.6600) | |
| Average of class Mini PC (127.2 - 2431, n=103, last 2 years) | |
| Geekom Mini IT15, Ultra 9 285H (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| AIDA64 / FP64 Ray-Trace | |
| BOSGAME M5 (v6.92.6600) | |
| Minisforum MS-A2 (v6.92.6600) | |
| Minisforum AI X1 Pro (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 370 (v6.92.6600) | |
| Peladn HO5, AI 9 HX 370 (v6.92.6600) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (v6.92.6600) | |
| Geekom A7 Max, R9 7940HS (v6.92.6600) | |
| Asus NUC 15 Pro+ (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Average of class Mini PC (537 - 43587, n=103, last 2 years) | |
| Geekom Mini IT15, Ultra 9 285H (v6.92.6600) | |
| AIDA64 / CPU PhotoWorxx | |
| BOSGAME M5 (v6.92.6600) | |
| Asus NUC 15 Pro+ (v6.92.6600) | |
| GMK EVO-T1 (v6.92.6600) | |
| Minisforum AI X1 Pro (v6.92.6600) | |
| Peladn HO5, AI 9 HX 370 (v6.92.6600) | |
| Geekom Mini IT15, Ultra 9 285H (v6.92.6600) | |
| Geekom A9 Max, AI 9 HX 370 (v6.92.6600) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (v6.92.6600) | |
| Minisforum MS-A2 (v6.92.6600) | |
| Peladn HA-4, R7 7840HS (v6.92.6600) | |
| Alliwava GH8, R9 8945HS (v6.92.6600) | |
| Average of class Mini PC (8069 - 94259, n=103, last 2 years) | |
| Geekom A7 Max, R9 7940HS (v6.92.6600) | |
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
System performance
In everyday use, the Peladn HO5 presents itself with a very high overall performance and a consistently responsive performance. The advantages of the LPDDR5 RAM connected at 7,500 MT/s become particularly clear in the AIDA64 measurements, where the HO5 achieves strong results. Only systems based on Strix Halo such as the Bosgame M5 achieve even higher values here.
WebXPRT 4: Overall
WebXPRT 3: Overall
Mozilla Kraken 1.1: Total
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 4: Overall
WebXPRT 3: Overall
Mozilla Kraken 1.1: Total
CrossMark: Overall | Productivity | Creativity | Responsiveness
* ... smaller is better
* ... smaller is better

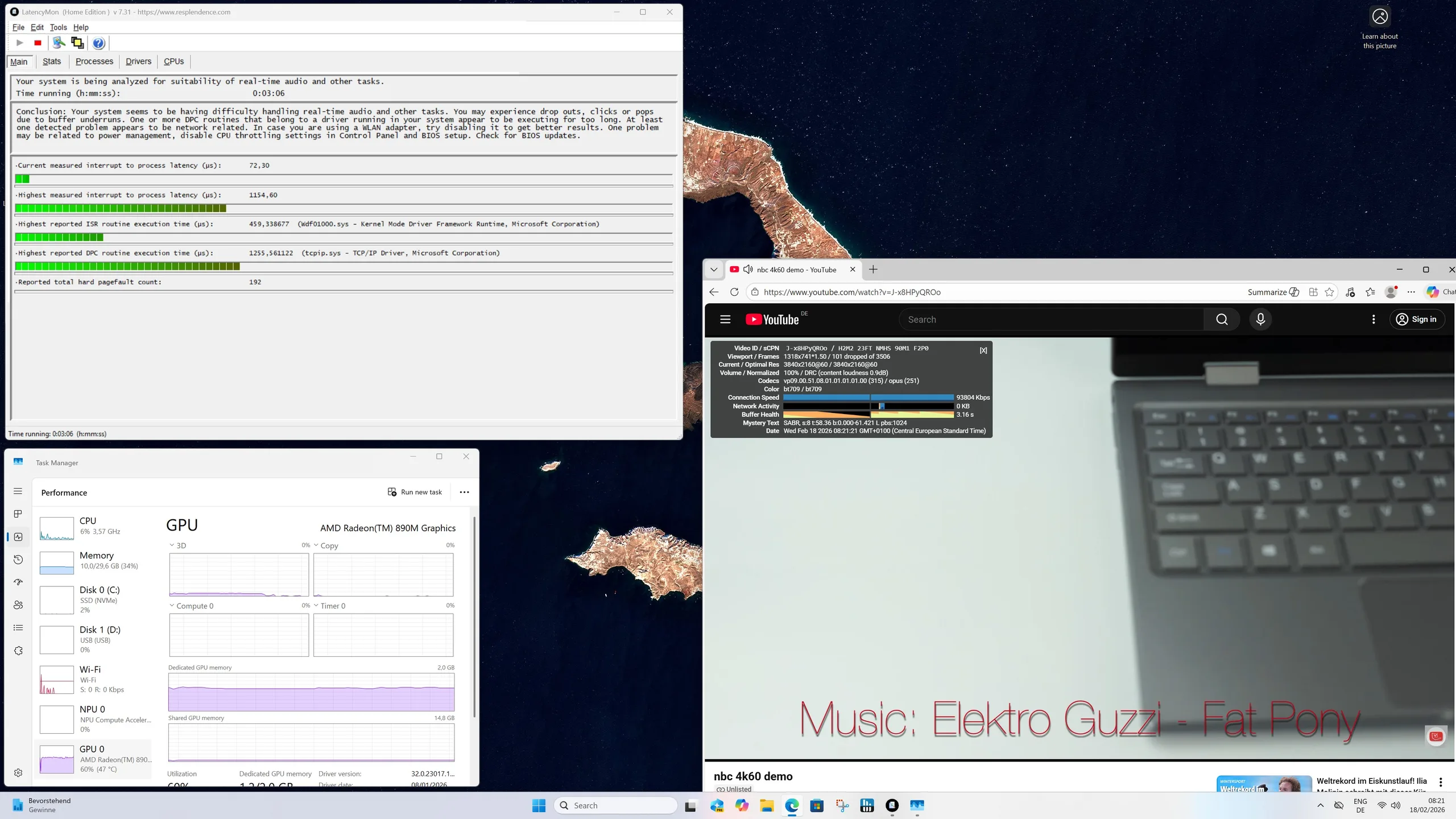

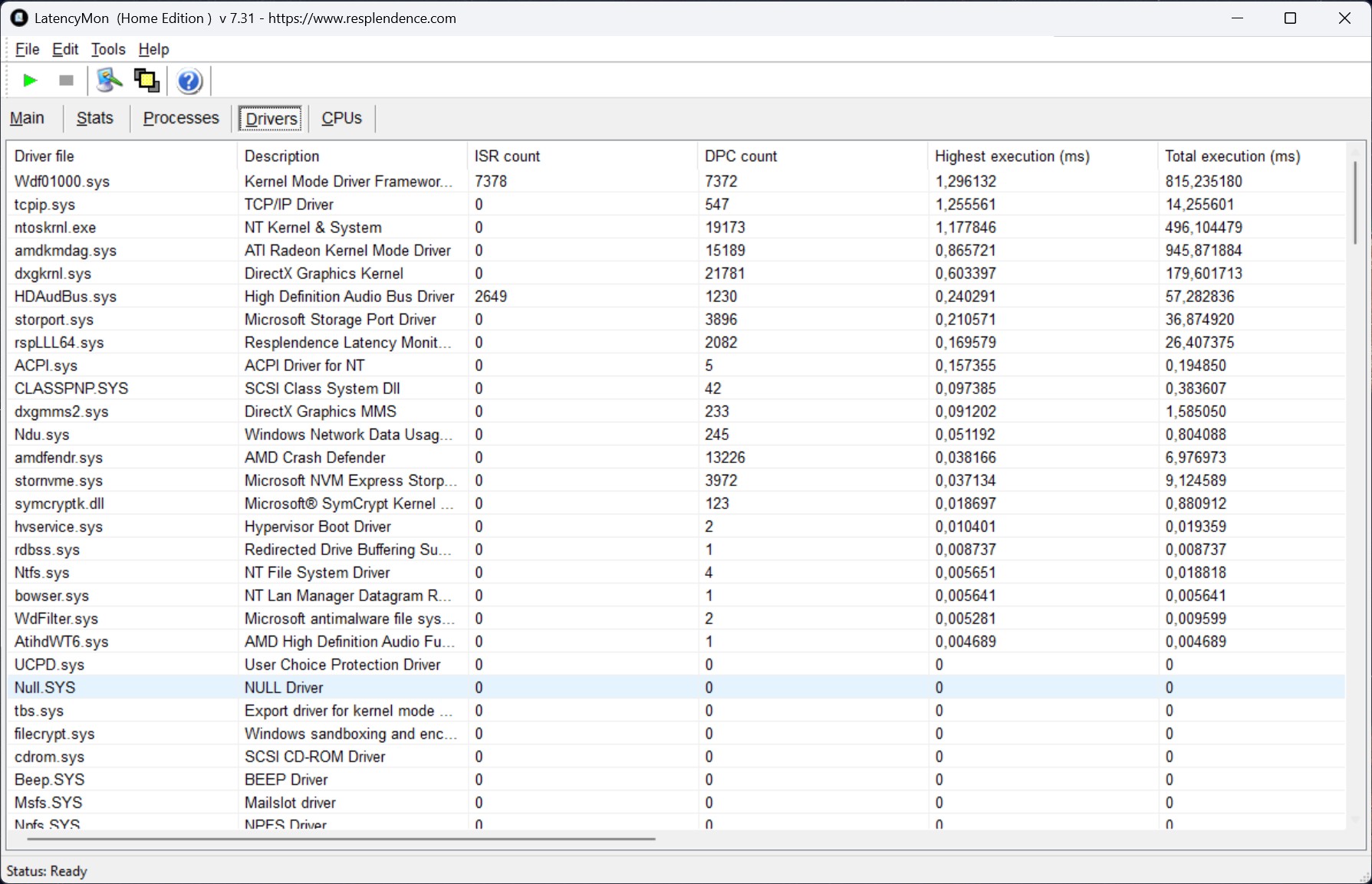

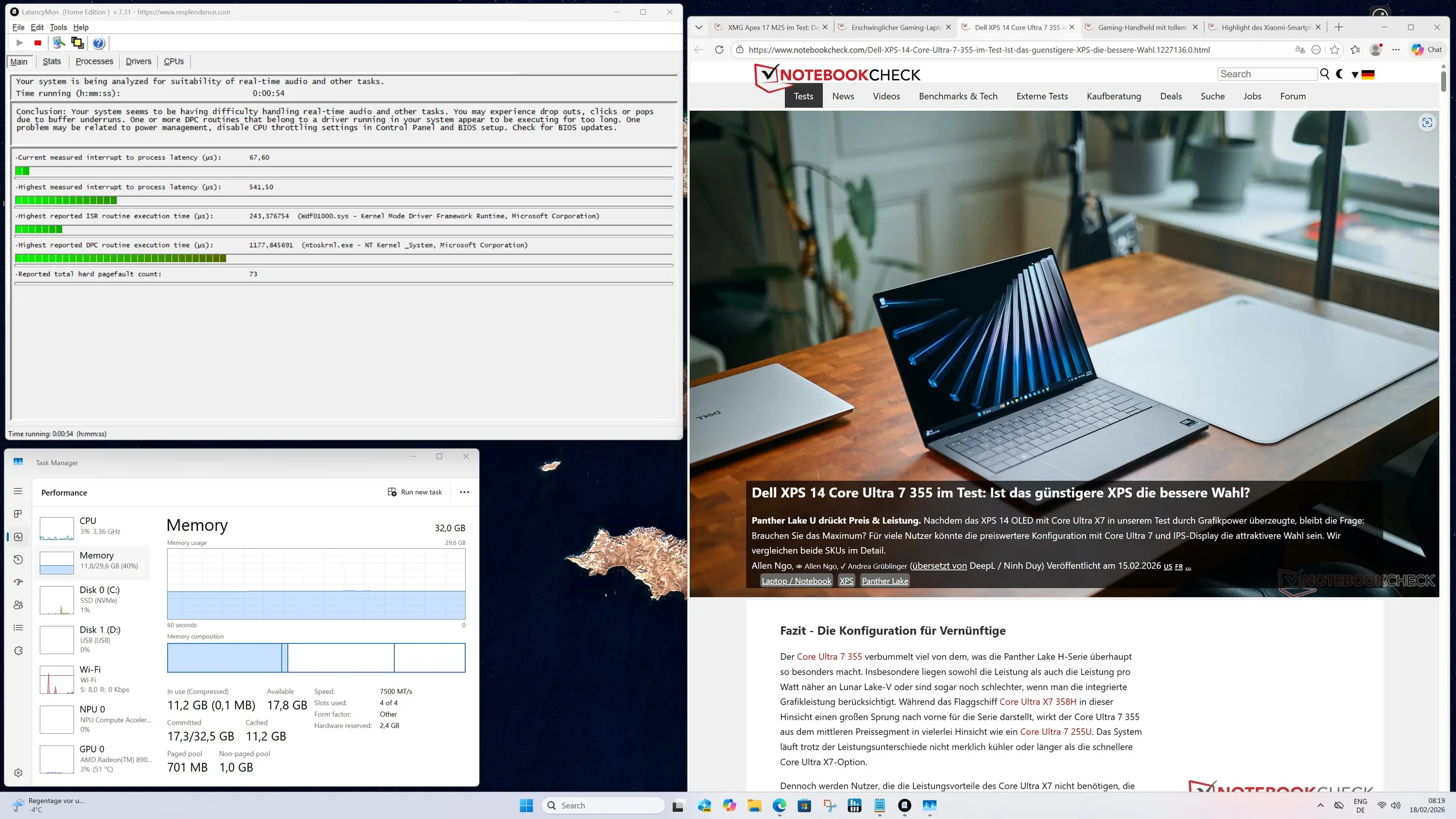

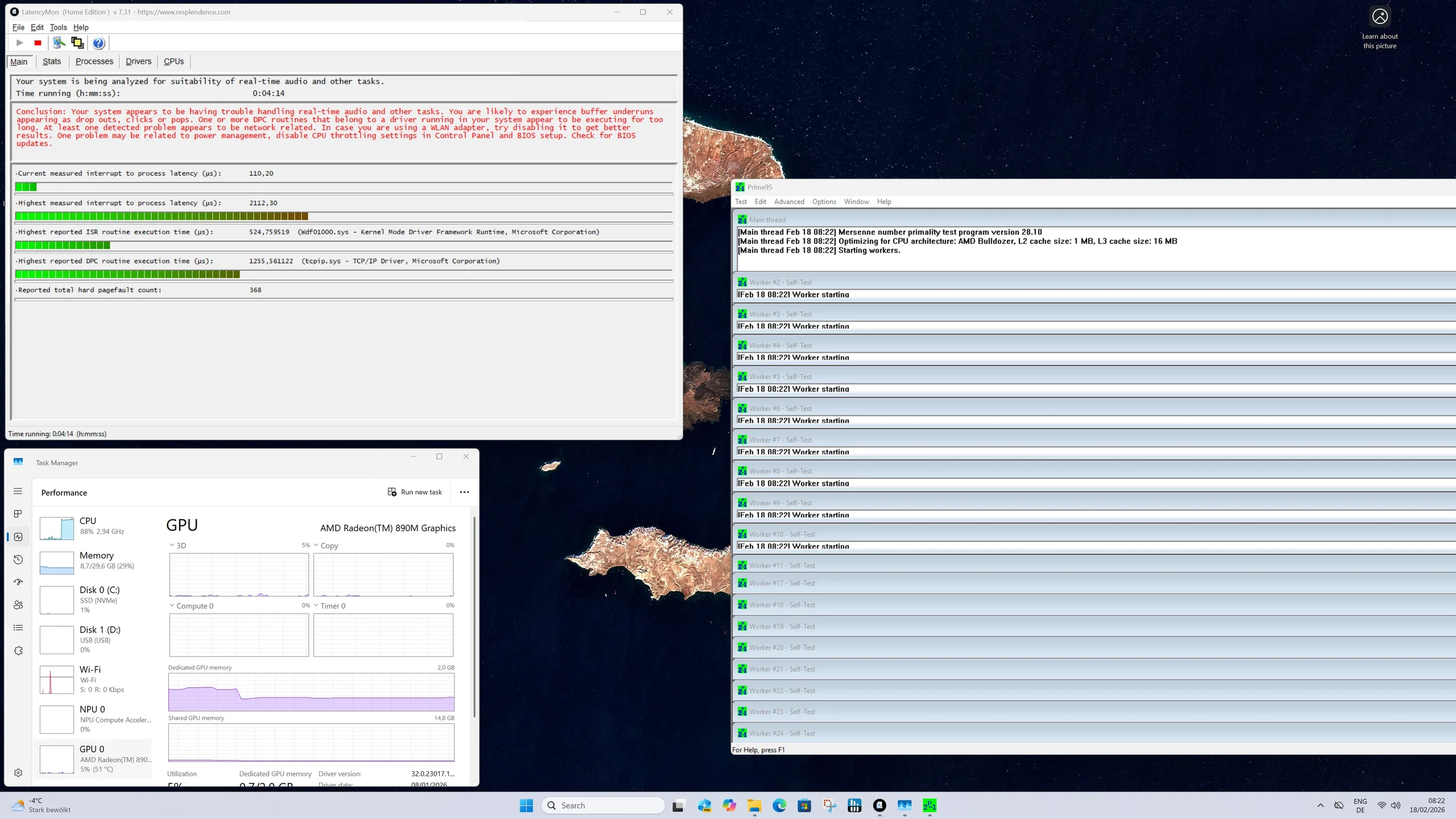

DPC latencies
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HA-4, R7 7840HS | |
| Peladn HO5, AI 9 HX 370 | |
| GMK EVO-T1 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Alliwava GH8, R9 8945HS | |
* ... smaller is better

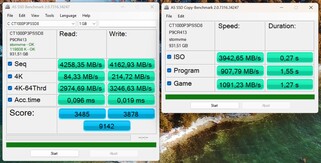

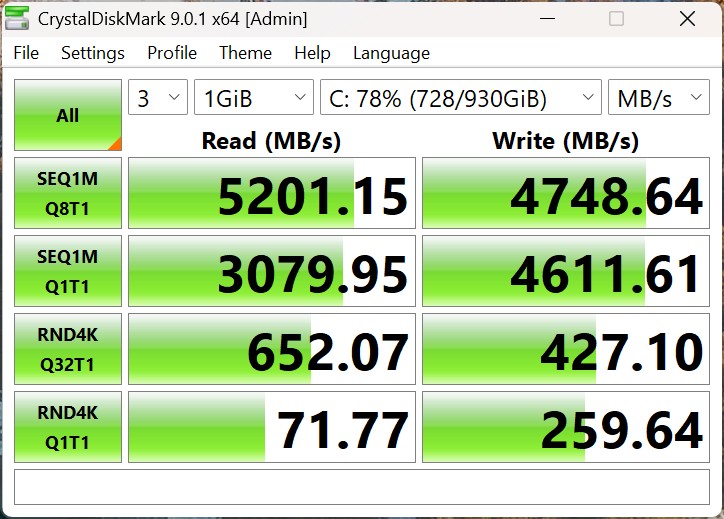

Storage devices
The Crucial P3 Plus with 1 TB storage capacity is used in the Peladn HO5. In the test, the SSD achieves high transfer rates and ensures short loading times, but is on a par with typical PCIe 4.0 models in terms of performance.
The Crucial P3 Plus uses QLC NAND and does not have a separate DRAM cache. In normal everyday operation, this is hardly noticeable, but slight fluctuations in performance can occur under sustained high load. However, the performance remains constant in the stress test thanks to cooling via the housing cover. The HO5 also allows an additional M.2 data carrier to be installed and the memory to be expanded flexibly.
| Drive Performance rating - Percent | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| Peladn HO5, AI 9 HX 370 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Average of class Mini PC | |
| Peladn HA-4, R7 7840HS | |
| Alliwava GH8, R9 8945HS | |
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
Graphics card and gaming performance

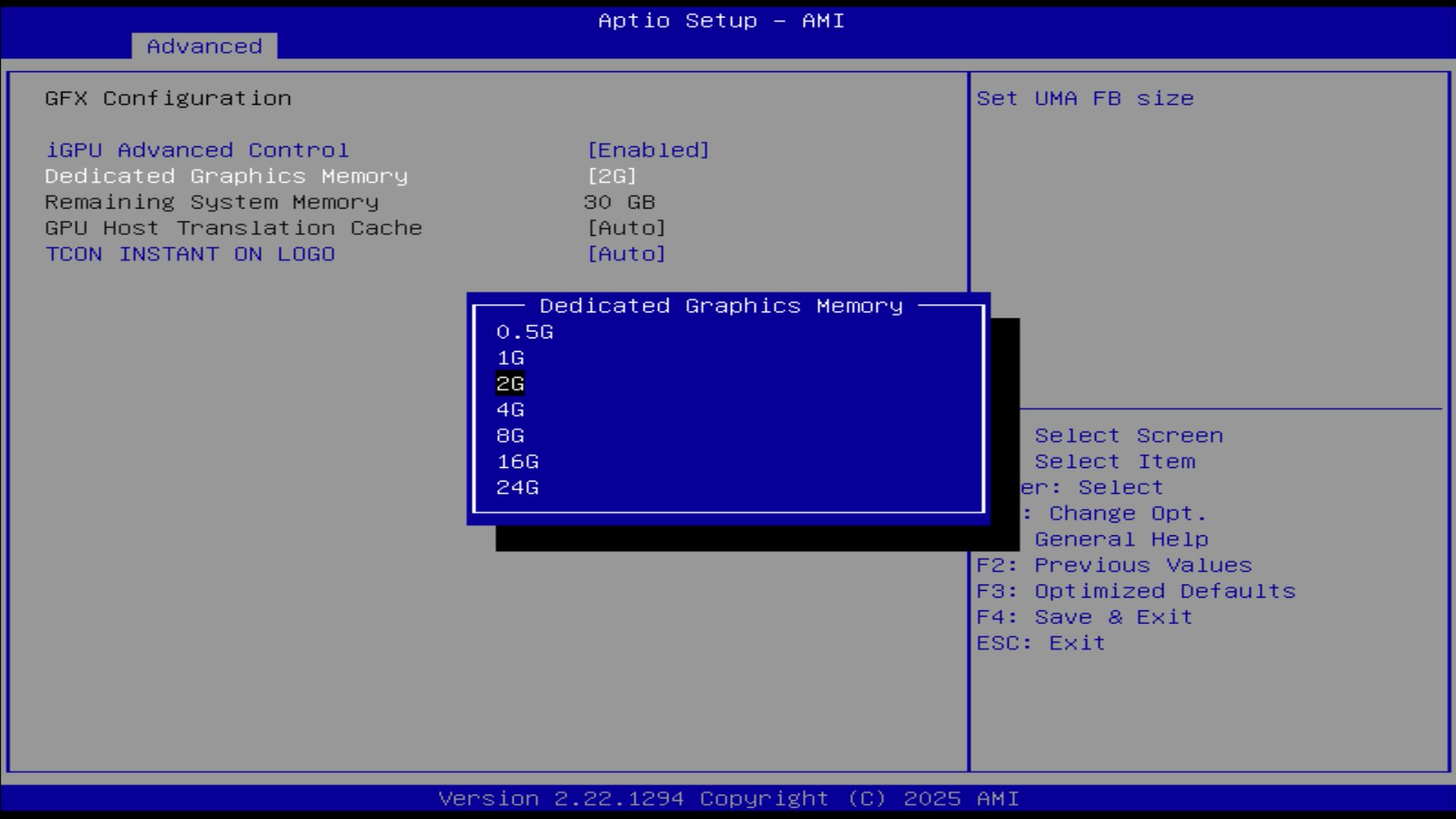

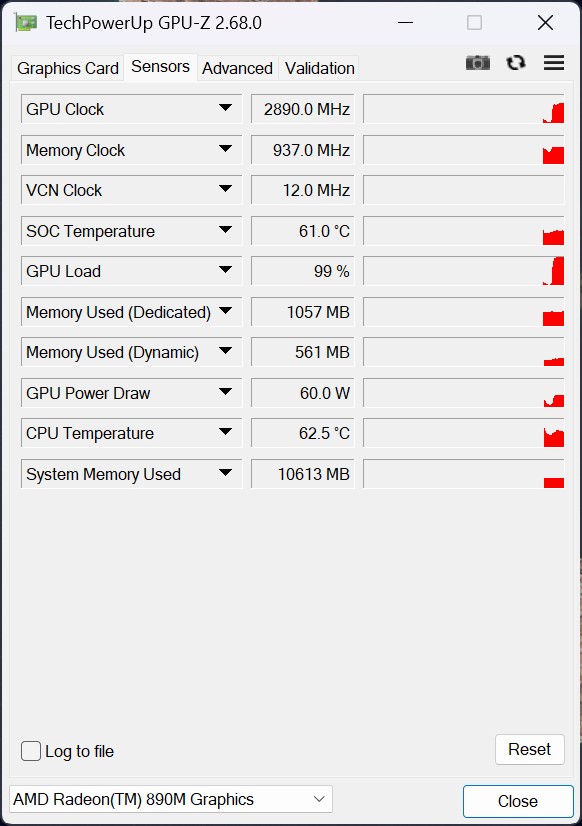

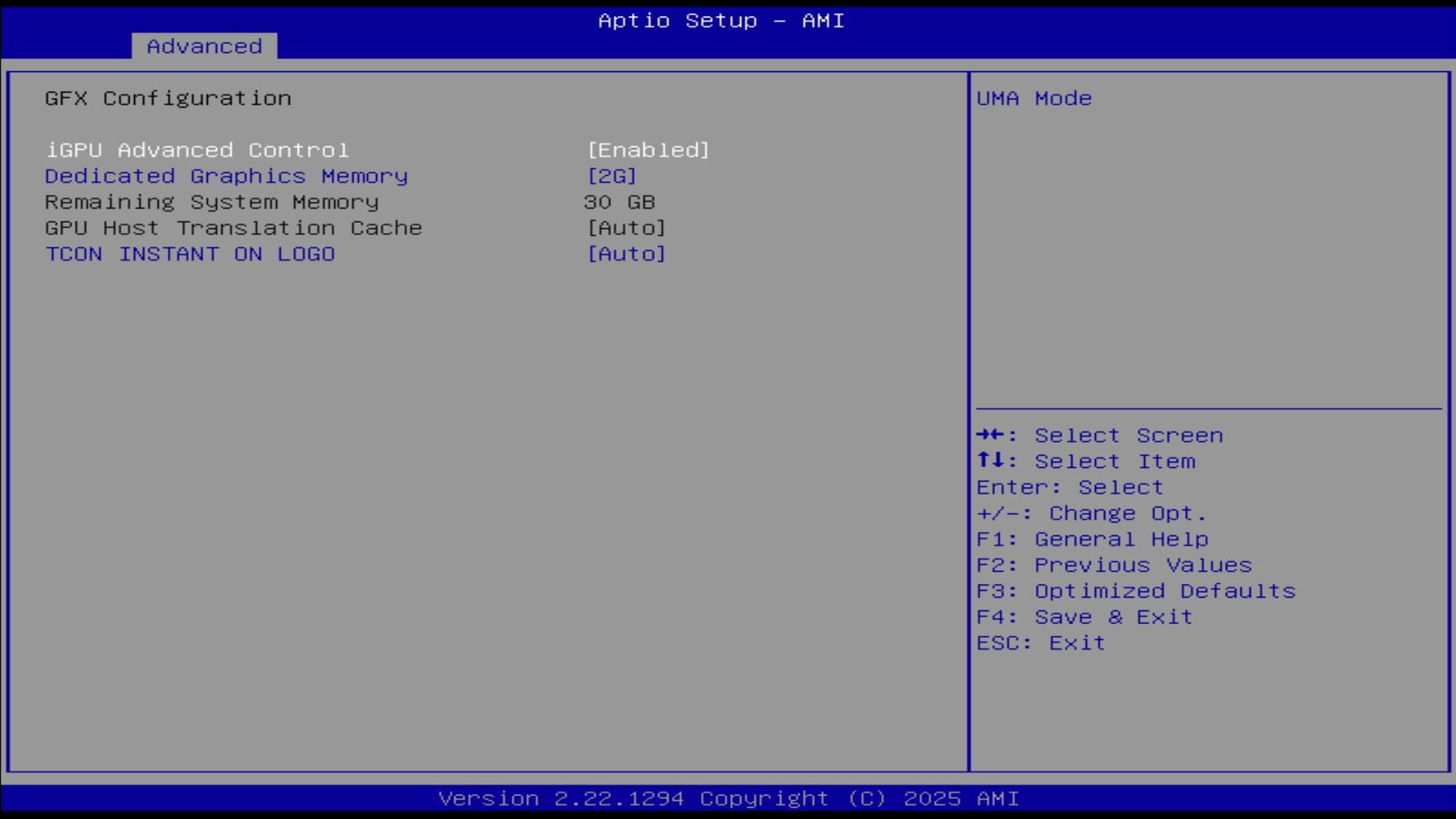

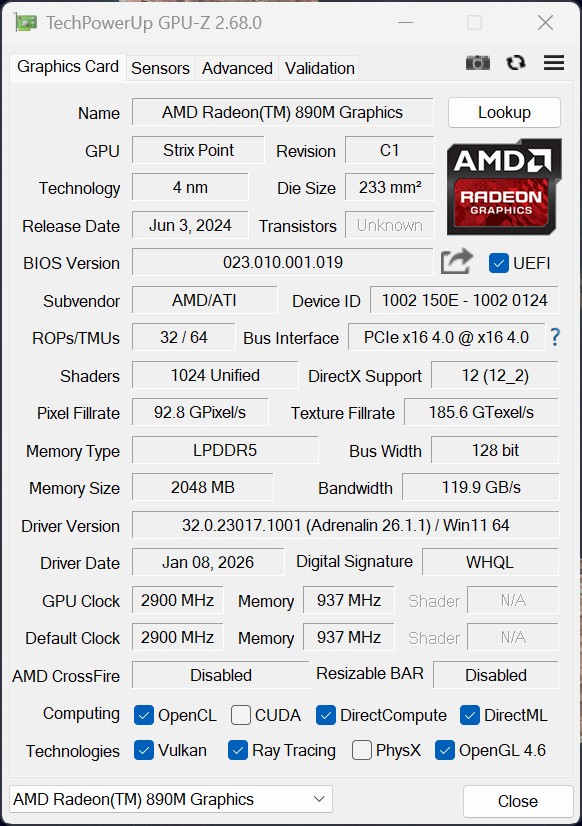

The Peladn HO5 is equipped with the integrated AMD Radeon 890M and therefore delivers very strong iGPU performance. The system achieves high scores in synthetic benchmarks and is positioned in the upper performance range of current Strix Point devices. At the same time, the AMD Radeon 890M is on a par with the Intel Arc Graphics 140T.
In the practical gaming tests, the Radeon 890M confirms its performance and enables smooth gaming in adjusted settings. Against the currently most powerful integrated graphics solution, the AMD Radeon 8060S - in Strix Halo-based systems, for example - the Radeon 890M is clearly beaten.
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
| SPECworkstation 4.0 / Graphics Score | |
| BOSGAME M5 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HO5, AI 9 HX 370 | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 | |
| Minisforum AI X1 Pro | |
| Peladn HA-4, R7 7840HS | |
| Alliwava GH8, R9 8945HS | |
| Geekom A7 Max, R9 7940HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| Asus NUC 15 Pro+ | |
| Minisforum MS-A2 | |
| SPECworkstation 4.0 / Accelerator Score | |
| BOSGAME M5 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Minisforum AI X1 Pro | |
| Geekom A9 Max, AI 9 HX 370 | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 | |
| Peladn HA-4, R7 7840HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HO5, AI 9 HX 370 | |
| Asus NUC 15 Pro+ | |
| GMK EVO-T1 | |
| Alliwava GH8, R9 8945HS | |
| Geekom A7 Max, R9 7940HS | |
| Minisforum MS-A2 | |
| SPECworkstation 4.0 / Viewport Graphics | |
| BOSGAME M5 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HO5, AI 9 HX 370 | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 | |
| Minisforum AI X1 Pro | |
| Peladn HA-4, R7 7840HS | |
| Alliwava GH8, R9 8945HS | |
| Geekom A7 Max, R9 7940HS | |
| Geekom Mini IT15, Ultra 9 285H | |
| GMK EVO-T1 | |
| Asus NUC 15 Pro+ | |
| Minisforum MS-A2 | |
| SPECworkstation 4.0 / HandBrake | |
| BOSGAME M5 | |
| Minisforum MS-A2 | |
| Minisforum AI X1 Pro | |
| Asus NUC 15 Pro+ | |
| GMK EVO-T1 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HO5, AI 9 HX 370 | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Peladn HA-4, R7 7840HS | |
| Alliwava GH8, R9 8945HS | |
| Geekom A7 Max, R9 7940HS | |
| SPECworkstation 4.0 / ONNX Inference | |
| BOSGAME M5 | |
| Minisforum AI X1 Pro | |
| GMK EVO-T1 | |
| Asus NUC 15 Pro+ | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Peladn HO5, AI 9 HX 370 | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 | |
| Minisforum MS-A2 | |
| Geekom Mini IT15, Ultra 9 285H | |
| Peladn HA-4, R7 7840HS | |
| Alliwava GH8, R9 8945HS | |
| Geekom A7 Max, R9 7940HS | |
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
| Peladn HO5, AI 9 HX 370, AMD Radeon 890M Ryzen AI 9 HX 370 | BOSGAME M5, AMD Radeon 8060S Ryzen AI Max+ 395 | Geekom A9 Max, AI 9 HX 370, AMD Radeon 890M Ryzen AI 9 HX 370 | Sapphire Edge AI, Ryzen AI 9 HX 370, AMD Radeon 890M Ryzen AI 9 HX 370 | Minisforum AI X1 Pro, AMD Radeon 890M Ryzen AI 9 HX 370 | Peladn HA-4, R7 7840HS, AMD Radeon 780M R7 7840HS | Alliwava GH8, R9 8945HS, AMD Radeon 780M R9 8945HS | Geekom Mini IT15, Ultra 9 285H, Intel Arc Graphics 140T Ultra 9 285H | Geekom A7 Max, R9 7940HS, AMD Radeon 780M R9 7940HS | GMK EVO-T1, Intel Arc Graphics 140T Ultra 9 285H | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | 230% | 1% | -9% | -13% | -21% | -38% | -47% | -47% | -54% | 37% | |
| 3840x2160 Medical (medical-03) (fps) | 25.9 | 90.1 248% | 26.1 1% | 24.4 -6% | 15.2 -41% | 16.3 -37% | 10.4 -60% | 7.08 -73% | 15.6 -40% | 7.02 -73% | 19.4 ? -25% |
| 3840x2160 Energy (energy-03) (fps) | 14.3 | 76 431% | 18 26% | 21.6 51% | 15.5 8% | 13.8 -3% | 8.17 -43% | 7.94 -44% | 11.6 -19% | 7.4 -48% | 29.9 ? 109% |
| 3840x2160 Creo (creo-03) (fps) | 38.2 | 96.2 152% | 36.2 -5% | 29 -24% | 34.1 -11% | 30 -21% | 24.5 -36% | 26.7 -30% | 17.4 -54% | 19.9 -48% | 45 ? 18% |
| 3840x2160 CATIA (catia-06) (fps) | 27.4 | 69.7 154% | 26 -5% | 19.1 -30% | 23.1 -16% | 23.5 -14% | 18.8 -31% | 14.6 -47% | 14.9 -46% | 12.8 -53% | 30.8 ? 12% |
| 3840x2160 3ds Max (3dsmax-07) (fps) | 25.7 | 73.6 186% | 25.2 -2% | 21.7 -16% | 21.9 -15% | 19.6 -24% | 17.7 -31% | 17.8 -31% | 10.3 -60% | 14.6 -43% | 45.9 ? 79% |
| 3840x2160 Siemens NX (snx-04) (fps) | 74.9 | 231 208% | 70.6 -6% | 62.1 -17% | 68.7 -8% | 59.9 -20% | 51.3 -32% | 6.81 -91% | 33.2 -56% | 6.13 -92% | 49.4 ? -34% |
| 3840x2160 Maya (maya-06) (fps) | 59.1 | 194 228% | 59.3 0% | 46.6 -21% | 55.9 -5% | 43.7 -26% | 38.9 -34% | 51.3 -13% | 25.9 -56% | 44.9 -24% | 119.1 ? 102% |
| 3DMark 05 Standard | 69353 points | |
| 3DMark 06 Standard Score | 48014 points | |
| 3DMark Vantage P Result | 46396 points | |
| 3DMark 11 Performance | 15767 points | |
| 3DMark Ice Storm Standard Score | 177011 points | |
| 3DMark Cloud Gate Standard Score | 40511 points | |
| 3DMark Fire Strike Score | 8919 points | |
| 3DMark Fire Strike Extreme Score | 4757 points | |
| 3DMark Time Spy Score | 3412 points | |
| 3DMark Steel Nomad Score | 359 points | |
Help | ||
30 min. Cyberpunk 2077 fps chart (1920 x 1080, Ultra preset, FSR off)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 175.8 | 167.6 | 81.5 | 33.1 |
| The Witcher 3 (2015) | 170.1 | 116.8 | 61.7 | 39.1 |
| Dota 2 Reborn (2015) | 168.1 | 143.6 | 98.7 | 93 |
| X-Plane 11.11 (2018) | 86.9 | 68 | 50.6 | |
| Strange Brigade (2018) | 198 | 81.9 | 67.3 | 54.2 |
| Baldur's Gate 3 (2023) | 51.3 | 40.1 | 32.8 | 32.7 |
| Cyberpunk 2077 (2023) | 50.4 | 40.4 | 28.9 | 24.9 |
| F1 24 (2024) | 94 | 94 | 61.2 | 15.8 |
Peladn HO5 performance check with an Nvidia GeForce RTX 4090 via OCuLink
The Peladn HO5 supports external graphics cards via OCuLink. Thanks to the high bandwidth, the graphics performance can be significantly increased. Our tests with a high-end GPU show a clear increase in performance for 3D applications and gaming.
| Performance rating - Percent | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 3DMark | |
| 2560x1440 Time Spy Graphics | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Fire Strike Graphics | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 3840x2160 Fire Strike Ultra Graphics | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Unigine Superposition | |
| 1280x720 720p Low | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| 1920x1080 1080p High | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| 1920x1080 1080p Extreme | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| 3840x2160 4k Optimized | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| 7680x4320 8k Optimized | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Unigine Heaven 4.0 | |
| Extreme Preset OpenGL | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Extreme Preset DX11 | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| ComputeMark v2.1 | |
| 1024x600 Normal, Score | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, Fluid 3DTex | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| 1024x600 Normal, Fluid 2DTexArr | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| 1024x600 Normal, Mandel Vector | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, Mandel Scalar | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| 1024x600 Normal, QJuliaRayTrace | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Performance rating - Percent | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Cyberpunk 2077 | |
| 1920x1080 Medium Preset (FSR off) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Ultra Preset (FSR off) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| 2560x1440 Ultra Preset (FSR off) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| 3840x2160 Ultra Preset (FSR off) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Baldur's Gate 3 | |
| 1920x1080 Low Preset AA:SM | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Medium Preset AA:T | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Ultra Preset AA:T | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 2560x1440 Ultra Preset AA:T | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 3840x2160 Ultra Preset AA:T | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Final Fantasy XV Benchmark | |
| 1280x720 Lite Quality | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 Standard Quality | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 1920x1080 High Quality | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 2560x1440 High Quality | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
| 3840x2160 High Quality | |
| Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) | |
| Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | |
| NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) | |
| Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) | |
| Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) | |
Ryzen AI 9 HX 370 | Peladn HO5, (Nvidia GeForce RTX 4090 @OCuLink) Ryzen AI 9 HX 370 | Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) R9 8945HS | Geekom Mini IT13 2025 Edition (Nvidia GeForce RTX 4090 @USB4) i9-13900HK | Geekom A8, R7 8745HS (Nvidia GeForce RTX 4090 @USB4) R7 8745HS | Sapphire Edge AI, Ryzen AI 9 HX 370 (Nvidia GeForce RTX 4090 @USB4) Ryzen AI 9 HX 370 | Minisforum AI X1, Ryzen 7 255 (Nvidia GeForce RTX 4090 @OCuLink) | NucBox M7 Ultra, (Nvidia GeForce RTX 4090 @OCuLink) R7 PRO 6850U | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | 354% | 407% | 92% | 339% | 326% | 405% | 335% | 37% | |
| 3840x2160 Medical (medical-03) (fps) | 25.9 | 42.3 63% | 43.4 68% | 33.2 28% | 42 62% | 41.5 60% | 43 66% | 42.7 65% | 19.4 ? -25% |
| 3840x2160 Energy (energy-03) (fps) | 14.3 | 91.6 541% | 141 886% | 86.8 507% | 139 872% | 136 851% | 139 872% | 92.2 545% | 29.9 ? 109% |
| 3840x2160 Creo (creo-03) (fps) | 38.2 | 120 214% | 120 214% | 37.3 -2% | 115 201% | 111 191% | 117 206% | 96.2 152% | 45 ? 18% |
| 3840x2160 CATIA (catia-06) (fps) | 27.4 | 85.9 214% | 84.3 208% | 42.6 55% | 84 207% | 84.6 209% | 85.1 211% | 79.3 189% | 30.8 ? 12% |
| 3840x2160 3ds Max (3dsmax-07) (fps) | 25.7 | 204 694% | 208 709% | 55.6 116% | 152 491% | 145 464% | 209 713% | 203 690% | 45.9 ? 79% |
| 3840x2160 Siemens NX (snx-04) (fps) | 74.9 | 39.9 -47% | 39.5 -47% | 19.6 -74% | 32 -57% | 33.5 -55% | 38.2 -49% | 36.8 -51% | 49.4 ? -34% |
| 3840x2160 Maya (maya-06) (fps) | 59.1 | 533 802% | 539 812% | 66 12% | 412 597% | 392 563% | 542 817% | 506 756% | 119.1 ? 102% |
| low | med. | high | ultra | QHD | 4K | |
|---|---|---|---|---|---|---|
| The Witcher 3 (2015) | 429 | 401 | 384 | 264 | 237 | 268 |
| Dota 2 Reborn (2015) | 187.3 | 161 | 153.1 | 142.2 | 140.6 | |
| Final Fantasy XV Benchmark (2018) | 192.8 | 187 | 159 | 159.3 | 141.6 | |
| X-Plane 11.11 (2018) | 77.4 | 76.8 | 61 | 66.4 | ||
| Baldur's Gate 3 (2023) | 189.6 | 182.7 | 175.6 | 173.9 | 173.5 | 131.4 |
| Cyberpunk 2077 (2023) | 129.4 | 127.1 | 120.3 | 116.2 | 114.1 | 74.7 |
| F1 24 (2024) | 218 | 241 | 233 | 137.2 | 139 | 87.1 |
Emissions
System noise
The measured values for noise development are positive overall and are lower than those of many comparable devices. However, completely silent operation is not achieved. The fan reacts quite spontaneously to load changes and revs up quickly, making the background noise clearly audible at times. A finer tuning of the fan curve would be desirable here.
Under full load, we measured just under 40 dB(A), which is comparatively quiet from an objective point of view. However, due to the rather high frequency characteristics, the operating noise is subjectively perceived as somewhat more present.
Noise level
| Idle |
| 29.8 / 29.8 / 29.9 dB(A) |
| Load |
| 39.3 / 39.5 dB(A) |
![]() | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: | ||
| Peladn HO5, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M | Geekom A9 Max, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M | Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T | GMK EVO-T1 Ultra 9 285H, Arc 140T | Alliwava GH8, R9 8945HS R9 8945HS, Radeon 780M | Peladn HA-4, R7 7840HS R7 7840HS, Radeon 780M | |
|---|---|---|---|---|---|---|
| Noise | -11% | -16% | -26% | -8% | -6% | |
| off / environment * (dB) | 24.9 | 24.8 -0% | 24.3 2% | 24.7 1% | 25 -0% | 24.8 -0% |
| Idle Minimum * (dB) | 29.8 | 25.4 15% | 33.7 -13% | 38.7 -30% | 27.2 9% | 28.5 4% |
| Idle Average * (dB) | 29.8 | 25.4 15% | 33.7 -13% | 38.8 -30% | 27.2 9% | 29.1 2% |
| Idle Maximum * (dB) | 29.9 | 25.5 15% | 33.8 -13% | 38.9 -30% | 27.3 9% | 29.2 2% |
| Load Average * (dB) | 39.3 | 49.8 -27% | 47.6 -21% | 51.6 -31% | 45.5 -16% | 39.6 -1% |
| Witcher 3 ultra * (dB) | 35.4 | 49.7 -40% | 38.7 -9% | 44.9 -27% | 42.3 -19% | |
| Cyberpunk 2077 ultra * (dB) | 35.3 | 49.6 -41% | 47.7 -35% | 52 -47% | 45.5 -29% | 44.1 -25% |
| Load Maximum * (dB) | 39.5 | 49.8 -26% | 47.9 -21% | 51.6 -31% | 45.4 -15% | 42.3 -7% |
* ... smaller is better

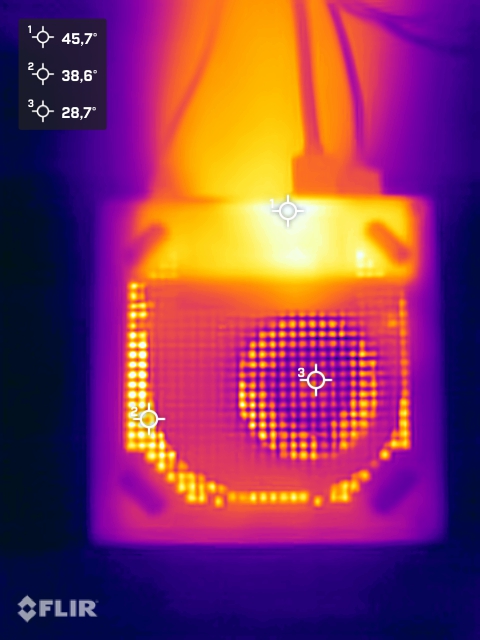

Temperature
The Peladn HO5 remains thermally inconspicuous and operates in uncritical temperature ranges both in idle and under load. The underside heats up a little more due to the design. We measured a maximum of 74.8 °C in the stress test and just under 84 °C in the Cinebench R15 multi-loop for a short time.
(+) The maximum temperature on the upper side is 33.6 °C / 92 F, compared to the average of 35.8 °C / 96 F, ranging from 20.6 to 69.5 °C for the class Mini PC.
(±) The bottom heats up to a maximum of 41.8 °C / 107 F, compared to the average of 36.3 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 26.1 °C / 79 F, compared to the device average of 32.3 °C / 90 F.
(+) 3: The average temperature for the upper side is 31.4 °C / 89 F, compared to the average of 32.3 °C / 90 F for the class Mini PC.
Energy management
In the test, the Peladn HO5 proved to be an extremely efficient system. Even in idle mode, the power consumption remains at a low level. Under full load, we measured an average of around 57 watts, while short-term load peaks can approach the 74 watt mark. The 120 watt power supply unit is sufficiently dimensioned for these performance values and offers enough reserves for short-term load peaks.
| Off / Standby | |
| Idle | |
| Load |
|
Key:
min: | |
| Peladn HO5, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M | Geekom A9 Max, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M | Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T | GMK EVO-T1 Ultra 9 285H, Arc 140T | Alliwava GH8, R9 8945HS R9 8945HS, Radeon 780M | Peladn HA-4, R7 7840HS R7 7840HS, Radeon 780M | Average AMD Radeon 890M | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -18% | -9% | -55% | -47% | -56% | -41% | -103% | |
| Idle Minimum * (Watt) | 3.2 | 2.4 25% | 3.8 -19% | 6.1 -91% | 6.5 -103% | 6.8 -113% | 5.72 ? -79% | 9.2 ? -187% |
| Idle Average * (Watt) | 4.6 | 4.6 -0% | 5.2 -13% | 7.9 -72% | 8.9 -93% | 9.7 -111% | 7.96 ? -73% | 11.4 ? -148% |
| Idle Maximum * (Watt) | 6.9 | 9.2 -33% | 8.4 -22% | 13.2 -91% | 10.7 -55% | 13.5 -96% | 9.5 ? -38% | 14.9 ? -116% |
| Load Average * (Watt) | 57.3 | 78.4 -37% | 50.1 13% | 60.7 -6% | 60.3 -5% | 62.5 -9% | 63.5 ? -11% | 65.2 ? -14% |
| Cyberpunk 2077 ultra external monitor * (Watt) | 59.5 | 77.8 -31% | 51.6 13% | 67.4 -13% | 68.4 -15% | 65.6 -10% | ||
| Load Maximum * (Watt) | 73.8 | 95.1 -29% | 91.9 -25% | 117.1 -59% | 82 -11% | 70.8 4% | 77.5 ? -5% | 112.4 ? -52% |
* ... smaller is better
Power efficiency
Power consumption - external monitor
Power consumption - external monitor
Notebookcheck rating
Peladn HO5, AI 9 HX 370
- 02/20/2026 v8
Sebastian Bade
Possible alternatives in comparison
Image | Model / Review | Price | Weight | Dimensions |
|---|---|---|---|---|
| Peladn HO5, AI 9 HX 370 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 1024 GB SSD | Amazon: List Price: 899€ | 575 g | 129 x 129 x 54 mm | |
| Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 2048 GB SSD | Amazon: List Price: 999€ | 709 g | 132 x 135 x 46.9 mm | |
| Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 32 GB Memory, 2048 GB SSD | Amazon: List Price: 1099€ | 595 g | 112 x 117 x 49.2 mm | |
| GMK EVO-T1 Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 64 GB Memory, 1024 GB SSD | Amazon: List Price: 999€ | 946 g | 151 x 154 x 73.6 mm | |
| Alliwava GH8, R9 8945HS AMD Ryzen 9 8945HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory | List Price: 769€ | 516 g | 127 x 130 x 50 mm | |
| Peladn HA-4, R7 7840HS AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ , 1024 GB SSD | List Price: 439€ | 965 g | 128 x 136 x 52 mm |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
