Verdict - Geekom A7 Max Mini-PC with Ryzen 9 7940HS: Performance that still convinces
The Geekom A7 Max presents itself as a powerful mini PC based on the AMD Ryzen 9 7940HS in combination with the AMD Radeon 780M iGPU. With 16 GB of RAM and a 1 TB SSD, it offers a solid foundation for demanding applications. The mini PC also offers scope for upgrading the device at a later date. However, the configuration with a RAM module is still disadvantageous, as can be seen from the 3D performance in our review. The extensive connectivity sets it apart positively from many other mini PCs. Limitations arise from the larger housing and the lack of an OCuLink interface, which means that models such as the Minisforum EliteMini UM890 Pro are more flexible in this respect. The workmanship and design are of a high standard and are among the strengths of the A7 Max.
As is typical for mini PCs, the Geekom A7 Max is also energy-efficient overall and is content with low-power consumption in everyday use. The system remains pleasantly quiet in idle mode, but the fan is clearly audible under load. A circumstance that we are already familiar with from the Geekom A8 Max or the Geekom A9 Max. A better-tuned fan control would give the device a better overall result. Unfortunately, Geekom again loses this advantage with the A7 Max.
Pros
Cons
Price and availability
With the Geekom A7 Max, the manufacturer is clearly targeting demanding users. Equipped with the AMD Ryzen 9 7940HS with 8 cores and 16 threads, the compact mini PC promises high computing power in a small housing. This means that the A7 Max is not only up against strong competition from Minisforum and the like, but also has to hold its own within Geekom's own lineup.
Specifications

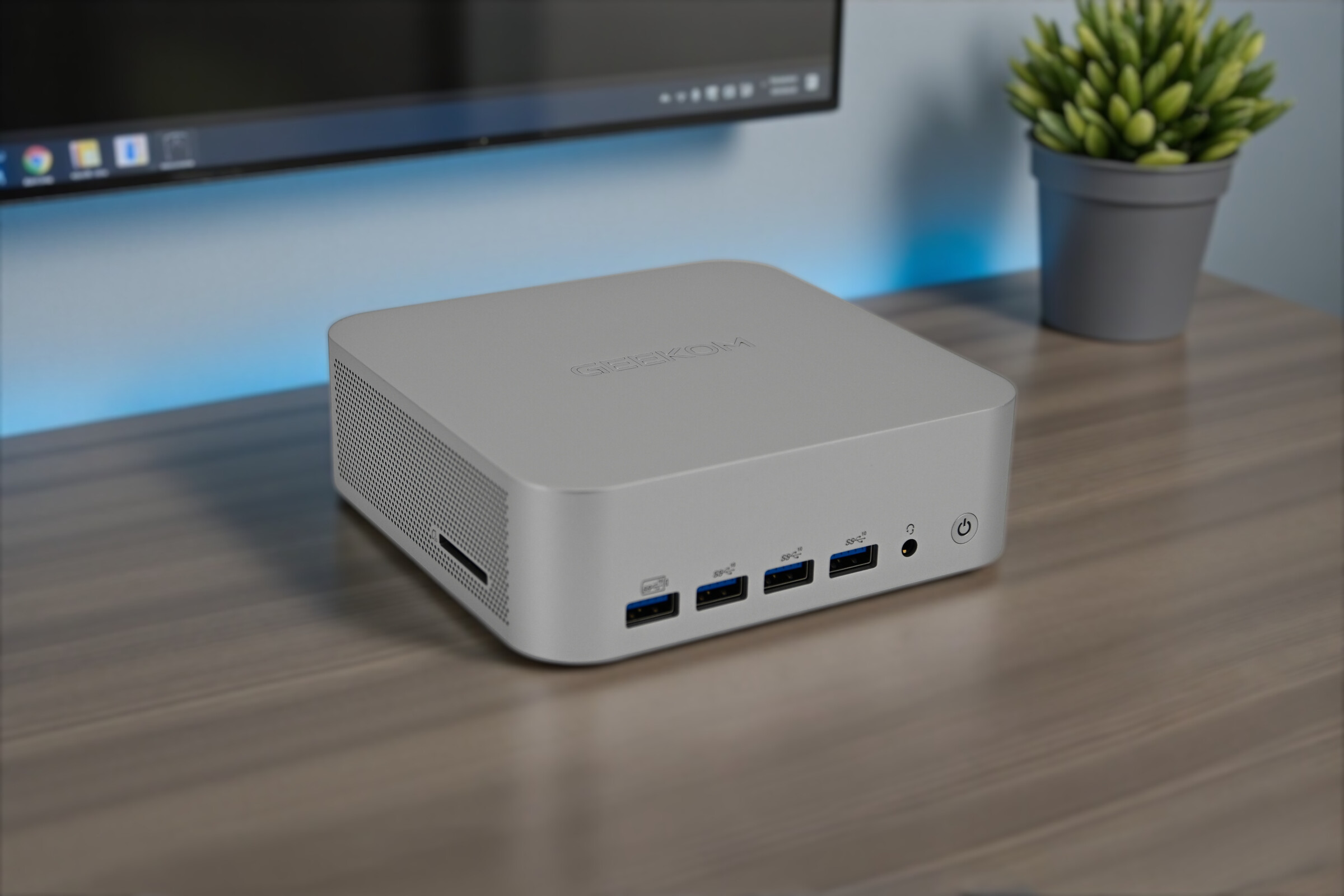

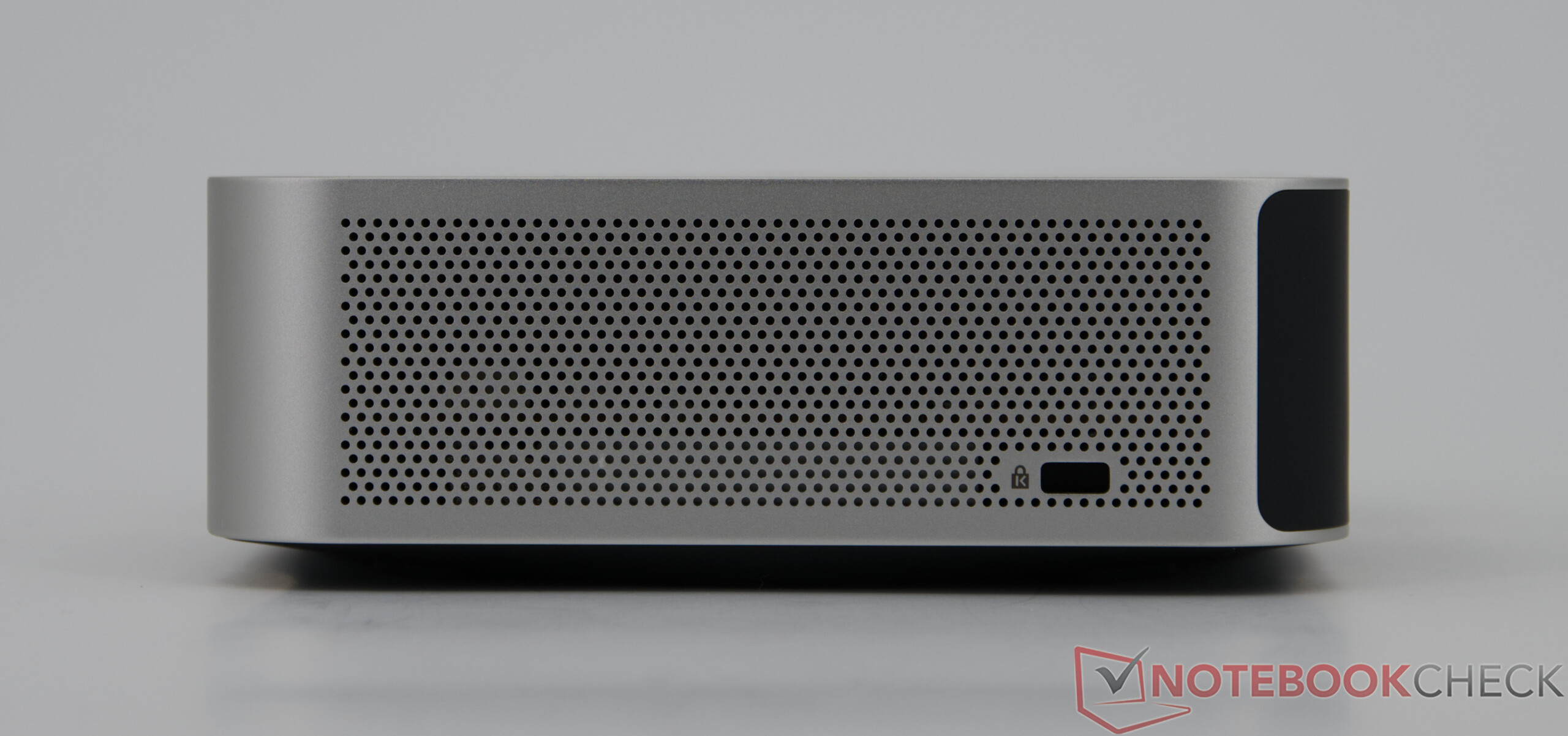

Case & Connectivity

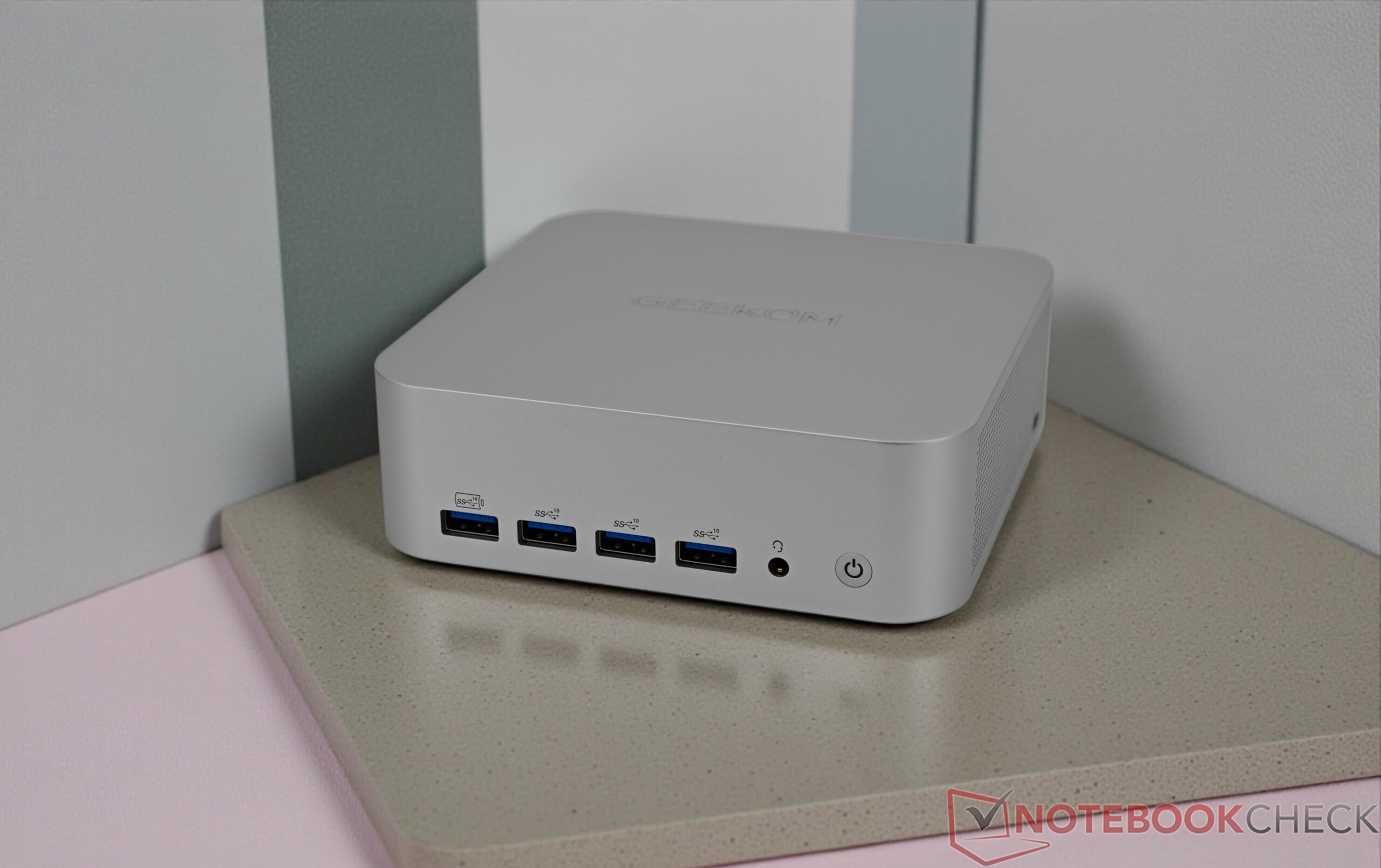

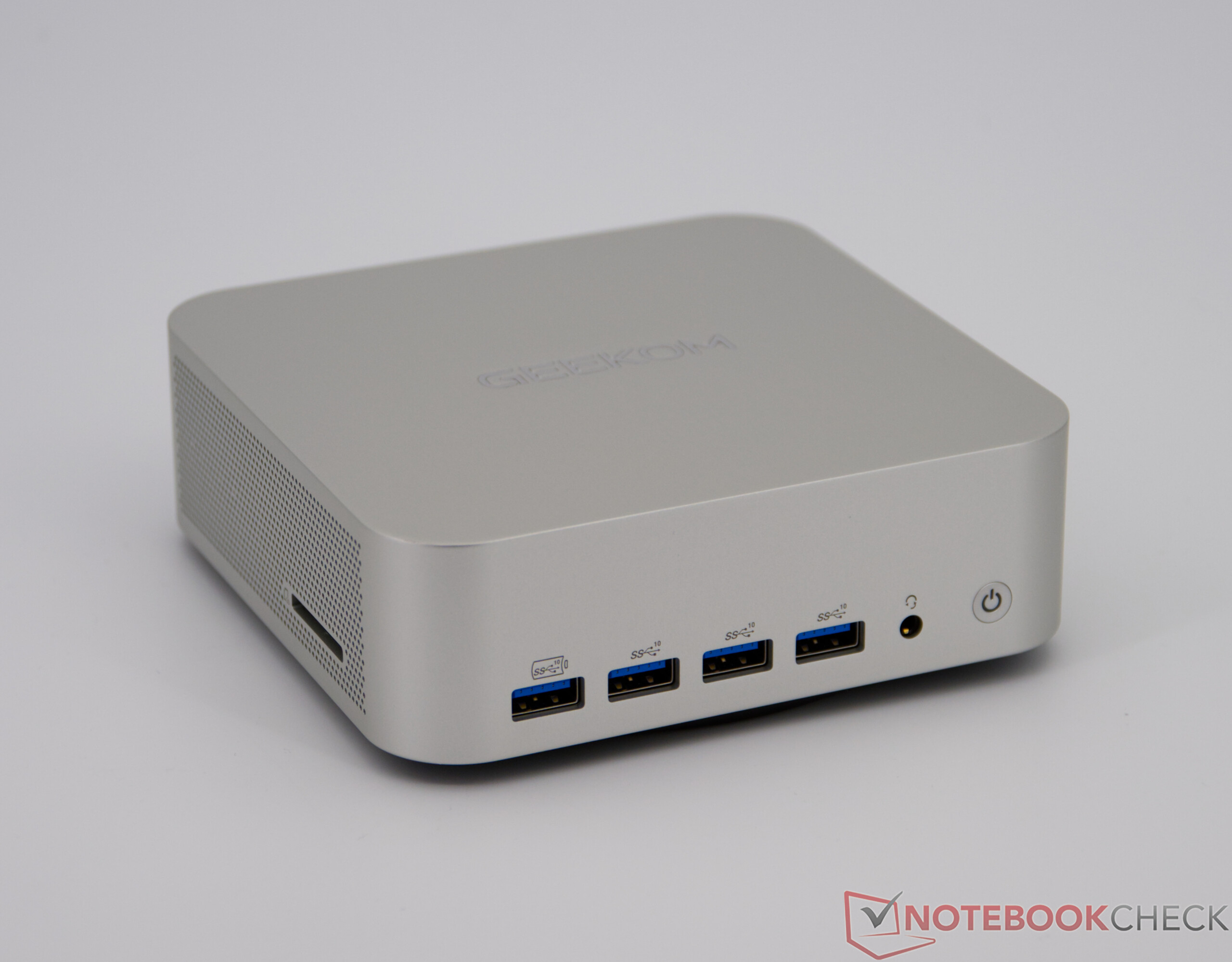

The Geekom A7 Max uses the same, larger housing as the A8 Max or the A9 Max, clearly distinguishing it from earlier models. Nevertheless, Geekom has opted for the frequently used aluminum housing, which means that all the advantages and disadvantages remain the same. The workmanship is of high quality and corresponds to the price range. With a weight of around 681 grams, the Mini-PC remains lighter than some competitor models despite its size, while the compact 256-gram power supply unit is hardly noticeable.

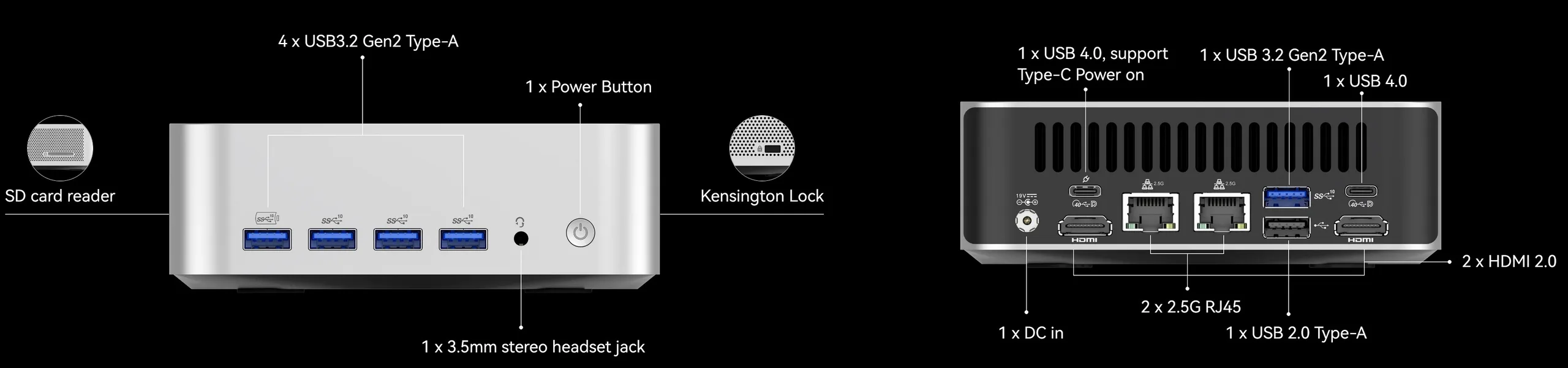

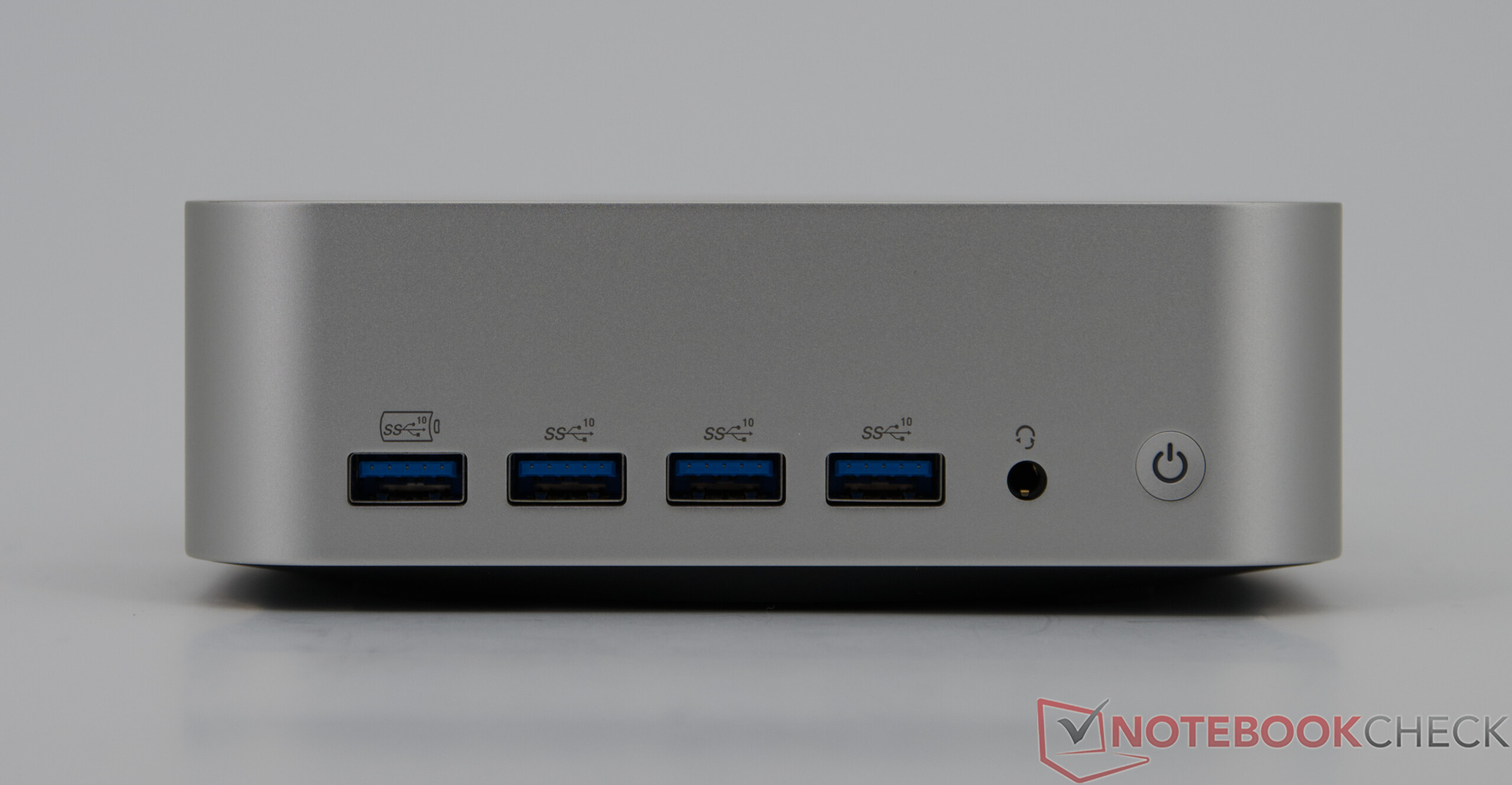

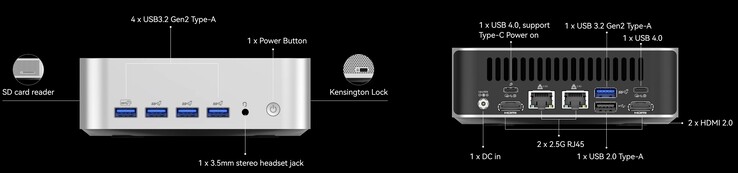

The generously sized housing allows for an extensive range of connections: a total of six USB-A ports are available, four of which are at the front, supplemented by two USB4 ports at the rear and two HDMI outputs. This allows up to four monitors to be operated simultaneously. A fast SD card reader on the side completes the equipment, while USB4 enables high data rates, as external SSDs impressively demonstrate.
USB4 Performance
| Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB) | |
| GMK NucBox M6 Ultra | |
| Geekom A8 Max, R7 8845HS | |
| Geekom A7 Max, R9 7940HS | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Average of class Mini PC (423 - 3906, n=35, last 2 years) | |
| Minisforum EliteMini UM890 Pro | |
| GMK NucBox M3 Ultra | |
SD card reader
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Geekom A7 Max, R9 7940HS (AV Pro SD microSD 128 GB V60) | |
| Geekom A8 Max, R7 8845HS (AV Pro SD microSD 128 GB V60) | |
| Geekom A9 Max, AI 9 HX 370 (AV Pro SD microSD 128 GB V60) | |
| Average of class Mini PC (15.1 - 214, n=25, last 2 years) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Geekom A8 Max, R7 8845HS (AV Pro SD microSD 128 GB V60) | |
| Geekom A7 Max, R9 7940HS (AV Pro SD microSD 128 GB V60) | |
| Geekom A9 Max, AI 9 HX 370 (AV Pro SD microSD 128 GB V60) | |
| Average of class Mini PC (20.8 - 250, n=25, last 2 years) | |

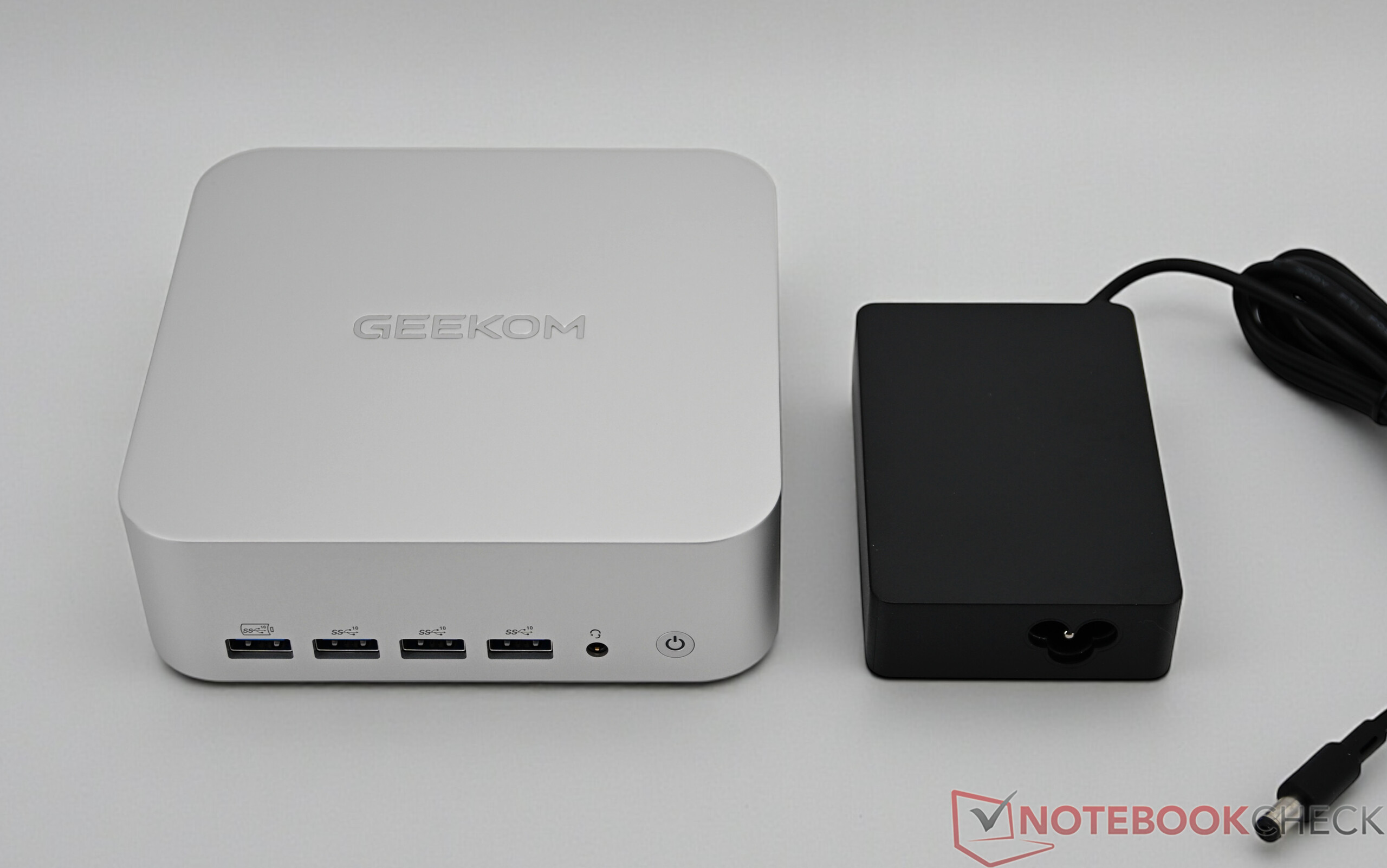

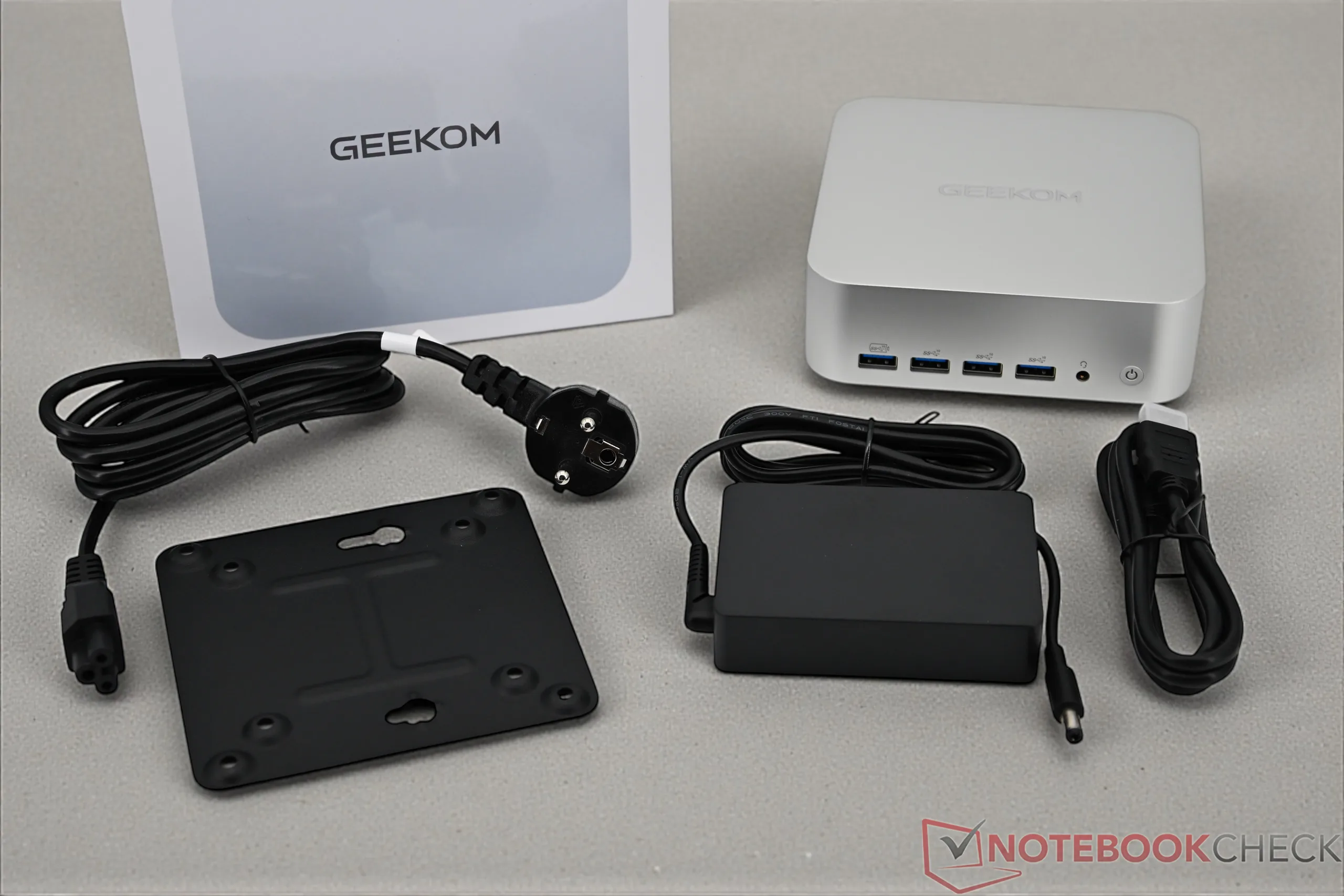

Accessories
The box of the Geekom A7 Max contains an HDMI cable and a VESA mount in addition to the 120 watt power supply unit. A short manual completes the scope of delivery and explains the available connections as well as the installation of RAM and mass storage.

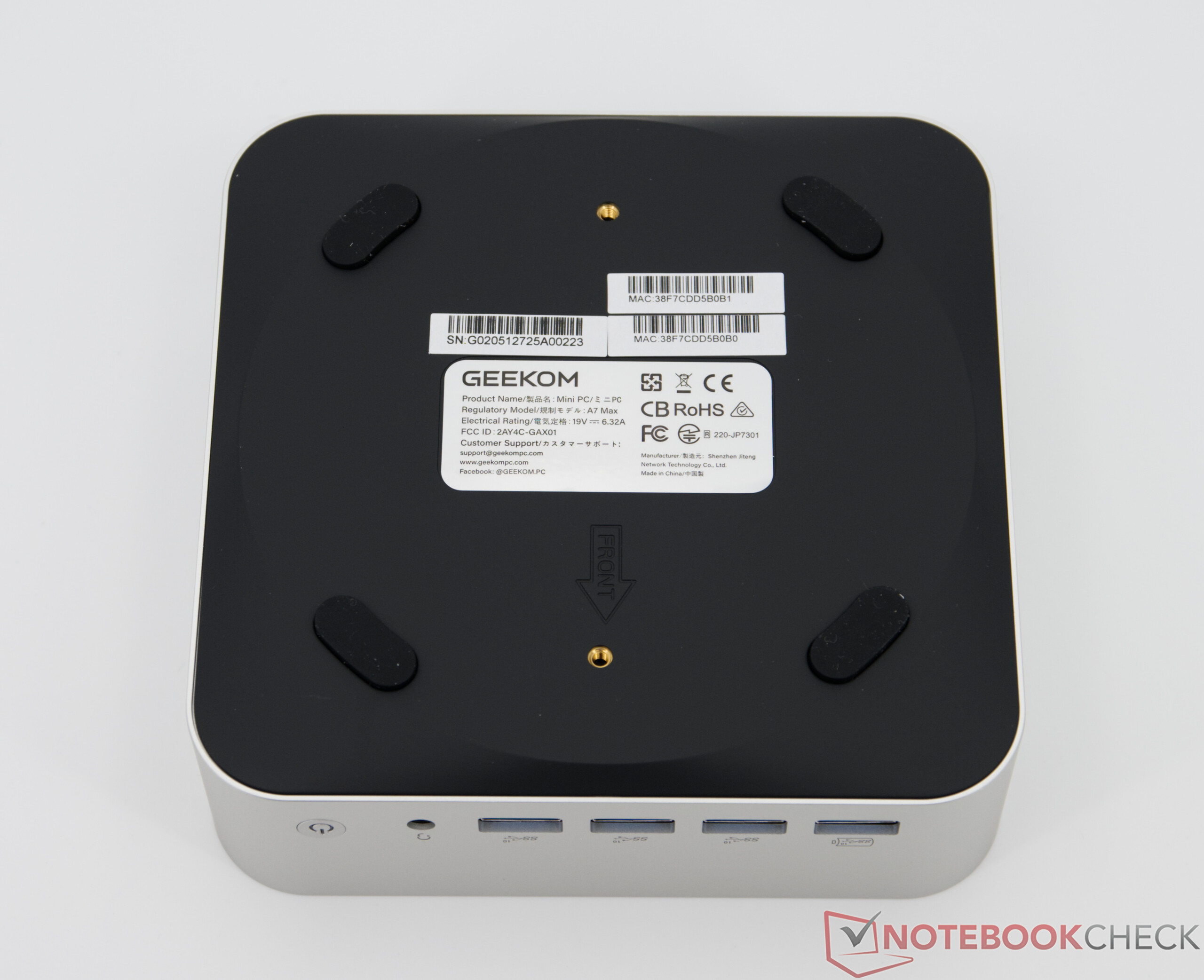

Maintenance

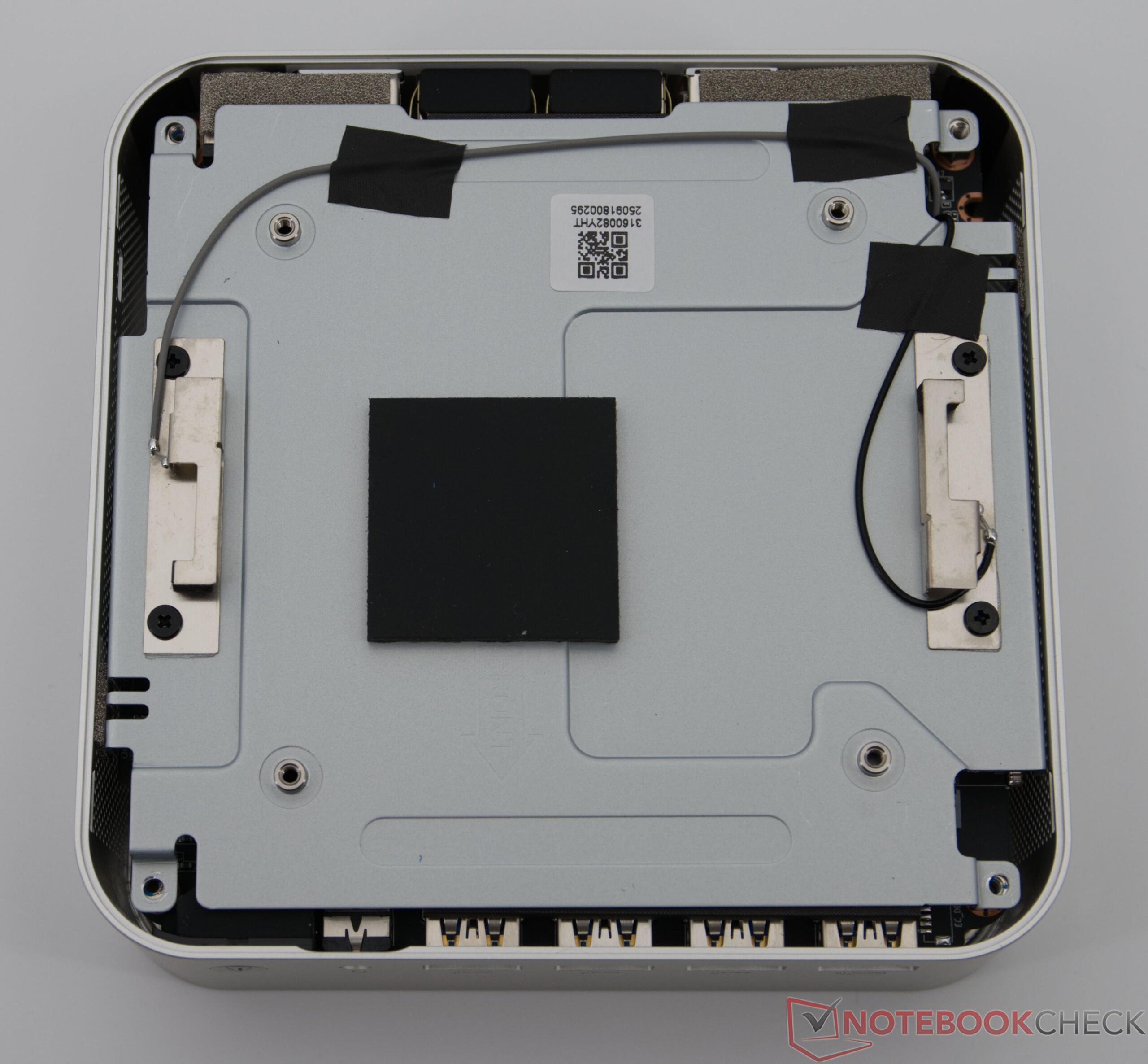

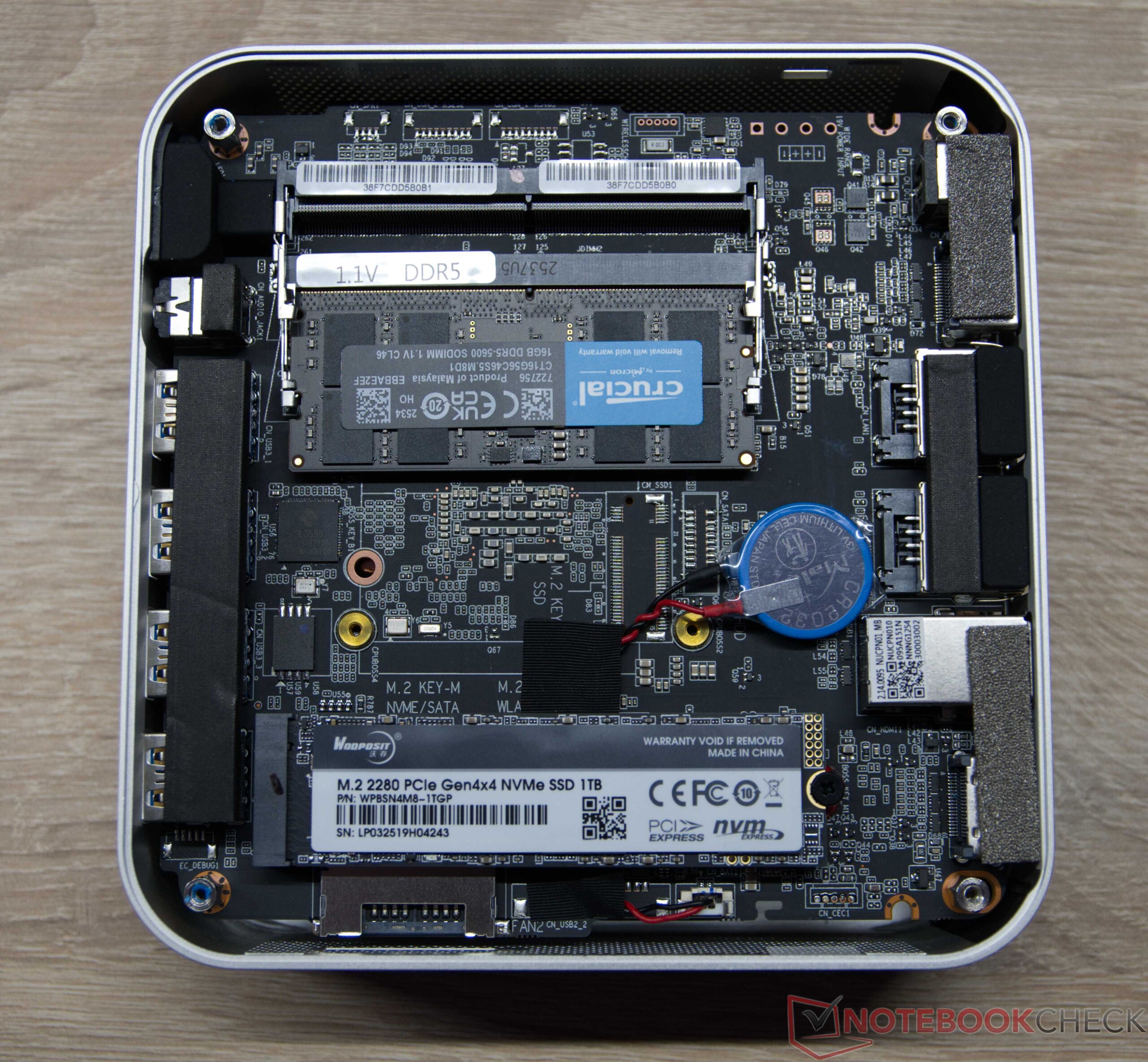

The Geekom A7 Max is delivered from the factory with RAM and SSD installed and is immediately ready for use. The housing can be opened for users who need to upgrade. The RAM, mass storage, and WLAN module are easily accessible and replaceable. However, you should be careful when opening it due to the short WLAN antenna cable.
Sustainability
The Geekom A7 Max is only repair-friendly to a limited extent, but offers a 36-month warranty. The compact packaging makes transportation easier, while Geekom emphasizes the low energy consumption when it comes to sustainability.
Performance
Test conditions

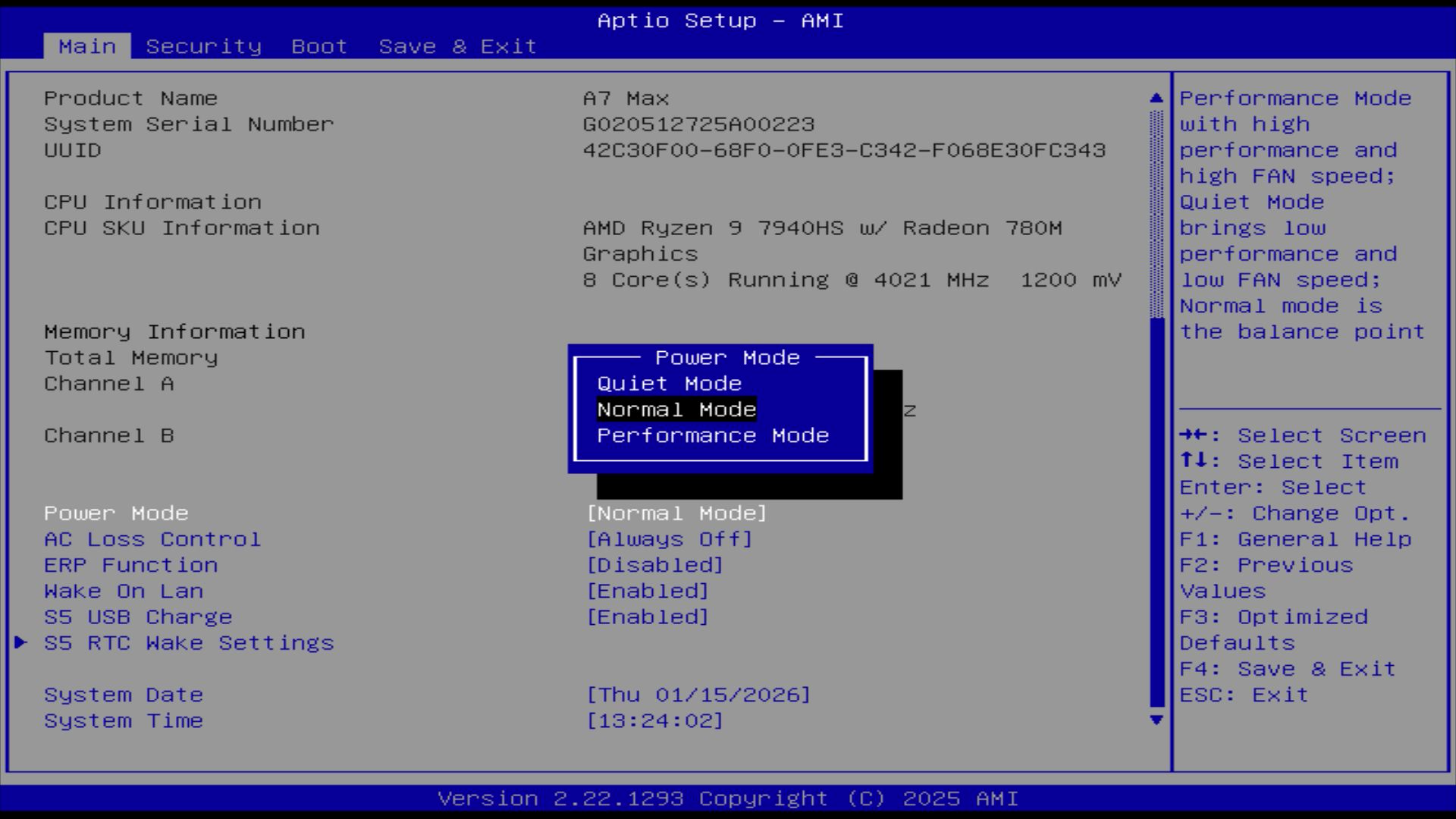

All measurements were carried out with the Geekom A7 Max in the delivery state (Normal Mode). Although the performance mode available in the BIOS increases the fan speed and performance, it is accompanied by a significantly higher noise level under load.

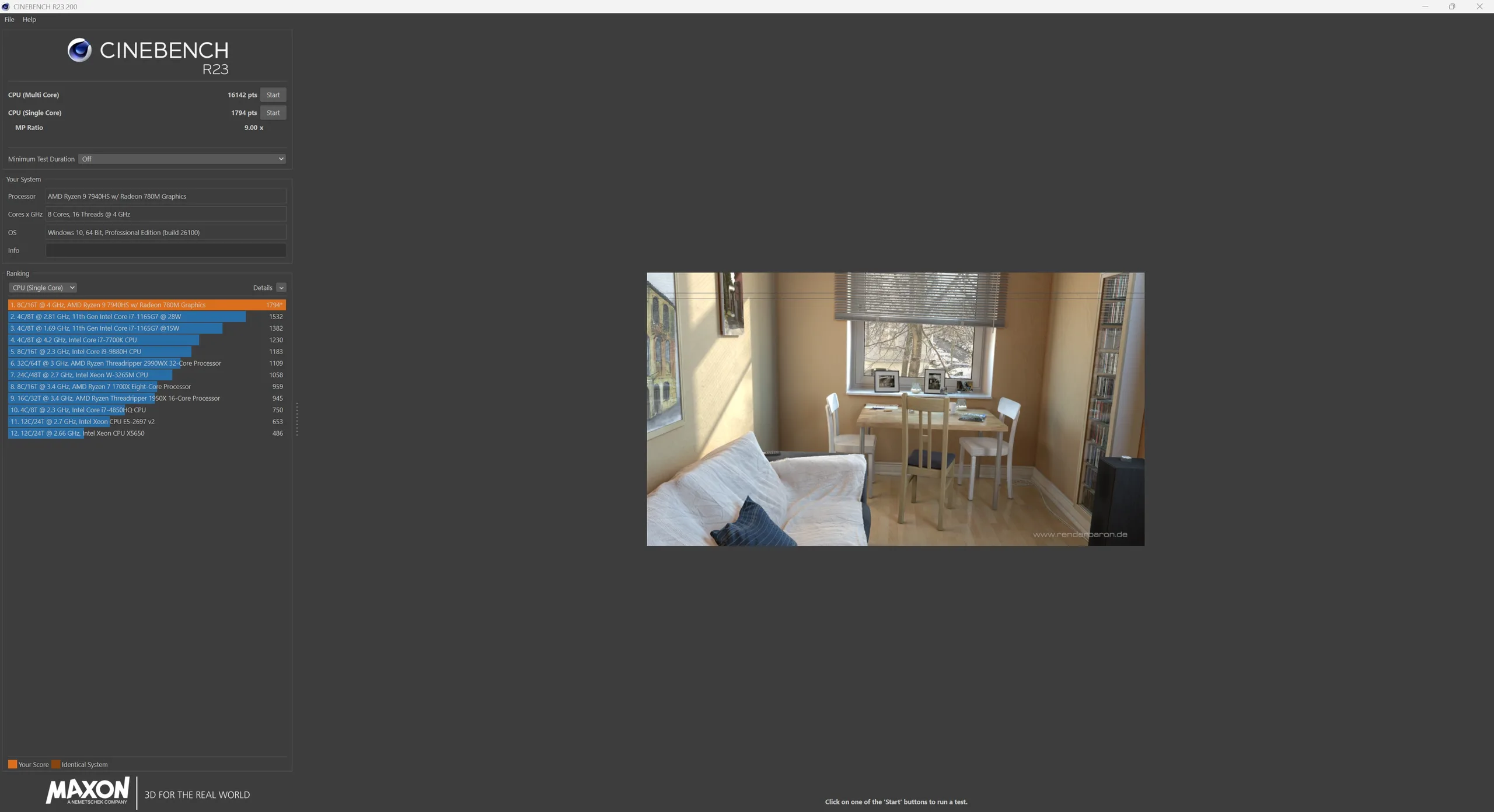

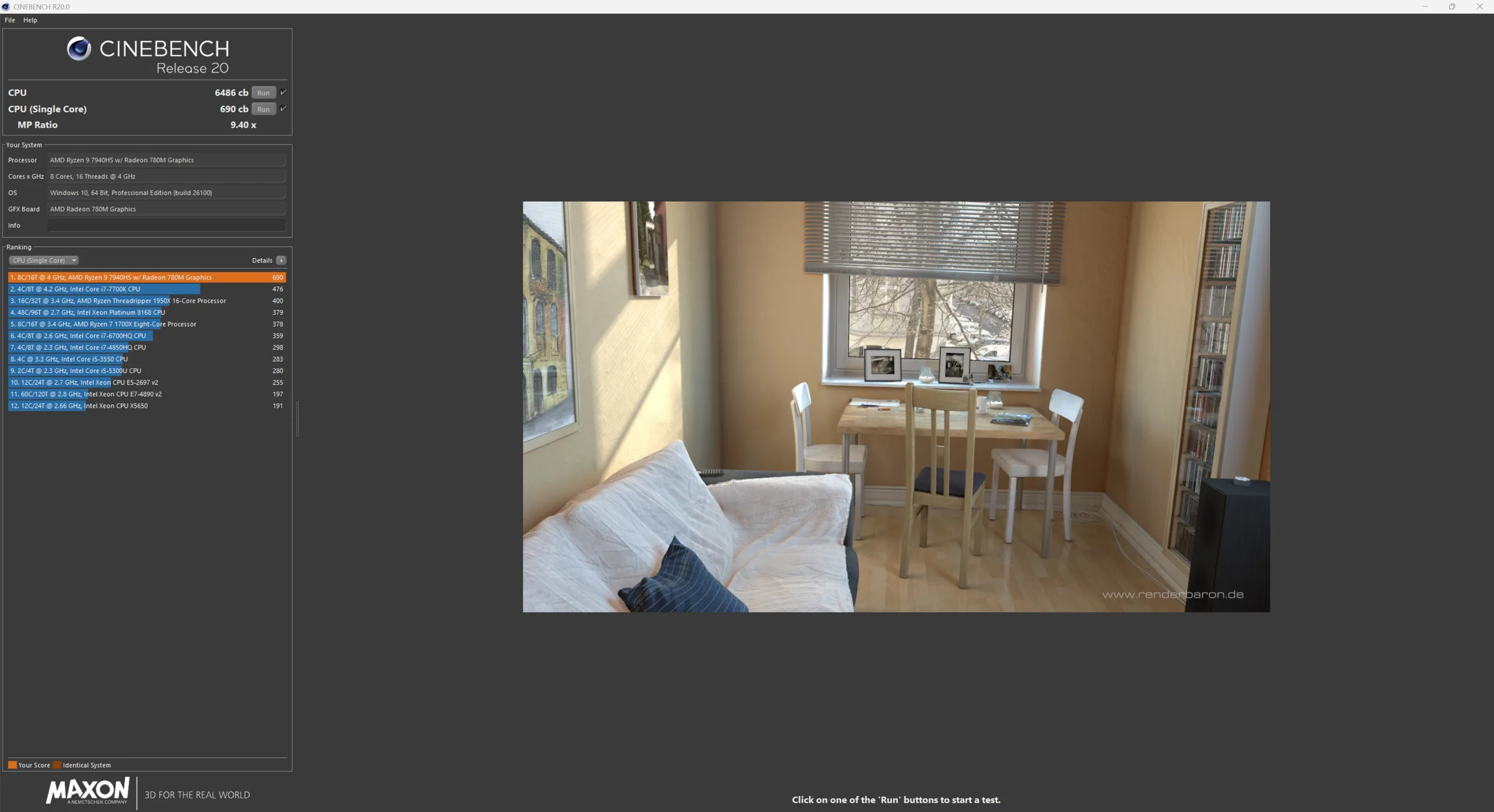

Processor

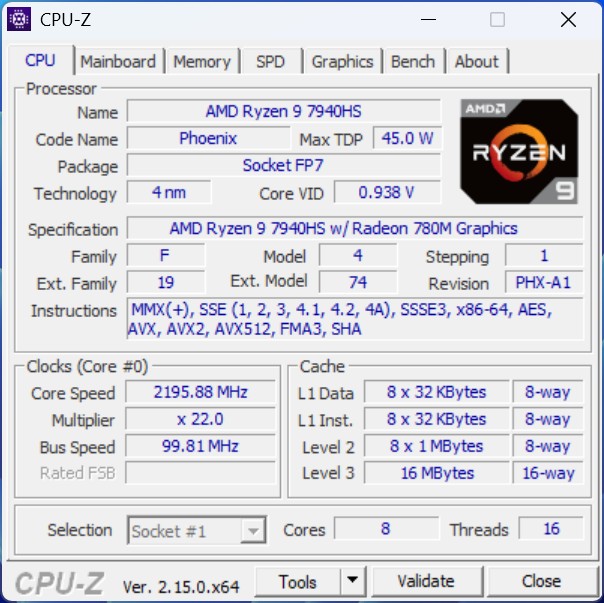

The Geekom A7 Max with AMD Ryzen 9 7940HS (Zen 4, 8 cores, 16 threads) delivers a solid overall performance and is positioned in the broad mid-range of current mini PCs. The SoC can briefly consume up to 65 watts, but under sustained load, consumption levels off at around 45 watts. Despite its processor no longer being brand new, the A7 Max shows that convincing performance is still possible several years after its market launch.
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance rating | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum EliteMini UM890 Pro | |
| Minisforum AI X1, Ryzen 7 255 | |
| Geekom A8 Max, R7 8845HS | |
| Geekom A7 Max, R9 7940HS | |
| Average of class Mini PC | |
| GMK NucBox M6 Ultra | |
| GMK NucBox M3 Ultra | |
| AIDA64 / FP32 Ray-Trace | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum EliteMini UM890 Pro | |
| Minisforum AI X1, Ryzen 7 255 | |
| Geekom A8 Max, R7 8845HS | |
| Geekom A7 Max, R9 7940HS | |
| Average of class Mini PC (974 - 82725, n=103, last 2 years) | |
| GMK NucBox M6 Ultra | |
| GMK NucBox M3 Ultra | |
| AIDA64 / FP64 Ray-Trace | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum EliteMini UM890 Pro | |
| Geekom A8 Max, R7 8845HS | |
| Geekom A7 Max, R9 7940HS | |
| Minisforum AI X1, Ryzen 7 255 | |
| Average of class Mini PC (537 - 43587, n=103, last 2 years) | |
| GMK NucBox M6 Ultra | |
| GMK NucBox M3 Ultra | |
| AIDA64 / CPU PhotoWorxx | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum EliteMini UM890 Pro | |
| Minisforum AI X1, Ryzen 7 255 | |
| Geekom A8 Max, R7 8845HS | |
| GMK NucBox M6 Ultra | |
| Average of class Mini PC (8069 - 94259, n=103, last 2 years) | |
| GMK NucBox M3 Ultra | |
| Geekom A7 Max, R9 7940HS | |

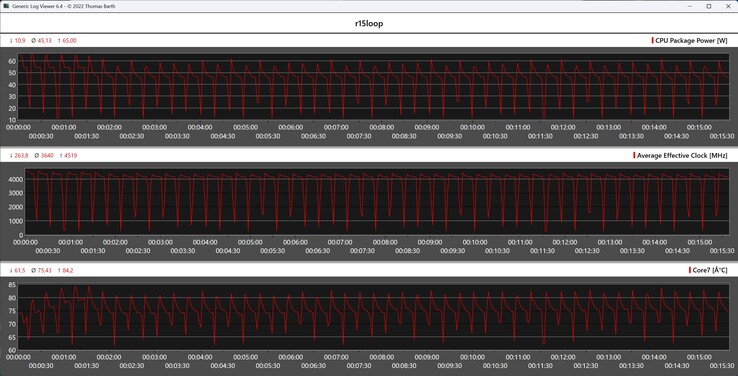

Cinebench R15 Multi Loop

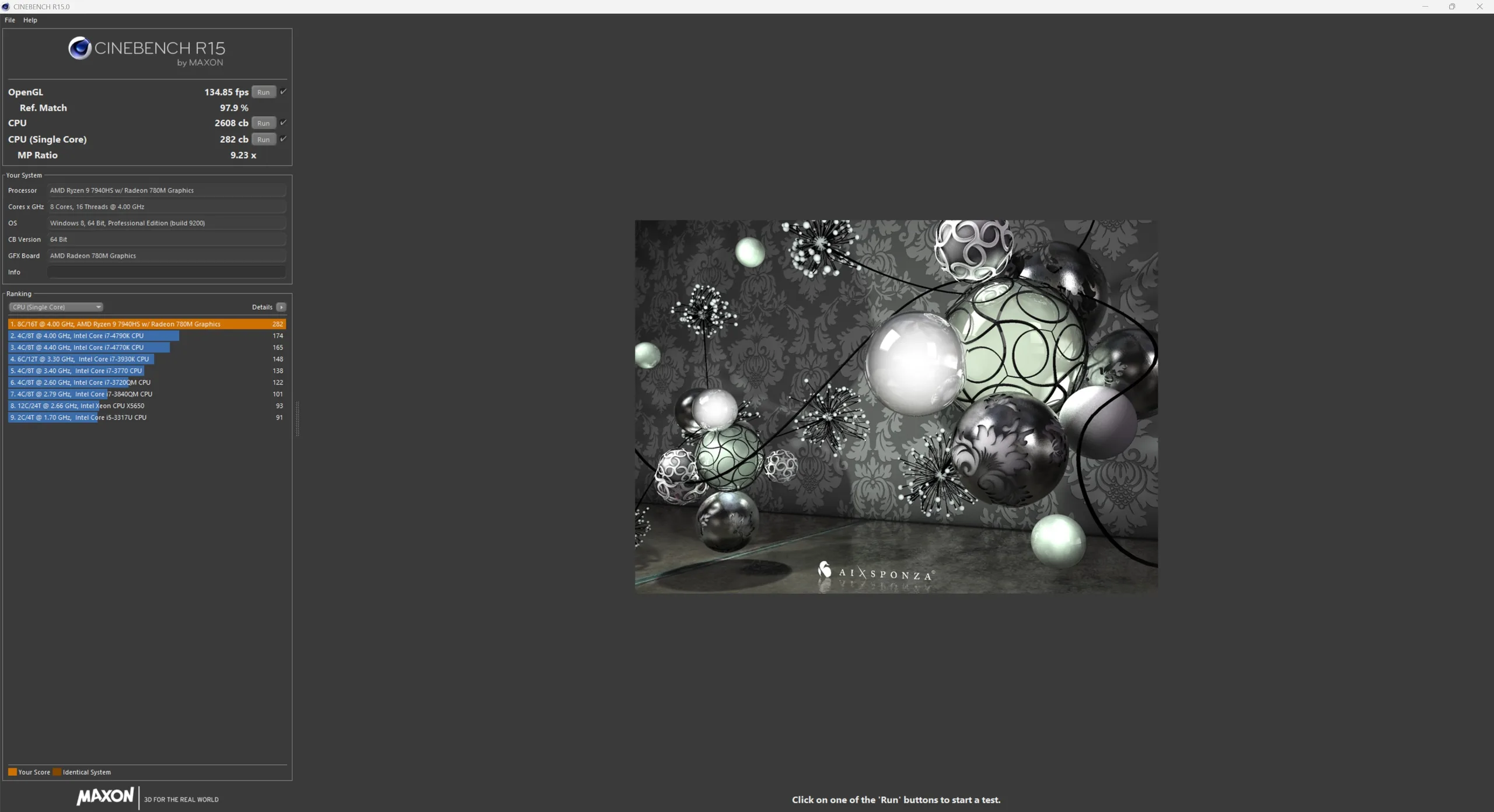

The Cinebench R15 endurance test confirms that the Geekom A7 Max has a well-designed cooling system overall. Although a slight decline in performance under continuous load cannot be completely avoided, this is much more moderate than with the Geekom A9 Max. The Ryzen 9 7940HS briefly reaches a power consumption of up to 65 watts, while the maximum temperature is around 84 C.
System performance

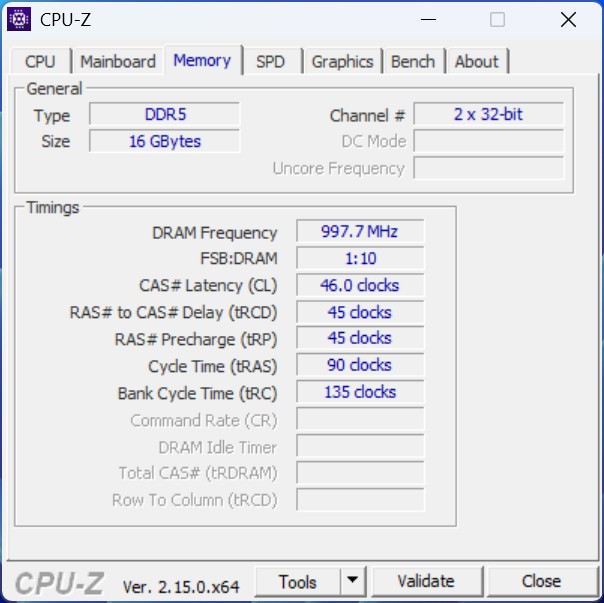

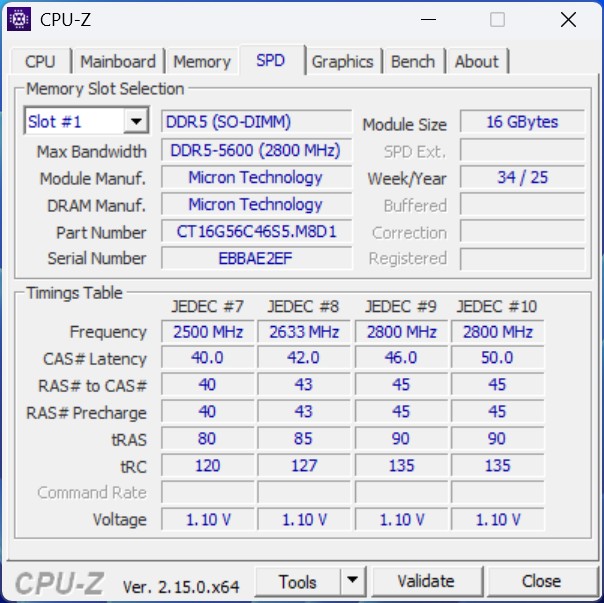

The fact that the Geekom A7 Max is equipped with only one RAM module is clearly noticeable in the results. The overall performance is therefore noticeably lower and also negatively affects the subjective performance perception in everyday use.
| AIDA64 / Memory Latency | |
| Average of class Mini PC (82.3 - 184.8, n=103, last 2 years) | |
| Geekom A7 Max, R9 7940HS | |
| Minisforum EliteMini UM890 Pro | |
| Minisforum AI X1, Ryzen 7 255 | |
| Geekom A8 Max, R7 8845HS | |
| GMK NucBox M6 Ultra | |
| GMK NucBox M3 Ultra | |
| Geekom A9 Max, AI 9 HX 370 | |
* ... smaller is better

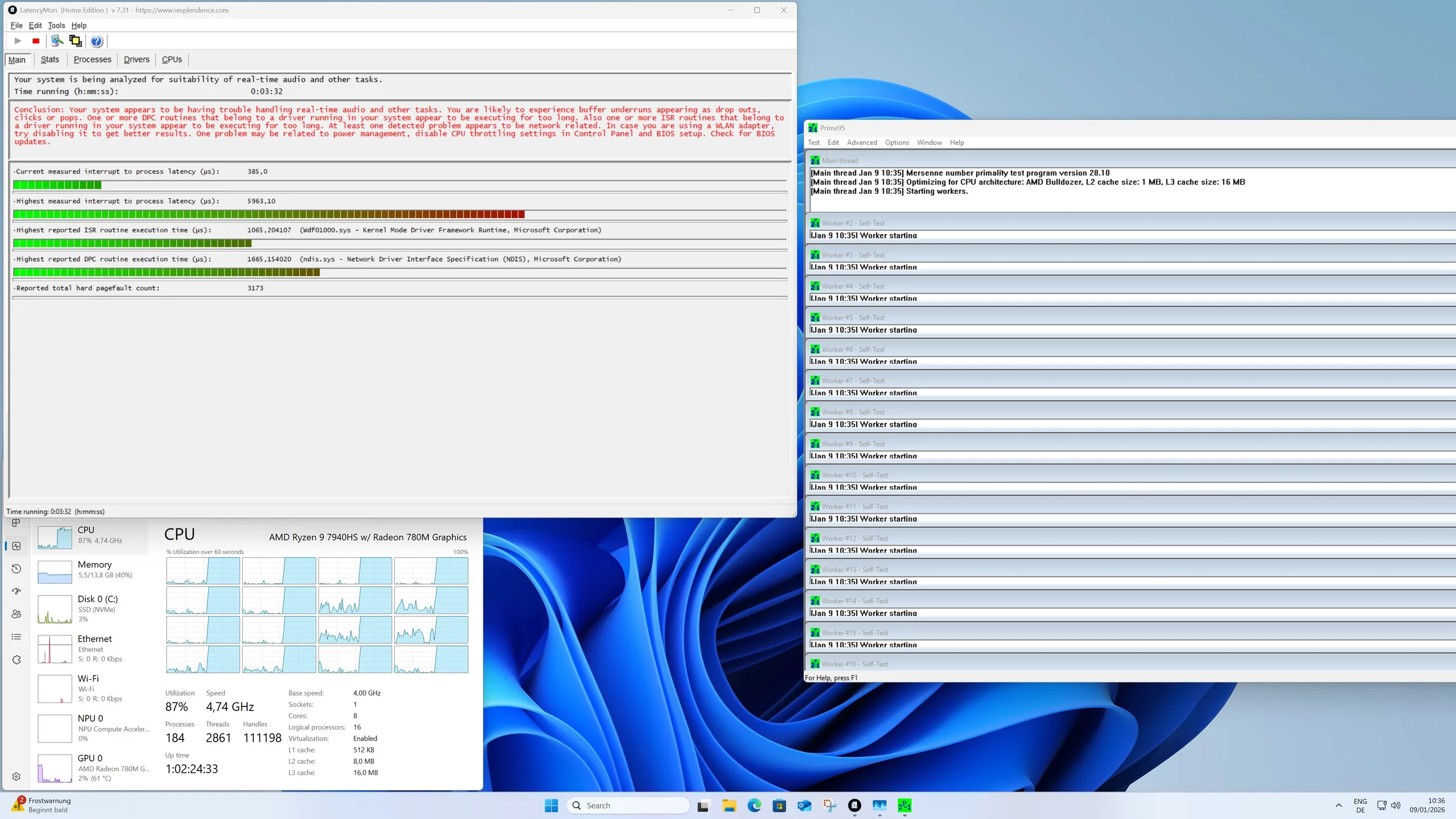

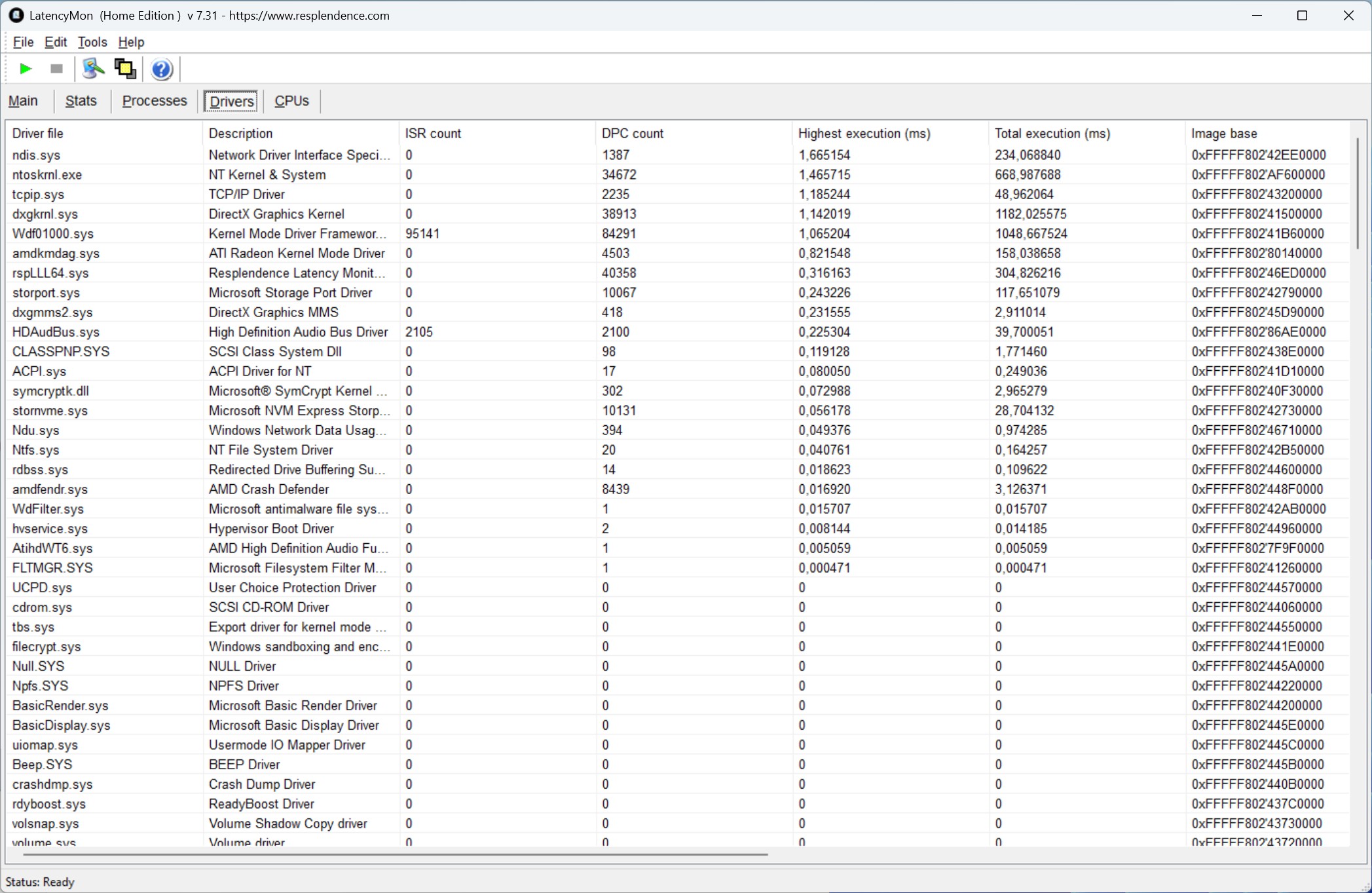

DPC latencies
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom A7 Max, R9 7940HS | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M3 Ultra | |
| GMK NucBox M6 Ultra | |
| Minisforum EliteMini UM890 Pro | |
* ... smaller is better

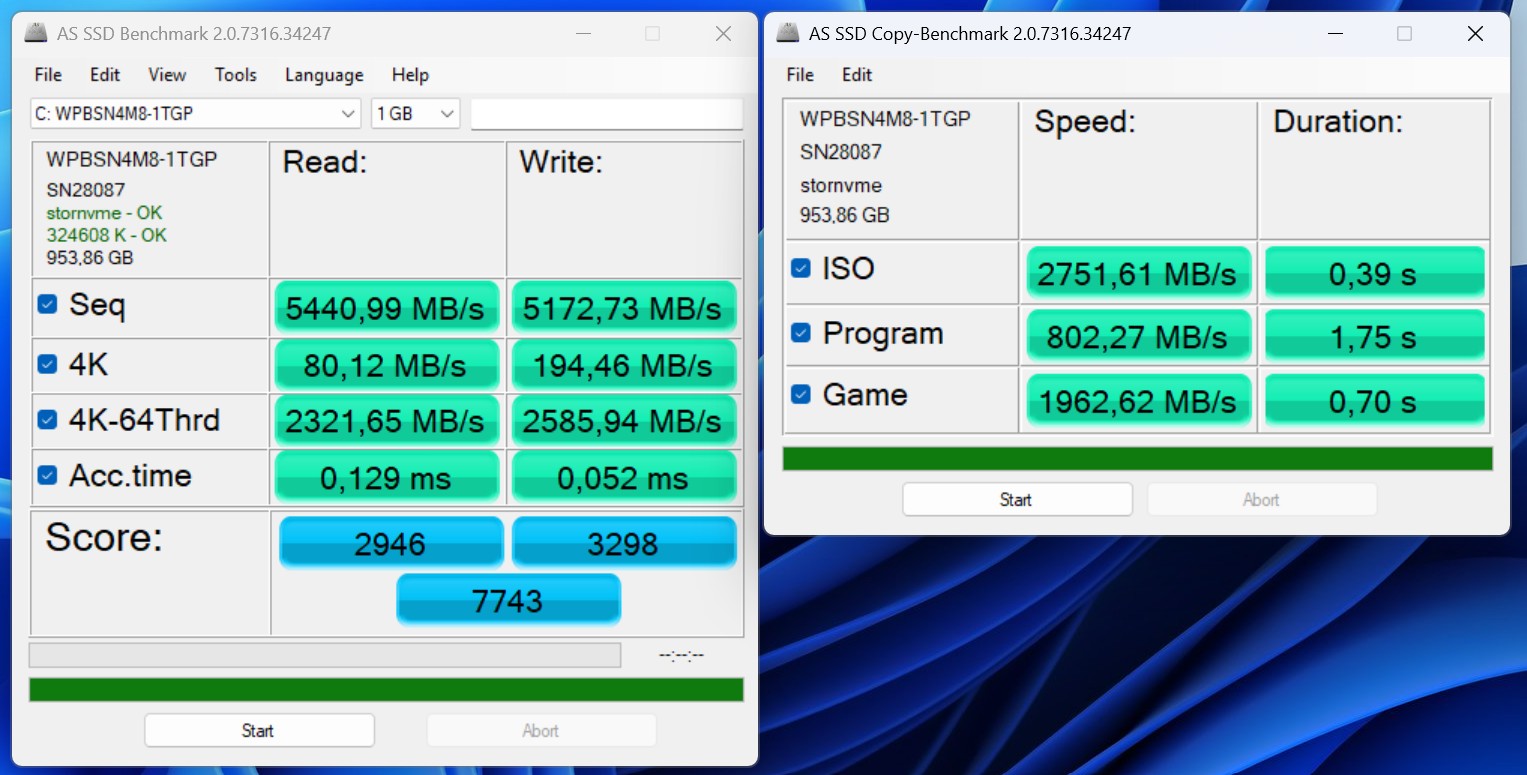

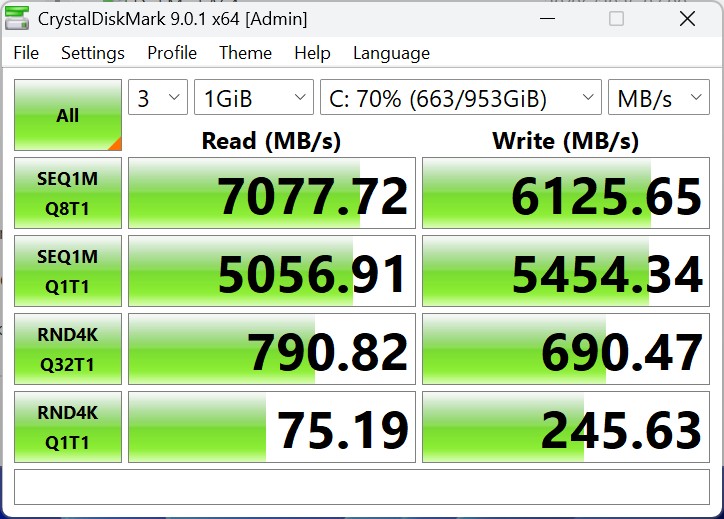

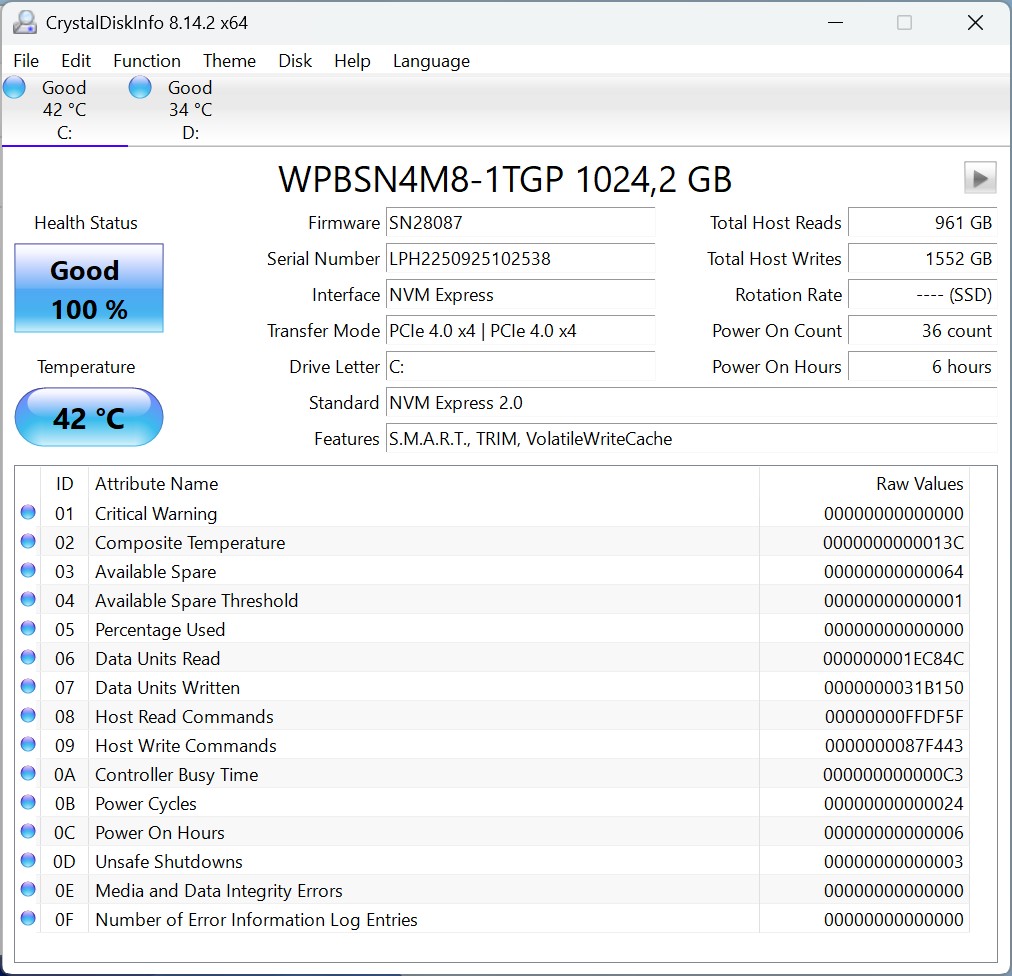

Mass storage

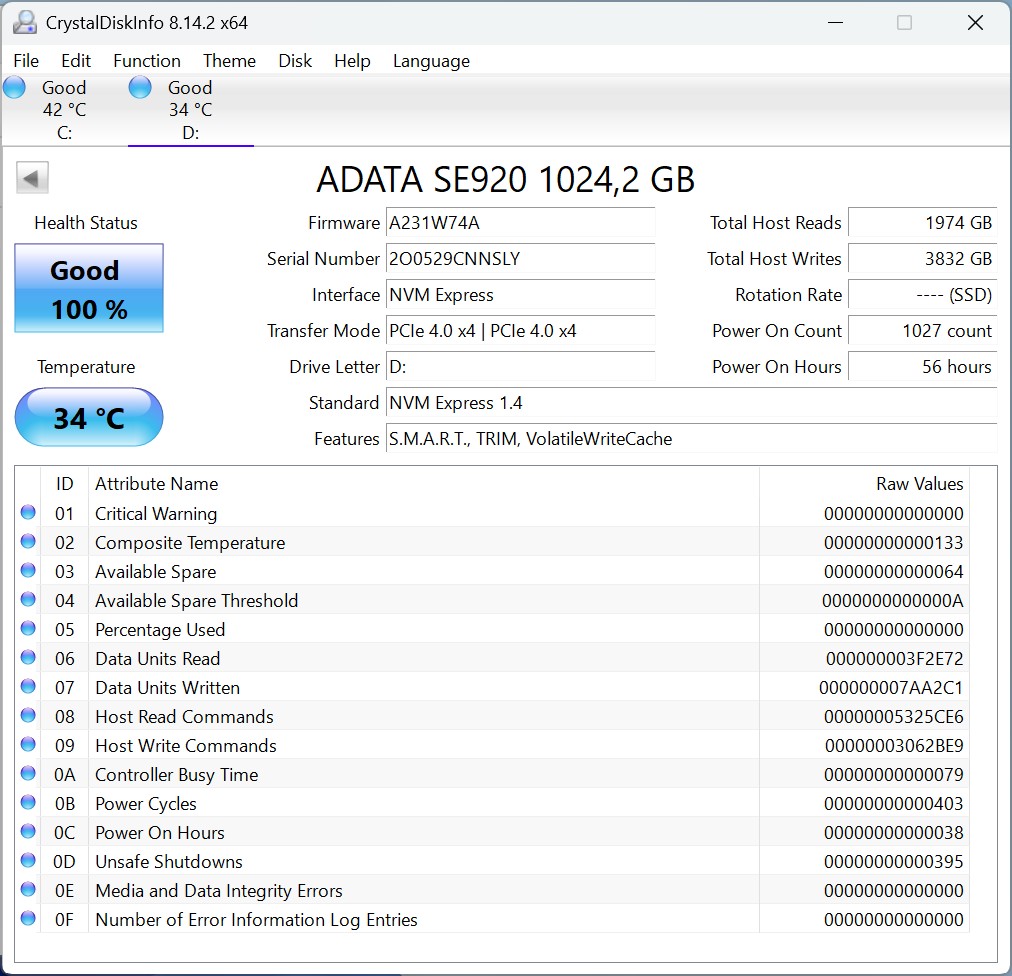

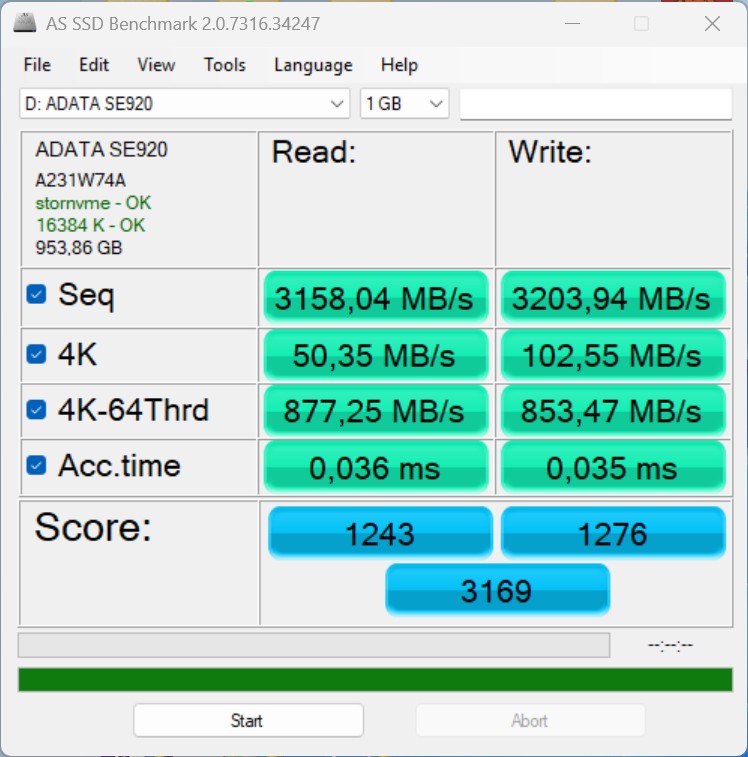

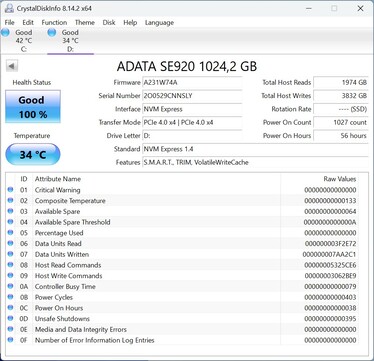

The Geekom A7 Max uses a 1 TB SSD with a PCIe 4.0 connection, which achieves decent, if not outstanding, transfer rates. For everyday tasks and productive workloads, however, the storage performance offered is easily sufficient. The cooling of the drive is designed in such a way that the performance remains stable even under prolonged load.
* ... smaller is better
Disk Throttling: DiskSpd Read Loop, Queue Depth 8
Graphics card and gaming performance

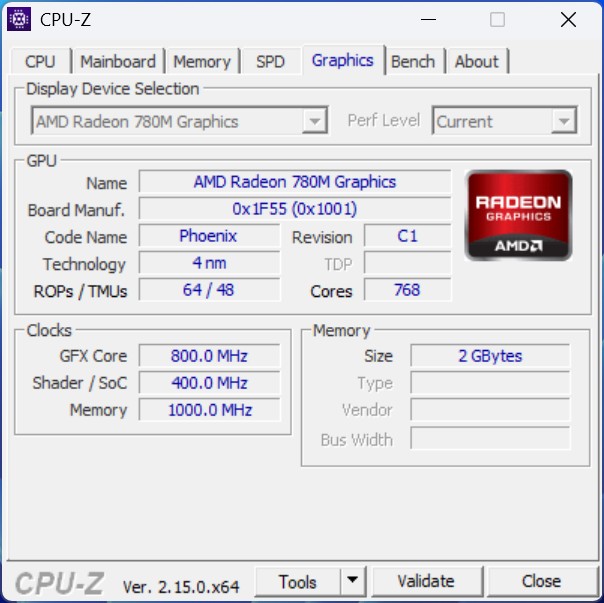

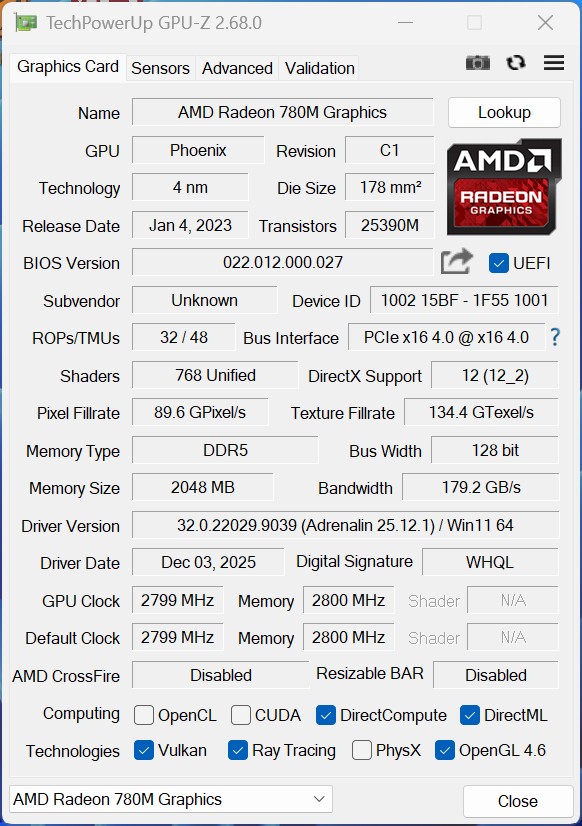

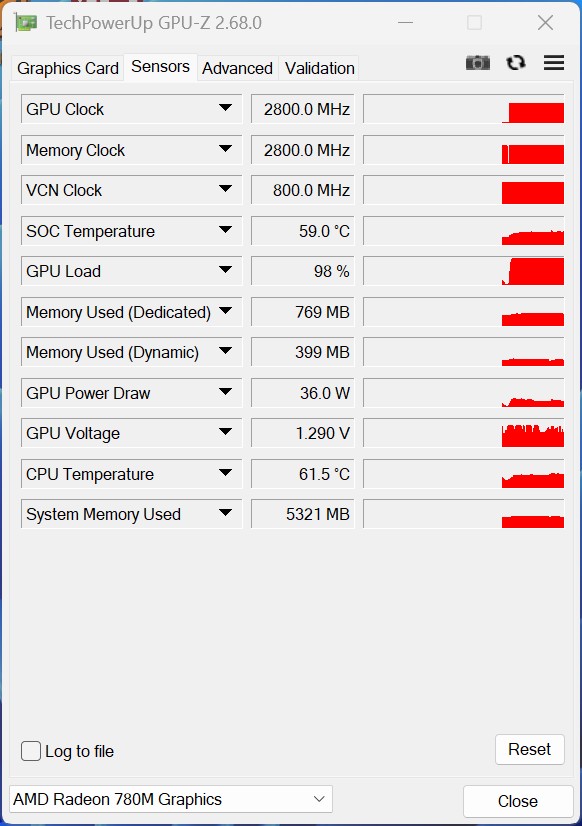

The Geekom A7 Max with AMD Ryzen 9 7940HS relies on the integrated Radeon 780M graphics, whose performance level is solid in our review but is limited overall by being equipped with only one RAM module. In synthetic benchmarks, the system therefore lags behind comparably equipped mini PCs, while only limited usable frame rates are achieved in games. The iGPU is sufficient for simple gaming scenarios, but as expected, the A7 Max cannot compete with systems with a dedicated graphics card such as an RTX 4050.
| Unigine Valley 1.0 | |
| 1920x1080 Extreme HD DirectX AA:x8 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum EliteMini UM890 Pro | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum AI X1, Ryzen 7 255 | |
| Geekom A7 Max, R9 7940HS | |
| GMK NucBox M6 Ultra | |
| GMK NucBox M3 Ultra | |
| 1920x1080 Extreme HD Preset OpenGL AA:x8 | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum EliteMini UM890 Pro | |
| Minisforum AI X1, Ryzen 7 255 | |
| Geekom A8 Max, R7 8845HS | |
| Geekom A7 Max, R9 7940HS | |
| GMK NucBox M6 Ultra | |
| GMK NucBox M3 Ultra | |
| Affinity Photo 2 - Combined (Single / Multi GPU) | |
| GMK NucBox M3 Ultra | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Minisforum EliteMini UM890 Pro | |
| Geekom A8 Max, R7 8845HS | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS | |
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference
| Performance rating | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum EliteMini UM890 Pro | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS | |
| SPECworkstation 4.0 / Graphics Score | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum EliteMini UM890 Pro | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS | |
| SPECworkstation 4.0 / Accelerator Score | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum EliteMini UM890 Pro | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS | |
| SPECworkstation 4.0 / Viewport Graphics | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum EliteMini UM890 Pro | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS | |
| SPECworkstation 4.0 / HandBrake | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum EliteMini UM890 Pro | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum AI X1, Ryzen 7 255 | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS | |
| SPECworkstation 4.0 / ONNX Inference | |
| Minisforum EliteMini UM890 Pro | |
| Geekom A8 Max, R7 8845HS | |
| Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Geekom A7 Max, R9 7940HS | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS, AMD Radeon 780M R9 7940HS | Geekom A8 Max, R7 8845HS, AMD Radeon 780M R7 8845HS | Geekom A9 Max, AI 9 HX 370, AMD Radeon 890M Ryzen AI 9 HX 370 | Minisforum EliteMini UM890 Pro, AMD Radeon 780M R9 8945HS | Minisforum AI X1, Ryzen 7 255, AMD Radeon 780M Ryzen 7 255 | GMK NucBox M6 Ultra, AMD Radeon 760M R5 7640HS | GMK NucBox M3 Ultra, Intel Iris Xe Graphics G7 96EUs i7-12700H | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|
| SPECviewperf 2020 | 76% | 99% | 75% | 70% | 27% | -44% | 154% | |
| 3840x2160 Medical (medical-03) (fps) | 15.6 | 12.7 -19% | 26.1 67% | 13.3 -15% | 12.6 -19% | 11 -29% | 3.38 -78% | 18.4 ? 18% |
| 3840x2160 Energy (energy-03) (fps) | 11.6 | 21.2 83% | 18 55% | 19.7 70% | 19.1 65% | 10.1 -13% | 2.96 -74% | 28.3 ? 144% |
| 3840x2160 Creo (creo-03) (fps) | 17.4 | 34.9 101% | 36.2 108% | 34.9 101% | 33.7 94% | 26.2 51% | 14.7 -16% | 43.2 ? 148% |
| 3840x2160 CATIA (catia-06) (fps) | 14.9 | 25 68% | 26 74% | 24.2 62% | 24.6 65% | 21.1 42% | 8.14 -45% | 29.4 ? 97% |
| 3840x2160 3ds Max (3dsmax-07) (fps) | 10.3 | 21.4 108% | 25.2 145% | 21.3 107% | 21.5 109% | 15.8 53% | 9.48 -8% | 41.5 ? 303% |
| 3840x2160 Siemens NX (snx-04) (fps) | 33.2 | 66.2 99% | 70.6 113% | 67 102% | 63.1 90% | 48.6 46% | 4.21 -87% | 49.2 ? 48% |
| 3840x2160 Maya (maya-06) (fps) | 25.9 | 50.2 94% | 59.3 129% | 51.2 98% | 47.5 83% | 36.5 41% | 25.8 0% | 108.2 ? 318% |
| 3DMark 05 Standard | 44589 points | |
| 3DMark 06 Standard Score | 29523 points | |
| 3DMark Vantage P Result | 27581 points | |
| 3DMark 11 Performance | 8210 points | |
| 3DMark Ice Storm Standard Score | 127257 points | |
| 3DMark Cloud Gate Standard Score | 26458 points | |
| 3DMark Fire Strike Score | 4542 points | |
| 3DMark Fire Strike Extreme Score | 2447 points | |
| 3DMark Time Spy Score | 1862 points | |
| 3DMark Steel Nomad Score | 257 points | |
Help | ||
| Performance rating - Percent | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum EliteMini UM890 Pro | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS | |
| GTA V | |
| 1024x768 Lowest Settings possible | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum EliteMini UM890 Pro | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS | |
| 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum AI X1, Ryzen 7 255 | |
| Minisforum EliteMini UM890 Pro | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS | |
| Cyberpunk 2077 | |
| 1920x1080 Low Preset (FSR off) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum AI X1, Ryzen 7 255 | |
| Minisforum EliteMini UM890 Pro | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS | |
| 1920x1080 High Preset (FSR off) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum AI X1, Ryzen 7 255 | |
| Minisforum EliteMini UM890 Pro | |
| GMK NucBox M6 Ultra | |
| Geekom A7 Max, R9 7940HS | |
30 min. Cyberpunk 2077 fps chart (1920 x 1080, Ultra preset, FSR off)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 107.9 | 97.1 | 33.7 | 13.8 |
| The Witcher 3 (2015) | 80.9 | 52.3 | 26.3 | 17.6 |
| Dota 2 Reborn (2015) | 128.5 | 93.3 | 65 | 58.2 |
| Final Fantasy XV Benchmark (2018) | 44.4 | 22.2 | 16.3 | |
| X-Plane 11.11 (2018) | 55.3 | 40.5 | 34.8 | |
| Baldur's Gate 3 (2023) | 24.8 | 19.4 | 15.6 | 15.2 |
| Cyberpunk 2077 (2023) | 25.2 | 21 | 15.9 | 14.3 |
| F1 24 (2024) | 47 | 41.2 | 30.9 |
Emissions
System noise
Noise level
| Idle |
| 25.5 / 25.6 / 25.7 dB(A) |
| Load |
| 43 / 45 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R (15 cm distance) environment noise: 24.7 dB(A) | ||
| Geekom A7 Max, R9 7940HS R9 7940HS, Radeon 780M | Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M | Geekom A9 Max, AI 9 HX 370 Ryzen AI 9 HX 370, Radeon 890M | Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M | Minisforum AI X1, Ryzen 7 255 Ryzen 7 255, Radeon 780M | GMK NucBox M6 Ultra R5 7640HS, Radeon 760M | GMK NucBox M3 Ultra i7-12700H, Iris Xe G7 96EUs | |
|---|---|---|---|---|---|---|---|
| Noise | 5% | -6% | 8% | -1% | 1% | -1% | |
| off / environment * (dB) | 24.7 | 23.8 4% | 24.8 -0% | 23.7 4% | 24.9 -1% | 24.7 -0% | 24.8 -0% |
| Idle Minimum * (dB) | 25.5 | 24 6% | 25.4 -0% | 27.2 -7% | 31.1 -22% | 27.5 -8% | 25.8 -1% |
| Idle Average * (dB) | 25.6 | 24.1 6% | 25.4 1% | 27.3 -7% | 31.2 -22% | 29.3 -14% | 25.8 -1% |
| Idle Maximum * (dB) | 25.7 | 24.1 6% | 25.5 1% | 27.3 -6% | 31.2 -21% | 30.1 -17% | 25.8 -0% |
| Load Average * (dB) | 43 | 42.7 1% | 49.8 -16% | 33.6 22% | 36.7 15% | 39 9% | 44.5 -3% |
| Witcher 3 ultra * (dB) | 44.9 | 49.7 -11% | 37.9 16% | 39 13% | 45.6 -2% | ||
| Cyberpunk 2077 ultra * (dB) | 44.9 | 42.5 5% | 49.6 -10% | 34.4 23% | 37.8 16% | 39.3 12% | 46.4 -3% |
| Load Maximum * (dB) | 45 | 42.6 5% | 49.8 -11% | 34.4 24% | 38.4 15% | 39 13% | 44.7 1% |
* ... smaller is better

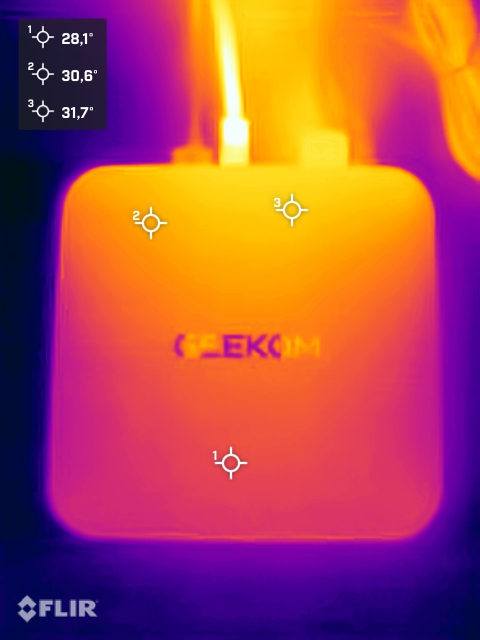

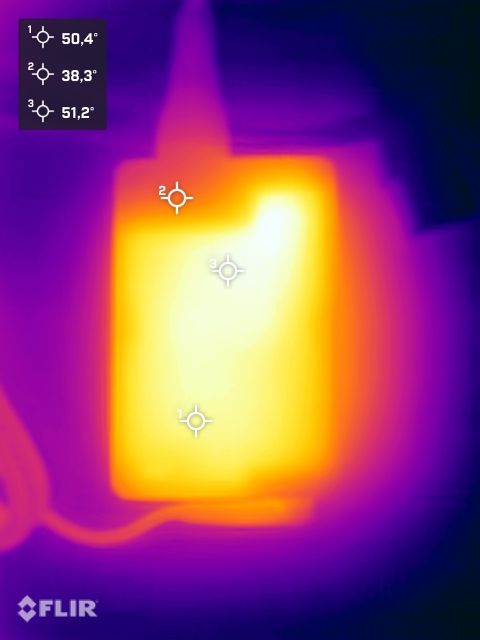

Temperature

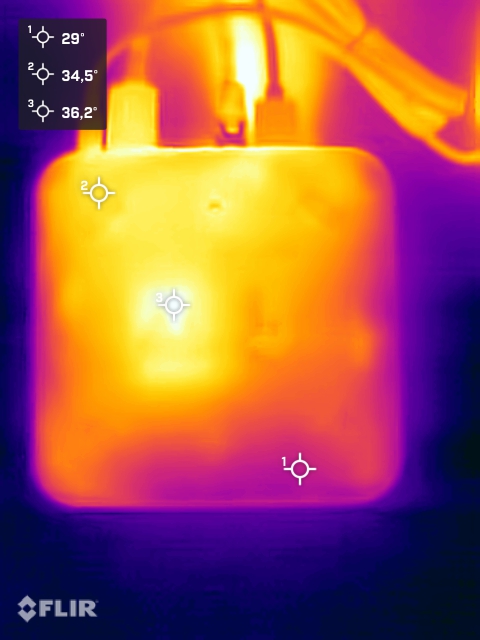

The case of the Geekom A7 Max remains pleasantly cool both in idle mode and under load. In the stress test, the installed AMD Ryzen 9 7940HS briefly reaches temperatures of around 71 °C, which is not critical. The cooling system can reliably dissipate the permanently applied TDP of 45 watts.
(+) The maximum temperature on the upper side is 34.4 °C / 94 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 36.1 °C / 97 F, compared to the average of 36.3 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 29.5 °C / 85 F, compared to the device average of 32.4 °C / 90 F.
(+) 3: The average temperature for the upper side is 31.1 °C / 88 F, compared to the average of 32.4 °C / 90 F for the class Mini PC.
Energy management

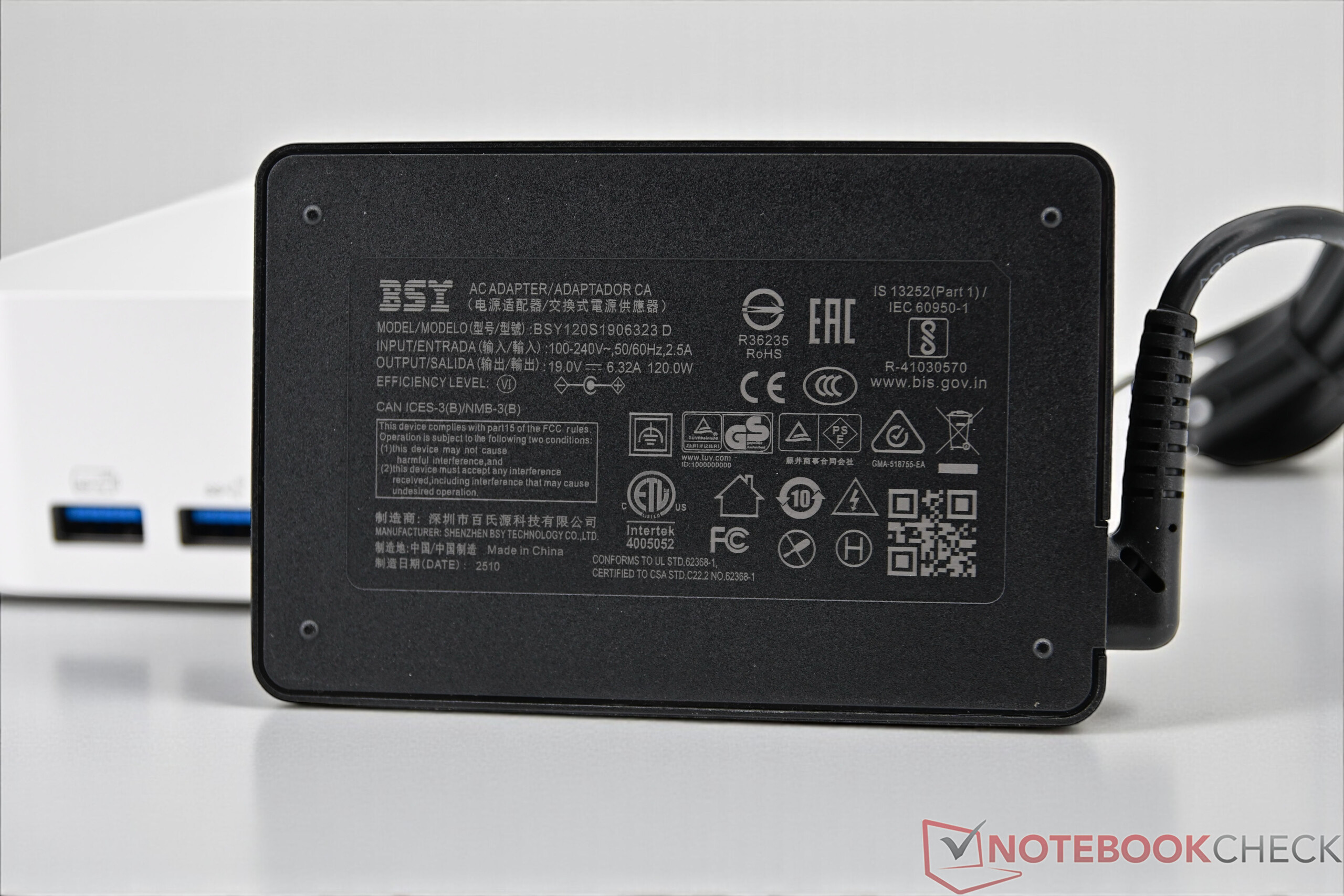

The Geekom A7 Max presents itself as a comparatively efficient mini PC in this review. Even in idle mode, the power consumption is low, although 68 watts were measured under average load. The short-term load peaks of around 93 watts can be easily absorbed by the 120-watt power supply unit. In the efficiency rating, the A7 Max ranks in the upper field and only has to contend with the Geekom A9 Max being beaten.
| Off / Standby | 1.63 / 2.75 Watt |
| Idle | 5.6 / 7.1 / 8.4 Watt |
| Load |
57.5 / 92.9 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Geekom A7 Max, R9 7940HS R9 7940HS, Radeon 780M | Minisforum EliteMini UM890 Pro R9 8945HS, Radeon 780M | Geekom GT1 Mega Ultra 9 185H, Arc 8-Core | Khadas Mind 2 Ultra 7 155H, Arc 8-Core | Minisforum AtomMan X7 Ti Ultra 9 185H, Arc 8-Core | Geekom A8, R9 8945HS R9 8945HS, Radeon 780M | Average AMD Radeon 780M | Average of class Mini PC | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -39% | -5% | -13% | -37% | 14% | -6% | -47% | |
| Idle Minimum * (Watt) | 5.6 | 9.8 -75% | 4.1 27% | 9 -61% | 8.2 -46% | 3.2 43% | 6.01 ? -7% | 9.12 ? -63% |
| Idle Average * (Watt) | 7.1 | 10.5 -48% | 6.6 7% | 9.7 -37% | 12.1 -70% | 4.9 31% | 8.14 ? -15% | 11.3 ? -59% |
| Idle Maximum * (Watt) | 8.4 | 13.6 -62% | 11.3 -35% | 12.5 -49% | 14 -67% | 6.8 19% | 10.3 ? -23% | 14.8 ? -76% |
| Load Average * (Watt) | 57.5 | 67 -17% | 65.8 -14% | 49.7 14% | 53.1 8% | 71.3 -24% | 57.6 ? -0% | 65.3 ? -14% |
| Cyberpunk 2077 ultra external monitor * (Watt) | 67.4 | 85.9 -27% | 69.4 -3% | 51.3 24% | ||||
| Load Maximum * (Watt) | 92.9 | 96.2 -4% | 104.8 -13% | 65.5 29% | 100.4 -8% | 93.2 -0% | 77 ? 17% | 112.5 ? -21% |
* ... smaller is better
Power efficiency
| Power Consumption | |
| Cinebench R23 Multi Power Efficiency - external Monitor | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom A7 Max, R9 7940HS | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum EliteMini UM890 Pro | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M6 Ultra | |
| GMK NucBox M3 Ultra | |
| Cinebench R23 Single Power Efficiency - external Monitor | |
| Geekom A9 Max, AI 9 HX 370 | |
| Minisforum AI X1, Ryzen 7 255 | |
| Geekom A7 Max, R9 7940HS | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum EliteMini UM890 Pro | |
| GMK NucBox M6 Ultra | |
| GMK NucBox M3 Ultra | |
| Cinebench R15 Multi Efficiency (external Monitor) | |
| Geekom A9 Max, AI 9 HX 370 | |
| Geekom A7 Max, R9 7940HS | |
| Geekom A8 Max, R7 8845HS | |
| Minisforum EliteMini UM890 Pro | |
| Minisforum AI X1, Ryzen 7 255 | |
| GMK NucBox M3 Ultra | |
| GMK NucBox M6 Ultra | |
energy consumption with external monitor
energy consumption with external monitor
Notebookcheck rating
Geekom A7 Max, R9 7940HS
- 01/16/2026 v8
Sebastian Bade
Total Sustainability Score: Possible alternatives in comparison
Image | Model / Review | Price | Weight | Dimensions |
|---|---|---|---|---|
1. 78.2%  | Geekom A7 Max, R9 7940HS AMD Ryzen 9 7940HS ⎘ AMD Radeon 780M ⎘ 16 GB Memory, 1024 GB SSD | Amazon: $949.00 List Price: 749€ | 681 g | 132 x 135 x 46.9 mm |
2. 82%  | Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $48.79 PowerHOOD 120W AC/DC Adapter... List Price: 899 EUR | 681 g | 132 x 135 x 46.9 mm |
3. 81.7%  | Geekom A9 Max, AI 9 HX 370 AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 32 GB Memory, 2048 GB SSD | Amazon: $1,259.00 List Price: 999€ | 709 g | 132 x 135 x 46.9 mm |
4. 81.3%  | Minisforum EliteMini UM890 Pro AMD Ryzen 9 8945HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD | Amazon: 1. $939.00 MINISFORUM UM890 Pro Mini PC... 2. $809.00 MINISFORUM UM890 Pro Mini PC... 3. $439.00 MINISFORUM UM890 Pro Barebon... List Price: 739 EUR | 709 g | 127 x 130 x 60.6 mm |
5. 81.1%  | Minisforum AI X1, Ryzen 7 255 AMD Ryzen 7 255 ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD | Amazon: $659.00 List Price: 579€ | 658 g | 126 x 128 x 52 mm |
6. 77.4%  | GMK NucBox M6 Ultra AMD Ryzen 5 7640HS ⎘ AMD Radeon 760M ⎘ 32 GB Memory | Amazon: $699.99 List Price: 336€ | 506 g | 127 x 128.8 x 47.8 mm |
7. 70.3%  | GMK NucBox M3 Ultra Intel Core i7-12700H ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memory, 1024 GB SSD | Amazon: List Price: 429€ | 437 g | 106 x 114 x 42.5 mm |
Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
No comments for this article
Add as a preferred
