High-end mini PC – GMKtec EVO-T1 review with Intel Core Ultra 9 285H, 80W TDP, 64 GB RAM, and eGPU option

Name: GMK EVO-T1
Brand: GMK

Premium look in black and gold.

GMKtec presents the EVO-T1, a visually elegant yet powerful mini PC based on the Intel Core Ultra 9 285H. The manufacturer promises high performance and versatile application options as well as a TDP of up to 80 watts. Our test clarifies whether the EVO-T1 is a serious alternative to the classic desktop PC and whether GMKtec fulfills its own promises.
Sebastian Bade 👁 (translated by Sebastian Bade) Published 08/11/2025 🇩🇪
Mini PC Desktop Intel Arrow Lake AI

Verdict - Compact, versatile powerhouse with Intel Core Ultra 9 285H

The GMK EVO-T1 proves to be a powerful and efficient mini PC with a modern Intel Core Ultra 9 CPU. Thanks to the option of operating the Intel Core Ultra 9 285H with up to 80 watts, it outperforms the Geekom Mini IT15 with the same processor. The slightly larger design offers space for powerful cooling. The upper fan offers RGB lighting, which is hardly noticeable in practice.

In terms of connectivity, the EVO-T1 offers everything you need, including USB4 and OCuLink. A more modern Wi-Fi module would be good and would not represent a disadvantage in comparison with its competitors. At least this can be replaced by the user, as the mini PC is easy to maintain and can be equipped with up to three mass storage devices.

Test device courtesy of GMKtec

Download your licensed rating image as PNG / SVG

Thanks to the option of raising the processor's power limit to up to 80 watts, a considerable amount of power can be extracted from the compact SoC. However, this is inevitably accompanied by a clearly perceptible background noise. Although the fan speeds can be regulated manually, the implementation is not very user-friendly. In addition, the adjustment is only possible in rough 20 percent increments. If GMK were to offer finer gradations and more flexibility here, the manufacturer could clearly set itself apart from the competition in this area.

Pros

+ sturdy, easy-to-open case

+ elegant color combination (black and gold)

+ Intel Core Ultra 9 285H with up to 80 watts TDP

+ good iGPU performance

+ 64 GB DDR5 RAM

+ USB4 + OCuLink

+ stable CPU performance

+ powerful cooling unit

+ three M.2 SSDs can be installed

Cons

- comparatively loud (in performance mode)

- only Wi-Fi 6E

- no card reader

- Fan speed can only be set very roughly

- RGB lighting of the fan barely visible

Price and availability

The GMKtec EVO-T1 is now available in the official online store. The test version with 64 GB RAM and 1 TB SSD costs $999 USD; the one with 2 TB SSD is available for $1,079 USD. The top model (64 GB RAM + 1 TB SSD) is available on Amazon for $1,299 USD.

$1,299.99

GMKtec EVO-T1 AI Mini PC Workstation Ultra 9 285H (up to 5.4GHz) Mini Gaming Computer, 64GB DDR5 (32GB*2) 1TB PCIe 4.0 SSD 3X M.2 Expansion Slots, Oculink, Quad Screen 8K Display

Verdict - Compact, versatile powerhouse with Intel Core Ultra 9 285H
Specifications
Case, connectivity and features
Performance
Emissions
Energy management
Notebookcheck rating
Mögliche Alternativen im Vergleich

The EVO-T1 is a powerful mini PC of the latest generation from GMKtec with a modern design, effective cooling and the latest interfaces. It is equipped with the Intel Core Ultra 9 285H64 GB DDR5 RAM and 1 TB SSD.

Alternatives to the EVO-T1 include similarly powerful mini PCs such as the Minisforum AI X1 Pro, Geekom Mini IT15 or the Geekom A8 Max in question.

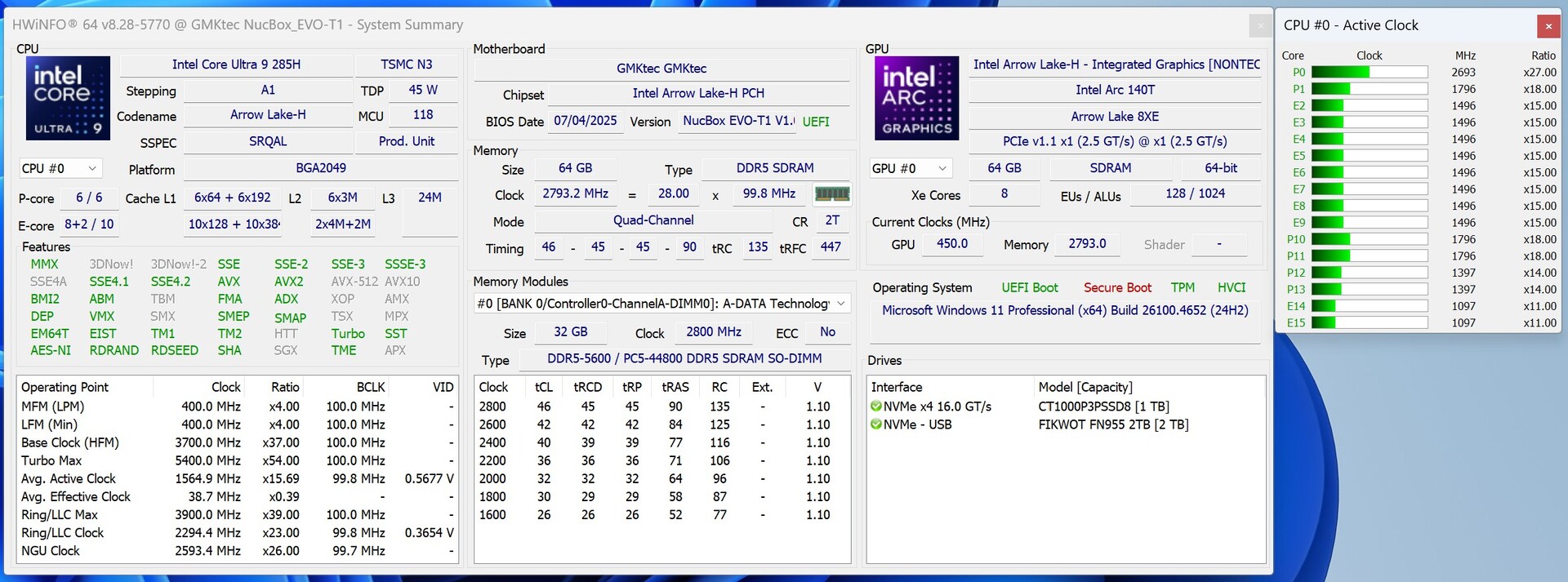

Specifications

GMK EVO-T1

Processor

Intel Core Ultra 9 285H 16 x 4.5 - 5.4 GHz, 80 W PL2 / Short Burst, 70 W PL1 / Sustained, Arrow Lake-H

Graphics adapter

Intel Arc Graphics 140T, Core: 2350 MHz, 32.0.101.6972

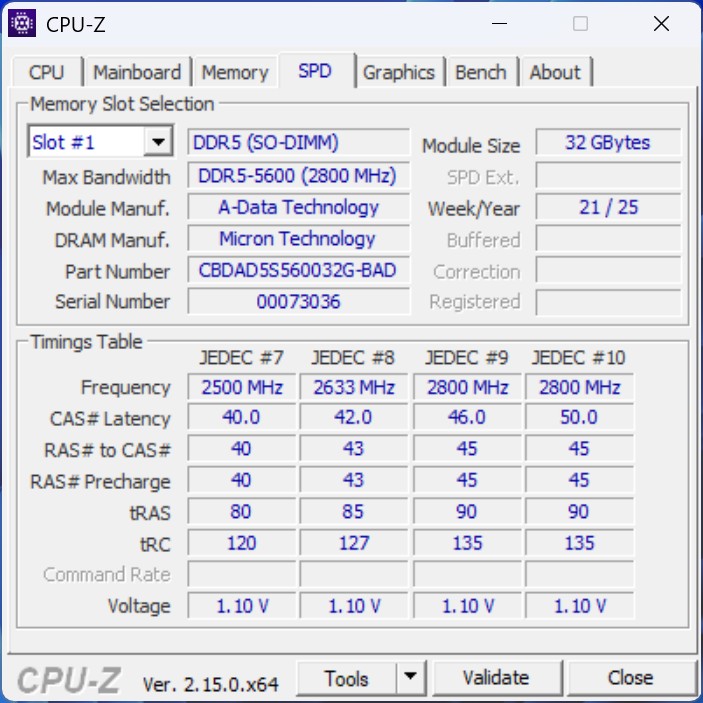

Memory

64 GB

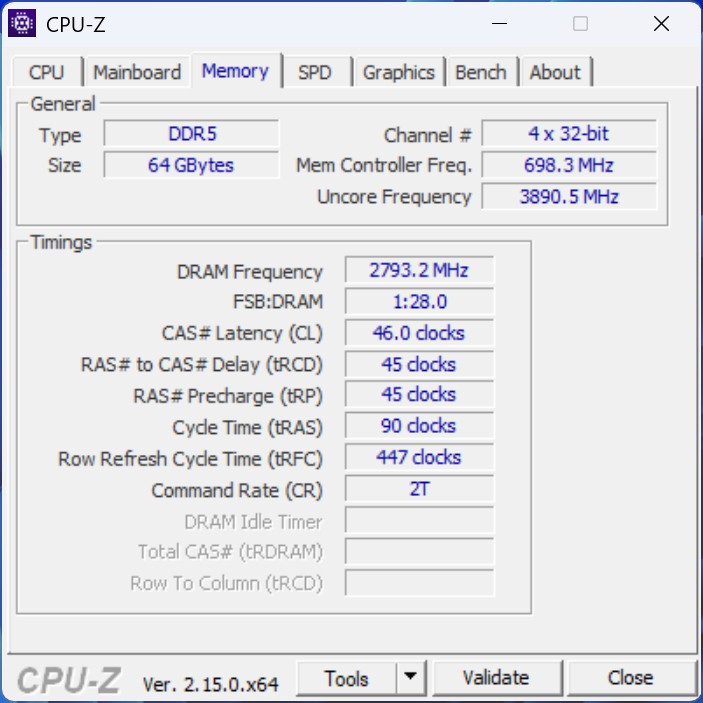

, DDR5-5600, 2x SO-DIMM, Quad-Channel, support up to 6.400 MT/s

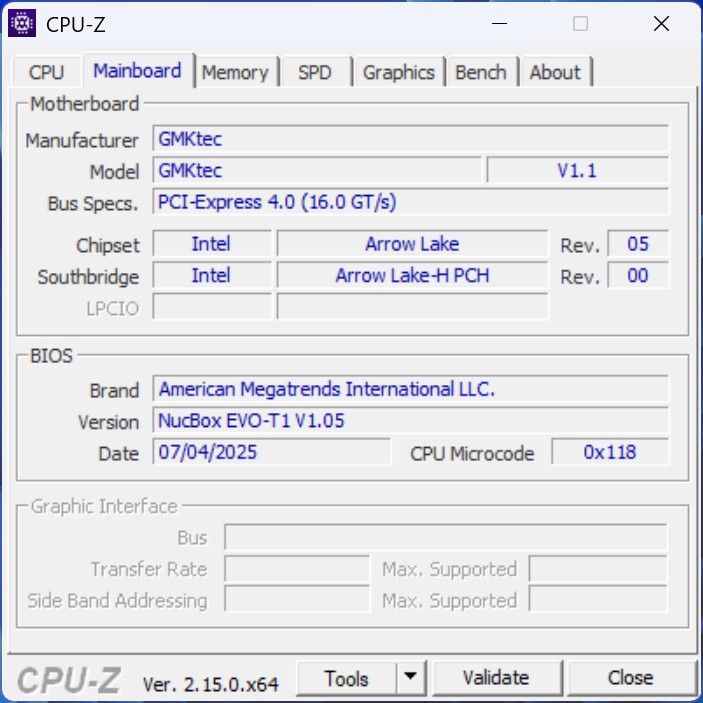

Mainboard

Intel Arrow Lake-H PCH

Storage

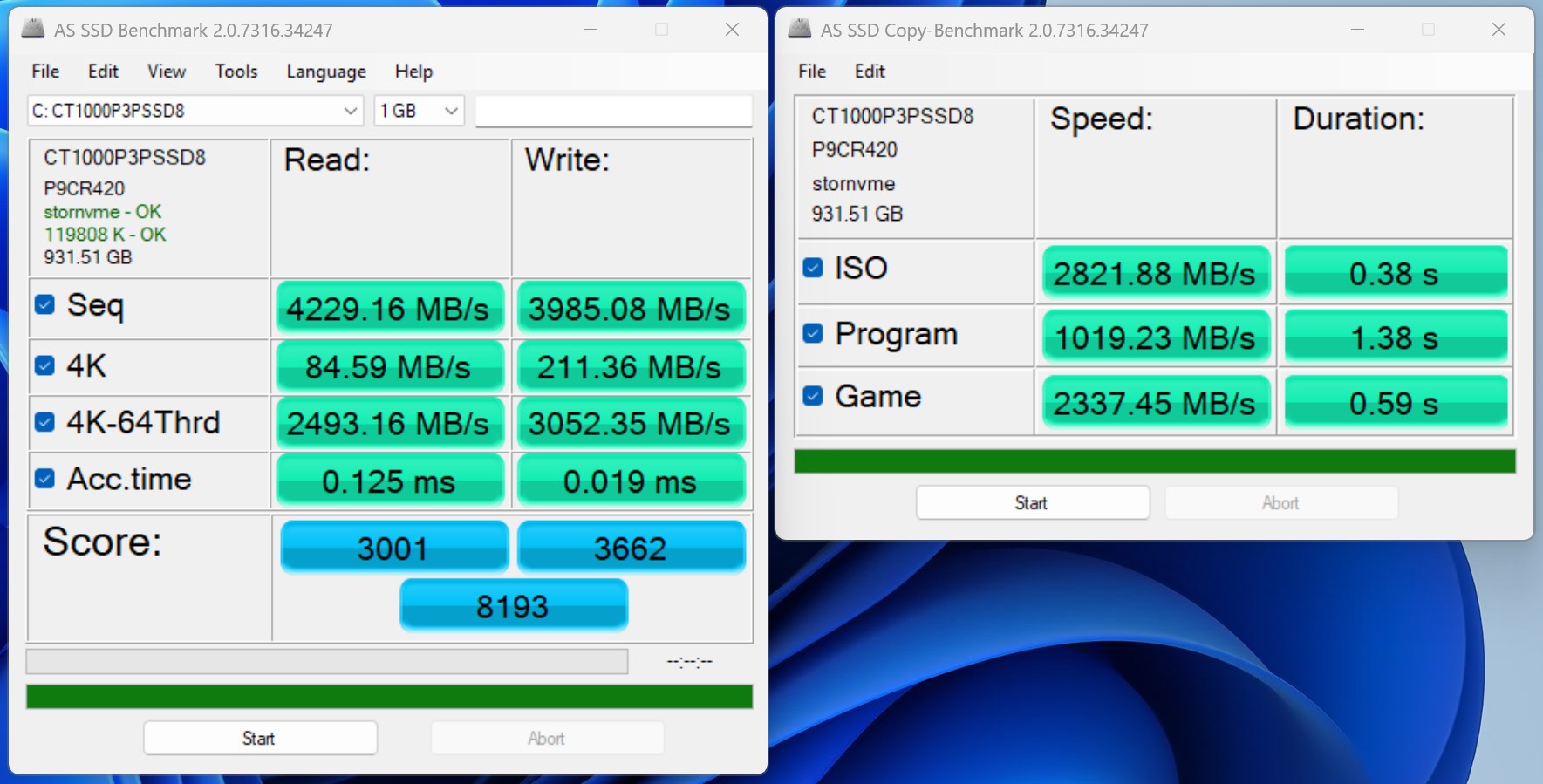

Crucial P3 Plus CT1000P3PSSD8, 1024 GB

, 740 GB free

Soundcard

Intel Arrow Lake-U/H PCH - cAVS (Audio, Voice, Speech)

Connections

2 USB 2.0, 4 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, 3 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 2x 3.5 mm combo audio jack, 2nd Netzwerk Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), OCuLink

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 73.6 x 154 x 151 ( = 2.9 x 6.06 x 5.94 in)

Operating System

Microsoft Windows 11 Pro

Additional features

VESA-Mount, 150-Watt-Netzteil

Weight

946 g ( = 33.37 oz / 2.09 pounds), Power Supply: 340 g ( = 11.99 oz / 0.75 pounds)

Price

999 Euro

Amazon

$1,299.99

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

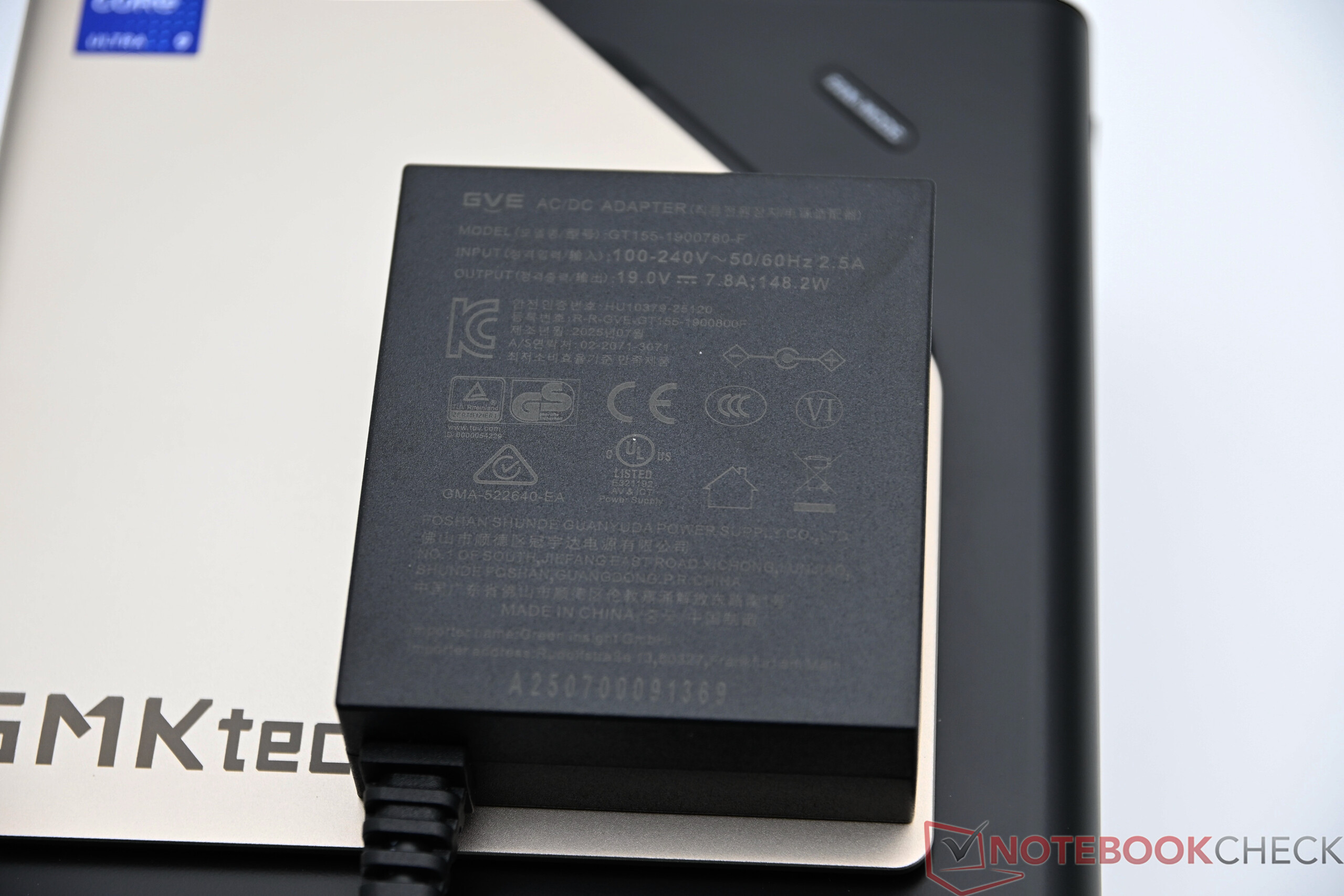

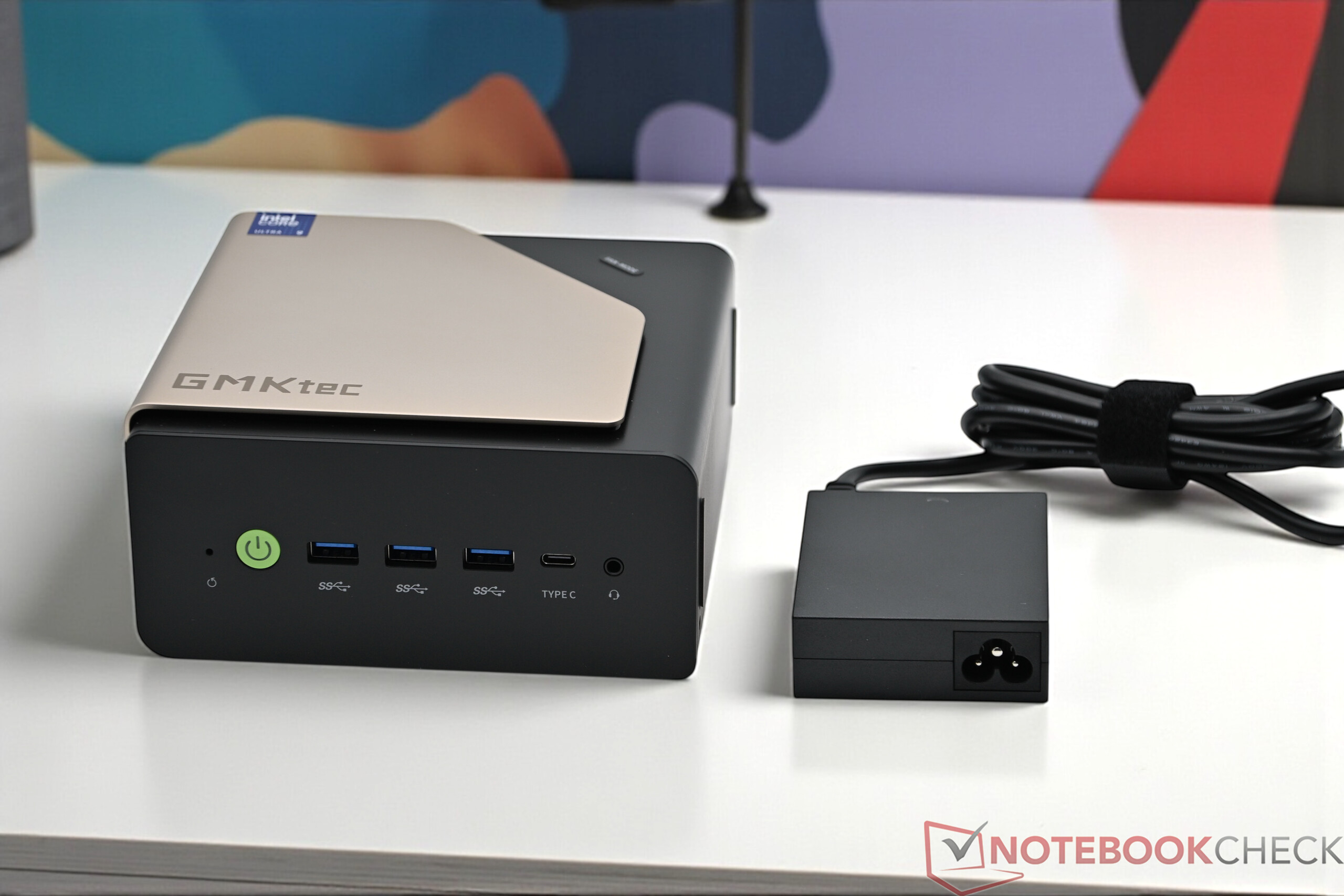

GMKtec EVO-T1 with power supply unit (19 V; 7.8 A)

Case, connectivity and features

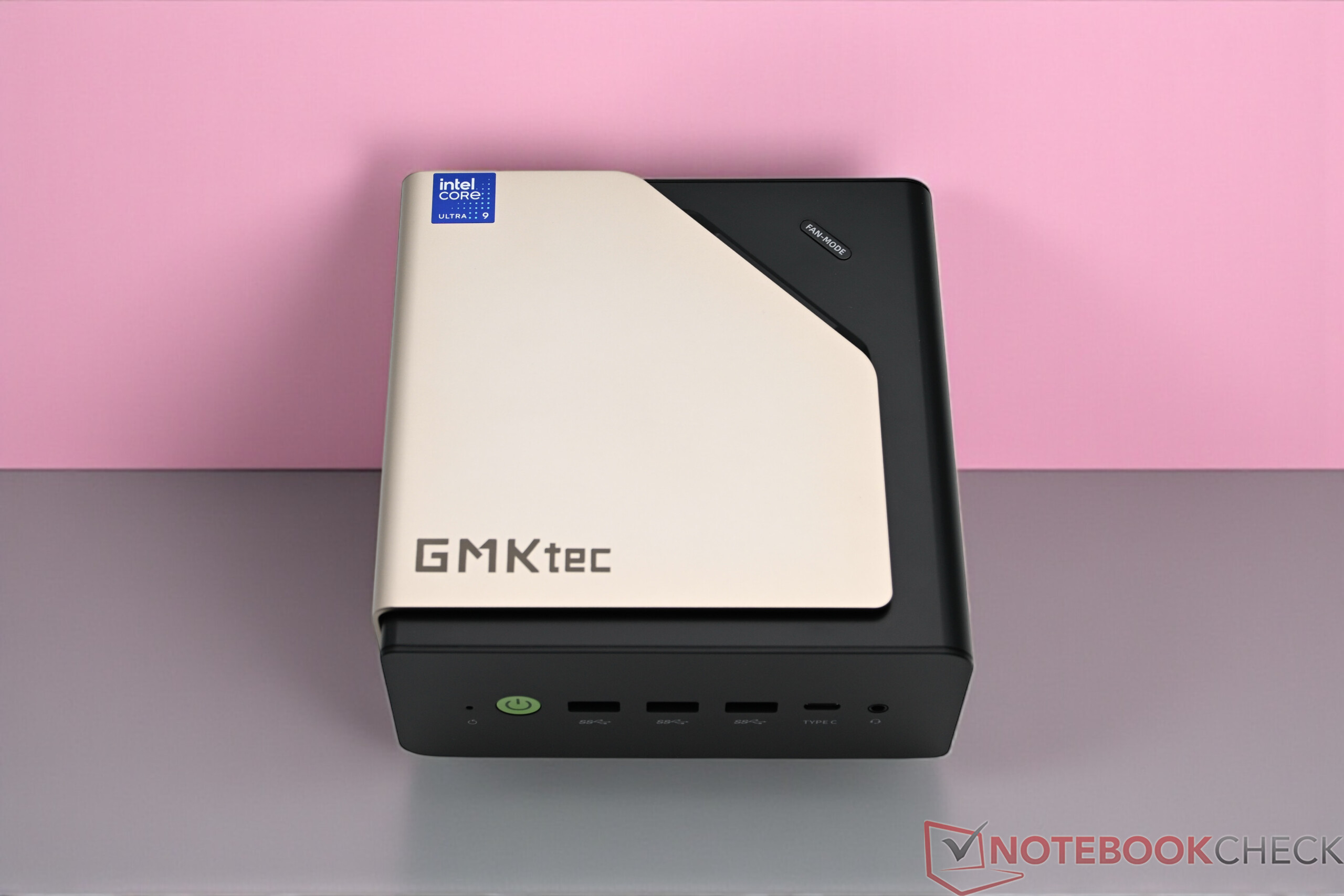

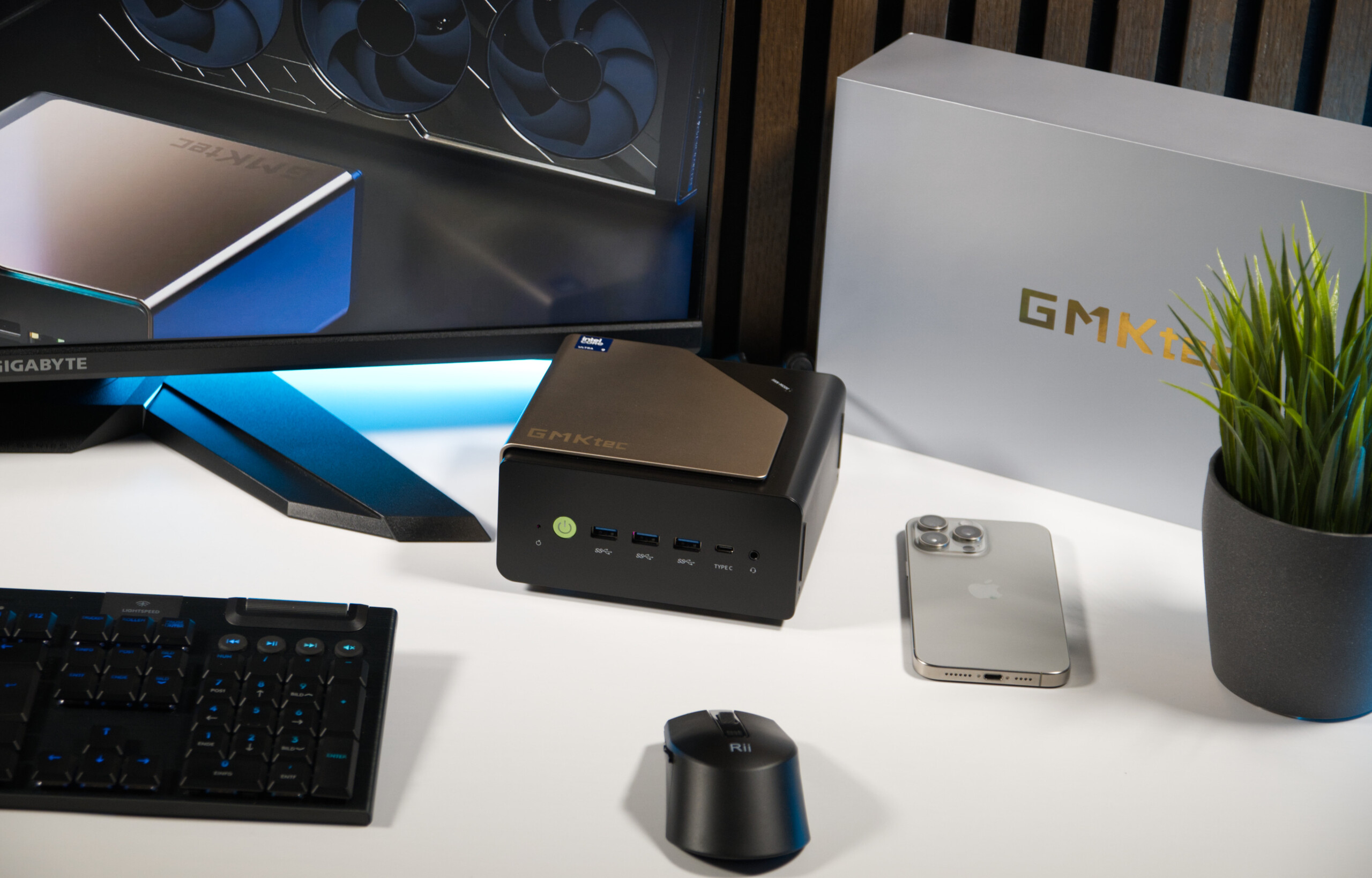

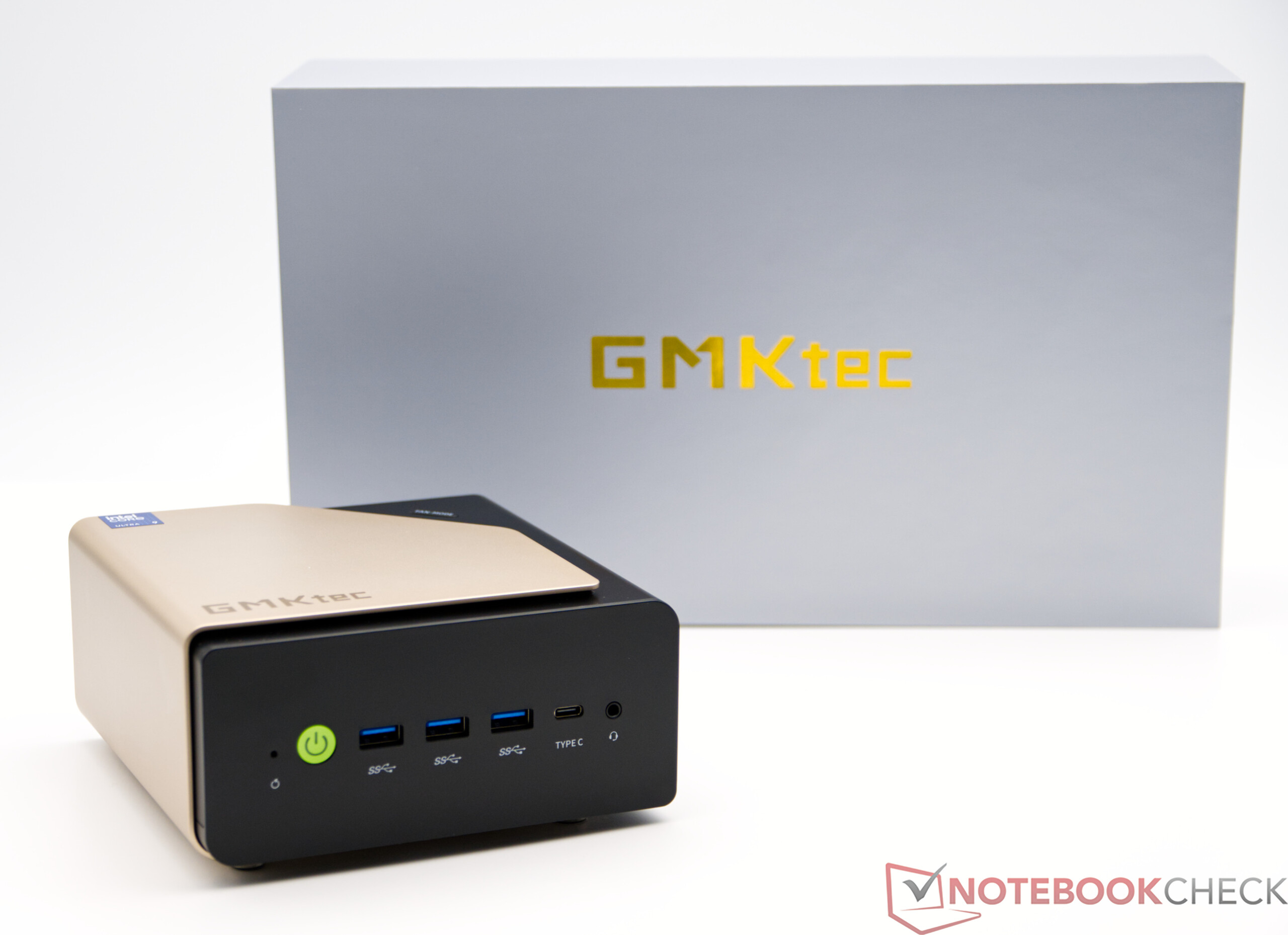

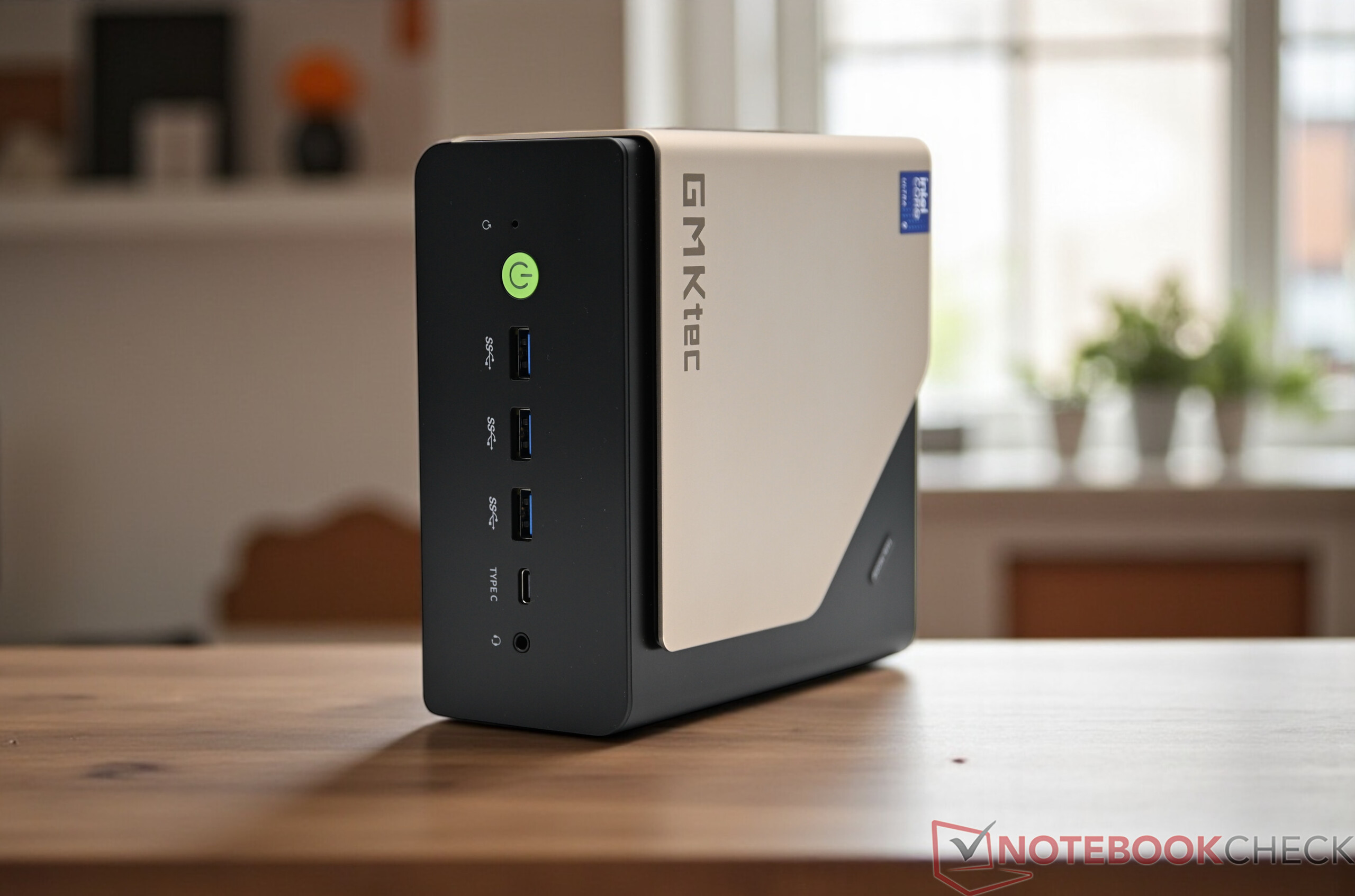

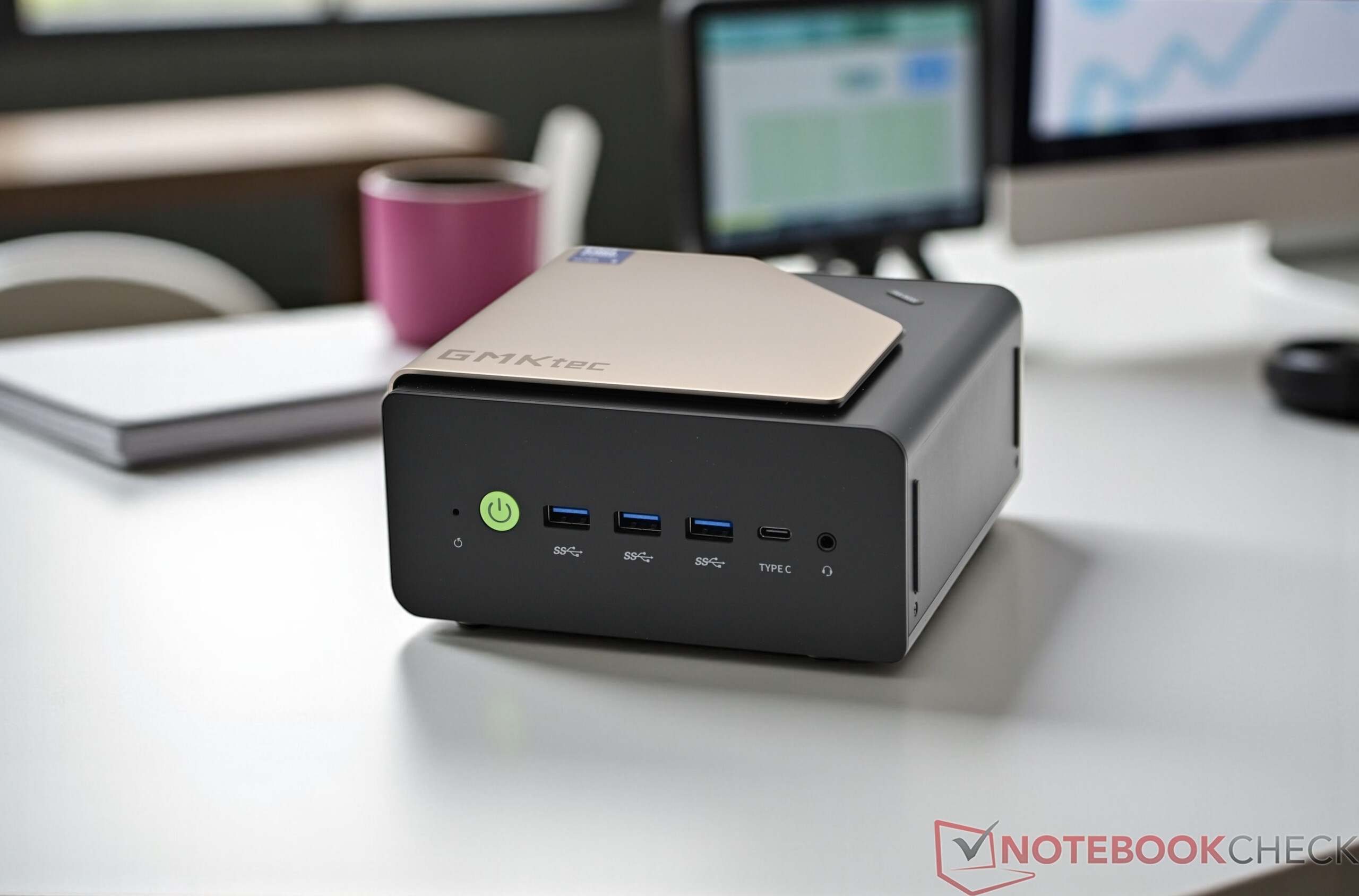

The GMK EVO-T1 is an eye-catcher with its gold and black combination. The gold-colored metal cover ensures a high-quality feel, even if the plastic housing does not quite match the metal chassis of the competition. There were no processing defects in the test.

The EVO-T1 offers versatile connectivity with several USB ports, two 2.5 Gbit Ethernet ports, USB4, and a dedicated OCuLink port that does not occupy any of the three M.2 slots - not a matter of course in this device class. A more up-to-date Wi-Fi module would be desirable, as the built-in Intel Wi-Fi 6 AX201 does not support the 6 GHz band (Wi-Fi 6E).

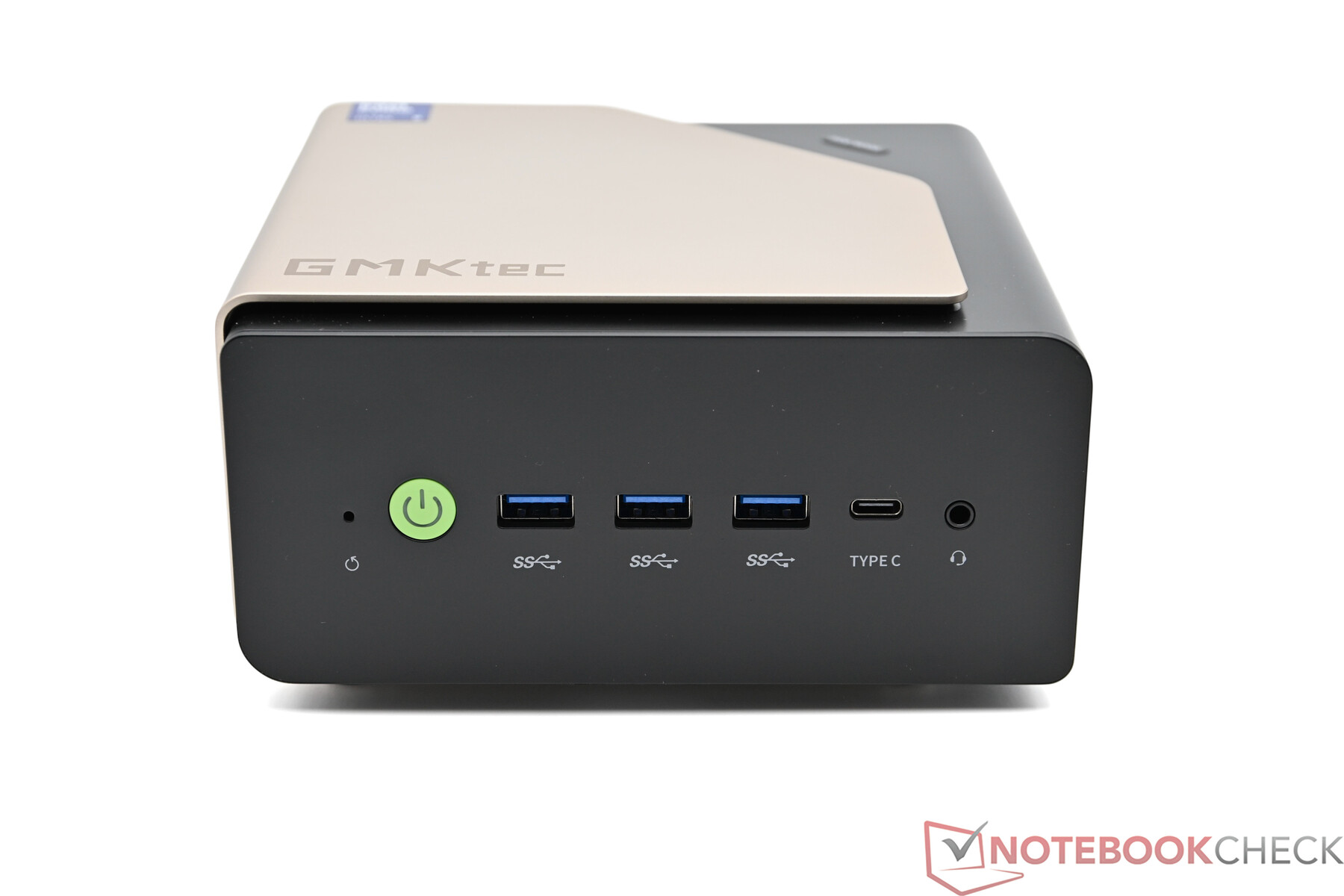

Front: Power-On, 3× USB3.2 Gen2 Type-A, USB3.2 Gen2 Type-C (PD/DP/Data), 3.5 mm combo audio jack

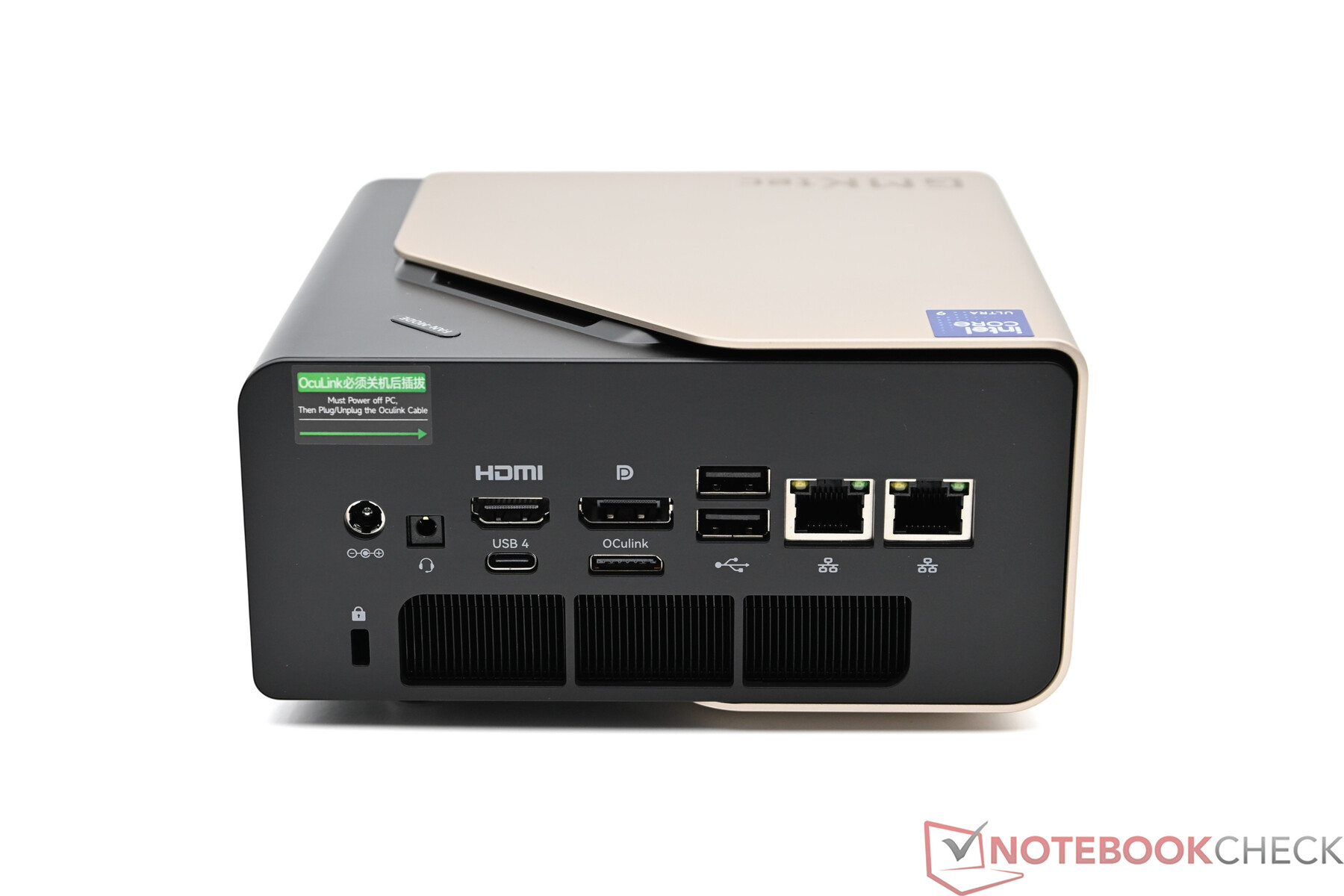

Rear: power connection, 3.5 mm combo audio jack, HDMI 2.1, DisplayPort 1.4, Oculink, 2× USB2.0 Type-A, 2× 2.5G LAN

Size comparison

Minisforum AI X1 Pro Minisforum MS-A2 GMK EVO-T1 Geekom A8 Max, R7 8845HS BOSGAME M4 Neo Geekom Mini IT15, Ultra 9 285H DIN A4 ❌

ADATA SE920 USB4-Speed

Connectivity - USB 3.x / USB4 / TB - AS SSD Seq Read Test (1GB)
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	3906.41 MB/s
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	3167.46 MB/s
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	3161.47 MB/s
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	3158.19 MB/s
Average of class Mini PC (906 - 3906, n=22, last 2 years)	2719 MB/s
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	1592.32 MB/s
Minisforum MS-A2 Radeon 610M, R9 9955HX, Kingston OM8TAP41024K1-A00	917.88 MB/s

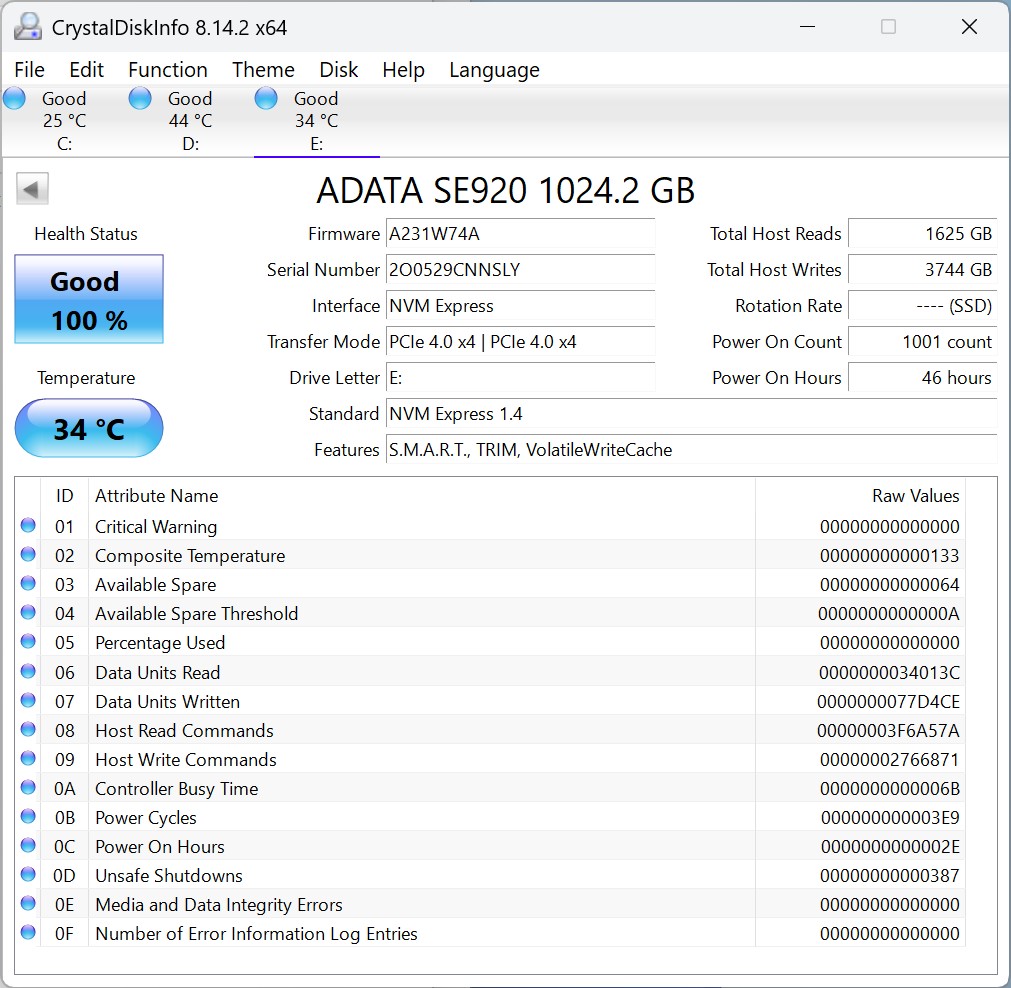

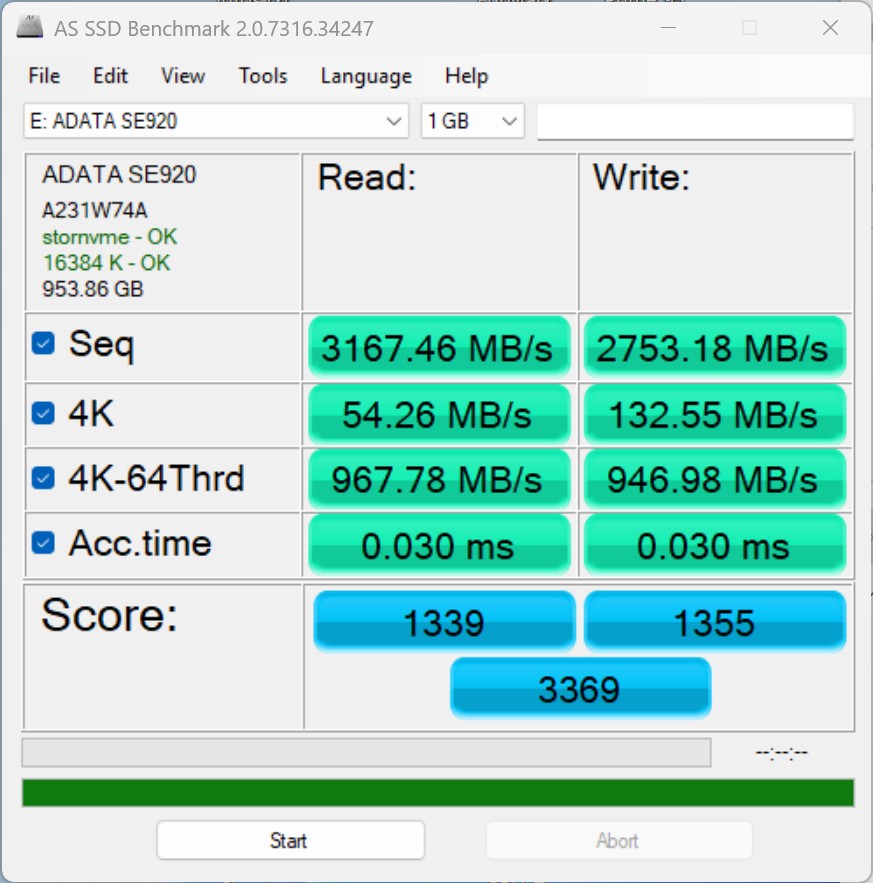

Performance check with the ADATA SE920 via USB4

Networking
iperf3 receive AXE11000
Average Intel Wi-Fi 6 AX201 (390 - 1734, n=79)	1399 MBit/s +59%
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	973 (491^min - 984^max) MBit/s +10%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	954 (920^min - 962^max) MBit/s +8%
Average of class Mini PC (267 - 1796, n=101, last 2 years)	948 MBit/s +8%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	902 (793^min - 943^max) MBit/s +2%
Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz	883 (876^min - 893^max) MBit/s 0%

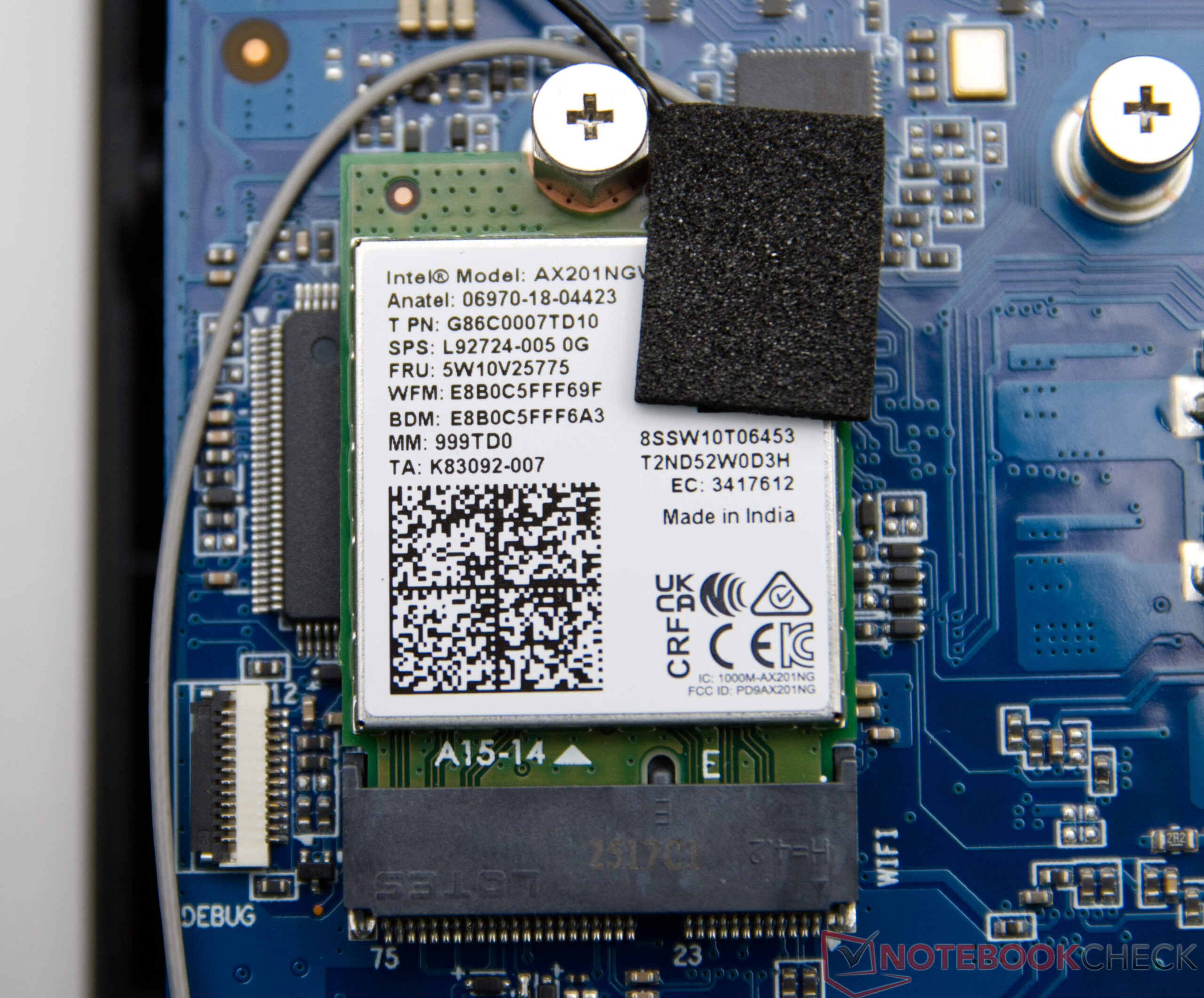

GMK EVO-T1 Intel Wi-Fi 6 AX201	881 (818^min - 890^max) MBit/s
Minisforum MS-A2 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	644 (575^min - 687^max) MBit/s -27%
iperf3 transmit AXE11000
Average Intel Wi-Fi 6 AX201 (438 - 1715, n=74)	1266 MBit/s +45%
Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card	967 (917^min - 1020^max) MBit/s +11%
Average of class Mini PC (251 - 1776, n=101, last 2 years)	885 MBit/s +1%
GMK EVO-T1 Intel Wi-Fi 6 AX201	874 (788^min - 931^max) MBit/s
Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz	830 (533^min - 938^max) MBit/s -5%
Minisforum MS-A2 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	781 (391^min - 831^max) MBit/s -11%
Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	771 (742^min - 814^max) MBit/s -12%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	729 (701^min - 766^max) MBit/s -17%

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1788 (1743-1853)

Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1479 (1351-1551)

Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1300 (906-1503)

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1805 (1779-1816)

Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1484 (1435-1510)

Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1702 (817-1746)

GMK EVO-T1 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø881 (818-890)

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø956 (491-984)

Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø901 (793-943)

Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz; iperf3 receive AXE11000; iperf 3.1.3: Ø883 (876-893)

GMK EVO-T1 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø874 (788-931)

Minisforum AI X1 Pro Mediatek Wi-Fi 7 MT7925 Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø967 (917-1020)

Geekom A8 Max, R7 8845HS MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø771 (742-814)

Geekom Mini IT15, Ultra 9 285H Intel Wi-Fi 7 BE200 320MHz; iperf3 transmit AXE11000; iperf 3.1.3: Ø830 (533-938)

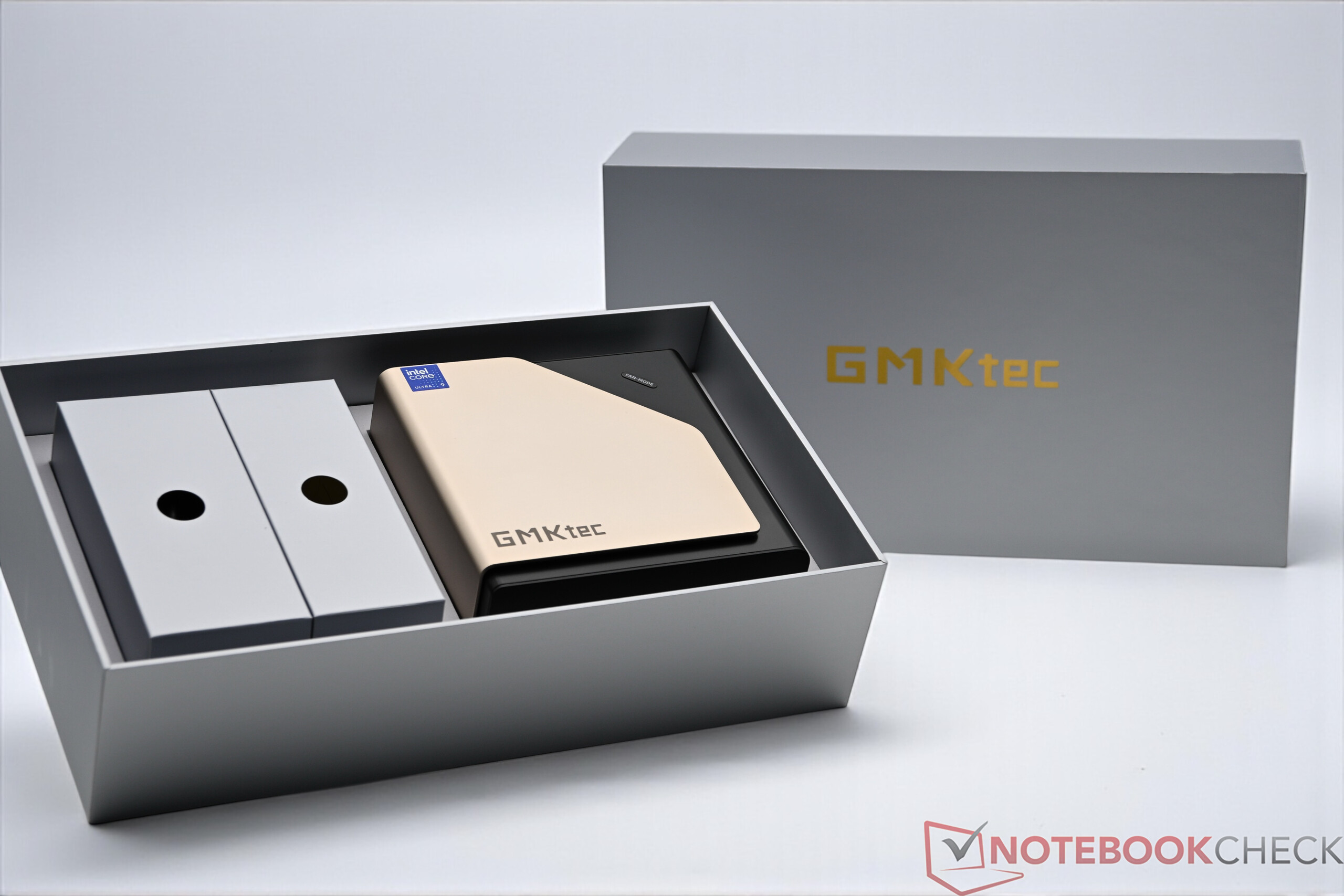

Accessories

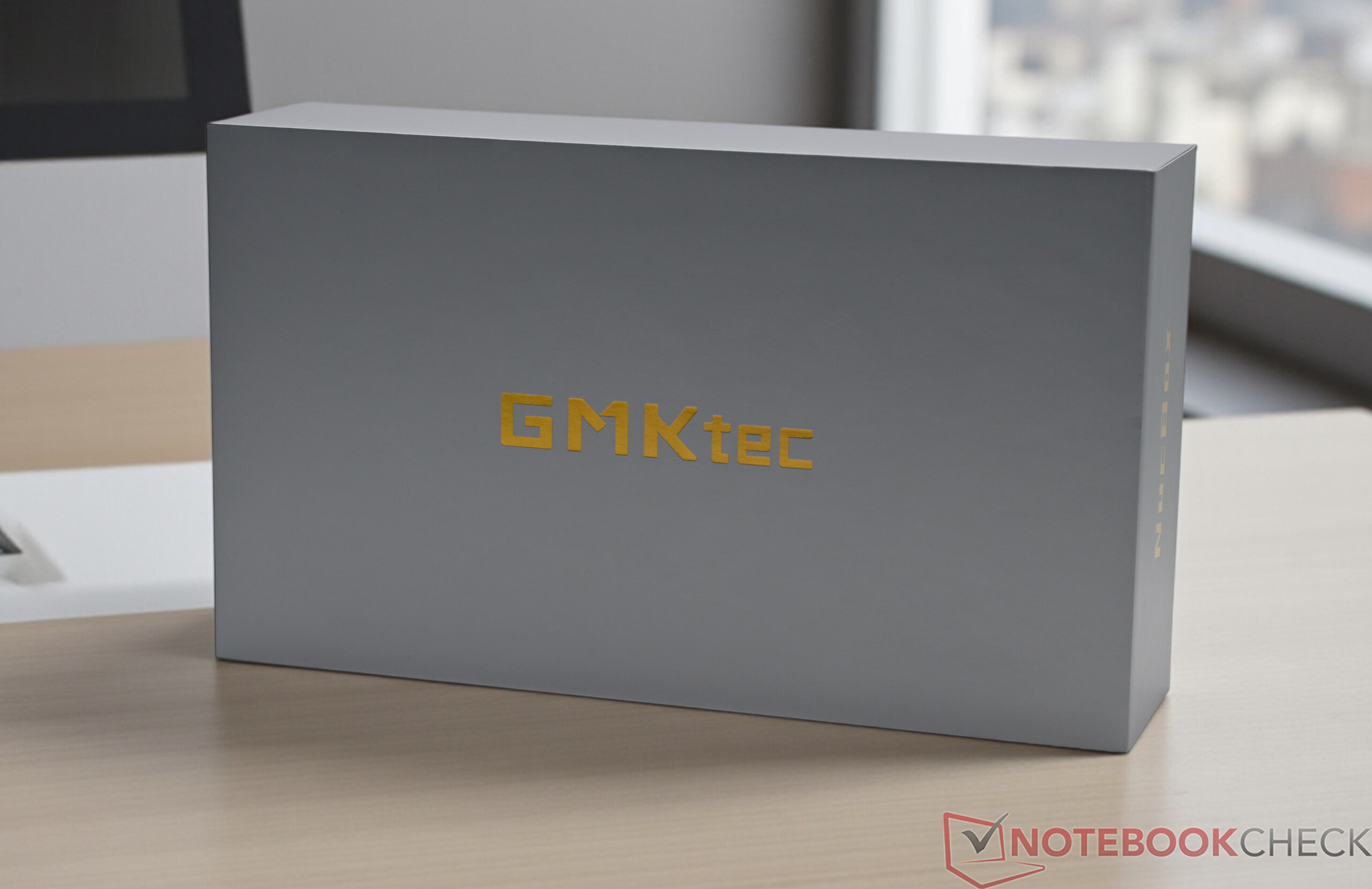

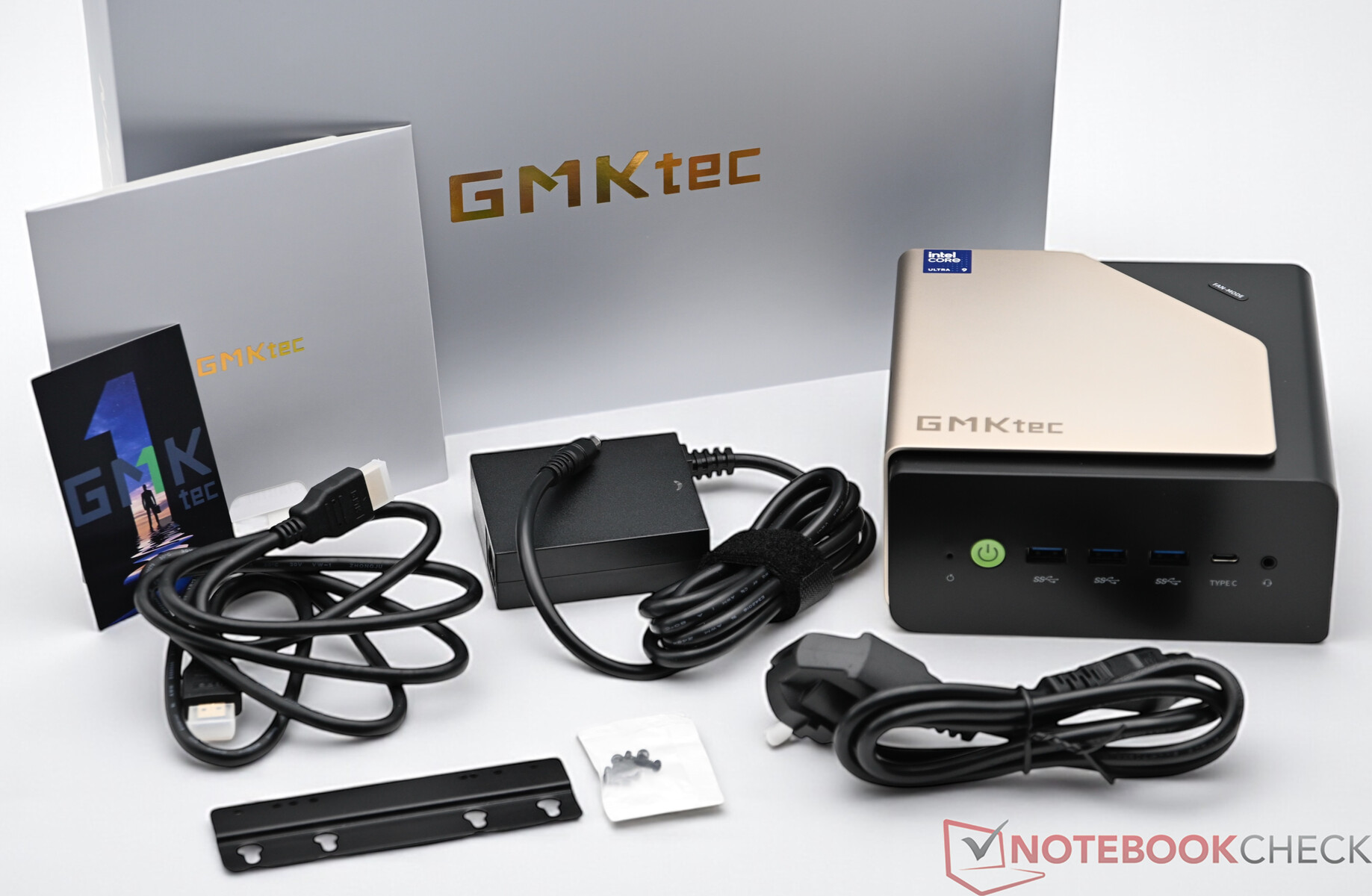

The scope of delivery is standard. A VESA mount with accessories and the compact 150-watt power supply unit are included in the box. An AI instance (GMK AI Assistant) is also pre-installed on the mini PC, which makes it possible to run local AI instances.

Maintenance

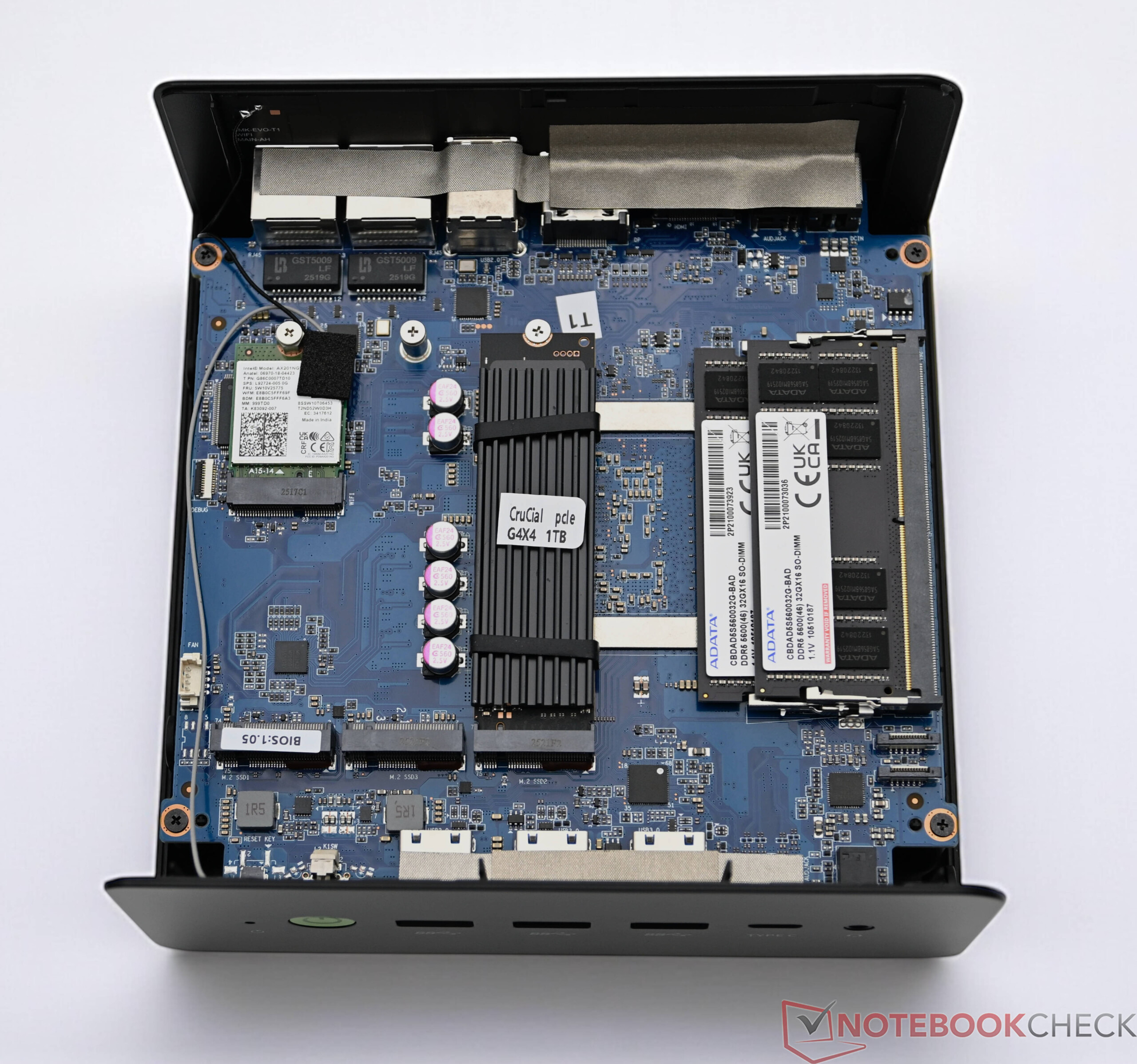

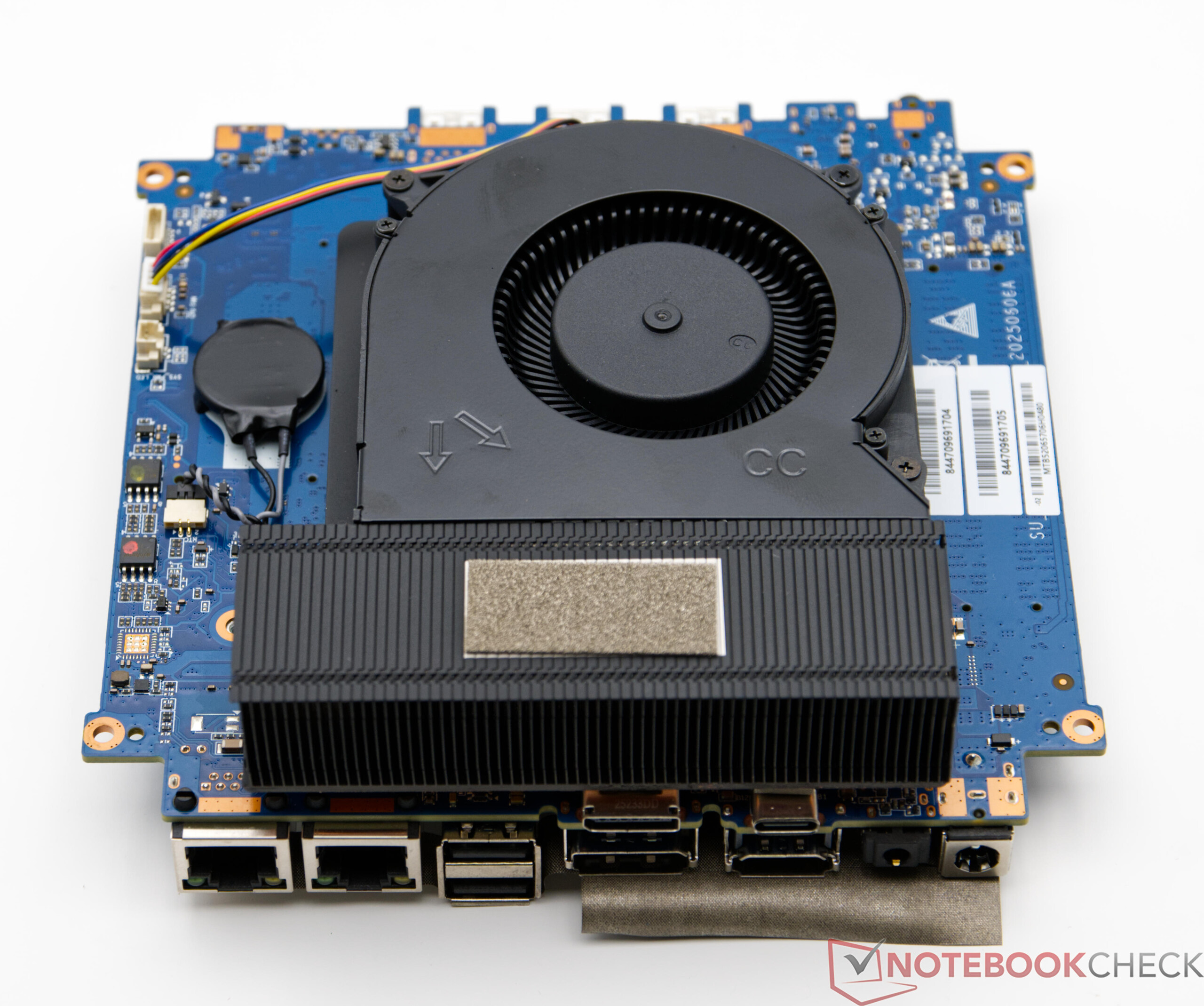

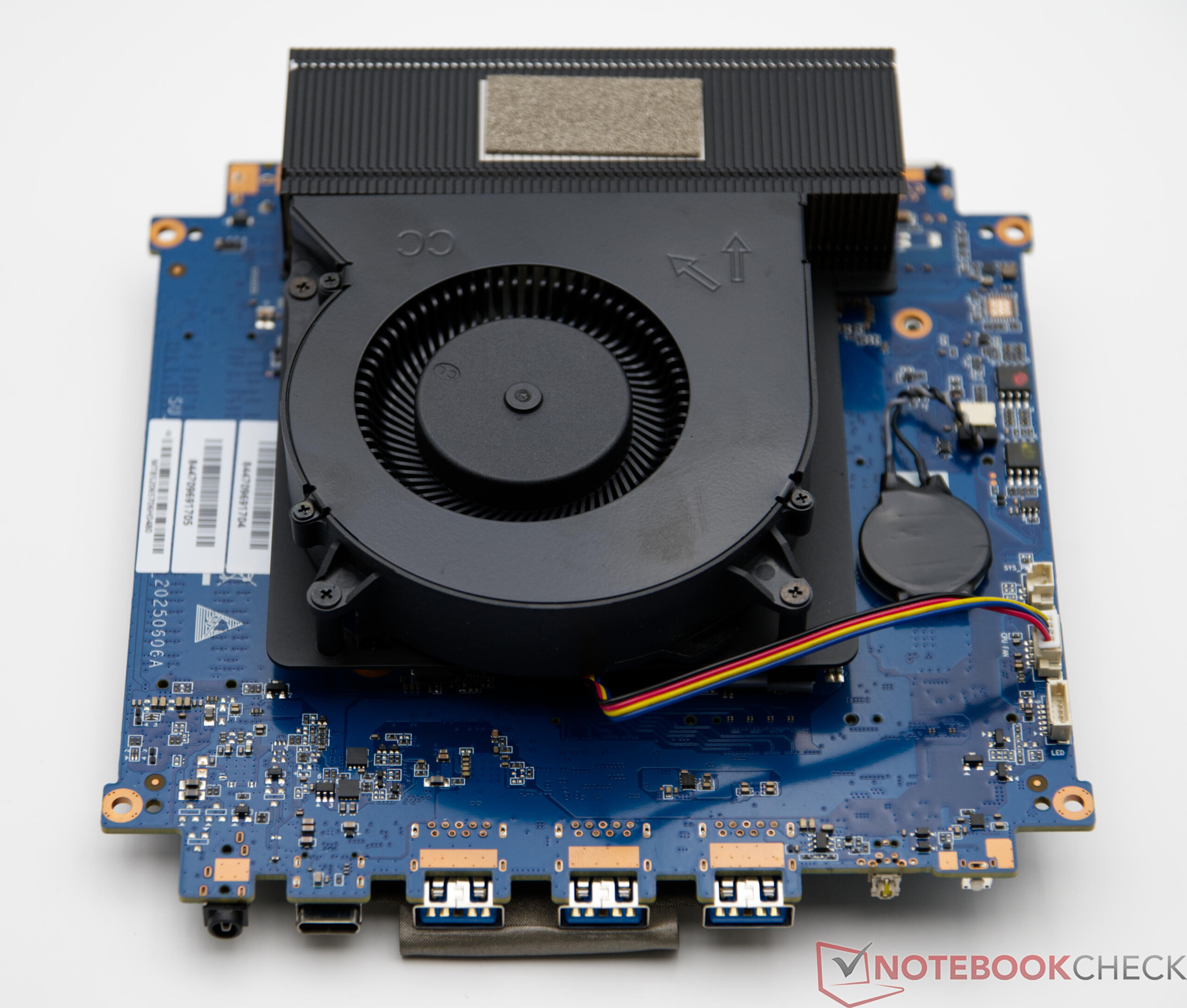

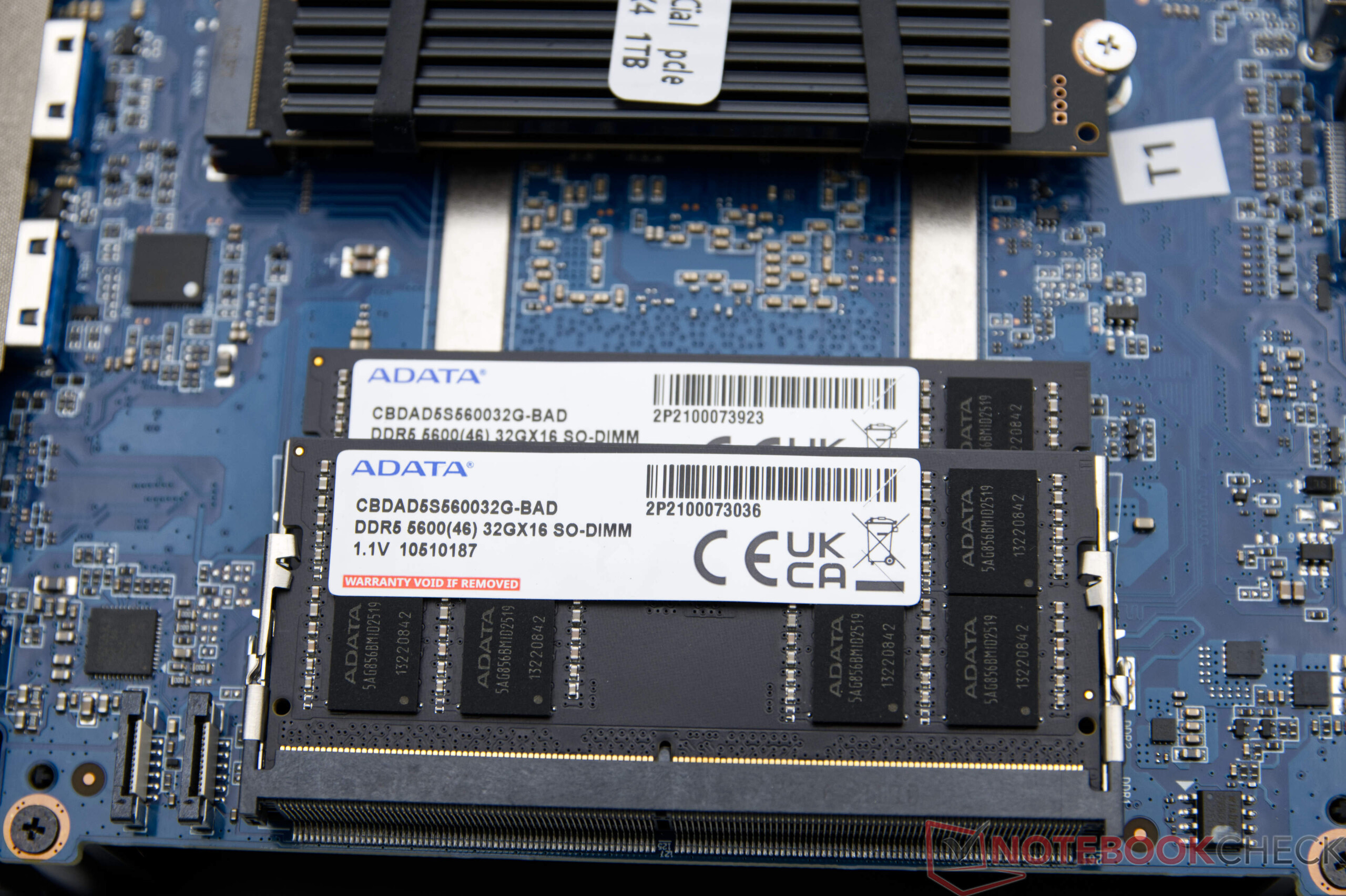

The GMK EVO-T1 is easy to open. Once the metal cover has been removed, four screws must be unscrewed to remove the plastic cover and fan. The EVO-T1 still has space for two additional mass storage devices in M.2-2280 format. The RAM and WLAN module can also be replaced.

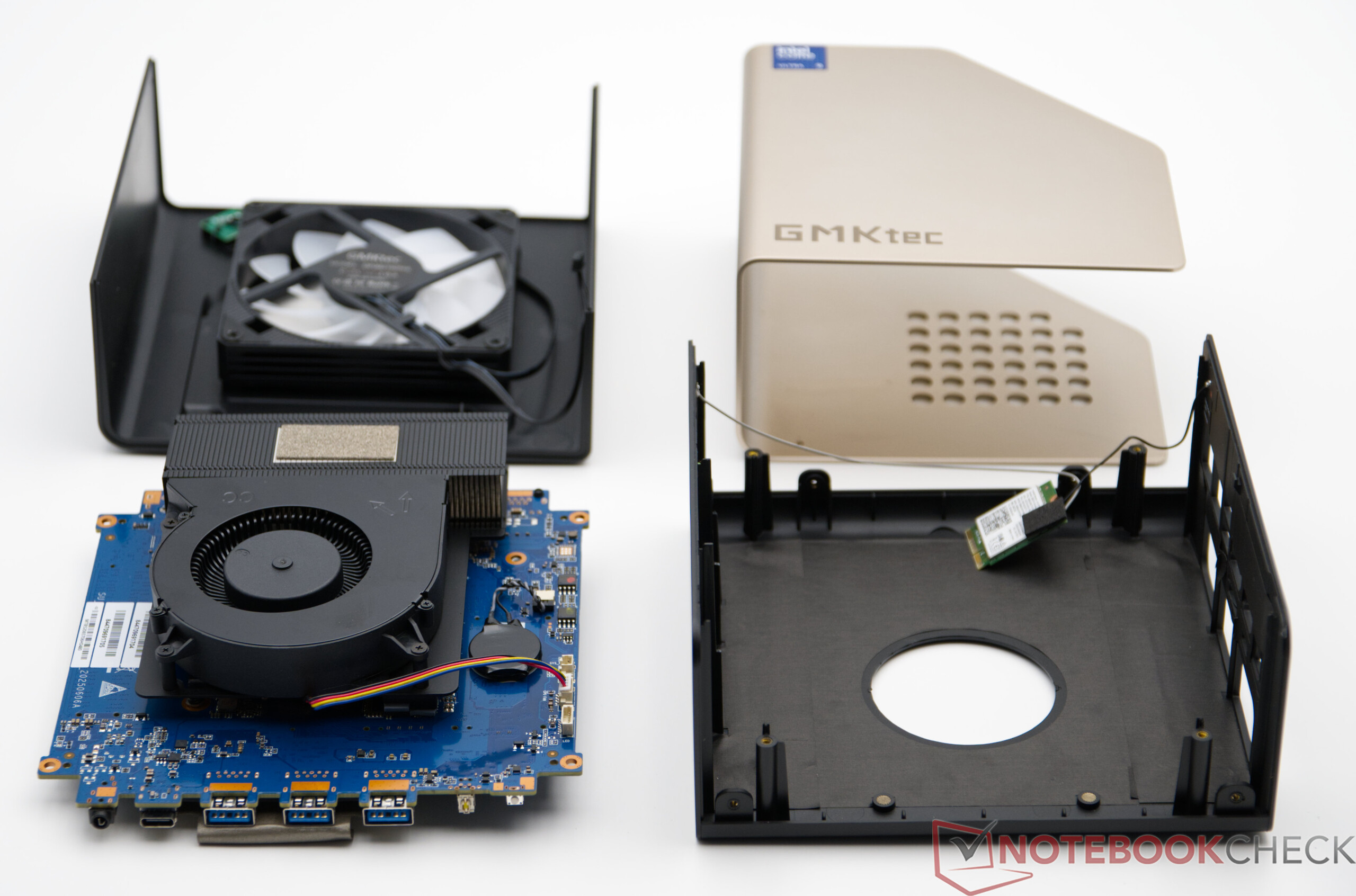

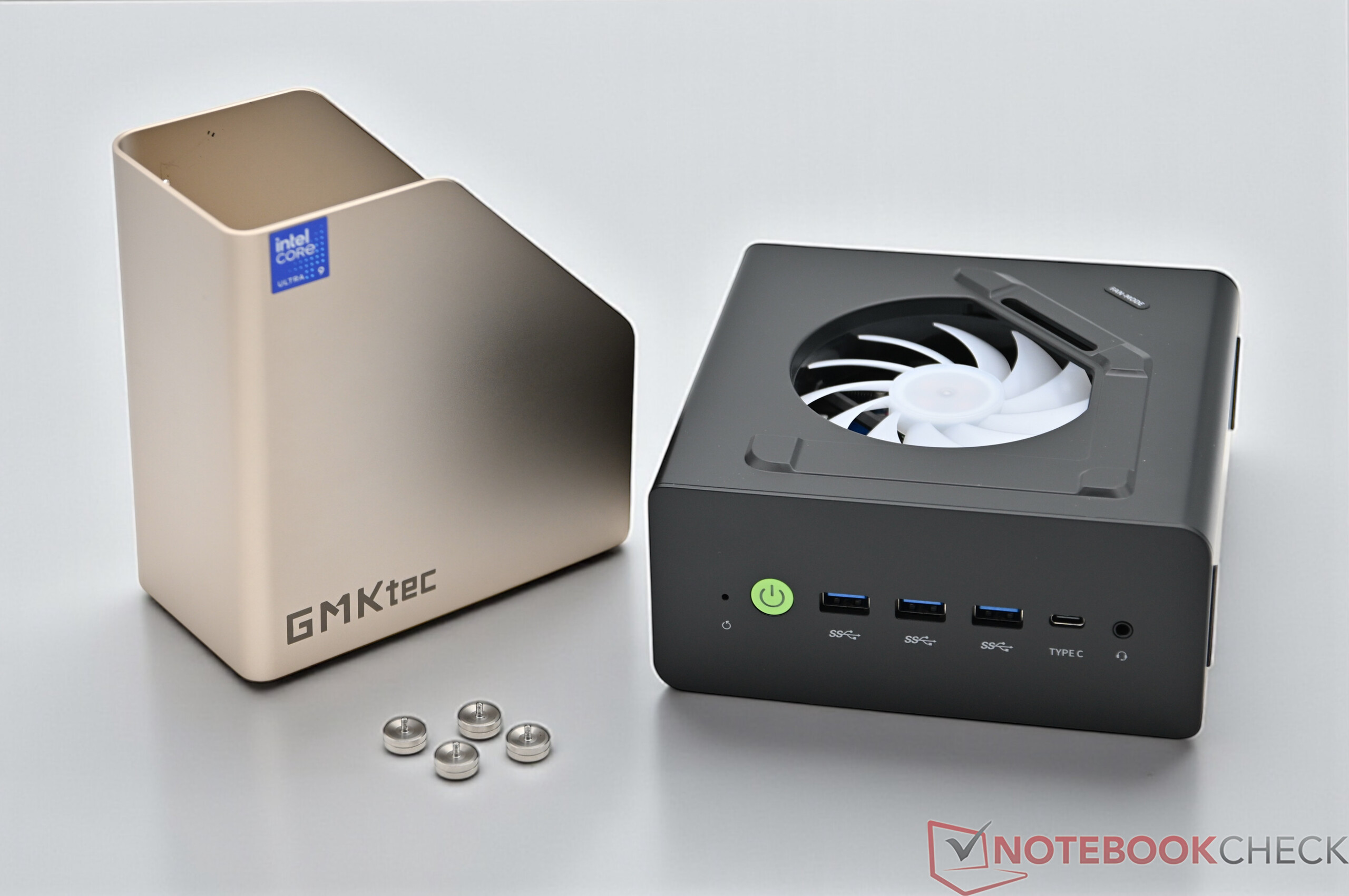

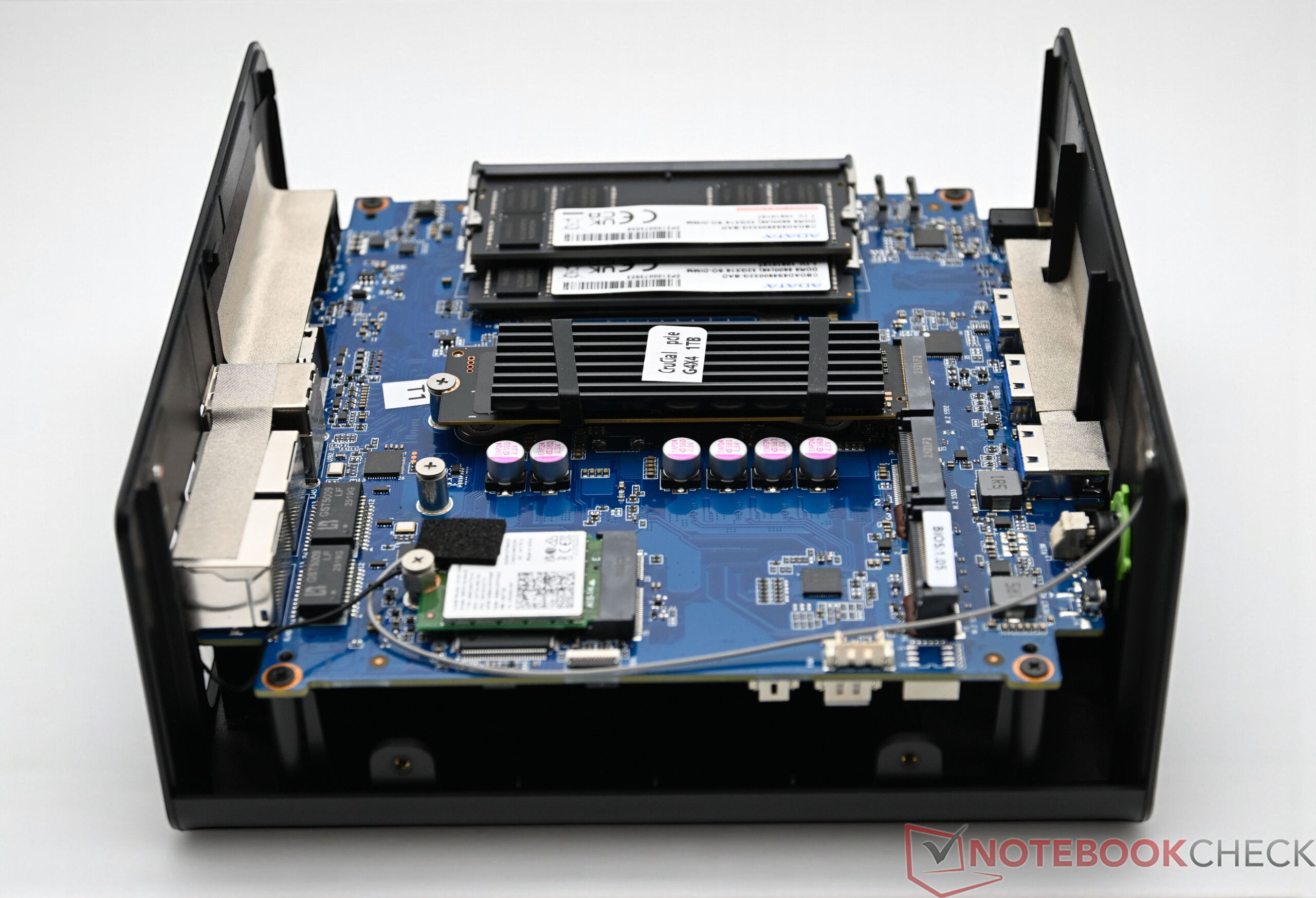

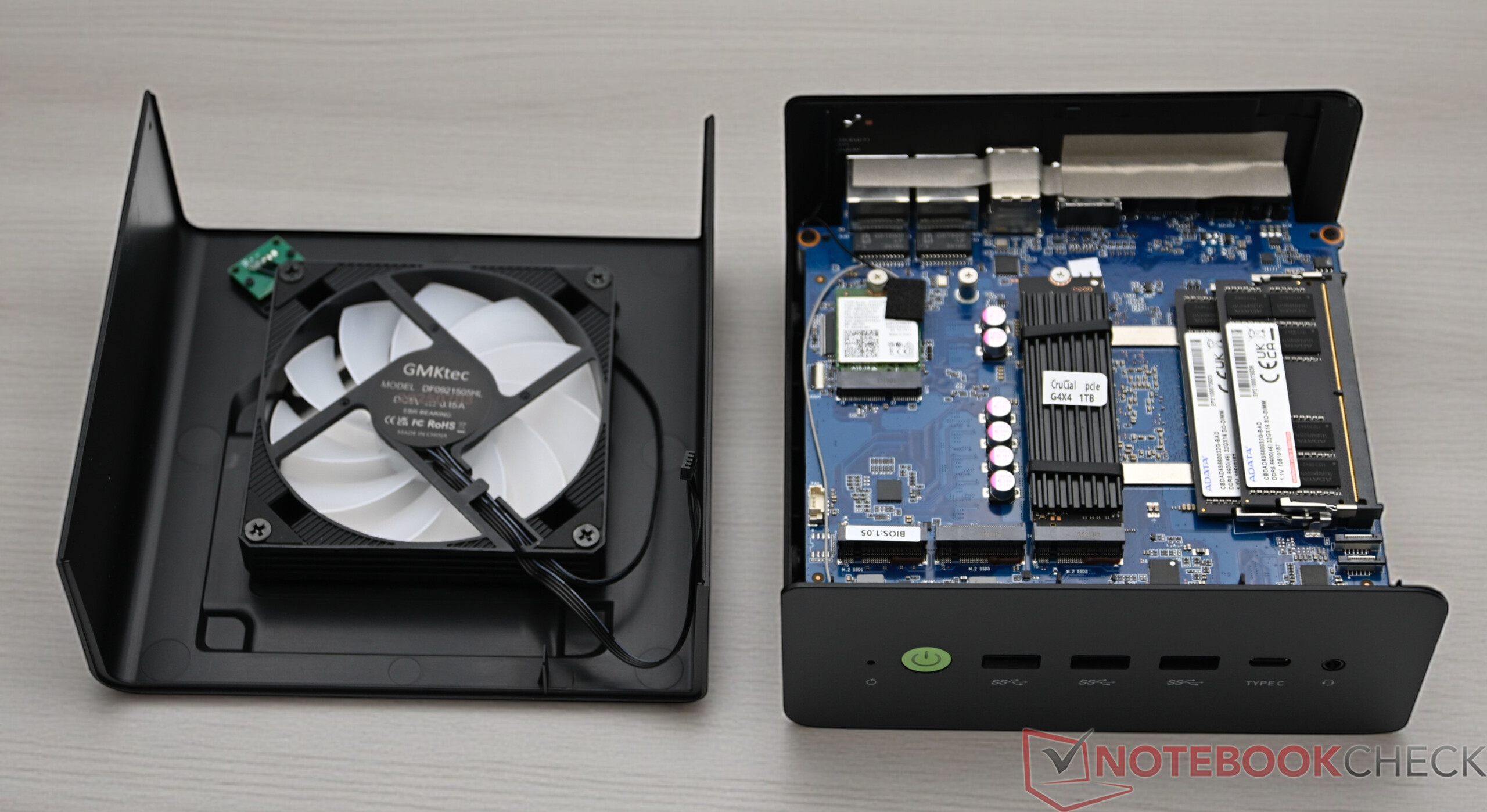

GMKtec EVO-T1 with dismantled metal cover

Sustainability

GMK does not provide any information on sustainability measures in the manufacturing process. The packaging consists mainly of cardboard, supplemented by a few foam elements to protect the device.

Performance

Equipped with the Intel Core Ultra 9 285H which can be operated with up to 80 watts, the EVO-T1 offers plenty of power. In addition to the Intel Arc Graphics 140T iGPU, the NPU also benefits from this.

Test conditions

In contrast to the factory settings, the EVO-T1 was tested in performance mode in order to achieve the best possible performance. In factory settings, the system operates with a more conservative power limit of 54 watts, which means the mini PC is significantly quieter.

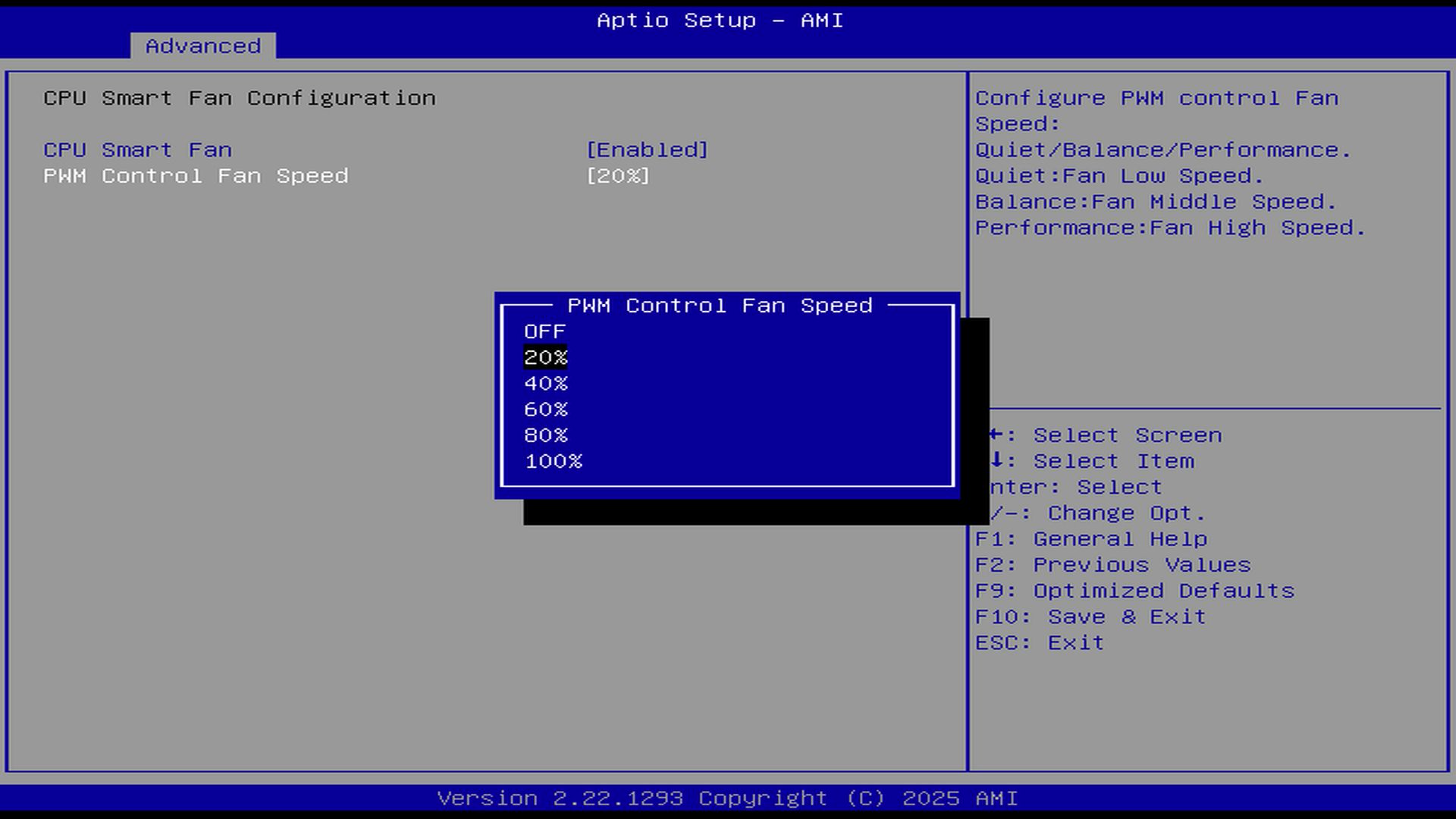

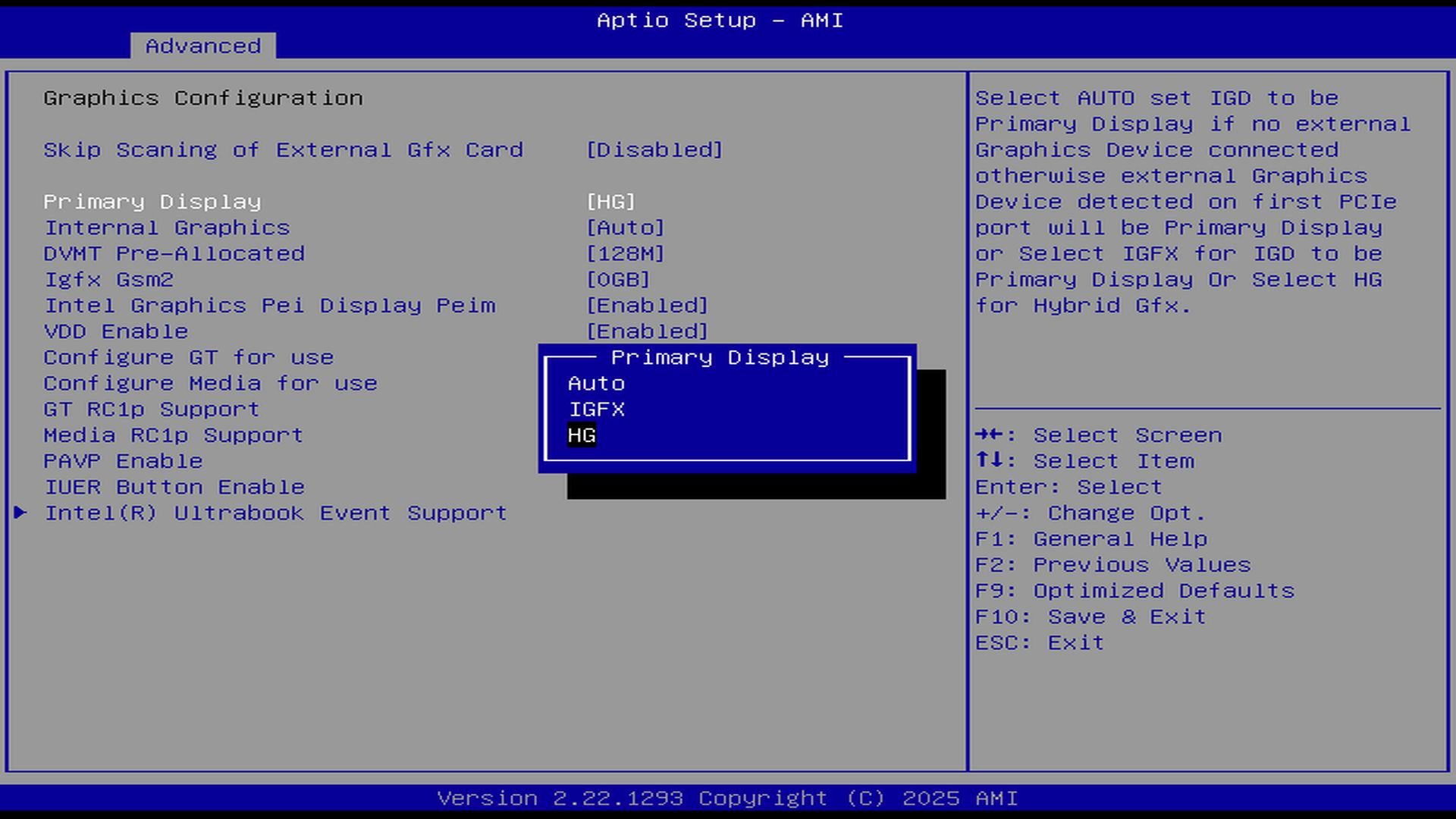

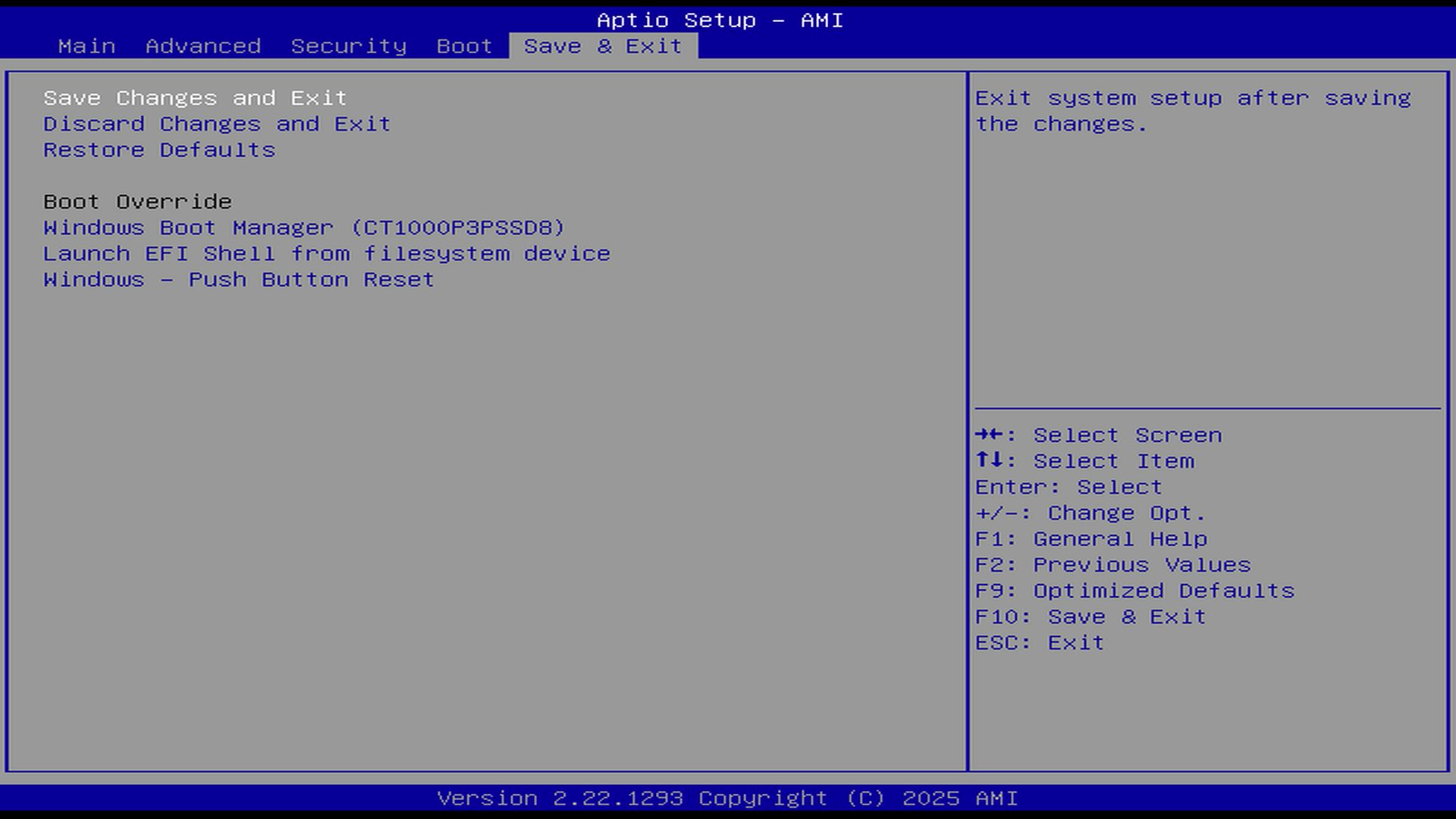

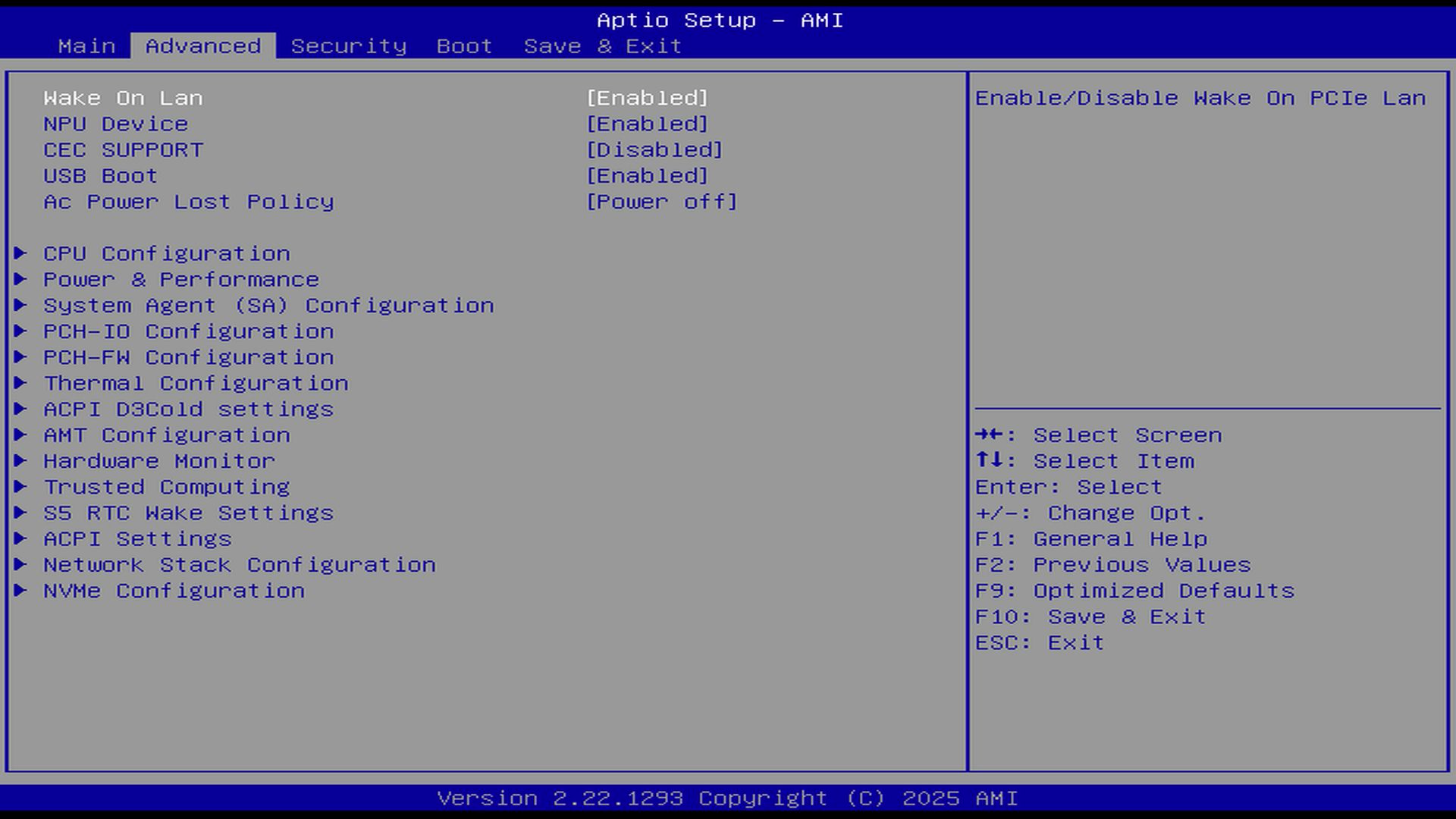

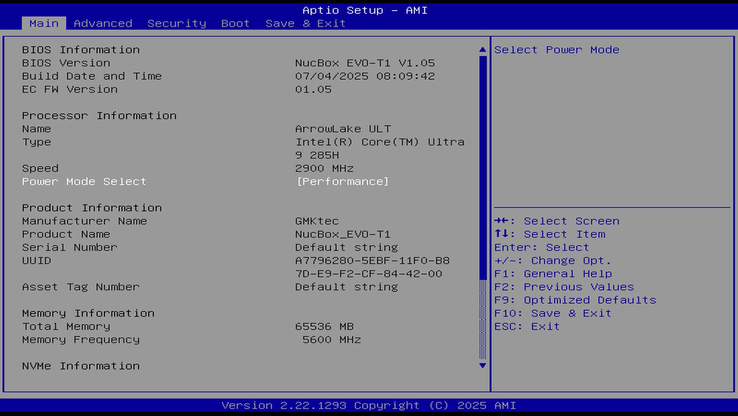

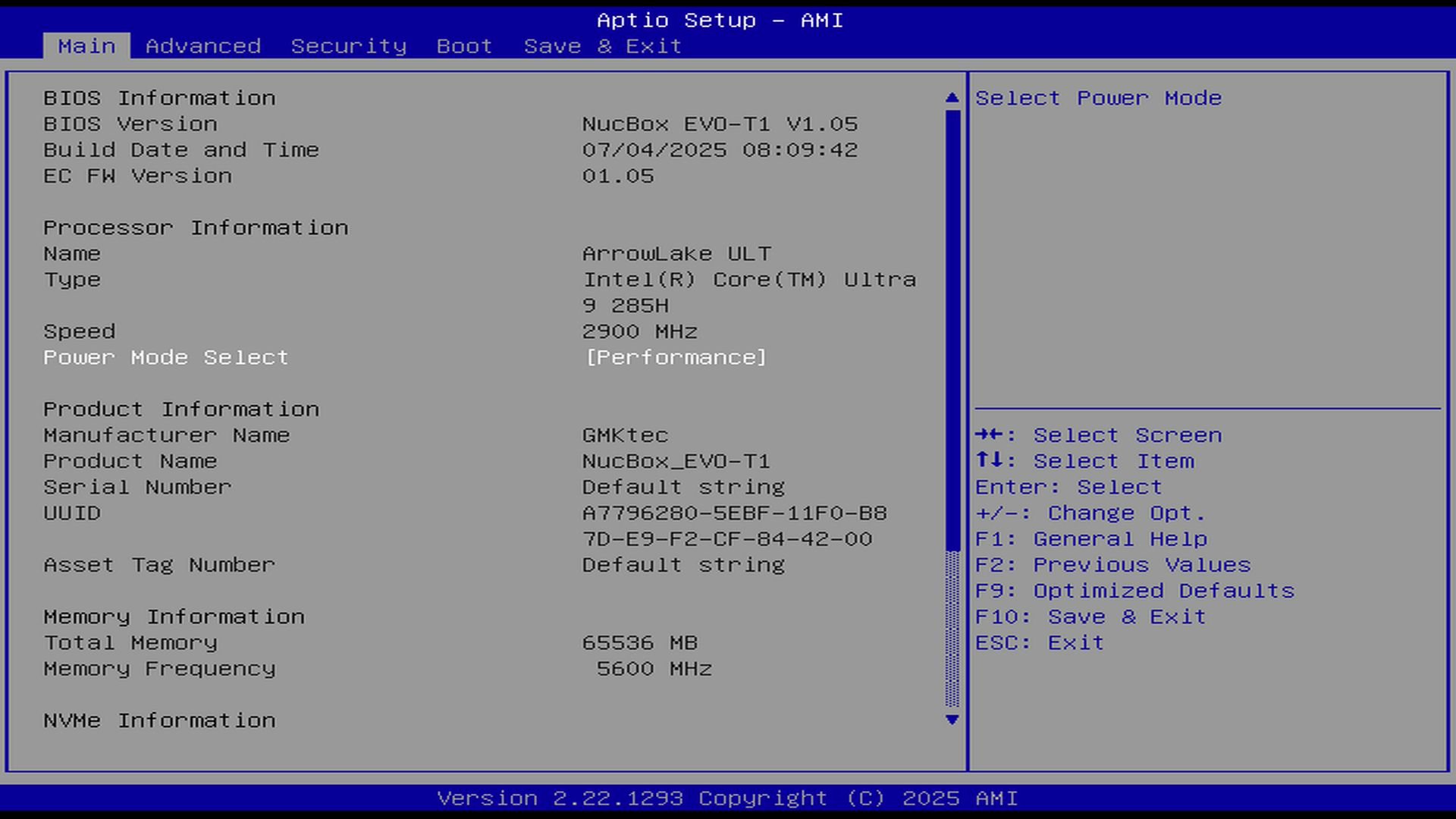

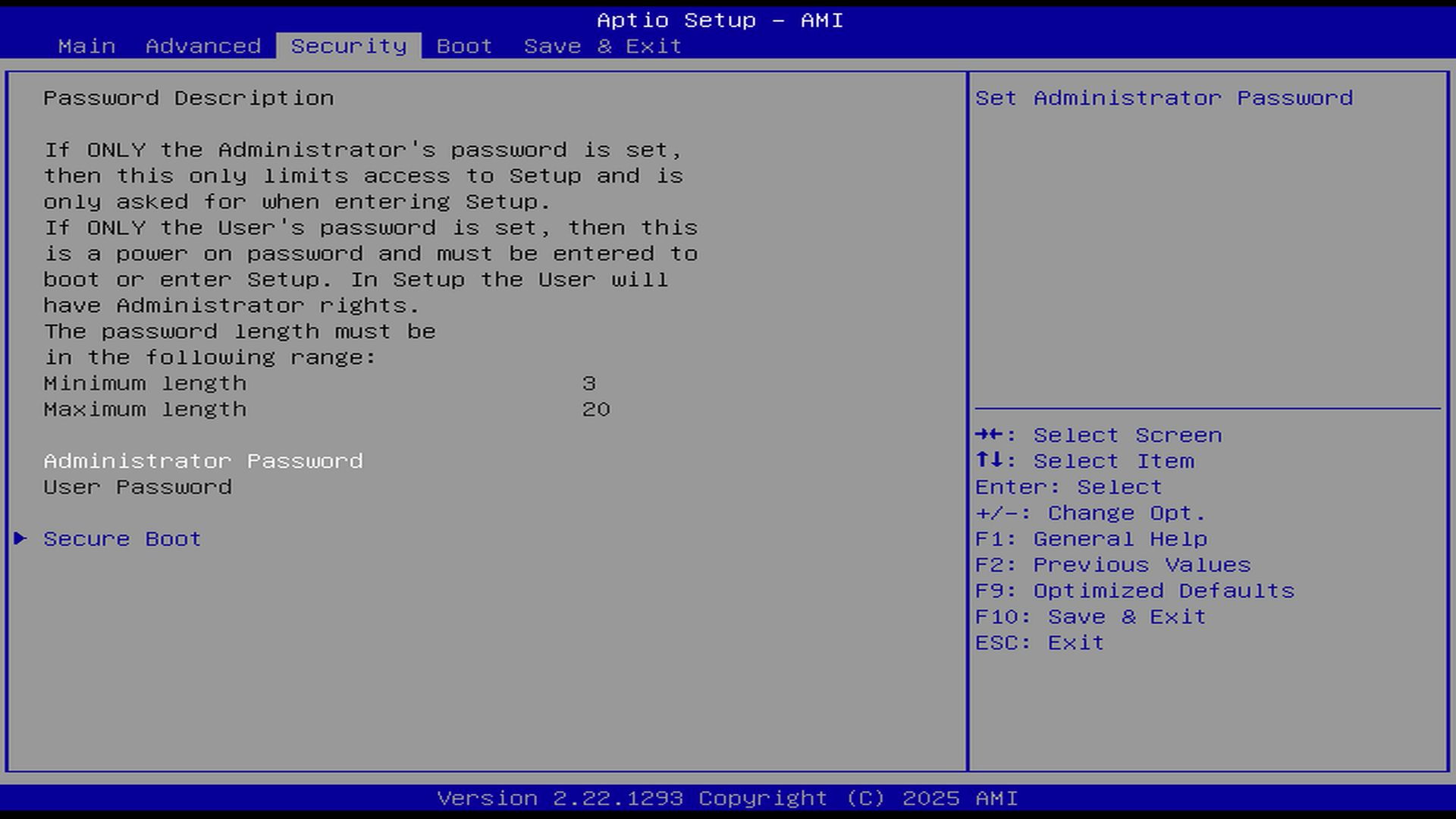

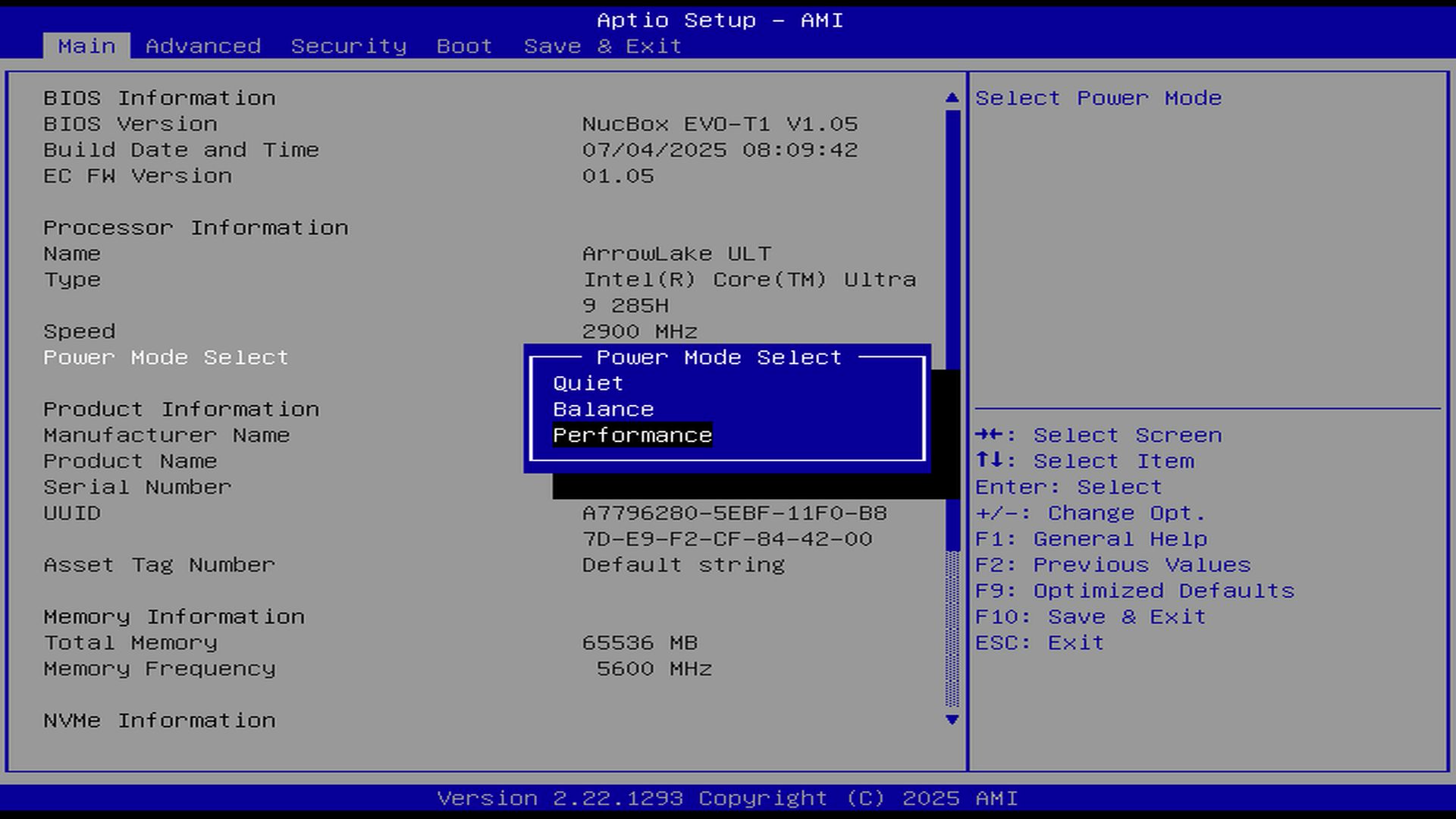

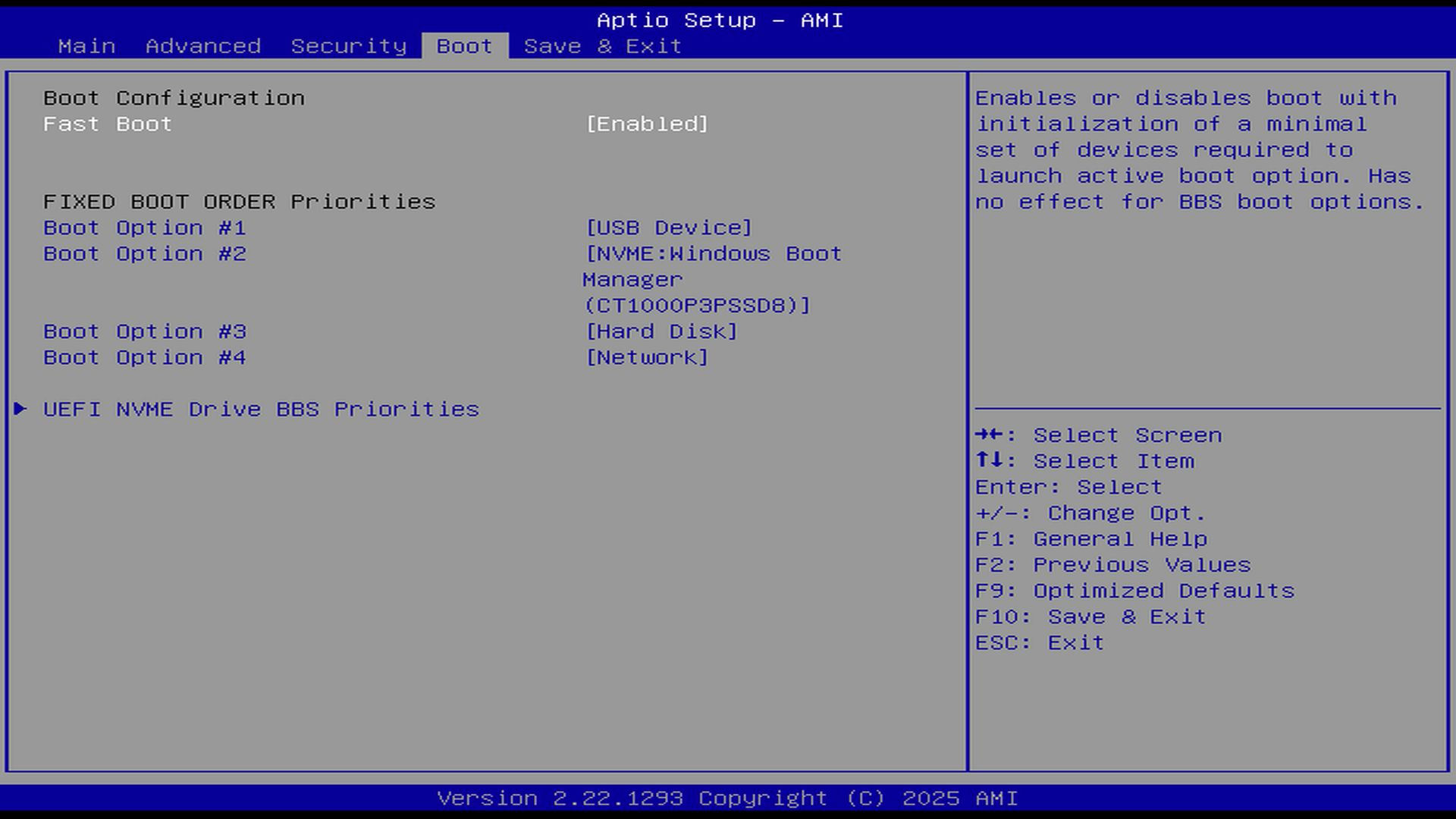

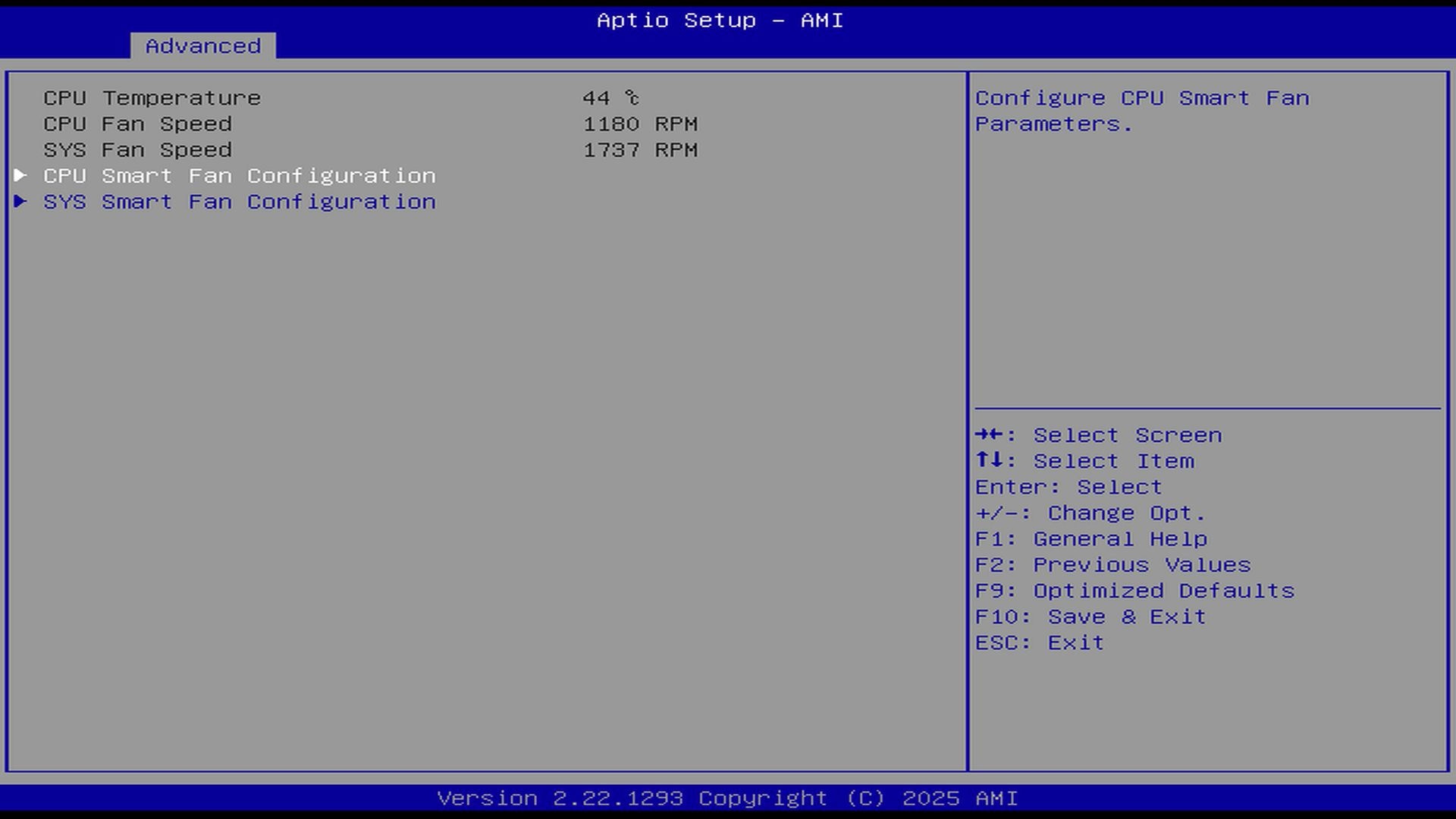

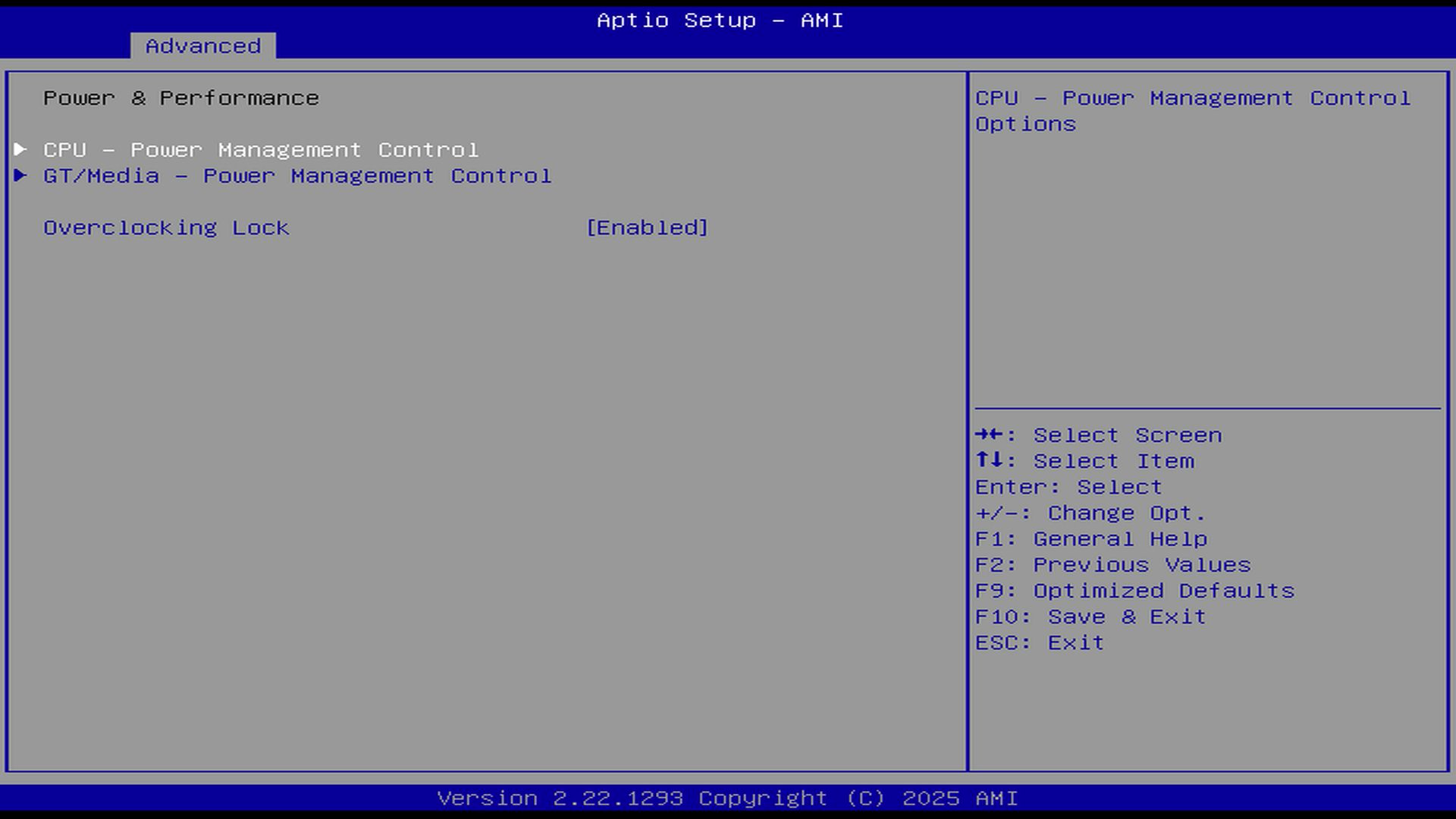

BIOS - Settings

Processor

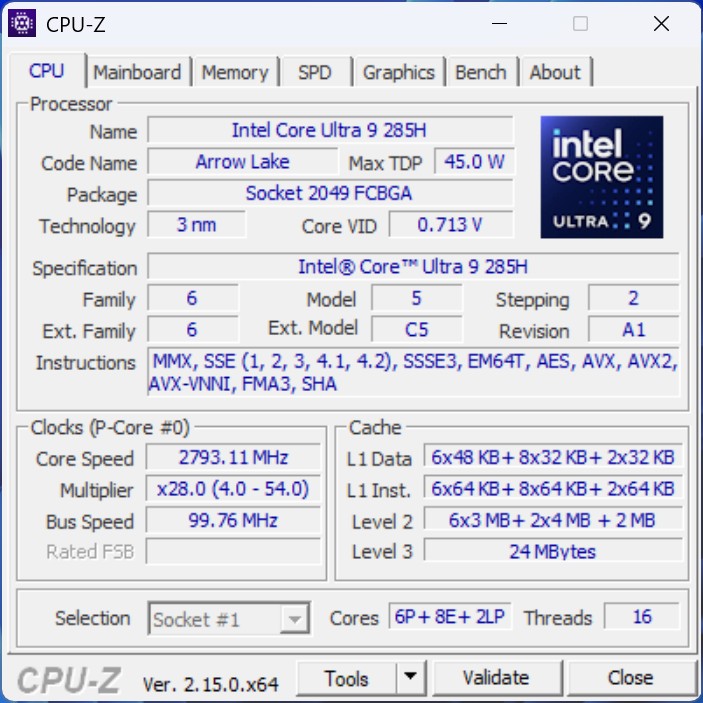

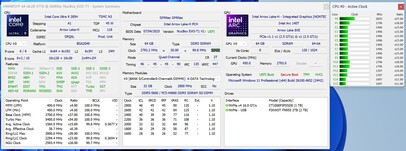

The GMK EVO-T1 is equipped with the Intel Core Ultra 9 285H. In performance mode, the SoC can develop almost its full power and operate continuously at 70 watts. The SoC even has 80 watts available for a short time, which is achieved. Compared to the Geekom Mini IT15, our test sample therefore has an easy game, as Geekom defines the power limit for continuous load operation at 33 watts. However, the EVO-T1 does not reach the performance of an AMD Ryzen AI 9 HX 370.

Power Mode	Cinebench R15 1T	Cinebench R15 nT	Cinebench R20 1T	Cinebench R20 nT	Cinebench R23 1T	Cinebench R23 nT	Cinebench 2024 1T	Cinebench 2024 nT
Performance	309	3,137	809	8,068	2,105	20,681	126	1,142

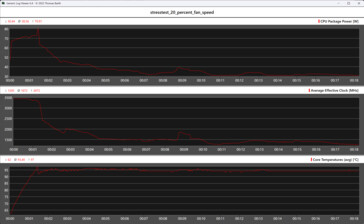

Performance (FAN speed 20 %)	288	3,064	739	7,901	1,891	19,686	117	907
Balanced	308	2,799	799	7,318	2,079	18,748	124	1,060
Quiet	300	2,506	776	6,758	2,018	17,297	123	991

Performance Rating - Percent
Minisforum MS-A2 AMD Ryzen 9 9955HX	73.8 pt
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	60.9 pt
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	60.8 pt
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	59.8 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	56.5 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS	55.3 pt

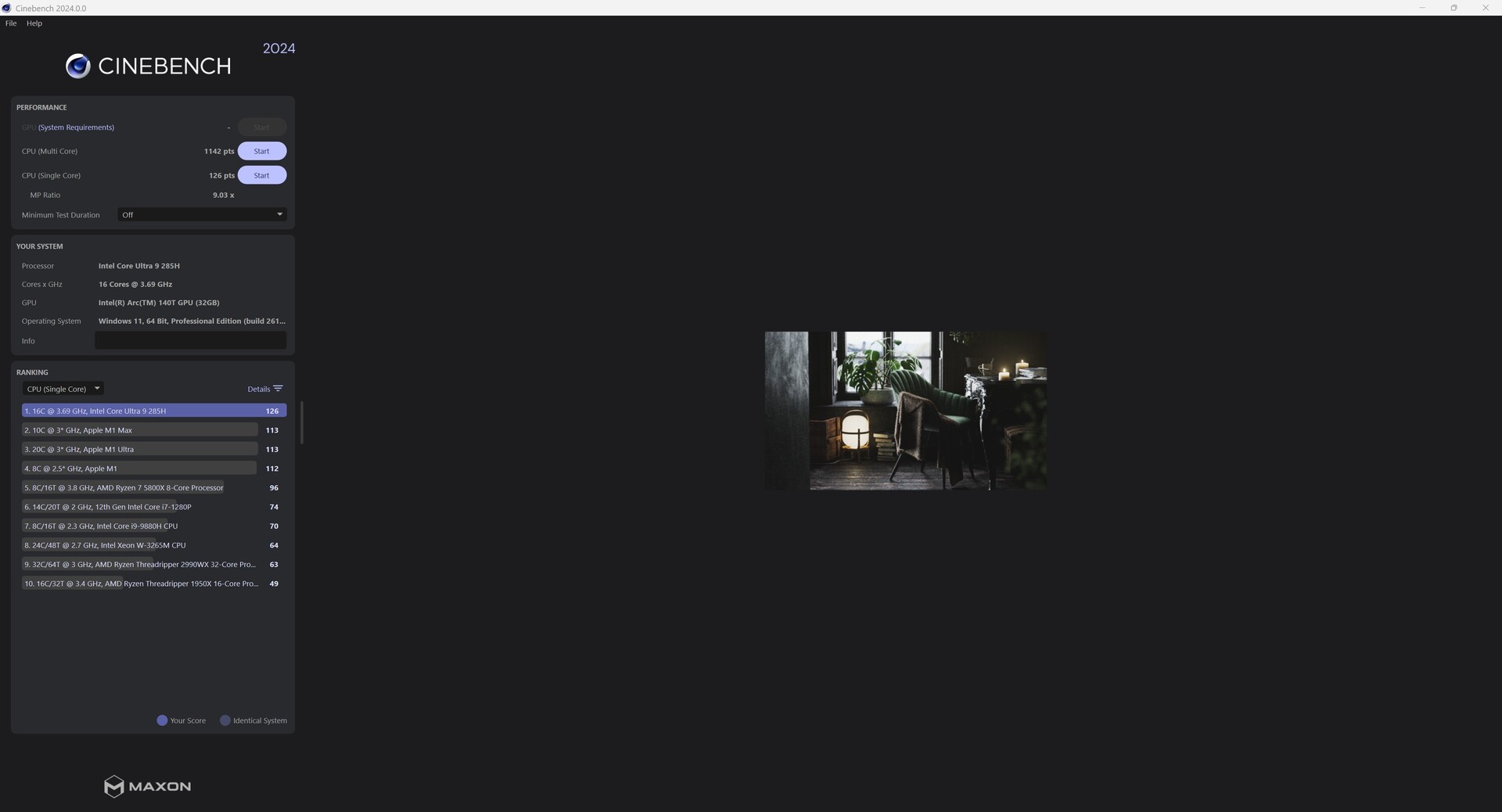

Cinebench 2024
CPU Multi Core
Minisforum MS-A2 AMD Ryzen 9 9955HX	1775 Points +55%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1267 Points +11%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	1142 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	943 Points -17%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	888 Points -22%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	865 Points -24%
CPU Single Core
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	130 Points +3%
Minisforum MS-A2 AMD Ryzen 9 9955HX	130 Points +3%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	126 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	121 Points -4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	106 Points -16%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	105 Points -17%

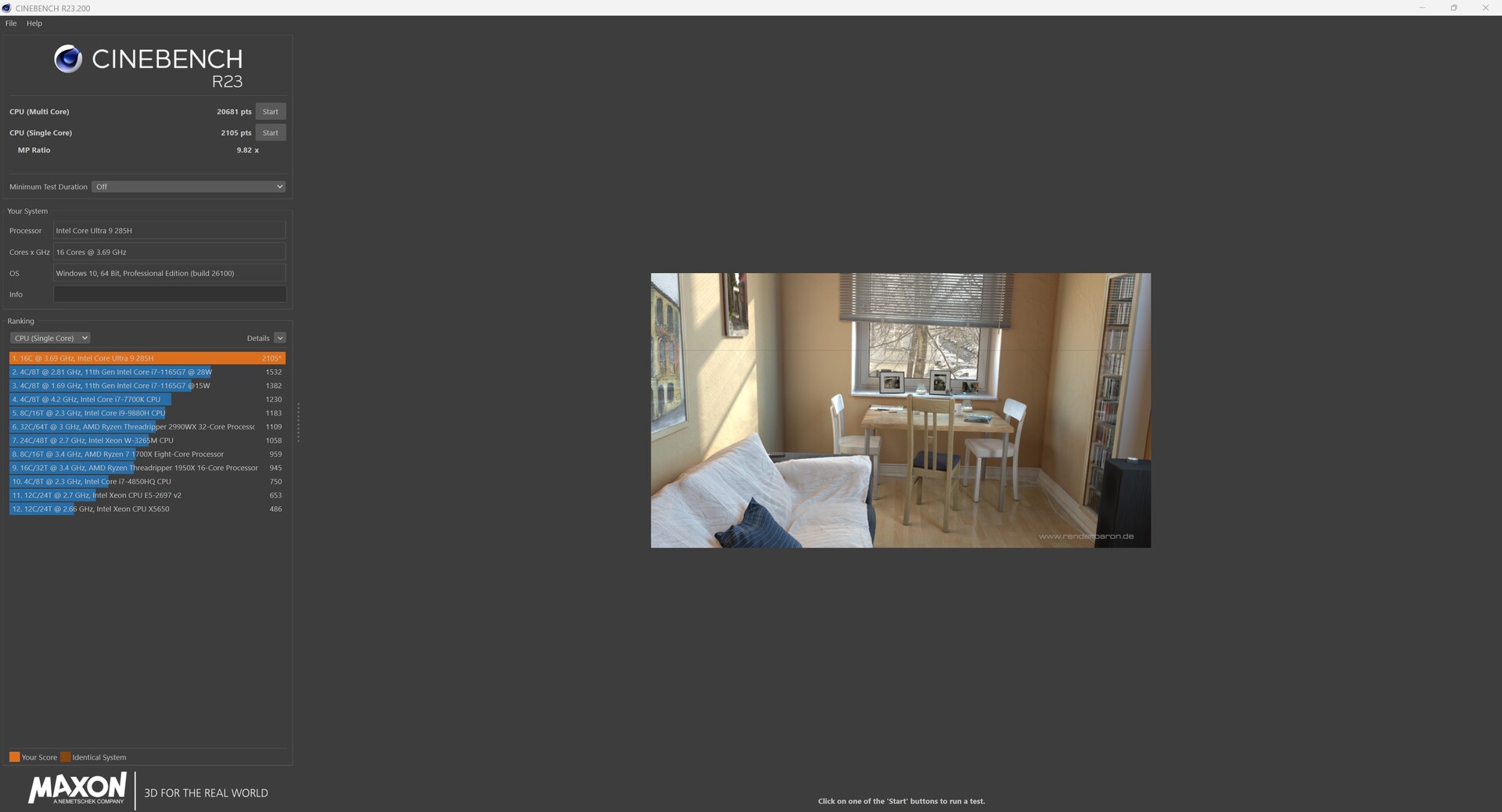

Cinebench R23
Multi Core
Minisforum MS-A2 AMD Ryzen 9 9955HX	36078 Points +74%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	22836 Points +10%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	20681 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	18253 Points -12%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	16350 Points -21%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	15533 Points -25%
Single Core
Minisforum MS-A2 AMD Ryzen 9 9955HX	2183 Points +4%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	2157 Points +2%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	2105 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2040 Points -3%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1779 Points -15%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1762 Points -16%

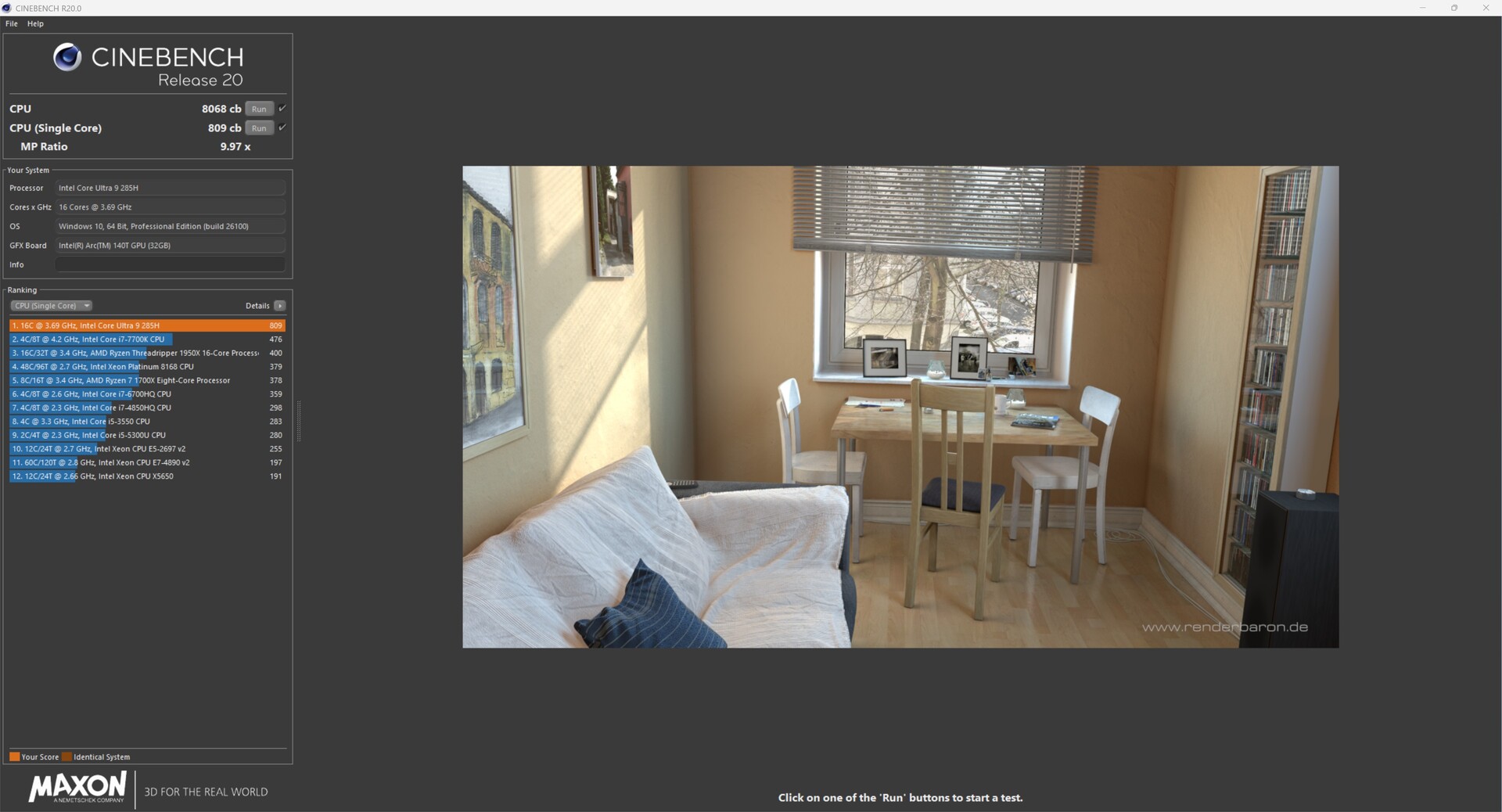

Cinebench R20
CPU (Multi Core)
Minisforum MS-A2 AMD Ryzen 9 9955HX	14166 Points +76%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8969 Points +11%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	8068 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	7410 Points -8%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	6428 Points -20%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6254 Points -22%
CPU (Single Core)
Minisforum MS-A2 AMD Ryzen 9 9955HX	849 Points +5%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	830 Points +3%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	809 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	798 Points -1%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	690 Points -15%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	677 Points -16%

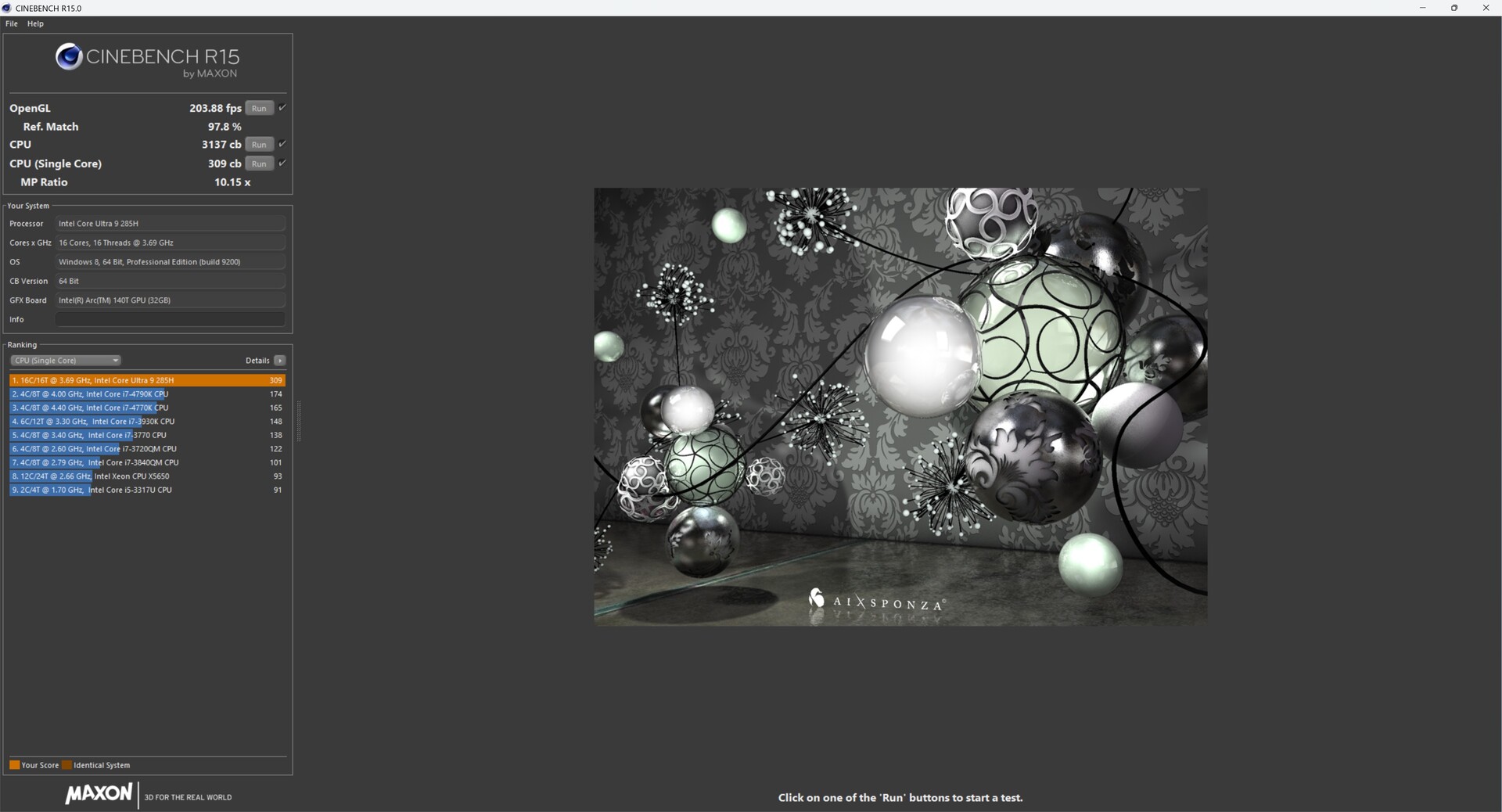

Cinebench R15
CPU Multi 64Bit
Minisforum MS-A2 AMD Ryzen 9 9955HX	5671 Points +81%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	3478 Points +11%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	3137 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	2876 Points -8%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2615 Points -17%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2508 Points -20%
CPU Single 64Bit
Minisforum MS-A2 AMD Ryzen 9 9955HX	337 Points +9%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	311 Points +1%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	311 Points +1%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	309 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	278 Points -10%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	270 Points -13%

Cinebench R11.5
CPU Multi 64Bit
Minisforum MS-A2 AMD Ryzen 9 9955HX	65.35 Points +69%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	41.17 Points +7%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	38.65 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	35.99 Points -7%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	30.3 Points -22%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	29.59 Points -23%
CPU Single 64Bit
Minisforum MS-A2 AMD Ryzen 9 9955HX	3.97 Points +7%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	3.72 Points +1%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	3.7 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	3.69 Points 0%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	3.34 Points -10%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3.29 Points -11%

Cinebench R10
Rendering Single CPUs 64Bit
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	17515 Points +1%
Minisforum MS-A2 AMD Ryzen 9 9955HX	17343 Points 0%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	17328 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	15935 Points -8%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	14557 Points -16%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	14197 Points -18%
Rendering Multiple CPUs 64Bit
Minisforum MS-A2 AMD Ryzen 9 9955HX	138015 Points +19%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	116185 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	111175 Points -4%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	100569 Points -13%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	87782 Points -24%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	84973 Points -27%

Blender
v2.79 BMW27 CPU
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	209 Seconds * -26%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	201 Seconds * -21%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	194 Seconds * -17%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	166 Seconds *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	143 Seconds * +14%
Minisforum MS-A2 AMD Ryzen 9 9955HX	91 Seconds * +45%
v3.3 Classroom CPU
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	359 Seconds * -34%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	328 Seconds * -22%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	316 Seconds * -18%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	268 Seconds *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	221 Seconds * +18%
Minisforum MS-A2 AMD Ryzen 9 9955HX	145 Seconds * +46%
v4.3 Barbershop CPU
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	1798 Seconds * -33%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1601 Seconds * -18%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1566 Seconds * -16%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	1355 Seconds *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1151 Seconds * +15%
Minisforum MS-A2 AMD Ryzen 9 9955HX	762 Seconds * +44%

wPrime 2.10
32m
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	3.375 s *
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	3.3 s * +2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3.244 s * +4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2.81 s * +17%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2.701 s * +20%
Minisforum MS-A2 AMD Ryzen 9 9955HX	2.244 s * +34%
1024m
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	275.558 s *
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	104.802 s * +62%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	75.535 s * +73%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	70.718 s * +74%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	50.536 s * +82%
Minisforum MS-A2 AMD Ryzen 9 9955HX	33.917 s * +88%

X264 HD Benchmark 4.0
Pass 1
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	363 (357^min - 371^max) fps +2%
Minisforum MS-A2 AMD Ryzen 9 9955HX	359 (357^min - 361^max) fps +1%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	356.5 (340^min - 365^max) fps
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	330 (327^min - 331^max) fps -7%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	286.5 (284^min - 289^max) fps -20%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	280 (278^min - 288^max) fps -21%
Pass 2
Minisforum MS-A2 AMD Ryzen 9 9955HX	233.5 (230^min - 238^max) fps +26%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	185.15 (183.8^min - 186.9^max) fps
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	185.1 (184.7^min - 185.4^max) fps 0%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	176.05 (149.7^min - 176.1^max) fps -5%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	149.8 (149.4^min - 151.1^max) fps -19%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	142.85 (140.6^min - 147.6^max) fps -23%

WinRAR - Result
Minisforum MS-A2 AMD Ryzen 9 9955HX	9033 KB/s +34%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	7690 KB/s +14%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7275 KB/s +8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7271 KB/s +8%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	6751 KB/s
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	4759 KB/s -30%

TrueCrypt
AES Mean 100MB
Minisforum MS-A2 AMD Ryzen 9 9955HX	27.9 GB/s +194%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	15.3 GB/s +61%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	14.9 GB/s +57%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	10.2 GB/s +7%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	9.5 GB/s
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	8.9 GB/s -6%
Twofish Mean 100MB
Minisforum MS-A2 AMD Ryzen 9 9955HX	4.9 GB/s +145%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2.6 GB/s +30%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2.1 GB/s +5%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	2 GB/s 0%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	2 GB/s
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1.9 GB/s -5%
Serpent Mean 100MB
Minisforum MS-A2 AMD Ryzen 9 9955HX	3.1 GB/s +210%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1.6 GB/s +60%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1.3 GB/s +30%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1.2 GB/s +20%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	1.1 GB/s +10%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	1 GB/s

Geekbench AI
Quantized CPU 1.2
Minisforum MS-A2 AMD Ryzen 9 9955HX	10550 Points +33%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	7934 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	7821 Points -1%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	7389 Points -7%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7226 Points -9%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6838 Points -14%
Half Precision CPU 1.2
Minisforum MS-A2 AMD Ryzen 9 9955HX	2365 Points +24%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	1903 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1814 Points -5%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1801 Points -5%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	1785 Points -6%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1713 Points -10%
Single Precision CPU 1.2
Minisforum MS-A2 AMD Ryzen 9 9955HX	6352 Points +29%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	4914 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	4508 Points -8%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	4066 Points -17%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	4039 Points -18%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3912 Points -20%
Quantized CPU 1.4
Minisforum MS-A2 AMD Ryzen 9 9955HX	11433 Points +25%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	9169 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	7725 Points -16%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	7698 Points -16%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7617 Points -17%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7545 Points -18%
Half Precision CPU 1.4
Minisforum MS-A2 AMD Ryzen 9 9955HX	2418 Points +19%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	2027 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1853 Points -9%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1799 Points -11%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	1795 Points -11%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1757 Points -13%
Single Precision CPU 1.4
Minisforum MS-A2 AMD Ryzen 9 9955HX	6600 Points +32%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	5018 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	4654 Points -7%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	4202 Points -16%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	4185 Points -17%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	4098 Points -18%

Geekbench 6.4
Single-Core
Minisforum MS-A2 AMD Ryzen 9 9955HX	3244 Points +13%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	3075 Points +7%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2911 Points +1%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	2878 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	2642 Points -8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2626 Points -9%
Multi-Core
Minisforum MS-A2 AMD Ryzen 9 9955HX	18711 Points +22%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	15673 Points +2%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	15381 Points 0%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	15339 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	13239 Points -14%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	13020 Points -15%

Geekbench 6.0
Single-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	3105 Points 0%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	3105 Points 0%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3105 Points 0%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	3105 Points 0%
Minisforum MS-A2 AMD Ryzen 9 9955HX	3105 Points 0%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	3105 Points
Multi-Core
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	21003 Points 0%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	21003 Points 0%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	21003 Points 0%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	21003 Points 0%
Minisforum MS-A2 AMD Ryzen 9 9955HX	21003 Points 0%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	21003 Points

Geekbench 5.5
Multi-Core
Minisforum MS-A2 AMD Ryzen 9 9955HX	20576 Points +36%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	15175 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	14998 Points -1%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	14859 Points -2%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	12207 Points -20%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	11794 Points -22%
Single-Core
Minisforum MS-A2 AMD Ryzen 9 9955HX	2395 Points +18%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	2256 Points +11%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	2076 Points +3%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	2024 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1949 Points -4%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1908 Points -6%

Geekbench 5.0
5.0 Multi-Core
Minisforum MS-A2 AMD Ryzen 9 9955HX	20686 Points +36%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	15225 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	14890 Points -2%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	14828 Points -3%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	12057 Points -21%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	11775 Points -23%
5.0 Single-Core
Minisforum MS-A2 AMD Ryzen 9 9955HX	2233 Points +10%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	2196 Points +8%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	2027 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1952 Points -4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1869 Points -8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1841 Points -9%

Geekbench 4.4
64 Bit Multi-Core Score
Minisforum MS-A2 AMD Ryzen 9 9955HX	87050 Points +54%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	57060 Points +1%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	56593 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	54076 Points -4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	49452 Points -13%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	48762 Points -14%
64 Bit Single-Core Score
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	9220 Points +8%
Minisforum MS-A2 AMD Ryzen 9 9955HX	9140 Points +7%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	8530 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8277 Points -3%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	8092 Points -5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7879 Points -8%

3DMark 11 - 1280x720 Performance Physics
Minisforum MS-A2 AMD Ryzen 9 9955HX	29429 Points +31%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	22488 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	22207 Points -1%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	22199 Points -1%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	21664 Points -4%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	21286 Points -5%

7-Zip 18.03
7z b 4
Minisforum MS-A2 AMD Ryzen 9 9955HX	132435 MIPS +102%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	82854 MIPS +27%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	71161 MIPS +9%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	69798 MIPS +7%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	65478 MIPS
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	58346 MIPS -11%
7z b 4 -mmt1
Minisforum MS-A2 AMD Ryzen 9 9955HX	7462 MIPS +24%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	6582 MIPS +9%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6495 MIPS +8%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	6419 MIPS +6%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	6337 MIPS +5%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	6039 MIPS

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum MS-A2 AMD Ryzen 9 9955HX	38.9 fps +65%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	27.9 fps +18%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	23.6 fps
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	21.1 fps -11%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	20.7 fps -12%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	20.5 fps -13%

R Benchmark 2.5 - Overall mean
BOSGAME M4 Neo AMD Ryzen 7 7840HS	0.4513 sec * -2%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	0.4435 sec * -0%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	0.4428 sec *
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	0.4111 sec * +7%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	0.3892 sec * +12%
Minisforum MS-A2 AMD Ryzen 9 9955HX	0.3517 sec * +21%

LibreOffice - 20 Documents To PDF
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	54.3 s *
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	52.3 s * +4%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	50.1 s * +8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	48.7 s * +10%
Minisforum MS-A2 AMD Ryzen 9 9955HX	42.8 s * +21%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	39.7 s * +27%

3DMark
1920x1080 Fire Strike Physics
Minisforum MS-A2 AMD Ryzen 9 9955HX	37802 Points +14%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	33232 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	32489 Points -2%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	28765 Points -13%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	26481 Points -20%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	26420 Points -20%
2560x1440 Time Spy CPU
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	11598 Points 0%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	11598 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	10990 Points -5%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	10795 Points -7%
Minisforum MS-A2 AMD Ryzen 9 9955HX	9758 Points -16%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	9532 Points -18%

Super Pi mod 1.5 XS 1M - 1M
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	8.224 s * -12%
Minisforum MS-A2 AMD Ryzen 9 9955HX	7.701 s * -5%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	7.338 s *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7.193 s * +2%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	7.103 s * +3%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	7.084 s * +3%

Super Pi mod 1.5 XS 2M - 2M
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	17.746 s * -10%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	17.676 s * -10%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	17.504 s * -8%
Minisforum MS-A2 AMD Ryzen 9 9955HX	16.472 s * -2%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	16.138 s *
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	15.516 s * +4%

Affinity Photo 2 - Combined (Multi CPU)
Minisforum MS-A2 AMD Ryzen 9 9955HX	1660 Points +50%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	1105 Points
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1050 Points -5%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	787 Points -29%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	781 Points -29%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	747 Points -32%

SPECworkstation 4.0 - CPU Score
Minisforum MS-A2 AMD Ryzen 9 9955HX	1.7 Points +50%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370	1.28 Points +13%
GMK EVO-T1 GMK EVO-T1, Intel Core Ultra 9 285H	1.13 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS	1.02 Points -10%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	0.97 Points -14%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H	0.96 Points -15%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

11334

Cinebench R10 Rendering Multiple CPUs 32Bit

74797

Cinebench R10 Shading 32Bit

14740

Cinebench R10 Rendering Single CPUs 64Bit

17328 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

116185 Points

Cinebench R10 Shading 64Bit

14968 Points

Cinebench R11.5 CPU Single 64Bit

3.7 Points

Cinebench R11.5 CPU Multi 64Bit

38.65 Points

Cinebench R11.5 OpenGL 64Bit

156.02 fps

Cinebench R15 CPU Single 64Bit

309 Points

Cinebench R15 CPU Multi 64Bit

3137 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

203.88 fps

Cinebench R20 CPU (Multi Core)

8068 Points

Cinebench R20 CPU (Single Core)

809 Points

Cinebench R23 Multi Core

20681 Points

Cinebench R23 Single Core

2105 Points

Cinebench 2024 CPU Single Core

126 Points

Cinebench 2024 CPU Multi Core

1142 Points

Help

... in comparison

Performance Rating
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	97.6 pt
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	66.4 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	55.4 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	54.5 pt
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	51.8 pt
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	45.9 pt
Average of class Mini PC	40.7 pt

AIDA64 / FP32 Ray-Trace
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	66596 KRay/s +189%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	36304 KRay/s +58%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	26038 KRay/s +13%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	25593 KRay/s +11%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	23041 KRay/s
Average of class Mini PC (769 - 76534, n=110, last 2 years)	15931 KRay/s -31%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	15858 KRay/s -31%

AIDA64 / FPU Julia
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	191535 Points +67%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	138264 Points +21%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	114534 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	107039 Points -7%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	105522 Points -8%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	78830 Points -31%
Average of class Mini PC (4140 - 214250, n=110, last 2 years)	73261 Points -36%

AIDA64 / CPU SHA3
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	8489 MB/s +67%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	5698 MB/s +12%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	5093 MB/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	4709 MB/s -8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	4633 MB/s -9%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	3818 MB/s -25%
Average of class Mini PC (290 - 9399, n=110, last 2 years)	3285 MB/s -35%

AIDA64 / CPU Queen
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	153027 Points +161%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	117545 Points +101%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	114337 Points +95%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	87574 Points +49%
Average of class Mini PC (8186 - 184747, n=110, last 2 years)	83063 Points +42%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	63556 Points +8%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	58606 Points

AIDA64 / FPU SinJulia
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	29876 Points +270%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	18988 Points +135%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	14943 Points +85%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	14592 Points +81%
Average of class Mini PC (408 - 30299, n=110, last 2 years)	9781 Points +21%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	8074 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	7269 Points -10%

AIDA64 / FPU Mandel
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	101131 Points +67%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	74000 Points +22%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	60511 Points
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	57314 Points -5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	56330 Points -7%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	41370 Points -32%
Average of class Mini PC (2088 - 113499, n=110, last 2 years)	38056 Points -37%

AIDA64 / CPU AES
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	146979 MB/s +102%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	117613 MB/s +62%
Average of class Mini PC (3691 - 325960, n=110, last 2 years)	88361 MB/s +22%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	83357 MB/s +15%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	82828 MB/s +14%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	79852 MB/s +10%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	72638 MB/s

AIDA64 / CPU ZLib
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	2186 MB/s +87%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	1513 MB/s +30%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	1167 MB/s
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	1063 MB/s -9%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	1022 MB/s -12%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	980 MB/s -16%
Average of class Mini PC (77.4 - 2346, n=110, last 2 years)	851 MB/s -27%

AIDA64 / FP64 Ray-Trace
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	35252 KRay/s +180%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	19666 KRay/s +56%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	14040 KRay/s +12%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	13745 KRay/s +9%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	12576 KRay/s
Average of class Mini PC (432 - 41221, n=110, last 2 years)	8530 KRay/s -32%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	8347 KRay/s -34%

AIDA64 / CPU PhotoWorxx
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	53330 MPixel/s
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	51727 MPixel/s -3%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	49874 MPixel/s -6%
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	40693 MPixel/s -24%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	40165 MPixel/s -25%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	39905 MPixel/s -25%
Average of class Mini PC (5333 - 92934, n=110, last 2 years)	31261 MPixel/s -41%

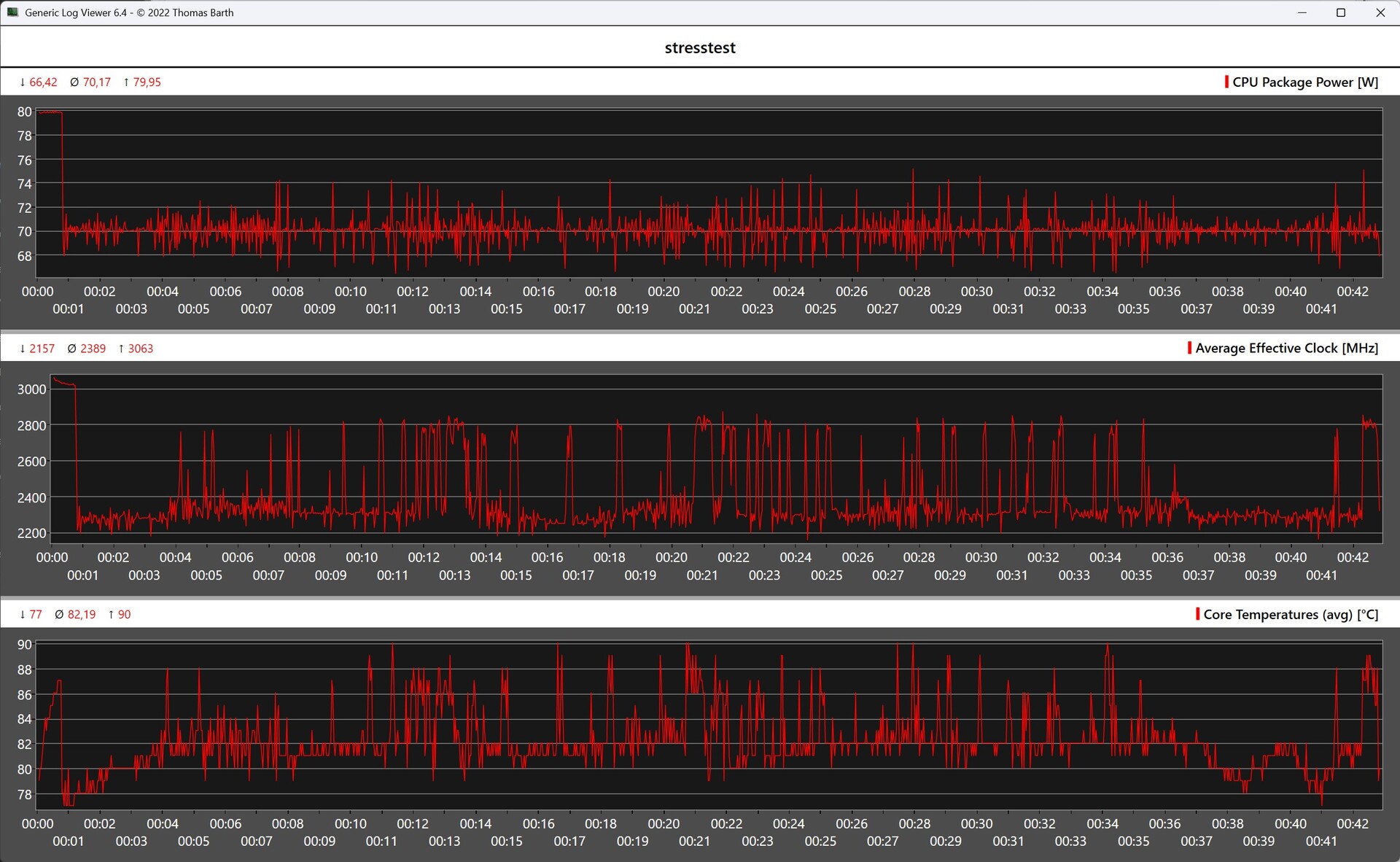

Cinebench R15 Multi endurance test

The Cinebench R15 stress test shows that the GMK EVO-T1 can maintain the defined performance of the Intel Core Ultra 9 285H even under load. Thermal problems are not to be expected at a maximum temperature of 84 °C.

CPU metrics during the Cinebench R15 loop

GMK EVO-T1 Intel Core Ultra 9 285H, Intel Core Ultra 9 285H: Ø3047 (3002.55-3112.11)

Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, AMD Ryzen AI 9 HX 370: Ø3424 (3388.97-3493.45)

Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, AMD Ryzen 7 8845HS: Ø2547 (2492.52-2619.34)

Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Intel Core Ultra 9 285H: Ø2208 (2111.49-2954.21)

BOSGAME M4 Neo AMD Ryzen 7 7840HS, AMD Ryzen 7 7840HS: Ø2434 (2405.58-2566.08)

Minisforum MS-A2 AMD Ryzen 9 9955HX, AMD Ryzen 9 9955HX: Ø5098 (4941.32-5586.59)

System performance

The outstanding performance of the CPU benchmarks is also evident in the system performance tests. Subjectively, the EVO-T1 also delivers consistently high performance in everyday tasks.

PCMark 10 / Score
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	7873 Points +1%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	7798 Points
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	7577 Points -3%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	6993 Points -10%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	6914 Points -11%
Minisforum MS-A2, AMD Ryzen 9 9955HX AMD Radeon 610M, Kingston OM8TAP41024K1-A00	6684 Points -14%

PCMark 10 / Essentials
Minisforum MS-A2, AMD Ryzen 9 9955HX AMD Radeon 610M, Kingston OM8TAP41024K1-A00	11477 Points +11%
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	10957 Points +6%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	10587 Points +3%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	10438 Points +1%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	10307 Points
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	10286 Points 0%

PCMark 10 / Productivity
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	10667 Points
Minisforum MS-A2, AMD Ryzen 9 9955HX AMD Radeon 610M, Kingston OM8TAP41024K1-A00	10619 Points 0%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	10422 Points -2%
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	10167 Points -5%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	9742 Points -9%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	9325 Points -13%

WebXPRT 4 / Overall
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	317 Points +10%
Minisforum MS-A2, AMD Ryzen 9 9955HX AMD Radeon 610M, Kingston OM8TAP41024K1-A00	313 Points +9%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	287 Points
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	269 Points -6%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	264 Points -8%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	264 Points -8%

WebXPRT 3 / Overall
Minisforum MS-A2, AMD Ryzen 9 9955HX AMD Radeon 610M, Kingston OM8TAP41024K1-A00	352 Points +9%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	336 Points +4%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	324 Points
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	322 Points -1%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	314 Points -3%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	301 Points -7%

Mozilla Kraken 1.1 / Total
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	532 ms * -14%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	527 ms * -13%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	465 ms *
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	419 ms * +10%
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	418 ms * +10%
Minisforum MS-A2, AMD Ryzen 9 9955HX AMD Radeon 610M, Kingston OM8TAP41024K1-A00	397 ms * +15%

CrossMark / Overall
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	2227 Points +11%
Minisforum MS-A2, AMD Ryzen 9 9955HX AMD Radeon 610M, Kingston OM8TAP41024K1-A00	2226 Points +11%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	2000 Points
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1862 Points -7%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1816 Points -9%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1771 Points -11%

CrossMark / Productivity
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	2170 Points +13%
Minisforum MS-A2, AMD Ryzen 9 9955HX AMD Radeon 610M, Kingston OM8TAP41024K1-A00	2010 Points +4%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	1927 Points
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1799 Points -7%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1714 Points -11%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1605 Points -17%

CrossMark / Creativity
Minisforum MS-A2, AMD Ryzen 9 9955HX AMD Radeon 610M, Kingston OM8TAP41024K1-A00	2560 Points +18%
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	2269 Points +5%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	2211 Points +2%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	2161 Points
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	2052 Points -5%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1969 Points -9%

CrossMark / Responsiveness
Geekom Mini IT15, Ultra 9 285H, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT2000P3PSSD8	2191 Points +24%
Minisforum MS-A2, AMD Ryzen 9 9955HX AMD Radeon 610M, Kingston OM8TAP41024K1-A00	1991 Points +12%
GMK EVO-T1, Intel Core Ultra 9 285H Intel Arc Graphics 140T, Crucial P3 Plus CT1000P3PSSD8	1772 Points
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1747 Points -1%
Geekom A8 Max, R7 8845HS, AMD Ryzen 7 8845HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1496 Points -16%
Minisforum AI X1 Pro, AMD Ryzen AI 9 HX 370 AMD Radeon 890M, Kingston OM8PGP41024Q-A0	1222 Points -31%

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	79203 MB/s
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	76816 MB/s -3%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	72702 MB/s -8%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	67938 MB/s -14%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	67607 MB/s -15%
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	60295 MB/s -24%
Average of class Mini PC (8377 - 154332, n=110, last 2 years)	52499 MB/s -34%

AIDA64 / Memory Read
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	84635 MB/s +12%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	82022 MB/s +9%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	75428 MB/s
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	63953 MB/s -15%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	61143 MB/s -19%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	60996 MB/s -19%
Average of class Mini PC (8974 - 122850, n=110, last 2 years)	52756 MB/s -30%

AIDA64 / Memory Write
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	87827 MB/s +13%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	86747 MB/s +12%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	84236 MB/s +9%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	77742 MB/s 0%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	77625 MB/s
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	68872 MB/s -11%
Average of class Mini PC (8762 - 216693, n=110, last 2 years)	58048 MB/s -25%

AIDA64 / Memory Latency
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	128.3 ns *
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	118.6 ns * +8%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	99.8 ns * +22%
Average of class Mini PC (44.9 - 184.8, n=110, last 2 years)	94.5 ns * +26%
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	92.1 ns * +28%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	90.3 ns * +30%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	89.7 ns * +30%

* ... smaller is better

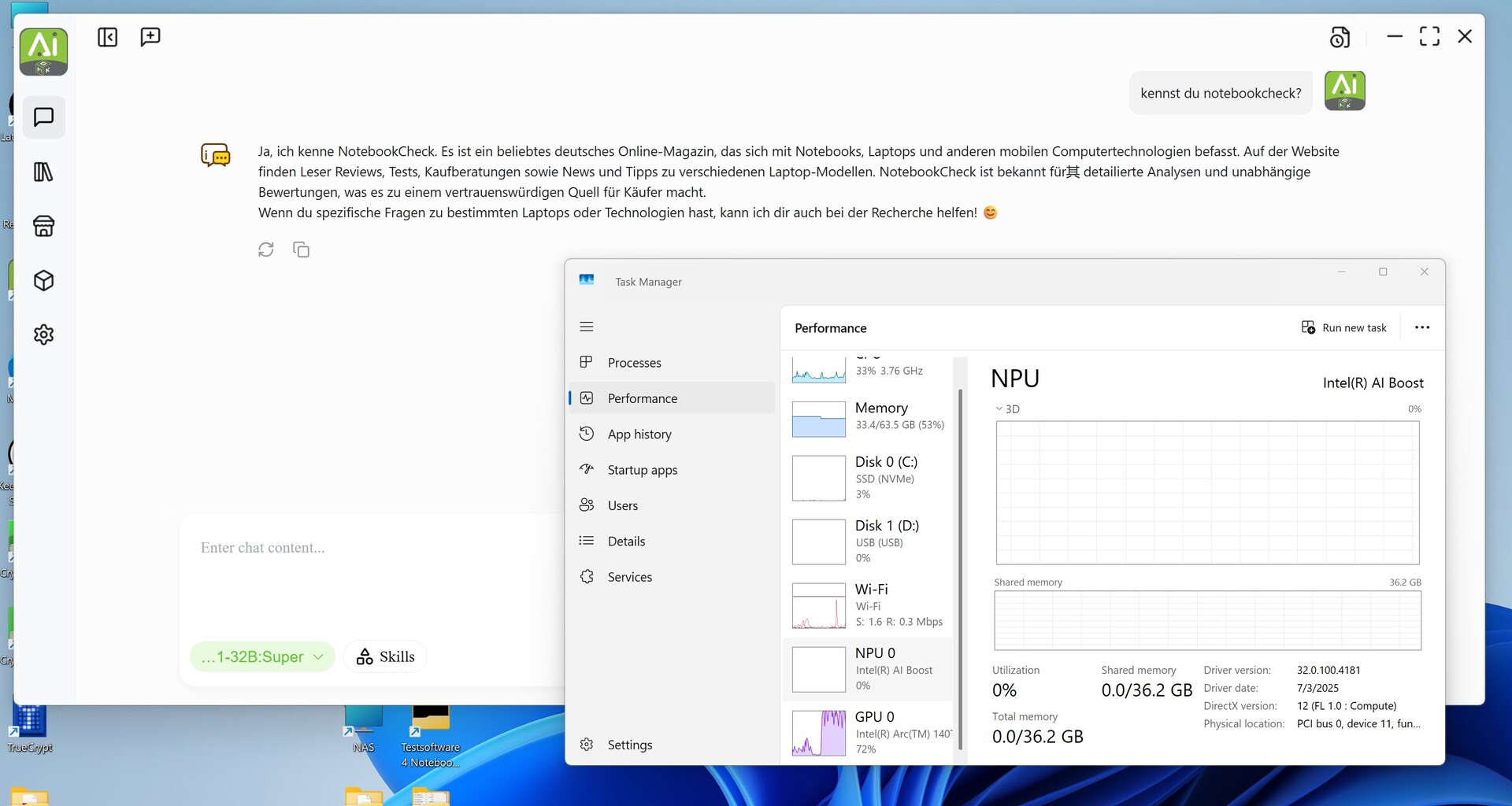

NPU Performance

UL Procyon for Windows / Overall Score Integer NPU
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	1757 Points +145%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	718 Points
Khadas Mind 2s Intel Core Ultra 7 255H, Arc 140T	700 Points -3%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	676 Points -6%

UL Procyon for Windows / Overall Score Integer GPU
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	95 Points +3%
Khadas Mind 2s Intel Core Ultra 7 255H, Arc 140T	92 Points 0%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	92 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	89 Points -3%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	84 Points -9%
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	17 Points -82%

Performance Rating | Geekbench AI

Performance Rating - Percent
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	46.8 pt
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	45 pt
Khadas Mind 2s Intel Core Ultra 7 255H, Arc 140T	41.7 pt
Khadas Mind 2 Intel Core Ultra 7 155H, Arc 8-Core	34.2 pt
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	32 pt

Geekbench AI
Quantized NPU 1.4
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	15324 Points
Khadas Mind 2s Intel Core Ultra 7 255H, Arc 140T	15115 Points -1%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	14510 Points -5%
Khadas Mind 2 Intel Core Ultra 7 155H, Arc 8-Core	14143 Points -8%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	11930 Points -22%
Half Precision NPU 1.4
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	9870 Points
Khadas Mind 2s Intel Core Ultra 7 255H, Arc 140T	9827 Points 0%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	9487 Points -4%
Khadas Mind 2 Intel Core Ultra 7 155H, Arc 8-Core	9068 Points -8%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	8072 Points -18%
Single Precision NPU 1.4
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	5566 Points
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	5416 Points -3%
Khadas Mind 2s Intel Core Ultra 7 255H, Arc 140T	4132 Points -26%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H, Arc 8-Core	2878 Points -48%
Khadas Mind 2 Intel Core Ultra 7 155H, Arc 8-Core	2483 Points -55%

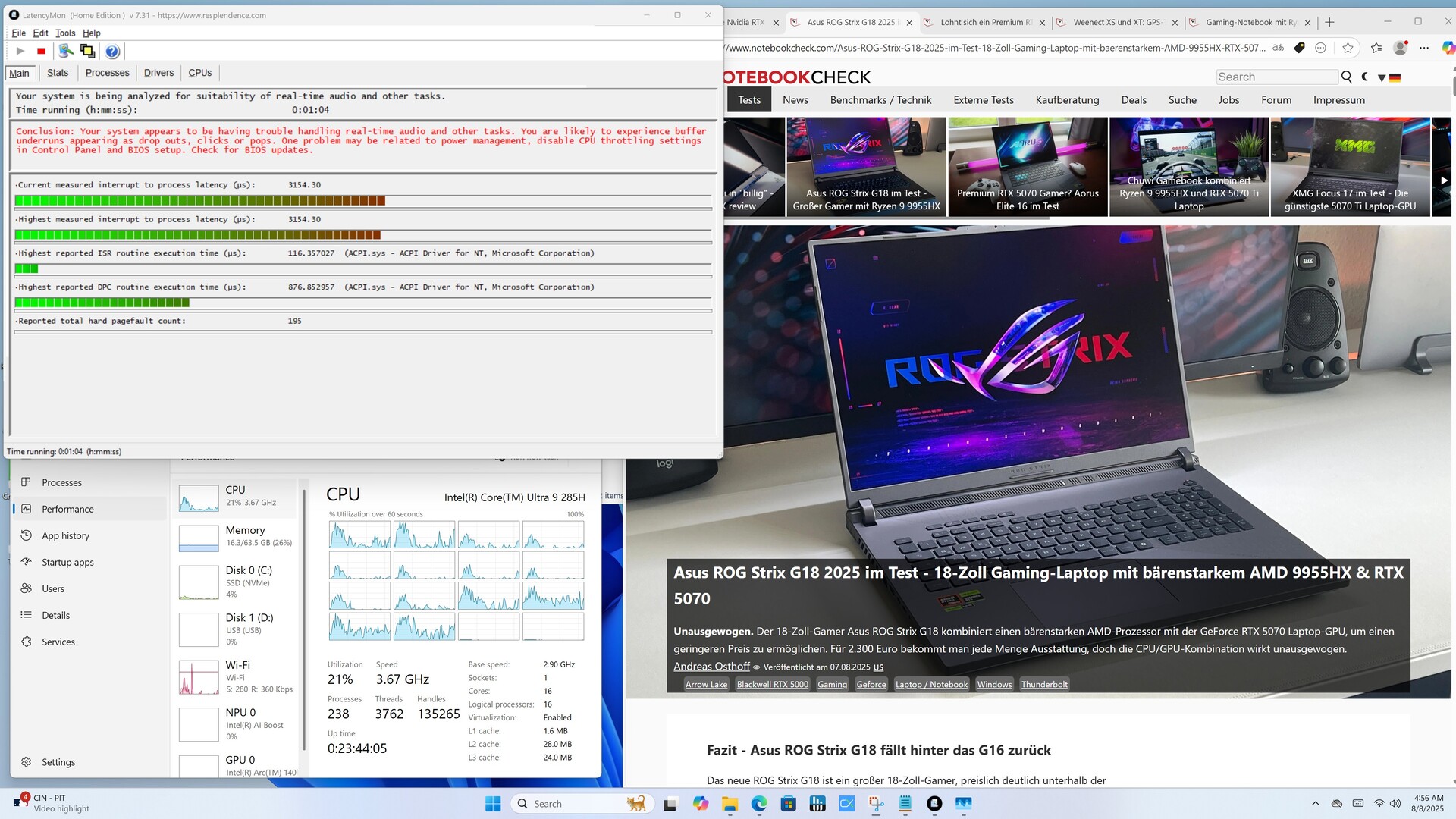

DPC latencies

The EVO-T1 has only low DPC latencies and thus achieves a reasonable result in comparison. According to LatencyMon, the latencies are nevertheless noticeable.

Maximum latency when opening multiple browser tabs

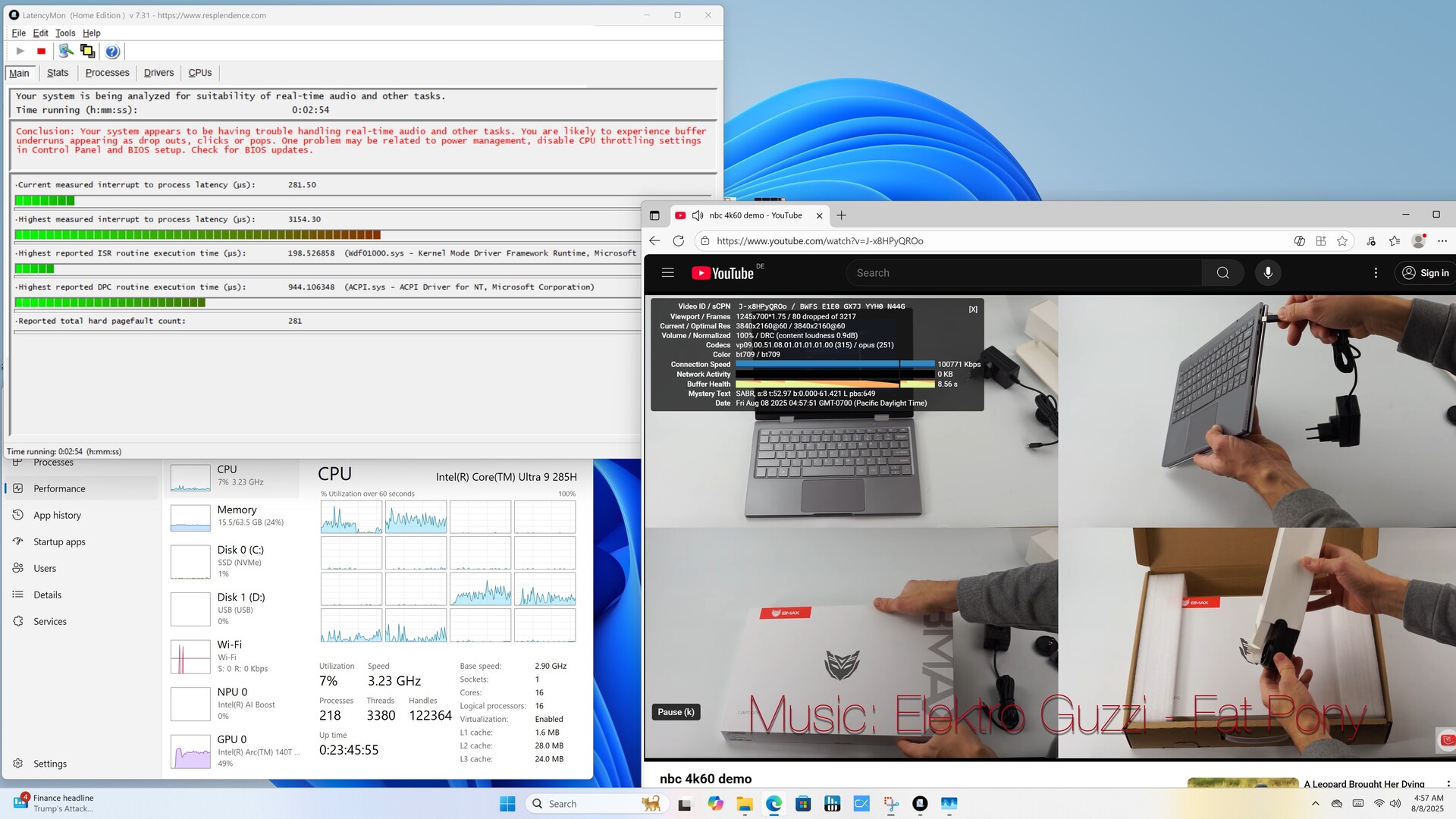

Maximum latency when playing 4K video material

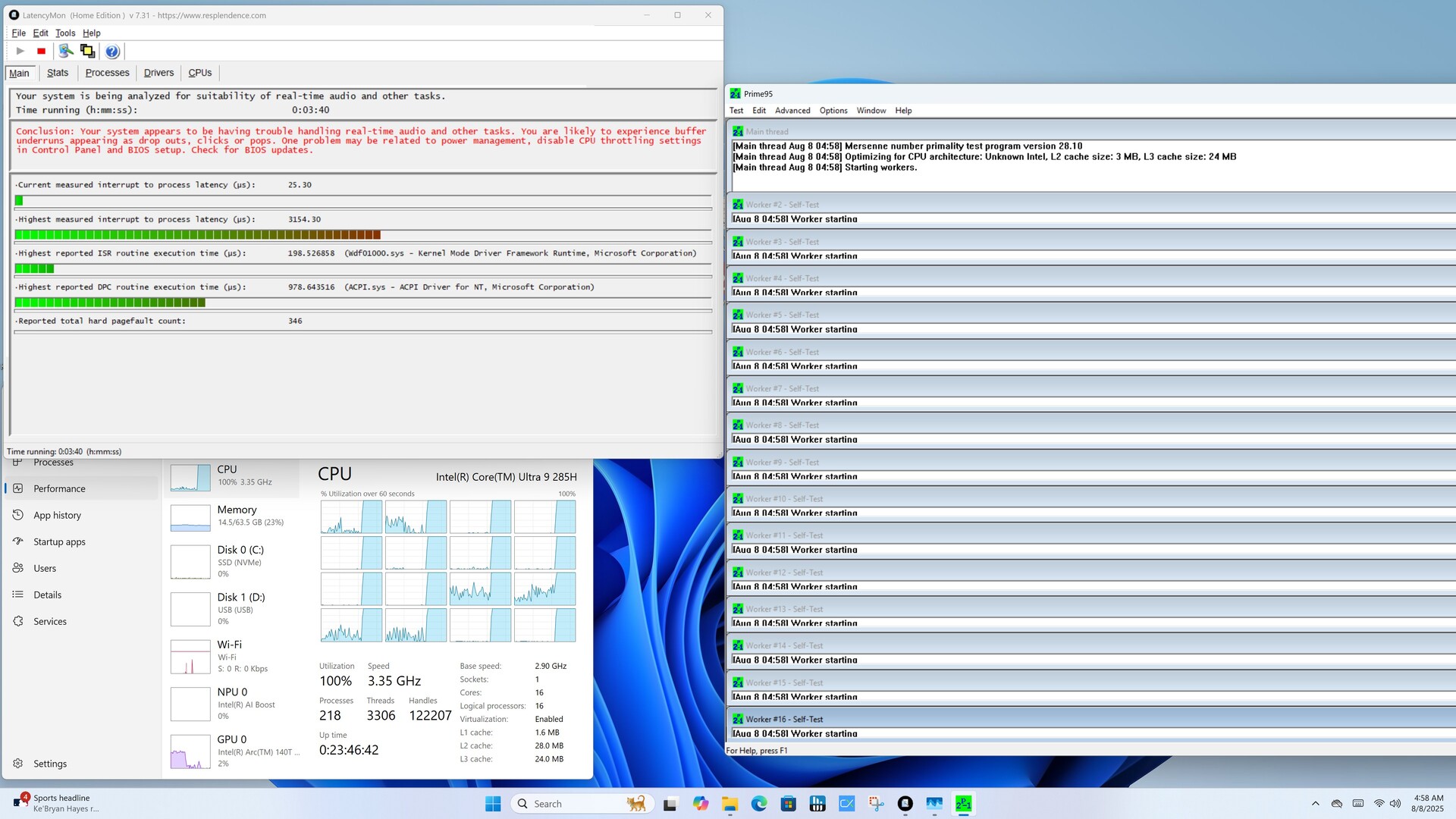

Maximum latency after ten seconds of Prime95

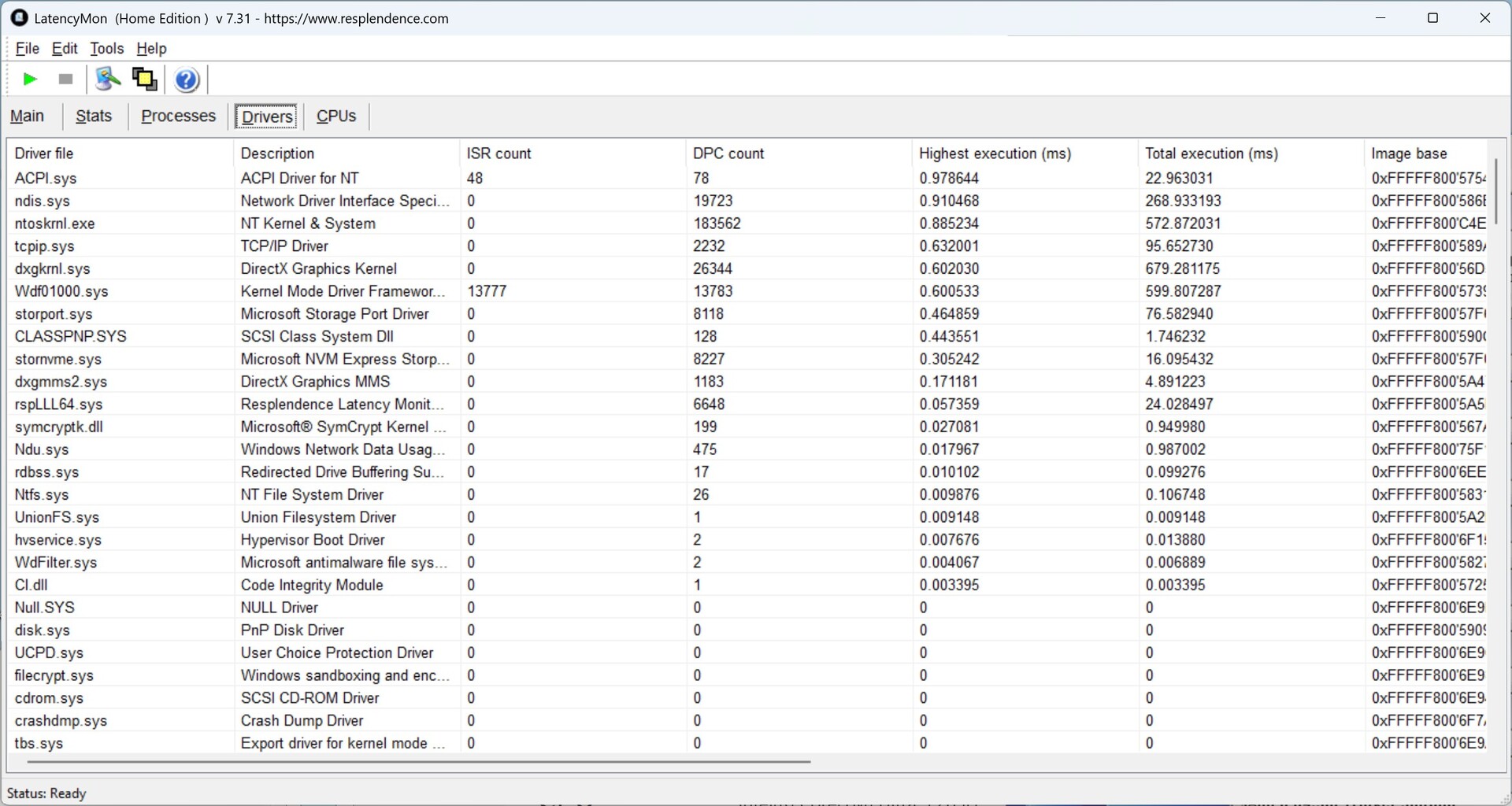

Drivers ranked by longest execution time

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	12282 μs * -1155%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	1273 μs * -30%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	978.6 μs *
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	807.8 μs * +17%
Minisforum MS-A2 Radeon 610M, R9 9955HX, Kingston OM8TAP41024K1-A00	801.7 μs * +18%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	735 μs * +25%

* ... smaller is better

Mass storage

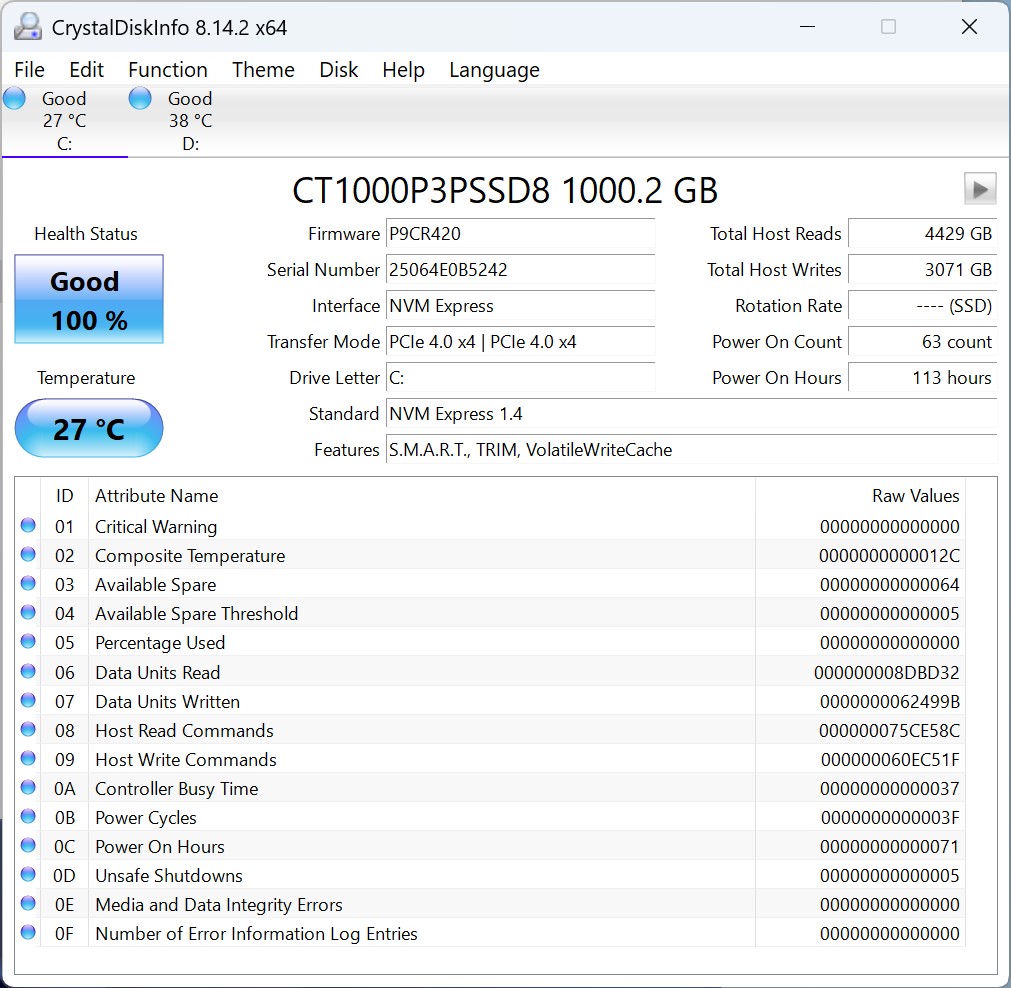

A Crucial P3 Plus with 1 TB of storage space is installed in the EVO-T1. In the test, the SSD delivers excellent performance, but remains slightly behind the Crucial P3 Plus with 2 TB in the Geekom Mini IT15 is lagging behind. The SSD is a mass storage device with QLC memory cells without a separate DRAM cache. There is no loss of performance in the stress test due to the good cooling. The EVO-T1 offers space for a total of three M.2 SSDs.

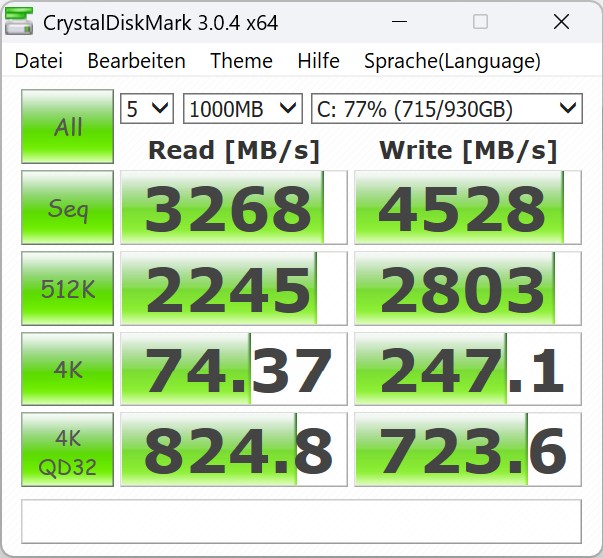

CrystalDiskMark 3.0

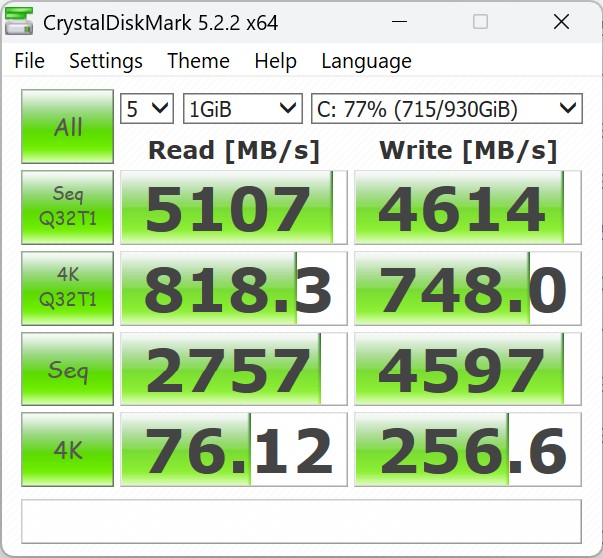

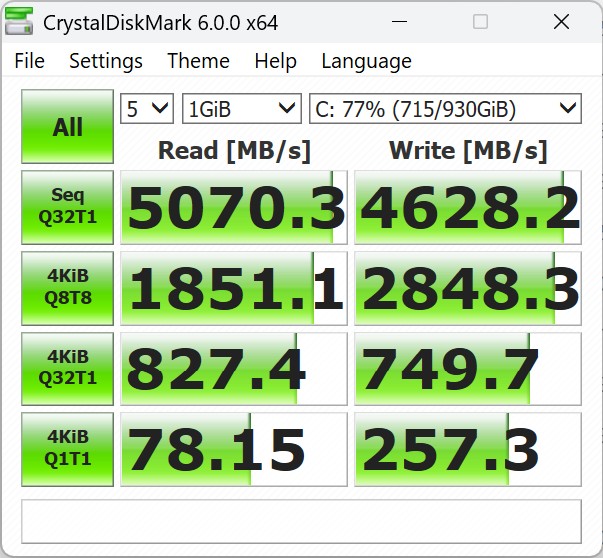

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Crucial P3 Plus CT1000P3PSSD8

Sequential Read: 3268 MB/s

Sequential Write: 4528 MB/s

512K Read: 2245 MB/s

512K Write: 2803 MB/s

4K Read: 74.37 MB/s

4K Write: 247.1 MB/s

4K QD32 Read: 824.8 MB/s

4K QD32 Write: 723.6 MB/s

Drive Performance Rating | DiskSpd | AS SSD | SPECworkstation 4.0

Drive Performance Rating - Percent
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	91.8 pt
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	78.8 pt
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	76.7 pt
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	62.8 pt
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	56.2 pt
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	52.5 pt
Average of class Mini PC	49.4 pt

DiskSpd
seq read
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	4960 (4951.54^min - 4959.55^max) MB/s +60%
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	3214 (3187.76^min - 3213.81^max) MB/s +4%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3100 (3048.82^min - 3099.89^max) MB/s
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	2914 (2870.58^min - 2913.74^max) MB/s -6%
Average of class Mini PC (413 - 4960, n=110, last 2 years)	2428 MB/s -22%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	2368 (2316.29^min - 2367.68^max) MB/s -24%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2316 (2303.1^min - 2315.68^max) MB/s -25%
seq write
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	5265 (4858.4^min - 5265.32^max) MB/s +15%
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4571 (3844.08^min - 4571.08^max) MB/s 0%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	4563 (4113.52^min - 4563.08^max) MB/s
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3689 (3523.22^min - 3688.64^max) MB/s -19%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3100 (3080.64^min - 3100.01^max) MB/s -32%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3044 (2966.57^min - 3044.22^max) MB/s -33%
Average of class Mini PC (339 - 5595, n=110, last 2 years)	2789 MB/s -39%
seq q8 t1 read
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	6054 (5739.75^min - 6053.85^max) MB/s +19%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	5103 (4471.34^min - 5103.21^max) MB/s
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	5061 (4382.63^min - 5061.32^max) MB/s -1%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	4803 (3979.98^min - 4803.15^max) MB/s -6%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	4087 (3505.93^min - 4087.35^max) MB/s -20%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	4079 (3799.36^min - 4078.56^max) MB/s -20%
Average of class Mini PC (397 - 8430, n=110, last 2 years)	4015 MB/s -21%
seq q8 t1 write
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	5338 (4950.91^min - 5337.88^max) MB/s +16%
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4734 (4724.25^min - 4734.32^max) MB/s +3%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	4599 (4437.99^min - 4599.05^max) MB/s
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3905 (3865.08^min - 3905.27^max) MB/s -15%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3205 (3185.7^min - 3204.75^max) MB/s -30%
Average of class Mini PC (346 - 6669, n=110, last 2 years)	3138 MB/s -32%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3108 (3096.75^min - 3107.85^max) MB/s -32%
4k q1 t1 read
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	81.3 (21.01^min - 81.27^max) MB/s +6%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	77 (75.54^min - 77.03^max) MB/s
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	71.2 (71.04^min - 71.17^max) MB/s -8%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	64.2 (64.13^min - 64.24^max) MB/s -17%
Average of class Mini PC (6.85 - 87.3, n=110, last 2 years)	56.4 MB/s -27%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	55.6 (50.92^min - 55.64^max) MB/s -28%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	51.4 (51.17^min - 51.36^max) MB/s -33%
4k q1 t1 write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	347 (342.94^min - 346.86^max) MB/s +43%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	278 (273.83^min - 278.28^max) MB/s +15%
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	272 (270.65^min - 271.53^max) MB/s +12%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	242 (231.04^min - 241.7^max) MB/s
Average of class Mini PC (29.6 - 435, n=110, last 2 years)	196.6 MB/s -19%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	167.6 (165.24^min - 167.62^max) MB/s -31%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	135.3 (124.1^min - 135.25^max) MB/s -44%
4k q32 t16 read
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	3843 (3831.45^min - 3842.87^max) MB/s +8%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3548 (3523.05^min - 3547.64^max) MB/s
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	2901 (2852.16^min - 2901.24^max) MB/s -18%
Average of class Mini PC (102.3 - 4158, n=110, last 2 years)	1555 MB/s -56%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	788 (725.19^min - 788.35^max) MB/s -78%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	650 (624.87^min - 649.57^max) MB/s -82%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	492 (451.66^min - 492.1^max) MB/s -86%
4k q32 t16 write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4003 (3942.76^min - 4002.9^max) MB/s +21%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3304 (3139.17^min - 3304.42^max) MB/s
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2876 (1106.13^min - 2875.94^max) MB/s -13%
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	2806 (2659.49^min - 2806.22^max) MB/s -15%
Average of class Mini PC (70.3 - 4288, n=110, last 2 years)	1467 MB/s -56%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	502 (104.07^min - 502.15^max) MB/s -85%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	323 (291.38^min - 323.31^max) MB/s -90%

AS SSD
Score Total
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	9618 Points +17%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	8193 Points
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	6584 Points -20%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	5595 Points -32%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	5180 Points -37%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	4748 Points -42%
Average of class Mini PC (507 - 10021, n=107, last 2 years)	4541 Points -45%
Score Read
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	3649 Points +22%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3001 Points
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	2484 Points -17%
Average of class Mini PC (172 - 3741, n=107, last 2 years)	1630 Points -46%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1539 Points -49%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	1127 Points -62%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	1072 Points -64%
Score Write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4091 Points +12%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3662 Points
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3520 Points -4%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3274 Points -11%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3177 Points -13%
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	2822 Points -23%
Average of class Mini PC (210 - 4371, n=107, last 2 years)	2104 Points -43%
Seq Read
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	4955 MB/s +17%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	4229 MB/s
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4027 MB/s -5%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3927 MB/s -7%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3482 MB/s -18%
Average of class Mini PC (483 - 6620, n=107, last 2 years)	3312 MB/s -22%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	3200 MB/s -24%
Seq Write
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	5006 MB/s +26%
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	4068 MB/s +2%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3985 MB/s
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2950 MB/s -26%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	2741 MB/s -31%
Average of class Mini PC (326 - 5783, n=107, last 2 years)	2541 MB/s -36%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	1965 MB/s -51%
4K Read
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	101.7 MB/s +20%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	84.6 MB/s
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	76 MB/s -10%
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	65.9 MB/s -22%
Average of class Mini PC (18.2 - 104.3, n=107, last 2 years)	59.6 MB/s -30%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	57.6 MB/s -32%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	48.4 MB/s -43%
4K Write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	318 MB/s +51%
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	250 MB/s +18%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	216 MB/s +2%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	211 MB/s
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	205 MB/s -3%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	193.2 MB/s -8%
Average of class Mini PC (40.8 - 366, n=107, last 2 years)	177.3 MB/s -16%
4K-64 Read
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	3145 MB/s +26%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	2493 MB/s
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	1923 MB/s -23%
Average of class Mini PC (94.3 - 3220, n=107, last 2 years)	1239 MB/s -50%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1115 MB/s -55%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	704 MB/s -72%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	677 MB/s -73%
4K-64 Write
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	3367 MB/s +10%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	3052 MB/s 0%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	3052 MB/s
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	2776 MB/s -9%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2763 MB/s -9%
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	2071 MB/s -32%
Average of class Mini PC (96.3 - 3731, n=107, last 2 years)	1673 MB/s -45%
Access Time Read
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	0.125 ms *
Average of class Mini PC (0.025 - 0.288, n=107, last 2 years)	0.09111 ms * +27%
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	0.086 ms * +31%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	0.071 ms * +43%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.068 ms * +46%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.062 ms * +50%
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	0.048 ms * +62%
Access Time Write
Average of class Mini PC (0.013 - 0.706, n=107, last 2 years)	0.1054 ms * -455%
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	0.083 ms * -337%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	0.023 ms * -21%
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.019 ms * -0%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.019 ms * -0%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	0.019 ms *
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	0.013 ms * +32%

SPECworkstation 4.0 - Storage Score
Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8	1.08 Points +6%
Minisforum MS-A2 Kingston OM8TAP41024K1-A00	1.07 Points +5%
GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8	1.02 Points
Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0	0.81 Points -21%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.76 Points -25%
Average of class Mini PC (0.27 - 1.08, n=37, last 2 years)	0.714 Points -30%
Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0	0.6 Points -41%

* ... smaller is better

Sustained read load: DiskSpd Read Loop, Queue Depth 8

GMK EVO-T1 Crucial P3 Plus CT1000P3PSSD8; diskspd 2.0.17 f: Ø5093 (4773.96-5106.36)

Minisforum AI X1 Pro Kingston OM8PGP41024Q-A0; diskspd 2.0.17 f: Ø4795 (4364.17-4810.03)

Geekom A8 Max, R7 8845HS Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4071 (3634.85-4086.93)

Geekom Mini IT15, Ultra 9 285H Crucial P3 Plus CT2000P3PSSD8 ; diskspd 2.0.17 f: Ø5050 (4375.76-5065.67)

BOSGAME M4 Neo Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4063 (3587.97-4077.52)

Minisforum MS-A2 Kingston OM8TAP41024K1-A00; diskspd 2.0.17 f: Ø3153 (1113.04-4313.6)

Graphics card and gaming performance

The EVO-T1 uses the Intel Arc Graphics 140T, which delivers excellent results in benchmarks. The processor's high power limit ensures a noticeable difference in performance compared to the Geekom Mini IT15. In professional applications, however, it lags behind the iGPUs from AMD. Casual games are possible, but sometimes require a reduction in the detail level.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	95.5 pt
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	91.9 pt
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	88.3 pt
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	84.2 pt
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	83.7 pt
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	19.4 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	14293 Points +13%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	13783 Points +9%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	13437 Points +6%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	12740 Points +1%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	12626 Points
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	3131 Points -75%

3DMark
2560x1440 Time Spy Graphics
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	3872 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	3561 Points -8%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3144 Points -19%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2953 Points -24%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2904 Points -25%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	667 Points -83%
3840x2160 Fire Strike Ultra Graphics
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2273 Points +12%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2270 Points +12%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2268 Points +12%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2024 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1853 Points -8%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	506 Points -75%
1920x1080 Fire Strike Graphics
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	8647 Points 0%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	8630 Points
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	8423 Points -2%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	8344 Points -3%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	8307 Points -4%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	2190 Points -75%
Steel Nomad Score
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H (DX12)	863 Points
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H (Vulkan)	719 Points -17%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H (DX12)	844 Points -2%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H (Vulkan)	716 Points -17%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370 (Vulkan)	618 Points -28%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370 (DX12)	519 Points -40%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS (Vulkan)	513 Points -41%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS (DX12)	505 Points -41%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS (Vulkan)	503 Points -42%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS (DX12)	490 Points -43%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX (Vulkan)	134 Points -84%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX (DX12)	125 Points -86%
2560x1440 Port Royal Graphics
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2083 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2043 Points -2%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1686 Points -19%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1647 Points -21%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1614 Points -23%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	315 Points -85%
Solar Bay Score
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	15116 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	14569 Points -4%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13911 Points -8%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	12755 Points -16%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	12164 Points -20%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	2845 Points -81%

Performance Rating - Percent
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	93.3 pt
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	91 pt
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	90 pt
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	84.8 pt
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	83 pt
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	24.5 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	40.1 fps +3%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	39.1 fps
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	38.1 fps -3%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	36.4 fps -7%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	33.1 fps -15%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	12.1 fps -69%
Extreme Preset DX11
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	41.1 fps +2%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	40.2 fps
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	38.9 fps -3%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	36.8 fps -8%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	35.4 fps -12%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	11 fps -73%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	27.7 fps +6%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	26.2 fps
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	25.4 fps -3%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	25.4 fps -3%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	19.1 fps -27%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	9.9 fps -62%
1920x1080 Extreme HD Preset OpenGL AA:x8
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	27.2 fps
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	25.3 fps -7%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	23.6 fps -13%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	21.8 fps -20%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	15.3 fps -44%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	9.2 fps -66%

Unigine Superposition
1280x720 720p Low
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	12793 Points
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	12737 Points 0%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	12625 Points -1%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	12281 Points -4%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	11962 Points -6%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	4120 Points -68%
1920x1080 1080p High
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	4074 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	4052 Points -1%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3976 Points -2%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	3699 Points -9%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	3665 Points -10%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	889 Points -78%
1920x1080 1080p Extreme
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2263 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2243 Points -1%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1960 Points -13%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1810 Points -20%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1808 Points -20%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	272 Points -88%

ComputeMark v2.1
1024x600 Normal, Score
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	9589 Points +24%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	9568 Points +23%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	9395 Points +21%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7751 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7612 Points -2%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	1669 Points -78%
1024x600 Normal, Fluid 3DTex
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	577 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	547 Points -5%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	494 Points -14%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	477 Points -17%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	469 Points -19%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	239 Points -59%
1024x600 Normal, Fluid 2DTexArr
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	556 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	520 Points -6%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	507 Points -9%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	498 Points -10%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	491 Points -12%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	197 Points -65%
1024x600 Normal, Mandel Vector
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2519 Points +33%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2512 Points +33%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2506 Points +32%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1894 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1892 Points 0%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	326 Points -83%
1024x600 Normal, Mandel Scalar
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	2598 Points +31%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2594 Points +31%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2531 Points +28%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1984 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1950 Points -2%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	502 Points -75%
1024x600 Normal, QJuliaRayTrace
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	3529 Points +29%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	3476 Points +27%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	3351 Points +22%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2737 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	2704 Points -1%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	404 Points -85%

LuxMark v2.0 64Bit
Room GPUs-only
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1058 Samples/s +4%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	1013 Samples/s
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	975 Samples/s -4%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	965 Samples/s -5%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	931 Samples/s -8%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	371 Samples/s -63%
Sala GPUs-only
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	3809 Samples/s
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	3657 Samples/s -4%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1882 Samples/s -51%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1649 Samples/s -57%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	1570 Samples/s -59%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	610 Samples/s -84%

Affinity Photo 2 - Combined (Single / Multi GPU)
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7470 Points
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7456 Points 0%
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	2944 Points -61%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	1596 Points -79%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1534 Points -79%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	1321 Points -82%

Geekbench AI
Quantized GPU 1.4
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	5896 Points +12%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	5771 Points +10%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	5470 Points +4%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	5289 Points +1%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	5244 Points
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	1550 Points -70%
Half Precision GPU 1.4
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	13247 Points +11%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	11969 Points +1%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	11903 Points
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	11732 Points -1%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	11332 Points -5%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	2090 Points -82%
Single Precision GPU 1.4
Minisforum AI X1 Pro AMD Radeon 890M, AMD Ryzen AI 9 HX 370	8093 Points +3%
Geekom Mini IT15, Ultra 9 285H Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7954 Points +1%
GMK EVO-T1 Intel Arc Graphics 140T, Intel Core Ultra 9 285H	7892 Points
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	7638 Points -3%
Geekom A8 Max, R7 8845HS AMD Radeon 780M, AMD Ryzen 7 8845HS	7199 Points -9%
Minisforum MS-A2 AMD Radeon 610M, AMD Ryzen 9 9955HX	1904 Points -76%

Performance Rating: Percent
SPECworkstation 4.0: Graphics Score | Accelerator Score | Viewport Graphics | HandBrake | ONNX Inference

Performance Rating
Average NVIDIA GeForce RTX 4050 Laptop GPU	91.2 pt
Minisforum AI X1 Pro	84.6 pt
Geekom A8 Max, R7 8845HS	74.1 pt
BOSGAME M4 Neo	74 pt
GMK EVO-T1	62.6 pt
Geekom Mini IT15, Ultra 9 285H	58 pt
Minisforum MS-A2	46.9 pt

SPECworkstation 4.0 / Graphics Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +169%
Minisforum AI X1 Pro	2.21 Points +105%
BOSGAME M4 Neo	2.11 Points +95%
Geekom A8 Max, R7 8845HS	2.08 Points +93%
Geekom Mini IT15, Ultra 9 285H	1.13 Points +5%
GMK EVO-T1	1.08 Points
Minisforum MS-A2	0.51 Points -53%

SPECworkstation 4.0 / Accelerator Score
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	3.37 Points +60%
Minisforum AI X1 Pro	2.46 Points +17%
BOSGAME M4 Neo	2.23 Points +6%
Geekom A8 Max, R7 8845HS	2.21 Points +5%
Geekom Mini IT15, Ultra 9 285H	2.15 Points +2%
GMK EVO-T1	2.1 Points
Minisforum MS-A2	0.82 Points -61%

SPECworkstation 4.0 / Viewport Graphics
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	2.9 Points +169%
Minisforum AI X1 Pro	2.21 Points +105%
BOSGAME M4 Neo	2.11 Points +95%
Geekom A8 Max, R7 8845HS	2.08 Points +93%
Geekom Mini IT15, Ultra 9 285H	1.13 Points +5%
GMK EVO-T1	1.08 Points
Minisforum MS-A2	0.51 Points -53%

SPECworkstation 4.0 / HandBrake
Minisforum MS-A2	1.81 Points +12%
Minisforum AI X1 Pro	1.77 Points +10%
GMK EVO-T1	1.61 Points
Geekom Mini IT15, Ultra 9 285H	1.38 Points -14%
Geekom A8 Max, R7 8845HS	1.37 Points -15%
BOSGAME M4 Neo	1.32 Points -18%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.28 Points -20%

SPECworkstation 4.0 / ONNX Inference
Minisforum AI X1 Pro	1.71 Points +15%
GMK EVO-T1	1.49 Points
Geekom A8 Max, R7 8845HS	1.47 Points -1%
BOSGAME M4 Neo	1.46 Points -2%
Average NVIDIA GeForce RTX 4050 Laptop GPU (n=1)	1.46 Points -2%
Minisforum MS-A2	1.28 Points -14%
Geekom Mini IT15, Ultra 9 285H	1.23 Points -17%

	GMK EVO-T1, Intel Arc Graphics 140T Ultra 9 285H	Minisforum AI X1 Pro, AMD Radeon 890M Ryzen AI 9 HX 370	Geekom A8 Max, R7 8845HS, AMD Radeon 780M R7 8845HS	Geekom Mini IT15, Ultra 9 285H, Intel Arc Graphics 140T Ultra 9 285H	BOSGAME M4 Neo, AMD Radeon 780M R7 7840HS	Average of class Mini PC
SPECviewperf 2020		210%	211%	15%	209%	169%
3840x2160 Medical (medical-03)	7.02	15.2 117%	12.7 81%	7.08 1%	17.4 148%	11.8 ?(0.78 - 87.5, n=62, last 2 years) 68%
3840x2160 Energy (energy-03)	7.4	15.5 109%	21.2 186%	7.94 7%	22.5 204%	19.5 ?(0.52 - 139, n=62, last 2 years) 164%
3840x2160 Creo (creo-03)	19.9	34.1 71%	34.9 75%	26.7 34%	31.1 56%	37.7 ?(7.73 - 126, n=62, last 2 years) 89%
3840x2160 CATIA (catia-06)	12.8	23.1 80%	25 95%	14.6 14%	24.9 95%	23.6 ?(4.61 - 89.8, n=61, last 2 years) 84%
3840x2160 3ds Max (3dsmax-07)	14.6	21.9 50%	21.4 47%	17.8 22%	20.9 43%	33.5 ?(5.53 - 213, n=62, last 2 years) 129%
3840x2160 Siemens NX (snx-04)	6.13	68.7 1021%	66.2 980%	6.81 11%	61.9 910%	40.5 ?(3.78 - 224, n=60, last 2 years) 561%
3840x2160 Maya (maya-06)	44.9	55.9 24%	50.2 12%	51.3 14%	47.6 6%	84.7 ?(11.8 - 522, n=62, last 2 years) 89%

3DMark 05 Standard		57554 points
3DMark 06 Standard Score		48248 points
3DMark Vantage P Result		54650 points
3DMark 11 Performance		13187 points
3DMark Ice Storm Standard Score		200863 points
3DMark Cloud Gate Standard Score		39716 points
3DMark Fire Strike Score		8000 points
3DMark Fire Strike Extreme Score		3811 points
3DMark Time Spy Score		4301 points
3DMark Steel Nomad Score		863 points
Help

... in comparison

GTA V | Dota 2 Reborn | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24

GTA V
1024x768 Lowest Settings possible
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	176.6 (5.36^min, 125^P1) fps +8%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	166.2 (4.23^min, 71.4^P1) fps +1%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	165.6 (4.4^min, 111.1^P1) fps +1%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	164 (3.82^min, 100^P1) fps
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	163.9 (5.26^min, 111.1^P1) fps 0%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	71.9 (6.03^min, 47.6^P1) fps +63%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	65.8 (10.4^min, 45.5^P1) fps +49%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	65.4 (10.1^min, 45.5^P1) fps +48%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	44.2 (13.2^min, 33.3^P1) fps
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	41.7 (10^min, 32.3^P1) fps -6%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum MS-A2 Radeon 610M, R9 9955HX, Kingston OM8TAP41024K1-A00	211 (176.8^min) fps +97%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	167.6 (135.7^min) fps +56%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	161.5 (136.9^min) fps +51%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	155.1 (135.8^min) fps +45%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	107.3 (62.5^min) fps
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	104.7 (56.4^min) fps -2%
1920x1080 high (2/3)
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	98.9 (83.7^min) fps +17%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	91.7 (79.2^min) fps +8%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	91.6 (79.1^min) fps +8%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	84.8 (52.1^min) fps
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	53.1 (31.9^min) fps -37%
Minisforum MS-A2 Radeon 610M, R9 9955HX, Kingston OM8TAP41024K1-A00	36.5 (34.3^min) fps -57%

Cyberpunk 2077 2.2 Phantom Liberty
1920x1080 Low Preset (FSR off)
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	48.1 (41.3^min) fps +24%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	44.7 (38.6^min) fps +15%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	42.9 (36.7^min) fps +11%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	38.8 (34.1^min) fps
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	35.8 (30.4^min) fps -8%
Minisforum MS-A2 Radeon 610M, R9 9955HX, Kingston OM8TAP41024K1-A00	10.4 (8.55^min) fps -73%
1920x1080 High Preset (FSR off)
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	28.9 (24.5^min) fps +8%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	26.9 (22.2^min) fps +1%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	26.7 (23.2^min) fps
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	25.2 (20.4^min) fps -6%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	23.1 (15.8^min) fps -13%
Minisforum MS-A2 Radeon 610M, R9 9955HX, Kingston OM8TAP41024K1-A00	5.88 (5.01^min) fps -78%

Baldur's Gate 3
1280x720 Low Preset AA:SM
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	67.9 (43.2^min, 47.8^P0.1, 55.8^P1) fps +18%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	67.6 (49.8^min, 50.9^P0.1, 59.7^P1) fps +18%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	61.2 (47.4^min, 49.5^P0.1, 53.8^P1) fps +7%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	58 (36.9^min, 38^P0.1, 47.4^P1) fps +1%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	57.4 (40.9^min, 41.5^P0.1, 46.6^P1) fps
1920x1080 High Preset AA:T
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	28.8 (15.7^min, 23.2^P0.1, 26.3^P1) fps +10%
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	27.6 (23.1^min, 23.9^P0.1, 25.1^P1) fps +6%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	26.1 (22.3^min, 22.3^P0.1, 23.4^P1) fps
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	26 (21.5^min, 21.8^P0.1, 23.1^P1) fps 0%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	26 (21.6^min, 21.6^P0.1, 22.4^P1) fps 0%

F1 24
1920x1080 Low Preset AA:T AF:16x
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	87.2 (71^min, 63^P1) fps +1%
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	86.4 (75^min, 67^P1) fps
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	82.4 (57^min, 52^P1) fps -5%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	82 (62^min, 54^P1) fps -5%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	78.7 (62^min, 57^P1) fps -9%
1920x1080 High Preset AA:T AF:16x
GMK EVO-T1 Arc 140T, Ultra 9 285H, Crucial P3 Plus CT1000P3PSSD8	59.6 (53^min, 51^P1) fps
BOSGAME M4 Neo Radeon 780M, R7 7840HS, Kingston OM8PGP41024N-A0	57.7 (45^min, 42^P1) fps -3%
Geekom Mini IT15, Ultra 9 285H Arc 140T, Ultra 9 285H, Crucial P3 Plus CT2000P3PSSD8	55.2 (43^min, 41^P1) fps -7%
Geekom A8 Max, R7 8845HS Radeon 780M, R7 8845HS, Kingston OM8PGP41024N-A0	54.4 (46^min, 42^P1) fps -9%
Minisforum AI X1 Pro Radeon 890M, Ryzen AI 9 HX 370, Kingston OM8PGP41024Q-A0	53.4 (40^min, 32^P1) fps -10%

30 Min. Cyberpunk 2077 fps chart (1920 x 1080, Ultra preset, FSR off)

GMK EVO-T1 Ultra 9 285H, Arc 140T: Ø23.5 (21.9-24)

Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M: Ø23.8 (21.5-24.7)

Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M: Ø23 (20.6-23.4)

Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T: Ø21.7 (18.5-22.9)

BOSGAME M4 Neo R7 7840HS, Radeon 780M: Ø21.1 (16.4-23.9)

Minisforum MS-A2 R9 9955HX, Radeon 610M: Ø4.56 (4.19-4.71)

	low	med.	high	ultra
GTA V (2015)	164	155	44.2	18.1
The Witcher 3 (2015)	166.8	107.2	56.8	31
Dota 2 Reborn (2015)	107.3	91.1	84.8	81.4
Final Fantasy XV Benchmark (2018)	81.8	44.3	31.7
X-Plane 11.11 (2018)	63.5	53.1	42.9
Anno 1800 (2019)	92.7	50.4	37	28
The Witcher 3 v4 (2023)	54.1	42.7	37.5	32.8
Baldur's Gate 3 (2023)	39.8	30.5	26.1	25.3
Cyberpunk 2077 2.2 Phantom Liberty (2023)	38.8	31.4	26.7	24.8
Total War Pharaoh (2023)	107.8	82.9	63.3	55.7
F1 24 (2024)	86.4	79	59.6	19.5
Kingdom Come Deliverance 2 (2025)	37.3	29.8	24.5	18
F1 25 (2025)	70.3	60.9	47.2

GMKtec Evo-T1 performance check with an Nvidia GeForce RTX 4090 via OCuLink

The EVO-T1 supports OCuLink and thus enables the connection of external GPUs, such as an Nvidia GeForce RTX 4090. This makes it possible to create a powerful mobile gaming or workstation system. The increase in performance compared to the iGPU is very high.

Performance Rating - Percent
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	98.8 pt
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	95.5 pt
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	94.4 pt
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	88.7 pt
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	86.1 pt

3DMark 11 - 1280x720 Performance GPU
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	103919 Points +723%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	100303 Points +694%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	95015 Points +653%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	80206 Points +535%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	64648 Points +412%
	12626 Points

3DMark
2560x1440 Time Spy Graphics
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	34859 Points +800%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	33302 Points +760%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	31852 Points +723%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	29928 Points +673%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	28844 Points +645%
	3872 Points
1920x1080 Fire Strike Graphics
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	75788 Points +778%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	73143 Points +748%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	63395 Points +635%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	59428 Points +589%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	53367 Points +518%
	8630 Points
3840x2160 Fire Strike Ultra Graphics
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	24093 Points +1090%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	24022 Points +1087%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	23434 Points +1058%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	21506 Points +963%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	21221 Points +948%
	2024 Points

Unigine Superposition
1280x720 720p Low
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	37409 Points +192%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	34704 Points +171%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	34512 Points +170%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	33318 Points +160%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	32677 Points +155%
	12793 Points
1920x1080 1080p High
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	33491 Points +722%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	32868 Points +707%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	32149 Points +689%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	31209 Points +666%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	30115 Points +639%
	4074 Points
1920x1080 1080p Extreme
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	21878 Points +867%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	21366 Points +844%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	21164 Points +835%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	19915 Points +780%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	19735 Points +772%
	2263 Points
3840x2160 4k Optimized
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	30290 Points
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	30152 Points
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	30138 Points
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	28109 Points
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	27686 Points
7680x4320 8k Optimized
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	12463 Points
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	12219 Points
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	12132 Points
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	12056 Points
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	11651 Points

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	271.1 fps +935%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	211 fps +705%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	210.2 fps +702%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	208.7 fps +697%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	204.8 fps +682%
	26.2 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	286.7 fps +954%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	227 fps +735%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	224.4 fps +725%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	218.2 fps +702%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	212.5 fps +681%
	27.2 fps

Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	449.2 fps +1049%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	427.2 fps +993%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	406.5 fps +940%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	404.7 fps +935%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	386.5 fps +888%
	39.1 fps
Extreme Preset DX11
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	454.1 fps +1030%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	413 fps +927%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	397.6 fps +889%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	353.4 fps +779%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	343 fps +753%
	40.2 fps

ComputeMark v2.1
1024x600 Normal, Score
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	90418 Points +1067%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	90036 Points +1062%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	89912 Points +1060%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	87165 Points +1025%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	83349 Points +975%
	7751 Points
1024x600 Normal, Fluid 3DTex
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	10635 Points +1743%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	10559 Points +1730%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	10558 Points +1730%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	10348 Points +1693%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	9972 Points +1628%
	577 Points
1024x600 Normal, Fluid 2DTexArr
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	6879 Points +1137%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	6865 Points +1135%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	6790 Points +1121%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	6782 Points +1120%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	6566 Points +1081%
	556 Points
1024x600 Normal, Mandel Vector
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	16912 Points +793%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	16899 Points +792%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	16857 Points +790%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	16306 Points +761%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	15583 Points +723%
	1894 Points
1024x600 Normal, Mandel Scalar
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	22490 Points +1034%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	22391 Points +1029%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	22338 Points +1026%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	21557 Points +987%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	20574 Points +937%
	1984 Points
1024x600 Normal, QJuliaRayTrace
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	33578 Points +1127%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	33320 Points +1117%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	33294 Points +1116%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	32171 Points +1075%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	30654 Points +1020%
	2737 Points

Performance Rating | Cyberpunk 2077 2.2 Phantom Liberty | Baldur's Gate 3 | F1 24

Performance Rating - Percent
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	98.6 pt
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	96.5 pt
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	92.1 pt
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	71.4 pt
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	56.3 pt

Cyberpunk 2077 2.2 Phantom Liberty
1280x720 Low Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	168.9 (135.4^min - 199^max) fps +195%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	152.1 (125.7^min - 177.4^max) fps +166%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	138.5 (109.3^min - 170.9^max) fps +142%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	125.4 (94.1^min - 164.8^max) fps +119%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	88.9 (67.9^min - 123.3^max) fps +55%
	57.2 (48.1^min - 72.9^max) fps
1920x1080 Medium Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	168 (133.8^min - 195.9^max) fps +435%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	153.4 (128.4^min - 177.5^max) fps +389%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	143.1 (113^min - 169.5^max) fps +356%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	124.2 (91.5^min - 164.2^max) fps +296%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	87.8 (65.1^min - 123^max) fps +180%
	31.4 (27.4^min - 36.1^max) fps
1920x1080 Ultra Preset (FSR off)
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	146.9 (101.6^min - 181.1^max) fps +492%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	143.9 (113.9^min - 166.8^max) fps +480%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	135.2 (98.6^min - 164.2^max) fps +445%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	125.3 (85.8^min - 157.1^max) fps +405%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	105.7 (68.3^min - 147.3^max) fps +326%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	75 (50.3^min - 110.2^max) fps +202%
	24.8 (21.5^min - 29.6^max) fps

Baldur's Gate 3
1920x1080 Low Preset AA:SM
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	204 (62.5^min, 104.4^P0.1, 143.3^P1 - 392^max) fps +413%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	203 (67.8^min, 99.1^P0.1, 144.4^P1 - 371^max) fps +410%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	194.8 (55^min, 89.1^P0.1, 138.7^P1 - 268^max) fps +389%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	189.1 (95.1^min, 108.7^P0.1, 136.8^P1 - 323^max) fps +375%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	187.3 (23^min, 74.9^P0.1, 125.7^P1 - 610^max) fps +371%
	39.8 (32.3^min, 33^P0.1, 34.1^P1 - 45.7^max) fps
1920x1080 Medium Preset AA:T
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	195.4 (67.2^min, 99^P0.1, 135.8^P1 - 306^max) fps +541%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	192.4 (76.6^min, 93.4^P0.1, 133.6^P1 - 299^max) fps +531%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	185.4 (6.25^min, 62.7^P0.1, 115.5^P1 - 864^max) fps +508%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	171.8 (51.3^min, 84.7^P0.1, 127.5^P1 - 285^max) fps +463%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	168.3 (71.8^min, 94^P0.1, 117.8^P1 - 266^max) fps +452%
	30.5 (25.8^min, 26^P0.1, 27^P1 - 34.8^max) fps
1920x1080 Ultra Preset AA:T
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	184.4 (90.1^min, 101.6^P0.1, 129.5^P1 - 265^max) fps +629%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	183.9 (67.1^min, 95.8^P0.1, 126.6^P1 - 269^max) fps +627%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	172.2 (46.8^min, 84.2^P0.1, 117.9^P1 - 435^max) fps +581%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	151.8 (67.2^min, 82^P0.1, 101.9^P1 - 254^max) fps +500%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	150.2 (61.1^min, 89^P0.1, 121.5^P1 - 198.7^max) fps +494%
	25.3 (21.5^min, 22.2^P0.1, 22.8^P1 - 28.5^max) fps

F1 24
1920x1080 Low Preset AA:T AF:16x
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	241 (189^min, 148^P1 - 267^max) fps +179%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	236 (187^min, 153^P1 - 258^max) fps +173%
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	222 (174^min, 141^P1 - 261^max) fps +157%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	131.1 (90^min, 49^P1 - 159^max) fps +52%
	86.4 (75^min, 67^P1 - 98^max) fps
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	78.1 (43^min, 45^P1 - 98^max) fps -10%
1920x1080 Medium Preset AA:T AF:16x
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	240 (188^min, 153^P1 - 262^max) fps +204%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	234 (190^min, 143^P1 - 268^max) fps +196%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	226 (196^min, 147^P1 - 259^max) fps +186%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	121.5 (89^min, 46^P1 - 160^max) fps +54%
	79 (69^min, 63^P1 - 88^max) fps
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	74.4 (42^min, 44^P1 - 86^max) fps -6%
1920x1080 High Preset AA:T AF:16x
GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Intel Core Ultra 9 285H	234 (180^min, 152^P1 - 256^max) fps +293%
Minisforum AI X1 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen AI 9 HX 370	231 (182^min, 147^P1 - 255^max) fps +288%
Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) AMD Ryzen 9 8945HS	229 (178^min, 148^P1 - 253^max) fps +284%
Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) AMD Ryzen 7 8845HS	123.5 (82^min, 54^P1 - 144^max) fps +107%
Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Intel Core Ultra 9 185H	61.7 (35^min, 37^P1 - 75^max) fps +4%
	59.6 (53^min, 51^P1 - 66^max) fps

	GMK EVO-T1 Ultra 9 285H	GMK EVO-T1 (Nvidia GeForce RTX 4090 @OCuLink) Ultra 9 285H	Minisforum UM890 Pro (Nvidia GeForce RTX 4090 @OCuLink) R9 8945HS	Geekom GT1 Mega (Nvidia GeForce RTX 4090 @USB4) Ultra 9 185H	Geekom A8 Max (Nvidia GeForce RTX 4090 @USB4) R7 8845HS
SPECviewperf 2020		801%	908%	666%	781%
3840x2160 Medical (medical-03)	7.02	43.1 514%	43.4 518%	42.1 500%	42 498%
3840x2160 Energy (energy-03)	7.4	93.7 1166%	141 1805%	92.8 1154%	138 1765%
3840x2160 Creo (creo-03)	19.9	109 448%	120 503%	91.1 358%	112 463%
3840x2160 CATIA (catia-06)	12.8	82.1 541%	84.3 559%	77.3 504%	82.2 542%
3840x2160 3ds Max (3dsmax-07)	14.6	212 1352%	208 1325%	158 982%	153 948%
3840x2160 Siemens NX (snx-04)	6.13	38.8 533%	39.5 544%	31.9 420%	33 438%
3840x2160 Maya (maya-06)	44.9	517 1051%	539 1100%	378 742%	410 813%

	low	med.	high	ultra	QHD	4K
The Witcher 3 (2015)	425	383	367	264	237	269
Dota 2 Reborn (2015)	163.2	147.3	144.1	135.3		141.3
Final Fantasy XV Benchmark (2018)	202	188.3	164.6		163.7	147.7
X-Plane 11.11 (2018)	102.8	105.2	85.9			79.4
The Witcher 3 v4 (2023)	235	207	171.6	150.2	152.9	141.6
Baldur's Gate 3 (2023)	204	195.4	186.2	184.4	178.2	129.9
Cyberpunk 2077 2.2 Phantom Liberty (2023)	152	153.4		135.2	134.3	72.7
F1 24 (2024)	222	240	234	139.2	137.2	91.1
F1 25 (2025)	197.4	185.3	178.9	81.9	55.3	29

Emissions

Noise emissions

The GMK EVO-T1 is always audible in performance mode: we measured just under 39 dB(A) even in idle mode and 51.6 dB(A) under load. Nevertheless, the fans do not produce an unpleasantly high noise. In Balanced or Quiet mode, the mini PC is significantly quieter, and at a manually set fan speed of 20 percent, it is even almost silent.

Noise development in dB(A)	Performance (80/70 watts)	Performance (80/70 watts + FAN speed 20%)	Balanced (54 watts)	Quiet (45 watts)
Idle min	38.7	25.3	36.3	33.7
Idle avg	38.8	25.3	36.6	33.7
Idle max	38.9	25.3	41.1	34.2
Last avg	51.6	25.3	44.7	36.4
Last max	51.6	25.3	44.7	36.4
Cyberpunk 2077 ultra	52	25.3	44.9	36.4

Noise Level

Idle		38.7 / 38.8 / 38.9 dB(A)
Load		51.6 / 51.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.7 dB(A)

	GMK EVO-T1 Ultra 9 285H, Arc 140T	Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M	Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M	Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T	BOSGAME M4 Neo R7 7840HS, Radeon 780M	Minisforum MS-A2 R9 9955HX, Radeon 610M
Noise		23%	24%	9%	11%	-1%
off / environment *	24.7	23.8 4%	23.8 4%	24.3 2%	24.3 2%	24.95 -1%
Idle Minimum *	38.7	28 28%	24 38%	33.7 13%	37.6 3%	41.5 -7%
Idle Average *	38.8	28.1 28%	24.1 38%	33.7 13%	37.9 2%	41.5 -7%
Idle Maximum *	38.9	28.2 28%	24.1 38%	33.8 13%	38 2%	41.6 -7%
Load Average *	51.6	38.4 26%	42.7 17%	47.6 8%	40.8 21%	44.9 13%
Witcher 3 ultra *	38.7					42.9 -11%
Cyberpunk 2077 ultra *	52	38.5 26%	42.5 18%	47.7 8%	40.18 23%	47.2 9%
Load Maximum *	51.6	41.8 19%	42.6 17%	47.9 7%	40.2 22%	48.4 6%

* ... smaller is better

Temperature

The casing surfaces remain inconspicuous in idle mode and under load. The processor itself reaches 90 °C and works stably with the intended 70 watts under load. If the fan speed is reduced to 20 percent, the cooling unit is able to dissipate around 40 watts under load. Temperatures of 100 °C are reached, but are not a problem for the Intel Core Ultra 9 285H.

Behavior of the GMK EVO-T1 during the stress test

Behavior of the GMK EVO-T1 during the stress test (fan speed 20 percent)

GMK EVO-T1 during stress test (top side)

GMK EVO-T1 during stress test (underside)

Power supply unit during the stress test

Max. Load

Idle

Cyberpunk


32.9 °C 91 F	33.3 °C 92 F	36.4 °C 98 F
33.6 °C 92 F	34.3 °C 94 F	34.2 °C 94 F
33.3 °C 92 F	33.1 °C 92 F	34.3 °C 94 F

Maximum: 36.4 °C = 98 F
Average: 33.9 °C = 93 F


36.4 °C 98 F	48.5 °C 119 F	43.7 °C 111 F
34.8 °C 95 F	32.1 °C 90 F	34.1 °C 93 F
33.5 °C 92 F	33.2 °C 92 F	34 °C 93 F

Maximum: 48.5 °C = 119 F
Average: 36.7 °C = 98 F

Power Supply (max.) 50.5 °C = 123 F | Room Temperature 25 °C = 77 F | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


28.5 °C 83 F	28.6 °C 83 F	29.6 °C 85 F
28.7 °C 84 F	28.8 °C 84 F	29 °C 84 F
28.6 °C 83 F	28.7 °C 84 F	28.8 °C 84 F

Maximum: 29.6 °C = 85 F
Average: 28.8 °C = 84 F


29.1 °C 84 F	30 °C 86 F	28.8 °C 84 F
29 °C 84 F	28.1 °C 83 F	28.8 °C 84 F
28.8 °C 84 F	28.6 °C 83 F	28.8 °C 84 F

Maximum: 30 °C = 86 F
Average: 28.9 °C = 84 F

Power Supply (max.) 36.1 °C = 97 F | Room Temperature 25 °C = 77 F | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


31.2 °C 88 F	31.6 °C 89 F	34.2 °C 94 F
31.8 °C 89 F	32.4 °C 90 F	32.4 °C 90 F
31.6 °C 89 F	31.7 °C 89 F	32.6 °C 91 F

Maximum: 34.2 °C = 94 F
Average: 32.2 °C = 90 F


33.6 °C 92 F	43 °C 109 F	32.5 °C 91 F
32 °C 90 F	30 °C 86 F	31.8 °C 89 F
31.3 °C 88 F	31.5 °C 89 F	31.9 °C 89 F

Maximum: 43 °C = 109 F
Average: 33.1 °C = 92 F

Power Supply (max.) 44.8 °C = 113 F | Room Temperature 25 °C = 77 F | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 33.9 °C / 93 F, compared to the average of 32.4 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 36.4 °C / 98 F, compared to the average of 36 °C / 97 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(-) The bottom heats up to a maximum of 48.5 °C / 119 F, compared to the average of 36.5 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.8 °C / 84 F, compared to the device average of 32.4 °C / 90 F.
(±) 3: The average temperature for the upper side is 32.2 °C / 90 F, compared to the average of 32.4 °C / 90 F for the class Mini PC.

Energy management

The higher power limits ensure more energy consumption under load overall. However, the EVO-T1 is not completely out of the ordinary.

Power Consumption

Off / Standby	1.3 / 2 Watt
Idle	6.1 / 7.9 / 13.2 Watt
Load	60.7 / 117.1 Watt


Key: min: , med: , max: Metrahit Energy

	GMK EVO-T1 Ultra 9 285H, Arc 140T	Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T	Minisforum AI X1 Pro Ryzen AI 9 HX 370, Radeon 890M	Geekom A8 Max, R7 8845HS R7 8845HS, Radeon 780M	BOSGAME M4 Neo R7 7840HS, Radeon 780M	Minisforum MS-A2 R9 9955HX, Radeon 610M	Average Intel Arc Graphics 140T	Average of class Mini PC
Power Consumption		28%	-7%	17%	-7%	-71%	8%	-22%
Idle Minimum *	6.1	3.8 38%	8.6 -41%	3.1 49%	7.6 -25%	16.1 -164%	5.73 ?(3.8 - 9.9, n=9) 6%	9.55 ?(2.2 - 35.9, n=111, last 2 years) -57%
Idle Average *	7.9	5.2 34%	9.4 -19%	5.7 28%	9.1 -15%	19.3 -144%	8.91 ?(5.2 - 11.6, n=9) -13%	11.8 ?(2.59 - 36.3, n=109, last 2 years) -49%
Idle Maximum *	13.2	8.4 36%	10 24%	8.3 37%	11.1 16%	21.7 -64%	11.9 ?(8.4 - 23.2, n=9) 10%	15.2 ?(2.6 - 49, n=111, last 2 years) -15%
Load Average *	60.7	50.1 17%	70.2 -16%	68.3 -13%	67.2 -11%	64.9 -7%	56.4 ?(50.1 - 66.9, n=9) 7%	59.9 ?(12.9 - 170.6, n=111, last 2 years) 1%
Cyberpunk 2077 ultra external monitor *	67.4	51.6 23%	70.7 -5%	78.7 -17%	81.3 -21%	81.2 -20%
Load Maximum *	117.1	91.9 22%	97.7 17%	97.7 17%	98.4 16%	149.3 -27%	82.8 ?(64.4 - 117.1, n=9) 29%	103.2 ?(26.2 - 423, n=111, last 2 years) 12%

* ... smaller is better

Power efficiency

Performance Rating | Power Consumption

Performance Rating - Percent
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	92.3 pt
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	90.5 pt
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	83 pt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	78.3 pt
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	78.1 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	76.5 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	265 Points per Watt +23%
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	257 Points per Watt +20%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	239 Points per Watt +11%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	215 Points per Watt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	211 Points per Watt -2%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	210 Points per Watt -2%
Cinebench R23 Single Power Efficiency - external Monitor
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	79 Points per Watt +28%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	61.9 Points per Watt
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	60.1 Points per Watt -3%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	59 Points per Watt -5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	57.8 Points per Watt -7%
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	41 Points per Watt -34%
Cinebench R15 Multi Efficiency (external Monitor)
Minisforum MS-A2 AMD Ryzen 9 9955HX, Radeon 610M	39.5 Points per Watt +33%
Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370, Radeon 890M	38.2 Points per Watt +29%
Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H, Arc 140T	34.2 Points per Watt +16%
Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS, Radeon 780M	31.3 Points per Watt +6%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	30.5 Points per Watt +3%
GMK EVO-T1 Intel Core Ultra 9 285H, Arc 140T	29.6 Points per Watt

Power consumption - external monitor

GMK EVO-T1 Ultra 9 285H, Arc 140T; Idle 1min (external Monitor): Ø7.98 (6.68-13.2)

Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T; Idle 1min (external Monitor): Ø5.27 (2.5-8.44)

GMK EVO-T1 Ultra 9 285H, Arc 140T; 1280x720 Prime95 28.10 and Furmark 1.25: Ø103.7 (92-117.3)

Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T; 1280x720 Prime95 28.10 and Furmark 1.25: Ø53.9 (37.3-91.9)

GMK EVO-T1 Ultra 9 285H, Arc 140T; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø67.4 (61.6-71.9)

Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø51.6 (47.2-56.6)

GMK EVO-T1 Ultra 9 285H, Arc 140T; 3DMark06 Return To Proxycon: Ø60.7 (55.9-65.6)

Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T; 3DMark06 Return To Proxycon: Ø50.2 (46.4-53.6)

Power consumption - external monitor

GMK EVO-T1 Ultra 9 285H, Arc 140T; Prime95 V2810 Stress (external Monitor): Ø103.4 (94.1-117.1)

Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T; Prime95 V2810 Stress (external Monitor): Ø54 (45.6-92)

GMK EVO-T1 Ultra 9 285H, Arc 140T; Cinebench R15 Multi (external Monitor): Ø106 (103.6-107.3)

Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T; Cinebench R15 Multi (external Monitor): Ø84 (82.2-85.6)

GMK EVO-T1 Ultra 9 285H, Arc 140T; Cinebench R23 Single (external Monitor): Ø34 (28.3-70.5)

Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T; Cinebench R23 Single (external Monitor): Ø27.3 (23.5-54.3)

GMK EVO-T1 Ultra 9 285H, Arc 140T; Cinebench R23 Multi (external Monitor): Ø96.4 (92-103.4)

Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T; Cinebench R23 Multi (external Monitor): Ø76.5 (69.1-83.4)

GMK EVO-T1 Ultra 9 285H, Arc 140T; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø51.2 (49.4-63.5)

Geekom Mini IT15, Ultra 9 285H Ultra 9 285H, Arc 140T; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø49.2 (46.6-61.7)

Notebookcheck rating

Back to the verdict

GMK EVO-T1 - 08/09/2025 v8
Sebastian Bade

Chassis

89 / 98 → 91%

Connectivity

72 / 81 → 89%

Weight

76%

Games Performance

52 / 80 → 65%

Application Performance

89 / 92 → 96%

Workstation

36%

AI Performance

90%

Temperature

91%

Noise

50%

Average

52%

75%

Mini PC - Weighted Average

CO2 Emissions
No Data

Materials
0%

Packaging
25%

Power Use
67.6%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 25.8%

Mögliche Alternativen im Vergleich

Image	Model / Review	Price	Weight	Dimensions
1. 75.2%	GMK EVO-T1 Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 64 GB Memory, 1024 GB SSD	Amazon: $1,299.99 List Price: 999€	946 g	151 x 154 x 73.6 mm
2. 82.9%	Minisforum AI X1 Pro AMD Ryzen AI 9 HX 370 ⎘ AMD Radeon 890M ⎘ 64 GB Memory, 1024 GB SSD	Amazon: 1. $1,119.90 MINISFORUM AI X1 Pro-370 Min... 2. $999.99 MINISFORUM Mini PC AI X1 Pro... 3. $351.90 MINISFORUM X1-255 Mini PC AM...	1.4 kg	195 x 195 x 42.5 mm
3. 82%	Geekom A8 Max, R7 8845HS AMD Ryzen 7 8845HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $699.00 GEEKOM A8 Max AI Mini PC wit... List Price: 899 EUR	681 g	132 x 135 x 46.9 mm
4. 76.5%	Geekom Mini IT15, Ultra 9 285H Intel Core Ultra 9 285H ⎘ Intel Arc Graphics 140T ⎘ 32 GB Memory, 2048 GB SSD	Amazon: $1,199.00 List Price: 1099€	595 g	112 x 117 x 49.2 mm
5. 74%	BOSGAME M4 Neo AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $598.99 BOSGAME M4 Oculink Mini PC R... 2. $619.00 BOSGAME Mini PC M4 AMD Ryzen... 3. $599.99 BOSGAME M4 Neo Mini PC Deskt... List Price: 389 EUR	560 g	127 x 127 x 42 mm
6. 64.9%	Minisforum MS-A2 AMD Ryzen 9 9955HX ⎘ AMD Radeon 610M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $1,135.90 MINISFORUM MS-A2 Mini Workst... 2. $871.99 MINISFORUM AMD Ryzen 9 9955H... 3. $663.90 MINISFORUM MS-01 Mini Workst... List Price: 939€	1.5 kg	196 x 189 x 48 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Cinebench 2024 CPU Multi Core in comparison
Asus ExpertCenter PN42-BBN200MV (min) N200, UHD Graphics Xe 750 32EUs	91
...
Razer Blade 16 Early 2023 i9-13950HX, NVIDIA GeForce RTX 4080 Laptop GPU	1138
Razer Blade 16 Early 2023 i9-13950HX, NVIDIA GeForce RTX 4080 Laptop GPU	1138
GMK EVO-X1 Ryzen AI 9 HX 370, Radeon 890M	1139
GMK EVO-T1 Ultra 9 285H, Arc 140T	1142
HP OmniBook Ultra 14 Ryzen AI 9 HX 375, Radeon 890M	1162
Asus TUF Gaming A14 FA401WV-WB94 Ryzen AI 9 HX 370, NVIDIA GeForce RTX 4060 Laptop GPU	1165
Intel Core Ultra 5 235 Ultra 5 235, NVIDIA GeForce RTX 4090	1172
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	5372

High-end mini PC – GMKtec EVO-T1 review with Intel Core Ultra 9 285H, 80W TDP, 64 GB RAM, and eGPU option

Premium look in black and gold.

Verdict - Compact, versatile powerhouse with Intel Core Ultra 9 285H

Pros

Cons

Price and availability

Table of Contents

Specifications

Case, connectivity and features

Size comparison

ADATA SE920 USB4-Speed

Accessories

Maintenance

Sustainability

Performance

Test conditions

BIOS - Settings

Processor

Cinebench R15 Multi endurance test

System performance

NPU Performance

DPC latencies

Mass storage

Sustained read load: DiskSpd Read Loop, Queue Depth 8

Graphics card and gaming performance

30 Min. Cyberpunk 2077 fps chart (1920 x 1080, Ultra preset, FSR off)

GMKtec Evo-T1 performance check with an Nvidia GeForce RTX 4090 via OCuLink

Emissions

Noise emissions

Temperature

Energy management

Power efficiency

Power consumption - external monitor

Power consumption - external monitor

Notebookcheck rating

Mögliche Alternativen im Vergleich

Transparency

More articles related to this device

3DMark 11 in comparison
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
Monster Tulpar T5 V18.1.1 i7-8750H, GeForce GTX 1060 Mobile	13166
HP Omen 15-dc1303ng i7-8750H, GeForce RTX 2070 Max-Q	13166
ONEXPLAYER X1 Pro GA15H-HX370-32GB-1TB-H Ryzen AI 9 HX 370, Radeon 890M	13179
GMK EVO-T1 Ultra 9 285H, Arc 140T	13187
Lenovo IdeaPad Pro 5 14AHP9 R7 8845HS, Radeon 780M	13199
Asus ROG Zephyrus G14 2024 GA403U R9 8945HS, Radeon 780M	13200
Asus VivoBook 15 Pro M3500QC-L1062 R5 5600H, GeForce RTX 3050 4GB Laptop GPU	13203
...
NVIDIA GeForce RTX 5090 Founders Edition (max) R7 9800X3D, GeForce RTX 5090	82642
