Performance meets efficiency: Alliwava H90 Pro Mini-PC review with AMD Ryzen 7 APU

The Alliwava H90 Pro promises powerful performance in a mini format: with the Ryzen 7 8745HS, Radeon 780M graphics, DDR5 RAM, and PCIe SSD, it should deliver plenty of power despite its compact design - and for around $500. We tested whether the small PC delivers what the specifications promise.
Sebastian Bade 👁 (translated by Sebastian Bade) Published 10/30/2025 🇩🇪
Mini PC Desktop AMD Ryzen (Zen) Radeon

Verdict - Efficient mini PC with Ryzen 7 power at a fair price

The Alliwava H90 Pro impresses as a compact and efficient mini PC with solid workmanship and balanced performance. The AMD Ryzen 7 8745HS offers enough power for office applications, media playback and light gaming, while the system remains predominantly quiet and economical thanks to the low power consumption. The casing combines aluminum and plastic and scores with solid workmanship and a simple, elegant design. It is a bit of a shame that modern connections such as USB4 or OCuLink are missing and that the integrated Radeon 780M cannot exploit its full potential. Nevertheless, the mini PC offers a very coherent overall package in its price range under 500 euros and is therefore an interesting choice for the desk or home office.

Pros

+ simple, compact housing

+ Good system performance with low power consumption

+ Energy-efficient and suitable for everyday use

+ fast WLAN

+ 32 GB DDR5 RAM

+ Dual 2.5G LAN

+ no annoying fan noise

Cons

- No modern interfaces (USB4, OCuLink)

- iGPU with limited gaming performance

- only one mass storage device can be installed

- limited BIOS options

Price and availability

The Alliwava H90 Pro can be purchased from the manufacturer for $579. With the code "60DSAWXAWR" you can save an additional 60 USD in the manufacturer's store.

Verdict - Efficient mini PC with Ryzen 7 power at a fair price
Specifications
Case & Connectivity
Processor - Ryzen 7 8745HS with 8 cores but without NPU
System performance and mass storage
Graphics card and gaming performance - AMD Radeon 780M
Emissions
Energy management
Notebookcheck rating
Possible alternatives in comparison

The Alliwava H90 Pro is a compact and powerful mini PC equipped with an AMD Ryzen 7 8745HS. This processor is based on the Zen 4 architecture and offers 8 cores and 16 threads - ideal for multitasking, demanding applications, and light gaming. Our test device also has 32 GB of RAM and a 1 TB SSD, allowing the SoC to unleash its full power thanks to the generous memory configuration.

Specifications

Alliwava H90 Pro

Processor

AMD Ryzen 7 8745HS 8 x 3.8 - 4.9 GHz, 54 W PL2 / Short Burst, 35 W PL1 / Sustained, Hawk Point-HS (Zen 4)

Graphics adapter

AMD Radeon 780M, Adrenalin 25.9.2

Memory

32 GB

, DDR5, 4.800 MT/s

Mainboard

AMD Promontory/Bixby FCH

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 USB 3.2 Gen 2x2 20Gbps, 1 HDMI, 2 DisplayPort, 2nd Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s)

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Size

height x width x depth (in mm): 52 x 130 x 127.5 ( = 2.05 x 5.12 x 5.02 in)

Operating System

Microsoft Windows 11 Pro

Weight

470 g ( = 16.58 oz / 1.04 pounds), Power Supply: 289 g ( = 10.19 oz / 0.64 pounds)

Price

479 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

[+] Add to comparison

» Compare devices

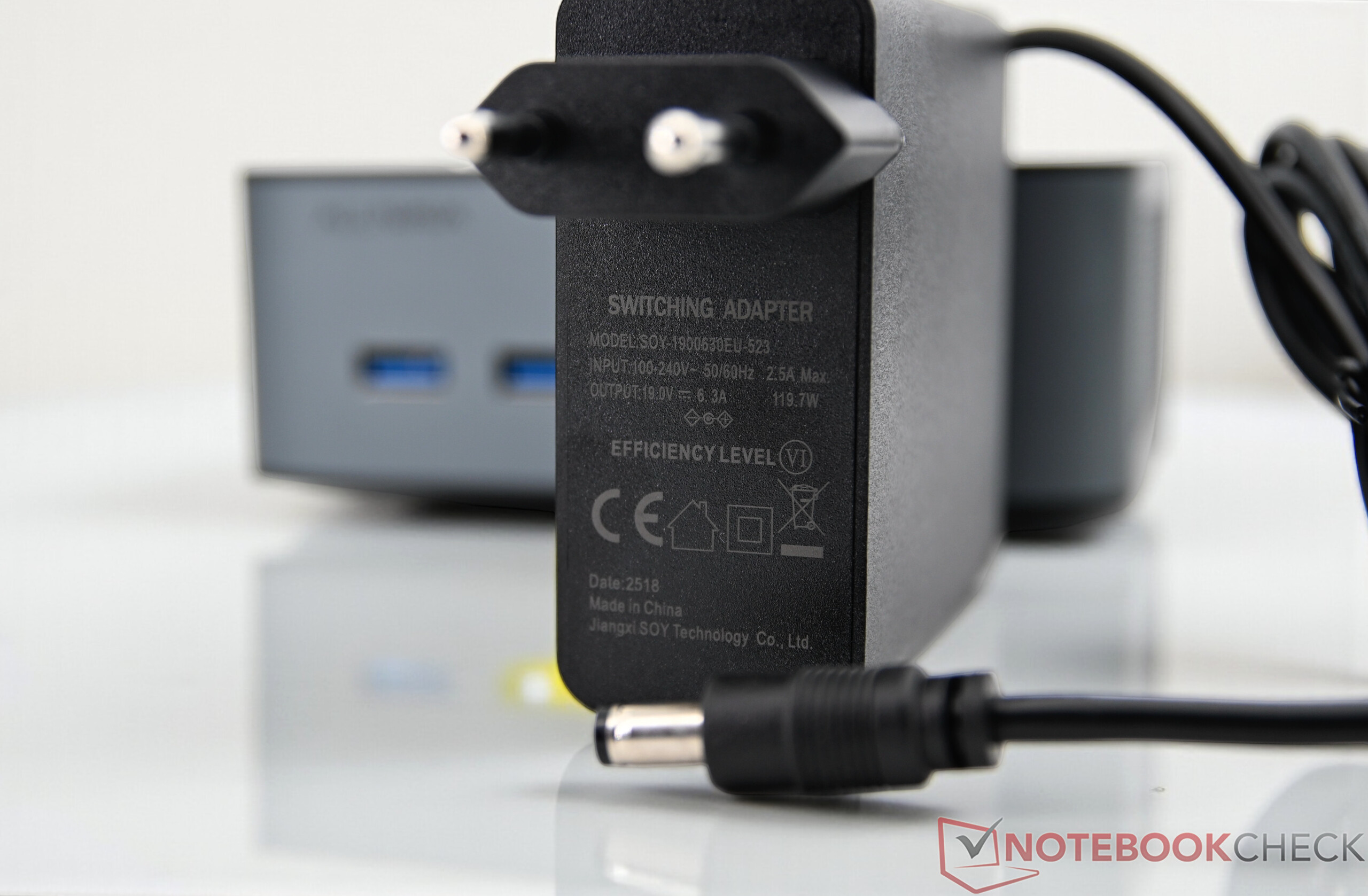

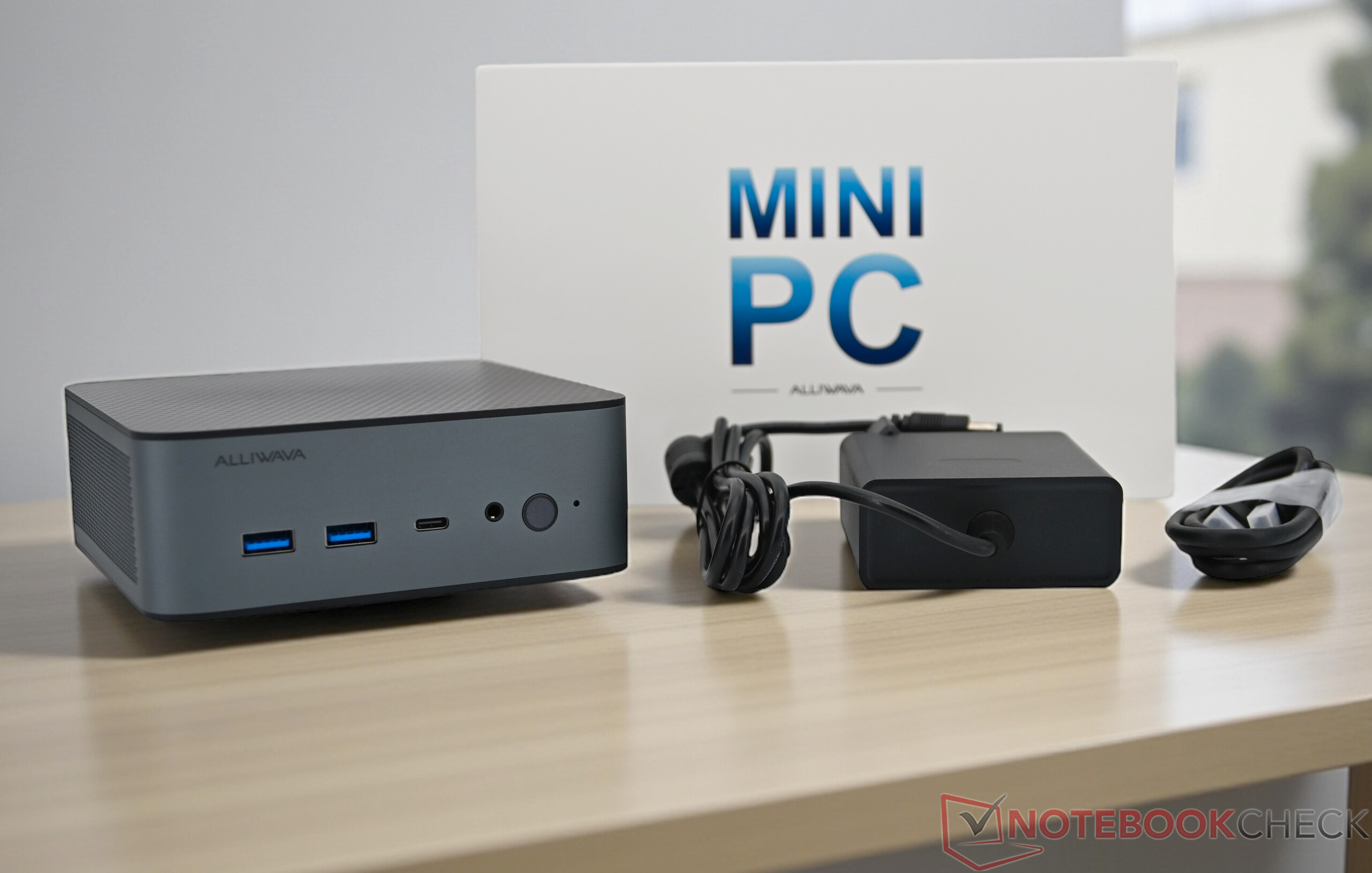

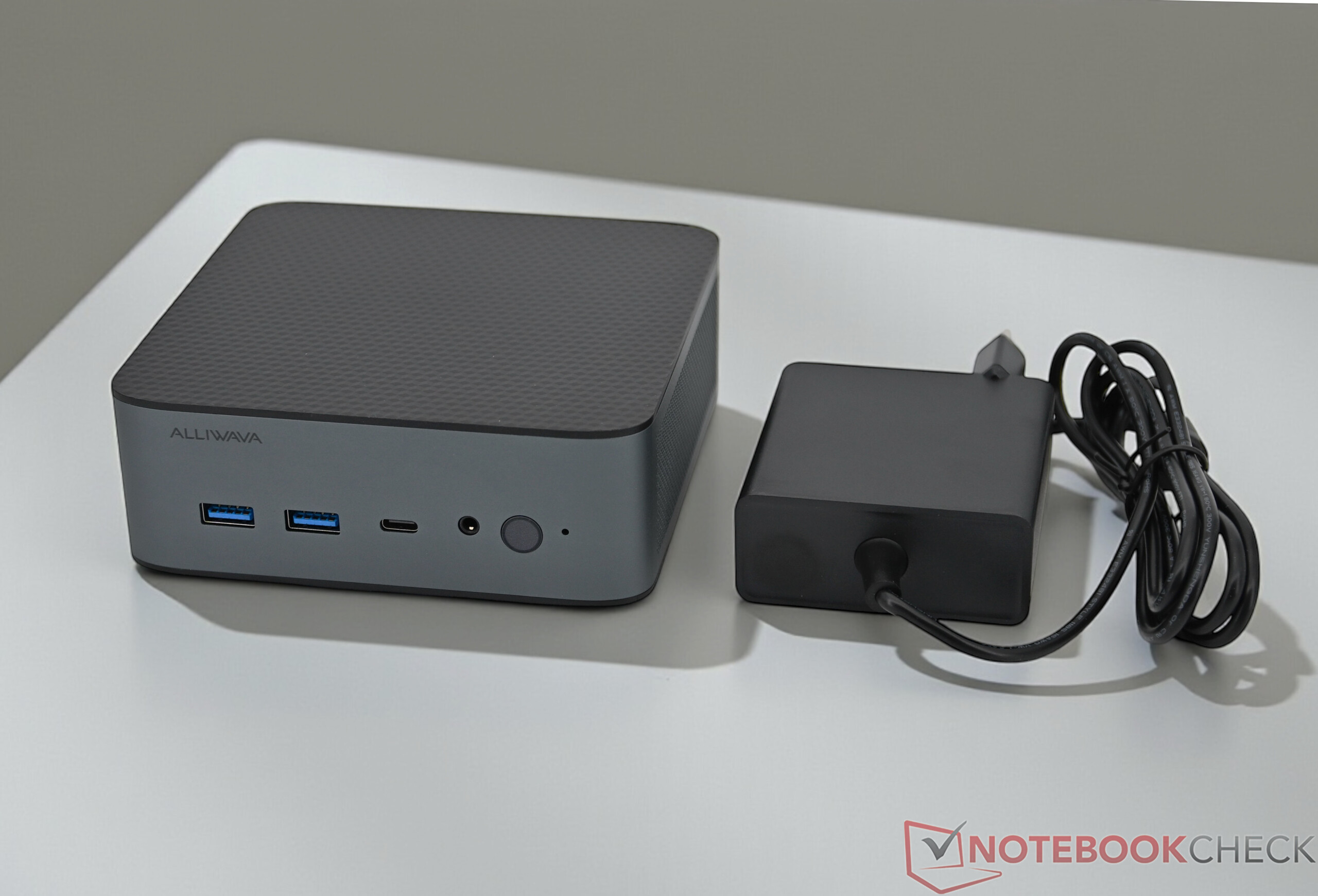

Alliwava H90 Pro with power supply unit (19 V; 6.3 A)

Case & Connectivity

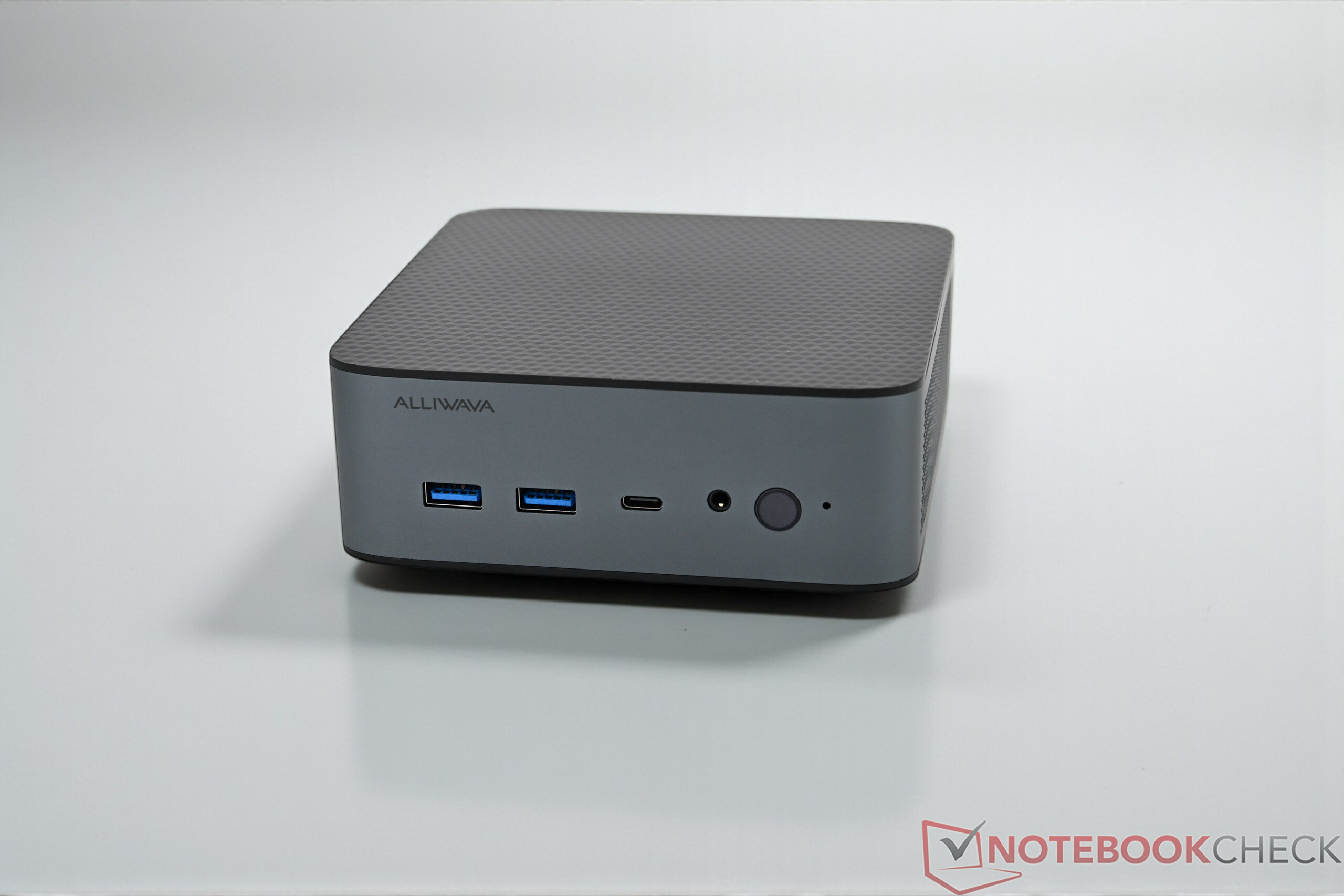

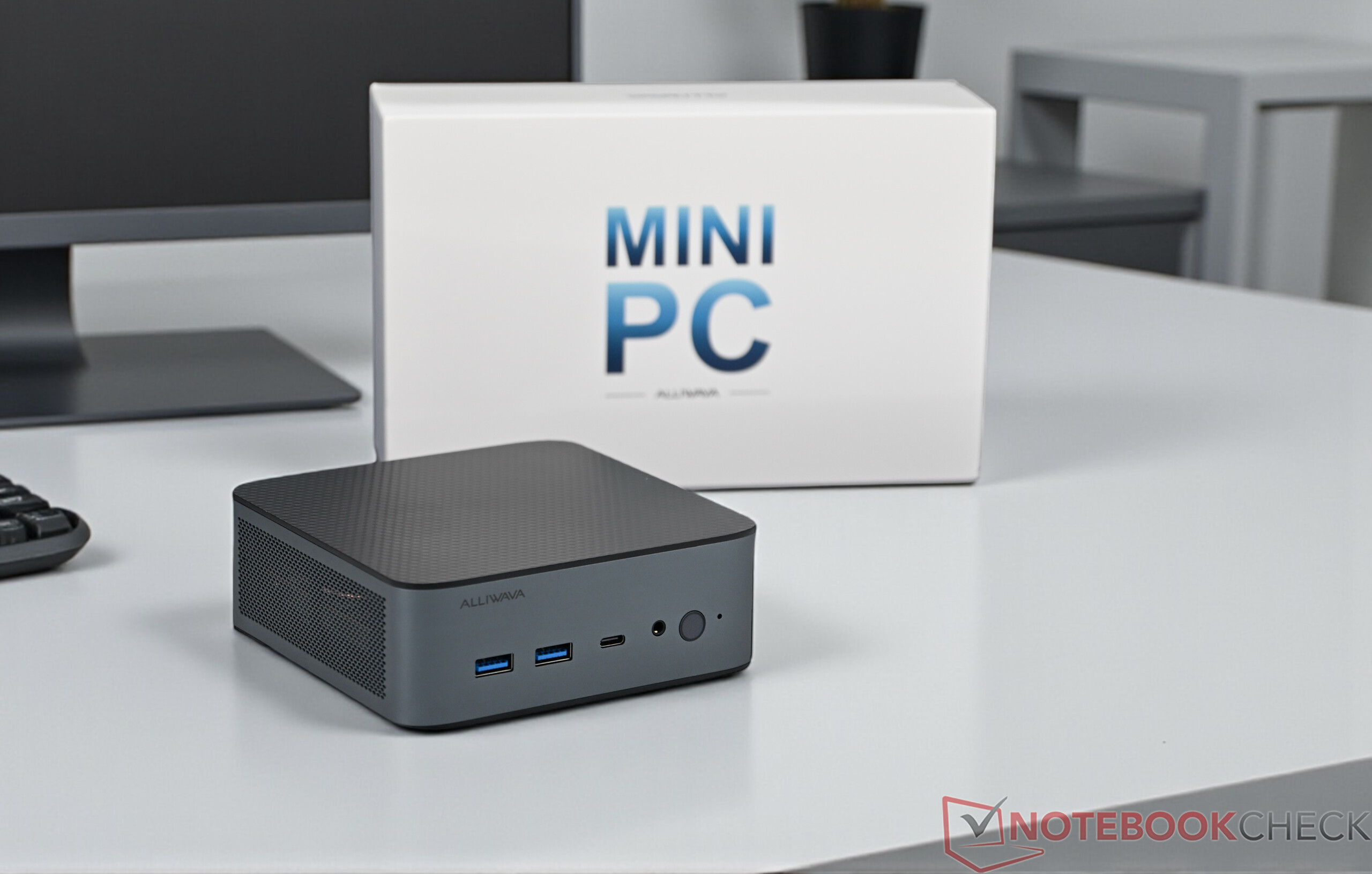

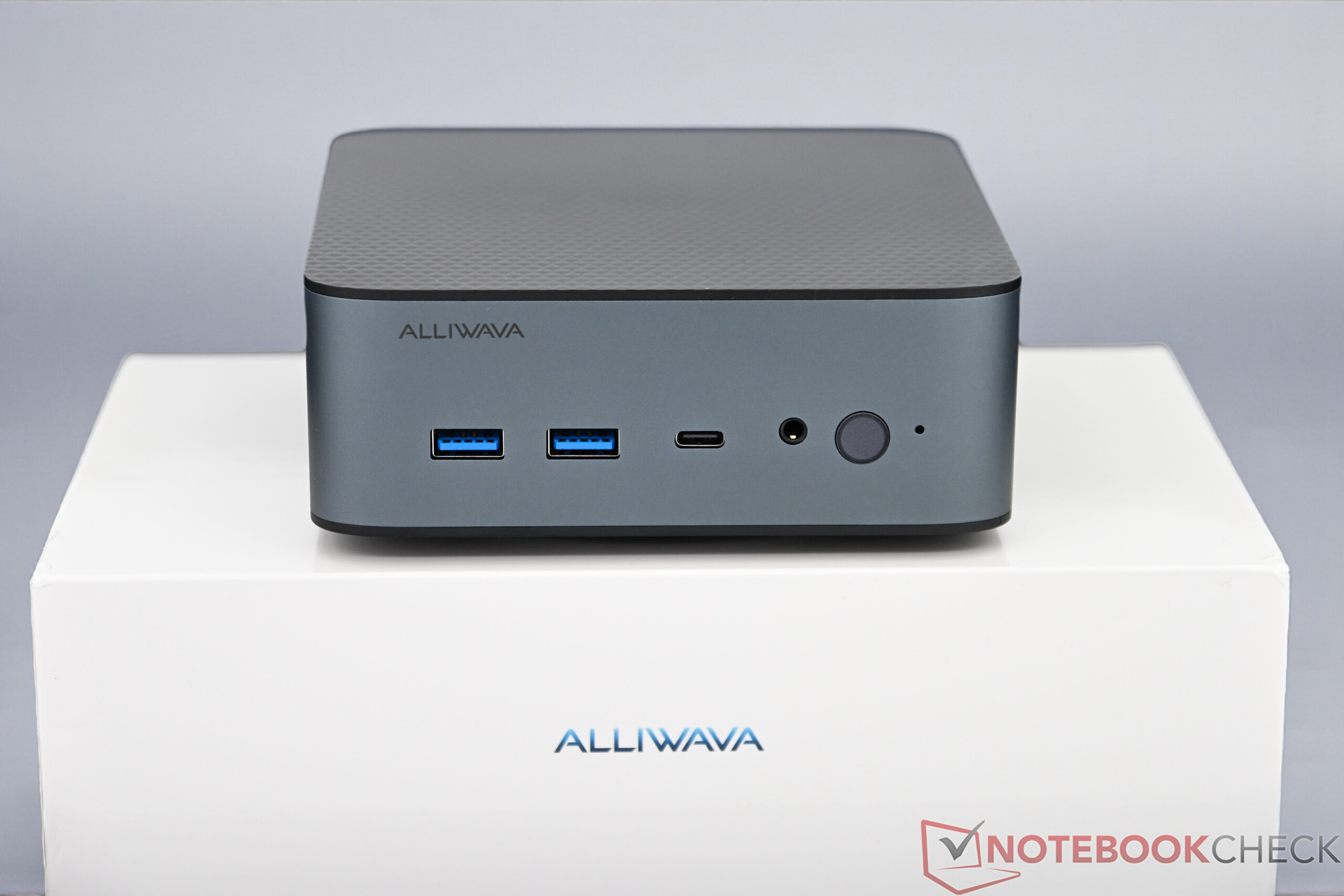

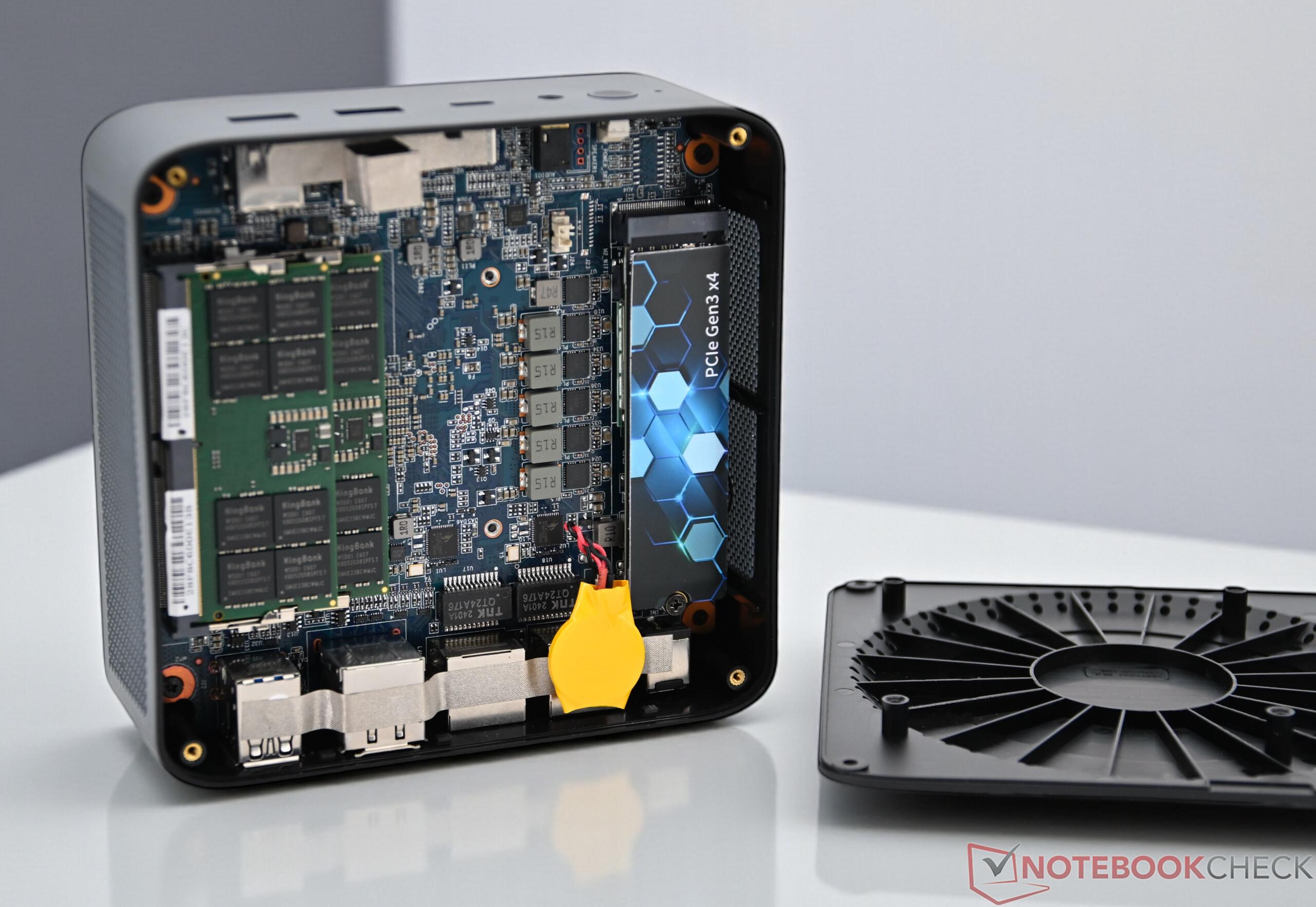

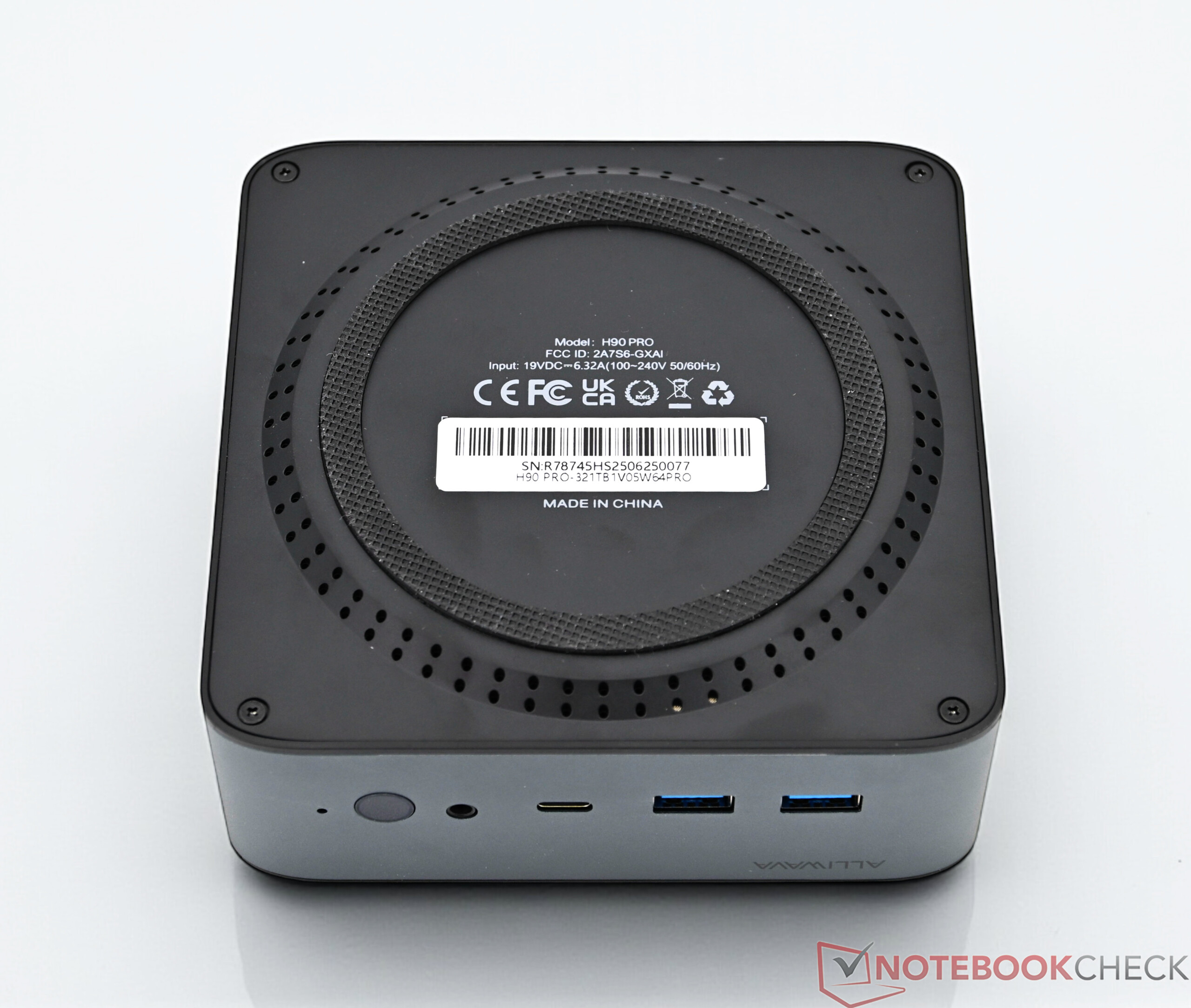

The Alliwava H90 Pro comes in a high-quality aluminum housing with compact dimensions and a weight of around 500 grams. While the base is made of aluminum, the housing cover and underside are made of plastic, which hardly detracts from the overall solid and high-quality impression. The connections are sensibly distributed across the front and rear and offer a good selection for everyday use in the office or home environment. However, modern interfaces such as USB4 or OCuLink must be dispensed with. Nevertheless, the Alliwava H90 Pro can control up to three displays simultaneously. Its network equipment with two 2.5 gigabit LAN ports and fast WLAN are also among the strengths of this compact mini PC from the Far East.

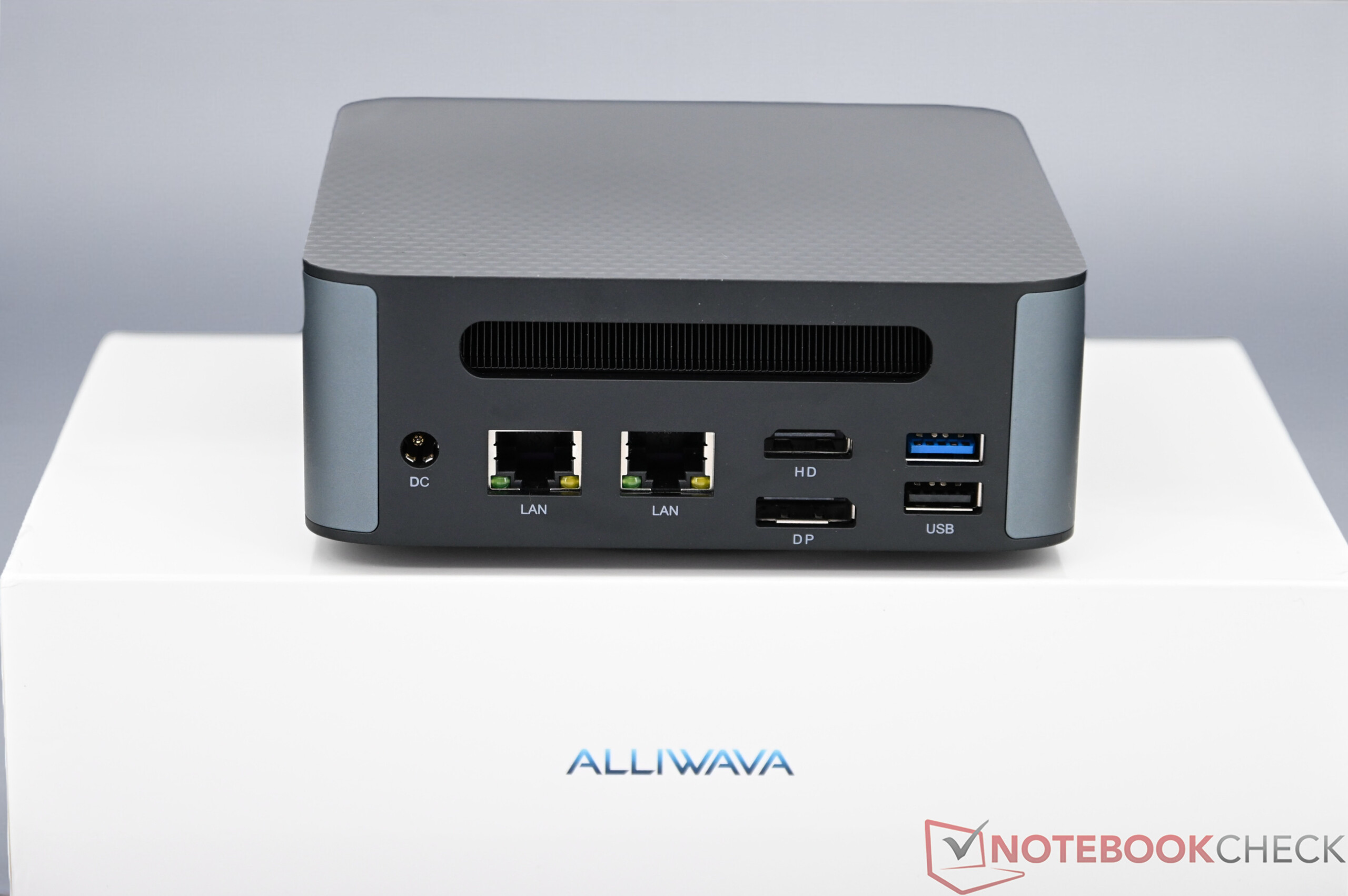

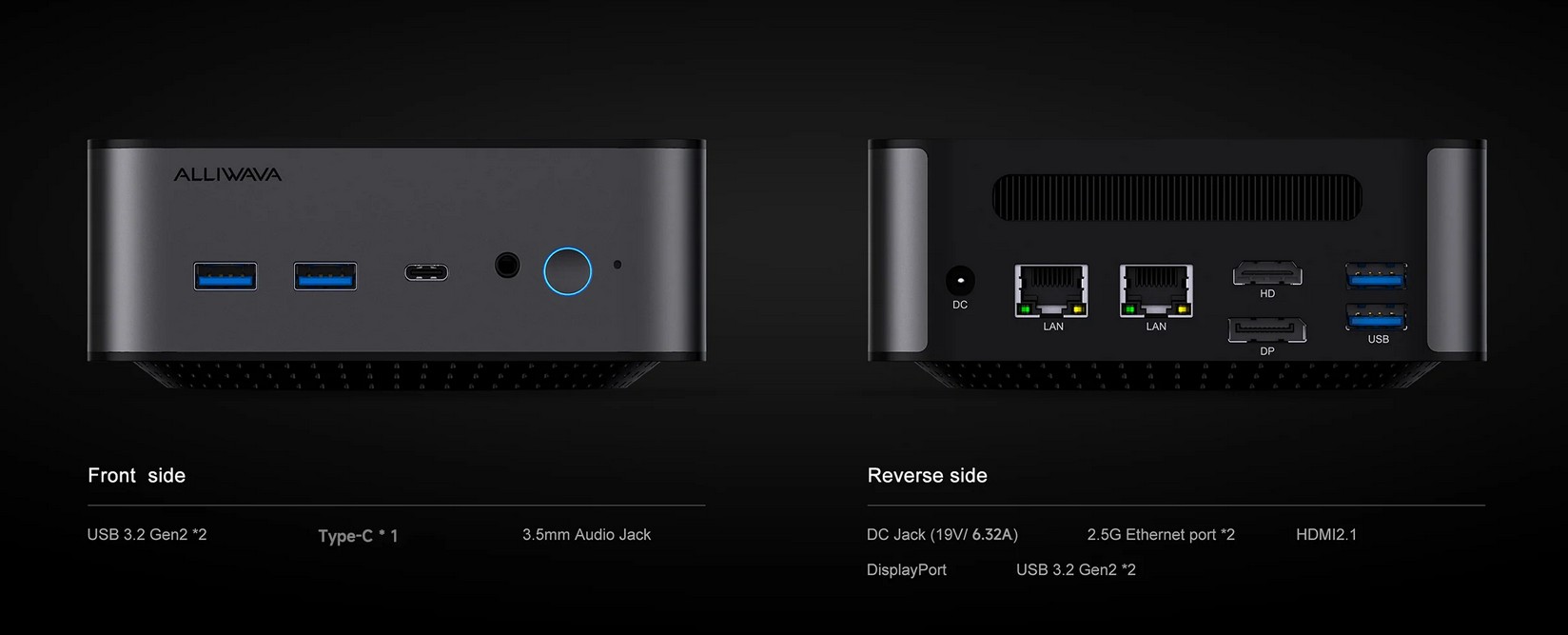

The external interfaces of the Alliwava H90 Pro (Source: Alliwava)

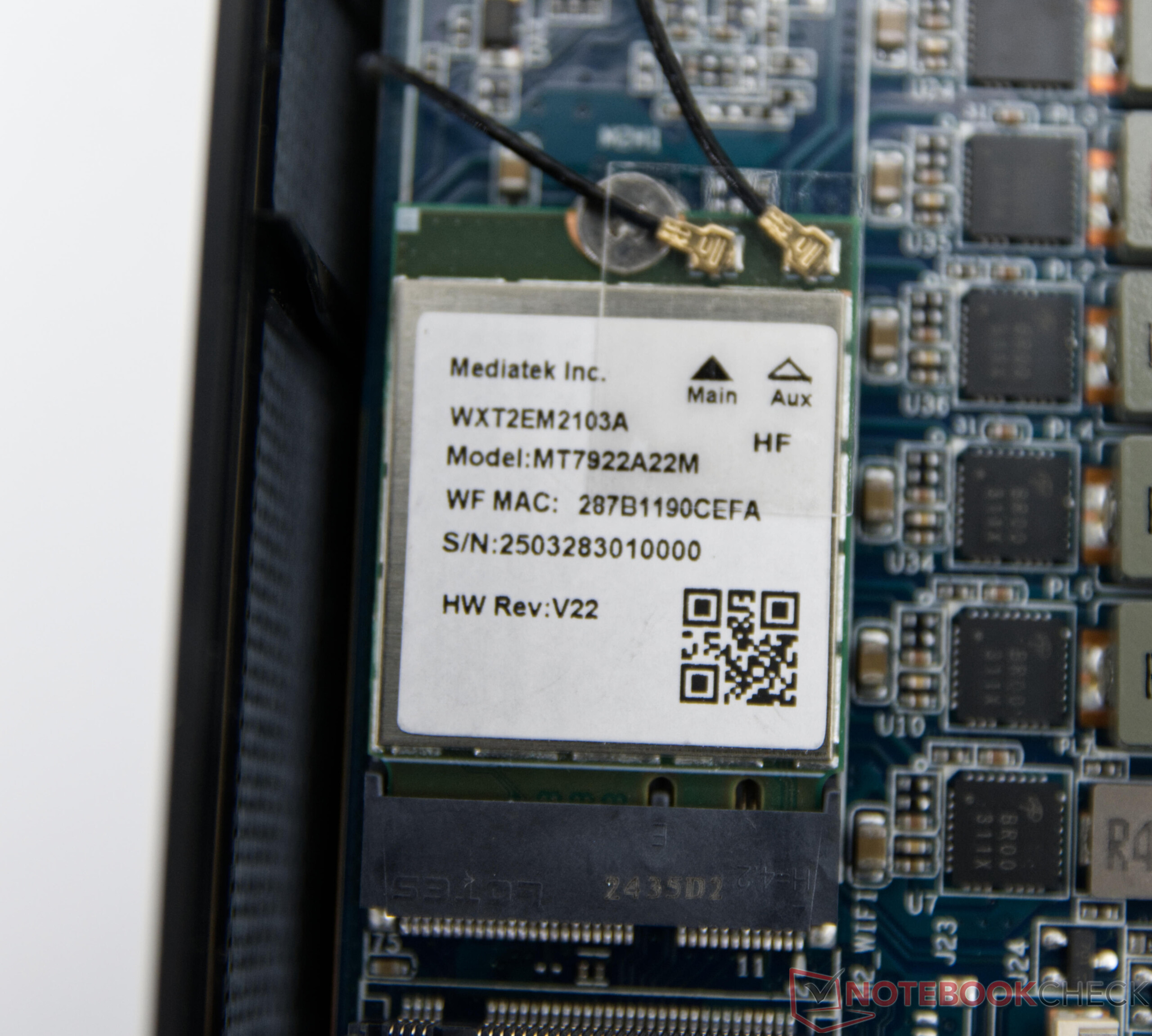

Wi-Fi performance

Networking
iperf3 receive AXE11000 6GHz
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1754 (1718^min - 1770^max) MBit/s +2%
Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1722 (1502^min - 1771^max) MBit/s
Geekom XT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1716 (1560^min - 1782^max) MBit/s 0%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1702 (1657^min - 1730^max) MBit/s -1%
Average of class Mini PC (684 - 1814, n=56, last 2 years)	1527 MBit/s -11%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (684 - 1771, n=54)	1466 MBit/s -15%
iperf3 transmit AXE11000 6GHz
Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1721 (1649^min - 1781^max) MBit/s
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1546 (759^min - 1594^max) MBit/s -10%
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1464 (1344^min - 1577^max) MBit/s -15%
Average of class Mini PC (394 - 1887, n=57, last 2 years)	1458 MBit/s -15%
Geekom XT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1440 (1352^min - 1553^max) MBit/s -16%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (394 - 1890, n=52)	1417 MBit/s -18%
iperf3 receive AXE11000
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1775 (881^min - 1786^max) MBit/s +8%
Geekom XT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1773 (1750^min - 1795^max) MBit/s +8%
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1716 (1642^min - 1755^max) MBit/s +4%
Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1649 (1616^min - 1676^max) MBit/s
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (644 - 1775, n=76)	1404 MBit/s -15%
Average of class Mini PC (267 - 1775, n=95, last 2 years)	1051 MBit/s -36%
Chuwi Aubox, R7 8745HS Realtek RTL8852BE	969 (950^min - 982^max) MBit/s -41%
iperf3 transmit AXE11000
GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1720 (1653^min - 1796^max) MBit/s +2%
Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1679 (841^min - 1807^max) MBit/s
BOSGAME M4 Neo Intel Wi-Fi 6E AX210	1643 (1516^min - 1705^max) MBit/s -2%
Geekom XT13 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1609 (1365^min - 1726^max) MBit/s -4%
Average MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card (358 - 1785, n=75)	1305 MBit/s -22%
Average of class Mini PC (251 - 1811, n=95, last 2 years)	982 MBit/s -42%
Chuwi Aubox, R7 8745HS Realtek RTL8852BE	748 (722^min - 769^max) MBit/s -55%

Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1721 (1649-1781)

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1464 (1344-1577)

Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1721 (1502-1771)

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1754 (1718-1770)

Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1648 (1616-1676)

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 receive AXE11000; iperf 3.1.3: Ø1745 (881-1786)

Alliwava H90 Pro MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1650 (841-1807)

GMK NucBox M6 Ultra MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card; iperf3 transmit AXE11000; iperf 3.1.3: Ø1720 (1653-1796)

Support

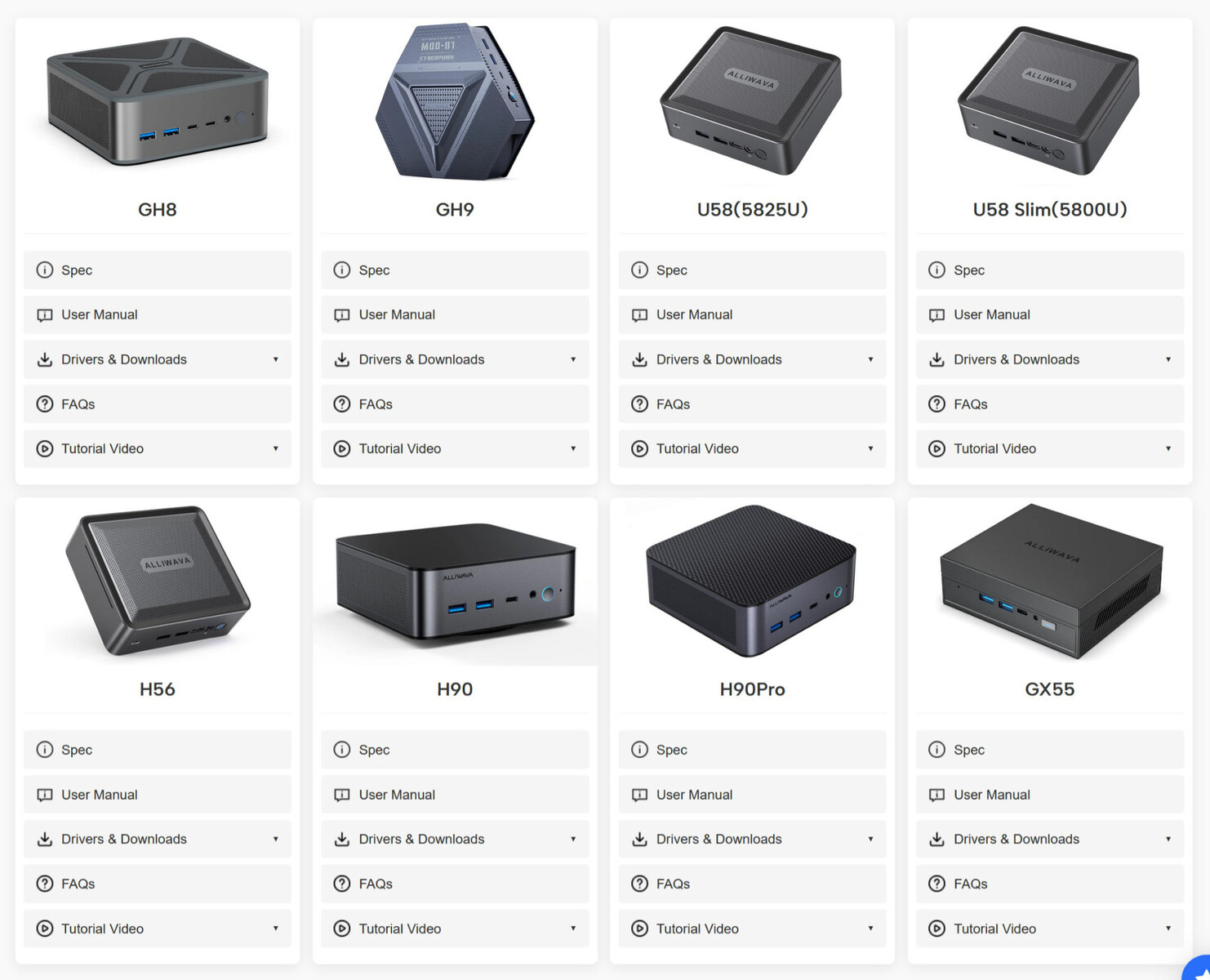

The manufacturer Alliwava has responded to earlier criticism and made improvements. The support page has been revised and driver packages can now be downloaded directly from a cloud provider without prior registration. Alliwava also offers a 24-month warranty on purchases. Overall, the support area is now much more customer-friendly and clearer, which makes setting up and maintaining the Alliwava H90 Pro noticeably easier.

Processor - Ryzen 7 8745HS with 8 cores but without NPU

The Alliwava H90 Pro is powered by the powerful AMD Ryzen 7 8745HS an 8-core processor based on the Zen 4 architecture. In contrast to the larger models such as the Ryzen 7 8845HS or Ryzen 9 8945HS the 8745HS does not have a dedicated NPU to accelerate AI applications. Users who work specifically with AI workloads should therefore opt for a model with an integrated AI unit. In the performance tests, the Alliwava H90 Pro is positioned just behind the Chuwi Aubox, which is also equipped with the Ryzen 7 8745HS.

Performance rating - Percent
BOSGAME M4 Neo AMD Ryzen 7 7840HS	51.9 pt
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	49.8 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	48.1 pt
Geekom XT13 Pro Intel Core i9-13900H	48.1 pt
Alliwava H90 Pro AMD Ryzen 7 8745HS	47.4 pt
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	46 pt

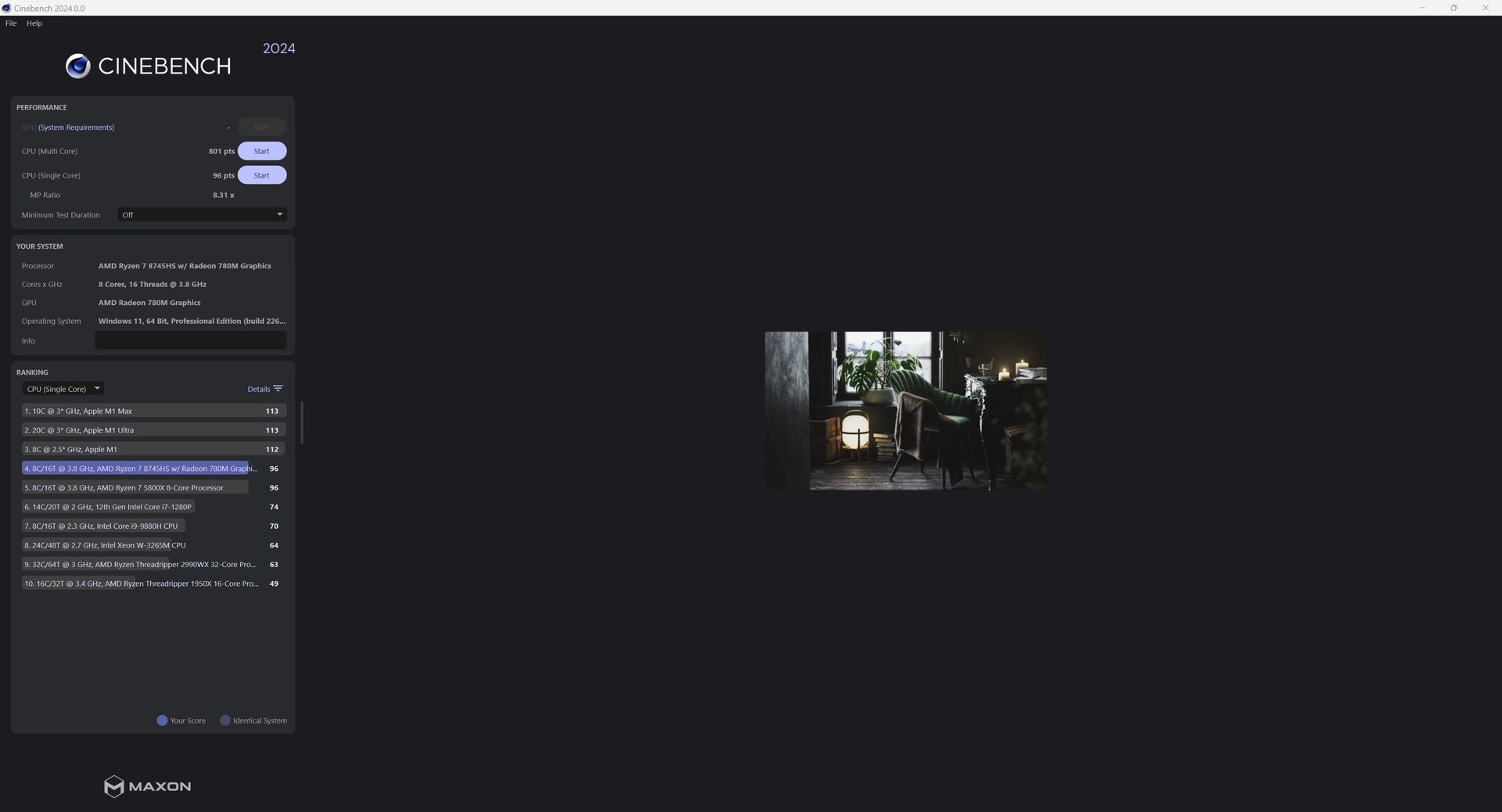

Cinebench 2024
CPU Multi Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	888 Points +11%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	869 Points +8%
Alliwava H90 Pro AMD Ryzen 7 8745HS	801 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	708 Points -12%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	698 Points -13%
Geekom XT13 Pro Intel Core i9-13900H	680 Points -15%
CPU Single Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	105 Points +9%
Geekom XT13 Pro Intel Core i9-13900H	103 Points +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	103 Points +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	101 Points +5%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	98 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	96 Points

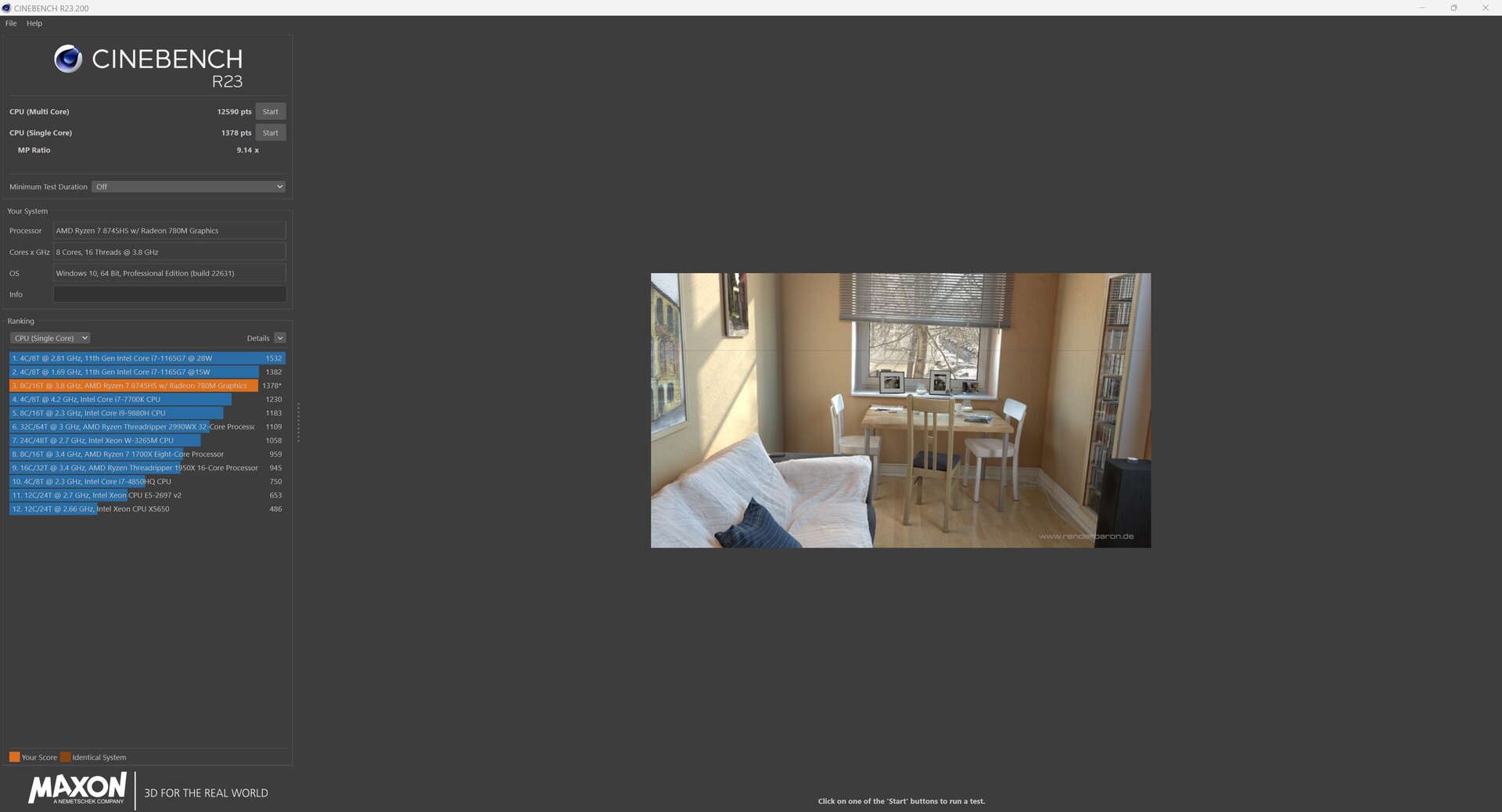

Cinebench R23
Multi Core
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	16236 Points +29%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	15533 Points +23%
Alliwava H90 Pro AMD Ryzen 7 8745HS	12590 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	12079 Points -4%
Geekom XT13 Pro Intel Core i9-13900H	11997 Points -5%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	11694 Points -7%
Single Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1762 Points +28%
Geekom XT13 Pro Intel Core i9-13900H	1719 Points +25%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1716 Points +25%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1701 Points +23%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1614 Points +17%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1378 Points

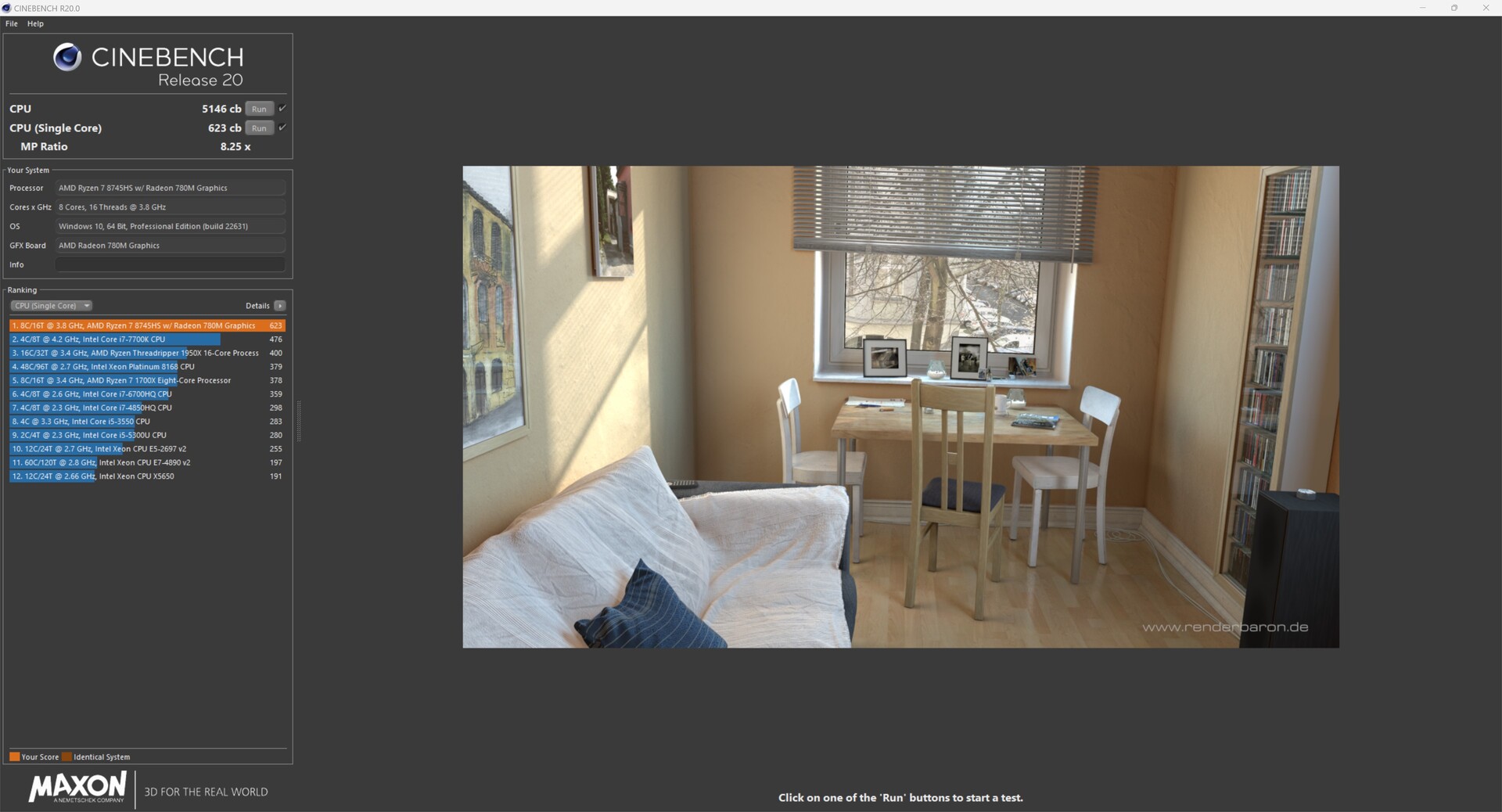

Cinebench R20
CPU (Multi Core)
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6351 Points +23%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6254 Points +22%
Alliwava H90 Pro AMD Ryzen 7 8745HS	5146 Points
Geekom XT13 Pro Intel Core i9-13900H	4935 Points -4%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	4842 Points -6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	4734 Points -8%
CPU (Single Core)
BOSGAME M4 Neo AMD Ryzen 7 7840HS	677 Points +9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	666 Points +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	658 Points +6%
Geekom XT13 Pro Intel Core i9-13900H	649 Points +4%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	631 Points +1%
Alliwava H90 Pro AMD Ryzen 7 8745HS	623 Points

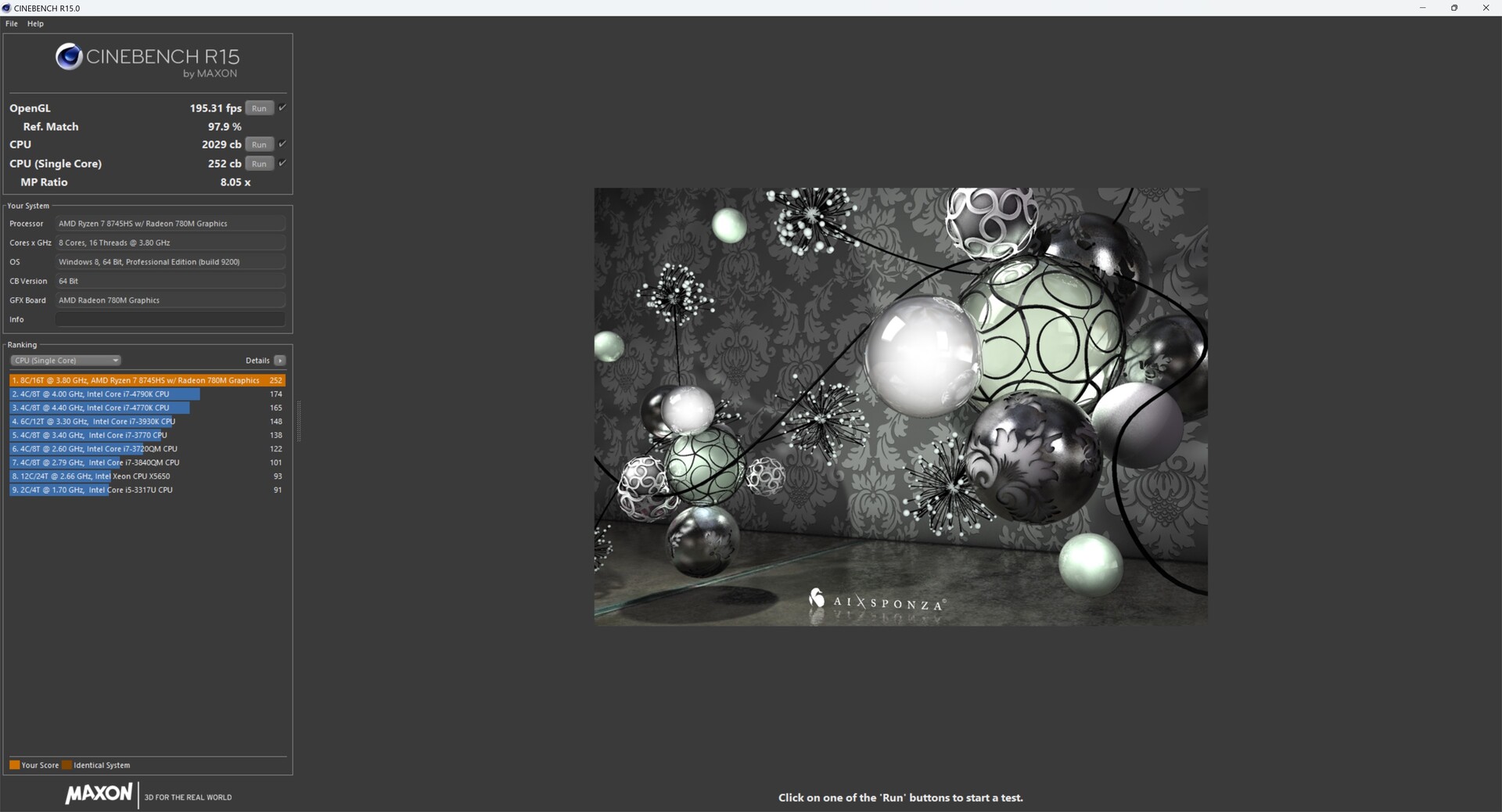

Cinebench R15
CPU Multi 64Bit
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2578 Points +27%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2508 Points +24%
Geekom XT13 Pro Intel Core i9-13900H	2448 Points +21%
Alliwava H90 Pro AMD Ryzen 7 8745HS	2029 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2026 Points 0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1877 Points -7%
CPU Single 64Bit
BOSGAME M4 Neo AMD Ryzen 7 7840HS	270 Points +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	268 Points +6%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	263 Points +4%
Alliwava H90 Pro AMD Ryzen 7 8745HS	252 Points
Geekom XT13 Pro Intel Core i9-13900H	245 Points -3%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	234 Points -7%

Cinebench R11.5
CPU Multi 64Bit
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	30.54 Points +20%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	29.59 Points +17%
Geekom XT13 Pro Intel Core i9-13900H	28.47 Points +12%
Alliwava H90 Pro AMD Ryzen 7 8745HS	25.37 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	23.82 Points -6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	22.33 Points -12%
CPU Single 64Bit
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3.29 Points +10%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3.2 Points +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	3.18 Points +6%
Alliwava H90 Pro AMD Ryzen 7 8745HS	3 Points
Geekom XT13 Pro Intel Core i9-13900H	2.93 Points -2%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2.83 Points -6%

Cinebench R10
Rendering Single CPUs 64Bit
BOSGAME M4 Neo AMD Ryzen 7 7840HS	14197 Points +6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	13966 Points +4%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	13867 Points +4%
Geekom XT13 Pro Intel Core i9-13900H	13515 Points +1%
Alliwava H90 Pro AMD Ryzen 7 8745HS	13388 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	12885 Points -4%
Rendering Multiple CPUs 64Bit
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	86842 Points +19%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	84973 Points +16%
Geekom XT13 Pro Intel Core i9-13900H	76558 Points +5%
Alliwava H90 Pro AMD Ryzen 7 8745HS	72982 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	71955 Points -1%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	66662 Points -9%

Blender
v2.79 BMW27 CPU
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	266 Seconds * -9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	265 Seconds * -9%
Geekom XT13 Pro Intel Core i9-13900H	261 Seconds * -7%
Alliwava H90 Pro AMD Ryzen 7 8745HS	244 Seconds *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	201 Seconds * +18%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	197 Seconds * +19%
v3.3 Classroom CPU
Geekom XT13 Pro Intel Core i9-13900H	475 Seconds * -21%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	475 Seconds * -21%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	434 Seconds * -10%
Alliwava H90 Pro AMD Ryzen 7 8745HS	393 Seconds *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	328 Seconds * +17%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	308 Seconds * +22%
v4.3 Barbershop CPU
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2448 Seconds * -28%
Geekom XT13 Pro Intel Core i9-13900H	2411 Seconds * -26%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2112 Seconds * -10%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1912 Seconds *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1601 Seconds * +16%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1549 Seconds * +19%

wPrime 2.10
32m
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	4.153 s * -28%
Geekom XT13 Pro Intel Core i9-13900H	3.521 s * -9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3.406 s * -5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3.244 s * -0%
Alliwava H90 Pro AMD Ryzen 7 8745HS	3.235 s *
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2.895 s * +11%
1024m
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	632.336 s * -647%
Geekom XT13 Pro Intel Core i9-13900H	429.446 s * -407%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	94.412 s * -11%
Alliwava H90 Pro AMD Ryzen 7 8745HS	84.679 s *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	75.535 s * +11%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	70.237 s * +17%

X264 HD Benchmark 4.0
Pass 1
Geekom XT13 Pro Intel Core i9-13900H	297.5 (283^min - 313^max) fps +17%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	282.5 (279^min - 287^max) fps +11%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	280 (278^min - 288^max) fps +10%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	265.5 (265^min - 269^max) fps +4%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	263 (254^min - 283^max) fps +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	255 (251^min - 256^max) fps
Pass 2
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	147.6 (147.1^min - 149.1^max) fps +22%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	142.85 (140.6^min - 147.6^max) fps +18%
Alliwava H90 Pro AMD Ryzen 7 8745HS	121 (119.6^min - 123.7^max) fps
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	111.6 (111^min - 113.5^max) fps -8%
Geekom XT13 Pro Intel Core i9-13900H	110.15 (104.3^min - 134.9^max) fps -9%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	109.9 (107.5^min - 116^max) fps -9%

WinRAR - Result
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7397 KB/s +5%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	7387 KB/s +5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7271 KB/s +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	7033 KB/s
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6655 KB/s -5%
Geekom XT13 Pro Intel Core i9-13900H	6365 KB/s -9%

TrueCrypt
AES Mean 100MB
Geekom XT13 Pro Intel Core i9-13900H	13.3 GB/s +13%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	12.2 GB/s +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	11.8 GB/s
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	11 GB/s -7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10.5 GB/s -11%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	10.2 GB/s -14%
Twofish Mean 100MB
Geekom XT13 Pro Intel Core i9-13900H	2.3 GB/s +35%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2 GB/s +18%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1.9 GB/s +12%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1.8 GB/s +6%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1.7 GB/s
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1.5 GB/s -12%
Serpent Mean 100MB
Geekom XT13 Pro Intel Core i9-13900H	1.3 GB/s +18%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1.3 GB/s +18%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1.2 GB/s +9%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1.1 GB/s 0%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1.1 GB/s
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	0.984 GB/s -11%

Geekbench AI
Single Precision CPU 1.2
BOSGAME M4 Neo AMD Ryzen 7 7840HS	3912 Points +19%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	3375 Points +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	3292 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3260 Points -1%
Geekom XT13 Pro Intel Core i9-13900H	2886 Points -12%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2736 Points -17%
Half Precision CPU 1.2
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1713 Points +14%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1652 Points +10%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1549 Points +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1501 Points
Geekom XT13 Pro Intel Core i9-13900H	1090 Points -27%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1071 Points -29%
Quantized CPU 1.2
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6838 Points +45%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6358 Points +35%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	6189 Points +32%
Geekom XT13 Pro Intel Core i9-13900H	5012 Points +7%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	4815 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	4706 Points
Single Precision CPU 1.5
BOSGAME M4 Neo AMD Ryzen 7 7840HS	4185 Points +19%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	3581 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	3503 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	3250 Points -7%
Geekom XT13 Pro Intel Core i9-13900H	3001 Points -14%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2903 Points -17%
Half Precision CPU 1.5
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1799 Points +11%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1664 Points +2%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1634 Points 0%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1628 Points
Geekom XT13 Pro Intel Core i9-13900H	1144 Points -30%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1139 Points -30%
Quantized CPU 1.5
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7545 Points +40%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7221 Points +34%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6522 Points +21%
Geekom XT13 Pro Intel Core i9-13900H	5616 Points +4%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	5459 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	5377 Points

Geekbench 6.5
Single-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2626 Points +9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2545 Points +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2522 Points +4%
Alliwava H90 Pro AMD Ryzen 7 8745HS	2416 Points
Geekom XT13 Pro Intel Core i9-13900H	2415 Points 0%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2304 Points -5%
Multi-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	13020 Points +15%
Geekom XT13 Pro Intel Core i9-13900H	11541 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	11341 Points
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10642 Points -6%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	10285 Points -9%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	9956 Points -12%

Geekbench 6.0
Single-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	2521 Points +9%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	2447 Points +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	2410 Points +4%
Geekom XT13 Pro Intel Core i9-13900H	2357 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	2322 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	2148 Points -7%
Multi-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	12513 Points +14%
Alliwava H90 Pro AMD Ryzen 7 8745HS	11018 Points
Geekom XT13 Pro Intel Core i9-13900H	10935 Points -1%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	10295 Points -7%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	9888 Points -10%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	9428 Points -14%

Geekbench 5.5
Multi-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	11794 Points +15%
Geekom XT13 Pro Intel Core i9-13900H	11536 Points +13%
Alliwava H90 Pro AMD Ryzen 7 8745HS	10214 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	10099 Points -1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	9864 Points -3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	9453 Points -7%
Single-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1908 Points +6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1879 Points +5%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1865 Points +4%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1795 Points
Geekom XT13 Pro Intel Core i9-13900H	1708 Points -5%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1683 Points -6%

Geekbench 5.0
5.0 Multi-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	11775 Points +17%
Geekom XT13 Pro Intel Core i9-13900H	11464 Points +14%
Alliwava H90 Pro AMD Ryzen 7 8745HS	10100 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	10006 Points -1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	9815 Points -3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	9462 Points -6%
5.0 Single-Core
BOSGAME M4 Neo AMD Ryzen 7 7840HS	1841 Points +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	1765 Points +3%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	1761 Points +2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	1719 Points
Geekom XT13 Pro Intel Core i9-13900H	1678 Points -2%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	1612 Points -6%

Geekbench 4.4
64 Bit Multi-Core Score
BOSGAME M4 Neo AMD Ryzen 7 7840HS	48762 Points +19%
Geekom XT13 Pro Intel Core i9-13900H	42713 Points +4%
Alliwava H90 Pro AMD Ryzen 7 8745HS	41035 Points
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	40493 Points -1%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	39617 Points -3%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	37145 Points -9%
64 Bit Single-Core Score
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7879 Points +8%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7790 Points +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	7430 Points +2%
Geekom XT13 Pro Intel Core i9-13900H	7389 Points +1%
Alliwava H90 Pro AMD Ryzen 7 8745HS	7282 Points
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	7194 Points -1%

3DMark 11 - 1280x720 Performance Physics
BOSGAME M4 Neo AMD Ryzen 7 7840HS	22199 Points +20%
Alliwava H90 Pro AMD Ryzen 7 8745HS	18567 Points
Geekom XT13 Pro Intel Core i9-13900H	18126 Points -2%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	18116 Points -2%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	18094 Points -3%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	16492 Points -11%

7-Zip 18.03
7z b 4
BOSGAME M4 Neo AMD Ryzen 7 7840HS	69798 MIPS +20%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	63912 MIPS +10%
Alliwava H90 Pro AMD Ryzen 7 8745HS	58207 MIPS
Geekom XT13 Pro Intel Core i9-13900H	56068 MIPS -4%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	53012 MIPS -9%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	51249 MIPS -12%
7z b 4 -mmt1
BOSGAME M4 Neo AMD Ryzen 7 7840HS	6495 MIPS +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	6463 MIPS +7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	6334 MIPS +5%
Alliwava H90 Pro AMD Ryzen 7 8745HS	6047 MIPS
Geekom XT13 Pro Intel Core i9-13900H	5828 MIPS -4%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	5352 MIPS -11%

HWBOT x265 Benchmark v2.2 - 4k Preset
BOSGAME M4 Neo AMD Ryzen 7 7840HS	20.5 fps +31%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	18.4 fps +17%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	15.7 fps 0%
Alliwava H90 Pro AMD Ryzen 7 8745HS	15.7 fps
Geekom XT13 Pro Intel Core i9-13900H	14.7 fps -6%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	13.6 fps -13%

R Benchmark 2.5 - Overall mean
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	0.51 sec * -2%
Alliwava H90 Pro AMD Ryzen 7 8745HS	0.501 sec *
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	0.4716 sec * +6%
Geekom XT13 Pro Intel Core i9-13900H	0.4693 sec * +6%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	0.4683 sec * +7%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	0.4513 sec * +10%

LibreOffice - 20 Documents To PDF
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	83.3 s * -60%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	64.3 s * -23%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	60 s * -15%
Alliwava H90 Pro AMD Ryzen 7 8745HS	52.1 s *
BOSGAME M4 Neo AMD Ryzen 7 7840HS	48.7 s * +7%
Geekom XT13 Pro Intel Core i9-13900H	46.8 s * +10%

Mozilla Kraken 1.1 - Total
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	591 ms * -6%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	560 ms * -1%
Alliwava H90 Pro AMD Ryzen 7 8745HS	556 ms *
Geekom XT13 Pro Intel Core i9-13900H	550 ms * +1%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	537 ms * +3%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	532 ms * +4%

3DMark
1920x1080 Fire Strike Physics
BOSGAME M4 Neo AMD Ryzen 7 7840HS	26481 Points +29%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	25815 Points +25%
Geekom XT13 Pro Intel Core i9-13900H	23640 Points +15%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	22281 Points +8%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	21147 Points +3%
Alliwava H90 Pro AMD Ryzen 7 8745HS	20605 Points
2560x1440 Time Spy CPU
Geekom XT13 Pro Intel Core i9-13900H	9741 Points +35%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	9532 Points +33%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	9145 Points +27%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	8644 Points +20%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7608 Points +6%
Alliwava H90 Pro AMD Ryzen 7 8745HS	7192 Points

Super Pi mod 1.5 XS 1M - 1M
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	8.124 s * -5%
Alliwava H90 Pro AMD Ryzen 7 8745HS	7.753 s *
Geekom XT13 Pro Intel Core i9-13900H	7.512 s * +3%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	7.327 s * +5%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	7.193 s * +7%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	7.159 s * +8%

Super Pi mod 1.5 XS 2M - 2M
Alliwava H90 Pro AMD Ryzen 7 8745HS	19.626 s *
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	18.261 s * +7%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	18.141 s * +8%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	17.869 s * +9%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	17.676 s * +10%
Geekom XT13 Pro Intel Core i9-13900H	16.436 s * +16%

Affinity Photo 2 - Combined (Multi CPU)
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS	798 Points +61%
BOSGAME M4 Neo AMD Ryzen 7 7840HS	781 Points +57%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK	560 Points +13%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS	555 Points +12%
Geekom XT13 Pro Intel Core i9-13900H	520 Points +5%
Alliwava H90 Pro AMD Ryzen 7 8745HS	497 Points

* ... smaller is better

System performance and mass storage

In the system performance benchmarks, the Alliwava H90 Pro shows a solid performance overall, even if it reveals its limits in some areas. It is noticeable that other models with an identical CPU, such as the Minisforum NAB9, achieve slightly better results in some tests. In practical use, however, the Alliwava H90 Pro left a good impression - the system ran smoothly and reliably, without any significant problems in everyday use. The built-in mass storage offers decent performance, but lags behind the competition. Under sustained load, the SSD cannot keep its performance stable over the long term.

Performance rating
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	89.7 pt
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	84.6 pt
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	82.3 pt
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	81.2 pt
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	78.6 pt
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	76.1 pt

PCMark 10 / Score
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	6914 Points +11%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	6564 Points +5%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	6448 Points +4%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	6227 Points
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	6102 Points -2%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	5497 Points -12%

PCMark 10 / Essentials
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	10908 Points +9%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	10587 Points +6%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	9967 Points
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	9933 Points 0%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	9891 Points -1%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	9423 Points -5%

PCMark 10 / Productivity
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	9353 Points +1%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	9325 Points +1%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	9315 Points +1%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	9233 Points
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	7490 Points -19%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	6639 Points -28%

WebXPRT 4 / Overall
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	264 Points +12%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	251 Points +7%
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	244 Points +4%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	240 Points +2%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	239 Points +2%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	235 Points

WebXPRT 3 / Overall
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	314 Points +9%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	292 Points +2%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	290 Points +1%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	287 Points
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	271 Points -6%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	267 Points -7%

Mozilla Kraken 1.1 / Total
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	591 ms * -6%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	560 ms * -1%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	556 ms *
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	550 ms * +1%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	537 ms * +3%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	532 ms * +4%

CrossMark / Overall
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1862 Points +20%
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1837 Points +18%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1661 Points +7%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	1642 Points +6%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1638 Points +6%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	1552 Points

CrossMark / Productivity
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1799 Points +21%
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1756 Points +18%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1643 Points +11%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1641 Points +11%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	1594 Points +7%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	1485 Points

CrossMark / Creativity
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1969 Points +13%
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1889 Points +9%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1764 Points +1%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	1749 Points +1%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	1739 Points
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1694 Points -3%

CrossMark / Responsiveness
Geekom XT13 Pro, Intel Core i9-13900H Intel Iris Xe Graphics G7 96EUs, Acer N7000 2 TB	1931 Points +54%
BOSGAME M4 Neo, AMD Ryzen 7 7840HS AMD Radeon 780M, Kingston OM8PGP41024N-A0	1747 Points +39%
Alliwava GH9, i9-12900HK, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs,	1486 Points +18%
Chuwi Aubox, R7 8745HS, AMD Ryzen 7 8745HS AMD Radeon 780M, AirDisk AFF 10-512G	1465 Points +17%
GMK NucBox M6 Ultra, AMD Ryzen 5 7640HS AMD Radeon 760M,	1435 Points +14%
Alliwava H90 Pro, AMD Ryzen 7 8745HS AMD Radeon 780M,	1257 Points

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	67938 MB/s +8%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	63022 MB/s 0%
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	62812 MB/s
Average of class Mini PC (8472 - 163031, n=110, last 2 years)	58662 MB/s -7%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	46670 MB/s -26%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	45017 MB/s -28%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	35054 MB/s -44%

AIDA64 / Memory Read
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	61294 MB/s +1%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	61143 MB/s 0%
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	60915 MB/s
Average of class Mini PC (9130 - 123769, n=110, last 2 years)	56972 MB/s -6%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	45998 MB/s -24%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	44419 MB/s -27%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	30630 MB/s -50%

AIDA64 / Memory Write
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	84236 MB/s +14%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	74661 MB/s +1%
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	74154 MB/s
Average of class Mini PC (9047 - 216693, n=110, last 2 years)	67084 MB/s -10%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	47241 MB/s -36%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	46754 MB/s -37%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	42154 MB/s -43%

AIDA64 / Memory Latency
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	98.1 ns * -9%
Average of class Mini PC (82.3 - 184.8, n=110, last 2 years)	95.8 ns * -7%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	94 ns * -5%
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	89.9 ns *
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	89.7 ns * -0%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	88.8 ns * +1%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	83 ns * +8%

* ... smaller is better

Drive Performance rating | DiskSpd | AS SSD

Drive Performance rating - Percent
Geekom XT13 Pro Acer N7000 2 TB	93 pt
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	73.2 pt
Average of class Mini PC	59.8 pt
Alliwava GH9, i9-12900HK	53.8 pt
GMK NucBox M6 Ultra	49.1 pt
Alliwava H90 Pro	46.2 pt
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	39.8 pt

DiskSpd
seq read
Geekom XT13 Pro Acer N7000 2 TB	3690 (2901.41^min - 3690.32^max) MB/s +63%
Average of class Mini PC (413 - 4960, n=109, last 2 years)	2474 MB/s +9%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2316 (2303.1^min - 2315.68^max) MB/s +2%
Alliwava H90 Pro	2263 (2233.26^min - 2263.46^max) MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2230 (2208.5^min - 2230.06^max) MB/s -1%
GMK NucBox M6 Ultra	2218 (2191.96^min - 2217.5^max) MB/s -2%
Alliwava GH9, i9-12900HK	2101 (2048.8^min - 2100.92^max) MB/s -7%
seq write
Geekom XT13 Pro Acer N7000 2 TB	4196 (3895.46^min - 4196.19^max) MB/s +79%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3100 (3080.64^min - 3100.01^max) MB/s +33%
Average of class Mini PC (408 - 5595, n=109, last 2 years)	2853 MB/s +22%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2593 (2497.12^min - 2592.77^max) MB/s +11%
Alliwava H90 Pro	2338 (906.67^min - 2337.91^max) MB/s
Alliwava GH9, i9-12900HK	2290 (1670.8^min - 2290.33^max) MB/s -2%
GMK NucBox M6 Ultra	2205 (2009.88^min - 2204.95^max) MB/s -6%
seq q8 t1 read
Geekom XT13 Pro Acer N7000 2 TB	6932 (5986.51^min - 6931.53^max) MB/s +95%
Average of class Mini PC (397 - 7117, n=109, last 2 years)	4185 MB/s +18%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	4079 (3799.36^min - 4078.56^max) MB/s +15%
Alliwava H90 Pro	3553 (3216.47^min - 3553.02^max) MB/s
Alliwava GH9, i9-12900HK	3546 (3112.87^min - 3546.46^max) MB/s 0%
GMK NucBox M6 Ultra	3301 (2507.56^min - 3301.34^max) MB/s -7%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	3227 (2874.36^min - 3227.1^max) MB/s -9%
seq q8 t1 write
Geekom XT13 Pro Acer N7000 2 TB	5793 (5555.78^min - 5793.38^max) MB/s +89%
Average of class Mini PC (410 - 6669, n=109, last 2 years)	3281 MB/s +7%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3108 (3096.75^min - 3107.85^max) MB/s +2%
Alliwava H90 Pro	3060 (3015.49^min - 3059.71^max) MB/s
Alliwava GH9, i9-12900HK	3006 (2793.83^min - 3006.48^max) MB/s -2%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2768 (2664.64^min - 2767.61^max) MB/s -10%
GMK NucBox M6 Ultra	2384 (2320.5^min - 2383.89^max) MB/s -22%
4k q1 t1 read
Geekom XT13 Pro Acer N7000 2 TB	70.3 (66.06^min - 70.34^max) MB/s +35%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	64.2 (64.13^min - 64.24^max) MB/s +24%
GMK NucBox M6 Ultra	58.8 (57.48^min - 58.79^max) MB/s +13%
Alliwava GH9, i9-12900HK	56.2 (51.16^min - 56.21^max) MB/s +8%
Average of class Mini PC (6.85 - 87.3, n=109, last 2 years)	56.1 MB/s +8%
Alliwava H90 Pro	51.9 (51.09^min - 51.86^max) MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	38.5 (38.48^min - 38.51^max) MB/s -26%
4k q1 t1 write
Geekom XT13 Pro Acer N7000 2 TB	335 (332.49^min - 335.43^max) MB/s +152%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	278 (273.83^min - 278.28^max) MB/s +109%
Average of class Mini PC (29.6 - 435, n=109, last 2 years)	193.2 MB/s +45%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	181.2 (172.56^min - 181.15^max) MB/s +36%
Alliwava GH9, i9-12900HK	178.1 (118.26^min - 178.11^max) MB/s +34%
GMK NucBox M6 Ultra	173.4 (162.83^min - 173.44^max) MB/s +30%
Alliwava H90 Pro	133 (120.96^min - 132.96^max) MB/s
4k q32 t16 read
Geekom XT13 Pro Acer N7000 2 TB	4158 (4048.89^min - 4158.05^max) MB/s +742%
Average of class Mini PC (102.3 - 4158, n=109, last 2 years)	1501 MB/s +204%
GMK NucBox M6 Ultra	948 (936.95^min - 947.59^max) MB/s +92%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	788 (725.19^min - 788.35^max) MB/s +60%
Alliwava H90 Pro	494 (102.18^min - 494.41^max) MB/s
Alliwava GH9, i9-12900HK	466 (455.75^min - 465.66^max) MB/s -6%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	317 (315.3^min - 317.14^max) MB/s -36%
4k q32 t16 write
Geekom XT13 Pro Acer N7000 2 TB	3142 (2751.87^min - 3141.57^max) MB/s +624%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2876 (1106.13^min - 2875.94^max) MB/s +563%
Average of class Mini PC (139.6 - 4288, n=109, last 2 years)	1432 MB/s +230%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1118 (836.38^min - 1118.45^max) MB/s +158%
Alliwava GH9, i9-12900HK	1110 (170.23^min - 1109.52^max) MB/s +156%
GMK NucBox M6 Ultra	788 (750.91^min - 787.75^max) MB/s +82%
Alliwava H90 Pro	434 (176.74^min - 434.23^max) MB/s

AS SSD
Score Total
Geekom XT13 Pro Acer N7000 2 TB	6667 Points +96%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	5595 Points +65%
Average of class Mini PC (507 - 10559, n=107, last 2 years)	4701 Points +39%
Alliwava GH9, i9-12900HK	4235 Points +25%
GMK NucBox M6 Ultra	3522 Points +4%
Alliwava H90 Pro	3394 Points
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2500 Points -26%
Score Read
Geekom XT13 Pro Acer N7000 2 TB	2635 Points +149%
Average of class Mini PC (172 - 3834, n=107, last 2 years)	1664 Points +57%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1539 Points +45%
Alliwava GH9, i9-12900HK	1475 Points +39%
GMK NucBox M6 Ultra	1211 Points +14%
Alliwava H90 Pro	1059 Points
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	522 Points -51%
Score Write
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3274 Points +79%
Geekom XT13 Pro Acer N7000 2 TB	2741 Points +50%
Average of class Mini PC (210 - 4770, n=107, last 2 years)	2215 Points +21%
Alliwava GH9, i9-12900HK	1998 Points +9%
Alliwava H90 Pro	1827 Points
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1719 Points -6%
GMK NucBox M6 Ultra	1709 Points -6%
Seq Read
Geekom XT13 Pro Acer N7000 2 TB	4882 MB/s +68%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	3482 MB/s +20%
Average of class Mini PC (483 - 5825, n=107, last 2 years)	3466 MB/s +19%
GMK NucBox M6 Ultra	2966 MB/s +2%
Alliwava H90 Pro	2913 MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2791 MB/s -4%
Alliwava GH9, i9-12900HK	2654 MB/s -9%
Seq Write
Geekom XT13 Pro Acer N7000 2 TB	3506 MB/s +77%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2950 MB/s +49%
Average of class Mini PC (346 - 5783, n=107, last 2 years)	2653 MB/s +34%
Alliwava GH9, i9-12900HK	2431 MB/s +22%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	2358 MB/s +19%
GMK NucBox M6 Ultra	2291 MB/s +15%
Alliwava H90 Pro	1986 MB/s
4K Read
Geekom XT13 Pro Acer N7000 2 TB	84.3 MB/s +68%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	76 MB/s +51%
Alliwava GH9, i9-12900HK	69.4 MB/s +38%
GMK NucBox M6 Ultra	63.5 MB/s +26%
Average of class Mini PC (18.2 - 104.3, n=107, last 2 years)	59.8 MB/s +19%
Alliwava H90 Pro	50.3 MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	38 MB/s -24%
4K Write
Geekom XT13 Pro Acer N7000 2 TB	291 MB/s +110%
Alliwava GH9, i9-12900HK	236 MB/s +70%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	216 MB/s +56%
Average of class Mini PC (40.8 - 366, n=107, last 2 years)	178.1 MB/s +28%
GMK NucBox M6 Ultra	170.1 MB/s +23%
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	147.7 MB/s +6%
Alliwava H90 Pro	138.8 MB/s
4K-64 Read
Geekom XT13 Pro Acer N7000 2 TB	2062 MB/s +188%
Average of class Mini PC (94.3 - 3321, n=107, last 2 years)	1258 MB/s +75%
Alliwava GH9, i9-12900HK	1141 MB/s +59%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	1115 MB/s +56%
GMK NucBox M6 Ultra	850 MB/s +19%
Alliwava H90 Pro	717 MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	205 MB/s -71%
4K-64 Write
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	2763 MB/s +86%
Geekom XT13 Pro Acer N7000 2 TB	2100 MB/s +41%
Average of class Mini PC (96.3 - 4103, n=107, last 2 years)	1772 MB/s +19%
Alliwava GH9, i9-12900HK	1520 MB/s +2%
Alliwava H90 Pro	1489 MB/s
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	1336 MB/s -10%
GMK NucBox M6 Ultra	1310 MB/s -12%
Access Time Read
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	0.139 ms * -53%
GMK NucBox M6 Ultra	0.117 ms * -29%
Average of class Mini PC (0.027 - 0.288, n=107, last 2 years)	0.09166 ms * -1%
Alliwava H90 Pro	0.091 ms *
Alliwava GH9, i9-12900HK	0.081 ms * +11%
Geekom XT13 Pro Acer N7000 2 TB	0.069 ms * +24%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.062 ms * +32%
Access Time Write
Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G	0.131 ms * -30%
Alliwava GH9, i9-12900HK	0.121 ms * -20%
Alliwava H90 Pro	0.101 ms *
Average of class Mini PC (0.013 - 0.706, n=107, last 2 years)	0.09674 ms * +4%
GMK NucBox M6 Ultra	0.088 ms * +13%
Geekom XT13 Pro Acer N7000 2 TB	0.056 ms * +45%
BOSGAME M4 Neo Kingston OM8PGP41024N-A0	0.019 ms * +81%

* ... smaller is better

Sustained read load: DiskSpd Read Loop, Queue Depth 8

Alliwava H90 Pro ; diskspd 2.0.17 f: Ø1823 (912.95-3559.3)

GMK NucBox M6 Ultra ; diskspd 2.0.17 f: Ø3300 (2878.04-3339.75)

Chuwi Aubox, R7 8745HS AirDisk AFF 10-512G; diskspd 2.0.17 f: Ø3108 (2714.13-3123.96)

BOSGAME M4 Neo Kingston OM8PGP41024N-A0; diskspd 2.0.17 f: Ø4063 (3587.97-4077.52)

Geekom XT13 Pro Acer N7000 2 TB; diskspd 2.0.17 f: Ø5637 (4899.21-6932.56)

Alliwava GH9, i9-12900HK ; diskspd 2.0.17 f: Ø2059 (1846.75-3542.76)

Graphics card and gaming performance - AMD Radeon 780M

In the Alliwava H90 Pro, the integrated AMD Radeon 780M of the Ryzen 7 8745HS takes over the graphics output. Thanks to the optimized RAM configuration, the iGPU can exploit its performance potential better than in some competitor models, such as the Chuwi Aubox. In an average performance comparison, this results in a lead of around 20 percent. Nevertheless, it is noticeable that Alliwava does not get the most out of the iGPU, which is due to a lower TDP. If you want to play current games with the mini PC, you will therefore have to make noticeable compromises in terms of resolution and graphics details. However, the Alliwava H90 Pro is well suited for older titles or casual games.

3DMark 11 - 1280x720 Performance GPU
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	13783 Points +41%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	10018 Points +2%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	9808 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	8285 Points -16%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7428 Points -24%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6804 Points -31%

3DMark
2560x1440 Time Spy Graphics
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2953 Points +39%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2281 Points +7%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	2126 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1682 Points -21%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1622 Points -24%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1561 Points -27%
1920x1080 Fire Strike Graphics
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	8423 Points +33%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6558 Points +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	6320 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5845 Points -8%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5441 Points -14%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	4832 Points -24%

Unigine Heaven 4.0
Extreme Preset OpenGL
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	33.1 fps +14%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	29 fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	28.8 fps -1%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	24.9 fps -14%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	23.6 fps -19%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	19.1 fps -34%
Extreme Preset DX11
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	35.4 fps +25%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	29.3 fps +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	28.3 fps
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	25.7 fps -9%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	24.5 fps -13%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	20.3 fps -28%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	19.5 fps +27%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	19.1 fps +24%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	15.4 fps
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.2 fps -1%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	14.6 fps -5%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	12.8 fps -17%
1920x1080 Extreme HD Preset OpenGL AA:x8
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	17.2 fps +37%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	15.6 fps +24%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	15.4 fps +22%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	15.3 fps +21%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	12.6 fps
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	10.8 fps -14%

Unigine Superposition
1280x720 720p Low
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	11962 Points +26%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	9464 Points
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	9195 Points -3%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	6807 Points -28%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	6603 Points -30%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6545 Points -31%
1920x1080 1080p High
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	3665 Points +34%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2830 Points +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	2734 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2254 Points -18%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2177 Points -20%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2117 Points -23%
1920x1080 1080p Extreme
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1810 Points +44%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1336 Points +6%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1260 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1128 Points -10%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1109 Points -12%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1075 Points -15%

Geekbench AI
Single Precision ONNX DirectML GPU 1.2
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	7217 Points +35%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6013 Points +12%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	5353 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	4709 Points -12%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3005 Points -44%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2937 Points -45%
Half Precision ONNX DirectML GPU 1.2
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	10943 Points +41%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	8781 Points +13%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	8143 Points +5%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	7755 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3089 Points -60%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2960 Points -62%
Quantized ONNX DirectML GPU 1.2
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	5532 Points +33%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	4702 Points +13%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	4151 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	3472 Points -16%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1956 Points -53%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1869 Points -55%
Half Precision GPU 1.5
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	11732 Points +46%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	9269 Points +15%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	8575 Points +7%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	8051 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3252 Points -60%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3110 Points -61%
Quantized GPU 1.5
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	5771 Points +37%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	4807 Points +14%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	4204 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	3489 Points -17%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	2012 Points -52%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1924 Points -54%

SPECworkstation 4.0 - Graphics Score
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2.11 Points +47%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1.57 Points +9%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1.44 Points
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1.22 Points -15%

Affinity Photo 2 - Combined (Single / Multi GPU)
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	4332 Points +236%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	4130 Points +220%
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	1534 Points +19%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1495 Points +16%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	1444 Points +12%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1290 Points

ComputeMark v2.1
1024x600 Normal, Score
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	9589 Points +67%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	8341 Points +46%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	6520 Points +14%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	5728 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	3616 Points -37%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	3460 Points -40%
1024x600 Normal, Fluid 3DTex
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	469 Points +14%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	422 Points +2%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	413 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	290 Points -30%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	282 Points -32%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	235 Points -43%
1024x600 Normal, Fluid 2DTexArr
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	491 Points +15%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	443 Points +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	428 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	286 Points -33%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	280 Points -35%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	243 Points -43%
1024x600 Normal, Mandel Vector
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2506 Points +64%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2364 Points +55%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1720 Points +13%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1527 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	851 Points -44%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	815 Points -47%
1024x600 Normal, Mandel Scalar
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	2594 Points +81%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2504 Points +75%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	1616 Points +13%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1431 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	866 Points -39%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	838 Points -41%
1024x600 Normal, QJuliaRayTrace
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	3529 Points +83%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	2995 Points +55%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	2319 Points +20%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	1928 Points
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1323 Points -31%
Alliwava GH9, i9-12900HK Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1246 Points -35%

Cyberpunk 2077 2.2 Phantom Liberty
1920x1080 Low Preset (FSR off)
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	44.7 (38.6^min - 53^max) fps +36%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	32.9 (28.4^min - 40.2^max) fps 0%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	32.8 (28^min, 26.6^P1 - 38.4^max) fps
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	25.7 (22.2^min - 30.6^max) fps -22%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	18.6 (15.4^min - 22.9^max) fps -43%
1920x1080 High Preset (FSR off)
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	23.1 (15.8^min - 32.4^max) fps +2%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	22.6 (19.2^min, 15.8^P1 - 27.6^max) fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	20.9 (17.7^min - 25.3^max) fps -8%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	15.7 (13.2^min - 19.3^max) fps -31%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	13 (11^min - 15.9^max) fps -42%

Baldur's Gate 3
1280x720 Low Preset AA:SM
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	67.6 (49.8^min, 50.9^P0.1, 59.7^P1 - 76.3^max) fps +35%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	52.1 (39.1^min, 40.9^P0.1, 44.6^P1 - 58.5^max) fps +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	49.9 (36.7^min, 42.5^P0.1, 45.7^P1 - 60^max) fps
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	35.2 (24.4^min, 26^P0.1, 28.9^P1 - 41.9^max) fps -29%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	28.2 (13.8^min, 15.1^P0.1, 19.8^P1 - 64.3^max) fps -43%
1920x1080 High Preset AA:T
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	27.6 (23.1^min, 23.9^P0.1, 25.1^P1 - 30.2^max) fps +25%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	22.1 (13^min, 13.3^P0.1, 14.2^P1 - 25^max) fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	20 (17.9^min, 17.9^P0.1, 18.3^P1 - 21.8^max) fps -10%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	14.7 (12.5^min, 12.5^P0.1, 12.9^P1 - 16.4^max) fps -33%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	13.5 (11.2^min, 11.2^P0.1, 11.6^P1 - 16.9^max) fps -39%

F1 24
1920x1080 Low Preset AA:T AF:16x
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	87.2 (71^min, 63^P1 - 104^max) fps +28%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	68.3 (56^min, 52^P1 - 78^max) fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	66.1 (48^min, 37^P1 - 78^max) fps -3%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	45.5 (22^min, 30^P1 - 55^max) fps -33%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	43.1 (36^min, 26^P1 - 49^max) fps -37%
1920x1080 High Preset AA:T AF:16x
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	57.7 (45^min, 42^P1 - 68^max) fps +24%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	46.6 (37^min, 35^P1 - 55^max) fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	43.4 (32^min, 27^P1 - 51^max) fps -7%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	31.3 (21^min, 16^P1 - 37^max) fps -33%
Geekom XT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	26.7 (23^min, 17^P1 - 30^max) fps -43%

The Witcher 3
1024x768 Low Graphics & Postprocessing
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	158.1 (6.12^min, 36.6^P0.1, 133.5^P1 - 193.6^max) fps +29%
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	127.3 (17^min, 38.4^P0.1, 110.1^P1 - 150^max) fps +4%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	122.4 (5.27^min, 29.1^P0.1, 93.6^P1 - 148^max) fps
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	83.1 (15.2^min, 29.2^P0.1, 62.3^P1 - 109.8^max) fps -32%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
BOSGAME M4 Neo AMD Radeon 780M, AMD Ryzen 7 7840HS	48 (37.4^min, 39.5^P0.1, 42.6^P1 - 56.4^max) fps +17%
Alliwava H90 Pro AMD Radeon 780M, AMD Ryzen 7 8745HS	41 (22.3^min, 23.6^P0.1, 25.9^P1 - 49.1^max) fps
GMK NucBox M6 Ultra AMD Radeon 760M, AMD Ryzen 5 7640HS	39.9 (31.1^min, 31.7^P0.1, 34.9^P1 - 45^max) fps -3%
Chuwi Aubox, R7 8745HS AMD Radeon 780M, AMD Ryzen 7 8745HS	26.2 (20.7^min, 21.4^P0.1, 23.1^P1 - 30.6^max) fps -36%

	low	med.	high	ultra
GTA V (2015)	152.9	142.1	54.7	23.5
The Witcher 3 (2015)	122.4	68.9	41	25.1
Dota 2 Reborn (2015)	150.2	112.6	80.6	72.2
X-Plane 11.11 (2018)	47.5	34.8	29
Baldur's Gate 3 (2023)	34.9	27.5	22.1	20.7
Cyberpunk 2077 2.2 Phantom Liberty (2023)	32.8	28.1	22.6	19.1
F1 24 (2024)	68.3	62.6	46.6	11.5

Emissions

Thanks to its sophisticated cooling design, the casing of the Alliwava H90 Pro remains predominantly cool even under high load. Only in the area of the rear ventilation openings is there a noticeable warming. In the stress test, the AMD Ryzen 7 8745HS briefly reaches temperatures of around 94 C, but this is still within the safe range. The average power consumption of the APU is around 35 watts.
The Alliwava H90 Pro is very energy-efficient in idle mode, while an average power consumption of around 62 watts and peak values of up to 80 watts are measured under full load. Overall, the Mini-PC impresses with its high-energy efficiency, which is mainly due to the modestly set power limits of the processor. The 120-watt power supply unit supplied is well balanced in terms of performance and offers sufficient reserves.

System noise

Noise level

Idle		26.1 / 26.1 / 26.2 dB(A)
Load		44.2 / 44.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 24.9 dB(A)

	Alliwava H90 Pro R7 8745HS, Radeon 780M	GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M	BOSGAME M4 Neo R7 7840HS, Radeon 780M	Geekom XT13 Pro i9-13900H, Iris Xe G7 96EUs	Alliwava GH9, i9-12900HK i9-12900HK, Iris Xe G7 96EUs
Noise		1%	5%	-16%	-5%	-8%
off / environment * (dB)	24.9	24.7 1%	23.8 4%	24.3 2%	25 -0%	24.8 -0%
Idle Minimum * (dB)	26.1	27.5 -5%	24.3 7%	37.6 -44%	27.6 -6%	29 -11%
Idle Average * (dB)	26.1	29.3 -12%	24.3 7%	37.9 -45%	27.8 -7%	29.1 -11%
Idle Maximum * (dB)	26.2	30.1 -15%	24.3 7%	38 -45%	27.9 -6%	29.1 -11%
Load Average * (dB)	44.2	39 12%	37.6 15%	40.8 8%	42.2 5%	46.7 -6%
Witcher 3 ultra * (dB)	42.2	39 8%				46.4 -10%
Cyberpunk 2077 ultra * (dB)	42.5	39.3 8%	42.4 -0%	40.18 5%	46.6 -10%	46.5 -9%
Load Maximum * (dB)	44.5	39 12%	46.3 -4%	40.2 10%	49.5 -11%	46.4 -4%

* ... smaller is better

Temperature

Max. Load

Idle

Cyberpunk


39.6 °C 103 F	46.9 °C 116 F	41 °C 106 F
32.4 °C 90 F	37.3 °C 99 F	33 °C 91 F
33.5 °C 92 F	30.7 °C 87 F	34.6 °C 94 F

Maximum: 46.9 °C = 116 F
Average: 36.6 °C = 98 F


30.4 °C 87 F	34.6 °C 94 F	31.6 °C 89 F
30.8 °C 87 F	42.3 °C 108 F	33.8 °C 93 F
31.6 °C 89 F	32.4 °C 90 F	33.5 °C 92 F

Maximum: 42.3 °C = 108 F
Average: 33.4 °C = 92 F

Power Supply (max.) 41.4 °C = 107 F | Room Temperature 22.8 °C = 73 F | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


31.8 °C 89 F	36.4 °C 98 F	33 °C 91 F
30 °C 86 F	30.4 °C 87 F	31.5 °C 89 F
29.4 °C 85 F	30.5 °C 87 F	31.4 °C 89 F

Maximum: 36.4 °C = 98 F
Average: 31.6 °C = 89 F


30.8 °C 87 F	31.6 °C 89 F	28.8 °C 84 F
31.9 °C 89 F	36.6 °C 98 F	29.1 °C 84 F
31.8 °C 89 F	31.4 °C 89 F	29.7 °C 85 F

Maximum: 36.6 °C = 98 F
Average: 31.3 °C = 88 F

Power Supply (max.) 29.2 °C = 85 F | Room Temperature 22 °C = 72 F | Fluke t3000FC (calibrated)

Max. Load

Idle

Cyberpunk


37.8 °C 100 F	47.9 °C 118 F	42.3 °C 108 F
34.9 °C 95 F	38.5 °C 101 F	34.9 °C 95 F
33 °C 91 F	32.4 °C 90 F	34.3 °C 94 F

Maximum: 47.9 °C = 118 F
Average: 37.3 °C = 99 F


31.4 °C 89 F	34.6 °C 94 F	32.7 °C 91 F
31.4 °C 89 F	43.3 °C 110 F	34 °C 93 F
32.5 °C 91 F	32.9 °C 91 F	34.8 °C 95 F

Maximum: 43.3 °C = 110 F
Average: 34.2 °C = 94 F

Power Supply (max.) 43.6 °C = 110 F | Room Temperature 22.8 °C = 73 F | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 36.6 °C / 98 F, compared to the average of 32.4 °C / 90 F for the devices in the class Mini PC.
(-) The maximum temperature on the upper side is 46.9 °C / 116 F, compared to the average of 36 °C / 97 F, ranging from 21.6 to 69.5 °C for the class Mini PC.
(±) The bottom heats up to a maximum of 42.3 °C / 108 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 31.6 °C / 89 F, compared to the device average of 32.4 °C / 90 F.
(±) 3: The average temperature for the upper side is 37.3 °C / 99 F, compared to the average of 32.4 °C / 90 F for the class Mini PC.

Energy management

Power Consumption

Off / Standby	1.3 / 6.2 Watt
Idle	7.7 / 8.6 / 10.1 Watt
Load	62.8 / 80.6 Watt


Key: min: , med: , max: Metrahit Energy

	Alliwava H90 Pro R7 8745HS, Radeon 780M	GMK NucBox M6 Ultra R5 7640HS, Radeon 760M	Chuwi Aubox, R7 8745HS R7 8745HS, Radeon 780M	BOSGAME M4 Neo R7 7840HS, Radeon 780M	Geekom XT13 Pro i9-13900H, Iris Xe G7 96EUs	Alliwava GH9, i9-12900HK i9-12900HK, Iris Xe G7 96EUs	Average AMD Radeon 780M	Average of class Mini PC
Power Consumption		-10%	3%	-12%	11%	-25%	7%	-29%
Idle Minimum * (Watt)	7.7	8.8 -14%	4.9 36%	7.6 1%	6.3 18%	10.8 -40%	6.07 ?(2.7 - 14, n=69) 21%	9.52 ?(2.4 - 35.9, n=108, last 2 years) -24%
Idle Average * (Watt)	8.6	9.5 -10%	7.4 14%	9.1 -6%	7.1 17%	11.3 -31%	8.19 ?(4.4 - 17.6, n=69) 5%	11.7 ?(2.59 - 36.3, n=107, last 2 years) -36%
Idle Maximum * (Watt)	10.1	11.8 -17%	9.4 7%	11.1 -10%	9 11%	13.1 -30%	10.4 ?(5.2 - 27, n=69) -3%	15.2 ?(2.7 - 49, n=108, last 2 years) -50%
Load Average * (Watt)	62.8	69.6 -11%	57.4 9%	67.2 -7%	49.8 21%	70.9 -13%	57.4 ?(19.7 - 93.2, n=67) 9%	63.3 ?(12.9 - 170.6, n=108, last 2 years) -1%
Cyberpunk 2077 ultra external monitor * (Watt)	62.5	70.5 -13%	72.6 -16%	81.3 -30%	54 14%
Load Maximum * (Watt)	80.6	74.8 7%	106.6 -32%	98.4 -22%	94.5 -17%	87.6 -9%	76.6 ?(34.9 - 111.8, n=68) 5%	107.5 ?(27.9 - 423, n=108, last 2 years) -33%

* ... smaller is better

Power efficiency

Performance rating | Power Consumption

Performance rating - Percent
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	95.7 pt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	87.2 pt
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	80.1 pt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	79.1 pt
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	79 pt
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	72.5 pt

Power Consumption
Cinebench R23 Multi Power Efficiency - external Monitor
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	257 Points per Watt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	210 Points per Watt -18%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	195.1 Points per Watt -24%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	192.3 Points per Watt -25%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	189.8 Points per Watt -26%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	174.2 Points per Watt -32%
Cinebench R23 Single Power Efficiency - external Monitor
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	62.3 Points per Watt +15%
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	57.8 Points per Watt +6%
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	54.3 Points per Watt
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	50.6 Points per Watt -7%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	47.8 Points per Watt -12%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	39.9 Points per Watt -27%
Cinebench R15 Multi Efficiency (external Monitor)
Alliwava H90 Pro AMD Ryzen 7 8745HS, Radeon 780M	35 Points per Watt
BOSGAME M4 Neo AMD Ryzen 7 7840HS, Radeon 780M	30.5 Points per Watt -13%
Alliwava GH9, i9-12900HK Intel Core i9-12900HK, Iris Xe G7 96EUs	30.2 Points per Watt -14%
GMK NucBox M6 Ultra AMD Ryzen 5 7640HS, Radeon 760M	28.1 Points per Watt -20%
Geekom XT13 Pro Intel Core i9-13900H, Iris Xe G7 96EUs	27.5 Points per Watt -21%
Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS, Radeon 780M	25.4 Points per Watt -27%

Power consumption - external monitor

Alliwava H90 Pro; Idle 1min (external Monitor): Ø8.6 (8.15-10.1)

Alliwava H90 Pro; 1280x720 Prime95 28.10 and Furmark 1.25: Ø67.6 (54.8-80.6)

Alliwava H90 Pro; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø62.5 (53.4-72)

Alliwava H90 Pro; 3DMark06 Return To Proxycon: Ø62.8 (54.5-71)

Power consumption - external monitor

Alliwava H90 Pro; Prime95 V2810 Stress (external Monitor): Ø57.2 (54.2-68.5)

Alliwava H90 Pro; Cinebench R15 Multi (external Monitor): Ø58 (50.5-62.9)

Alliwava H90 Pro; Cinebench R23 Single (external Monitor): Ø25.4 (23.4-41.6)

Alliwava H90 Pro; Cinebench R23 Multi (external Monitor): Ø49 (42.4-54.2)

Alliwava H90 Pro; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø64.4 (52.9-69)

Notebookcheck rating

The Alliwava H90 Pro leaves a good overall impression in our short test. The AMD Ryzen 7 8745HS ensures high computing power, while the cooling system is pleasantly quiet. The aluminum housing has a high-quality and stable appearance, which also enhances the Mini-PC's visual appeal. Although modern connections such as USB4 or OCuLink are missing, which limits the expandability somewhat, this is hardly an issue in everyday use. Overall, the Alliwava H90 Pro presents itself as a powerful and reliable mini PC - a good all-rounder for use in the office or home office, at a price of around 479 euros.

Back to the verdict

Possible alternatives in comparison

Image	Model / Review	Price	Weight	Dimensions
1.	Alliwava H90 Pro AMD Ryzen 7 8745HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory	Amazon: 1. $21.00 Replacement Mini PC CPU Fan ... List Price: 479€	470 g	127.5 x 130 x 52 mm
2. 77.4%	GMK NucBox M6 Ultra AMD Ryzen 5 7640HS ⎘ AMD Radeon 760M ⎘ 32 GB Memory	Amazon: $519.99 List Price: 336€	506 g	127 x 128.8 x 47.8 mm
3. 75.3%	Chuwi Aubox, R7 8745HS AMD Ryzen 7 8745HS ⎘ AMD Radeon 780M ⎘ 16 GB Memory, 512 GB SSD	List Price: 386 EUR	743 g	152 x 154 x 45 mm
4. 74%	BOSGAME M4 Neo AMD Ryzen 7 7840HS ⎘ AMD Radeon 780M ⎘ 32 GB Memory, 1024 GB SSD	Amazon: 1. $549.99 BOSGAME M4 Neo Mini PC, Mini... 2. $549.00 BOSGAME M4 Neo Mini PC, Mini... 3. $599.99 BOSGAME Mini PC M4 AMD Ryzen... List Price: 389 EUR	560 g	127 x 127 x 42 mm
5. 72.8%	Geekom XT13 Pro Intel Core i9-13900H ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memory, 2048 GB SSD	Amazon: 1. $699.00 GEEKOM Mini PC XT13 Pro with... 2. $28.00 Mini PC Fan for GEEKOM XT13 ... 3. $32.00 Mini PC Fan for GEEKOM XT13 ... List Price: 999 EUR	555 g	112 x 117 x 37 mm
6.	Alliwava GH9, i9-12900HK Intel Core i9-12900HK ⎘ Intel Iris Xe Graphics G7 96EUs ⎘ 32 GB Memory	List Price: 499€	402 g	200 x 65 x 180 mm

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

Affordable mini PC for home office and multimedia - GMKtec NucBox M3 Ultra with Intel Core i7 review 10/12/2025

MSI Cubi NUC AI+ 2MG review: Straightforward mini PC for business 10/08/2025

One of the most powerful mini PCs of 2025! Minisforum MS-S1 Max review - AMD Strix Halo Power, 128 GB RAM & Radeon 8060S for professionals & AI 09/29/2025

Mini PC at a great price with AMD Ryzen power and USB4 versatility - GMKtec NucBox M6 Ultra review 09/22/2025

Alienware-inspired mini PC review: Alliwava GH9 with Intel Core i9 and Thunderbolt 4 in comparison to Geekom, Minisforum & Co. 09/20/2025

Affordable mini PC for the office and home office - review of the Ninkear M7 with AMD Ryzen 5 APU 09/15/2025

Best Geekom mini PC ever? Geekom A9 Max review with AMD Ryzen AI 9 HX 370 for $999 09/12/2025

Powerful mini PC for the money? Peladn HA-4 challenges Geekom, Minisforum and co. - the efficiency miracle with Ryzen 7 7840HS review 09/10/2025

One of the best mini PCs of 2025 - AMD Ryzen AI Max+ 395 and Radeon 8060S reviewed with top performance in the GMKtec EVO-X2 09/02/2025

High-end mini PC – GMKtec EVO-T1 review with Intel Core Ultra 9 285H, 80W TDP, 64 GB RAM, and eGPU option 08/11/2025

Better than Geekom & Minisforum? How does the Ninkear M8 mini PC with AMD Ryzen 7 perform in the review 08/02/2025

No comments for this article

Got questions or something to add to our article? Even without registering you can post in the comments!

No comments for this article / reply

Loading comments

Comment on this article

Editor of the original article: Sebastian Bade - Senior Tech Writer - 702 articles published on Notebookcheck since 2012

I was already interested in technology from an early age, and I was able to study for my dream job as an IT Systems Electronics Engineer. Subsequently, I started 12 years of military service, during which I learned a lot about technology and constantly kept my knowledge up to date with the latest developments. As I like to share my knowledge, I found Notebookcheck was a very good opportunity for this. In addition, I also work a lot with water cooling and network security.

contact me via: Bluesky, Threads, Facebook, nbc.basti, LinkedIn, Xing

Please share our article, every link counts!
