Performance Analysis of Mass Effect Legendary Edition

100 GB for 100 hours of joy.

Over the past few years, video game publishers have released a whole slew of remastered versions of classic games. Not that long ago a complete remake of Mafia was released, and now the Mass Effect trilogy is also getting some love. Read this article to find out the system requirements for Mass Effect Legendary Edition.

Florian Glaser, 👁 Florian Glaser (translated by Stanislav Kokhanyuk), Published 05/19/2021 🇩🇪 🇳🇱 ...

Technology

Even though the remastered Mass Effect games do not look particularly impressive in this day and age, they still thoroughly beat the original titles. For our performance analysis, we decided to focus on the remaster of Mass Effect 1, because it received the most significant visual upgrade (its textures have been completely reworked). The remaster feels very atmospheric, which is a good thing for a role-playing game like Mass Effect. However, the animations are still not good, just like in all other Mass Effect titles.

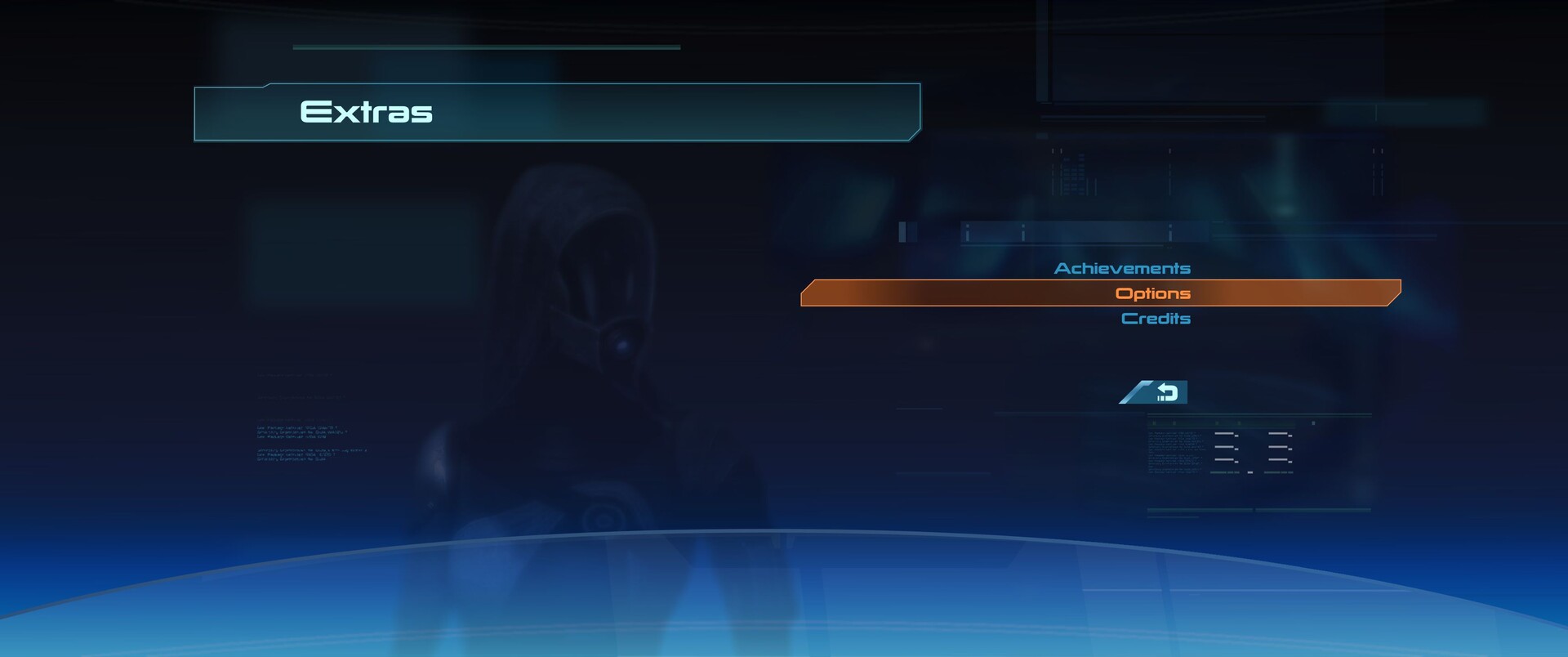

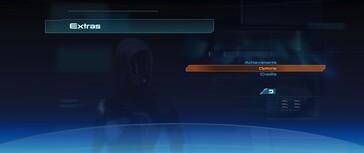

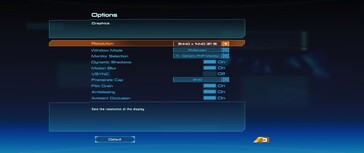

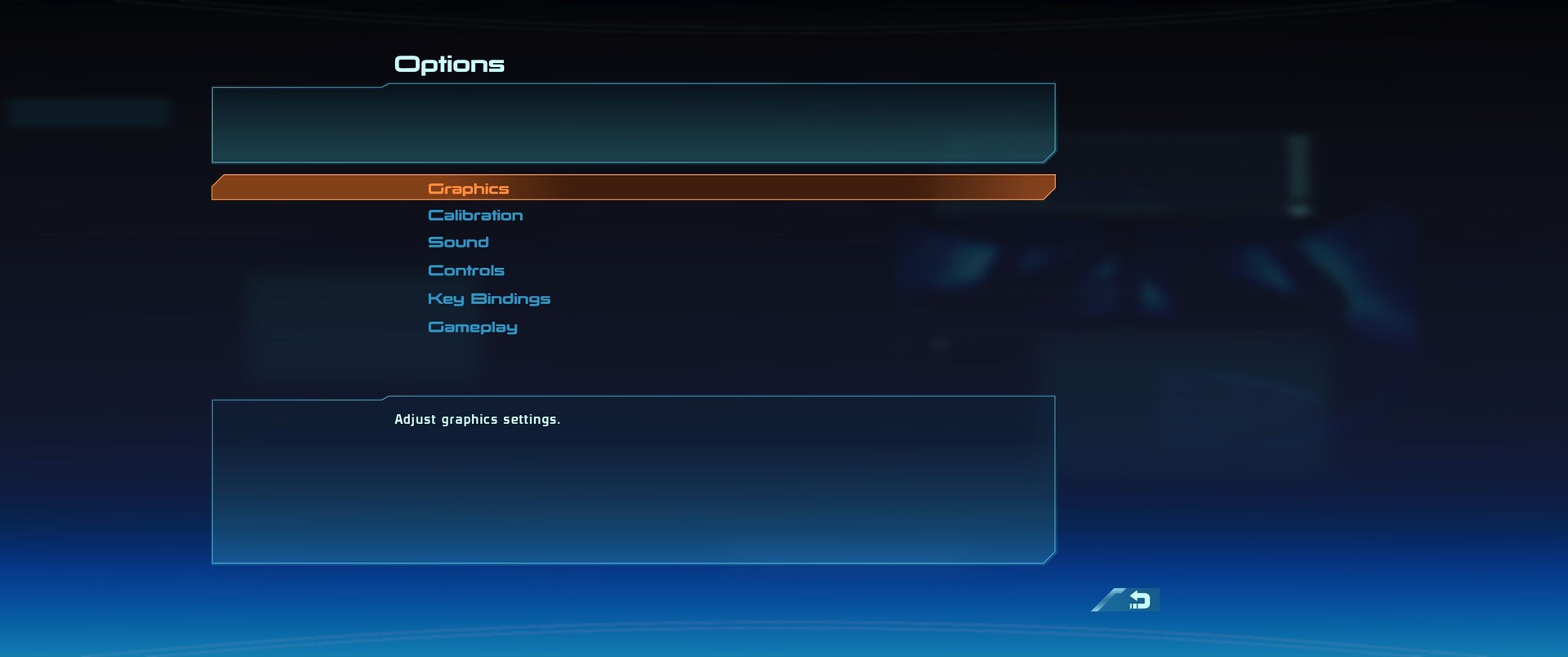

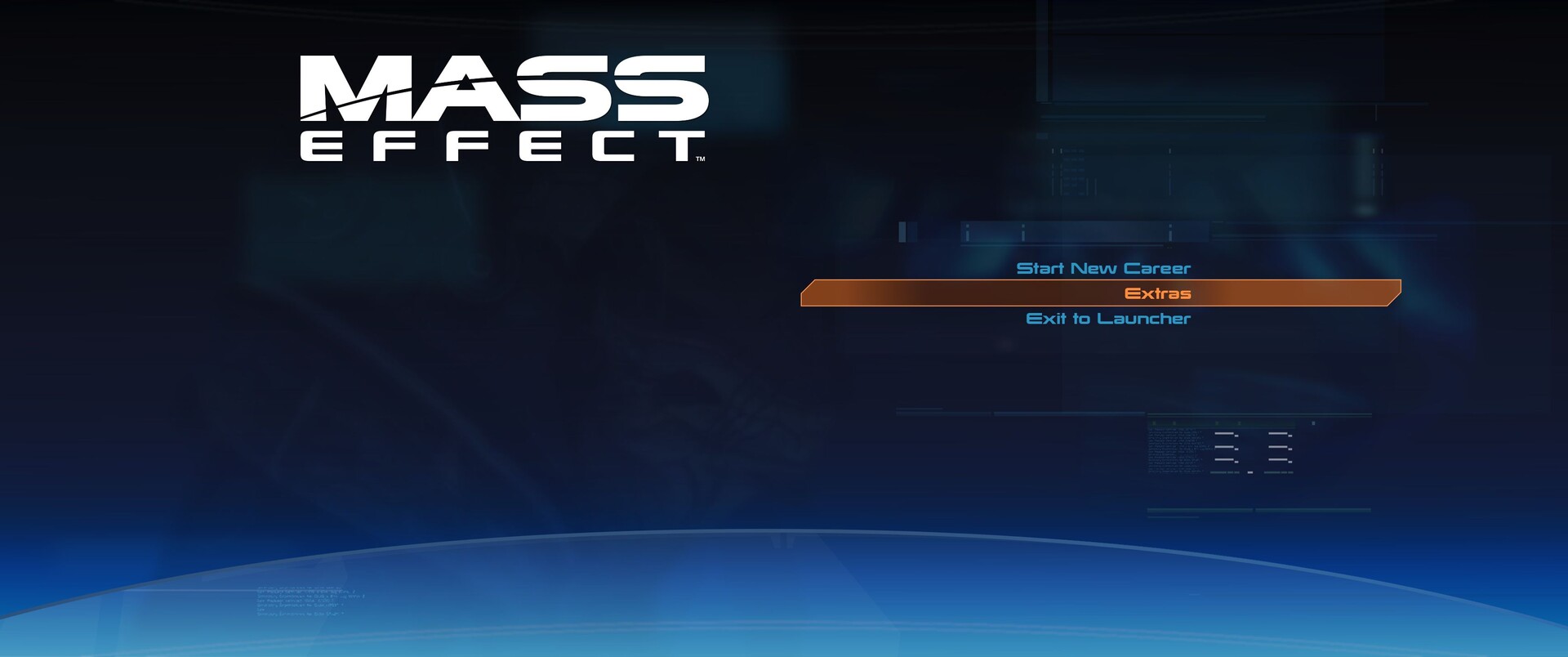

We were quite disappointed by the graphics menu because it only contains 6 settings (Dynamic Shadows, Motion Blur, Vsync, Film Grain, Antialiasing & Ambient Occlusion). There are also no presets. In the graphics menu, gamers can change the resolution and the window mode. There is also a frame rate limiter with a range of 30 to 240 FPS.

We carried out our benchmarks with all the graphics effects enabled, at least at resolutions above 1080p. However, we did not use vertical synchronisation. Positive: A restart is not required for graphics changes to take effect. 

The system requirements of Mass Effect Legendary Edition are very low, which is why it can run even on systems with weak hardware. This is good news for people who own cheap PCs or laptops. Mass Effect LE often runs into CPU bottlenecks even with mid-range graphics cards, which is not uncommon for this type of game. You will need a high-end GPU if you want to game at 4K, though.

Benchmark

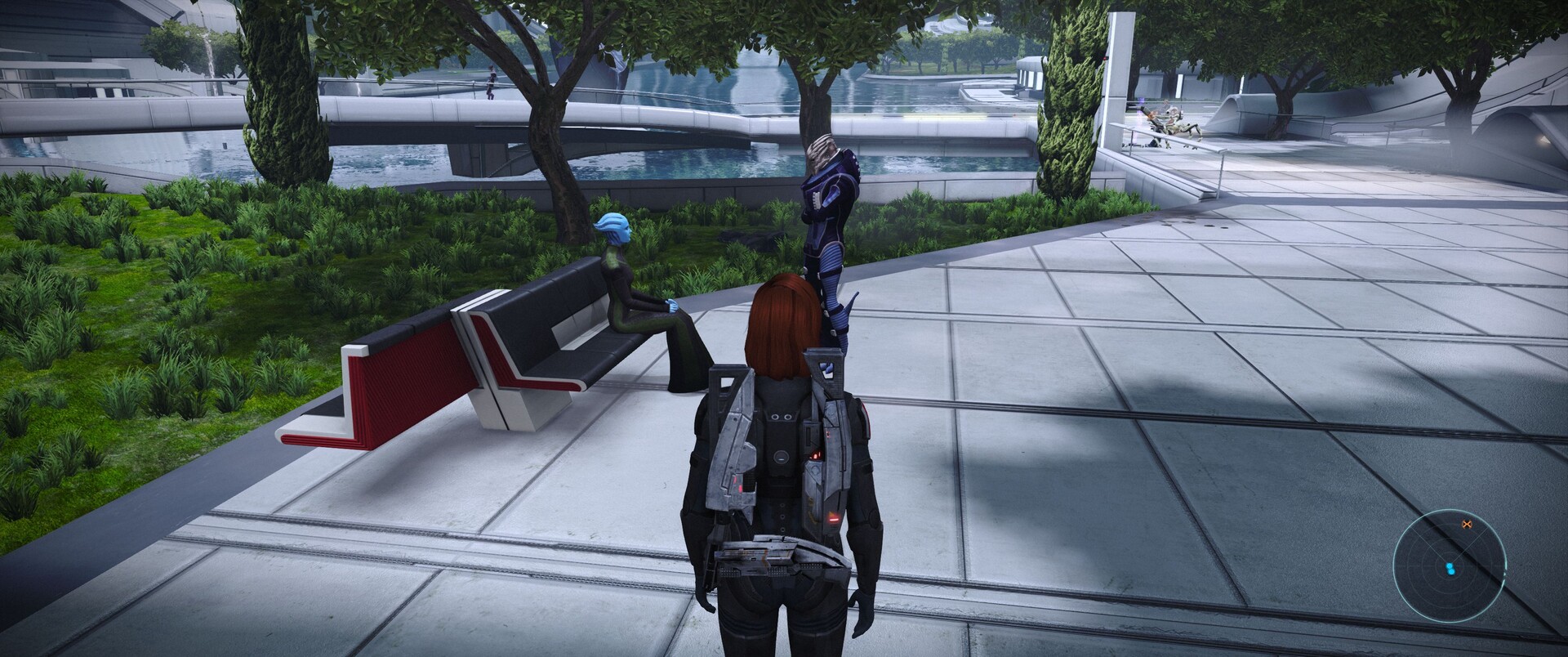

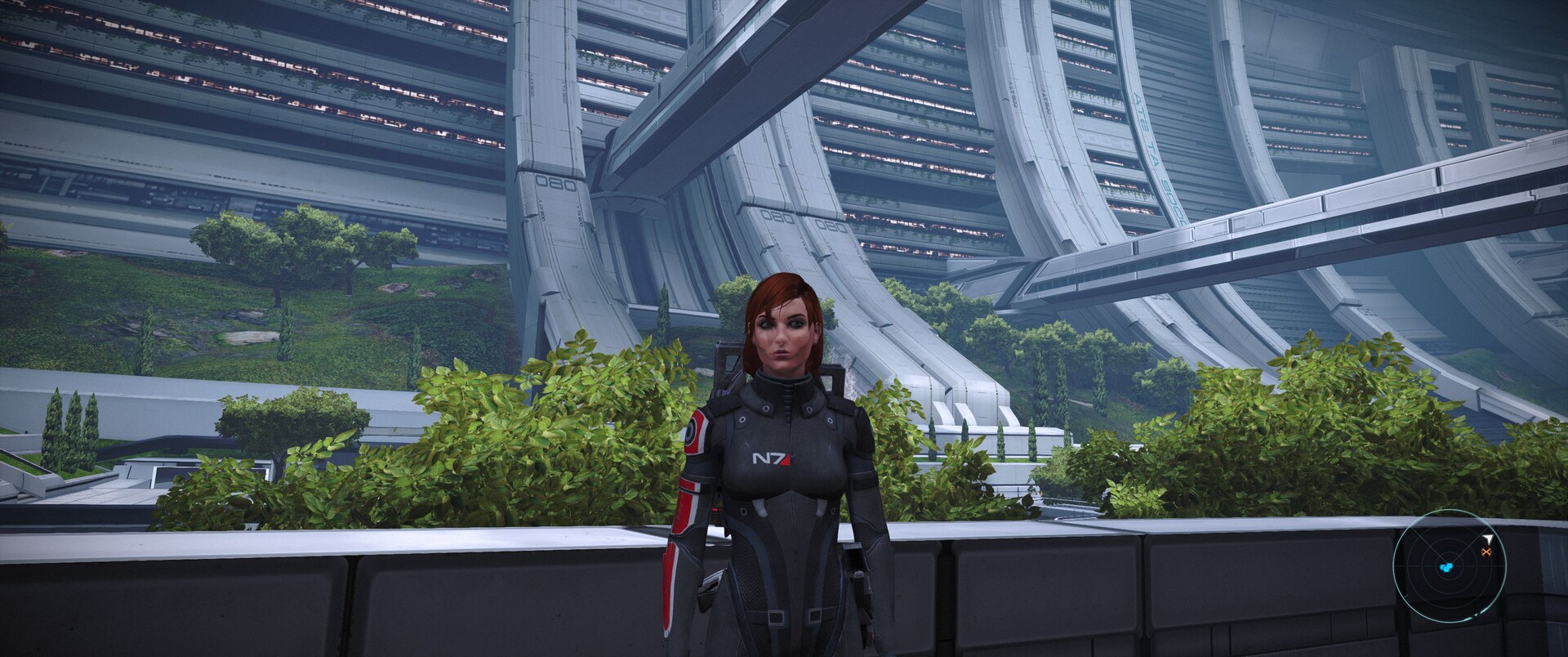

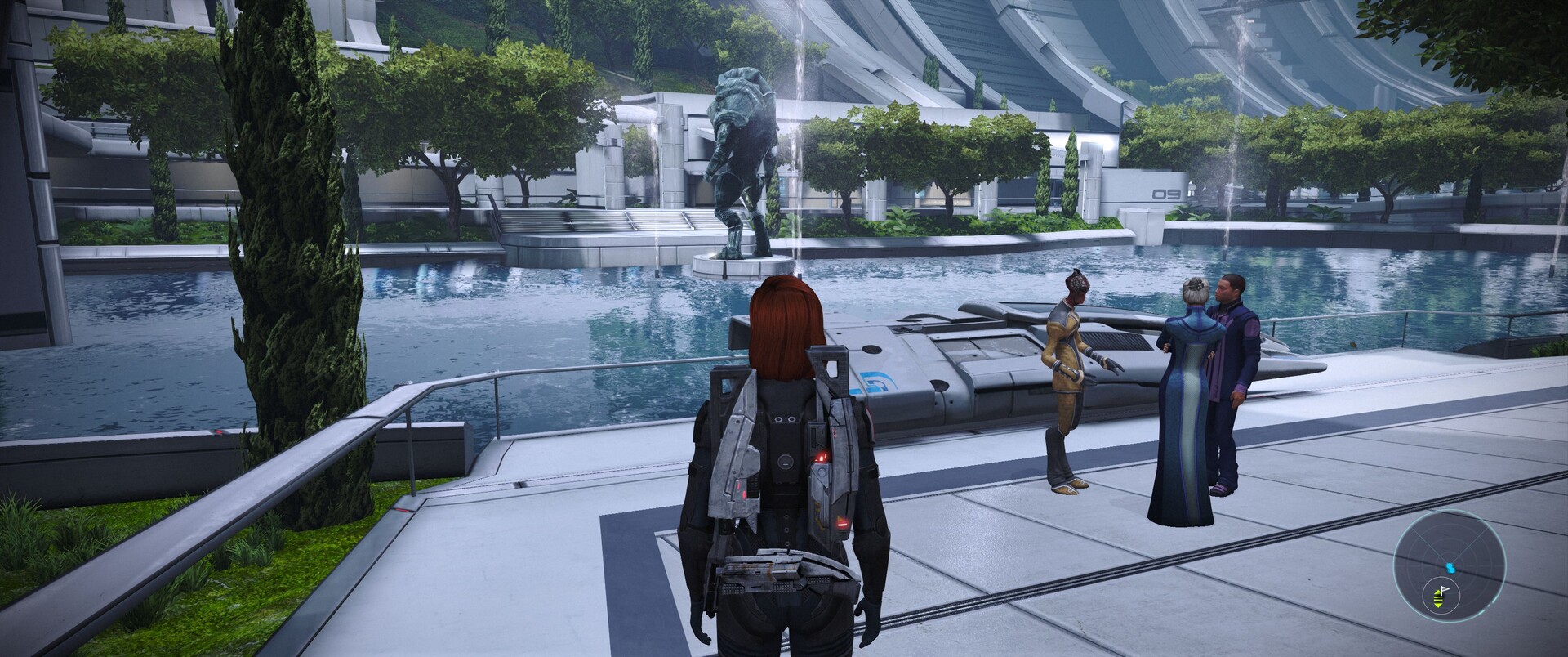

We conducted our benchmarks at the space station known as Citadel. It features beautiful architecture and a lot of NPCs. We used CapFrameX to record the frame rates.

▶ load Youtube video

Results

FHD (1920x1080)

As we already mentioned, even cheap PCs and laptops can easily handle Mass Effect Legendary Edition. Low-end GPUs can run the game at 1080p with all the visual effects enabled without any issues. At 1080p, the GeForce MX350 was able to achieve over 40 FPS, which is enough for an RPG.

Mass Effect Legendary Edition
1920x1080 On
NVIDIA GeForce RTX 3090, i9-9900K MSI GeForce RTX 3090 Suprim X	128 (27.1^min, 49.8^P0.1, 69.8^P1) fps ∼26%
NVIDIA GeForce RTX 2080 Ti (Desktop), i9-9900K MSI GeForce RTX 2080 Ti	126 (26.7^min, 45.8^P0.1, 69.9^P1) fps ∼26%
NVIDIA GeForce RTX 2080 (Desktop), i9-9900K MSI GeForce RTX 2080	123 (25.3^min, 53.5^P0.1, 68.9^P1) fps ∼25%
NVIDIA GeForce RTX 3070, i9-9900K MSI GeForce RTX 3070 Ventus 3X	123 (24.6^min, 49.7^P0.1, 68.1^P1) fps ∼25%
NVIDIA GeForce RTX 3080, i9-9900K MSI GeForce RTX 3080 Gaming X Trio	122 (25.2^min, 51.7^P0.1, 65.6^P1) fps ∼25%
NVIDIA GeForce RTX 2070 Mobile, i7-9750H MSI GP65 Leopard 9SF	112 (25.3^min, 37.7^P0.1, 60.6^P1) fps ∼23%
NVIDIA GeForce RTX 2080 Mobile, i9-9900K MSI GT76 Titan DT 9SG	111 (15^min, 15.4^P0.1, 19.1^P1) fps ∼23%
NVIDIA GeForce GTX 1660 Ti Mobile, i7-9750H MSI GP65 Leopard 9SD	110 (15.8^min, 35.6^P0.1, 62.3^P1) fps ∼23%
NVIDIA GeForce GTX 1650 Ti Mobile, i7-10750H MSI GP75	103 (26.8^min, 52.6^P0.1, 61.6^P1) fps ∼21%
NVIDIA GeForce RTX 2060 Mobile, i7-9750H MSI GE65 Raider 9SE	99.9 (21.4^min, 23.7^P0.1, 30.3^P1) fps ∼21%
NVIDIA GeForce GTX 1650 Mobile, i7-10750H MSI GL75	90.3 (22.7^min, 43.5^P0.1, 51.1^P1) fps ∼19%
AMD Radeon RX 5600M, R7 4800H Dell G5 15 SE	71 (20.4^min, 26.2^P0.1, 42.1^P1) fps ∼15%
NVIDIA GeForce GTX 1060 Mobile, 6820HK MSI GT62VR	70.2 (19.7^min, 25.1^P0.1, 41.9^P1) fps ∼14%
NVIDIA GeForce GTX 1050 Mobile, i7-7700HQ MSI GL62M 7RD	64.3 (20.9^min, 26.1^P0.1, 42.9^P1) fps ∼13%
AMD Radeon RX 5500M, R7 3750H MSI Alpha 15	48.6 (12.1^min, 16.1^P0.1, 22.6^P1) fps ∼10%
NVIDIA GeForce MX350, i5-10210U Honor Magicbook Pro	44 (21.3^min, 24.1^P0.1, 31.5^P1) fps ∼9%

QHD (2560x1440)

To run the game at 1440p, you will need a mid-range graphics card such as the GeForce GTX 1650. All in all, the remastered version is not particularly demanding at 1440p. 

Mass Effect Legendary Edition
2560x1440 On
NVIDIA GeForce RTX 3090, i9-9900K MSI GeForce RTX 3090 Suprim X	128 (26.2^min, 55.6^P0.1, 68.7^P1) fps ∼25%
NVIDIA GeForce RTX 2080 Ti (Desktop), i9-9900K MSI GeForce RTX 2080 Ti	125 (20.6^min, 48^P0.1, 68.8^P1) fps ∼25%
NVIDIA GeForce RTX 3070, i9-9900K MSI GeForce RTX 3070 Ventus 3X	123 (24.8^min, 43.3^P0.1, 67.1^P1) fps ∼24%
NVIDIA GeForce RTX 2080 (Desktop), i9-9900K MSI GeForce RTX 2080	120 (25.4^min, 51.9^P0.1, 66.9^P1) fps ∼24%
NVIDIA GeForce RTX 3080, i9-9900K MSI GeForce RTX 3080 Gaming X Trio	120 (26.8^min, 50.6^P0.1, 66.1^P1) fps ∼24%
NVIDIA GeForce RTX 2080 Mobile, i9-9900K MSI GT76 Titan DT 9SG	109 (15.3^min, 15.8^P0.1, 23.1^P1) fps ∼21%
NVIDIA GeForce RTX 2070 Mobile, i7-9750H MSI GP65 Leopard 9SF	106 (18.7^min, 35.4^P0.1, 60.3^P1) fps ∼21%
NVIDIA GeForce GTX 1660 Ti Mobile, i7-9750H MSI GP65 Leopard 9SD	96.2 (23.1^min, 30.8^P0.1, 60.3^P1) fps ∼19%
NVIDIA GeForce RTX 2060 Mobile, i7-9750H MSI GE65 Raider 9SE	90.3 (19.6^min, 21^P0.1, 25.8^P1) fps ∼18%
NVIDIA GeForce GTX 1650 Ti Mobile, i7-10750H MSI GP75	75.9 (28.3^min, 38^P0.1, 58.4^P1) fps ∼15%
AMD Radeon RX 5600M, R7 4800H Dell G5 15 SE	67.6 (21.5^min, 26.8^P0.1, 41.4^P1) fps ∼13%
NVIDIA GeForce GTX 1650 Mobile, i7-10750H MSI GL75	67.5 (22.3^min, 27.7^P0.1, 49.5^P1) fps ∼13%
AMD Radeon RX 5500M, R7 3750H MSI Alpha 15	42.4 (12.8^min, 15.1^P0.1, 19.6^P1) fps ∼8%
NVIDIA GeForce MX350, i5-10210U Honor Magicbook Pro	28.3 (10.9^min, 11.9^P0.1, 18.1^P1) fps ∼6%

UHD (3840x2160)

Even at 4K, you can get away with a mid-range GPU such as the GeForce GTX 1660 Ti or the Radeon RX 5600M.

Mass Effect Legendary Edition
3840x2160 On
NVIDIA GeForce RTX 3090, i9-9900K MSI GeForce RTX 3090 Suprim X	121 (27.4^min, 46.8^P0.1, 68.2^P1) fps ∼32%
NVIDIA GeForce RTX 3080, i9-9900K MSI GeForce RTX 3080 Gaming X Trio	117 (25.4^min, 41.2^P0.1, 65.5^P1) fps ∼31%
NVIDIA GeForce RTX 2080 Ti (Desktop), i9-9900K MSI GeForce RTX 2080 Ti	115 (23.9^min, 42.9^P0.1, 67.6^P1) fps ∼30%
NVIDIA GeForce RTX 3070, i9-9900K MSI GeForce RTX 3070 Ventus 3X	105 (24.4^min, 33.3^P0.1, 64.5^P1) fps ∼28%
NVIDIA GeForce RTX 2080 (Desktop), i9-9900K MSI GeForce RTX 2080	97.8 (25.7^min, 30.1^P0.1, 63.9^P1) fps ∼26%
NVIDIA GeForce RTX 2080 Mobile, i9-9900K MSI GT76 Titan DT 9SG	81.7 (13.4^min, 13.8^P0.1, 16.9^P1) fps ∼22%
NVIDIA GeForce RTX 2070 Mobile, i7-9750H MSI GP65 Leopard 9SF	74 (16.1^min, 28.2^P0.1, 53.9^P1) fps ∼20%
NVIDIA GeForce RTX 2060 Mobile, i7-9750H MSI GE65 Raider 9SE	56.9 (16.6^min, 17.7^P0.1, 22.3^P1) fps ∼15%
NVIDIA GeForce GTX 1660 Ti Mobile, i7-9750H MSI GP65 Leopard 9SD	53.6 (31.8^min, 35.3^P0.1, 44^P1) fps ∼14%
AMD Radeon RX 5600M, R7 4800H Dell G5 15 SE	45.7 (23.6^min, 25.2^P0.1, 35.6^P1) fps ∼12%
NVIDIA GeForce GTX 1650 Ti Mobile, i7-10750H MSI GP75	38.1 (29.7^min, 31.6^P0.1, 32.8^P1) fps ∼10%
AMD Radeon RX 5500M, R7 3750H MSI Alpha 15	35.4 (12.2^min, 15.2^P0.1, 20.1^P1) fps ∼9%
NVIDIA GeForce GTX 1650 Mobile, i7-10750H MSI GL75	33.7 (27.4^min, 27.5^P0.1, 28.7^P1) fps ∼9%
NVIDIA GeForce MX350, i5-10210U Honor Magicbook Pro	13.3 (7.51^min, 7.57^P0.1, 7.87^P1) fps ∼4%

Note

Because benchmarking video games is very time consuming and is often constrained by installation/activation limits, at the time of publishing, we were able to provide only a part of our performance analysis of Mass Effect Legendary Edition. Other graphics cards will be added in the coming days and weeks.

Overview

Test Systems

Device	GPU	CPU	RAM	OS
Desktop PC I	MSI GeForce RTX 3090 (24 GB GDDR6X) MSI GeForce RTX 3080 (10 GB GDDR6X) MSI GeForce RTX 3070 (8 GB GDDR6) MSI GeForce RTX 2080 Ti (11 GB GDDR6) MSI GeForce RTX 2080 (8 GB GDDR6)	Intel Core i9-9900K	4 x 8 GB DDR4	Windows 10 64 Bit
Desktop PC II	Nvidia GeForce GTX 1080 Ti (11 GB GDDR5X) Asus GeForce GTX 980 Ti (6 GB GDDR5)	Intel Core i7-8086K, Aorus Z370 Ultra Gaming	2 x 8 GB DDR4	Windows 10 64 Bit
Desktop PC III	Nvidia GeForce RTX 3090 FE(24 GB GDDR6X) Nvidia Titan RTX (24 GB GDDR6) Nvidia GeForce RTX 2080 Super (8 GB GDDR6) Nvidia GeForce RTX 2070 Super (8 GB GDDR6) Nvidia GeForce RTX 2060 Super (8 GB GDDR6) KFA2 GeForce GTX 1660 Super (6 GB GDDR6) PNY GeForce GTX 1660 (6 GB GDDR5) KFA2 GeForce GTX 1650 Super (4 GB GDDR6) KFA2 GeForce GTX 1650 (4 GB GDDR5) AMD Radeon RX 5700 XT (8 GB GDDR6) AMD Radeon RX 5700 (8 GB GDDR6) AMD Radeon RX 5600 XT (6 GB GDDR6) AMD Radeon RX 5500 XT (8 GB GDDR6) AMD Radeon RX Vega 64 (8 GB HBM2)	AMD Ryzen 9 5900X	2 x 16 GB DDR4	Windows 10 64 Bit
MSI GT76	Nvidia GeForce RTX 2080 (8 GB GDDR6)	Intel Core i9-9900K	2 x 16 GB DDR4	Windows 10 64 Bit
MSI GP65	Nvidia GeForce RTX 2070 (8 GB GDDR6)	Intel Core i7-9750H	2 x 16 GB DDR4	Windows 10 64 Bit
MSI GE65	Nvidia GeForce RTX 2060 (6 GB GDDR6)	Intel Core i7-9750H	2 x 8 GB DDR4	Windows 10 64 Bit
MSI GP65	Nvidia GeForce GTX 1660 Ti (6 GB GDDR6)	Intel Core i7-9750H	2 x 16 GB DDR4	Windows 10 64 Bit
MSI GP75	Nvidia GeForce GTX 1650 Ti (4 GB GDDR6)	Intel Core i7-10750H	2 x 8 GB DDR4	Windows 10 64 Bit
MSI GL75	Nvidia GeForce GTX 1650 (4 GB GDDR6)	Intel Core i7-10750H	2 x 8 GB DDR4	Windows 10 64 Bit
MSI GT62VR	Nvidia GeForce GTX 1060 (6 GB GDDR5)	Intel Core i7-6820HK	2 x 8 GB DDR4	Windows 10 64 Bit
MSI GE72	Nvidia GeForce GTX 1050 Ti (2 GB GDDR5)	Intel Core i7-7700HQ	2 x 4 GB DDR4	Windows 10 64 Bit
MSI GL62	Nvidia GeForce GTX 1050 (2 GB GDDR5)	Intel Core i7-7700HQ	2 x 4 GB DDR4	Windows 10 64 Bit
Honor MagicBook Pro	Nvidia GeForce MX350 (2 GB GDDR5)	Intel Core i7-10210U	1 x 16 GB DDR4	Windows 10 64 Bit
Dell G5 15 SE	AMD Radeon RX5600M (6 GB GDDR6)	AMD Ryzen 7 4800H	2 x 8 GB DDR4	Windows 10 64 Bit
MSI Alpha 15	AMD Radeon RX5500M (4 GB GDDR6)	AMD Ryzen 7 3750H	2 x 8 GB DDR4	Windows 10 64 Bit
MSI Prestige 14 Evo	Intel Iris Xe (96 CUs)	Intel Core i7-1185G7	1 x 16 GB DDR4	Windows 10 64 Bit

4K monitors	Nvidia drivers	AMD drivers
Asus PB287Q, Philips Brilliance 329P9H, Acer Predator XB321HK	ForceWare 466.27	Adrenalin 21.5.1
