Lite-On CL1-8D512

Lite-On CL1-8D512 CL1-8D512

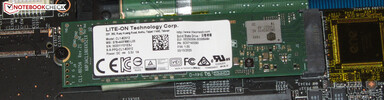

The Lite-On CL1-8D512 is a mid. range PCIe SSD for M.2 2280 slots. It was introduced in 2020 and e.g. found in the MSI GL75 Leopard 10SFR.

TypeSSD
SizeM.2 2280
Capacity512 GB
InterfaceNVMe
Announced27.07.2020

Benchmarks

Performance Rating - DiskSpd
15.9 pt (22%)
64 GB eMMC Flash
2.33 -85%
...
Toshiba BG4 KBG40ZNT256G
14.8 -7%
Toshiba KBG30ZMV256G
14.9 -6%
Apple SSD AP0512
15 -6%
256 GB NVMe
15 -6%
EDGE NextGen SSD 1TB
15 -6%
SK Hynix BC711 HFM128GD3HX015N
15.3 -4%
Kingston RBUSNS8154P3512GJ
15.3 -4%
Toshiba KBG30ZPZ128G
15.5 -3%
SSSTC CL1-8D512-HP
15.6 -2%
Lite-On CL1-8D512
15.9
SK Hynix BC711 1TB HFM001TD3JX016N
16.1 1%
Micron 3460 256 GB Soldered
16.3 3%
Micron 2200S 1TB MTFDHBA1T0TCK
16.4 3%
ADATA Swordfish 2 TB
16.4 3%
Samsung PM991 MZ9LQ256HBJQ
16.5 4%
Kingston RBUSNS8154P3512GJ1
16.5 4%
Kingston NV2 1000GB SNV2S/1000G
16.7 5%
SK hynix BC511 HFM256GDJTNI-82A0
16.7 5%
Micron 2200S 256GB
16.7 5%
...
2x Samsung SSD 980 Pro 2TB MZ-V8P2T0 (RAID 0)
72.9 358%
0%
100%
AS SSD - Copy Game
1042 MB/s (17%)
+ 1 benchmarks and specifications   + Show comparison chart
AS SSD - Copy Program
465.3 MB/s (17%)
+ 1 benchmarks and specifications   + Show comparison chart
AS SSD - Copy ISO
1710 MB/s (16%)
+ 1 benchmarks and specifications   + Show comparison chart
AS SSD - Score Total
min: 895     avg: 1469     median: 1726 (16%)     max: 1785 Points
+ 3 benchmarks and specifications   + Show comparison chart
AS SSD - Score Write
min: 230     avg: 635     median: 771 (14%)     max: 904 Points
+ 3 benchmarks and specifications   + Show comparison chart
AS SSD - Score Read
min: 484     avg: 584     median: 571 (2%)     max: 696 Points
+ 3 benchmarks and specifications   + Show comparison chart
AS SSD - Access Time Write *
min: 0.124     avg: 0.1     median: 0.1 (0%)     max: 0.152 ms
+ 3 benchmarks and specifications   + Show comparison chart
AS SSD - Access Time Read *
min: 0.053     avg: 0.1     median: 0.1 (0%)     max: 0.078 ms
+ 3 benchmarks and specifications   + Show comparison chart
AS SSD - 4K-64 Write
min: 135.2     avg: 471.7     median: 563 (11%)     max: 717 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
AS SSD - 4K-64 Read
min: 291.5     avg: 379.5     median: 369 (11%)     max: 477.9 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
AS SSD - 4K Write
min: 73.6     avg: 92.6     median: 101.9 (28%)     max: 102.2 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
AS SSD - 4K Read
min: 24.25     avg: 24.9     median: 24.9 (8%)     max: 25.43 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
AS SSD - Sequential Write
min: 210.1     avg: 706     median: 843 (10%)     max: 1065 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
AS SSD - Sequential Read
min: 1681     avg: 1795     median: 1780 (18%)     max: 1923 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Write 4K
min: 102.4     avg: 119     median: 122.4 (11%)     max: 132.2 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Read 4K
min: 24.99     avg: 35.6     median: 36.3 (1%)     max: 45.62 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5 Write Seq
min: 653     avg: 1099     median: 1134 (6%)     max: 1511 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5 Read Seq
min: 1686     avg: 1806     median: 1841 (22%)     max: 1890 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Write 4K Q32T1
min: 298.9     avg: 390.1     median: 375.9 (12%)     max: 495.5 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Read 4K Q32T1
min: 266.2     avg: 371.3     median: 322.6 (5%)     max: 525 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Write Seq Q32T1
min: 460.9     avg: 965     median: 930 (9%)     max: 1505 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
CrystalDiskMark 5.2 / 6 - CDM 5/6 Read Seq Q32T1
min: 1988     avg: 1998     median: 1998 (16%)     max: 2008 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd 4k_q1t1_write
min: 111     avg: 122.6     median: 121 (28%)     max: 135.9 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd 4k_q1t1_read
min: 22.7     avg: 28.6     median: 30.2 (9%)     max: 32.8 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd 4k_q32t16_write
min: 192     avg: 400.3     median: 306 (6%)     max: 703 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd 4k_q32t16_read
min: 321     avg: 350.4     median: 353 (6%)     max: 377.2 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd seq_write
min: 205     avg: 659     median: 648 (8%)     max: 1125 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd seq_read
min: 1598     avg: 1763     median: 1652 (29%)     max: 2039 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd seq_q8t1_write
min: 229     avg: 824     median: 1112 (11%)     max: 1130 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd seq_q8t1_read
min: 1808     avg: 1963     median: 1978 (15%)     max: 2103 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
DiskSpd - DiskSpd Loop seq_q8t1_read
min: 1980     avg: 2023     median: 1983 (15%)     max: 2107 MB/s
+ 3 benchmarks and specifications   + Show comparison chart
- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
