Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)

Minisforum MGA1 review: The external graphics card that transforms mini PCs, handhelds and laptops into gaming machines

More than just an eGPU.

Can a compact external GPU truly deliver desktop performance? Based on an AMD Radeon RX 7600M XT, Minisforum promises that its MGA1 can do precisely this. Read our review to find out what the external graphics unit is capable of, and whether you should buy it.
Sebastian Bade, 👁 Sebastian Bade (translated by Daisy Dickson) Published 🇩🇪 🇫🇷 ...
Mini PC Desktop GPU AMD Radeon

Verdict - A simple solution for more 3D performance

The Minisforum MGA1 eGPU is a simple and interesting solution for users who want to expand the graphics performance of their mini PCs or handhelds. Equipped with an AMD Radeon RX 7600M XT and 8 GB GDDR6 RAM, the eGPU delivers solid performance during graphics-intensive applications such as gaming and video editing. Support for up to three 8K displays via HDMI 2.1 and DisplayPort 2.0 offers users a wide range of possible applications. In addition, the eGPU expands the number of USB ports, and its USB-C port allows devices at up to 65 watts to be connected and operated directly via the Minisforum MGA1.

In general, this all sounds great and as it turned out, the eGPU worked flawlessly in practice, too. But, in contrast to other eGPU solutions, the Minisforum model can unfortunately only connect via OCuLink. This currently limits its potential uses drastically, as only few devices are fitted with such a connection. From a technical standpoint, OCuLink has an advantage over USB4 connectivity, which is how the manufacturer justifies this decision. Nevertheless, an alternative option via USB4 would be useful, as this would significantly increase the product's target market. The Minisforum MGA1 is currently available for $559, which is significantly cheaper than its competitors.

Overall, the Minisforum MGA1 boasts a very high-quality appearance, which can be attributed to the manufacturer's choice of materials. Decent performance inside a compact design and the option of combining the eGPU with various devices are both certainly good features. Anyone in possession of a compatible mini PC or handheld can noticeably increase their 3D performance without having to buy a completely new system.

Pros

+ stable case
+ high-quality build
+ compact with an internal power supply
+ low power consumption
+ PD at a maximum of 65 watts
+ noticeable performance increase compared to an iGPU
+ OCuLink cable included in scope of delivery

Cons

- clearly audible under load
- no alternative performance modes

Price and availability

The Minisforum MGA1 can be purchased directly from the manufacturer for $559.

Amazon Logo
Amazon
MINISFORUM MGA1 Docking Station, AMD Radeon 7600M XT (8GB GDDR6), Oculink4i (PCIE4.0×4), HDMI 2.1 x 1 / DP 2.0 x 2, 3 x USB A, 1 x USB C (65W PD Out), Built-in 240W GaN Power Supply

The MGA1 is an external GPU docking station released by Minisforum, which has been developed especially for mini PCs and handhelds. The AMD Radeon RX 7600M XT graphics processor with 8 GB GDDR6 RAM provides a performance boost during 3D applications. The eGPU also offers additional connectivity options, which is particularly useful for devices with few external interfaces. The MGA1 eGPU from Minisforum can be connected via OCuLink, which is by all means a good choice as it allows the eGPU to be operated at full bandwidth (PCIe 4.0 x4).

Price-wise, the Minisforum MGA1 will set you back $559, making the eGPU a powerful solution for users who want to improve their system's graphics performance without needing to reach for bulky desktop solutions. Its compactness and functionality make it particularly attractive for users of mini PCs such as the Minisforum AtomMan or EliteMini series.

Specifications

Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Processor
AMD Ryzen 7 8700G 8 x 4.2 - 5.1 GHz, 65 W PL2 / Short Burst, 65 W PL1 / Sustained, Phoenix
Graphics adapter
AMD Radeon RX 7600M XT - 8 GB VRAM, Core: 2608 MHz, RAM: 2250 MHz, 120 W TDP
Memory
32 GB
, DDR-5600 MT/s
Storage
Kingston OM8PGP41024Q-A0, 1024 GB
, 895 GB free
Soundcard
AMD Zen - Audio Processor - HD Audio Controller
Connections
2 USB 2.0, 7 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 2 HDMI, 4 DisplayPort, 1 Docking Station Port, Audio Connections: 3.5mm Klinke (Combo Jack)
Networking
Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX210 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Size
height x width x depth (in mm): 45 x 247 x 126 ( = 1.77 x 9.72 x 4.96 in)
Weight
1.422 kg ( = 50.16 oz / 3.13 pounds), Power Supply: 0 g ( = 0 oz / 0 pounds)
Price
619 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)

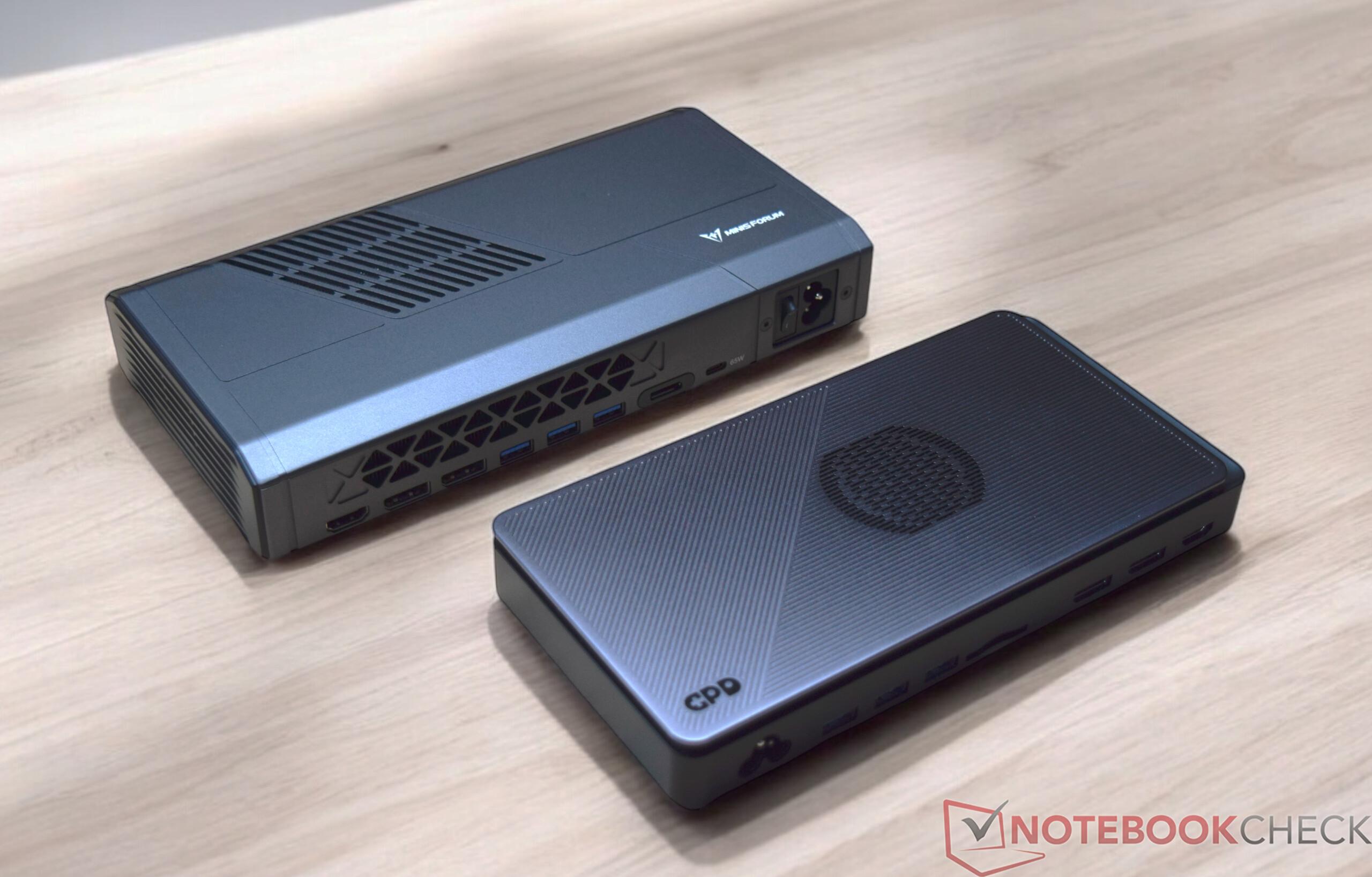

Minisforum MGA1 vs. GPD G1
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)

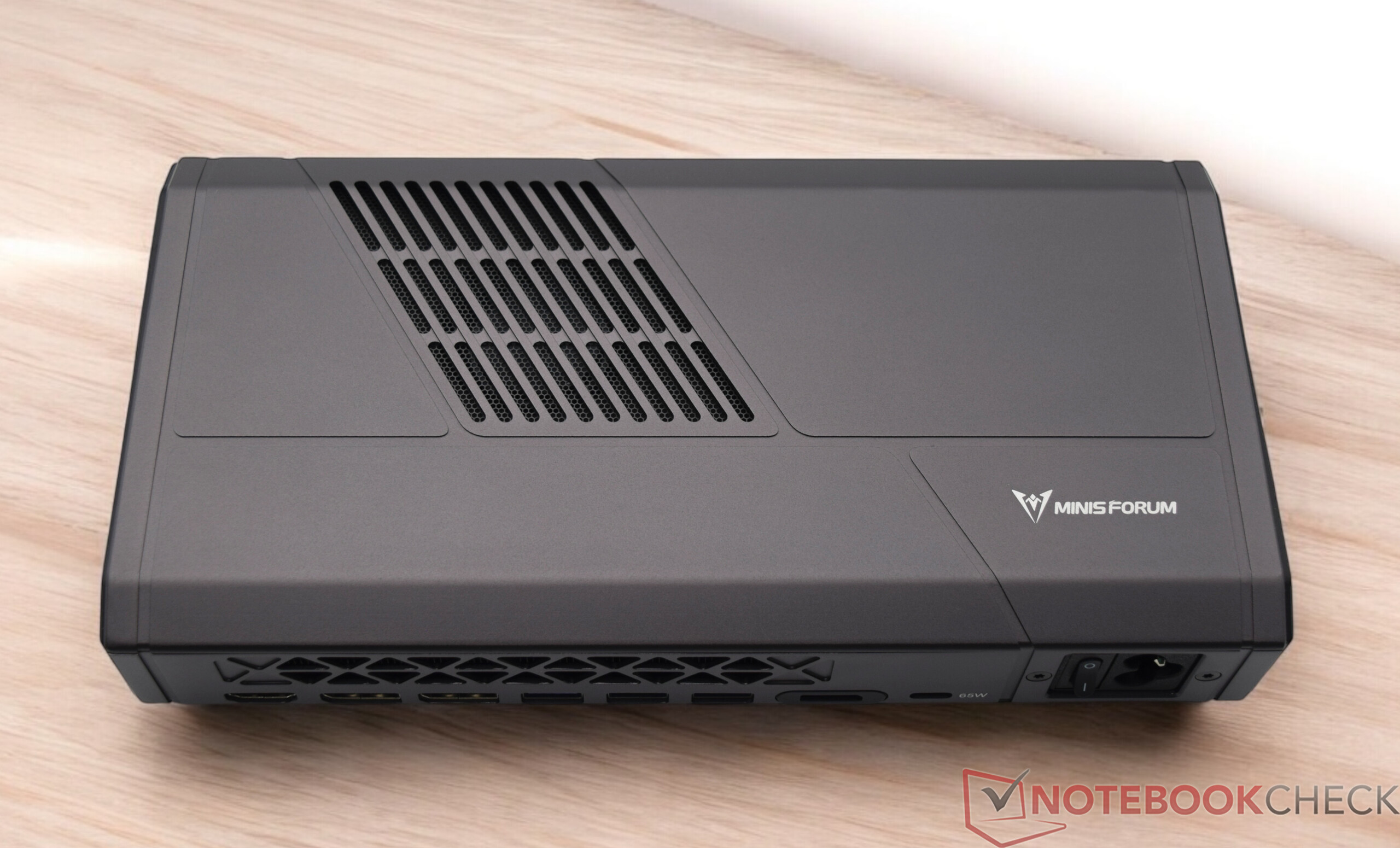

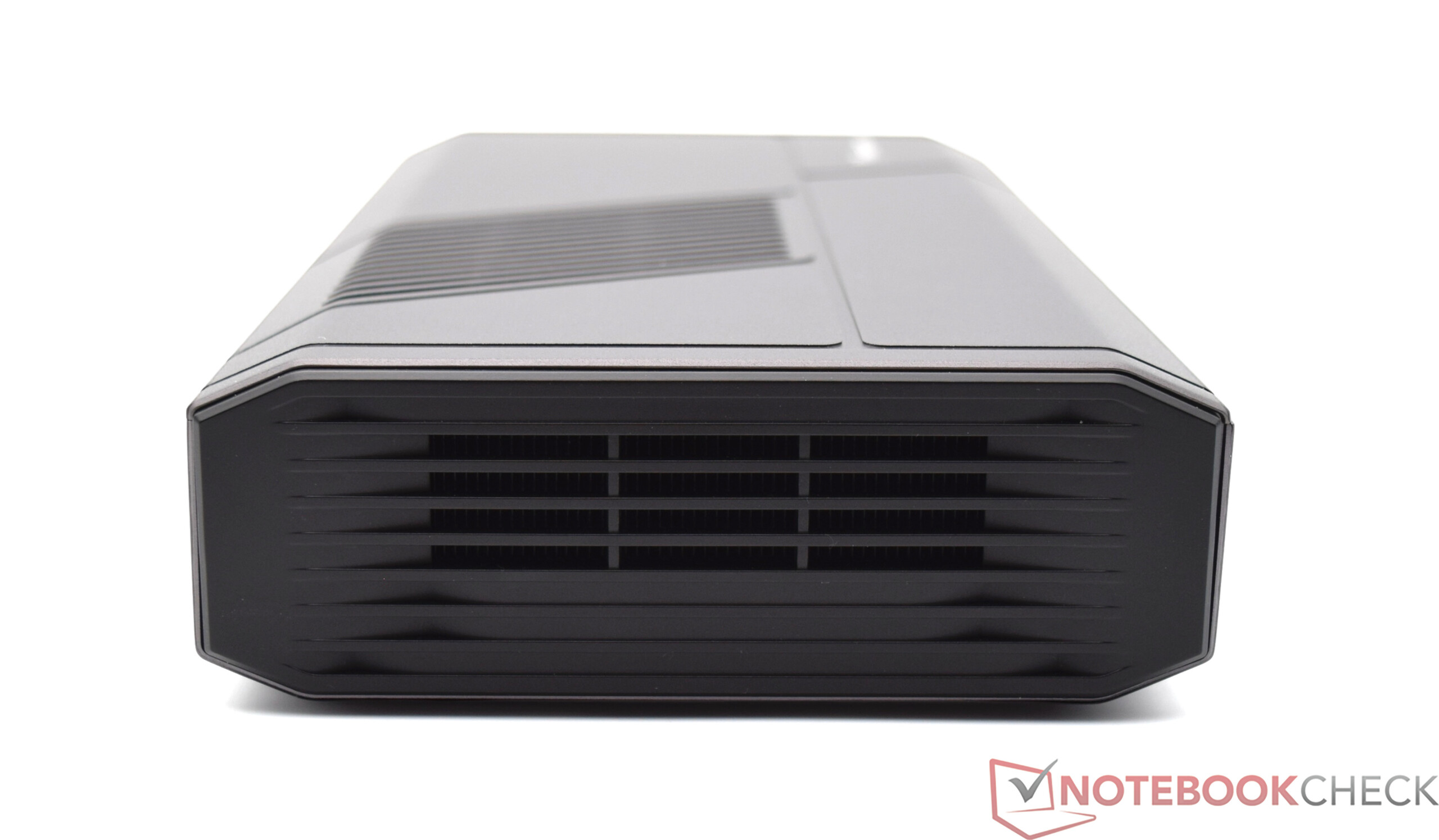

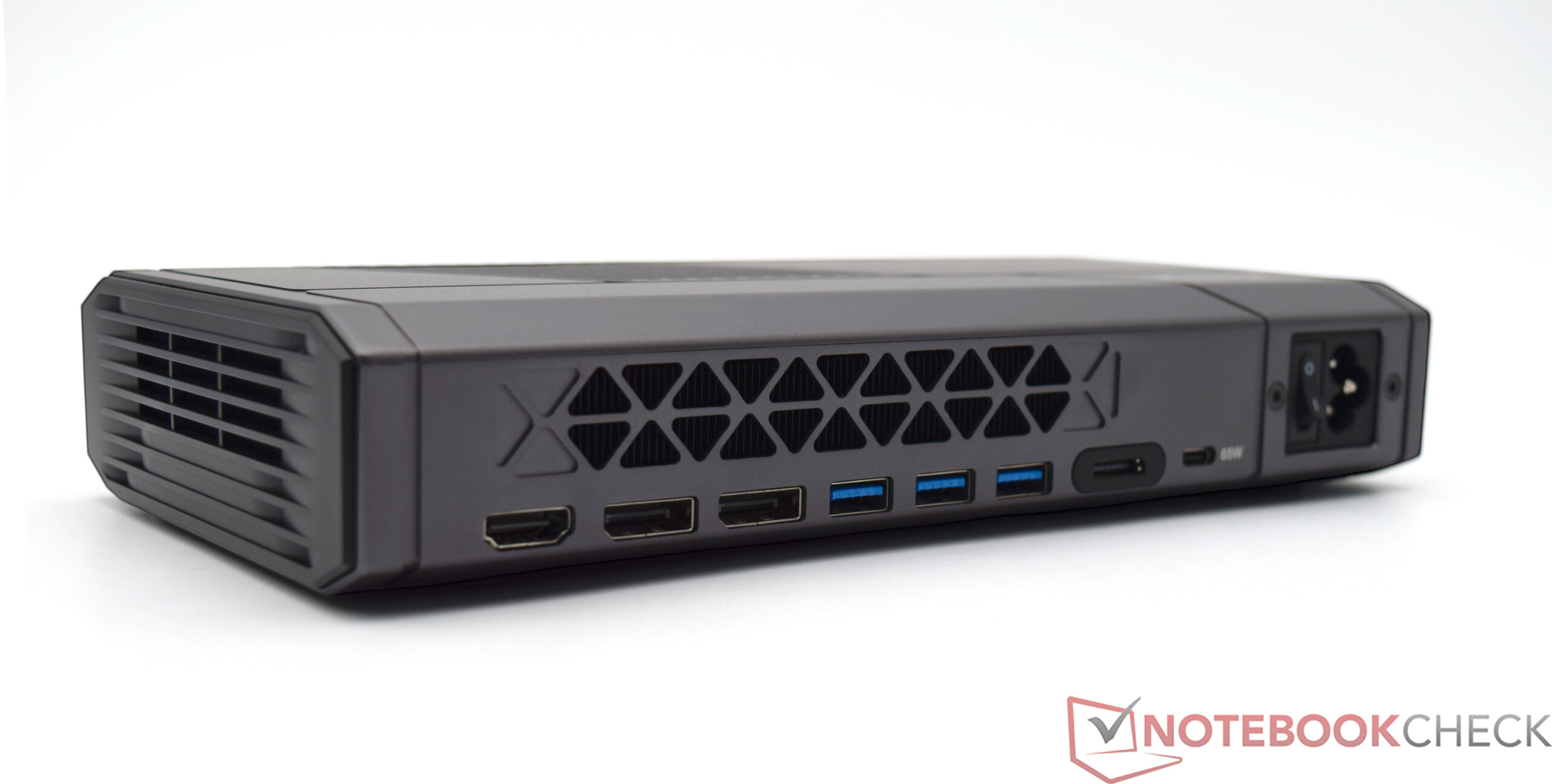

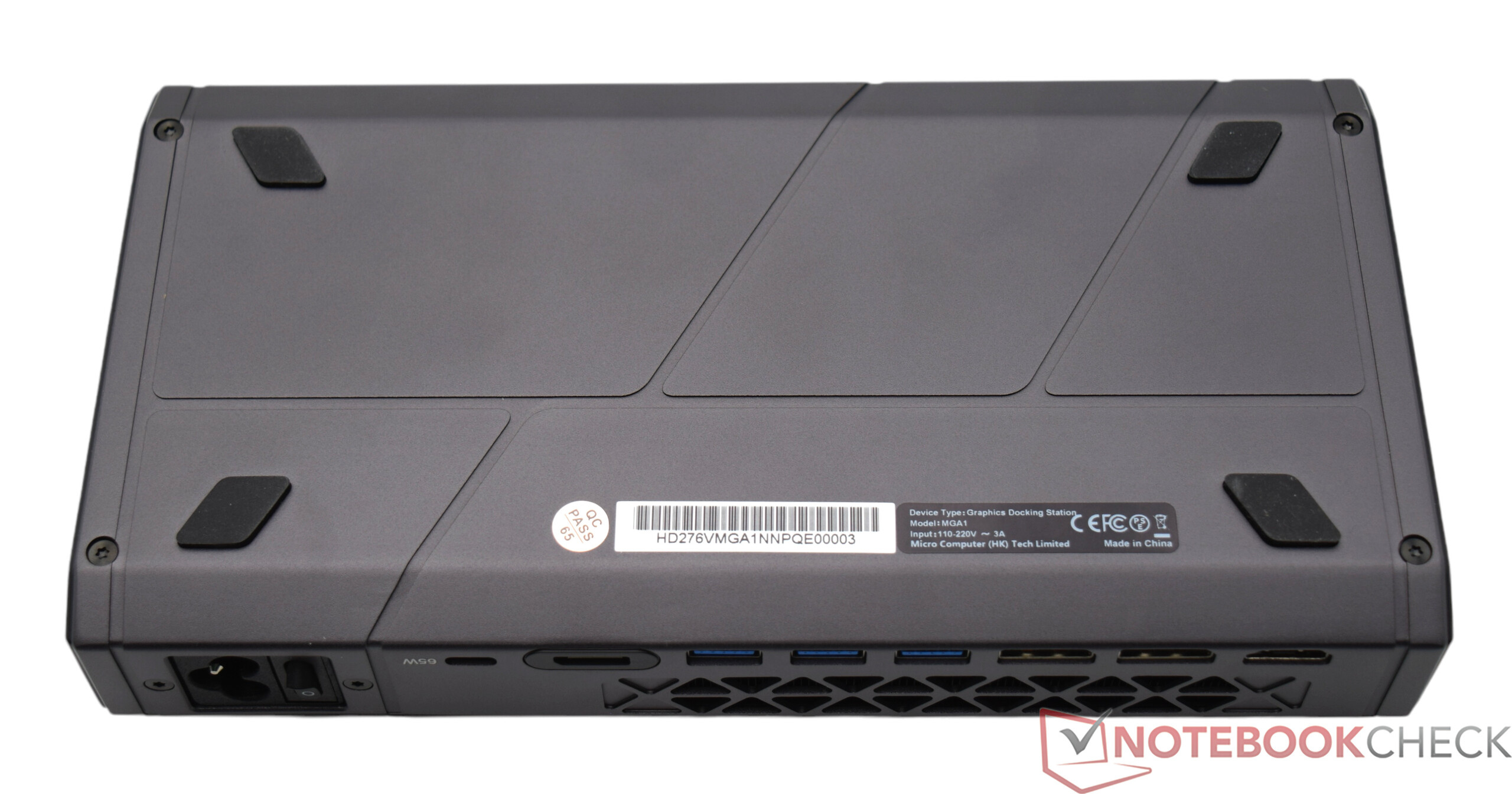

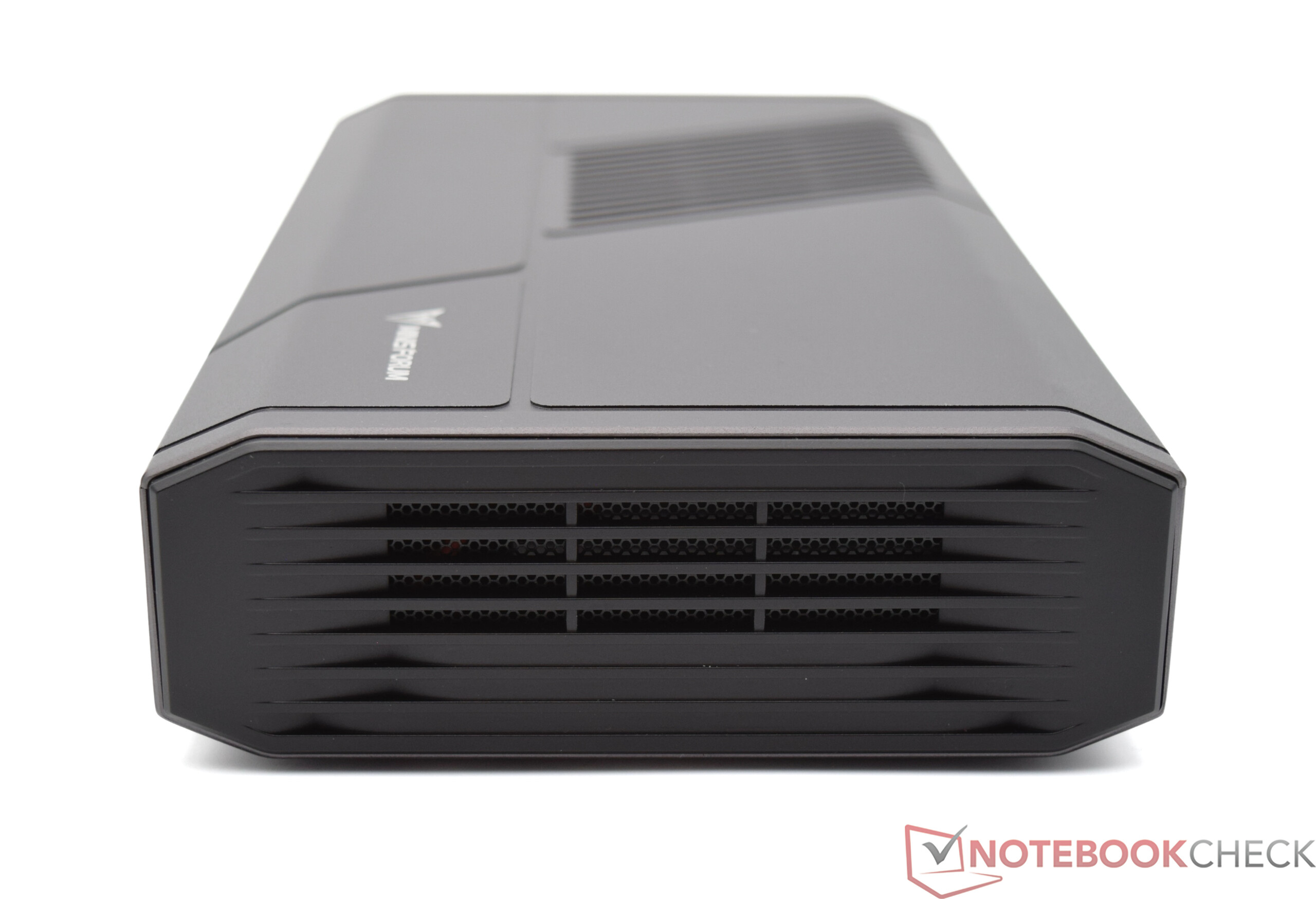

Case - Stable metal case

The tech is surrounded by a rather inconspicuous case, which is largely made of metal. Its look is characterized by the ventilation openings, which are intended to ensure smooth operation. However, it hasn't been possible to do entirely without plastic. Minisforum has forgone the use of metal on both sides of the device. Nevertheless, the external graphics card leaves a very high-quality haptic impression.

Connectivity - The eGPU as a docking station

When looking at its external interfaces, it quickly becomes clear that this isn't just a simple eGPU, because in addition to the three connections for monitors, it also features three USB-A ports. The eGPU can be connected via OCuLink, which is, unfortunately, the only option. This is a shame, as it significantly limits the use of the eGPU. Other models, such as the GPD G1, can additionally be connected via USB4. USB4 offers a lower bandwidth compared to OCuLink, which results in a reduction in performance of around 10 percent. An important note when using the USB-A ports: If you want to use these, you must also connect the Minisforum MGA1 via USB-C in addition to the OCuLink connection.

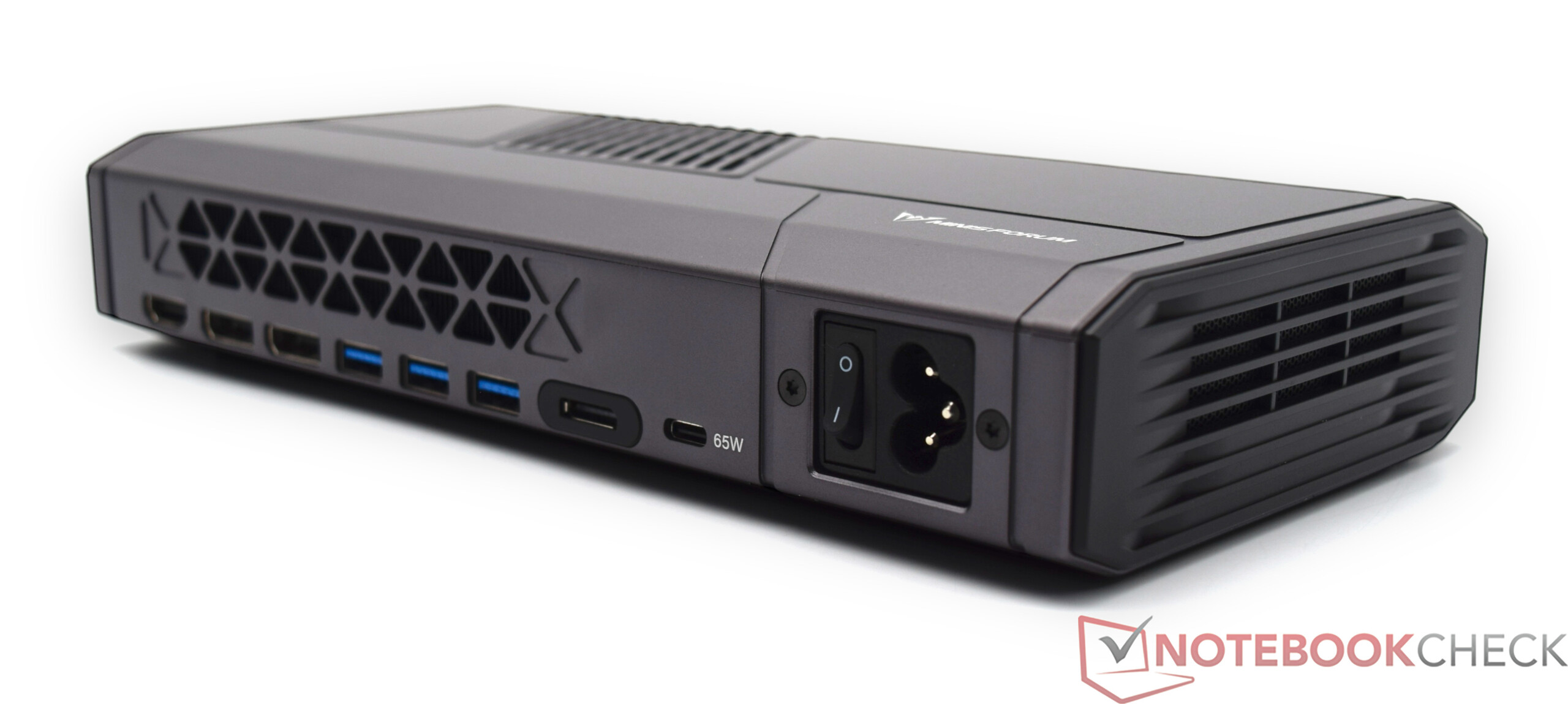

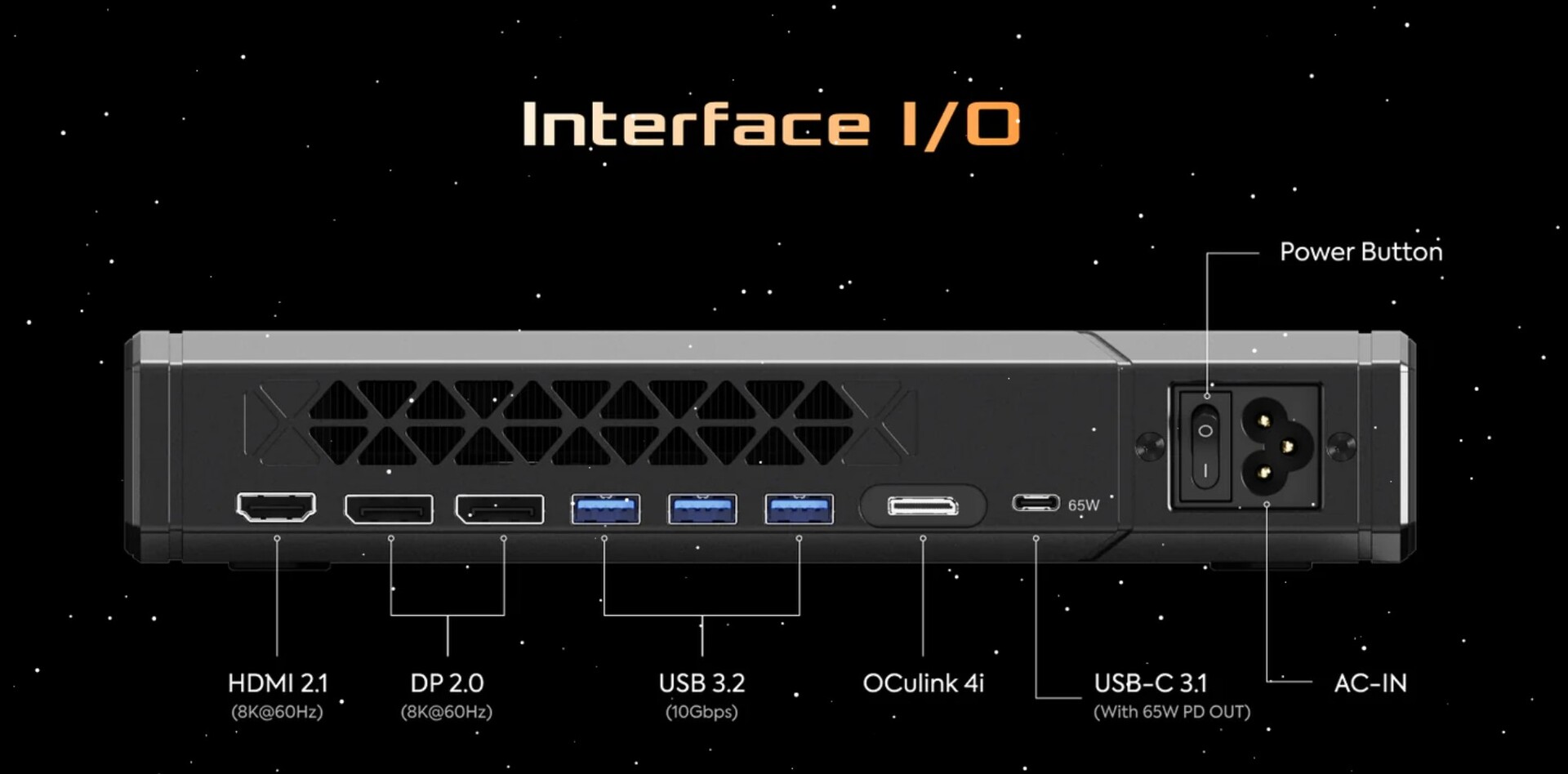

The Minisforum MGA1's external ports (source: Minisforum)
The Minisforum MGA1's external ports (source: Minisforum)

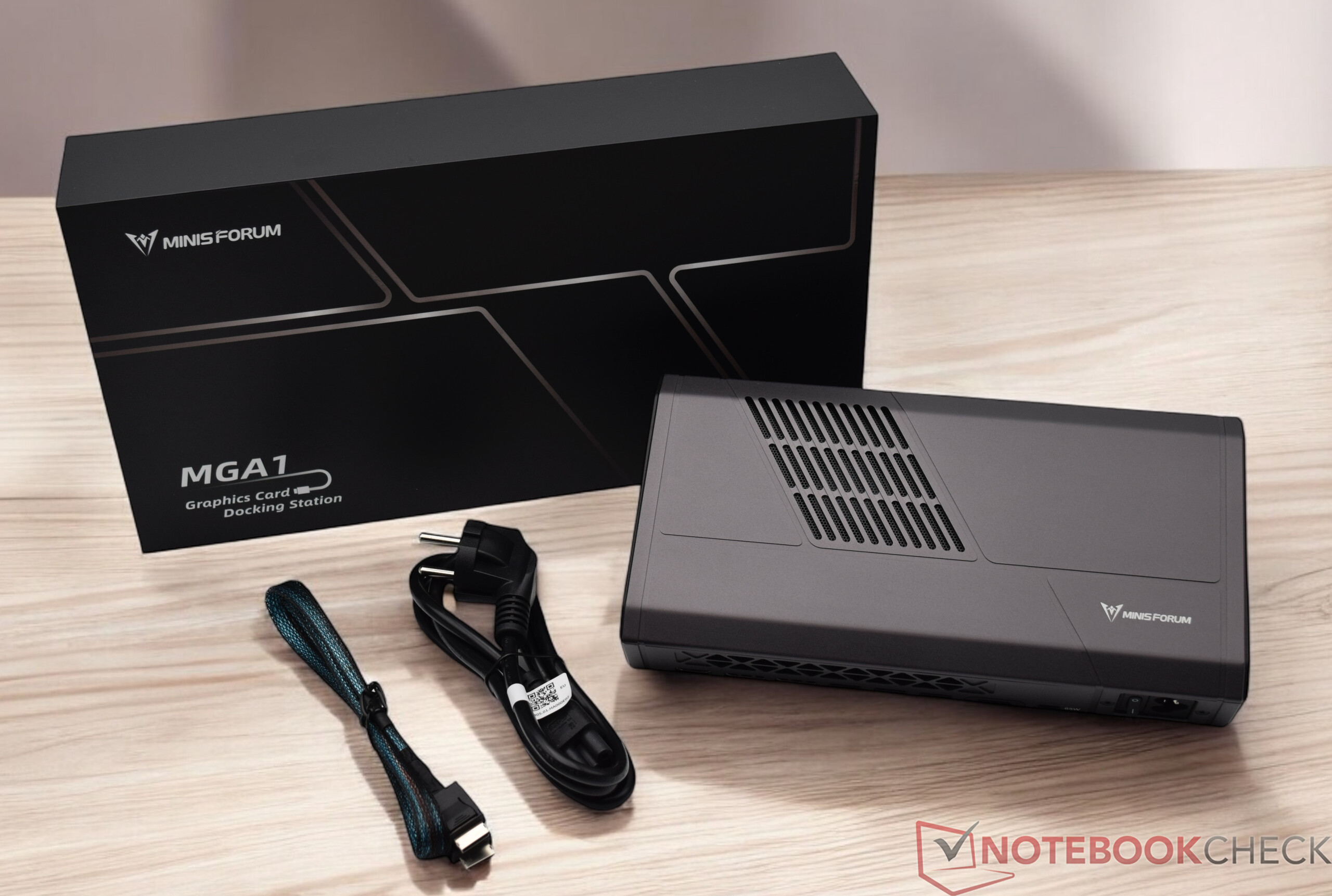

Accessories

Not much is included in its scope of delivery. Aside from the eGPU itself, the manufacturer includes a power cable as well as an OCuLink cable.

Maintenance

Unlike laptops or mini PCs, the eGPU cannot be upgraded any further. Maintenance work therefore only includes the option to clean the device. Thankfully, its sturdy metal case can be opened quite easily. Only four screws need to be taken out to remove the top. The fan underneath can also be removed quite easily, which makes any cleaning work even easier.

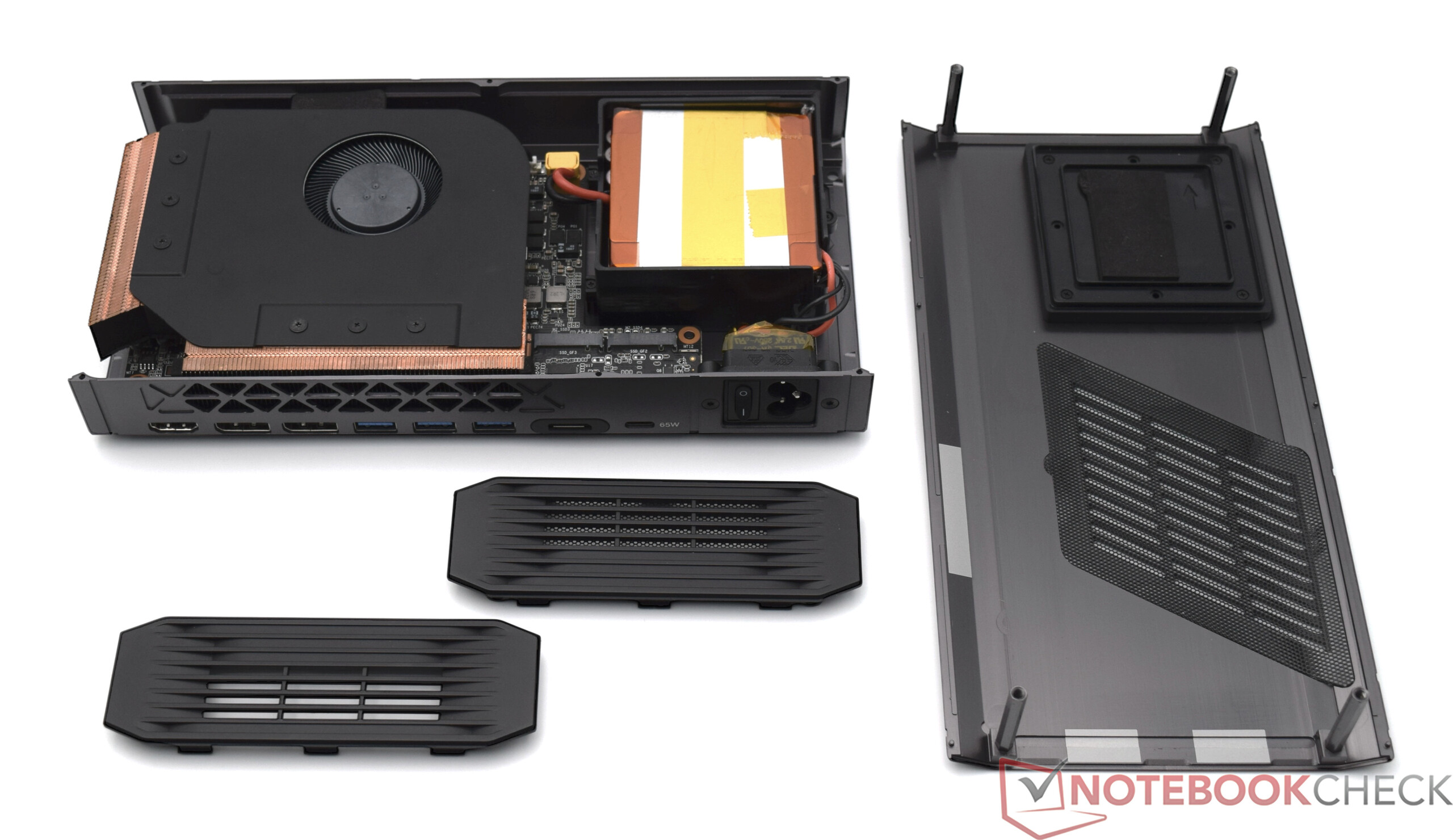

Opened-up Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT) without cover

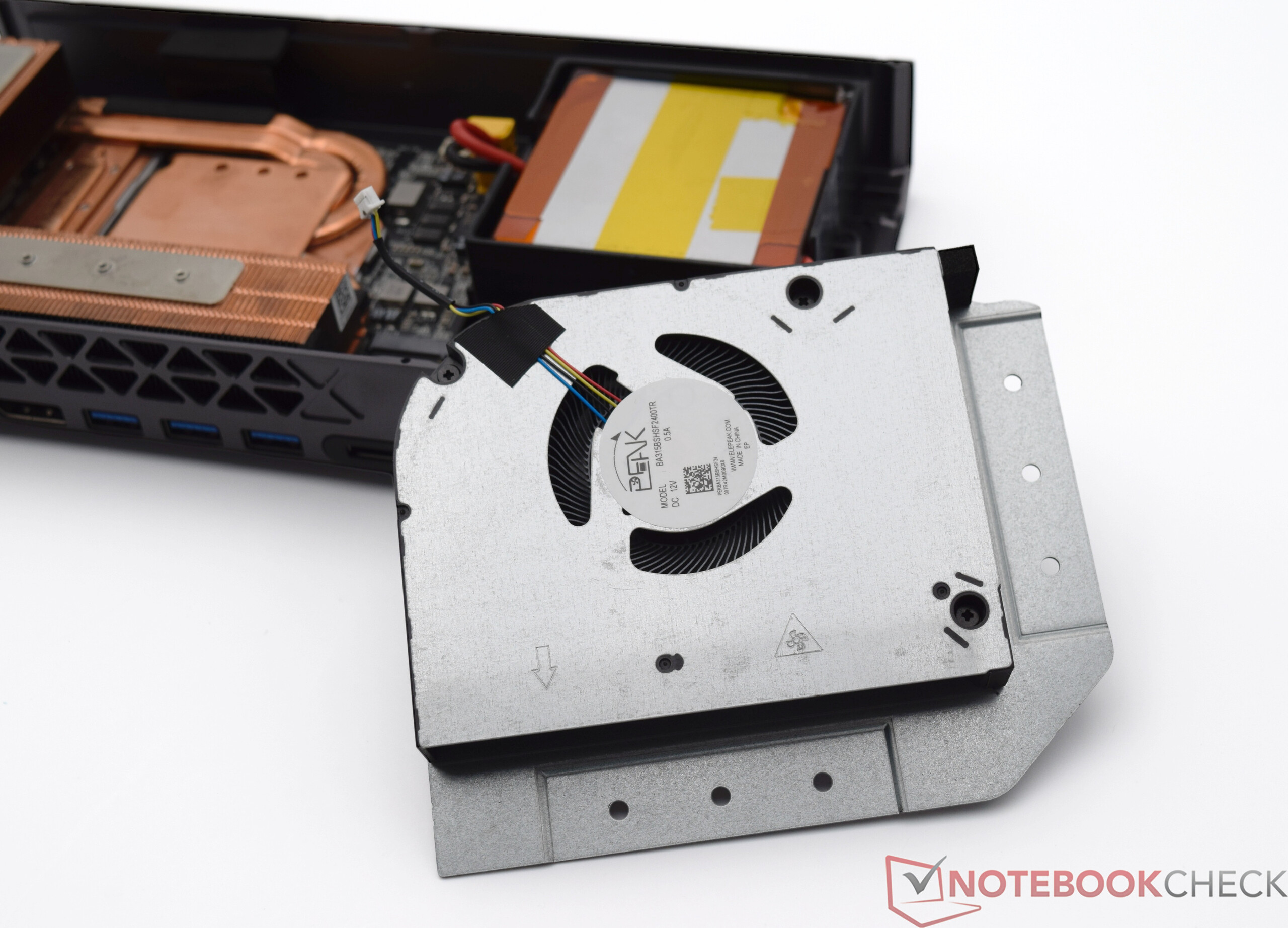

The Minisforum MGA1 eGPU's fans (AMD Radeon RX 7600M XT)
Minisforum MGA1 eGPU (AMD Radeon RX 7600M XT) without fans

Performance - The Minisforum MGA1 massively speeds up mini PCs

As a solid mid-range graphics card, the AMD Radeon RX 7600M XT is perfectly suited for Full HD gaming. The Minisforum MGA1 is also equipped with 8 GB of VRAM, which is sufficient for most applications.

Testing conditions

We used the Minisforum MS-A1—which features the necessary OCuLink connection—as the basis for this test. The AMD Ryzen 7 8700G additionally provides a solid basis for covering all of the most important scenarios.

Synthetic benchmarks - The MGA1 and G1 at eye level

For the first performance comparison, let's first take a look at the results of the synthetic benchmarks. In general, we noted an almost identical result between the Minisforum MGA1 and the GPD G1 eGPU. The Minisforum G7 PT also relies on similar hardware, but delivers slightly more performance due to its more powerful CPU. Its similarity to the AMD Radeon RX 7600 became clearly visible here, as the portable GPU only lost 10 percent in comparison. With up to 165 watts, the graphics card has a little more leeway.

To illustrate the increase in performance, it's worth taking a look at the Minisforum MS-A1, which only has to cope with the AMD Radeon 780M without an eGPU. The Minisforum EliteMini AI370 which we recently tested also came off second best despite its powerful AMD Radeon 890M. Using an external graphics card can therefore be worthwhile as long as the requirements are met. You can currently expect even better performance with an Nvidia GeForce RTX 4070 Laptop, which is installed in the Minisforum AtomMan G7 Ti or an Asus ROG NUC, among others. However, the advantage of an eGPU is its flexibility, which allows it to be used with different devices.

Performance Rating - Percent
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
96.6 pt
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
87.7 pt
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
85.2 pt
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
84.3 pt
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
79.7 pt
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
78 pt
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
29 pt
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
22.9 pt
3DMark
2560x1440 Time Spy Graphics
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
12698 Points +26%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
11062 Points +10%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
10777 Points +7%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
10108 Points 0%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
10059 Points
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
9856 Points -2%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
3533 Points -65%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
2890 Points -71%
Fire Strike Extreme Graphics
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
14966 Points +10%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
14532 Points +7%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
14346 Points +5%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
13645 Points
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
13442 Points -1%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
12656 Points -7%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
4809 Points -65%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
3999 Points -71%
3840x2160 Fire Strike Ultra Graphics
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
7305 Points +8%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
7125 Points +5%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
6828 Points +1%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
6789 Points
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
6718 Points -1%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
6455 Points -5%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
2627 Points -61%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
2169 Points -68%
1920x1080 Fire Strike Graphics
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
32404 Points +11%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
30766 Points +5%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
30684 Points +5%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
29283 Points
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
28688 Points -2%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
25433 Points -13%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
9626 Points -67%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
8061 Points -72%
2560x1440 Port Royal Graphics
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
7751 Points +50%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
6192 Points +20%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
5635 Points +9%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
5459 Points +6%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
5166 Points
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
5008 Points -3%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
1912 Points -63%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
1600 Points -69%
2560x1440 Speed Way Score
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
3046 Points +61%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
2514 Points +33%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
1991 Points +5%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
1975 Points +4%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
1896 Points
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
1844 Points -3%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
575 Points -70%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
440 Points -77%
Unigine Superposition
1920x1080 1080p Extreme
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
7161 Points +23%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
6448 Points +10%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
6419 Points +10%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
6264 Points +7%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
5842 Points
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
5722 Points -2%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
2098 Points -64%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
1671 Points -71%
1920x1080 1080p High
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
15525 Points +22%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
14175 Points +11%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
14051 Points +10%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
13467 Points +6%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
12726 Points
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
12662 Points -1%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
4366 Points -66%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
3470 Points -73%
1280x720 720p Low
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
44501 Points +53%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
42477 Points +46%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
39520 Points +36%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
34368 Points +18%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
29070 Points
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
28841 Points -1%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
13973 Points -52%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
11463 Points -61%
Unigine Heaven 4.0
Extreme Preset DX11
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
169.8 fps +27%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
160.1 fps +20%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
148.1 fps +11%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
139 fps +4%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
133.5 fps
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
130.5 fps -2%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
45.2 fps -66%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
33.5 fps -75%
Extreme Preset OpenGL
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
172 fps +27%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
152.7 fps +12%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
147.2 fps +8%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
135.9 fps
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
131.7 fps -3%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
90.9 fps -33%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
44.2 fps -67%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
31.8 fps -77%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
129.8 fps +31%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
122.8 fps +24%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
107.5 fps +9%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
101.1 fps +2%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
99 fps
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
96.7 fps -2%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
30.5 fps -69%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
22.4 fps -77%
1920x1080 Extreme HD Preset OpenGL AA:x8
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
124.9 fps +40%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
116.4 fps +30%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
94.8 fps +6%
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
91.3 fps +2%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
89.5 fps
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
87.9 fps -2%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
26.6 fps -70%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
19.6 fps -78%
3DMark 11
1280x720 Performance GPU
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
44060 Points +4%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
44053 Points +4%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
43430 Points +3%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
42289 Points
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
41777 Points -1%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
34924 Points -17%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
16098 Points -62%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
13248 Points -69%
1280x720 Performance
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
38744 Points +10%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
35948 Points +2%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
35108 Points
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
35029 Points 0%
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
34232 Points -2%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
29880 Points -15%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
15337 Points -56%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
13118 Points -63%
Affinity Photo 2 - Combined (Single / Multi GPU)
Minisforum G7 PT
AMD Radeon RX 7600M XT, AMD Ryzen 9 7945HX
8614 Points +41%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, Intel Core i9-14900HX
6932 Points +14%
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
AMD Radeon RX 7600, AMD Ryzen 9 7950X
6273 Points +3%
Acemagic M2A
NVIDIA GeForce RTX 3080 Laptop GPU, Intel Core i9-12900H
6229 Points +2%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
6106 Points
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
AMD Radeon RX 7600M XT, AMD Ryzen 7 8700G
5831 Points -5%
Minisforum EliteMini AI370
AMD Radeon 890M, AMD Ryzen AI 9 HX 370
2879 Points -53%
Minisforum MS-A1
AMD Radeon 780M, AMD Ryzen 7 8700G
1853 Points -70%

Professional applications

Compared to the benchmarks concerning rendering performance, AMD delivered an excellent performance. The Minisforum MGA1 managed to achieve quite a good result here and even outperformed the GPD G1 by a little. However, the GPU G1 doesn't offer sufficient performance to use the eGPU during professional applications. Unfortunately, the consumer graphics card can't keep up with professional graphics solutions.

Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Ryzen 7 8700G, AMD Radeon RX 7600M XT
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Ryzen 7 8700G, AMD Radeon RX 7600M XT
XFX Speedster QICK 308 Radeon RX 7600 Black Edition
R9 7950X, AMD Radeon RX 7600
Minisforum MS-A1
Ryzen 7 8700G, AMD Radeon 780M
Minisforum EliteMini AI370
Ryzen AI 9 HX 370, AMD Radeon 890M
Minisforum AtomMan G7 Ti
i9-14900HX, NVIDIA GeForce RTX 4070 Laptop GPU
Minisforum G7 PT
R9 7945HX, AMD Radeon RX 7600M XT
KFA2 GeForce RTX 4060 1-Click-OC 2X
R9 7950X, NVIDIA GeForce RTX 4060
Dell Precision 5690
Ultra 9 185H, NVIDIA RTX 5000 Ada Generation Laptop GPU
Average of class

SPECviewperf 2020
-4%
12%
-66%
-56%
-12%
-3%
-21%
21%
-7%
3840x2160 Medical (medical-03)
32.1
30.6
-5%
36.1
12%
12.9
-60%
17.5
-45%
15.2
-53%
30.8
-4%
13.7
-57%
58.46
82%
20.5 ?(0.78 - 107, n=335)
-36%
3840x2160 Maya (maya-06)
163
160
-2%
178
9%
45.3
-72%
62.9
-61%
223
37%
171
5%
196
20%
184.05
13%
3840x2160 Energy (energy-03)
58.9
55.6
-6%
67
14%
21.4
-64%
28.3
-52%
44
-25%
43.2
-27%
33.2
-44%
38.09
-35%
3840x2160 Creo (creo-03)
95.3
93.7
-2%
106
11%
30.6
-68%
37.6
-61%
93.7
-2%
97.5
2%
85.9
-10%
100.9
6%
76.5 ?(7.73 - 223, n=333)
-20%
3840x2160 CATIA (catia-06)
64.5
63.3
-2%
68
5%
24.2
-62%
27.3
-58%
37.3
-42%
64.1
-1%
34
-47%
67.17
4%
46.6 ?(2.11 - 153, n=333)
-28%
3840x2160 3ds Max (3dsmax-07)
61.1
55.9
-9%
72.9
19%
19.9
-67%
26.8
-56%
69
13%
63.9
5%
67.4
10%
94.56
55%

Gaming performance - Fast enough for Full HD gaming

In terms of pure gaming performance, the Minisforum MGA1 delivered a compelling performance. Its difference compared to the simple iGPU was noticeable in all 3D applications. Technically, we had no problems in combination with the Minisforum MS-A1. Compared to the GPD G1, which we tested in the same combination, the eGPU from Minisforum could set itself apart with a plus of 10 percentage points. Both models use a similar basis and differ mainly in their cooling unit, which Minisforum has solved a bit better.

In practice, you can run lots of games smoothly in 1,080p. Occasionally, however, you'll have to reduce the detail level if you want to play the latest games. Features such as FSR can also be used with the Minisforum MGA1 to increase frame rates.

Performance Rating - Percent
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
96.8 pt
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
93.9 pt
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
85.8 pt
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
82.5 pt
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
79 pt
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
72.1 pt
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
66.8 pt
Average AMD Radeon 890M

36.7 pt
Average AMD Radeon 780M

32.3 pt
GTA V
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
184.9 (3.43min, 142.9P1) fps +7%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
181.1 (2.15min, 111.1P1) fps +5%
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
174.7 (3.63min, 125P1) fps +1%
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
174.1 (2.38min, 125P1) fps +1%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
172.6 (4.34min, 83.3P1) fps
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
167 (3.83min, 100P1) fps -3%
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
165.6 (11.7min, 83.3P1) fps -4%
Average AMD Radeon 890M
  (68.4 - 80.2, n=10)
77.3 fps -55%
Average AMD Radeon 780M
  (32.5 - 69.4, n=54)
60.2 fps -65%
1024x768 Lowest Settings possible
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
187.7 (3.12min, 200P1) fps +2%
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
187.7 (3.68min, 200P1) fps +2%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
187 (1.51min, 142.9P1) fps +1%
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
186.3 (1.707min, 166.7P1) fps +1%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
184.7 (2.62min, 142.9P1) fps
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
183.9 (3.63min, 142.9P1) fps 0%
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
182.8 (2.37min, 125P1) fps -1%
Average AMD Radeon 890M
  (149.1 - 174.3, n=10)
163.7 fps -11%
Average AMD Radeon 780M
  (91.6 - 169.4, n=52)
146 fps -21%
Dota 2 Reborn
1920x1080 high (2/3)
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
212 (175min) fps +58%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
209.9 (181.8min) fps +56%
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
207.2 (174.7min) fps +54%
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
152.4 (137.1min) fps +13%
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
152.1 (133.1min) fps +13%
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
141 (119.5min) fps +5%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
134.6 (118.6min) fps
Average AMD Radeon 780M
  (31.6 - 98.8, n=61)
79.7 fps -41%
Average AMD Radeon 890M
  (34.8 - 100, n=10)
62.1 fps -54%
1280x720 min (0/3) fastest
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
273.4 (212.6min) fps +48%
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
265.4 (230.3min) fps +43%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
252.7 (208.8min) fps +36%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
185.3 (160.9min) fps
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
180.8 (158.2min) fps -2%
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
177.1 (158.1min) fps -4%
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
161.7 (139.4min) fps -13%
Average AMD Radeon 890M
  (132.3 - 175.6, n=10)
158.9 fps -14%
Average AMD Radeon 780M
  (34.7 - 164.8, n=61)
133.2 fps -28%
Cyberpunk 2077 2.1 Phantom Liberty
1920x1080 High Preset (FSR off)
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
96.7 (83.2min) fps +18%
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
94.3 (79.6min) fps +15%
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
93.3 (79.1min) fps +14%
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
86 (72.9min) fps +5%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
81.8 (68.9min) fps
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
81.4 (68.5min) fps 0%
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
51.8 (44.2min) fps -37%
Average AMD Radeon 890M
  (25.4 - 32.3, n=10)
29.4 fps -64%
Average AMD Radeon 780M
  (13.8 - 29.6, n=40)
24.6 fps -70%
1920x1080 Low Preset (FSR off)
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
144.7 (122.8min) fps +19%
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
142.1 (121.4min) fps +17%
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
127.1 (106.5min) fps +4%
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
125.3 (101.2min) fps +3%
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
121.9 (100.3min) fps 0%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
121.7 (100.1min) fps
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
83.9 (70.6min) fps -31%
Average AMD Radeon 890M
  (40 - 52.5, n=10)
47.4 fps -61%
Average AMD Radeon 780M
  (29.3 - 52.1, n=43)
40.2 fps -67%
Baldur's Gate 3
1920x1080 High Preset
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
107.8 (34.6min, 48.3P0.1, 71.3P1) fps +21%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
105.2 (29.9min, 64.3P0.1, 90.4P1) fps +18%
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
95.7 (61.3min, 62.5P0.1, 83.2P1) fps +7%
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
91.6 (71.6min, 76.5P0.1, 79.8P1) fps +3%
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
89.4 (38min, 73.3P0.1, 78.6P1) fps 0%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
89.3 (38.1min, 75.5P0.1, 79.6P1) fps
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
50.8 (41.7min, 41.9P0.1, 43.8P1) fps -43%
Average AMD Radeon 890M
  (24.1 - 31.2, n=10)
28.6 fps -68%
Average AMD Radeon 780M
  (13.3 - 30.6, n=29)
24.2 fps -73%
1280x720 Low Preset
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
211 (43.8min, 73.2P0.1, 106.9P1) fps +24%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
196.8 (28.4min, 75.7P0.1, 141.2P1) fps +16%
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
173.5 (38.9min, 61.9P0.1, 117.4P1) fps +2%
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
173.4 (69min, 110.7P0.1, 128.8P1) fps +2%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
169.6 (68.1min, 89P0.1, 123.4P1) fps
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
154.7 (67min, 91.3P0.1, 108.8P1) fps -9%
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
118.6 (76.8min, 86.8P0.1, 96.8P1) fps -30%
Average AMD Radeon 890M
  (55.2 - 73.4, n=5)
62.2 fps -63%
Average AMD Radeon 780M
  (30.7 - 67.4, n=17)
57.8 fps -66%
F1 24
1920x1080 High Preset AA:T AF:16x
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
195.3 (162min, 144P1) fps +2%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
192.6 (172min, 148P1) fps +1%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
190.8 (163min, 141P1) fps
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
186.4 (154min, 100P1) fps -2%
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
175.6 (155min, 128P1) fps -8%
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
104.6 (90min, 86P1) fps -45%
Average AMD Radeon 890M
  (53.4 - 66, n=2)
59.7 fps -69%
Average AMD Radeon 780M
  (23.3 - 59.5, n=15)
47.8 fps -75%
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
27.7 (19min, 20P1) fps -85%
1920x1080 Low Preset AA:T AF:16x
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
322 (272min, 214P1) fps +15%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
281 (213min, 177P1) fps
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
280 (241min, 179P1) fps 0%
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
269 (213min, 171P1) fps -4%
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
252 (190min, 159P1) fps -10%
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
200 (164min, 113P1) fps -29%
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
173.3 (145min, 135P1) fps -38%
Average AMD Radeon 890M
  (87.2 - 104.6, n=2)
95.9 fps -66%
Average AMD Radeon 780M
  (43.3 - 94.8, n=14)
78 fps -72%
Avatar Frontiers of Pandora
1920x1080 High Preset AA:T
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
80 (65min) fps +111%
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
76 (61min) fps +100%
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
61 (48min) fps +61%
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
56 (45min) fps +47%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
38 (30min) fps
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
37 (27min) fps -3%
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
34 (28min) fps -11%
Average AMD Radeon 890M
  ()
17 fps -55%
Average AMD Radeon 780M
  (11 - 19, n=3)
14.7 fps -61%
1920x1080 Low Preset AA:T
Minisforum AtomMan G7 Ti
NVIDIA GeForce RTX 4070 Laptop GPU, i9-14900HX, Kingston OM8PGP41024Q-A0
97 (81min) fps +64%
Asus ROG NUC 14-90AS0051
NVIDIA GeForce RTX 4070 Laptop GPU, Ultra 9 185H, Samsung PM9A1a MZVL21T0HDLU
94 (76min) fps +59%
Acemagic M2A
GeForce RTX 3080 Laptop GPU, i9-12900H, Rayson RS1D0TSSD710 1024 GB PCIe 4.0 NVMe
76 (63min) fps +29%
Minisforum G7 PT
Radeon RX 7600M XT, R9 7945HX, Kingston OM8PGP41024Q-A0
73 (58min) fps +24%
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G, Kingston OM8PGP41024Q-A0
59 (50min) fps
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Radeon RX 7600M XT, Ryzen 7 8700G
58 (44min) fps -2%
HP Z2 Mini G9-996Q4ET
RTX A2000, i7-14700K, Kioxia XG8 KXG80ZNV1T02
44 (36min) fps -25%
Average AMD Radeon 890M
  ()
22 fps -63%
Average AMD Radeon 780M
  (15 - 25, n=3)
19.7 fps -67%
lowmed.highultraQHD FSRQHD4K FSR4K
GTA V (2015) 184.7 181 172.6 97.2 70.2 74.9
The Witcher 3 (2015) 452 343 194.7 113.6 78.7 54.8
Dota 2 Reborn (2015) 185.3 159.3 134.6 120.8 88.9
Final Fantasy XV Benchmark (2018) 229 134.9 93.6 67.6 36.3
X-Plane 11.11 (2018) 111.4 92.3 73.2 53.4
Far Cry 5 (2018) 153 137 132 124 103 52
Strange Brigade (2018) 495 259 212 179.5 119.6 63.7
Total War: Three Kingdoms (2019) 341.8 195.5 124.6 85.2 51 23.9
Far Cry 6 (2021) 148.9 132.1 122.6 102.5 70.2 3.02
Forza Horizon 5 (2021) 236 187 179 76 58 36
Farming Simulator 22 (2021) 246 208 177.3 161 129.4 79.8
God of War (2022) 126.4 122.3 99.2 69.3 53.5 33.9
Starfield (2023) 77.5 75.9 63.1 57.2 46.8 30.7
Lies of P (2023) 176.1 150.4 128.5 113.8 76.3 37.8
Baldur's Gate 3 (2023) 134.2 104.7 89.3 87.7 60.6 30.3
Cyberpunk 2077 2.1 Phantom Liberty (2023) 121.7 96.8 81.8 73.2 45.8 19.8
Assassin's Creed Mirage (2023) 130 118 108 76 56 33
Total War Pharaoh (2023) 326.8 218.9 135.7 109.9 75.3 35.4
Lords of the Fallen (2023) 89.1 81 66.4 49.4 32.7 16.9
Avatar Frontiers of Pandora (2023) 59 54 38 28 19 9
F1 24 (2024) 281 257 190.8 33.9 10.9
The First Descendant (2024) 154.6 99.4 87.9 72.9 43.9 15.7 22.2
Black Myth: Wukong (2024) 79 58 44 23 16
Star Wars Outlaws (2024) 43.5 38.8 35 28.2 19.5
Space Marine 2 (2024) 67.8 67.2 65.6 63.3 45.2
Final Fantasy XVI (2024) 62.1 59.9 53.3 54.4 13.2 48.7 10.3 23
God of War Ragnarök (2024) 120.1 105.5 90.8 52.1 5.8
Call of Duty Black Ops 6 (2024) 143 129 82 77 64 60 35 35

Emissions - Better than the competition

Noise emissions

The cooling concept of the Minisforum MGA1 is similar to the GPD G1, although the eGPU from Minisforum is significantly quieter. Fresh air is drawn in at the top, which is then directed out of the case at the sides and back. When idling, we recorded just under 31 dB(A) for the mini PC and eGPU combination, which is significantly quieter than the competitor product from GPD. At 40 dB(A), the eGPU was a lot louder under average load and we measured a sound pressure level of up to 48.8 dB(A) at peak times. Even so, the comparison with the gaming mini PCs revealed a similar result under load. Still, the GPD G1 eGPU can really up the ante, and the approx. 59 dB(A) we measured when gaming definitely requires the use of headphones.

Noise Level

Idle
30.7 / 30.8 / 30.8 dB(A)
Load
39.8 / 48.8 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R (15 cm distance)   environment noise: 24.7 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2038.44937.734.73838.938.42540.241.238.741.441.342.140.23143.640.940.437.13840.143.64029.931.526.126.926.728.529.95035.5312931.331.533.835.56331.828.525.83024.52631.88022.822.517.627.716.718.922.810025.522.12021.719.921.625.512527.722.116.916.114.214.527.71602623.619.417.917.715.82620030.92521.522.421.413.630.925031.827.120.21918.513.831.831532.831.425.925.524.89.732.840033.430.719.219.718.29.333.450034.531171716.58.434.563039.33018.818.918.69.139.380040.230.721.521.2219.140.2100040.230.121.821.921.910.240.2125038.230.521.621.921.710.938.2160039.328.818.118.118.310.739.3200038.228.917.417.417.211.538.2250035.928.619.619.619.612.235.9315037.12717.617.617.41337.1400034.821.715.415.415.813.534.8500031.922.215.715.615.91431.9630029.817.515.615.515.414.629.8800025.916.315.415.415.114.625.91000022.916.115.615.115.214.922.91250019.615.614.714.614.614.619.61600017.415.314.314.314.314.717.4SPL48.839.830.830.830.724.748.8N6.33.21.41.41.40.66.3median 32.8median 27median 18.1median 17.9median 17.7median 13.5median 32.8Delta6.15.12.42.62.61.96.1hearing rangehide median Fan NoiseMinisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Ryzen 7 8700G, Radeon RX 7600M XT
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Ryzen 7 8700G, Radeon RX 7600M XT
Minisforum AtomMan G7 Ti
i9-14900HX, NVIDIA GeForce RTX 4070 Laptop GPU
Minisforum G7 PT
R9 7945HX, Radeon RX 7600M XT
Asus ROG NUC 14-90AS0051
Ultra 9 185H, NVIDIA GeForce RTX 4070 Laptop GPU
Acemagic M2A
i9-12900H, GeForce RTX 3080 Laptop GPU
Noise
-14%
-9%
3%
13%
-3%
off / environment *
24.7
24.7
-0%
24.7
-0%
24.4
1%
24.9
-1%
24.3
2%
Idle Minimum *
30.7
35.9
-17%
34
-11%
29.3
5%
24.9
19%
32.7
-7%
Idle Average *
30.8
36.3
-18%
34.1
-11%
29.4
5%
24.9
19%
32.8
-6%
Idle Maximum *
30.8
36.3
-18%
34.1
-11%
29.4
5%
24.9
19%
33.1
-7%
Load Average *
39.8
41.6
-5%
48.6
-22%
43.5
-9%
37.9
5%
40.7
-2%
Cyberpunk 2077 ultra *
49.6
58.6
-18%
55.2
-11%
45.5
8%
38.3
23%
45.8
8%
Load Maximum *
48.8
58.6
-20%
48.3
1%
45
8%
44.2
9%
53.9
-10%
Witcher 3 ultra *
49.3

* ... smaller is better

Temperature

The metal case gets quite warm under load and distributes the waste heat quite well over its entire surface. The bottom heats up a little more than the top. However, we could not find any critical hotspots. The graphics chip itself reached 75 °C in the stress test, which isn't a significant improvement compared to the GPD G1. Under a continuous load of 120 watts, the AMD Radeon RX 7600M XT's full performance could be called up over a longer period of time without any problems.

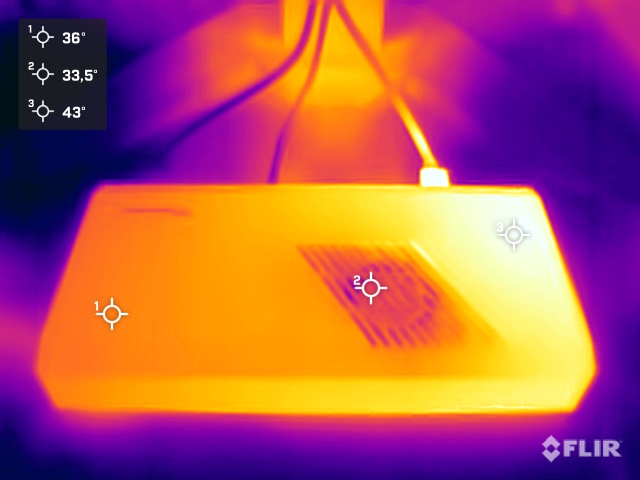

The Minisforum MAG1 during the stress test
The Minisforum MAG1 during the stress test
The Minisforum MAG1 during the stress test (top)
The Minisforum MAG1 during the stress test (top)

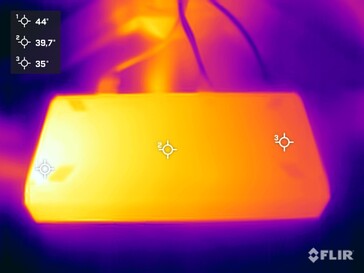

The Minisforum MAG1 during the stress test (bottom)
The Minisforum MAG1 during the stress test (bottom)
Max. Load
 35 °C
95 F
36.6 °C
98 F
39.7 °C
103 F

 35.1 °C
95 F
35.6 °C
96 F
39.4 °C
103 F

 34.4 °C
94 F
36 °C
97 F
39 °C
102 F

Maximum: 39.7 °C = 103 F
Average: 36.8 °C = 98 F
43 °C
109 F
41.2 °C
106 F
38.4 °C
101 F
43.7 °C
111 F
41.2 °C
106 F
37.4 °C
99 F
44.4 °C
112 F
40.4 °C
105 F
36.8 °C
98 F
Maximum: 44.4 °C = 112 F
Average: 40.7 °C = 105 F
Room Temperature 21.9 °C = 71 F | Fluke t3000FC (calibrated)
(±) The average temperature for the upper side under maximal load is 36.8 °C / 98 F, compared to the average of 31.8 °C / 89 F for the devices in the class .
(+) The maximum temperature on the upper side is 39.7 °C / 103 F, compared to the average of 36.7 °C / 98 F, ranging from 24.7 to 57 °C for the class .
(±) The bottom heats up to a maximum of 44.4 °C / 112 F, compared to the average of 38.3 °C / 101 F
(+) In idle usage, the average temperature for the upper side is 31.1 °C / 88 F, compared to the device average of 31.8 °C / 89 F.
(±) 3: The average temperature for the upper side is 36.2 °C / 97 F, compared to the average of 31.8 °C / 89 F for the class .
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 39 °C / 102.2 F.
(-) The average temperature of the palmrest area of similar devices was 29.5 °C / 85.1 F (-9.5 °C / -17.1 F).

Power management - The RX 7600M XT is not an energy guzzler

Minisforum allows the AMD Radeon RX 7600M XT the maximum permitted by AMD, namely 120 watts. There are no different VBIOS options from the manufacturer that have an influence on its power consumption. In idle mode, the Minisforum MS-A1 and the Minisforum MGA1 are content with just over 20 watts. Under average load, the energy requirement climbs to around 102 watts, although it can reach up to 241 watts at peak load. The power requirement here refers not only to the eGPU alone, but also includes the mini PC itself.

The eGPU's power supply consists of an internally installed power supply unit. This provides up to 240 watts and devices at up to 65 watts can also be connected and operated via the USB-C port using the Power Delivery function.

Power Consumption
Off / Standbydarklight 1.75 / 2.1 Watt
Idledarkmidlight 21.2 / 21.9 / 22.7 Watt
Load midlight 102.2 / 241 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink)
Ryzen 7 8700G, Radeon RX 7600M XT
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink)
Ryzen 7 8700G, Radeon RX 7600M XT
Minisforum AtomMan G7 Ti
i9-14900HX, NVIDIA GeForce RTX 4070 Laptop GPU
Minisforum G7 PT
R9 7945HX, Radeon RX 7600M XT
Asus ROG NUC 14-90AS0051
Ultra 9 185H, NVIDIA GeForce RTX 4070 Laptop GPU
Acemagic M2A
i9-12900H, GeForce RTX 3080 Laptop GPU
Average AMD Radeon RX 7600M XT

Average of class

Power Consumption
-5%
-24%
-34%
16%
-18%
-8%
56%
Idle Minimum *
21.2
21.4
-1%
21
1%
23
-8%
10.6
50%
26.4
-25%
20.4 ?(15.9 - 23, n=4)
4%
Idle Average *
21.9
22.3
-2%
35.1
-60%
28.1
-28%
14.8
32%
30.4
-39%
Idle Maximum *
22.7
24.2
-7%
39.6
-74%
40.4
-78%
27.5
-21%
33.5
-48%
27.7 ?(22.7 - 40.4, n=4)
-22%
Load Average *
102.2
105.3
-3%
106.9
-5%
131.2
-28%
84.6
17%
112.6
-10%
112.6 ?(102.2 - 131.2, n=4)
-10%
Cyberpunk 2077 ultra external monitor *
206
222
-8%
217
-5%
282
-37%
171.4
17%
194.7
5%
Load Maximum *
241
260
-8%
249
-3%
296
-23%
244
-1%
215
11%
259 ?(240 - 296, n=4)
-7%

* ... smaller is better

Power consumption with external monitor

0153045607590105120135150165180195210225240255Tooltip
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) Ryzen 7 8700G, Radeon RX 7600M XT; Idle 1min (external Monitor): Ø21.2 (20.7-22.7)
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink) Ryzen 7 8700G, Radeon RX 7600M XT; Idle 1min (external Monitor): Ø21.3 (19.4-24.2)
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) Ryzen 7 8700G, Radeon RX 7600M XT; 1280x720 Prime95 28.10 and Furmark 1.25: Ø240 (235-241)
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink) Ryzen 7 8700G, Radeon RX 7600M XT; 1280x720 Prime95 28.10 and Furmark 1.25: Ø257 (255-260)
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) Ryzen 7 8700G, Radeon RX 7600M XT; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø206 (203-209)
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink) Ryzen 7 8700G, Radeon RX 7600M XT; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø222 (218-226)
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) Ryzen 7 8700G, Radeon RX 7600M XT; 3DMark06 Return To Proxycon: Ø102.3 (95.1-118.6)
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink) Ryzen 7 8700G, Radeon RX 7600M XT; 3DMark06 Return To Proxycon: Ø105.4 (98.6-125.7)

Power consumption with external monitor

0153045607590105120135150165180195210Tooltip
Minisforum MS-A1 (MGA1 Radeon RX 7600M XT @OCuLink) Ryzen 7 8700G, Radeon RX 7600M XT: Ø170.8 (168.9-191.7)
Minisforum MS-A1 (GPD G1 Radeon RX 7600M XT @OCuLink) Ryzen 7 8700G, Radeon RX 7600M XT: Ø187.8 (182.7-212)

Notebookcheck total rating

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Read all 3 comments / answer
static version load dynamic
Loading comments
Comment on this article
Please share our article, every link counts!
Mail Logo
> Expert Reviews and News on Laptops, Smartphones and Tech Innovations > Reviews > Minisforum MGA1 review: The external graphics card that transforms mini PCs, handhelds and laptops into gaming machines
Sebastian Bade, 2024-12-17 (Update: 2024-12-17)
